COMBINE HARVESTER AW70V, VNQ, AW82V, VNQ. Manual - part 16

Maintenance after operation



65




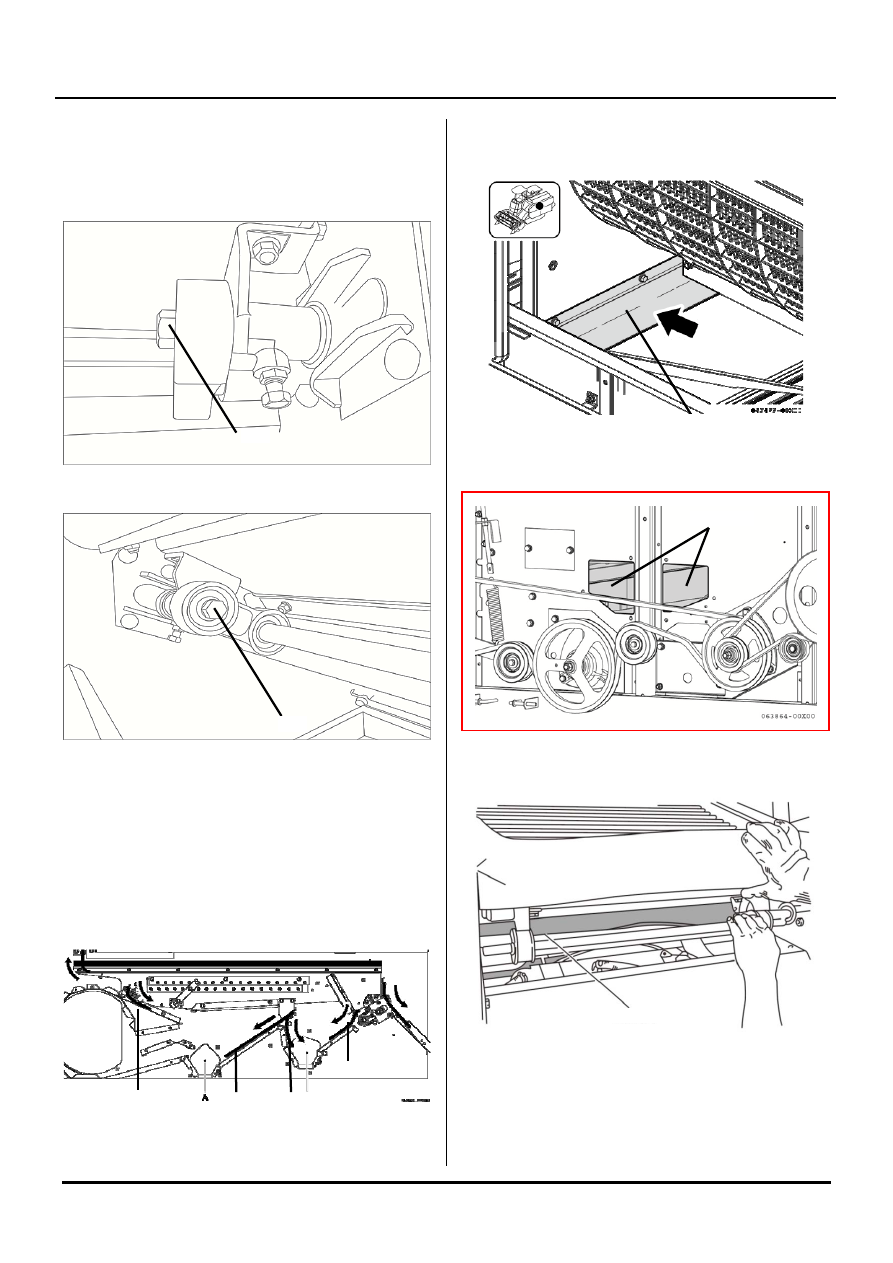

3- Remove the two bolts on the left and right sides of

the rear end of vibrating screen.










4- Draw out the swing separator rearwards.

[Note]
Seals (rubber gaskets) should be mounted as
shown below when assembly of the swing
separator.









1- Mount the front seal on the front of swing separator.





2- Mount the 1st seal and 2nd front seal after the

cleanout is opened.






3- Mount the 2nd rear seal on the rear end of swing

separator.



[Precaution]
Loss may be caused if the seals are not mounted
as shown above.

Bolt

Bolt



Fan seal



Front seal



1st seal



2nd front seal

2nd rear seal



Front seal



Cleanout

2nd rear seal



Maintenance after operation



66





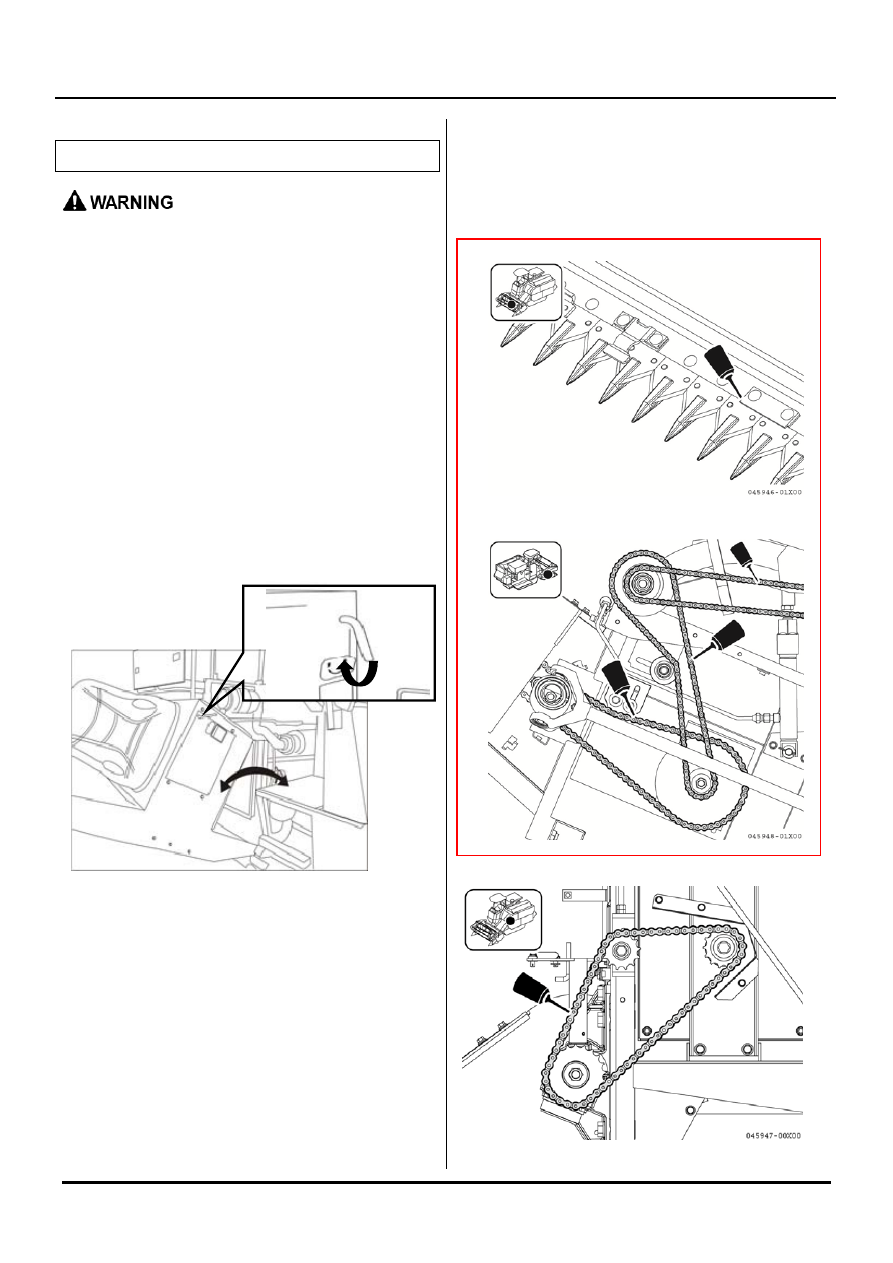

Opening the engine room cover







The engine room cover must be fixed with
lever during operation, or accident may
occur.


[Precaution]
When opening the engine room cover, be sure to
hold the support arm till it is completely open. The
engine may deform if you let it go in the course of
opening.


Pull the lock lever of engine compartment toward the
direction of release, and hold the support arm to open
the compartment.

When closing, the engine room cover will be locked
automatically. Check whether it is locked.












































3. Oiling of each part




Add oil to the drive chains of cutters and reaping
section.














Open



Maintenance after operation



67



















Be sure to turn off the engine and lock the
brake pedal before oiling of rotating parts.
Otherwise, you may be injured.





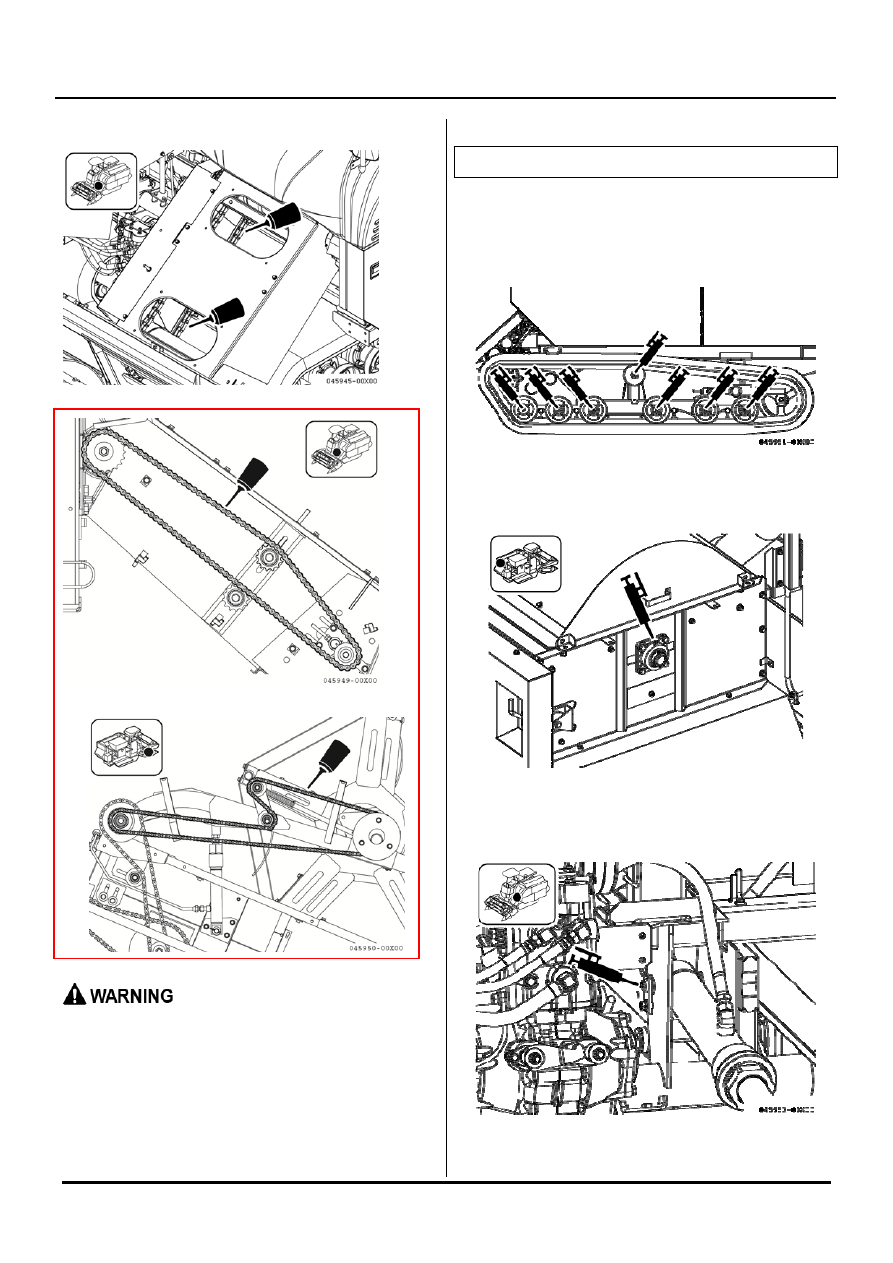

Greasing



Add grease to the following positions after cleaning.

(Every 30-50 hours)



1. Traveling section







2. Rear bearing rotor







3. Oil cylinder pin of header







Maintenance after operation



68





4. Cleaning of each part







  Be sure to turn off the engine and lock

the brake pedal before cleaning and
removing obstacles.



  Your hand may be nipped by moving

parts or cutters and other injuries may
be caused if you perform maintenance
while the engine is running.



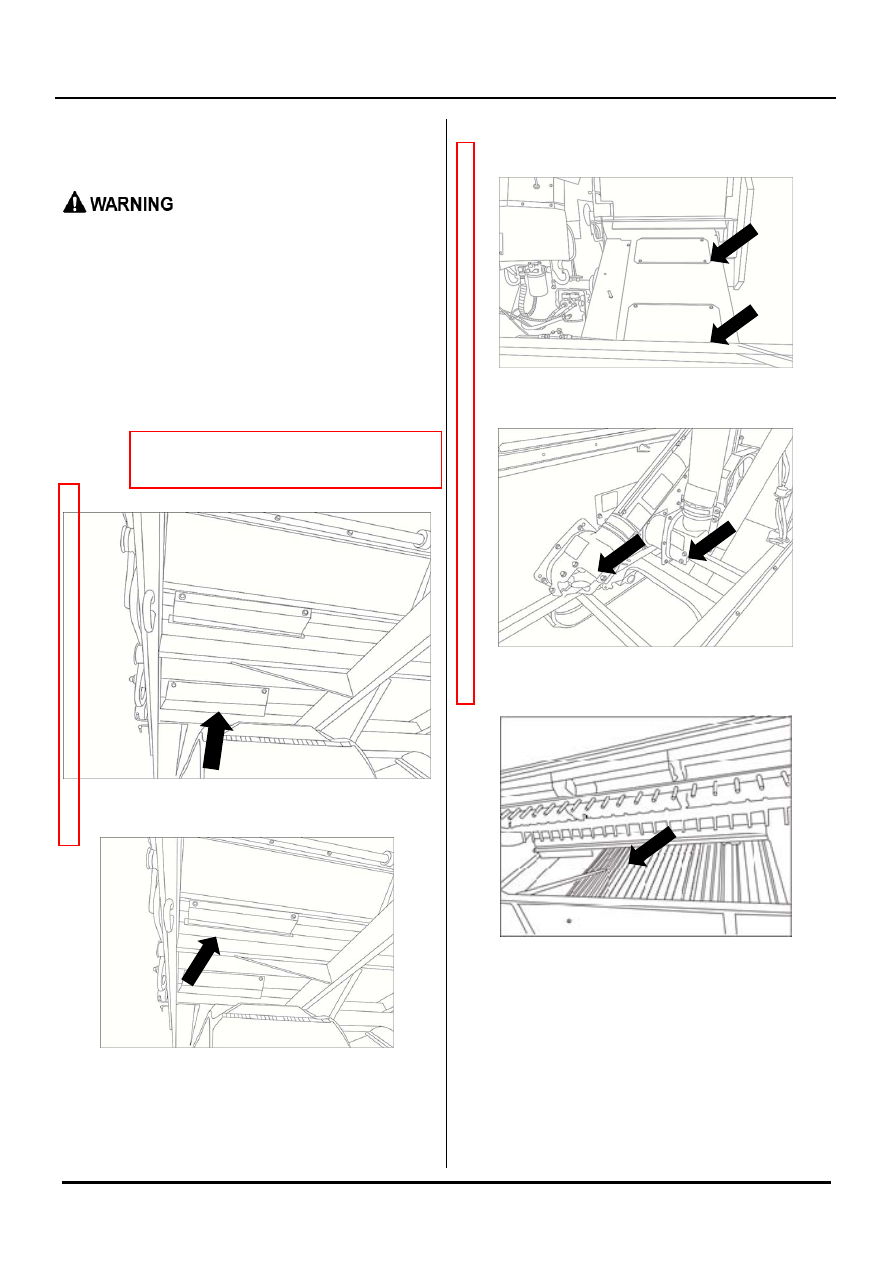

Open all cleanouts and clean inside to prevent different
varieties.


1. Cleanout of 1st conveyer





2. Cleanout of 2nd conveyer











3. Feeder house




4. Connection between 1st and 2nd conveyers




5. Swing separator (open the threshing section)
