COMBINE HARVESTER AW70V, VNQ, AW82V, VNQ. Manual - part 17

Maintenance after operation



69





6. Exhaust muffler









































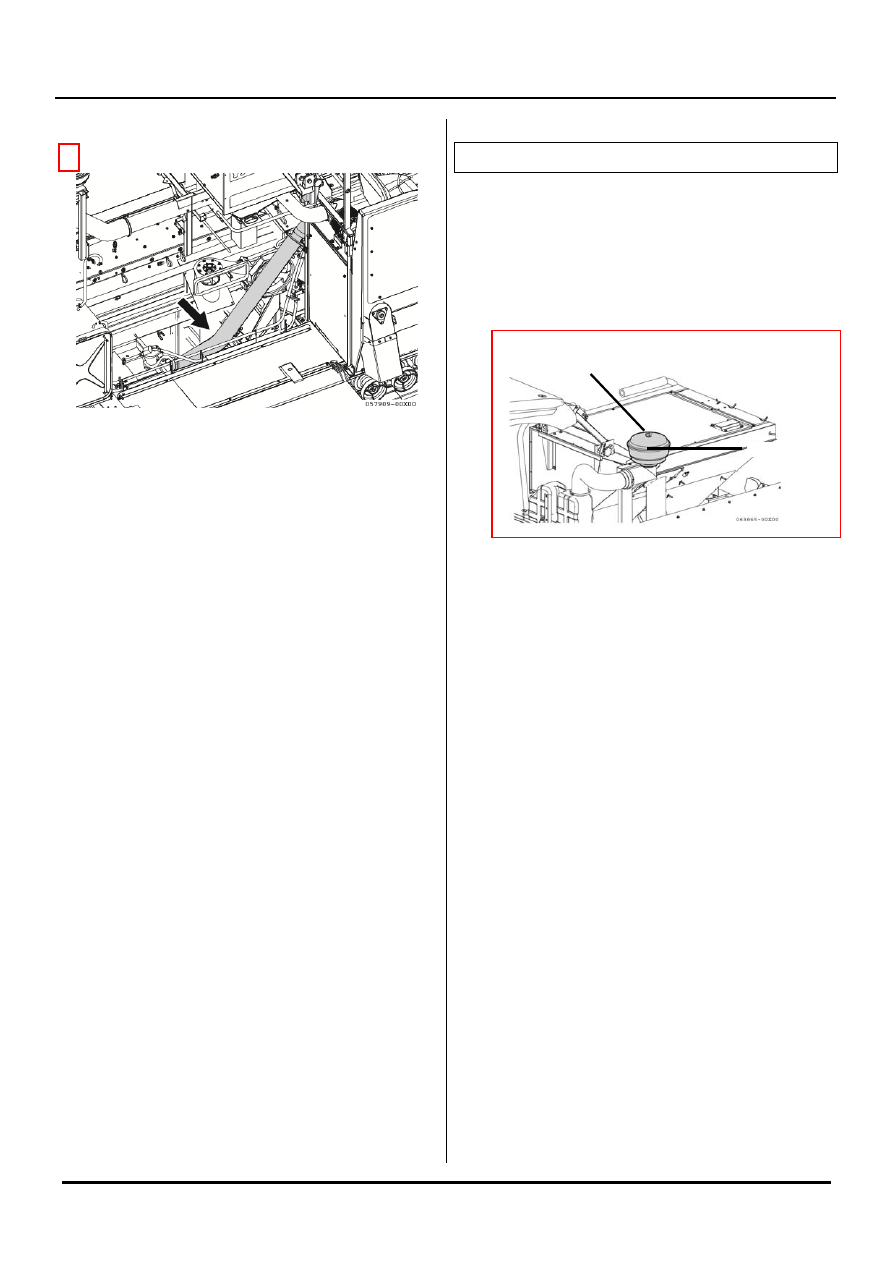

Cleaning the front air filter



Dust may accumulate in the pre-cleaner during
operation. Clean it on a daily basis.
<Cleaning>
Remove the wing nut on top of the pre-cleaner to
remove dust inside.


  The pre-cleaner front can not collect all dust.

Clean the air filter while cleaning the pre-cleaner.






[Precaution]





Stop operation and use waterproof cloth to
cover the machine in case of rain during
operation. Pay special attention to the
pre-cleaner to prevent rain.
Pay full attention to prevent air filter from being
caught in the rain in the event that it rains
during transportation.





In case of damage to air filter or inlet pipe,
replace it with a new one. Otherwise, water
may enter and cause engine failure.

Pre-cleaner

Wing nut

Maintenance after operation



70





5. Long-time storage





Store the machine as instructed below if it is not to be
used for a long time.
1- Store the machine in a dry and well-ventilated place

protected against rain, and add wood planks under
the crawler.

2- Put all control levers to “OFF”.
3- Close the assist grain deck.
4- Lower the header to the floor.
5- Fill the fuel tank. There will be water drops and the

tank may be rusted if it is left empty.

6- Coat anti-rust oil, engine oil or grease on external

surfaces subject to rust.

7- Fully charge the battery. Try to remove it from the

machine and store in a cool and well-ventilated place.
The cathode should be detached before the battery
is mounted on the machine.





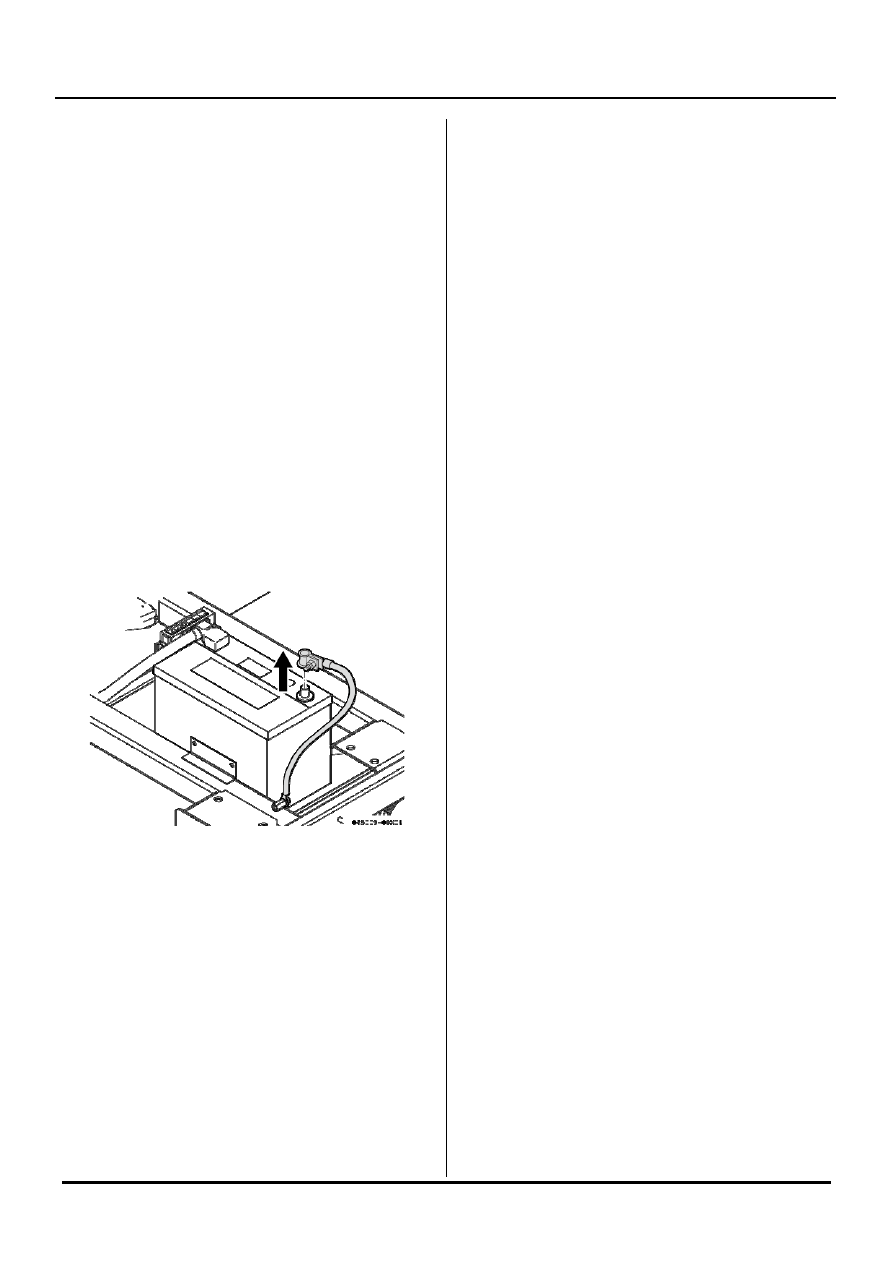

Remove wire harness from the cathode (-) terminal





[Precaution]
The battery is subject to natural discharging even if
it is not used. Charge it on a monthly basis.















If the machine is not to be used for a long time, it should
be arranged with periodic inspection and maintenance
according to the guidelines for inspection and
maintenance, so as to ensure it is under the optimal
operating condition when used at the next time.

[Precaution]





In case of residual grains and straws in the
parts, rats may nest there and bite the
electrical wires, and thus future operation be
affected. Clean them thoroughly.





Take out the key and keep it properly.















(--)



Periodic Inspection



71




Maintenance of YANMAR Combine
harvester



Due to rotating and vibration of the machine, wear of
parts and changes in load and operating environment
during operation or transportation, its technical
conditions may be worsened, efficiency be reduced,
parts be damaged, or serious accidents be caused. To
prevent the accidents, the machine should be correctly
operated to extend its service life, all parts be checked
and cleaned, bolts be tightened and adjusted, or parts
be replaced when necessary. This is the so-called
maintenance.

<Content of daily maintenance>
1- Check and clean the air filter elements, the screen of

oil cooler & radiator and engine dust protector.



2- Check the amount of engine oil, radiator & sub water

tanks for leakage.


3- Clean the parts required to be cleaned (cleanouts of

1st and 2nd conveyers).


4- Remove straw stuck in and between the drive shaft

and driven shaft of chains, as well as chaff attached
on drive belts.


5- Lubricate all chains, remove mud and chaff on

cutters, check any damage in the chains and cutters,
and add lubricant in the gap between upper and
lower cutter blades. (Lubricate the chains and
cutters every 2 hours during operation)


6- Check whether the tension spring of chains is

loosened.


7- Remove chaff on the concave screen and swing

separator of the threshing section. In particular,
check the degree of wear on the concave screen
(high moisture content of crops), and replace it when
necessary.


8- Check the threshing tooth, mount reversely or

replace them if necessary.


9- Check the crawler tension, and tighten it if necessary.

Be sure to remove the mud, grass or straw
on/between the sprocket, rollers, crawler guide,
frame and transmission. Otherwise, the crawler may


hardly move, its power is reduced, and the
sprocket and crawler be subject to early wear.


10- Fill the fuel tank.


11- Check whether the engine and other parts are

under normal conditions.


12- Check whether the bolts and nuts are loosened.

[Precaution]





Protect electrical parts, the swing separator
and belts from water, or failures may be
caused.





Fuel without dirt is supplied.





●

Check whether the engine is shut
down, control levers are in the “OFF”
position, and wait till are moving parts
are completely stopped before
inspection, maintenance and
adjustment. Otherwise, you may be
injured.

●

Be sure to fix the safety lock of header
section before raising it for inspection,
maintenance and adjustment.
Otherwise, the header may fall down
quickly and cause injuries. Refer P37.

●

Full ventilation should be provided
during inspection indoors. Otherwise,
you may be poisoned by exhaust gas
from the engine.

●

When multiple maintenance
operations, take out the key from the
switch to ensure safety.




It is recommended that periodic inspection and
maintenance be performed in the slack season to
ensure full mechanical performance, safe and
comfortable operation in the busy season. Therefore,
safety of all parts should be ensured during inspection
and maintenance. In particular, the radiator of fuel
channel and other rubber tubing should be replaced
every 2 years, and the electrical wiring be checked on a
yearly basis, so as to maintain the machine under the
optimal working condition.


Periodic Inspection



72





1. Schedule for refueling, oiling and water supply





[IMPORTANT]

When changing or adding oil, after filling a predetermined amount of oil and running the engine for a few
minutes, check that the oil is within the range of oil gauge again.
If it is exceeding the oil gauge, either add or release oil


[Precaution]





Replace oil while periodic inspection. (Use the designated oil)





Never drain the waste oil directly into a river or sewer, but employ a professional agent for treatment.





ALWAYS BE ENVIRONMENTALLY RESPONSIBLE

●

Follow the guidelines of the governmental agency for the proper disposal of
hazardous materials such as engine oil, diesel fuel, engine coolant and, machine
fluid, grease.

●

NEVER dispose of hazardous materials irresponsibly by dumping them into a sewer,
on the ground, or into groundwater or waterways.

●

Failure to follow these procedures may seriously harm the environment.

●

Comply with legal regulations and guidelines for disposal of: empty containers for
fuel, cooling water (coolant), oil, grease; fuel/oil filters; batteries; machine itself;
machine accessories; and packaging materials.



Item Capacity

Type

Interval

Fuel

80L

Diesel fuel

Before and after operation

Cooling

water

Main water tank

7.2L

Pure water, anti-freezing liquid

Or long life coolant

Every year

Aux. water tank

1.1L

Engine oil

10.2L

Engine oil 15W-40 CD

First time: 50 hours
2nd time : 200 hours
After    : every 200 hours

Transmission oil

8.5L

TF300 transmission oil

(*TF500 recommended)

First time: 50 hours
2nd time : 400 hours

After : every 400 hours

Rotor drive case

1.4L

90# gear oil

First time: 50 hours
2nd time : 400 hours

After : every 400 hours

Hydraulic oil tank

(about 3L in the pipe)

17L

Wear-resistant hydraulic oil

VG46 or VG56

Every 400 hours
