COMBINE HARVESTER AW70V, VNQ, AW82V, VNQ. Manual - part 20





Periodic Inspection



81




Hydrometer
color

State of
charge

Disposal

Green Normal

Usable

Black

Discharged

To be recharged

Transparent
(No color)

Little
electrolyte

Service life expired; unable
to start up the engine;
battery to be replaced







  Do not start up the engine after

recharging of the battery if the
hydrometer is “transparent”. Spark
may be generated in the battery,
igniting gas inside and causing
damages to the battery when the
engine is started.


  Wear safety goggles and rubber gloves

when checking the battery.

  No children or any other persons who

do not understand the operating
method and dangers are allowed to
check the battery.


  Do not block air vents of the battery.

Otherwise, gas inside the battery may
increase the internal pressure and
cause damages.




[Precaution]



Disconnect the cathode ((-) terminal) when
removing electrical wires from the battery.




Be sure to use the specified battery for
replacement.




Tighten the electrodes holding bolt of battery.


















Recharging

The battery should be recharged when the ambient
temperature is low in cold areas, it is hard to start up
the engine or the indicator lights out.
The battery should be recharged if the engine is not
started up for over 2 weeks.

<Method of recharging
Remove the battery from the machine for recharging.

<Method of direct recharging
Connect the anode ((+) terminal) of the battery with
anode ((+) terminal) of the charger, and the cathode ((-)
terminal) of the battery with cathode ((-) terminal) of the
charger for recharging at 7 Ampere for 8-10 hours.


[Precaution]
For consideration of environmental protection, the
battery replaced should not be discarded at
random, but be handed over to a professional
agent for treatment.




12. Checking the piping system







  Fire hazard may be caused by fuel

leakage due to aging and damages of
fuel pipes. Check the piping system
before and after operation, and replace
in case of leakage.


  Do not forget to check the drain pipe of

the engine oil. Otherwise, fire hazard
may be caused in case of damage.


  Check the metal fasteners during oil

and water leakage inspection.





















Periodic Inspection



82





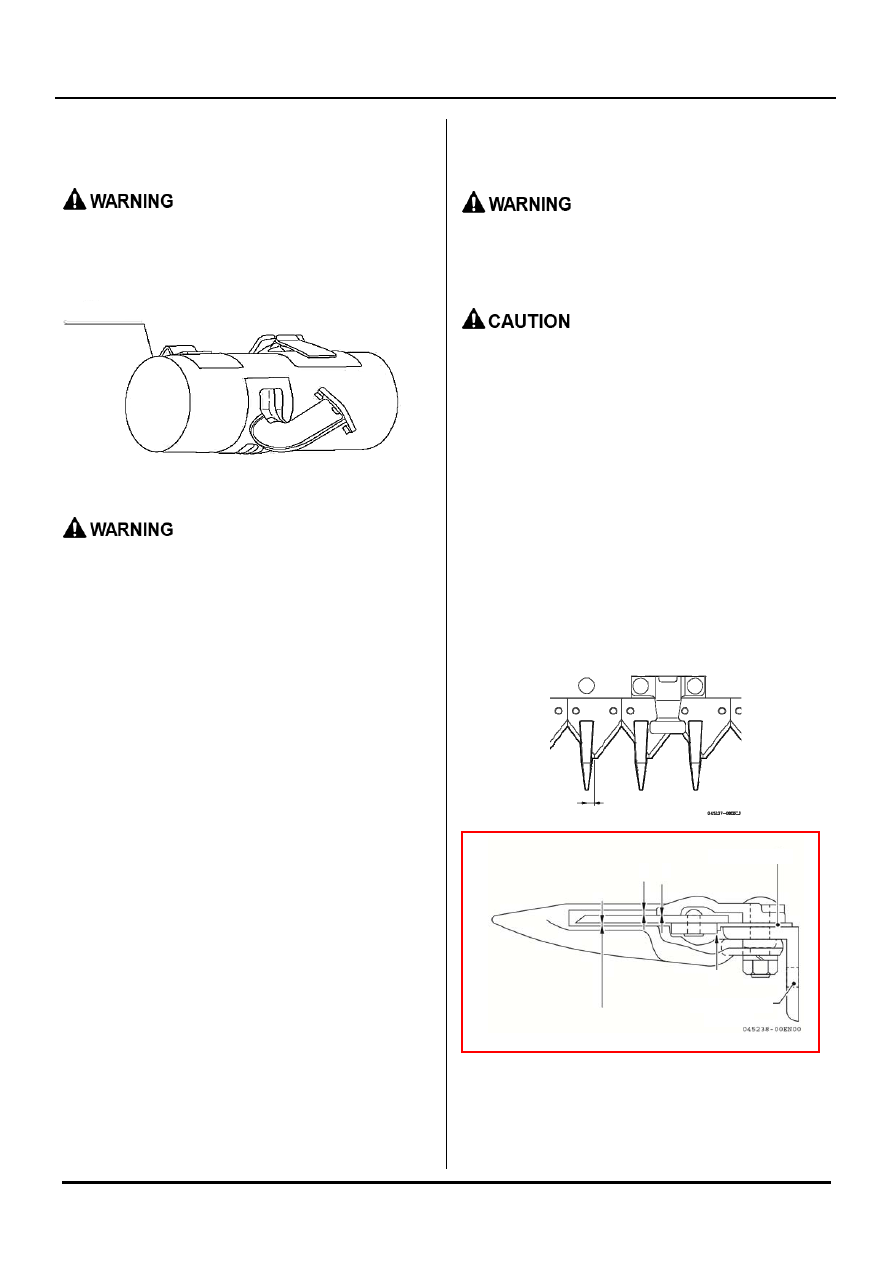

13. Checking the muffler







The muffler is designed with small holes
that may give out sparks and cause fire.
Check the muffler every 200 hours.



14. Checking the electrical wiring







●

Remove the chaff and dust on the
battery and wiring before and after
operation to prevent fire.


●

Check whether the electrical wire is in
contact with other parts, the coating
has peeled off or the connections are
loose, and repair in case of damage































15. Maintaining and adjusting the

cutter blades





Be sure to fix the safety lock of the header.
Otherwise, it may fall down rapidly and
cause injuries.




Do not touch the cutter blades during
maintenance or replacement to avoid
injury.
Adjust the gap between cutter blades if the
crops could not be cut off.


<Adjusting>
1- Raise the header to the highest position and fix it.
2- Adjust the upper and lower gaps between backing

edge and cutter blades by slightly hammering the
front end of shims or adding gasket to the loosened
nuts.

3- Adjust the front and rear gaps between blades by

loosening the fixing nuts and moving the friction plate
forward or backward.













Muffler

A

C

Cutter blade

support

Friction plate

Periodic Inspection



83




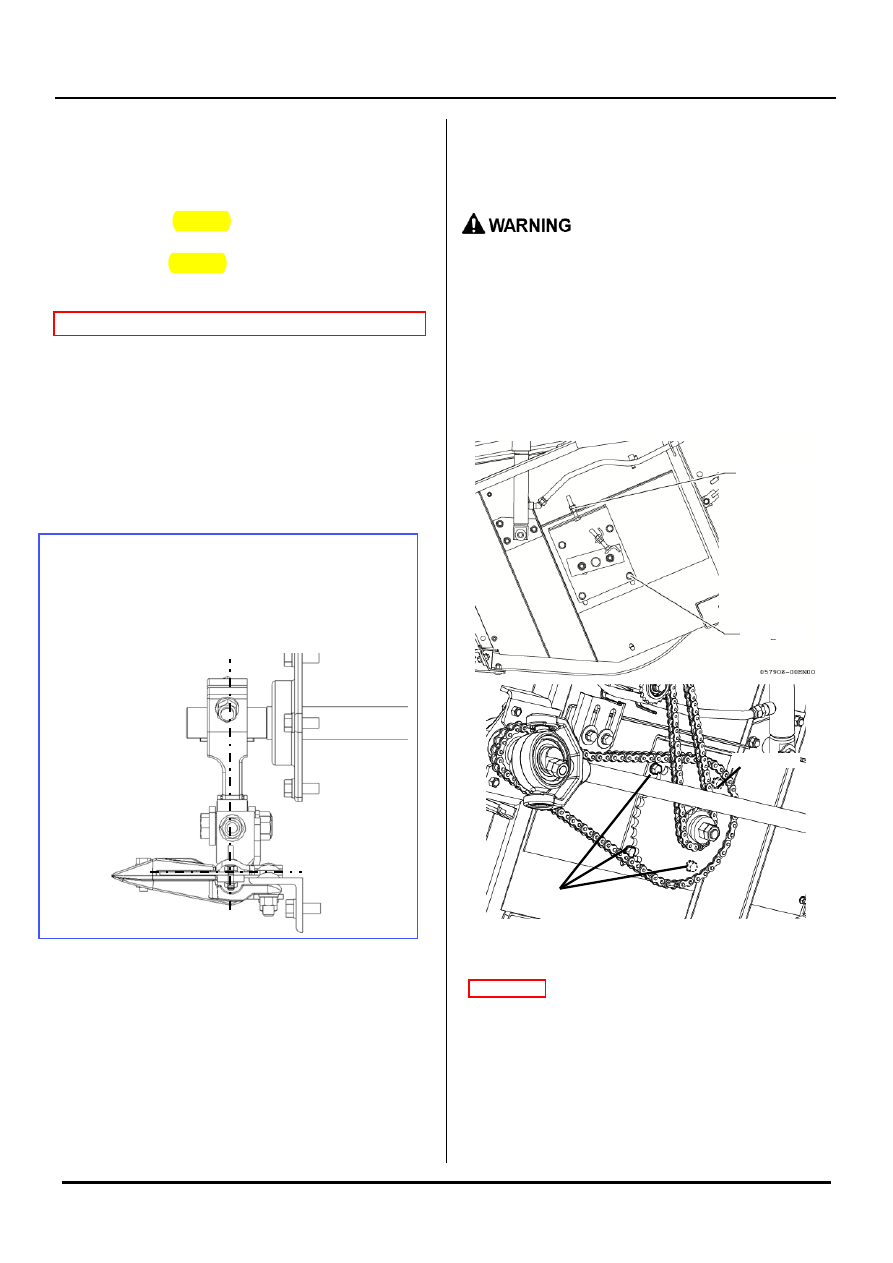

Deviation between cutter blade and backing edge at
the end of stroke A (0-3mm)
Max. gap between the upper side of cutter blade and
backing edge B (1.7mm)
Max. gap between the lower side of cutter blade and
backing edge C (0.5mm)
Max. gap between the front and rear ends of cutter
blade D (0.79mm)
If the gap is too large, adjust with a shim (accessory).

[Precaution]



Do not screw the adjusting bolt M8 too tight.



Remove chaff, mud and oil on cutter blades
after daily operation.




Raise the reel to the highest position when
adjusting cutter blades.




In the fixed part of the backing edge, there
might be spacers for the gap adjustment.



<Checking>
The cutting blade is installed perpendicularly to the
cutting blade drive (the knife head and the drive are
positioned in parallel.)
















16. Adjusting the gap between

platform auger and base plate







Be careful that both the cutter blades and
reel will move when you rotate the platform
auger with hand.



<Adjusting>
1- Raise the reel to the highest position.
2- Loosen the 8 fixing bolts on both ends of the auger.
3- Use the adjusting bolt to set the auger to a proper

height.







4- Adjust the gap between the auger and base plate to

9±1mm.

5- Tighten the fixing bolts on both ends of the auger.






Fixing bolt

Fixing bolt

Fixing bolt

Adjusting bolt

Periodic Inspection



84









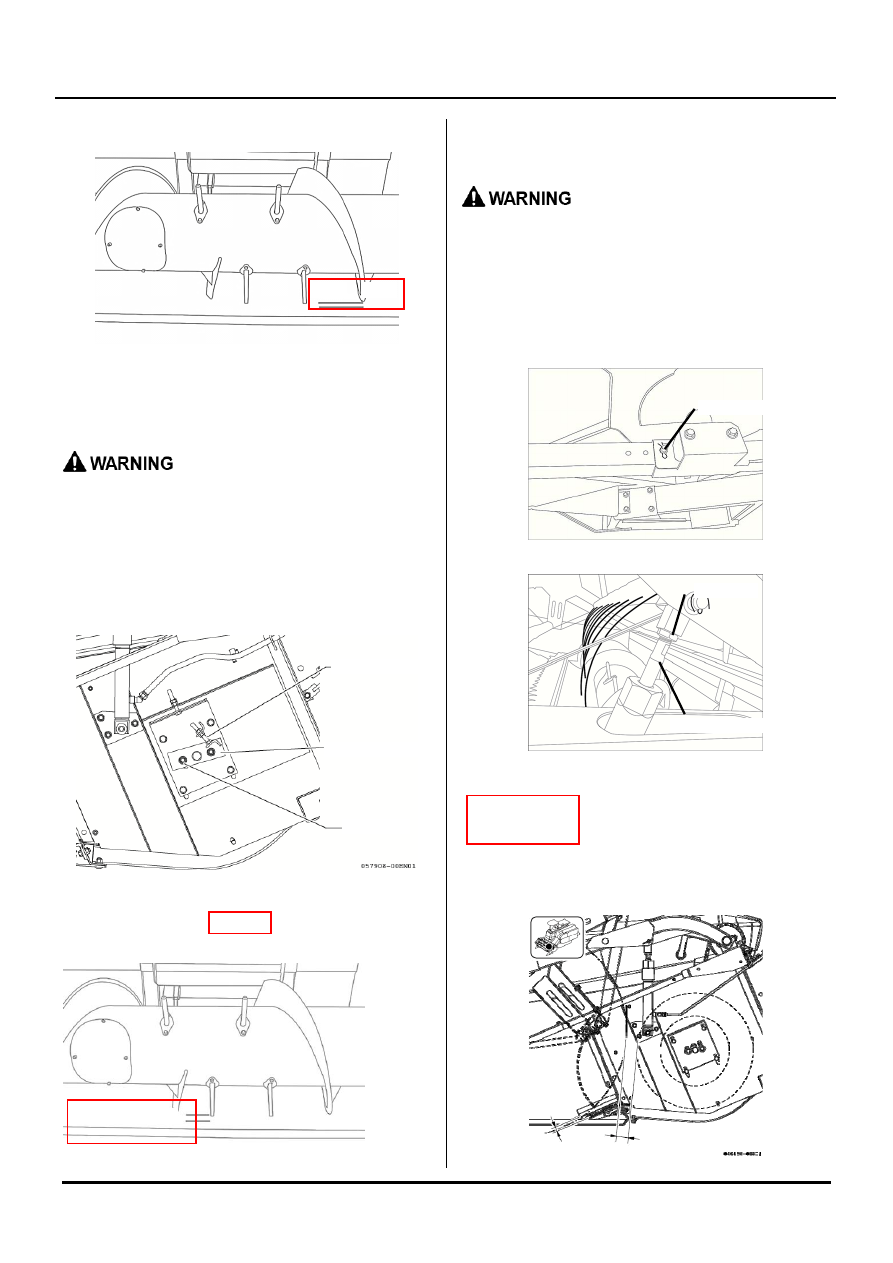

17. Adjusting the gap between

platform auger finger and base

plate







Be careful that both the cutter blades and
reel will move when you rotate the platform
auger with hand.



<Adjusting>
1- Rotate the header manually to make the central

finger of auger as close to the base plate of header
as possible.



2- Loosen the 2 fixing bolts of the adjusting plate.
3- Rotate the adjusting plate by turning the adjusting

bolt to get a gap of 5±1mm between the front end
of auger finger and the base plate.





18. Adjusting the position of reel







Be careful that both the cutter blades and
reel will move when you rotate the platform
auger with hand.


<Adjusting>
1- Set the reel on the lifting arm in the back-end

position.



2- Loosen the fixing nuts at the end of the lift cylinder.



3- Rotate the lift cylinder piston.
4- Set the gap between reel tine and cutter blade A at

30±5mm, and that between the platform auger B at
32.5±7.5mm.


[Note]
Rotate the reel in the direction of normal rotation
during adjusting.



Gap 9

±

1 mm

Gap 5

±

1

 mm

Fixing bolt

Adjusting bolt

Adjusting Plate

Last pin hole

Fixing nut

Lift cylinder piston

A
