COMBINE HARVESTER AW70V, VNQ, AW82V, VNQ. Manual - part 4

Safety Instructions



17







































































IMPORTANT



Turn off the engine before removing dust on the engine dust screen.
Turn off the engine, check the dust screen and radiator, and use soft brush to remove dust on the screen if
any. At the same time, the air filter and the filter in the front part should be cleaned.

[If not]
Overheating may be caused.

IMPORTANT



Add lubricant, diesel oil and other oils as specified to ensure normal operation of the machine.




[If not]
Failures may be caused.



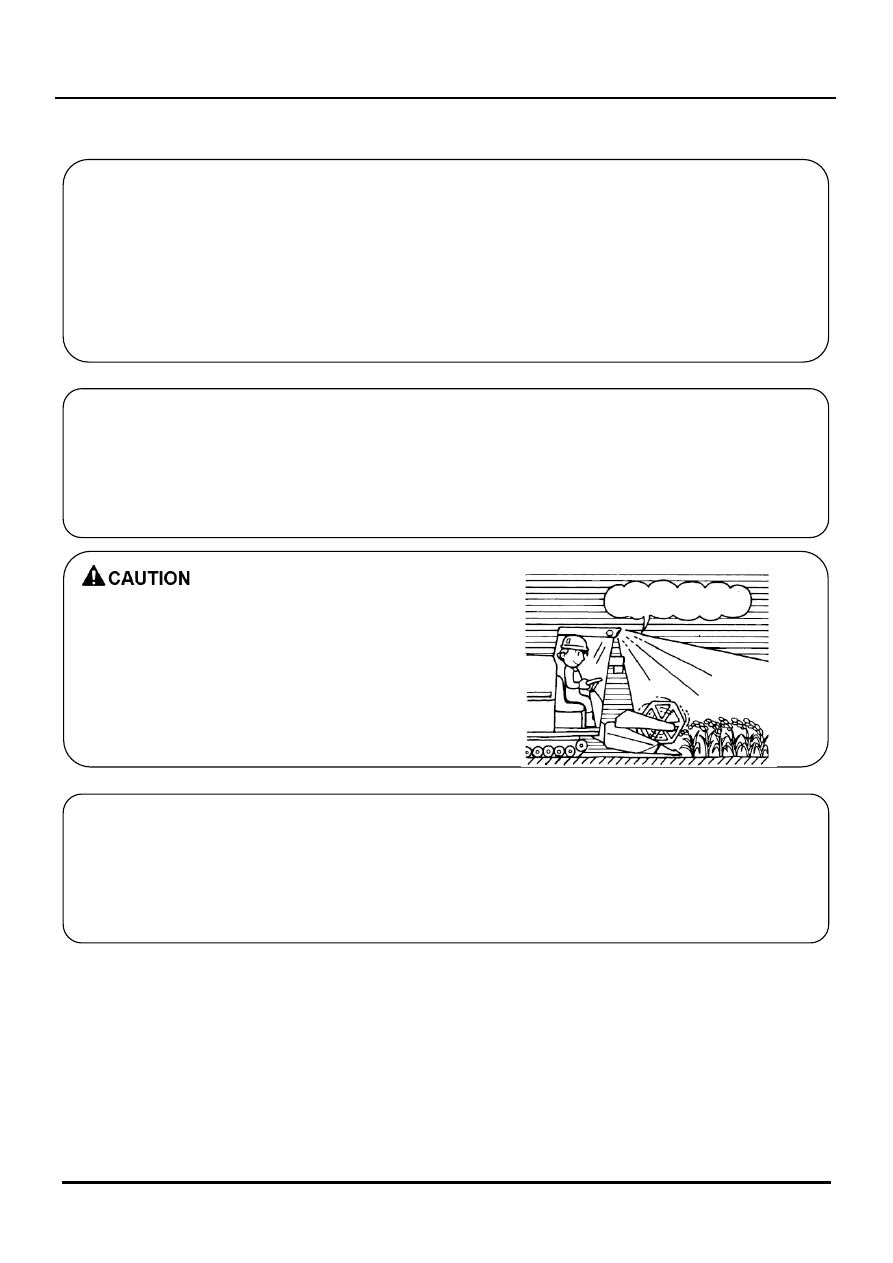

Use working lamp for night work
Use the working lamp during night work.

[If not]
Accident may be caused due to difficulty in grasping the
operating condition.

Use working lamp

for night work

IMPORTANT



Do not work in rainy or foggy days or when the crop water content is relatively high.




[If not]
Blockage, mechanical loss and failures may be caused by operation with high water content.

Safety Instructions



18





7. Precautions for maintenance and storage after operation



















































8. Precautions for checking and maintenance

























IMPORTANT



Perform inspection and maintenance after operation.



After completion of operation, clean the machine, perform inspection
and maintenance, and then check the tools. Do not leave the tools on the
machine to avoid damages.

[If not]
Accident may be caused due to poor maintenance.

Be inspection

and maintenance.

IMPORTANT



Store the machine on a level ground.



Store the machine on a level ground, lower down the harvesting section, and lock the brake pedal.

[If not]
The combine may move and cause accident.



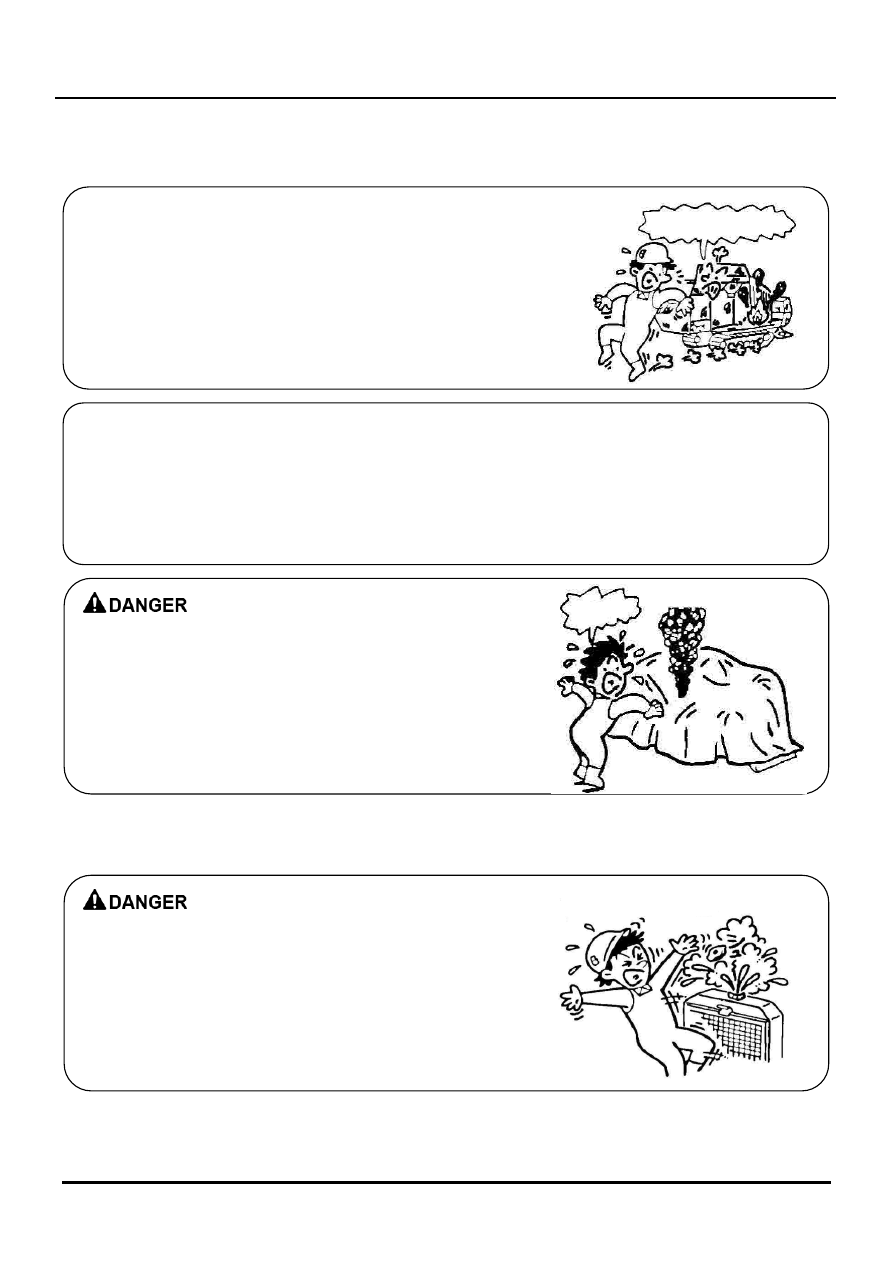

Do not put on the machine cover before it had been cooled down.



Let the engine cool down before storing the machine in an enclosure
or covering it with a sheet.

[If not]
Fire hazard may be caused.



Do not open the radiator cap before it had been cooled down.



Do not touch the muffler, radiator, engine or other high temperature
parts before they had been cooled down completely.

[If not]
Hot water may spurt and burn you.

It’s a fire!

Note the burn.

Safety Instructions



19







































































IMPORTANT



Load and unload the battery in the correct order.



Connect the anode firstly, and then connect the cathode when installing the battery.
Disconnect the cathode firstly, and then disconnect the anode when unloading the battery.

[If not]
Burning and fire may be caused due to short-circuit.

IMPORTANT



Use the designated battery only.
Be sure to use the battery of the capacity specified in the Operator’s Manual for
replacement when necessary.

[If not]
Burning and fire may be caused due to short-circuit.



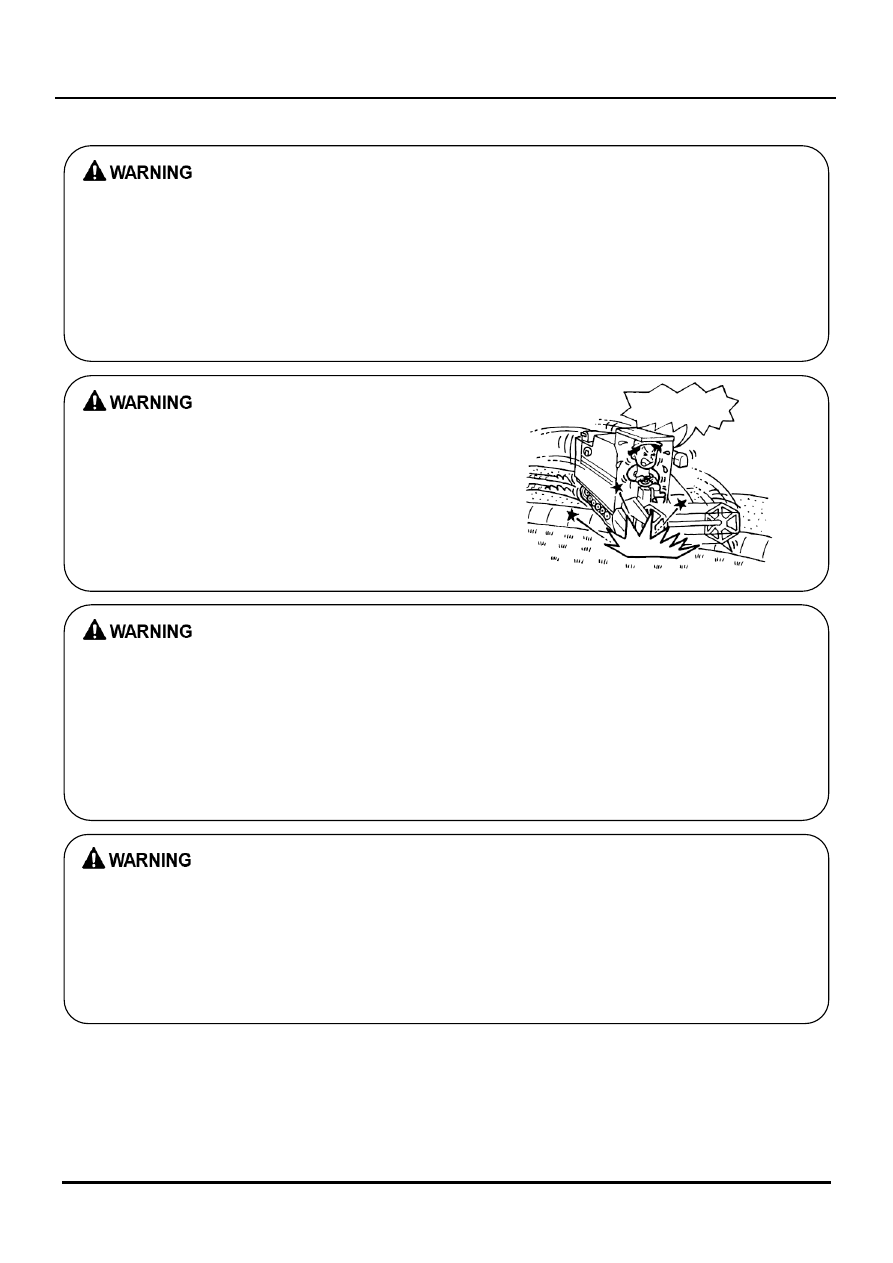

Be sure to turn off the engine and lock the brake pedal during checking and maintenance.



Turn off the engine, lock the brake pedal, and put non-skid device under
the pulley before checking and maintaining the machine on an even ground.

[If not]
The combine may move suddenly and cause accident.



Be sure to check and maintain the brake.
It will be very dangerous if the brake does not work.
Be sure to perform inspection and maintenance of the brake on a regular basis.

[If not]
Fatal or injury accident may be caused, and the machine may be damaged.

Safety Instructions



20











































































Be sure to check the control levers.



Check whether there is obvious loosening or deviation in the main shift lever and other control levers.

[If not]
The machine may not be driven normally and cause fatal and injury accidents or damages.



Adjust the brake properly.
Adjust the brake to the best condition, or order the maintenance
for your purchase place if it cannot be adjusted.

[If not]
Fatal or major injury accident may be caused.

Can’t stop it!



Do not touch the rotating shaft and parts



Do not touch the rotating shaft or parts while the engine is operating.
Confirm all parts have stopped rotating before maintenance.

[If not]
Major injury may be caused.



Do not touch the high-pressure leaking oil.




[If not]
Oil may penetrate into your skin and cause serious burning and other personal injuries.
