JCB 3CX, 4CX, 214e, 214, 215, 217 & VARIANTS Backhoe Loader. Service Manual - page 8





Section C
Electrics
Section C
153 - 6
Harness Data
153 - 6
Harness Drawing - Side Console, page 2 of 5 - CAD 721/10970 Issue 2
(Machines from serial no. 933757)
Key to Connectors:
CA
Main Frame Plug
CCA
Fusebox A
CCB
Fusebox B
CCC
Fusebox C
CD
Ignition 1
CE
Ignition 2
CF
Start Inhibit
CG
Buzzer
CH
Direction Indicator Relay
CJ
Front Work Light Relay
CK
Rear Work Light Relay
CL
Engine Run Relay
CM
Rear Horn
CN
Hydraulic Speed Control Relay
CP
Jaw Bucket Relay
CR
Cab Roof
CS
Headliner
CU
Ignition Switch (CU2)
DB
Heater Controls
DBA
Heater Jumper
DP
Work Light
DPA
Work Light link
DR1
Earth 1
DR2
Earth 2
DR3
Earth 3
DT
Diode Gate
DV1
Auxiliary Buzzer 1
DV2
Auxiliary Buzzer 2
DW
Park Brake
DZ
Air Conditioning Compressor Relay
9803/3280
Issue 1
Section C
Electrics
Section C
153 - 7
Harness Data
153 - 7
Harness Drawing - Side Console, page 3 of 5 - CAD 721/10970 Issue 2
(Machines from serial no. 933757)
Key to Connectors:
CB
Cab Link
CU
Ignition Switch (CU1)
CV
Instrument Panel
CW
Fuel Gauge
CWA
Fuel Gauge Illium
CX
Water Temperature Gauge
CXA
Water Temperature Illium
CY
Tachometer
CYA
Tachometer Illium A
CYB
Tachometer Illium B
CZ
Radio Cassette
DA
Radio Speaker
DC
Front Work Light Switch
DD
Beacon Switch
DE
Hydraulic Speed Control Switch
DF
Smooth Ride System Switch
DG
Shovel Reset
DH
Rear Work Light Switch
DJ
Rear Wash/Wipe Switch
DK
Auxiliary Hydraulic Switch
DL
Hydraclamp Switch
DM
Rear Wiper
DN
Work Light Diode
DS
Heater Unit
DX
Cigar Lighter
DY
Dallas Key
EA
Immobiliser
EAB
Immobiliser Link
EB
Exciter Diode
EBA
Exciter Link
9803/3280
Issue 1
Harness Drawing - Cab Roof (USA only)
page 1 of 2 - CAD 721/10966 Issue 1
721/10966_1
Harness Drawing - Cab Roof (USA only)
page 2 of 2 - CAD 721/10966 Issue 1
Key to Connectors:
C5
LH Worklight
C10
Beacon Socket
C15
LH Front Indicators
C20
RH Worklight
C25
LH Headlights
C30
RH Headlights
C35
RH Front Indicators
C40
Cab Horn
C47
Earth
C50
RH Rear Lights
C55
RH RR/Out Worklight
C60
RH RR/In Worklight
C65
LH RR/In Worklight
C70
LH RR/Out Worklight
C75
LH Rear Lights
C80
Auxiliary Beacon Socket
S5
FWL O
S15
FWL 1
S20
Beacon
S21
Dip
S22
HD.L
S23
Earth
S24
RH Indicators
S30
LH Indicators
S40
RWL O
S45
Brake
S55
RWL 1
S60
LH SL
S65
RH SL
721/10966_2

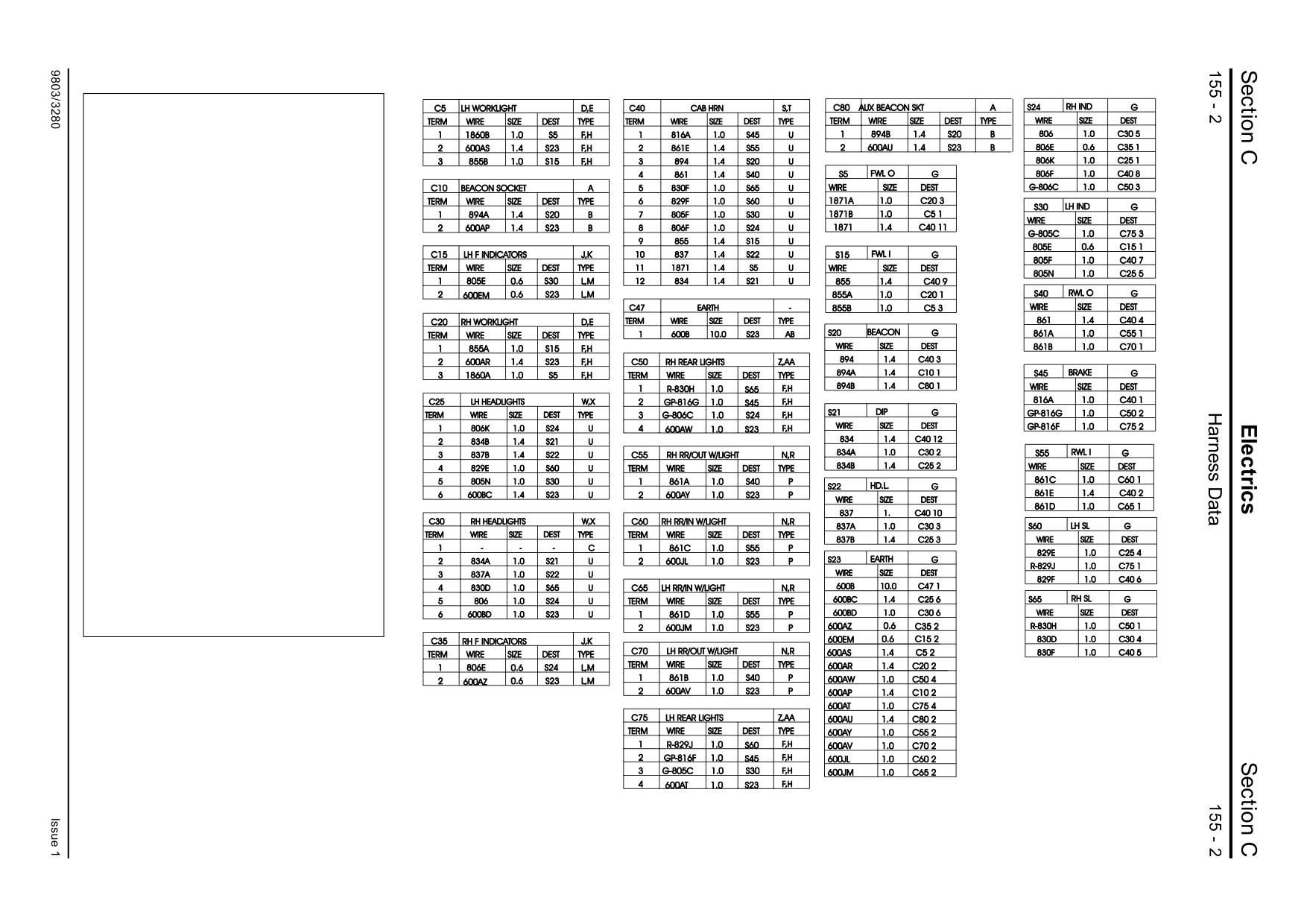

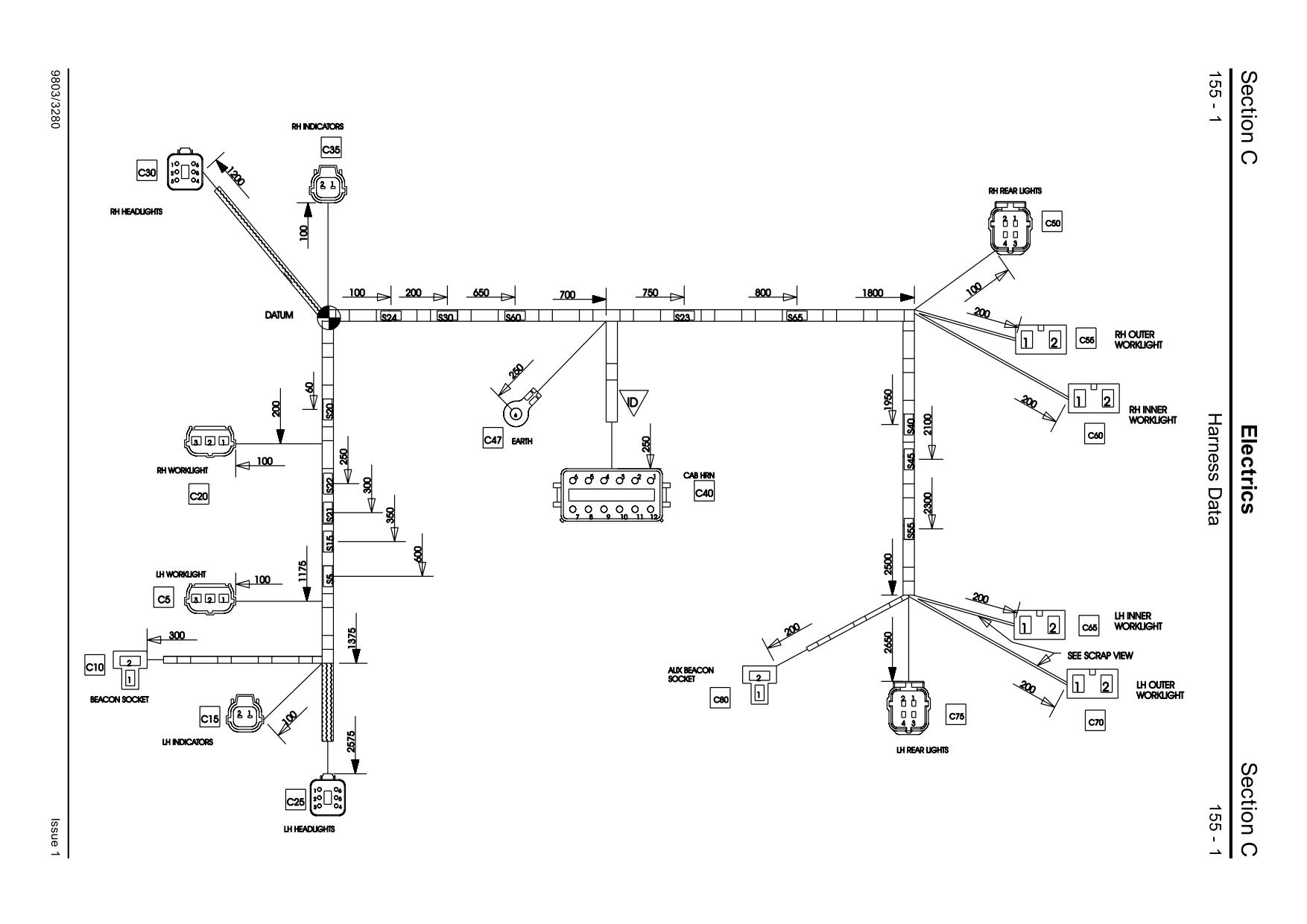

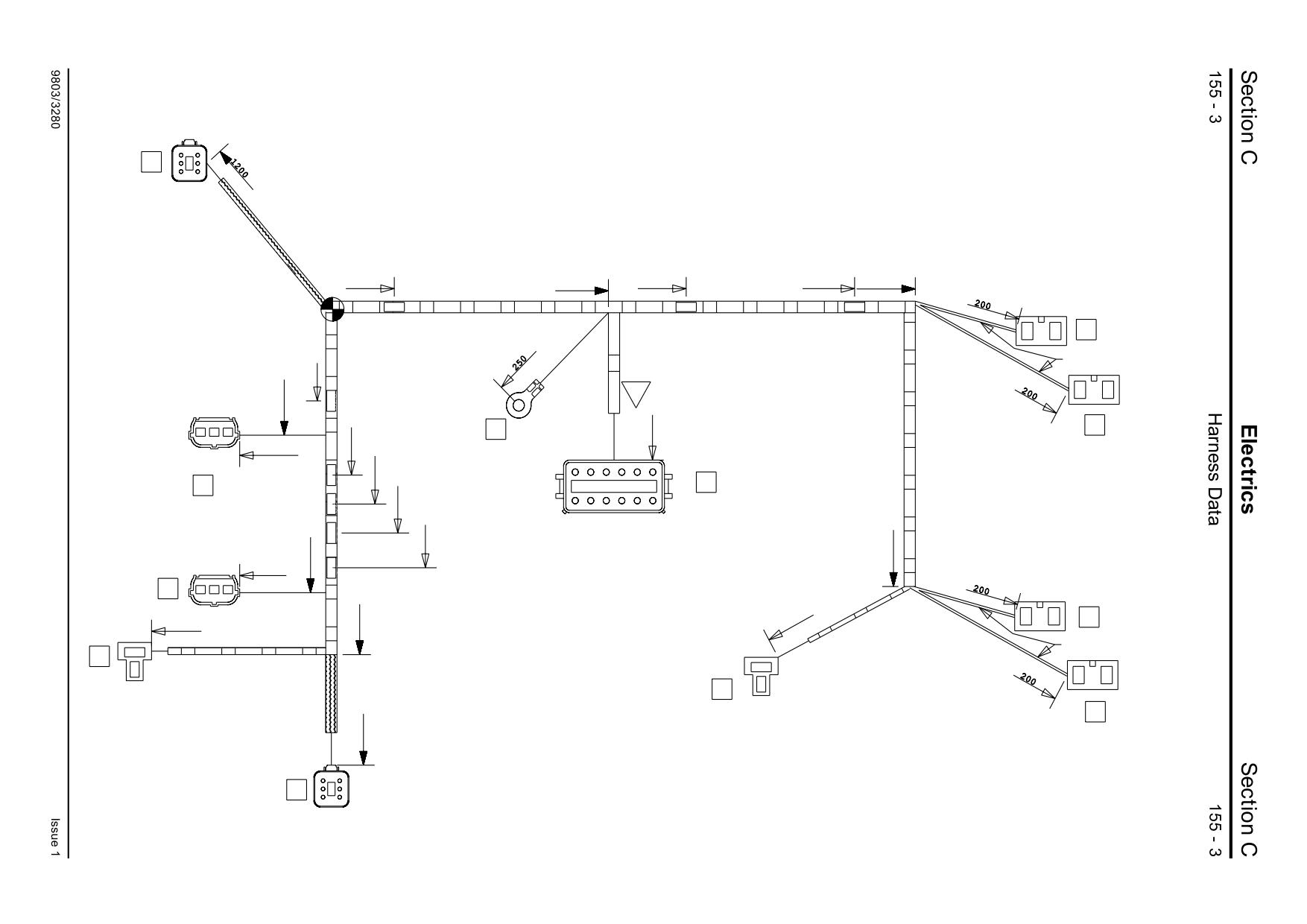

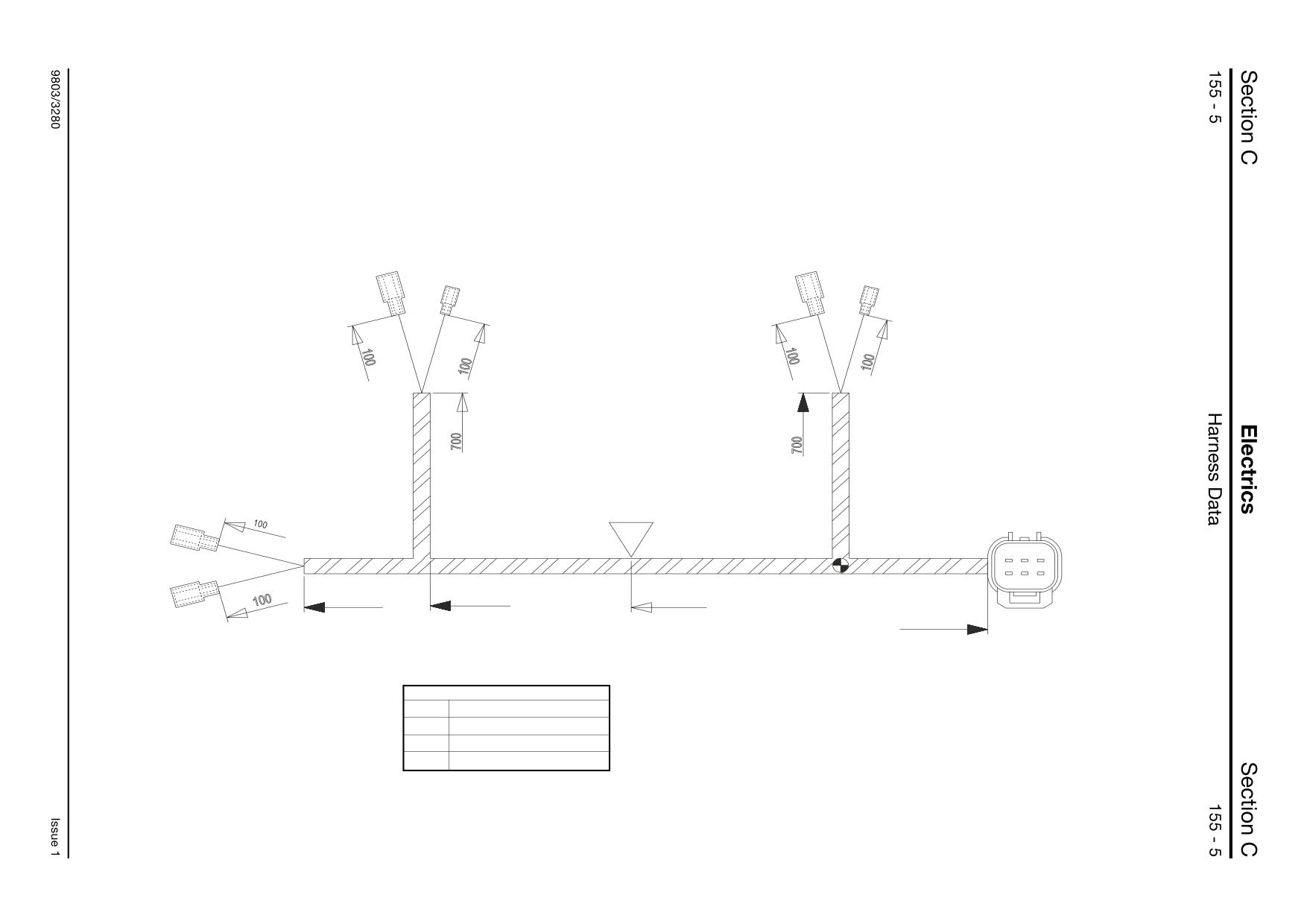

Harness Drawing - Cab Roof (not USA) page 1 of 2 - CAD 721/10965 Issue 1
1
6
C30
2
5
3
4
RH HEADLIGHTS
100
700
750
1600
1800
DATUM
S24
S23
S40
RH OUTER
C55
1
2
WORKLIGHT
SEE SCRAP VIEW
ID
1
2
6
RH INNER
WORKLIGHT
C60
3
2
1
C47
EARTH
100
RH WORKLIGHT
6
5
4
3
2
1
CAB HRN
C20
C40
7
8
9
10
11
12
LH WORKLIGHT
100
C5
3
2
1
LH INNER
1
2
C65
WORKLIGHT
300
SEE SCRAP VIEW
2
C10
AUX BEACON
1
SOCKET
2
1
2
LH OUTER
1
WORKLIGHT
BEACON SOCKET
C80
C70
721/10965_1
1
6
C25
2
5
3
4
LH HEADLIGHTS
Harness Drawing - Cab Roof (not USA) page 2 of 2 - CAD 721/10965 Issue 1
Key to Connectors:
C5
LH WORKLIGHT
D,E
C47
EARTH
-
S20
BEACON
G,V
TERM
WIRE
SIZE
DEST
TYPE
TERM
WIRE
SIZE
DEST
TYPE
WIRE
SIZE
DEST
C5
LH Worklight
1
1871B
1.0
S5
F,H
1
600B
10.0
S23
AB
894
1.4
C40 3
C10
Beacon Socket
2
600AS
1.4
S23
F,H
894A
1.4
C10 1
3
855B
1.0
S15
F,H
C55
RH RR/OUT W/LIGHT
N,R
894B
1.4
C80 1
C20
RH Worklight
TERM
WIRE
SIZE
DEST
TYPE
C25
LH Headlights
S21
DIP
G,V
C10
BEACON SOCKET
A
1
861A
1.0
S40
P
C30
RH Headlights
WIRE
SIZE
DEST
TERM
WIRE
SIZE
DEST
TYPE
2
600AY
1.0
S23
P
C40
Cab Horn
834
1.4
C40 12
1
894A
1.4
S20
B
C47
Earth
834A
1.0
C30 2
2
600AP
1.4
S23
B
C60
RH RR/IN W/LIGHT
N,R
834B
1.4
C25 2
C55
RH RR/Out Worklight
TERM
WIRE
SIZE
DEST
TYPE
C60
RH RR/In Worklight
C20
RH WORKLIGHT
D,E
1
861C
1.0
S40
P
S22
HD.L.
G,V
C65
LH RR/In Worklight
TERM
WIRE
SIZE
DEST
TYPE
2
600JL
1.0
S23
P
WIRE
SIZE
DEST
C70
LH RR/Out Worklight
1
855A
1.0
S15
F,H
837
1.4
C40 10
C80
Auxiliary Beacon Socket
2
600AR
1.4
S23
F,H
C65
LH RR/IN W/LIGHT
N,R
837A
1.0
C30 3
3
1871A
1.0
S5
F,H
TERM
WIRE
SIZE
DEST
TYPE
837B
1.4
C25 3
S5
FWL O
1
861D
1.0
S40
P
S15
FWL 1
S23
EARTH
G,Y
C25
LH HEADLIGHTS
W,X
2
600JM
1.0
S23
P
S20
Beacon
WIRE
SIZE
DEST
TERM
WIRE
SIZE
DEST
TYPE
S21
Dip
C70
LH RR/OUT W/LIGHT
N,R
600B
10.0
C47 1
1
806K
1.0
S24
U
TERM
WIRE
SIZE
DEST
TYPE
600BC
1.4
C25 6
S22
HD.L
2
834B
1.4
S21
U
1
861B
1.0
S40
P
600BD
1.0
C30 6
S23
Earth
3
837B
1.4
S22
U
2
600AV
1.0
S23
P
600AS
1.4
C5 2
S24
RH Indicators
4
829E
1.0
C40 6
U
600AR
1.4
C20 2
S40
RWL
5
805N
1.0
C40 7
U
C80
AUX BEACON SKT
A
600AP
1.4
C10 2
6
600BC
1.4
S23
U
TERM
WIRE
SIZE
DEST
TYPE
600AU
1.4
C80 2
1
894B
1.4
S20
B
600AY
1.0
C55 2
C30
RH HEADLIGHTS
W,X
2
600AU
1.4
S23
B
600AV
1.0
C70 2
TERM
WIRE
SIZE
DEST
TYPE
600JL
1.0
C60 2
1
-
-
-
C
S5
FWL O
G,V
600JM
1.0
C65 2
2
834A
1.0
S21
U
WIRE
SIZE
DEST
3
837A
1.0
S22
U
S24
RH IND
G,V
1871A
1.0
C20 3
4
830D
1.0
C40 5
U
WIRE
SIZE
DEST
1871B
1.0
C5 1
5
806
1.0
S24
U
806
1.0
C30 5
1871
1.4
C40 11
6
600BD
1.0
S23
U
806K
1.0
C25 1
S15
FWL I
G,V
806F
1.0
C40 8
C40
CAB HRN
S,T
WIRE
SIZE
DEST
S40
RWL
G,Y
TERM
WIRE
SIZE
DEST
TYPE
855
1.4
C40 9
WIRE
SIZE
DEST
1
-
-
-
C
855A
1.0
C20 1
861
1.4
C40 4
2
861E
1.4
S40
U
855B
1.0
C5 3
861A
1.0
C55 1
3
894
1.4
S20
U
861B
1.0
C70 1
4
861
1.4
S40
U
861C
1.0
C60 1
5
830D
1.0
C30 4
U
861E
1.4
C40 2
6
829E
1.0
C25 4
U
861D
1.0
C65 1
7
805N
1.0
C25 5
U
8
806F
1.0
S24
U
721/10965_2
9
855
1.4
S15
U
10
837
1.4
S22
U
11
1871
1.4
S5
U
12
834
1.4
S21
U
Harness Drawing - Interior Light, Radio Speakers page 1 of 1 - CAD 721/11050 Issue 1
LS
LH SPEAKER
-
RS
RH SPEAKER
-
TERM
WIRE
SIZE
DEST
TYPE
TERM
WIRE
SIZE
DEST
TYPE
1
859
0.6
CP 2
G,H
1
860
0.6
CP 3
G,H
2
601
0.6
CP 5
E,F
2
602
0.6
CP 6
E,F
1
1
2
2
IL
INTERIOR LIGHT
-
TERM
WIRE
SIZE
DEST
TYPE
1
303F
1.0
CP 1
G,H
2
600EJ
1.0
CP 4
G,H
1
ID
1
2
3
4
5
6
DATUM
2
1250
1050
500
250
CP
CAB PANEL
A,B
TERM
WIRE
SIZE
DEST
TYPE
1
303F
1.0
IL 1
C,D
Connector Key
2
859
0.6
LS1
C,D
CP
Cab Panel
3
860
0.6
RS1
C,D
IL
Interior Light
4
600EJ
1.0
IL 2
C,D
LH
Left Hand Speaker
5
601
0.6
LS2
C,D
6
602
0.6
RS2
C,D
RH
Right Hand Speaker
721/11050_1

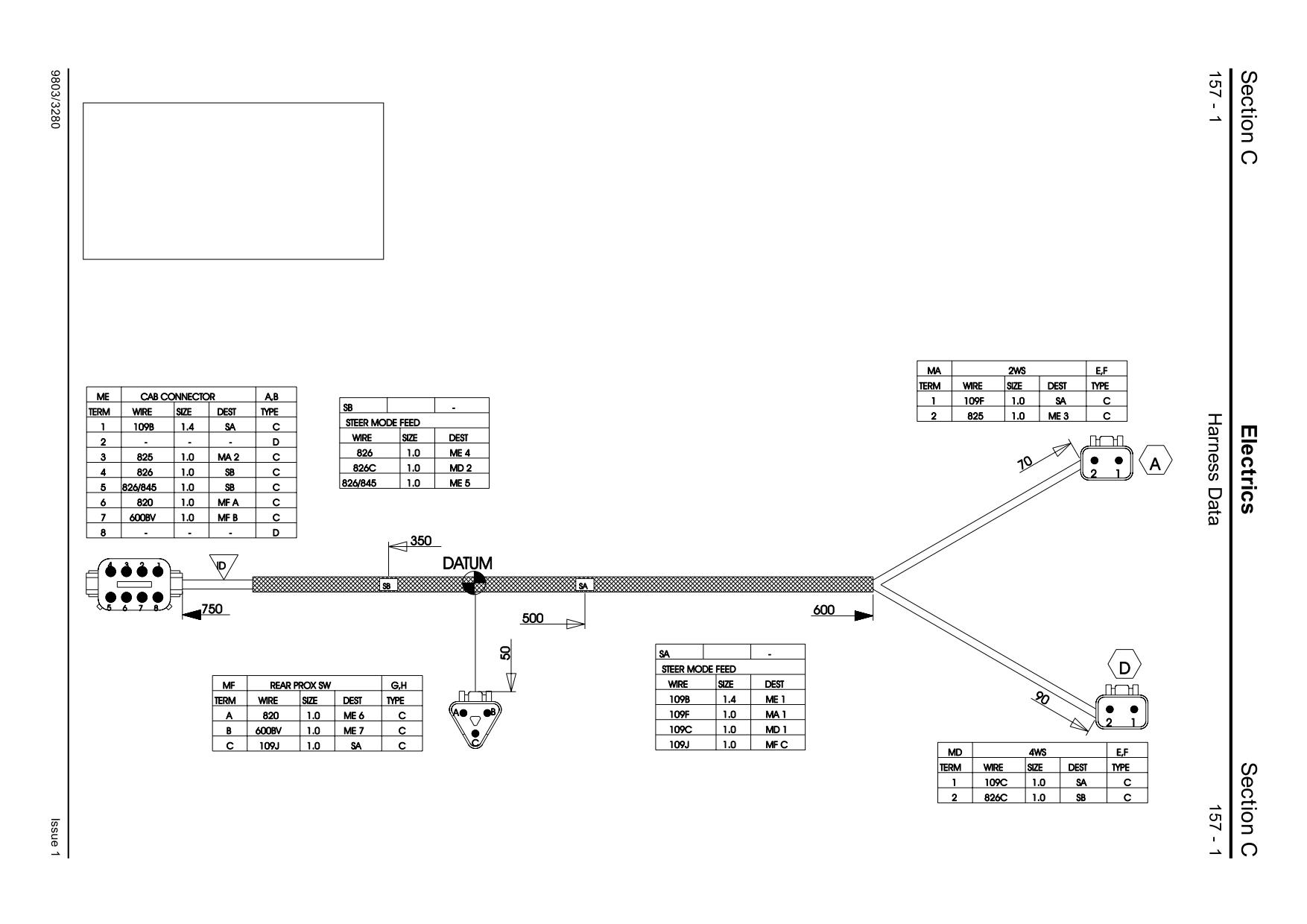

Harness Drawing - Steer Controls, page 1 of 1- CAD 721/10968 Issue 1
Key to Connectors:
MA
2WS
MD
4WS
ME
Cab Connector
MF
Rear Proximity Switch
SA
Steer Mode Feed
SM
Steer Mode Feed
721/10968_1
Harness Drawing - Steer Controls, page 1 of 1 - CAD 721/10967 Issue 1
Key to Connectors:
MA
2WS
MB
4WS com
MC
Crab
MD
4WS
ME
Cab Connector
MF
Rear Proximity Switch
SA
Steer Mode Feed
MA
2WS
E,F
MC
CRAB
E,F
TERM
WIRE
SIZE
DEST
TYPE
TERM
WIRE
SIZE
DEST
TYPE
1
109F
1.0
SA
C
1
109D
1.0
SA
C
2
825
1.0
ME 3
C
2
824
1.0
ME 2
C
MB
4WS COM
E,F
A
C
TERM
WIRE
SIZE
DEST
TYPE
ME
CAB CONNECTOR
A,B
1
109E
1.0
SA
C
TERM
WIRE
SIZE
DEST
TYPE
2
1
2
1
2
845
1.0
ME 5
C
1
109B
1.4
SA
C
2
824
1.0
MC 2
C
3
825
1.0
MA 2
C
B
4
826
1.0
MD 2
C
2
1
5
845
1.0
MB 2
C
6
820
1.0
MF A
C
7
600BV
1.0
MF B
C
8
-
-
-
D
4
3
2
1
ID
DATUM
SA
5
6
7
8
750
670
500
600
SA
-
STEER MODE FEED
D
MF
REAR PROX SW
G,H
WIRE
SIZE
DEST
TERM
WIRE
SIZE
DEST
TYPE
109B
1.4
ME 1
A
820
1.0
ME 6
C
A
B
109F
1.0
MA 1
2
1
B
600BV
1.0
ME 7
C
109E
1.0
MB 1
C
109J
1.0
SA
C
C
109D
1.0
MC 1
MD
4WS
E,F
109C
1.0
MD 1
TERM
WIRE
SIZE
DEST
TYPE
109J
1.0
MF C
1
109C
1.0
SA
C
2
826
1.0
ME 4
C
721/10967_1

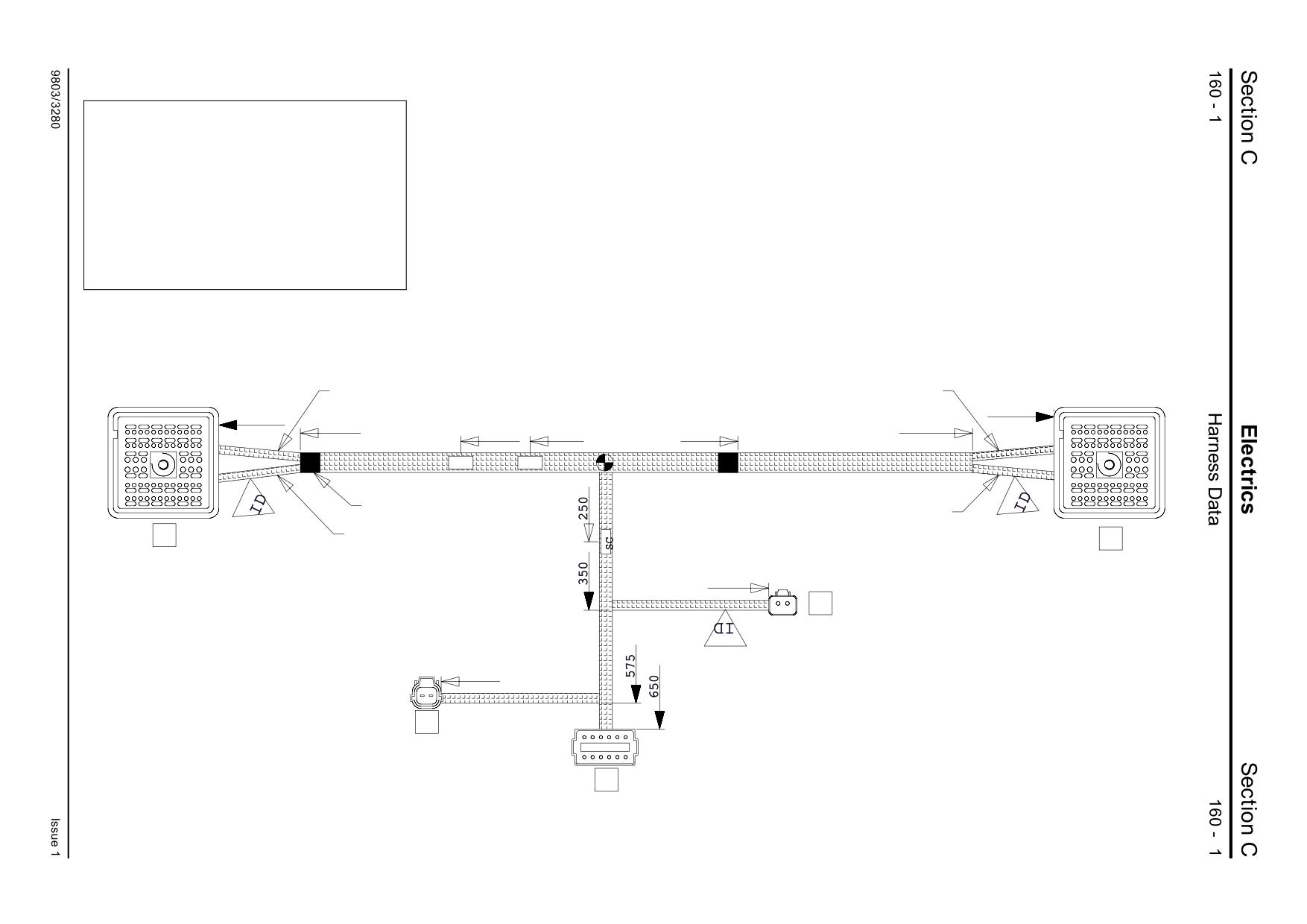

Harness Drawing - Transmission, page 1 of 2 - CAD 721/10943 Issue 1
Key to Connectors:
LA
Front Console Harness
LB
Side Console Harness
LC
Gearbox
LD
Transmission Oil Temperature Switch
LE
Kickdown Switch
SB
Transmission Fused Splice
SC
Earth Splice
SD
Transmission Oil P Splice
CELLS 1-30
CELLS 1-30
1100
1050
12
1
850
900
12
1
100
50
250
24
13
24
13
DATUM
30
25
30
25
SD
SB
36
31
36
31
48
37
48
37
60
49
60
49
13mm WIDE (NOM)
RED TAPE (2 POSN)
CELLS 31-60
LA
CELLS 31-60
LB
FRONT CONSOLE
SIDE CONSOLE
HARNESS
HARNESS
400
2
1
LD
TRANSMISSION
OIL TEMP SW
400
2
1
LE
1
2
3
4
5
6
KICKDOWN SW
12
11
10
9
8
7
LC
721/10943_1
GEARBOX
HARNESS
Harness Drawing - Transmission, page 2 of 2 - CAD 721/10943 Issue 1
LA
FRONT CONSOLE HARNESS
A,B
LB
SIDE CONSOLE HARNESS
A,B
TERM
WIRE
SIZE
DEST
TYPE
TERM
WIRE
SIZE
DEST
TYPE
1
824B
1.0
LB 1
C
1
824B
1.0
LA 1
C
2
810E
1.0
LB 2
C
2
810E
1.0
LA 2
C
3
826B
1.0
LB 3
C
3
826B
1.0
LA 3
C
4
845
1.0
LB 4
C
4
845
1.0
LA 4
C
5
825B
1.0
LB 5
C
5
825B
1.0
LA 5
C
6
1861
1.0
LC 4
C
6
-
-
-
E
7
934
1.0
LB 7
C
7
934
1.0
LA 7
C
8
819
1.0
LB 8
C
8
819
1.0
LA 8
C
9
820
1.0
LB 9
C
9
820
1.0
LA 9
C
10
815A
1.0
LB 10
C
10
815A
1.0
LA 10
C
11
1860
1.0
LC 8
C
11
404A
1.0
SD
C
12
1858
1.0
LB 12
C
12
1858
1.0
LA 12
C
13
1862
1.0
LC 3
C
13
-
-
-
E
14
853
1.0
LC 5
C
14
-
-
-
E
15
1863
1.0
LC 9
C
15
-
-
-
E
LC
GEARBOX
F,G
16
1866
1.0
LC 10
C
16
-
-
-
E
TERM
WIRE
SIZE
DEST
TYPE
17
126A
1.0
LB 17
C
17
126A
1.0
LA 17
C
1
600Z
2.0
SC
K
18
134
1.0
LB 18
C
18
134
1.0
LA 18
C
2
405A
1.0
LA 41
L
19
1865
1.0
LC 11
C
19
-
-
-
E
3
1862
1.0
LA 13
L
20
830C
1.0
LB 20
C
20
830C
1.0
LA 20
C
4
1861
1.0
LA 6
L
21
839
1.0
LB 21
C
21
839
1.0
LA 21
C
5
853
1.0
LA 14
L
22
818G
1.0
LB 22
C
22
818G
1.0
LA 22
C
6
107AK
1.0
SB
L
23
933
1.0
LB 23
C
23
933
1.0
LA 23
C
7
974
1.0
LA 42
L
24
805D
1.0
LB 24
C
24
805D
1.0
LA 24
C
8
1860
1.0
LA 11
L
25
802
2.0
LB 25
D
25
802
2.0
LA 25
D
9
1863
1.0
LA 15
L
26
803
2.0
LB 26
D
26
803
2.0
LA 26
D
10
1866
1.0
LA 16
L
27
828
2.0
LB 27
D
27
828
2.0
LA 27
D
11
1865
1.0
LA 19
L
28
110
2.0
LB 28
D
28
110
2.0
LA 28
D
12
1864
1.0
LA 51
L
29
104
2.0
LB 29
D
29
104
2.0
LA 29
D
30
311
2.0
LB 30
D
30
311
2.0
LA 30
D
LD
TRANS OIL TEMP SW
H,J
31
300
2.0
LB 31
D
31
300
2.0
LA 31
D
TERM
WIRE
SIZE
DEST
TYPE
32
814
2.0
LB 32
D
32
814
2.0
LA 32
D
1
404
1.0
SD
R
33
127A
2.0
LB 33
D
33
127A
2.0
LA 33
D
2
600C
1.0
SC
R
34
107H
2.0
SB
D
34
107
2.0
SB
D
LE
KICKDOWN SW
S,T
35
833
2.0
LB 35
D
35
833
2.0
LA 35
D
TERM
WIRE
SIZE
DEST
TYPE
36
836
2.0
LB 36
D
36
836
2.0
LA 36
D
1
107U
1.0
SB
U,V
37
837D
1.0
LB 37
C
37
837D
1.0
LA 37
C
2
992
1.0
LA 45
U,V
38
855D
1.0
LB 38
C
38
855D
1.0
LA 38
C
39
861D
1.0
LB 39
C
39
861D
1.0
LA 39
C
40
411A
1.0
LB 40
C
40
411A
1.0
LA 40
C
SB
M,P
41
405A
1.0
LC 2
C
41
-
-
-
E
TRANS FUSED SPLICE
42
974
1.0
LC 7
C
42
-
-
-
E
WIRE
SIZE
DEST
43
868
1.0
LB 43
C
43
868
1.0
LA 43
C
107AK
1.0
LC 6
44
835
1.0
LB 44
C
44
835
1.0
LA 44
C
107
2.0
LB 34
45
992
1.0
LE 2
C
45
-
-
-
E
107H
2.0
LA 34
46
106N
1.0
LB 46
C
46
106N
1.0
LA 46
C
107U
1.0
LE 1
47
303C
1.0
LB 47
C
47
303C
1.0
LA 47
C
SC
M,P
48
806D
1.0
LB 48
C
48
806D
1.0
LA 48
C
EARTH SPLICE
49
600DP
1.0
SC
C
49
-
-
-
E
WIRE
SIZE
DEST
50
600DN
1.0
SC
C
50
-
-
-
E
600DN
1.0
LA 50
51
1864
1.0
LC 12
C
51
-
-
-
E
600DP
1.0
LA 49
52
-
-
-
E
52
-
-
-
E
600C
1.0
LD 2
53
-
-
-
E
53
-
-
-
E
600Z
2.0
LC 1
54
-
-
-
E
54
-
-
-
E
55
-
-
-
E
55
-
-
-
E
SD
M,P
56
402
1.0
LB 56
C
56
402
1.0
LA 56
C
TRANS OIL P SPLICE
57
403
1.0
LB 57
C
57
403
1.0
LA 57
C
WIRE
SIZE
DEST
58
404B
1.0
SD
C
58
-
-
-
E
404
1.0
LD 1
59
405
1.0
LB 59
C
59
405
1.0
LA 59
C
404A
1.0
LB 11
60
406
1.0
LB 60
C
60
406
1.0
LA 60
C
404B
1.0
LA 58
721/10943_2

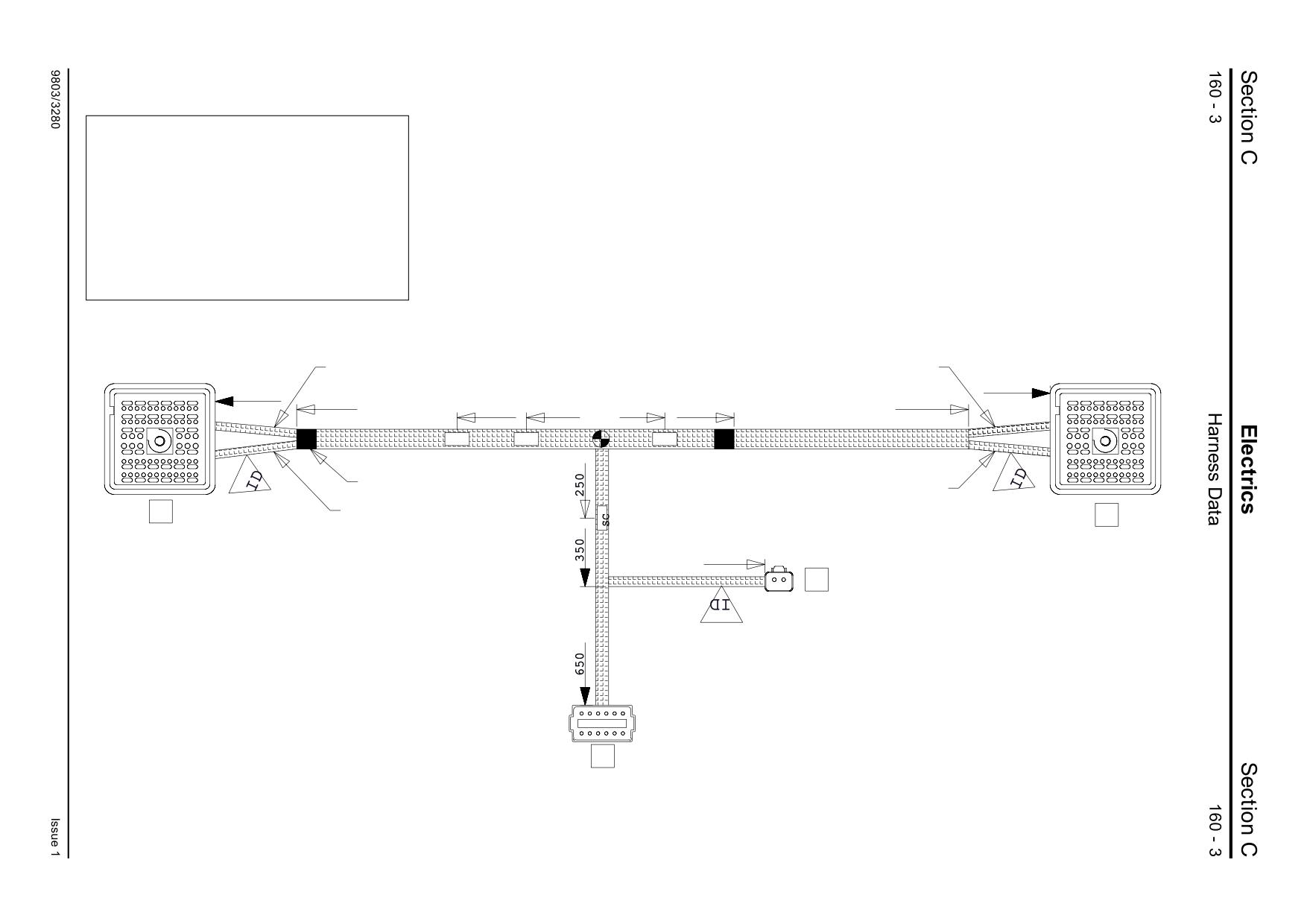

Harness Drawing - Transmission, page 1 of 2 - CAD 721/10942 Issue 1
Key to Connectors:
LA
Front Console Harness
LB
Side Console Harness
LC
Gearbox
LD
Transmission Oil Temperature Switch
SA
Dump Splice
SB
Transmission Feed Splice
SC
Earth Splice
SD
Transmission OIl P Splice
CELLS 1-30
CELLS 1-30
1100
1050
12
1
850
900
12
1
100
50
50
250
24
13
24
13
DATUM
30
25
30
25
SD
SB
SA
36
31
36
31
48
37
48
37
60
49
60
49
13mm WIDE (NOM)
CELLS 31-60
RED TAPE (2 POSN)
LA
CELLS 31-60
LB
FRONT CONSOLE
SIDE CONSOLE
HARNESS
HARNESS
400
2 1
LD
TRANSMISSION
OIL TEMP SW
1
2
3
4
5
6
12
11
10
9
8
7
LC
GEARBOX
HARNESS
721/10942_1
Harness Drawing - Transmission, page 2 of 2 - CAD 721/10942 Issue 1
LA
FRONT CONSOLE HARNESS
A,B
LB
SIDE CONSOLE HARNESS
A,B
TERM
WIRE
SIZE
DEST
TYPE
TERM
WIRE
SIZE
DEST
TYPE
1
824B
1.0
LB 1
C
1
824B
1.0
LA 1
C
2
810E
1.0
LB 2
C
2
810E
1.0
LA 2
C
3
826B
1.0
LB 3
C
3
826B
1.0
LA 3
C
4
845
1.0
LB 4
C
4
845
1.0
LA 4
C
5
825B
1.0
LB 5
C
5
825B
1.0
LA 5
C
6
812
1.0
LC 4
C
6
-
-
-
E
7
934
1.0
SA
C
7
934F
1.0
SA
C
8
819
1.0
LB 8
C
8
819
1.0
LA 8
C
9
820
1.0
LB 9
C
9
820
1.0
LA 9
C
10
815A
1.0
LB 10
C
10
815A
1.0
LA 10
C
11
812/848
1.0
LC 8
C
11
404A
1.0
SD
C
12
1858
1.0
LB 12
C
12
1858
1.0
LA 12
C
13
811
1.0
LC 3
C
13
-
-
-
E
LC
GEARBOX
F,G
14
853
1.0
LC 5
C
14
-
-
-
E
TERM
WIRE
SIZE
DEST
TYPE
15
811/849
1.0
LC 9
C
15
-
-
-
E
1
600Z
2.0
SC
K
16
850
1.0
LC 10
C
16
-
-
-
E
2
405A
1.0
LA 41
L
17
126A
1.0
LB 17
C
17
126A
1.0
LA 17
C
3
811
1.0
LA 13
L
18
134
1.0
LB 18
C
18
134
1.0
LA 18
C
4
812
1.0
LA 6
L
19
851
1.0
LC 11
C
19
-
-
-
E
5
853
1.0
LA 14
L
20
830C
1.0
LB 20
C
20
830C
1.0
LA 20
C
6
107AK
1.0
SB
L
21
839
1.0
LB 21
C
21
839
1.0
LA 21
C
7
974
1.0
LA 42
L
22
818G
1.0
LB 22
C
22
818G
1.0
LA 22
C
8
812/848
1.0
LA 11
L
23
933
1.0
LB 23
C
23
933
1.0
LA 23
C
9
811/849
1.0
LA 15
L
24
805D
1.0
LB 24
C
24
805D
1.0
LA 24
C
10
850
1.0
LA 16
L
25
802
2.0
LB 25
D
25
802
2.0
LA 25
D
11
851
1.0
LA 19
L
26
803
2.0
LB 26
D
26
803
2.0
LA 26
D
12
934B
1.0
SA
L
27
828
2.0
LB 27
D
27
828
2.0
LA 27
D
LD
TRANS OIL TEMP SW
H,J
28
110
2.0
LB 28
D
28
110
2.0
LA 28
D
TERM
WIRE
SIZE
DEST
TYPE
29
104
2.0
LB 29
D
29
104
2.0
LA 29
D
1
404
1.0
SD
R
30
311
2.0
LB 30
D
30
311
2.0
LA 30
D
2
600C
1.0
SC
R
31
300
2.0
LB 31
D
31
300
2.0
LA 31
D
32
814
2.0
LB 32
D
32
814
2.0
LA 32
D
33
127A
2.0
LB 33
D
33
127A
2.0
LA 33
D
SA
M,P
34
107H
2.0
SB
D
34
107
2.0
SB
D
DUMP SPLICE
35
833
2.0
LB 35
D
35
833
2.0
LA 35
D
WIRE
SIZE
DEST
36
836
2.0
LB 36
D
36
836
2.0
LA 36
D
934
1.0
LA 7
37
837D
1.0
LB 37
C
37
837D
1.0
LA 37
C
934F
1.0
LB 7
38
855D
1.0
LB 38
C
38
855D
1.0
LA 38
C
934B
1.0
LC 12
39
861D
1.0
LB 39
C
39
861D
1.0
LA 39
C
SB
M,P
40
411A
1.0
LB 40
C
40
411A
1.0
LA 40
C
TRANS FUSED SPLICE
41
405A
1.0
LC 2
C
41
-
-
-
E
WIRE
SIZE
DEST
42
974
1.0
LC 7
C
42
-
-
-
E
107AK
1.0
LC 6
43
868
1.0
LB 43
C
43
868
1.0
LA 43
C
107
2.0
LB 34
44
835
1.0
LB 44
C
44
835
1.0
LA 44
C
107H
2.0
LA 34
45
-
-
-
E
45
-
-
-
E
46
106N
1.0
LB 46
C
46
106N
1.0
LA 46
C
SC
M,P
47
303C
1.0
LB 47
C
47
303C
1.0
LA 47
C
EARTH SPLICE
48
806D
1.0
LB 48
C
48
806D
1.0
LA 48
C
WIRE
SIZE
DEST
49
600DP
1.0
SC
C
49
-
-
-
E
600DN
1.0
LA 50
50
600DN
1.0
SC
C
50
-
-
-
E
600DP
1.0
LA 49
51
-
-
-
E
51
-
-
-
E
600C
1.0
LD 2
52
-
-
-
E
52
-
-
-
E
600Z
2.0
LC 1
53
-
-
-
E
53
-
-
-
E
SD
M,P
54
-
-
-
E
54
-
-
-
E
TRANS OIL P SPLICE
55
-
-
-
E
55
-
-
-
E
WIRE
SIZE
DEST
56
402
1.0
LB 56
C
56
402
1.0
LA 56
C
404
1.0
LD 1
57
403
1.0
LB 57
C
57
403
1.0
LA 57
C
404A
1.0
LB 11
58
404B
1.0
SD
C
58
-
-
-
E
404B
1.0
LA 58
59
405
1.0
LB 59
C
59
405
1.0
LA 59
C
60
406
1.0
LB 60
C
60
406
1.0
LA 60
C

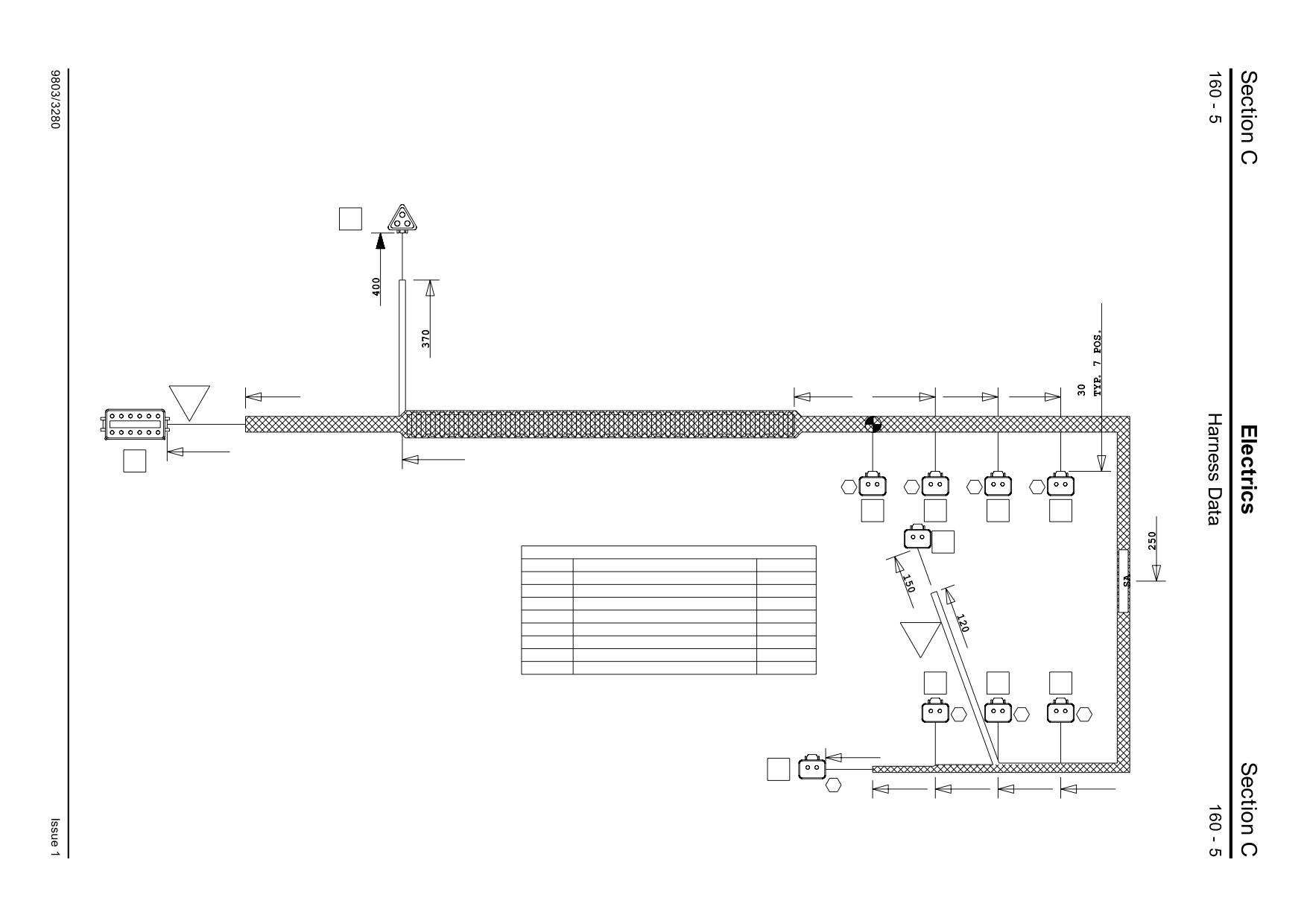

Harness Drawing - Transmission, page 1 of 2 - CAD 721/10941 Issue 1
C
C17
B
A
SPEED SENSOR
400
50
40
80
120
ID
6
5
4
3
2
1
7
8
9
10
11
12
450
300
DATUM
C10
CAB LINK HARNESS
F
2
1
E
2
1
I
2
1
J
2
1
C30
C20
C60
C70
2
1
C15
SOLENOID IDENTIFICATION
TRANSMISSION
HSG ID
FUNCTION
ID CHAR
OIL PRESSURE
C20
FORWARD HIGH
E
C30
FORWARD LOW
F
C40
MAINSHAFT
G
C50
LAYSHFT
H
C60
REVERSE LOW
I
C70
REVERSE HIGH
J
ID
C80
2/4 WHEEL DRIVE
K
C90
6TH SPEED
6
C40
C50
C90
2
1
G
2
1
H
2
1
6
721/10941_1
570
C80
2
1
540
500
460
420
K
Harness Drawing - Transmission - *Powershift 6 speed, page 2 of 2 - CAD 721/10941 Issue 1
Key to Connectors:
C10
CAB PANEL
A,B
C40
MAIN SHAFT
C,D
SA
K,L
C10
Cab Panel
TERM
WIRE
SIZE
DEST
TYPE
TERM
WIRE
SIZE
DEST
TYPE
WIRE
SIZE
DEST
C15
XMSN Oil Press Switch
1
600Z
2.0
SA
G
1
1865
1.0
C10 11
H
600Z
2.0
C10 1
C17
Speed Sensor
2
405
1.0
C15 1
H
2
600BZ
1.0
SA
H
600BY
1.0
C50 2
C20
Forward High
3
1862
1.0
C70 1
H
600BZ
1.0
C40 2
C50
LAY SHAFT
C,D
C30
Forward Low
4
1861
1.0
C20 1
H
600CB
1.0
C80 2
TERM
WIRE
SIZE
DEST
TYPE
C40
Main Shaft
5
853
1.0
C80 1
H
600BS
1.0
C20 2
C50
Lay Shaft
1
1866
1.0
C10 10
H
6
107AK
1.0
C17 3
H
600BX
1.0
C30 2
C60
Reverse Low
2
600BY
1.0
SA
H
7
974
1.0
C17 2
H
600CA
1.0
C60 2
C70
Reverse High
8
1860
1.0
C30 1
H
C60
REVERSE LOW
C,D
600BT
1.0
C70 2
C80
4WD
9
1863
1.0
C60 1
H
TERM
WIRE
SIZE
DEST
TYPE
600BU
1.0
C15 2
C90
6th Speed
10
1866
1.0
C50 1
H
1
1863
1.0
C10 9
H
600HV
1.0
C17 1
11
1865
1.0
C40 1
H
2
600CA
1.0
SA
H
600ME
1.0
C90 2
12
1864
1.0
C90 1
H
C70
REVERSE HIGH
C,D
721/10941_2
C15
XMSN OIL PRESS SW
C,D
TERM
WIRE
SIZE
DEST
TYPE
TERM
WIRE
SIZE
DEST
TYPE
1
1862
1.0
C10 3
H
1
405
1.0
C10 2
H
2
600BT
1.0
SA
H
2
600BU
1.0
SA
H
C80
4 W/D
C,D
C17
SPEED SENSOR
E,F
TERM
WIRE
SIZE
DEST
TYPE
TERM
WIRE
SIZE
DEST
TYPE
1
853
1.0
C10 5
H
1
600HV
1.0
SA
H
2
600CB
1.0
SA
H
2
974
1.0
C10 7
H
C90
6TH SPEED
C,D
3
107AK
1.0
C10 6
H
TERM
WIRE
SIZE
DEST
TYPE
C20
FORWARD HIGH
C,D
1
1864
1.0
C10 12
H
TERM
WIRE
SIZE
DEST
TYPE
2
600ME
1.0
SA
H
1
1861
1.0
C10 4
H
2
600BS
1.0
SA
H
C30
FORWARD LOW
C,D
TERM
WIRE
SIZE
DEST
TYPE
1
1860
1.0
C10 8
H
2
600BX
1.0
SA
H

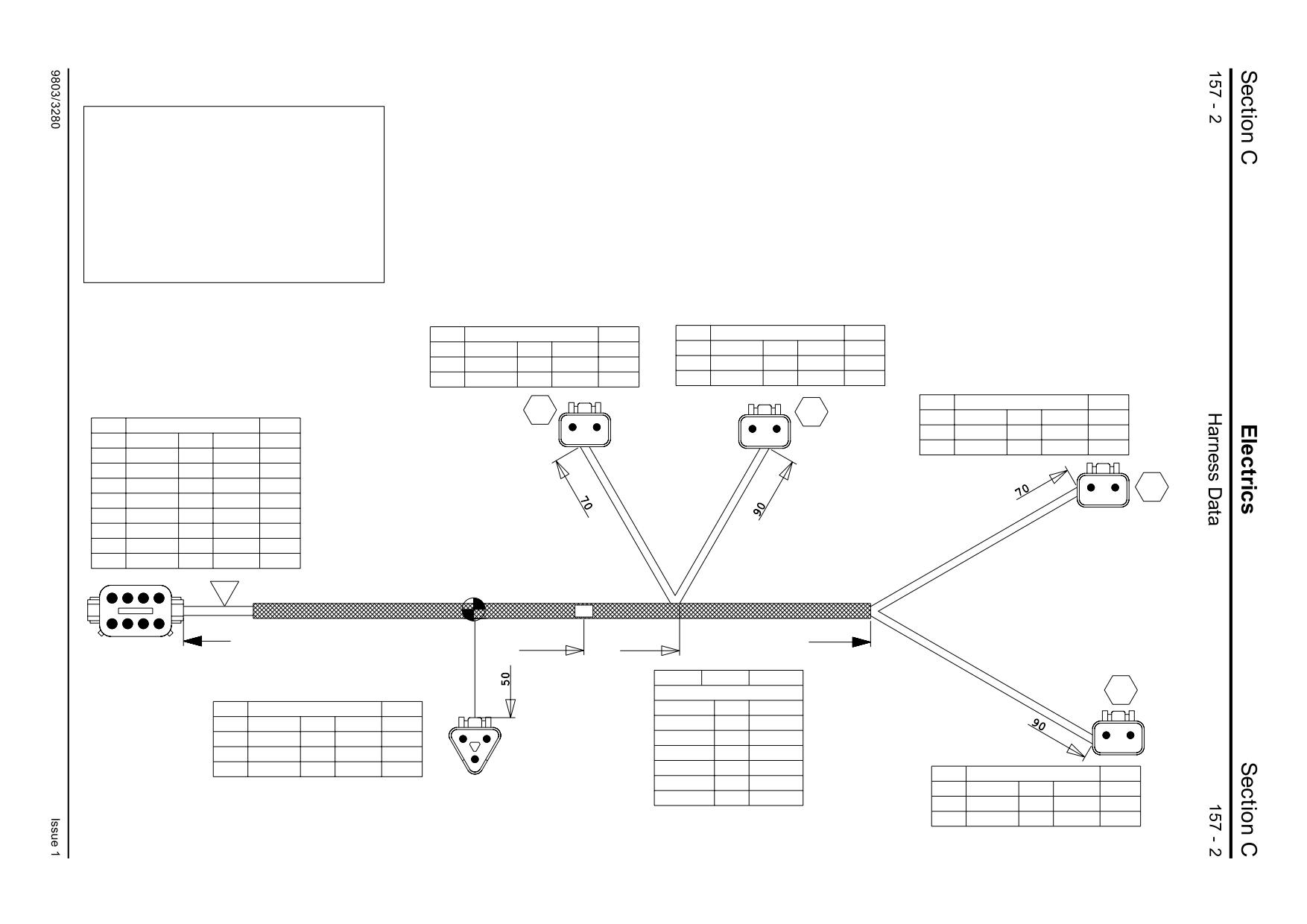

Harness Drawing - Transmission - Sychro Shuttle, page 1 of 1 - CAD 721/10938 Issue 2*
GD
DUMP SWITCH
GE
B
A
A
B
2
1
4 W/D
SOLENOID
GA
ID
100
150
CAB PANEL
P
R x2
180
6
5
4
3
2
1
ID
DATUM
SA
2
1
200
7
8
9
10
11
12
70
GF
130
100
GA
CAB PANEL
A,B
GD
TRANS DUMP SW
G
TERM
WIRE
SIZE
DEST
TYPE
TERM
WIRE
SIZE
DEST
TYPE
XSMN OIL
PRESS SW
1
600Z
2.0
SA
C
A
934B
1.0
GA 12
H,J
2
405
1.0
GF 1
C
B
600FL
1.0
SA
H,J
3
811
1.0
GC 1
C
GE
4 W/D
E,F
4
812
1.0
GB 1
C
TERM
WIRE
SIZE
DEST
TYPE
5
853
1.0
GE 1
C
1
853
1.0
GA 5
C
6
-
-
-
D
2
600CB
1.0
SA
C
2
1
2
1
7
-
-
-
D
8
-
-
-
D
GF
XMSN OIL PRESS SW
E,F
9
-
-
-
D
TERM
WIRE
SIZE
DEST
TYPE
F
R
10
-
-
-
D
1
405
1.0
GA 2
C
Key to Connectors:
11
-
-
-
D
2
600BU
1.0
SA
C
GB
GC
12
934B
1.0
GD A
C
SA
M,N
GA
Cab Panel
GB
FORWARD SOLENOID
E,F
FORWARD
REVERSE
WIRE
SIZE
DEST
GB
Forward Solenoid
SOLENOID
SOLENOID
TERM
WIRE
SIZE
DEST
TYPE
600Z
2.0
GA 1
1
812
1.0
GA 4
C
GC
Reverse Solenoid
600FL
1.0
GD B
2
600BS
1.0
SA
C
GD
Transmission Dump Switch
600CB
1.0
GE 2
GE
4WD
GC
REVERSE SOLENOID
E,F
600BS
1.0
GB 2
TERM
WIRE
SIZE
DEST
TYPE
600BT
1.0
GC 2
GF
XMSN Oil Pressure Switch
1
811
1.0
GA 3
C
600BU
1.0
GF 2
2
600BT
1.0
SA
C
721/10938_1
Harness Drawing - Transmission - Powershift 4 speed, page 1 of 1 - CAD 721/10939 Issue 1
50
40
80
120
400
ID
6
5
4
3
2
1
7
8
9
10
11
12
450
300
DATUM
C10
CABLINKHARNESS
F
2
1
E
2
1
I
2
1
J
2
1
C30
C20
C60
C70
Solenoid Identification
Function
Identification
2
1
C15
C20
Forward High
E
TRANSMISSION
OILPRESSURE
C30
Forward Low
F
C40
Mainshaft
G
C50
Layshaft
H
C60
Reverse Low
I
ID
C70
Reverse High
J
C80
2/4 Wheel Drive
K
C
40
C50
C10
CABP ANEL
A,B
C40
MAINSHAFT
C,D
SA
K,L
2
1
G
2
1
H
TERM
WIRE
SIZE
DEST
TYPE
TERM
WIRE
SIZE
DEST
TYPE
WIRE
SIZE
DEST
1
600Z
2.0
SA
G
1
851
1.0
C101 1
H
600Z
2.0
C101
2
405
1.0
C151
H
2
600BZ
1.0
SA
H
600BY
1.0
C502
570
3
811
1.0
C701
H
600BZ
1.0
C402
C80
2
1
C50
LAY SHAFT
C,D
4
812
1.0
C201
H
600CB
1.0
C802
540
500
460
TERM
WIRE
SIZE
DEST
TYPE
K
5
853
1.0
C801
H
600BS
1.0
C202
1
850
1.0
C1010
H
6
J
600BX
1.0
C302
2
600BY
1.0
SA
H
7
J
600CA
1.0
C602
8
848
1.0
C301
H
C60
REVERSELOW
C,D
600BT
1.0
C702
9
849
1.0
C601
H
TERM
WIRE
SIZE
DEST
TYPE
600BU
1.0
C152
10
850
1.0
C501
H
1
849
1.0
C109
H
11
851
1.0
C401
H
2
600CA
1.0
SA
H
12
-
-
-
J
C70
REVERSEHIGH
C,D
C15
XMSNOIL PRESSSW
C,D
TERM
WIRE
SIZE
DEST
TYPE
TERM
WIRE
SIZE
DEST
TYPE
1
811
1.0
C103
H
1
405
1.0
C102
H
2
600BT
1.0
SA
H
2
600BU
1.0
SA
H
C80
4W/D
C,D
C20
FORWARDHIGH
C,D
TERM
WIRE
SIZE
DEST
TYPE
TERM
WIRE
SIZE
DEST
TYPE
1
853
1.0
C105
H
1
812
1.0
C104
H
2
600CB
1.0
SA
H
2
600BS
1.0
SA
H
C30
FORWARDLOW
C,D
TERM
WIRE
SIZE
DEST
TYPE
1
848
1.0
C108
H
721/10939
2
600BX
1.0
SA
H

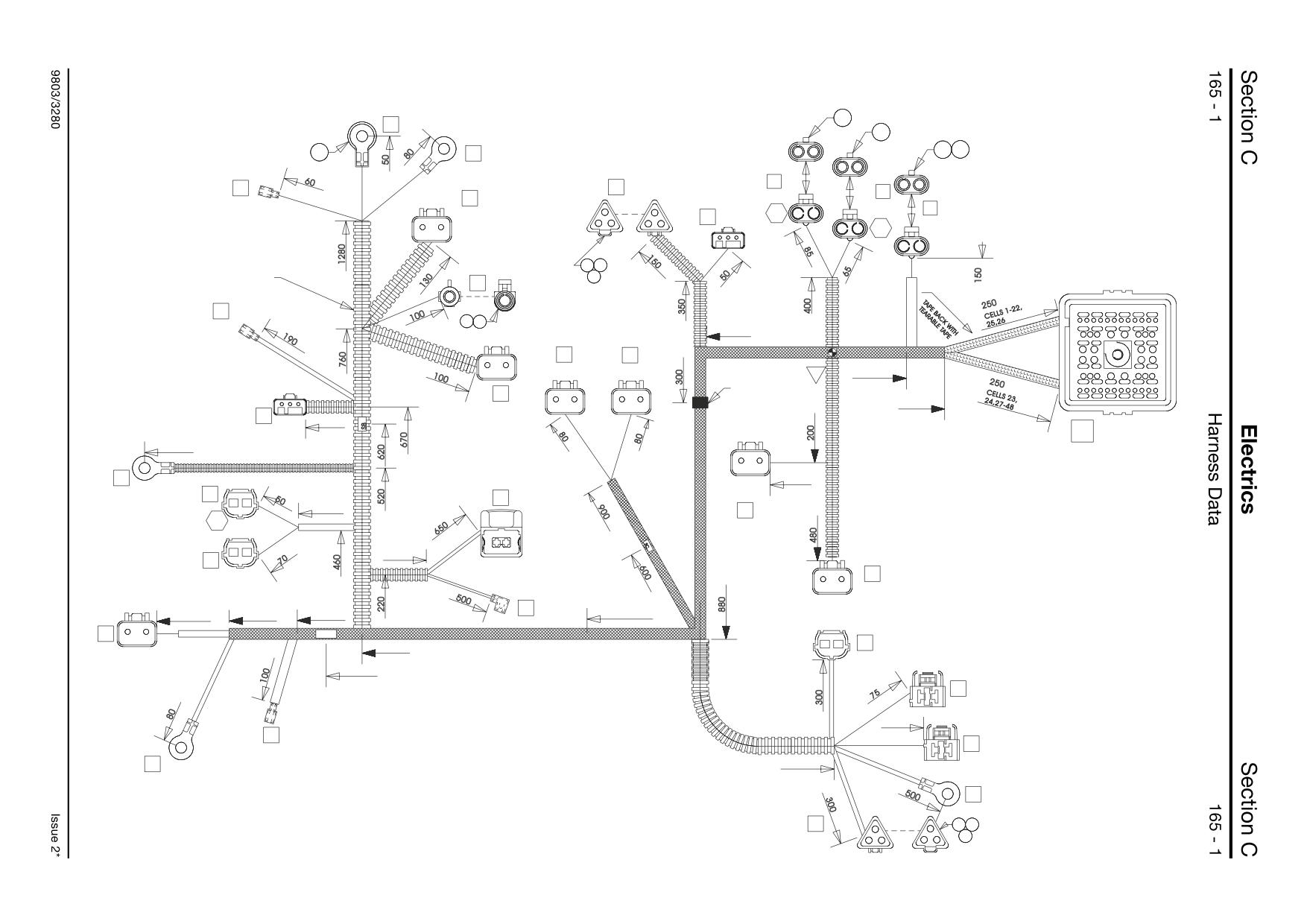

Harness Drawing - Engine Mainframe, page 1 of 2 - CAD 721/10935 Issue 2*
AL
MJ
ALTERNATOR
6.5
ALT W
AL
5.3
AL AD x2
BE
MK
B
A
ALT D+
B
A
HSC
SHOVEL
NF
SW
ND
DUMP
B
A
MH
RESET SW
SW
NG
ML
0
C
C
FUEL
NK
WATER TEMP
NC
H
A B
SENDER
A
B
B
A
SENDER
SEAT
A B
D
CONNECTOR
2
1
3
2
1
A B
AIR CON
AW AX
U x3
MM
A
A
MF
12
1
AA AD
WAXSTAT
250
20
13
24
21
MV
SRS
MW
DATUM
28
25
2
1
ID
150
36
29
13mm WIDE (NOM)
48
37
MN
RED TAPE
ESOS
3
2 1
250
WATER
2
1
2
1
MG
TEMP
80
SW
NH
CAB
CONNECTOR
300
STARTER
8.4
2
1
ME
50
MP
AIR
HSC
MT
FILTER
FRONT WASH
2
1
100
NA
PUMP
F
1
2
REAR WASH
PUMP
2
1
160
MR
0
SHOVEL
NB
RESET
THERMOSTART
2
1
+50
MU
1000
-50
1800
1590
1520
FRONT HORN
MA
SA
2
1
2
1
MD
1250
ENG OIL
PRESSURE
1320
PRIMARY FUSE 1
(GREY)
MX
A
B
STARTER
SOLENOID
120
PRIMARY FUSE 2
(BLUE)
MS
8.5
MY
A
B
MB
EARTH
2530
EARTH
721/10935_1
8.5
NJ
TITLE
FRONT PROX.
MC
AW AX
SWITCH
C
C
B
A
A B
U x3
Harness Drawing - Engine Mainframe, page 2 of 2 - CAD 721/10935 Issue 2*
Key to Connectors:
MA
ENG OIL PRESS
C,D
MR
REAR WASH PUMP
J,K
NA
HSC SOLENOID
C,D
NH
CAB PANEL BLK HD
E,F
SA
H,AZ
TERM
WIRE
SIZE
DEST
TYPE
TERM
WIRE
SIZE
DEST
TYPE
TERM
WIRE
SIZE
DEST
TYPE
TERM
WIRE
SIZE
DEST
TYPE
WIRE
SIZE
DEST
MA
Engine Oil Pressure
1
403
1.0
NH 3
BB
1
863
1.0
NH 40
L,M
1
867B
1.0
NH 45
BB
1
105
1.0
SB
BF
600A
4.0
MB 1
MB
Earth
2
600MC
1.0
SA
BB
2
600BK
1.0
SA
L,M
2
600DE
1.0
SA
BB
2
402
1.0
MT 1
BF
600B
2.0
MD 2
MC
Front Proximity Switch
3
403
1.0
MA 1
BF
600CE
1.0
NC 2
MB
EARTH
-
MS
START SOLENOID
-
NB
SHOVEL RESET
C,D
4
819
1.0
MC A
BF
600BW
1.0
MC B
MD
Front Horn
TERM
WIRE
SIZE
DEST
TYPE
TERM
WIRE
SIZE
DEST
TYPE
TERM
WIRE
SIZE
DEST
TYPE
5
101AS
1.0
NF A
BF
600
1.0
MG 2
1
600A
4.0
SA
A,AN
1
842
3.0
NH 28
AP,V
1
844
1.0
ND A
BB
ME
Starter
6
-
-
-
P
600BG
1.0
MP 2
2
600D
1.0
SA
BB
MC
FRONT PROX SW
AU,AV
MT
AIR FILTER
R
7
-
-
-
P
600BK
1.0
MR 2
MF
Waxstat
TERM
WIRE
SIZE
DEST
TYPE
TERM
WIRE
SIZE
DEST
TYPE
NC
FUEL SENDER
AR,AS
8
1857
1.0
NF B
BF
600CK
1.0
MN 2
MG
ESOS
A
819
1.0
NH 4
BB
1
402
1.0
NH 2
S,T
TERM
WIRE
SIZE
DEST
TYPE
9
903
1.0
MM 1
BF
600CF
1.0
MT 2
B
600BW
1.0
SA
BB
2
600CF
1.0
SA
S,T
1
408
1.0
NH 39
BF
10
-
-
-
P
600JT
1.0
ML 2
MH
Alternator D+
C
109
1.0
NH 41
BB
2
600CE
1.0
SA
BF
11
406
1.0
MN 1
BF
600LH
1.0
MV 2
MU
THERMOSTART
-
MJ
Alternator PWR
3
514
1.0
NH 43
BF
12
1801
1.0
SC
BF
600LJ
1.0
MW 2
MD
FRONT HORN
J,K
TERM
WIRE
SIZE
DEST
TYPE
13
003
2.0
MU 1
BC
600D
1.0
NB 2
MK
Alternator W
TERM
WIRE
SIZE
DEST
TYPE
1
003
2.0
NH 13
AF,AE
ND
RESET SWITCH
AU,AV
14
114C
2.0
NK A
BC
600DE
1.0
NA 2
1
814
2.0
NH 20
M,N
TERM
WIRE
SIZE
DEST
TYPE
ML
Water Temperature Sender
MV
SRS
C,D
15
-
-
-
U
600LW
1.0
ND B
2
600B
2.0
SA
M,N
A
844
1.0
NB 1
BB
16
200V
4.0
MY A
BA
600EZ
1.0
NG B
MM
Air Conditioning
TERM
WIRE
SIZE
DEST
TYPE
B
600LW
1.0
SA
BB
ME
STARTER
-
1
1801A
1.0
SC
BB
17
-
-
-
U
600MC
1.0
MA 2
C
1851
1.0
NH 37
BB
MN
Water Temperature Switch
TERM
WIRE
SIZE
DEST
TYPE
18
-
-
-
U
600DH
2.0
NK B
2
600LH
1.0
SA
BB
1
200J
16.0
MJ 1
AM,B
NF
HSC SWITCH
AK
19
-
-
-
U
MP
Front wash Pump
SB
H,AY
MW
SRS
C,D
TERM
WIRE
SIZE
DEST
TYPE
20
814
2.0
MD 1
BB
MF
WAXSTAT
-
TERM
WIRE
SIZE
DEST
TYPE
WIRE
SIZE
DEST
MR
Rear Wash Pump
A
101AS
1.0
NH 5
G,AB
21
200B
4.0
MX A
BA
TERM
WIRE
SIZE
DEST
TYPE
1
1801B
1.0
SC
BB
105
1.0
NH 1
MS
Start Solenoid
B
1857
1.0
NH 8
G,AB
22
200C
4.0
MX A
BA
1
105A
1.0
SB
V,W
2
600LJ
1.0
SA
BB
105A
1.0
MF 1
23
200D
4.0
MY B
BA
MT
Air Filter
NG
DUMP SWITCH
AK
105B
1.0
MG 1
MG
ESOS
AR,AS
MX
PRIMARY FUSE 1 (GREY)
AH
24
200E
4.0
MX B
BA
TERM
WIRE
SIZE
DEST
TYPE
MU
Thermostart
TERM
WIRE
SIZE
DEST
TYPE
TERM
WIRE
SIZE
DEST
TYPE
25
200G
4.0
MY A
BA
SC
H,AY
A
934A
1.0
NH 42
G,AB
1
105B
1.0
SB
BF
200B
4.0
NH 21
26
200M
4.0
MY B
BA
WIRE
SIZE
DEST
MV
SRS
A
AJ
B
600EZ
1.0
SA
G,AB
2
600
1.0
SA
BF
200C
4.0
NH 22
27
200R
4.0
MX B
BA
1801
1.0
NH 12
MW
SRS
3
513
1.0
NH 44
BF
200E
4.0
NH 24
NJ
EARTH
-
28
842
3.0
MS 1
BA
1801A
1.0
MV 1
B
AJ
200R
4.0
NH 27
TERM
WIRE
SIZE
DEST
TYPE
29
617
1.0
NJ 1
BB
1801B
1.0
MW 1
MX
Primary Fuse 1 (Grey)
MH
ALTERNATOR D+
-
1
617
1.0
NH 29
Y,AN
30
-
-
-
U
TERM
WIRE
SIZE
DEST
TYPE
MY
PRIMARY FUSE 2 (BLUE)
AG
MY
Primary Fuse 2 (Blue)
31
-
-
-
U
721/10935_2
1
407
1.0
NH 38
V,W
TERM
WIRE
SIZE
DEST
TYPE
NK
SEAT CONNECTOR
AK
32
-
-
-
U
NA
HSE Solenoid
200G
4.0
NH 25
TERM
WIRE
SIZE
DEST
TYPE
MJ
ALTERNATOR PWR
-
A
AJ
33
-
-
-
U
A
114C
2.0
NH 14
G,AB
NB
Shovel Reset
TERM
WIRE
SIZE
DEST
TYPE
200V
4.0
NH 16
34
-
-
-
U
200D
4.0
NH 23
B
600DH
2.0
SA
G,AB
1
200J
16.0
ME 1
X,B
B
AJ
35
-
-
-
U
NC
Fuel Sender
200M
4.0
NH 26
36
-
-
-
U
MK
ALTERNATOR W
-
ND
Reset Switch
37
1851
1.0
ND C
BF
TERM
WIRE
SIZE
DEST
TYPE
NF
HSC Switch
38
407
1.0
MH 1
BF
1
412
1.0
NH 47
Y,AN
39
408
1.0
NC 1
BF
NG
Dump Switch
ML
WATER TEMP SENDER
C,D
40
863
1.0
MR 1
BF
NH
Cab Panel - Bulk Head
TERM
WIRE
SIZE
DEST
TYPE
41
109
1.0
MC C
BF
1
409
1.0
NH 46
BB
42
934A
1.0
NG A
BF
NU
Earth
2
600JT
1.0
SA
BB
43
514
1.0
NC 3
BF
NK
Seat Connector
44
513
1.0
MG 3
BF
MM
AIR CON
Z
45
867B
1.0
NA 1
BF
TERM
WIRE
SIZE
DEST
TYPE
46
409
1.0
ML 1
BF
1
903
1.0
NH 9
AB,AC
47
412
1.0
MK 1
BF
MN
WATER TEMP SW
C,D
48
839
1.0
MP 1
BF
TERM
WIRE
SIZE
DEST
TYPE
1
406
1.0
NH 11
BB
2
600CK
1.0
SA
BB
MP
FRONT WASH PUMP
J,K
TERM
WIRE
SIZE
DEST
TYPE
1
839
1.0
NH 48
L,M
2
600BG
1.0
SA
L,M
*

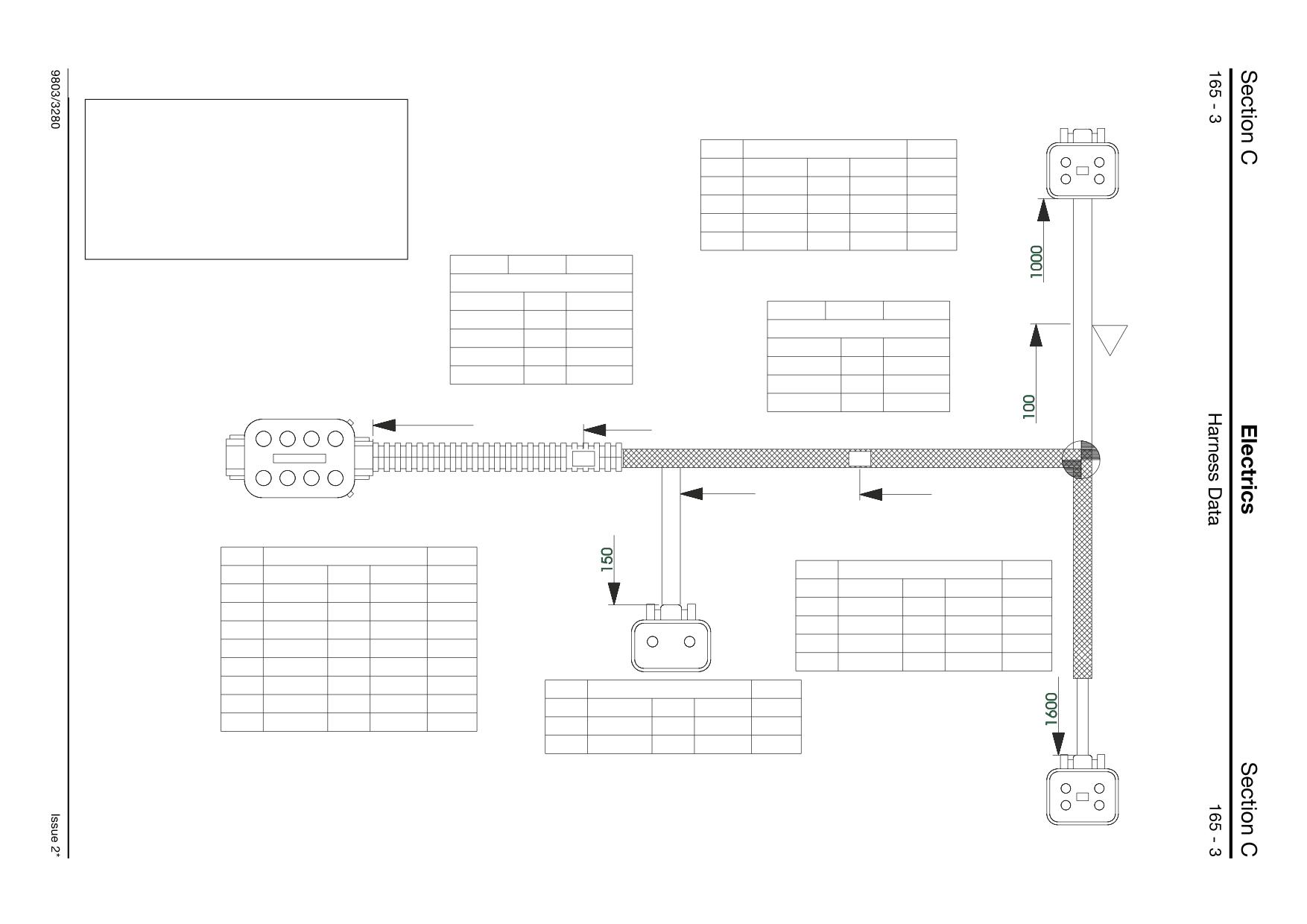

Harness Drawing - Rear Lights / Hydraclamp - Sideshift, page 1 of 1 - CAD 721/10944 Issue 1
Key to Connectors:
LA
Cab Plug
LC
RH REAR LIGHTS
G,H
LB
Hydraclamp
1
4
TERM
WIRE
SIZE
DEST
TYPE
LC
RH Rear Lights
2
3
1
816E
1.0
SB
C
LD
LH Rear Lights
2
806C
1.0
LA 3
C
SA
Earth
3
600H
1.0
SA
C
SB
Brake Lights
4
830B
1.0
LA 4
C
SA
J,K
EARTH
WIRE
SIZE
DEST
SB
J,K
600E
2.0
LA 2
BRAKE LIGHTS
600H
1.0
LC 3
ID
WIRE
SIZE
DEST
600G
1.0
LD 3
816B
1.0
LA 1
600ES
1.0
LB 2
816D
1.0
LD 1
816E
1.0
LC 1
1250
600
4
3
2
1
SA
SB
DATUM
550
100
5
6
7
8
LA
CAB PLUG
A,B
LD
LH REAR LIGHTS
G,H
TERM
WIRE
SIZE
DEST
TYPE
TERM
WIRE
SIZE
DEST
TYPE
1
816B
1.0
SB
C
1
816D
1.0
SB
C
2
600E
2.0
SA
C
2
805C
1.0
LA 5
C
3
806C
1.0
LC 2
C
3
600G
1.0
SA
C
4
830B
1.0
LC 4
C
2
1
4
829
1.0
LA 6
C
5
805C
1.0
LD 2
C
6
829
1.0
LD 4
C
LB
HYDRACLAMP
E,F
7
920
1.0
LB 1
C
TERM
WIRE
SIZE
DEST
TYPE
8
-
-
-
D
1
920
1.0
LA 7
C
2
600ES
1.0
SA
C
1
4
2
3
721/19044

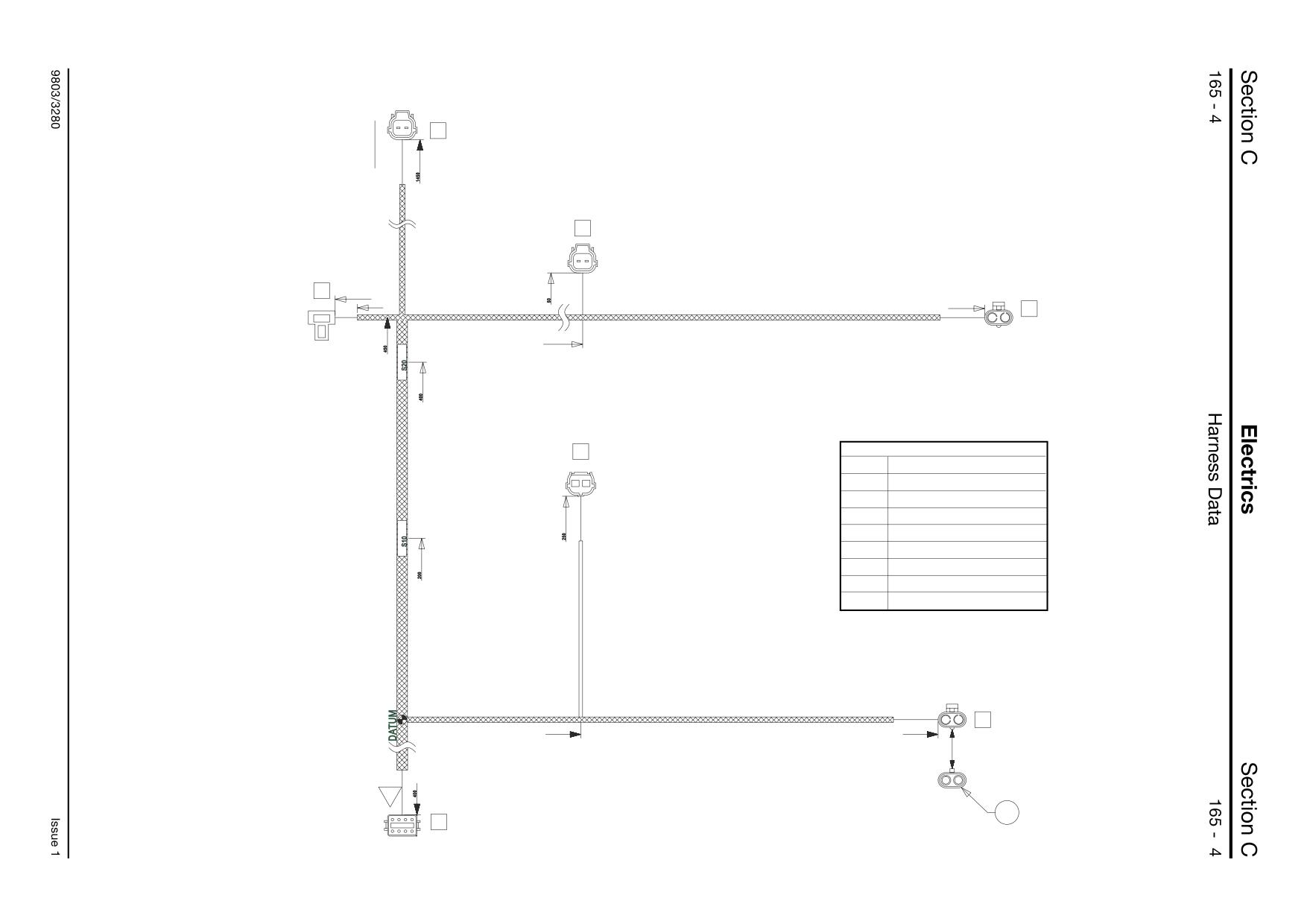

Harness Drawing - Rear Horn / Alarm - Sideshift, page 1 of 1 - CAD 721/10946 Issue 1
REVERSEALARM
2
1
C50
REVERSE ALARM
A,B
C50
TERM
WIRE
SIZE
DEST
TYPE
1
847A
1.0
C103
C,D
2
600CD
1.0
S10
C,D
REARFOGLIGHT
C60
C40
REARSOCKET
N
TERM
WIRE
SIZE
DEST
TYPE
C60
REARFOGLIGHT
A,B
C70
NOPLA TELIGHT
E
1
830E
1.0
S20
P
2
1
TERM
WIRE
SIZE
DEST
TYPE
TERM
WIRE
SIZE
DEST
TYPE
2
600BB
1.0
S10
P
1
835
1.0
C101
C,D
A
830G
1.0
S20
G,H
2
600BJ
1.0
S10
C,D
B
600AX
1.0
S10
G,H
C40
75
50
1900
C70
2
A B
1
NUMBERPLATELIGHT
1450
REARSOCKET
S10
V,W
EARTHSPLICE
WIRE
SIZE
DEST
600BB
1.0
C402
HORN
600CD
1.0
C502
600BJ
1.0
C602
C20
HORN
J,K
600AX
1.0
C70B
C20
TERM
WIRE
SIZE
DEST
TYPE
Connector Key
600EL
1.4
C202
1
871
1.4
C106
L,M
C10
Cab Connecion
600GL
2.0
C104
2
600EL
1.4
S10
L,M
2
1
C20
Horn
600BF
1.0
C30 A
C30
Horn Button
C40
Rear Socket
C50
Reverse Alarm
S20
V,W
C60
Rear Fog Light
SIDELIGHT SPLICE
C70
No Plate Light
WIRE
SIZE
DEST
S10
Earth Splice
830E
1.0
C401
830G
1.0
C70 A
S20
Side Light Splice
830T
1.0
C102
A B
C30
C10
CABCONNECTION
R,S
200
600
TERM
WIRE
SIZE
DEST
TYPE
HORN
BUTTON
1
835
1.0
C601
T
2
830T
1.0
S20
T
C30
HORNBUTTON
E
3
847A
1.0
C501
T
TERM
WIRE
SIZE
DEST
TYPE
4
600GL
2.0
S10
U
A
921
1.0
C105
G,H
B
A
5
921
1.0
C30 A
T
ID
B
600BF
1.0
S10
G,H
6
871
1.4
C201
T
4
3
2
1
F
7
-
-
-
X
C10
8
-
-
-
X
8
7
6
5
CABCONNECTION
721/10946_1

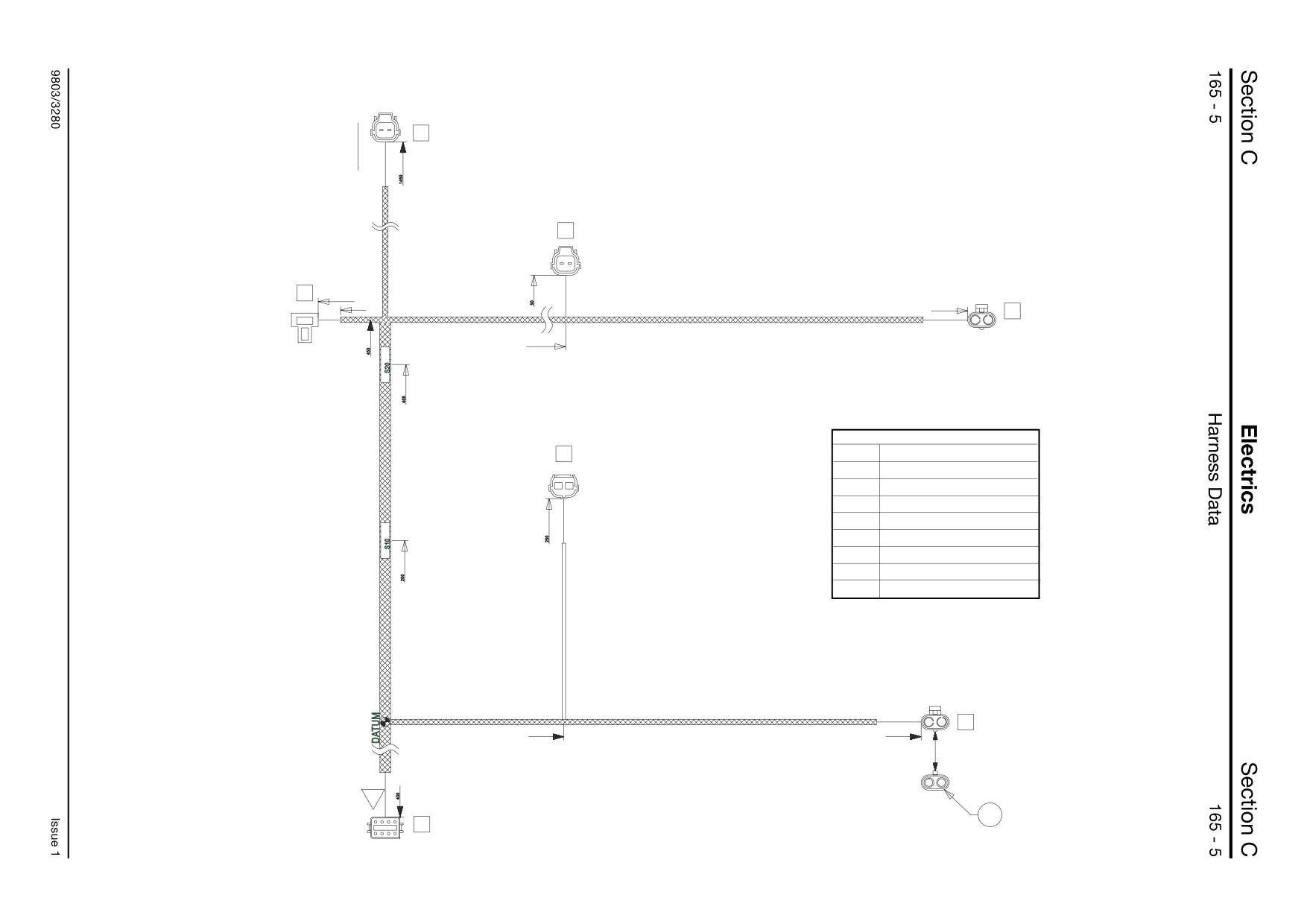

Harness Drawing - Rear Horn / Alarm - Centre Mount page 1 of 1 - CAD 721/10947 Issue 1
REVERSEALARM
C50
REVERSE ALARM
A,B
2
1
C50
TERM
WIRE
SIZE
DEST
TYPE
1
847A
1.0
C103
C,D
2
600CD
1.0
S10
C,D
REARFOGLIGHT
C60
C40
REARSOCKET
N
TERM
WIRE
SIZE
DEST
TYPE
C60
REARFOGLIGHT
A,B
C70
NOPLA TELIGHT
E
1
830E
1.0
S20
P
2
1
TERM
WIRE
SIZE
DEST
TYPE
TERM
WIRE
SIZE
DEST
TYPE
2
600BB
1.0
S10
P
1
835
1.0
C101
C,D
A
830G
1.0
S20
G,H
2
600BJ
1.0
S10
C,D
B
600AX
1.0
S10
G,H
C40
75
50
1900
C70
2
A B
1
NUMBERPLATELIGHT
REARSOCKET
1450
S10
V,W
EARTHSPLICE
WIRE
SIZE
DEST
600BB
1.0
C402
HORN
600CD
1.0
C502
Connector Key
600BJ
1.0
C602
C20
HORN
J,K
600AX
1.0
C70B
C20
TERM
WIRE
SIZE
DEST
TYPE
C10
Cab Connecion
600EL
1.4
C202
1
871
1.4
C106
L,M
C20
Horn
600GL
2.0
C104
2
600EL
1.4
S10
L,M
2
1
600BF
1.0
C30 A
C30
Horn Button
C40
Rear Socket
C50
Reverse Alarm
C60
Rear Fog Light
S20
V,W
C70
No Plate Light
SIDELIGHT SPLICE
S10
Earth Splice
WIRE
SIZE
DEST
830E
1.0
C401
S20
Side Light Splice
830G
1.0
C70 A
830T
1.0
C102
A B
C30
C10
CABCONNECTION
R,S
200
600
HORN
TERM
WIRE
SIZE
DEST
TYPE
BUTTON
1
835
1.0
C601
T
2
830T
1.0
S20
T
C30
HORNBUTTON
E
3
847A
1.0
C501
T
TERM
WIRE
SIZE
DEST
TYPE
B
A
4
600GL
2.0
S10
U
A
921
1.0
C105
G,H
5
921
1.0
C30 A
T
ID
B
600BF
1.0
S10
G,H
6
871
1.4
C201
T
4
3
2
1
F
7
-
-
-
X
C10
8
-
-
-
X
8
7
6
5
CABCONNECTION
721/10946_1

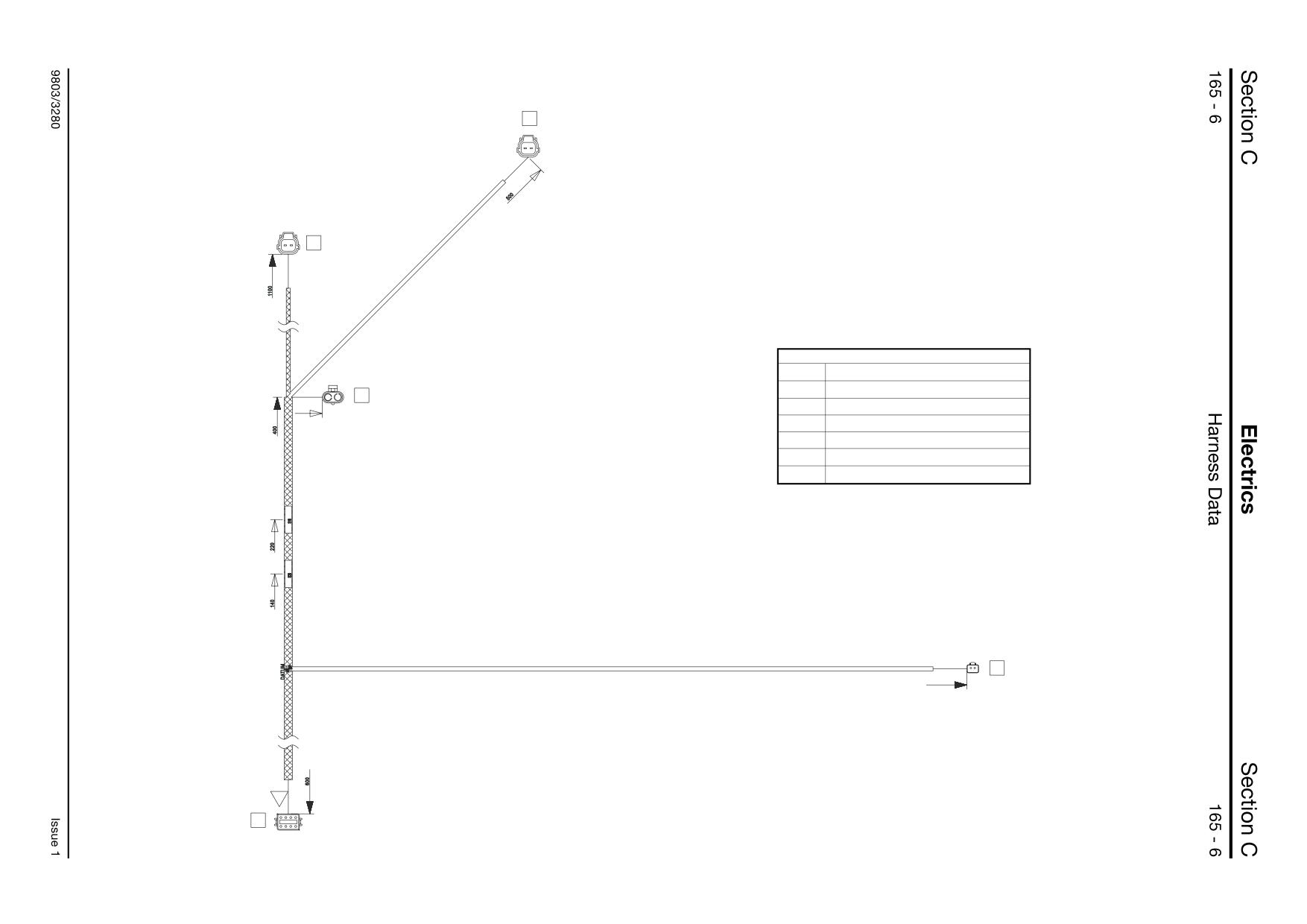

Harness Drawing - Auxiliary - Excavator page 1 of 1 - CAD 721/10974 Issue 1
C40
JAWC/O
SOLENOID
C50
MICROSWITCH
A,B
2
1
TERM
WIRE
SIZE
DEST
TYPE
1
101AA
1.0
S10
K,L
C40
JAWC/OSOLENOID
A,B
2
899
1.0
C106
K,L
TERM
WIRE
SIZE
DEST
TYPE
1
874C
1.0
C103
K,L
2
600CX
1.0
S20
K,L
2
1
C50
MICROSWITCH
Connector Key
C10
Cab Connecion
C30
JAWC/OSWITCH
C
A
B
C30
TERM
WIRE
SIZE
DEST
TYPE
C20
Hammer Solenoid
50
JAWC/O
A
101Z
1.0
S10
M,N
C30
Jaw Change Over Switch
SWITCH
B
875
1.0
C105
M,N
C40
Jaw Change Over Solenoid
C50
Micro Switch
S10
Ignition and Splice
S10
H,J
S20
Earth Splice
IGN+SPLICE
WIRE
SIZE
DEST
101Y
1.0
C102
101Z
1.0
C30 A
101AA
1.0
C501
S20
H,J
EARTHSPLICE
WIRE
SIZE
DEST
600CX
1.0
C402
600CJ
1.0
C202
600KH
2.0
C107
2
1
C20
HAMMER
1000
SOLENOID
C10
CABCONNECTOR
F,G
TERM
WIRE
SIZE
DEST
TYPE
C20
HAMMERSOLENOID
D,E
1
-
-
-
S
TERM
WIRE
SIZE
DEST
TYPE
2
101Y
1.0
S10
P
1
870
1.0
C104
P
3
874C
1.0
C401
P
2
600CJ
1.0
S20
P
4
870
1.0
C201
P
5
875
1.0
C30B
P
721/10974_1
ID
6
899
1.0
C502
P
4
3
2
1
7
600KH
2.0
S20
R
C10
8
7
6
5
8
-
-
-
S
CABCONNECTOR
Section D
Controls
Section D
i
i
Contents
Page No.
Steering Column
Removal and Replacement
30 -
1
Dismantling and Assembly
30 -
1
Shovel Reset (214e Machines)
31 -
1
Return To Dig
Operation
33 -
1
Adjustment
33 -
1
Precision Control (Servo) Machines up to serial no. 931159
Basic System Operation
- Component Location
35 -
1
- Component Identification
35 -
2
- Circuit Description
35 -
2
- Electrical Operation
35 -
4
- Hydraulic Operation
35 -
4
Electrical Connections
36 -
1
Fault Finding
37 -
1
Service Procedures
- Testing the Pilot Pressure
38 -
1
- Renewing the Pilot Supply Valve Oil Filter
38 -
1
- Pilot Hose Removal and Replacement
38 -
3
- Seat Arms Control Lever - Adjustment
38 -
4
Pilot Control Valves
- Removal and Replacement
40 -
1
- Dismantling and Assembly
40 -
3
- Electrical Switches Removal and Replacement
41 -
1
Precision Control (Servo) Machines from January 2003
Basic System Operation
- Component Location
45 -
1
- Component Identification
45 -
2
- Circuit Description
45 -
2
- Hydraulic Operation
45 -
3
- Electrical Operation
Joystick Controller
45 -
6
Pump Dump Controller (Power Management ECU) 45 -
6
- Joystick Controllers - Description
45 -
7
- Servo Pressure Supply Valve - Description
45 -
8
Fault Finding
47 -
1
Service Procedures
- Testing the Servo Pressure
48 -
1
Joystick Controllers
- Removal and Replacement
50 -
1
- Dismantling and Assembly
50 -
2
9803/3280
Issue 4*
Section D
Controls
Section D
ii
ii
Contents
Page No.
Precision Control (Servo) Machines from January 2003
(continued)
Servo Pressure Supply Valve
- Removal and Replacement
51 - 1
- Dismantling and Assembly
51 - 2
Control Rods and Linkages
Dismantling and Assembly
- Loader Valve Controls
60 - 1
- Excavator Valve Controls
61 - 1
Control Cables
Removal and Replacement
- Cab Heater Controls
70 - 1
- Stabiliser Controls
71 - 1
- Boom Lock Cable
72 - 1
Boom Stop Setting
72 - 1
- Engine Throttle Cable
73 - 1
- Auxiliary Footpedal Cable
74 - 1
9803/3280
Issue 1















Content      ..     6      7      8      9     ..
