Hand Tools
WRENCHES
Fractional Crowfoot Wrench Group, 11 Piece
Model Usage: All Cat® Products
• 12 point
• Can be ordered by set or individually
Warranty: Caterpillar ®Lifetime
• Maybeused with 3/8 inch or 1/2 inch drive
ratchet or torque wrenches
Part No.
Description
Size
Drive
5P-0336
Crowfoot Wrench Group
-
-
5P-0324
Wrench
5/8in
3/8in
5P-0325
Wrench
11/16 in
3/8in
5P-0326
Crowfoot Wrench
3/4in
3/8in
5P-0327
Wrench
13/16 in
3/8in
5P-0328
Crowfoot Wrench (Fuel Line)
7/8in
3/8in
5P-0329
Crowfoot Wrench (Fuel Line)
15/16 in
3/8in
5P-0331
Wrench
1in
3/8in
5P-0332
Wrench
1 1/16
3/8in
5P-0333
Crowfoot Wrench
1 1/8 in
1/2in
5P-0334
Wrench
1 1/4 in
1/2in
5P-0335
Wrench
1 3/8 in
1/2in
Optional Wrenches (not included in 5P-0336)
463-1899
Crowfeet Wrench (Fuel Line)
11/16 in
3/8in
1U-5536
Crowfoot Wrench
1 5/16 in
1/2in
1U-5732
Wrench
1 3/4 in
3/8in
1U-5734
Wrench
2in
3/8in
1U-5735
Wrench
2 1/8 in
3/8in
5P-0294
Wrench
1 11/16 in
1/2in
Wrench Set, 15-Piece 1/2-inch Fractional Crowfoot
Model Usage: All Cat® Products
• Continuous arc open end minimizes jaw
• Special alloy steel for strength and durability
spread for constant contact with the fastener
Warranty: Caterpillar ®Lifetime
• Can be ordered by set or individually
to give you the maximum torque with the
minimum torque transmission loss
Part No.
Description
Size
Drive
430-9053
15- Piece Fractional Crowfoot Wrench Set
-
1/2in
Individual Drivers
430-9038
Crowfoot Wrench
1 1/16 in
1/2in
430-9039
Crowfoot Wrench
1 1/8 in
1/2in
430-9040
Crowfoot Wrench
1 3/16 in
1/2in
430-9041
Crowfoot Wrench
1 1/4 in
1/2in
430-9042
Crowfoot Wrench
1 5/16 in
1/2in
430-9043
Crowfoot Wrench
1 3/8 in
1/2in
430-9044
Crowfoot Wrench
1 7/16 in
1/2in
430-9045
Crowfoot Wrench
1 1/2 in
1/2in
430-9046
Crowfoot Wrench
1 9/16 in
1/2in
430-9047
Crowfoot Wrench
1 5/8 in
1/2in
430-9048
Crowfoot Wrench
1 11/16 in
1/2in
430-9049
Crowfoot Wrench
1 3/4 in
1/2in
430-9050
Crowfoot Wrench
1 13/16 in
1/2in
430-9051
Crowfoot Wrench
1 7/8 in
1/2in
430-9052
Crowfoot Wrench
2in
1/2in
JULY 2018 Hand Tools
17-31
Hand Tools
WRENCHES

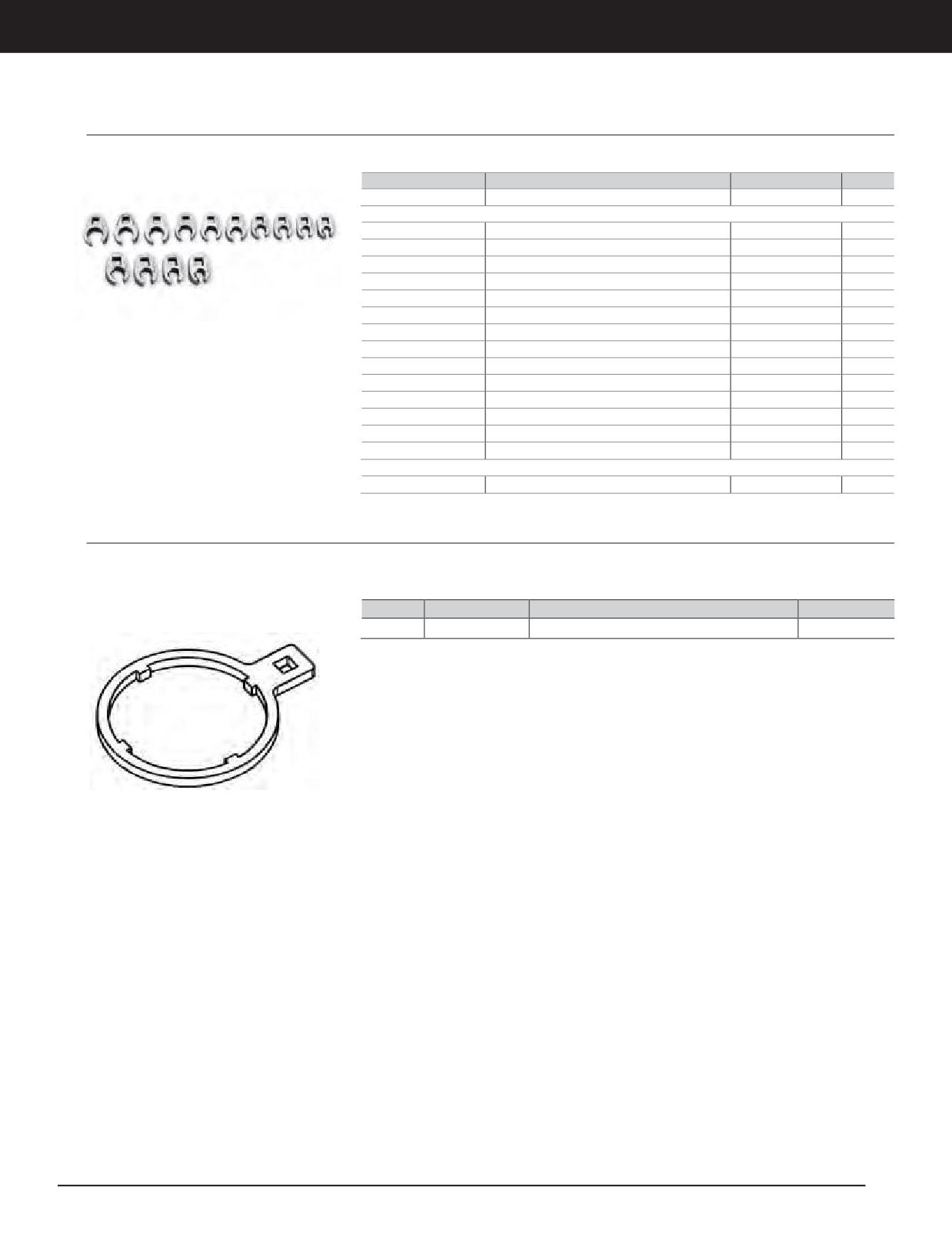

Metric Flare Nut Crowfoot Wrench

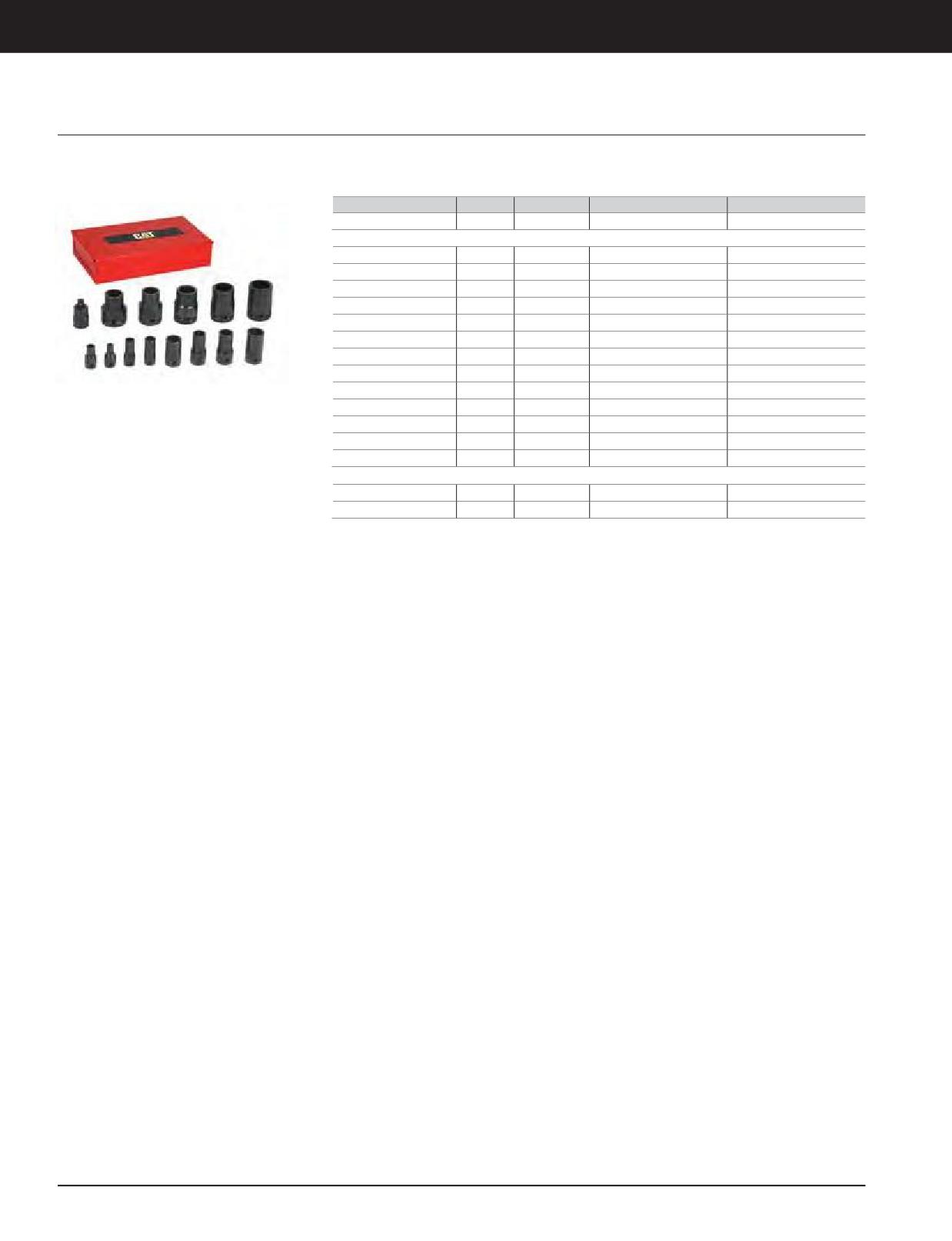

Model Usage: All Cat® Products
• 6 point
Warranty: Caterpillar ®Lifetime
Part Number
Description
Size
Drive
305-3129
Metric Flare Nut Crowfoot Wrench Set
9 - 22 mm
3/8
Crowfoot Wrench Set Consists of:
305-3115
Flare Nut Crowfoot Wrench
9 mm
3/8
305-3116
Flare Nut Crowfoot Wrench
10 mm
3/8
305-3117
Flare Nut Crowfoot Wrench
11 mm
3/8
305-3118
Flare Nut Crowfoot Wrench
12 mm
3/8
305-3119
Flare Nut Crowfoot Wrench
13 mm
3/8
305-3120
Flare Nut Crowfoot Wrench
14 mm
3/8
305-3121
Flare Nut Crowfoot Wrench
15 mm
3/8
305-3122
Flare Nut Crowfoot Wrench
16 mm
3/8
305-3123
Flare Nut Crowfoot Wrench
17 mm
3/8
305-3124
Flare Nut Crowfoot Wrench
18 mm
3/8
305-3125
Flare Nut Crowfoot Wrench
19 mm
3/8
305-3126
Flare Nut Crowfoot Wrench
20 mm
3/8
305-3127
Flare Nut Crowfoot Wrench
21 mm
3/8
305-3128
Flare Nut Crowfoot Wrench
22 mm
3/8
Additional Crowfoot Wrenches
386-3367
Flare Nut Crowfoot Wrench
24 mm
3/8
Spanner Wrench
Model Usage: MD6640
• Tool is used to torque lock nut on rotary
• Uses ¾ drive ratchet or breaker bar to tighten
gearbox
spanner nut
Model Usage: All Cat® Products
Warranty: Caterpillar ®Six Months
Part No.
Description
Dimensions
Weight
510-3704
Spanner Wrench
200 x 250 x 12 mm (8 x 10 x 0.5 in)
1 kg (2.2 lb)
17-32 JULY 2018 Hand Tools
Hand Tools
WRENCHES
Swivel Head Tee Handle Socket Wrench (6 mm)
Model Usage: AP300F and AP355F Asphalt
• 500 mm long wrench is required to reach
• Saves time and allows technician to properly
Pavers
the chain adjuster on AP300F and AP355F
adjust the chain tension during service
asphalt pavers.
Warranty: Manufacturer’s Two Year,
+39 02 8719 7384 www.attrezzieutensili.it
Part No.
Description
OAL
Weight
507-7493
Swivel Head Tee Handle Socket Wrench (6 mm)
500 mm
0.7 kg ( 1.5lb)
JULY 2018 Hand Tools
17-33
Hand Tools
RATCHETS AND SOCKETS

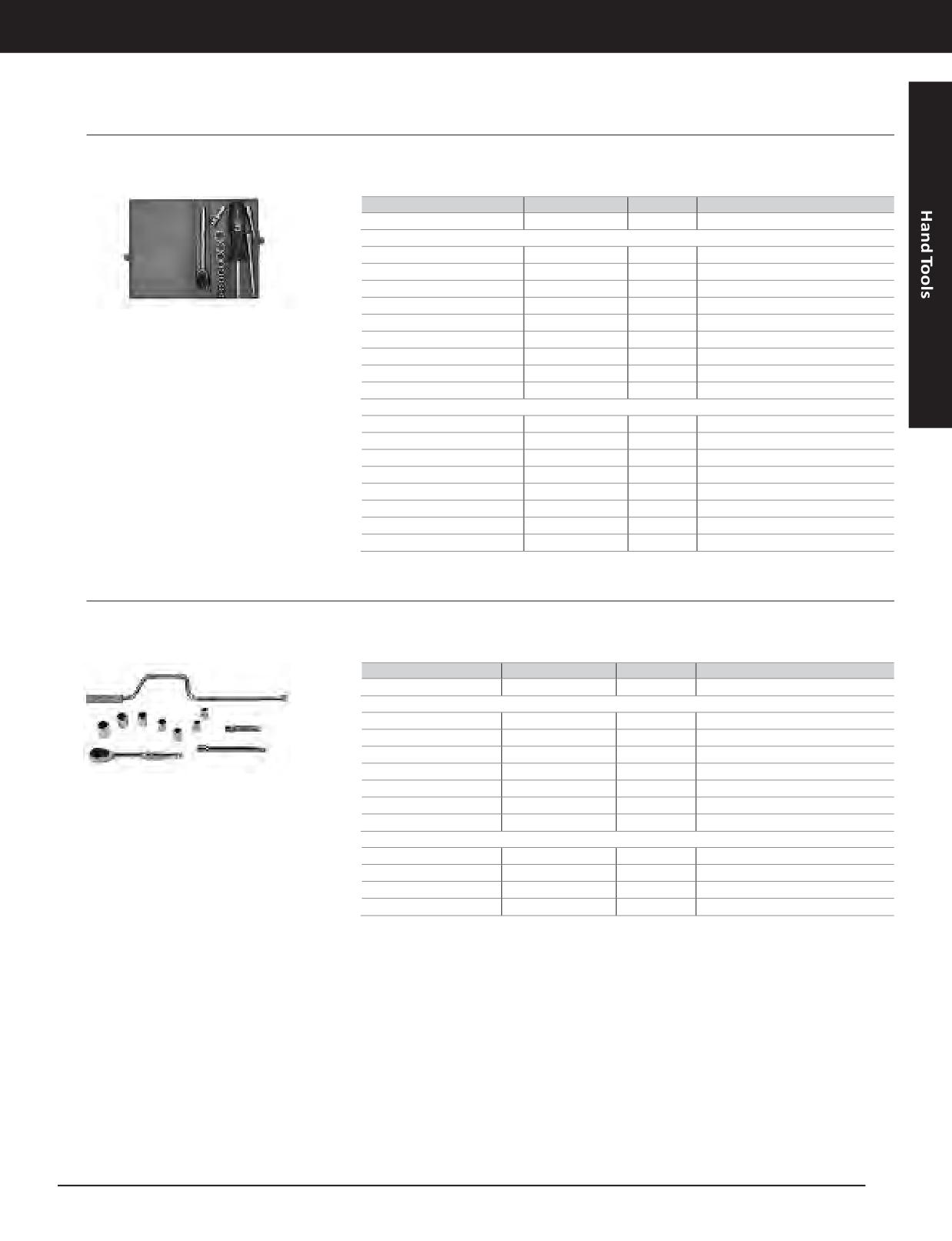

Fractional Socket Set, 17 Piece, 1/4 inch Drive
Model Usage: All Cat® Products
• 12 point
• Standard length sockets
Warranty: Caterpillar ®As Noted
• 1/4 inch square drive
• Chrome finish
Size
Length
Part No.
Description
–
-
213-4443
Socket Set (Lifetime Warranty)
Socket Set Consists of:
1/2in
22.2mm (.88in)
9S-1719
Socket
1/4in
22.2mm (.88in)
9S-1713
Socket
11/32 in
22.2mm (.88in)
9S-1716
Socket
3/16 in
22.2mm (.88in)
9S-1711
Socket
3/8in
22.2mm (.88in)
9S-1717
Socket
5/16 in
22.2mm (.88in)
9S-1715
Socket
7/16 in
22.2mm (.88in)
9S-1718
Socket
7/32 in
22.2mm (.88in)
9S-1712
Socket
9/32 in
22.2mm (.88in)
9S-1714
Socket
Accessories
-
159.5 mm (6.28 in)
9S-1725
Case(90-DayManuf.Warranty)
1/4in
-
239-6823
Reversible Ratchet
1/4in
-
9S-1722
Socket Driver
1/4 in Female to 3/8 in male
-
213-4437
Socket Adapter
1/4in
-
9S-1724
Universal Joint
101.6 mm (4.00 in)
-
9S-1721
Extension
3/8 in Female to 1/4 in male
-
261-0443
Socket Adapter
50.8 m (2.00 in)
-
9S-1720
Socket Extension
Fractional Socket Set, 11 Piece, 3/8 inch Drive
Model Usage: All Cat® Products
• 12 point
• Chrome finish
Warranty: Caterpillar ®Lifetime
• 3/8 inch square drive
• Can be ordered by set or individually
Size
Length
Part Number
Description
–
-
9S-1746
Socket Set
Sockets Set consists of:
1/2in
23.8mm (0.94in)
8H-8568
Socket
11/16 in
27mm (1.06in)
9S-1728
Socket
3/4in
27.8mm (1.09in)
8H-8571
Socket
3/8in
23mm (0.91in)
8S-2274
Socket
5/8in
26.2mm (1.03in)
8H-8570
Socket
7/16 in
23mm (0.91in)
8H-8567
Socket
9/16 in
24.6mm (0.97in)
8H-8569
Socket
Accessories included
152.4mm (6.00in)long
152.4mm (6in)
8H-8575
Extension Assembly
3/8in
447.5 mm (17.62 in)
8H-8573
Speeder Handle
3/8in
187.5 mm (7.38 in)
239-6824
Reversible Ratchet, 3/8 in Drive
76.2mm (3.00in)long
76.2 mm (3 in)
8H-8574
Socket Extension
17-34 JULY 2018 Hand Tools
JULY 2018 Hand Tools
17-34
Hand Tools
RATCHETSANDSOCKETS
Fractional Socket Set, 16 Piece, 1/2 inch Drive
Model Usage: All Cat® Products
• 12 point
• Chrome finish
Warranty: Caterpillar ®Lifetime
• 1/2 inch square drive
• Can be ordered by set or individually
Size
Length
Part No.
Description
–
-
9S-1748
Socket Set
Socket Set Consists of:
1 1/16 in
41.3mm (1.63in)
9S-1729
Socket
1 1/4 in
47.6mm (1.87in)
9S-1731
Socket
1 1/8 in
44.5mm (1.75in)
9S-1730
Socket
1in
38.1mm (1.50in)
8H-8556
Socket
1/2in
38.1mm (1.50in)
1S-0259
Socket
11/16 in
38.1mm (1.50in)
8H-8551
Socket
13/16 in
38.1mm (1.50in)
8H-8553
Socket
15/16 in
38.1mm (1.50in)
8H-8555
Socket
3/4in
38.1mm (1.50in)
8H-8552
Socket
5/8in
38.1mm (1.50in)
8H-8550
Socket
7/8in
38.1mm (1.50in)
8H-8554
Socket
9/16 in
38.1mm (1.50in)
8H-8549
Socket
Accessories Included
1/2in
381.0mm (15in)
239-6826
Reversible Ratchet
1/2in
457.2mm (18in)
168-0383
Breaker Bar
1/2 in drive, 127.0 mm (5.00 in) long
127.0mm (5in)
9S-1732
Extension
1/2 in drive, 254.0 mm (10.00 in) long
279.0 mm (10.98 in)
8H-8559
Socket Extension
Fractional Socket Set, 21 piece, 3/4" Drive
Model Usage: All Cat® Products
• 12 point
• Chrome finish
Warranty: Caterpillar ®See Individual Parts
• 3/4 inch square drive
• Can be ordered by set or individually
Size
Length
Part No.
Description
–
-
9S-1749
Socket Set
Socket Set Consists of:
1 1/16 in
54.0mm (2.13in)
8H-8533
Socket
1 1/2 in
63.5mm (2.50in)
8H-8537
Socket
1 1/4 in
57.2mm (2.25in)
8H-8535
Socket
1 1/8 in
55.5mm (2.19in)
8H-8534
Socket
1 11/16 in
69.9mm (2.75in)
8H-8538
Socket
1 3/4 in
69.9mm (2.75in)
8H-8540
Socket
1 5/16 in
58.7mm (2.31in)
8H-8536
Socket
1 5/8 in
66.7mm (2.63in)
8H-8539
Socket
1 7/8 in
79.4mm (3.13in)
8H-8541
Socket
1in
52.4mm (2.06in)
8H-8532
Socket
15/16 in
50.8 mm (2 in)
8H-8531
Socket
2 1/4 in
82.6mm (3.25in)
8H-8504
Socket
2 1/8 in
82.6mm (3.25in)
8H-8543
Socket
2 3/16 in
82.6mm (3.25in)
8H-8544
Socket
2in
79.4mm (3.13in)
8H-8542
Socket
3/4in
50.8 mm (2 in)
8H-8529
Socket
7/8in
50.8 mm (2 in)
8H-8530
Socket
Accessories Included
-
489.0 mm (19.25 in)
162-8716
Ratchet Head Handle
203.2mm (8.00in)long
203.2mm (8in)
8H-8548
Socket Extension
3/4in
-
160-6389
Reversible Ratchet Head
3/4in
93.6mm (3.69in)
8H-8546
Breaker Bar Head
JULY 2018 Hand Tools
17-35
Hand Tools
RATCHETSANDSOCKETS
Fractional Shoulder Bolt Socket Set, 15 Piece
Model Usage: All Cat® Products
• 12 point
• Can be ordered by set or individually
Warranty: See Individual Parts
• Black oxide finish
Drive
Size
Length
Part No.
Description
–
-
-
292-9246
Shoulder Bolt Socket Set
Socket Set Consists of:
3/8"
1/4"
1.25"
541-3250
Shoulder Bolt Socket
3/8"
5/16"
1.25"
541-3246
Shoulder Bolt Socket
3/8"
3/8"
1.5"
541-3238
Shoulder Bolt Socket
7/16"
3/8"
1.5"
541-3235
Shoulder Bolt Socket
1/2"
1/2"
1.75"
541-3236
Shoulder Bolt Socket
1/2"
9/16"
1.75"
8S-1594
Shoulder Bolt Socket
1/2"
5/8"
1.75"
541-3242
Shoulder Bolt Socket
1/2"
11/16"
1.75"
541-3247
Shoulder Bolt Socket
3/4"
3/4"
2 1/8"
541-3244
Shoulder Bolt Socket
3/4"
13/16"
2 1/8"
541-3249
Shoulder Bolt Socket
3/4"
7/8"
2 1/8"
8S-1599
Shoulder Bolt Socket
3/4"
15/16"
2 3/16"
541-3248
Shoulder Bolt Socket
3/4"
1"
2.25"
541-3245
Shoulder Bolt Socket
Accessories
1/2" female, 3/8" male
-
1.5"
452-0539
Socket Adapter
-
-
9.5" x 5.5" x 2"
292-9148
Tool Box
17-36 JULY 2018 Hand Tools
Hand Tools
RATCHETSANDSOCKETS
Fractional Heavy-Duty Socket Set, 17 Piece, 1 inch Drive
Model Usage: All Cat® Products
• 6 point
• Black oxide finish
Warranty: Caterpillar ®As Noted
• 1 inch square drive
• Can be ordered by set or individually
Size
Length
Part No.
Description
–
-
5S-6093
Socket Set (Lifetime Warranty)
Heavy-Duty Socket Set Consists of:
2 1/2 in
104.8 mm (4.13 in)
5S-6078
Socket
2 3/4 in
114.3 mm (4.50 in)
5S-6080
Socket
2 3/8 in Hex
98.4mm (3.87in)
5S-6077
Socket
2 5/8 in
57.2mm (2.25in)
5S-6079
Socket
3 1/2 in
133.4 mm (5.25 in)
5S-6084
Socket
3 1/4 in
127 mm (5 in)
5S-6083
Socket
3 1/8 in
127 mm (5 in)
5S-6082
Socket
3 3/4 in
136.5 mm (5.37 in)
5S-6086
Socket
3 5/8 in
133.4 mm (5.25 in)
5S-6085
Socket
3in
123.8 mm (4.87 in)
5S-6081
Socket
4in
127 mm (5 in)
5S-6087
Socket
Accessories Included
-
-
161-3983
Ratchet Head (Warranty Lifetime-Repairable)
–
-
541-3255
Sledge Socket Wrench
–
-
5S-6090
Sliding T Wrench Head
–
736.6mm (29in)
5S-6089
Wrench Handle
–
788.67 mm (31.05 in)
5S-6092
Tool Box (90-Day Manuf. Warranty)
203.2 mm (8.00 in)
203.2mm (8in)
5S-6076
Socket Extension

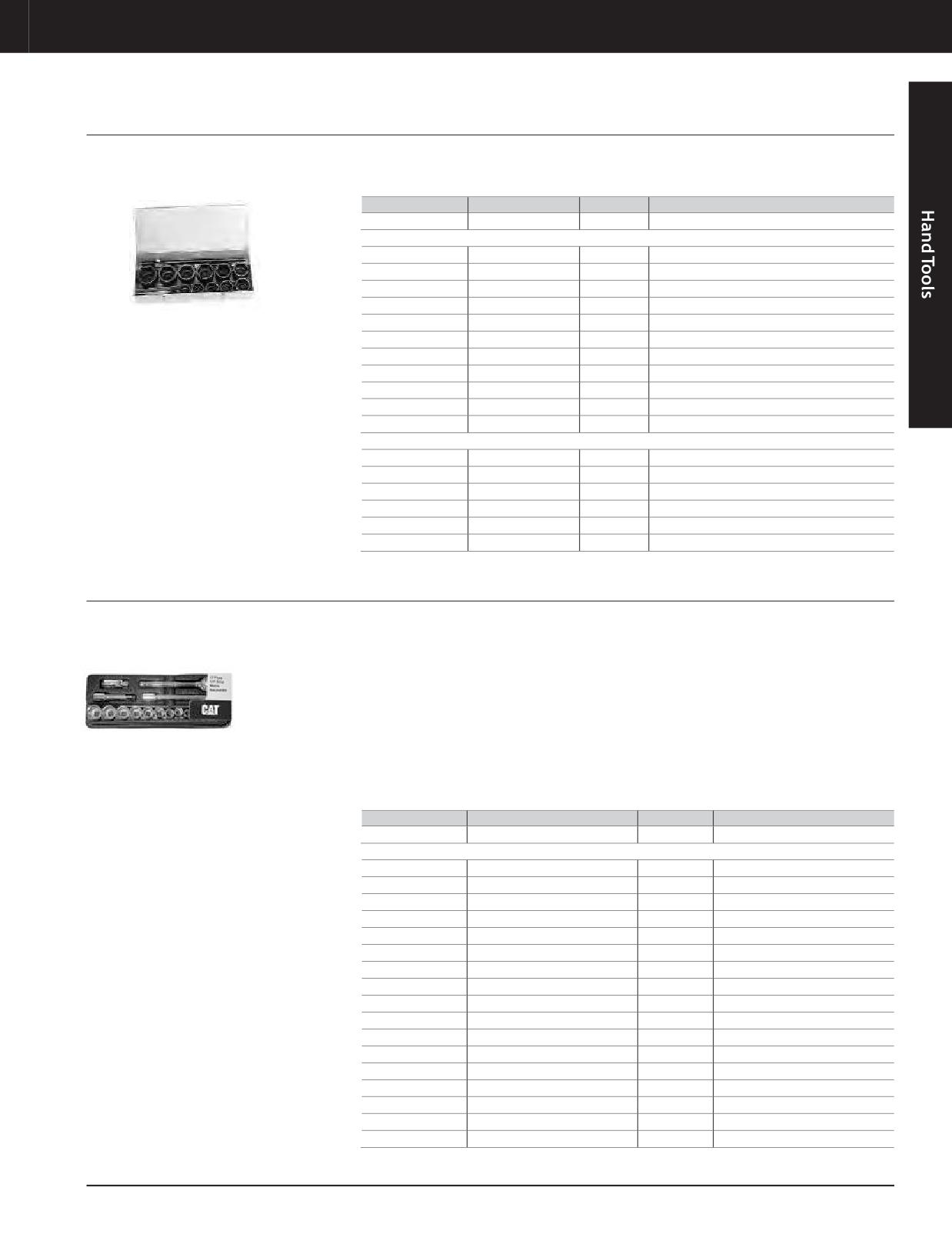

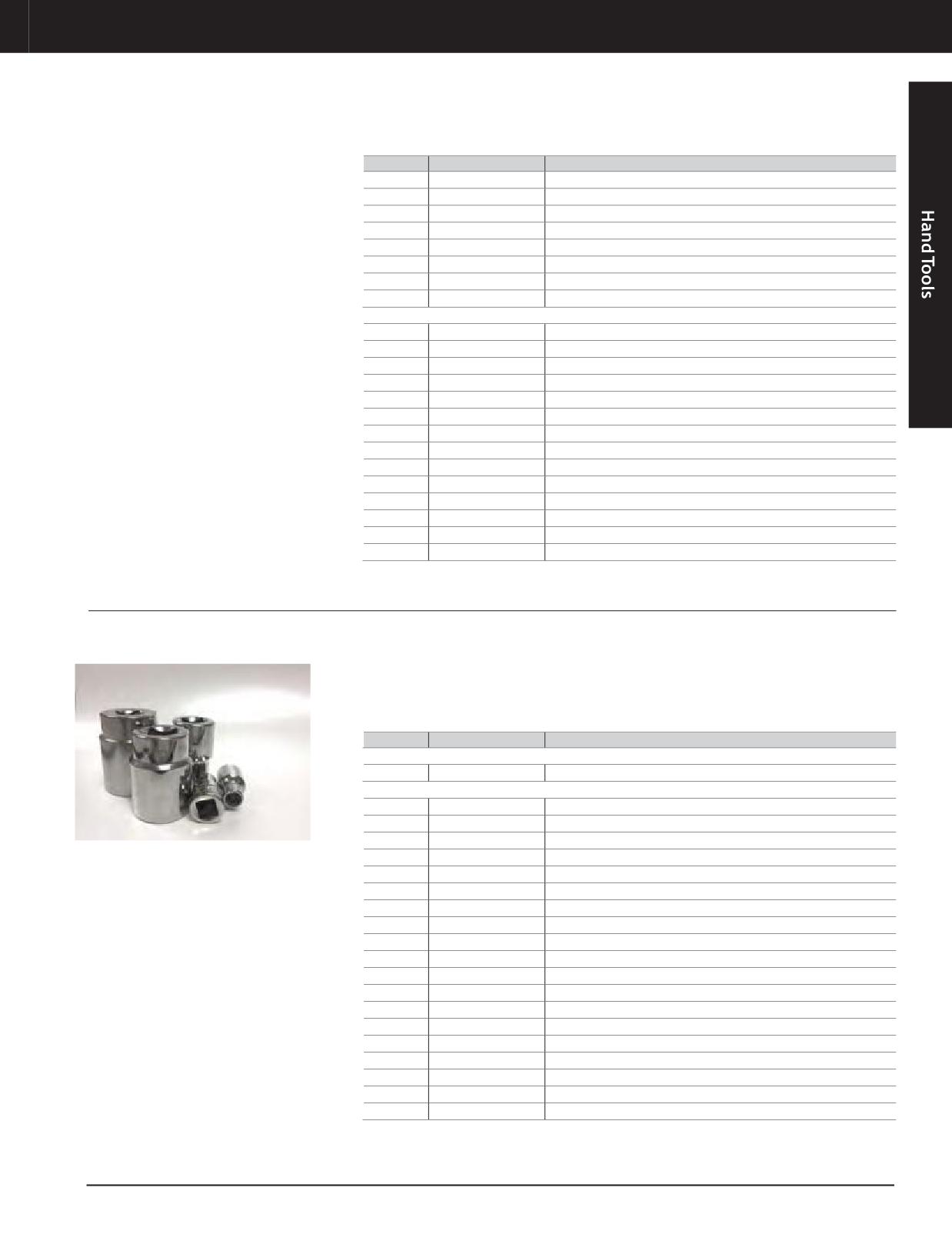

Metric Ratchet Set, 17 Piece, 1/4 inch Drive
Model Usage: All Cat® Products
• Socket contacts the fastener on the flats
• Detents are located on all four inner walls
rather than on the corners, preventing
ensuring positive engagement with the drive
Warranty: Caterpillar ®Lifetime
rounding of the fastener and allowing for
tool in any orientation.
more torque to be applied
• Hex and drive ends of the socket are
• Concentric or uniform wall thickness
countersunk or funnel-shaped, making
eliminates weak spots while allowing for a
engagement with the fastener or drive tool
thin wall design for greater accessibility
quicker and easier
• Creates positive engagement with the drive
• Nickel chrome plating provides a durable,
tool for a tight/slop-free driving system.
corrosion resistant coating and a brilliant tool
finish
Size
Length
Part No.
Description
–
-
233-1642
Metric Ratchet Set
Metric Ratchet Set Consists of:
1/4in
-
9S-1724
Universal Joint
1/4in
112.3 mm (4.42 in)
9U-6635
Ratchet
10.0 mm
22.2mm (0.87in)
200-8423
Socket (1/4 in Drive)
101.6 mm (4.00 in)
101.6mm (4in)
9S-1721
Extension
11.0 mm
22.2mm (0.87in)
200-8424
Socket (1/4 in Drive)
12.0 mm
22.2mm (0.87in)
200-8426
Socket (1/4 in Drive)
13.0 mm
22.2mm (0.87in)
200-8427
Socket (1/4 in Drive)
14.0 mm
22.2mm (0.87in)
200-8428
Socket (1/4 in Drive)
15.0 mm
23.0mm (0.91in)
200-8429
Socket (1/4 in Drive)
4.0 mm
22.2mm (0.87in)
200-8415
Socket (1/4 in Drive)
5.0 mm
22.2mm (0.87in)
200-8417
Socket (1/4 in Drive)
5.5 mm
22.2mm (0.87in)
200-8418
Socket (1/4 in Drive)
50.8 m (2.00 in)
50.8 mm (2 in)
9S-1720
Socket Extension
6.0 mm
22.2mm (0.87in)
200-8419
Socket (1/4 in Drive)
7.0 mm
22.2mm (0.87in)
200-8420
Socket (1/4 in Drive)
8.0 mm
22.2mm (0.87in)
200-8421
Socket (1/4 in Drive)
9.0 mm
22.2mm (0.87in)
200-8422
Socket (1/4 in Drive)
JULY 2018 Hand Tools
17-37
Hand Tools
RATCHETSANDSOCKETS

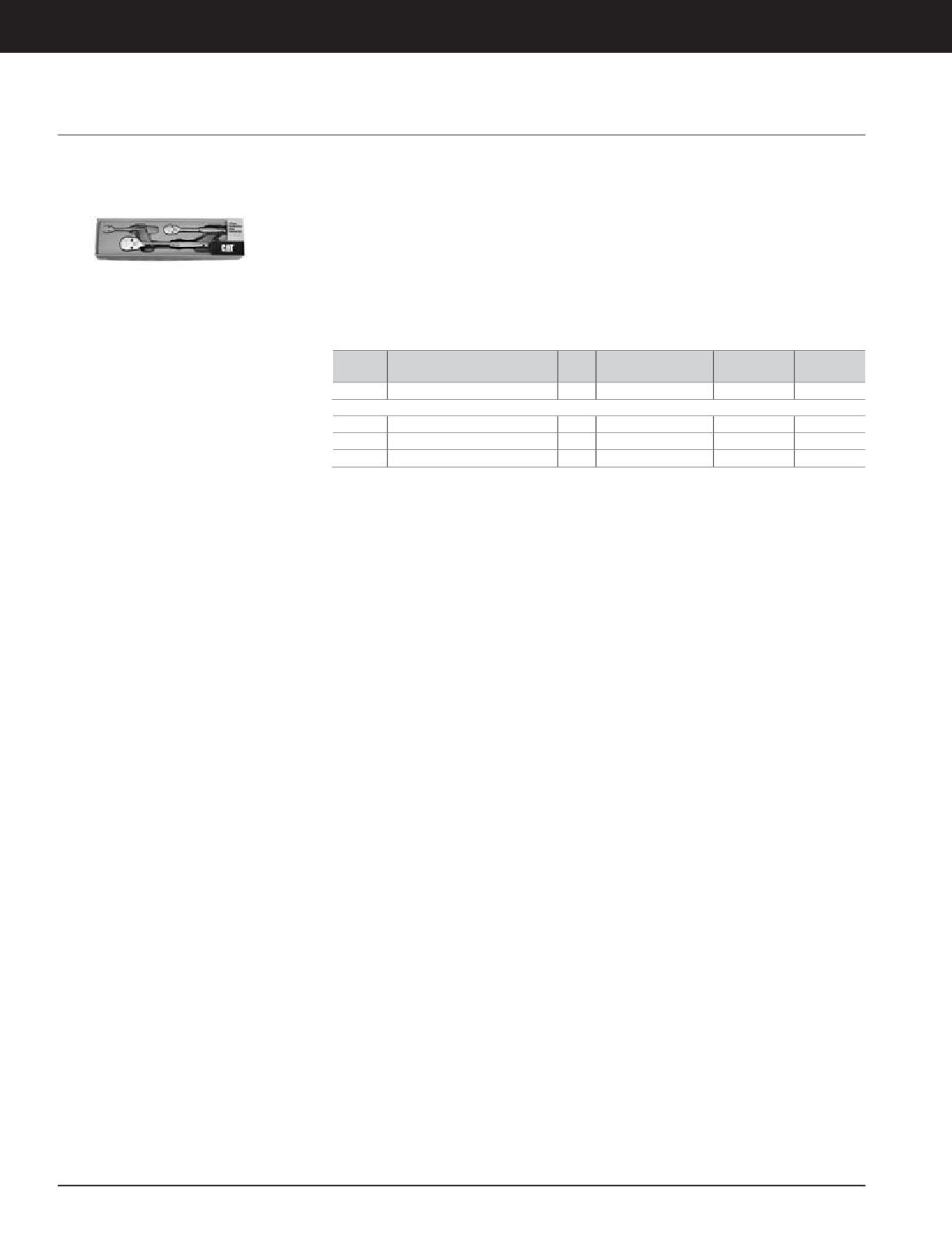

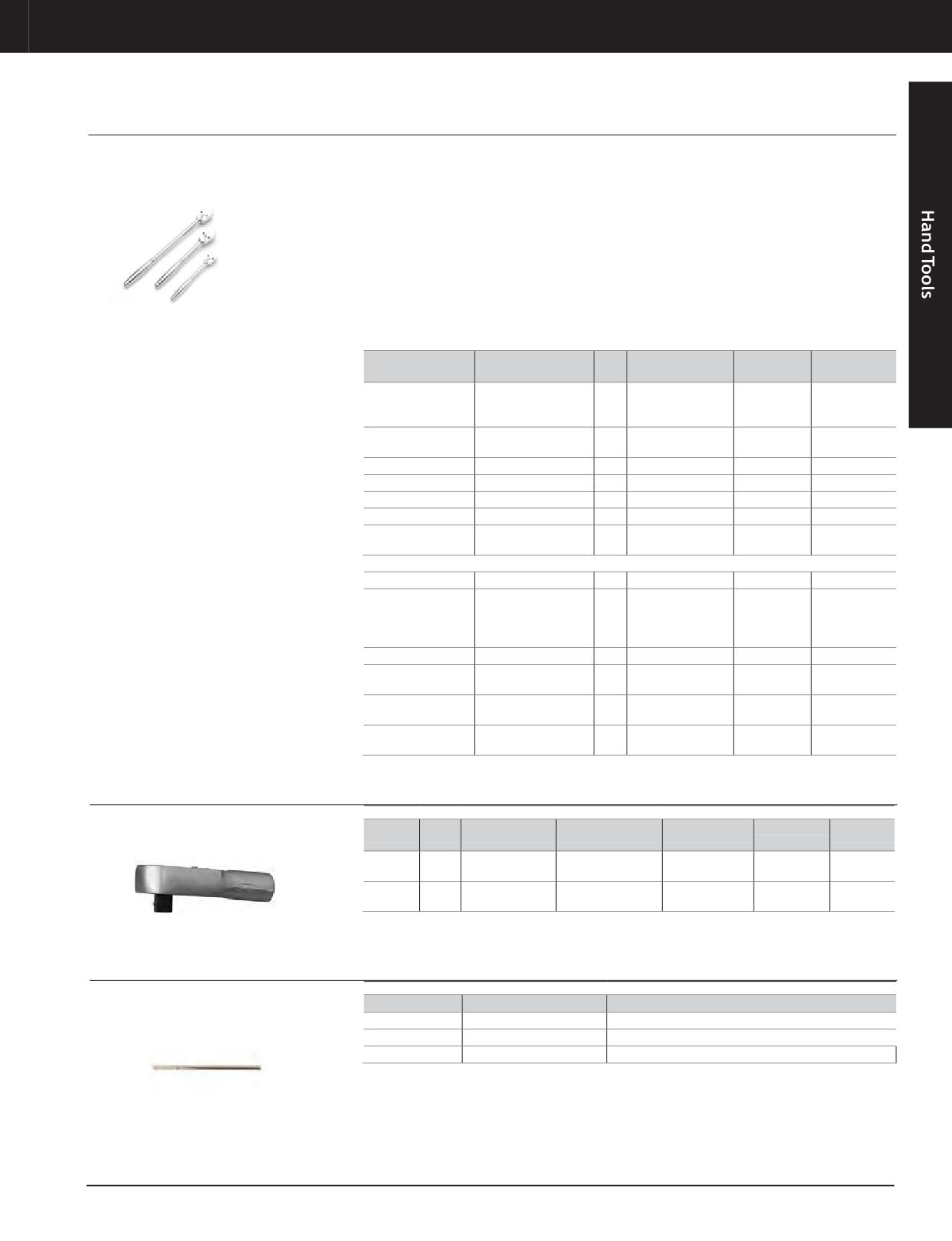

Ratchet Set, 3 Piece
Model Usage: All Cat® Products
• Sealed heads protect internal components
• Reverse lever can be shifted with one hand
from outside environment which leads to
which saves time when the gear mechanism
Warranty: Caterpillar ®Lifetime
longer product life and reduced maintenance,
needs to be reversed in tight places
and prevents gear slippage
• Square drive is close to the end of the head,
• Heads forged to exact tolerances for longer
giving maximum accessibility to fasteners in
tool life and greater head strength
restricted areas
• High strength internal mechanism provides
• Nickel chrome plating provides a durable,
longer tool life
corrosion resistant coating and a brilliant tool
finish
• Ergonomic handle reduces user fatigue and
has a more comfortable grip
Smallest
Part No.
Description
Drive
Length
Repair Kit
Working Arc
233-1637
RatchetSet
-
-
-
-
Ratchet Set Consists of:
239-6823
Reversible Ratchet
1/4in
112.3 mm (4.42 in)
12.0 Degrees
230-0812
239-6824
Reversible Ratchet, 3/8 in Drive
3/8in
187.5 mm (7.38 in)
12.0 Degrees
230-0813
239-6825
Ratchet (1/2in Drive)
1/2in
261.9 mm (10.31 in)
10.0 Degrees
214-7339
17-38 JULY 2018 Hand Tools
Hand Tools
RATCHETSANDSOCKETS
Ratchets
Model Usage: All Cat® Products
• Sealed heads protect internal components
• Reverse lever can be shifted with one hand
from outside environment which leads to
which saves time when the gear mechanism
Warranty: Caterpillar ®Lifetime
longer product life and reduced maintenance,
needs to be reversed in tight places
and prevents gear slippage
• Square drive is close to the end of the head,
• Heads forged to exact tolerances for longer
giving maximum accessibility to fasteners in
tool life and greater head strength
restricted areas
• High strength internal mechanism provides
• Nickel chrome plating provides a durable,
longer tool life
corrosion resistant coating and a brilliant tool
finish
• Ergonomic handle reduces user fatigue and
has a more comfortable grip
Smallest
Part No.
Description
Size
Length
Repair Kit
Working Arc
194-4944
(Offset round
Ratchet
3/8
260.4 mm (10.25 in)
5.0 Degrees
-
swivel head)
214-7340
Ratchet
1/2
287.3 mm (11.31 in)
4.5 Degrees
214-7341
(Round head)
(Six Month Warranty)
239-6823
Reversible Ratchet
1/4
112.3 mm (4.42 in)
12.0 Degrees
230-0812
239-6824
Reversible Ratchet
3/8
187.5 mm (7.38 in)
12.0 Degrees
230-0813
239-6825
Ratchet
1/2
261.9 mm (10.31 in)
10.0 Degrees
214-7339
239-6826
Reversible Ratchet
1/2
381.0mm (15in)
10.0 Degrees
214-7339
263-3341
Ratchet
1/2
448.6 mm (17.66 in)
10.0 Degrees
214-7339
(Long flex handle)
Repair Kits for Discontinued Ratchets
214-7333
Flex Head Ratchet
-
-
-
214-7339
5P-7444
(20 tooth gear)
5P-7443
Ratchet
-
-
-
5P- 7445
(30 tooth gear)
8H-8557
Ratchet
-
-
-
4S-7326
9U-6636
9U-6635
Ratchet
-
112.3 mm (4.42 in)
-
(30 tooth gear)
9U-6638
9U-6637
Ratchet
-
-
-
(30 tooth gear)
9U-6640
9U-6639
Ratchet
-
-
-
(32 tooth gear)
Ratchet Heads
Model Usage: All Cat® Products
Smallest
Part No.
Size
Head Width
Head Length
Head Depth
Repair Kit
Working Arc
Warranty: Caterpillar ®Lifetime - Repairable
11.2
160-6389
3/4in
63.0mm (2.48in)
150.9 mm (5.94 in)
31.2mm (1.23in)
160-6390
Degrees
12.0
161-3983
1in
79.4mm (3.12in)
200.0 mm (7.86 in)
38.1mm (1.50in)
161-3985
Degrees
Ratchet Handles
Model Usage: All Cat® Products
Part No.
Drive
Length
162-8716
3/4in
489mm(19.25in)
Warranty: Caterpillar ®Lifetime
5S-6089
1in
736.6mm (29in)
450-9220
3/4in
914mm(35.98in)
JULY 2018 Hand Tools
17-39
Hand Tools
RATCHETSANDSOCKETS

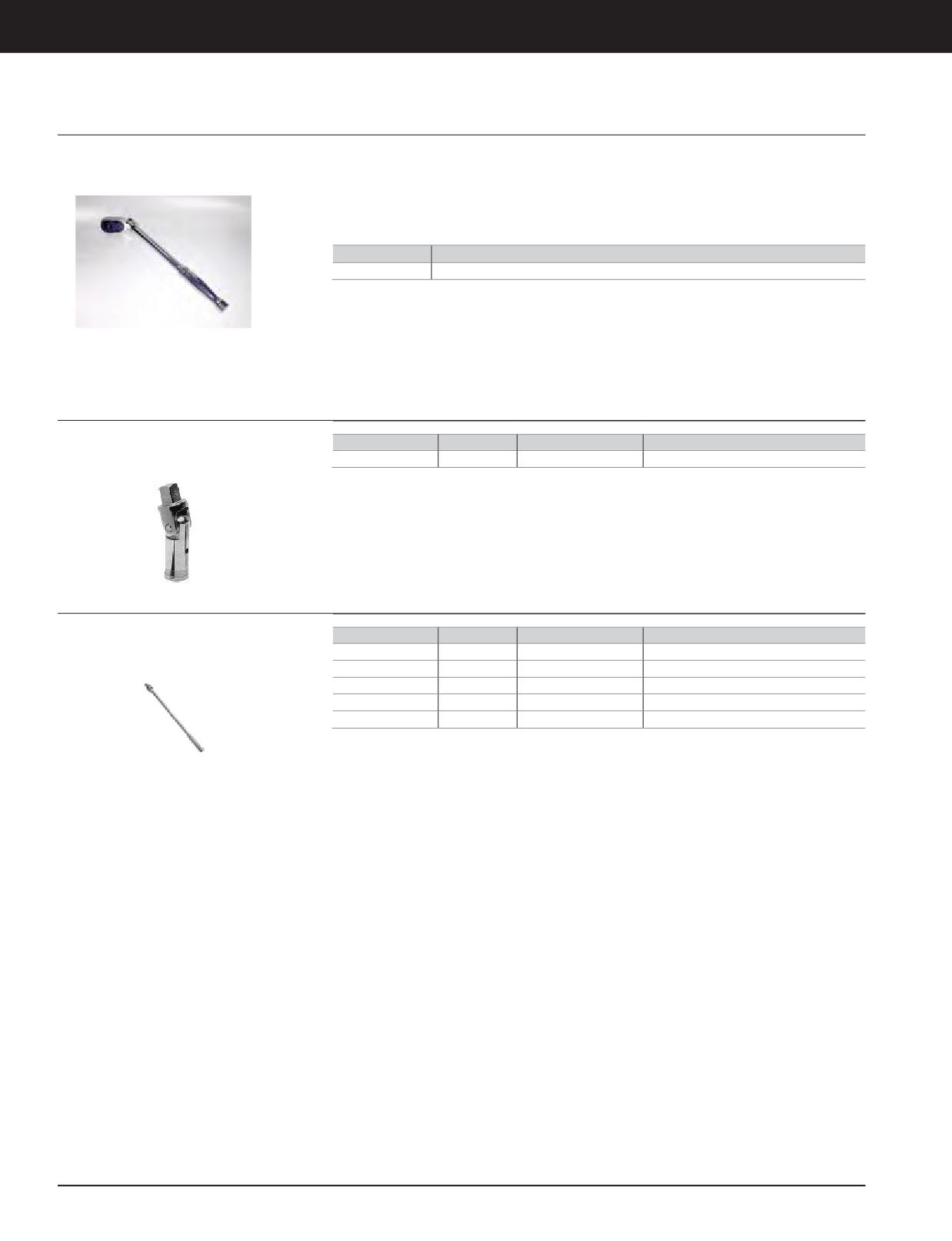

Ratchet Handles
Model Usage: All Cat® Products
• Snap-on branded
• 80 gear teeth
Warranty: Caterpillar ®Lifetime
• 3/8" drive
• Reversible
• 11.5" long
• Nickel chrome finish
• Sealed, flex head design
Part No.
Description
468-5748
Ratchet
Head Breaker Bar, 3/4 inch Drive
Model Usage: All Cat® Products
Part No.
Drive
Length
Width
8H-8546
3/4in
93.6mm (3.69in)
42.1mm (1.66in)
Warranty: Caterpillar ®Lifetime
Breaker Bars
Model Usage: All Cat® Products
Part No.
Drive
Length
Repair Kit
168-0383
1/2in
457.2mm (18in)
293-0712
Warranty: Caterpillar ®Lifetime
214-7316
1/4in
152.4mm (6in)
-
452-4976
3/8in
242.9 mm (9.56 in)
-
386-3264
1in
868mm(34.17in)
-
386-3254
1 1/2 in
914mm(35.98in)
-
17-40 JULY 2018 Hand Tools
Hand Tools
RATCHETSANDSOCKETS

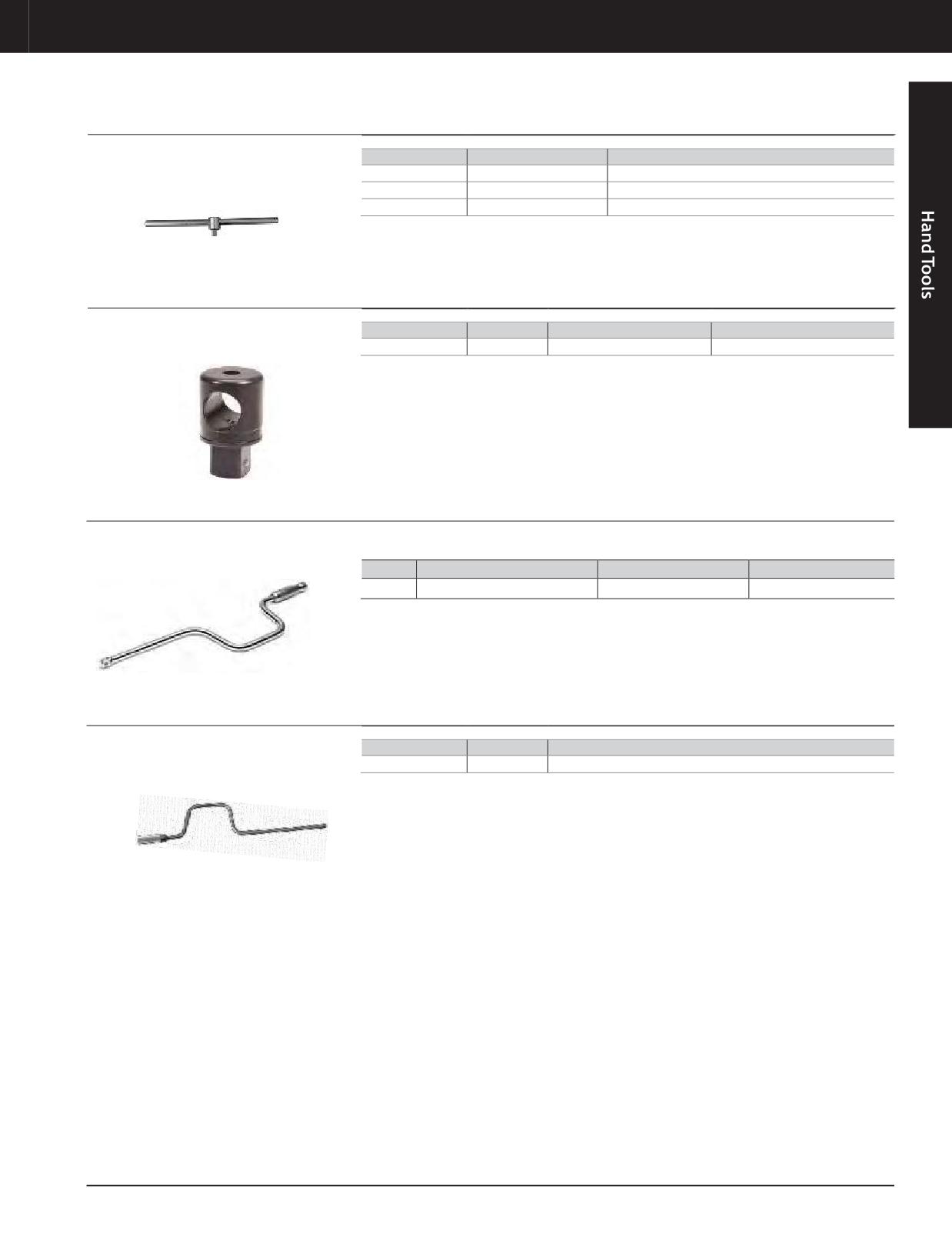

Sliding T-Handle
Model Usage: All Cat® Products
Part No.
Drive
Length
213-1985
1/2in
304.8mm (12in)
Warranty: Caterpillar ®Lifetime
214-7319
1/4in
114.3 mm (4.50 in)
386-3359
3/4in
450mm(19.25in)
Sliding "T" Wrench Head
Model Usage: All Cat® Products
Part No.
Drive
Description
Use
5S-6090
1in
Sliding T Wrench Head
5S-6089 Handle
Warranty: Caterpillar ®Lifetime
Speeder Handle, 1/2 in Drive
Model Usage: All Cat® Products
• Chrome finish
Warranty: Caterpillar ®Six Months
Part No.
Description
Length
Weight
460-9907
Snap-on ½ in Speeder Handle
479.4mm (187/8in)
0.71 kg (1 lb-9 oz)
Speeder Handle, 3/8 inch Drive
Model Usage: All Cat® Products
Part No.
Drive
Length
8H-8573
3/8in
447.5 mm (17.62 in)
Warranty: Caterpillar ®Lifetime
JULY 2018 Hand Tools
17-41
Hand Tools
RATCHETSANDSOCKETS

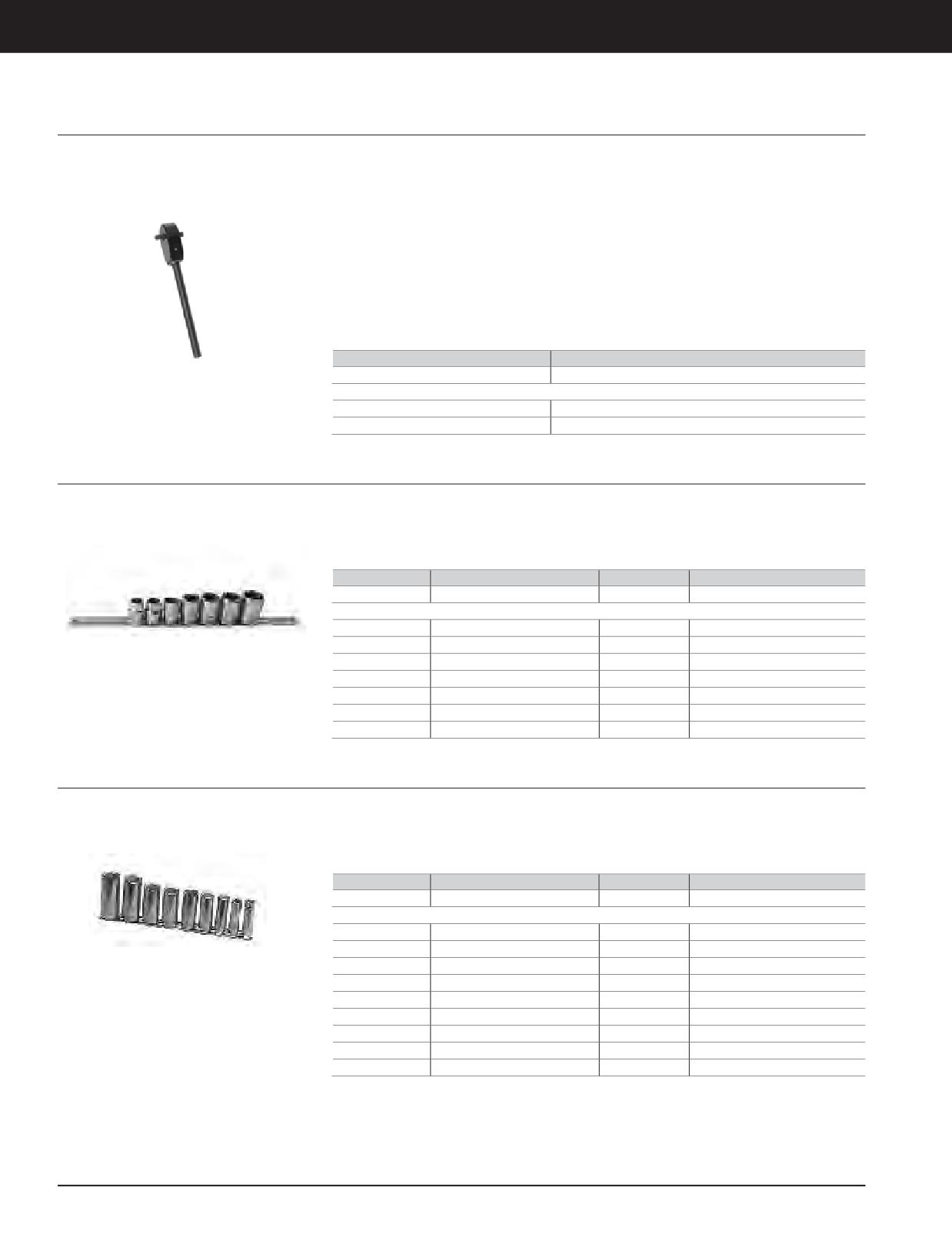

Hand ImpactWrench
Model Usage: All Cat® Products
• Loosen nuts bound by corrosion and tighten
• When turned about 30°, energy stored in
nuts to an estimated torque value readily with
a heavy spring in the handle is suddenly
Warranty: Caterpillar ®Six Months
this impact wrench
released, delivering a torsional impact to the
square output drive through a link and rotary
• Particularly suited to field use because an air
hammerarrangement.Toreversethe direction
or electric power source is not required
of this action, the wrench is merely turned
• With a 1 inch square drive and capacity up to
over. The amount of impact is adjustable.
2000 ft-lb torque, the wrench will handle 3/4
inch to 1 3/4 inch bolts
• Wrench action provides impact torque in one
direction and free ratcheting on the other
Part Number
Description
5P-2410
Hand Impact Wrench
HandImpactReplacementParts
1A-2209
Bolt
1H-8134
Ring
Fractional Socket Set, 7 Piece, 3/8 inch Drive
Model Usage: All Cat® Products
• 6 point
• Chrome finish
Warranty: Caterpillar ®Lifetime
• 3/8 inch square drive
• Includes socket bar and clips
• Standard length sockets
• Can be ordered by set or individually
Size
Length
Part Number
Description
–
-
214-1143
Socket Set
Socket Set Consists of:
3/8in
23.1mm (0.91in)
214-1144
Socket
7/16 in
23.1mm (0.91in)
214-1145
Socket
1/2in
23.9mm (0.94in)
214-1146
Socket
9/16 in
26.2mm (1.03in)
214-1147
Socket
5/8in
27.7mm (1.09in)
214-1148
Socket
11/16 in
28.7mm (1.13in)
214-1149
Socket
3/4in
30.2mm (1.19in)
214-1150
Socket

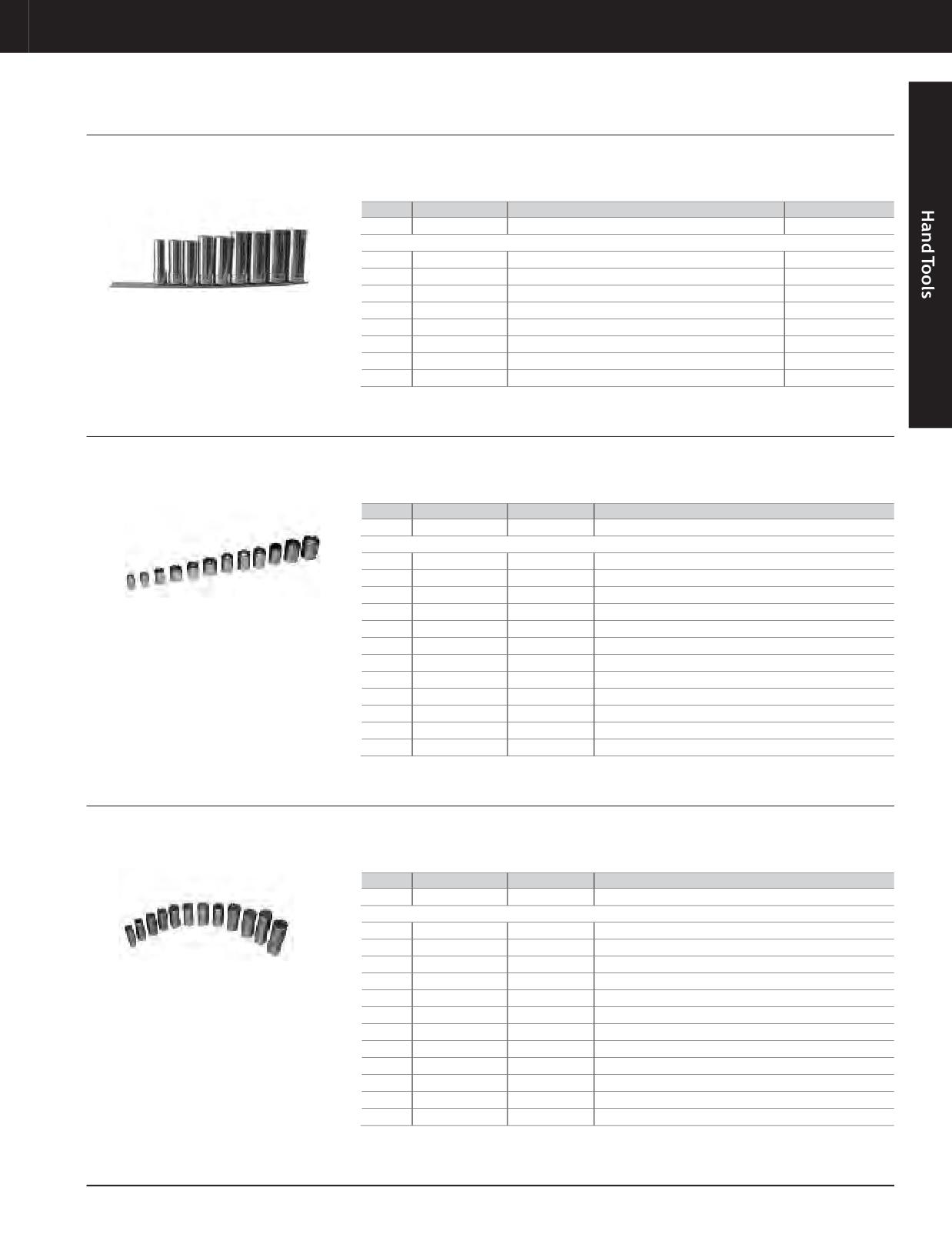

Fractional Socket Set, 9 Piece, 3/8 inch Drive
Model Usage: All Cat® Products
• 6 point
• Polished chrome finish
Warranty: Caterpillar ®Lifetime
• 3/8 inch square drive
• Includes socket bar and clips
• Deep length sockets
• Can be ordered by set or individually
Size
Length
Part Number
Description
–
-
214-1151
Socket Set
Socket Set Consists of:
3/8in
54.0mm (2.13in)
214-1152
Socket
7/16 in
54.0mm (2.13in)
214-1153
Socket
1/2in
60.3mm (2.37in)
214-1154
Socket
9/16 in
60.3mm (2.37in)
214-1155
Socket
5/8in
60.3mm (2.37in)
214-1156
Socket
11/16 in
66.7mm (2.63in)
214-1157
Socket
3/4in
66.7mm (2.63in)
214-1158
Socket
13/16 in
69.9mm (2.75in)
214-1159
Socket
7/8in
69.9mm (2.75in)
214-1160
Socket
17-42 JULY 2018 Hand Tools
Hand Tools
RATCHETSANDSOCKETS
Fractional Socket Set, 9 Piece, 3/8 inch Drive
Model Usage: All Cat® Products
• 12 point,
• Chrome finish
• 3/8 inch square drive
• Includes socket bar and clips
Warranty: Caterpillar ®Lifetime
• Deep length sockets
• Can be ordered by set or individually
Size
Length
Part No.
Description
–
-
214-6490
Socket Set
Socket Set Consists of:
3/8in
54.1mm (2.13in)
214-6491
Socket
7/16 in
54.1mm (2.13in)
214-6492
Socket
1/2in
60.5mm (2.38in)
214-6493
Socket
9/16 in
60.5mm (2.38in)
8S-2357
Deep Well Socket
5/8in
60.5mm (2.38in)
9S-5031 (Includes insert for removing spark plugs)
Deep Well Socket
11/16 in
66.8mm (2.63in)
214-6494
Socket
3/4in
66.8mm (2.63in)
214-6495
Socket
13/16 in
69.9mm (2.75in)
214-6496
Socket

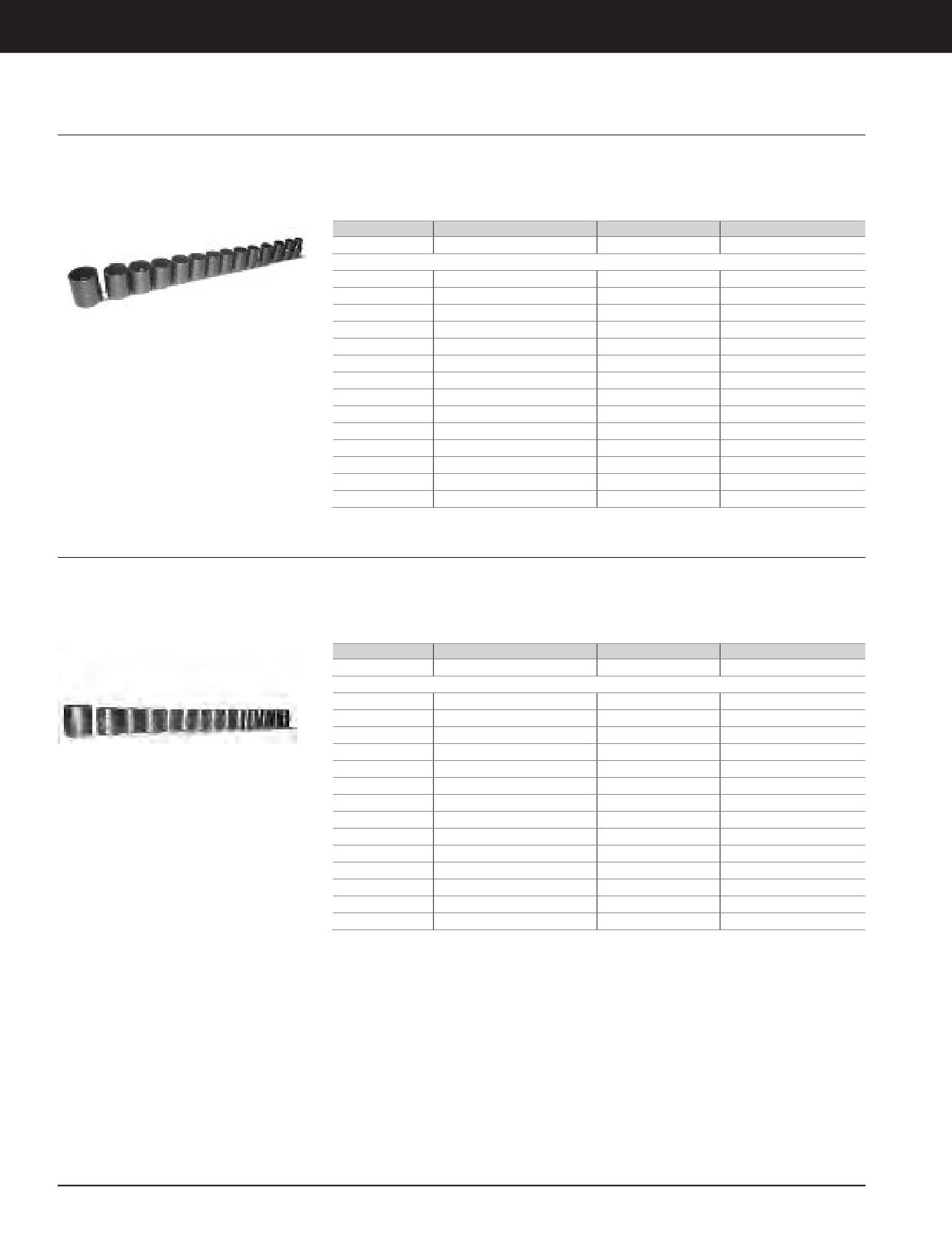

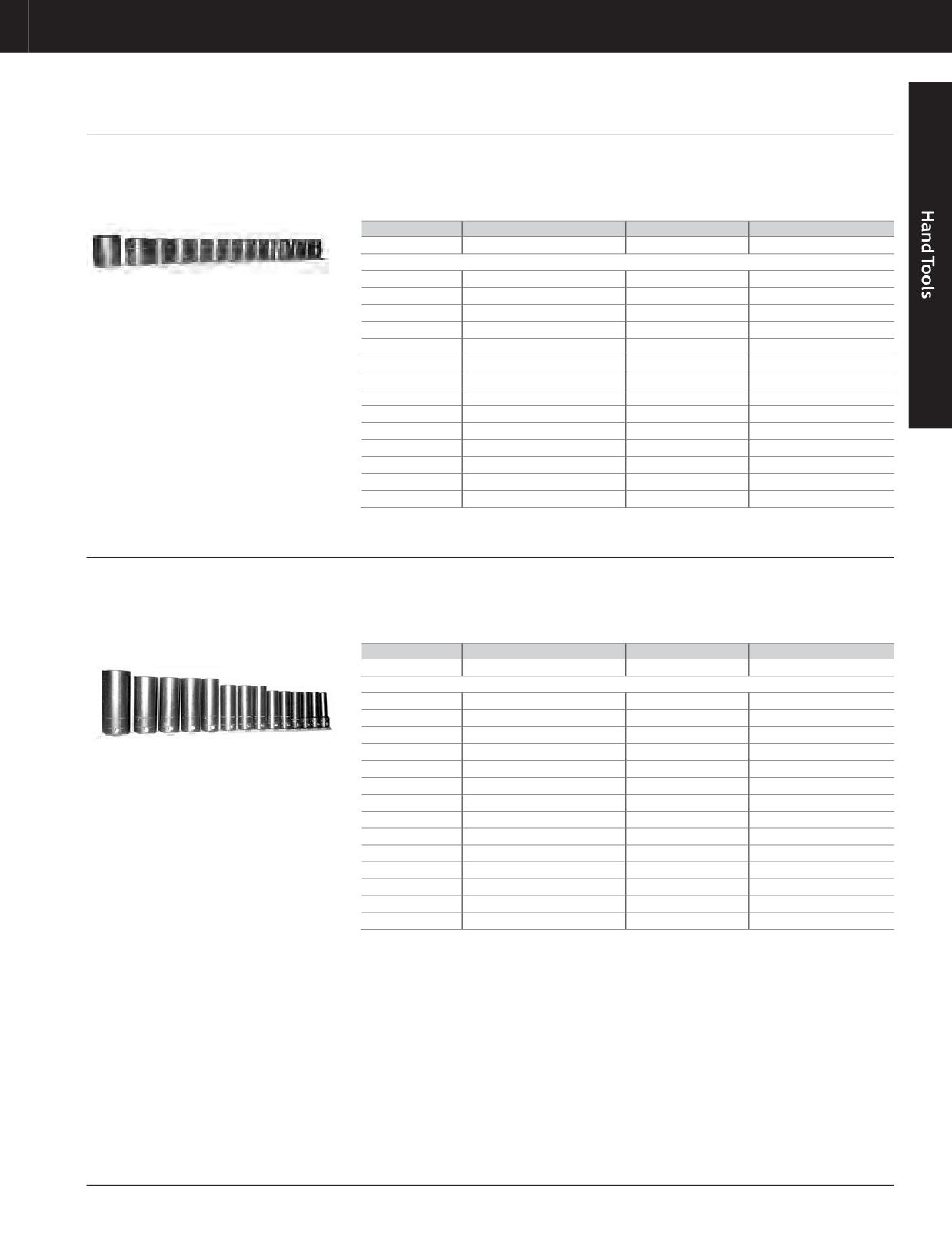

Metric Socket Set, 12 Piece, 3/8 inch Drive
Model Usage: All Cat® Products
• 12 point
• Chrome finish
• 3/8 inch square drive
• Includes socket bar and clips
Warranty: Caterpillar ®Lifetime
• Standard length sockets
• Can be ordered by set or individually
Size
Length
Part No.
Description
–
-
194-3574
3/8 Drive, 12 Point Metric Socket Set, 12-piece
Socket Set Consists of:
8.0 mm
23.0mm (0.91in)
194-3480
Socket (3/8 in Drive)
9.0 mm
23.0mm (0.91in)
194-3483
Socket (3/8 in Drive)
10.0 mm
23.0mm (0.91in)
194-3488
Socket (3/8 in Drive)
11.0 mm
23.0mm (0.91in)
194-3490
Socket (3/8 in Drive)
12.0 mm
23.8mm (0.94in)
194-3492
Socket (3/8 in Drive)
13.0 mm
24.6mm (0.97in)
194-3494
Socket (3/8 in Drive)
14.0 mm
26.2mm (1.03in)
194-3495
Socket (3/8 in Drive)
15.0 mm
27.0mm (1.06in)
194-3496
Socket (3/8 in Drive)
16.0 mm
27.8mm (1.09in)
194-3497
Socket (3/8 in Drive)
17.0 mm
28.6mm (1.13in)
194-3498
Socket (3/8 in Drive)
18.0 mm
28.6mm (1.13in)
194-3499
Socket (3/8 in Drive)
19.0 mm
30.2mm (1.19in)
194-3500
Socket (3/8 in Drive)
Metric Socket Set, 12 Piece, 3/8 inch Drive
Model Usage: All Cat® Products
• 12 point
• Chrome finish
• 3/8 inch square drive
• Includes socket bar and clips
Warranty: Caterpillar ®Lifetime
• Deep length sockets
• Can be ordered by set or individually
Size
Length
Part Number
Description
–
-
199-9019
Metric Socket Set
Socket Set Consists of:
8.0 mm
54.0mm (2.13in)
199-9023
Socket (3/8 in Drive)
9.0 mm
54.0mm (2.13in)
199-9025
Socket (3/8 in Drive)
10.0 mm
54.0mm (2.13in)
199-9026
Socket (3/8 in Drive)
11.0 mm
54.0mm (2.13in)
199-9027
Socket (3/8 in Drive)
12.0 mm
54.0mm (2.13in)
199-9028
Socket (3/8 in Drive)
13.0 mm
54.0mm (2.13in)
199-9029
Socket (3/8 in Drive)
14.0 mm
60.3mm (2.37in)
199-9030
Socket (3/8 in Drive)
15.0 mm
60.3mm (2.37in)
199-9031
Socket (3/8 in Drive)
16.0 mm
60.3mm (2.37in)
199-9032
Socket (3/8 in Drive)
17.0 mm
66.7mm (2.63in)
199-9033
Socket (3/8 in Drive)
18.0 mm
66.7mm (2.63in)
199-9034
Socket (3/8 in Drive)
19.0 mm
66.7mm (2.63in)
199-9035
Socket (3/8 in Drive)
JULY 2018 Hand Tools
17-43
Hand Tools
RATCHETSANDSOCKETS

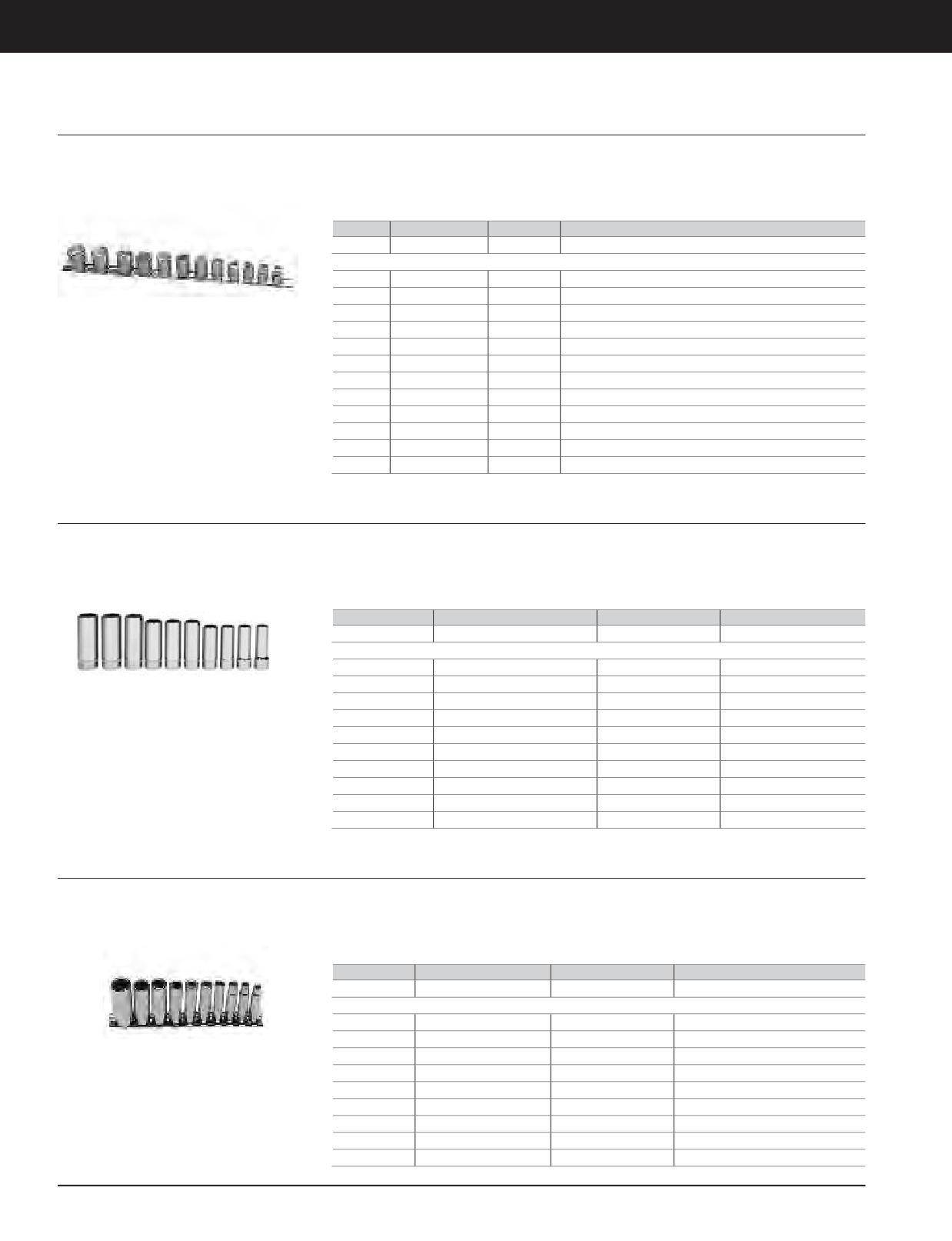

Metric Socket Set, 12 Piece, 3/8 inch Drive
Model Usage: All Cat® Products
• 6 point
• Polished chrome finish
Warranty: Caterpillar ®Lifetime
• 3/8 inch square drive
• Includes socket bar and clips
• Standard length sockets
• Can be ordered by set or individually
Size
Length
Part No.
Description
–
-
214-6620
Metric Socket Set
Socket Set Consists of:
8.0 mm
23.0mm (0.91in)
214-6621
3/8 in Drive
9.0 mm
23.0mm (0.91in)
214-6623
3/8 in Drive
10.0 mm
23.0mm (0.91in)
214-6624
3/8 in Drive
11.0 mm
23.0mm (0.91in)
214-6625
3/8 in Drive
12.0 mm
23.8mm (0.94in)
214-6626
3/8 in Drive
13.0 mm
24.6mm (0.97in)
214-6627
3/8 in Drive
14.0 mm
26.2mm (1.03in)
214-6628
3/8 in Drive
15.0 mm
27.0mm (1.06in)
214-6629
3/8 in Drive
16.0 mm
27.8mm (1.09in)
214-6630
3/8 in Drive
17.0 mm
28.6mm (1.13in)
214-6631
3/8 in Drive
18.0 mm
28.6mm (1.13in)
214-6632
3/8 in Drive
19.0 mm
30.2mm (1.19in)
214-6633
3/8 in Drive
Metric Socket Set, 10 Piece, 3/8 inch Drive
Model Usage: All Cat® Products
• 6 point
• Polished chrome finish
Warranty: Caterpillar ®Lifetime
• 3/8 inch square drive
• Includes socket bar and clips
• Deep length sockets
• Can be ordered by set or individually
Size
Length
Part No.
Description
–
-
553-1198
Metric Socket Set
Socket Set Consists of:
10.0 mm
54.0mm (2.13in)
214-6635
Socket (3/8 in Drive)
11.0 mm
54.0mm (2.13in)
214-6636
Socket (3/8 in Drive)
12.0 mm
54.0mm (2.13in)
214-6637
Socket (3/8 in Drive)
13.0 mm
54.0mm (2.13in)
214-6638
Socket (3/8 in Drive)
14.0 mm
60.3mm (2.37in)
214-6639
Socket (3/8 in Drive)
15.0 mm
60.3mm (2.37in)
214-6640
Socket (3/8 in Drive)
16.0 mm
60.3mm (2.37in)
553-1199
Socket (3/8 in Drive)
17.0 mm
66.7mm (2.63in)
214-6641
Socket (3/8 in Drive)
18.0 mm
66.7mm (2.63in)
553-1200
Socket (3/8 in Drive)
19.0 mm
66.7mm (2.63in)
214-6642
Socket (3/8 in Drive)
Fractional Socket Set, 10 Piece, 1/4 inch Drive
Model Usage: All Cat® Products
• 6 point
• Polished chrome finish
Warranty: Caterpillar ®Lifetime
• 1/4 inch square drive
• Includes socket bar and clips
• Deep length sockets
• Can be ordered by set or individually
Size
Length
Part Number
Description
–
-
213-9965
Socket Set
Socket Set Consists of:
3/16 in
50.8 mm (2 in)
213-9967
Socket
7/32 in
50.8 mm (2 in)
213-9968
Socket
1/4in
50.8 mm (2 in)
213-9969
Socket
9/32 in
50.8 mm (2 in)
213-9970
Socket
5/16 in
50.8 mm (2 in)
213-9971
Socket
11/32 in
50.8 mm (2 in)
213-9972
Socket
3/8in
50.8 mm (2 in)
213-9974
Socket
7/16 in
50.8 mm (2 in)
213-9978
Socket
1/2in
50.8 mm (2 in)
213-9980
Socket
17-44 JULY 2018 Hand Tools
Hand Tools
RATCHETSANDSOCKETS
Metric Socket Set, 13 Piece, 1/4 inch Drive
Model Usage: All Cat® Products
• 6 point
• Polished chrome finish
Warranty: Caterpillar ®Lifetime
• 1/4 inch square drive
• Includes socket bar and clips
• Standard length sockets
Size
Length
Part No.
Description
–
-
200-8413
Metric Socket Set
Socket Set Consists of:
4.0 mm
22.2mm (0.87in)
200-8415
Socket (1/4 in Drive)
5.0 mm
22.2mm (0.87in)
200-8417
Socket (1/4 in Drive)
5.5 mm
22.2mm (0.87in)
200-8418
Socket (1/4 in Drive)
6.0 mm
22.2mm (0.87in)
200-8419
Socket (1/4 in Drive)
7.0 mm
22.2mm (0.87in)
200-8420
Socket (1/4 in Drive)
8.0 mm
22.2mm (0.87in)
200-8421
Socket (1/4 in Drive)
9.0 mm
22.2mm (0.87in)
200-8422
Socket (1/4 in Drive)
10.0 mm
22.2mm (0.87in)
200-8423
Socket (1/4 in Drive)
11.0 mm
22.2mm (0.87in)
200-8424
Socket (1/4 in Drive)
12.0 mm
22.2mm (0.87in)
200-8426
Socket (1/4 in Drive)
13.0 mm
22.2mm (0.87in)
200-8427
Socket (1/4 in Drive)
14.0 mm
22.2mm (0.87in)
200-8428
Socket (1/4 in Drive)
15.0 mm
23.0mm (0.91in)
200-8429
Socket (1/4 in Drive)
Metric Socket Set, 9 Piece, 1/4 inch Drive
Model Usage: All Cat® Products
• 6 point
• Polished chrome finish
Warranty: Caterpillar ®Lifetime
• 1/4 inch square drive
• Includes socket bar and clips
• Deep length sockets
Size
Length
Part Number
Description
–
-
194-3578
Metric Socket Set
Socket Set Consists of:
6.0 mm
50.8 mm (2 in)
194-3518
Socket (1/4 in Drive)
7.0 mm
50.8 mm (2 in)
194-3519
Socket (1/4 in Drive)
8.0 mm
50.8 mm (2 in)
194-3521
Socket (1/4 in Drive)
9.0 mm
50.8 mm (2 in)
194-3522
Socket (1/4 in Drive)
10.0 mm
50.8 mm (2 in)
194-3523
Socket (1/4 in Drive)
11.0 mm
50.8 mm (2 in)
194-3527
Socket (1/4 in Drive)
12.0 mm
50.8 mm (2 in)
194-3528
Socket (1/4 in Drive)
13.0 mm
50.8 mm (2 in)
194-3529
Socket (1/4 in Drive)
14.0 mm
50.8 mm (2 in)
194-3530
Socket (1/4 in Drive)
JULY 2018 Hand Tools
17-45
Hand Tools
RATCHETSANDSOCKETS

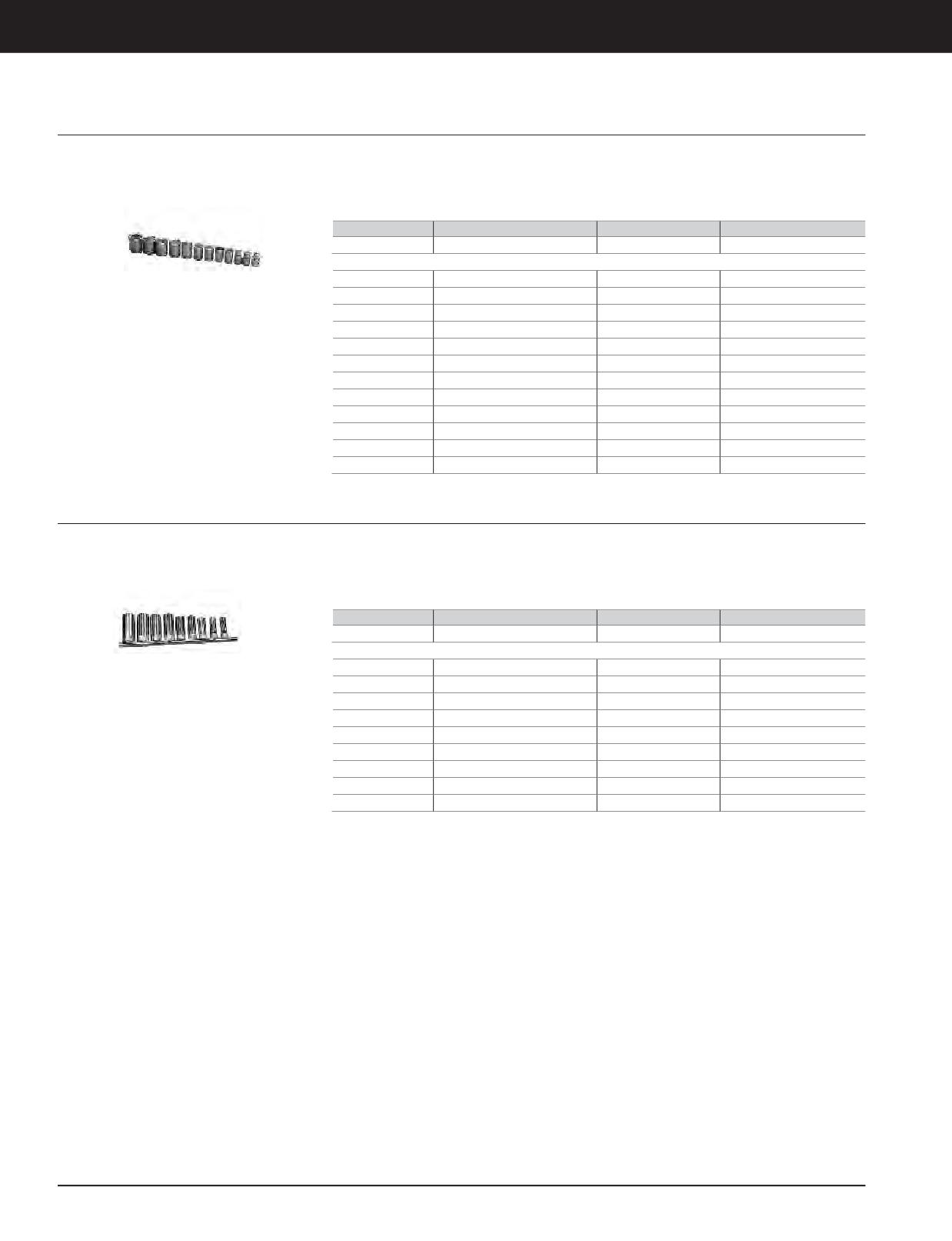

Fractional Socket Set, 12 Piece, 1/2 inch Drive
Model Usage: All Cat® Products
• 6 point
• Polished chrome finish
Warranty: Caterpillar ®Lifetime
• 1/2 inch square drive
• Includes socket bar and clips
• Standard length sockets
• Can be ordered by set or individually
Size
Length
Part Number
Description
–
-
214-6498
Socket Set
Socket Set Consists of:
1 1/16 in
42.9mm (1.69in)
214-6513
Socket
1 1/8 in
44.5mm (1.75in)
214-6514
Socket
1in
39.7mm (1.56in)
214-6512
Socket
1/2in
38.1mm (1.50in)
214-6501
Socket
11/16 in
38.1mm (1.50in)
214-6506
Socket
13/16 in
38.1mm (1.50in)
214-6509
Socket
15/16 in
38.9mm (1.53in)
214-6511
Socket
3/4in
38.1mm (1.50in)
214-6507
Socket
5/8in
38.1mm (1.50in)
214-6504
Socket
7/16 in
38.1mm (1.50in)
214-6500
Socket
7/8in
38.1mm (1.50in)
214-6510
Socket
9/16 in
38.1mm (1.50in)
214-6503
Socket

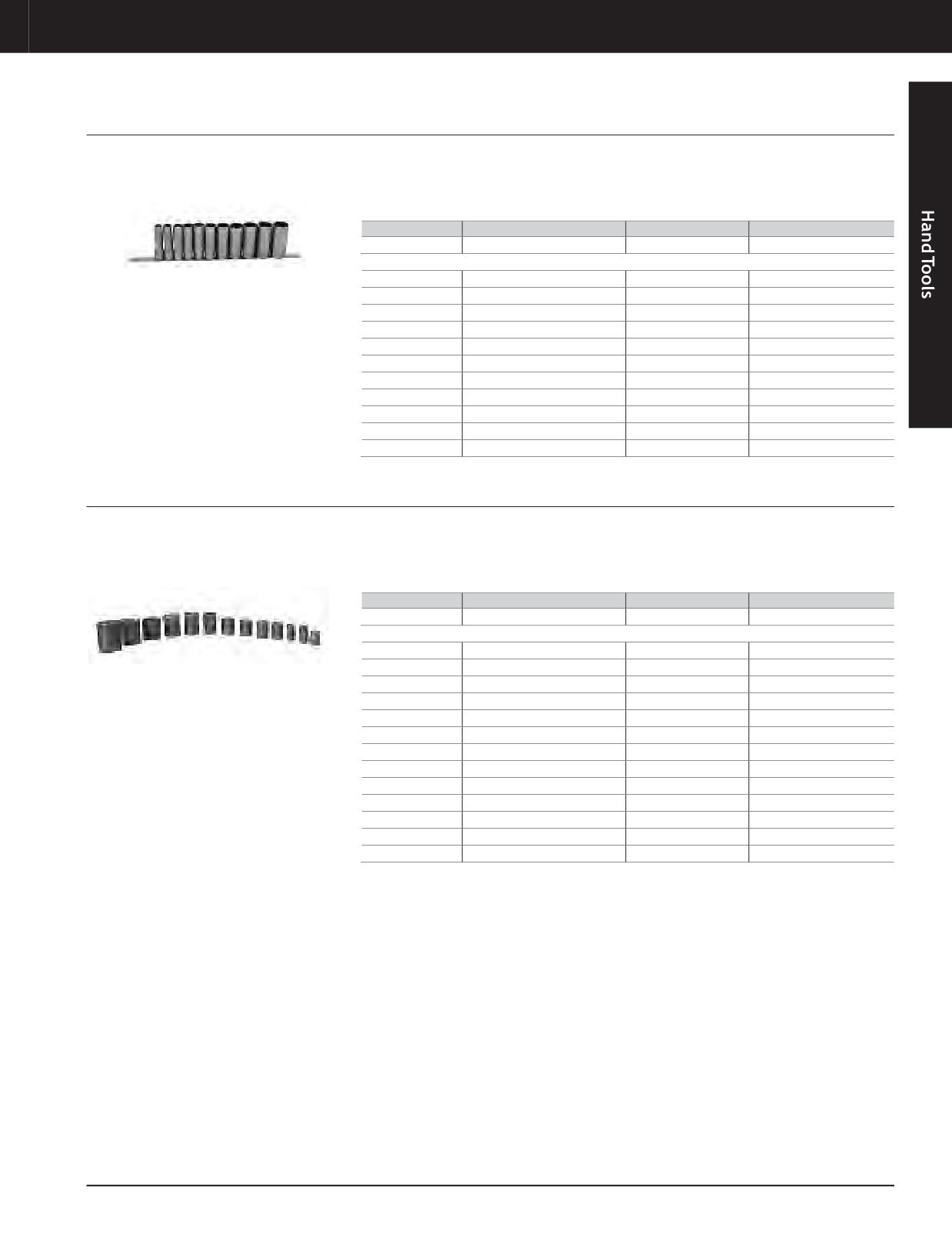

Fractional Deep Well Socket Set, 9 Piece, 1/2 inch Drive
Model Usage: All Cat® Products
• 6 point
• Polished chrome finish
Warranty: Caterpillar ®Lifetime
• 1/2 inch square drive
• Includes socket bar and clips
• Standard length sockets
• Can be ordered by set or individually
Size
Length
Part No.
Description
–
-
2P-5490
Deep Well Socket Set
Deep Well Socket Set Consists of:
1/2in
82.6mm (3.25in)
2P-5475
Socket
9/16 in
82.6mm (3.25in)
2P-5476
Socket
5/8in
82.6mm (3.25in)
2P-5477
Socket
11/16 in
82.6mm (3.25in)
2P-5478
Socket
3/4in
82.6mm (3.25in)
2P-5479
Socket
13/16 in
82.6mm (3.25in)
2P-5481
Spark Plug Wrench
7/8in
82.6mm (3.25in)
2P-5482
Socket
15/16 in
82.6mm (3.25in)
2P-5483
Socket
1in
82.6mm (3.25in)
2P-5484
Socket
17-46 JULY 2018 Hand Tools
Hand Tools
RATCHETSANDSOCKETS
Fractional Socket Set, 11 Piece, 1/2 inch Drive
Model Usage: All Cat® Products
• 12 point
• Polished chrome finish
Warranty: Caterpillar ®Lifetime
• 1/2 inch square drive
• Includes socket bar and clips
• Deep length sockets
• Can be ordered by set or individually
Size
Length
Part Number
Description
–
-
214-1161
Socket Set
Socket Set Consists of:
1/2in
82.6mm (3.25in)
214-1162
Socket
9/16 in
82.6mm (3.25in)
214-1163
Socket
5/8in
82.6mm (3.25in)
214-1164
Socket
11/16 in
82.6mm (3.25in)
214-1165
Socket
3/4in
82.6mm (3.25in)
214-1166
Socket
13/16 in
82.6mm (3.25in)
214-1167
Socket
7/8in
82.6mm (3.25in)
214-1168
Socket
15/16 in
82.6mm (3.25in)
214-1169
Socket
1in
82.6mm (3.25in)
214-1170
Socket
1 1/16 in
82.6mm (3.25in)
214-1171
Socket
1 1/8 in
82.6mm (3.25in)
214-1172
Socket
Metric Socket Set, 13 Piece, 1/2 inch Drive
Model Usage: All Cat® Products
• 12 point
• Polished chrome finish
Warranty: Caterpillar ®See Individual Parts
• 1/2 inch square drive
• Includes socket bar and clips
• Standard length sockets
• Can be ordered by set or individually
Size
Length
Part Number
Description
–
-
199-6156
Metric Socket Set
Socket Set Consists of:
12.0 mm
38.1mm (1.50in)
199-6149
Socket (1/2 in Drive)
13.0 mm
38.1mm (1.50in)
199-6150
Socket (1/2 in Drive)
14.0 mm
38.1mm (1.50in)
8T-3041
Socket (1/2 in Drive)
15.0 mm
38.1mm (1.50in)
6V-9110
Socket (1/2 in Drive)
16.0 mm
38.1mm (1.50in)
6V-9111
Socket (1/2 in Drive)
17.0 mm
38.1mm (1.50in)
6V-9112
Socket (1/2 in Drive)
18.0 mm
38.1mm (1.50in)
6V-9113
Socket (1/2 in Drive)
19.0 mm
38.1mm (1.50in)
6V-9114
Socket (1/2 in Drive)
20.0 mm
38.1mm (1.50in)
199-6152
Socket (1/2 in Drive)
21.0 mm
38.1mm (1.50in)
6V-9115
Socket (1/2 in Drive)
22.0 mm
38.1mm (1.50in)
6V-9116
Socket (1/2 in Drive)
23.0 mm
38.1mm (1.50in)
199-6153
Socket (1/2 in Drive)
24.0 mm
38.1mm (1.50in)
199-6154
Socket (1/2 in Drive)
JULY 2018 Hand Tools
17-47
Hand Tools
RATCHETSANDSOCKETS

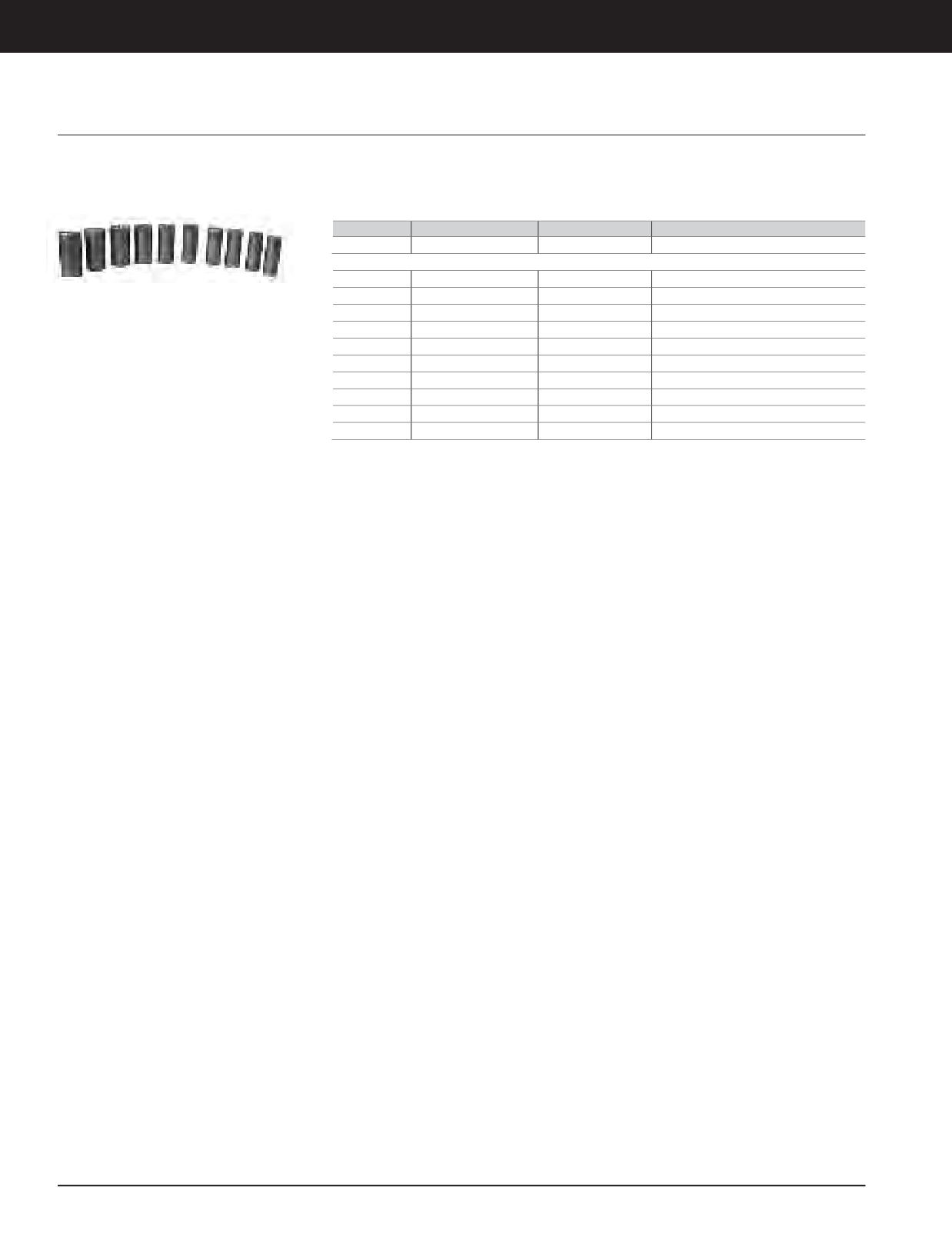

Metric Socket Set, 10 Piece, 1/2 inch Drive
Model Usage: All Cat® Products
• 12 point
• Polished chrome finish
Warranty: Caterpillar ®Lifetime
• 1/2 inch drive
• Includes socket bar and clips
• Deep length sockets
• Can be ordered by set or individually
Size
Length
Part Number
Description
–
-
194-3576
Metric Socket Set
Socket Set Consists of:
16.0 mm
82.6mm (3.25in)
194-3505
Socket (1/2 in Drive)
17.0 mm
82.6mm (3.25in)
194-3506
Socket (1/2 in Drive)
18.0 mm
82.6mm (3.25in)
194-3510
Socket (1/2 in Drive)
19.0 mm
82.6mm (3.25in)
194-3511
Socket (1/2 in Drive)
20.0 mm
82.6mm (3.25in)
194-3512
Socket (1/2 in Drive)
21.0 mm
82.6mm (3.25in)
194-3513
Socket (1/2 in Drive)
22.0 mm
82.6mm (3.25in)
194-3514
Socket (1/2 in Drive)
24.0 mm
82.6mm (3.25in)
194-3515
Socket (1/2 in Drive)
25.0 mm
82.6mm (3.25in)
194-3516
Socket (1/2 in Drive)
26.0 mm
82.6mm (3.25in)
194-3517
Socket (1/2 in Drive)
17-48 JULY 2018 Hand Tools
Hand Tools
RATCHETSANDSOCKETS

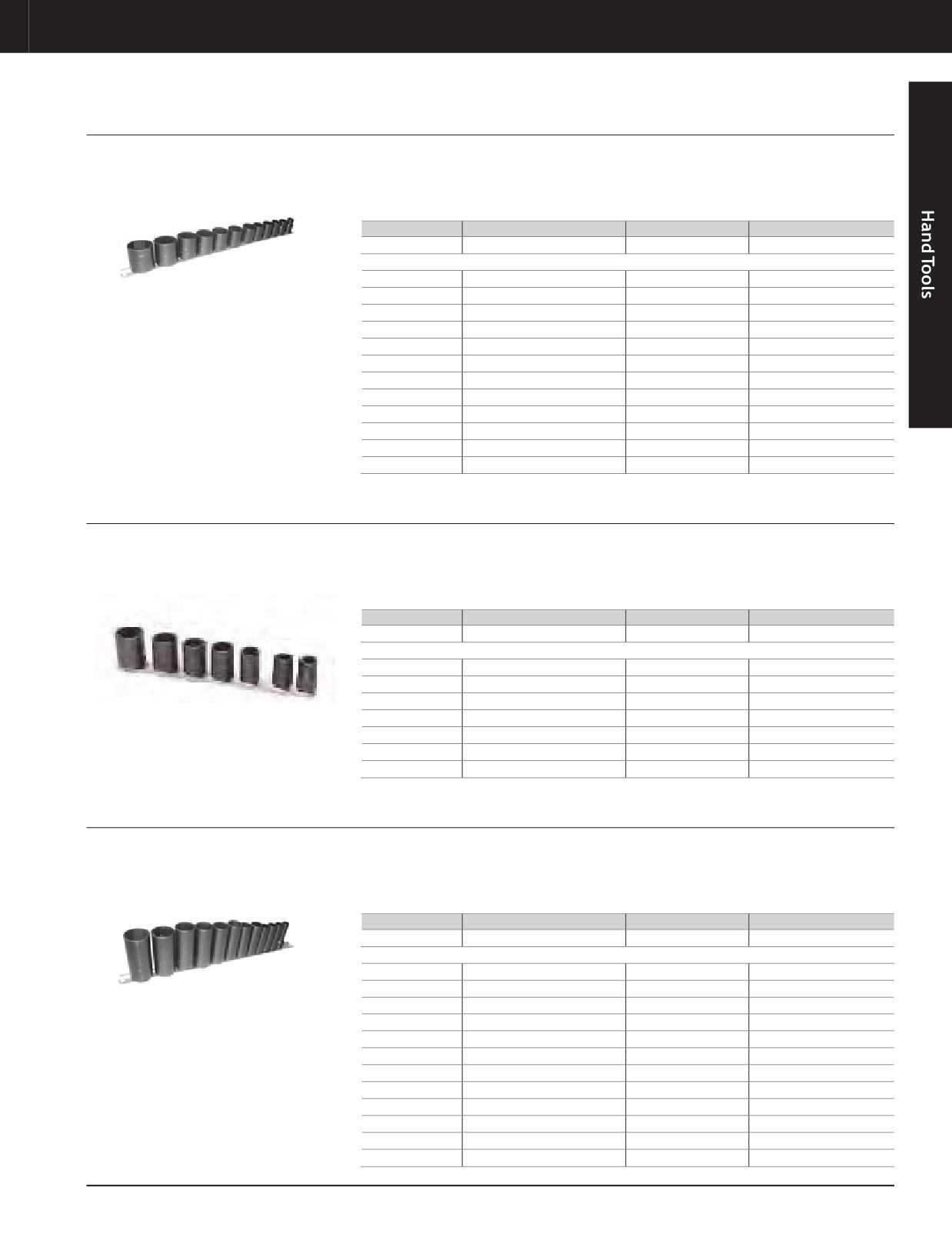

Fractional Impact Socket Set, 12 Piece, 3/8 inch Drive
Model Usage: All Cat® Products
• 6 point
• Includes socket bar and clips
Warranty: Caterpillar ®Lifetime
• 3/8 inch square drive
• Can be ordered by set or individually
• Standard length sockets
Size
Length
Part No.
Description
–
-
271-4600
Impact Socket Set
Impact Socket Set Consists of:
5/16 in
22.2mm (0.87in)
271-4601
Socket
3/8in
23.8mm (0.94in)
271-4602
Socket
7/16 in
23.8mm (0.94in)
271-4603
Socket
1/2in
23.8mm (0.94in)
271-4604
Socket
9/16 in
23.8mm (0.94in)
271-4605
Socket
5/8in
23.8mm (0.94in)
271-4606
Socket
11/16 in
26.2mm (1.03in)
271-4607
Socket
3/4in
26.2mm (1.03in)
271-4608
Socket
13/16 in
30.2mm (1.19in)
271-4609
Socket
7/8in
32.5mm (1.28in)
271-4610
Socket
15/16 in
33.3mm (1.31in)
271-4611
Socket
1in
25.4 mm (1 in)
271-4612
Socket
Fractional Impact Socket Set, 7 Piece, 3/8 inch Drive
Model Usage: All Cat® Products
• 12 point
• Includes socket bar and clips
Warranty: Caterpillar ®See Individual Parts
• 3/8 inch square drive
• Can be ordered by set or individually
• Standard length sockets
Size
Length
Part Number
Description
–
-
271-4613
Impact Socket Set
Impact Socket Set Consists of:
3/8in
22.2mm (0.87in)
271-4615
Socket
7/16 in
23.8mm (0.94in)
271-4616
Socket
1/2in
23.8mm (0.94in)
271-4617
Socket
9/16 in
23.8mm (0.94in)
271-4618
Socket
5/8in
23.8mm (0.94in)
271-4619
Socket
11/16 in
26.2mm (1.03in)
271-4620
Socket
3/4in
26.2mm (1.03in)
271-4621
Socket
Fractional Impact Socket Set, 12 Piece, 3/8 inch Drive
Model Usage: All Cat® Products
• 6 point
• Includes socket bar and clips
Warranty: Caterpillar ®Lifetime
• 3/8 inch square drive
• Can be ordered by set or individually
• Deep length sockets
Size
Length
Part Number
Description
–
-
271-4669
Impact Socket Set
Impact Socket Set Consists of:
5/16 in
54.0mm (2.13in)
271-4670
Socket
3/8in
54.0mm (2.13in)
271-4671
Socket
7/16 in
54.0mm (2.13in)
271-4672
Socket
1/2in
54.0mm (2.13in)
271-4673
Socket
9/16 in
60.3mm (2.37in)
271-4674
Socket
5/8in
60.3mm (2.37in)
271-4675
Socket
11/16 in
74.6mm (2.94in)
271-4676
Socket
3/4in
69.9mm (2.75in)
271-4677
Socket
13/16 in
69.9mm (2.75in)
271-4678
Socket
7/8in
69.9mm (2.75in)
271-4679
Socket
15/16 in
69.9mm (2.75in)
271-4680
Socket
1in
69.9mm (2.75in)
271-4681
Socket
JULY 2018 Hand Tools
17-49
Hand Tools
RATCHETSANDSOCKETS
Metric Impact Socket Set, 14 Piece, 3/8 inch Drive
Model Usage: All Cat® Products
• 6 point
• Includes socket bar and clips
Warranty: Caterpillar ®Lifetime
• 3/8 inch square drive
• Can be ordered by set or individually
• Standard length sockets
Size
Length
Part Number
Description
–
-
271-4622
Impact Socket Set
Socket Set Consists of:
8.0 mm
23mm (0.91in)
271-4623
Socket (3/8 in Drive)
9.0 mm
23mm (0.91in)
271-4624
Socket (3/8 in Drive)
10.0 mm
23mm (0.91in)
271-4625
Socket (3/8 in Drive)
11.0 mm
23.8mm (0.94in)
271-4626
Socket (3/8 in Drive)
12.0 mm
23.8mm (0.94in)
271-4627
Socket (3/8 in Drive)
13.0 mm
24.6mm (0.97in)
271-4628
Socket (3/8 in Drive)
14.0 mm
27mm (1.06in)
271-4630
Socket (3/8 in Drive)
15.0 mm
27mm (1.06in)
271-4631
Socket (3/8 in Drive)
16.0 mm
27.8mm (1.09in)
271-4632
Socket (3/8 in Drive)
17.0 mm
28.2mm (1.11in)
271-4633
Socket (3/8 in Drive)
18.0 mm
29mm (1.14in)
271-4634
Socket (3/8 in Drive)
19.0 mm
30.6mm (1.20in)
271-4635
Socket (3/8 in Drive)
21.0 mm
29.5mm (1.16in)
271-4636
Socket (3/8 in Drive)
24.0 mm
33mm (1.30in)
271-4637
Socket (3/8 in Drive)
Metric Impact Socket Set, 14 Piece, 3/8 inch Drive
Model Usage: All Cat® Products
• 12 point
• Includes socket bar and clips
Warranty: Caterpillar ®Lifetime
• 3/8 inch square drive
• Can be ordered by set or individually
• Standard length sockets
Size
Length
Part Number
Description
–
-
271-4654
Impact Socket Set
Impact Socket Set consists of:
8.0 mm
23mm (0.91in)
271-4655
Socket (3/8 in Drive)
10.0 mm
23mm (0.91in)
271-4656
Socket (3/8 in Drive)
11.0 mm
23.8mm (0.91in)
271-4657
Socket (3/8 in Drive)
12.0 mm
23.8mm (0.94in)
271-4658
Socket (3/8 in Drive)
13.0 mm
23.8mm (0.94in)
271-4659
Socket (3/8 in Drive)
14.0 mm
27mm (1.06in)
271-4660
Socket (3/8 in Drive)
15.0 mm
27mm (1.06in)
271-4661
Socket (3/8 in Drive)
16.0 mm
27.8mm (1.09in)
271-4662
Socket (3/8 in Drive)
17.0 mm
28.2mm (1.11in)
271-4663
Socket (3/8 in Drive)
18.0 mm
29mm (1.14in)
271-4664
Socket (3/8 in Drive)
19.0 mm
30.6mm (1.20in)
271-4665
Socket (3/8 in Drive)
20.0 mm
30.9mm (1.22in)
271-4666
Socket (3/8 in Drive)
21.0 mm
32.1mm (1.26in)
271-4667
Socket (3/8 in Drive)
22.0 mm
32.9mm (1.30in)
271-4668
Socket (3/8 in Drive)
17-50 JULY 2018 Hand Tools
Hand Tools
RATCHETSANDSOCKETS
Metric Impact Socket Set, 14 Piece, 3/8 inch Drive
Model Usage: All Cat® Products
• 6 point
• Includes socket bar and clips
Warranty: Caterpillar ®Lifetime
• 3/8 inch square drive
• Can be ordered by set or individually
• Deep length sockets
Size
Length
Part Number
Description
–
-
271-4638
Impact Socket Set
Impact Socket Set Consists of:
8.0 mm
54mm (2.13in)
271-4639
Socket (3/8 in Drive)
9.0 mm
54mm (2.13in)
271-4640
Socket (3/8 in Drive)
10.0 mm
54mm (2.13in)
271-4641
Socket (3/8 in Drive)
11.0 mm
54mm (2.13in)
271-4642
Socket (3/8 in Drive)
12.0 mm
54mm (2.13in)
271-4643
Socket (3/8 in Drive)
13.0 mm
54mm (2.13in)
271-4644
Socket (3/8 in Drive)
14.0 mm
60.3mm (2.37in)
271-4645
Socket (3/8 in Drive)
15.0 mm
60.3mm (2.37in)
271-4646
Socket (3/8 in Drive)
16.0 mm
60.3mm (2.37in)
271-4647
Socket (3/8 in Drive)
17.0 mm
66.7mm (2.63in)
271-4648
Socket (3/8 in Drive)
18.0 mm
66.7mm (2.63in)
271-4650
Socket (3/8 in Drive)
19.0 mm
66.7mm (2.63in)
271-4651
Socket (3/8 in Drive)
21.0 mm
66.7mm (2.63in)
271-4652
Socket (3/8 in Drive)
24.0 mm
73mm (2.87in)
271-4653
Socket (3/8 in Drive)
Metric Impact Socket Set, 14 Piece, 3/8 inch Drive
Model Usage: All Cat® Products
• 12 point
• Includes socket bar and clips
Warranty: Caterpillar ®Lifetime
• 3/8 inch square drive
• Can be ordered by set or individually
• Deep length sockets
Size
Length
Part Number
Description
–
-
271-4683
Impact Socket Set
Impact Socket Set Consists of:
8.0 mm
54mm (2.13in)
271-4684
Socket (3/8 in Drive)
9.0 mm
54mm (2.13in)
271-4685
Socket (3/8 in Drive)
10.0 mm
54mm (2.13in)
271-4686
Socket (3/8 in Drive)
11.0 mm
54mm (2.13in)
271-4687
Socket (3/8 in Drive)
12.0 mm
54mm (2.13in)
271-4688
Socket (3/8 in Drive)
13.0 mm
54mm (2.13in)
271-4689
Socket (3/8 in Drive)
14.0 mm
60.3mm (2.37in)
271-4690
Socket (3/8 in Drive)
15.0 mm
60.3mm (2.37in)
271-4691
Socket (3/8 in Drive)
16.0 mm
60.3mm (2.37in)
271-4692
Socket (3/8 in Drive)
17.0 mm
66.7mm (2.63in)
271-4693
Socket (3/8 in Drive)
18.0 mm
66.7mm (2.63in)
271-4694
Socket (3/8 in Drive)
19.0 mm
66.7mm (2.63in)
271-4695
Socket (3/8 in Drive)
21.0 mm
66.7mm (2.63in)
271-4696
Socket (3/8 in Drive)
24.0 mm
73mm (2.87in)
271-4697
Socket (3/8 in Drive)
JULY 2018 Hand Tools
17-51
Hand Tools
RATCHETSANDSOCKETS

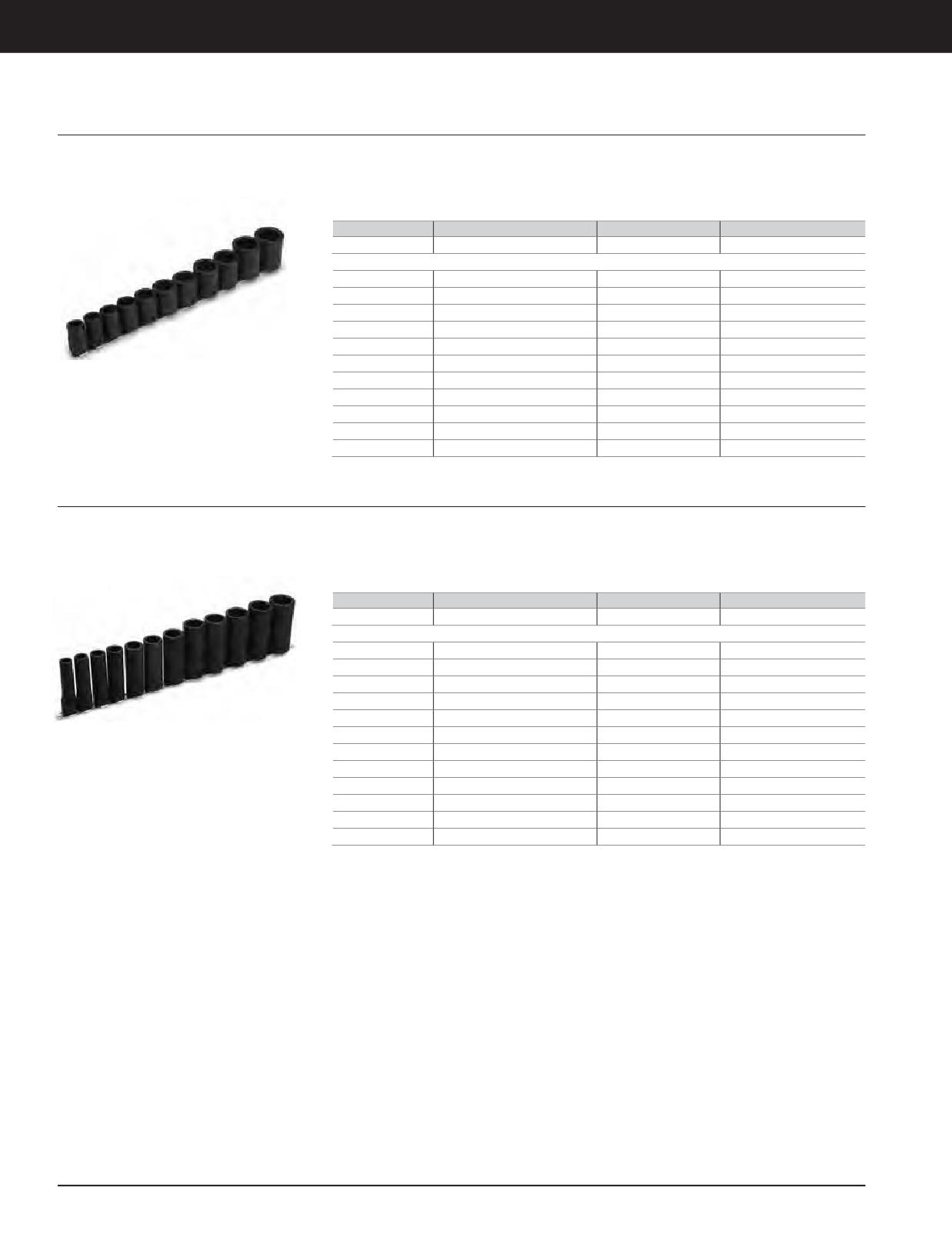

Fractional Impact Socket Set, 11 Piece 1/2 inch Drive
Model Usage: All Cat® Products
• 6 point
• Black oxide finish
Warranty: Caterpillar ®See Individual Parts
• 1/2 inch square drive
• Includes socket bar and clips
• Standard length sockets
• Can be ordered by set or individually
Size
Length
Part Number
Description
–
-
213-3086
Impact Socket Set
Impact Socket Set Consists of:
1/2in
38.1mm (1.50in)
213-3087
Socket
9/16 in
38.1mm (1.50in)
213-3088
Socket
5/8in
38.1mm (1.50in)
213-3089
Socket
11/16 in
38.1mm (1.50in)
213-3091
Socket
3/4in
38.1mm (1.50in)
213-3094
Socket
13/16 in
38.1mm (1.50in)
213-3099
Socket
7/8in
38.1mm (1.50in)
213-3102
Socket
15/16 in
44.5mm (1.75in)
213-3104
Socket
1in
44.5mm (1.75in)
213-3107
Socket
1 1/16 in
50.8 mm (2 in)
213-3109
Socket
1 1/8 in
50.8 mm (2 in)
213-3110
Socket, 1 1/8 in
Fractional Impact Socket Set, 12 Piece 1/2 inch Drive
Model Usage: All Cat® Products
• 6 point
• Black oxide finish
Warranty: Caterpillar ®Lifetime
• 1/2 inch square drive
• Includes socket bar and clips
• Deep length sockets
• Can be ordered by set or individually
Size
Length
Part Number
Description
–
-
213-3515
Impact Socket Set
Impact Socket Set Consists of:
7/16 in
82.6mm (3.25in)
213-3516
Socket
1/2in
82.6mm (3.25in)
213-3517
Socket
9/16 in
82.6mm (3.25in)
213-3518
Socket
5/8in
82.6mm (3.25in)
213-3520
Socket
11/16 in
82.6mm (3.25in)
213-3521
Socket
3/4in
82.6mm (3.25in)
213-3522
Socket
13/16 in
82.6mm (3.25in)
213-3523
Socket
7/8in
88.9mm (3.50in)
213-3524
Socket
15/16 in
88.9mm (3.50in)
213-3525
Socket
1in
88.9mm (3.50in)
213-3526
Socket
1 1/16 in
88.9mm (3.50in)
213-3528
Socket
1 1/8 in
88.9mm (3.50in)
213-3530
Socket
17-52 JULY 2018 Hand Tools
Hand Tools
RATCHETSANDSOCKETS

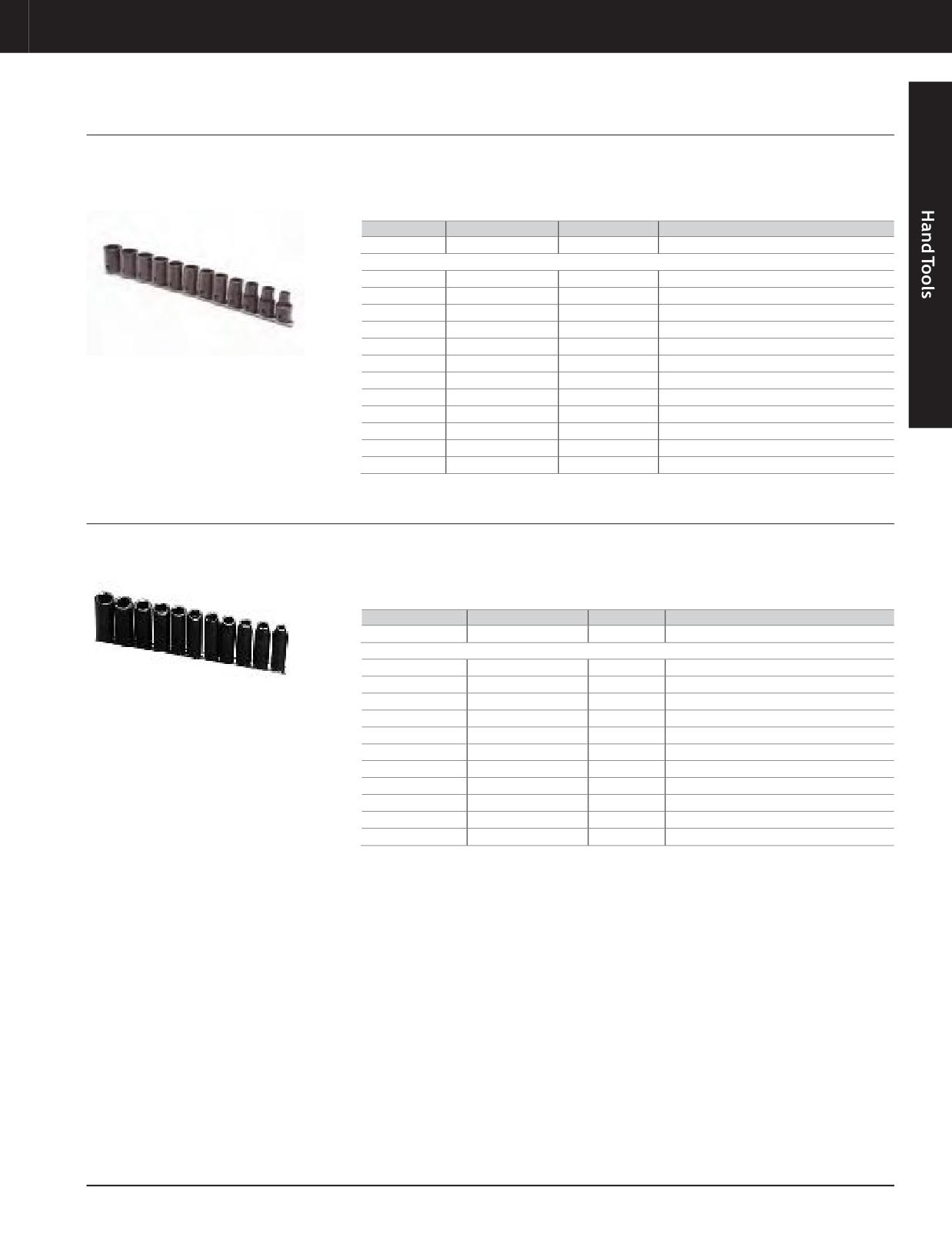

Metric Impact Socket Set, 12 Piece 1/2 inch Drive
Warranty: Caterpillar ®Lifetime
• 6 point
• Black oxide finish
• 1/2 inch drive
• Includes socket bar and clips
• Standard length impact sockets
• Can be ordered by set or individually
Size
Length
Part Number
Description
–
-
213-6923
Impact Socket Set
Socket Set Consists of:
10.0 mm
38.1mm (1.50in)
213-6926
Impact Socket (1/2 in Drive)
11.0 mm
38.1mm (1.50in)
213-6927
Impact Socket (1/2 in Drive)
12.0 mm
38.1mm (1.50in)
213-6928
Impact Socket (1/2 in Drive)
13.0 mm
38.1mm (1.50in)
213-6929
Impact Socket (1/2 in Drive)
14.0 mm
38.1mm (1.50in)
213-6930
Impact Socket (1/2 in Drive)
15.0 mm
38.1mm (1.50in)
213-6932
Impact Socket (1/2 in Drive)
16.0 mm
38.1mm (1.50in)
213-6933
Impact Socket (1/2 in Drive)
17.0 mm
38.1mm (1.50in)
213-6934
Impact Socket (1/2 in Drive)
18.0 mm
38.1mm (1.50in)
213-6935
Impact Socket (1/2 in Drive)
19.0 mm
38.1mm (1.50in)
213-6936
Impact Socket (1/2 in Drive)
20.0 mm
38.1mm (1.50in)
213-6924
Impact Socket (1/2 in Drive)
21.0 mm
38.1mm (1.50in)
213-6937
Impact Socket (1/2 in Drive)
Metric Impact Socket Set, 11 Piece 1/2 inch Drive
Warranty: Caterpillar ®Lifetime
• 6 point
• Black oxide finish
• 1/2 inch drive
• Includes socket bar and clips
• Deep length impact sockets
• Can be ordered by set or individually
Size
Length
Part No.
Description
–
-
9U-6547
Impact Socket Set
Impact Socket Set Consists of:
10.0 mm
82.6mm (3.25in)
214-6644
Impact Socket (1/2 in Drive)
11.0 mm
82.6mm (3.25in)
214-6645
Impact Socket (1/2 in Drive)
12.0 mm
82.6mm (3.25in)
214-6646
Impact Socket (1/2 in Drive)
13.0 mm
82.6mm (3.25in)
214-6647
Impact Socket (1/2 in Drive)
14.0 mm
82.6mm (3.25in)
214-6648
Impact Socket (1/2 in Drive)
15.0 mm
82.6mm (3.25in)
214-6649
Impact Socket (1/2 in Drive)
16.0 mm
82.6mm (3.25in)
214-6650
Impact Socket (1/2 in Drive)
17.0 mm
82.6mm (3.25in)
214-6651
Impact Socket (1/2 in Drive)
18.0 mm
82.6mm (3.25in)
214-6652
Impact Socket (1/2 in Drive)
19.0 mm
82.6mm (3.25in)
214-6653
Impact Socket (1/2 in Drive)
20.0 mm
82.6mm (3.25in)
214-7346
Impact Socket (1/2 in Drive)
JULY 2018 Hand Tools
17-53
Hand Tools
RATCHETSANDSOCKETS

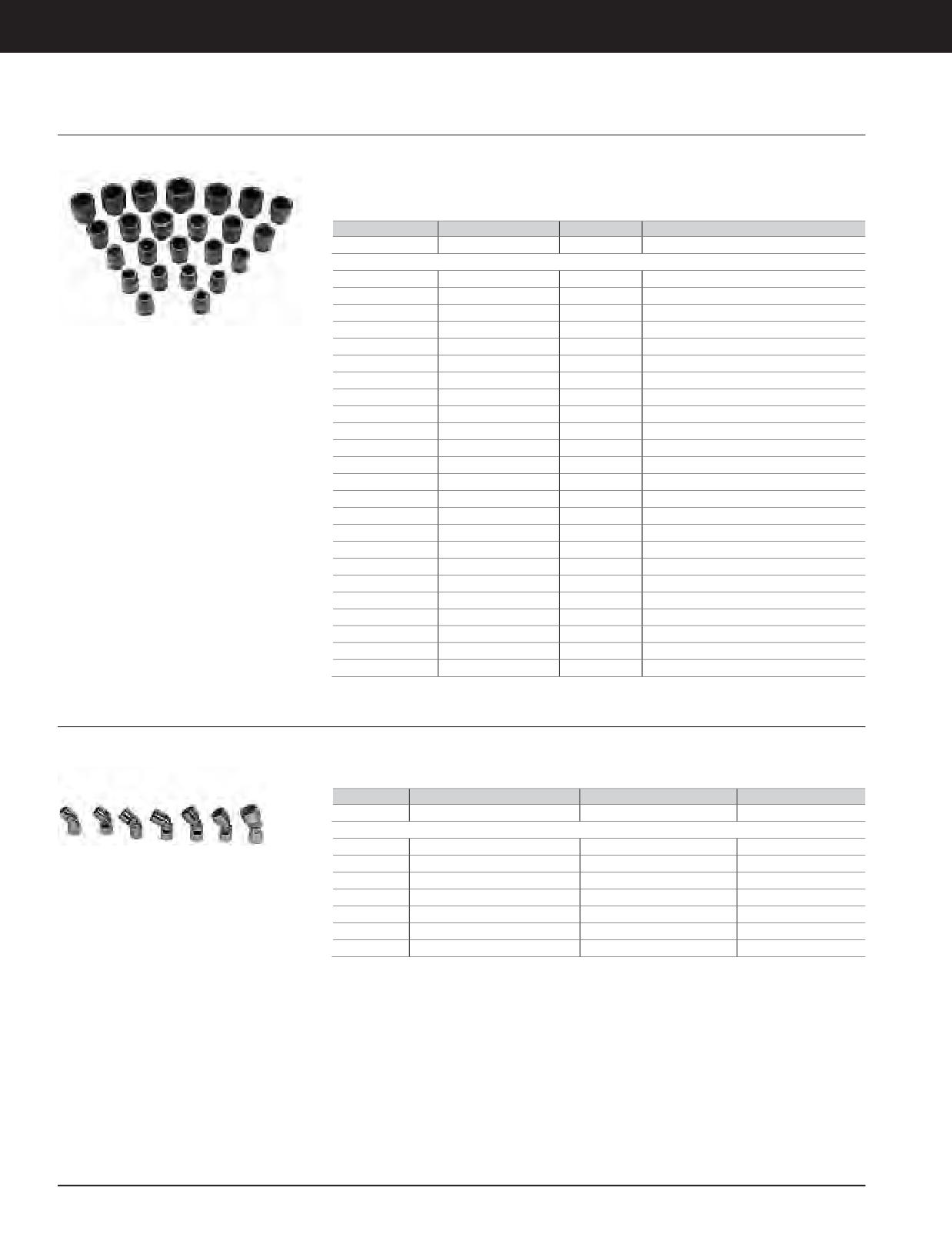

Metric Impact Socket Set, 24 Piece 3/4 inch Drive
Warranty: Caterpillar ®Lifetime
• 6 point
• Black oxide finish
• 3/4 inch drive
• Can be ordered by set or individually
• Standard length impact sockets
Size
Length
Part Number
Description
–
-
214-6643
Impact Socket Set
Impact Socket Set Consists of:
17.0 mm
44.5mm (1.75in)
9U-6523
Impact Socket
19.0 mm
44.5mm (1.75in)
9U-6524
Impact Socket
20.0 mm
44.5mm (1.75in)
9U-6525
Impact Socket
21.0 mm
47.8mm (1.88in)
9U-6526
Impact Socket
22.0 mm
47.6mm (1.87in)
9U-6527
Impact Socket
23.0 mm
47.8mm (1.88in)
9U-6528
Impact Socket
24.0 mm
47.6mm (1.87in)
9U-6529
Impact Socket
26.0 mm
50.8 mm (2 in)
9U-6530
Impact Socket
27.0 mm
50.8 mm (2 in)
9U-6531
Impact Socket
28.0 mm
53.8mm (2.12in)
9U-6532
Impact Socket
30.0 mm
53.8mm (2.12in)
9U-6533
Impact Socket
31.0 mm
54mm (2.13in)
9U-6534
Impact Socket
32.0 mm
54mm (2.13in)
9U-6535
Impact Socket
33.0 mm
53.8mm (2.12in)
9U-6536
Impact Socket
34.0 mm
54mm (2.13in)
9U-6537
Impact Socket
35.0 mm
57.2mm (2.25in)
9U-6538
Impact Socket
36.0 mm
57.2mm (2.25in)
9U-6539
Impact Socket
38.0 mm
57.2mm (2.25in)
9U-6540
Impact Socket
40.0 mm
66.7mm (2.63in)
9U-6541
Impact Socket
41.0 mm
66.5mm (2.62in)
9U-6542
Impact Socket
42.0 mm
66.5mm (2.62in)
9U-6543
Impact Socket
43.0 mm
66.5mm (2.62in)
9U-6544
Impact Socket
46.0 mm
66.7mm (2.63in)
9U-6545
Impact Socket
50.0 mm
73.2mm (2.88in)
9U-6546
Impact Socket
Fractional Universal Socket Set, 7 Piece, 3/8 inch Drive
Warranty: Caterpillar ®Lifetime
• 12 point
• Polished chrome finish
• 3/8 inch universal drive
• Can be ordered by set or individually
Size
Length
Part Number
Description
–
-
9S-1747
Universal Socket Set
Socket Set Consists of:
3/8in
40.1mm (1.58in)
8S-2284
Universal Socket
7/16 in
40.1mm (1.58in)
8H-8562
Universal Socket
1/2in
42.1mm (1.66in)
8H-8563
Universal Socket
9/16 in
42.8mm (1.69in)
8H-8564
Universal Socket
5/8in
44.5mm (1.75in)
8H-8565
Universal Socket
11/16 in
49.6mm (1.95in)
9S-1727
Universal Socket
3/4in
50.4mm (1.98in)
8H-8566
Universal Socket
17-54 JULY 2018 Hand Tools
Hand Tools
RATCHETSANDSOCKETS

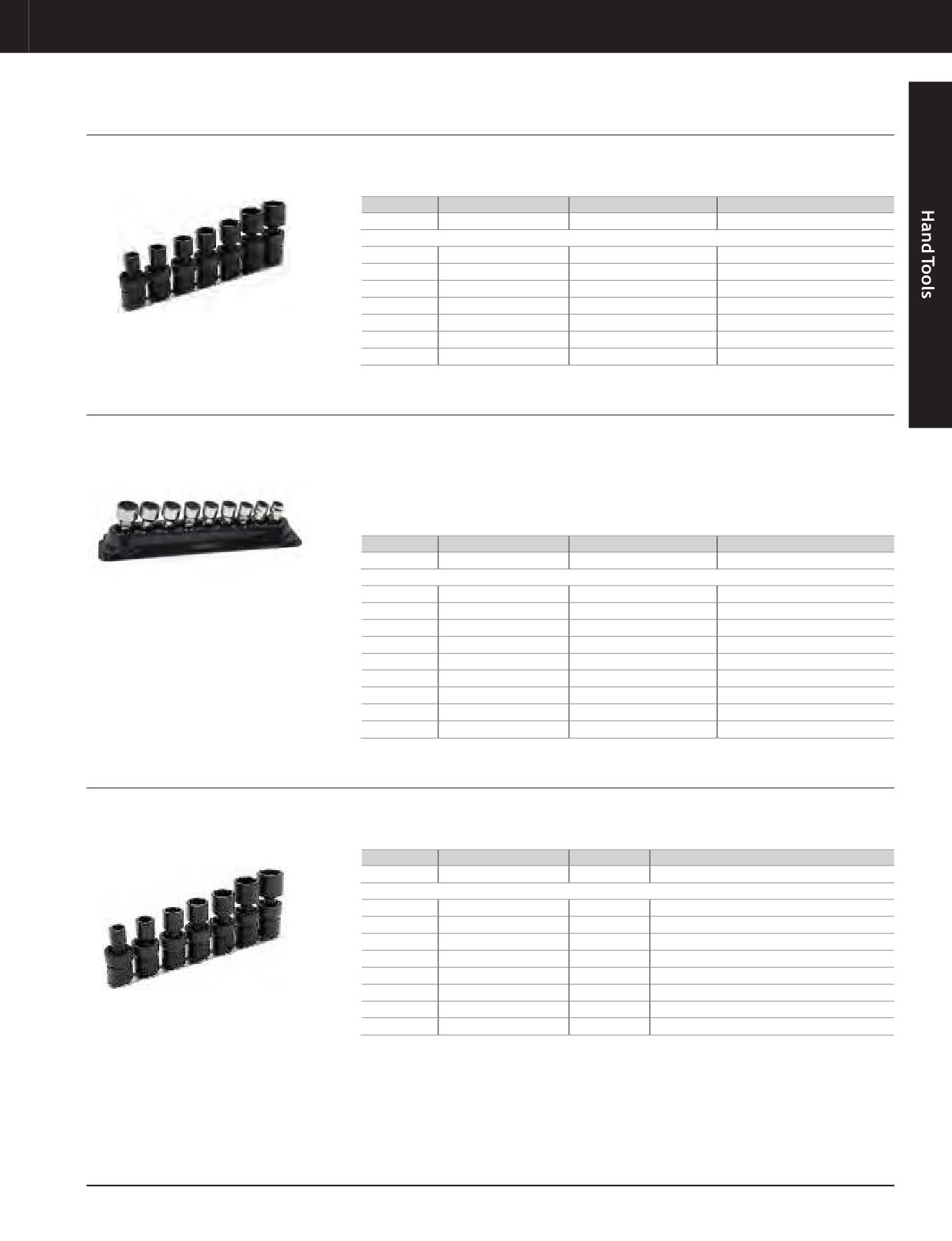

Fractional Universal Socket Set, 7 Piece, 3/8 inch Drive
Model Usage: All Cat® Products
• 6 point
• Includes socket bar and clips
Warranty: Caterpillar ®Lifetime
• 3/8 inch square drive
• Can be ordered by set or individually
Size
Length
Part Number
Description
–
-
261-8581
Universal Impact Socket Set
Socket Set Consists of:
3/8in
50mm (1.97in)
261-8583
Socket
7/16 in
50mm (1.97in)
261-8585
Socket
1/2in
54.1mm (2.13in)
261-8586
Socket
9/16 in
55.6mm (2.19in)
261-8587
Socket
5/8in
57.2mm (2.25in)
261-8589
Socket
11/16 in
64.3mm (2.53in)
261-8590
Socket
3/4in
65.8mm (2.59in)
261-8591
Socket
Metric Universal Socket Set, 9 Piece, 3/8 inch Drive
Model Usage: 3066 Engines
SMCS Code: 1251-010, 0601
• Specially forged and heat treated for
toughness and long life-meets rigid industry
Warranty: Caterpillar ®Lifetime
• 9U-6128 used to remove and install fuel
standards
injection pump
• Includes socket bar and clips
• Standard length, 12 point universal socket set
• Can be ordered by set or individually
Size
Length
Part Number
Description
–
-
9U-6124
Universal Metric Socket Set
Metric Socket Set Consists of:
10.0 mm
43.5mm (1.71in)
9U-6125
Socket (3/8 in Drive)
12.0 mm
45.5mm (1.79in)
9U-6126
Socket (3/8 in Drive)
13.0 mm
45.5mm (1.79in)
9U-6127
Socket (3/8 in Drive)
14.0 mm
47.9mm (1.89in)
9U-6128
Socket (3/8 in Drive)
15.0 mm
47.9mm (1.89in)
9U-6129
Socket (3/8 in Drive)
16.0 mm
47.9mm (1.89in)
9U-6130
Socket (3/8 in Drive)
17.0 mm
50.7 mm (2 in)
9U-6131
Socket (3/8 in Drive)
18.0 mm
50.7 mm (2 in)
9U-6132
Socket (3/8 in Drive)
19.0 mm
52.5mm (2.07in)
9U-6133
Socket (3/8 in Drive)
Metric Universal Socket Set, 7 Piece, 3/8 inch Drive
Model Usage: All Cat® Products
• 6 point
• Includes socket bar and clips
Warranty: Caterpillar ®Lifetime
• 3/8 inch square drive
• Can be ordered by set or individually
Size
Length
Part Number
Description
–
-
261-8572
Metric Swivel Impact Socket Set
Metric Swivel Impact Set Consists of:
10.0 mm
50.8 mm (2 in)
261-8573
Metric Swivel Impact Socket (3/8 in Drive)
12.0 mm
53.1mm (2.09in)
261-8574
Metric Swivel Impact Socket (3/8 in Drive)
13.0 mm
54.1mm (2.13in)
261-8575
Metric Swivel Impact Socket (3/8 in Drive)
14.0 mm
55.4mm (2.18in)
261-8576
Metric Swivel Impact Socket (3/8 in Drive)
15.0 mm
56.4mm (2.22in)
261-8577
Metric Swivel Impact Socket (3/8 in Drive)
17.0 mm
62.2mm (2.45in)
261-8578
Metric Swivel Impact Socket (3/8 in Drive)
18.0 mm
64mm (2.52in)
261-8579
Metric Swivel Impact Socket (3/8 in Drive)
19.0 mm
52.5mm (2.07in)
9U-6133
Socket (3/8 in Drive)
JULY 2018 Hand Tools
17-55
Hand Tools
RATCHETSANDSOCKETS

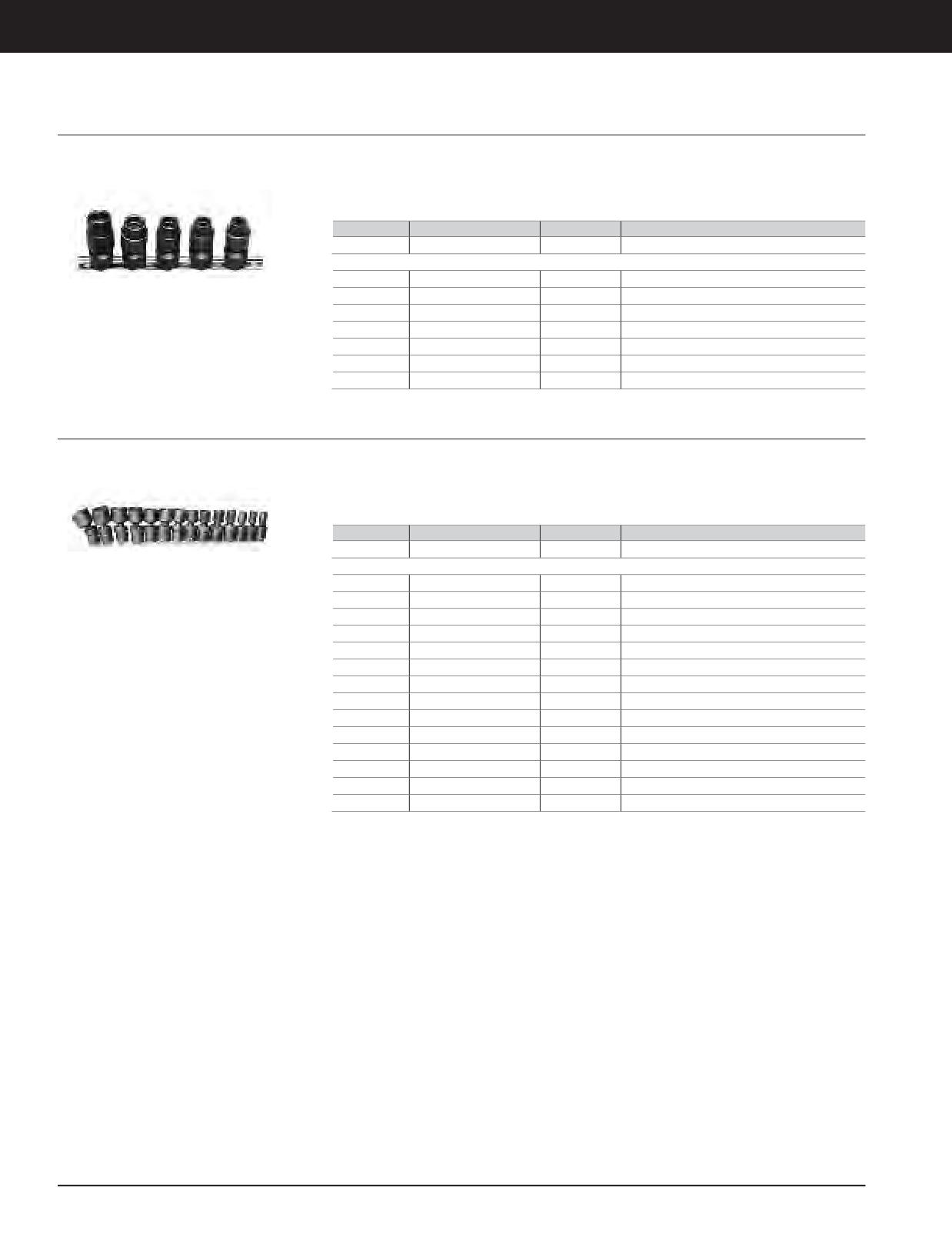

Fractional Universal Impact Socket Set, 5 Piece, 1/2 inch Drive
Warranty: Caterpillar ®Lifetime
• 6 point
• Includes socket bar and clips
• 1/2 inch square drive
• Can be ordered by set or individually
• Black oxide finish
Size
Length
Part Number
Description
–
-
214-6518
Universal Impact Socket Set
Universal Impact Socket Set Consists of:
1/2in
73.8mm (2.91in)
214-6521
Socket
9/16 in
73.8mm (2.91in)
214-6522
Socket
5/8in
73.8mm (2.91in)
214-6523
Socket
11/16 in
77.8mm (3.06in)
214-6524
Socket
3/4in
77.8mm (3.06in)
214-6526
Socket
18.0 mm
64mm (2.52in)
261-8579
Metric Swivel Impact Socket (3/8 in Drive)
19.0 mm
52.5mm (2.07in)
9U-6133
Socket (3/8 in Drive)
Fractional Universal Impact Socket Set, 14 Piece, 1/2 inch Drive
Warranty: Caterpillar ®Lifetime
• 6 point
• Standard length impact sockets
• 1/2 inch square drive
• Includes socket bar and clips
• Black oxide finish
• Can be ordered by set or individually
Size
Length
Part Number
Description
–
-
246-8184
Socket Set
Universal Impact Socket Set Consists of:
1/2in
73.8mm (2.91in)
214-6521
Socket
9/16 in
73.8mm (2.91in)
214-6522
Socket
5/8in
73.8mm (2.91in)
214-6523
Socket
11/16 in
77.8mm (3.06in)
214-6524
Socket
3/4in
77.8mm (3.06in)
214-6526
Socket
13/16 in
77.8mm (3.06in)
246-8173
Socket
7/8in
77.8mm (3.06in)
246-8175
Socket
15/16 in
77.8mm (3.06in)
246-8176
Socket
1in
77.8mm (3.06in)
246-8177
Socket
1 - 1/16 in
80.2mm (3.16in)
246-8178
Socket
1 - 1/8in
84.9mm (3.34in)
246-8179
Socket
1 - 3/16 in
84.9mm (3.34in)
246-8180
Socket
1 - 1/4in
86.5mm (3.41in)
246-8181
Socket
1 - 5/16 in
86.5mm (3.41in)
246-8182
Socket
17-56 JULY 2018 Hand Tools
Hand Tools
RATCHETSANDSOCKETS

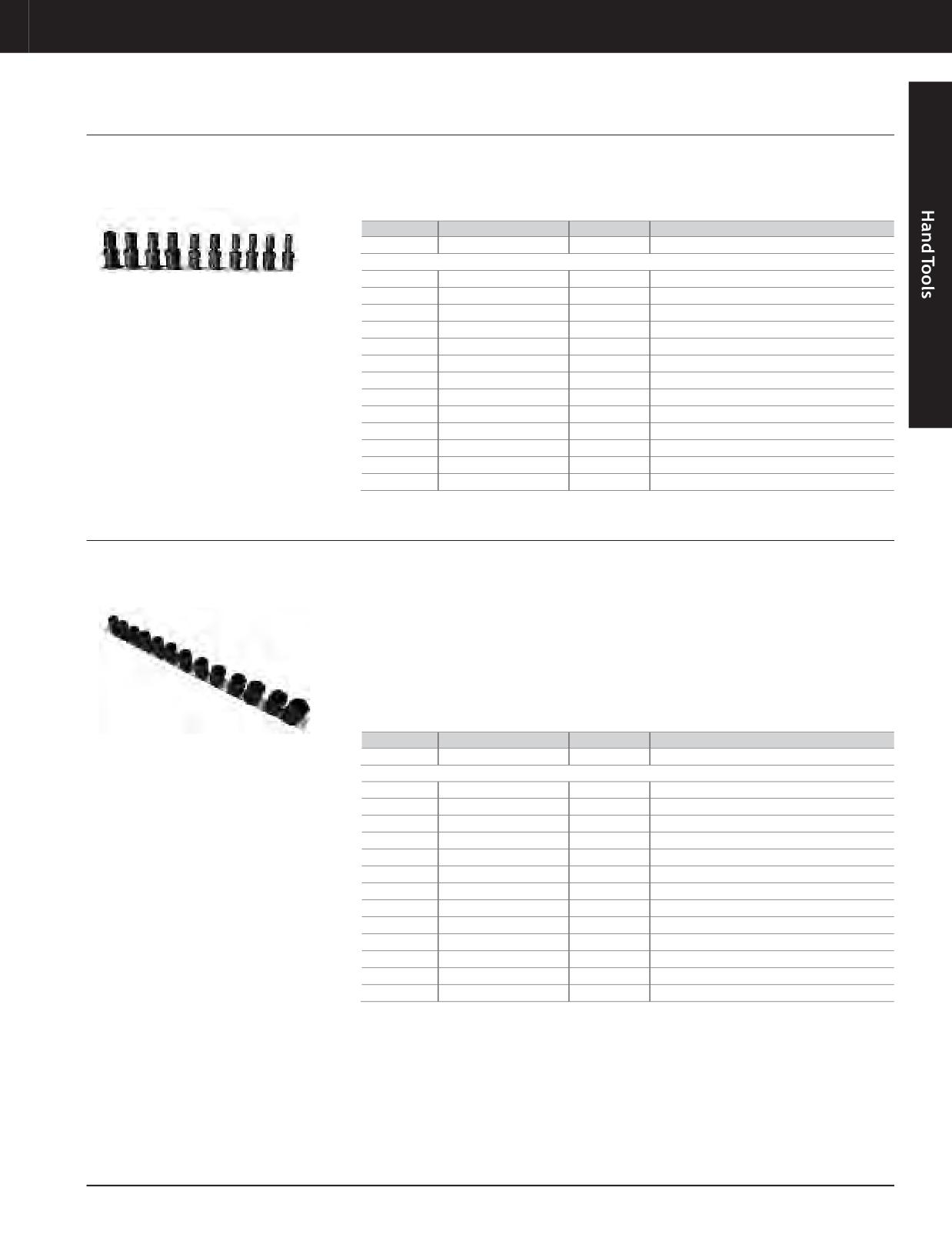

Metric Universal Impact Socket Set, 10 Piece, 1/2 inch Drive
Model Usage: All Cat® Products
• 6 point
• Standard length impact sockets
Warranty: Caterpillar ®Lifetime
• 1/2 inch square drive
• Includes socket bar and clips
• Black oxide finish
• Can be ordered by set or individually
Size
Length
Part Number
Description
–
246-8199
Metric Universal Impact Socket Set
Metric Universal Impact Socket Set Consists of:
10.0 mm
73.7mm (2.90in)
246-8185
Universal Impact Socket (1/2 in Drive)
11.0 mm
73.7mm (2.90in)
246-8186
Universal Impact Socket (1/2 in Drive)
12.0 mm
73.7mm (2.90in)
246-8187
Universal Impact Socket (1/2 in Drive)
13.0 mm
73.7mm (2.90in)
246-8188
Universal Impact Socket (1/2 in Drive)
14.0 mm
73.7mm (2.90in)
246-8189
Universal Impact Socket (1/2 in Drive)
15.0 mm
73.7mm (2.90in)
246-8190
Universal Impact Socket (1/2 in Drive)
16.0 mm
73.7mm (2.90in)
246-8191
Universal Impact Socket (1/2 in Drive)
17.0 mm
77.8mm (3.06in)
246-8192
Universal Impact Socket (1/2 in Drive)
18.0 mm
77.7mm (3.06in)
246-8194
Universal Impact Socket (1/2 in Drive)
19.0 mm
77.7mm (3.06in)
246-8197
Universal Impact Socket (1/2 in Drive)
1 - 3/16 in
84.9mm (3.34in)
246-8180
Socket
1 - 1/4in
86.5mm (3.41in)
246-8181
Socket
1 - 5/16 in
86.5mm (3.41in)
246-8182
Socket
Fractional Twist Socket Set, 13 Piece, 3/8 inch Drive
Model Usage: All Cat® Products
• SAE/Metric impact sockets quickly and
• Shallow depth
easily remove damaged or rounded nuts and
Warranty: Caterpillar ®Lifetime
• Fits sizes from 10 to 19 mm (3/8 to 3/4 inch)
bolts
• 3/8 inch square drive
• 6 fluted sockets grip onto fastener and tighten
• Standard length
as more torque is applied (no hammering
required to install socket over fastener)
• Industrial black finish
• Applications include oil pan drain plugs,
• Includes plastic tray, socket bar, and clips
exhaust manifold nuts, studs, pipe nipples,
• Can be ordered by set or individual
and corroded marine fasteners
Size
Length
Part Number
Description
–
-
241-0873
Twist Socket Set
Twist Socket Set Consists of:
1/2in
31.7mm (1.25in)
241-0868
Socket (3/8 in Drive)
10 mm
31.7mm (1.25in)
241-0860
Socket (3/8 in Drive)
11 mm
31.7mm (1.25in)
241-0867
Socket (3/8 in Drive)
11/16 in
34.9mm (1.37in)
241-0871
Socket (3/8 in Drive)
12 mm
31.7mm (1.25in)
241-0861
Socket (3/8 in Drive)
13 mm
31.7mm (1.25in)
241-0862
Socket (3/8 in Drive)
14 mm
31.7mm (1.25in)
241-0863
Socket (3/8 in Drive)
15 mm
31.7mm (1.25in)
241-0864
Socket (3/8 in Drive)
16 mm
31.7mm (1.25in)
241-0870
Socket (3/8 in Drive)
17 mm
31.7mm (1.25in)
-
Socket (3/8 in Drive)
19 mm
34.9mm (1.37in)
241-0872
Socket (3/8 in Drive)
3/8in
31.7mm (1.25in)
241-0866
Socket (3/8 in Drive)
9/16 in
31.7mm (1.25in)
241-0869
Socket (3/8 in Drive)
JULY 2018 Hand Tools
17-57
Hand Tools
RATCHETSANDSOCKETS
Individual Fractional Sockets, 1/4 in Drive
Warranty: Caterpillar ®Lifetime
Size
Length
Part Number
1/4 inch Drive, Standard Length Sockets, 12 Point
3/16 in
22.2mm (0.87in)
9S-1711
7/32 in
22.2mm (0.87in)
9S-1712
1/4in
22.2mm (0.87in)
9S-1713
9/32 in
22.2mm (0.87in)
9S-1714
5/16 in
22.2mm (0.87in)
9S-1715
11/32 in
22.2mm (0.87in)
9S-1716
3/8in
22.2mm (0.87in)
9S-1717
7/16 in
22.2mm (0.87in)
9S-1718
1/2in
22.2mm (0.87in)
9S-1719
1/4 inch Drive, Deep Length Sockets, 6 Point, Chrome
5/16 in
31.8mm (1.25in)
5P-0127
3/16 in
50.8 mm (2 in)
213-9967
7/32 in
50.8 mm (2 in)
213-9968
1/4in
50.8 mm (2 in)
213-9969
9/32 in
50.8 mm (2 in)
213-9970
5/16 in
50.8 mm (2 in)
213-9971
11/32 in
50.8 mm (2 in)
213-9972
3/8in
50.8 mm (2 in)
213-9974
7/16 in
50.8 mm (2 in)
213-9978
1/2in
50.8 mm (2 in)
213-9980
9/16 in
50.8 mm (2 in)
213-9981
1/4 inch Drive, Deep Length Socket, 12 Point
3/8in
50.8 mm (2 in)
9S-2573
17-58 JULY 2018 Hand Tools
Hand Tools
RATCHETSANDSOCKETS
Individual Fractional Sockets, 3/8 in Drive
Model Usage: All Cat® Products
Size
Length
Part Number
3/8 inch Drive, Universal Sockets, 12 Point
Warranty: Caterpillar ®Lifetime
7/16 in
40.1mm (1.58in)
8H-8562
3/8in
40.1mm (1.58in)
8S-2284
1/2in
42.1mm (1.66in)
8H-8563
9/16 in
42.8mm (1.69in)
8H-8564
5/8in
44.5mm (1.75in)
8H-8565
11/16 in
49.6mm (1.95in)
9S-1727
3/4in
50.4mm (1.98in)
8H-8566
3/8 inch Drive, Standard Length Sockets, 12 Point
1/4in
23mm (0.91in)
266-3738
5/16 in
23mm (0.91in)
266-3739
7/16 in
23mm (0.91in)
8H-8567
3/8in
23mm (0.91in)
8S-2274
1/2in
23.8mm (0.94in)
8H-8568
9/16 in
24.6mm (0.97in)
8H-8569
5/8in
26.2mm (1.03in)
8H-8570
11/16 in
27mm (1.06in)
9S-1728
3/4in
27.8mm (1.09in)
8H-8571
1/4in
31.8mm (1.25in)
541-3250 (Shoulder bolt socket 12 point)
5/16 in
31.8mm (1.25in)
541-3246 (Shoulder bolt socket 12 point)
3/8in
38.1mm (1.50in)
541-3238
7/16 in
38.1mm (1.50in)
8S-1592
3/8 inch Drive, Deep Length Sockets, 12 Point, Chrome
7/16 in
54mm (2.13in)
3P-2210 (Special socket)
3/8in
54.1mm (2.13in)
214-6491
7/16 in
54.1mm (2.13in)
214-6492
1/2in
60.5mm (2.38in)
214-6493
9/16 in
60.5mm (2.38in)
8S-2357
5/8 in (3)
60.5mm (2.38in)
9S-5031 (Comes with insert for removing spark plugs)
11/16 in
66.8mm (2.63in)
214-6494
3/4in
66.8mm (2.63in)
214-6495
13/16 in
69.9mm (2.75in)
214-6496
3/8 inch Drive, Standard Length Sockets, 6 Point, Chrome
3/8in
23.1mm (0.91in)
214-1144
7/16 in
23.1mm (0.91in)
214-1145
1/2in
23.9mm (0.94in)
214-1146
9/16 in
26.2mm (1.03in)
214-1147
5/8in
27.7mm (1.09in)
214-1148
11/16 in
28.7mm (1.13in)
214-1149
3/4in
30.2mm (1.19in)
214-1150
3/8 inch Drive, Deep Length Sockets, 6 Point, Chrome
3/8in
54mm (2.13in)
214-1152
7/16 in
54mm (2.13in)
214-1153
1/2in
60.3mm (2.37in)
214-1154
9/16 in
60.3mm (2.37in)
214-1155
5/8in
60.3mm (2.37in)
214-1156
11/16 in
66.7mm (2.63in)
214-1157
3/4in
66.7mm (2.63in)
214-1158
13/16 in
69.9mm (2.75in)
214-1159
7/8in
69.9mm (2.75in)
214-1160
CONTINUED ON NEXT PAGE...
JULY 2018 Hand Tools
17-59
Hand Tools
RATCHETSANDSOCKETS
(CONTINUED) Individual Fractional Sockets, 3/8 in Drive
Warranty: Caterpillar ®Lifetime
Size
Length
Part Number
3/8 inch Drive, Standard Length Impact Sockets, 6 Point
5/16 in
22.2mm (0.87in)
271-4601
3/8in
23.8mm (0.94in)
271-4602
7/16 in
23.8mm (0.94in)
271-4603
1/2in
23.8mm (0.94in)
271-4604
9/16 in
23.8mm (0.94in)
271-4605
5/8in
23.8mm (0.94in)
271-4606
1in
25.4 mm (1 in)
271-4612
11/16 in
26.2mm (1.03in)
271-4607
3/4in
26.2mm (1.03in)
271-4608
13/16 in
30.2mm (1.19in)
271-4609
7/8in
32.5mm (1.28in)
271-4610
15/16 in
33.3mm (1.31in)
271-4611
3/8 inch Drive, Deep Length Impact Sockets, 12 Point
3/8in
22.2mm (0.87in)
271-4615
7/16 in
23.8mm (0.94in)
271-4616
1/2in
23.8mm (0.94in)
271-4617
9/16 in
23.8mm (0.94in)
271-4618
5/8in
23.8mm (0.94in)
271-4619
11/16 in
26.2mm (1.03in)
271-4620
3/4in
26.2mm (1.03in)
271-4621
3/8 inch Drive, Deep Length Impact Sockets, 6 Point
5/16 in
54mm (2.13in)
271-4670
3/8in
54mm (2.13in)
271-4671
7/16 in
54mm (2.13in)
271-4672
1/2in
54mm (2.13in)
271-4673
9/16 in
60.3mm (2.37in)
271-4674
5/8in
60.3mm (2.37in)
271-4675
3/4in
69.9mm (2.75in)
271-4677
13/16 in
69.9mm (2.75in)
271-4678
7/8in
69.9mm (2.75in)
271-4679
15/16 in
69.9mm (2.75in)
271-4680
1in
69.9mm (2.75in)
271-4681
11/16 in
74.6mm (2.94in)
271-4676
Individual Fractional Sockets, 1/2 in Drive
Warranty: Caterpillar ®Lifetime
Size
Length
Part Number
1/2 inch Drive, Standard Length Sockets, 12 Point
1/2in
38.1mm (1.50in)
1S-0259
7/16 in
38.1mm (1.50in)
214-6497
9/16 in
38.1mm (1.50in)
8H-8549
5/8in
38.1mm (1.50in)
8H-8550
11/16 in
38.1mm (1.50in)
8H-8551
3/4in
38.1mm (1.50in)
8H-8552
13/16 in
38.1mm (1.50in)
8H-8553
7/8in
38.1mm (1.50in)
8H-8554
15/16 in
38.1mm (1.50in)
8H-8555
1in
38.1mm (1.50in)
8H-8556
1 1/16 in
41.3mm (1.63in)
9S-1729
1/2in
44.5mm (1.75in)
541-3236
9/16 in
44.5mm (1.75in)
8S-1594
CONTINUED ON NEXT PAGE...
17-60 JULY 2018 Hand Tools
Hand Tools
RATCHETSANDSOCKETS
(CONTINUED) Individual Fractional Sockets, 1/2 in Drive
Model Usage: All Cat® Products
Size
Length
Part Number
5/8in
44.5mm (1.75in)
541-3242
Warranty: Caterpillar ®Lifetime
11/16 in
44.5mm (1.75in)
541-3247
1 1/8 in
44.5mm (1.75in)
9S-1730
1 1/4 in
47.6mm (1.87in)
9S-1731
1/2 inch Drive, Standard Length Sockets, 6 Point, Chrome
7/16 in
38.1mm (1.50in)
214-6500
1/2in
38.1mm (1.50in)
214-6501
9/16 in
38.1mm (1.50in)
214-6503
5/8in
38.1mm (1.50in)
214-6504
11/16 in
38.1mm (1.50in)
214-6506
3/4in
38.1mm (1.50in)
214-6507
13/16 in
38.1mm (1.50in)
214-6509
7/8in
38.1mm (1.50in)
214-6510
15/16 in
38.9mm (1.53in)
214-6511
1in
39.7mm (1.56in)
214-6512
1 11/16 in
42.9mm (1.69in)
214-6513
1 1/8 in
44.5mm (1.75in)
214-6514
1/2 inch Drive, Deep Length Sockets, 12 Point
1in
82.6mm (3.25in)
214-1162
9in
82.6mm (3.25in)
214-1163
5in
82.6mm (3.25in)
214-1164
11 in
82.6mm (3.25in)
214-1165
3in
82.6mm (3.25in)
214-1166
13 in
82.6mm (3.25in)
214-1167
7in
82.6mm (3.25in)
214-1168
15 in
82.6mm (3.25in)
214-1169
1in
82.6mm (3.25in)
214-1170
1 1/8 in
82.6mm (3.25in)
214-1172
1 11/16 in
82.6mm (3.25in)
214-1171
1 1/2 in
133.35 mm (5.25 in)
386-3335
1/2 inch Drive, Deep Length Sockets, 6 Point
1/2in
82.6mm (3.25in)
2P-5475
9/16 in
82.6mm (3.25in)
2P-5476
5/8in
82.6mm (3.25in)
2P-5477
11/16 in
82.6mm (3.25in)
2P-5478
3/4in
82.6mm (3.25in)
2P-5479
13/16 in
82.6mm (3.25in)
2P-5481
7/8in
82.6mm (3.25in)
2P-5482
15/16 in
82.6mm (3.25in)
2P-5483
1in
82.6mm (3.25in)
2P-5484
1/2 inch Drive, Standard Length Impact Sockets, 6 Point, Black
1/2in
38.1mm (1.50in)
213-3087
9/16 in
38.1mm (1.50in)
213-3088
5/8in
38.1mm (1.50in)
213-3089
11/16 in
38.1mm (1.50in)
213-3091
3/4in
38.1mm (1.50in)
213-3094
13/16 in
38.1mm (1.50in)
213-3099
7/8in
38.1mm (1.50in)
213-3102
15/16 in
44.5mm (1.75in)
213-3104
1in
44.5mm (1.75in)
213-3107
1 1/16 in
50.8 mm (2 in)
213-3109
1 1/8 in
50.8 mm (2 in)
213-3110
1 1/18 in
82.6mm (3.25in)
323-6267
CONTINUED ON NEXT PAGE...
JULY 2018 Hand Tools
17-61
Hand Tools
RATCHETSANDSOCKETS
(CONTINUED) Individual Fractional Sockets, 1/2 in Drive
Warranty: Caterpillar ®Lifetime
Size
Length
Part Number
1/2 inch Drive, Universal Impact Sockets, 6 Point, Black
1/2in
73.8mm (2.91in)
214-6521
9/16 in
73.8mm (2.91in)
214-6522
5/8in
73.8mm (2.91in)
214-6523
11/16 in
77.8mm (3.06in)
214-6524
3/4in
77.8mm (3.06in)
214-6526
1/2 inch Drive, Deep Length Impact Sockets, 6 Point, Black
7/16 in
82.6mm (3.25in)
213-3516
1/2in
82.6mm (3.25in)
213-3517
9/16 in
82.6mm (3.25in)
213-3518
5/8in
82.6mm (3.25in)
213-3520
11/16 in
82.6mm (3.25in)
213-3521
3/4in
82.6mm (3.25in)
213-3522
13/16 in
82.6mm (3.25in)
213-3523
1 1/4 in
88.9mm (3.50in)
1U-8701
7/8in
88.9mm (3.50in)
213-3524
15/16 in
88.9mm (3.50in)
213-3525
1in
88.9mm (3.50in)
213-3526
1 1/16 in
88.9mm (3.50in)
213-3528
1 1/8 in
88.9mm (3.50in)
213-3530
17-62 JULY 2018 Hand Tools
Hand Tools
RATCHETSANDSOCKETS
Individual Fractional Sockets, 3/4 in Drive
Model Usage: All Cat® Products
Size
Length
Part Number
3/4 inch Drive, Standard Length Sockets, 12 Point
Warranty: Caterpillar ®Lifetime
1 3/8 in
35mm (1.38in)
386-3353
3/4in
50.8 mm (2 in)
8H-8529
13/16 in
57 mm (2.2 in)
460-9928
7/8in
50.8 mm (2 in)
8H-8530
15/16 in
50.8 mm (2 in)
8H-8531
1in
52.4mm (2.06in)
8H-8532
1 1/16 in
54mm (2.13in)
8H-8533
1 1/8 in
55.5mm (2.19in)
8H-8534
1 1/4 in
57.2mm (2.25in)
8H-8535
1 3/16 in
57.2mm (2.25in)
460-9929
1in
57.2mm (2.25in)
541-3245
1 5/16 in
58.7mm (2.31in)
8H-8536
1 3/8 in
63.5mm (2.5in)
460-9930
1 1/2 in
63.5mm (2.50in)
8H-8537
1 5/8 in
66.7mm (2.63in)
8H-8539
1 11/16 in
69.9mm (2.75in)
8H-8538
1 3/4 in
69.9mm (2.75in)
8H-8540
1 7/8 in
79.4mm (3.13in)
8H-8541
2in
79.4mm (3.13in)
8H-8542
5/8in
82.6mm (3.25in)
2P-8276 (Shoulder bolt socket 12 point)
2 1/4 in
82.6mm (3.25in)
8H-8504
2 1/8 in
82.6mm (3.25in)
8H-8543
2 3/16 in
82.6mm (3.25in)
8H-8544
3/4in
82.6mm (3.25in)
541-3244
13/16 in
82.6mm (3.25in)
541-3249
7/8in
82.6mm (3.25in)
8S-1599
15/16 in
82.6mm (3.25in)
541-3248
2 1/2 in
152.4mm (6in)
3P-2230 (Special socket for fast fill fuel adapter)
3/4 inch Drive, Standard Length Impact Sockets, 6 Point, Black
3/4in
44.5mm (1.75in)
214-6553
13/16 in
47.8mm (1.88in)
214-6554
7/8in
47.8mm (1.88in)
214-6556
15/16 in
47.8mm (1.88in)
214-6557
1in
50.8 mm (2 in)
214-6558
1 11/16 in
50.8 mm (2 in)
214-6559
1 1/8 in
54.1mm (2.13in)
214-6560
1 3/16 in
54.1mm (2.13in)
214-6561
1 1/4 in
54.1mm (2.13in)
214-6562
1 5/16 in
57.2mm (2.25in)
214-6564
1 3/8 in
57.2mm (2.25in)
214-6565
1 7/16 in
57.2mm (2.25in)
214-6566
1 1/2 in
57.2mm (2.25in)
8T-5182
1 9/16 in
60.5mm (2.38in)
214-6567
1 5/8 in
60.5mm (2.38in)
214-6568
1 3/4 in
65mm (2.56in)
214-6569
1 11/16 in
65mm (2.56in)
214-6607
1 13/16 in
66.8mm (2.63in)
214-6570
1 7/8 in
69.9mm (2.75in)
214-6571
2 1/4 in
70mm (2.75in)
386-3266
2in
73.2mm (2.88in)
214-6572
2 3/16 in
81mm (3.18in)
386-3267
2 3/8 in
89 mm (3.5 in)
386-3268
3/4 inch Drive, Deep Length Impact Sockets, 6 Point, Black
1in
76.2 mm (3 in)
214-6599
1 1/16 in
76.2 mm (3 in)
214-6600
1 1/8 in
76.2 mm (3 in)
214-6601
1 3/16 in
82.6mm (3.25in)
214-6602
1 1/4 in
82.6mm (3.25in)
214-6603
CONTINUED ON NEXT PAGE...
JULY 2018 Hand Tools
17-63
Hand Tools
RATCHETSANDSOCKETS
(CONTINUED) Individual Fractional Sockets, 3/4 in Drive
Warranty: Caterpillar ®Lifetime
Size
Length
Part Number
1 5/16 in
82.6mm (3.25in)
214-6604
1 3/8 in
82.6mm (3.25in)
214-6605
1 1/2 in
88.9mm (3.50in)
1U-5715
1 7/16 in
88.9mm (3.50in)
214-6606
1 9/16 in
88.9mm (3.50in)
214-6608
1 5/8 in
88.9mm (3.50in)
214-6609
1 3/4 in
88.9mm (3.50in)
214-6611
1 1/8 in
88.9mm (3.50in)
227-4397 (Special use for 3406 Engine head service)
1 11/16 in
88.9mm (3.50in)
6V-7874
1 13/16 in
95.3mm (3.75in)
214-6612
1 7/8 in
95.3mm (3.75in)
214-6613
2 in Hex
95.3mm (3.75in)
214-6614
1 3/16 in
101.6mm (4in)
5P-3053 (Budd wheel socket)
3/4 inch Drive, Tapered Impact Sockets, 12 Point, Black
3/4in
127 mm (5 in)
124-0662
3/4 Inch Drive, Shallow, 12 Point, Black
1in
50.8 mm (2 in)
432-8907
17-64 JULY 2018 Hand Tools
Hand Tools
RATCHETSANDSOCKETS
Individual Fractional Sockets, 1 in Drive
Model Usage: All Cat® Products
Size
Length
Part Number
1 inch Drive, Standard Length Sockets, 12 Point
Warranty: Caterpillar ®Lifetime
1 1/2 in
69.9mm (2.75in)
6V-0024
1 inch Drive, Standard Length Sockets, 6 Point, Black
1 3/32 in
57.2mm (2.25in)
5P-3579 (Track Bolt Socket, 6 point,Warranty: Six Months)
2 5/8 in
57.2mm (2.25in)
5S-6079 (Chrome finish)
29/32 in
57.2mm (2.25in)
6V-2002(Track Bolt Socket, 6 point,Warranty: SixMonths)
1 1/8 in
57.2mm (2.25in)
9S-6373 (Track Bolt Socket, 6 point, Warranty: Six Months)
1 7/16 in
63.5mm (2.50in)
4C-6723
1 9/32 in
63.5mm (2.50in)
5P-3580 (Track Bolt Socket, 6 point,Warranty: Six Months)
1 15/32 in
63.5mm (2.50in)
5P-3581 (Track Bolt Socket, 6 point,Warranty: Six Months)
1 1/2 in
63.5mm (2.50in)
9S-6371 (Track Bolt Socket, 6 point, Warranty: Six Months)
1 5/16 in
63.5mm (2.50in)
9S-6372 (Track Bolt Socket, 6 point, Warranty: Six Months)
15/16 in
63.5mm (2.50in)
9S-6374 (Thin wall track bolt socket, 6 point,Warranty: Six Months)
1 1/8 in
66.8mm (2.63in)
9S-6369 (Thin wall track bolt socket, 6 point,Warranty: Six Months)
1 11/16 in
76.2 mm (3 in)
2P-2334
1 3/4 in
76.2 mm (3 in)
2P-2335
15/16 in
76.2 mm (3 in)
9S-6370 (Track Bolt Socket, 6 point, Warranty: Six Months)
1 7/8 in
82.6mm (3.25in)
2P-2336
2 1/4 in
87.1mm (3.43in)
5P-1748 (Impact Socket, 6 point, Warranty: Six Months)
7/8in
88.9mm (3.50in)
5P-1745 (Chrome finish)
27/32 in
88.9mm (3.50in)
6V-4175
7/8in
88.9mm (3.50in)
9S-6375 (Thin wall track bolt socket, 6 point,Warranty: Six Months)
4 1/4 in
90.4mm (3.56in)
5P-1662
2 3/16 in
91.9mm (3.62in)
2P-2338
2 3/8 in Hex
98.4mm (3.87in)
5S-6077
2 1/2 in
104.8 mm (4.13 in)
5S-6078 (Chrome finish)
2 3/4 in
114.3 mm (4.50 in)
5S-6080 (Chrome finish)
3in
123.8 mm (4.87 in)
5S-6081 (Chrome finish)
3 1/8 in
127 mm (5 in)
5S-6082 (Chrome finish)
3 1/4 in
127 mm (5 in)
5S-6083 (Chrome finish)
4in
127 mm (5 in)
5S-6087 (Chrome finish)
3 1/2 in
133.4 mm (5.25 in)
5S-6084 (Chrome finish)
3 5/8 in
133.4 mm (5.25 in)
5S-6085 (Chrome finish)
3 3/4 in
136.5 mm (5.37 in)
5S-6086 (Chrome finish)
1 inch Square Drive Standard Length Impact Sockets, 12 Point, Industrial Finish
1 1/2 in
66.5mm (2.62in)
168-7955
1 inch Square Drive Standard Length Impact Sockets, 12 Point, Black Finish
1 1/2 in
57.2mm (2.25in)
4C-6994
1 inch Square Drive Standard Length Impact Sockets, 6 Point, Industrial Finish
3/4in
54mm (2.13in)
9U-6548
13/16 in
54mm (2.13in)
9U-6549
7/8in
54mm (2.13in)
9U-6550
15/16 in
54mm (2.13in)
9U-6551
1 1/4 in
54mm (2.13in)
386-3257
1in
57.2mm (2.25in)
9U-6552
1 1/16 in
57.2mm (2.25in)
9U-6553
1 1/8 in
57.2mm (2.25in)
9U-6554
1 3/16 in
57.2mm (2.25in)
9U-6555
3 7/8 in
60mm (2.36in)
386-3259
1 5/16 in
63.5mm (2.50in)
9U-6557
1 3/8 in
63.5mm (2.50in)
9U-6558
1 7/16 in
63.5mm (2.50in)
9U-6559
1 1/2 in
66.7mm (2.63in)
9U-6560
1 9/16 in
66.7mm (2.63in)
9U-6561 (Used on 789 OHT cab support assemblies bolts)
1 1/2 in
69.9mm (2.75in)
258-5686
1 5/8 in
69.9mm (2.75in)
9U-6562
1 11/16 in
73mm (2.87in)
9U-6563
1 3/4 in
73mm (2.87in)
9U-6564
CONTINUED ON NEXT PAGE...
JULY 2018 Hand Tools
17-65
Hand Tools
RATCHETSANDSOCKETS
(CONTINUED) Individual Fractional Sockets, 1 in Drive
Warranty: Caterpillar ®Lifetime
Size
Length
Part Number
1 13/16 in
74.6mm(2.94 in)
9U-6565
1 7/8 in
74.6mm (2.94in)
9U-6566
1 15/16 in
74.6mm (2.94in)
9U-6567
1 13/16 in
74.6mm (2.94in)
386-3258
2in
82.6mm (3.25in)
9U-6568
2 1/16 in
82.6mm (3.25in)
9U-6569
2 1/8 in
82.6mm (3.25in)
9U-6570
2 3/16 in
84.9mm (3.34in)
9U-6571
2 1/4 in
84.9mm (3.34in)
9U-6572
2 5/16 in
88.9mm (3.50in)
9U-6573
2 3/8 in
92.1mm (3.63in)
9U-6574
2 7/16 in
92.1mm (3.63in)
9U-6575
2 1/2 in
92.1mm (3.63in)
9U-6576
2 9/16 in
95.3mm (3.75in)
9U-6577
2 5/8 in
95.3mm (3.75in)
9U-6578
2 11/16 in
98.4mm (3.87in)
9U-6579
2 3/4 in
98.4mm (3.87in)
9U-6580
2 13/16 in
101.6mm (4in)
9U-6581
2 7/8 in
101.6mm (4in)
9U-6582
3in
111.1 mm (4.37 in)
9U-6584
2 15/16 in
122.2 mm (4.81 in)
9U-6583
1 inch Square Drive Deep Length Impact Socket, 6 Point, Industrial Finish
55 mm (2 3/16 in), 1 in drive, deep well, impact
111mm(4.37in)
4C-9748
1 3/16 in
111mm(4.37in)
4C-9787
4in
368 mm (3 in)
447-1585
4 1/2 in
470mm(3.375in
447-1586

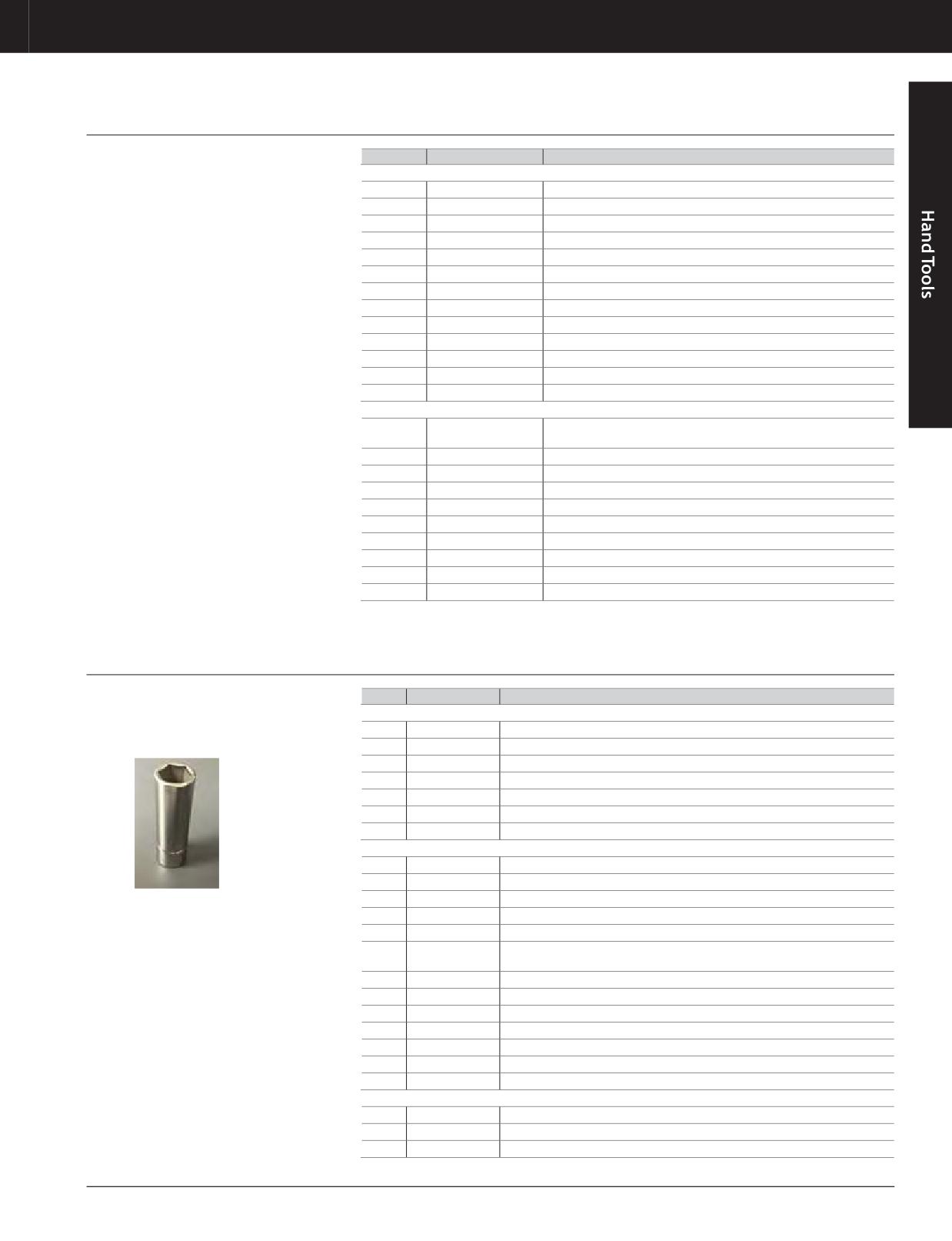

Individual Fractional Sockets, 1 1/2 in Drive
Warranty: Caterpillar ®Lifetime
Size
Length
Part Number
1 1/2 inch Drive, Track Sockets, Impact Sockets
1 7/16 in
77mm (3.03in)
386-3246
1 1/2 in
78mm (3.07in)
9U-6734 (Special for 994 Lift Cylinder)
1 5/8 in
114.3 mm (4.50 in)
1U-8798
1 11/16 in
114.3 mm (4.50 in)
1U-8586
1 3/4 in
83.3mm (3.28in)
386-3245
1 13/16 in
84.6mm (3.33in)
261-8571
1 7/8 in
85.7mm (3.38in)
386-3247
2in
114.3 mm (4.50 in)
8T-9175
2 1/16 in
114.3 mm (4.50 in)
8T-9174
2 1/4 in
95.2mm (3.75in)
386-3225
2 3/8 in
98.4mm (3.88in)
386-3226
2 3/16 in
92.87 mm (3.66 in)
386-3249
2 9/16 in
102.4 mm (4.03 in)
132-8743
2 3/4 in
107.1 mm (4.22 in)
136-5190
3in
112.7 mm (4.44 in)
386-3230
3 1/4 in
118.3 mm (4.66 in)
231-4550 (Special for 797 Off-Highway Truck Ball Studs)
3 1/2 in
124.6 mm (4.91 in)
386-3227
3 3/4 in
130.2 mm (5.13 in)
386-3228
3 7/8 in
133.4 mm (5.25 in)
386-3229
4in
137.3 mm (5.41 in)
386-3232
4 1/4 in
152.4mm (6in)
234-6041 (Special for 797B Off-Highway Truck Steering Linkages)
4 5/8 in
154mm(6.06in)
386-3231
5in
171.5 mm (6.75 in)
386-3234
17-66 JULY 2018 Hand Tools
Hand Tools
RATCHETSANDSOCKETS
Individual Metric Sockets, 1/4 in Drive
Model Usage: All Cat® Products
Size
Length
Part Number
1/4 inch Drive, Standard Length Sockets, 6 Point
Warranty: Caterpillar ®Lifetime unless otherwise
4 mm
22.2mm (0.87in)
200-8415
noted
5 mm
22.2mm (0.87in)
200-8417
5 mm
22.2mm (0.87in)
200-8418
6 mm
22.2mm (0.87in)
200-8419
7 mm
22.2mm (0.87in)
200-8420
8 mm
22.2mm (0.87in)
200-8421
9 mm
22.2mm (0.87in)
200-8422
10 mm
22.2mm (0.87in)
200-8423
11 mm
22.2mm (0.87in)
200-8424
12 mm
22.2mm (0.87in)
200-8426
13 mm
22.2mm (0.87in)
200-8427
14 mm
22.2mm (0.87in)
200-8428
15 mm
23mm (0.91in)
200-8429
1/4 inch Drive, Deep Length Sockets, 6 Point
12.1 dia x 31.8 mm
5.5 mm
549-6790
(0.48 x 1.25 in)
6 mm
50.8 mm (2 in)
194-3518
7 mm
50.8 mm (2 in)
194-3519
8 mm
50.8 mm (2 in)
194-3521
9 mm
50.8 mm (2 in)
194-3522
10 mm
50.8 mm (2 in)
194-3523
11 mm
50.8 mm (2 in)
194-3527
12 mm
50.8 mm (2 in)
194-3528
13 mm
50.8 mm (2 in)
194-3529
14 mm
50.8 mm (2 in)
194-3530
Individual Metric Sockets, 3/8 in Drive
Model Usage: All Cat® Products
Size
Length
Part Number
3/8 inch Drive, Standard Length Sockets, 12 Point
Warranty: Caterpillar ®Lifetime unless otherwise
8 mm
23mm (0.91in)
194-3480
noted
9 mm
23mm (0.91in)
194-3483
10 mm
23mm (0.91in)
194-3488
11 mm
23mm (0.91in)
194-3490
12 mm
23.8mm (0.94in)
194-3492
18 mm
66.7mm (2.63in)
199-9034
19 mm
66.7mm (2.63in)
199-9035
3/8 inch Drive, Standard Length Sockets, 6 Point
8 mm
23mm (0.91in)
214-6621
9 mm
23mm (0.91in)
214-6623
10 mm
23mm (0.91in)
214-6624
11 mm
23mm (0.91in)
214-6625
12 mm
23.8mm (0.94in)
214-6626
532-8964
12 mm
54 mm (2.1 in)
(Designed and required for sensor removal on 3512B and 3516B engines)
13 mm
24.6mm (0.97in)
214-6627
14 mm
26.2mm (1.03in)
214-6628
16 mm
27.8mm (1.09in)
214-6630
15 mm
27mm (1.06in)
214-6629
17 mm
28.6mm (1.13in)
214-6631
18 mm
28.6mm (1.13in)
214-6632
19 mm
30.2mm (1.19in)
214-6633
3/8 inch Drive, Deep Length Sockets, 6 Point
10 mm
54mm (2.13in)
214-6635
11 mm
54mm (2.13in)
214-6636
12 mm
54mm (2.13in)
214-6637
CONTINUED ON NEXT PAGE...
JULY 2018 Hand Tools
17-67
Hand Tools
RATCHETSANDSOCKETS
(CONTINUED) Individual Metric Sockets, 3/8 in Drive
Warranty: Caterpillar ®Lifetime unless otherwise
Size
Length
Part Number
noted
13 mm
54mm (2.13in)
214-6638
14 mm
60.3mm (2.37in)
214-6639
15 mm
60.3mm (2.37in)
214-6640
17 mm
66.7mm (2.63in)
214-6641
19 mm
66.7mm (2.63in)
214-6642
3/8 inch Drive, Universal Standard Length Sockets, 12 Point
10 mm
43.5mm (1.71in)
9U-6125
12 mm
45.5mm (1.79in)
9U-6126
13 mm
45.5mm (1.79in)
9U-6127
14 mm
47.9mm (1.89in)
9U-6128
15 mm
47.9mm (1.89in)
9U-6129
16 mm
47.9mm (1.89in)
9U-6130
17 mm
50.7 mm (2 in)
9U-6131
18 mm
50.7 mm (2 in)
9U-6132
19 mm
52.5mm (2.07in)
9U-6133
3/8 inch Drive, Impact Standard Length Sockets, 12 Point
8 mm
23mm (0.91in)
271-4655
10 mm
23mm (0.91in)
271-4656
11 mm
23.8mm (0.94in)
271-4657
12 mm
23.8mm (0.94in)
271-4658
13 mm
23.8mm (0.94in)
271-4659
14 mm
27mm (1.06in)
271-4660
15 mm
27mm (1.06in)
271-4661
16 mm
27.8mm (1.09in)
271-4662
17 mm
28.2mm (1.11in)
271-4663
18 mm
29mm (1.14in)
271-4664
19 mm
30.6mm (1.20in)
271-4665
20 mm
30.9mm (1.22in)
271-4666
21 mm
32.1mm (1.26in)
271-4667
22 mm
32.9mm (1.30in)
271-4668
3/8 inch Drive, Impact Standard Length Sockets, 6 Point
8 mm
23mm (0.91in)
271-4623
9 mm
23mm (0.91in)
271-4624
10 mm
23mm (0.91in)
271-4625
11 mm
23.8mm (0.94in)
271-4626
12 mm
23.8mm (0.94in)
271-4627
13 mm
24.6mm (0.97in)
271-4628
14 mm
27mm (1.06in)
271-4630
15 mm
27mm (1.06in)
271-4631
16 mm
27.8mm (1.09in)
271-4632
17 mm
28.2mm (1.11in)
271-4633
18 mm
29mm (1.14in)
271-4634
19 mm
30.6mm (1.20in)
271-4635
21 mm
29.5mm (1.16in)
271-4636
24 mm
33mm (1.30in)
271-4637
3/8 inch Drive, Impact Deep Length Sockets, 12 Point
8 mm
54mm (2.13in)
271-4684
9 mm
54mm (2.13in)
271-4685
10 mm
54mm (2.13in)
271-4686
11 mm
54mm (2.13in)
271-4687
12 mm
54mm (2.13in)
271-4688
13 mm
54mm (2.13in)
271-4689
CONTINUED ON NEXT PAGE...
17-68 JULY 2018 Hand Tools
Hand Tools
RATCHETSANDSOCKETS
(CONTINUED) Individual Metric Sockets, 3/8 in Drive
Model Usage: All Cat® Products
Size
Length
Part Number
14 mm
60.3mm (2.37in)
271-4690
Warranty: Caterpillar ®Lifetime unless otherwise
15 mm
60.3mm (2.37in)
271-4691
noted
16 mm
60.3mm (2.37in)
271-4692
17 mm
66.7mm (2.63in)
271-4693
18 mm
66.7mm (2.63in)
271-4694
19 mm
66.7mm (2.63in)
271-4695
21 mm
66.7mm (2.63in)
271-4696
24 mm
73mm (2.87in)
271-4697
3/8 inch Drive, Impact Deep Length Sockets 6 Point
8 mm
54mm (2.13in)
271-4639
9 mm
54mm (2.13in)
271-4640
10 mm
54mm (2.13in)
271-4641
11 mm
54mm (2.13in)
271-4642
12 mm
54mm (2.13in)
271-4643
13 mm
54mm (2.13in)
271-4644
14 mm
60.3mm (2.37in)
271-4645
15 mm
60.3mm (2.37in)
271-4646
16 mm
60.3mm (2.37in)
271-4647
17 mm
66.7mm (2.63in)
271-4648
18 mm
66.7mm (2.63in)
271-4650
19 mm
66.7mm (2.63in)
271-4651
21 mm
66.7mm (2.63in)
271-4652
24 mm
73mm (2.87in)
271-4653
Individual Metric Sockets, 1/2 in Drive
Model Usage: All Cat® Products
• Heat-treated to optimize service life.
• Capable of withstanding repeated cycling
loads of impact wrenches
Warranty: Caterpillar ®Lifetime unless otherwise
• Flank Drive® wrenching system delivers up to
20% more turning power without slipping or
• Made with a proprietary blend of special alloy
rounding
socket steel that provides long life and great
strength
• Exceeds ANSI® performance standards
Size
Length
Part Number
1/2 inch Drive, Deep Length Sockets, 6 Point
36 mm
88.9mm (3.50in)
242-0779 (Warranty: Manufacturer, 120 Day)
1/2 inch Drive, Standard Length Sockets, 12 Point
10 mm
38.1mm (1.50in)
460-9924
11 mm
38.1mm (1.50in)
460-9925
12 mm
38.1mm (1.50in)
199-6149
13 mm
38.1mm (1.50in)
199-6150
14 mm
38.1mm (1.50in)
8T-3041
15 mm
38.1mm (1.50in)
6V-9110
16 mm
38.1mm (1.50in)
6V-9111
17 mm
38.1mm (1.50in)
6V-9112
18 mm
38.1mm (1.50in)
6V-9113
19 mm
38.1mm (1.50in)
6V-9114
20 mm
38.1mm (1.50in)
199-6152
21 mm
38.1mm (1.50in)
6V-9115
22 mm
38.1mm (1.50in)
6V-9116
23 mm
38.1mm (1.50in)
199-6153
24 mm
38.8mm (1.53in)
199-6154
25 mm
38.8mm (1.53in)
194-3558
26 mm
41.2mm (1.62in)
194-3559
27 mm
42.8mm (1.69in)
194-3562
28 mm
44.4mm (1.75in)
194-3563
CONTINUED ON NEXT PAGE...
JULY 2018 Hand Tools
17-69
Hand Tools
RATCHETSANDSOCKETS
(CONTINUED) Individual Metric Sockets, 1/2 in Drive
Warranty: Caterpillar ®Lifetime unless otherwise
29 mm
44.4mm (1.75in)
194-3564
noted
30 mm
44.4mm (1.75in)
194-3565
31 mm
47.6mm (1.87in)
194-3566
32 mm
47.6mm (1.87in)
194-3567
1/2 inch Drive, Deep Length Sockets, 12 Point
16 mm
82.6mm (3.25in)
194-3505
17 mm
82.6mm (3.25in)
194-3506
18 mm
82.6mm (3.25in)
194-3510
19 mm
82.6mm (3.25in)
194-3511
20 mm
82.6mm (3.25in)
194-3512
21 mm
82.6mm (3.25in)
194-3513
22 mm
82.6mm (3.25in)
194-3514
24 mm
82.6mm (3.25in)
194-3515
25 mm
82.6mm (3.25in)
194-3516
26 mm
82.6mm (3.25in)
194-3517
33 mm
76.2 mm (3 in)
386-3338
1/2 inch Drive, Standard Length Impact Sockets, 6 Point, Black
10 mm
38.1mm (1.50in)
213-6926
11 mm
38.1mm (1.50in)
213-6927
12 mm
38.1mm (1.50in)
213-6928
13 mm
38.1mm (1.50in)
213-6929
14 mm
38.1mm (1.50in)
213-6930
15 mm
38.1mm (1.50in)
213-6932
16 mm
38.1mm (1.50in)
213-6933
17 mm
38.1mm (1.50in)
213-6934
18 mm
38.1mm (1.50in)
213-6935
19 mm
38.1mm (1.50in)
213-6936
20 mm
38.1mm (1.50in)
213-6924
21 mm
38.1mm (1.50in)
213-6937
1/2 inch Drive, Deep Length Impact Sockets, 6 Point, Black
10 mm
82.6mm (3.25in)
214-6644
11 mm
82.6mm (3.25in)
214-6645
12 mm
82.6mm (3.25in)
214-6646
13 mm
82.6mm (3.25in)
214-6647
14 mm
82.6mm (3.25in)
214-6648
15 mm
82.6mm (3.25in)
214-6649
16 mm
82.6mm (3.25in)
214-6650
17 mm
82.6mm (3.25in)
214-6651
18 mm
82.6mm (3.25in)
214-6652
19 mm
82.6mm (3.25in)
214-6653
20 mm
82.6mm (3.25in)
214-7346
33 mm
76.2 mm (3 in)
386-3337
36 mm
89 mm (3.5 in)
523-5151
17-70 JULY 2018 Hand Tools
Hand Tools
RATCHETSANDSOCKETS
Individual Metric Sockets, 3/4 in Drive
Model Usage: All Cat® Products
Size
Length
Part Number
3/4 inch Drive, Standard Length Sockets, 6 Point
Warranty: Caterpillar ®Lifetime
24 mm
50.8 mm (2 in)
6V-9117
30 mm
57.2mm (2.25in)
6V-9118
36 mm
58.7mm (2.31in)
6V-9119
46 mm
73mm (2.87in)
6V-9120
32 mm
48mm (1.89in)
386-3358
3/4 inch Drive, Standard Length Impact Sockets, 12 Point
20 mm
55.5mm (2.19in)
152-1058
3/4 inch Drive, Deep Length Impact Sockets, 6 Point
36 mm
89mm (3.50in)
175-6797
43 mm
88.9mm (3.50in)
6V-7874
3/4 inch Drive, Standard Length Impact Sockets, 6 Point, Black
17 mm
44.5mm (1.75in)
9U-6523
19 mm
44.5mm (1.75in)
9U-6524
20 mm
44.5mm (1.75in)
9U-6525
21 mm
47.8mm (1.88in)
9U-6526
22 mm
47.6mm (1.87in)
9U-6527
23 mm
47.8mm (1.88in)
9U-6528
24 mm
47.6mm (1.87in)
9U-6529
26 mm
50.8 mm (2 in)
9U-6530
27 mm
50.8 mm (2 in)
9U-6531
28 mm
53.8mm (2.12in)
9U-6532
30 mm
53.8mm (2.12in)
9U-6533
31 mm
54mm (2.13in)
9U-6534
32 mm
54mm (2.13in)
9U-6535
33 mm
53.8mm (2.12in)
9U-6536
34 mm
54mm (2.13in)
9U-6537
35 mm
57.2mm (2.25in)
9U-6538
36 mm
57.2mm (2.25in)
9U-6539
38 mm
57.2mm (2.25in)
9U-6540
40 mm
66.7mm (2.63in)
9U-6541
41 mm
66.5mm (2.62in)
9U-6542
42 mm
66.5mm (2.62in)
9U-6543
43 mm
66.5mm (2.62in)
9U-6544
46 mm
66.7mm (2.63in)
9U-6545
50 mm
73.2mm (2.88in)
9U-6546
Individual Metric Sockets, 1 in through 2 1/2 in Drive (also No. 5 Spline)
Model Usage: All Cat® Products
Size
Length
Part Number
1 inch Drive, Standard Length Impact Sockets, 6 Point
Warranty: Caterpillar ®Lifetime
30 mm
54mm (2.13in)
386-3261
36 mm
63.5mm (2.50in)
9U-5089
46 mm
60mm (2.38in)
386-3262
46 mm
73.5mm (2.9in)
4C-6724
46 mm
86mm (3.39in)
207-8155
1 inch Drive, Deep Length Impact Sockets, 6 Point
55 mm
111mm(4.37in)
4C-8217
1 inch Drive, Standard Length Impact Sockets, 12 Point
55 mm
83mm (3.27in)
386-3318
41 mm
70mm (2.76in)
386-3310
60 mm
83mm (3.27in)
386-3311
95 mm
100mm(3.94in)
386-3312
33 mm
61mm (2.40in)
386-3314
36 mm
65mm (2.56in)
386-3315
CONTINUED ON NEXT PAGE...
JULY 2018 Hand Tools
17-71
Hand Tools
RATCHETSANDSOCKETS
(CONTINUED) Individual Metric Sockets, 1 in through 2 1/2 in Drive (also No. 5 Spline)
Warranty: Caterpillar ®Lifetime
Size
Length
Part Number
46 mm
75mm (2.95in)
386-3316
50 mm
80mm (3.15in)
386-3317
65 mm
86mm (3.39in)
386-3319
70 mm
86mm (3.39in)
386-3320
75 mm
86mm (3.39in)
386-3321
80 mm
90mm (3.54in)
386-3322
88 mm
90mm (3.54in)
386-3323
1 inch Drive, Tapered Impact Sockets, 6 Point (Special design for excavator track bolts; not intended for general use)
19 mm
89mm (3.50in)
1U-7626
22 mm
89mm (3.50in)
1U-7627
24 mm
89mm (3.50in)
1U-7628
27 mm
89mm (3.50in)
1U-7629
30 mm
89mm (3.50in)
1U-7630
32 mm
89mm (3.50in)
1U-7631
1 1/2 inch Drive, Standard Length Impact Sockets, 6 Point
55 mm
90.4mm (3.56in)
136-5189
65 mm
102.4 mm (4.03 in)
132-8743
70 mm
107.1 mm (4.22 in)
136-5190
46 mm
83mm (3.27in)
386-3252
1 1/2 inch Drive, Standard Length Impact Sockets, 12 Point
36 mm
84mm (3.31in)
386-3306
50 mm
87mm (3.43in)
386-3307
60 mm
95mm (3.74in)
386-3308
75 mm
110mm(4.33in)
386-3309
2 1/2 inch Drive, Impact Sockets 12 Point
95 mm
140mm(5.51in)
386-3313
No. 5 Spline, Standard Length Impact Socket, 6 Point
55 mm
94.5mm (3.72in)
159-2833
17-72 JULY 2018 Hand Tools
Hand Tools
RATCHETSANDSOCKETS

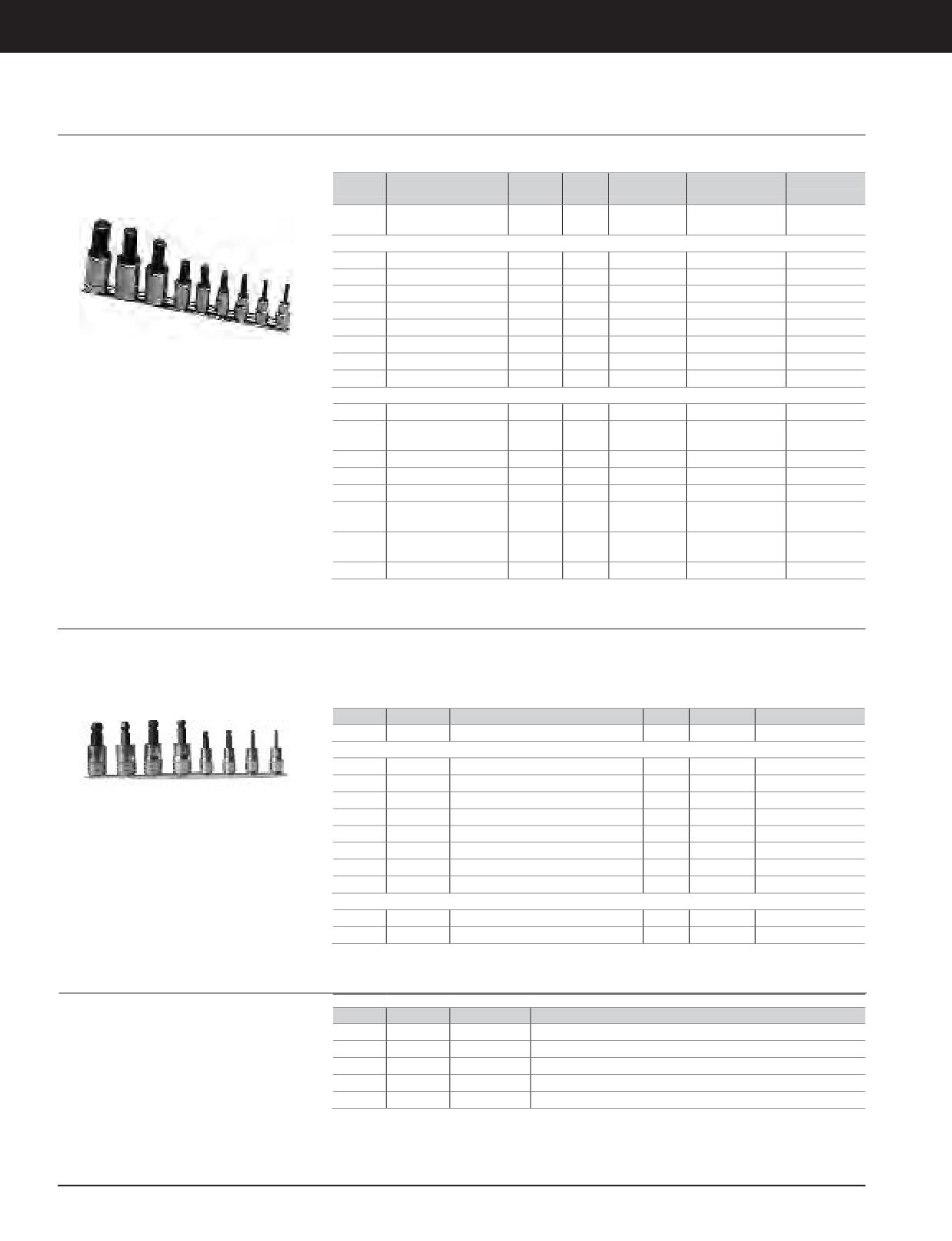

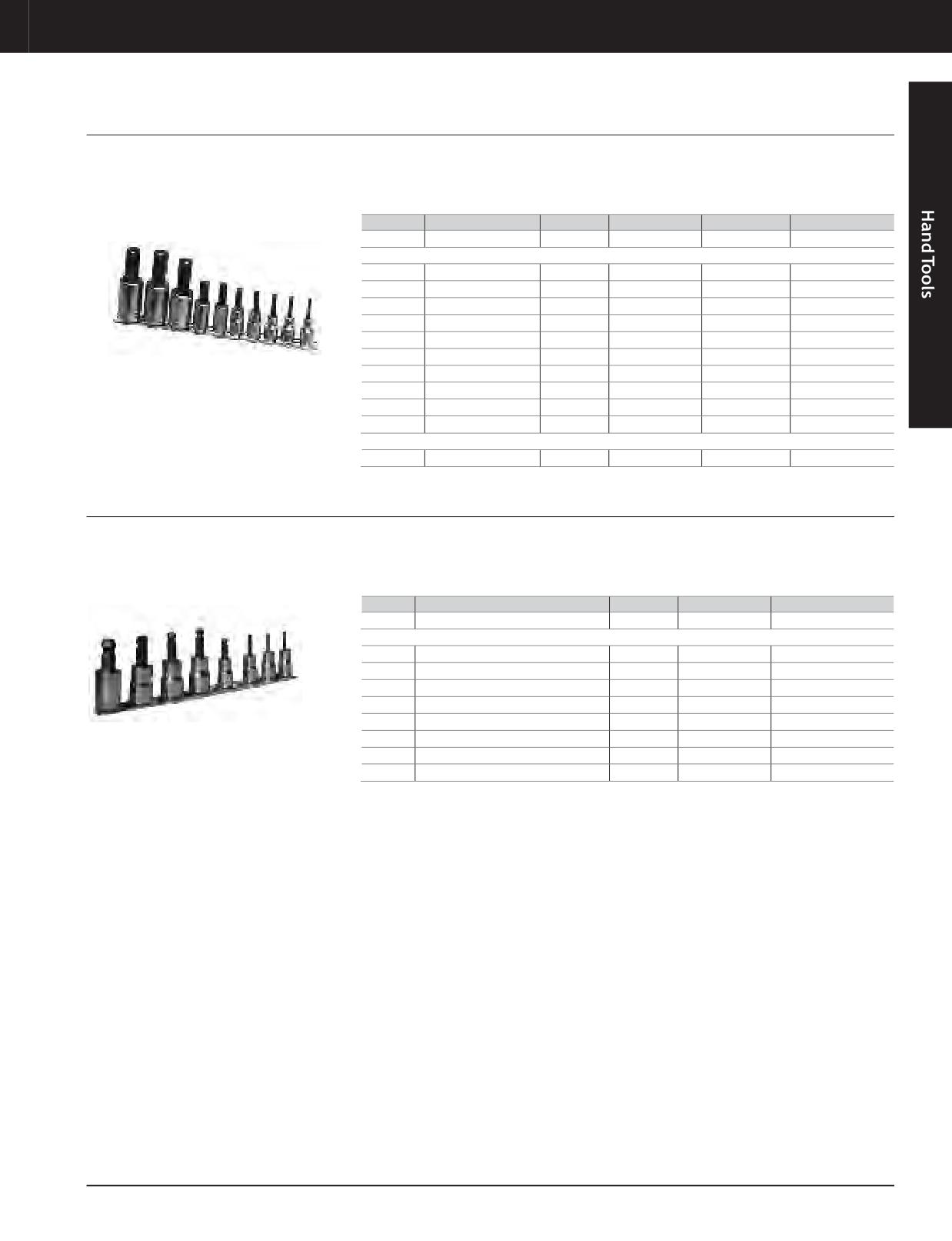

Fractional Hex Driver Set, 10 Piece
Model Usage: All Cat® Products
• Seven 3/8 inch drive hex sockets and three
• Can be ordered by set or individually
1/2 inch drive hex sockets
Warranty: Caterpillar ®Lifetime See Individual
Part Number
• Includes socket bar and clips
Part No.
Description
Hex Size
Square Drive
Overall Length
Replacement Bit
214-6142
Hex Driver Set
-
-
-
-
Hex Driver Set Consists of:
214-7320
Drive Hex Socket
1/2in
1/2in
53.18 (2.09in)
214-7321
214-7327
Drive Hex Socket
9/16 in
1/2in
53.18 (2.09in)
1P-3566
214-7328
Drive Hex Socket
5/8in
1/2in
53.18 (2.09in)
214-7331
2P-8263
Drive Hex Socket
1/8in
3/8in
52.39 (2.06in)
2P-8269
2P-8264
Socket
5/32 in
3/8in
52.39 (2.06in)
2P-8271
2P-8265
Socket
3/16 in
3/8in
52.39 (2.06in)
2P-8272
2P-8266
Drive Hex Socket
1/4in
3/8in
52.39 (2.06in)
2P-8273
2P-8267
Drive Hex Socket
5/16 in
3/8in
52.39 (2.06in)
-
2P-8268
Drive Hex Socket
3/8in
3/8in
53.18 (2.09in)
2P-8275
8T-3042
Drive Hex Socket
7/32 in
3/8in
52.39 (2.06in)
8T-3043
Individual Socket and Hex Bit
5P-7253
Socket and Hex Bit
9/64 in
3/8in
-
-
Fractional Hex Ball Driver Socket Set, 8 Piece
Model Usage: All Cat® Products
• Four 1/4 inch drive hex ball sockets and four
• Includes socket bar and clips
3/8 inch drive hex ball sockets
Warranty: Caterpillar ®Lifetime
• Can be ordered by set or individually
• Material: steel
Part No.
Description
Hex Size
Square Drive
Overall Length
246-8499
Hex Ball Driver Socket Set
-
-
-
Hex Ball Driver Socket Set Consists of:
243-5173
Socket
5/16 in
3/8in
53.18mm (23/32in)
243-5174
Socket
3/8in
3/8in
53.18mm (23/32in)
243-5175
Socket
7/32 in
3/8in
52.39mm (21/16in)
243-5177
Socket
1/4in
3/8in
52.39mm (21/16in)
243-5178
Socket
1/8in
1/4in
47.63mm (17/8in)
243-5179
Socket
9/64 in
1/4in
47.63mm (17/8in)
243-5180
Socket
5/32 in
1/4in
47.63mm (17/8in)
243-5181
Socket
3/16 in
1/4in
49.21mm(115/16in)
JULY 2018 Hand Tools
17-73
Hand Tools
RATCHETSANDSOCKETS
Metric Hex Driver Set, 9 Piece
Warranty: Caterpillar ®See Individual Part
• Includes socket bar and clips
• Can be ordered by set or individually
Number
Replacement
Part No.
Description
Hex Size
Drive
Bit Length
Overall Length
Bit
Hex Bit Socket Set
194-3585
-
-
-
-
-
(Warranty: Lifetime)
Set Consists of:
194-3541
Metric Hex Driver
4.0 mm
3/8in
25.4 mm
52.3mm (2.06in)
-
194-3542
Hex Socket Bit Driver
5.0 mm
3/8in
25.7 mm
52.6mm (2.07in)
-
194-3544
Metric Hex Driver
7.0 mm
3/8in
25.7 mm
52.6mm (2.07in)
-
194-3545
Metric Hex Driver
8.0 mm
3/8in
25.1 mm
52.1mm (2.05in)
-
194-3546
Metric Hex Driver
10.0 mm
3/8in
25.5 mm
52.5mm (2.07in)
-
194-3547
Metric Hex Driver
12.0 mm
1/2in
-
81mm (3.19in)
-
194-3548
Metric Hex Driver
14.0 mm
1/2in
-
81mm (3.19in)
-
194-3549
Metric Hex Driver
17.0 mm
1/2in
-
93.7mm (3.69in)
-
Optional Metric Hex Drivers
129-4552
Metric Hex Driver
27.0 mm
1in
72.0 mm
129mm(5.08in)
129-4553
Metric Hex Driver
50.8 mm
140-8780
24.0 mm
-
50.8 mm (2 in)
-
(Warranty: 6 Months)
(hex bit only)
168-8395
Drive Impact Socket
17.0 mm
3/4in
50.8 mm
61.7mm (2.43in)
169-0782
194-3543
Metric Hex Driver
6.0 mm
3/8in
25.7 mm
52.6mm (2.07in)
-
1U-6151
Metric Hex Driver
17.0 mm
3/4in
47.0 mm
92mm (3.62in)
1U-6152
Metric Hex Driver
1U-9474
22.0 mm
1in
32.0 mm
84mm (3.31in)
1U-9476
(Warranty: 6 Months)
Metric Hex Driver
6V-9086
14.0 mm
1/2in
35.0 mm
81mm (3.19in)
-
(Warranty: 6 Months)
9U-7418
Metric Hex Driver
19.0 mm
3/4in
47.7 mm
111.3 mm (4.38 in)
1U-7419
Metric Hex Ball Driver Socket Set, 8 Piece
Warranty: Caterpillar ®Lifetime
• Four 1/4 inch drive hex ball sockets and four
• Includes socket bar and clips
3/8 inch drive hex ball sockets
• Can be ordered by set or individually
• Material: steel
Hex Size
Part No.
Description
Drive
Bit Length
Overall Length
–
243-5182
Complete Hex Ball Driver Socket Set
-
-
-
Set Consists of:
3.0 mm
243-5190
Hex Ball Driver
1/4in
-
47.7mm (1.88in)
4.0 mm
243-5184
Hex Ball Driver
1/4in
-
47.6mm (1.87in)
5.0 mm
243-5185
Hex Ball Driver
1/4in
-
47.9mm (1.89in)
6.0 mm
243-5186
Hex Ball Driver
1/4in
-
47.9mm (1.89in)
7.0 mm
243-5187
Hex Ball Driver
3/8in
25.6 mm
52.5mm (2.07in)
8.0 mm
243-5188
Hex Ball Driver
3/8in
25.6 mm
52.5mm (2.07in)
9.0 mm
243-5189
Hex Ball Driver
3/8in
25.6 mm
52.5mm (2.07in)
10.0 mm
243-5183
Hex Ball Driver
3/8in
25.6 mm
52.5mm (2.07in)
Optional Metric Hex Ball Drivers
4.0 mm
4C-8996
Hex Ball Driver
3/8in
-
128.3 mm (5.05 in)
10.0 mm
155-3046
Hex Ball Driver
3/8in
-
128.3 mm (5.05 in)
Individual Fractional Hex Driver Sockets
Warranty: Caterpillar ®Lifetime
Part No.
Hex Size
Square Drive
Overall Length
386-3344
9/32"
3/8"
110 mm (4 1/3in)
386-3336
3/4"
1/2"
114.3mm (41/2in)
386-3341
3/4"
3/4"
88.9mm (3 1/2in)
386-3342
5/8"
3/4"
88.9mm (3 1/2in)
386-3343
7/8"
3/4"
88.9mm (3 1/2in)
17-74 JULY 2018 Hand Tools
Hand Tools
RATCHETSANDSOCKETS

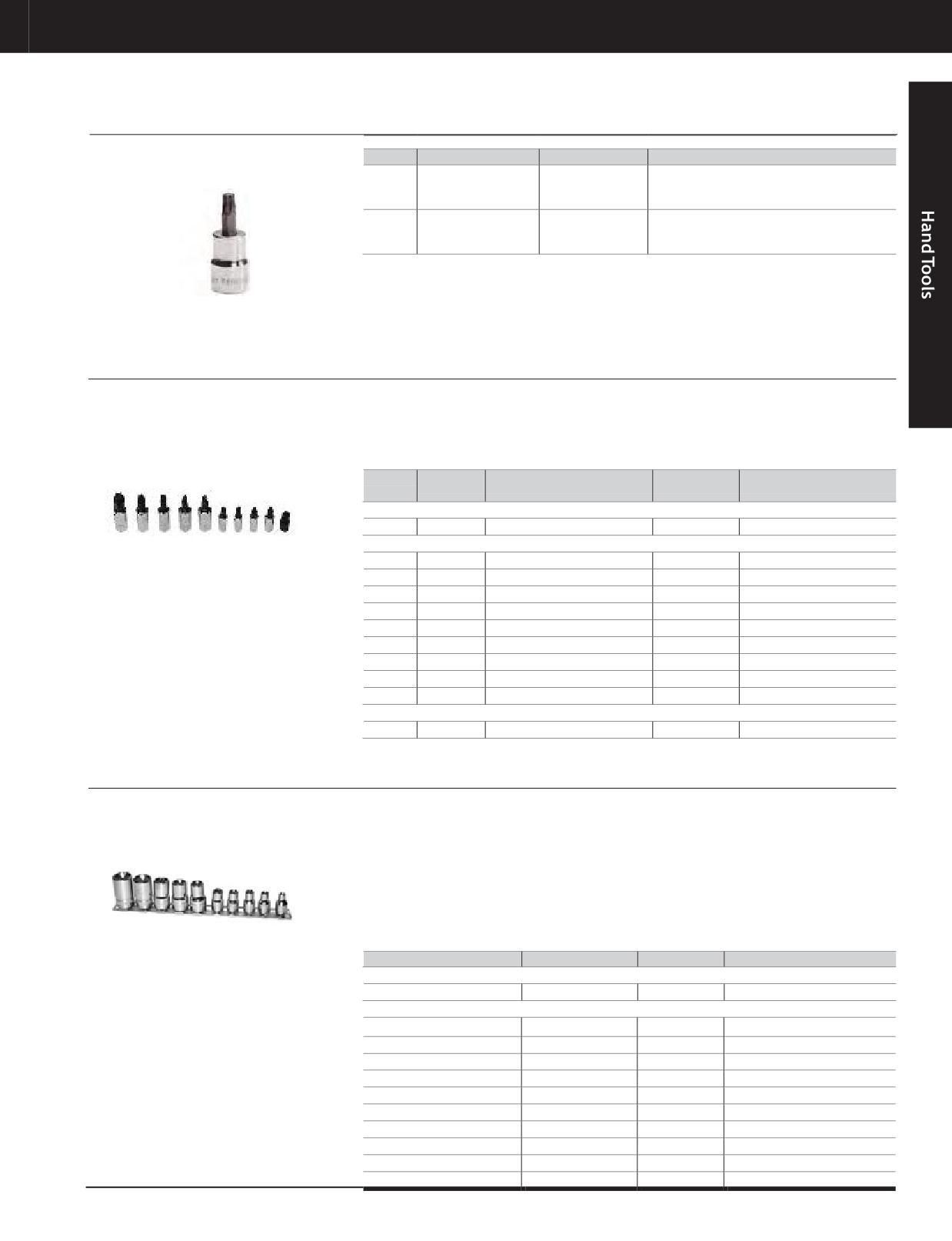

Drivers for TORX Screws
Model Usage: All Cat® Products
Part No.
Description
Size
Use
Removal of shaft seal and bearing retainer
Warranty: Caterpillar ®Lifetime
5P-3038
Socket Assembly
3/8 in square drive
fasten- ers TORX T-30 on 16G Motor Grader
circle drive motor
Removalof TORX T-55screwswhich retain
6V-2123
Socket Assembly
3/8 in square drive
brake cylinders to support plates on "V" Series
Lift Trucks
TORX Driver Set, 10 Piece
Model Usage: All Cat® Products
• TORXALIGN® design grips TORX fasteners
• Ten pieces, 1/4 inch and 3/8 inch square drive
for easier fastener starting (TORX and
Warranty: Caterpillar ®Lifetime See Individual
• Includes socket bar and clips
TORXALIGN are registered trademarks of
Parts
• Can be ordered by set or individually
Camcar, Inc.)
Torx
Part No.
Description
Square Drive
Overall Length
Size
CompleteDriver Set
-
194-3584
Torx Socket Set
-
-
TORXALIGN Bits
T10
194-3531
Socket, Assembly, T10
1/4in
39.6mm (1.56in)
T15
194-3532
Socket, Assembly, T15
1/4in
39.6mm (1.56in)
T20
194-3533
Socket, Assembly, T20
1/4in
39.6mm (1.56in)
T25
194-3534
Socket, Assembly, T25
1/4in
39.6mm (1.56in)
T30
194-3535
Socket, Assembly, T30
3/8in
44.5mm (1.75in)
T40
194-3536
Socket, Assembly, T40
3/8in
44.5mm (1.75in)
T45
194-3537
Socket, Assembly, T45
3/8in
52.3mm (2.06in)
T50
194-3538
Socket, Assembly, T50
3/8in
52.3mm (2.06in)
T55
194-3539
Socket, Assembly, T55
3/8in
51.6mm (2.03in)
One Piece, 1/4 inch Square Drive TORX Socket included
E8
194-3540
Square Drive TORX Socket
1/4in
22.2mm (0.87in)
TORX Driver Set, 10 Piece
Model Usage: All Cat® Products
• TORX sockets for fuel system maintenance
• Sockets should not be used with power
andrepair
drivers (air wrenches, etc.)
Warranty: Caterpillar ®Lifetime
• Ten piece set, 1/4 inch and 3/8 inch square
• Chrome plating prevents corrosion and cleans
drive
easily
• Socket teeth provide maximum engagement
• Includes socket rail and clips to keep sockets
and increased gripping ability
neatly organized
• Each socket can be ordered separately
• Can be ordered by set or individually
Torx Size
Square Drive
Part Number
Overall Length
Complete Socket Set
-
-
227-4383
-
Set Consists of:
E4
1/4in
227-4384
22mm (0.87in)
E5
1/4in
227-4385
22mm (0.87in)
E6
1/4in
227-4386
22mm (0.87in)
E7
1/4in
227-4387
22mm (0.87in)
E8
1/4in
227-4388
22mm (0.87in)
E10
3/8in
227-4389
30mm (1.18in)
E12
3/8in
227-4390
30mm (1.18in)
E14
3/8in
227-4391
30mm (1.18in)
E16
3/8in
227-4392
32mm (1.26in)
E18
3/8in
227-4393
33mm (1.30in)
JULY 2018 Hand Tools
17-75
Hand Tools
RATCHETSANDSOCKETS

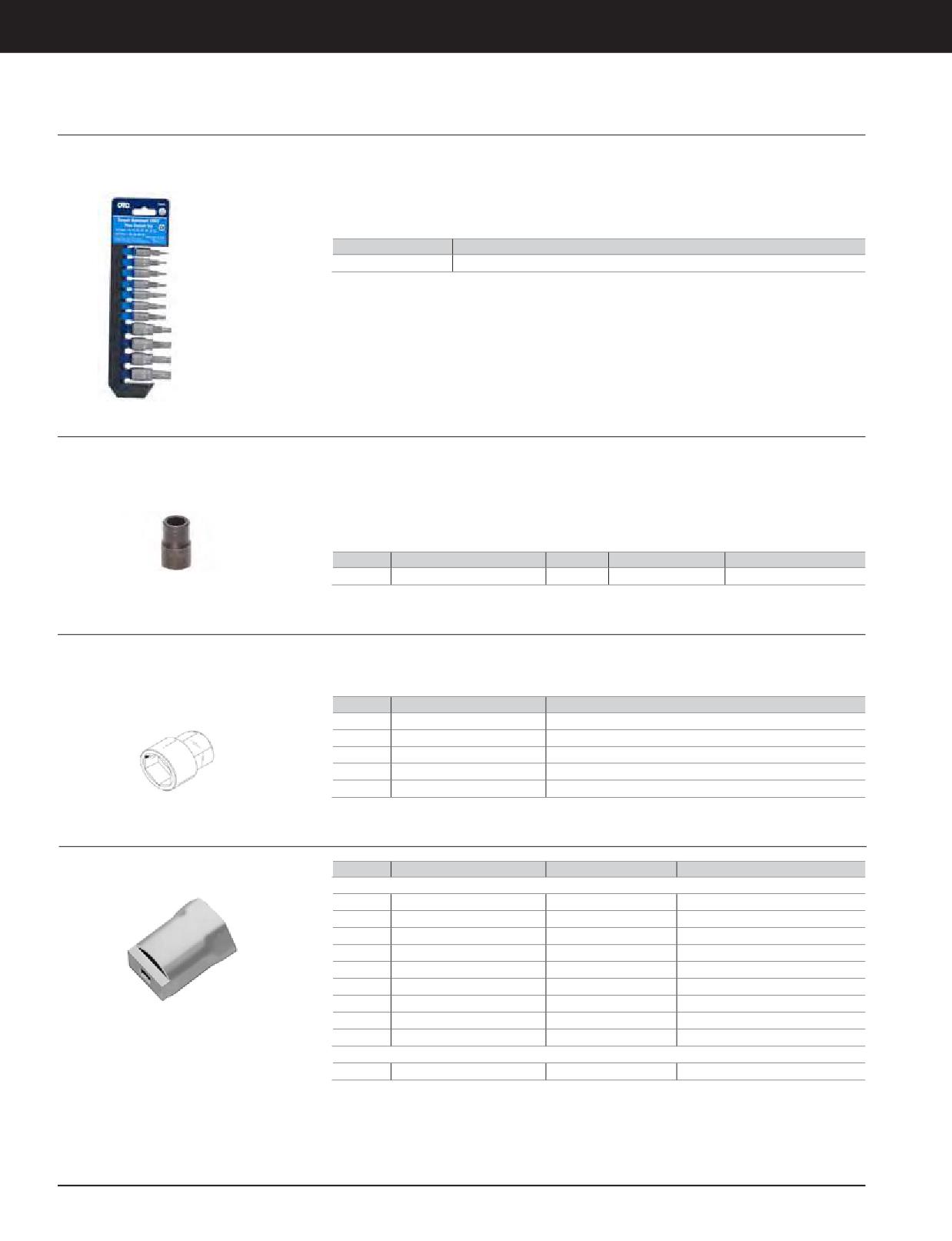

Socket Set, Tamper Resistant TORX Plus
Warranty: Manufacturer's
• Made from premium quality tool grade steel
• Includes 1/4 inch drive 8IPR 10IPR 15IPR
Bosch Service Solutions 507-455-7233
20IPR 25IPR 27IPR 30IPR 3/8“drive 40IPR
• Manufactured with 2-pc construction for
45IPR 50IPR and 55IPR Tamper-Resistant
strength
TORX Plus Sockets
• For use with hand tools
Part No.
Size
475-8767
Socket Set, Tamper Resistant TORX Plus
Hex Socket, 55 mm (Spline Drive)
Model Usage: 797 Off-Highway Trucks
• Used to remove and install tires and rims
• Black industrial finish
usingM36 bolts with 55 mmhex head
Warranty: Caterpillar ®Lifetime
• High-strength, impact socket
• Used with 4C-9813 Extension, 6V-6080 Torque
Multiplier, 525-8305 Air Regulated Wrench,
and 4C-9814 Reaction Bar
Part No.
Hex Size
Drive
Overall Length
Diameter
159-2833
55 mm (2 3/16 in), 12 point
#5 spline
94.5mm (3.72in)
78.6mm (3.09in)
Stacking Sockets (Metric)
Model Usage: 777, 785, 789, 793, 797 OHT
• Used to tighten brake anchor nuts
• Allows access to limited clearance areas
Trucks
• Used with hydraulic wrench systems
• Ensures accurately tightened anchor nuts
Warranty: Caterpillar ®Six Months
Part No.
Description
Size
203-5431
Stacking Socket
female 1 5/16, male 36 mm
203-5432
Stacking Socket
female 1 1/2, male 36 mm
203-5433
Stacking Socket
female 36 mm, male 36 mm
203-5434
Stacking Socket
female 46 mm, male 46 mm
203-5435
Stacking Socket
female 55 mm, male 46 mm
Special Large Socket Wrenches
Warranty: Caterpillar ®Six Months
Part No.
Description
Hex Size
Usable Depth
3/4 inch Drive
1B-4657
Large Socket Wrench
2.75 in
4.50 in
1U-6689
Large Socket Wrench
3.50 in
6.30 in
1U-6691
Large Socket Wrench
5.50 in
7.90 in
1U-6692
Large Socket Wrench
5.75 in
7.90 in
2B-1730
Large Socket Wrench
3.39 in
4.50 in
2B-1731
Large Socket Wrench
3.63 in
4.50 in
3B-6352
Large Socket Wrench
2.63 in
4.50 in
5P-3540
Large Socket Wrench
3.50 in
4.50 in
7M-7809
Large Socket Wrench
2.88 in
7.25 in
Bar Turn
9F-9963
Bar Turn
1.46 in
8.38 in
17-76 JULY 2018 Hand Tools
Hand Tools
RATCHETSANDSOCKETS

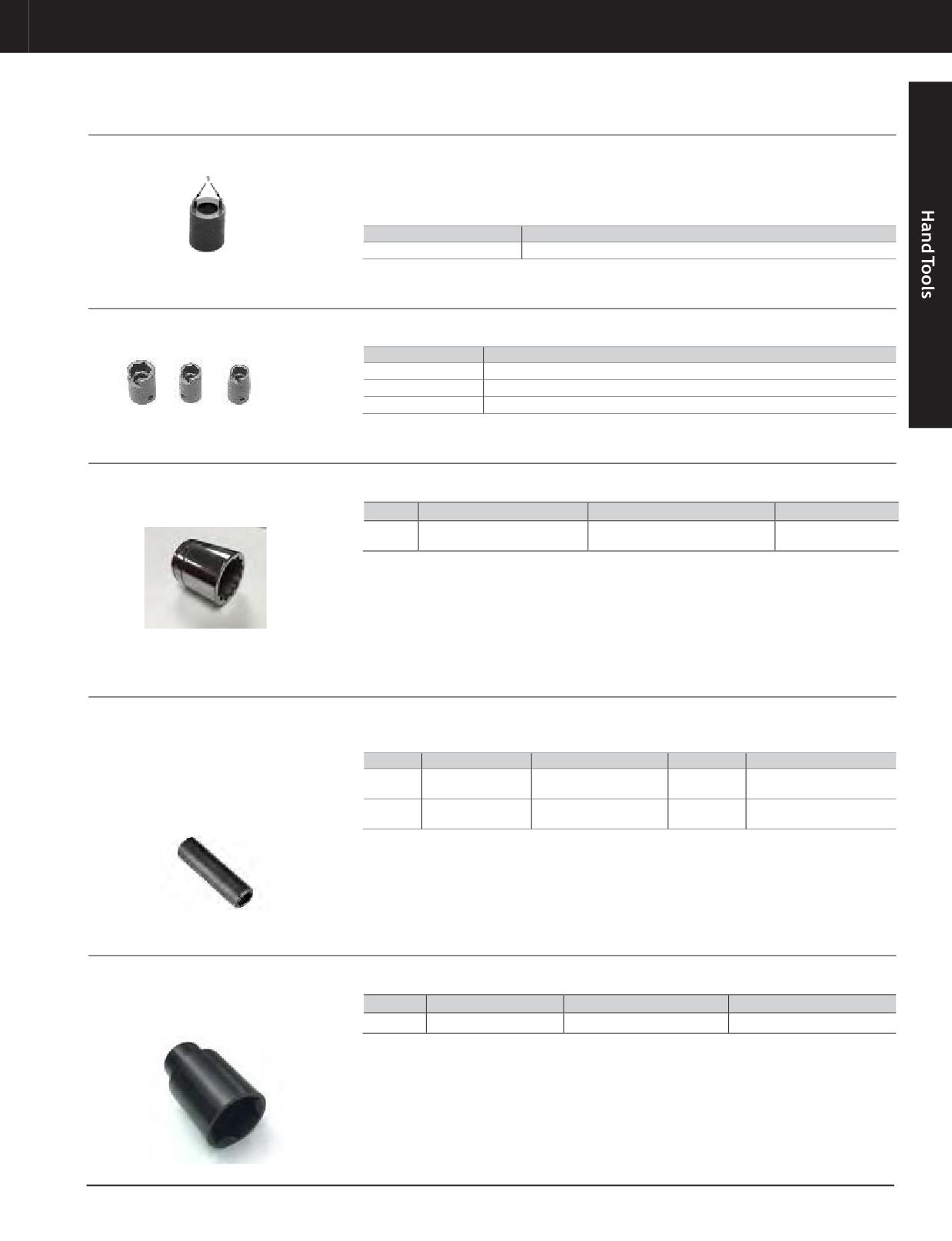

Pin Socket
Warranty: Caterpillar ®Lifetime
• Used with 3/8 inch drive speeder handle to
• Use 3F-4479 Spring Pins as replacements if
remove and install buttons that hold ROPS
spring pins (1) become worn or damaged
Cab headliner in position for air conditioning
repairs
Part Number
Description
5P-5249
Pin Socket
Lock Removal Socket
Warranty: Caterpillar ®Lifetime
• 1/2 inch drive
Part No.
Size
5P-6587
1/2 in Hex
5P-6588
9/16 in Hex
5P-6589
3/4 in Hex
Socket
Model Usage: All Cat® Products
• Polished chrome nickel alloy steel
• 12-point, ½ in drive
Warranty: Caterpillar ®Six Months
Part No.
Description
Dimensions
Weight
Cat® ½ in Drive 1-3/16 Standard
1-3/16 in Socket,
460-9926
0.25 kg (8.8 oz)
Length Socket
Length is 44.5 mm (1-¾ in)
Spark Plug Sockets
SMCS Code: 1555-010
• Thin wall design eliminates possible socket
interference
Model Usage: G3516B (50 Hz), G3516B (60 Hz),
G3520B (50 Hz), and G3500C
Part No.
Description
Size
Length
Application
1/2 in drive, 13/16 in,
103 mm
Model Usage: All Cat® Products
216-1685
Spark Plug Socket
-
6 point hex
overall length
Warranty: Caterpillar ®Six Months
7/8 inch hex, 1/2 inch
103.1 mm
Special thin wall for use on
4C-4601
Spark Plug Socket
square drive, 6 point
(4.06in)long
G3500 and G3600 Engines
Extra-Deep Socket, 46 mm
Model Usage: C2.4T4F Naturally Aspirated
• Allows the removal of the fan drive pulley nut
• 3/4 in drive
Engines
Part No.
Description
Dimensions
Weight
Warranty: Manufacturer’s
488-1131
Extra-Deep Socket
63.5 x 101.6 mm(2.5 x 4in)
0.454 kg (1 lb)
JULY 2018 Hand Tools
17-77
Hand Tools
RATCHETSANDSOCKETS

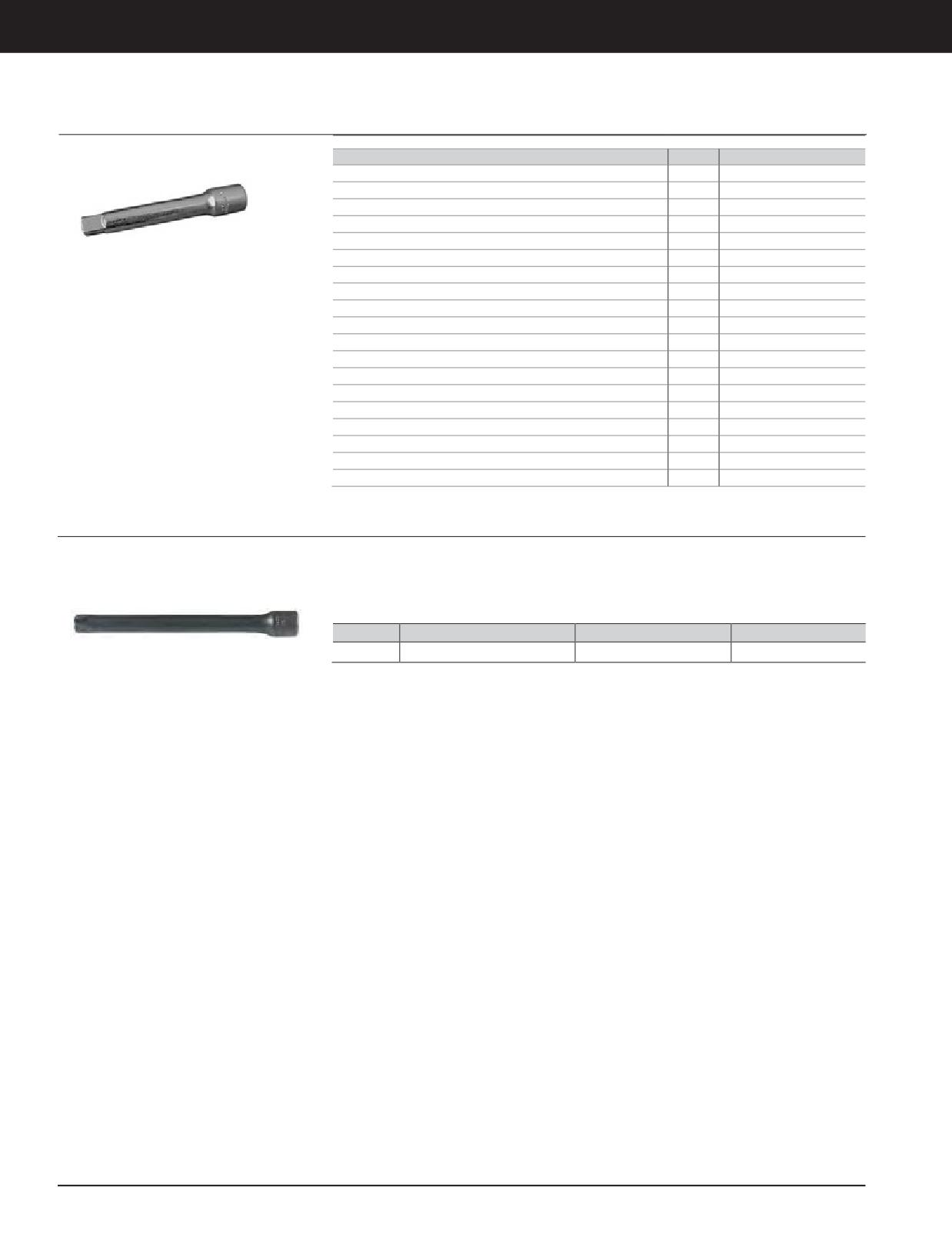

Socket Extensions
Warranty: Caterpillar ®Lifetime
Part Number
Drive
Length
9S-1720
1/4in
50.8 mm (2 in)
9S-1721
1/4in
101.6mm (4in)
8H-8574
3/8in
76.2 mm (3 in)
8H-8575
3/8in
152.4mm (6in)
3P-2240
3/8in
304.8mm (12in)
271-4722 (Impact)
1/2in
76.2 mm (3 in)
5P-8676
1/2in
76.2 mm (3 in)
9S-1732
1/2in
127.0mm (5in)
271-4723 (Impact)
1/2in
127.0mm (5in)
8H-8559
1/2in
279.0 mm (10.98 in)
271-4724 (Impact)
1/2in
279.0 mm (10.98 in)
386-3271
3/4in
76.2 mm (3 in)
8H-8548
3/4in
203.2mm (8in)
8T-9265 (Requires locking pin)
3/4in
254.0mm (10in)
8T-5183 (Requires locking pin)
3/4in
406.4mm (16in)
386-3260
1in
76.2 mm (3 in)
5S-6076
1in
203.2mm (8in)
158-8723 (Double hole extension, Warranty: Six Months)
1in
476.0 mm (18.74 in)
386-3253
1 1/2 in
203.2mm (8in)
Socket Extension
Warranty: Caterpillar ®Six Months
• Proto brand
• Features a pin design to hold on sockets
• Used in hard-to-reach areas where an
• Black oxide finish
extended length is required
• 3/8” drive
Part No.
Description
Dimensions
Weight
477-4616
Socket Extension
304.8mm (12in)
0.29 kg (10 oz)
17-78 JULY 2018 Hand Tools
Hand Tools
RATCHETSANDSOCKETS

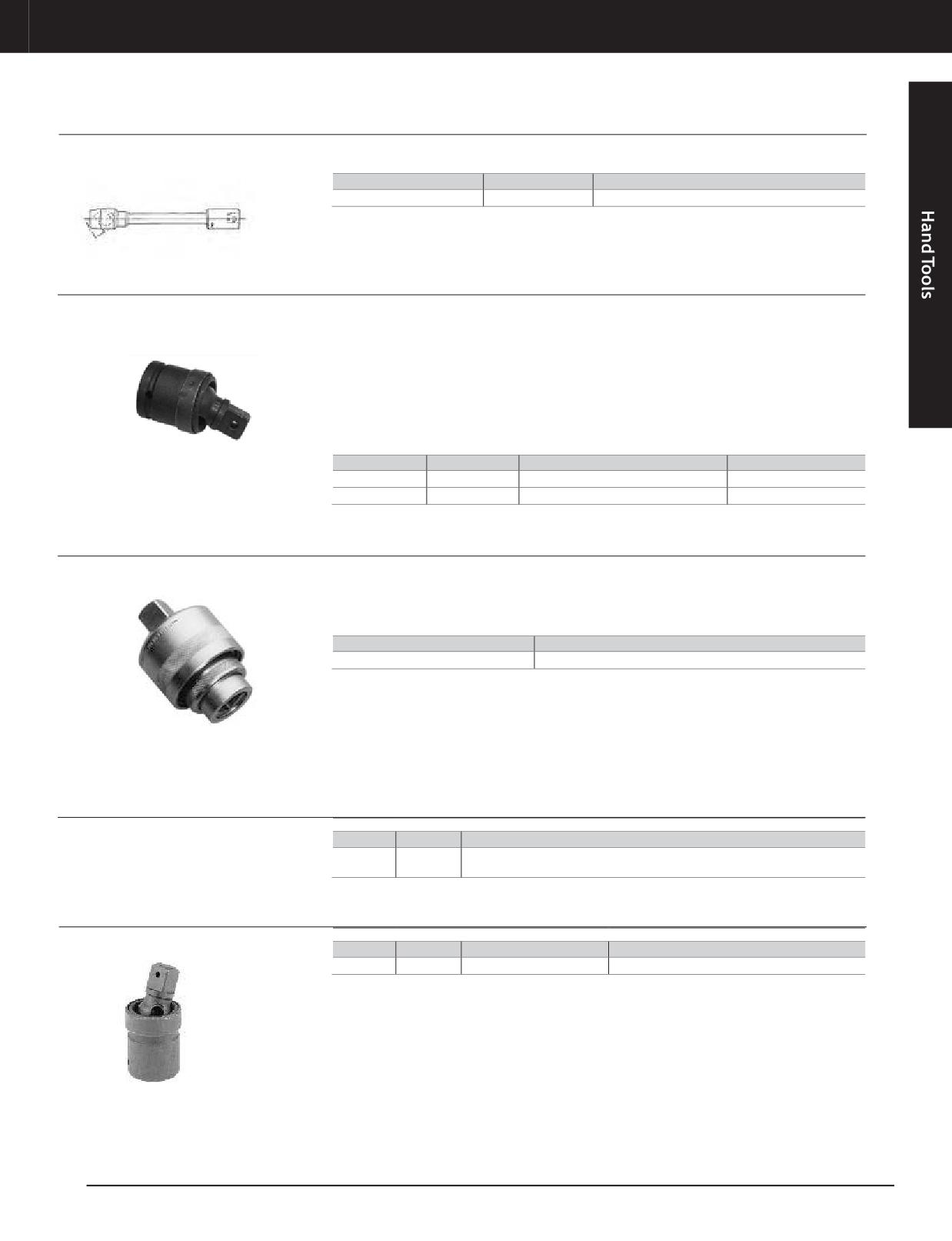

Universal Joint Extension Socket
Warranty: Caterpillar ®Six Months
• 1/2 inch drive
• 12 point
Part No.
Size
Length
6V-4058
5/8in
182.6 mm (7.19 in)
Universal Drives
Warranty: Caterpillar ®Lifetime
• Used with Cat torque multipliers as well as
5P-3534
other applications
• Use with a Torque Multiplier in applications
such as tightening the nuts which secure the
5P-1749
final drive housings to the rear frame and
• Use with the 5S-6076 Extension, 5P-1748
case of Cat Articulated Motor Graders
Socket, and a suitable torque multiplier to
loosen and tighten the nuts which retain 8D
and 9D Ripper mounting brackets
Drive
Part No.
Torque Capacity
Angular Rotation
3/4in
5P-3534
1,000 ft lb
30Degrees
1in
5P-1749
1,500 ft lb
30Degrees
Ratchet Adapter
Warranty: Manufacturer's Lifetime
• 3/4 inch female to 3/4 inch male
• Convenient for other applications such as with
the 3/4 inch drive 9S-7351 Torque Wrench
• Used primarily with the 1P-0850 Torque
Multiplier
Part No.
Capacity
1P-0853
450lb
Hex Shank
Warranty: Caterpillar ®Lifetime
Part No.
O.A.L.
Size
7/16 in HEX x 1 1/4 in on one end with 1/2 in square drive (male) with lock
4C-9818
2 3/4 in
button on other end
Universal Joint
Warranty: Manufacturer's
Part No.
O.D.
O.A.L.
Size
4C-9819
1 3/18 in
2 1/2 in
1/2 in square drive (female) with lock button hole
JULY 2018 Hand Tools
17-79
Hand Tools
RATCHETSANDSOCKETS

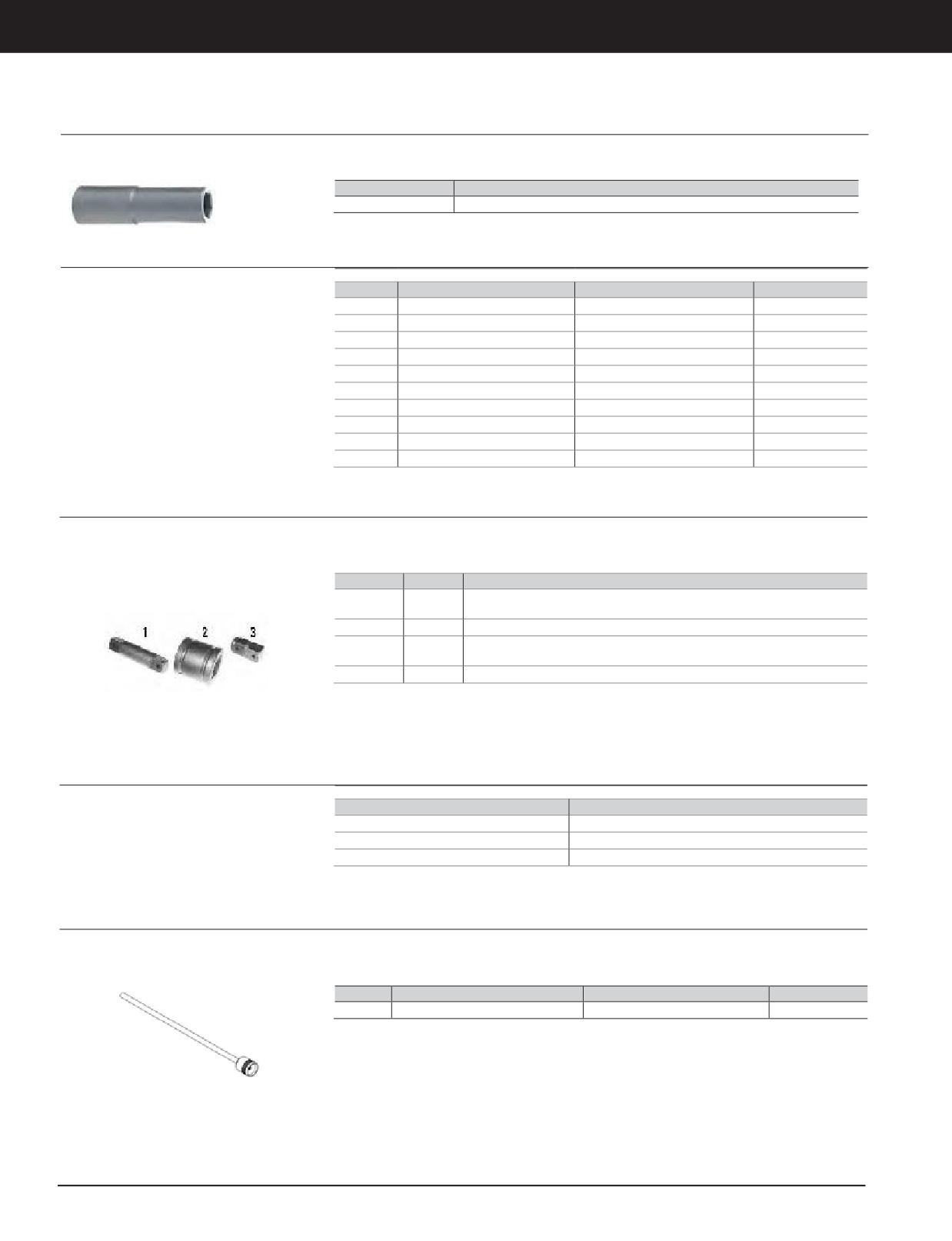

Extra-Deep 24 mm Socket
Model Usage: Three60 POD
Allows nut to be tightened over the extra-long studs that mount the lower unit to the fiberglass hull
Part No.
Description
474-4629
Extra-Deep 24 mm Socket
Socket Drive Adapters
Model Usage: All Cat® Products
Part No.
Description
Size
Replacement Bit
213-4437
Socket Adapter
1/4 in Female to 3/8 in male
-
Warranty: Caterpillar ®Lifetime
261-0443
Socket Adapter
3/8 in Female to 1/4 in male
261-0446
452-0539
Socket Adapter
1/2 in Female to 3/8 in Male
-
452-0541
Socket Adapter
3/4 in Female to 1/2 in Male
452-0542
261-8569
Socket Adapter
1in Female to11/2inMale
-
261-8570
Socket Adapter
11/2in Femaleto 1inMale
-
2P-8261
Adapter
3/4 in Female to 1 in Male
-
5P-3588
Socket Adapter
1 in Female to 3/4 in Male
-
8H-8561
Adapter
1/2 in Female to 3/4 in Male
-
8H-8576
Adapter
3/8 in Female to 1/2 in Male
-
Impact Wrench Socket Adapters
Model Usage: All Cat® Products
• Heavy-duty adapter and extensions can be
• Allows the use of 1 inch drive sockets instead
used with 1 1/2 inch drive impact wrenches
of the higher priced 1 1/2 inch drive sockets
Warranty: Caterpillar ®Lifetime See Individual
Part Number
Item
Part No.
Description
Extension, 1 in drive both ends, 133.4 mm (5.25 in) long
1
9S-4028
(Warranty: Manufacturer, 30 Day)
2
9S-4026
Adapter, 1 1/2 in to 1 in drive (Warranty: Manufacturer, 30 Day)
Extension, 1 in drive both ends, 60.3 mm (2.38 in) long
3
9S-4027
(Warranty: Manufacturer, 30 Day)
Not shown
207-8160
Extension, 1 in drive, 76.2 mm (3 in) long (Warranty: Lifetime)
Universal Joint
Model Usage: All Cat® Products
Drive
Part Number
1/4in
9S-1724
Warranty: Caterpillar ®Lifetime
3/8in
6V-0094
1/2in
8H-8560
Probe Adapter, RAX Sampling Valve
Model Usage: 797F
• Required for fluid sample extraction with
fitting and tube 445-8817
Warranty: Manufacturer’s One Year
Part No.
Description
Diameter
Weight
506-3635
RAXSampling ValveProbeAdapter
6.35 x 226.06 mm (0.25 x 8.9 in)
0.027 kg
17-80 JULY 2018 Hand Tools
Hand Tools
POWER TOOLS

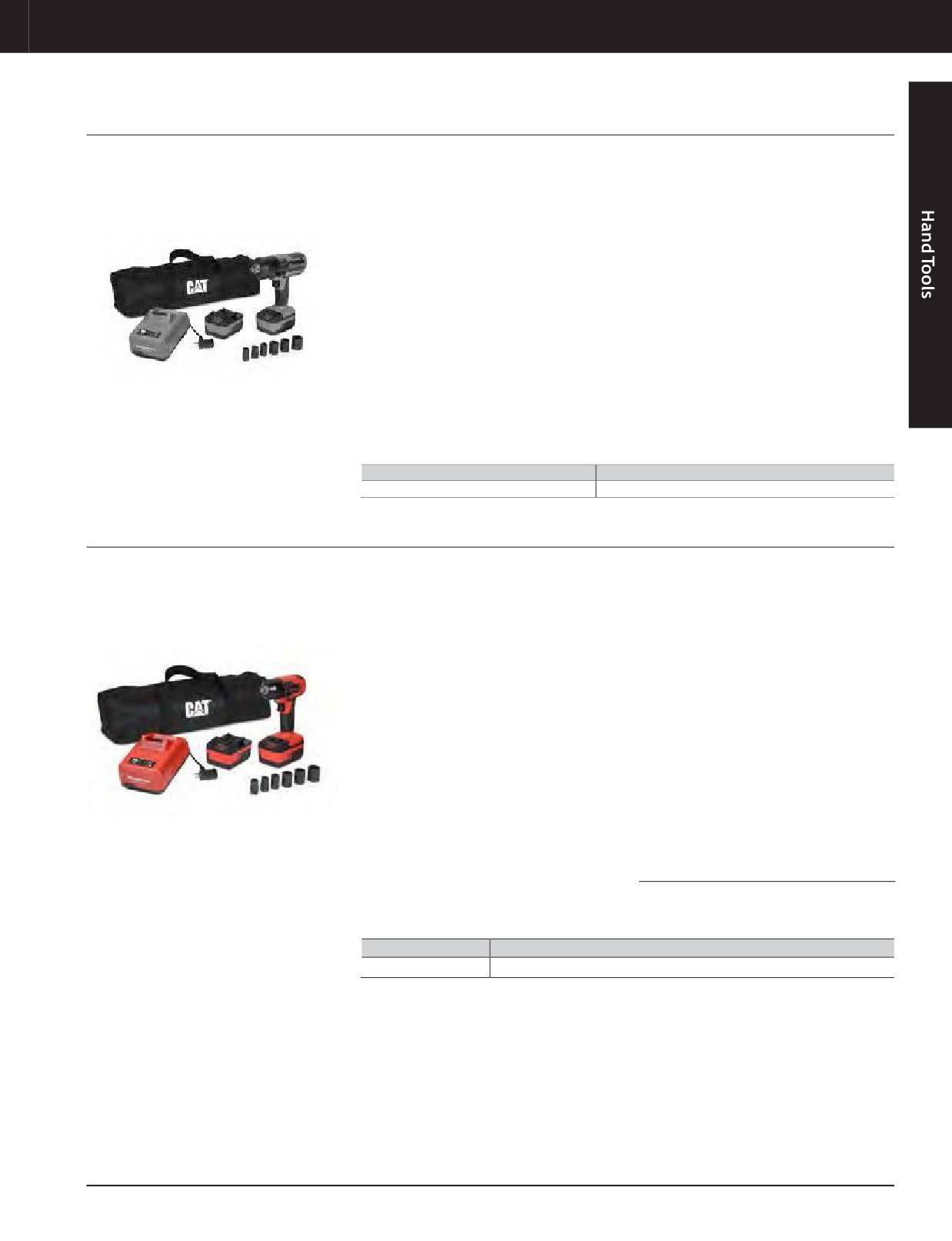

Cordless Snap-on Impact Wrench, 1/2 in Drive
Warranty: One Year on Wrench and Charger, Two
UL, CUL, CE marked
• Digital microprocessor controlled switch
Years on Batteries, Caterpillar ®Lifetime on
maximizes performance, runtime, and
• Cordless Impact Wrench, Two 18v Lithium
Sockets; Caterpillar SixMonths on Tool Bag
durability
Battery Packs, Charger with USB Port, Six Cat
Impact Sockets, Cat Storage Bag
• Integrated battery management prevents
battery drain and prolongs tool life
• 600 ft lb (813 Nm) of torque output with 750 ft
lb (1,017 Nm) of bolt breakaway torque
• Charge time 60 minutes/5 amp
• 1,900 RPM free speed with 2,280 blows per
• USB port built into charger
minute
• Cat 1/2-inch impact sockets: 13, 19 mm and
• Soft-start trigger
1/2, 9/16, 3/4, 7/8 in
• Uses a sintered rare earth magnet motor to
• Cat branded bag
deliver more torque with less battery drain
• Length 9.2 in (234 mm), height 7.7 in (196 mm)
• Built-in brake stops anvil to prevent thrown
• Weight 7.3 lb (3.3 kg)
fasteners or sockets
• Charger compatible with 100-240v/50-60 hz
• Integrated LED covers work area in super
bright light
Part No.
Description
463-6821
Cordless Impact Wrench Kit (18v)
Cordless Snap-on Impact Wrench, 3/8 in Drive
Warranty: Manufacturer’s One Year on Impact
UL, CUL and CEMarked
• Charge time 60 minutes/5 amp
Tool and Charger; Manufacturer’s Two Years on
• 230 ft lb or torque output with
• USB built into charger
Batteries; Caterpillar ®Lifetime on Sockets;
750 ft lb (1017 Nm) of bolt breakaway torque
• Cat® 3/8 in impact sockets: 13 mm, 19 mm,
Caterpillar SixMonths on Tool Bag
• 1900 RPM free speed with 2,280 blows per
1/2 in, 9/16 in, 3/4 in and 7/8 in
minute
• Cat bag:234 x 196 mm(9.2 x 7.7 in)
• Soft-start trigger
• 5.93 kg (13 lb)
• Uses a sintered rare earth magnet motor to
Contents
deliver more torque with less battery drain
• 3/8 in drive cordless Snap-On impact wrench
• Built-in brake stops anvil to prevent thrown
fasteners or sockets.
• Two 18 v lithium batteries
• Integrated LED covers work area in super
• 100-240 v /50-60 Hz compatible charger
bright light.
• Six Cat impact sockets
• Digital microprocessor-controlled switch
• Cat storage bag
maximizes performance, runtime and
durability.
WARRANTY INFORMATION
• Integrated battery management prevents
Send warranty-related questions to
battery drain and prolongs tool life.
global_warranty@cat.com or catwarranty@snapon.com,
262-656-4769
Part No.
Description
512-7546
Cordless Impact Wrench Kit (3/8 in)
17-81 JULY 2018 Hand Tools
JULY 2018 Hand Tools
17-81
Hand Tools
POWER TOOLS

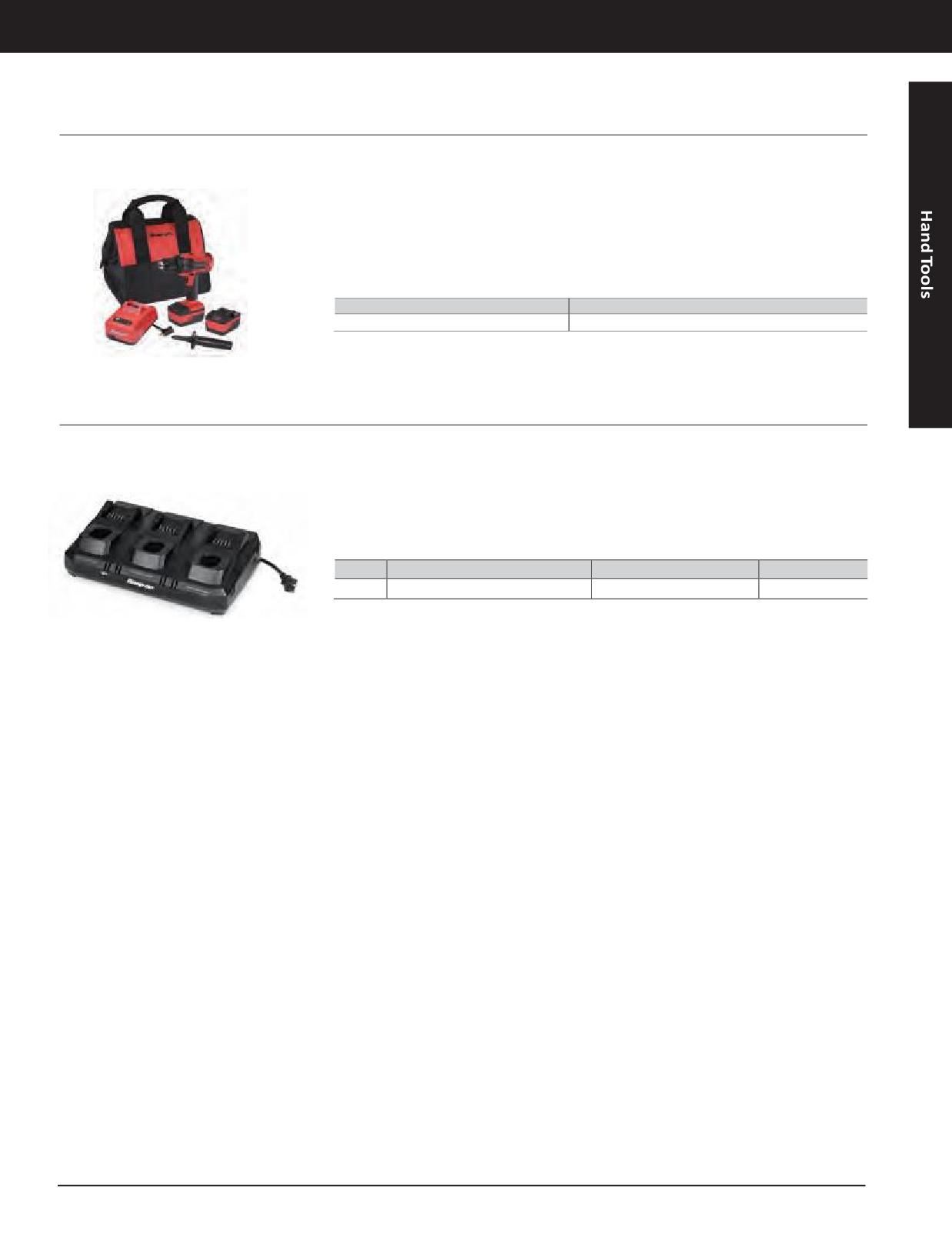

Cordless Drill Kit (18v)
Warranty: Manufacturer's 90 Days
• Heavy Duty Gearbox provides higher spindle
allows user to accurately control torque
Call 262-656-4769 or catwarranty@snapon.com.
lock torque - 500 in-lb
• Glass filled nylon housing is durable and is
• Precision keyless chuck with carbide jaws has
able to withstand high impact
external steel sleeve to help withstand abuse
• Ergonomic over molded cushion grip allows
• Heat treated alloy gears provide strength and
for better tool control with less stress and
durability for longer tool life
strain
• Variable speed digital microprocessor switch
• Includes an extra battery and a tool bag
Part No.
Description
532-8958
Cordless Drill Kit (18v)
Multi-port Battery Charger, Snap-on®
Warranty: Manufacturer’s Two Year Material and
CE marked
• 1 A USB charger
Workmanship - 262-656-4769 or catwarranty@
• High current charging - 5.8 A
• Low profile
snapon.com
• Simultaneously charges three Snap-on®
• Fuel gauge indicator
18V MonsterLithium or 14.4MicroLithium
• 500 W output
batteries
• Dual voltage (120v - 220v)
Part No.
Description
Dimensions (H x L)
Weight
551-2874
Multi-Port Battery Charger, Snap-on®
102 x 318 mm (4 x 12.5in)
1.8 kg (4 lb)
17-82 JULY 2018 Hand Tools
JULY 2018 Hand Tools
17-82
Hand Tools
PNEUMATIC TOOLS
RATCHETSANDSOCKETS

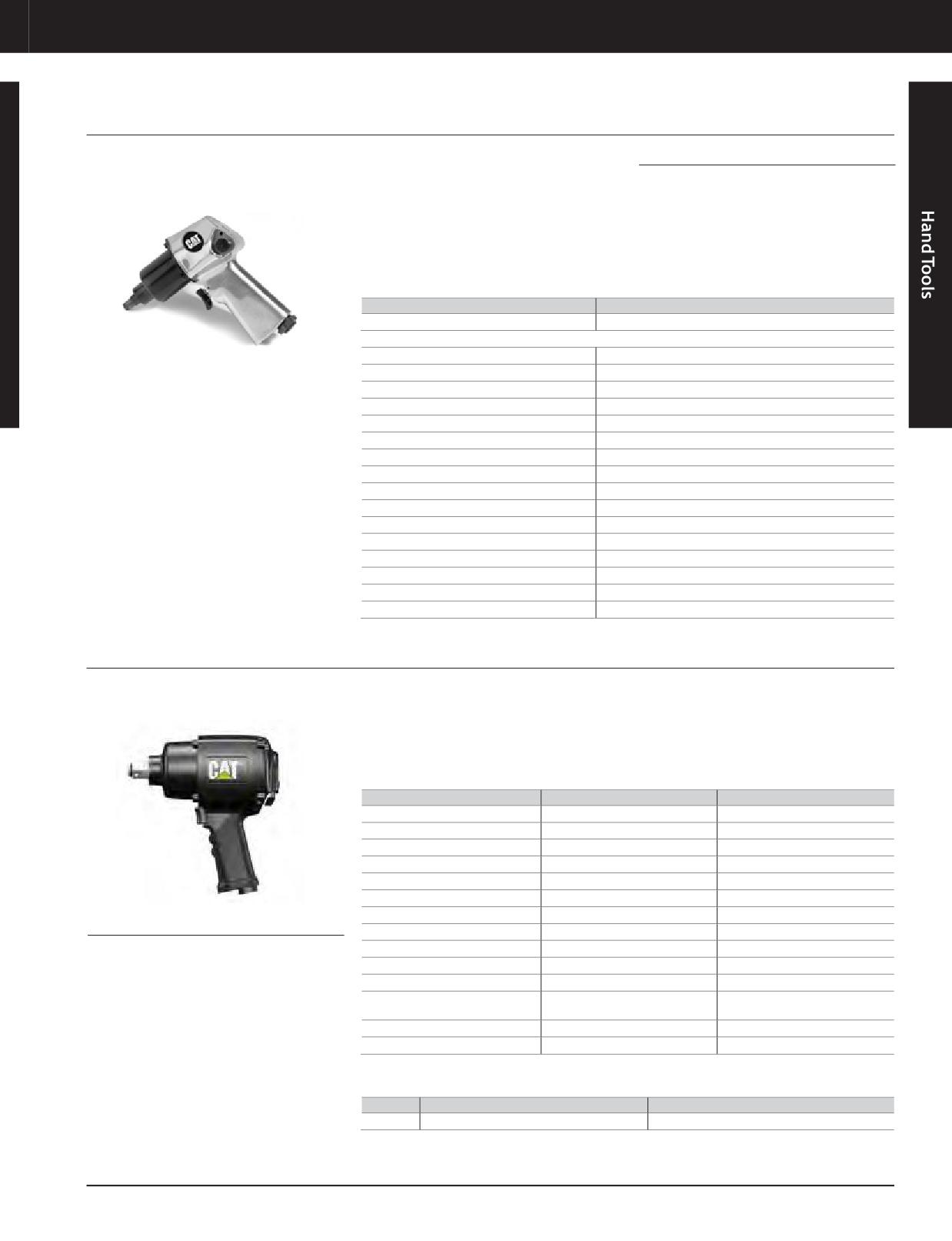

Impact Wrench, 3/8 inch
Warranty: Manufacturer's 18 Months
European Union compliant, CE marked
REPAIR INFORMATION
The Tool Repair Center can help with questions about
• Reverse bias air motor provides greater power
repair options, calibration details, or general customer
in reverse for extra break away torque
service needs. Call +1(262) 656-4769 worldwide or in North
• Molded ergonomic handle grip reduces
America, toll-free at (855) 351-0926 or send an email to
catwarranty@snapon.com.
vibration and operator fatigue
• Built-in power regulator allows power output
to be adjusted to operating conditions
Part No.
Description
222-3048 (Anvil Part Number 280-2681)
ImpactWrench, 3/8inch
Specifications
Drive size
3/8in
Recommended air pressure
620 kPa (90 PSIG)
Air consumption, free speed
14 SCFM (1.9 CFM) [53.8 l/min.]
Air consumption, working
25 SCFM (3.5 CFM) [99.11 l/min.]
Free speed, forward
8000 RPM
Free speed, reverse
9000 RPM
Sound level, free speed
84.6 dBa
Sound level, working
95.6 dBa
Blows per minute
1170
MaximumTorque
251- N·m (185 ft-lb) Forward / 285 N·m (210 ft-lb) Reverse
Air inlet thread size
1/4 in - 18 NPT
Recommendedhosesize, IDmin.
10mm(3/8in)
Overall length
159mm(6.25in)
Height
179 mm (7 in)
Width
57mm (2.24in)
Weight
1.70 kg (3.75 lbs)
Impact Wrenches, 1/2 and 3/4 inch
Warranty: Manufacturer's 18 Months
European Union compliant, CE marked
• Power speed regulator allows power output to
be adjusted to operating conditions
• Aluminum housing reduces weight and
provides durable long life
• Variable speed trigger allows operator
versatility over wide range of fasteners
• Steel nose front for extra protection, easy
service access
Specification
222-3050
540-9478
Drive Size
1/2in
3/4in
Recommended air pressure
620 kPa (90 PSIG)
620 kPa (90 PSIG)
Air consumption, free speed
30 SCFM (4.2 CFM) [118.9 l/min.]
7 CFM (198 L/min.]
Free speed forward
8000 RPM
5000 RPM
Free speed reverse
8000 RPM
5000 RPM
Sound level free speed
108 dBa
109 dBa
Maximum torque
578 N·m (425 ft-lb) forward
1490N·m (1100 ft-lb)
REPAIR INFORMATION
Air inlet thread size
1/4 in - 18 NPT
3/8 in - 18 NPT
The Tool Repair Center can help with questions about
Recommendedhosesize, IDmin.
8mm(5/16in)
13mm(1/2in)
repair options, calibration details, or general customer
Overall length
185mm (7.3in)
229 mm (9 in)
service needs. Call +1(262) 656-4769 worldwide or in North
Weight
2.63 kg (5.8 lbs)
5.72 kg (12.6 lb)
America, toll-free at (855) 351-0926 or send an email to
catwarranty@snapon.com.
Part No.
Description
Anvil Part Number
222-3050
Impact Wrench, 1/2 in
280-2682
540-9478
Impact Wrench, 3/4 in
540-9498
Accessories
Part No.
Description
Motor Throttle Repair Kit
540-9478
Impact Wrench, 3/4 in
540-9501
17-83 JULY 2018 Hand Tools
JULY 2018 Hand Tools
17-83
Hand Tools
PNEUMATIC TOOLS

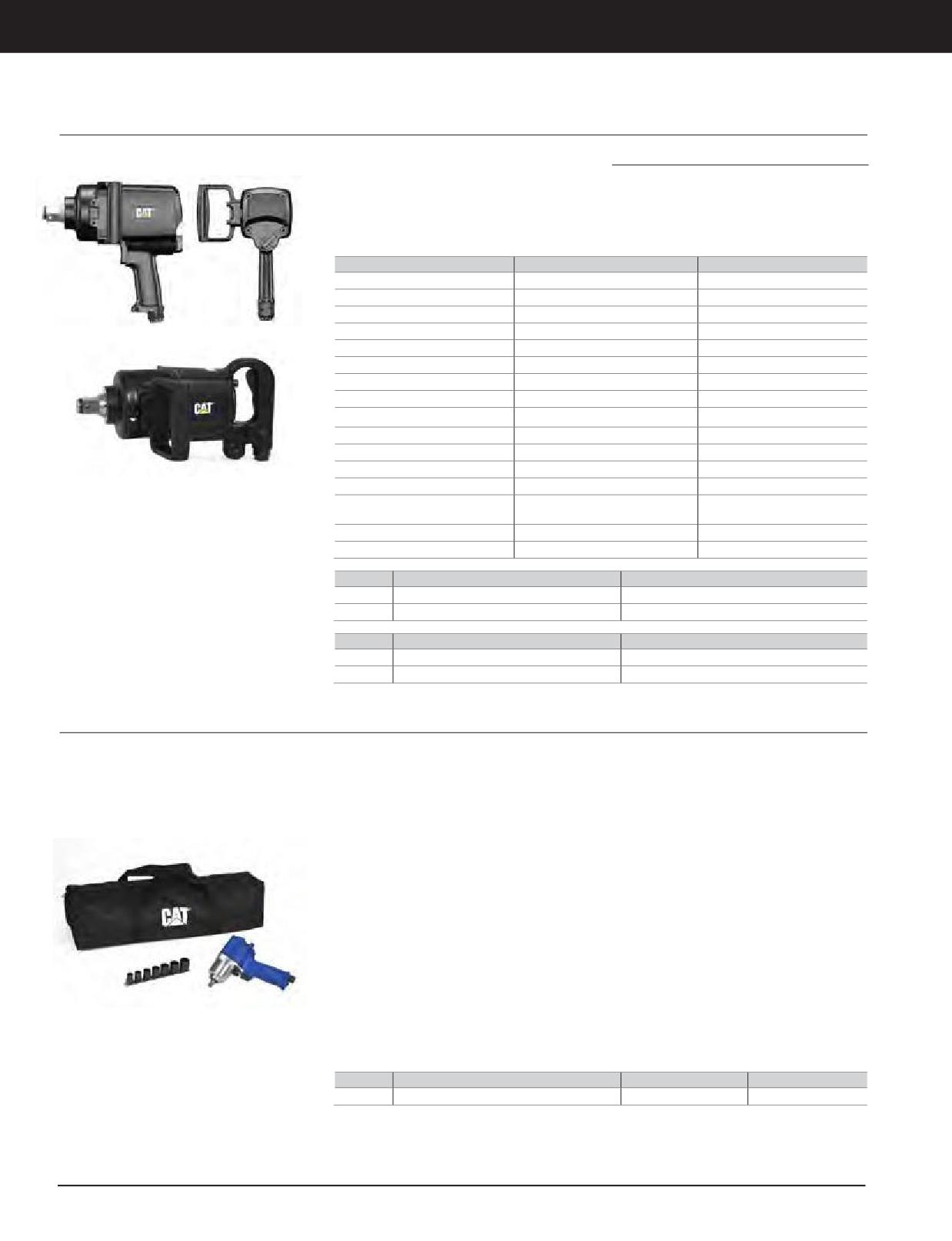

Impact Wrenches, 1 inch
Warranty: Manufacturer's 18 Months
European Union compliant, CE marked
REPAIR INFORMATION
The Tool Repair Center can help with questions about
• Power speed regulator allows power output to
repair options, calibration details, or general customer
be adjusted to operating conditions
service needs. Call +1(262) 656-4769 worldwide or in North
• Variable speed trigger allows operator
America, toll-free at (855) 351-0926 or send an email to
catwarranty@snapon.com.
versatility over wide range of fasteners
Part No.
540-9480 Pistol Grip
540-9483 D-Handle
540-9480
Drive size
1in
1in
Recommended air pressure
620 kPa (90 PSIG)
620 kPa (90 PSIG)
Air consumption free speed
9.6 CFM (271l/min
10.8 CFM
Free speed forward
4500 RPM
5000 RPM
Free speed reverse
4500 RPM
5000 RPM
Sound level free speed
114 dBa
120 dBa
Maximum torque
2507 N.m (1850 ft lb)
2700 N.m. (2000 ft lb)
Air inlet thread size
1/2 in - 14 NPT
1/2 in - 14 NPT
Recommendedhosesize, IDmin.
19 mm (3/4")
19 mm (3/4")
Overall length
277 mm (10.9")
345 mm (13.6")
Height
274 mm (10.8")
185 mm (7.3")
540-9483
Width
119 mm (4.7")
121 mm (4.8")
Weight
10.2 kg (22.5#)
10.5 kg (23.1#)
Part Number
Description
Anvil Part No.
222-3054 (Discontinued)
Discontinued Impact Wrench, 1 in
280-2684
222-3055 (Discontinued)
Discontinued Impact Wrench, 1 in
280-2684
Part No.
Description
Anvil Repair Kit
540-9480
Pistol Grip Impact Wrench, 1 in
540-9504
540-9483
Pistol Grip Impact Wrench, 1 in
540-9508
Part No.
Description
Motor&Throttle Repair Kit
540-9480
Pistol Grip Impact Wrench, 1 in
540-9506
540-9483
D-Handle Impact Wrench, 1 in
540-9510
Impact Wrench Kit, Blue Point 3/8 in Drive with Cat® Tool Bag
Warranty: ImpactWrench:Manufacturer's
European Union compliant, CE marked
• Durable Cordura Cat tool bag
18 Months, Contact (262) 656-4769 or
• Blue Point ½” drive impact wrench kit
• Full Set of Cat Deep Length Impact Sockets
catwarranty@snapon.com.
includes:
Wrench features
Sockets and Bag: See Individual Parts
- 211-0136 Cat® Tool Bag
• Shot peen anvils for improved durability
- AT370 Blue Point 3/8” Drive Impact Wrench
- 271-4613 3/8” Drive Deep Length Impact
• Reverse Bias motor provides additional
Socket Set
breaktorque
- 271-4615 - 3/8”
• Three position regulator for power control
- 271-4616 - 7/16”
• One-handedforward/reverselever for user
- 271-4617 - ½”
convenience
- 271-4618 - 9/16”
- 271-4619 - 5/8”
• Composite housing amd aluminum nose
- 271-4620 - 11/16”
deliver a durable, lightweight and balanced
– 271-4621 - ¾”
unit
• Twin hammer impact mechanism delivers
hard-hitting blows to quickly remove stubborn
fasteners
Part No.
Description
WrenchDimensions
Kit Weight
542-8114
ImpactWrenchKit,BluePoint 3/8in Drive
160 mm (6.3 in) OAL
7.1 kg (15.7 lb)
17-84 JULY 2018 Hand Tools
Hand Tools
PNEUMATIC TOOLS

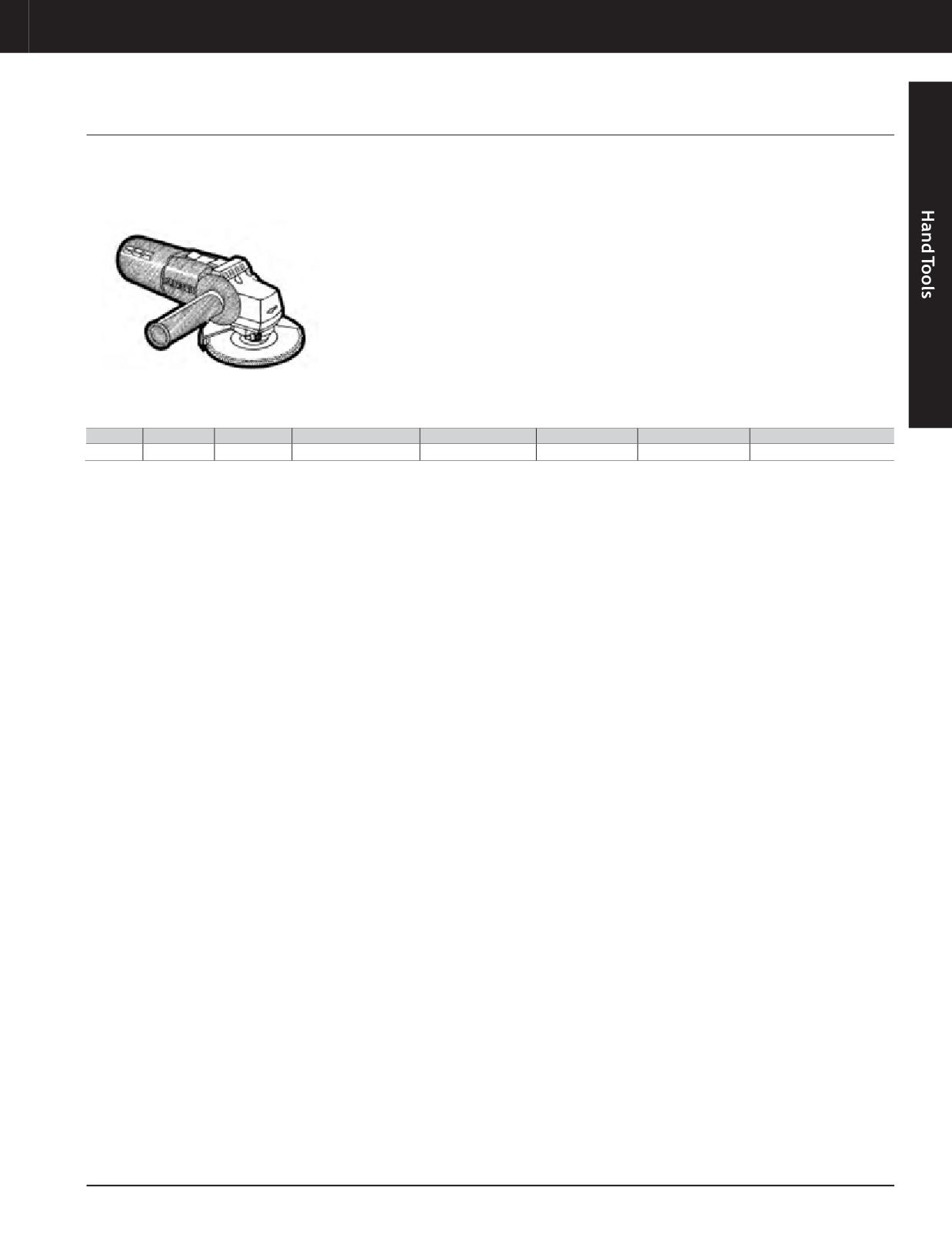

Heavy-Duty Angle Grinder, 11,000 RPM, 4.5 inch
Model Usage: All Cat® Products
• Turns at 11,000 RPM for maximum grinding
• Epoxy-coated field windings provide ultimate
performance and efficiency
protection against abrasive dust and metal
Warranty: Caterpillar ®Lifetime
debris
• Vibration-control side handle reduces
vibration up to 60%, providing
• 5/8 inch - 11 spindle for mounting most
uncompromising comfort for extended periods
popular accessories
of work
• Tool-free adjustable guard for quick guard
• AC/DC capability extends the versatility of
installation and adjustments
the tool by working from DC outlets such as
• Spindle lock for quick wheel changes
welders and generators
• 2-position auxiliary handle specifically
• Sealed switch keeps debris out of the switch
designed and angled to a "natural" position
mechanism and extends switch life
for maximum comfort and control
• Service Minder brushes eliminate guesswork,
• Double insulated, UL listed, OSHA compliant
stop the tool when preventative maintenance
is required
Part No.
Power
Motor Amps
No Load Speed (RPM)
Spindle Thread Size
Wheel Size
Length
NetWeight
288-2512
120V AC/DC
7.5
11,000
5/8 in - 11
114.3mm (41/2in)
285.75 mm (11 1/4 in)
1.95 mm (4.3 lb)
JULY 2018 Hand Tools
17-85
Hand Tools
PNEUMATIC TOOLS

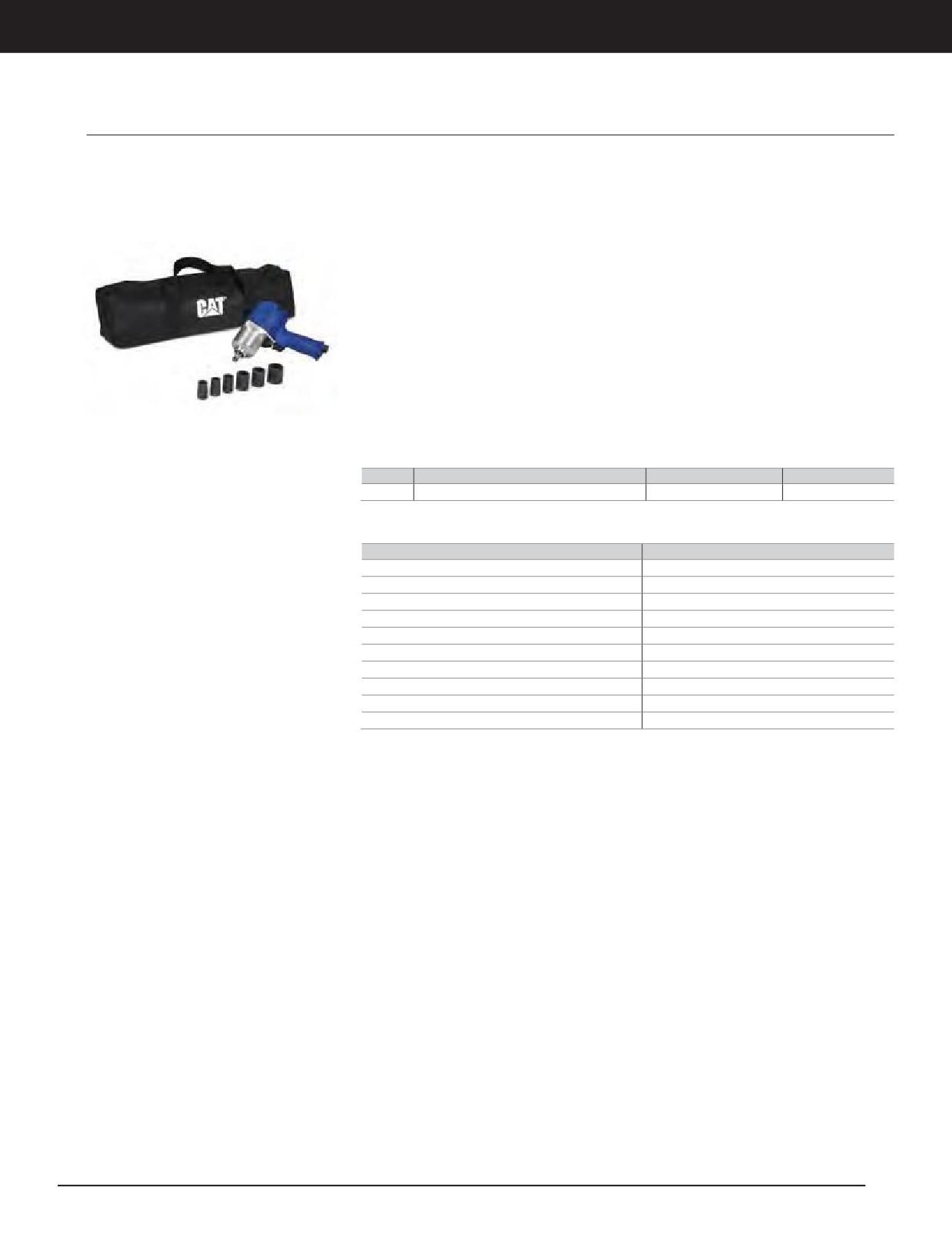

Blue Point ½ in Drive Impact Wrench Kit with Cat® Tool Bag
Warranty: Impact Wrench - Manufacturer's
European Union Compliant, CE marked
• Six sizes of commonly used Cat
18 Months (262) 656-4769 or catwarranty@
impact sockets
• Replaces 266-3736
snapon.com
• Blue Point ½ in drive impact wrench kit
Wrench features
Sockets and Bag - See Individual Parts
includes 211-0136 Cat® Tool Bag and AT570
• Shot peen anvils for improved durability
• Six ½ in Drive Cat Impact Sockets:
• Reverse bias motor provides additional
- 213-6929 - 13 mm
breaktorque
- 213-6936 - 19 mm
• Three position regulator for power control
- 213-3087 - ½ in
• One-handed forward/reverse lever for
user convenience
- 213-3088 - 9/16 in
• Compositehousingamdaluminum
- 213-3094 - ¾ in
nose deliver a durable, lightweight and
- 213-3102 - 7/8 in
balanced unit
Features & Benefits
• Twin hammer impact mechanism delivers
hard-hitting blows to quickly remove
• Durable Cordura Cat tool bag
stubborn fasteners
Part No.
Description
Dimensions
Weight
549-7506
Blue Point ½ in Drive Impact Wrench Kit
184mm(7.24in)OAL
2.8 kg (6.1 lb)
Wrench Specifications
Part No.
Weight
Air Consumption, Free Speed, CFM (SCFM) [l/min]
5.0 (36) [142] (F), 5.3 (38) [150] (R)
Air Inlet Thread Size
1/4"-18 NPT
Anvil Type
Friction Ring
Blows Per Minute, BPM
1,050
Free Speed, RPM
6,900 (F), 7,000 (R)
MaximumTorque,ft-lb (N•m)
570 (773)
Recommended Hose Size, inches (mm)
3/8 (10)
Sound Level dB(A) Pressure
95
Vibration Level,m/s²
6.08
Weight, lb (kg)
4.08 (1.87 kg)
17-86 JULY 2018 Hand Tools
Hand Tools
PNEUMATIC TOOLS

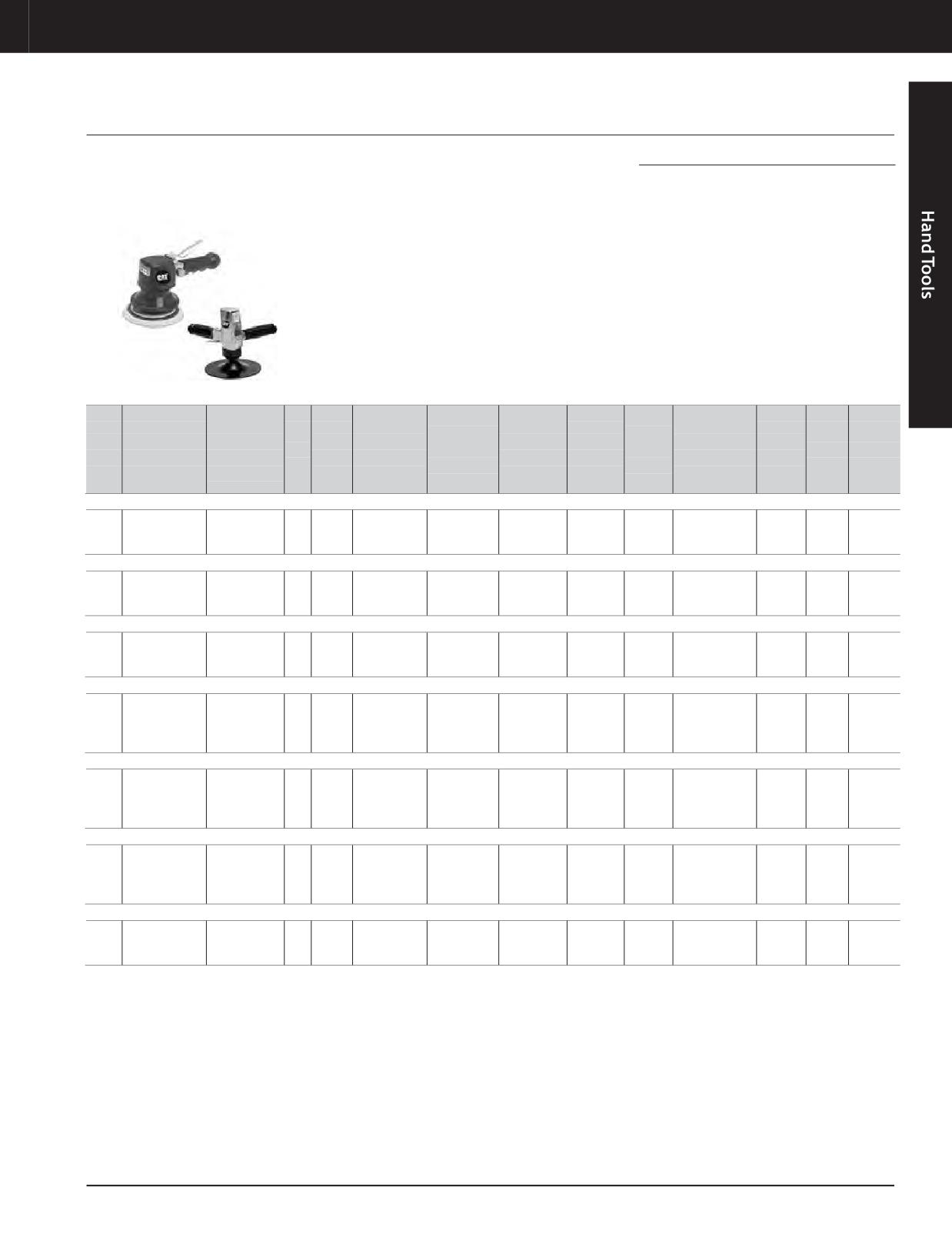

Sanders and Polishers
Model Usage: All Cat® Products
European Union Compliant, CE marked
REPAIR INFORMATION
The Tool Repair Center can help with questions about
Warranty: Caterpillar ® 18 Months
• Aluminum housing reduces weight and
repair options, calibration details, or general customer
provides durable long life
service needs. Call +1(262) 656-4769 worldwide or in North
• Compact design for easy maneuvering in
America, toll-free at (855) 351-0926 or send an email to
restricted areas
catwarranty@snapon.com..
• Ball bearing mounted air motor reduces
vibration and operator fatigue; prolongs motor
life
• Full choice of RPM ranges
• 5-inch and 7-inch HD angle, 2-handed vertical
and in-line sanders
• 7-inch polisher
Free
Sound
Pad/
Recommended
Spindle
Air Inlet
Part
Recommended
Speed
Free
Level,
Disc
Backing
Hose
Overall
HP
Thread
Thread
Height
Weight
No.
Air Pressure
Air
Speed
Free
Size,
Pad
Size, ID
Length
Size
Size
Consumption
Speed
Diameter
min.
Palm Sander, 6 in
36 SCFM
222-
620kPa
10000
5/16in -
152 mm
1/4 in -
8 mm
122 mm
1.36 kg
(5 CFM)
-
83 dBa
231-9464
-
3063
(90 PSIG)
RPM
18 UNC
(6 in)
18 NPT
(5/16 in)
(4.8in)
(3lb)
[141.6 I/min.]
7 in Angle Sander
34 SCFM
102
222-
620kPa
5100
5/8 in -
178 mm
1/4 in -
8 mm
410 mm
3.09 kg
(4.8 CFM)
1
84 dBa
231-9465
mm
3064
(90 PSIG)
RPM
11 UNC
(7 in)
18 NPT
(5/16 in)
(15.8 in)
(6.8 lb)
[135.9 I/min.]
(4 in)
7 in Vertical Sander
31 SCFM
190
222-
620kPa
4500
5/16in -
178 mm
1/4 in -
10 mm
2.72 kg
(4.3 CFM)
-
83 dBa
231-9465
-
mm
3065
(90 PSIG)
RPM
11 UNC
(7 in)
18 NPT
(3/8 in)
(6lb)
[121.8 I/min.]
(7.5in)
In-line Sander
121
16 SCFM
1800
222-
620kPa
1/4 in -
8 mm
406 mm
mm
(2.3 CFM)
-
osc/
87 dBa
-
2.75 x 17.5
-
-
3067
(90 PSIG)
18 NPT
(5/16 in)
(16in)
(4.75
[65.13 I/min.]
min
in)
6 in OASander
410kPa
11 SCFM
222-
(60 PSIG)
10000
5/16in -
150 mm
231-9468,
1/4 in -
8 mm
260 mm
2.2 kg
(2.1 CFM)
.25
93 dBa
-
3068
(Warranty Six
RPM
18 UNC
(6 in)
246-7509
18 NPT
(5/16 in)
(10.2 in)
(4.9 lb)
[59.47 I/min.]
Months)
5 in Compact Sander
121
32 SCFM
222-
620kPa
1400
7/16in -
127 mm
1/4 in -
8 mm
118 mm
mm
(4.2 CFM)
.3
88 dBa
231-9469
-
3084
(90 PSIG)
RPM
20 UNC
(5 in)
18 NPT
(5/16 in)
(4.6in)
(4.75
[118.9 I/min.]
in)
7 in Angle Polisher, Air Consumption, working: 31 SCFM (4.3 CFM) [121.8 l/min.]
34 SCFM
222-
620kPa
2600
5/8 in -
178 mm
1/4 in -
8 mm
410 mm
(4.8 CFM)
1
84 dBa
231-9465
-
-
3069
(90 PSIG)
RPM
11 UNC
(7 in)
18 NPT
(5/16 in)
(15.8 in)
[135.9 I/min.]
JULY 2018 Hand Tools
17-87
Hand Tools
PNEUMATIC TOOLS

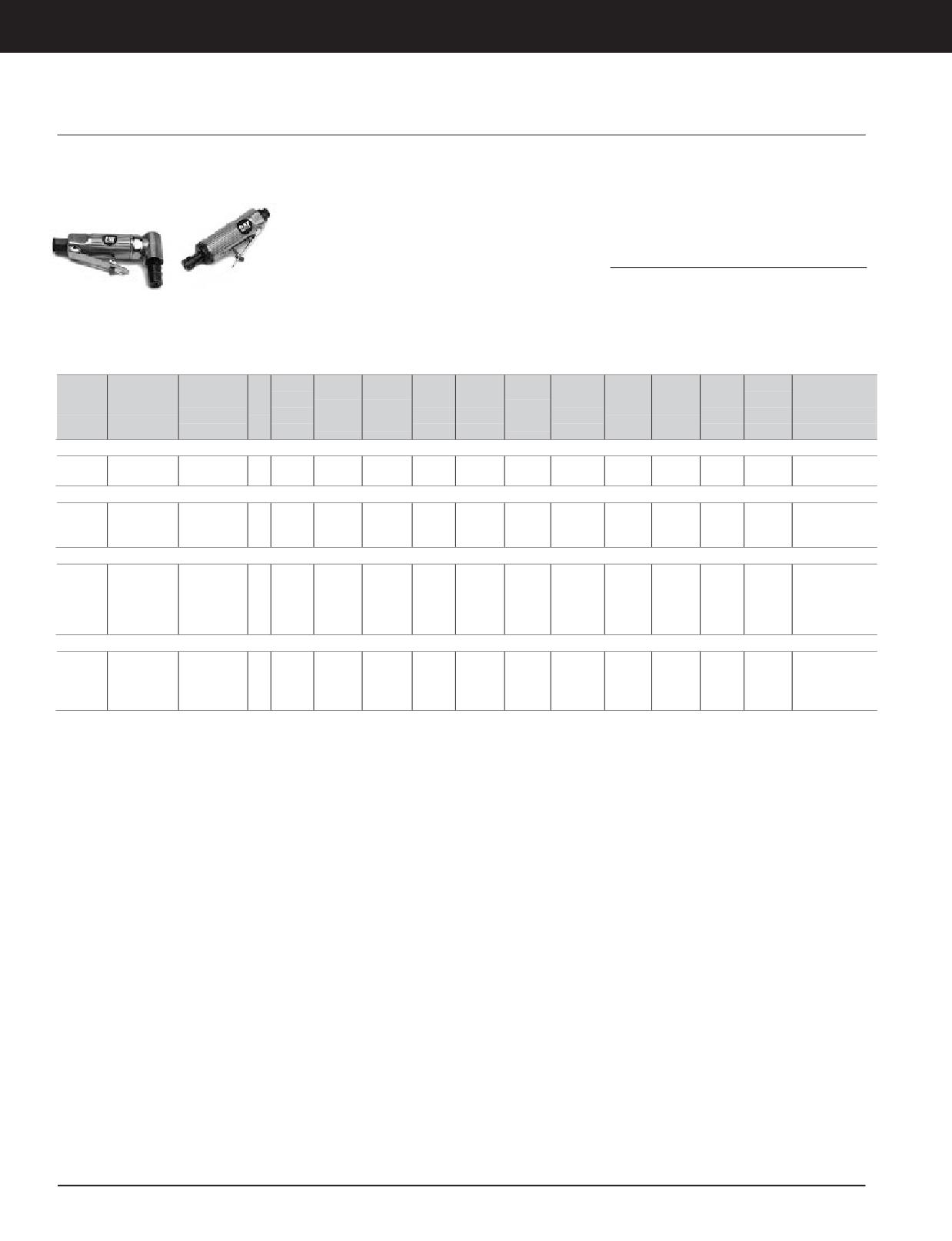

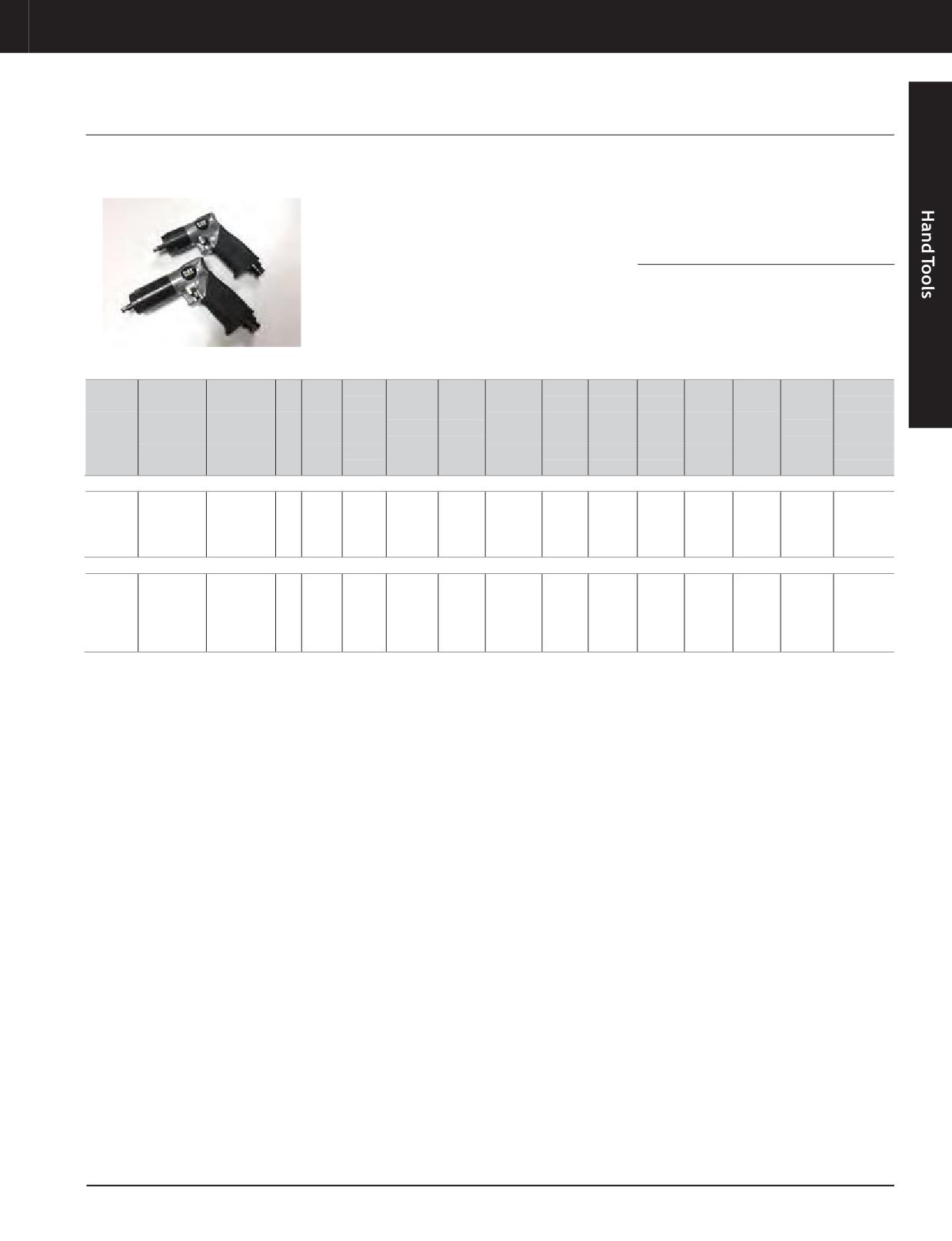

Air Grinders
Warranty: Caterpillar ®18 Months
European Union Compliant, CE marked
• Powerful .2 horsepower motor
• Aluminum housing reduces weight and
• Angle head zirk grease fitting (right angle
provides durable long life
only) allows lubrication of gear train, prolongs
222-3076
life of tool
• Compact design for easy maneuvering in
restricted areas
REPAIR INFORMATION
• Paddle-style, variable speed throttle safety
trigger prevents accidental startup; easy to
The Tool Repair Center can help with questions about
222-3076
repair options, calibration details, or general customer
use, versatile
service needs. Call +1(262) 656-4769 worldwide or in North
• Ball bearing mounted air motor reduces
America, toll-free at (855) 351-0926 or send an email to
vibration and operator fatigue; prolongs motor
catwarranty@snapon.com..
life
Sound
Air
Air Inlet
Hose
Max
Air Cons.
Level,
Collet
Overall
Wheel
Sound
Cons.
Spindle
Part No.
Air Pressure
HP
Thread
Size,
Oper.
Weight
Length
Free Speed
Free
Size
Length
Capacity
Level
Under
Thread Size
Size
ID min.
Speed
Speed
Load
7 in Angle Grinder
8 l/s
6,000
175 mm
2.7 kg
315 mm
17 l/s
222-3071
-
-
-
-
-
-
-
85 dBa
5/8in-11
(18 cfm)
RPM
(7 in)
(5.9 lb)
(12.4 in)
(35 cfm)
Medium Mini Die Grinder
25 SCFM
620 kPa
1/4 in -
8 mm
165 mm
22,000
1.09 kg
222-3074
(3.5 CFM)
0.2
91 dBa
1/4in
-
-
-
-
-
(90 PSIG)
18 NPT
(5/16 in)
(6.5in)
RPM
(2.4 lb)
[99.11 l/min]
Right Angle Die Grinder
620 kPa
15 SCFM
(90 PSIG)
1/4 in -
8 mm
140 mm
20,000
.64 kg
222-3076
(2.1 CFM)
0.2
93 dBa
1/4in
-
-
-
-
-
(Warranty
18 NPT
(5/16 in)
(5.5in)
RPM
(1.4 lb)
[59.47 l/min]
Six Months)
Extended Die Grinder
25 SCFM
620 kPa
(3.5 CFM)
1/4 in -
8 mm
293 mm
22,000
1.05 kg
222-3077
0.2
91 dBa
1/4in
-
-
-
-
-
(90 PSIG)
[99.11 l/
18 NPT
(5/16 in)
(11.5 in)
RPM
(2.5 lb)
min]
17-88 JULY 2018 Hand Tools
Hand Tools
PNEUMATIC TOOLS
Air Drills
Model Usage: All Cat® Products
European Union Compliant, CE marked
• Ball bearing mounted air motor reduces
vibration and operator fatigue; prolongs motor
Warranty: Caterpillar ®18 Months
• Cat® Branded
life
• Aluminum housing reduces weight and
• Powerful, reversible .3 horsepower motor
provides durable long life
• Compact design for easy maneuvering in
REPAIR INFORMATION
restricted areas
The Tool Repair Center can help with questions about
• Contoured button style variable speed trigger
repair options, calibration details, or general customer
is easy to use; versatile
service needs. Call +1(262) 656-4769 worldwide or in North
America, toll-free at (855) 351-0926 or send an email to
catwarranty@snapon.com..
Rec-
Rec-
Sound
Air
om-
om-
Drill
Sound
Spindle
Drill
Free Speed
Working Air
Free
Level,
Torque
Inlet
mend-
mend-
Overall
Chuck
Part No.
HP
Level,
Thread
Weight
Chuck
Air Cons.
Cons.
Speed
Free
Range
Thread
ed Hose
ed air
Length
(Key-
Working
Size
(Key)
Speed
Size
Size,
pres-
less)
ID min.
sure
3/8 in Reversible Air Drill: Chuck Range, Diameter: 1/16 in - 3/8 in
71 SCFM
43 SCFM
620
199 mm
0-4 N•m
.45 kg
(10 CFM)
(6 CFM)
2000
3/8 in -
1/4 in -
8 mm
222-3061
0.3
92 dBa
104 dBa
(0-35
kPa (90
(7.83
(2.85
243-6496
234-0544
[283.2 I/
[169.9 I/
RPM
18 NPT
(5/16 in)
24 UNF
in-lb)
lb)
min.]
PSIG)
in)
min.]
1/2 in Reversible Air Drill
71 SCFM
43 SCFM
0-6.8 N•m
620
224.8
(10 CFM)
(6 CFM)
800
3/8 in -
1/4 in -
8 mm
1.61 kg
(0-60 in
mm
222-3062
0.3
97 dBa
109 dBa
kPa (90
243-6495
234-0545
[283.2 I/
[169.9 I/
RPM
24 UNF
18 NPT
(5/16 in)
(3.55 lb)
lb)
PSIG)
(8.85 in)
min.]
min.]
JULY 2018 Hand Tools
17-89















Content      ..     11      12      13      14     ..
