Engine Tools
3600 ENGINE TOOLS

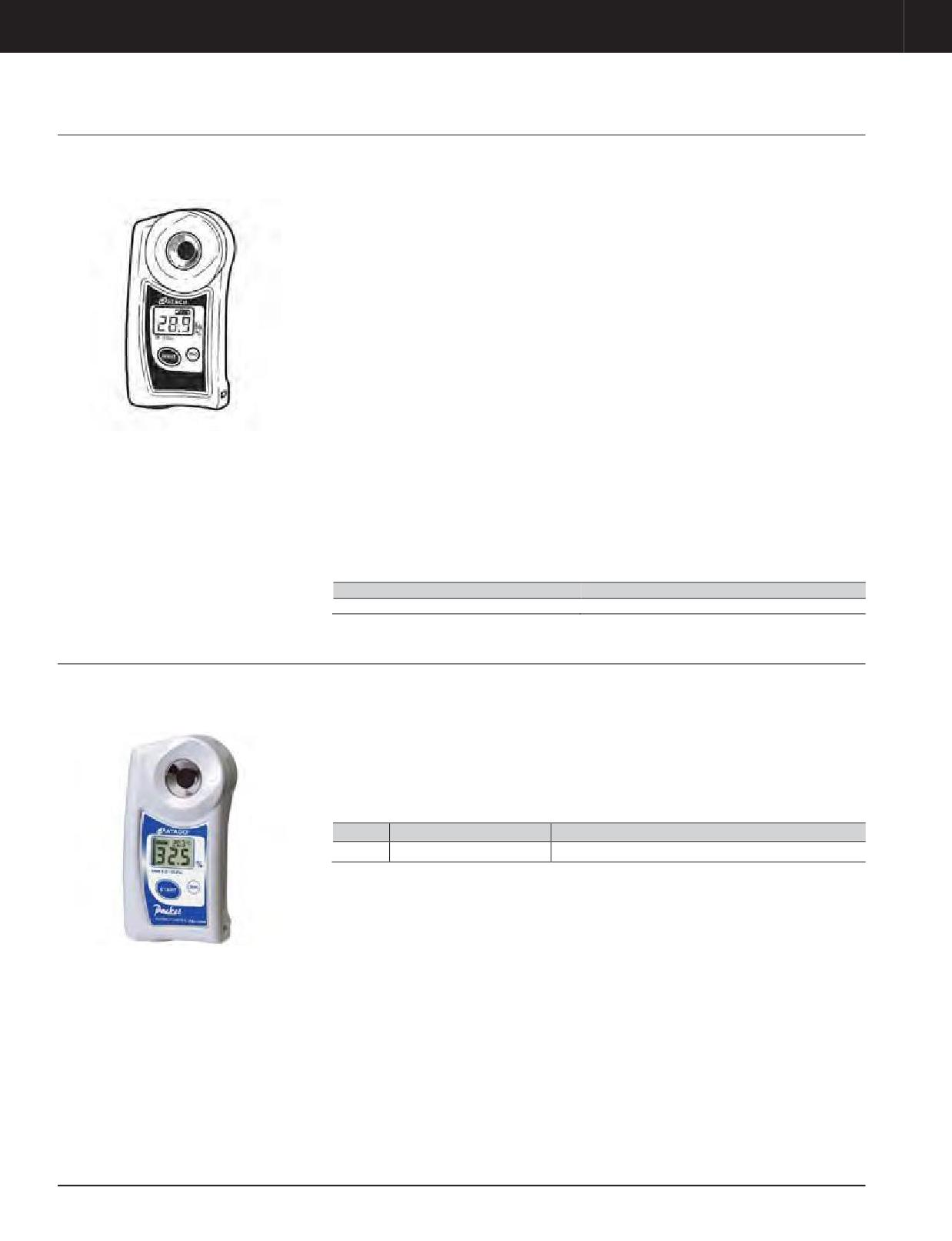

Test Kit, Brix Refractometer
Essential Tool
European Union compliant, CE marked
• Ambient temperature range of 10 to 40°C
Warranty: Manufacturer’s
- Measures concentration levels in various
• Requires only a 0.3 ml (.01 oz) sample volume
fluids such as:
• Compact design weighs only 100g (3.5 oz) and
- Urea concentration in Diesel Exhaust Fluid
fits in a shirt pocket, so it is convenient to
- Cat® Extended Life Inhibitor (ELI)
carry and use indoors and outdoors
- Ethylene glycol-based coolant in cooling
• Includes storage case
systems (freeze protection)
- Propylene glycol-based coolant in cooling
Reference
systems (freeze protection)
• NEHS1097 Tool Operating Manual, 360-0774
- Specific gravity (battery state of charge) in
Brix Refractometer
battery fluid
• Calibrate with water only, no more special
Specifications
solutions required
• Measurement range: Brix 0.0 to 53.0%
• Battery life approximately 11,000
• Measurement accuracy: Brix ±0.2%
measurements (with new alkaline batteries)
• Measurement time: 3 seconds
• Ergonomic design with easy to read LCD
• Resolution: Brix 0.1%
display for one-hand operation
• Power supply: Two size AAA batteries
• Used with conversion charts (part of
NEHS1097 Tool Operating Manual) to convert
• Dimensions (L x W x D): 109 x 55 x 31 mm
percent of Brix to other units of measurement
(4.29 x 2.16 x 1.22 in)
• Automatic Temperature Compensation feature
allows testing fluids from 10 to 75°C
Part Number
Description
360-0774
Test Kit, Brix Refractometer
DEF Refractometer
Model Usage: All Tier 4
European Union Compliant, CE Marked
• Measurement Temperature: 10 to 40 °C
Warranty: Manufacturer’s
• New DEF Refractometer specifically made for
• Measurement Time: 3 seconds
DEF fluid
• Resolution: UREA 0.1%
Specifications
• Sample Volume: 0.3 mL
• Measurement Range: UREA 0.0 to 55.0%
• Power Supply: two AAA batteries
• Measurement Accuracy: UREA ±0.3%
• Storage Case
Part No.
Description
Dimensions
522-8375
DEF Refractometer
55 x 31 x 109 mm ( 2.2 x 1.2 x 4.3 in)
3-330 JULY 2018 Engine Tools
Engine Tools
THREE60 POD 650

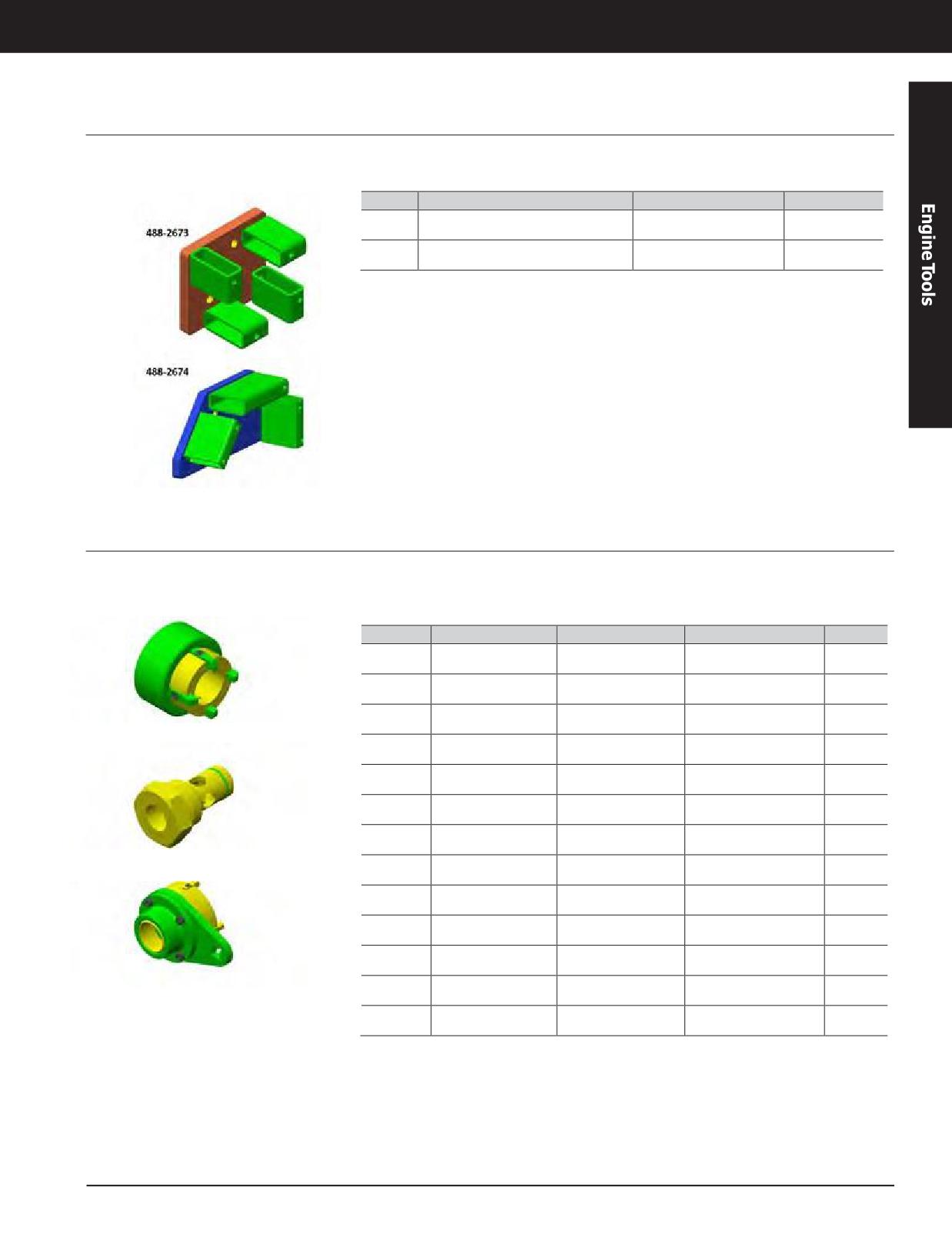

Rollover Bracket
Model Usage: C12.9 Marine Engines
• Allows the C12.9 engine to be mounted to the
• Refer to disassembly manual for specific
4C-9832 large engine rollover stand
mounting instructions.
Warranty: Caterpillar ®Six Months
Part No.
Description
Dimensions
Weight
245 x 225 x 153 mm
15.3 kg
488-2673
C12.9 Marine Engine Rollover Bracket
(9.6x 8.9x 6in)
(33.7 lb)
470 x 224 x 153 mm
25.6 kg
488-2674
C12.9 Marine Engine Rollover Bracket
(18.5 x 8.8 x 6 in)
(56.4 lb)
Three60 Pod 650
Model Usage: Marine Propulsion System
• Propeller nut tools and oil change socket
• Other tools are used for installation of the
are used to perform commonmaintenance
propulsion system into the hull of marine
Warranty: Caterpillar®Six Months
procedures in marine propulsion systems.
pleasure craft vessels.
S.No
Part No.
Description
Dimensions
Weight
TOOLAS. (REAR
Dia 89 x 75 mm
1.2 kg
1
467-6449
PROPELLER NUT)
(Dia 4 x 2.9 in)
(2.6 lb)
467-6449
TOOL AS. (OIL
Hex50 x 79 mm
0.5 kg
2
490-8560
CHANGE)
(Hex 2 x 3.2 in)
(1lb)
TOOL AS. (FWD
185 x 120 x 105 mm
3.6 kg
3
490-8561
PROPELLER NUT)
(7.3 x 4.7 x 4.2 in)
(8lb)
TOOLAS(ENGINE
1253 x 862 x 512 mm
26.7 kg
4
416-3253
STRINGER LOC)
(49.3 x 34 x 20.1 in)
(59 lb)
TOOL AS (LASER
701 x 450 x 47.7 mm
8.6 kg
490-8560
5
539-0595
CRADLE MOUNT)
(27.6 x 17.7 x 1.9 in)
(19 lb)
Dia. 10.5 x 25.5 mm
0.01 kg
6
554-5057
LIGHT-LASER
(Dia. 0.4 x 1 in)
(0.02 lb)
77 x 30 x 20 mm
0.16 kg
7
554-5058
BATTERY AS-PACK
(3 x 1.2 x .8 in)
(0.4 lb)
TOOL AS-HULL (SEAL
Hex 28.6 x 78 mm
0.34 kg
8
522-4748
490-8561
PRESSURE TEST)
(Hex 1.1 x 3 in)
(0.8 lb)
1077 x 826 x 31.7 mm
16.8 kg
9
416-3236
PLATE AS.-DRILL
(42.4 x 32.5 x 1.2 in)
(37 lb)
TOOL AS.
230 x 127 x 79.8 mm
1 kg
10
539-0612
(LASER CRADLE)
(9 x 5 x 3.1 in)
(2.2 lb)
TOOL AS (LASER
95 x 73 x 89.5 mm
0.83 kg
11
461-9266
HOLDER)
(3.7 x 2.9 x 3.5 in)
(1.9 lb)
TOOL-ALIGNMENT
544 x 170 x 16 mm
3.9 kg
12
490-8562
TARGET
(21.4 x 6.7 x .6 in)
(8.6 lb)
1128 x 877 x 369.2 mm
44.1 kg
13
416-3245
TOOL AS.-FLATTENING
(44.4 x 34.5 x 14.5in)
(97 lb)
3-331 JULY 2018 Engine Tools
JULY 2018 Engine Tools
3-331
General Shop Tools

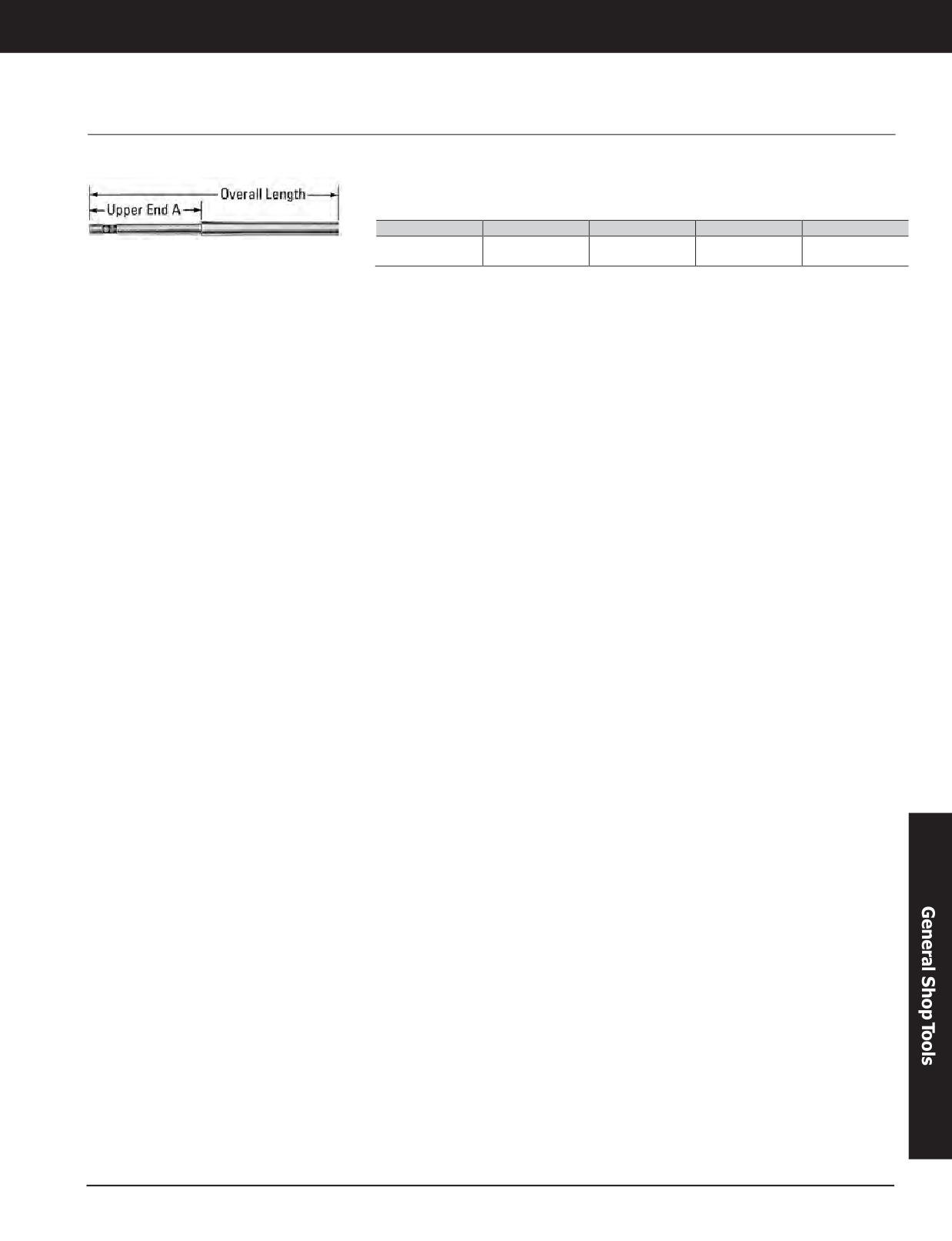

Tapered Pilots and Plug Gauges
Warranty: Caterpillar ®Six Months
• Patented pilot illustrated shows length of
tapered pilot from end to end indicated as
overall length (The other section of the pilot is
indicated as upper end)
Part Number
Size Fractional
Size (Decimal)
Overall Length
Upper End
9.5 mm
9U-5453
9.60 mm (0.378 in)
203.2mm (8in)
101.6mm (4in)
(3/8 in plus 0.001)
JULY 2018 General Shop Tools
14-
General Shop Tools

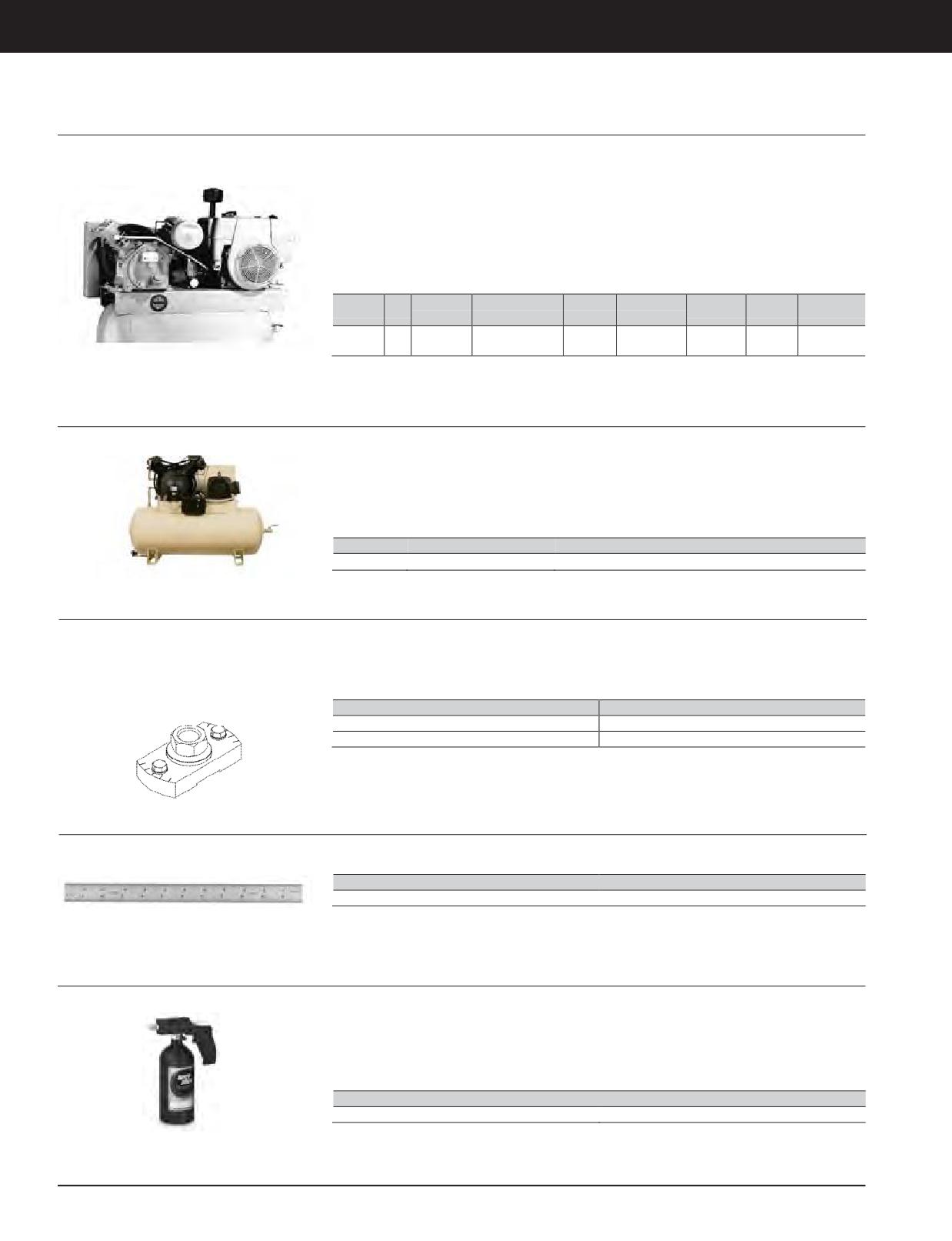

Gasoline Engine-Driven Air Compressors
Warranty: Caterpillar ®Six Months
• Cast iron frame and cylinders
• Constant speed control with engine slow-
down
• Ductile iron crankshaft
• Standard equipment: Kohler, air-cooled
• Splash lubricated
gasoline engine, magneto ignition with
• 2-stage design
12-volt electric key start, 1.5 gallon fuel tank,
• V-belt drive
10-micron inlet filter on compressor, totally
enclosed belt guard (TEBG), manual tank drain
• Kohler Magnum Series engine
Alternator
Air Delivery @
Receiver
Shipping
Part No.
HP
Length
Width
Height
Yes
175 PSIG
Size
Weight
204kg (450
1,117.6 mm
558.8 mm
1,168.4 mm
4C-4440
12.5
X
24 cfm
30 gal
lb)
(44in)
(22in)
(46in)
Air Compressor
Model Usage: 49HR Drill
• Horizontal tank
• 175 psi maximum pressure
• Belt-driven splash-lubricated pump
• 40 cfm at 175 psi
• Automatic drain system
• 380 volt, 3 phase, 50 Hz
• Stationary mounting
Part No.
Description
Dimensions
388-6629
Air Compressor
1981.2 x 762 x 1422.4 mm (78 x 30 x 56in)
Locknut Wrench Assembly
Essential Tool
• Used to adjust tension on cutting chain—
• Used with 1 13/16 inch socket
this tool provides the only safe and efficient
Model Usage: Feller Buncher (HF181, HF201,
• Distance between pins: 117.0 mm (4.60 in)
way of adjustment
HF221 Felling Head)
Warranty: Caterpillar ®Six Months
Part Number
Description
186-3646
Locknut Wrench Assembly
187-3978
Adapter
Steel Rule
Warranty: Caterpillar ®Six Months
• Length x width: 304.8 x 25.4 mm (12.0 x 1.0 in)
Part Number
Description
5P-3920
Rule - Steel
Sprayer Tool
Warranty: Manufacturer's
• 24 ounce vessel capable of holding
• Adjustable nozzle
pressurized oil solvent or water-based liquids
• Chemical-resistant black anodized finish
• Save money for jobs requiring spraying liquids
• Maximum pressure of 200 PSI
• Sprayer Tool can be reused
Part Number
Description
452-6867
Sprayer Tool
14-2 JULY 2018 General Shop Tools
General Shop Tools

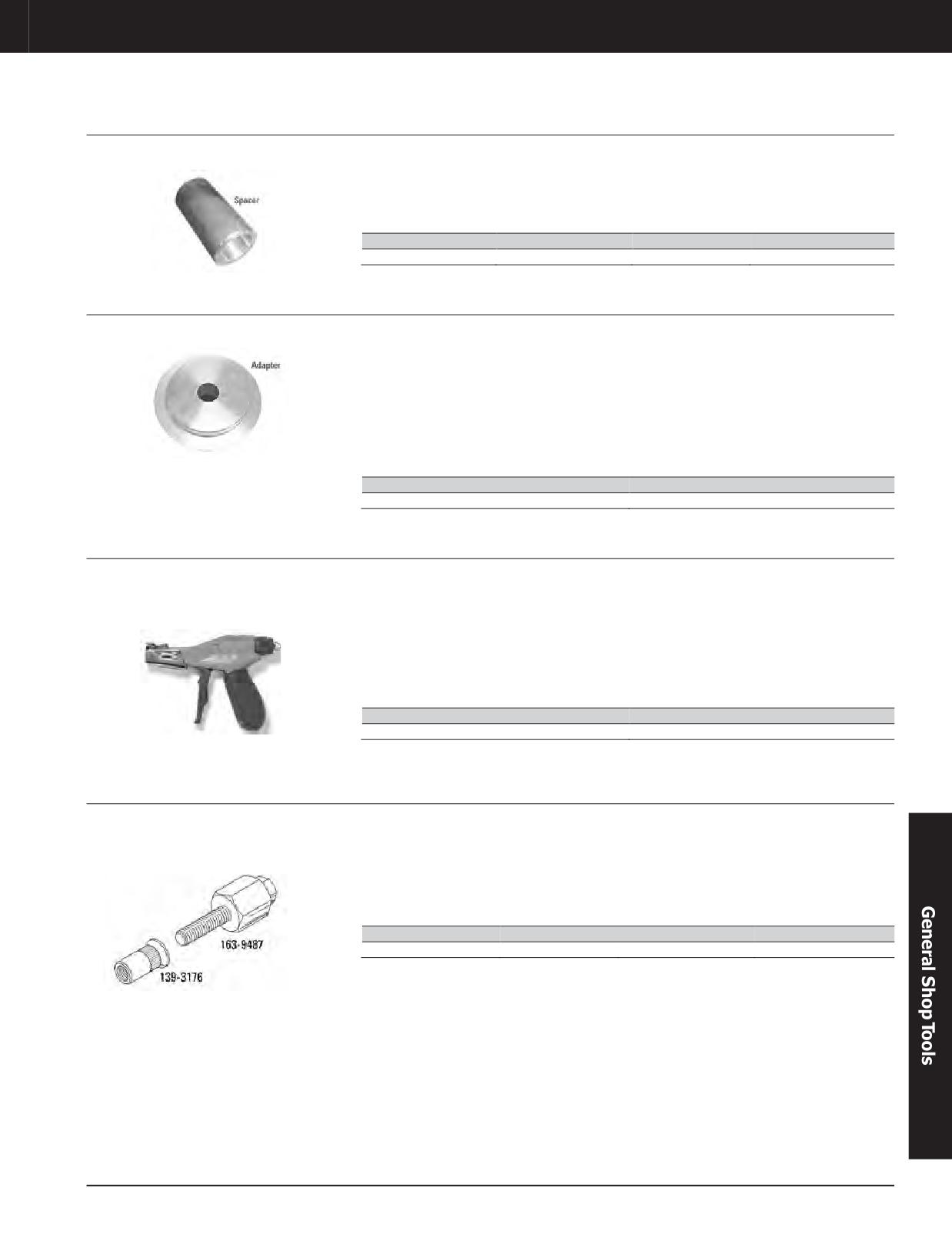

Spacer
Warranty: Caterpillar ®Six Months
• Used to adapt a deburring wheel to a 3/4 inch
• Deburring wheel can be used in many
shaft bench grinder
applications including deburring permanent
hose couplings
• Used with 4C-8296 Bench Grinder and
8T-7749 Deburr Wheel
• Requires 1 spacer and 2 adapters (187-3978)
Part Number
Description
Material
Weight
187-3977
Spacer
Steel
0.0807 kg (0.18lb)
Adapter
Warranty: Caterpillar ®Six Months
• Used to adapt a deburring wheel to a 3/4 inch
• Requires 2 adapters and 1 spacer (187-3977)
shaft bench grinder
Specifications
• Used with 4C-8296 Bench Grinder and
• Material: Aluminium
8T-7749 Deburr Wheel
• Weight: 0.33 kg (0.7275 lb)
• Deburring wheel can be used in many
applications including deburring permanent
• Max. Operating Speed: 4000 RPM
hose couplings
• Hole Diameter: 19.05 mm (3/4 in)
Part Number
Description
187-3978
Adapter
Crimp Tool
Model Usage: 735B, 740B and other Tier 4
• Tightens and cut stainless steel cable ties
Specifications
engine applications
• Used on 290-1993 cable strap for Tier 4
• Dimensions: 228 x 165 x 57 mm
Warranty: Caterpillar ®Six Months
engine applications
(9 x 6.5 x 2.25 in)
• Material: Steel and Plastic
Reference
• UENR0203 Engine Supplement Disassemble
& Assembly
Part Number
Description
305-2395
Crimp Tool
Installation Tool
Model Usage: PS150/200B Pneumatic
• Installs 139-3176 Threaded Insert (M10 x 1.5)
• Compact design allows installation in
Compactor
confined area
• Used with standard hand tools to thread
Warranty: Caterpillar ®Six Months
insert in hole
Reference
• Allows convenient field repair of stripped or
• NEHS0677, Special Instruction
damaged threads
Part Number
Hex Size
Length
Bolt Thread
163-9487
9/16 in
12.7mm (0.50in)
M10 x 1.5
JULY 2018 General Shop Tools
14-3
General Shop Tools

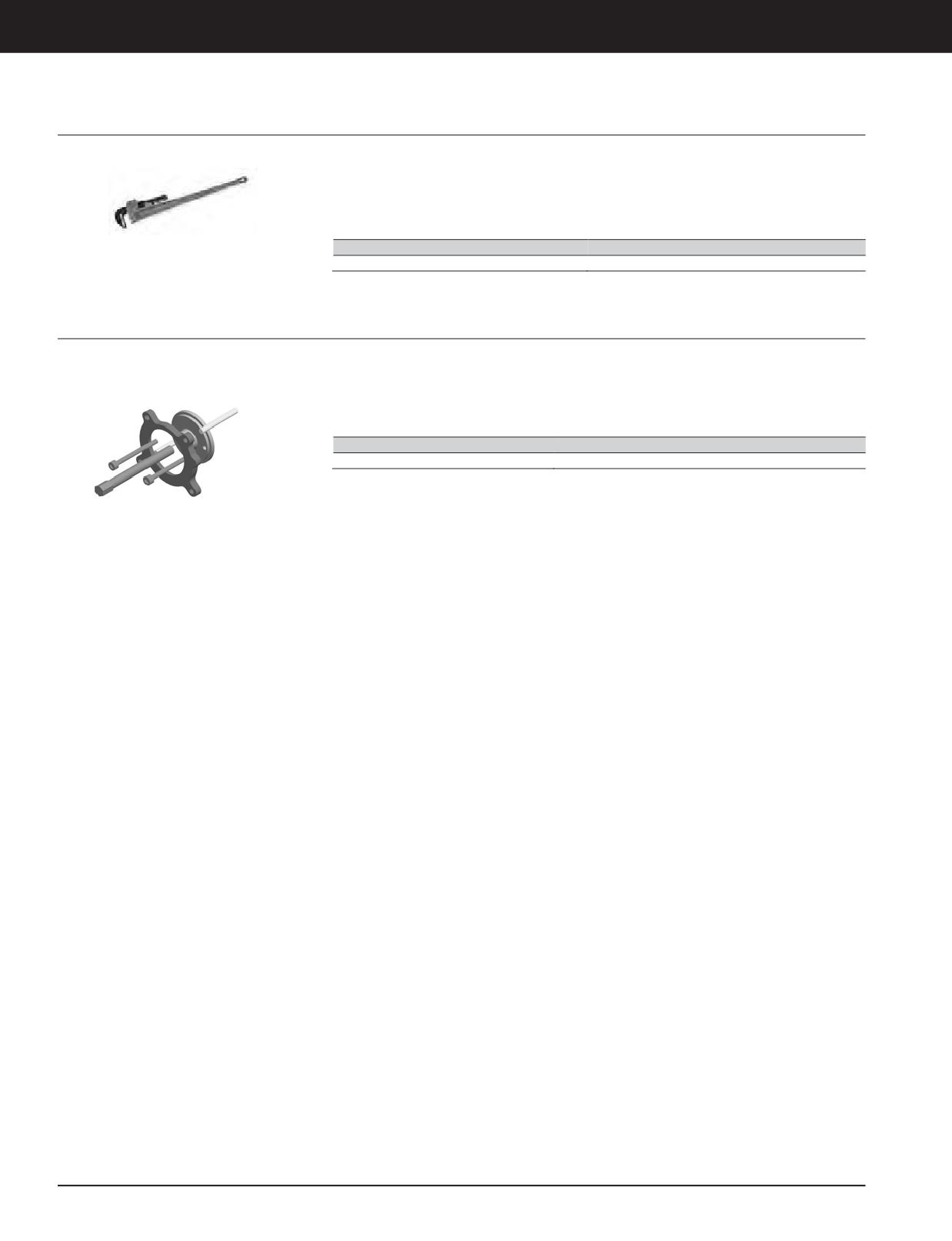

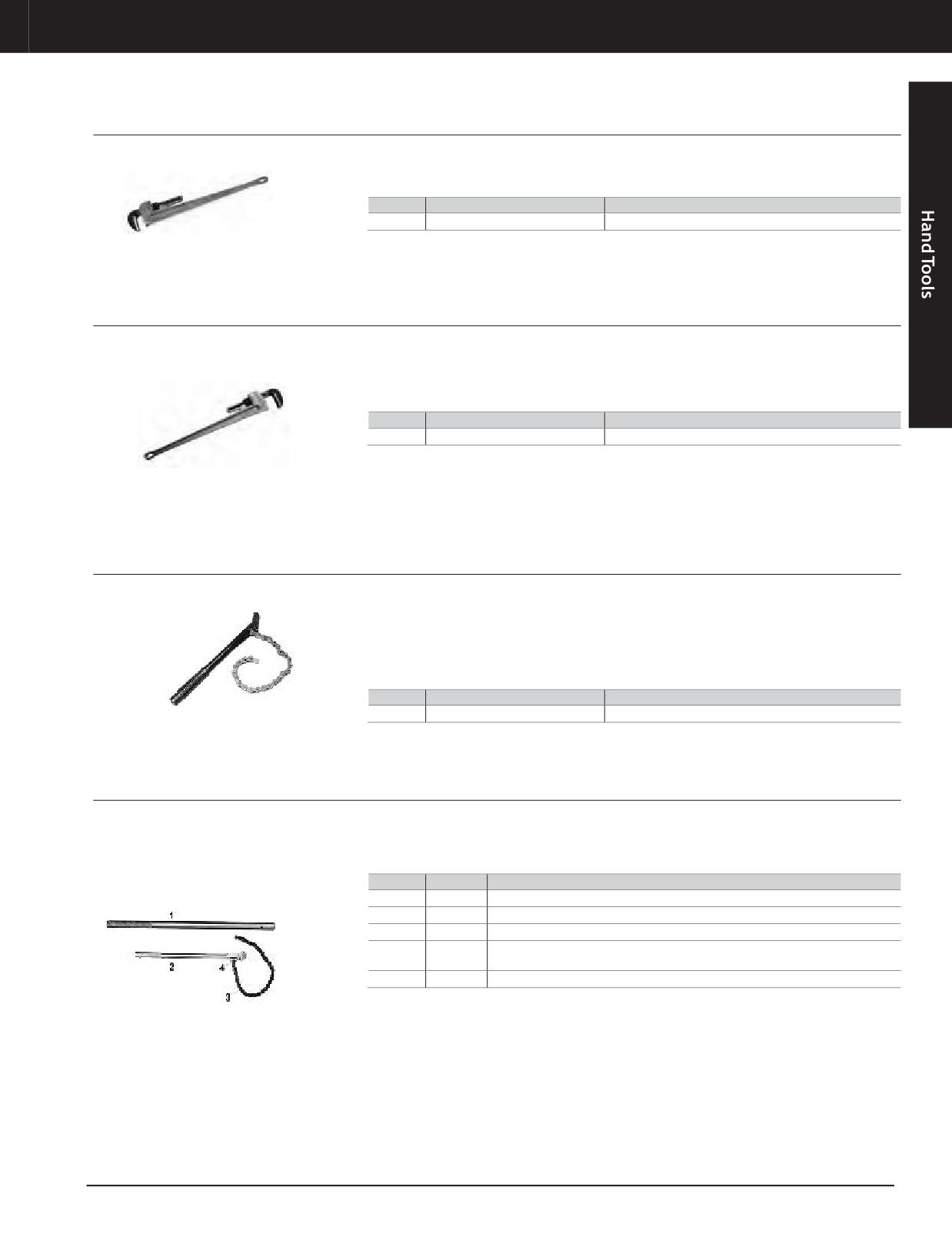

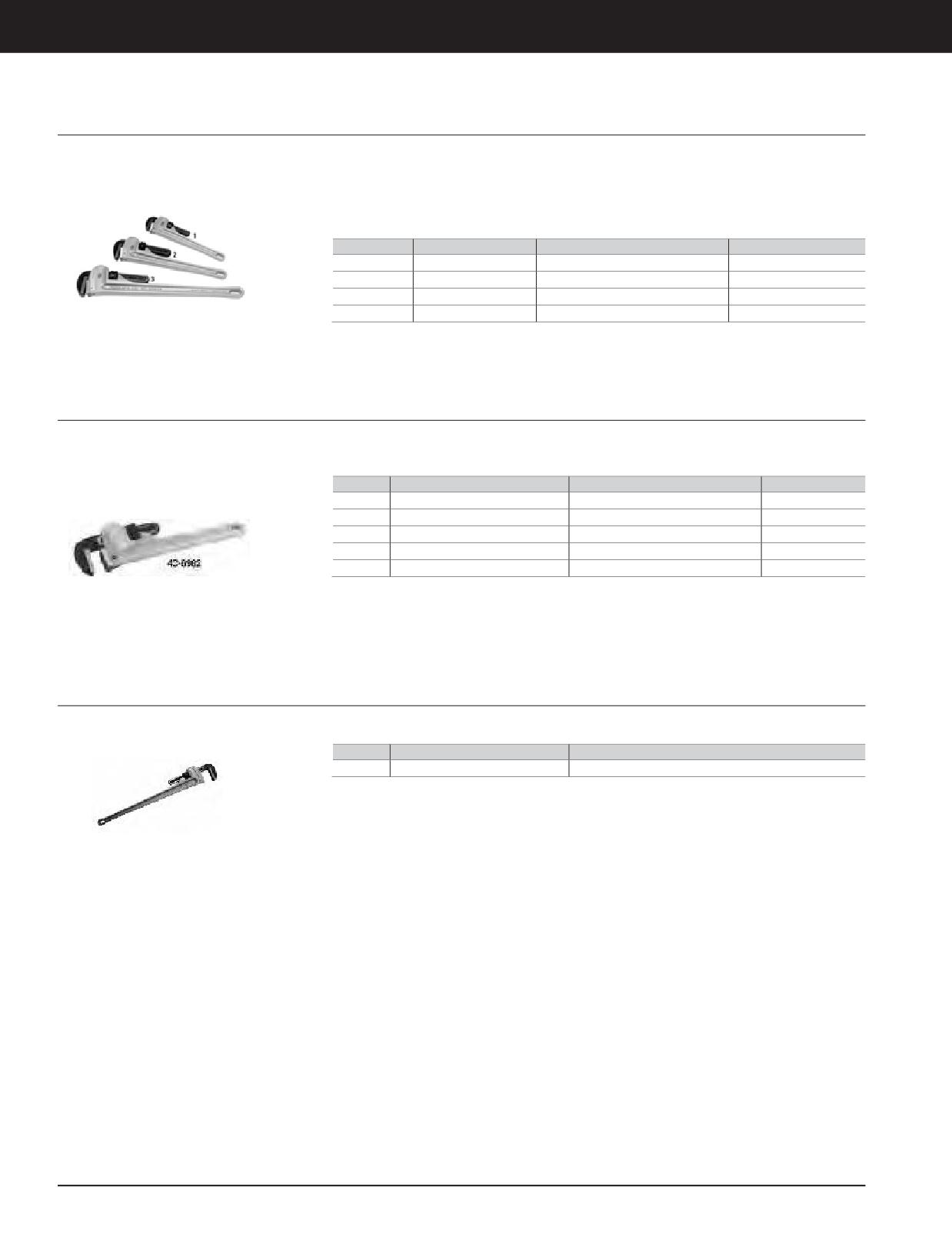

Pipe Wrench (48 inch)
Warranty: Caterpillar ®Six Months
• Heavy-duty construction for strength and
Specifications
durability
• Max Pipe Capacity: 152.4 mm (6.00 in)
• Forty percent lighter than cast iron
• Length: 1219.0 mm (48.00 in)
• Built-in pipe diameter scale
Part Number
Description
457-3048
Pipe Wrench (48 inch)
High Pressure Pump Removal Tool
Model Usage: CT660 11 & 13 Liter Engines
• Used to remove high pressure fuel pump from
Specifications
accessory drive housing during off-vehicle
Warranty: Manufacturer’s
• Dimensions: 292.1 x 130.2 mm (11.5 x 5.1 in)
repairs
• 414-7694 also requires 373-4796 for use
Part Number
Description
424-7694
High Pressure Pump Removal Tool
14-4 JULY 2018 General Shop Tools
General Shop Tools
Radio Removal Tool
Model Usage: CT660 Truck
• Easily removes audio unit from dash of CT660
Specifications
Warranty: Manufacturer’s
• Dimensions: 82.5 x 37.3 mm (3.25 x 1.47 in)
Part Number
Description
424-2882
RadioRemovalTool
Insert Pliers, Insert Installers
Essential Tool
• Used to installM4, M5,M6, and M8 metric
• Installs into hex hole (radius corners expand
threaded inserts with radius corner hex bodies
to fill mounting hole)
Model Usage: All Skid Steer Loaders
• Combination pliers/insert installer properly
• Insert installers sold separately and easily
Warranty: Caterpillar ®Six Months
installs insert even in various material
attach to pliers
thicknesses
• Overall length: 270 mm (10.6 in)
Part Number
Description
Size
204-6327
Insert pliers
-
205-0569
Insert installer
M4 x 0.7
205-0570
Insert installer
M5 x 0.8
204-5905
Insert installer
M6 x 1.00
204-5906
Insert installer
M8 x 1.25
Sensor Installer Tools
Model Usage: 323F HEX, 336F XE
• Aligns the Anisotropic Magneto Resistive
(AMR) sensor perfectly with the guard during
Warranty: Caterpillar ®Six Months
installation
Part No.
Description
Dimensions
Weight
506-7101
Tool-Installer
506-7101
Dia 233 x 18 mm (Dia 9.2 x 0.7in)
2.5 kg (5.5 lb)
(336 HEX AMR Bucket)

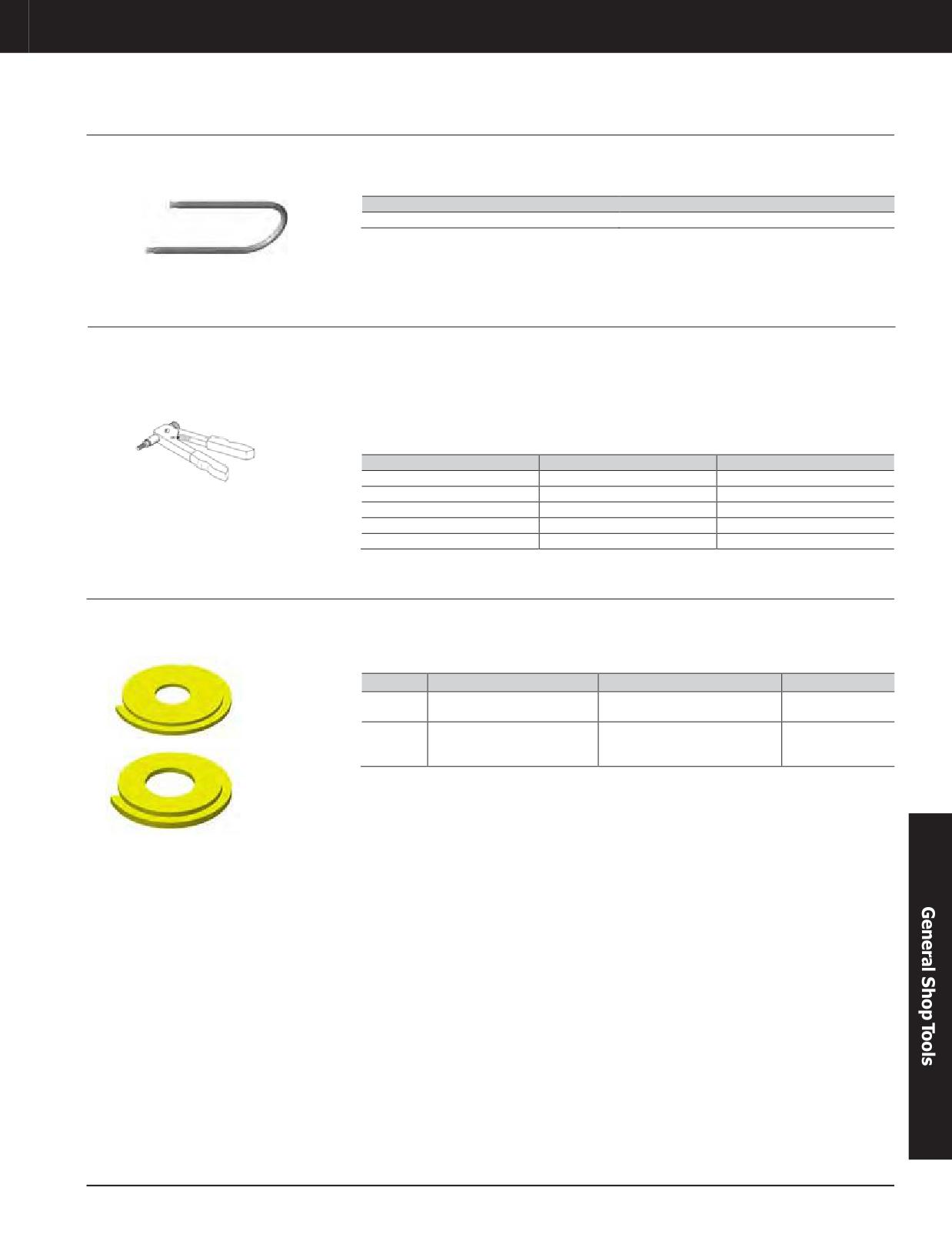

Tool-Installer
506-7102
(320, 320GC, 323 HEX AMR
Dia 171 x 18 mm (Dia 6.7 x 0.7in)
1.2 kg (2.7 lb)
Bucket Sensor)
506-7102
•
JULY 2018 General Shop Tools
14-5
General Shop Tools
Trim Tool
Model Usage: CT660 Truck
• Customizes, installs and finishes exterior and
Specifications
interior trim
Warranty: Manufacturer’s
• Dimensions: 279.4 x 45.7 x 177.8 mm
• Tapered forks slide under most types of body
(11.0 x 1.8 x 7.0 in)
clips; a squeeze of handle extracts clips out
• Weight: 0.5 kg (1.0 lb)
Part Number
Description
377-5250
Trim Tool
14-6 JULY 2018 General Shop Tools
General Shop Tools

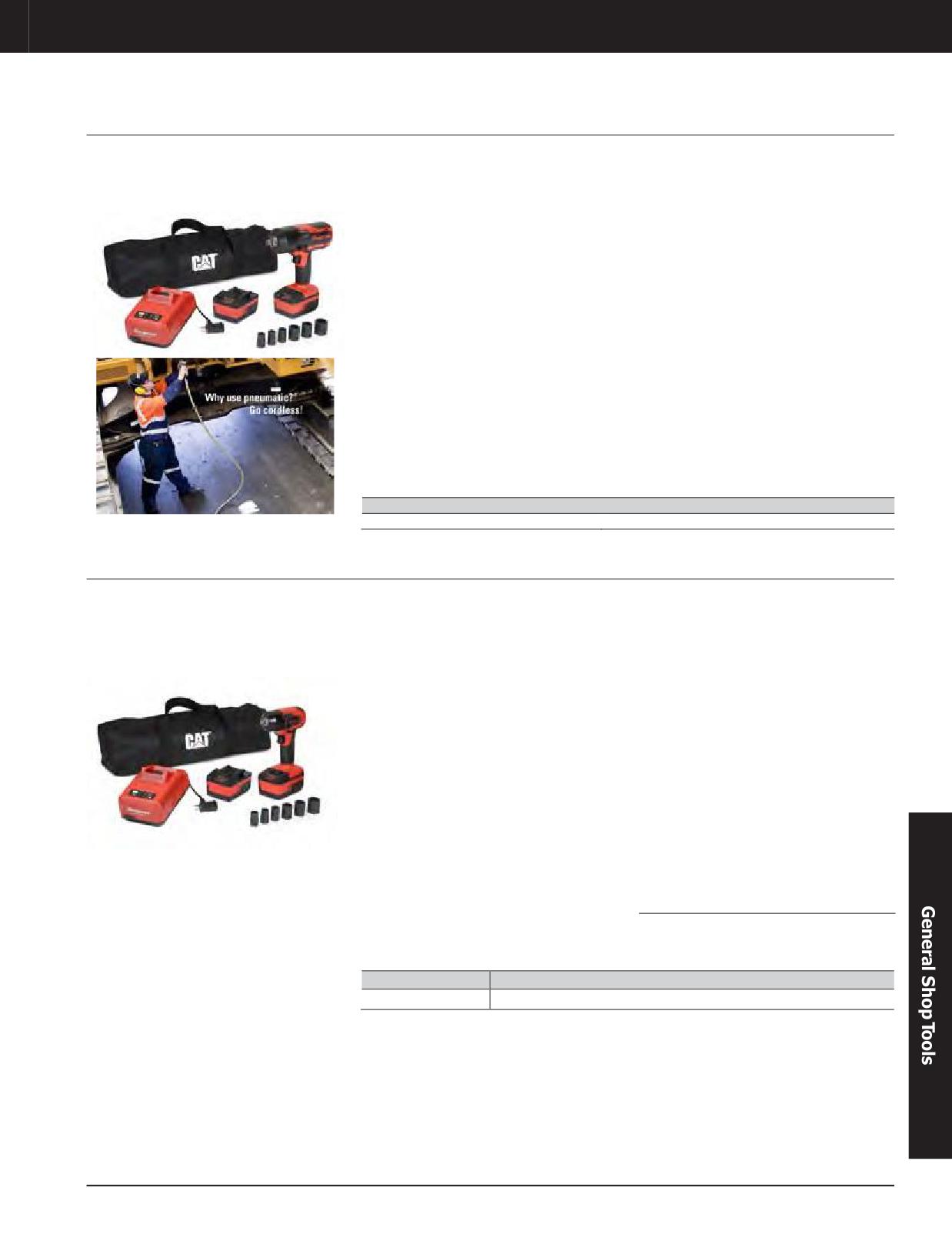

Drive Cordless Impact Wrench Kit (1/2 in)
Warranty: Manufacturer's One Year) on Wrench
UL, CUL, CE marked
• Charge time 60 minutes/5 amp via USB port
and Charger;
(built into charger)
• 600 ft/lb (813 Nm) of torque output with
Manufacturer’s Two Years on Batteries
750 ft/lb (1,017 Nm) of bolt breakaway torque
Kit Includes:
• Soft-start trigger goes from zero to 1,900 RPM
• 1/2” Drive Cordless Impact Wrench
free speed with 2,280 blows per minute.
• Battery Charger with USB Port
• Sintered rare earth magnet motor delivers
• Two 18v Lithium Battery Packs
more torque with less battery drain.
• Set of Six Cat® 1/2” Impact Sockets:
• Built-in brake stops anvil to prevent thrown
13 mm, 19 mm, 1/2”, 9/16”, 3/4”, 7/8”
fasteners or sockets.
• MonsterLithium™ Cordless LED Work Light
• Integrated LED covers work areas with super-
(see below)
bright light.
• Cat branded storage bag
• Digital microprocessor-controlled switch
maximizes performance, runtime, and
Specifications
durability.
• Dimensions: 9.2 x 7.7 in (234 x 196 mm)
• Integrated battery management prevents
• Weight: 15.4 lb (7 kg)
battery drain and prolongs tool life.
• Drive: 1/2 in
Part Number
Description
463-6821
Cordless Impact Wrench Kit (18v)
Cordless Impact Wrench Kit (3/8 in)
Warranty: Manufacturer’s One Year on Impact
UL, CUL and CEMarked
• Charge time 60 minutes/5 amp
Tool and Charger; Manufacturer’s Two Years on
• 600 ft lb (813 Nm) or torque output with
• USB built into charger
Batteries; Caterpillar ®Lifetime on Sockets;
750 ft lb (1017 Nm) of bolt breakaway torque
• Cat® 3/8 in impact sockets: 13 mm, 19mm,
Caterpillar®Six Months on Tool Bag
• 1900 RPM free speed with 2,280 blows per
1/2 in, 9/16 in, 3/4 in and 7/8 in
minute
• Cat bag: 9.2 in (234 mm) x 7.7 in (196 mm)
• Soft-start trigger
• 13# (5.93kg)
• Uses a sintered rare earth magnet motor to
Contents
deliver more torque with less battery drain
• 3/8” Drive Cordless Snap-on Impact Wrench
• Built-in brake stops anvil to prevent thrown
fasteners or sockets.
• Two 18 v Lithium Batteries
• Integrated LED covers work area in super
• 100-240 volt/50-60 Hz Compatible Charger
bright light.
• Six Cat Impact Sockets
• Digital microprocessor-controlled switch
• Cat Storage Bag
maximizes performance, runtime, and
durability.
WARRANTY INFORMATION
• Integrated battery management prevents
Send warranty-related questions to
battery drain and prolongs tool life.
global_warranty@cat.com or catwarranty@snapon.com,
262-656-4769
Part No.
Description
512-7546
Cordless Impact Wrench Kit (3/8 in)
JULY 2018 General Shop Tools
14-7
General Shop Tools

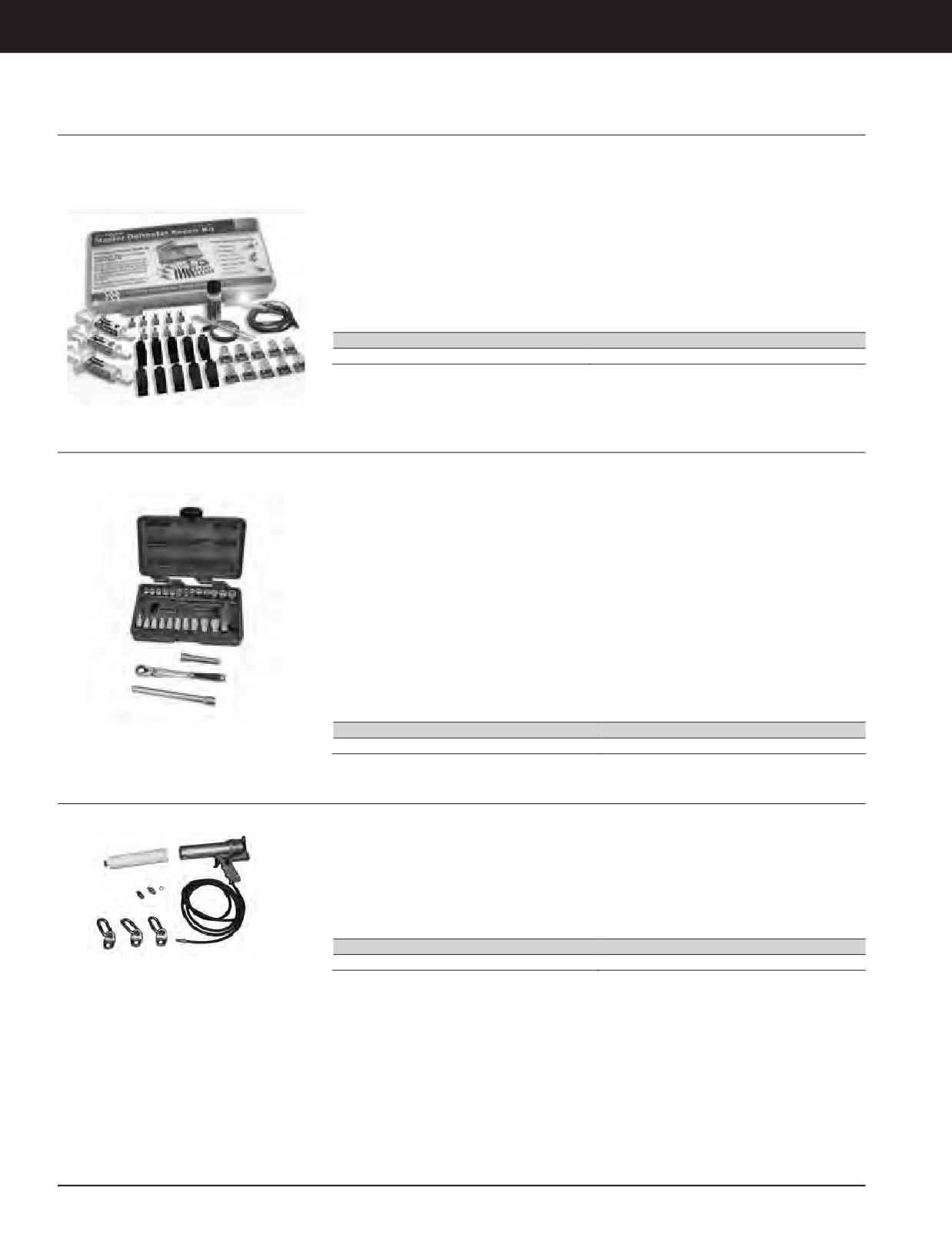

Defroster Repair Kit
Model Usage: All Cat® machines with
• Used to repair the most common rear window
• Kit includes, tab repair kit, grid repair kit,
electrically heated windows for defrost
defroster problems, including broken grids,
trouble lamp, and solder paste:
separated tabs, lost or damaged connectors
- Tab repair kit is used to bond defroster tabs
Warranty: Caterpillar ®Six Months
and tabs
back to defroster
- Grid repair kit is used to repair scratched or
• Equipped with 10 uni-con replacement
broken defroster grid lines
connectors and 10 uni-clip replacement tabs
- Trouble lamp is used for fast
troubleshooting of defrosters in the field
- Solder paste is used when solder is
required to repair defroster tabs
Part Number
Description
385-1201
Defroster Repair Kit
Socket Kit for Installing Electrical Sensors
Warranty: Caterpillar ®Six Months
• Used to remove and install electrical sensors
Kit Includes:
that require clearance for wires
• SAE sockets: 5/32, 3/16, 7/32, 1/4, 9/32,
• 1/4 inch square drive
5/16, 3/8, 7/16, 1/2, 9/16
• Also used for nut and bolt removal or
• Metric sockets: 3.5, 4, 4.5, 5, 5.5, 6, 7, 8, 9,
installation, in place of a deep well socket set
10, 11, 12, 13
• Hollow drive tool and socket design
• 76 and 152 mm (3.0 and 6.0 in) extensions
eliminates the need for special sensor
• Locking flex gear ratchet handle with 11
removal tools (wires can pass through socket,
locking positions with flexible head
extension, and ratchet wrench)
1/4 in drive adapter allows standard square
•
• Durable chrome plated finish
drive sockets (not included) to be used with
flex gear ratchet handle
• Molded carry case
Part Number
Description
344-2750
Socket Kit
Heavy-Duty Air Powered Caulking Gun
Warranty: Caterpillar ®Six Months
• Easy twist-lock loading
• Air pressure requirements are 34.5 to 690 kPa
(5 to 100 PSI)
• Smooth uniform bead dispensing
• 3.048 m (10 ft) air line with standard 6.35 mm
• No after-dripping
(1/4 in) fittings supplied
• Pistol handle grip for comfort
• All metal construction
Part Number
Description
4C-6507
Caulking Gun
14-8 JULY 2018 General Shop Tools
General Shop Tools
Spanner Assembly
Model Usage: 773F through 777F Off-Highway
• Used to remove and install the following
• Pins engage latch so it can be removed or
Trucks and 336, 337, 406, 407, and 220B through
window latches: 8Y-8294, 201-9820, and
installed without damage
580B Telehandlers
269-7548 Two Pin Latch Assemblies 213-3263
• Two-sided design allows tool to fit multiple
Four Pin Latch Assembly
Warranty: None
applications
• Can be used with 6V-7798 Socket Assembly
• Made from 3F-6353 Bolt (1-8)
Part Number
Description
1L-5316
Spring Pin
3H-1118
Spring Pin

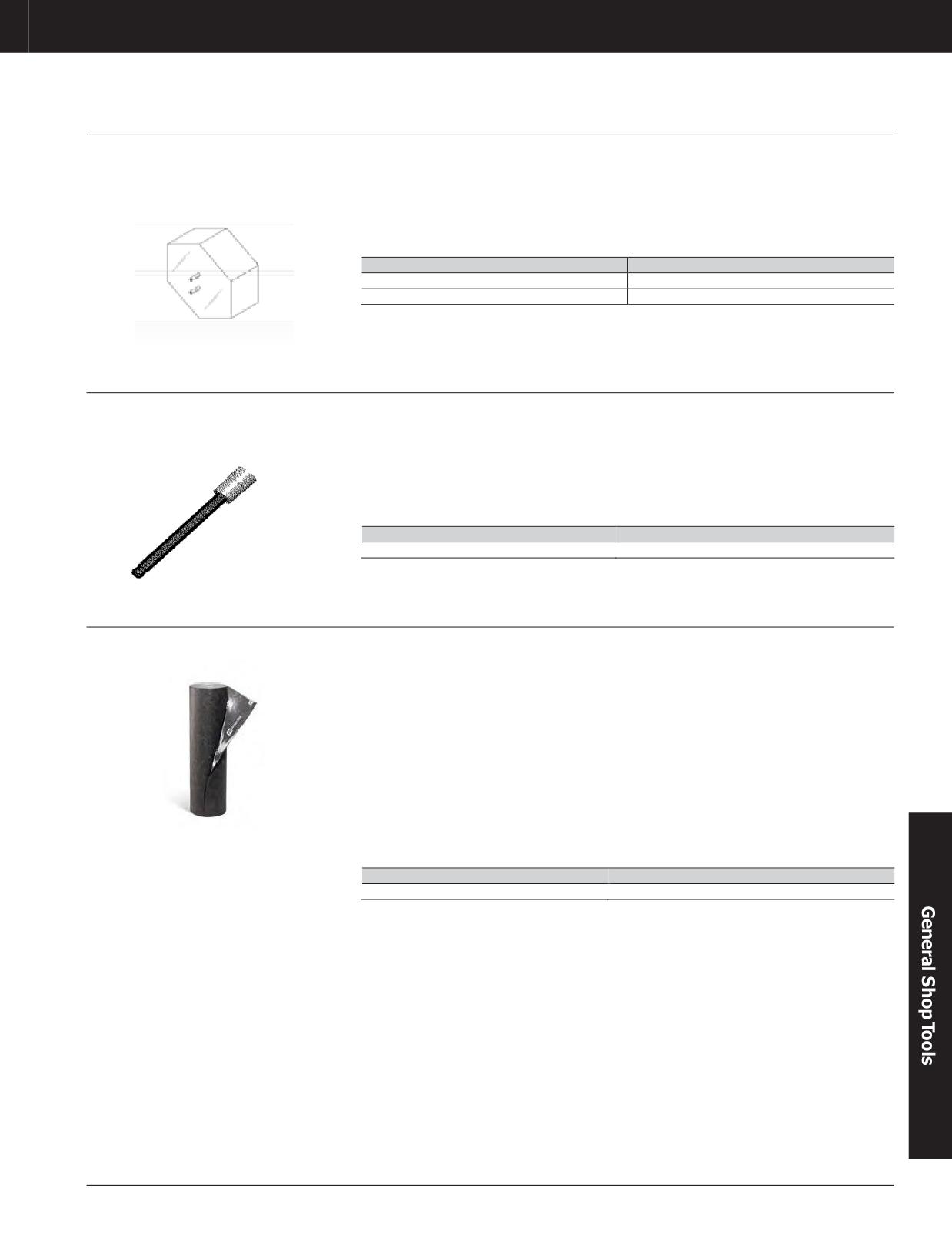

Special Hex Driver Bit
Model Usage: C175 Engine with Auxiliary Driven
• Used to torque the auxiliary drive bolts on the
Specifications
Pumps
C175 engine without removing front cover
• Dimensions: 17.2 x 120.0 mm (.67 x 4.72 in)
Warranty: Caterpillar ®Six Months
• Special 8 mmhex ball driverdesigned to
• Weight: .07 kg (.15 lb)
withstand a higher torque
• Maximum Torque: 135.5 N·m (100 ft-lb)
• Material: Hardened and plated steel
Part Number
Description
378-4523
Special Hex Driver Bit
Pig® Grippy® Absorbent Mat
Warranty: Caterpillar ®Six Months
• Absorbs and retains water, oils, grease,
• Liquid proof barrier layer prevents seepage
coolants, solvents, etc., while preventing dirt,
through the mat
sand, and liquids from being tracked off onto
• Dark color hides grime allowing longer use
clean floors
• Absorbs up to 13 gal (49 L)
• Demonstrated to reduce slips and falls by as
much as 90%
Specifications
• Grippy® backing holds mat in place but peels
• Dimensions: 36 in x 100 ft (914 mm x 30 m)
up easily without residue
• Weight: 24 pounds (11 kg)
• Heat-fuse and needle-punched for durability
• Holds up to heavy traffic, including power
trucks
Part Number
Description
473-6461
Pig® Grippy® Absorbent Mat
JULY 2018 General Shop Tools
14-9
Hand Tools
TOOL SETS

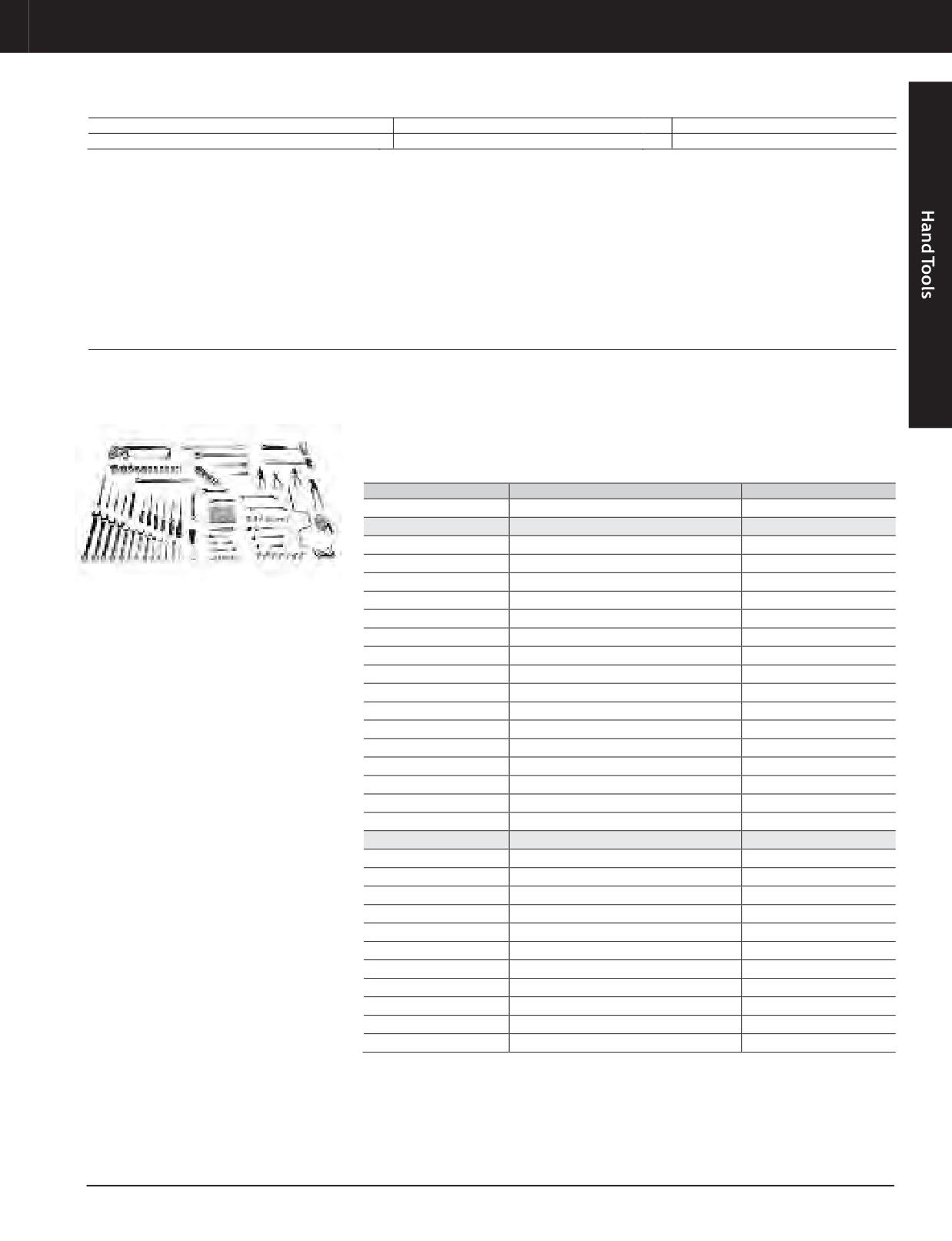

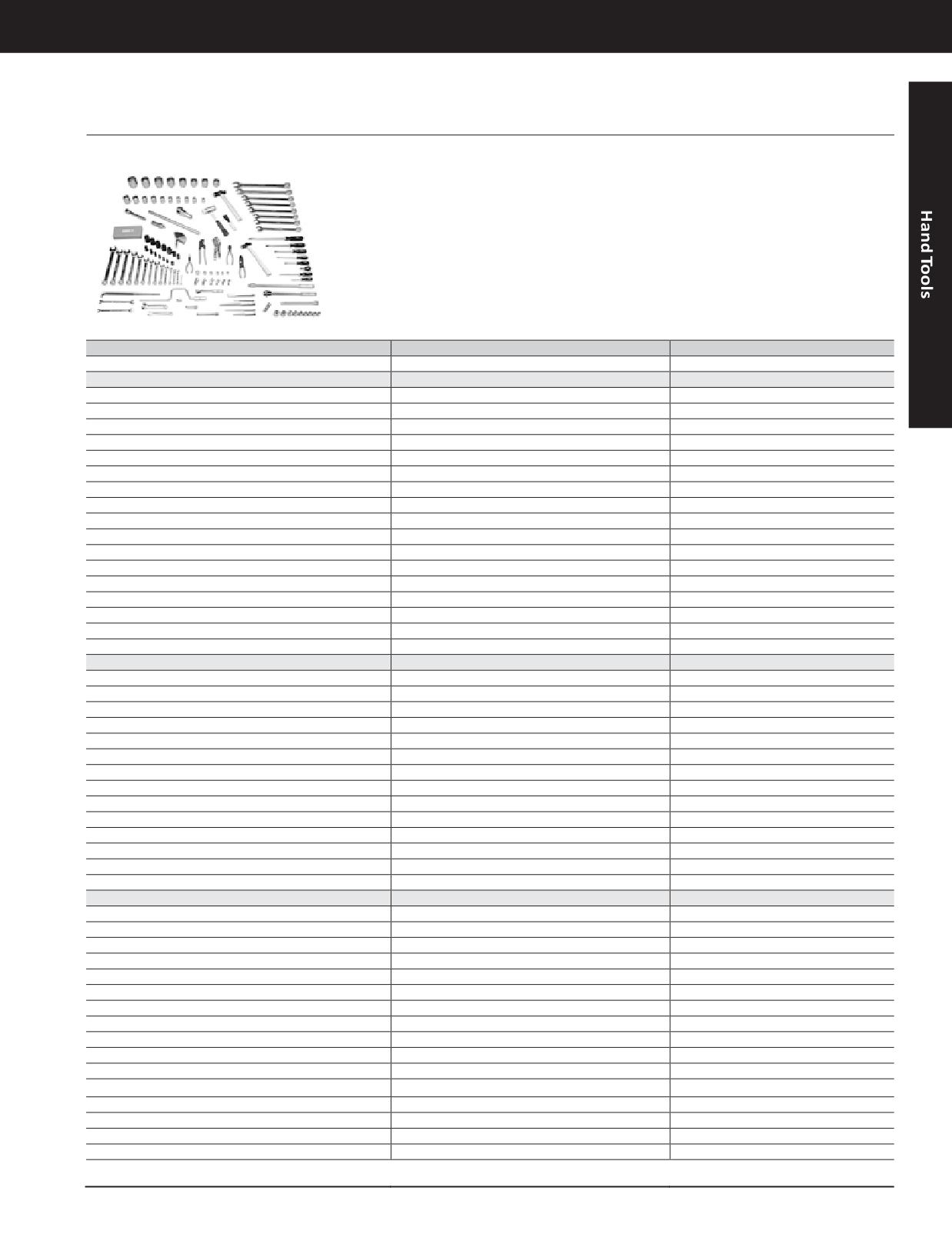

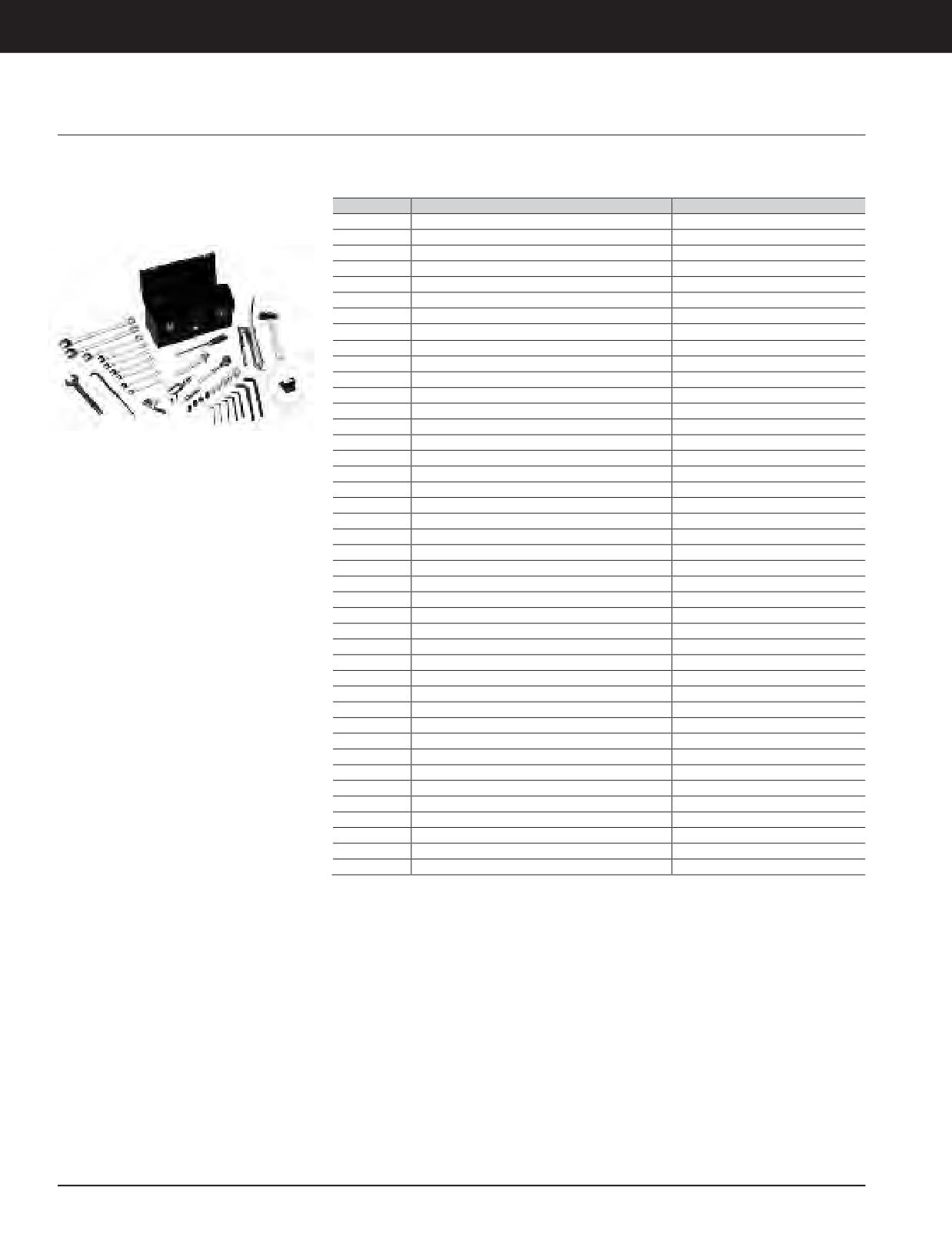

Serviceman's Tool Set, 117 Piece Set
Warranty: See Individual Part Number
• Ideal for servicemen apprentices and shop
• See 8T-0461Serviceman's Tool Set, 95 Piece,
mechanics
for a similar but smaller set of tools; 8T-0461
contains complete groups of 1/4 inch, 3/8 inch
• Large assortment of 3/8 inch, 1/2 inch and
and 1/2 inch drive tools
3/4 inch drive tools, 1/4 inch to 1 5/8 inch
wrenches, pliers, punches, hammers and
• Individual hand tools within the group have
screwdrivers
• Designed for use on heavy equipment
Part Number
Description
Size
8T-0460
Serviceman's Tool Set (117 piece tool set)
-
3/8inch Drive Tools
239-6824
Reversible Ratchet, 3/8 in Drive
3/8in
8H-8562
Universal Socket
7/16 in
8H-8563
Universal Socket
1/2in
8H-8564
Universal Socket
9/16 in
8H-8565
Universal Socket
5/8in
8H-8566
Universal Socket
3/4in
8H-8567
Socket
7/16 in
8H-8568
Socket
1/2in
8H-8569
Socket
9/16 in
8H-8570
Socket
5/8in
8H-8571
Socket
3/4in
8H-8573
Speeder Handle
3/8in
8H-8574
Socket Extension
76.2mm (3.00in)long
8H-8575
Extension Assembly
152.4mm (6.00in)long
8H-8576
Adapter
3/8 in Female to 1/2 in Male
8S-2274
Socket
3/8in
8S-2284
Universal Socket
3/8in
1/2inch Drive Tools
168-0383
Breaker Bar
1/2in
1S-0259
Socket
1/2in
239-6826
Reversible Ratchet
1/2in
8H-8549
Socket
9/16 in
8H-8550
Socket
5/8in
8H-8551
Socket
11/16 in
8H-8552
Socket
3/4in
8H-8553
Socket
13/16 in
8H-8554
Socket
7/8in
8H-8555
Socket
15/16 in
8H-8556
Socket, 1in
1in
8H-8559
Socket Extension
1/2 in drive, 254.0 mm (10.00 in) long
8H-8560
Universal Joint
1/2in
8H-8561
Adapter
1/2 in Female to 3/4 in Male
3/4inch Drive Tools
160-6389 (Warranty Lifetime-Repairable)
Reversible Ratchet Head
3/4in
162-8716
Ratchet Head Handle
-
8H-8504
Socket
2 1/4 in
8H-8529
Socket
3/4in
8H-8530
Socket
7/8in
8H-8531
Socket
15/16 in
8H-8532
Socket
1in
8H-8533
Socket
1 1/16 in
8H-8534
Socket
1 1/8 in
8H-8535
Socket
1 1/4 in
8H-8536
Socket
1 5/16 in
8H-8537
Socket
1 1/2 in
8H-8538
Socket
1 11/16 in
8H-8539
Socket
1 5/8 in
8H-8540
Socket
1 3/4 in
8H-8541
Socket
1 7/8 in
JULY 2018 Hand Tools
17-1
Hand Tools
TOOL SETS
8H-8542
Socket
2in
8H-8543
Socket
2 1/8 in
8H-8544
Socket
2 3/16 in
8H-8546
Breaker Bar Head
3/4in
8H-8548
Socket Extension
203.2mm (8.00in)long

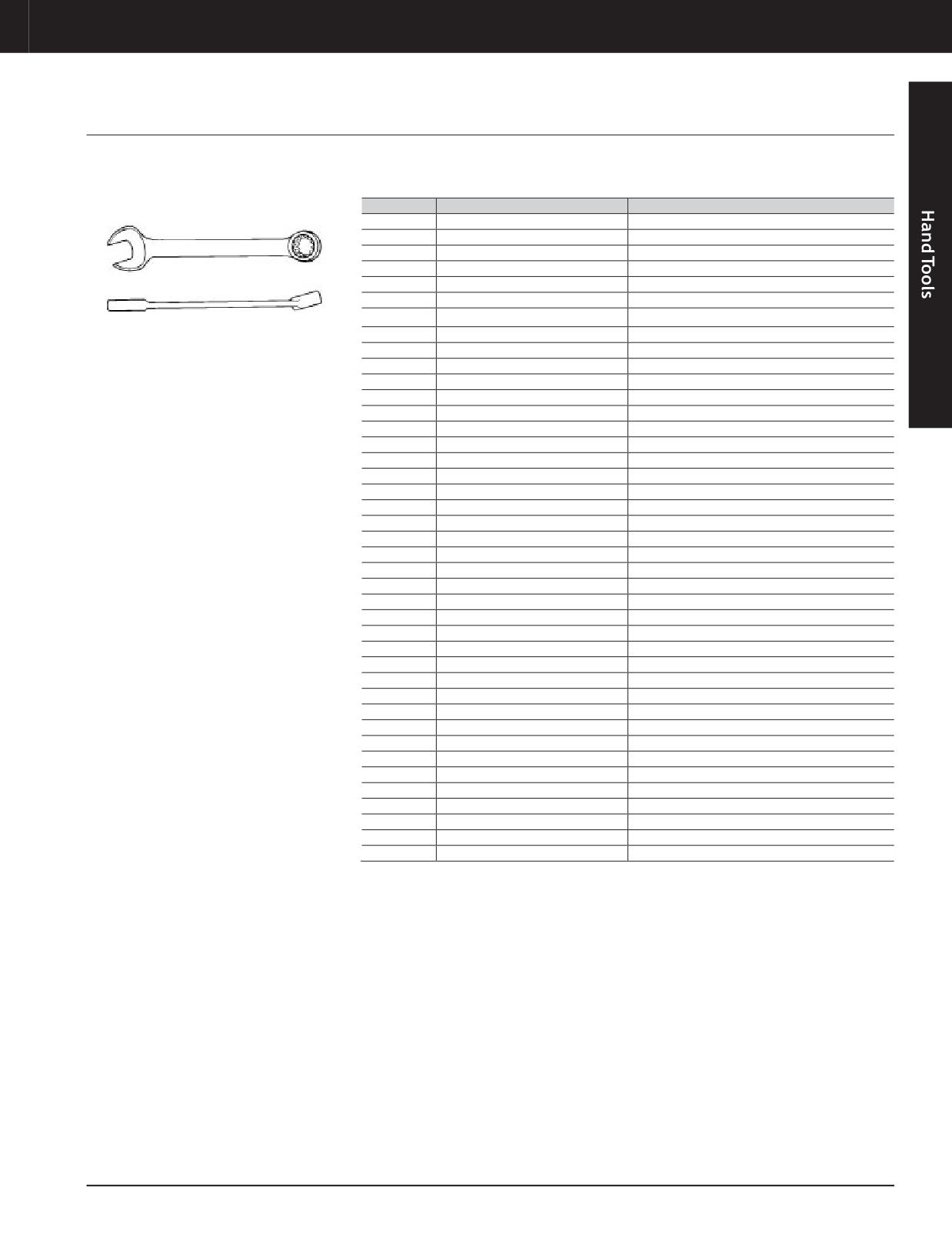

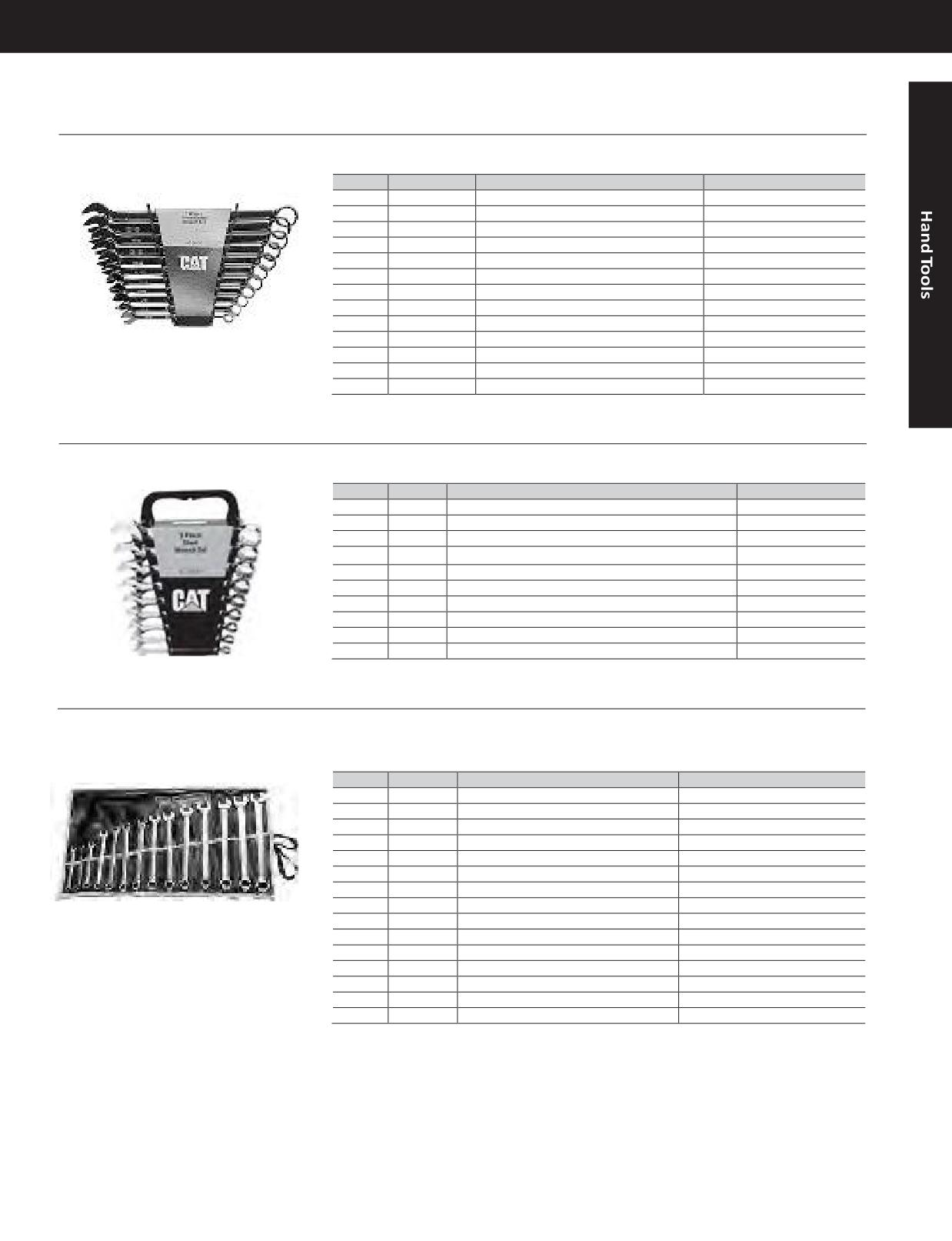

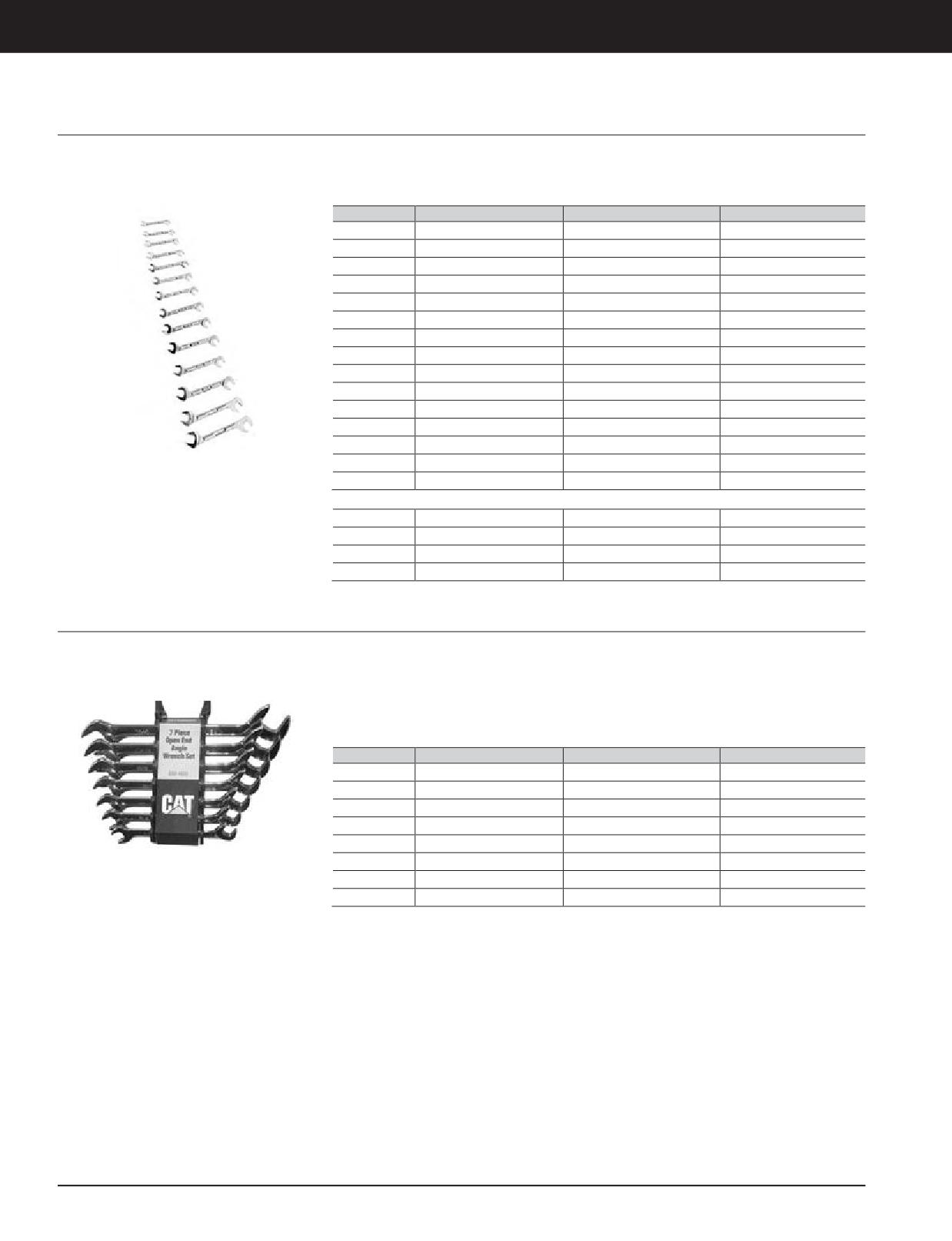

Combination Wrenches
1S-0253
Combination Wrench
3/4 in (short)
1S-0254
Combination Wrench
9/16 in (short)
4C-9592
Combination Wrench
3/8in
4C-9593
Combination Wrench
7/16 in
4C-9594
Wrench, 1/2 in (low idle adjustment)
1/2in
4C-9595
Combination Wrench
9/16 in
4C-9596
Combination Wrench
5/8in
4C-9597
Combination Wrench
11/16 in
4C-9598
Combination Wrench
3/4in
4C-9599
Combination Wrench
13/16 in
4C-9601
Combination Wrench
7/8in
4C-9602
Combination Wrench
15/16 in
4C-9603
Combination Wrench
1in
4C-9604
Combination Wrench
1/4in
4C-9605
Combination Wrench
5/16 in
8H-8423
Combination Wrench
1 5/8 in
8H-8424
Combination Wrench
1 1/2 in
8H-8501
Open End Tappet Wrench
1/2in x 9/16in
8H-8516
Combination Wrench
1 1/16 in
8H-8517
Combination Wrench
1 1/8 in
8H-8518
Combination Wrench
1 1/4 in
8H-8519
Combination Wrench
1 5/16 in
8H-8520
Combination Wrench
1 3/8in (short)
Sockets Designed for 12 Point Shoulder Bolts
541-3250
Shoulder Bolt Socket, 12 point
1/4in
541-3246
Shoulder Bolt Socket, 12 point
5/16 in
541-3238
Socket
3/8in
541-3235
Socket
7/16 in
541-3236
Socket
1/2in
8S-1594
Socket
9/16 in
541-3242
Socket
5/8in
541-3247
Socket
11/16 in
541-3244
Socket
3/4in
541-3249
Socket
13/16 in
8S-1599
Socket
7/8in
541-3248
Socket
15/16 in
541-3245
Socket
1in
Pliers, Punches, Screwdrivers and Hammers
1F-1159
Center Punch
3/16 in, 152.4 mm (6.00in)long
1F-1161
Chisel
3/4in Edge, 177.8 mm (7.00in)long
1S-0257
Ball Peen Hammer, 0.34 kg (12 oz)
1 1/8 in, 340.2 g (12 oz)
Soft Face Hammer (Serviceable parts of the hammer,
1S-0258
1 11/16 in, 907.2 g (32 oz)
1 MediumTip 3S-0460, 1 Hard Tip 3S-0459)
277-8790
Plastic Handle Screwdriver
1/2 in tip, 469 mm (18.47 in) long
316-0706
Locking Pliers
254mm(10.00in)
5F-4764
Rolling Head Pry Bar, 40.64 cm (16 in)
406.4mm(16.00in)long
6V-6192
Slip Joint Pliers
208 mm (8 in)
6V-6193
Diagonal Cutting Pliers
185.67 mm (7.31 in)
6V-6194
NeedleNose Pliers
181.1 mm (7.13 in)
6V-6195
Interlocking Joint Pliers
234.7 mm (9.25 in)
6V-7932
Standard Screwdriver
3/8 in tip, 342.1 mm (13.47 in) long
6V-7933
Standard Screwdriver
5/16 in tip, 277.11 mm (10.91 in) long
6V-7934
Phillips Screwdriver
No. 2 Phillips tip, 213.6 mm (8.41 in) long
6V-7935
Standard Screwdriver
1/4 in tip, 212.85 mm (8.38 in) long
6V-7936
Phillips Screwdriver
No. 1 Phillips tip, 162.9 mm (6.66 in) long
6V-7937
Standard Screwdriver
239.78mm (9.44in)long
6V-7938
Screwdriver
1/4 in tip, 100.1 mm (3.94 in) long
8H-8577
Ball Peen Hammer
2 lb, 1 1/4 in
8H-8578
Punch
3/8 in Point, 241.3 mm (9.50 in) long
8H-8579
Punch
5/32 in Point, 203.2 mm (8.00 in) long
17-2 JULY 2018 Hand Tools
Hand Tools
TOOL SETS
8H-8580
Scraper
38.1 mm (1.50 in) wide
8H-8581
Feeler Gauge
25 Blade, .0015 in - .025 in
Serviceman's Tool Set, 95-Piece Set
Warranty: See Individual Part Number
• Similar to 8T-0460 Serviceman's Tool Set,
• Individual hand tools within the group have a
except in drive tools
Lifetime Warranty; hand tools within a group
will be warranted when necessary
• 8T-0461 set contains complete groups of
1/4 inch, 3/8 inch and 1/2 inch drive tools;
• Tool box must be ordered separately
whereas the 8T-0460 set contains 3/8 inch,
1/2 inch and 3/4 inch drive tools
Part Number
Description
Size
8T-0461
Serviceman's Tool Group (full 95 piece set)
-
1/4inch Drive Tools
239-6823
Reversible Ratchet
1/4in
9S-1711
Socket
3/16 in
9S-1712
Socket
7/32 in
9S-1713
Socket
1/4in
9S-1714
Socket
9/32 in
9S-1715
Socket
5/16 in
9S-1716
Socket
11/32 in
9S-1717
Socket
3/8in
9S-1718
Socket
7/16 in
9S-1719
Socket
1/2in
9S-1720
Socket Extension
50.8 m (2.00 in)
9S-1721
Extension
101.6 mm (4.00 in)
9S-1722
Socket Driver
1/4in
9S-1724
Universal Joint
1/4in
9S-1725
Case
-
9S-2573
Socket, Deep Length
3/8in
3/8inch Drive Tools
239-6824
Reversible Ratchet, 3/8 in Drive
3/8in
8H-8562
Universal Socket
7/16 in
8H-8563
Universal Socket
1/2in
8H-8564
Universal Socket
9/16 in
8H-8565
Universal Socket
5/8in
8H-8566
Universal Socket
3/4in
8H-8567
Socket
7/16 in
8H-8568
Socket
1/2in
8H-8569
Socket
9/16 in
8H-8570
Socket
5/8in
8H-8571
Socket
3/4in
JULY 2018 Hand Tools
17-3
Hand Tools
TOOL SETS
8H-8573
Speeder Handle
3/8in
8H-8574
Socket Extension
76.2mm (3.00in)
8H-8575
Extension Assembly
152.4 mm (6.00 in)
8H-8576
Adapter
3/8 in Female to 1/2 in Male
541-3250
Shoulder Bolt Socket, 12 point
1/4in
541-3246
Shoulder Bolt Socket, 12 point
5/16 in
8S-2274
Socket
3/8in
8S-2284
Universal Socket
3/8in
9S-1727
Universal Socket
11/16 in
9S-1728
Socket
11/16 in
1/2inch Drive Tools
168-0383
Breaker Bar
1/2in
1S-0259
Socket
1/2in
239-6826
Reversible Ratchet
1/2in
8H-8549
Socket
9/16 in
8H-8550
Socket
5/8in
8H-8551
Socket
11/16 in
8H-8552
Socket
3/4in
8H-8553
Socket
13/16 in
8H-8554
Socket
7/8in
8H-8555
Socket
15/16 in
8H-8556
Socket, 1in
1in
8H-8559
Socket Extension
1/2 in drive, 254.0 mm (10.00 in)
9S-1729
Socket
1 1/16 in
9S-1730
Socket
1 1/8 in
9S-1731
Socket
1 1/4 in
9S-1732
Extension, 127 mm (5.0 in) Long (1/2 in Drive)
1/2 in drive, 127.0 mm (5.00 in)
Combination Wrenches
1S-0254
Combination Wrench
9/16 in (short)
4C-9592
Combination Wrench
3/8in
4C-9593
Combination Wrench
7/16 in
4C-9594
Wrench, 1/2 in (low idle adjustment)
1/2in
4C-9595
Combination Wrench
9/16 in
4C-9596
Combination Wrench
5/8in
4C-9597
Combination Wrench
11/16 in
4C-9598
Combination Wrench
3/4in
4C-9599
Combination Wrench
13/16 in
4C-9601
Combination Wrench
7/8in
4C-9602
Combination Wrench (2)
15/16 in
4C-9603
Combination Wrench
1in
4C-9604
Combination Wrench
1/4in
4C-9605
Combination Wrench
5/16 in
8H-8501
OpenEndTappetWrench(2)
1/2in x 9/16in
Pliers, Punches, Screwdrivers and Hammers
1F-1159
Center Punch
3/16in, 152.4 mm (6.00in)
1F-1161
Chisel
3/4in Edge, 177.8 mm (7.00in)
1S-0257
Ball Peen Hammer, 0.34 kg (12 oz)
1 1/8 in, 340.2 g (12 oz)
1S-0258
Soft Face Hammer, Serviceable parts: 1 med. tip 3S-0460, 1 hard tip 3S-0459
1 11/16 in, 907.2 g (32 oz)
208-6183
Hacksaw
419.0mm(16.50in)long
316-0706
Locking Pliers
254mm(10.00in)
5F-4764
Rolling Head Pry Bar, 40.64 cm (16 in)
406.4 mm (16.00 in)
6V-6192
Slip Joint Pliers
208 mm (8 in)
6V-6193
Diagonal Cutting Pliers, 44.45 cm (17 1/2 in)
185.67 mm (7.31 in)
6V-6194
NeedleNose Pliers
181.1 mm (7.13 in)
6V-6195
Interlocking Joint Pliers
234.7 mm (9.25 in)
17-4 JULY 2018 Hand Tools
Hand Tools
TOOL SETS
6V-7932
Standard Screwdriver
3/8 in tip, 342.1 mm (13.47 in) long
6V-7933
Standard Screwdriver
5/16 in tip, 277.11 mm (10.91 in) long
6V-7934
Phillips Screwdriver
No. 2 Phillips tip, 213.6 mm (8.41 in) long
6V-7935
Standard Screwdriver
1/4 in tip, 212.85 mm (8.38 in) long
6V-7936
Phillips Screwdriver
No. 1 Phillips tip, 162.9 mm (6.66 in) long
6V-7937
Standard Screwdriver
239.78mm (9.44in)long
8H-8578
Punch
3/8 in Point, 241.3 mm (9.50 in) long
8H-8579
Punch
5/32 in Point, 203.2 mm (8.00 in) long
8H-8580
Scraper
38.1 mm (1.50 in) wide
8H-8581
Feeler Gauge
25 Blade, .0015 in - .025 in
9S-1742
Hex Key Wrench Assembly
9 bits: .05 in, 1/16 in, 5/64 in, 3/32 in, 7/64 in, 1/8 in, 9/64 in, 5/32 in, 3/16 in
9S-1743
Ferrule Nut Wrench
3/4 in and 1 in
JULY 2018 Hand Tools
17-5
Hand Tools
TOOL SETS

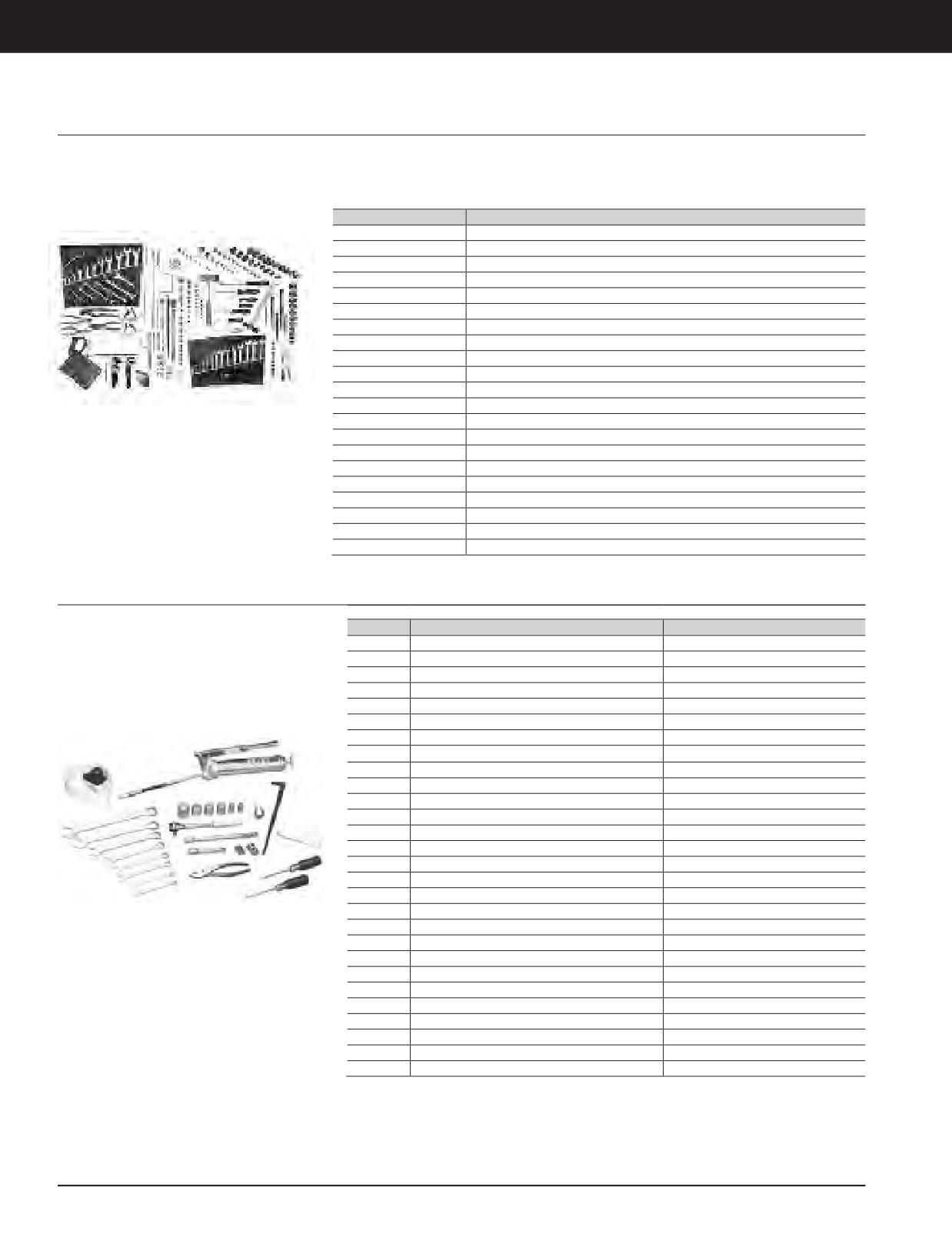

Student Tool Set
Warranty: Caterpillar ® See Individual Part
• A specially selected set of over 200 basic
• Premier quality tools for the work done in the
Number
hand tools for students in the Caterpillar
classroom and on the job
Model Dealer Service Technician Program
Part Number
Description
222-7876
CompleteStudentToolSet
146-2728
Flex Pickup Tool
194-3574
3/8 Drive, 12 Point Metric Socket Set, 12-piece
194-3576
Metric Socket Set
194-3578
Metric Socket Set
194-3584
Torx Socket Set
194-3585
Hex Bit Socket Set
199-6156
Metric Socket Set
199-9019
Metric Socket Set
1U-5545
Combination Wrench Set
1U-7321
Flashlight
200-1931
Metric Hex Key Set
200-8413
Metric Socket Set
293-3025
Fractional Ball-end Hex Wrench Set
293-3026
Metric Ball-end HexWrench Set
2P-5490
Deep Well Socket Set
396-2007
Safety Glasses
5P-1720
Seal Pick
5P-3277
Tape
5P-3920
Rule - Steel
8T-0461
Serviceman's Tool Group (full 95 piece set)

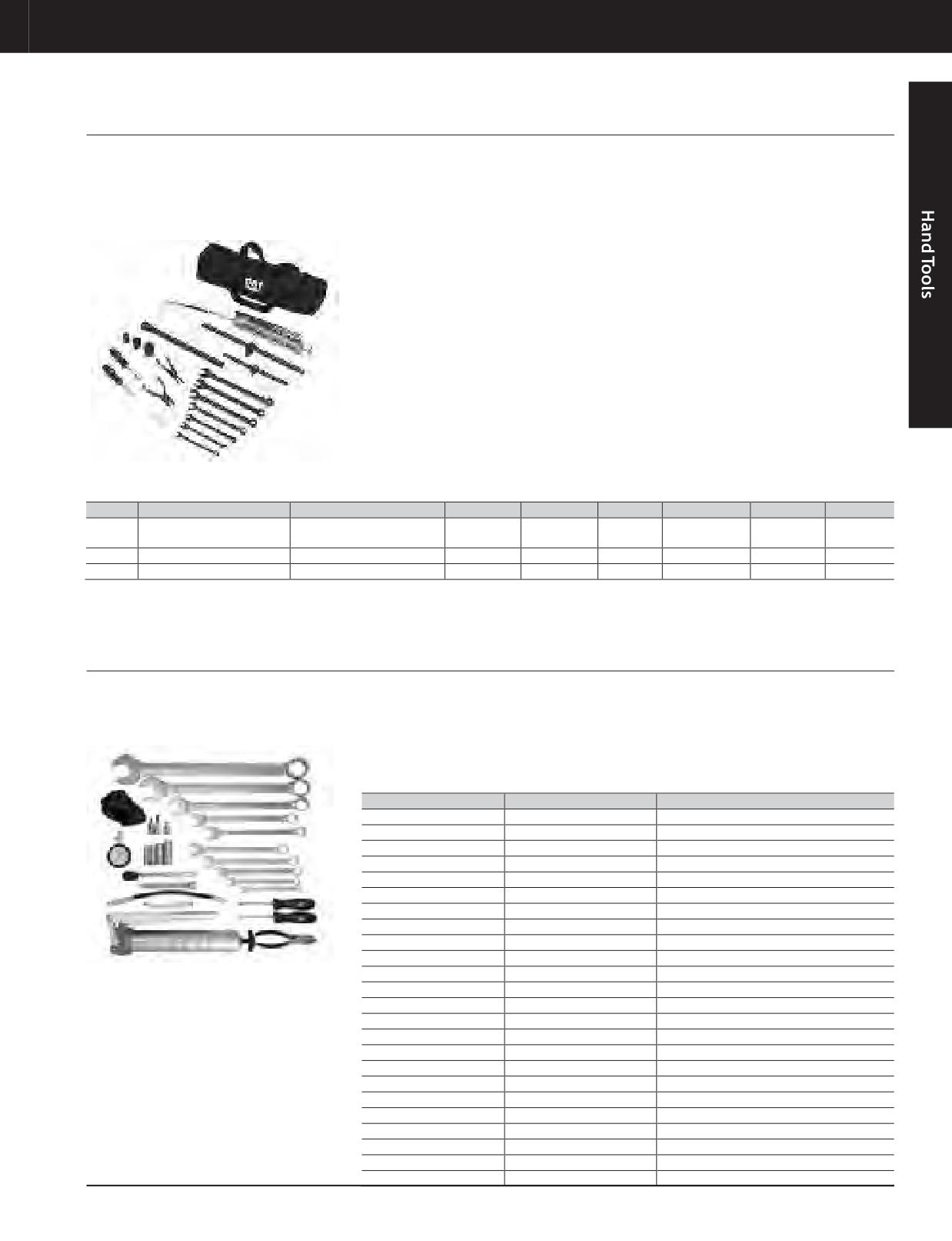

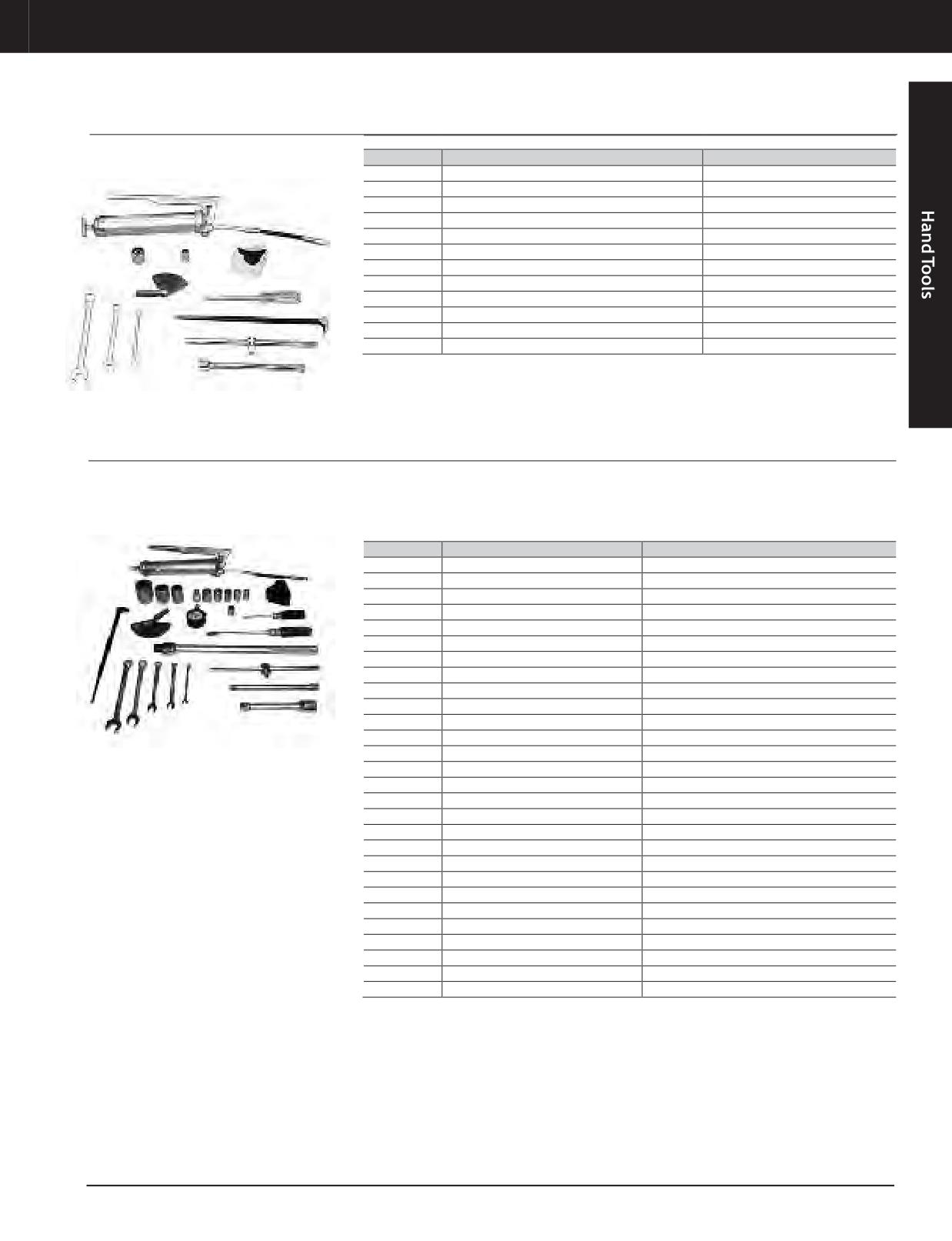

Hand Tool Set
Model Usage: All Track-Type Tractors, Track-Type
Part No.
Description
Size
Loaders and Engines
211-0616
Hand Tool Set (1)
185-3630
Filter Strap Wrench Assm. (1)
-
Warranty: Caterpillar ® See Individual Part
1S-0259
Socket
1/2in, 1/2in drive, 12 Pt.
Number
211-0136
Cat Tool Bag (not shown)(1)
-
212-8144
Petcock Socket
1/2 in drive
212-8145
Drain Plug Socket (1)
1/2 in Female, 3/4 in Male
213-1983
Combination Pliers
167.0 mm (6.60 in)
239-6826
Reversible Ratchet
1/2in
4C-9592
Combination Wrench
3/8in
4C-9594
Wrench, 1/2 in, low idle adjustment)
1/2in
4C-9595
Combination Wrench
9/16 in
4C-9596
Combination Wrench
5/8in
4C-9598
Combination Wrench
3/4in
4C-9601
Combination Wrench
7/8in
4C-9603
Combination Wrench
1in
4C-9605
Combination Wrench
5/16 in
5F-4764
Rolling Head Pry Bar, 40.64 cm (16 in) (1)
406.4 mm (16.00 in)
6V-7934
Phillips Screwdriver
No. 2 Phillips tip, 213.6 mm, (8.41 in)
6V-7935
Standard Screwdriver
Standard 1/4in tip, 212.85 mm (8.38 in)
8F-9866
Cat Pro "L" Grease Gun (1)
8H-8549
Socket
9/16 in, 1/2 in drive, 12 Pt.
8H-8554
Socket
7/8in, 1/2in drive, 12 Pt.
8H-8555
Socket
15/16 in, 1/2 in drive, 12 Pt.
8H-8556
Socket, 1in
1 in, 1/2 in drive, 12 Pt.
8H-8559
Socket Extension
1/2 in drive, 254.0 mm (10.00 in)
8H-8581
Feeler Gauge (1)
25 blade, .0015 in to .025 in
9S-1730
Socket
1 1/8 in, 1/2 in drive, 12 Pt
9S-1732
Extension - 127 mm (5.0 in) Long (1/2 in Drive)
1/2 in drive, 127.0 mm (5.0 in)
(1) Warranty: Caterpillar ® Six Months
(2) Warranty: Caterpillar ® Lifetime
17-6
JULY 2018 Hand Tools
Hand Tools
TOOL SETS

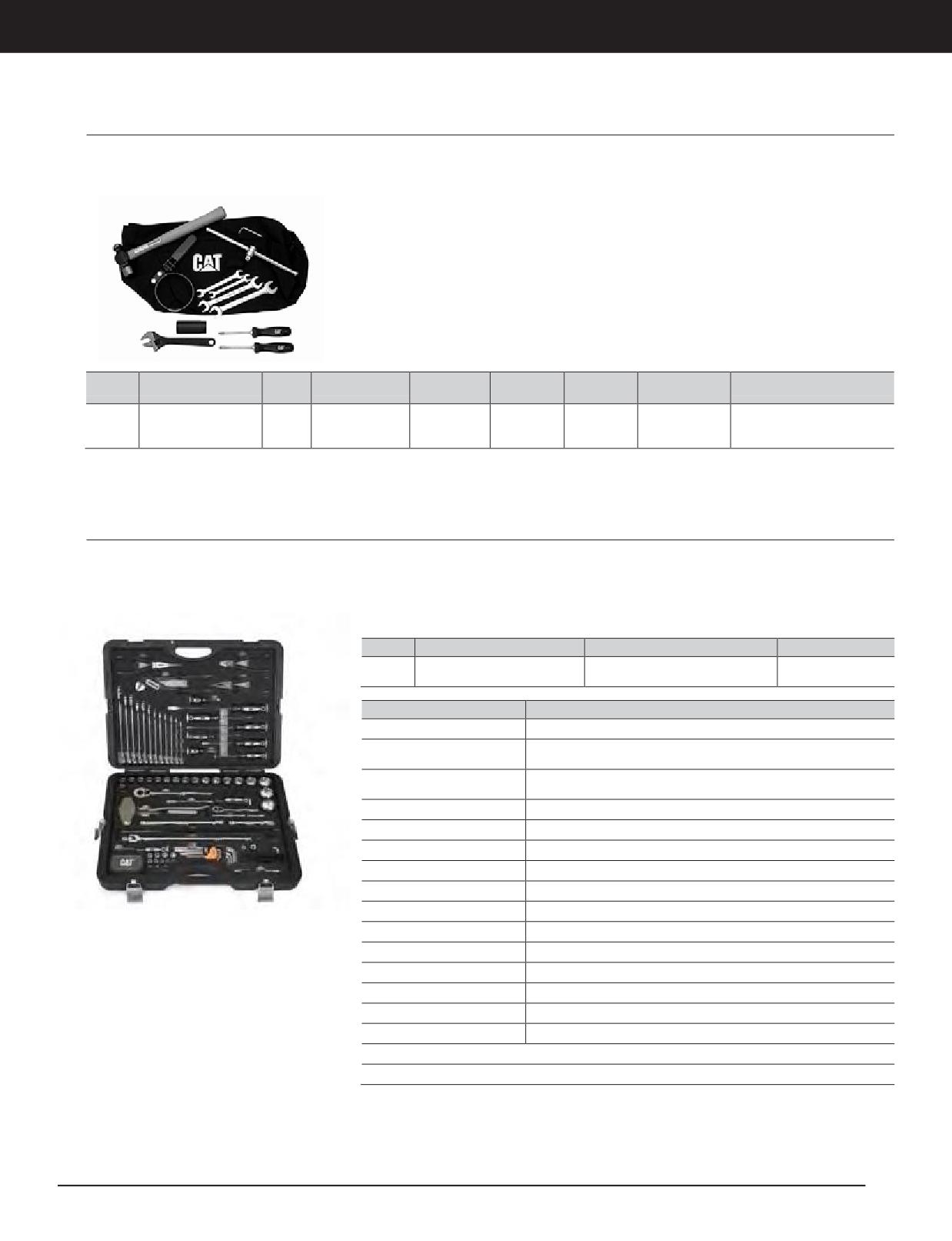

Hand Tool Set
Model Usage: All rubber-tired machines (Wheel
Part No.
Description
Size
Loaders, Motor Graders, Skidders, Solid Frame
211-0617
HandTool Set(2)
Off Highway Trucks, Wheel Tractors, Backhoe
185-3630
Filter Strap Wrench Assm. (1)
-
1P-0545
Tire Pressure Gauge Group
Loaders and Integrated Toolcarriers)
1S-0259
Socket
1/2in, 1/2in drive, 12 Pt.
Warranty: See Individual Part Number
212-8144
Petcock Socket
1/2 in drive
212-8145
Drain Plug Socket (1)
1/2 in Female, 3/4 in Male
213-1985
Sliding T-Handle
1/2 in drive, 304.8 mm (12.00 in)
4C-9592
Combination Wrench
3/8in
4C-9594
Wrench, 1/2 in (low idle adjustment)
1/2in
4C-9595
Combination Wrench
9/16 in
4C-9596
Combination Wrench
5/8in
4C-9597
Combination Wrench
11/16 in
4C-9598
Combination Wrench
3/4in
4C-9605
Combination Wrench
5/16 in
5F-4764
Rolling Head Pry Bar, 40.64 cm (16 in) (1)
406.4 mm (16.00 in)
6V-7932
Standard Screwdriver
3/8 in tip, 342.1 mm, (13.47 in)
6V-7934
Phillips Screwdriver
No.2Phillips tip, 213.6mm (8.41in)
8F-9866
Cat Pro "L" Grease Gun(1)
8H-8536
Socket
1 5/16in, 3/4in drive, 12 Pt.
8H-8537
Socket
1 1/2 in, 3/4 in drive, 12 Pt.
8H-8538
Socket
111/16in, 3/4in drive, 12 Pt.
8H-8541
Socket
1 7/8 in, 3/4 in drive, 12Pt.
8H-8549
Socket
9/16 in, 1/2 in drive, 12 Pt.
8H-8551
Socket
11/16 in, 1/2 in drive, 12 Pt.
8H-8552
Socket
3/4in, 1/2in drive, 12 Pt.
8H-8553
Socket
13/16 in, 1/2 in drive, 21 Pt.
8H-8554
Socket
7/8in, 1/2in drive, 12 Pt.
8H-8555
Socket
15/16 in, 1/2 in drive, 12 Pt.
8H-8559
Socket Extension
1/2 in drive, 254.0 mm (10.00 in)
8H-8581
Feeler Gauge (1)
25 blade, .0015 in to .025 in
9S-1730
Socket
1 1/8 in, 1/2 in drive, 12 Pt
9S-1731
Socket
1 1/4 in, 1/2 in drive, 12 Pt.

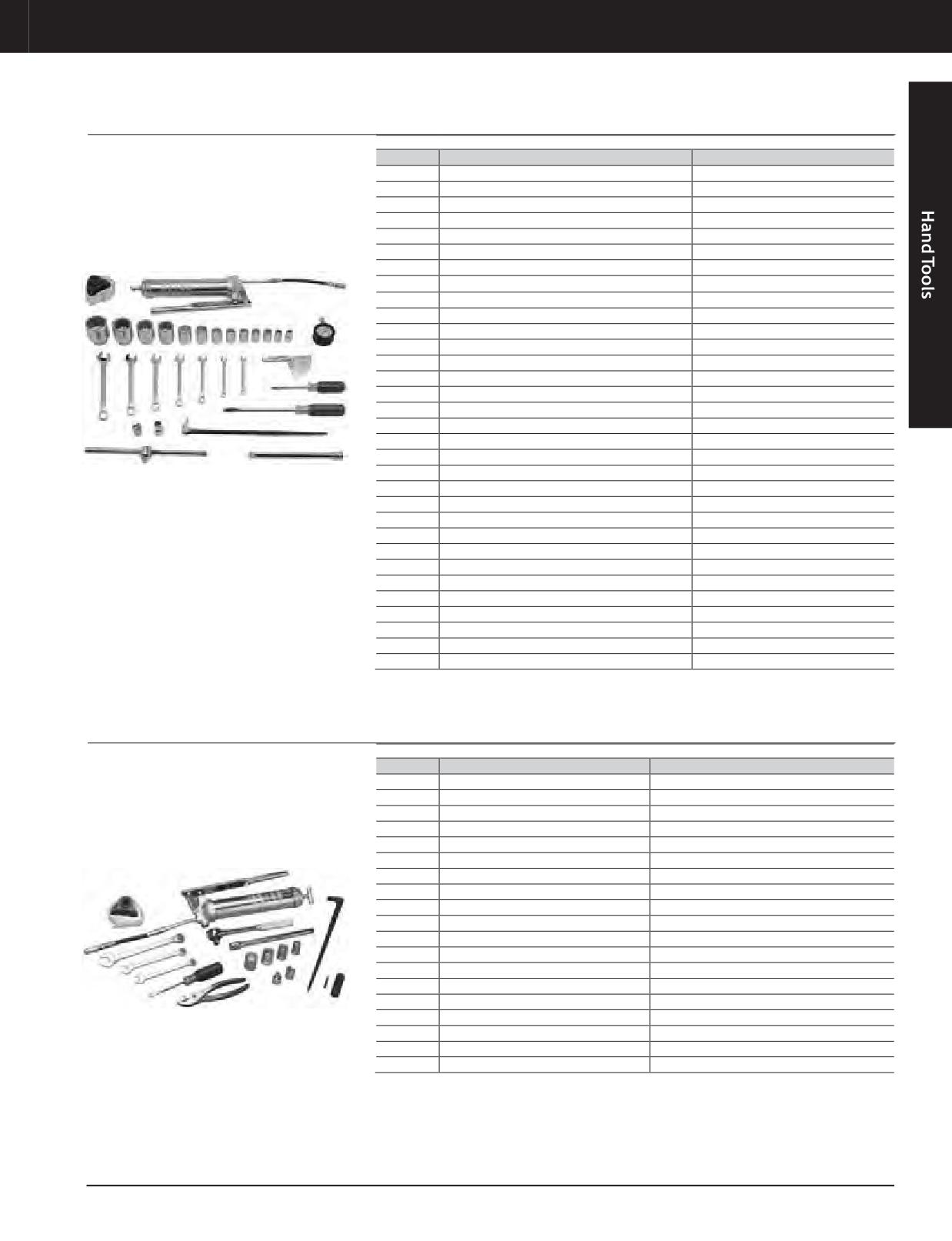

Hand Tool Set
Model Usage: All Rear Engine Track-Type
Part No.
Description
Size
Loaders such as the 943, 953, 963 and 973
214-6153
HandTool Group (2)
-
185-3630
Filter Strap Wrench Assm. (1)
-
Warranty: See Individual Part Number
211-0136
Cat Tool Bag (not shown) (1)
610.0 x 203.0 x 159.0, mm (24.00 x 8.00 x 6.25 in)
212-8144
Petcock Socket
1/2 in square
213-1983
Combination Pliers
167.0mm (6.60in)long
239-6826
Reversible Ratchet
1/2in
4C-9594
Wrench, 1/2 in (low idle adjustment)
1/2in
4C-9595
Combination Wrench
9/16 in
4C-9598
Combination Wrench
3/4in
5F-4764
Rolling Head Pry Bar, 40.64 cm (16 in) (1)
406.4 mm (16.00 in)
6V-7935
Standard Screwdriver
1/4 in tip, 212.85 mm (8.38 in)
8F-9866
Cat Pro "L" Grease Gun (1)
8H-8549
Socket
9/16 in
8H-8552
Socket
3/4in
8H-8554
Socket
7/8in
8H-8556
Socket, 1in
1in
8H-8559
Socket Extension
1/2 in drive, 254.0 mm (10.00 in)
9U-7419
Bit, 19.05 mm ( 3/4 in)
-
9S-1731
Socket
1 1/4 in, 1/2 in drive, 12 Pt.
(1)Warranty: Caterpillar ®Six Months
(2)Warranty: Caterpillar ®Lifetime
JULY 2018 Hand Tools
17-7
Hand Tools
TOOL SETS
Hand Tool Set
Model Usage: All 300 Series Excavators
• Used for routine maintenance and adjustment
• Flat top tool box provides adequate storage
for all tools in this group
Warranty: Caterpillar ® See Individual Part
• Using proper tools reduces downtime
Number
Part No.
Description
Size
214-7318
Complete Hand Tool Group (2)
-
185-3630
Filter StrapWrench Assembly(1)
-
194-3535
Socket, Assembly, T30
-
194-3538
Socket, Assembly, T50
-
194-3565
Socket
30 mm, 1/2 in drive, 12 Pt.
199-6154
Socket
24 mm, 1/2 in drive, 12 Pt.
1U-7563
Hex Wrench, 4 mm
4 mm
1U-7564
Hex Wrench, 5 mm
5 mm
1U-7565
Allen Key
6 mm
1U-7566
Hex Wrench
8 mm
1U-7567
Hex Wrench
10 mm
1U-7569
Hex Wrench
14 mm
1U-7585
Hex Wrench
5/8in
213-6926
Impact Socket
10.0 mm, 1/2 in drive, 6 Pt.
213-6927
Impact Socket
11.0 mm, 1/2 in drive, 6 Pt.
213-6929
Impact Socket
13.0 mm, 1/2 in drive. 6 Pt.
214-7222
Combination Wrench
32.0 mm
214-7223
Combination Wrench
36.0 mm
214-7329
Open End Wrench
41.0 mm
214-7330
AdjustableWrench
12.00 in, 1 5/16 jaw range
239-6826
Reversible Ratchet
1/2in
5F-4764
"Rolling Head Pry Bar (1)
406.4mm(16.00in)long
6V-6192
Slip Joint Pliers
208 mm (8 in)
6V-7932
Standard Screwdriver
3/8 in tip, 342.1 mm (13.47 in) long
6V-9096
Wrench
16.0 mm
6V-9098
Wrench
18.0 mm
6V-9099
Wrench
19.0 mm
6V-9101
Combination Wrench
21.0 mm
6V-9102
Combination Wrench
22.0 mm
6V-9103
Combination Wrench
24.0 mm
6V-9104
Combination Wrench
30.0 mm
6V-9111
Socket
16.0 mm, 1/2 in drive, 12 Pt.
6V-9112
Socket
17.0 mm, 1/2 in drive, 12 Pt.
6V-9113
Socket
18.0 mm, 1/2 in drive, 12 Pt.
6V-9116
Socket
22.0 mm, 1/2 in drive, 12 Pt.
8F-9866
Cat Pro "L" Grease Gun(1)
8H-8424
Combination Wrench
1 1/2 in
8H-8577
Ball Peen Hammer (1)
2 lb, 1 1/4 in
8H-8581
Feeler Gauge (1)
25 Blade, .0015 in - .025 in
9S-1732
Extension
1/2 in drive, 127.0 mm (5.00 in) long
9U-6219
Tool Box
-
9U-7968
Pry Bar(2)
-
(1) Warranty: Caterpillar ® Six Months
(2) Warranty: Caterpillar ® Lifetime
17-8
JULY 2018 Hand Tools
Hand Tools
TOOL SETS
Hand Tool Set
Warranty: See Individual Part Number
Part No.
Description
Size
214-7219
Complete Hand Tool Group (2)
-
185-3630
Filter Strap Wrench Assm. (1)
-
213-1985
Sliding T-Handle
1/2 in drive, 304.8 mm (12.00 in) long
4C-9592
Combination Wrench
3/8in
4C-9595
Combination Wrench
9/16 in
4C-9598
Combination Wrench
3/4in
5F-4764
Rolling Head Pry Bar
406.4mm(16.00in)long
8F-9866
Cat Pro "L" Grease Gun (1)
8H-8549
Socket
9/16 in
8H-8556
Socket
1in
8H-8559
Socket Extension
1/2 in drive, 254.0 mm (10.00 in) long
8H-8581
Feeler Gauge (1)
25 Blade, .0015 in - .025 in
Hand Tool Set
Model Usage: 972G Wheel Loaders
• For routinemaintenance and adjustment
• Metric wrenches and sockets accommodate
fasteners and fittings on wheel loader
Warranty: See Individual Part Number
• Twenty six individual hand tools
• Reduce downtime by using proper tools
Part No.
Description
Size
157-0674
Complete Hand Tool Group (2)
-
162-8716
Ratchet Head Handle
-
185-3630
Filter Strap Wrench Assm. (1)
-
199-6150
Socket
13.0 mm, 1/2 in drive
199-6154
Socket
24 mm, 1/2 in drive, 12 Pt.
1P-0545
Tire Pressure Gauge Group
-
1U-5548
Wrench (high idle adjustment)
8.0 mm
212-8144
Petcock Socket
1/2 in square
212-8145
Drain Plug Socket(1)
1/2 in Female, 3/4 in Male
213-1985
Sliding T-Handle
1/2 in drive, 304.8 mm (12.00 in) long
5F-4764
Rolling Head Pry Bar(1)
406.4mm(16.00in)long
6V-7932
Standard Screwdriver
3/8 in tip, 342.1 mm (13.47 in) long
6V-7934
Phillips Screwdriver
No. 2 Phillips tip, 213.6 mm (8.41 in) long
6V-9090
Wrench
10.0 mm
6V-9093
Wrench
13.0 mm
6V-9097
Wrench
17.0 mm
6V-9099
Wrench
19.0 mm
6V-9112
Socket
17.0 mm, 1/2 in drive, 12 Pt.
6V-9114
Socket
19.0 mm
6V-9116
Socket
22.0 mm, 1/2 in drive, 12 Pt.
6V-9118
Socket
30 mm
6V-9119
Socket
36 mm
6V-9120
Socket
46 mm
8F-9866
Cat Pro "L" Grease Gun (1)
8H-8546
Breaker Bar Head
3/4in
8H-8548
Socket Extension
203.2mm (8.00in)long
8H-8559
Socket Extension
1/2 in drive, 254.0 mm (10.00 in) long
8H-8581
Feeler Gauge (1)
25 Blade, .0015 in - .025 in
(1)Warranty: Caterpillar ®Six Months
(2)Warranty: Caterpillar ®Lifetime
JULY 2018 Hand Tools
17-9
Hand Tools
TOOL SETS

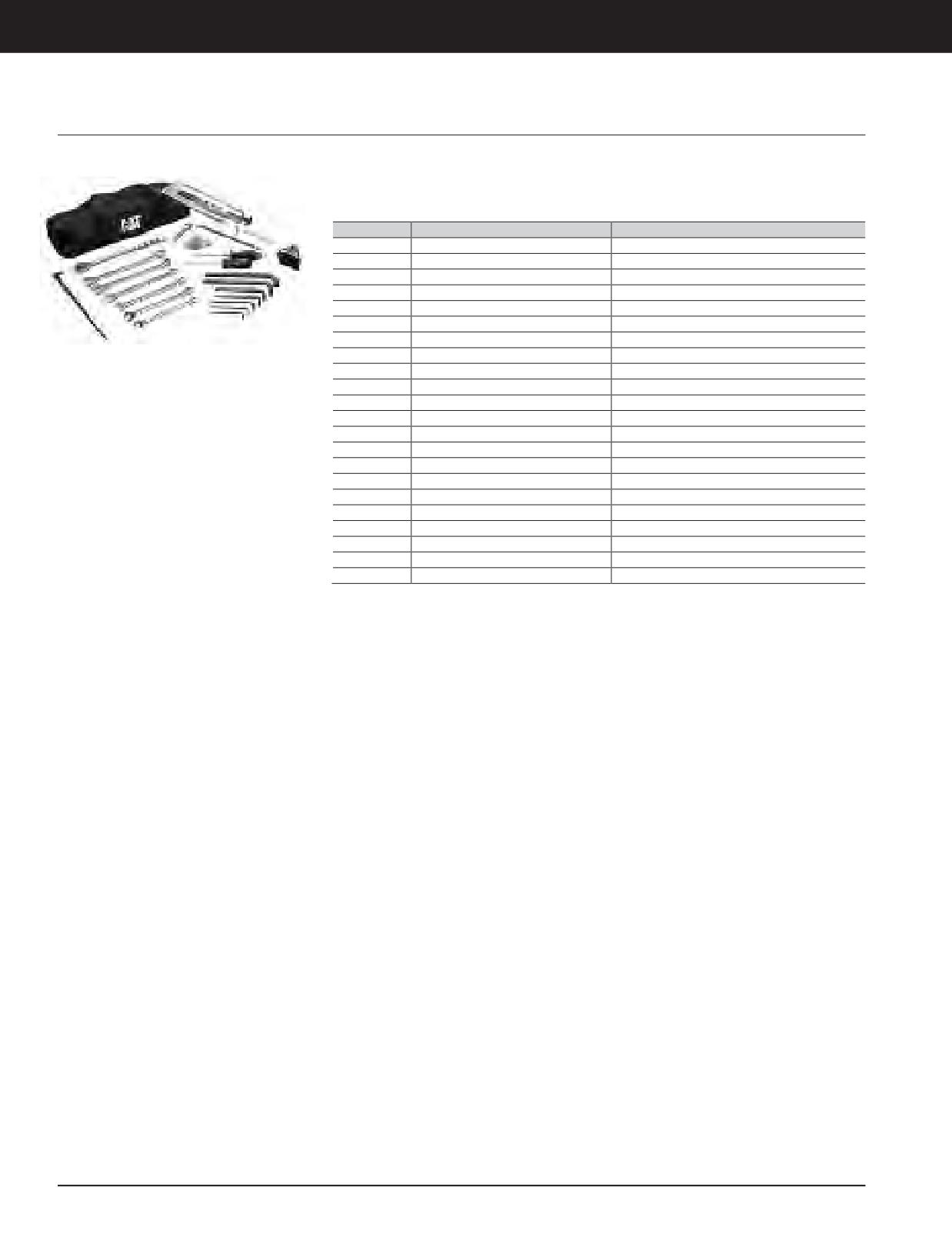

Hand Tool Set
• Basic maintenance tool group
• Warranty: Canvas bag, grease gun, and strap
wrench assembly have a 6 month warranty;
• Contains 21 individual hand tools
all other hand tools have a lifetime warranty
• Includes canvas storage/transport bag
Part No.
Description
Size
207-1515
Hand Tool Set
-
185-3630
Filter Strap Wrench Assm.(1)
-
1U-7563
Hex Wrench
4 mm
1U-7564
Hex Wrench
5 mm
1U-7565
Allen Key
6 mm
1U-7566
Hex Wrench
8 mm
1U-7567
Hex Wrench
10 mm
1U-7569
Hex Wrench
14 mm
1U-7585
Hex Wrench
5/8in
239-6826
Reversible Ratchet
1/2in
5F-4764
Rolling Head Pry Bar(1)
406.4mm(16.00in)long
6V-7933
Standard Screwdriver
5/16 in tip, 277.11 mm (10.91 in) long
6V-7934
Phillips Screwdriver
No. 2 Phillips tip, 213.6 mm (8.41 in) long
6V-9096
Wrench
16.0 mm
6V-9098
Wrench
18.0 mm
6V-9099
Wrench
19.0 mm
6V-9101
Combination Wrench
21.0 mm
6V-9102
Combination Wrench
22.0 mm
6V-9103
Combination Wrench
24.0 mm
8F-9866
Cat Pro "L" Grease Gun (1)
8H-8581
Feeler Gauge (1)
25 Blade, .0015 in - .025 in
9S-1732
Extension
1/2 in drive, 127.0 mm (5.00 in) long
(1) Warranty: Caterpillar ® Six Months
(2) Warranty: Caterpillar ® Lifetime
17-10 JULY 2018 Hand Tools
Hand Tools
TOOL SETS
Hand Tool Set
• Used for routine maintenance and adjustment
• Flat top tool box provides adequate storage
for all tools in this group
• Using proper tools reduces downtime
Part No.
Description
Size
256-4816
Hand Tool Set (1)
-
185-3630
Filter Strap Wrench Assm. (1)
-
194-3565
Socket
30 mm, 1/2 in drive, 12 Pt.
199-6154
Socket
24 mm, 1/2 in drive, 12 Pt.
1U-7563
Hex Wrench
4 mm
1U-7564
Hex Wrench
5 mm
1U-7565
Allen Key
6 mm
1U-7566
Hex Wrench
8 mm
1U-7567
Hex Wrench
10 mm
1U-7569
Hex Wrench
14 mm
1U-7585
Hex Wrench
5/8in
1.5mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm,
200-1929
Metric Hex Key Set
5.0 mm, 6.0 mm, 8.0 mm, and 10.0 mm
213-6926
Impact Socket
10.0 mm, 1/2 in drive, 6 Pt.
213-6927
Impact Socket
11.0 mm, 1/2 in drive, 6 Pt.
213-6929
Impact Socket
13.0 mm, 1/2 in drive. 6 Pt.
214-7223
Combination Wrench
36.0 mm
214-7322
AdjustableWrench
8in
214-7324
Torx® Bit Set
-
214-7329
Open End Wrench
41.0 mm
239-6826
Reversible Ratchet
1/2in
256-4879
Torx Wrench, T50
-
6V-7932
Standard Screwdriver
3/8 in tip, 342.1 mm (13.47 in) long
6V-9096
Wrench
16.0 mm
6V-9098
Wrench
18.0 mm
6V-9099
Wrench
19.0 mm
6V-9101
Combination Wrench
21.0 mm
6V-9102
Combination Wrench
22.0 mm
6V-9103
Combination Wrench
24.0 mm
6V-9104
Combination Wrench
30.0 mm
6V-9111
Socket
16.0 mm, 1/2 in drive, 12 Pt.
6V-9113
Socket
18.0 mm, 1/2 in drive, 12 Pt.
6V-9116
Socket
22.0 mm, 1/2 in drive, 12 Pt.
8F-9866
Cat Pro "L" Grease Gun (1)
8H-8577
Ball Peen Hammer (1)
2 lb, 1 1/4 in
9S-1732
Extension
1/2 in drive, 127.0 mm (5.00 in) long
9U-6219
Tool Box
-
9U-7968
Pry Bar(2)
-
JULY 2018 Hand Tools
17-11
Hand Tools
TOOL SETS
Field Tool Set
Model Usage: 902, 906, 908 Compact Wheel
• Used to perform routine maintenance and
• Includes English and metric wrenches and
Loaders
adjustments
screwdrivers
• Includes 12 required hand tools
• Roll-up pouch provides storage in tight space
Hex
Ball Peen
Adjustable
Filter Band
T-Bar and
Part No.
Open EndWrenches
Screwdrivers
Deep Socket
Wrench
Hammer
Wrench
Wrench
Sliding Head
10.0, 11.0, 12.0,
#2 Phillips and
3-3/4in
12.00 in long x
1 1/8 in, 6 point,
152-4942
13.0, 16.0, 17.0,
4.0 mm
6oz
8"
1/4 in flat tip
diameter
1/2 in sq. drive
1/2 in square drive
18.0, and 19.0 mm (2)
(1)Warranty: Caterpillar ®Six Months
(2)Warranty: Caterpillar ®Lifetime
Customer Appreciation Tool Set
Model Usage: All Models
• Commercial grade Cat® branded tools for Cat
• 128 pieces
customers
Warranty: Caterpillar ®Six Months
• Includes ¼” and ½” drive ratchets/sockets
• Packaged in a high-density foam-lined Cat
• Wrenches and sockets are metric sizes
carrying case that keeps tools firmly in place
Part No.
Description
Dimensions
Weight
400 x 552 x 102 mm
14.2 kg
497-8174
Customer Appreciation Tool Kit
(15 ¾ x 21 ¾ x 4¾in)
(31 lb 6 oz)
Contents
Description
Combination Wrenches
8 - 19 mm
1-1/2 Stubby Flat; 3”,4”, 6”, 8” Flat;
Screwdrivers
1-1/2” and 4” Phillips #2, 3” Phillips #1
8” Needle Nose with Cutter, 7-1/2” Gripper with Cutter,
Pliers
6-1/2” Diagonal Cutter, 9-1/2” Water Pump Style
1/2” Drive Tools
10” Ratchet, 15” Breaker Bar, 5” Extension
1/2” Sockets
10- 22, 24, 27, 30, 32, 34 mm
1/4” Drive Tools
5-1/2” Ratchet, 6” Handle, 2” Extension, 4” Extension
1/4” Sockets
4 mm, 4.5 mm, 5 mm, 5.5 mm, 6 - 13 mm
Prybar
19” Rolling Head
Hammer
4lb
Drive Impact Swivel Adaptor
1/2”
Drive Impact Swivel Adaptor
1/4”
SquareDrive-to-Hex Adapter
1/4 to 1/4”
SquareDrive-to-Hex Adapter
1/2 to 5/16”
Pickup Tool
Telescoping, Magnetic
Long Ball Hex Key Set
1.5 - 10 mm with holder
1/4” Hex Screwdriver Bit Set in Plastic Case with Hex Shank Bit Holder (31 pieces)
5/16” Hex Bits Assorted Flat, Phillips, Torx, Triple Sq, Square (18 pieces)
17-12 JULY 2018 Hand Tools
Hand Tools
TOOL SETS
Field Tool Set
Model Usage: C-series Backhoe Loaders
• Group includes 20 required hand tools
• Includes "T" handle wrench and extension for
wheel lug removal and installation
• Features both English and Metric wrenches
• Canvas bag provides adequate storage even
in limited space
and sockets
Part No.
Description
Wrench Sizes
Socket Sizes
T-Handles
Extension
Screwdrivers
Pliers
Socket
7/16in, 1/2in, 13/16in, 7/8/in,
15/16 in,
1/2 in and
No. 2 Phillips
1 slipjoint, 1
3/8 in drive,
133-8877
Field Tool Group(2)
3/4" drive
15/16in; 14.0 mm, 17.0 mm
17.0mm
3/4" drive
and 1/4" flat
retaining ring
T30 Torx Bit
185-3630
Filter Strap Wrench Assm.(1)
-
-
-
-
-
-
-
8F-9866
Cat Pro "L"Grease Gun(1)
-
-
-
-
-
-
-
(1) Warranty: Caterpillar ®Six Months
(2) Warranty: Caterpillar ®Lifetimee
Field Tool Set
Model Usage: 914G, 924F and 928G Wheel
• Used to perform routine maintenance and
• Includes Cat grease gun, filter wrench and tire
Loaders
adjustment operations
pressure gauge
• Group contains 25 individual hand tools
• Includes Cat® canvas bag provides adequate
storage even in limited space
• Features both English and metric wrenches
and sockets
Part No.
Description
Size
144-4674
Complete Field Tool Group
185-3630
Filter Strap Wrench Assm.
-
194-3535
Torx Socket
T30 - 3/8in
194-3538
Torx Socket
T50 - 3/8in
199-9026
Socket
10 mm
199-9029
Socket
13 mm
199-9032
Socket
16 mm
199-9035
Socket
19 mm
213-1983
Slip Joint Pliers
-
239-6824
Drive Ratchet
3/8in
4C-9598
Wrench
3/4in
4C-9599
Wrench
13/16 in
6V-7934
No. 2 Phillips
-
6V-7935
1/4 Flat Screwdriver
-
6V-9090
Wrench
10 mm
6V-9093
Wrench
13 mm
6V-9096
Wrench
16 mm
6V-9098
Wrench
18 mm
6V-9099
Wrench
19 mm
8F-9866
Cat Pro "L" Grease Gun
8H-8423
Wrench
1 5/8 in
8H-8517
Wrench
1 1/8 in
8H-8520
Wrench
1 3/8 in
8H-8575
Drive Extension
6 x 3/8 in
JULY 2018 Hand Tools
17-13
8H-8576
Adapter
3/8 - 1/2in
8T-0886
Tire Pressure Gauge
-
17-14 JULY 2018 Hand Tools
JULY 2018 Hand Tools
17-14
Hand Tools
WRENCHES
Fractional Combination Wrench Set
Warranty: See Individual Parts
• 11-pc, standard length, polished chrome finish
Size
Part Number
Description
Length
-
4C-9600
Fractional Combination Wrench Set (11-pc)
-
3/8in
4C-9592
Combination Wrench
165.1 mm (6.50 in)
7/16 in
4C-9593
Combination Wrench
184.2 mm (7.25 in)
1/2in
4C-9594
Wrench (low idle adjustment)
204.0 mm (8.03 in)
9/16 in
4C-9595
Combination Wrench
222.3 mm (8.75 in)
5/8in
4C-9596
Combination Wrench
241.3 mm (9.50 in)
11/16 in
4C-9597
Combination Wrench
260.4 mm (10.25 in)
3/4in
4C-9598
Combination Wrench
280.2 mm (11.03 in)
13/16 in
4C-9599
Combination Wrench
299.2 mm (11.78 in)
7/8in
4C-9601
Combination Wrench
318.3 mm (12.53 in)
15/16 in
4C-9602
Combination Wrench
338.1 mm (13.31 in)
1in
4C-9603
Combination Wrench
357.1 mm (14.06 in)
—
271-4700
Wrench Gripper Rack (not included)
-
Fractional Short Length Combination Wrench Set
Warranty: Caterpillar ®Lifetime
• 9-pc, standard length, polished chrome finish
• Includes vinyl bag
Size
Part No.
Description
Length
-
4C-9610
Fractional Short Length Combination Wrench Set (9-pc)
-
1/4in
4C-9604
Combination Wrench
114.3 mm (4.50 in)
5/16 in
4C-9605
Combination Wrench
124.0 mm (4.88 in)
3/8in
4C-9606
Combination Wrench
132.6 mm (5.22 in)
7/16 in
4C-9607
Combination Wrench
138.2 mm (5.44 in)
1/2in
4C-9608
Combination Wrench
146.1 mm (5.75 in)
9/16 in
1S-0254
Combination Wrench
165.1 mm (6.50 in)
5/8in
4C-9609
Combination Wrench
157.2 mm (6.19 in)
11/16 in
4C-9611
Combination Wrench
167.4 mm (6.59 in)
3/4in
1S-0253
Combination Wrench
174.8 mm (6.88 in)
Metric Combination Wrench Set
Warranty: Caterpillar ®Lifetime
• Metric: 6.0 mm through 19.0 mm
• Includes storage pouch
• 14-piece, polished chrome finish
Size
Part No.
Description
Length
-
1U-5545
MetricCombinationWrenchSet (14-pc)
-
6.0 mm
1U-5546
Wrench
113mm(4.45in)
7.0 mm
1U-5547
Wrench
118mm(4.65in)
8.0 mm
1U-5548
Wrench (high idle adjustment)
123mm(4.84in)
9.0 mm
1U-5549
Wrench
159mm(626in)
10.0 mm
6V-9090
Wrench
171mm(6.73in)
11.0 mm
6V-9091
Wrench
184mm(7.24in)
12.0 mm
6V-9092
Wrench
195mm(7.68in)
13.0 mm
6V-9093
Wrench
207mm(8.15in)
14.0 mm
6V-9094
Wrench
219mm(8.62in)
15.0 mm
6V-9095
Wrench
233mm(9.17in)
16.0 mm
6V-9096
Wrench
242mm(9.53in)
17.0 mm
6V-9097
Wrench
256mm(10.08in)
18.0 mm
6V-9098
Wrench
267mm(10.51in)
19.0 mm
6V-9099
Wrench
280mm(11.02in)
JULY 2018 Hand Tools
17-15

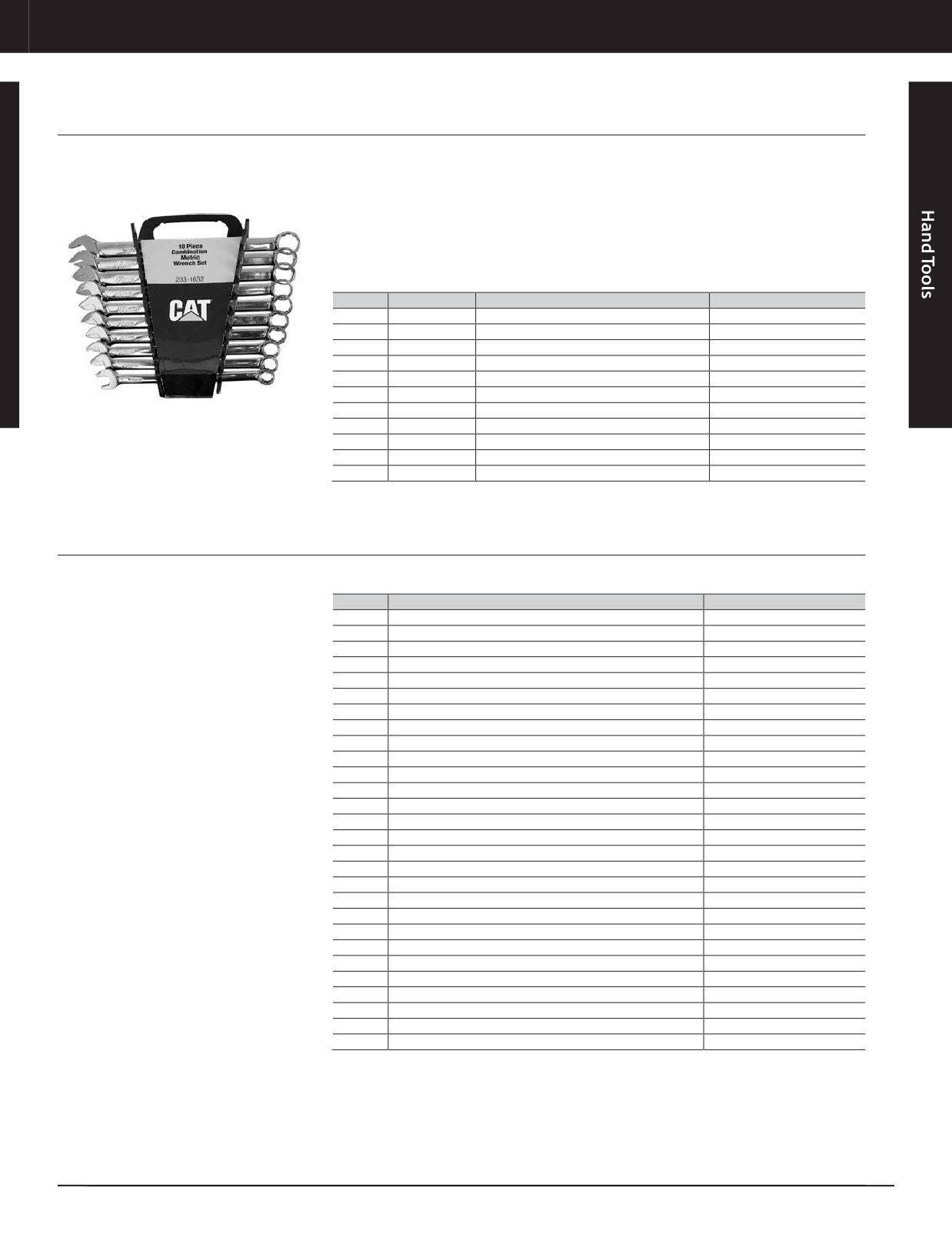

Hand Tools
WRENCHES
Metric Combination Wrench Set
Model Usage: All Cat® Products
• Wrench box end contacts the fastener on flats
• Concentric or uniform wall thickness on the
rather than corners, preventing rounding of
box end eliminates weak spots while allowing
Warranty: Caterpillar ®Lifetime
fastener and allowing more torque
for a thin wall design for greater accessibility
• Continuous arc open-end design evenly
• Long handles for better reach and torque
distributes applied stress over entire radius
• 10-pic highly polished nickel/chrome plating
of open end, improving wrench strength and
- tough nickel for corrosion resistance and
tool life
chrome plating for wear resistance
Size
Part Number
Description
Length
—
233-1632
Metric Combination Wrench Set (10 pc)
-
10.0 mm
6V-9090
Wrench
171.0 mm (6.73 in)
11.0 mm
6V-9091
Wrench
184.0 mm (7.24 in)
12.0 mm
6V-9092
Wrench
195.0 mm (7.68 in)
13.0 mm
6V-9093
Wrench
207.0 mm (8.15 in)
14.0 mm
6V-9094
Wrench
219.0 mm (8.62 in)
15.0 mm
6V-9095
Wrench
233.0 mm (9.17 in)
16.0 mm
6V-9096
Wrench
242.0 mm (9.53 in)
17.0 mm
6V-9097
Wrench
256.0 mm (10.08 in)
18.0 mm
6V-9098
Wrench
267.0 mm (10.51 in)
19.0 mm
6V-9099
Wrench
280.0 mm (11.02 in)
Metric Combination Wrenches
Model Usage: All Cat® Products
• 15° angle on open end/15° offset on box end
Warranty: Caterpillar ®Lifetime
Size
Part Number
Length
6.0 mm
1U-5546
113.0 mm (4.45 in)
7.0 mm
1U-5547
118.0 mm (4.65 in)
8.0 mm
1U-5548
123.0 mm (4.84 in)
9.0 mm
1U-5549
159.0 mm (6.26 in)
10.0 mm
6V-9090
171.0 mm (6.73 in)
11.0 mm
6V-9091
184.0 mm (7.24 in)
12.0 mm
6V-9092
195.0 mm (7.68 in)
13.0 mm
6V-9093
207.0 mm (8.15 in)
14.0 mm
6V-9094
219.0 mm (8.62 in)
15.0 mm
6V-9095
233.0 mm (9.17 in)
16.0 mm
6V-9096
242.0 mm (9.53 in)
17.0 mm
6V-9097
256.0 mm (10.08 in)
18.0 mm
6V-9098
267.0 mm (10.51 in)
19.0 mm
6V-9099
280.0 mm (11.02 in)
20.0 mm
6V-9100
292.0 mm (11.50 in)
21.0 mm
6V-9101
304.0 mm (11.97 in)
22.0 mm
6V-9102
318.0 mm (12.52 in)
23.0 mm
214-7214
328.0 mm (12.91 in)
24.0 mm
6V-9103
338.0 mm (13.31 in)
25.0 mm
214-7215
356.0 mm (14.02 in)
26.0 mm
214-7217
364.0 mm (14.33 in)
27.0 mm
214-7218
376.0 mm (14.80 in)
29.0 mm
214-7220
395.0 mm (15.55 in)
30.0 mm
6V-9104
414.0 mm (16.30 in)
32.0 mm
214-7222
433.0 mm (17.05 in)
36.0 mm
214-7223
490.0 mm (19.29 in)
46.0 mm
9U-5130 (Black oxide finish)
596.0 mm (23.46 in)
55.0 mm
454-3162 (Satin finish, warranty: Manufacturer Six Months)
711 mm (28in)
17-14 JULY 2018 Hand Tools
JULY 2018 Hand Tools
17-14

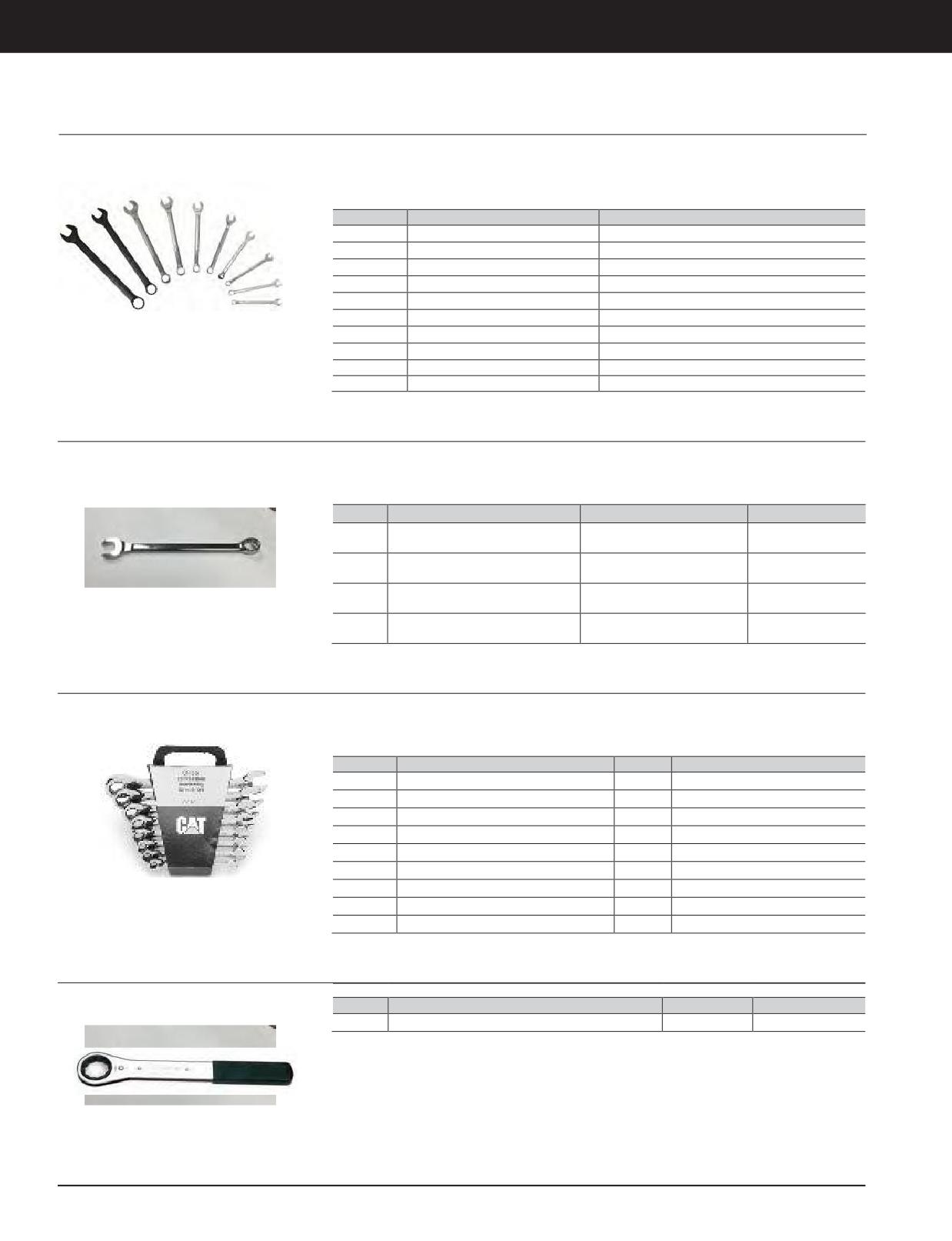

Hand Tools
WRENCHES
Metric Combination Wrenches
Warranty: Caterpillar ®Lifetime
• 15° angle on open end/15° offset on box end
• Flank drive wrenches use the flat areas of the
bolt or nut to loosen or tighten, rather than
the corners, not stripping the bolts or nuts
Part No.
Size
Length
17.0 mm
386-3324 (polished chrome finish)
256mm(10.08in)
19.0 mm
386-3325 (polished chrome finish)
280mm(11.02in)
22.0 mm
386-3326 (polished chrome finish)
318mm(12.52in)
24.0 mm
386-3327 (polished chrome finish)
337mm(13.28in)
27.0 mm
386-3328 (polished chrome finish)
375mm(14.76in)
30.0 mm
386-3329 (polished chrome finish)
414mm(16.30in)
32.0 mm
386-3330 (polished chrome finish)
433mm(17.05in)
36.0 mm
386-3331 (polished chrome finish)
490mm(19.29in)
41.0 mm
386-3332 (satin finish)
546mm(21.50in)
46.0 mm
386-3333 (black oxide finish)
596mm(23.46in)
Wrenches
Model Usage: C7, C9, C13 and C15 Engines
• Nickel-chrome finish
• 15° angle on open end and 15° offset on
box end
Warranty: Caterpillar ®Six Months
• 12 -point
Part No.
Description
Dimensions
Weight
28 mm
460-9906
Cat® Metric Combination Wrench
0.6 kg (1 lb-5 oz)
Length: 381 mm (15in)
33 mm
460-9908
Cat® Metric Combination Wrench
1 kg (2lb-3 oz)
Length: 452 mm (17-25/32 in)
34 mm
460-9909
Cat® Metric Combination Wrench
1 kg (2lb-3 oz)
Length: 452 mm (17-25/32 in)
35 mm
460-9910
Cat® Metric Combination Wrench
1 kg (2lb-3 oz)
Length: 470 mm (18-½ in )
Fractional Ratcheting Wrench Set
Warranty: Caterpillar ®Lifetime
• Dual pawl ratcheting box end
• Box ends are reversible
• 15° offset box head
• Durable nickel chrome finish
Part No.
Description
Size
Length
248-8810
Fractional Ratcheting Wrench Set (8-pc)
-
-
248-8811
Ratcheting Wrench
5/16
135mm(55/16in)
248-8812
Ratcheting Wrench
3/8
160mm(65/16in)
248-8813
Ratcheting Wrench
7/16
170mm(611/16in)
248-8814
Ratcheting Wrench
1/2
180mm(71/16in)
248-8815
Ratcheting Wrench
9/16
190 mm (7 1/2in)
248-8816
Ratcheting Wrench
5/8
210 mm (8 1/4in)
248-8817
Ratcheting Wrench
11/16
230mm(91/16in)
248-8818
Ratcheting Wrench
3/4
250mm(913/16in)
Single Head Ratcheting Box Wrench
Warranty: Caterpillar ®Six Months
Part No.
Description
Size
Length
451-9943
Single Head Ratcheting Box Wrench, Chrome Finish
27 mm (1.1 in)
304.8mm (12in)
17-16 JULY 2018 Hand Tools
Hand Tools
WRENCHES
Fractional Combination Wrenches
Model Usage: All Cat® Products
• 15° angle on open end, 15° offset on box end
• All are polished chrome finish except 9U-5130
Warranty: Caterpillar ®Lifetime
• Box end is 12 pt, except 8H-8502 which is 6 pt
Part No.
Size
Length
1S-0253
3/4 in (short)
174.8 mm (6.88 in)
1S-0254
9/16 in (short)
165.1 mm (6.50 in)
4C-9592
3/8in
165.1 mm (6.50 in)
4C-9593
7/16 in
184.2 mm (7.25 in)
4C-9594
1/2in
204mm(8.03in)
4C-9595
9/16 in
222.3 mm (8.75 in)
4C-9596
5/8in
241.3 mm (9.50 in)
4C-9597
11/16 in
260.4 mm (10.25 in)
4C-9598
3/4in
280.2 mm (11.03 in)
4C-9599
13/16 in
299.2 mm (11.78 in)
4C-9601
7/8in
318.3 mm (12.53 in)
4C-9602
15/16 in
338.1 mm (13.31 in)
4C-9603
1in
357.1 mm (14.06 in)
4C-9604
1/4in
114.3 mm (4.50 in)
4C-9605
5/16 in
124mm(4.88in)
4C-9606
3/8in
132.6 mm (5.22 in)
4C-9607
7/16 in
138.2 mm (5.44 in)
4C-9608
1/2in
146.1 mm (5.75 in)
4C-9609
5/8in
157.2 mm (6.19 in)
4C-9611
11/16 in
167.4 mm (6.59 in)
8H-8423
1 5/8 in
562.4 mm (22.14 in)
8H-8424
1 1/2 in
534.5 mm (21.04 in)
8H-8502
1/4in(Box endis 6-point)
78.7mm (3.10in)
8H-8516
1 1/16 in
382.8 mm (15.07 in)
8H-8517
1 1/8 in
404.6 mm (15.93 in)
8H-8518
1 1/4 in
433.1 mm (17.05 in)
8H-8519
1 5/16 in
458.5 mm (18.05 in)
8H-8520
1 3/8in (short)
482.6mm (19in)
9U-5130
1 13/16 in (Black oxide finish)
596mm(23.46in)
386-3276
1 7/16 in (Black oxide finish)
483mm(19.02in)
386-3274
1 11/16 in (Black oxide finish)
559mm(22.01in)
386-3275
1 3/4in (Black oxide finish)
559mm(22.01in)
386-3277
1 7/8 in
610mm(24.02in)
386-3281
2in
635 mm (25in)
386-3279
2 3/16 in
660mm(25.98in)
386-3278
2 1/4 in
686mm(27.01in)
386-3280
2 3/8 in
711mm(27.99in)
386-3352
2 1/2 in
762 mm (30in)
386-3282
3 1/2in (Black oxide finish)
787mm(30.98in)
386-3283
3 7/8in (Black oxide finish)
978mm(38.50in)
386-3284
4 in (Black oxide finish)
991mm(39.02in)
JULY 2018 Hand Tools
17-17
Hand Tools
WRENCHES

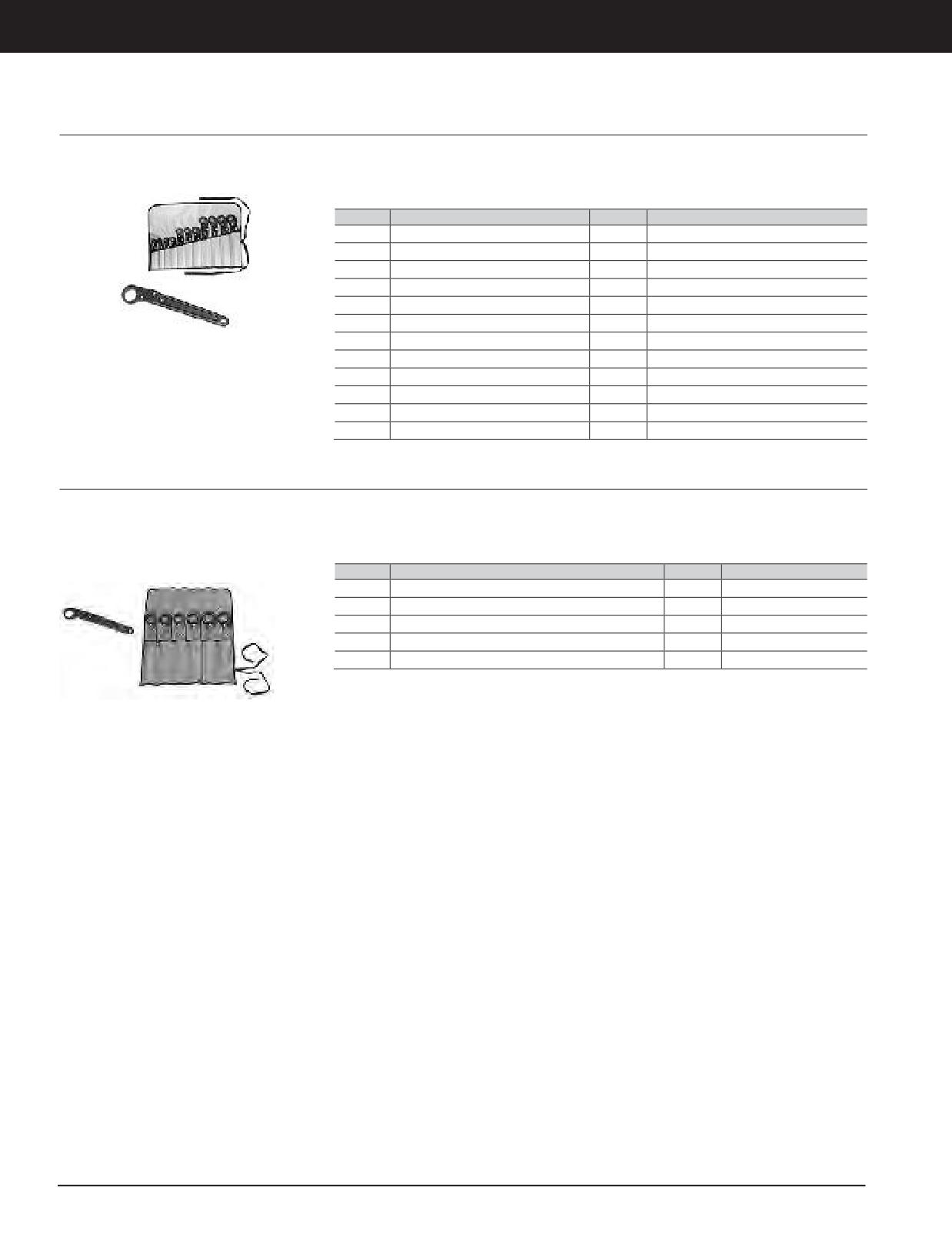

Fractional Straight Handle Wrench Set, 11 Piece
Model Usage: All Cat® Products
• Available in hex sizes from 3/8 inch to 1 inch
• Forged steel jaws, heat treated high carbon
steel handles, and stainless steel rivets with a
Warranty: Caterpillar ®Six Months
• Ratchets in 45° increments (1/8 of a turn)
black corrosion-resistant finish
Part No.
Description
Hex Size
Torque Capacity
8T-3120
Straight Handle Wrench Set
-
-
8T-3122
Wrench
3/8
26 N·m (19.18 ft-lb)
8T-3123
Wrench
7/16
29 N·m (21.39 ft-lb)
8T-3124
Wrench
1/2
34 N·m (25.08 ft-lb)
8T-3125
Wrench
9/16
45 N·m (33.19 ft-lb)
8T-3126
Wrench
5/8
68 N·m (50.15 ft-lb)
8T-3127
Wrench
11/16
86 N·m (63.43 ft-lb)
8T-3128
Wrench
3/4
97 N·m (71.54 ft-lb)
8T-3129
Wrench
13/16
114N·m (84.08 ft-lb)
8T-3130
Wrench
7/8
141 N·m (104 ft-lb)
8T-3131
Wrench
15/16
159N·m (117.27 ft-lb)
8T-3132
Wrench
1
170N·m (125.39 ft-lb)
Fractional Straight Handle Wrench Set
Model Usage: All Cat® Products
• Available in hex sizes from 1 1/16 -1 5/8"
• Forged steel jaws, heat treated high carbon
steel handles, and stainless steel rivets with a
Warranty: Caterpillar ®Six Months
• Ratchets in 45° increments (1/8 of a turn)
black corrosion-resistant finish
Part No.
Description
Hex Size
Torque Capacity
8T-3227
Fractional Straight Handle Wrench Set (6-pc)
-
-
8T-3133
Wrench
1 1/16 in
190 N·m (140.14 ft·lb)
8T-3136
Wrench
1 3/8 in
340 N·m (250.77 ft·lb)
8T-3137
Wrench
1 1/2 in
410 N·m (302.40 ft·lb)
8T-3138
Wrench
1 5/8 in
475 N·m (350.34 ft·lb)
17-18 JULY 2018 Hand Tools

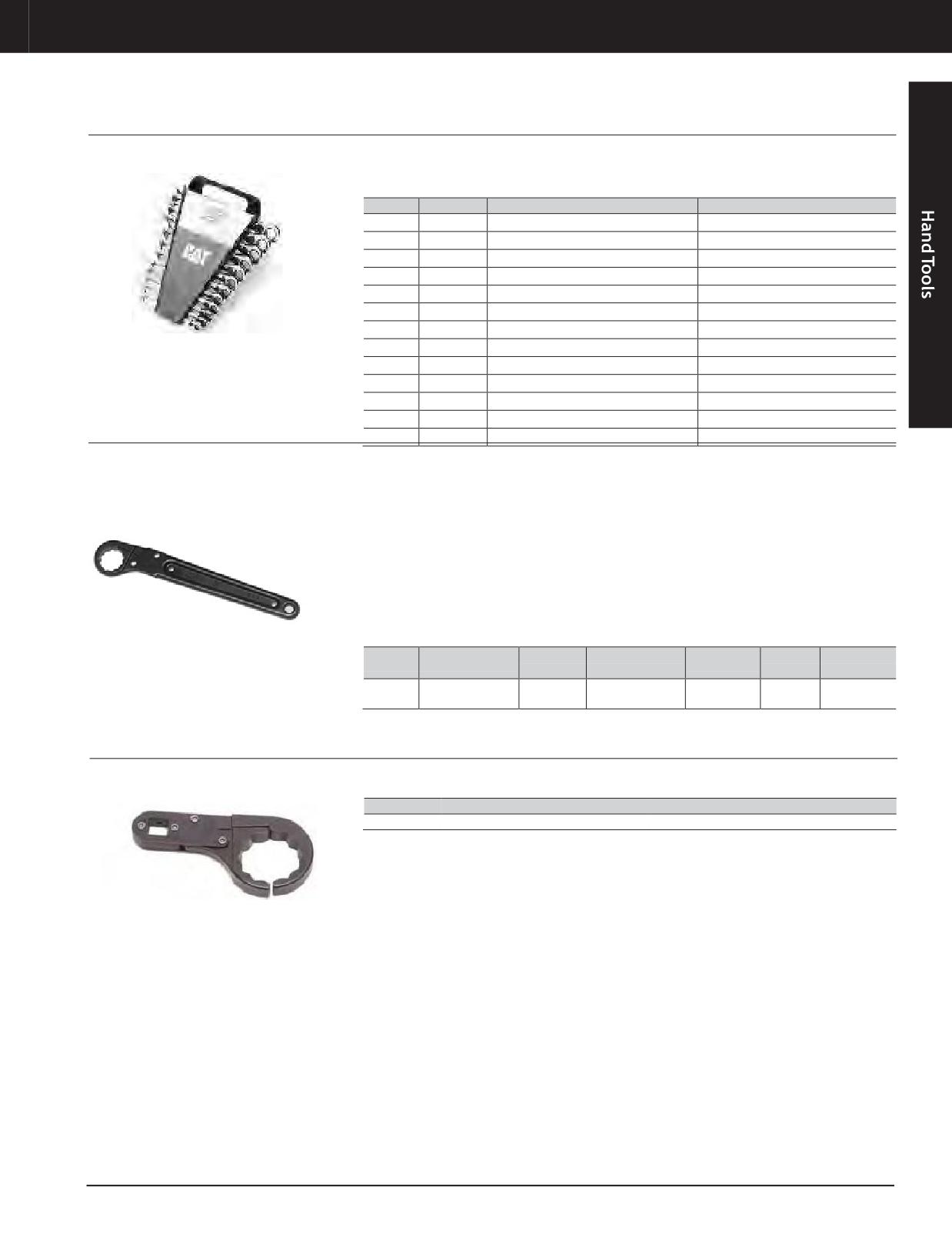

Hand Tools
WRENCHES
Metric Ratcheting Wrench Set
Warranty: Caterpillar ®Lifetime
• Dual pawl ratcheting box end
• Box ends are reversible
• 15° offset box head
• Durable nickel chrome finish
Size
Part No.
Description
Length
248-8819
Metric Ratcheting Wrench Set (12-pc)
-
8.0
248-8820
Metric Ratcheting Wrench
135.0mm (5.5in)
9.0
248-8822
Metric Ratcheting Wrench
150.0mm (5.9in)
10.0
248-8823
Metric Ratcheting Wrench
160.0mm (6.3in)
11.0
248-8824
Metric Ratcheting Wrench
170.0mm (6.7in)
12.0
248-8825
Metric Ratcheting Wrench
175.0mm (6.9in)
13.0
248-8826
Metric Ratcheting Wrench
180.0mm (7.1in)
14.0
248-8827
Metric Ratcheting Wrench
190.0mm (7.5in)
15.0
248-8828
Metric Ratcheting Wrench
200.0mm (7.9in)
16.0
248-8829
Metric Ratcheting Wrench
210.0mm (8.3in)
17.0
248-8830
Metric Ratcheting Wrench
230.0mm (9.1in)
18.0
248-8831
Metric Ratcheting Wrench
240.0mm (9.4in)
Ratchet Wrench
19.0
248-8832
Metric Ratcheting Wrench
250.0mm (9.8in)
Model Usage: 5000 Series Mining Excavators
• Used to quickly remove and install bolts (Use
• For 30 mm hex bolts
SMCS Code: 7063-010, 7063-017, 0602
standard wrench for initial loosening; bolts
• Fits 46 mm (1 13/16 in) bolt heads
cannot be tightened to final torque with
Warranty: Caterpillar ®Lifetime
ratchet wrench.)
Reference
• Ratcheting style wrench greatly decreases
• SENR6058, 5130 Service Manual Module,
time for removing or installing the many
Disassembly and Assembly; SENR6108, 5230
bolts required to attach swing bearing/gear
Service Manual Module, Disassembly and
(Starting and running bolts down until seated,
Assembly; SEHS9721 Special Instruction,
or removing bolts, can take a large amount of
Assembly Procedure for Hydraulic Excavator
time if done with conventional hand tools.)
(5130 only)
Bolt Head
Torque
Head
Overall
Part No.
Description
Thickness
Size
Specification
Diameter
Length
46 mm
up to 490 N•m
16.0 mm
80.8 mm
354.0 mm
9U-6517
Ratchet Wrench
(1.81 in)
(366 lb ft)
(0.63 in)
(3.18 in)
(14.00 in)
Ratcheting Box Flare Wrench
Warranty: Caterpillar ®Six Months
• Not sold in a set; must be ordered individually
Part No.
Description
Specifications
1U-5734
Ratcheting Box Flare Wrench
3/4 inch Square Drive, 2" Hex
JULY 2018 Hand Tools
17-19

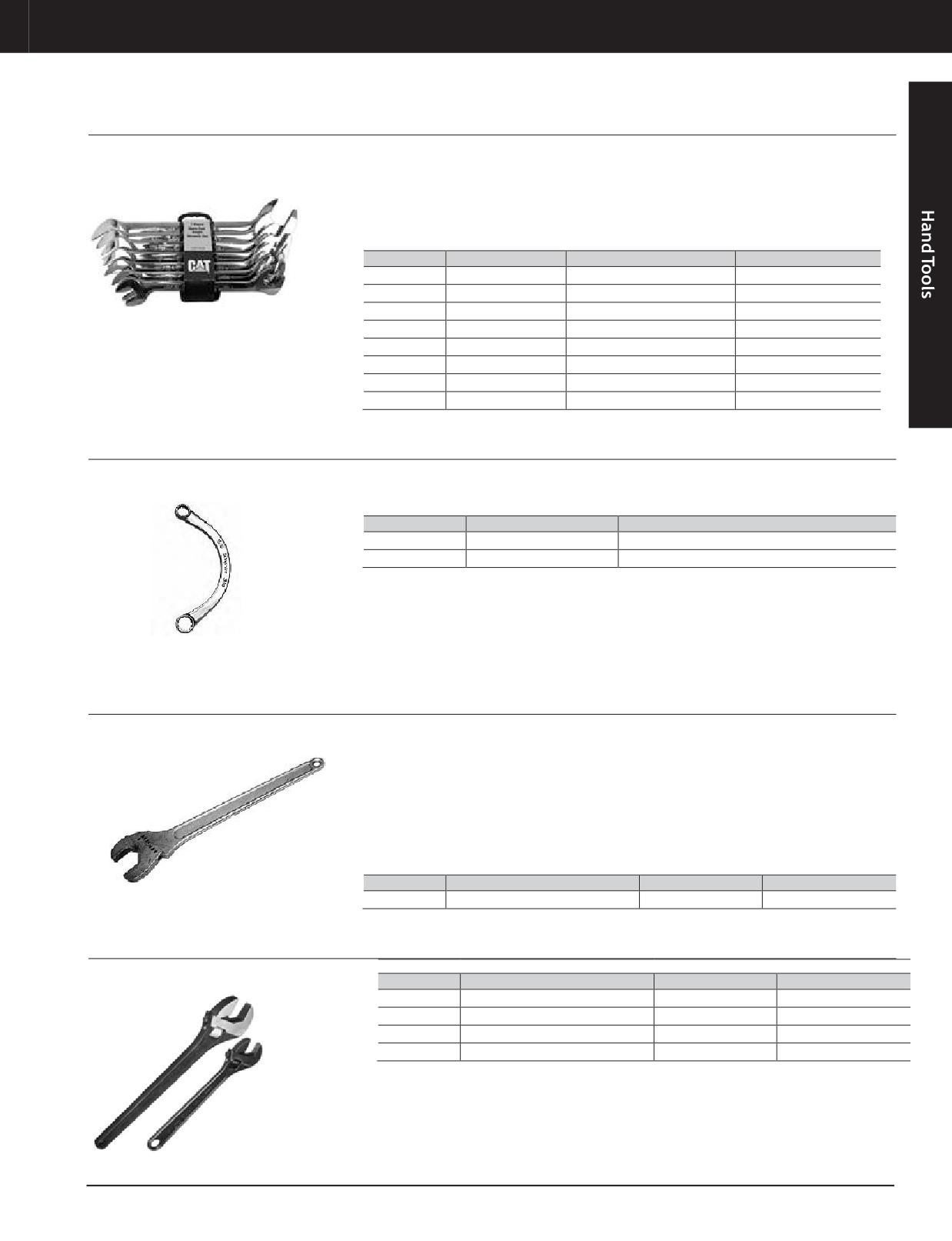

Hand Tools
WRENCHES
Angle Wrench Set
Model Usage: All Cat® Products
• Offset wrenches allow the use of one wrench
• 30° and 60° Offset
in four different positions to gain additional
Warranty: Caterpillar ®Lifetime
• 14 pieces
turning angles.
Part No.
Description
Size
Length
1P-3515
Angle Wrench Set (14-pc)
-
-
1P-3501
Angle Wrench
3/8in
122.9 mm (4.84 in)
1P-3502
Angle Wrench
7/16 in
137.4 mm (5.41 in)
1P-3503
Angle Wrench
1/2in
151.6 mm (5.97 in)
1P-3504
Angle Wrench
9/16 in
166.6 mm (6.56 in)
1P-3505
Angle Wrench
5/8in
180.8 mm (7.12 in)
1P-3506
Angle Wrench
11/16 in
197.6 mm (7.78 in)
1P-3507
Angle Wrench
3/4in
210.3 mm (8.28 in)
1P-3508
Angle Wrench
13/16 in
225.6 mm (8.88 in)
1P-3509
Angle Wrench
7/8in
239.8 mm (9.44 in)
1P-3510
Angle Wrench
15/16 in
254 mm (10in)
1P-3511
Angle Wrench
1in
269mm(10.59in)
1P-3512
Angle Wrench
1/16 in
283.5 mm (11.16 in)
1P-3513
Angle Wrench
1/8in
298.5 mm (11.75 in)
1P-3514
Angle Wrench
1/4in
327.2 mm (12.88 in)
Additional Sizes
127-2277
Angle Wrench
3/8in
356.6 mm (14.04 in)
127-2278
Angle Wrench
1/2in
385.8 mm (15.19 in)
127-2279
Angle Wrench
5/8in
415mm(16.34in)
127-2280
Angle Wrench
7/8in
473.2 mm (18.63 in)
Angle Wrench Set
Model Usage: All Cat® Products
• Continuous arc open-end design evenly
• 7 pieces
distributes applied stress over entire radius of
Warranty: Caterpillar ®Lifetime
• Highly polished nickel/chrome plating-tough
open end, enhancing wrench strength life
nickel for corrosion resistance and chrome
• Long handles for better reach and greater
plating for wear resistance and a mirror-like
applied torque
finish
Drive
Part No.
Description
Length
–
233-1635
Angle Wrench Set (7-pc)
-
3/8in
1P-3501
Angle Wrench
122.9 mm (4.84 in)
7/16 in
1P-3502
Angle Wrench
137.4 mm (5.41 in)
1/2in
1P-3503
Angle Wrench
151.6 mm (5.97 in)
9/16 in
1P-3504
Angle Wrench
166.6 mm (6.56 in)
5/8in
1P-3505
Angle Wrench
180.8 mm (7.12 in)
11/16 in
1P-3506
Angle Wrench
197.6 mm (7.78 in)
3/4in
1P-3507
Angle Wrench
210.3 mm (8.28 in)
17-20 JULY 2018 Hand Tools
Hand Tools
WRENCHES
Angle Wrench Set, Large
Warranty: Caterpillar ®Lifetime
• Continuous arc open-end design evenly
• 7 pieces
distributes applied stress over entire radius of
• Highly polished nickel/chrome plating-tough
open end, enhancing wrench strength life
nickel for corrosion resistance and chrome
• Long handles for better reach and greater
plating for wear resistance and a mirror-like
applied torque
finish
Drive
Part No.
Description
Length
–
233-1636
Angle Wrench Set, Large (7-pc)
-
13/16 in
1P-3508
Angle Wrench
225.6 mm (8.88 in)
7/8in
1P-3509
Angle Wrench
239.8 mm (9.44 in)
15/16 in
1P-3510
Angle Wrench
254.0mm (10in)
1in
1P-3511
Angle Wrench
269.0 mm (10.59 in)
1/16 in
1P-3512
Angle Wrench
283.5 mm (11.16 in)
1/8in
1P-3513
Angle Wrench
298.5 mm (11.75 in)
1/4in
1P-3514
Angle Wrench
327.2 mm (12.88 in)
Half-Moon Wrench
Warranty: Caterpillar ®Lifetime
• Moon-shaped wrench to help you get at hard
• 12-point
to reach bolts
Part No.
Description
Wrench End Size
194-4935
Half-Moon Wrench
Box End 5/8 in and 3/4 in
472-4214
Half-Moon Wrench
Box End 7/8 in and 15/16 in
Heavy-Duty Adjustable End Wrench
Warranty: Caterpillar ®Six Months
• Designed for heavy-duty work
Specifications
• Accommodates many of the larger nuts
• Jaw Range: 69.9-120.7 mm (2 3/4 in-4 3/4 in)
• Cadmium coated to prevent rusting
• Jaw Thickness: 28.6 mm (1 1/8 in)
• Jaw adjusts in 1/8 inch increments
Service Parts
• 8F-2246 Bolt
• 5B-3254 Nut (#4 in picture)
Part No.
Description
Length
Weight
8F-2243
Heavy-DutyAdjustableEndWrench
914.4mm (36in)
10.0 kg (22 lb)
Adjustable Wrench
Part Number
Jaw Range
Length
Finish
214-7322
24.0 mm (0.94 in) (2)
203.2mm (8in)
Black Oxide
214-7323
29.0 mm (1.13 in) (1)
254.0mm (10in)
Black Oxide
214-7330
33.0 mm (1.31 in) (2)
304.8mm (12in)
Black Oxide
214-7332
42.0 mm (1.66 in) (1)
381.0mm (15in)
Black Oxide
(1) Warranty: Six Months
(2) Warranty: Lifetime
JULY 2018 Hand Tools
17-21
Hand Tools
WRENCHES
Aluminum Pipe Wrenches
Model Usage: All Cat® Products
• 10 inch through 24 inch
• Forged hook jaw
Warranty: Caterpillar ®Lifetime
• 35% lighter than cast iron wrenches
• Heat-treated alloy steel parts interchangeable
with iron wrenches
• Heat treated titanium - aluminum alloy
handle
Item
Part No.
Pipe Capacity
Length
1
4C-6974
14.0 mm - 63.0 mm (.25 in - 2.00 in)
356.0 mm (14.02 in)
2
4C-6975
14.0 mm - 75.0 mm (.25 in - 2.50 in)
457.0 mm (17.99 in)
3
4C-6976
14.0 mm - 90.0 mm (1.25 in - 3.00 in)
610.0 mm (24.02 in)
Not shown
4C-6973
10.0 mm - 48.0 mm (.13 in - 1.50 in)
254.0 mm (10 in)
Heavy-Duty Pipe Wrenches
Model Usage: All Cat® Products
• High-tensile ductile iron handle and hardened
• Designed to withstand heavy demands
tool-steel parts
Warranty: Caterpillar ®Lifetime
Part No.
Pipe Capacity
Length
Weight
4C-6962
10.0mm- 48.0mm(.13in - 1.50in)
254.0 mm (10.00 in)
5.4 kg (12 lb)
4C-6963
10.0mm- 60.0mm(.13in - 2.00in)
305.0 mm (12.00 in)
8.1 kg (18 lb)
4C-6964
14.0mm- 63.0mm(.25in - 2.00in)
356.0 mm (14.00 in)
9.5 kg (21 lb)
4C-6965
14.0mm- 75.0mm(.25in - 2.50in)
457.0 mm (18.00 in)
15.0 kg (33 lb)
4C-6972
14.0mm- 90.0mm(.25in - 3.00in)
610.0 mm (24.00 in)
27.2 kg (60 lb)
Wrench, 48-Inch Pipe
Model Usage: All Cat® Products
• Professional Strength
• 98% Lightweight Aluminum, 2% Steel
Warranty: Manufacturer's Lifetime
Part No.
Max. Pipe Capacity
Length
386-3304
152.4 mm (6.00 in)
1219.0 mm (48.00 in)
17-22 JULY 2018 Hand Tools
Hand Tools
WRENCHES
Wrench, 48-Inch Pipe
Warranty: Caterpillar ®Six Months
• Heavy-duty construction for strength and
• Forty percent lighter than cast iron
durability
• Built-in pipe diameter scale
Part No.
Max. Pipe Capacity
Length
457-3048
152.4 mm (6.00 in)
1219.0 mm (48.00 in)
Pipe Wrench, Rigid 60-Inch
Warranty: Manufacturer's Lifetime
• Rigid 60" Wrench
• Forged Steel Jaws
• Professional Strength
• Meets or exceeds:
GGG-N65IE, Type II, Class A
• Cast Iron Handle
Part No.
Max. Pipe Capacity
Length
423-8977
20 cm (8 in)
152 cm (60 in)
Chain Wrench for Special Applications
• Ratcheting action makes it possible to regrip
Warranty: Caterpillar ®Six Months
• Used for holding cylinders and other
irregularly shaped objects-works for parts of
without removal
most any size and shape
• Chain wrench capacity: 1/2 inch to 4 3/4 inch
O.D
• Special head design for turning wrench in
either direction
Part No.
Max. Pipe Capacity
Description
1U-8760
1/2 in to 4 3/4 in O.D.
Wrench for Special Applications
Chain Wrench Group
SMCS Code: 4303-017, 5105-017, 5309-017,
• Used to remove and install threaded crown,
• General purpose tool that can be used in
5102-017
which is used to retain head on later hydraulic
manyapplications
cylinders
Model Usage: 16G, 518, 613C, 615, 910
Item
Part No.
Description
Warranty: Caterpillar ®Six Months
–
3P-1535
Chain Wrench Group
1
3P-1536
Handle
2
1U-8792
ChainWrench Assembly, Handle Length 482.6 mm (19.00 in)
Chain - part of 1U-8792, 76.2 mm (3.00in) O.D. Minimum and 171.5 mm (6.75 in)
3
1U-8791
O.D. Maximum
4
3P-1537
Pin - part of 1U-8792
JULY 2018 Hand Tools
17-23
Hand Tools
WRENCHES

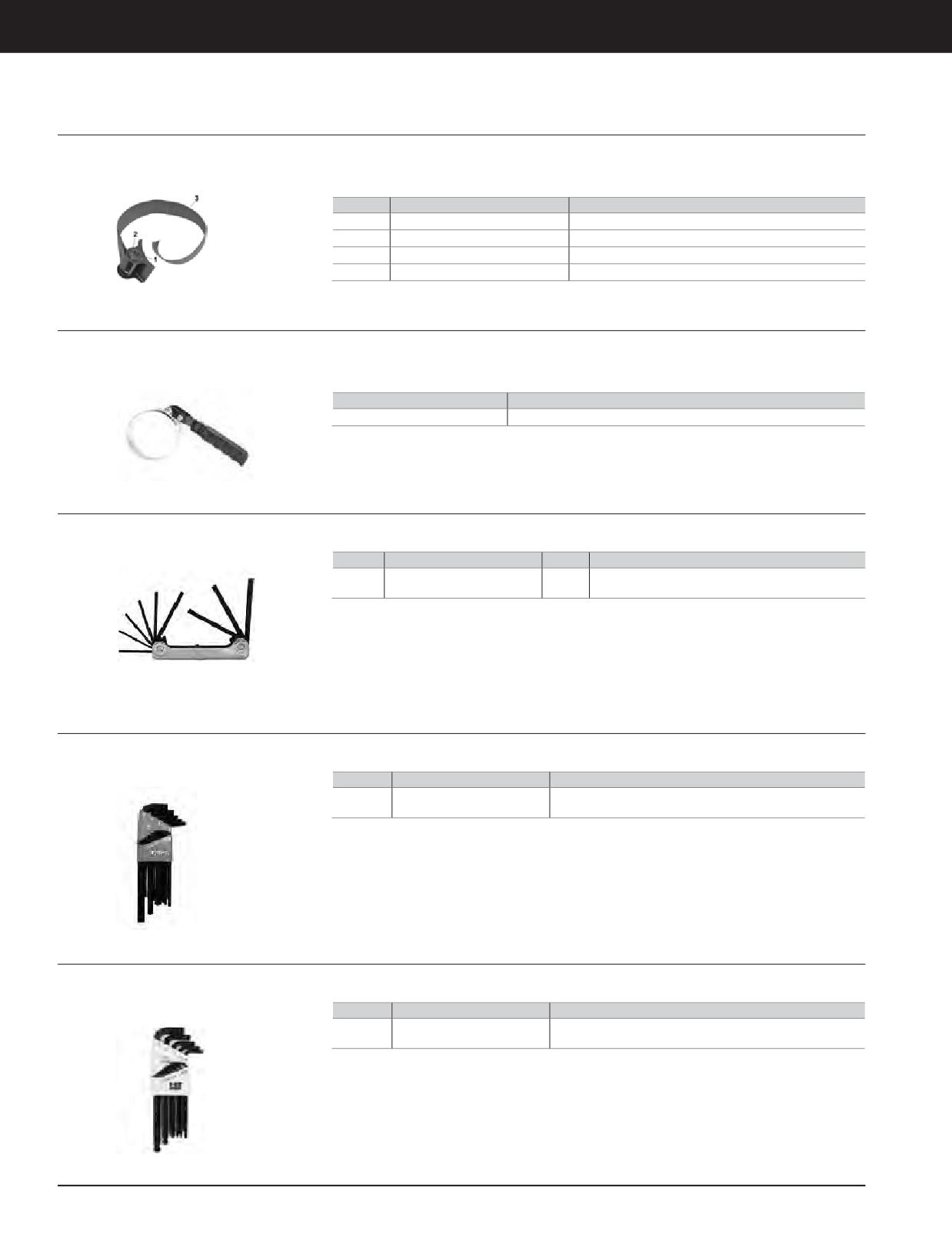

Filter Wrench
Model Usage: All Cat® Products
• Used to remove spin-on oil and fuel filters
• Fits filter diameters between 88.9 to 98.6 mm
(3.50 to 3.88 in)
Warranty: Caterpillar ®Six Months
• •Makes filter removal quick and easy
Item
Part Number
Description
–
185-3630
Filter Strap Wrench Assembly
1
6H-7378
Retaining Ring
2
1P-0551
Spring Pin
3
2P-8253
Strap
Filter Wrench
Model Usage: All Cat® Products
• Used to remove spin-on oil and fuel filters
• Fits filter diameters between 88.9 to 98.6 mm
(3.50 to 3.88 in)
Warranty: Caterpillar ®Lifetime
• Makes filter removal quick and easy
Part No.
Description
187-2718
Filter Wrench
Fractional Hex Bit Set, 9 Piece
Model Usage: All Cat® Products
• Black oxide finish
• 3 1/2 inch cadmium case
Warranty: Caterpillar ®Lifetime
Part No.
Description
Length
Size
9bits: .05in, 1/16in, 5/64in, 3/32in, 7/64in, 1/8in,
9S-1742
Hex Key Wrench Assembly
3 in bits
9/64 in, 5/32 in, 3/16 in
Fractional "L" Shaped Hex Key Wrench Set, 13 Piece
Model Usage: All Cat® Products
• Plastic holder included
Warranty: Caterpillar ®Lifetime
Part No.
Description
Size
.05 in, 1/16 in, 5/64 in, 3/32 in, 7/64 in, 1/8 in, 9/64 in, 5/32 in,
200-1928
Fractional Hex Key Set
3/16 in, 7/32 in, 1/4 in, 5/16 in and 3/8 in
Fractional Hex Key Wrench Set with Ball End, 13 Piece
Model Usage: All Cat® Products
• Cat branded plastic holder included
Warranty: Caterpillar ®Lifetime
Part No.
Description
Size
Fractional Ball-end Hex
.05 in, 1/16 in, 5/64 in, 3/32 in, 7/64 in, 1/8 in, 9/64 in, 5/32 in,
293-3025
Wrench Set
3/16 in, 7/32 in, 1/4 in, 5/16 in and 3/8 in
17-24 JULY 2018 Hand Tools
Hand Tools
WRENCHES

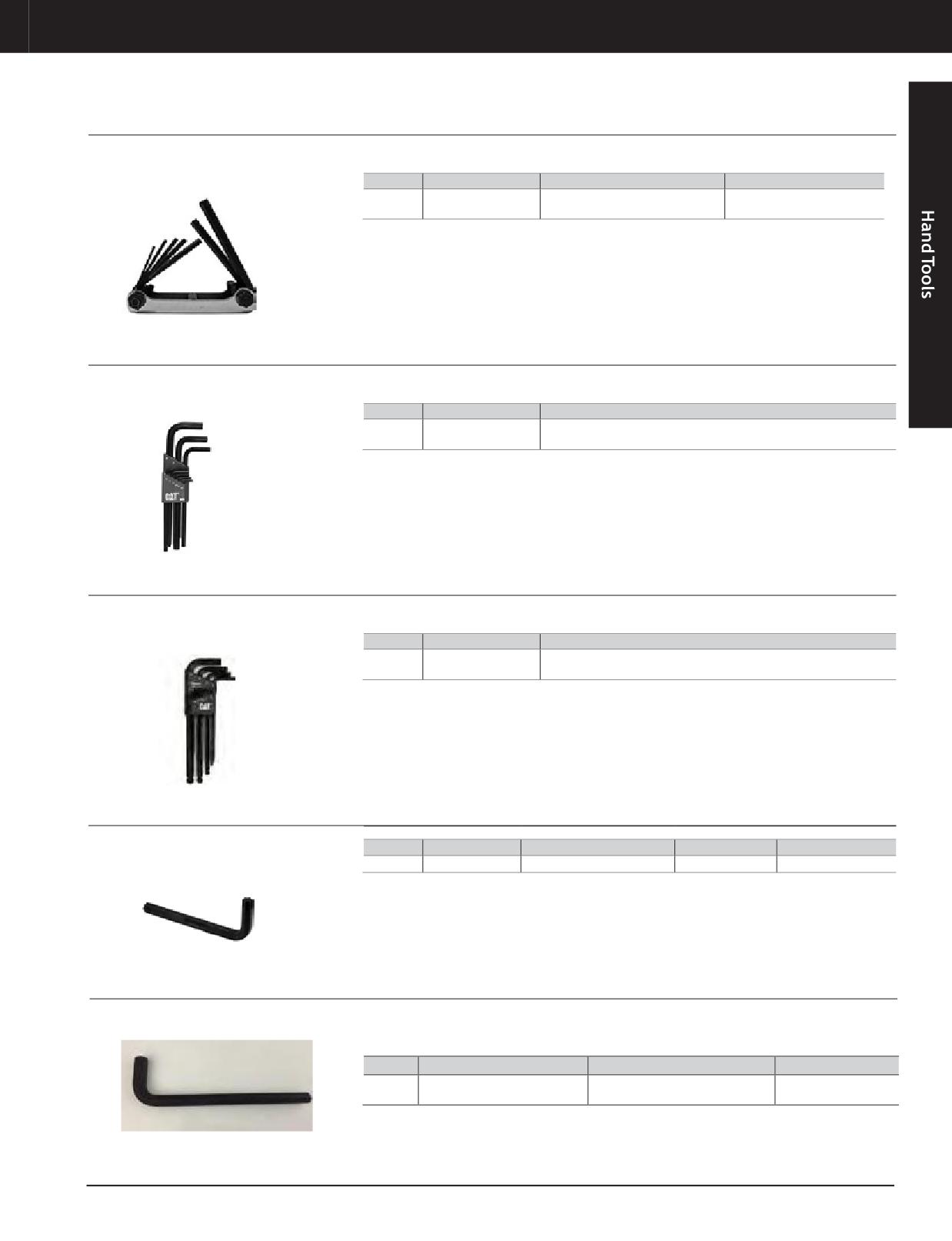

Metric Hex Bit Set, 7 Piece
Model Usage: All Cat® Products
• Black oxide finish bits
• Chrome plated case
Warranty: Lifetime
Part No.
Description
Length
Size
1.5mm, 2.0mm, 2.5 mm, 3.0
200-1931
Metric Hex Key Set
76.2 mm (3.00 in) long bits
mm, 4.0 mm, 5.0 mm, 6.0 mm
Metric "L" Shaped Hex Key Wrench Set, 9 Piece
Model Usage: All Cat® Products
• Cat branded plastic holder included
Warranty: Caterpillar ®Lifetime
Part No.
Description
Size
1.5 mm, 2.0mm, 2.5mm,3.0mm, 4.0mm,5.0 mm, 6.0mm,8.0mm,
200-1929
Metric Hex Key Set
and 10.0 mm
Metric Hex Key Wrench Set with Ball End, 9 Piece
Model Usage: All Cat® Products
• Cat branded plastic holder included
Warranty: Caterpillar ®Lifetime
Part No.
Description
Size
Metric Ball-End Hex
1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 4.0 mm, 5.0 mm, 6.0 mm, 8.0 mm,
293-3026
Wrench Set
and 10.0 mm
L-Shaped Torx Wrench T50
Model Usage: All Cat® Products
Part No.
Description
Length
Flute Length
Material
256-4879
Torx Wrench, T50
95.25 mm (3.75 in)
8.84 mm (0.348 in)
Steel
Warranty: Caterpillar ®Lifetime
Hex Wrench Key
Warranty: Caterpillar ®Six Months
• 8650 chrome nickel alloy steel
• Heat-treated black oxide finish for optimum
strength and rust resistance
Part No.
Description
Dimensions
Weight
Long Arm Length: 353 mm (13.9 in)
460-9905
Eklind 22 mm Jumbo Hex L-Key
0.22 kg (7.8 oz)
Short Arm Length: 69 mm (2.7 in)
JULY 2018 Hand Tools
17-25
Hand Tools
WRENCHES

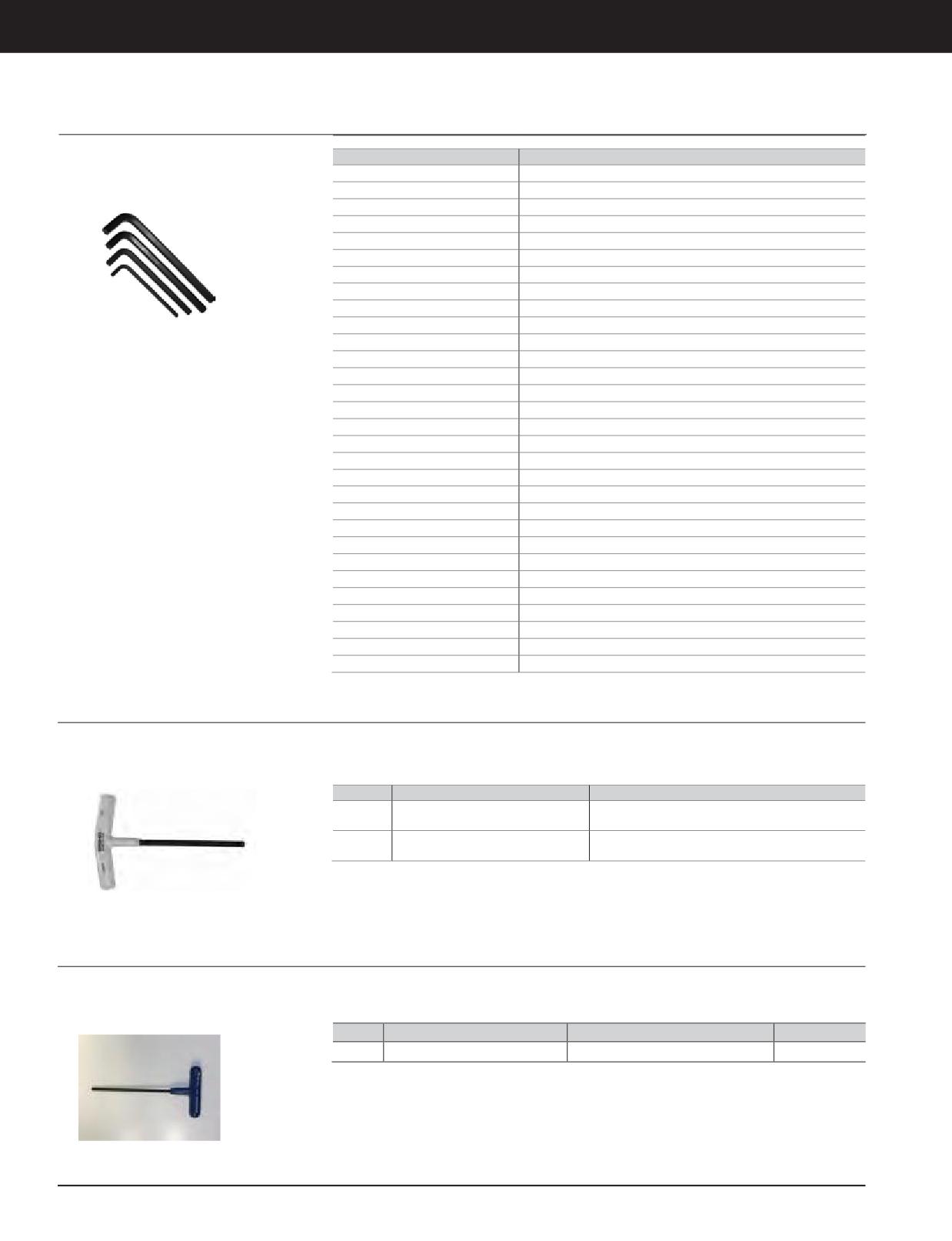

Hex Key Wrenches, Extra Length (Standard and Metric)
Model Usage: All Cat® Products
Part No.
Size
1U-7559
1.5 mm
Warranty: Caterpillar ®Lifetime, unless noted
1U-7560
2 mm
1U-7561
2.5 mm
1U-7562
3 mm
1U-7563
4 mm
1U-7564
5 mm
1U-7565
6 mm
1U-7566
8 mm
1U-7567
10 mm
1U-7568
12 mm
1U-7569
14 mm
1U-7570
17 mm
1U-7571
19 mm
1U-7572
1/16 in
1U-7573
5/64 in
1U-7574
3/32 in
1U-7575
1/8in
1U-7576
5/32 in
1U-7577
3/16 in
1U-7578
7/32 in
1U-7579
1/4in
1U-7580
5/16 in
1U-7581
3/8in
1U-7582
7/16 in
1U-7583
1/2in
1U-7584
9/16 in
1U-7585
5/8in
1U-7586
1in
1U-7632
3/4in
4C-4067
22 mm (extralong length (13.9 in)
T-Handle Allen Head Wrench Set
Model Usage: All Cat® Products
• Cushion grip
• Protanium steel
Warranty: Caterpillar ®Six Months
• Rust preventive coating
• Welded handle
Part No.
Description
Sizes
8-piece Metric T-Handle Allen Head
386-3239
2, 2.5, 3 ,4, 5, 6, 8, 10
Wrench Set
10-piece Fractional T-Handle Allen
386-3240
3/32, 7/64, 1/8, 9/64, 5/32, 3/16, 7/32, 1/4, 5/16, 3/8
Head Wrench Set
Allen Head Wrench, 4mm T-Handle
Model Usage: Longwall Mining PMC-R
• 4 mm Hex T-Handle for removing and
tightening screws during PMC-R rebuilds
Warranty: Manufacturer’s (Snap-on)
Part No.
Description
Dimensions
Weight
549-6791
4mm T-Handle Allen Head Wrench
167 x 76 x 15 mm (6.6 x 3 x 0.6 in)
.06 kg (0.13 lb)
17-26 JULY 2018 Hand Tools
Hand Tools
WRENCHES
Hollow Head Screw Hex Wrenches
Model Usage: All Cat® Products
• Used to remove and install hollow head
screws
Warranty: Caterpillar ®Lifetime unless noted
Item
Part No.
Description
Size
1
1P-3566
Bit, 14.28 mm ( 9/16 in)
9/16 in
1
9U-7419
Bit, 19.05 mm ( 3/4 in)
3/4in
2
5P-4205
Wrench
5/32 in
2
6V-0115
Wrench (Six Month Warranty)
1/8in
2
6V-2104
Wrench (Six Month Warranty)
3/32 in
Spark Plug Wrench
SMCS Code: 1555-011
• Used to remove spark plugs and adapters
• Especially useful because plugs and adapters
on 5.4 inch Bore Natural Gas Engines (G342,
are deeply recessed in top of engine
Model Usage: 5.4 inch Bore Natural Gas Engines
G353, G379, G398)
Warranty: Caterpillar ®Lifetime
Part No.
Description
Size
1P-5559
Spark Plug Adapter Wrench
Large end, 1.25 in; Small end, .75 in
2P-5481
Spark Plug Wrench
-
Open-End Wrenches
Model Usage: All Cat® Products
• For low torque applications
Warranty: Caterpillar ®Lifetime
• Tappet wrench
Size
Part No.
Length
1/2in x 9/16in
8H-8501
9.50 in
Wrench, 41.0 mm
SMCS Code: 4303-010
• As special application tools, used to remove
• Forged steel, straight-handled, open end, with
and install front steering cylinder linkage
black oxide finish
Model Usage: Telescoping Material Handlers
knuckle on Cat vehicles liste
RT50, RT60, and RTC60, 214B Hydraulic
Excavator
Part No.
Description
Size
214-7329
Open End Wrench
41.0 mm
Warranty: Caterpillar ®Lifetime
Wrench, 55.0 mm
SMCS Code: 4303-010
• As special application tools, used to remove
• Forged steel, straight-handled, open end, with
and install front steering cylinder linkage
black oxide finish
Models: Telescoping Material Handlers RT50,
knuckle on Cat vehicles liste
RT60, and RTC60
Part No.
Description
Size
Warranty: Caterpillar ®Six Months
4C-4065
Open End Wrench
55.0 mm
JULY 2018 Hand Tools
17-27
Hand Tools
WRENCHES

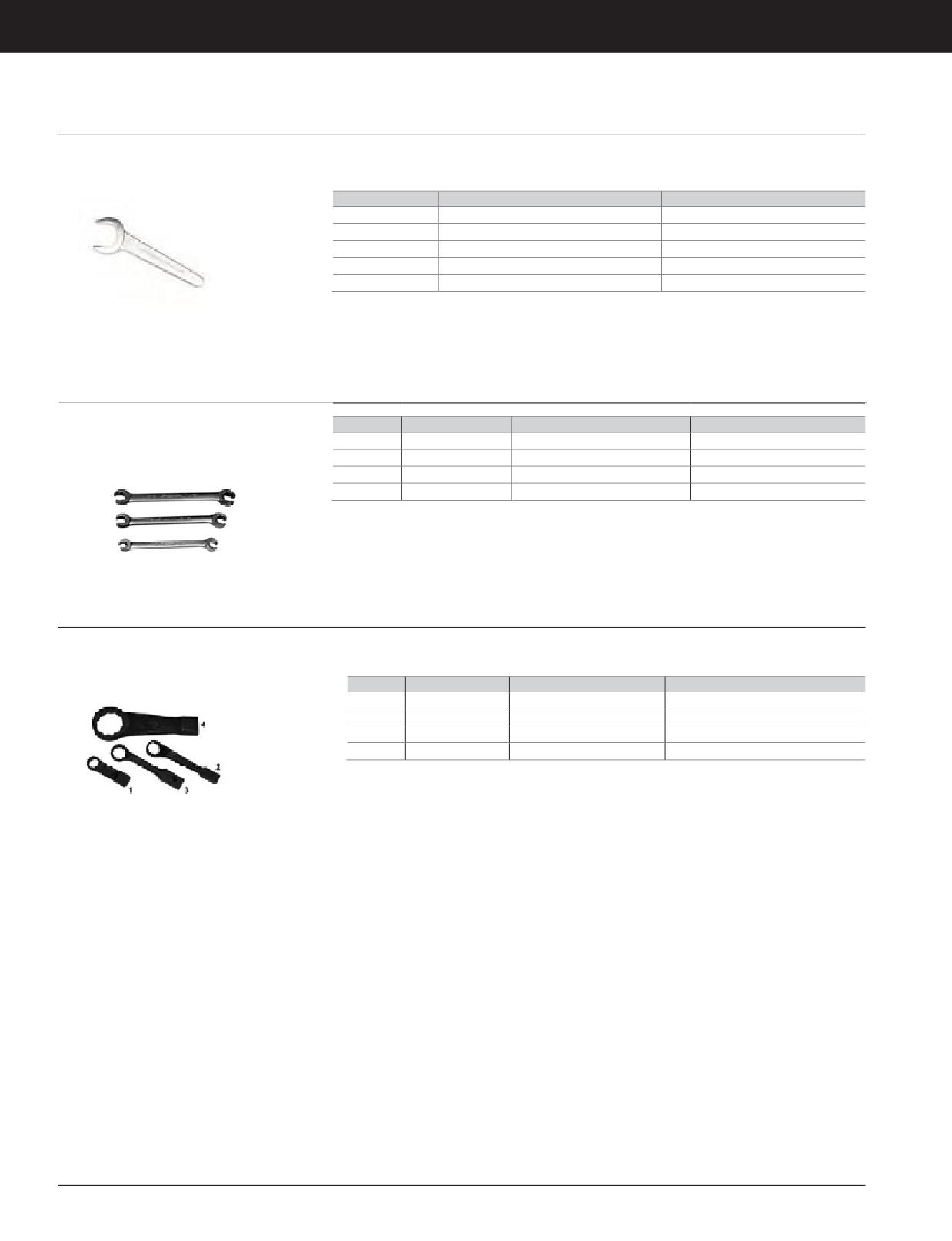

Special Open-End Wrenches
Model Usage: All Cat® Products
• Special application wrenches for tight and
confined spaces
Warranty: Caterpillar ®Warranty As noted
Part Number
Size
Offset
386-3368
24 mm (Six Month Warranty)
30°
9B-1496
1 5/8 in (Lifetime Warranty)
30°
0V-0455
1 7/8 in (Lifetime Warranty)
30°
9F-3869
2 3/4in (Six MonthWarranty)
20°
8F-2239
2 9/32 in (Manuf. 30-Day Warranty)
15°
Wrench Set, Double End Flare Nut, 3 Piece
Model Usage: All Cat® Products
Part No.
Size
Description
Length
214-7335
-
Wrench Set
-
Warranty: Caterpillar ®Lifetime
214-7315
1/2in x 9/16in
Wrench
173.0 mm (6.81 in)
214-7314
3/8in x 7/16in
Wrench
147.6 mm (5.81 in)
214-7317
5/8inx 11/16in
Wrench
200.8 mm (7.91 in)
Heavy-Duty Box Wrenches
Model Usage: All Cat® Products
• Used to tighten large fasteners such as hitch
pins
Warranty: Caterpillar ®Lifetime
Item
Part No.
Description
Size
1
5P-7320
Wrench
38.1mm (1.50in)
2
9U-7376
Sledge Wrench
46.0mm (1.81in)
3
8T-3196
Offset Box Wrench
47.6mm (1.88in)
4
5P-1661
Sledge Wrench
114mm (4.5in)
17-28 JULY 2018 Hand Tools
Hand Tools
WRENCHES
Nut Spanner Wrenches
Model Usage: All Cat® Products
Item
Part No.
Description
Diameter Range
1
1P-2856
Spanner Wrench
155.6-222.3 mm (6.13-8.75 in)
Warranty: Caterpillar ®Six Months, unless noted
2
1P-2854
Spanner Wrench
114.3-158.8 mm (4.50-6.25 in)
3
1P-2853
Spanner Wrench (Lifetime Warranty)
50.8-120.7 mm (2.00-4.75 in)
4
1P-2852
Spanner Wrench
31.8-76.2 mm (1.25-3.00 in)
5
1P-2851
Spanner Wrench
19.1-50.8 mm (.75-2.00 in)
Individual Offset Wrenches, Double End Flare Nut
Model Usage: All Cat® Products
Size
Part No.
Length
13/32inand 15/32in
5P-7254
127 mm (5 in)
Warranty: Caterpillar ®Lifetime
17/32inand 19/32in
5P-7255
165.1 mm (6.50 in)
3/4 in and 1 in
9S-1743
203.2mm (8in)
Special Application Wrenches
Model Usage: All Cat® Products
Part No.
Description
Size
Offset
Application
128-8824
DeepOffsetWrench
16 mm
18 mm
Fuel system
Warranty: Caterpillar ®Lifetime
128-8825
DeepOffsetWrench (17and19mm)
17 mm
19 mm
Fuel system
5P-0144
Fuel Line Socket
-
-
Fuel line
5P-0167
-
-
-
Brake spring
5P-5195
-
-
-
Fuel line
8T-0833
Box, end, chrome, for use with 1/2" ratchet
9/16 inch
-
Fuel pump
9S-9149
Box, offset, chrome
7/16 inch
-
Brake shoe bolt adjustment
Saw Adjustment Wrench
Model Usage: All Cat® Products
• Used to adjust saw tension on newer model
• Designed for easy access of adjustment nut
saw heads
Warranty: Caterpillar ®Six Months
Part No.
Description
Size
197-3672
Saw Adjustment Wrench
Wrench opening: 3 3/4 in
JULY 2018 Hand Tools
17-29
Hand Tools
WRENCHES

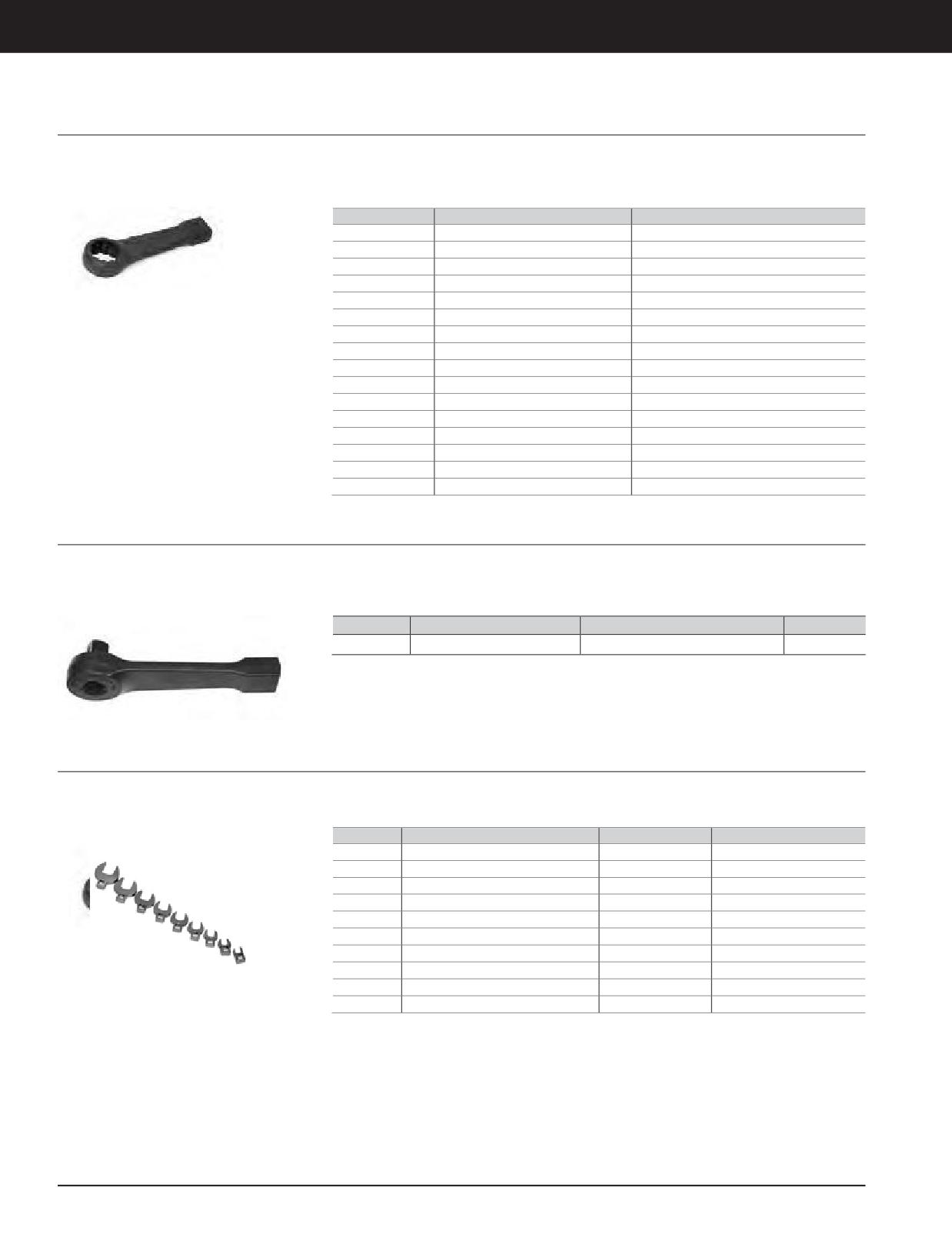

Slug Wrenches
Model Usage: All Cat® Products
• Designed to be struck by a hammer on end to
• Heat treated for maximum durability and long
loosen frozen fasteners or to set and tighten
life
Warranty: Caterpillar ®Lifetime
fasteners
Part No.
Size (inches)
Length
386-3286
1 1/2
194mm(7.63in)
386-3287
1 1/4
192mm(7.55in)
386-3288
1 11/16
198mm(7.79in)
386-3289
1 13/16
203mm(7.99in)
386-3290
1 3/4
203mm(7.99in)
386-3291
1 5/8
199mm(7.83in)
386-3292
1 7/16
194mm(7.63in)
386-3293
1 7/8
203mm(7.99in)
386-3294
2 1/4
298mm(11.73in)
386-3295
2 3/16
298mm(11.73in)
386-3296
2 3/8
302mm(11.88in)
386-3297
2
294mm(11.57in)
386-3298
3 1/2
456mm(17.95in)
386-3299
3 7/8
456mm(17.95in)
386-3300
1 3/16
192mm(7.55in)
386-3301
4
457mm(17.99in)
Slug Wrench, 3/4 Inch Drive
Model Usage: 797F and More
• Used to loosen final drive oil-check plugs on
• Heat treated for maximum durability and long
797F OHT and others.
life
Warranty: Caterpillar ®Six Months
• ¾ in drive works for many applications.
Part No.
Description
Overall Length
Weight
541-9344
3/4 Inch Drive Slug Wrench
292.1 mm (11.5 in)
3.5 kg (8 lb)
Fractional Open-End Crowfoot Wrench Group, 9 piece, 3/8 inch Drive
Model Usage: All Cat® Products
• Can be used with 3/8 inch drive ratchet or
• Can be ordered by set or individually
torque wrenches
Warranty: Caterpillar ®Lifetime
Part No.
Description
Size
Drive
2P-5520
Open-End Crowfoot Wrench Group
-
-
2P-5487
Adapter
3/8
3/8
2P-5488
Wrench
7/16
3/8
2P-5489
Wrench
1/2
3/8
2P-5491
Wrench
9/16
3/8
2P-5492
Wrench
5/8
3/8
2P-5493
Wrench
11/16
3/8
2P-5494
Wrench
3/4
3/8
2P-5495
Wrench
13/16
3/8
2P-5496
Wrench
7/8
3/8
17-30 JULY 2018 Hand Tools
