Hidromek HMK 62 SS. Parts catalog - page 7
C00001
G1-25-1

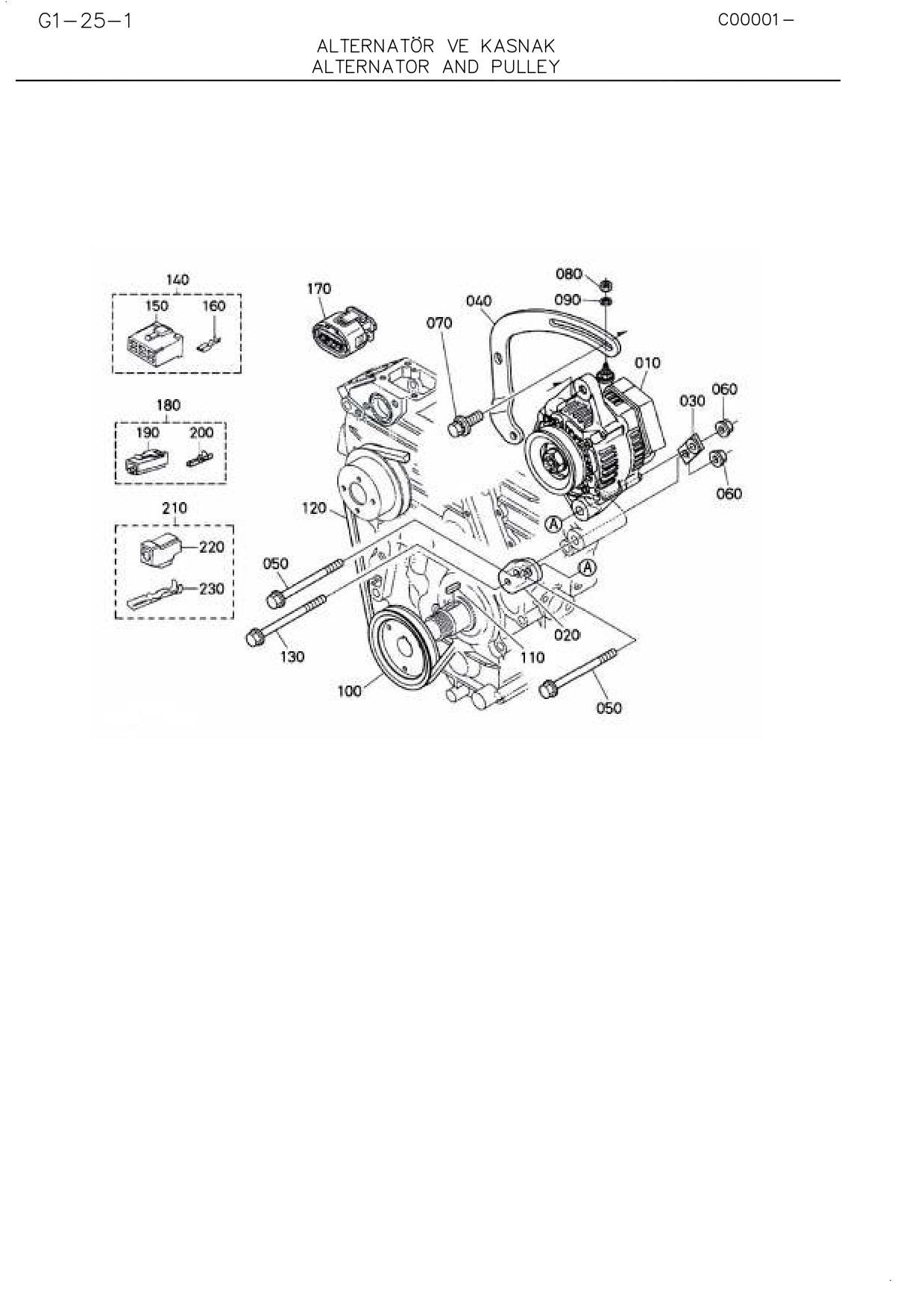

ALTERNATÖR VE KASNAK
ALTERNATOR AND PULLEY
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118003860
ALTERNATÖR
ASSY ALTERNATOR
1
020
M118003870
DESTEK
SUPPORT, ALTERNATOR
1
030
M118003880
GERGİ PARÇASI
STAY, ALTERNATOR
1
040
M118003890
DESTEK
STAY, DYNAMO
1
050
M118003930
CİVATA
BOLT, FLANGE
2
060
M118001620
SOMUN
NUT
2
070
M118004050
CİVATA
BOLT
1
080
M118003920
SOMUN
HEX, NUT
1
090
M118001630
PUL
WASHER, SPRING
1
100
M118004060
KASNAK
PULLEY, FAN DRIVE
1
110
M118002260
KAMA
KEY, FEATHER
1
120
M118003960
V- KAYIŞI
V BELT, A
1
130
M118003970
CİVATA
BOLT, FLANGE
1
140
M118003980
KONNEKTÖR KOMPL.
ASSY COUPLER, CONNEC.
1
150
M118003990
KONNEKTÖR
CONNECTOR
1
160
M118003950
TERMİNAL
TERMINAL
5
170
M118004070
KONNEKTÖR KOMPL.
ASSY CONNETOR
1
180
M118004090
TERMİNAL
TERMINAL
1
190
M118004000
KONNEKTÖR
CONNECTOR
1
200
M118004020
TERMİNAL
TERMINAL
1
210
M118004280
KONNEKTÖR KOMPL.
ASSY COUPLER
1
220
M118004080
KONNEKTÖR
CONNECTOR
1
230
M118004370
TERMİNAL
TERMINAL
2
C00001
G1-26-1

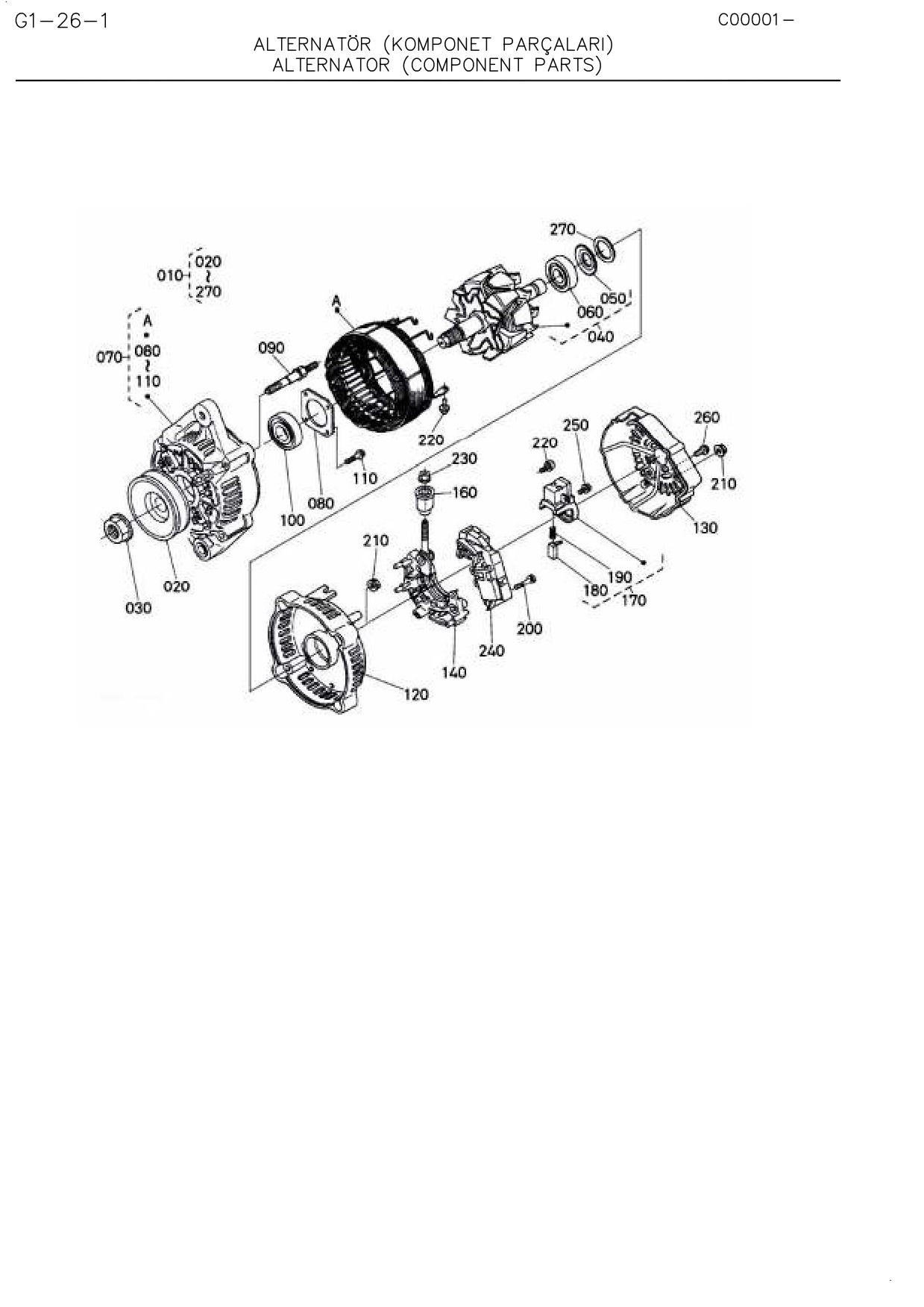

ALTERNATÖR (KOMPENET PARÇALARI)
ALTERNATOR (COMPONENT PARTS)
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118003860
ALTERNATÖR
ASSY ALTERNATOR
1
020
M118004110
KASNAK, ALTERNATÖR
PULLEY, ALTERNATOR
1
030
M118004120
SOMUN
NUT
1
040
M118004130
ROTOR KOMPLE
ASSY ROTOR
1
050
M118004150
KAPAK, RULMAN
COVER, BEARING
1
060
M118004140
RULMAN, BİLYALI
BEARING, BALL
1
070
M118004160
ALTERNATÖR GÖVDESİ
FRAME, DRIVE END
1
080
M118004170
PLAKA
PLATE, RETAINER
1
090
M118004180
CİVATA
BOLT
4
100
M118004190
RULMAN, BİLYALI
BEARING, BALL
1
110
M118004200
VİDA
SCREW
4
120
M118004210
ALTERNATÖR GÖVDE
FRAME END
1
KAPAĞI
130
M118004220
KAPAK
COVER, END REAR
1
140
M118004230
YÖN DEĞİŞTİRİCİ
ASSY RECTIFIER
1
160
M118004250
BURÇ
BUSH, INSULATION
1
170
M118004260
KÖMÜR TUTUCU
HOLDER, BRUSH
1
180
M118004270
KÖMÜR
BRUSH
2
190
M118004290
YAY, YUVA
SPRING, BRUSH
2
200
M118004240
VİDA
SCREW, ROUND HEAD
2
210
M118004300
SOMUN
NUT
2
220
M118004310
VİDA
SCREW, ROUND HEAD
7
230
M118004320
SOMUN
NUT
1
240
M118004330
REGÜLATÖR
ASSY REGULATOR
1
250
M118004340
VİDA
SCREW WITH WASHER
1
260
M118004350
CİVATA
BOLT
1
270
M118004360
PUL
WASHER
1
C00001
G1-27-1

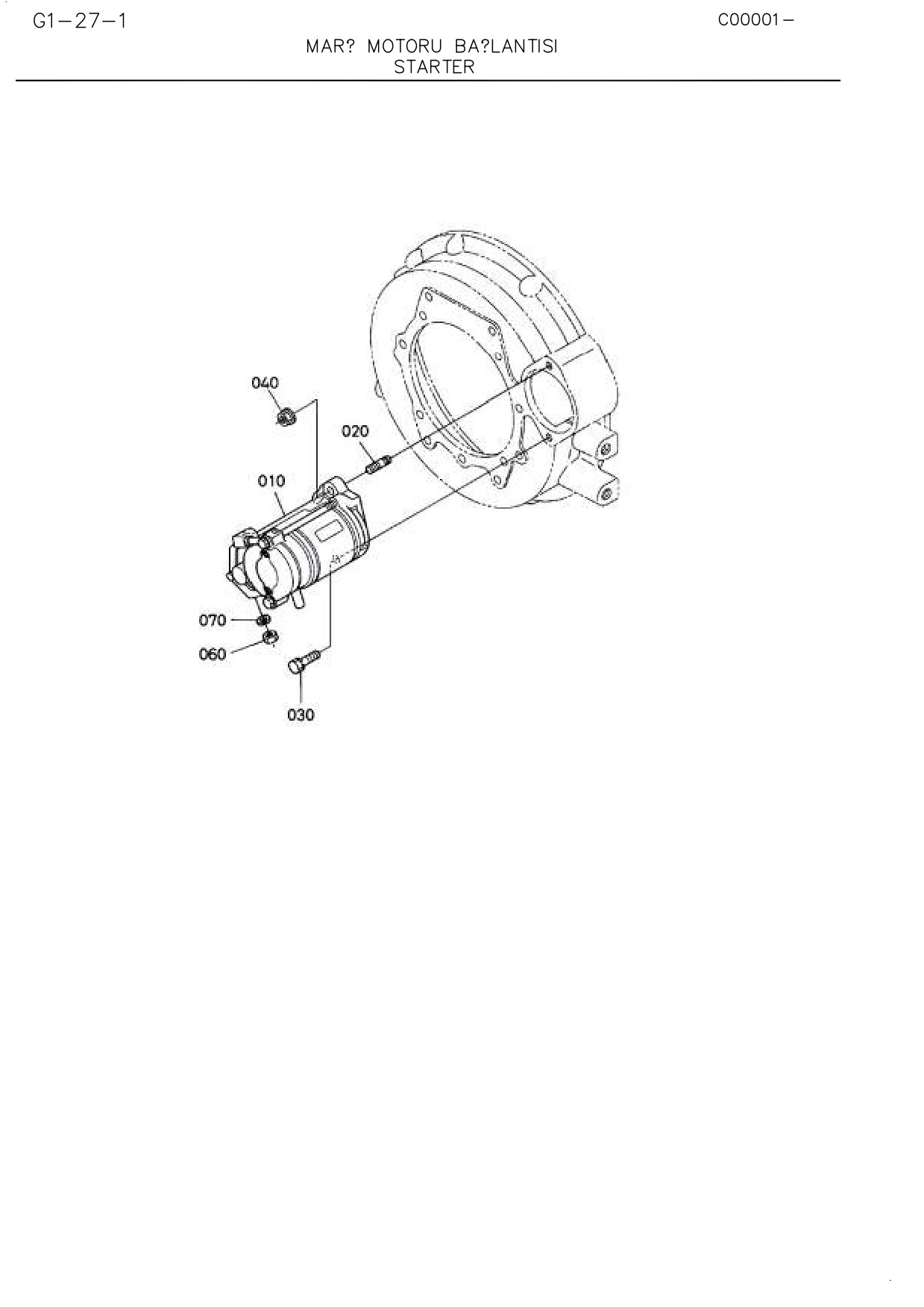

MARŞ MOTORU BAĞLANTISI
STARTER
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118004380
MARŞ MOTORU
ASSY STARTER
1
020
M118004390
SAPLAMA
STUD
1
030
M118004400
CİVATA
BOLT
1
040
M118001620
SOMUN, FLANŞLI
NUT, FLANGE
1
060
M118004420
SOMUN
NUT
1
070
M118001250
PUL,YAYLI
WASHER, SPRING
1
C00001
G1-28-1

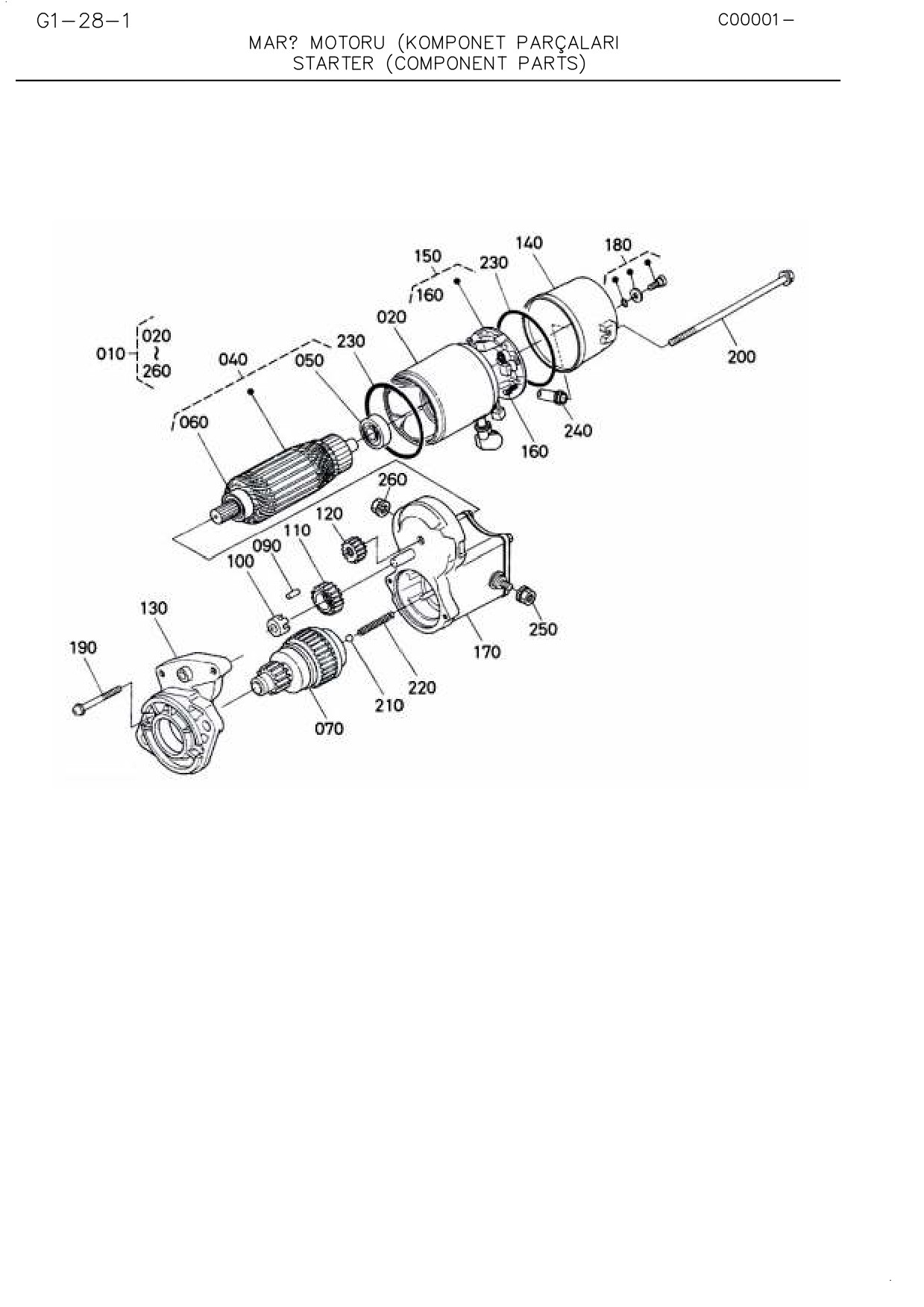

MARŞ MOTORU (KOMPONET PARÇALARI)
STARTER (COMPONET PARTS)
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118004380
MARŞ MOTORU
ASSY STARTER
1
020
M118004450
YÖNLENDİRİCİ
YOKE
1
040
M118004470
ROTOR
ARMATURE
1
050
M118004480
RULMAN
BEARING
1
060
M118004490
RULMAN
BEARING
1
070
M118004500
KAVRAMA, MARŞ MOTORU
CLUTCH, OVER RUNNING
1
090
M118004510
SİLİNDİRİK MAKARA
ROLLER
5
100
M118004520
YATAK YUVASI
RETAINER
1
110
M118004530
DİŞLİ
GEAR
1
120
M118004540
DİŞLİ
GEAR
1
130
M118004550
GÖVDE, TAHRİK
FRAME, DRIVE END
1
140
M118004560
GÖVDE
FRAME, END
1
150
M118004570
YUVA, KÖMÜR
HOLDER, BRUSH
1
160
M118004580
YAY
SPRING
4
170
M118004590
MANYETİK ANAHTAR
ASSY SWITCH MAGNETIC
1
180
M118004600
VİDA
SCREW
2
190
M118004610
VİDA
SCREW
2
200
M118004620
CİVATA
BOLT, THROUGH
2
210
M118004630
BİLYA
BALL
1
220
M118004640
YAY
SPRING
1
230
M118004650
O-RING
O-RING
2
240
M118004660
BORU, DIŞA BOŞALTMA
PIPE, DRAIN
1
250
M118004670
SOMUN
NUT, HEXAGON
1
260
M118004680
SOMUN
NUT, HEXAGON
1
C00001
G1-29-1

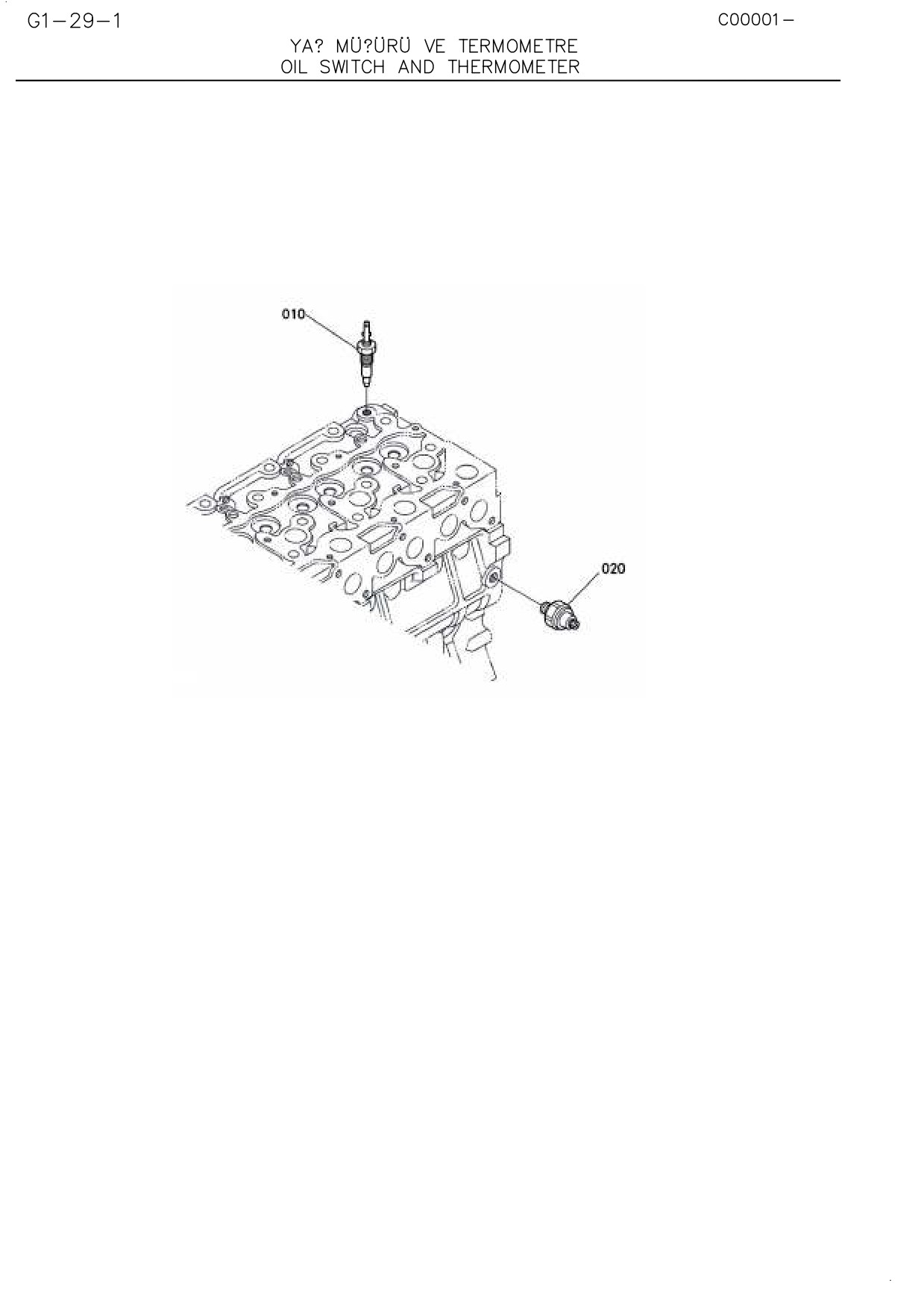

YAĞ MÜŞÜRÜ VE TERMOMETRE
OIL SWITCH AND THERMOMETER
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118004700
TERMOMETRE
ASSY THERMOSWITCH
1
020
M118004710
SVİÇ, YAĞ
SWITCH, OIL
1
C00001
G1-30-1

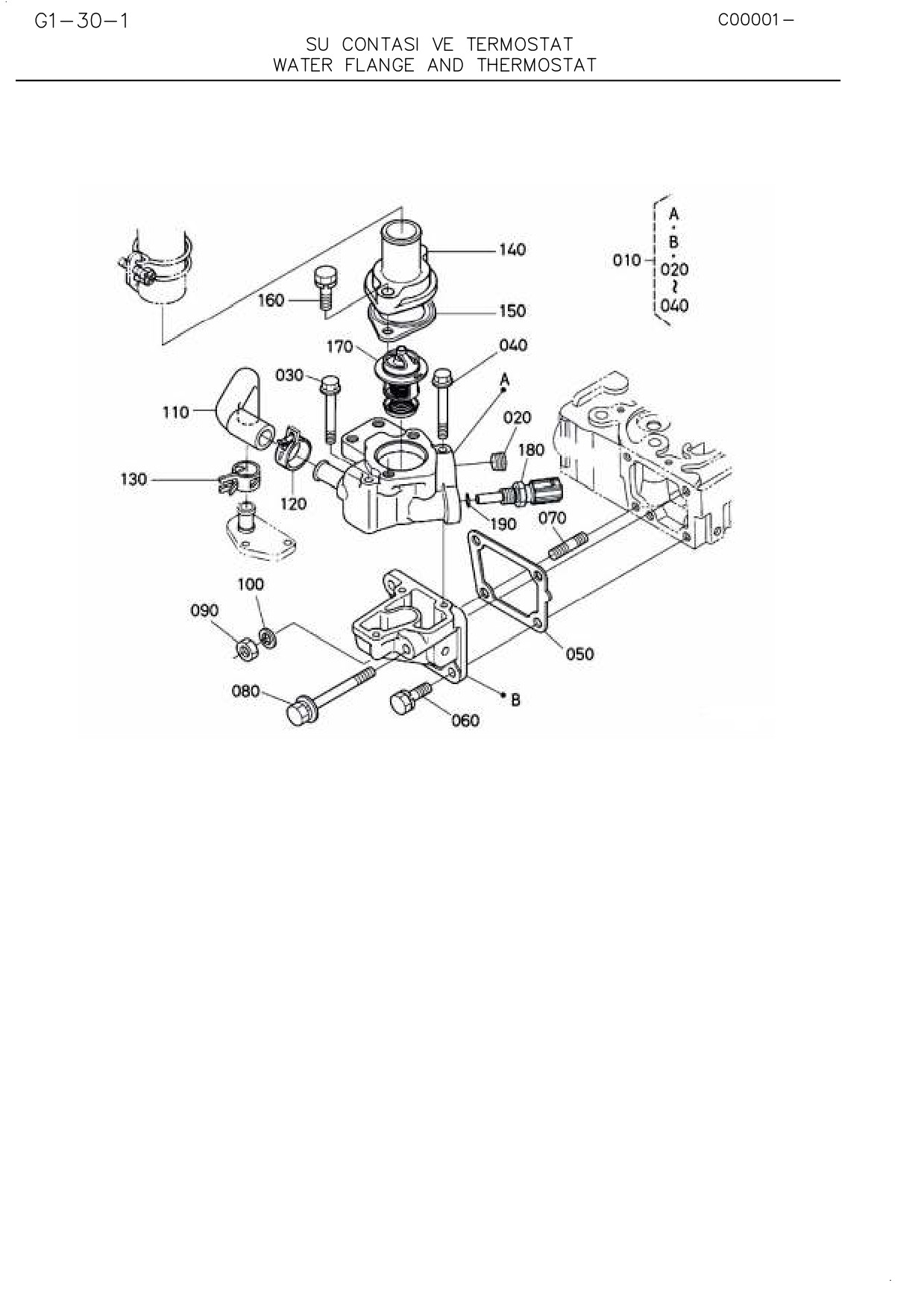

SU CONTASI VE TERMOSTAT
WATER FLANGE AND THERMOSTAT
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118004720
CONTA, SU
COMP. FLANGE, WATER
1
030
M118004730
TAPA
PLUG
1
040
M118004740
CİVATA, FLANŞLI
BOLT, FLANGE
2
045
M118004750
CİVATA, FLANŞLI
BOLT, FLANGE
1
050
M118004760
CONTA, SU
GASKET, WATER FLANGE
1
060
M118004770
CİVATA
BOLT
2
070
M118003240
SAPLAMA
STUD
1
080
M118004790
CİVATA
BOLT
1
090
M118001240
SOMUN
NUT
1
100
M118001250
PUL, YAYLI
WASHER, SPRING
1
110
M118004820
BORU, SU DÖNÜŞ
PIPE, WATER RETURN
1
120
M118004830
KELEPÇE, HORTUM
CLAMP, HOSE
1
130
M118004840
KELEPÇE, HORTUM
CLAMP, HOSE
1
140
M118004850
KAPAK, TERMOSTAT
COVER, THERMOSTAT
1
150
M118004860
CONTA, TERMOSTAT
GASKET, THERMOSTAT
1
160
M118004870
CİVATA
BOLT
2
170
M118004880
TERMOSTAT
ASSY THERMOSTAT
1
180
M118004460
SENSOR, SU SICAKLIK
SENSOR, WATER TEMP.
1
190
M118004690
O-RING
O-RING
1
C00001
G1-31-1

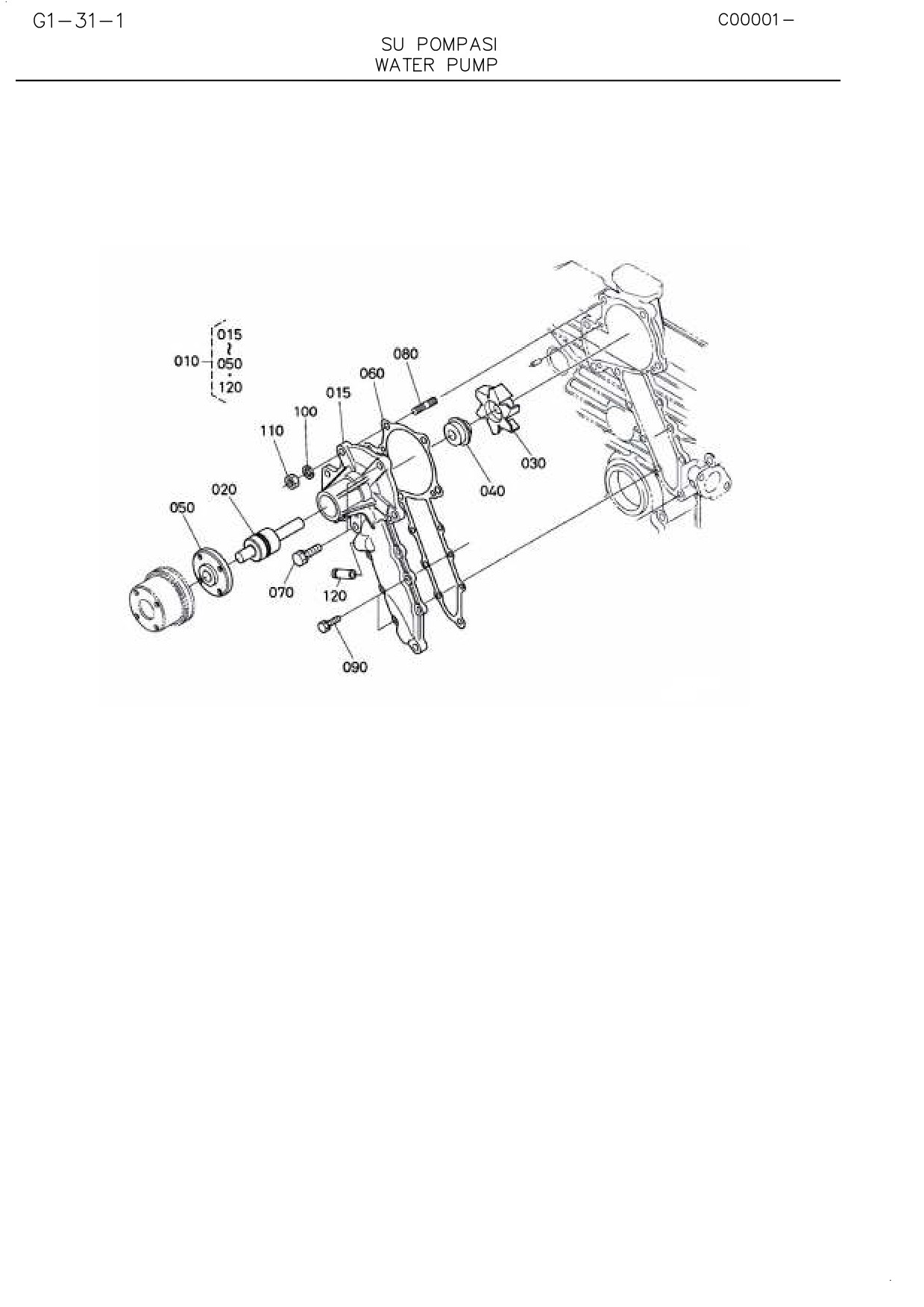

SU POMPASI
WATER PUMP
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118004890
POMPA, SU
ASSY PUMP, WATER
1
015
M118004900
GÖVDE, SU POMPASI
BODY, WATER PUMP
1
020
M118004910
RULMAN
BEARING
1
030
M118004920
PERVANE, SU POMPASI
IMPELLER, WATER PUMP
1
040
M118004930
KEÇE, MEKANİK
ASSY SEAL, MECHANICAL
1
050
M118004940
FLANŞ/ POMPA SAFTI
FLANGE, W/ PUMP SHAFT
1
060
M118004950
CONTA, SU POMPASI
GASKET, WATER PUMP
1
070
M118002030
CİVATA
BOLT
2
080
M118004970
SAPLAMA
STUD
1
090
M118004980
CİVATA
BOLT
6
100
M118001250
PUL, YAYLI
WASHER, SPRING
1
110
M118001240
SOMUN
NUT
1
120
M118005010
BORU, SU DÖNÜŞ
PIPE, WATER RETURN
1
C00001
G1-32-1

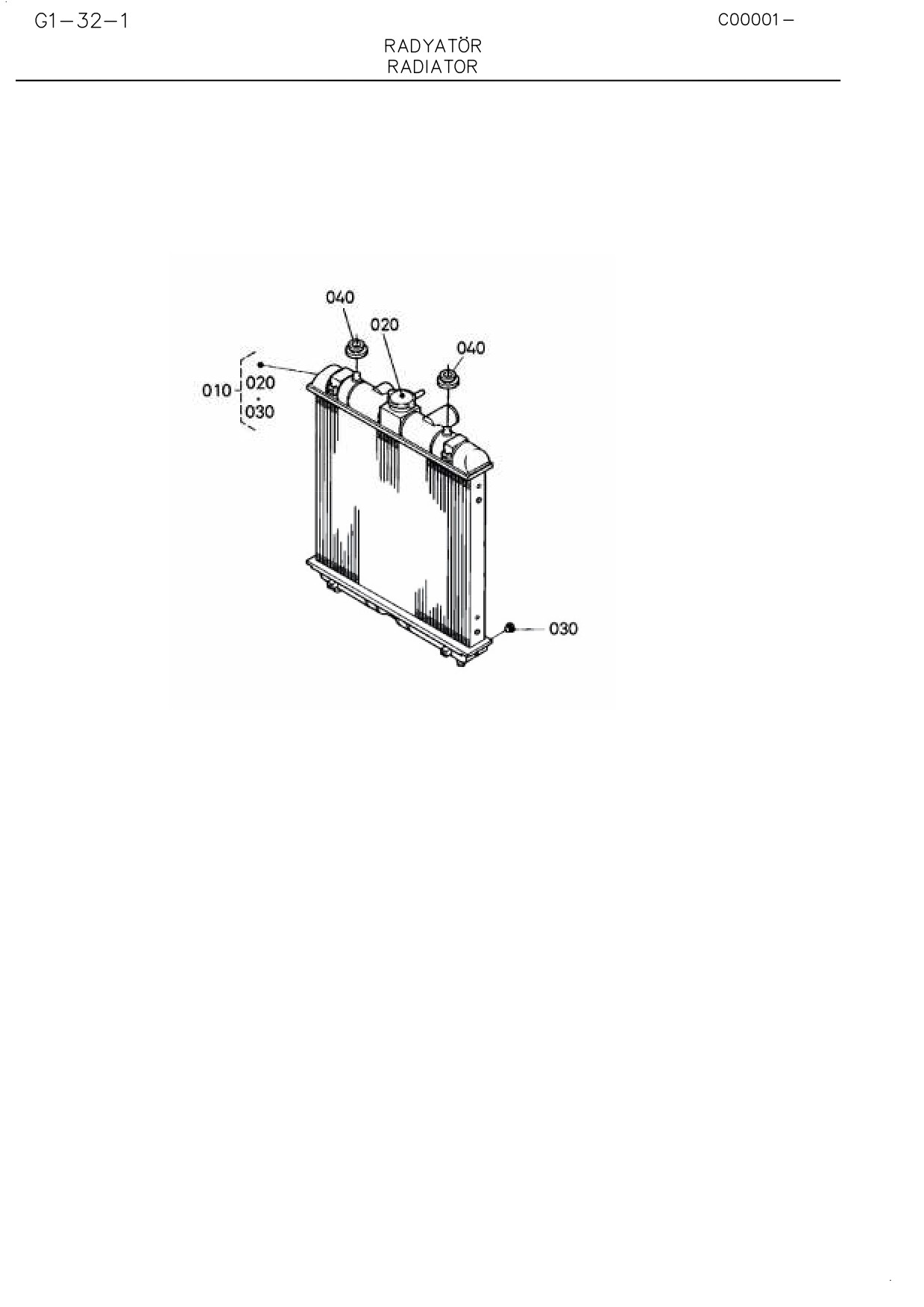

RADYATÖR
RADIATOR
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118005980
RADYATÖR KOMPLE
ASSY, RADIATOR
1
020
M118005990
KAPAK KOMPLE
ASSY CAP, RADIATOR
1
030
M118006000
TAPA KOMPLE
ASSY PLUG, RADIATOR
1
040
M118006010
LASTİK
RUBBER
4
C00001
G1-33-1

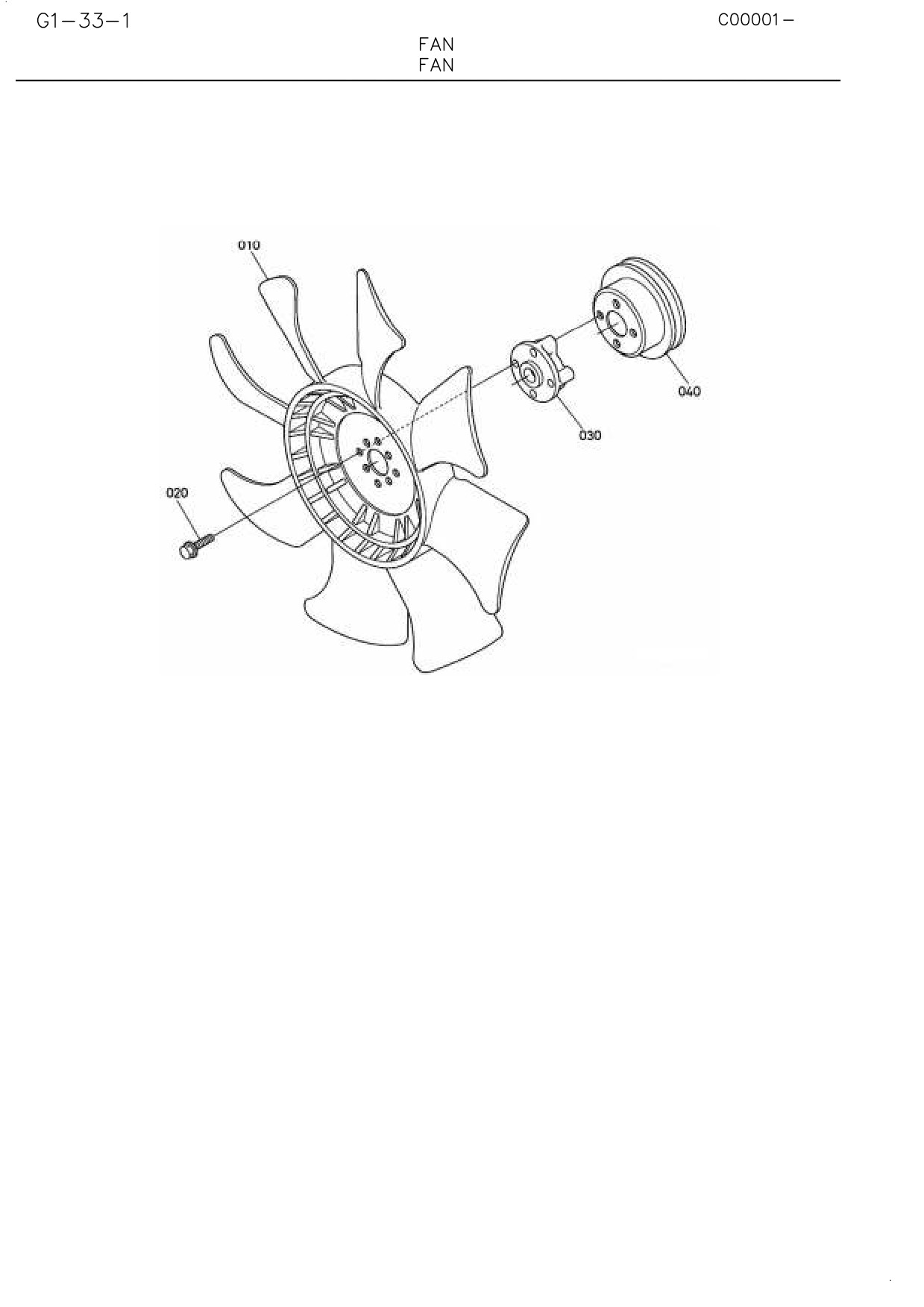

FAN
FAN
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118005020
FAN
FAN
1
020
M118005030
CİVATA, FLANŞLI
BOLT, FLANGE
1
030
M118005200
FLANŞ
COLLAR, FAN
4
040
M118005360
KASNAK, FAN
PULLEY, FAN
1
C00001
G1-34-1

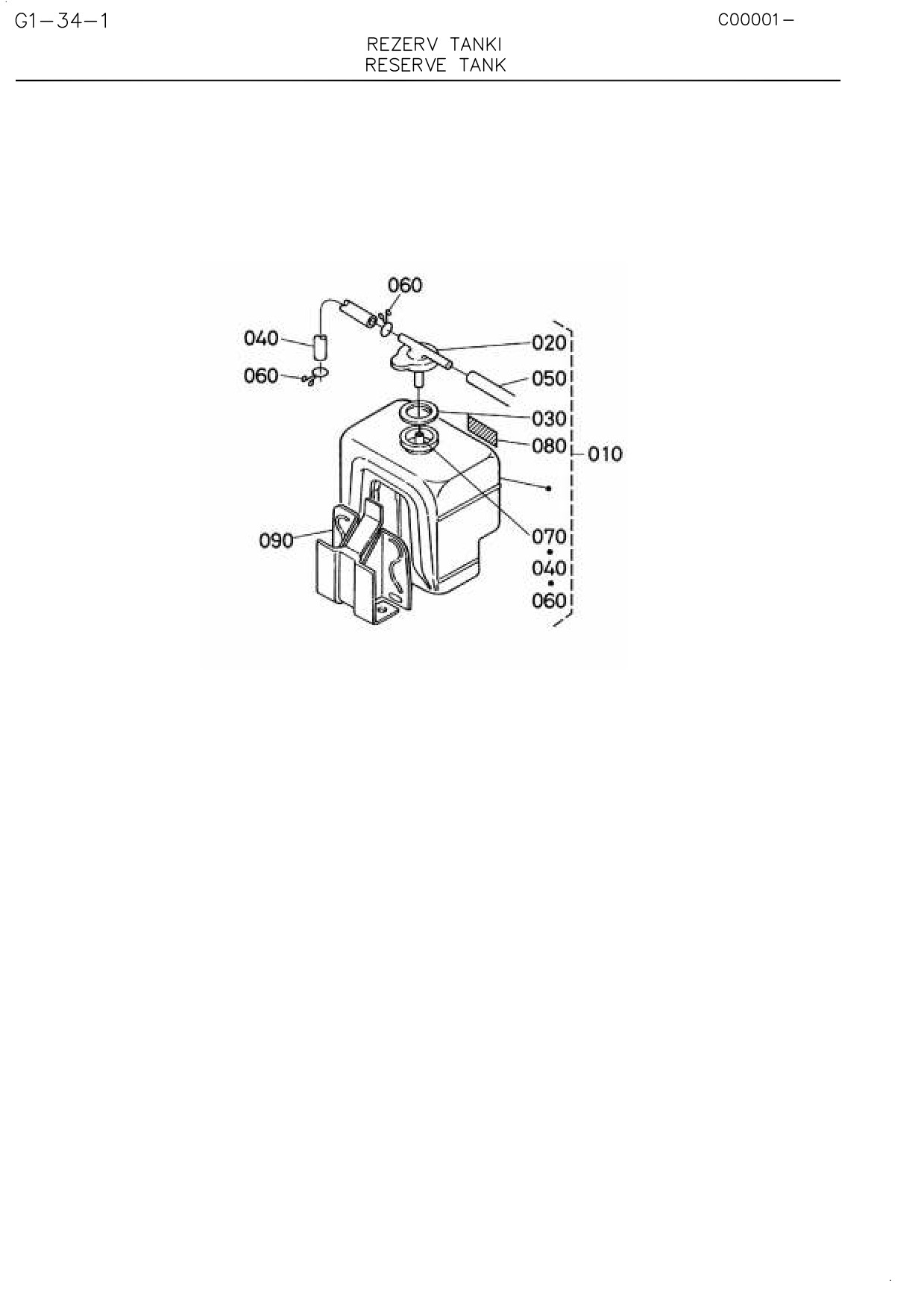

REZERV TANKI
RESERVE TANK
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118006020
REZERV TANKI, KOMPLE
ASSY TANK RESERVE
1
020
M118006030
KAPAK
CAP
1
030
M118006040
CONTA
GASKET
1
040
M118006050
HORTUM, TAŞMA
HOSE, OVER FLOW
1
050
M118006060
HORTUM, TAŞMA
HOSE, OVER FLOW
1
060
M118006070
KELEPÇE
CLIP, PIPE
2
070
M118006080
HORTUM, SU TAŞIRMA
PIPE, WATER OVER FLOW
1
080
M118006090
ETİKET
LABEL, CAUTION
1
090
M118006100
DESTEK
STAY, RESERVE TANK
1
C00001
G1-35-1

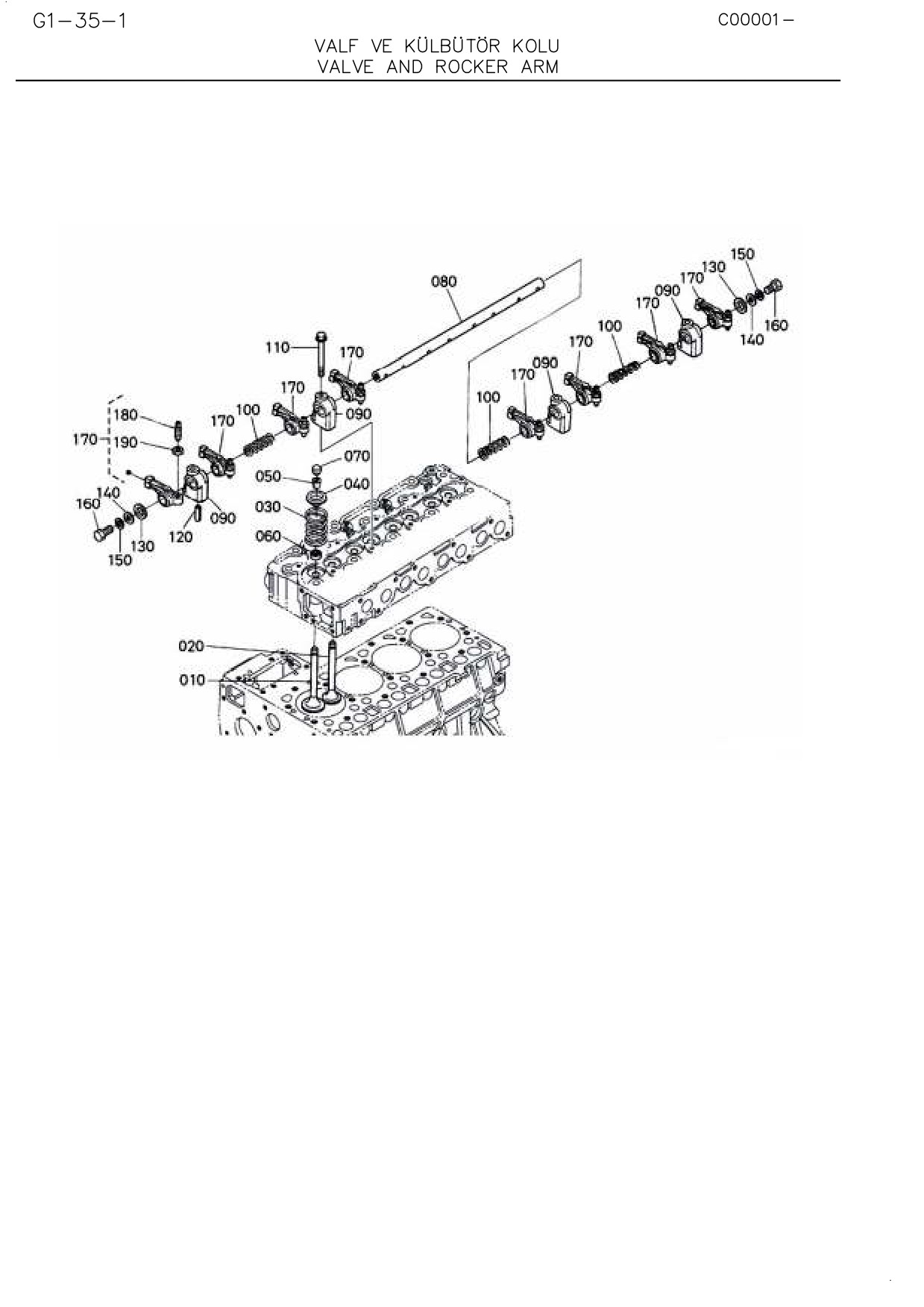

VALF VE KÜLBÜTÖR KOLU
VALVE AND ROCKER ARM
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118005050
VALF, GİRİŞ
VALVE, INLET
4
020
M118005060
VALF, EGSOZ
VALVE, EXHAUST
4
030
M118005070
YAY, VALF
SPRING, VALVE
8
040
M118005080
TUTUCU, VALF
RETAINER, VALVE SP.
8
050
M118005090
YUVA, VALF YAY
COLLET, VALVE SPRING
8
060
M118005100
KEÇE, VALF DESTEK
SEAL, VALVE STEM
8
070
M118005110
KAPAK, VALF
CAP, VALVE
8
080
M118005120
ŞAFT VE KÜLBÜTÖR KOLU
SHAFT, ROCKER ARM
1
090
M118005130
BRAKET, KÜLBÜTÖR KOLU
BRACKET, ROCKER ARM
4
100
M118005140
YAY, KÜLBÜTÖR KOLU
SPRING, ROCKER ARM
3
110
M118005150
CİVATA, FLANŞLI
BOLT, FLANGE
4
120
M118005160
PİM, YAYLI
PIN, SPRING
1
130
M118005170
PUL
WASHER, R- ARM, SHAFT
2
140
M118005180
PUL
WASHER, PLAIN
2
150
M118001250
PİM, YAYLI
WASHER, SPRING
2
160
M118002720
CİVATA
BOLT
2
170
M118005210
KÜLBÜTÖR KOLU
ASSY ROCKER ARM
8
180
M118005220
VİDA, AYAR
SCREW, ADJUSTING
8
190
M118005230
SOMUN
NUT
8
C00001
G1-36-1

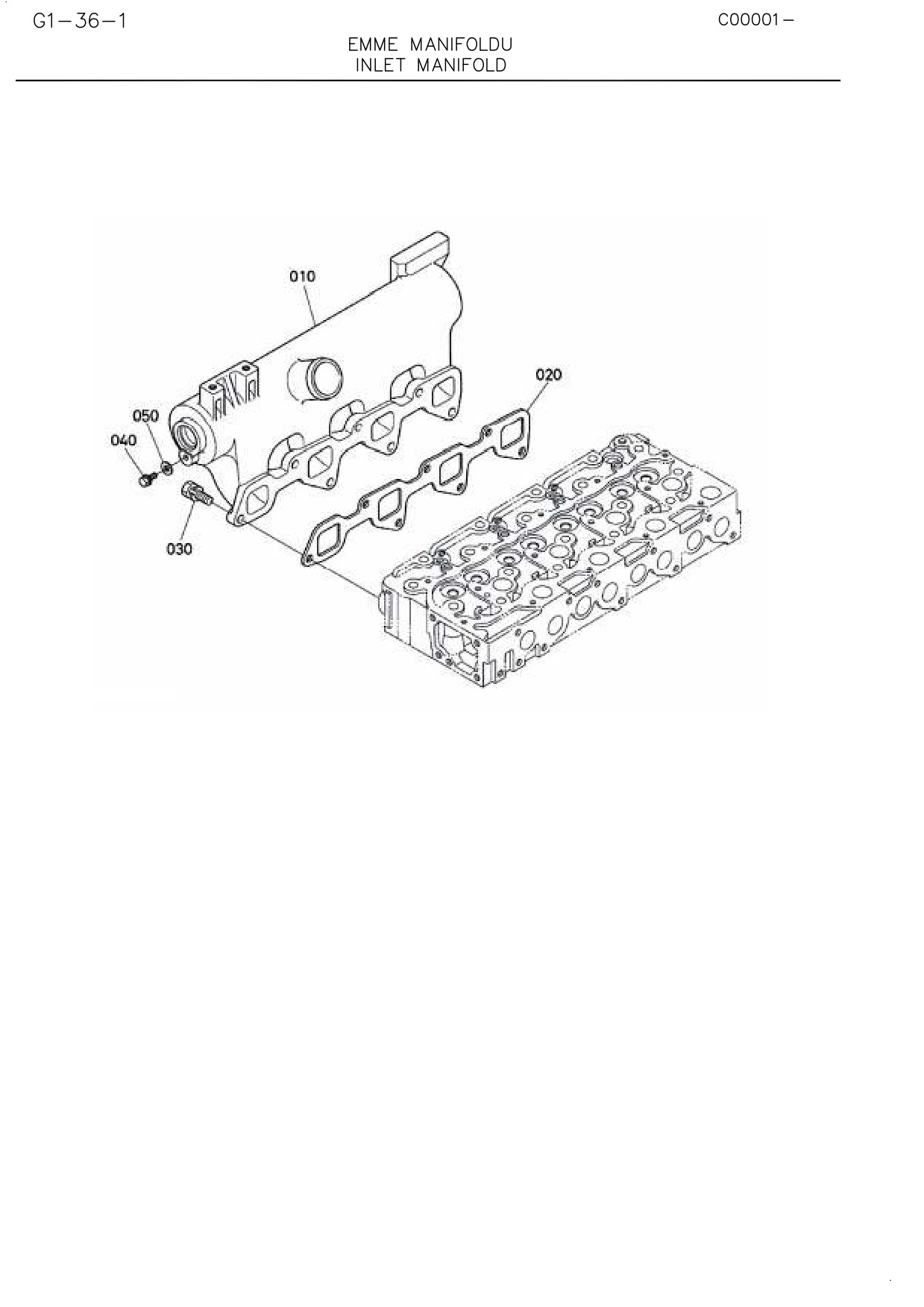

EMME MANĐFOLDU
INLET MANIFOLD
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118005240
MANİFOLD, EMİŞ
MANIFOLD, INLET
1
020
M118005250
CONTA, EMME MANİFOLDU
GASKET, IN- MANIFOLD
1
030
M118005260
CİVATA
BOLT
7
040
M118005040
CİVATA, FLANŞLI
BOLT, FLANGE
1
050
M118003450
CONTA
GASKET
1
C00001

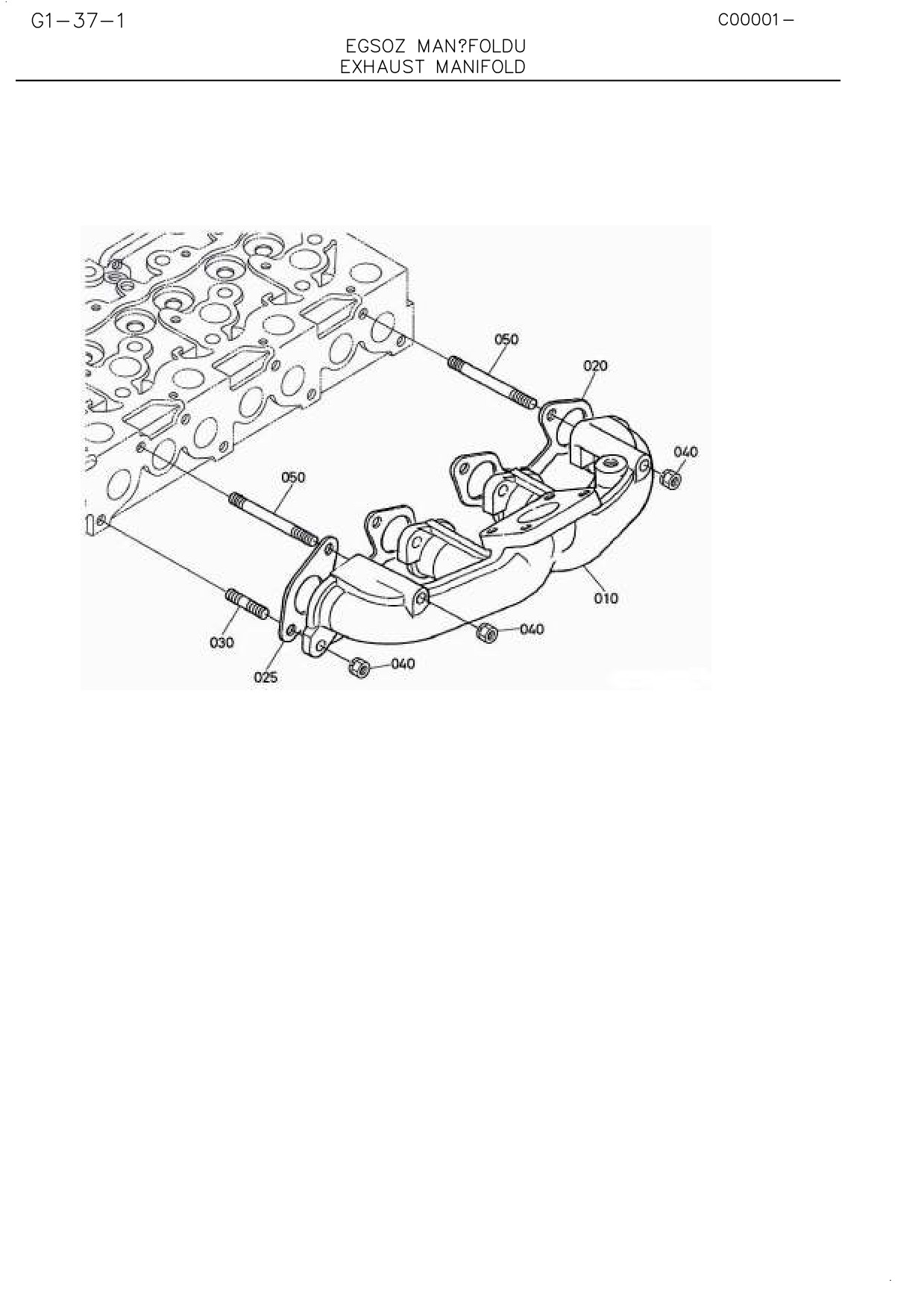

G1-37-1
EGSOZ MANĐFOLDU
EXHAUST MANIFOLD
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118006110
EGSOZ MANİFOLDU
MANIFOLD, EXHAUST
1
020
M118006120
CONTA
GASKET, EX-MANIFOLD
1
025
M118006130
CONTA
GASKET, EX-MANIFOLD
1
030
M118003240
SAPLAMA
STUD
6
040
M118006140
SOMUN
NUT
8
050
M118006150
SAPLAMA
STUD
2
C00001

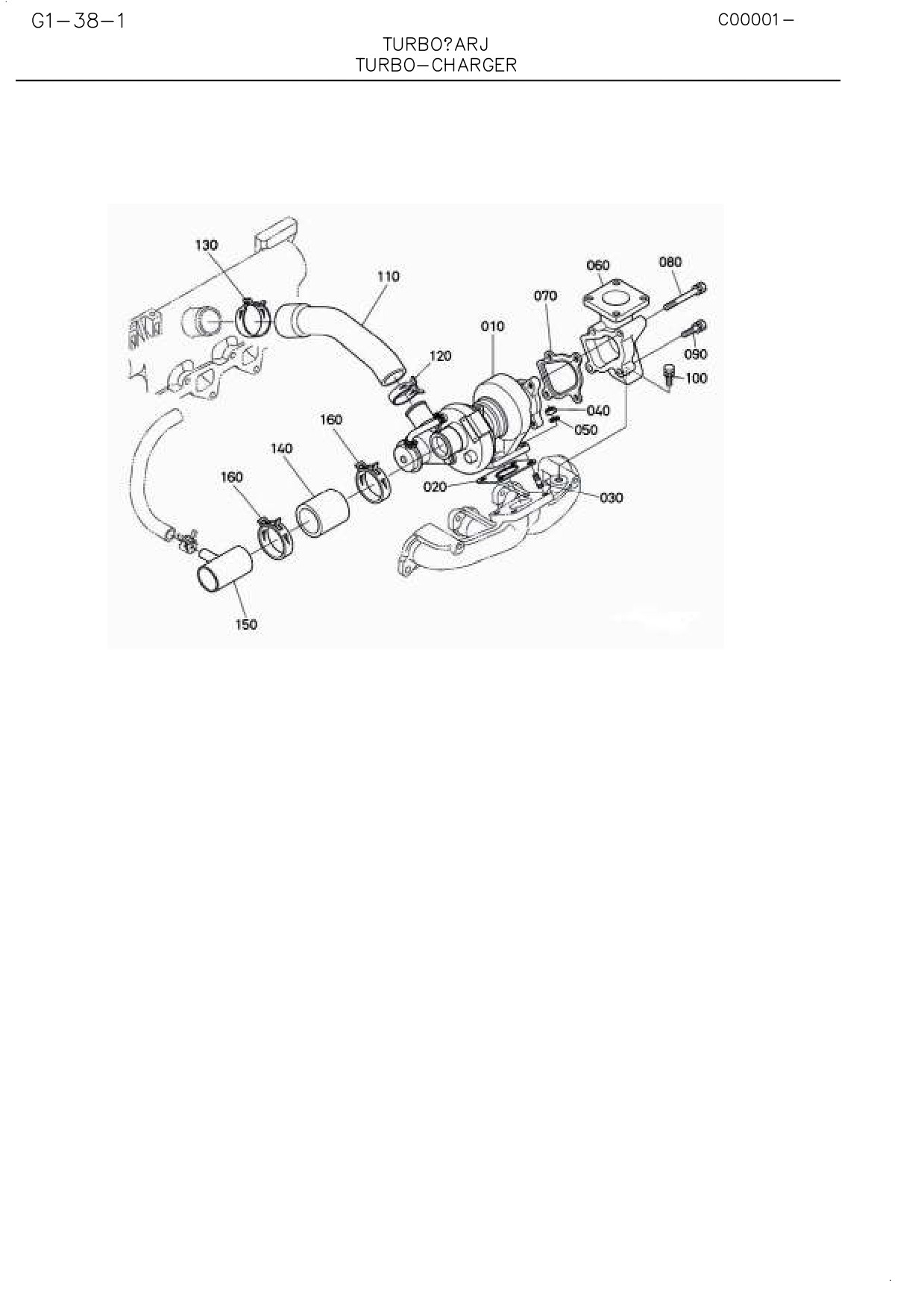

G1-38-1
TURBAŞARJ
TURBO- CHARGER
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118005290
TÜRBOŞARJ
ASSY TURBO CHARGER
1
020
M118005300
CONTA
GASKET
1
030
M118005310
SAPLAMA
STUD
4
040
M118001240
SOMUN
NUT
4
050
M118001250
PUL, YAYLI
WASHER, SPRING
4
060
M118005340
FLANŞ, SUSTURUCU
FLANGE, MUFFLER
1
070
M118005350
CONTA
GASKET
1
080
M118002950
CİVATA
BOLT
2
090
M118004870
CİVATA
BOLT
4
100
M118005370
CİVATA
BOLT
1
110
M118005380
HORTUM, EMİŞ
HOSE, INLET
1
120
M118005390
BAĞ, BORU
BAND, PIPE
1
130
M118005400
BAĞ, BORU
BAND, PIPE
1
140
M118005410
BORU, EMİŞ TURBO
TUBE, INLET TURBO
1
150
M118005420
BORU, HAVA EMİŞ
PIPE, INLET BREATHER
1
160
M118005400
BAĞ, BORU
BAND, PIPE
2
C00001

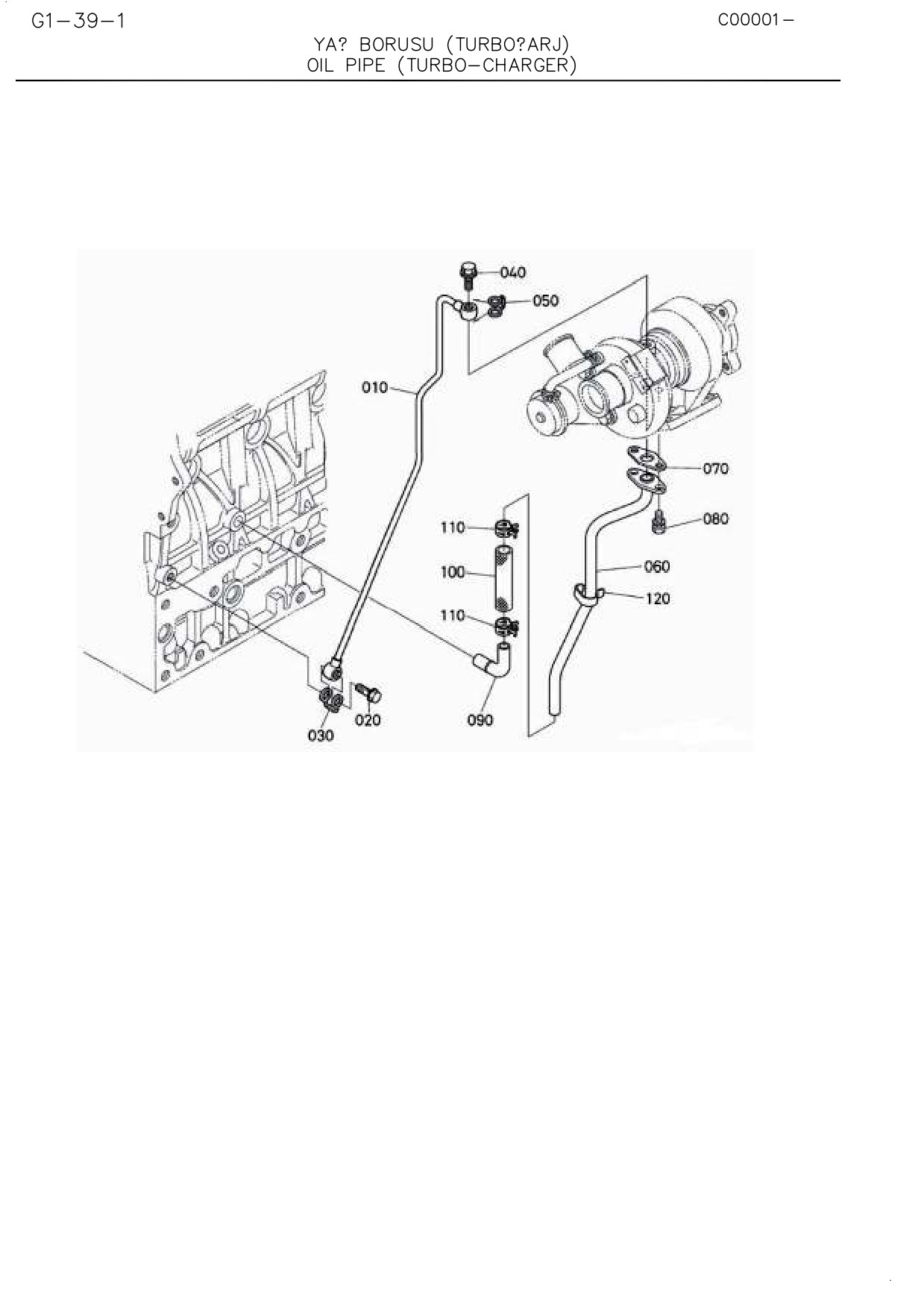

G1-39-1
YAĞ BORUSU (TURBOŞARJ)
OIL PIPE (TURBO CHARGER)
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118005440
BORU, YAĞ
COMP. PIPE, OIL
1
020
M118005450
CİVATA
BOLT, JOINT
1
030
M118005460
CONTA
GASKET
1
040
M118005470
CİVATA
BOLT, EYE JOINT
1
050
M118005480
CONTA
GASKET
1
060
M118005490
BORU, YAĞ
COMP. PIPE, OIL
1
070
M118005500
CONTA
GASKET
1
080
M118005560
CİVATA
BOLT
2
090
M118005520
BORU, YAĞ
PIPE, OIL
1
100
M118005530
BORU,YAĞ
TUBE, OIL
1
110
M118005540
KELEPÇE, HORTUM
CLAMP, HOSE
2
120
M118005550
KELEPÇE, BORU
CLAMP, PIPE
1
