Hidromek HMK 62 SS. Parts catalog - page 8

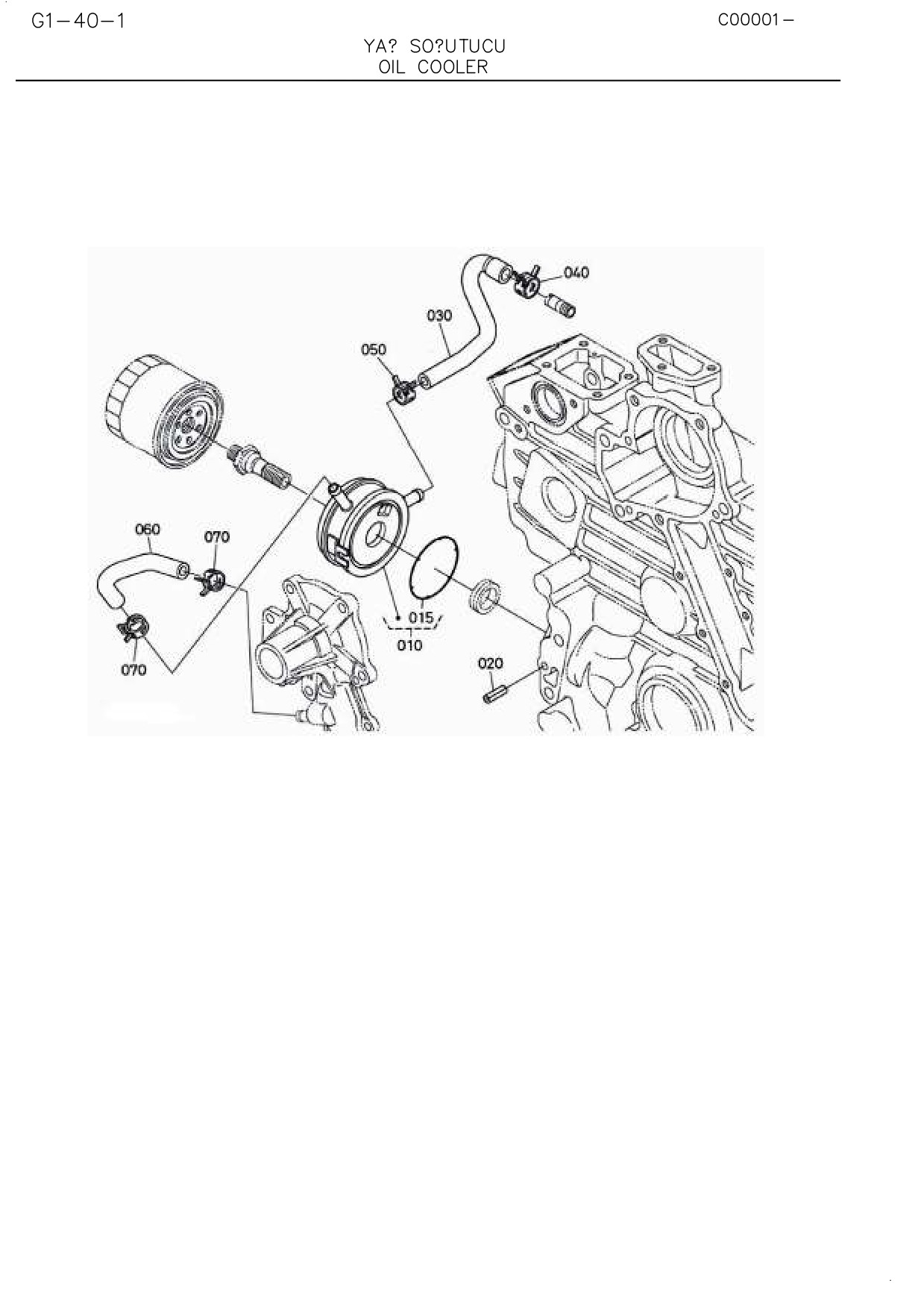

C00001
G1-40-1
YAĞ SOĞUTUCU
OIL COOLER
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118005570
SOĞUTUCU, YAĞ
ASSY COOLER, OIL
1
015
M118005580
O-RING
O-RING
1
020
M118005590
PİM, YAYLI
PIN, SPRING
1
030
M118005600
HORTUM, YAĞ SOĞUTUCU
HOSE, OIL COOLER
1
040
M118004840
KELEPÇE, HORTUM
CLAMP, HOSE
1
050
M118005620
BAĞ, BORU
BAND, PIPE
1
060
M118005630
HORTUM, YAĞ SOĞUTUCU
HOSE, OIL COOLER
1
070
M118005620
BAĞ, BORU
BAND, PIPE
2
C00001
G1-41-1
ÖN ISITMA LAMBASI VE ZAMANLAYICI
GLOW LAMP AND TIMER
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118005650
SAAT, KIZDIRMA LAMBASI
TIMER, GLOW LAMP
1

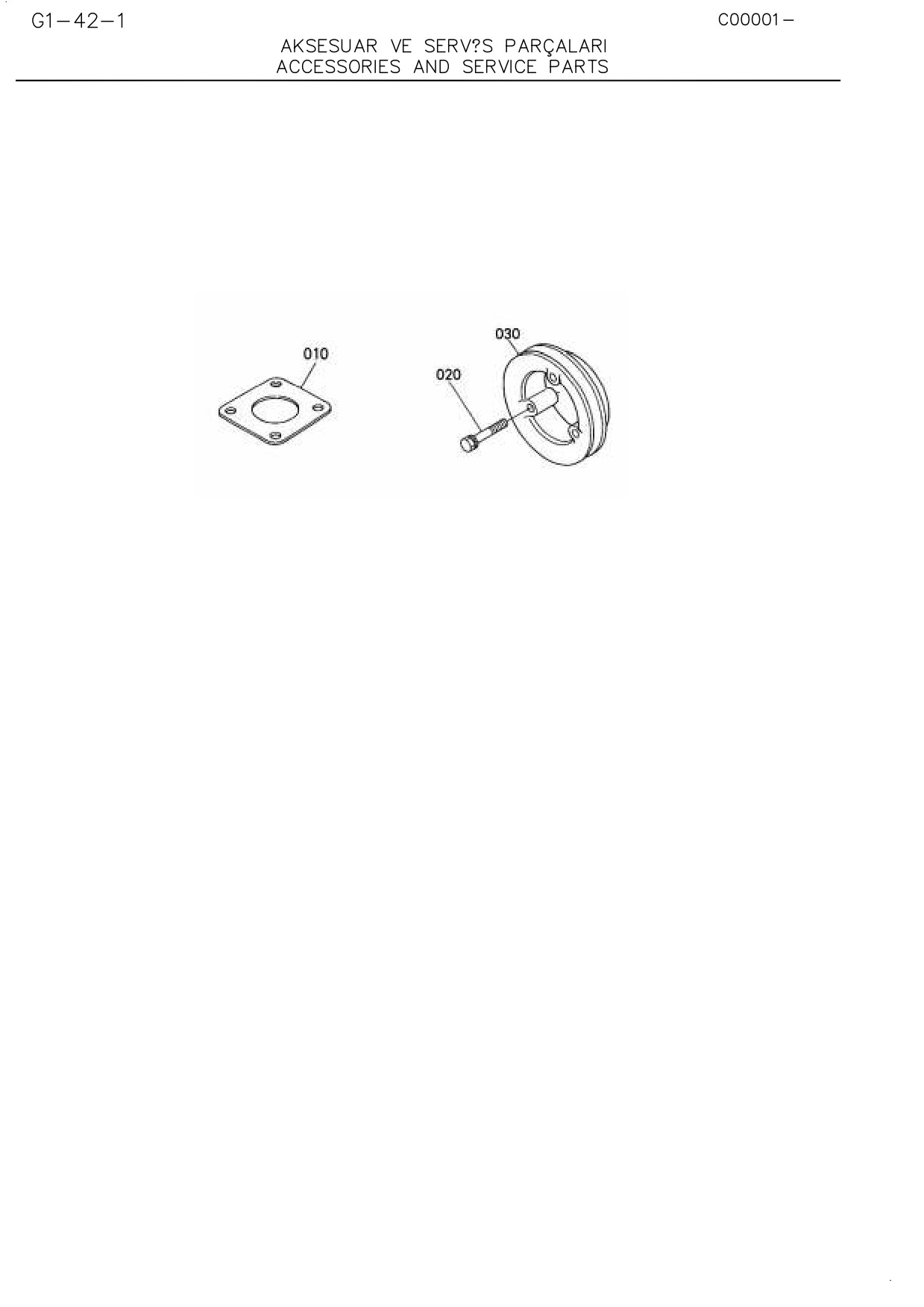

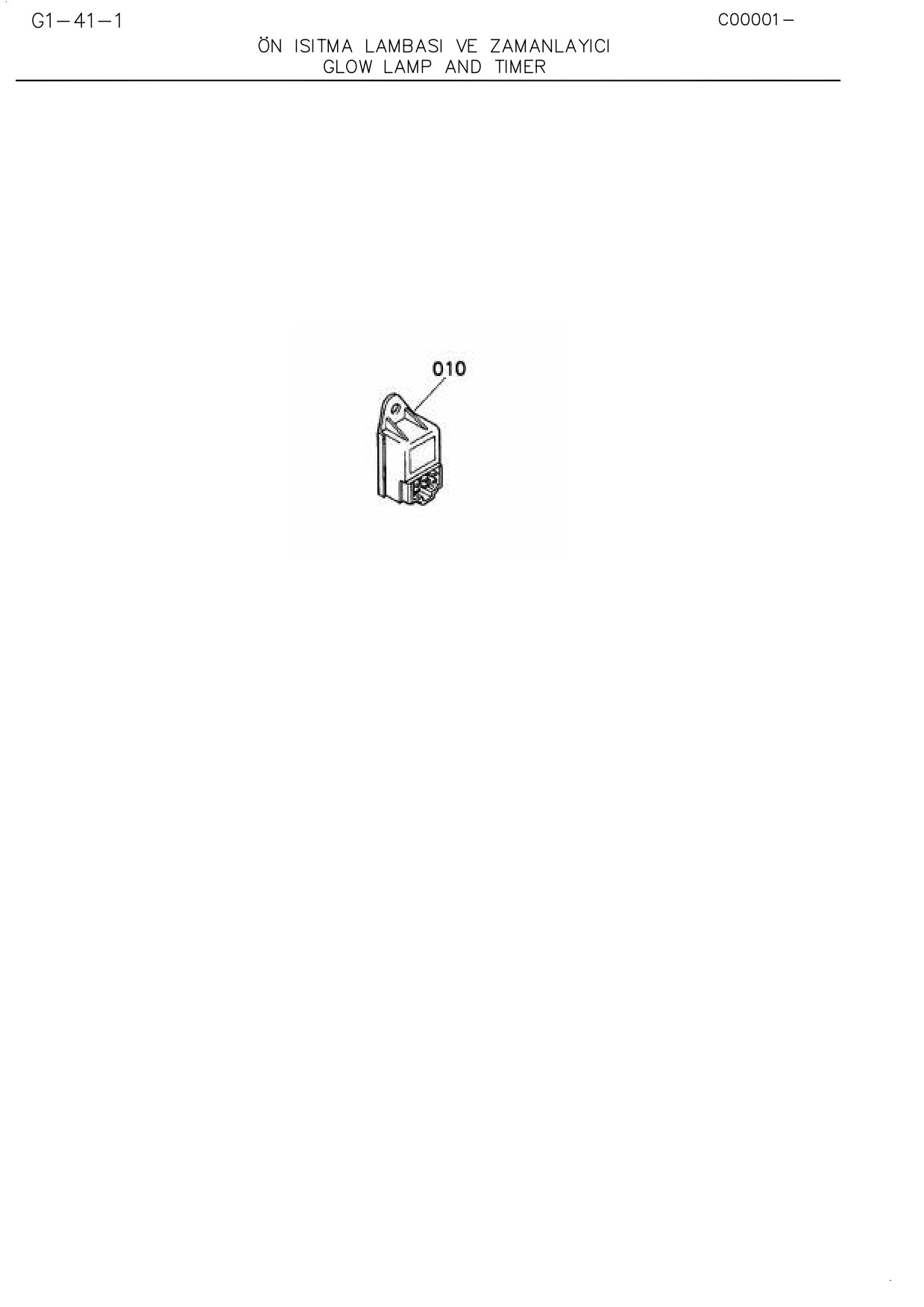

C00001
G1-42-1
AKSESUAR VE SERVĐS PARÇALARI
ACCESSORIES AND SERVICE PARTS
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118005670
CONTA, SUSTURUCU
GASKET, MUFFLER
1
020
M118004690
CİVATA
BOLT
3
030
M118005660
KASNAK, FAN SÜRÜCÜ
PULLEY, FAN DRIVE
1
MOTOR
G
ENGINE
MOTOR
G1
ENGINE
MOTOR MONTAJLARI
G2
ENGINE ASSEMBLY
C00001
-

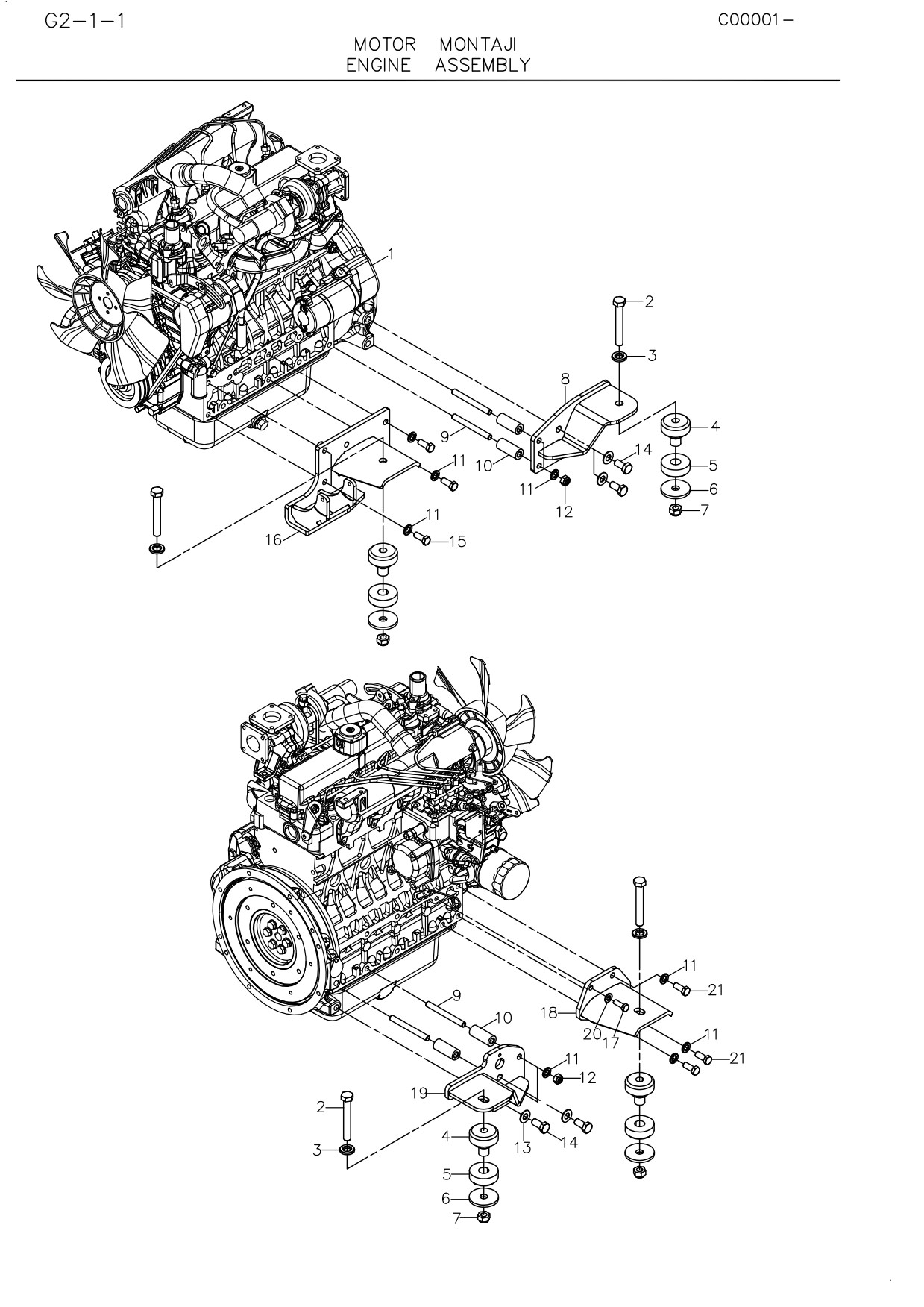

G2-1-1
MOTOR MONTAJI
ENGINE ASSEMBLY
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M112000100
1
M112002800
MOTOR
ENGINE
1
2
N01/0381370
CİVATA, M16x110
BOLT M16x100
4
3
N03/0810002
PUL, M16
WASHER M16
4
4
M112002500
MOTOR TAKOZU UST
MOUNTING, RUBBER
4
PARCA
5
M112002600
MOTOR TAKOZU ALT
MOUNTING, LOWER
4
PARCA
6
M112002200
TAKOZ ALT SACI
WASHER
4
7
N02/5910182
SOMUN M16
NUT M16
4
8
M112000800
MOTOR BAGLANTI KULAGI
ENGINE MOUNTING PLATE,
1
SOL
LEFT
9
M112001900
SAPLAMA
STUD
4
10
M112001700
MOTOR BAGLANTI KULAGI
ENGINE MOUNTING PLATE
4
ALTLIGI
11
N02/5910122
SOMUN M12
NUT M12
4
12
N03/0810001
PUL M12
WASHER M12
13
13
M112002400
PUL M14
WASHER M14
4
14
N01/0481958
CİVATA, M14x1,5x30
BOLT, M14x1,5x30
4
15
N01/0481214
CİVATA, M12x1,25x40
BOLT, M12x1,25x40
4
16
M112002900
MOTOR, KLIMA BAGLANTISI
ENGINE MOUNTING PLATE
1
17
N01/0480843
CİVATA, M10x1,25x30
BOLT, M10x1,25x30
1
18
M112001100
MOTOR BAGLANTI KULAGI,
ENGINE MOUNTING PLATE,
1
SAG ON
RIGHT, FRONT
19
M112001400
MOTOR BAGLANTI KULAGI,
ENGINE MOUNTING PLATE,
1
ARKA SAG
RIGHT, BACK
20
N03/0810015
PUL, M10
WASHER M10
1
21
N01/0481190
CİVATA, M12x1,25x30
BOLT, M12x1,25x30
3
C00001
-

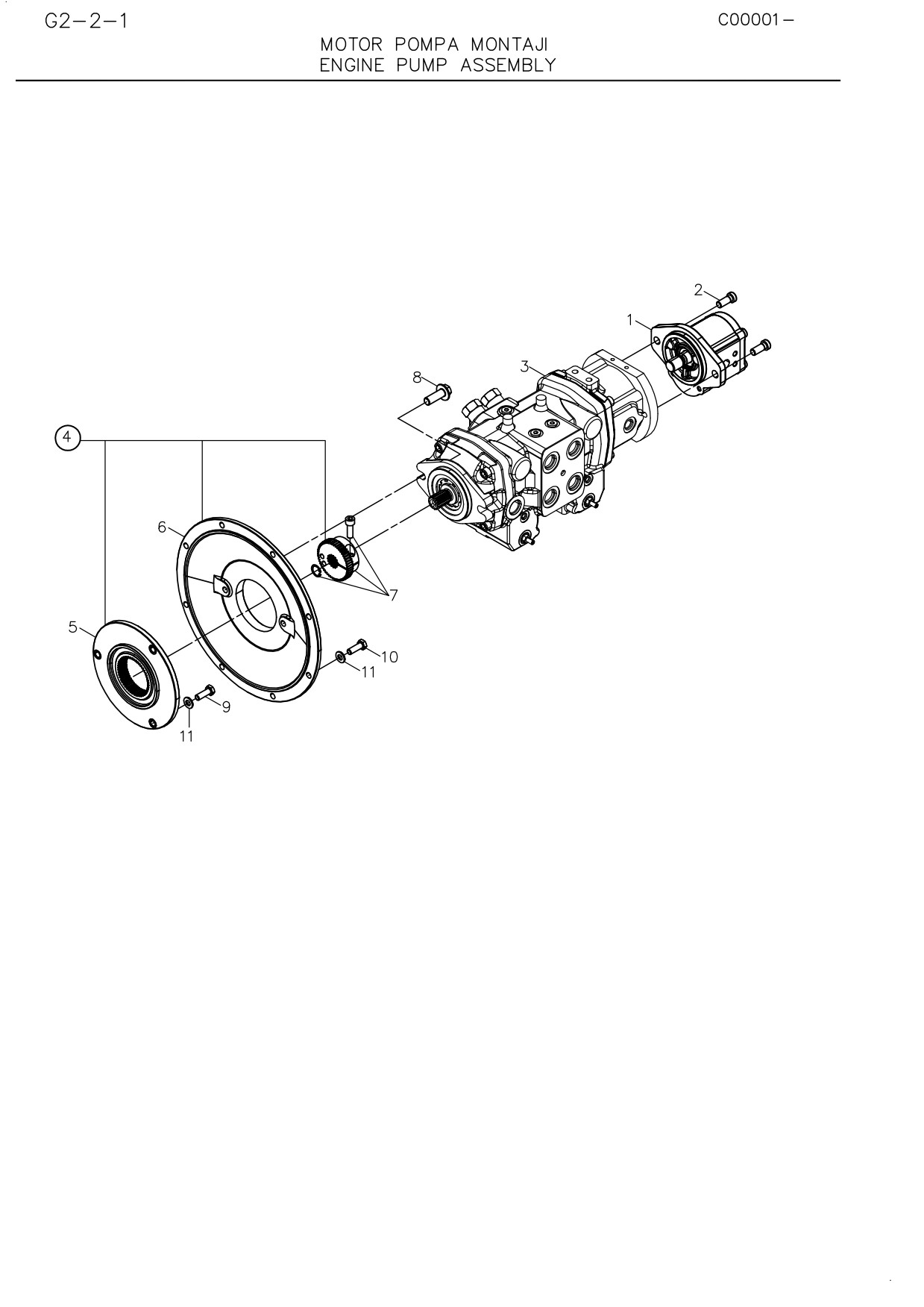

G2-2-1
MOTOR POMPA MONTAJI
ENGINE PUMP ASSEMBLY
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M112100100
1
M112100600
POMPA, DİŞLİ
PUMP
1
2
N01/5983245
CİVATA
BOLT
2
3
M112100500
POMPA
PUMP
1
4
M112100700
KAPLİN, KİT
COUPLIN, KIT
1
5
M112100200
FLANŞ
FLANGE
1
6
M112100400
VOLAN
FLYWHEEL
1
7
M112100300
KAPLİN
COUPLIN
1
8
N01/5983245
CİVATA M14x45
BOLT M14x45
2
9
N01/0480843
CİVATA M10
BOLT M10
3
10
N01/0232486
CİVATA M10
BOLT M10
8
11
N03/0810015
PUL
WASHER
11
C00001
-

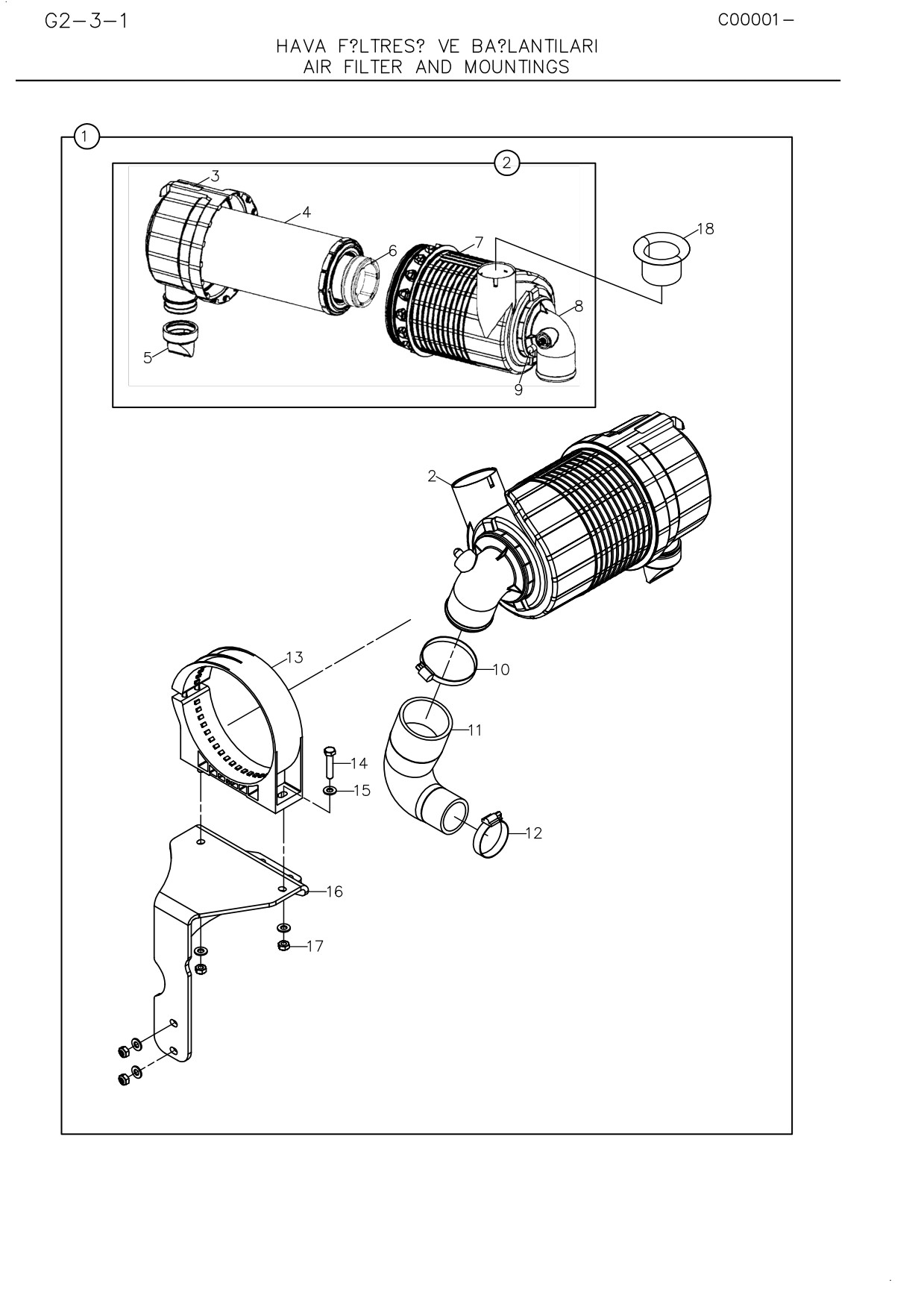

G2-3-1
HAVA FĐLTRESĐ VE BAĞLANTILARI
AIR FILTER AND MOUNTINGS
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
M112200100
HAVA FİLTRESİ, KOMPLE
AIR FILTER, ASSY
1
2
M112200200
FİLTRE
FILTER
1
3
M113100251
KAPAK KOMPLE
COVER ASSY.
1
4
M113100250
HAVA DIŞ FİLTRESİ
MAIN ELEMENT ASSY.
1
5
M113100252
TOZ ATICI
VAC. VALVE
1
6
M113100260
HAVA İÇ FİLTRESİ
SAFETY ELEMENT ASSY.
1
7
M113100254
GÖVDE
BODY
1
SOP
8
M113100253
DİRSEK
OUTLET ELBOW
1
SOP
9
F28/93017
KAPAK, KORUYUCU
PROTECTION CAP
1
10
N07/4060080
KELEPÇE
CLAMP
1
11
M112200800
HORTUM, HAVA FİLTRESİ
HOSE, AIR FILTER
1
12
N07/4040060
KELEPÇE
CLAMP
1
13
M112200300
BRAKET
BRACKET
1
14
N01/0380386
CİVATA M8x40
BOLT M8x40
2
15
N03/0100017
PUL M8
WASHER M8
6
16
M112200500
BRAKET
BRACKET
1
17
N02/5900062
SOMUN M8
NUT M8
4
18
M112200900
HAVA FİLTRE KÖRÜĞÜ
GAITER
1
C00001
-

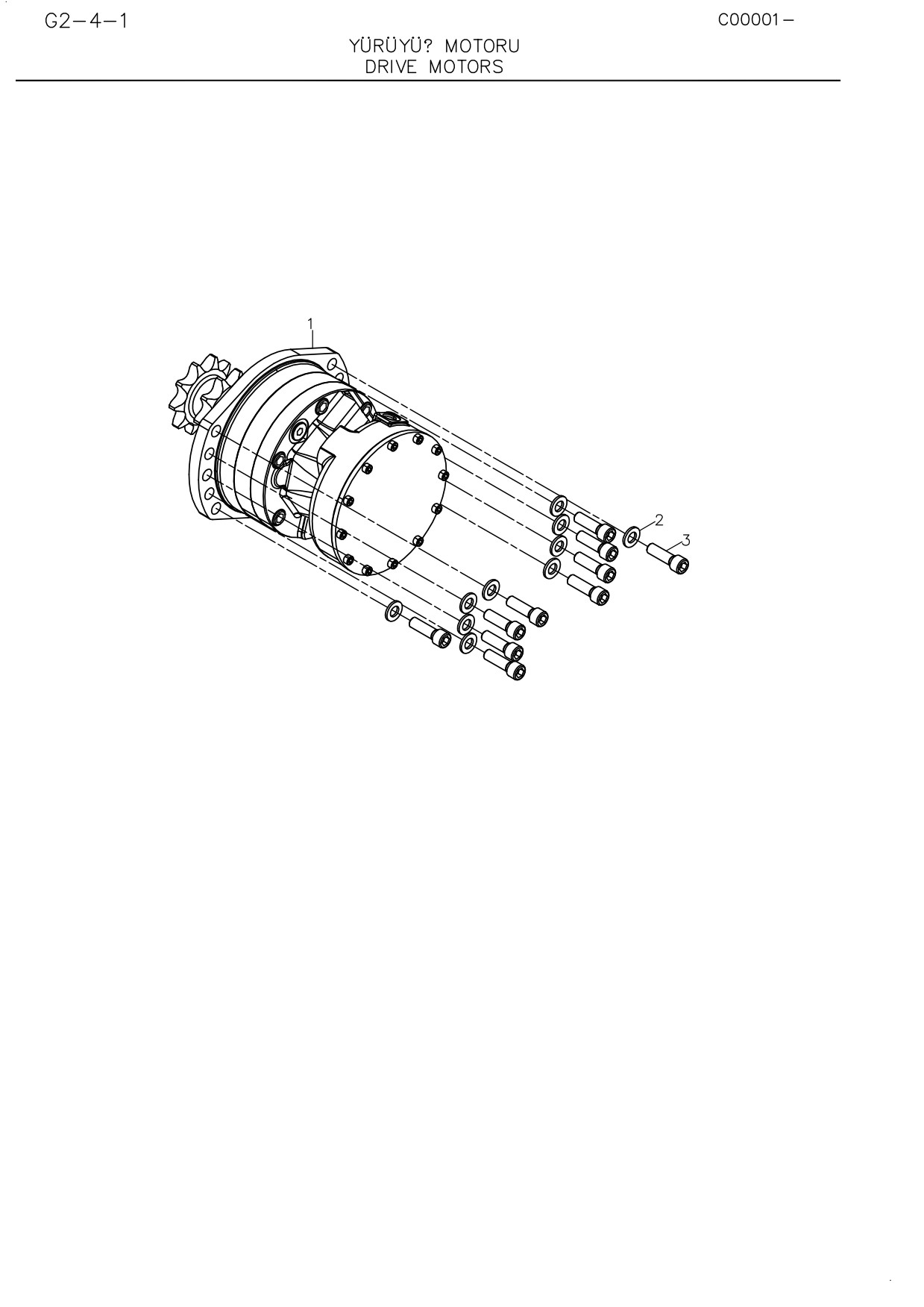

G2-4-1
YÜRÜYÜŞ MOTORU
DRIVE MOTORS
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
M114501900
HİDROMOTOR
DRIVE MOTORS
1
2
N01/0232870
CİVATA M12x40
BOLT M12x40
10
3
N03/0100023
PUL M12
WASHER M12
10
C00001
-

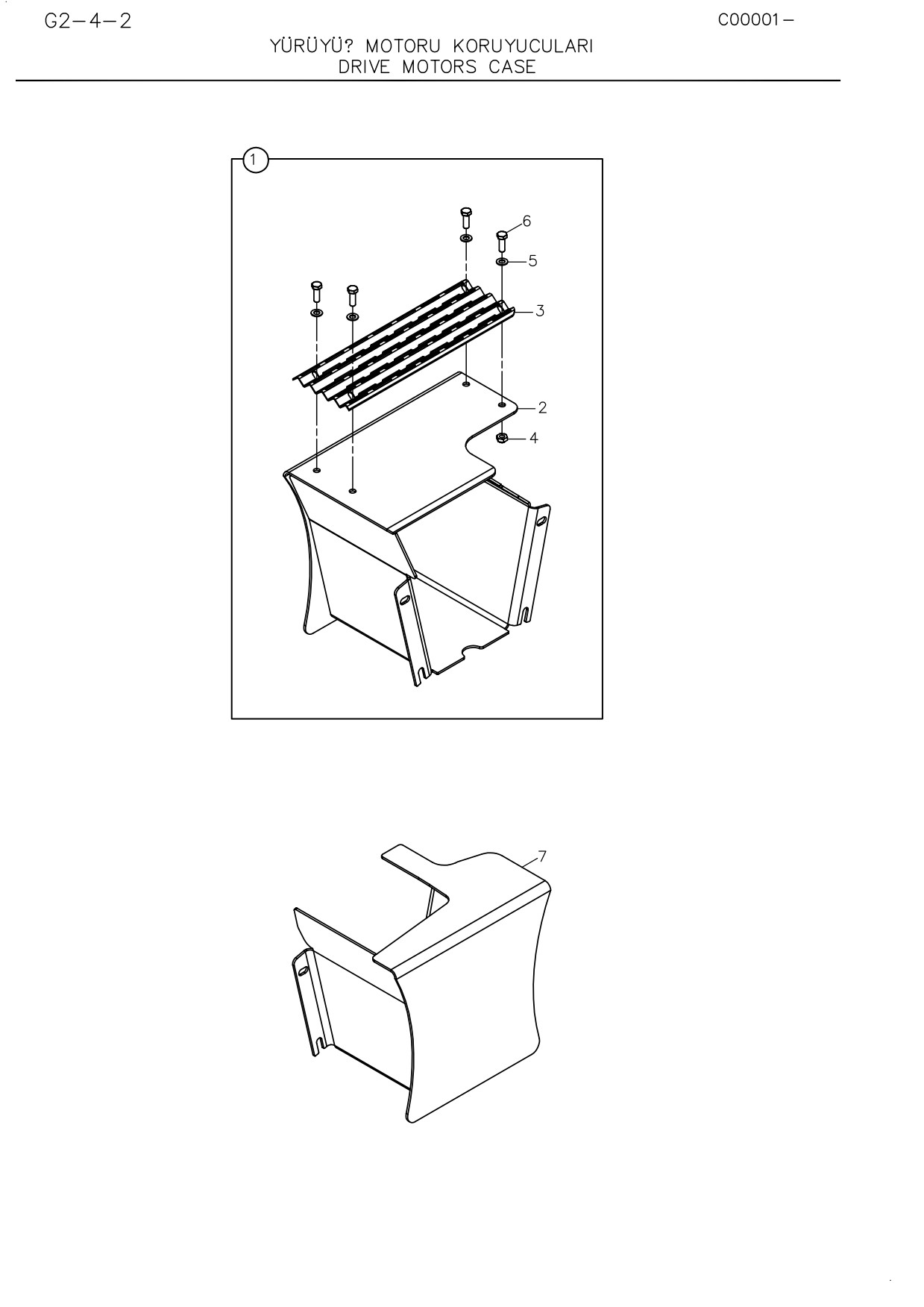

G2-4-2
YÜRÜYÜŞ MOTORU KORUYUCULARI
DRIVE MOTORS CASE
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
M114503800
HİDROMOTOR KORUYUCU,
DRIVE MOTORS CASE,
1
SOL, KOMPLE
LEFT, ASSEMBLY
2
M114503000
HİDROMOTOR KORUYUCU,
DRIVE MOTORS CASE,
1
SOL
LEFT
3
M114503700
HİDROMOTOR ÜST SACI
PLATE, DRIVE MOTORS
1
4
N02/5900086
SOMUN M10
NUT M10
4
5
N03/0100020
PUL M10
WASHER M10
4
6
N01/0232486
CİVATA M10x30
BOLT M10x30
4
7
M114503400
HİDROMOTOR KORUYUCU,
DRIVE MOTORS CASE,
1
SAĞ
RIGHT

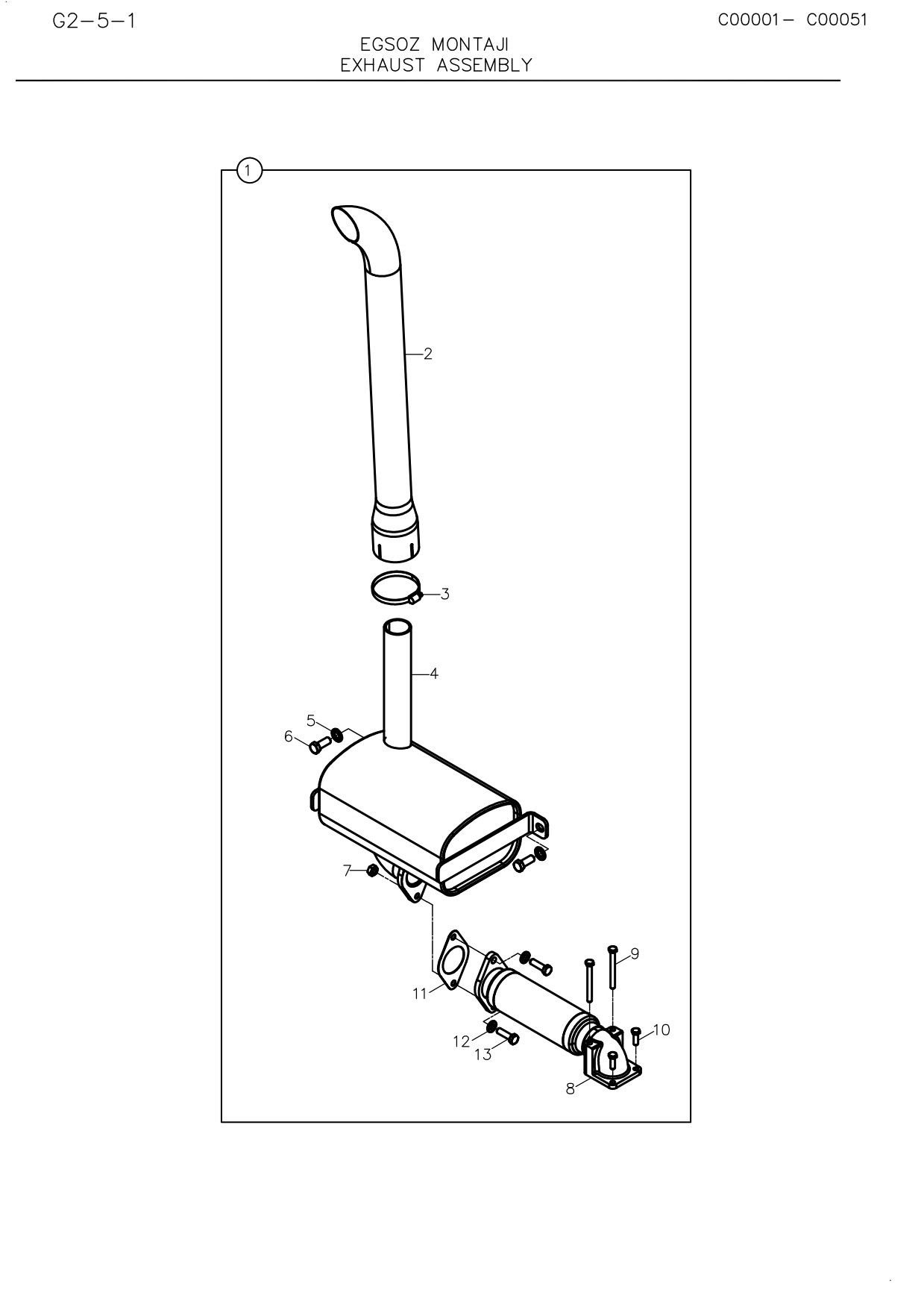

C00001
- C00051
G2-5-1
EGSOZ MONTAJI
EXHAUST ASSEMBLY
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
M112300100
EGSOZ KOMPLE
EXHAUST ASSEMBLY
1
2
M112300700
EGSOZ BORUSU
PIPE, EXHAUST EXTENSION
1
3
N07/4076092
KELEPÇE
CLIP
1
4
M112300200
EGZOZ SUSTURUCUSU
SILENCER, EXHAUST
1
5
N03/0810001
PUL M12
WASHER M12
2
6
N01/0232846
CİVATA M12x30
BOLT M12x30
2
7
N02/3570206
SOMUN M10
NUT M10
2
8
M112300300
FLEKS- DİRSEK
ELBOW
1
9
N01/0222282
CİVATA M8x80
BOLT M8x80
2
10
N01/0232138
CİVATA M8x25
BOLT M8x25
2
11
M112300800
EGSOZ CONTASI
GASKET
1
12
N03/0810015
PUL M10
WASHER M10
2
13
N01/0232498
CİVATA M10x35
BOLT M10x35
2

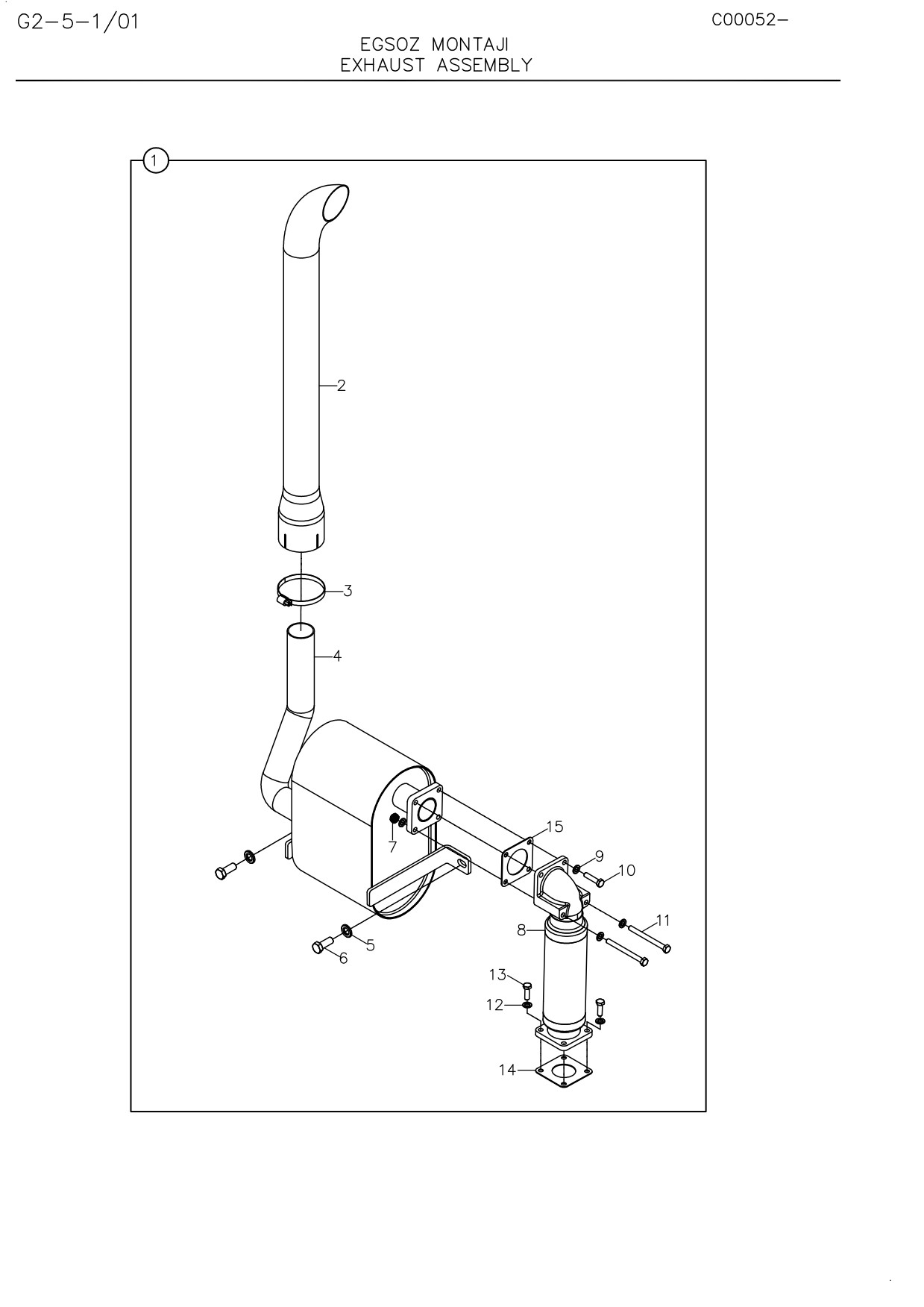

C00052
-
G2-5-1/01
EGSOZ MONTAJI
EXHAUST ASSEMBLY
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
M112300100
EGSOZ KOMPLE
EXHAUST ASSEMBLY
1
2
M112300700
EGSOZ BORUSU
PIPE, EXHAUST EXTENSION
1
3
N07/4076092
KELEPÇE
CLIP
1
4
M112301700
EGZOZ SUSTURUCUSU
SILENCER, EXHAUST
1
5
N03/0810001
PUL M12
WASHER M12
2
6
N01/0232846
CİVATA M12x30
BOLT M12x30
2
7
N02/5910062
SOMUN M8
NUT M8
4
8
M112301500
FLEKS - DİRSEK
ELBOW
1
9
N03/0810014
PUL
WASHER
4
10
N01/0232174
CİVATA M8x35
BOLT M8x35
2
11
N01/0380494
CİVATA M8x90
BOLT M8x90
2
12
N03/0810015
PUL M10
WASHER M10
2
13
N01/0232498
CİVATA M10x35
BOLT M10x35
2
14
M118005670
CONTA
GASKET
1
15
M112302100
EGSOZ CONTASI
GASKET
1
ISITMA VE SOGUTMA
H
HEATING AND COOLING
ISITMA VE SOGUTMA
H1
HEATING AND COOLING

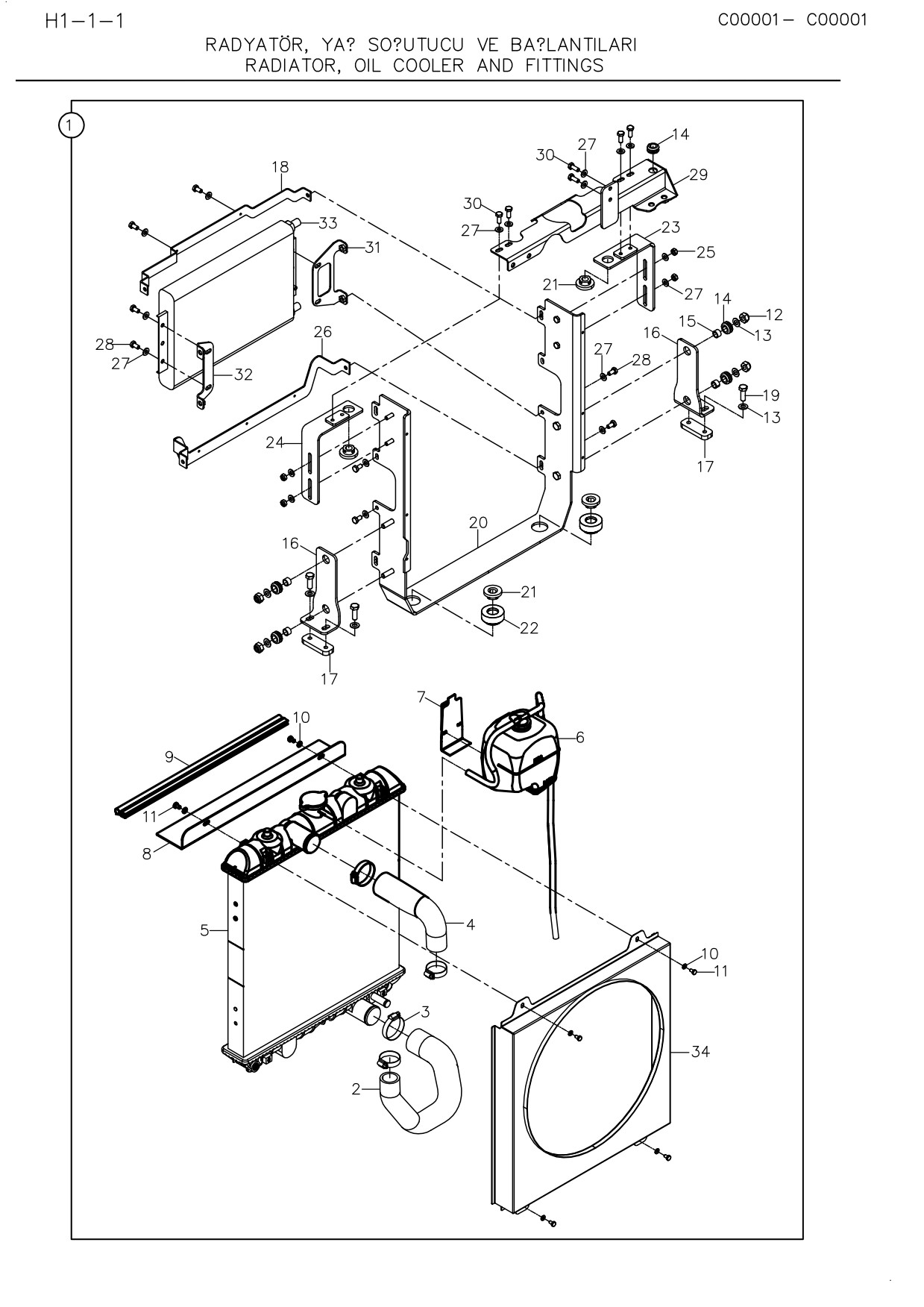

C00001
- C00001
H1-1-1
RADYATÖR, YAG SOĞUTUCU VE BAĞLANTILARI
RADIATOR - OIL COOLER AND FITTINGS
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
M112400100
SOĞUTMA SİSTEMİ
COOLING SYSTEM, ASSY.
1
KOMPLE
2
M112402100
HORTUM, SU ÇIKIŞ
WATER OUTLET,HOSE
1
3
N07/4040060
KELEPÇE
CLAMP
4
4
M112401400
HORTUM, SU GİRİŞ
WATER INPUT,HOSE
1
5
M112401700
YAĞ RADYATÖRÜ
OIL RADIATOR
1
6
M112402900
TAŞIRMA KABI
EXPANSION TANK
1
7
M112403000
TAŞIRMA KABI BAĞLANTISI
EXPANSION TANK,
1
BRACKET
8
M112404200
HAVA PERDE SACI
AIR CURTAIN
1
9
M112404500
FİTİL
STRIP
1
10
N03/0100013
PUL
WASHER
6
11
N01/0231442
CİVATA M6x10
BOLT M6x10
6
12
N02/5900086
SOMUN M10
NUT M10
4
13
N03/0100020
PUL M10
WASHER M10
8
14
810/40006
GROMET
GROMMET
5
15
020/21088
YÜZÜK
RING
4
16
M112400500
RADYATÖR BAĞLANTISI
RADIATOR, MOUNTING
2
17
M112401300
RADYATÖR BAĞLANTI SACI
MOUNTING, PLATE
2
18
M112401200
KONDENSER ÜST
CONDENSER UPPER
1
BAĞLANTISI
MOUNTING
19
N01/0380566
CİVATA M10x30
BOLT M10x30
4
20
M112400300
RADYATÖR SACI
RADIATOR
1
21
M112401800
LASTİK, GROMET
RUBBER, GROMMET
4
22
M112400200
RADYATÖR GROMET
BUSHING
2
YATAĞI
23
M112402400
RADYATÖR ÜST BAĞLANTI
RADIATOR UPPER PLATE,
1
SACI, SAĞ
RIGHT
24
M112402500
RADYATÖR ÜST BAĞLANTI
RADIATOR UPPER PLATE,
1
SACI, SOL
LEFT
25
N02/5900062
SOMUN M8
NUT M8
4
26
M112401100
KONDENSER ALT
CONDENSER BOTTOM
1
BAĞLANTISI
BRACKET
27
N03/0100017
PUL M8
WASHER M8
18
28
N01/0232078
CİVATA M8x16
BOLT M8x16
8
29
M112402600
TAŞIRMA KABI BAĞLANTISI
EXPANSION TANK,
1
BRACKET
30
N01/0222114
CİVATA M8x20
BOLT M8x20
6
31
M112400700
YAĞ SOĞUTUCU
OIL COOLER, MOUNTING,
1
BAĞLANTISI, SAĞ
RIGHT
32
M112400900
YAĞ SOĞUTUCU
OIL COOLER, MOUNTING,
1
BAĞLANTISI, SOL
LEFT
33
M112401900
HİDROLİK YAĞ SOGUTUCU
OIL COOLER, HYDRAULIC
1
34
M112403400
DAVLUMBAZ
COWLING, FAN
1

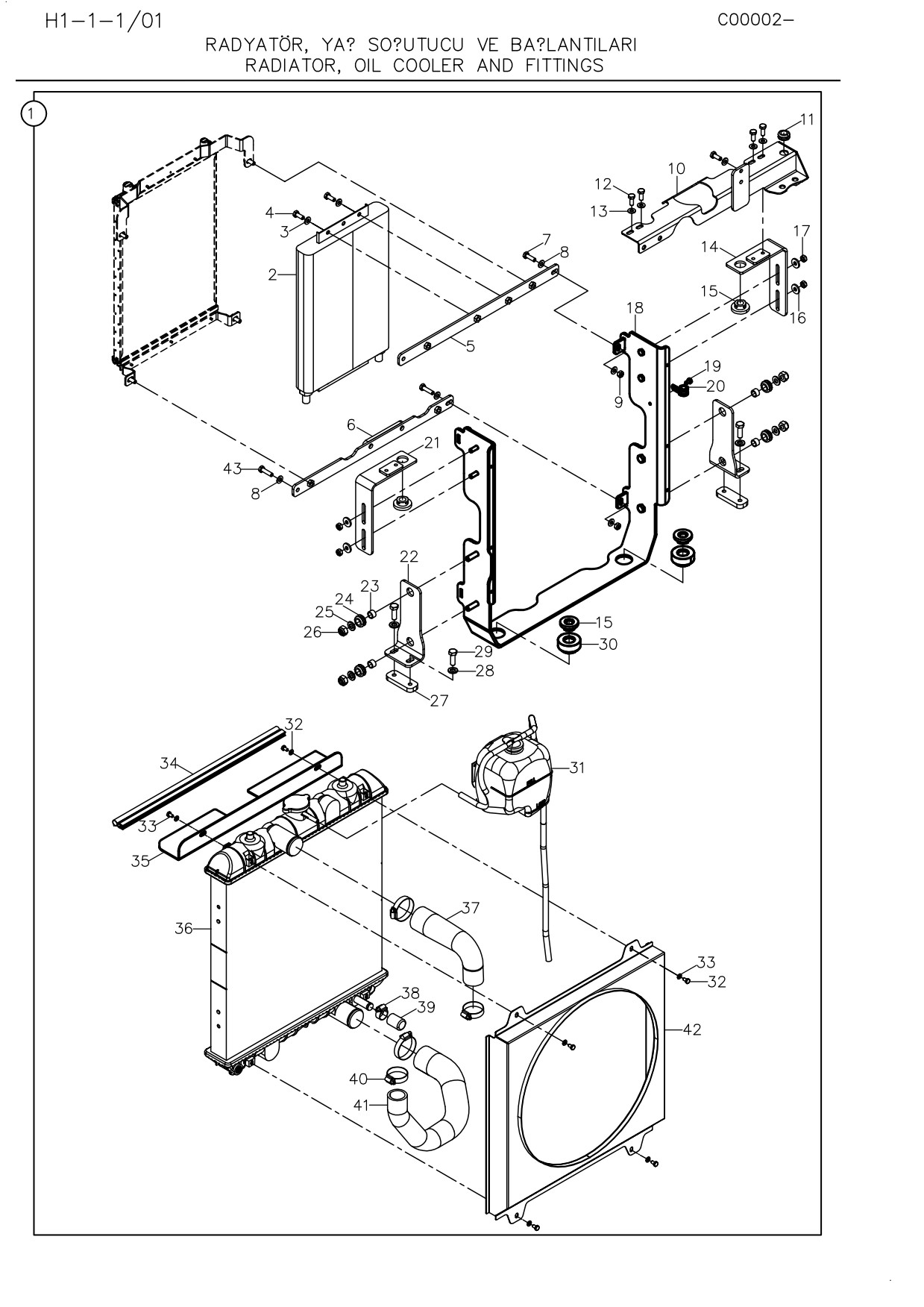

C00002
-
H1-1-1/01
RADYATÖR, YAG SOĞUTUCU VE BAĞLANTILARI
RADIATOR - OIL COOLER AND FITTINGS
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
M112400100
SOĞUTMA SİSTEMİ
COOLING SYSTEM, ASSY.
1
2
M112401900
HİDROLİK YAĞ SOGUTUCU
OIL COOLER, HYDRAULIC
1
3
N03/0100017
PUL M8
WASHER M8
4
4
N01/0232078
CİVATA M8x15
BOLT M8x15
4
5
M112405000
KONDENSER ÜST
CONDENSER UPPER
1
BAĞLANTISI
MOUNTING
6
M112405200
KONDENSER ALT
CONDENSER BOTTOM
1
BAĞLANTISI
BRACKET
7
N01/0232138
CİVATA M8x25
BOLT M8x25
2
8
N03/0100017
PUL M8
WASHER M8
4
9
N02/5910062
SOMUN M8
NUT M8
4
10
M112402600
TAŞIRMA KABI BAĞLANTISI
EXPANSION TANK,
1
BRACKET
11
810/40006
GROMET
GROMMET
1
12
N01/032114
CİVATA M8x20
BOLT M8x20
6
13
N03/0100017
PUL M8
WASHER M8
6
14
M112402400
RADYATÖR ÜST BAĞLANTI
RADIATOR UPPER PLATE,
1
SACI, SAĞ
RIGHT
15
M112401800
LASTİK, GROMET
RUBBER, GROMMET
4
16
N03/0020111
PUL M8
WASHER M8
4
17
N02/5910062
SOMUN M8
NUT M8
4
18
M112400300
RADYATÖR SACI
RADIATOR
1
19
N01/0231442
CİVATA M6x10
BOLT M6x10
1
20
N07/7001215
KELEPÇE TİTREŞİM EMİCİ
HOSE HOLDER
1
21
M112402500
RADYATÖR ÜST BAĞLANTI
RADIATOR UPPER PLATE,
1
SACI, SOL
LEFT
22
M112400500
RADYATÖR BAĞLANTISI
RADIATOR, MOUNTING
2
23
020/21088
YÜZÜK
RING
4
24
810/40006
GROMET
GROMMET
4
25
N03/0810015
PUL M10
WASHER M10
4
26
N02/5910086
SOMUN M10
NUT M10
4
27
M112401300
RADYATÖR BAĞLANTI SACI
MOUNTING, PLATE
2
28
N03/0810015
PUL M10
WASHER M10
4
29
N01/0380566
CİVATA M10x30
BOLT M10x30
4
30
M112400200
RADYATÖR GROMET
BUSHING
2
YATAĞI
31
M112402900
TAŞIRMA KABI
EXPANSION TANK
1
32
N01/0231442
CİVATA M6x10
BOLT M6x10
6
33
N03/0100013
PUL M6
WASHER M6
6
34
M112404500
FİTİL
STRIP
1
35
M112404201
HAVA PERDE SACI
AIR CURTAIN
1
36
M112401700
YAĞ RADYATÖRÜ
OIL RADIATOR
1
37
M112401400
HORTUM, SU GİRİŞ
WATER INPUT,HOSE
1
38
N07/4016025
KELEPÇE
CLAMP
1
39
M112404900
TAHLİYE TAPASI
PLUG
1
40
N07/4040060
KELEPÇE
CLAMP
4
41
M112402100
HORTUM, SU ÇIKIŞ
WATER OUTLET,HOSE
1
42
M112403400
DAVLUMBAZ
COWLING, FAN
1
43
N01/0232162
CİVATA M8x30
BOLT M8x30
2

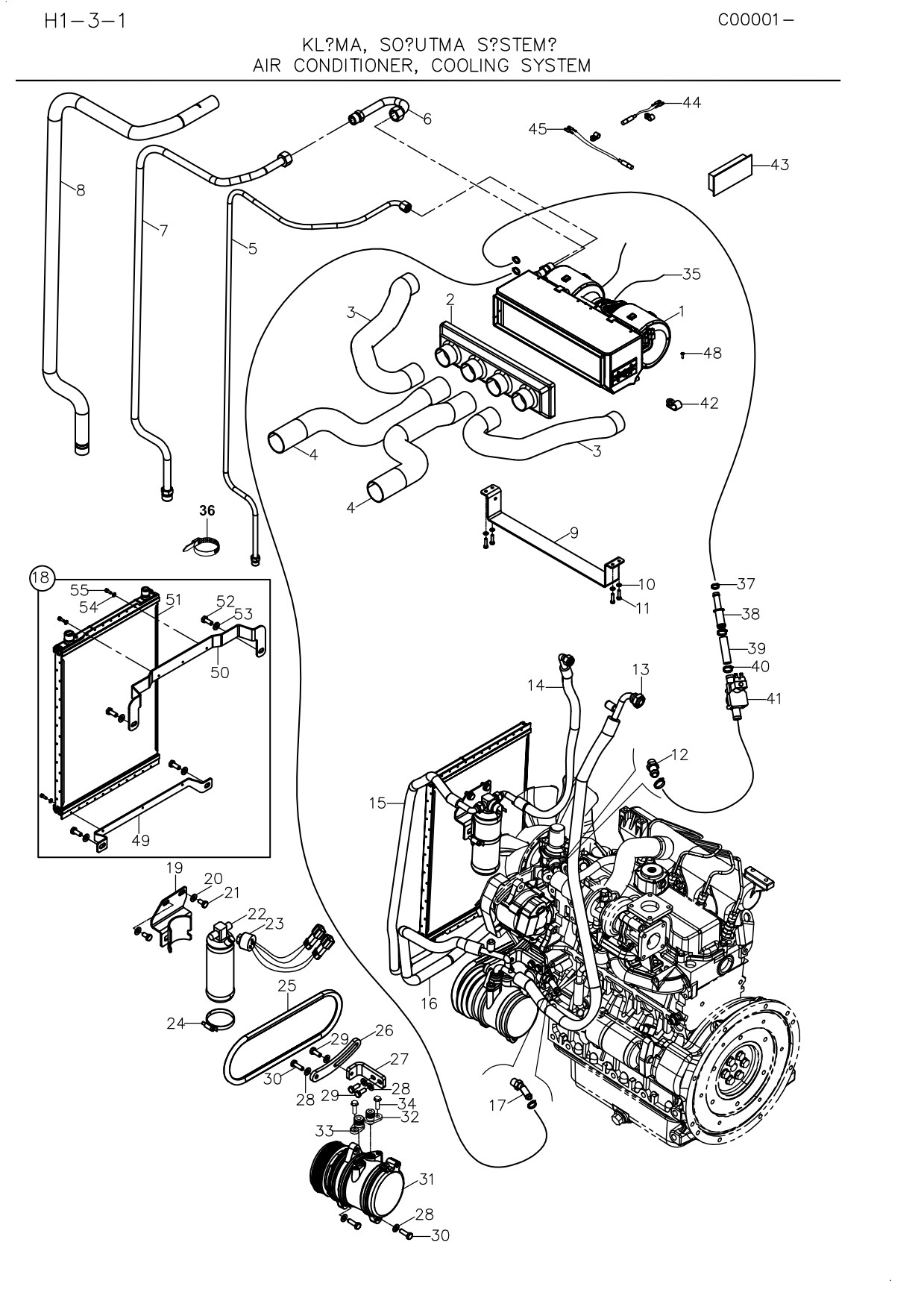

C00001
-
H1-3-1
KLĐMA, SOĞUTMA SĐSTEMĐ
AIR CONDITIONER, COOLING SYSTEM
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M112700100 - M112702300
RK
1
M112701400
EVAPARATÖR
EVAPARATOR
1
2
M112701500
KAPAK
COVER
1
3
M112701600
HORTUM
HOSE
2
4
M112701700
HORTUM
HOSE
2
5
M112702100
BORU
PIPE
1
6
M112702400
BORU
PIPE
1
7
M112702000
BORU
PIPE
1
8
M112702500
EXPANSION İZOLESİ
INSULATED HOSE
1
9
M116001800
KLİMA BRAKETİ
BRACKET
1
10
N03/0100011
PUL M5
WASHER M5
4
11
N01/0231226
CİVATA M5x20
BOLT M5x20
4
12
M112702900
NİPEL, SICAK SU
ADAPTER
1
13
M112704100
HORTUM
HOSE
1
14
M112704000
HORTUM
HOSE
1
15
M112703900
HORTUM
HOSE
1
16
M112703800
HORTUM
HOSE
1
17
M112703000
NİPEL, SICAK SU
ADAPTER
1
18
M112702800
KONDENSER KOMPLE
CONDENSER ASSY.
1
19
M112700700
KURUTUCU BAGLANTI SACI
BRACKET
1
20
N03/0100017
PUL M8
WASHER M8
2
21
N01/0232078
CİVAT M8x16
BOLT M8x16
2
22
M112703100
KURUTUCU
DRYER
1
23
M112703200
MÜŞÜR, KLİMA
SWITCH, AC
1
24
N07/4050070
KELEPÇE
CLIP
1
25
M112701100
KLİMA KAYIŞI
BELT, A/C
1
26
M112700600
KOMPRESÖR GERGİ KOLU
BRACKET
1
27
M112700500
KOMPRESÖR GERGİSİ
BRACKET
1
28
N03/0100017
PUL M8
WASHER M8
6
29
N01/0232114
CİVAT M8x20
BOLT M8x20
3
30
N01/0232138
CİVAT M8x25
BOLT M8x25
3
31
M112700200
KOMPRESÖR
COMPRESSOR
1
32
M112700400
RAKOR
ADAPTER
1
33
M112700300
RAKOR
ADAPTER
1
34
N01/5890458
CİVAT M8x20
BOLT M8x20
2
35
799/00120
DRAİN KORTUMU
HOSE
2
36
510/01810
KABLO BAĞI
TIE, CABLE
20
37
N07/4016027
KELEPÇE
CLAMP
12
38
M112704300
HORTUM ADAPTÖRÜ
ADAPTER
1
39
H06/7030102
HORTUM
HOSE
0.5m
40
N07/4012020
KELEPÇE
CLAMP
2
41
M112704200
KALORİFER MUSLUĞU
TAP, HEATER
1
42
N07/7002426
TİTREŞİM EMİCİ KELEPÇE
HOSE HOLDER
2
43
M112701800
DİJİTAL KONTROL PANELİ
CONTROL PANEL
1
44
M112703600
SENSÖR, KISA
SENSOR, SHORT
1
45
M112703500
SENSÖR, UZUN
SENSOR, LONG
1
46
H06/7030102
HORTUM
HOSE
3.5m
47
H06/7030102
HORTUM
HOSE
4m
48
N04/1150349
VİDA M3.9x16
SCREW M3.9x16
4
49
M112702600
ÜST BAĞLANTI SACI
BRACKET, UPPER
1
50
M112702701
ALT BAĞLANTI SACI
BRACKET, BOTTOM
1
51
M112701200
KONDENSER
CONDENSER
1
52
N01/0232114
CİVATA M8x20
BOLT M8x20
4
53
N03/0100017
PUL M8
WASHER M8
4
54
N03/0020001
PUL M4
WASHER M4
5
55
N01/5870050
CİVATA M4x16
BOLT M4x16
5

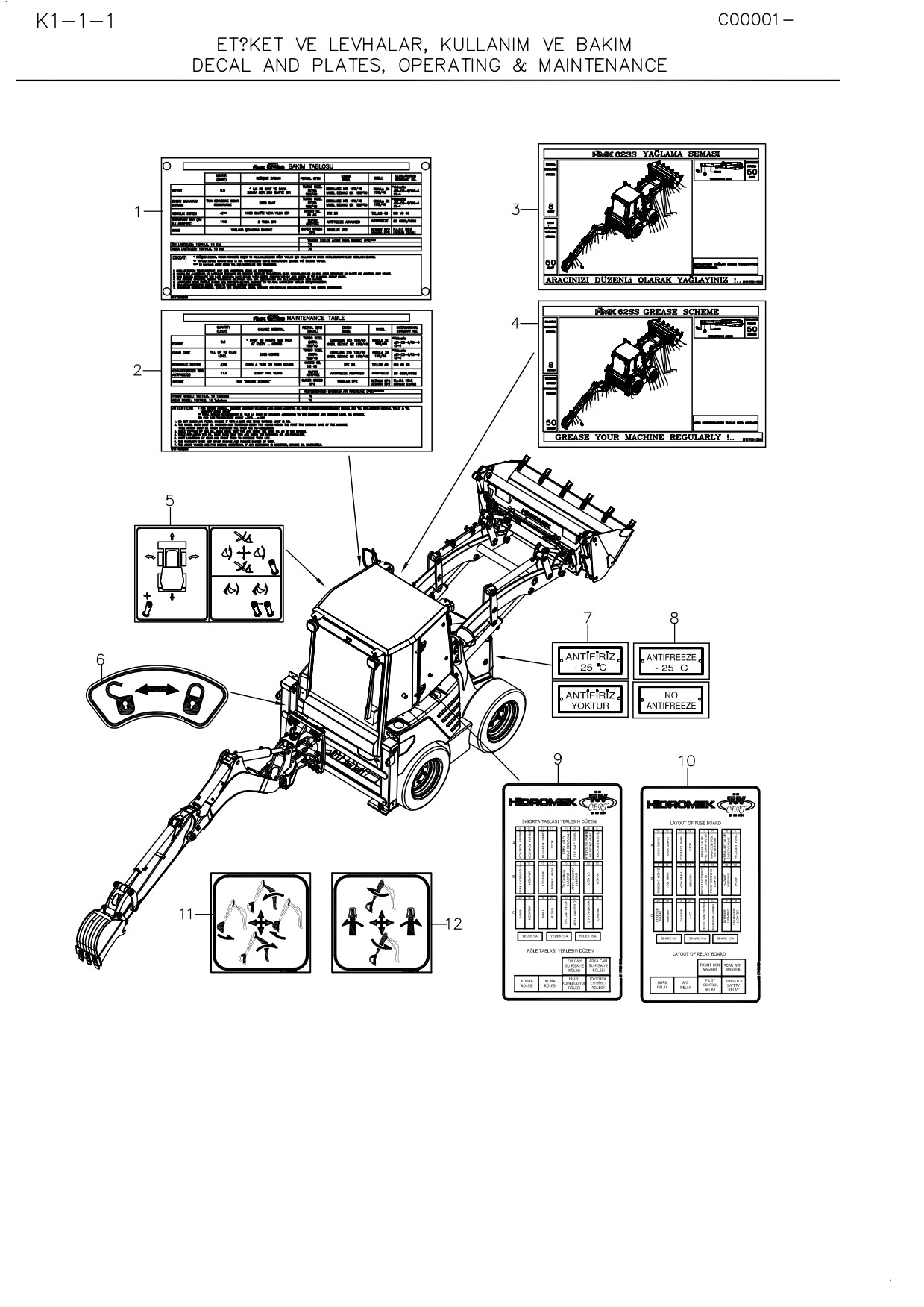

ETiKET, LEVHALAR VE AVADANLIK
K
DECAL, PLATES & TOOL
ETiKET VE LEVHALAR VE AVADANLIK
K1
DECAL, PLATES & TOOL
