Hidromek HMK 62 SS. Parts catalog - page 6

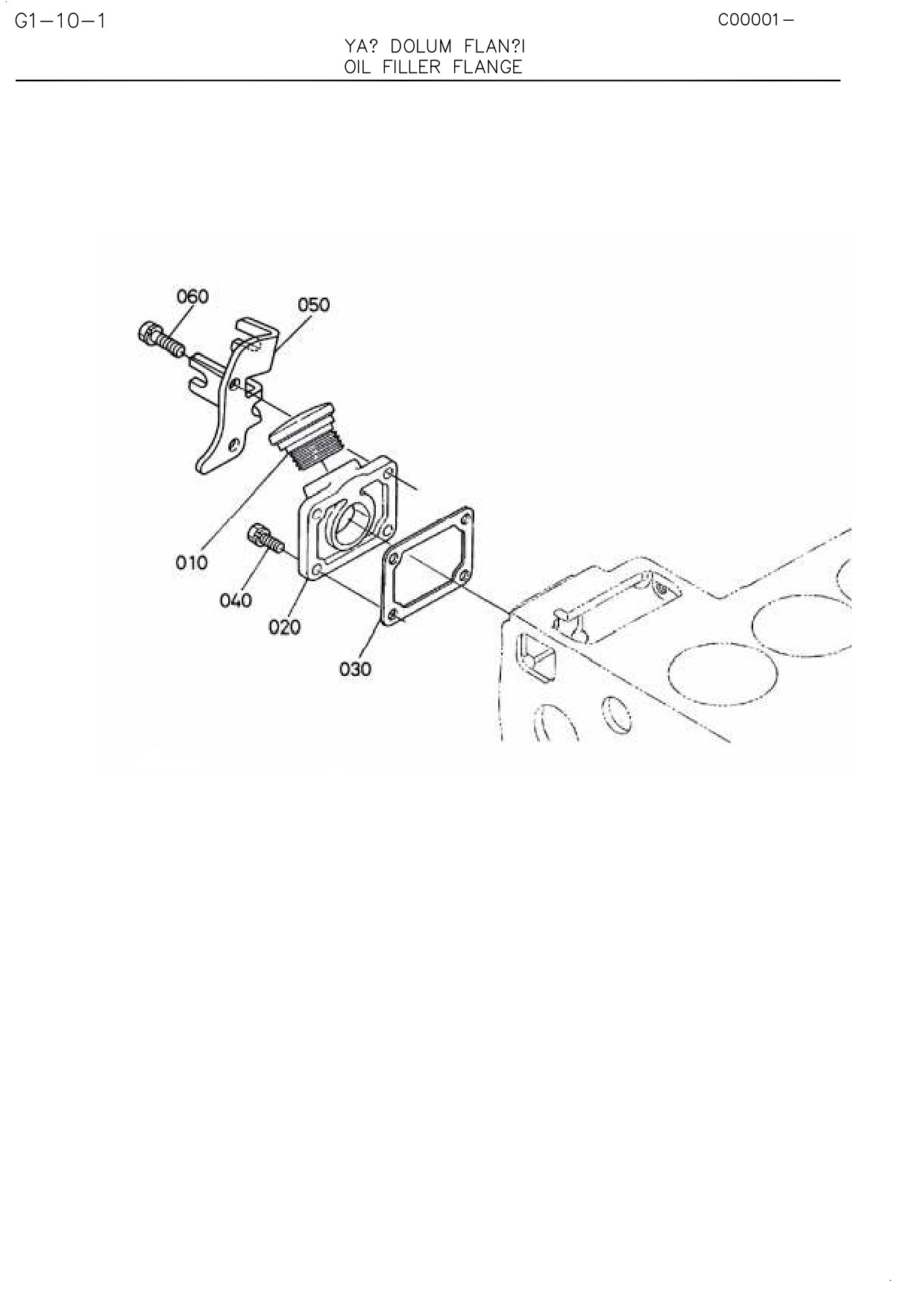

C00001
G1-10-1
YAĞ FĐLTRE FLANŞI
OIL FILLER FLANGE
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118004030
TAPA
PLUG, OIL FILLER
1
020
M118004040
FLANŞ
FLANGE,OIL FILLER
1
030
M118003820
CONTA
GASKET, PUMP COVER
1
040
M118004980
CİVATA
BOLT
2
050
M118003840
BRAKET
BRACKET, ACCEL, CABLE
1
060
M118001580
CİVATA
BOLT
2

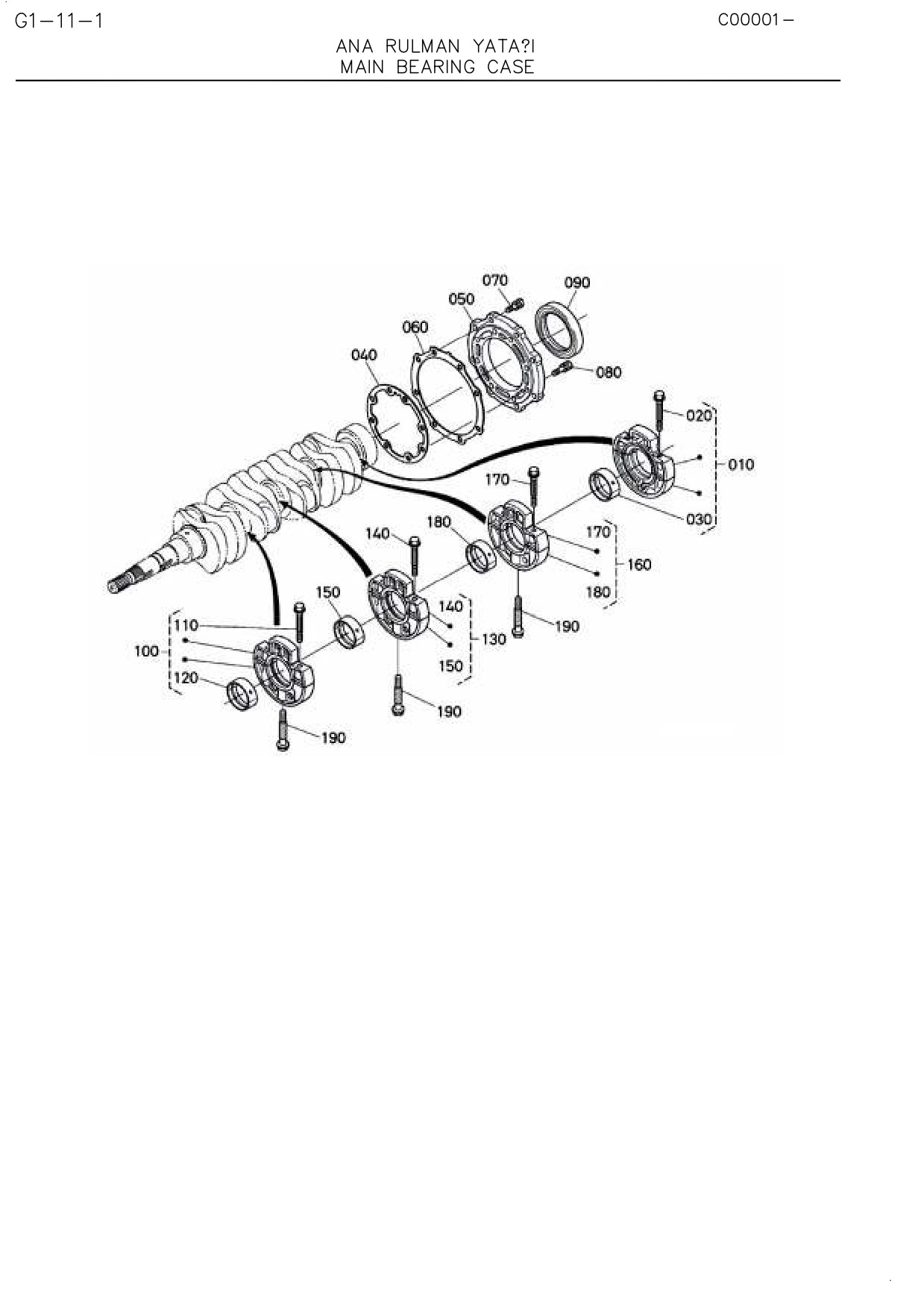

C00001
G1-11-1
ANA RULMAN YATAĞI
MAIN BEARING CASE
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118001940
YATAK KAPLAMASI KOMPLE ASSY BRG. CASE, WHEEL
1
020
M118001950
CİVATA, RULMAN KAPAĞI
BOLT, BEARING CASE
2
030
M118001960
YATAK, KRANKMİLİ
METAL, CRANKSHAFT
1
030
M118001970
YATAK, KRANKMİLİ
METAL, CRANKSHAFT
1
030
M118001980
YATAK, KRANKMİLİ
METAL, CRANKSHAFT
1
040
M118001990
CONTA, RULMAN KAPAĞI
GASKET, BEARING CASE
1
050
M118002000
KAPAK
COVER, BEARING CASE
1
060
M118002010
CONTA
GASKET, CASE COVER
1
070
M118002020
CİVATA
BOLT
8
080
M118002030
CİVATA
BOLT
8
090
M118002040
KEÇE, YAĞ
SEAL, OIL
1
100
M118002050
YATAK KAPLAMASI
ASSY BRG. CASE, MAIN
KOMPLE, ANA
1
110
M118001950
CİVATA
BOLT, BEARING CASE
2
120
M118001960
YATAK, KRANKMİLİ
METAL, CRANKSHAFT
1
120
M118001970
YATAK, KRANKMİLİ
METAL, CRANKSHAFT
1
120
M118001980
YATAK, KRANKMİLİ
METAL, CRANKSHAFT
1
130
M118002100
KAPAK
ASSY BRG. CASE, MAIN
1
140
M118001950
CİVATA
BOLT, BEARING CASE
2
150
M118001960
YATAK, KRANKMİLİ
METAL, CRANKSHAFT
1
150
M118001970
YATAK, KRANKMİLİ
METAL, CRANKSHAFT
1
150
M118001980
YATAK, KRANKMİLİ
METAL, CRANKSHAFT
1
160
M118002150
YATAK KAPLAMASI
ASSY BRG. CASE, MAIN
KOMPLE, ANA
1
170
M118001950
CİVATA
BOLT, BERAING CASE
2
180
M118001960
YATAK, KRANKMİLİ
METAL, CRANKSHAFT
1
180
M118001970
YATAK, KRANKMİLİ
METAL, CRANKSHAFT
1
180
M118001980
YATAK, KRANKMİLİ
METAL, CRANKSHAFT
1
190
M118002200
CİVATA
BOLT, BEARING CASE
3

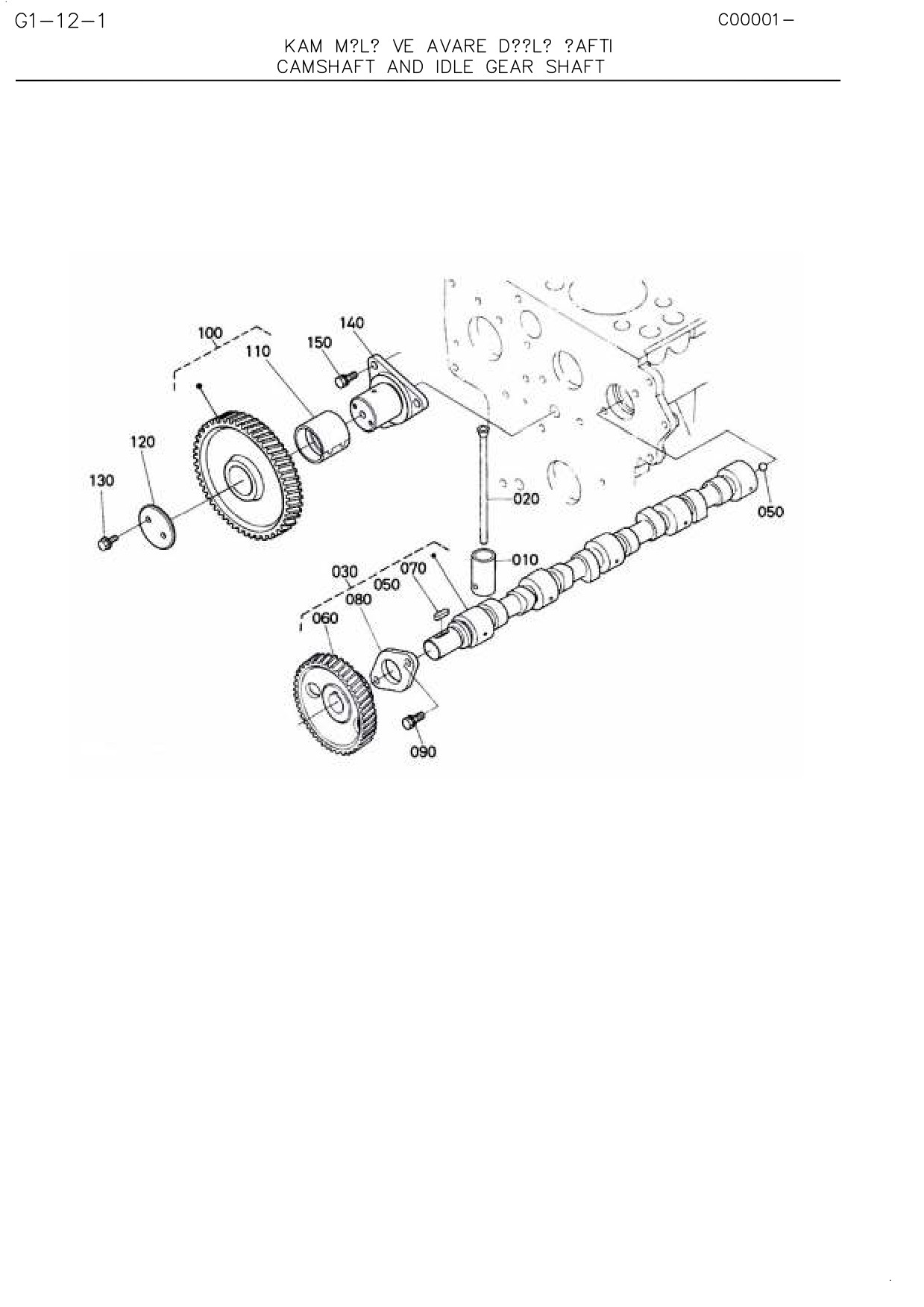

C00001
G1-12-1
KAM MĐLĐ VE AVARE DĐŞLĐ ŞAFTI
CAMSHAFT AND IDLE GEAR SHAFT
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118002210
FİNCAN
TAPPET
8
020
M118002220
ÇUBUK, İTME, KAM
PUSH ROD
8
030
M118002230
KRANK MİLİ, KOMPL.
ASSY CAMSHAFT
1
050
M118002240
BİLYA
BALL
1
060
M118002250
DİŞLİ, KAM
GEAR, CAM
1
070
M118002260
KAMA,
KEY, FEATHER
1
080
M118002270
DURDURUCU, KRANKMİLİ
STOPPER, CAMSHAFT
1
090
M118002280
CİVATA
BOLT
2
100
M118002290
AVARE DİŞLİ, KOMPL.
COMP. GEAR, IDLE
1
110
M118002300
BURÇ, AVARE DİŞLİ
BUSH, IDLE GEAR
1
120
M118002310
BİLEZİK
COLLAR
1
130
M118002320
SEGMAN
CIR CLIP, EXTERNAL
1
140
M118002330
ŞAFT, AVARE DİŞLİ
SHAFT, IDLE GEAR
1
150
M118002280
CİVATA
BOLT
3
C00001
G1-13-1

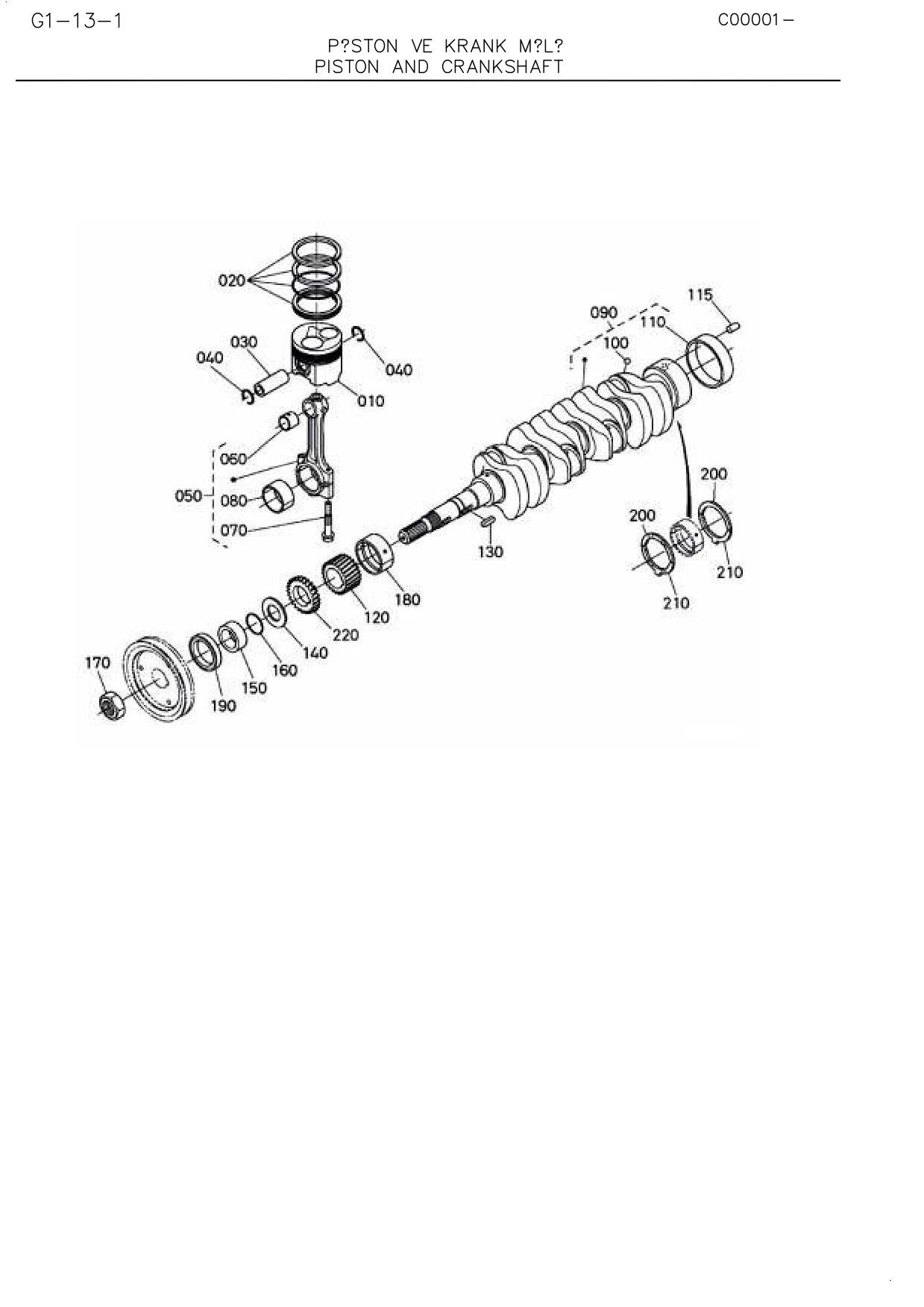

PĐSTON VE KRANK MĐLĐ
PISTON AND CRANKSHAFT
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118002350
PİSTON
PISTON
4
010
M118002360
PİSTON
PISTON
4
020
M118002370
PISTON SEGMAN, KOMPL.
ASSY PISTON RING
4
020
M118002380
PISTON SEGMAN, KOMPL.
ASSY PISTON RING
4
030
M118002390
PIN, PİSTON
PIN, PISTON
4
040
M118002400
SEGMAN
CIR CLIP, INTERNAL
8
050
M118002410
BİYEL KOLU, KOMPL.
ASSY ROD, CONNECTING
4
060
M118002420
BURÇ, PİSTON
BUSH, PISTON PIN
4
070
M118002430
CİVATA
BOLT, CONNECTING ROD
8
080
M118002440
YATAK, BİYEL KOLU
METAL, CRANKPIN
4
080
M118002450
YATAK, BİYEL KOLU
METAL, CRANKPIN
4
080
M118002460
YATAK, BİYEL KOLU
METAL, CRANKPIN
4
090
M118002470
KRANK MİLİ, KOMPL.
COMP. CRANKSHAFT
1
100
M118002240
BİLYA
BALL
1
110
M118002490
BURÇ, KRANKMİLİ
BUSH, CRANKSHAFT
1
115
M118001670
PİM
PIN, STRAIGHT
1
120
M118002500
DİŞLİ, KRANK
GEAR, CRANK
1
130
M118002510
KAMA
KEY, FEATHER
1
140
M118002520
YAĞ SAVURUCU
SLINGER, OIL
1
150
M118002530
BİLEZİK, KRANKMİLİ
COLLAR, CRANKSHAFT
1
160
M118002540
O-RING
O-RING
1
170
M118002550
SOMUN
NUT, CRANKSHAFT
1
180
M118002560
YATAK, KRANKMİLİ
METAL, CRANKSHAFT
1
180
M118002570
YATAK, KRANKMİLİ
METAL, CRANKSHAFT
1
180
M118002580
YATAK, KRANKMİLİ
METAL, CRANKSHAFT
1
190
M118002590
KEÇE, YAĞ
SEAL, OIL
1
200
M118002600
METAL, YAN DESTEK
METAL, SIDE
2
200
M118002610
METAL, YAN DESTEK
METAL, SIDE
2
200
M118002620
METAL, YAN DESTEK
METAL, SIDE
2
210
M118002630
METAL, YAN DESTEK
METAL, SIDE
2
210
M118002640
METAL, YAN DESTEK
METAL, SIDE
2
210
M118002650
METAL, YAN DESTEK
METAL, SIDE
2
220
M118002660
DİŞLİ, YAĞ POMPA TAHRİK
GEAR, OIL PUMP DRIVE
1

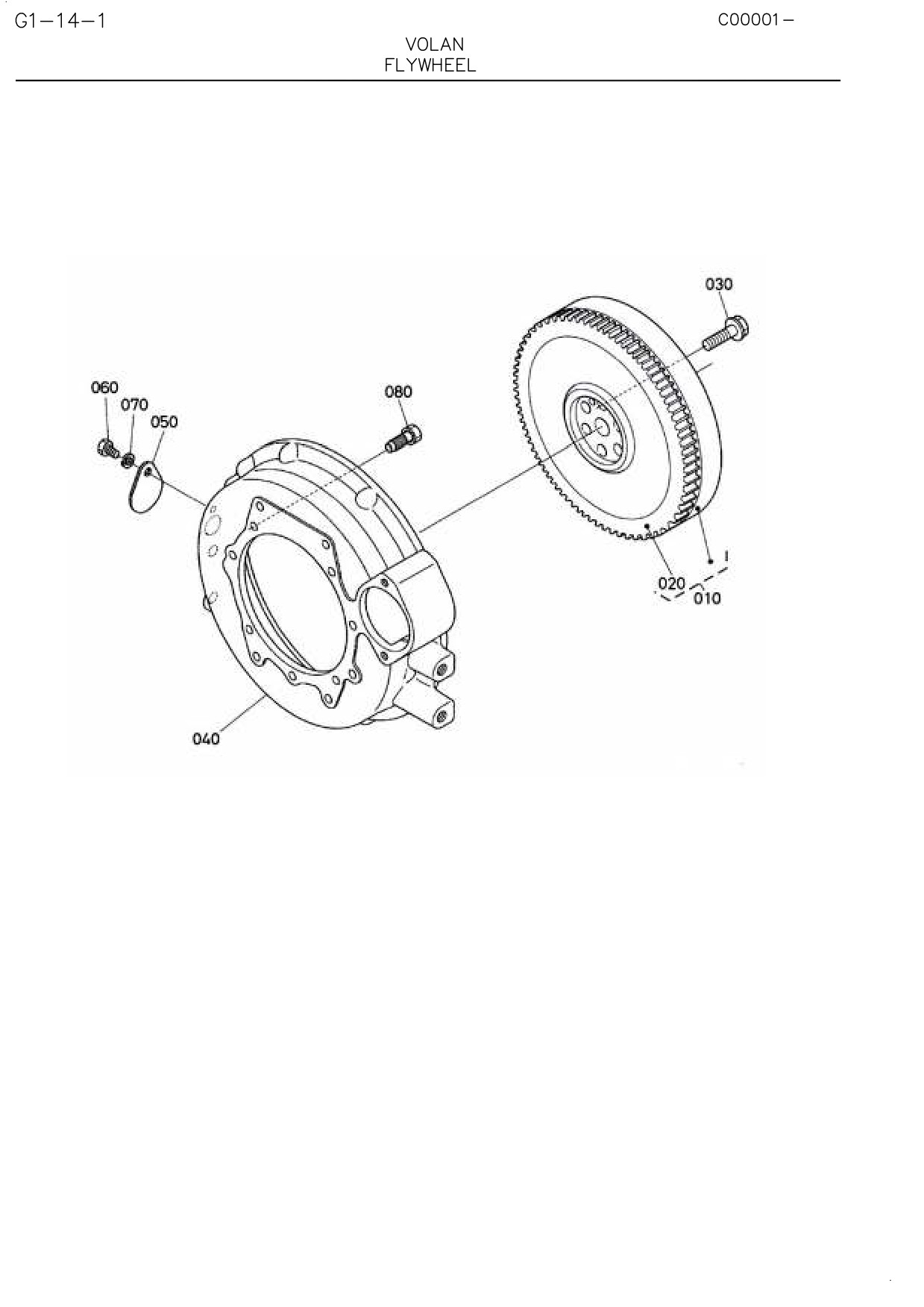

C00001
G1-14-1
VOLAN
FLYWHEEL
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118002670
VOLAN, KOMPL.
COMP. FLYWHELL
1
020
M118002680
DİŞLİ, ÇEMBER
GEAR, RING
1
030
M118002690
CİVATA, VOLAN
BOLT, FLYWHEEL
6
040
M118002700
MUHAFAZA, VOLAN
HOUSING, FLYWHEEL
1
050
M118002710
KAPAK
COVER
1
060
M118002720
CİVATA
BOLT
1
070
M118001250
PUL, YAYLI
WASHER, SPRING
1
080
M118002740
CİVATA
BOLT
11

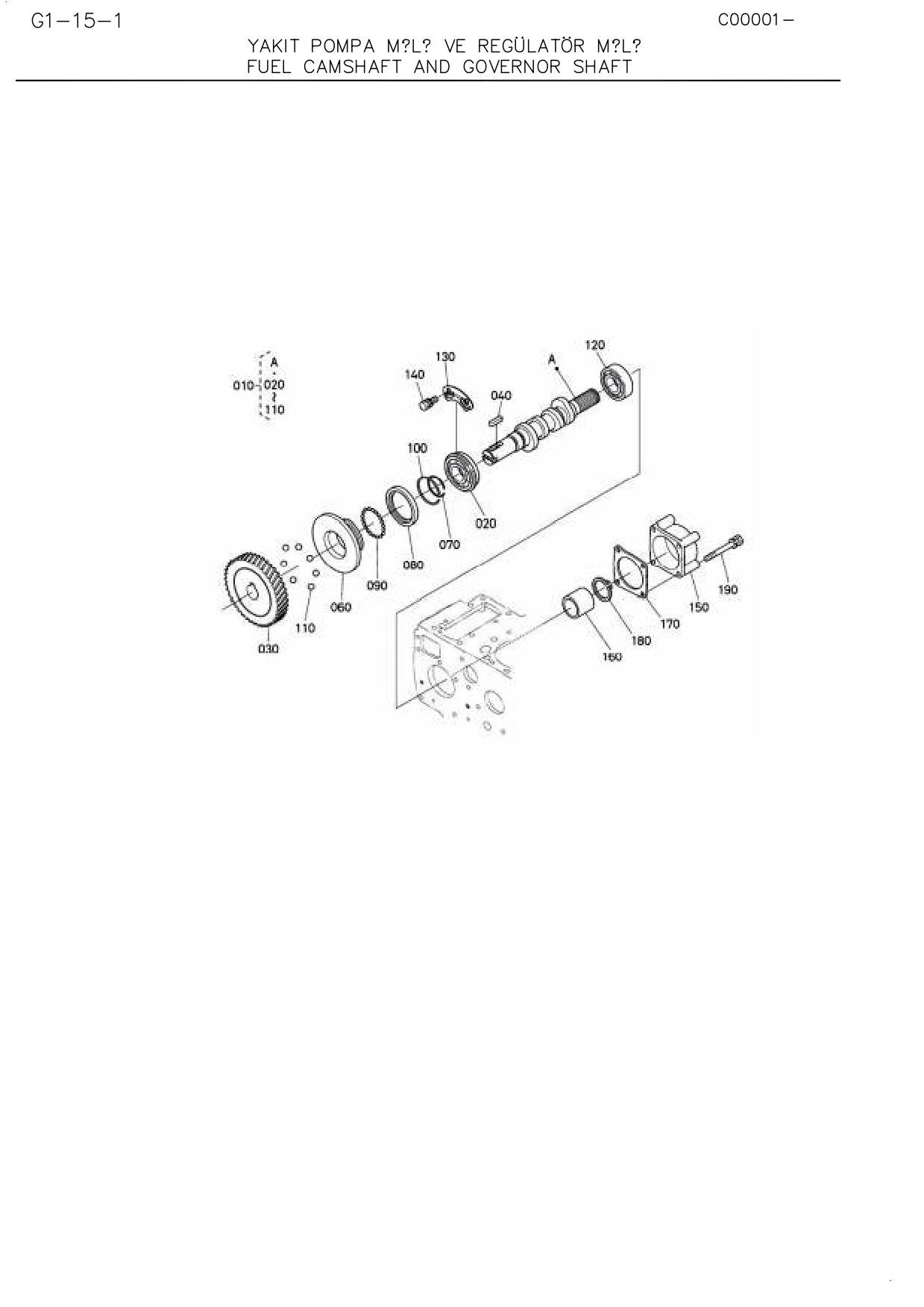

C00001
G1-15-1
YAKIT POMPA MĐLĐ VE REGÜLATÖR MĐLĐ
FUEL CAMSHAFT AND GOVERNOR SHAFT
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118002780
YAKIT POMPA MİLİ, KOMPL.
ASSY CAMSHAFT, FUEL
1
020
M118002790
RULMAN, BİLYALI
BEARING, BALL
1
030
M118002800
DİŞLİ, INJEKSİYON POMPASIGEAR, INJECTION PUMP
1
040
M118002810
KAMA
KEY, FEATHER
1
060
M118002820
YUVA, REGÜLATÖR
SLEEVE, GOVERNOR
1
070
M118002830
SEGMAN
CIR-CLIP, GOV. SLEEVE
1
080
M118002840
YUVA, REGÜLATÖR
CASE, GOVERNOR BALL
1
AĞIRLIK BİLYASI
090
M118002850
BİLYA
BALL
39
100
M118002860
SEGMAN
CIR-CLIP
1
110
M118002870
BİLYA
BALL
7
120
M118002880
RULMAN, BİLYALI
BEARING, BALL
1
130
M118002890
DURDURUCU, YAKIT
STOPPER, FUEL C/SHAFT
1
POMPA MİLİ
140
M118002900
CİVATA
BOLT
2
150
M118002910
KAPAK, YAKIT POMPA MİLİ
COVER, FUEL CAMSHAFT
1
160
M118002920
BİLEZİK
COLLAR
1
170
M118002930
CONTA
GASKET
1
180
M118002940
SEGMAN, DIŞ
CIR CLIP, EXTERNAL
1
190
M118002950
CİVATA
BOLT
4
C00001
G1-16-1

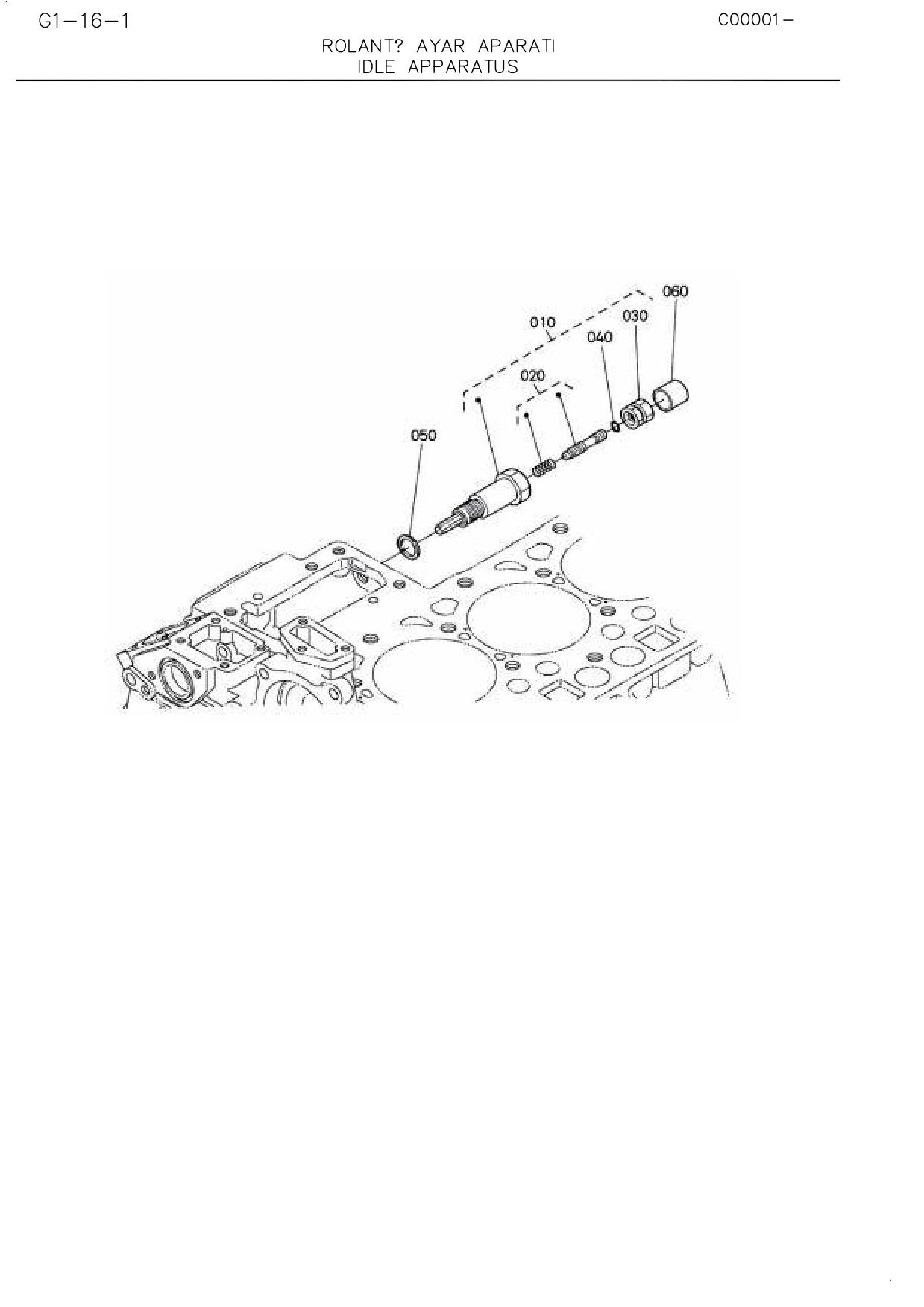

ROLANTĐ AYAR APARATI
IDLE APPARATUS
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118002960
APARAT,ROLANTİ ÇALIŞMA
APPARATUS, IDLING
1
020
M118002970
CİVATA MONTAJI
ASSY BOLT, ADJUSMENT
1
040
M118002980
SOMUN, YAYLI
NUT, SPRUNG
1
050
M118002990
O-RING
O-RING
1
060
M118003000
CONTA
GASKET
1
070
M118003010
KAPAK
CAP
1
C00001
G1-17-1

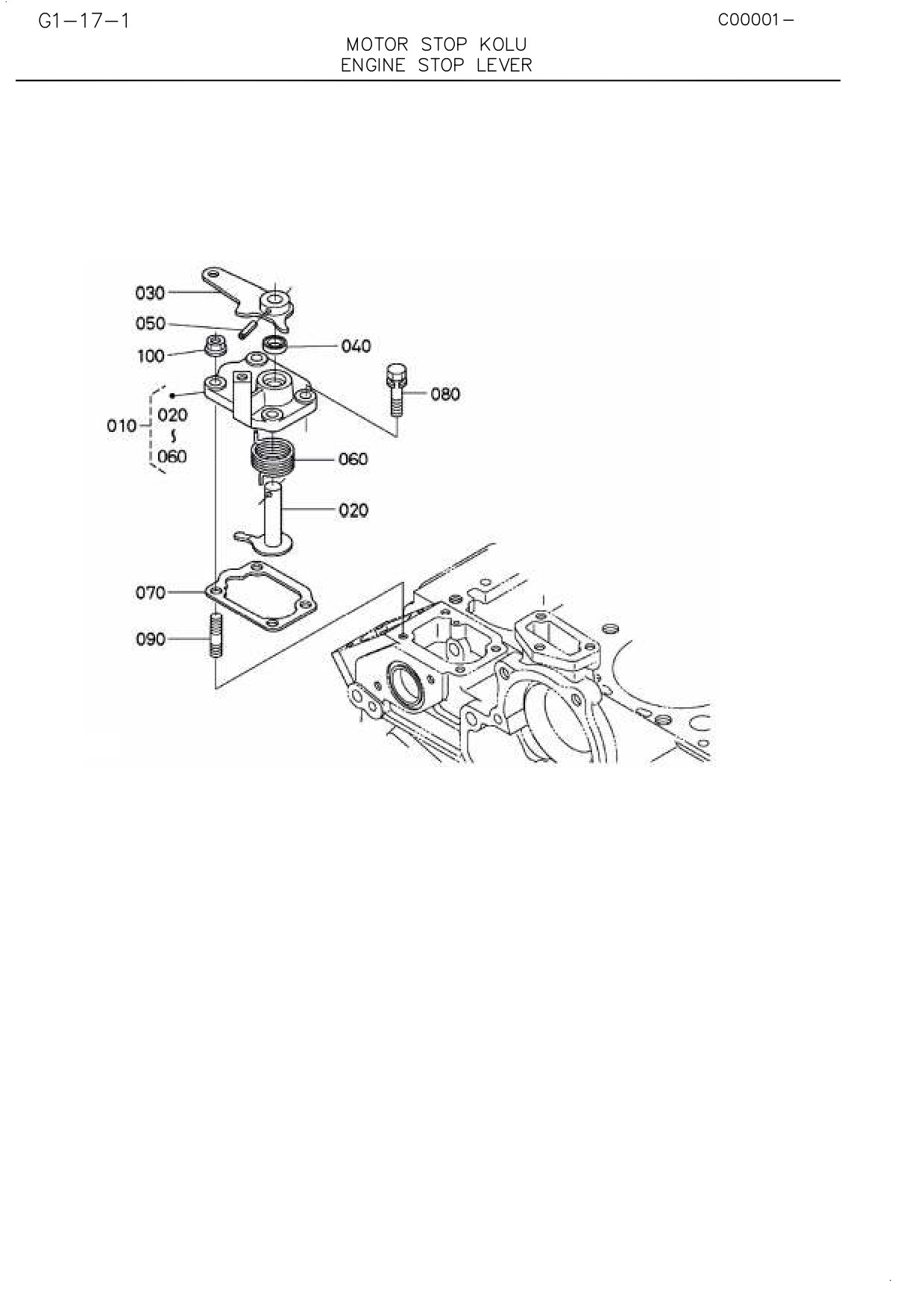

MOTOR STOP KOLU
ENGINE STOP LEVER
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118003020
MONTAJ KOLU, MOTOR STO ASSY LEVER, ENG. STOP
1
020
M118003030
KOL, STOP, KOMPL.
COMP. LEVER, STOP
1
030
M118003040
KOL, MOTOR STOP
LEVER, ENGINE STOP
1
040
M118003050
KEÇE, YAĞ
SEAL, OIL
1
050
M118003060
PİM, YAYLI
PIN, SPRING
1
060
M118003070
YAY, GERİ DÖNÜŞ
SPRING, RETURN
1
070
M118003080
CONTA, LEVHA
GASKET, PLATE
1
080
M118001580
CİVATA
BOLT
2
090
M118000610
SAPLAMA
STUD
2
100
M118003110
SOMUN, FLANŞLI
NUT, FLANGE
2
C00001
G1-18-1

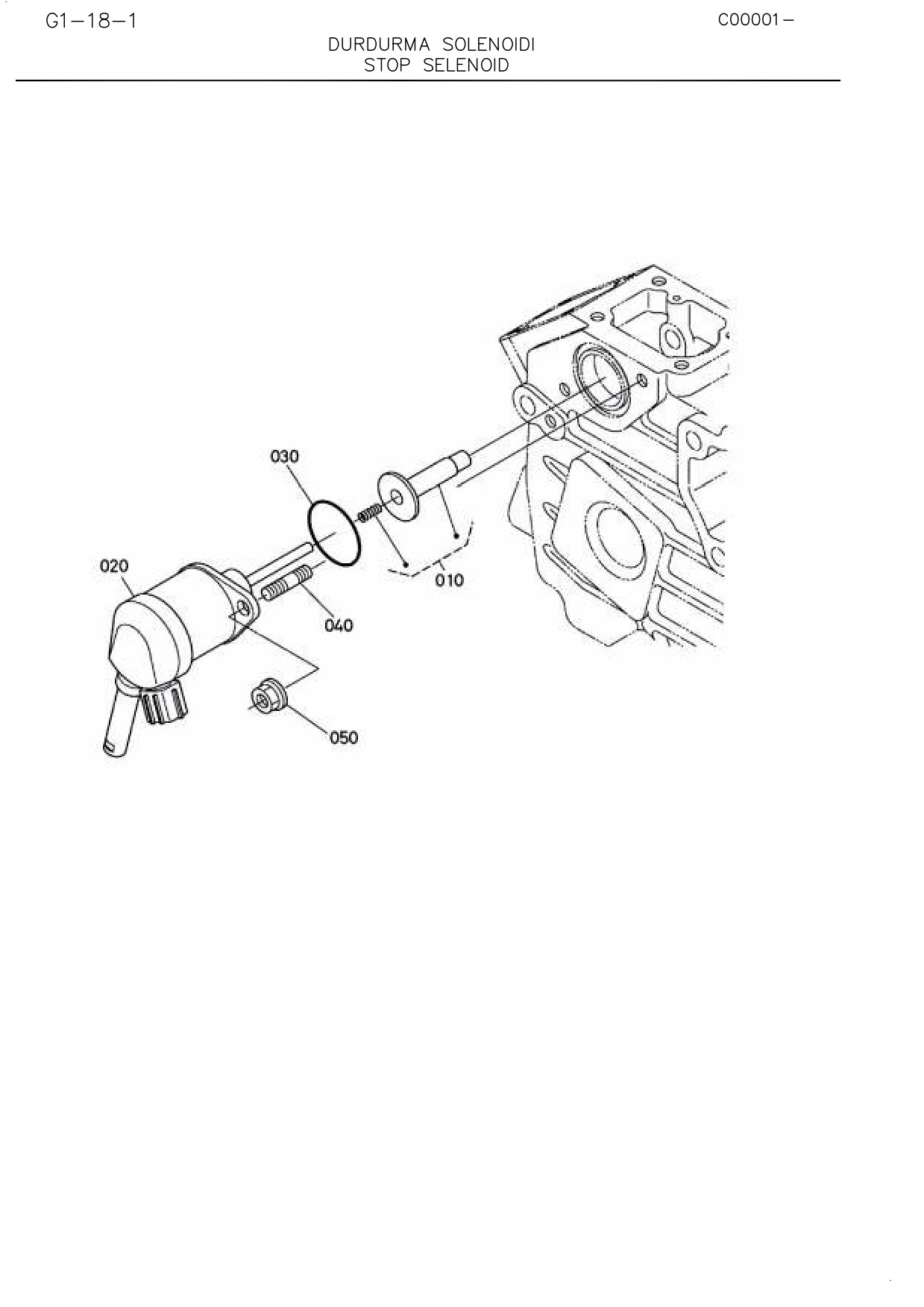

DURDURMA SOLENOIDI
STOP SOLENOID
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118003120
SUBAP, SOLENOİD KOMPL.
COMP. GUIDE, SOLENOID
1
020
M118003130
SOLENOİD MONTAJLI
ASSY SOLENOID
1
030
M118003140
O-RING
O-RING
1
040
M118000610
SAPLAMA
STUD
2
050
M118003110
SOMUN, FLANŞLI
NUT, FLANGE
2

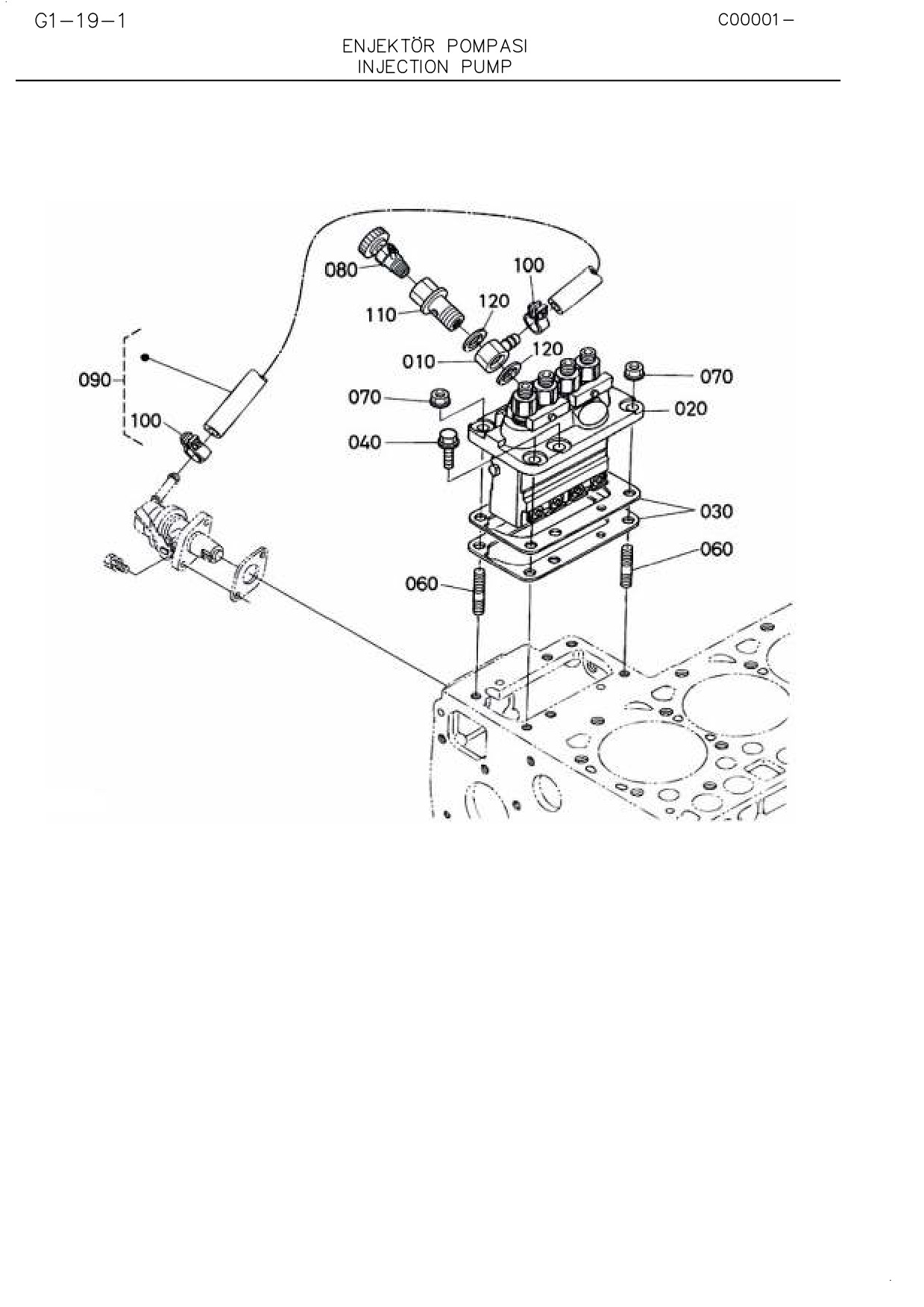

C00001
G1-19-1
ENJEKTÖR POMPASI
INJECTION PUMP
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118003170
MERKEZLEME, GÖZÜ
JOINT, EYE
1
020
M118003180
POMPA MONTAJI, ENJEKSİY ASSY PUMP, INJECTION
1
030
M118003190
ŞİM, ENJEKSİYON POMPASI
SHIM, INJECTION PUMP
1
030
M118003200
ŞİM, ENJEKSİYON POMPASI
SHIM, INJECTION PUMP
1
030
M118003210
ŞİM, ENJEKSİYON POMPASI
SHIM, INJECTION PUMP
1
030
M118003220
ŞİM, ENJEKSİYON POMPASI
SHIM, INJECTION PUMP
1
040
M118003230
CİVATA, FLANŞLI
BOLT, FLANGE
4
060
M118003240
SAPLAMA
STUD
2
070
M118003250
SOMUN, FLANŞLI
NUT, FLANGE
2
080
M118003260
VANA, JET PÜSKÜRTME
ASSY COCK, JET START
1
090
M118003270
BORU, YAKIT
ASSY PIPE, FUEL
1
100
M118003280
KELEPÇE
CLIP, PIPE
2
110
M118003290
VİDA, DELİKLİ
BOLT, EYE JOINT
1
120
M118003300
CONTA
GASKET
2
C00001
G1-20-1

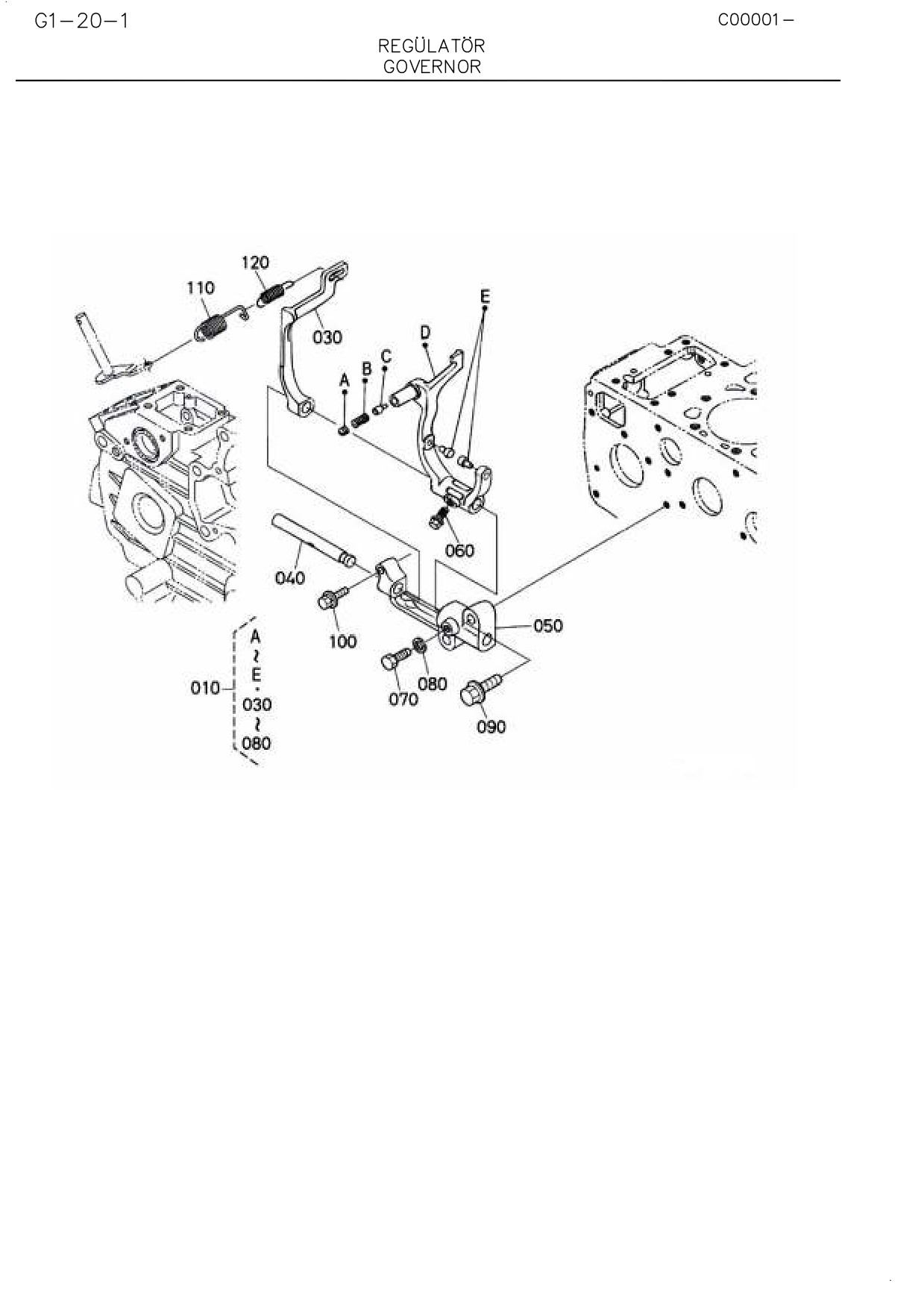

REGÜLATÖR
GOVERNOR
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118003310
MONTAJ KOLU, ÇATAL
ASSY LEVER, FORK
1
030
M118003320
KOL, ÇATAL
LEVER, FORK
1
040
M118003330
ŞAFT, ÇATAL KOLU
SHAFT, FORK LEVER
1
050
M118003340
ÇATAL KOLU, DELİKLİ
HOLDER, FORK LEVER
1
060
M118003350
CİVATA, FLANŞLI
BOLT, FLANGE
1
070
M118003360
CİVATA
BOLT
1
080
M118001630
PUL, YAYLI
WASHER, SPRING
1
090
M118001590
CİVATA, FLANŞLI
BOLT, FLANGE
2
100
M118003390
CİVATA
BOLT
1
110
M118003400
YAY, REGÜLATÖR
SPRING, GOVERNOR
1
120
M118003410
YAY, REGÜLATÖR
SPRING, GOVERNOR
1
C00001

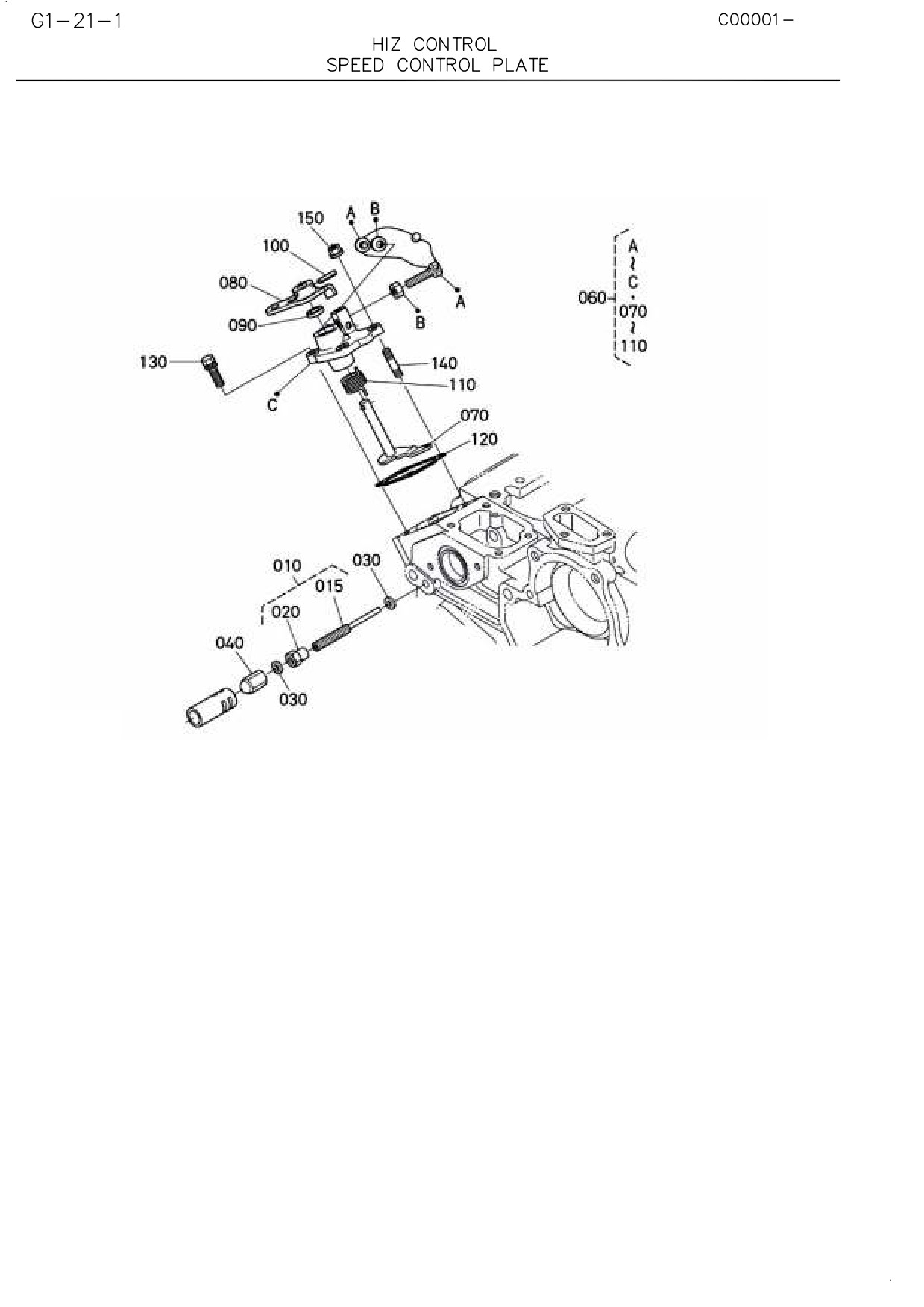

G1-21-1
REGÜLATÖR
GOVERNOR
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118003420
CİVATA AYAR, MONTAJI
ASSY BOLT, ADJUSTMENT
1
015
M118003430
CİVATA, AYAR
BOLT, ADJUSTING
1
020
M118003440
SOMUN
NUT
1
030
M118003450
CONTA
GASKET
2
040
M118003460
SOMUN
NUT
1
060
M118003470
KONTROL PLAKASI
ASSY PLATE, CONTROL
1
070
M118003480
KOL KOMPLE, REGÜLATÖR
COMP. LEVER, GOVERNOR
1
080
M118003490
KOL, HIZ KONTROL
LEVER, SPEED CONTROL
1
090
M118003050
KEÇE, YAĞ
SEAL, OIL
1
100
M118003060
PİM, YAYLI
PIN, SPRING
1
110
M118003070
YAY, GERİ DÖNÜŞ
SPRING, RETURN
1
120
M118003080
CONTA, LEVHA
GASKET, PLATE
1
130
M118001580
CİVATA
BOLT
2
140
M118000610
SAPLAMA
STUD
2
150
M118003110
SOMUN, FLANŞLI
NUT, FLANGE
2
C00001

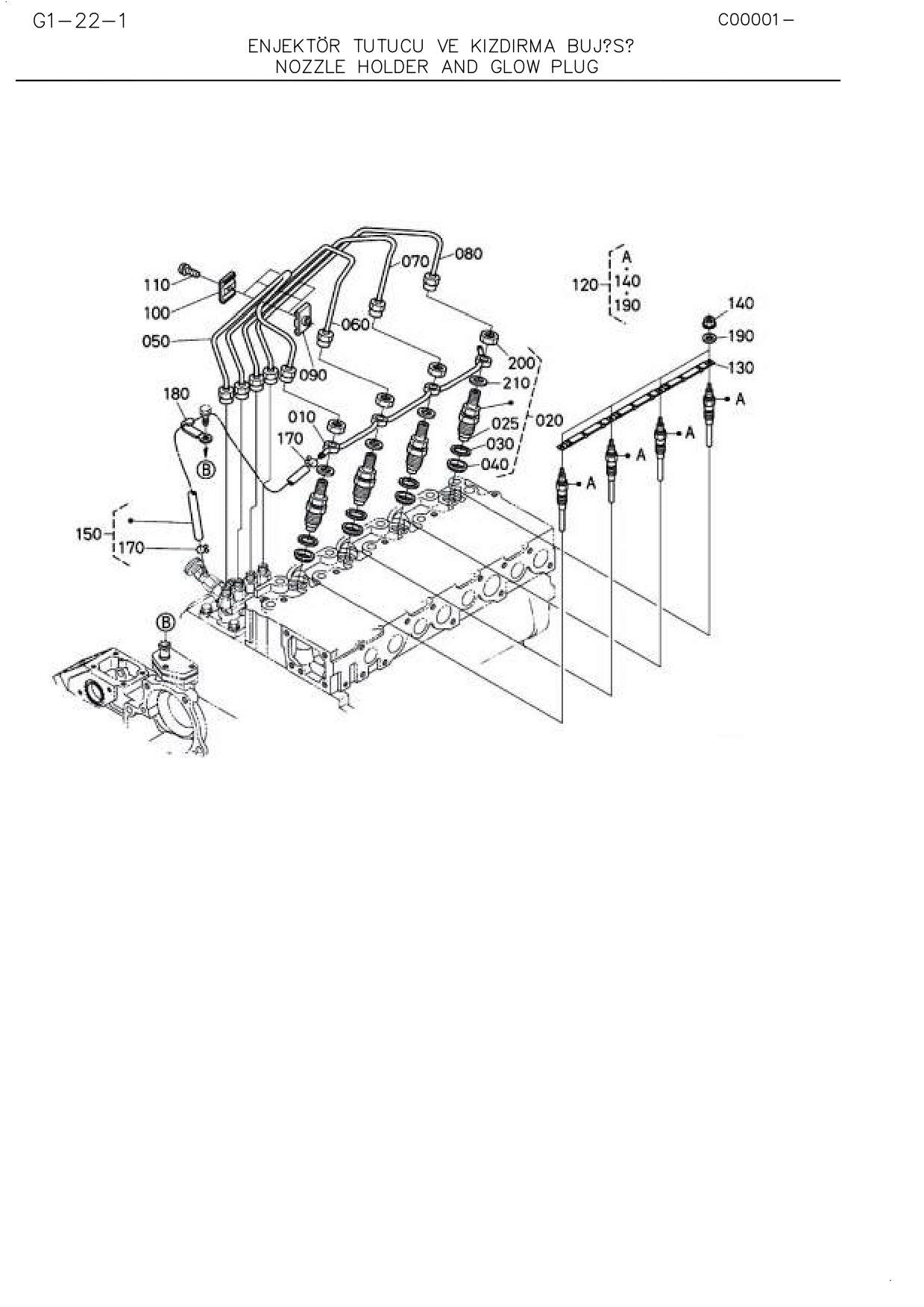

G1-22-1
ENJEKTÖR TUTUCU VE KIZDIRMA BUJĐSĐ
NOZZLE HOLDER AND GLOW PLUG
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118003570
TAŞIMA BORUSU KOMPLE
ASSY PIPE, OVER FLOW
1
020
M118003580
KIT, ENJEKTÖR
KIT HOLDER, NOZZLE
4
025
M118003590
ENJEKTÖR
PIECE, NOZZLE
4
030
M118003600
CONTA
GASKET
4
040
M118003610
KEÇE, HARARET
SEAL, HEAT
4
050
M118003620
BORU, ENJEKSİYON
PIPE, INJECTION
1
060
M118003630
BORU, ENJEKSİYON
PIPE, INJECTION
1
070
M118003640
BORU, ENJEKSİYON
PIPE, INJECTION
1
080
M118003650
BORU, ENJEKSİYON
PIPE, INJECTION
1
090
M118003660
KELEPÇE, BORU
CLAMP, PIPE
3
100
M118003670
KELEPÇE, BORU
CLAMP, PIPE
3
110
M118003680
VİDA, PULLU
SCREW, WITH WASHER
3
120
M118003690
KIZDIRMA BUJİSİ
GLOW PLUG
4
130
M118003700
BAĞLANTI, KIZDIRMA BUJİSİ CORD, GLOW PLUG
1
140
M118003710
SOMUN, FLANŞLI
NUT, FLANGE
4
150
M118003720
TAŞIMA BORUSU KOMPLE
ASSY PIPE, OVER FLOW
1
160
M118003730
KELEPÇE, BORU
CLIP, PIPE
1
170
M118003740
KELEPÇE, BORU
CLIP, PIPE
1
180
M118003750
KELEPÇE
CLAMP, CORD
1
190
M118003760
PUL
WASHER, PLAIN
4
200
M118003730
SOMUN
NUT
4
210
M118003810
PUL
WASHER
4
C00001

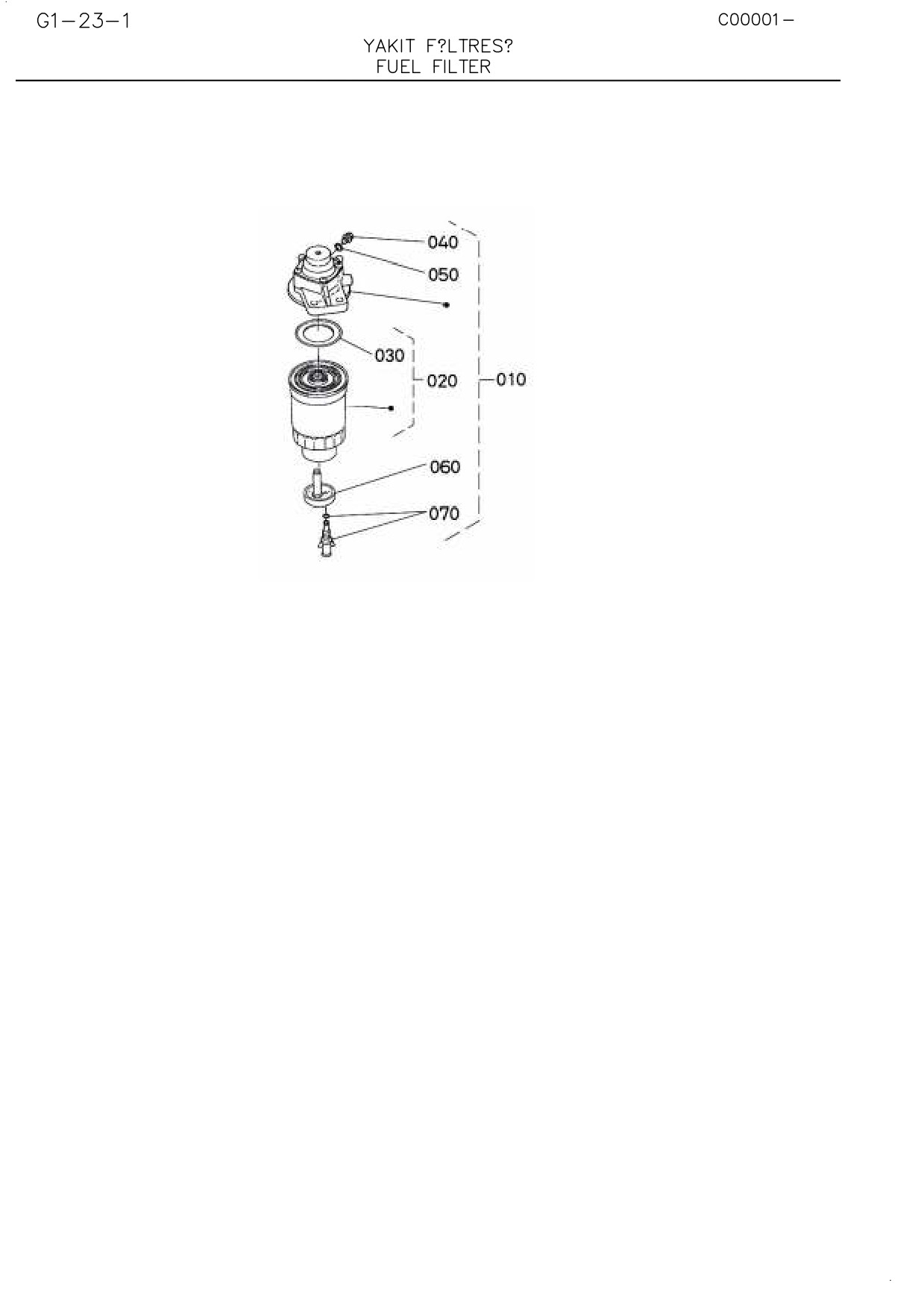

G1-23-1
YAKIT FĐLTRESĐ
FUEL FILTER
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M112502100
YAKIT FİLTRESİ, KOMPLE
ASSY FILTER, FUEL
1
020
M118005920
KIT ELEMANLARI
KIT ELEMENT
1
030
M118005930
CONTA
GASKET
1
040
M118005940
TAPA
PLUG
1
050
M118005950
O-RING
O-RING
1
060
M118005960
TAPA
PLUG
1
070
M118005970
BOŞALTMA MUSLUĞU
ASSY COCK, DRAIN
1
C00001
-

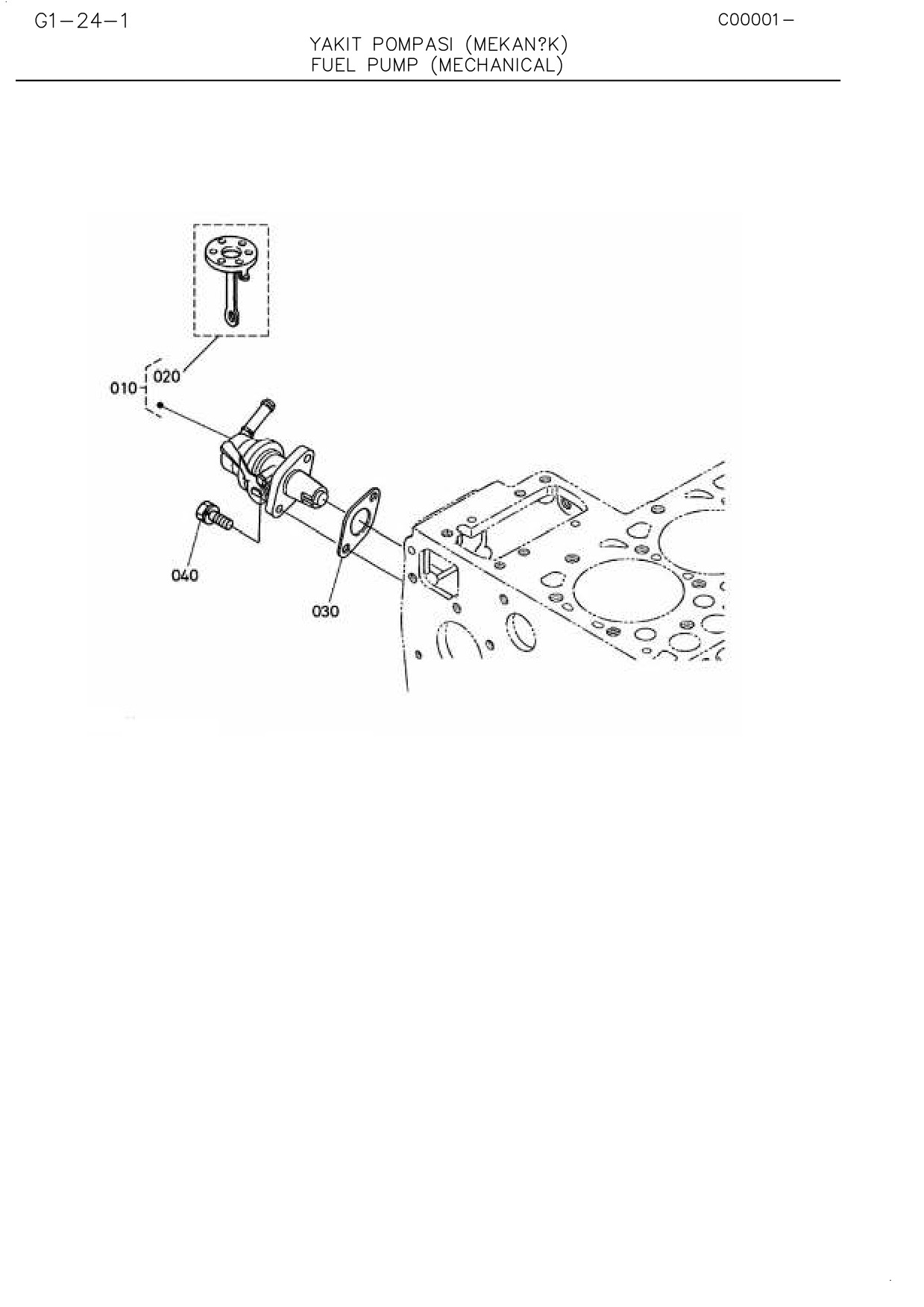

G1-24-1
YAKIT POMPASI (MEKANĐK)
FUEL PUMP (MECHANICAL)
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118003770
POMPA, YAKIT
ASSY PUMP, FUEL
1
020
M118003780
DİYAFRAM
COMP DIAPHRAGM
1
030
M118003790
CONTA
GASKET, FUEL PUMP
1
040
M118003800
CİVATA
BOLT
2
