Hidromek HMK 62 SS. Parts catalog - page 5
TAHRiK ELEMANLARI
F
TRANSMISSION COMPONENTS
ÖN AKS
F1
FRONT AXLE
ARKA AKS
F2
REAR AXLE
SANZUMAN
F3
TRANSMISSION
C00001
-

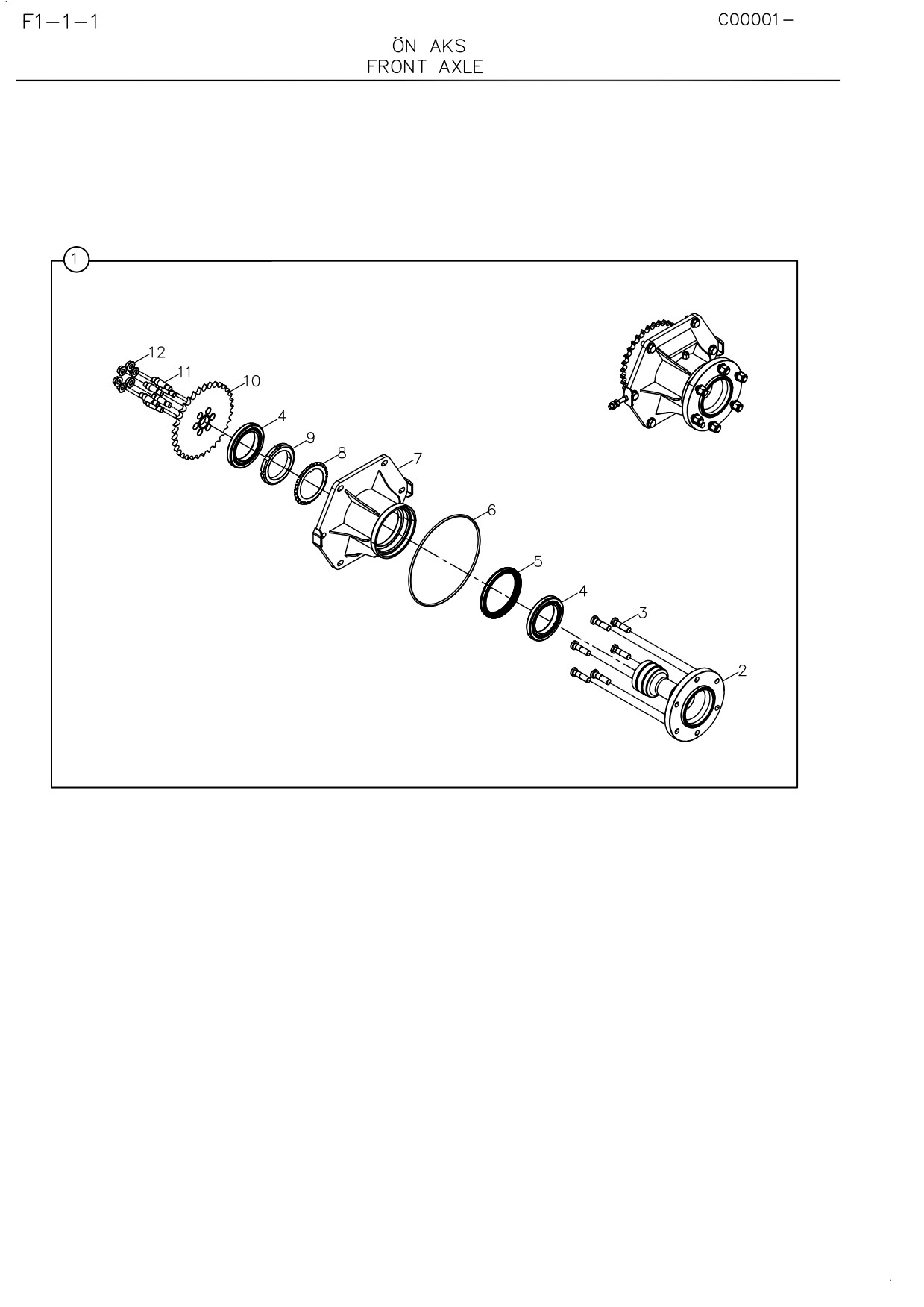

F1-1-1
ÖN AKS
FRONT AXLE
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M114500100
1
M114500300
AKS, UZUN
AXLE, LONG
2
2
M114500600
AKS, UZUN
AXLE, LONG
1
3
N01/0000218
BİJON CİVATASI
BOLT
6
4
N09/0500350
RULMAN
BEARING
2
5
N10/8615181
AKS KEÇESİ
SEAL, AXLE
1
6
N10/2032307
O-RİNG
O-RING
1
7
M114500400
PORYA KOVANI
WHEEL HUB
1
8
M114500800
EMNİYET PULU
WASHER
1
9
M114500700
AYAR SOMUNU
NUT, ADJUSTING
1
10
M114501400
ZİNCİR DİŞLİ, Z:34
SPROCKET, Z:34
1
11
M114501500
AKS SAPLAMASI
STUD, AXLE
6
12
N02/8320300
FLANŞLI SOMUN
NUT
6
TAHRiK ELEMANLARI
F
TRANSMISSION COMPONENTS
ÖN AKS
F1
FRONT AXLE
ARKA AKS
F2
REAR AXLE
SANZUMAN
F3
TRANSMISSION
C00001
-
F2-1-1

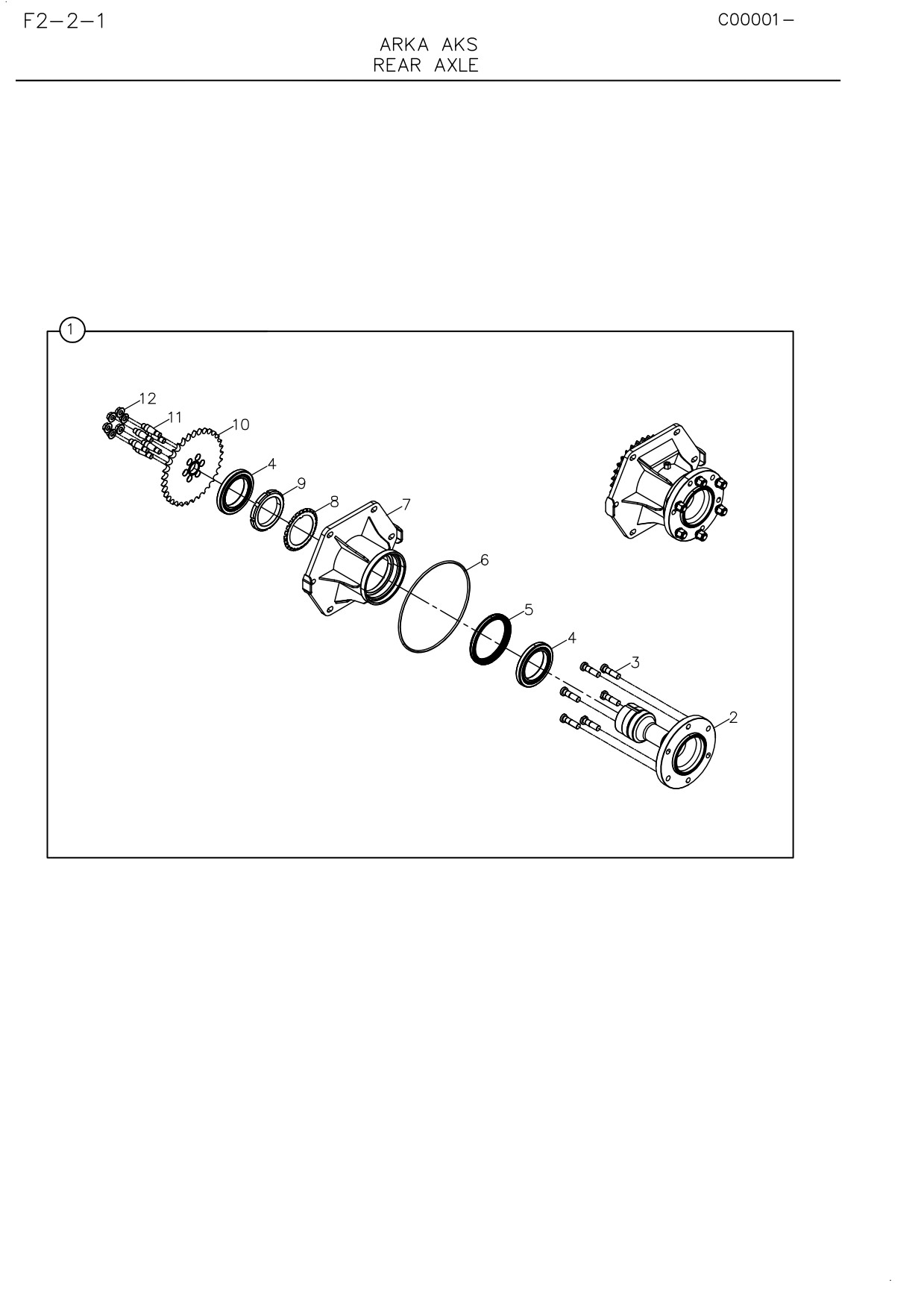

ARKA AKS
REAR AXLE
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M114500100
1
M114500200
AKS, KISA
AXLE, SHORT
2
2
M114500500
AKS, KISA
AXLE, SHORT
1
3
N01/0000218
BİJON CİVATASI
BOLT
6
4
N09/0500350
RULMAN
BEARING
2
5
N10/8615181
AKS KEÇESİ
SEAL, AXLE
1
6
N10/2032307
O-RİNG
O-RING
1
7
M114500400
PORYA KOVANI
WHEEL HUB
1
8
M114500800
EMNİYET PULU
WASHER
1
9
M114500700
AYAR SOMUNU
NUT, ADJUSTING
1
10
M114501400
ZİNCİR DİŞLİ, Z:34
SPROCKET, Z:34
1
11
M114501500
AKS SAPLAMASI
STUD, AXLE
6
12
N02/8320300
FLANŞLI SOMUN
NUT
6
TAHRiK ELEMANLARI
F
TRANSMISSION COMPONENTS
ÖN AKS
F1
FRONT AXLE
ARKA AKS
F2
REAR AXLE
TEKER VE TAHRIK SISTEMI
F3
WHEELS & WHEEL DRIVES
C00001
-

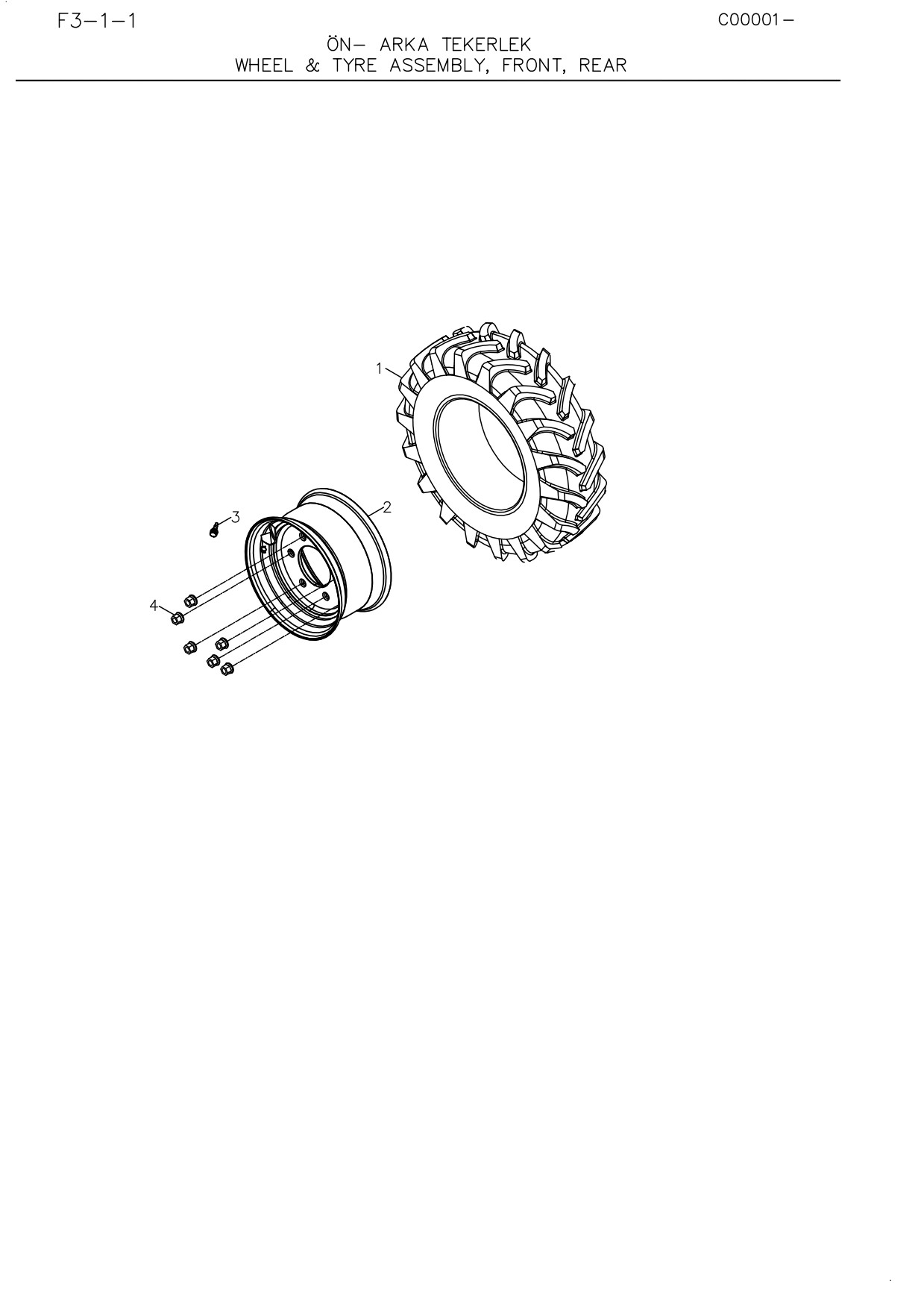

F3-1-1
ÖN- ARKA TEKERLEKLER
WHEEL & TYRE ASSEMBLY, FRONT, REAR
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M114500100
1
M114501700
LASTİK 10-16.5-10PR
TYRE 10-16.5- 10PR
1
3
M114501600
JANT
RIM, WHEEL
1
4
F99/06200
SİBOP
VALVE
1
4
F06/10519
BİJON SOMUNU M18x1.5
NUT M18x1.5
5
C00001
-

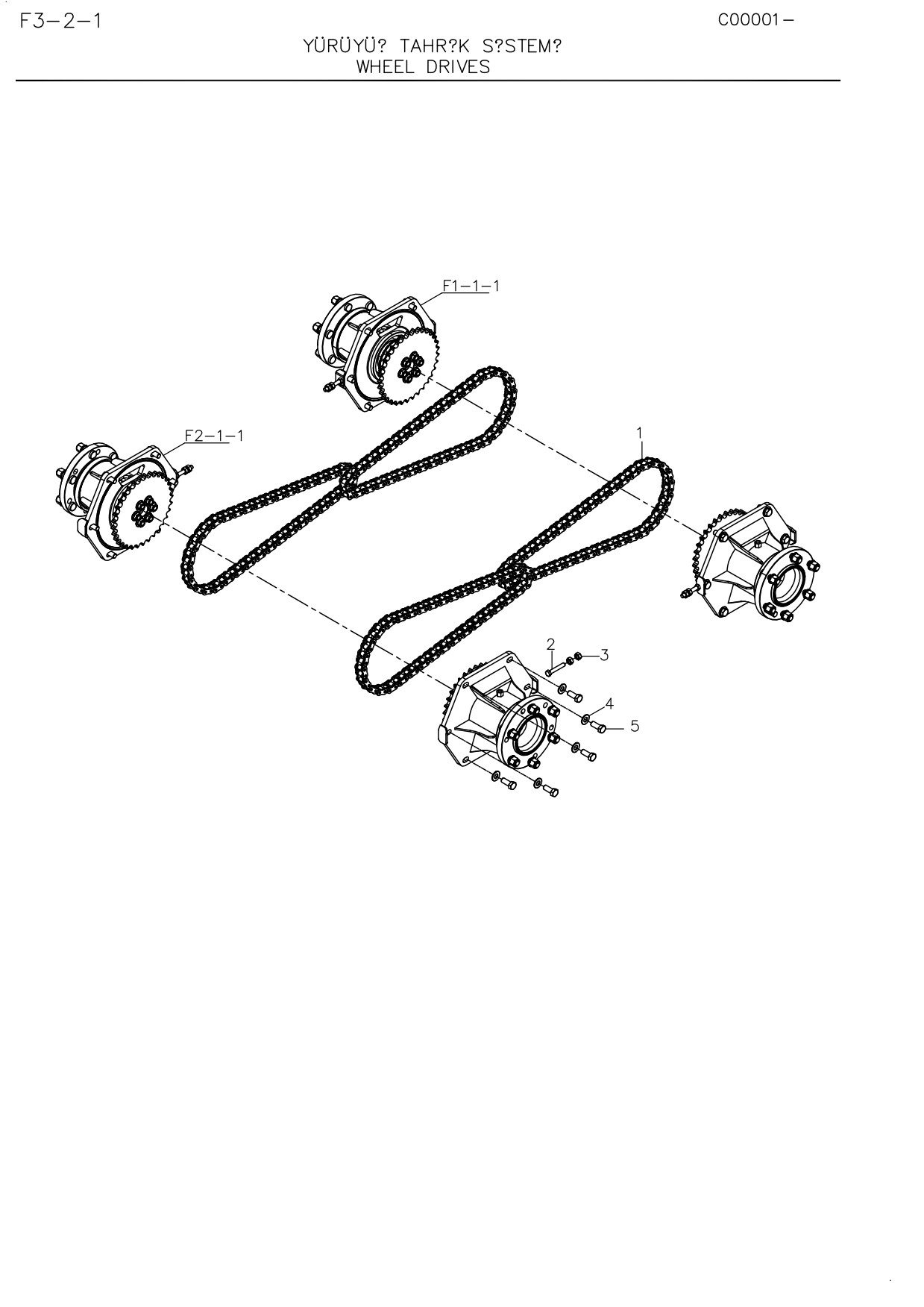

F3-2-1
YÜRÜYÜŞ TAHRĐK SĐSTEMĐ
WHEEL DRIVES
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M114500100
1
M114501800
ZİNCİR
CHAIN
4
2
N01/0232942
CİVATA M12x70
BOLT M12x70
4
3
N02/3580242
SOMUN M12
NUT M12
8
4
N03/0100027
PUL M16
WASHER M16
24
5
N01/0233578
CİVATA M16x40
BOLT M16x40
24
MOTOR
G
ENGINE
MOTOR 4045HF280
G1
ENGINE 4045HF280
MOTOR MONTAJLARI
G2
ENGINE ASSEMBLY
C00001
G1-1-1

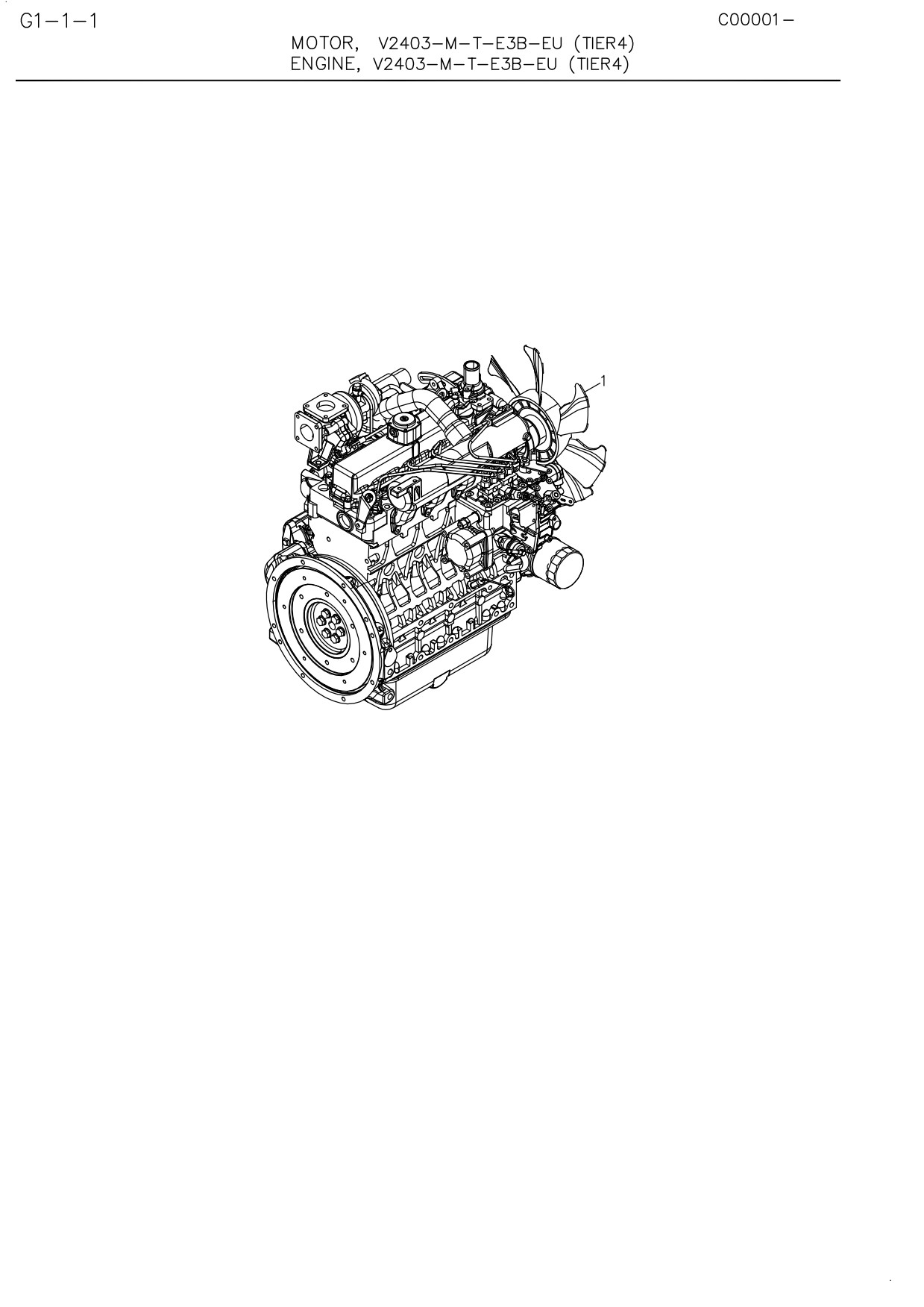

MOTOR, V2403-M-T-E3B-EU(TIER4)
ENGINE, V2403-M-T-E3B-EU(TIER4)
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
M112002800
MOTOR, TIER 4
ENGINE, TIER 4
1
(1)
NOT / NOTE:
(1) SİPARİŞLERDE MAKİNA SERİ NO İLE BİRLİKTE MOTOR SERİ NO DA MUTLAKA BİLDİRİLMELİDİR. /
WHILE ORDERING ENGINE SERIAL NO MUST BE INFORMED WITH MACHINE SERIAL NO.

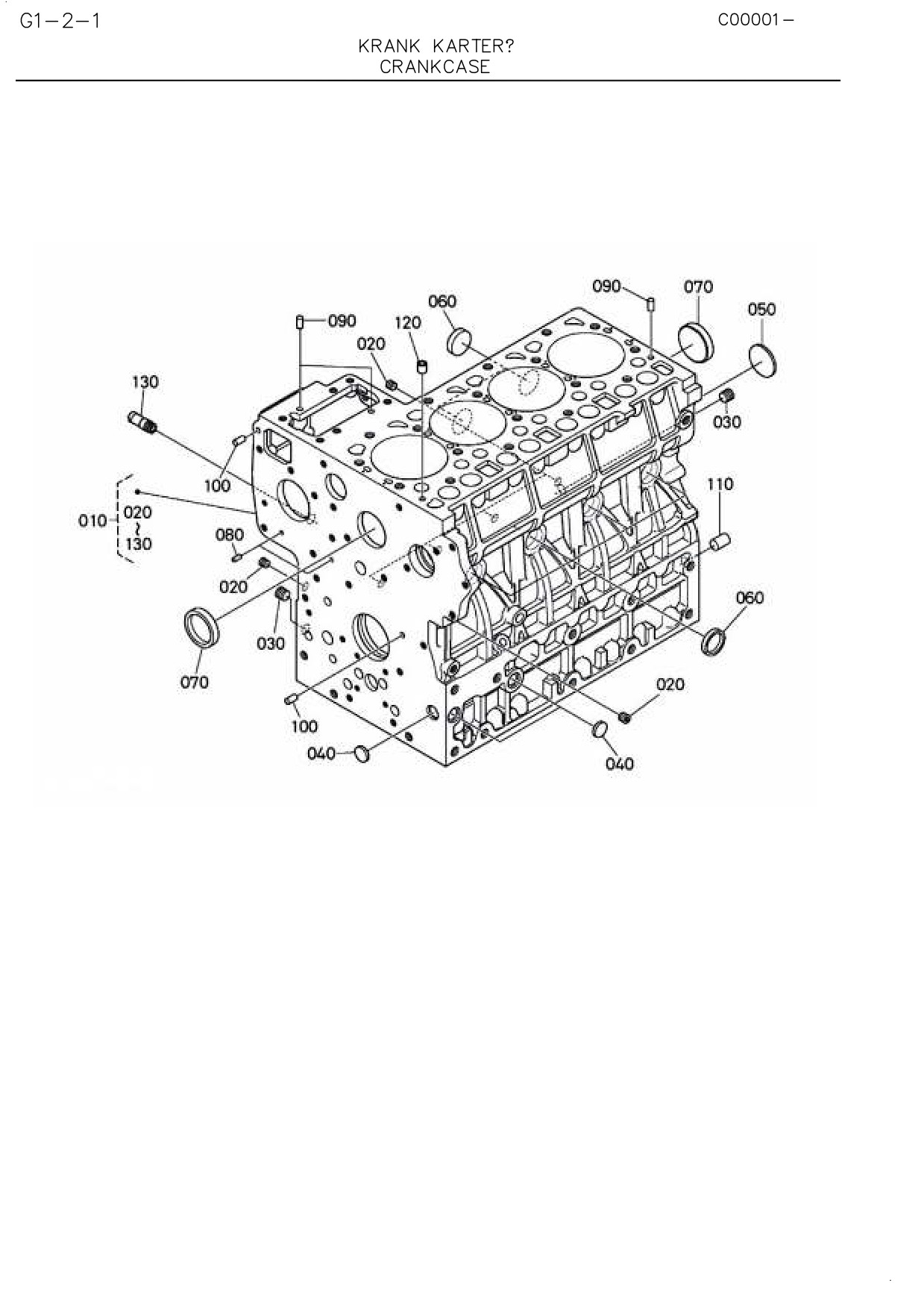

C00001
G1-2-1
KRANK KARTERĐ
CRANKCASE
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118001000
KRANK KARTERİ, KOMPL.
COMP.CRANKCASE
1
020
M118001010
TAPA
PLUG
6
030
M118001020
TAPA
PLUG
2
040
M118001030
TAPA, GENLEŞME
PLUG. EXPANSION
3
050
M118001040
TAPA, GENLEŞME
PLUG. EXPANSION
1
060
M118001050
KAPAK, KEÇE
CAP. SEALING
6
070
M118001060
KAPAK, KEÇE
CAP. SEALING
2
080
M118001070
PİM
PIN. STRAIGHT
2
090
M118001080
PİM
PIN. STRAIGHT
3
100
M118001090
PİM
PIN. STRAIGHT
2
110
M118001100
PİM
PIN. STRAIGHT
1
120
M118001110
PİM
PIN, PIPE
1
130
M118001120
BORU, SU GERİ DÖNÜŞ
PIPE, WATER RETURN
1

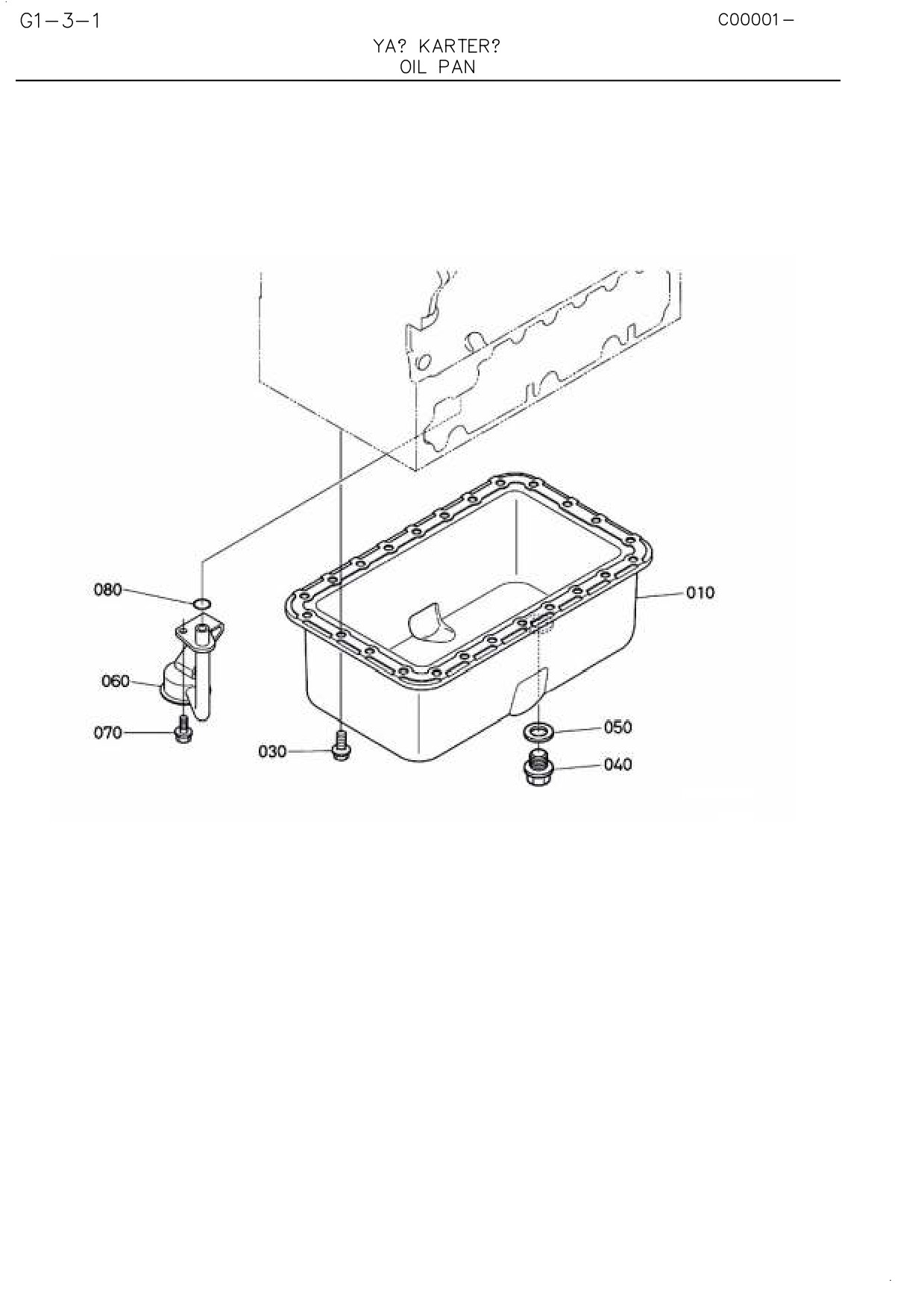

C00001
G1-3-1
YAĞ KARTERĐ
OIL PAN
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118001130
YAĞ KARTERİ, KOMPL.
COMP. OIL PAN
1
030
M118001150
CİVATA
BOLT, FLANGE
24
040
M118001160
TAPA, BOŞALTMA
PLUG, DRAIN
2
050
M118001170
CONTA
GASKET
2
060
M118001180
YAĞ FİLTRESİ
FILTER OIL
1
070
M118001190
CİVATA
BOLT, FLANGE
1
080
M118001200
O-RING
O-RING
1
C00001

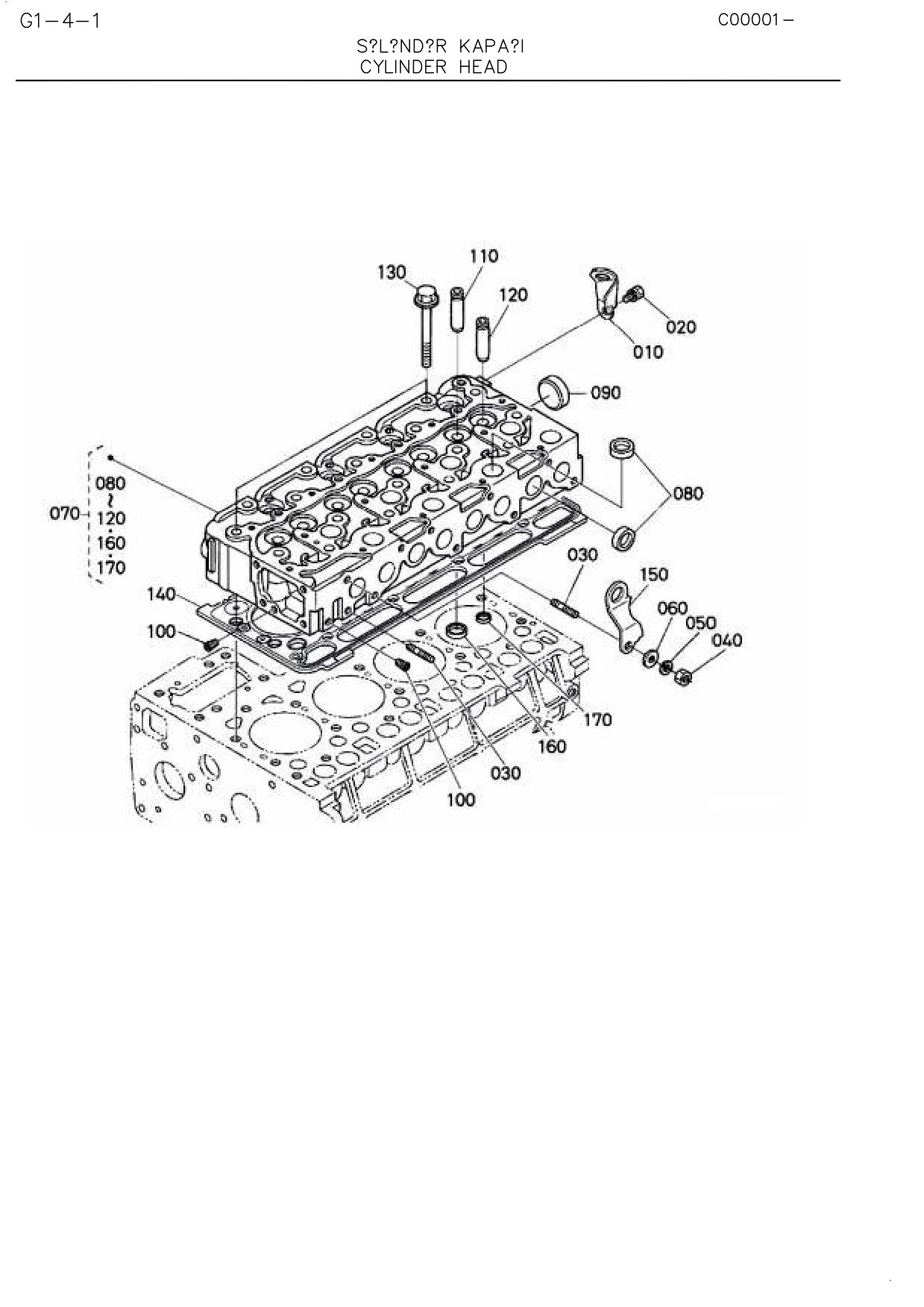

G1-4-1
SĐLĐNDĐR KAPAĞI
CYLINDER HEAD
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118001210
ENGINE
HOOK, ENGINE
1
020
M118001220
CİVATA
BOLT
1
030
M118001230
SAPLAMA
STUD
2
040
M118001240
SOMUN
NUT
1
050
M118001250
PUL
WASHER, SPRING
1
060
M118001260
PUL
WASHER, PLAIN
1
070
M118001270
SİLİNDİR KAPAĞI, KOMPL.
COMP.CYLINDER HEAD
1
080
M118001280
KAPAK, KEÇE
CAP, SEALING
12
090
M118001290
KAPAK, KEÇE
CAP, SEALING
1
100
M118001300
TAPA
PLUG
2
110
M118001310
SUBAP, EMME
GUIDE, INLET VALVE
4
120
M118001320
SUBAP, EGSOZ
GUIDE, VALVE, EXHAUST
4
130
M118001330
CİVATA
BOLT, CYLINDER HEAD
18
140
M118001340
CONTA
GASKET, CYLINDER HEAD
1
1.15mm
140
M118001350
CONTA
GASKET, CYLINDER HEAD
1
1.20mm
140
M118001360
CONTA
GASKET, CYLINDER HEAD
1
1.25mm
140
M118001370
CONTA
GASKET, CYLINDER HEAD
1
1.30mm
140
M118001380
CONTA
GASKET, CYLINDER HEAD
1
1.35mm
150
M118001390
KANCA, MOTOR
HOOK, ENGINE
1
160
M118002760
YUVA
SEAT, INLET VALVE
4
170
M118002770
YUVA
SEAT, EXHAUST VALVE
4

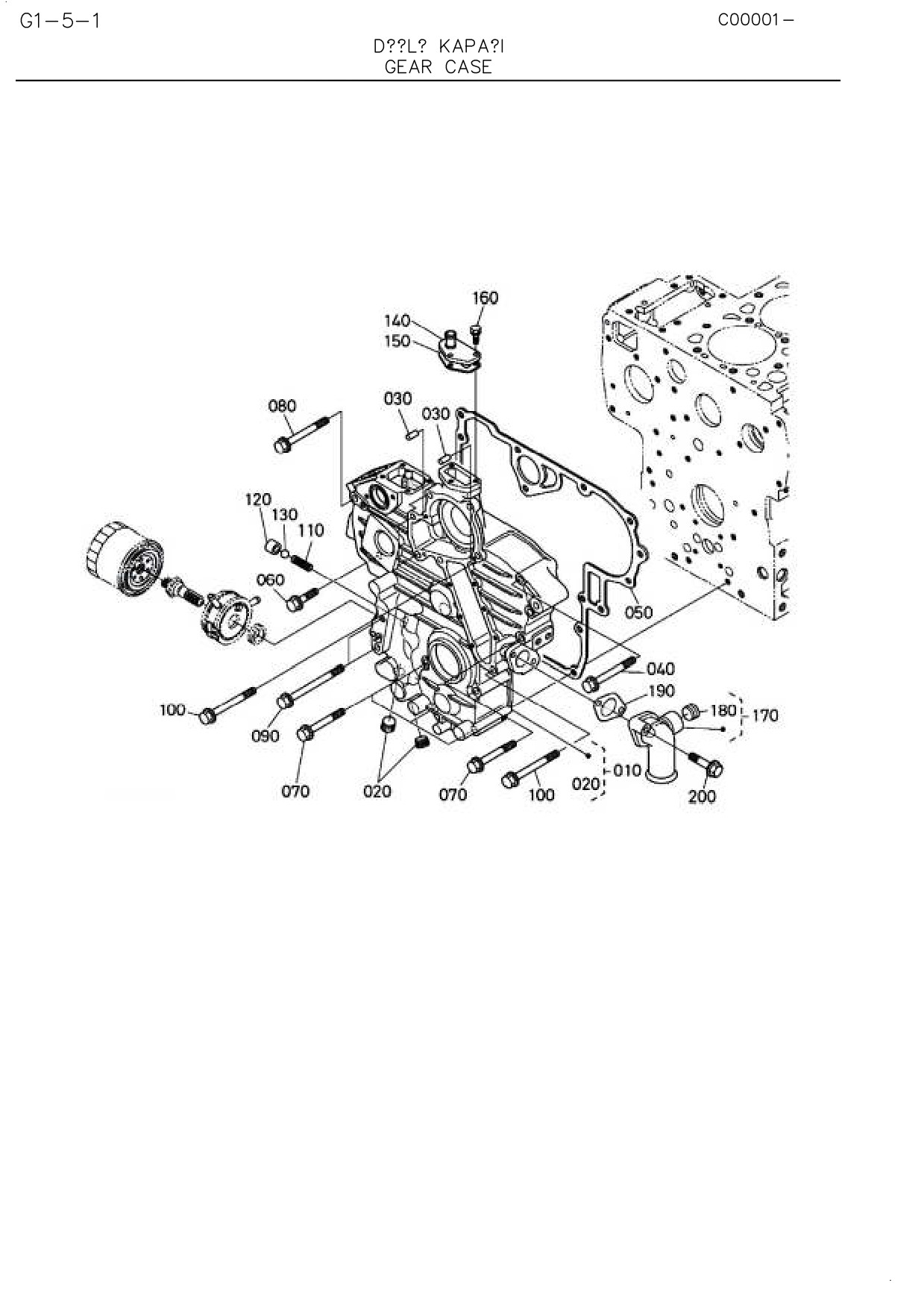

C00001
G1-5-1
DĐŞLĐ KAPAĞI
GEAR CASE
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118001400
KAPAK, DİŞLİ KOMPL.
COMP. CASE, GEAR
1
020
M118001410
TAPA
PLUG
2
030
M118001420
PİM
PIN. STRAIGHT
1
040
M118001430
O-RING
O-RING
2
050
M118001440
O-RING
O-RING
1
060
M118001590
PIN
PIN, STRAIGHT
2
070
M118001470
CONTA
GASKET, GEAR CASE
1
080
M118001500
CİVATA
BOLT, FLANGE
1
090
M118001510
CİVATA
BOLT, FLANGE
2
100
M118001520
CİVATA
BOLT, FLANGE
4
110
M118001530
YAY
SPRING
1
120
M118001540
YUVA, KEÇE
SEAT, VALVE
1
130
M118001550
BİLYA
BALL
1
140
M118001560
FLANŞ, SU DÖNÜŞ
FLANGE, WATER RETURN
1
150
M118001570
CONTA
GASKET, RETURN FLANGE
1
160
M118001580
CİVATA
BOLT
3
170
M118001600
FLANŞ, SU KOMPLE
COMP.FLANGE WATER
1
180
M118004730
TAPA
PLUG
1
190
M118001610
CONTA
GASKET, WATER FLANGE
1
200
M118001490
CİVATA
BOLT, FLANGE
2
C00001
G1-6-1

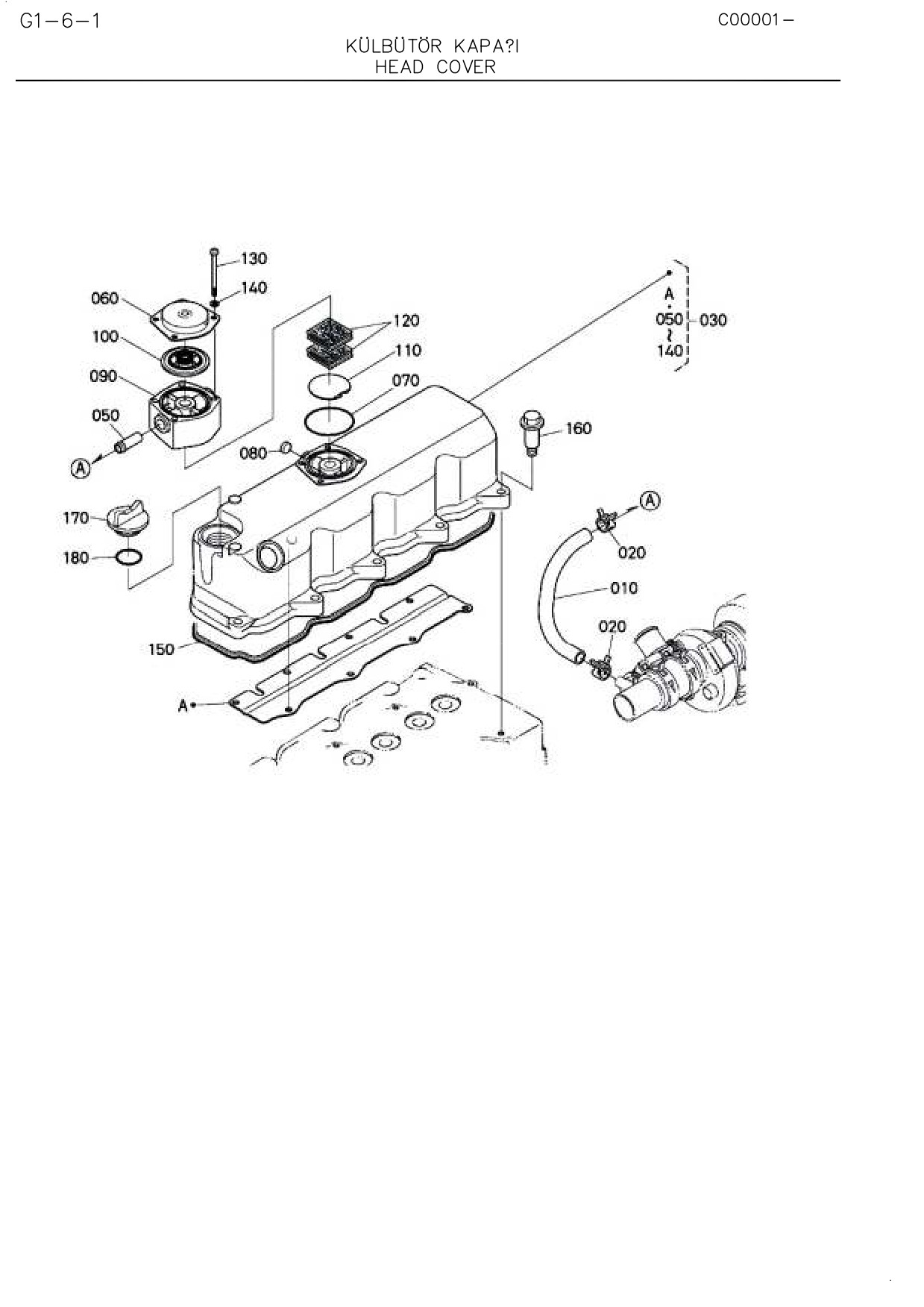

KÜLBÜTÖR KAPAĞI
HEAD COVER
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118001640
BORU, HAVALANDIRMA
TUBE, BREATHER TURBO
1
020
M118001650
KELEPÇE
CLAMP, HOSE
2
030
M118001660
KÜLBÜTÖR KAPAĞI KOMPL
ASSY. COVER, CYL. HEAD
1
050
M118001680
BORU, SU DÖNÜŞ
PIPE, WATER RETURN
1
060
M118001690
KAPAK, HAVALANDIRMA
COVER, BREATHER
1
070
M118001700
O-RING, HAVALANDIRMA
O-RING, BREATHER
1
080
M118001710
KAPAK, KEÇE
CAP, SEALING
1
090
M118001720
ŞİM, HAVALANDIRMA
SPACER, BREATHER
1
100
M118001730
VALVE, HAVALANDIRMA
COMP. VALVE, BREATHER
1
110
M118001740
MUHAFAZA
SHIELD, OIL BREATHER
1
120
M118001750
HAVALANDIRMA ELEMANI
ELEMENT, BREATHER
2
130
M118001760
CİVATA
SCREW, PAN- HEAD
4
140
M118001770
PUL
WASHER, SPRING
4
150
M118001780
CONTA
GASKET, HEAD COVER
1
160
M118001790
CİVATA
BOLT
10
170
M118001800
TAPA, YAĞ FİLTRESİ
PLUG, OIL FILLER
1
180
M118001810
O-RING
O-RING
1
C00001

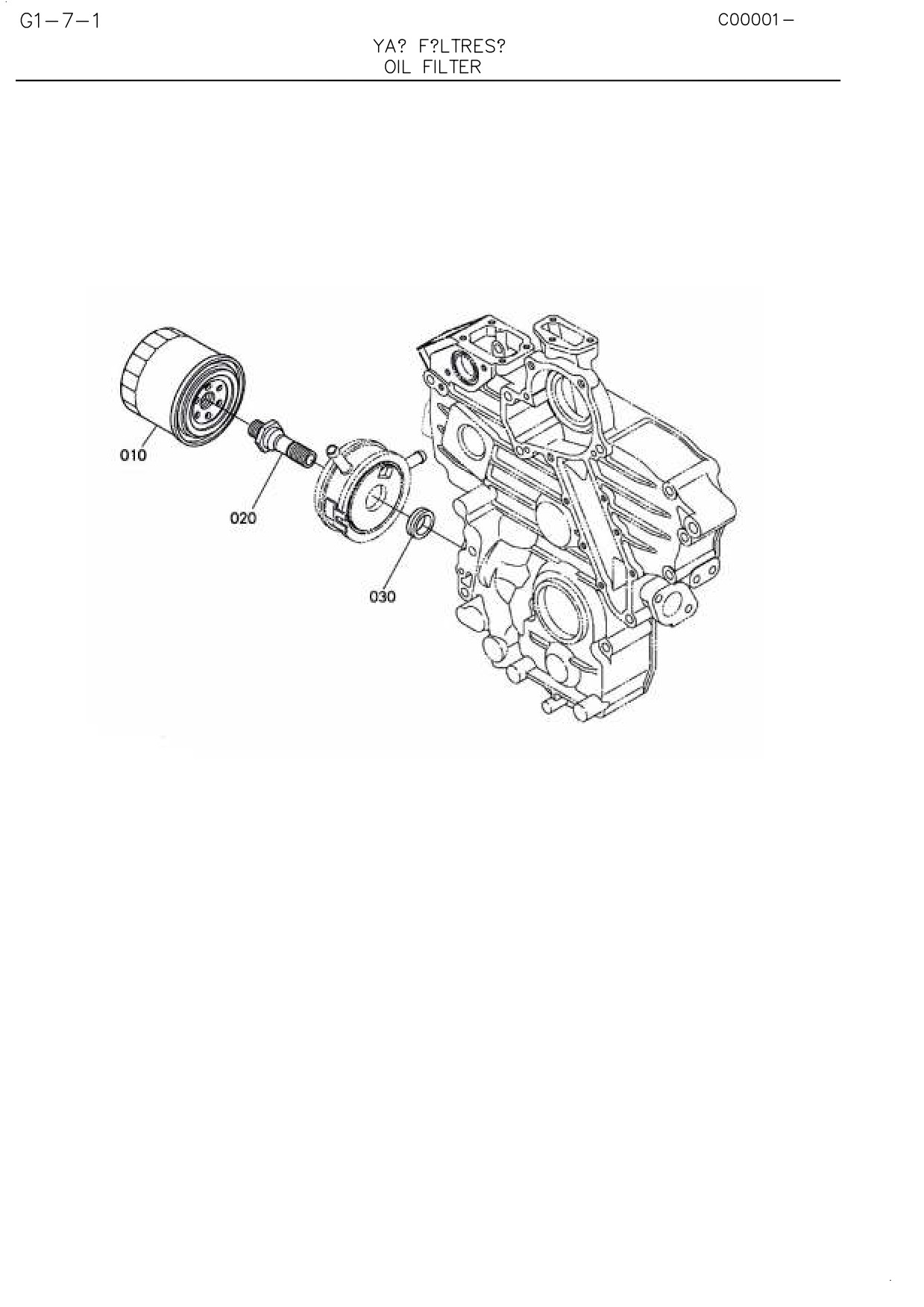

G1-7-1
YAĞ KARTERĐ
OIL FILTER
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118001820
FİLTRE KABI, YAĞ FİLTRESİ
CARTRIDGE, OIL FILTER
1
020
M118001830
RAKOR
CONNECTOR
1
030
M118001840
BİLEZİK
COLLAR
1
C00001

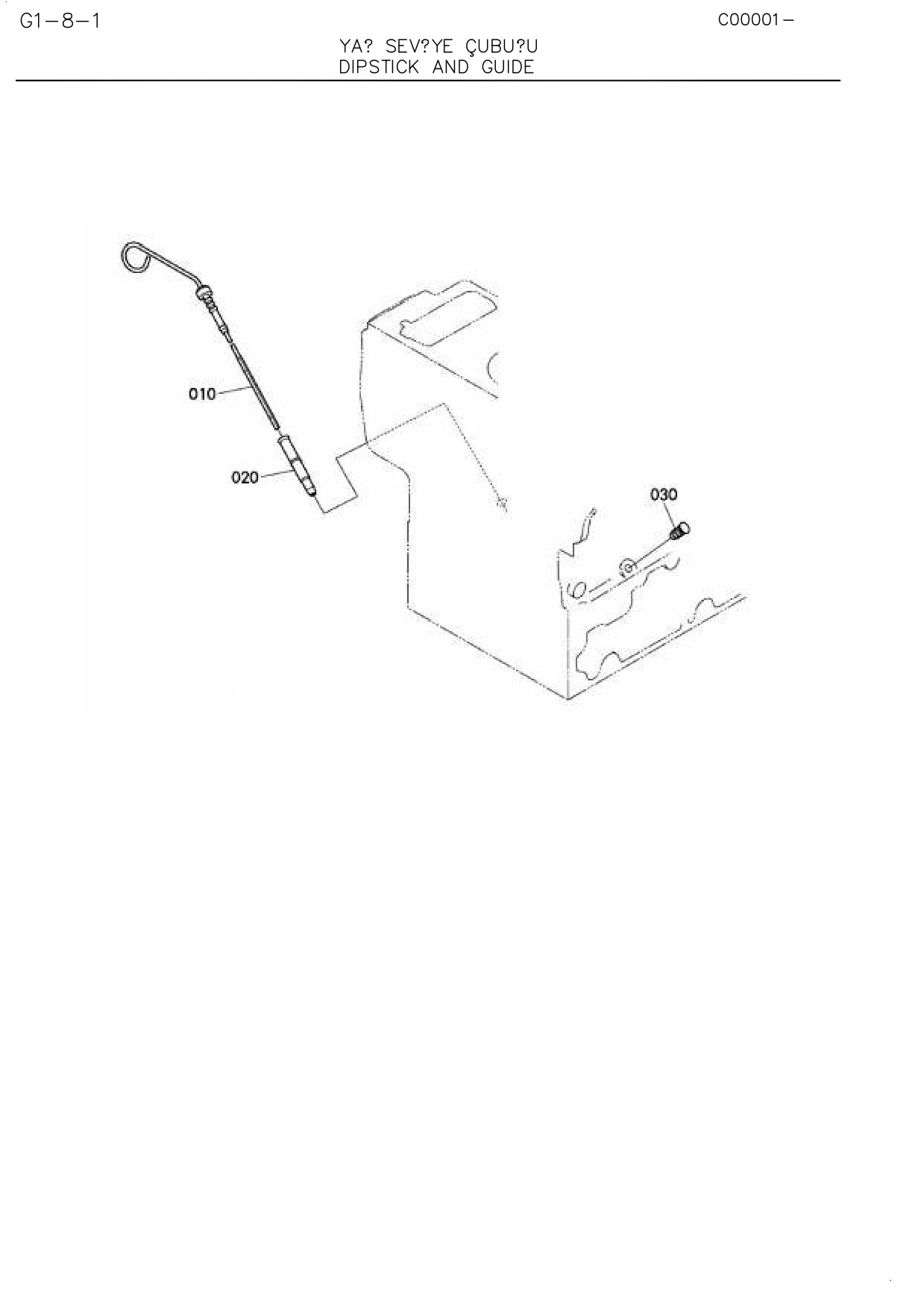

G1-8-1
YAĞ SEVĐYE ÇUBUĞU
DIPSTICK AND GUIDE
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118001850
GÖSTERGE, YAĞ
GAUGE, OIL
1
020
M118001860
YATAK, YAĞ GÖSTERGE
GUIDE, OIL GAUGE
1
030
M118001870
TAPA, YAĞ GÖSTERGE
PLUG, OIL GAUGE
1
C00001
G1-9-1

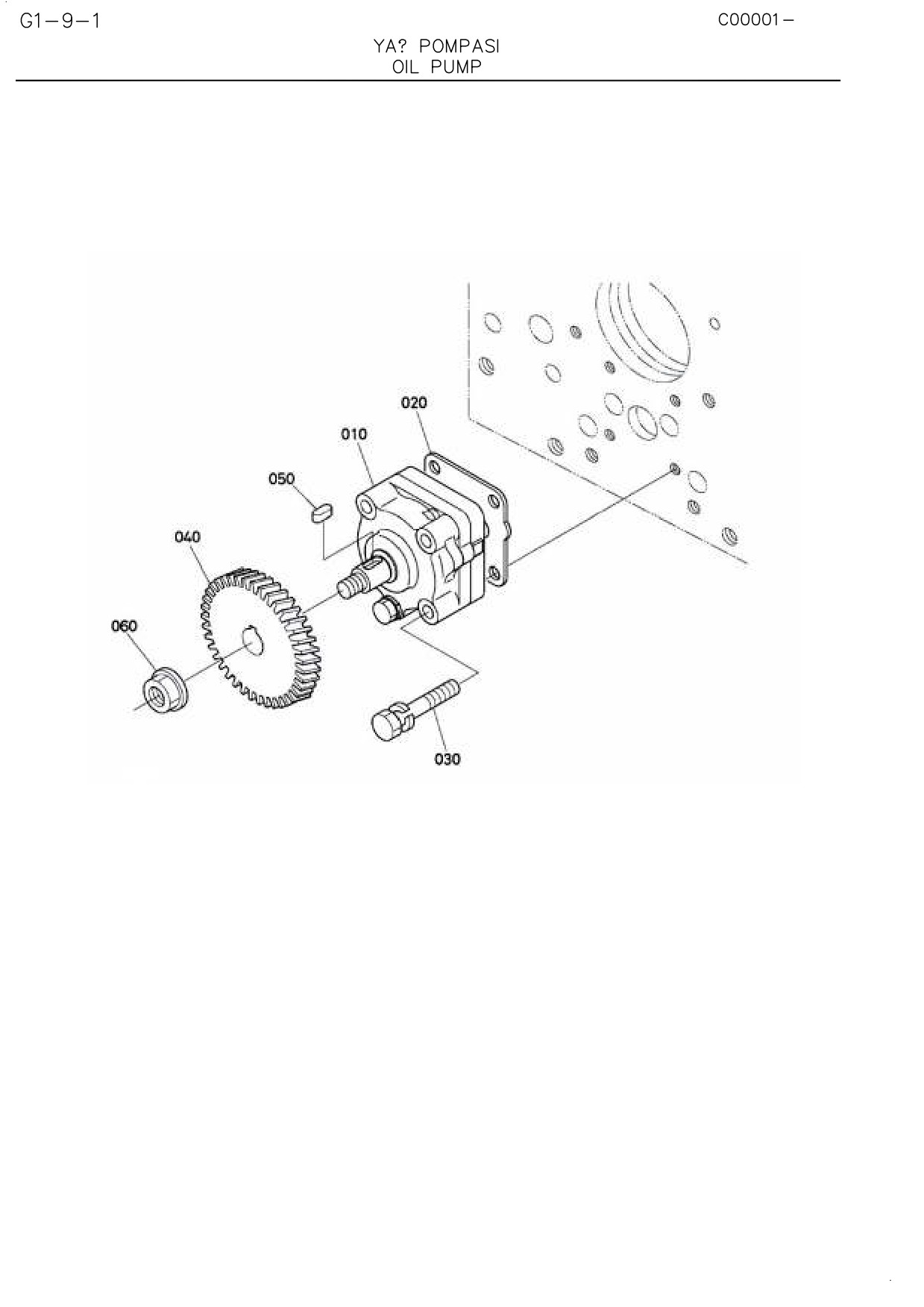

YAĞ POMPASI
OIL PUMP
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
010
M118001880
POMPA, YAĞ, KOMPL.
ASSY PUMP, OIL
1
020
M118001890
CONTA
GASKET, OIL PUMP
1
030
M118001900
CİVATA
BOLT
4
040
M118001910
DİŞLİ, YAĞ POMPA TAHRİK
GEAR, OIL PUMP DRIVE
1
050
M118001920
KAMA
KEY, FEATHER
1
060
M118001930
SOMUN, FLANŞLI
NUT, FLANGE
1
