Hidromek HMK 62 SS. Parts catalog - page 3
C00001
- C00024

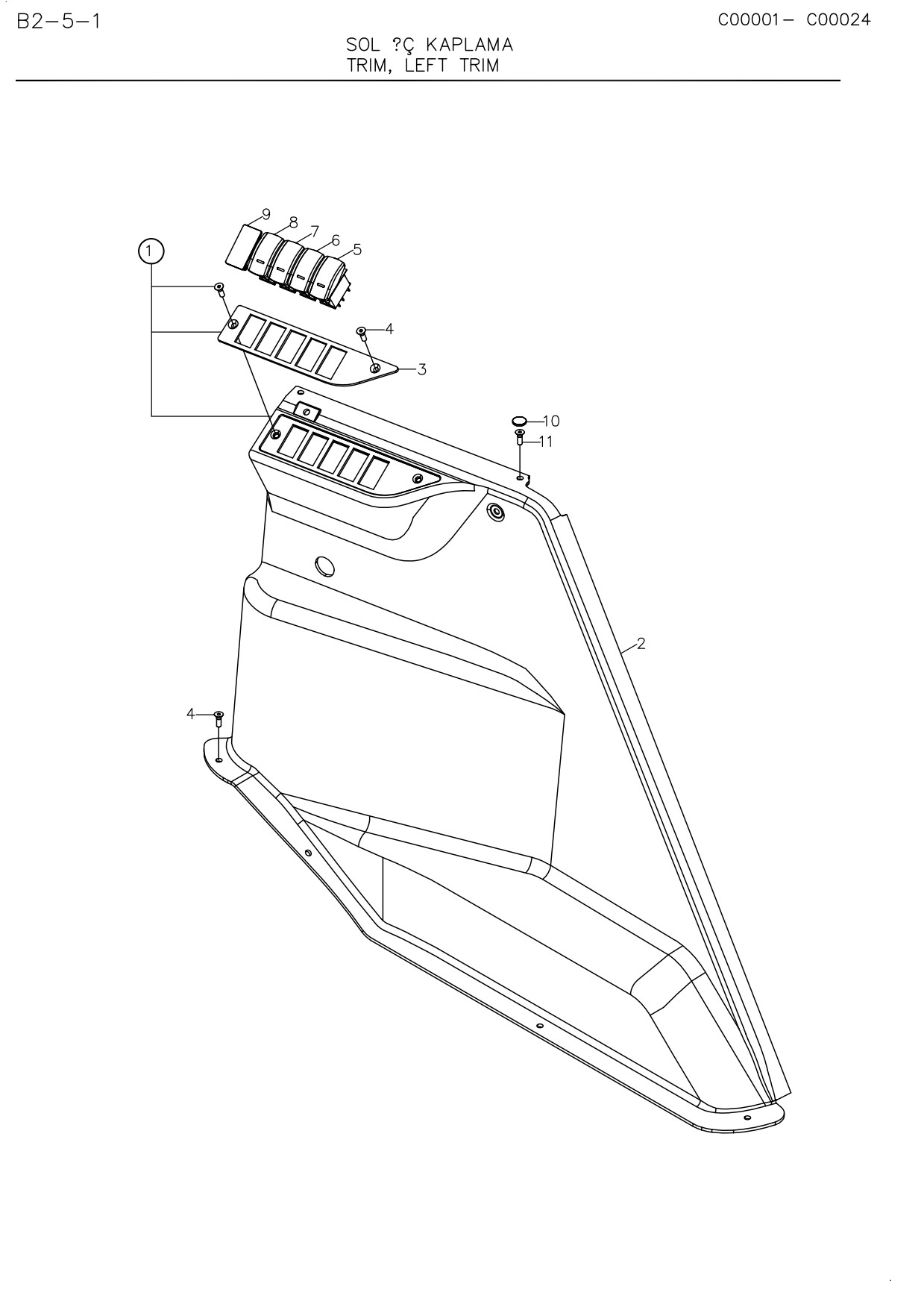

B2-5-1
SOL ĐÇ KAPLAMA
INSIDE PLATED, LEFT
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
M116102900
SOL İÇ KAPLAMA
INSIDE PLATED, LEFT
1
2
M116101600
SOL İÇ KAPLAMA GÖVDESİ
INSIDE PLATED,BODY LEFT
1
3
M116101700
SOL İÇ KAPLAMA SVİÇ
INSIDE PLATED,SWITCH
1
SACI
PLATE LEFT
4
N04/9602042
VİDA M6x16
SCREW M6x16
2
5A
520/30620
DÜĞME, JOYSTICK
BUTTON, JOYSTICK DRIVE
1
YÜRÜYÜŞ
5B
520/20000
ANAHTAR, JOYSTICK
SWITCH, JOYSTICK DRIVE
1
YÜRÜYÜŞ
6A
520/31060
DÜGME, KIZAK SIKMA
BUTTON, HYDRAULIC
1
CLAMP
6B
520/20000
ANAHTAR, KIZAK SIKMA
SWITCH, HYDRAULIC
1
CLAMP
7A
520/31320
DÜGME, SOL AYAK
BUTTON, LEFT STABILISER
1
7B
520/21120
ANAHTAR, SOL AYAK
SWITCH, LEFT STABILISER
1
8A
520/31310
DÜGME, SAĞ AYAK
BUTTON,RIGHT STABILISER
1
8B
520/21120
ANAHTAR, SAĞ AYAK
SWITCH, RIGHT
1
9
520/36000
TABLA KAPAĞİ
COVERISER
1
10
F99/15090
VİDA KAPAĞI
COVER
6
11
N04/9602042
VİDA M6x16
SCREW M6x16
6
C00025
-

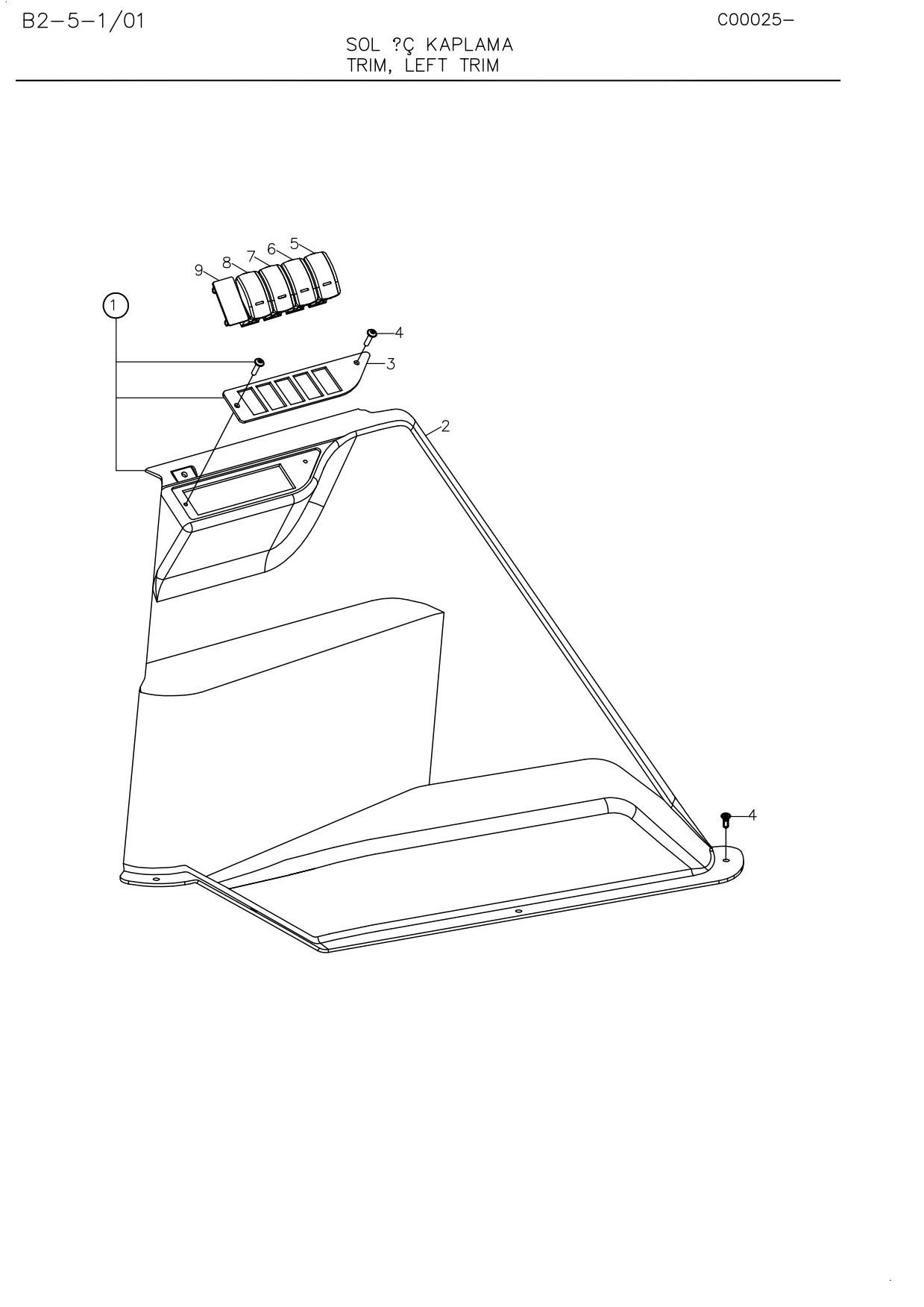

B2-5-1/01
SOL ĐÇ KAPLAMA
INSIDE PLATED, LEFT
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M116100100
1
M116102900
SOL İÇ KAPLAMA
INSIDE PLATED, LEFT
1
2
M116101600
SOL İÇ KAPLAMA GÖVDESİ
INSIDE PLATED,BODY LEFT
1
3
M116101700
SOL İÇ KAPLAMA SVİÇ
INSIDE PLATED,SWITCH
1
SACI
PLATE LEFT
4
N04/9601886
VİDA M5x20
SCREW M5x20
6
5A
520/30620
DÜĞME, JOYSTICK
BUTTON, JOYSTICK DRIVE
1
YÜRÜYÜŞ
5B
520/20000
ANAHTAR, JOYSTICK
SWITCH, JOYSTICK DRIVE
1
YÜRÜYÜŞ
6A
520/31060
DÜGME, KIZAK SIKMA
BUTTON, HYDRAULIC
1
CLAMP
6B
520/20000
ANAHTAR, KIZAK SIKMA
SWITCH, HYDRAULIC
1
CLAMP
7A
520/31320
DÜGME, SOL AYAK
BUTTON, LEFT STABILISER
1
7B
520/21120
ANAHTAR, SOL AYAK
SWITCH, LEFT STABILISER
1
8A
520/31310
DÜGME, SAĞ AYAK
BUTTON,RIGHT STABILISER
1
8B
520/21120
ANAHTAR, SAĞ AYAK
SWITCH, RIGHT
1
9
520/36000
TABLA KAPAĞİ
COVERISER
1

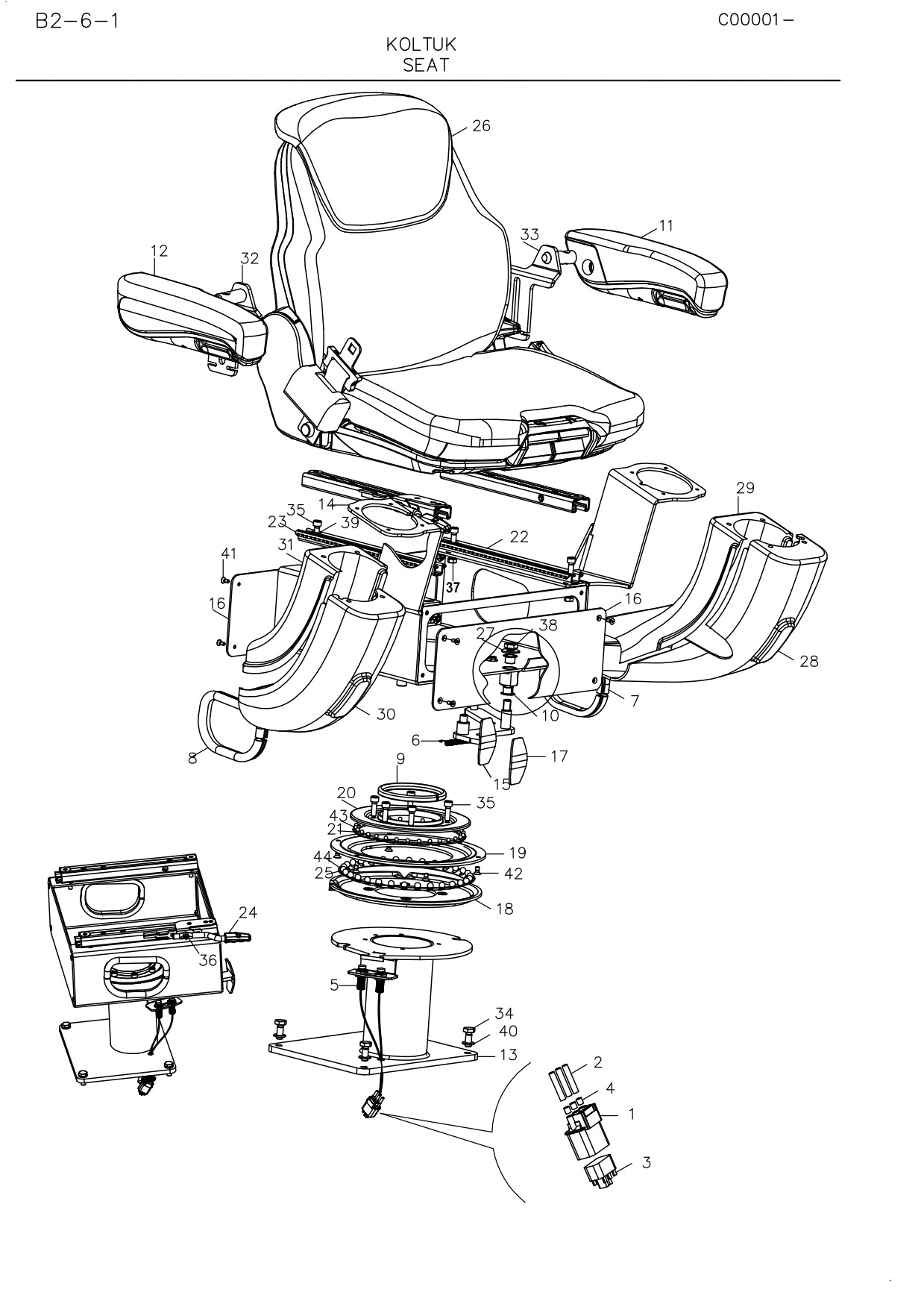

C00001
-
B2-6-1
KOLTUK
SEAT
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M116300100
RK
1
506/07000
KONNEKTÖR, ÜÇLÜ ERKEK
HOUSING, 3 WAY PIN
2
2
506/07001
KİLİT, ÜÇLÜ, ERKEK
RETAINER, 3 WAY PIN
6
3
509/03000
KONNEKTÖR, ÜÇLÜ
HOUSING, 3 WAY PIN
2
4
529/19000
TERMİNAL CONTASI
TERMINAL, RUBBER
6
5
554/00033
SVIÇ, PROXSMITY
SWITCH, PROXSMITY
2
6
807/02405
YAY
SPRING
1
7
98Z010010
FİTİL, SOL
STRIP, RUBBER, LEFT
1
8
98Z010010
FİTİL, SAĞ
STRIP, RUBBER, RIGHT
1
9
H130135102
FİTİL
STRIP
1
10
H906104200
AYAR SACI YATAĞI
BUSHING
2
11
H906136000
KOLÇAK, SOL
ARMREST, LEFT
1
12
H906136100
KOLÇAK, SAĞ
ARMREST, RIGHT
1
13
M116300200
TABAN KOMPLE, KOLTUK
SEAT ROTATION DISC,
1
BOTTON
14
M116300300
TAŞIYICI KOMPLE
JOYSTICK MOUNTING
1
PLATE
15
M116300400
KİLİT KOLU KOMPLESİ
SEAT ROTATE LOCK
1
16
M116301700
KAPAK SACI
COVER PLATE
2
17
M116302700
KAUÇUK, TEKMELİK
RUBBER, GUARD
1
18
M116303300
DÖNER ADAPTÖR ALT
SEAT ROTATION DISC,
1
PARÇASI
BOTTON
19
M116303400
DÖNER ADAPTÖR ÜST
SEAT ROTATION DISC,
1
PARÇASI
UPPER
20
M116303600
DÖNER PARÇA
SEAT ROTATION DISC
1
21
M116303700
BİLYE TUTUCU, DÖNER
BALL CARRYING DISC
1
ADAPTÖR
22
M116303800
KIZAK, SOL
RAIL SLIDING, LEFT
1
23
M116303900
KIZAK, SAĞ
RAIL SLIDING, RIGHT
1
24
M116304100
TUTAMAK
HANDLE
1
25
M116304200
BİLYE TUTUCU, DÖNER
BALL CARRYING DISC
1
ADAPTÖR
26
M116304300
KOLTUK
SEAT
1
27
M116304400
POLYAMİD
POLYAMIDE
1
28
M116310100
KAPLAMA, SOL ÖN,
TRIM, FRONT, LEFT
1
JOYSTICK
29
M116310200
KAPLAMA, SOL ARKA,
TRIM, REAR, LEFT
1
JOYSTICK
30
M116310300
KAPLAMA, SAĞ ÖN,
TRIM, FRONT, RIGHT
1
JOYSTICK
31
M116310400
KAPLAMA, SAĞ ARKA,
TRIM, REAR, RIGHT
1
JOYSTICK
32
M116310600
KOLÇAK SACI, SAĞ
ARM REST BRACKET,RIGHT
1
33
M116310700
KOLÇAK SACI, SOL
ARM REST BRACKET, LEFT
1
34
N01/0232462
CİVATA M10x25
BOLT M10x25
4
35
N01/5890458
CİVATA M8x20
BOLT M8x20
9
36
N02/5910050
SOMUN M6
NUT M6
1
37
N02/5910062
SOMUN M8
NUT M8
4
38
N02/5910122
SOMUN M12
NUT M12
1
39
N03/0100017
PUL M8
WASHER M8
4
40
N03/0100020
PUL M10
WASHER M10
4
41
N04/4061238
VİDA M5x10
SCREW M5x10
8
42
N04/4320350
VİDA M6x12
SCREW M5x12
6
43
N09/9001060
BİLYA
BALL
30
44
N09/9001100
BİLYA
BALL
30

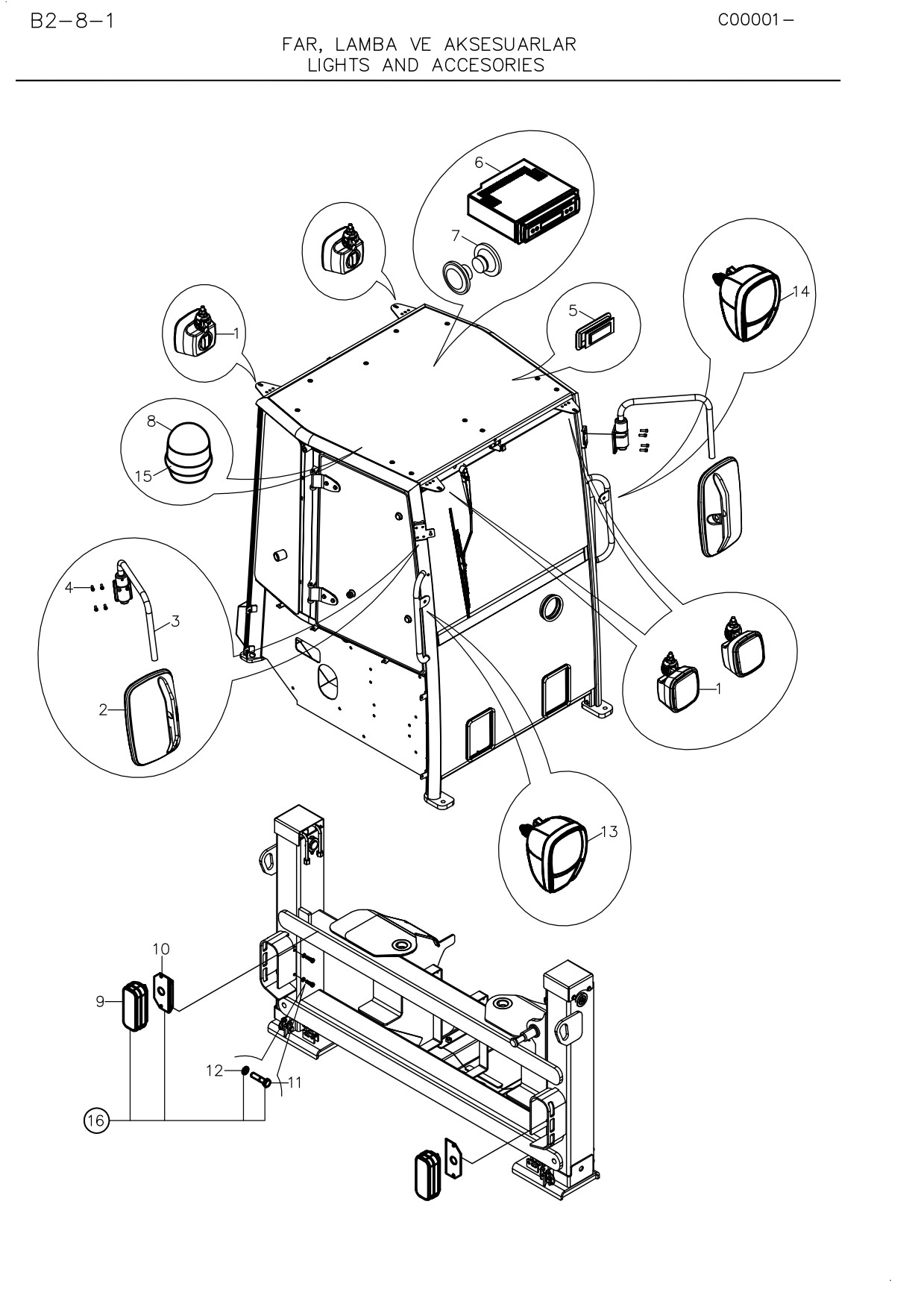

C00001
-
B2-8-1
FAR , LAMBA VE AKSESUARLAR
LIGHTS AND ACCESORIES
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M116000200
RK
1
526/04040
ÇALIŞMA LAMBASI
WORKING LIGHT
4
2
M116001200
DİKİZ AYNASI
REARVIEW MIRROR
2
3
M116001100
AYNA KOLU
ARM, MIRROR
2
4
N01/5890170
CİVATA M5x16
BOLT M5x16
8
5A
526/07520
LAMBA, İÇ AYDINLATMA
LIGHT, CAB INTERIOR
1
5B
532/08805
AMPUL, İÇ AYDINLATMA
BULB, CAB INTERIOR
1
6
F99/25250
CD PLAYER
CD PLAYER
1
7
F99/25256
HOPARLÖR
SPEAKER
2
8
526/03130
TEPE İKAZ LAMBASI
BEACON
1
9
526/02610
STOP LAMBASI
STOP LIGHT
1
9A
506/99300
KONNEKTÖR, 4 LÜ ERKEK
HOUSING, 4 WAY PIN
1
9B
509/13002
TERMİNAL, DİŞİ
TERMINAL FEMALE
1
10
M117401400
BAĞLANTI BRAKETİ
BRACKET
1
11
N01/5890314
CİVATA M6x20
BOLT M6x20
2
12
N03/0020004
PUL
WASHER
2
13
526/00226
FAR, ÖN, YAN, SOL
HEADLIGHT, FRONT, LEFT
1
14
526/00225
FAR, ÖN, YAN, SAĞ
HEADLIGHT, FRONT, RIGHT
1
15
553/01000
PRİZ
SOCKET
1
16
M117401500
STOP LAMBASI, KOMPLE
STOP LIGHT, ASSY.
2
GÖVDE
B
BODY PARTS
GÖVDE MONTAJLARI
B1
BODY PARTS MOUNTINGS
KABiN
B2
OPERATOR CAB
YÜKLEYiCi
B3
LOADER
KAZICI
B4
BACKHOE

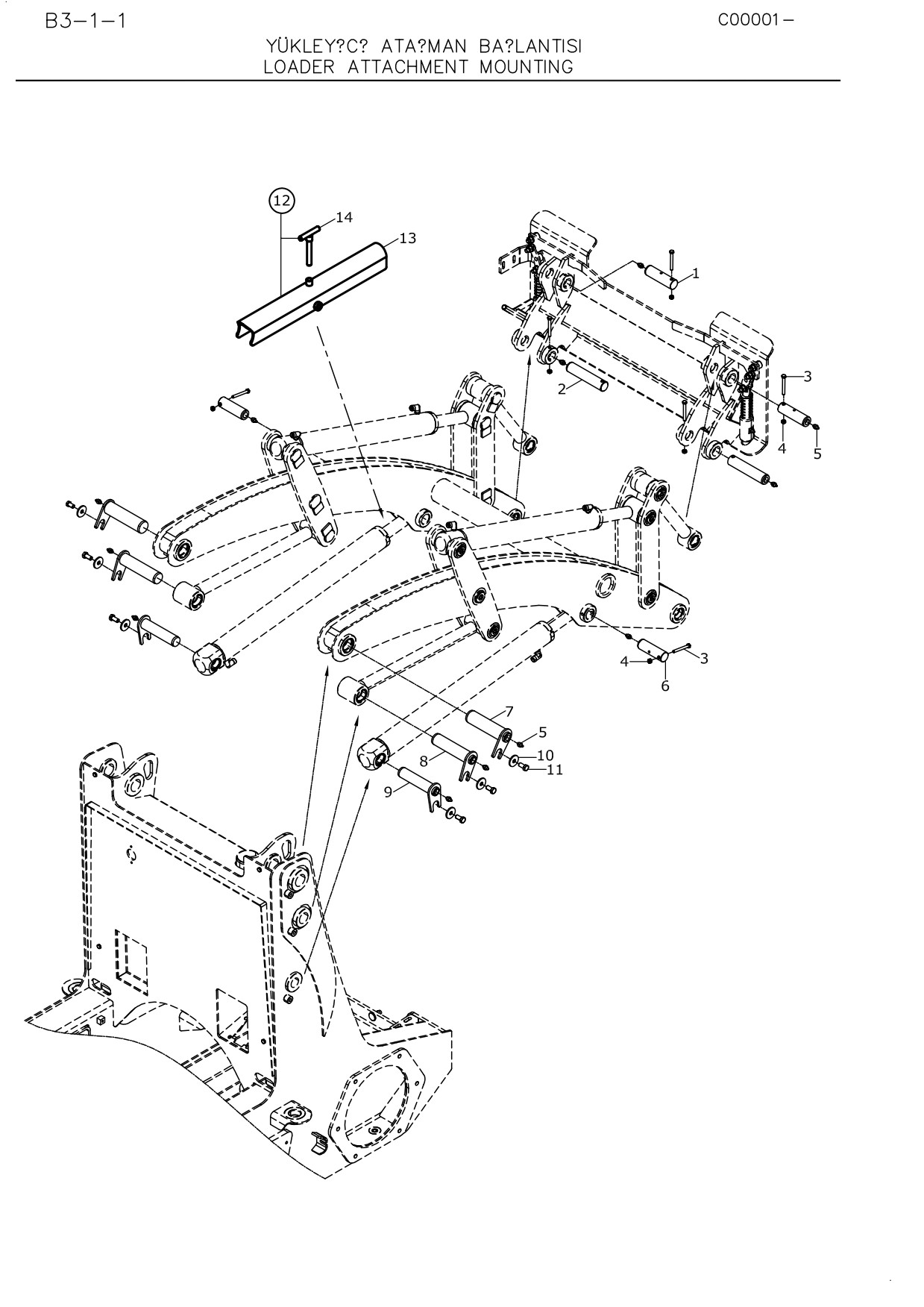

C00001
-
B3-1-1
YÜKLEYĐCĐ ATAŞMAN BAĞLANTISI
LOADER ATTACHMENT MOUNTING
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M111300100
1
801/04009
PİM
PIN
2
2
801/04003
PİM
PIN
2
3
N01/0380470
CİVATA M8x70
BOLT M8x70
6
4
N02/5900062
SOMUN M8
NUT M8
6
5
N08/1210020
GRESÖRLÜK
GREASE NIPPLE
12
6
801/04001
PİM
PIN
2
7
811/03050
PİM
PIN
2
8
811/03055
PİM
PIN
2
9
811/03045
PİM
PIN
2
10
805/00460
PUL
WASHER
6
11
N01/0232822
CİVATA M12x25
BOLT M12x25
6
12
M111305800
ÖN KOL EMNİYET SACI
SAFETY STRUT, LOADER,
1
KOMPLE
ARMS, ASSY.
13
M111305900
ÖN KOL EMNİYET SACI
SAFETY STRUT, LOADER,
1
ARMS
14
M111306300
ÖN KOL EMNİYET SACI
SAFETY STRUT, LOADER,
1
CİVATASI
ARMS, SAFETY BOLT

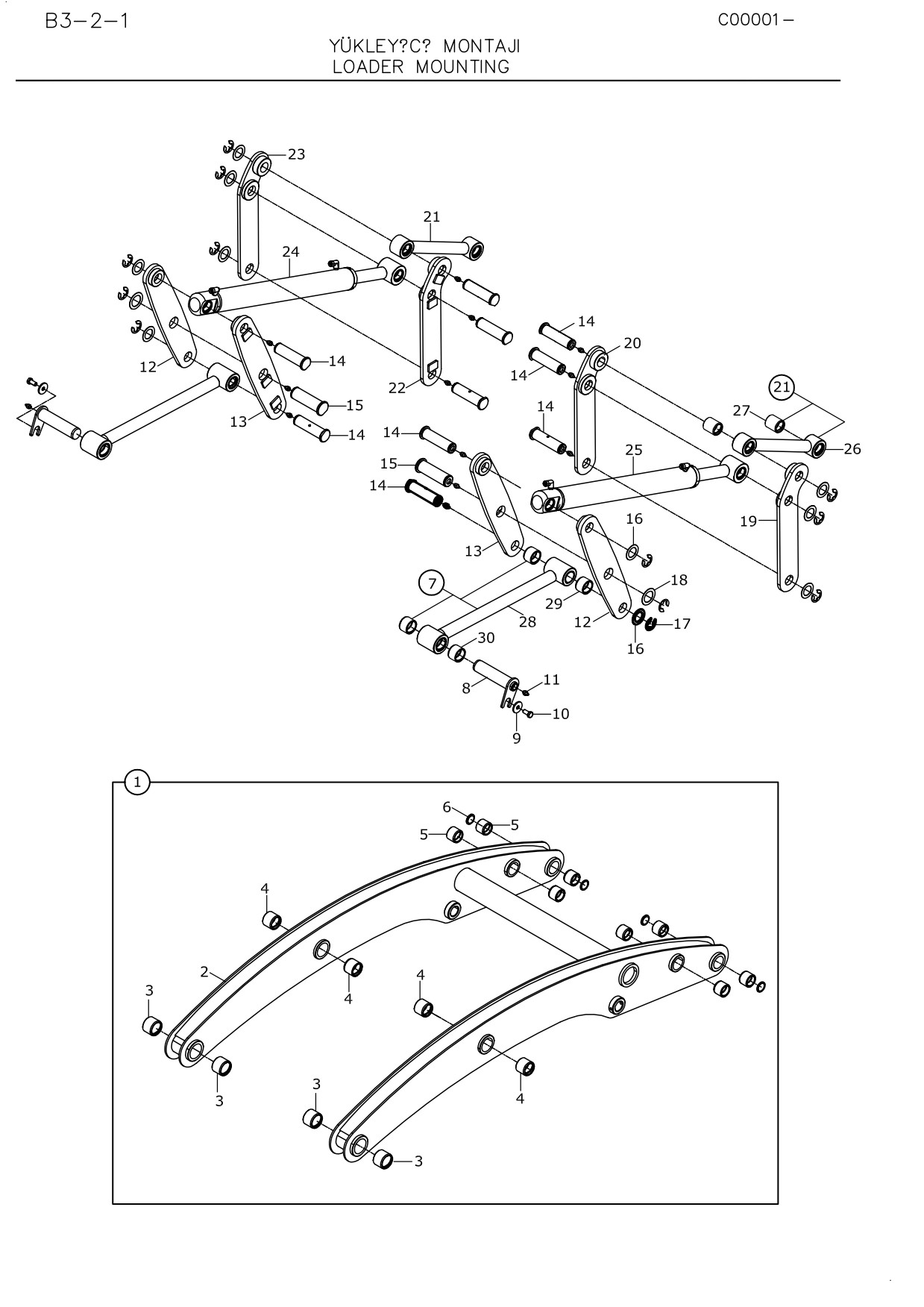

B3-2-1
-
C00001
YÜKLEYĐCĐ MONTAJI
LOADER MOUNTING
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M111300100
1
M111301100
YÜKLEYİCİ GÖVDESİ
LOADER ARM ASSY
1
MONTAJI
2
M111300200
KOL, YÜKLEYİCİ
ARM, LOADER
1
3
802/01120
PİM
PIN
4
4
802/01150
PİM
PIN
4
5
802/01032
BURÇ
BUSHING
8
6
N10/5354540
TOZ KEÇESİ
SEAL
4
7
M111301600
MEKANİZMA KOLU,
MECHANISM, ARM, LOADER
2
YÜKLEYİCİ
ASSEMBLY
8
811/03055
PİM
PIN
2
9
805/00460
PUL
WASHER
2
10
N01/0232822
CİVATA M8x25
BOLT M8x25
2
11
N08/1210020
GRESÖRLÜK
GREASE NIPPLE
14
12
M111301200
MEKANİZMA KOLU,
MECHANISM, ARM,
2
YÜKLEYİCİ, ARKA DIŞ
LOADER, REAR EXTERNAL
13
M111301400
MEKANİZMA KOLU,
MECHANISM, ARM,
2
YÜKLEYİCİ, ARKA İÇ
LOADER, REAR İNTERNAL
14
801/05018
PİM
PIN
10
15
805/05085
PİM
PIN
2
16
M111305300
PUL
WASHER
10
17
N05/0760018
SEGMAN
RETAINING RING
12
18
M111305000
PUL
WASHER
2
19
M111302200
MEKANİZMA KOLU,
MECHANISM, ARM, LOADER
1
YÜKLEYİCİ, ÖN, SAĞ DIŞ
FRONT RIGHT EXTERNAL
20
M111302300
MEKANİZMA KOLU,
MECHANISM, ARM, LOADER
1
YÜKLEYİCİ, ÖN, SAĞ İÇ
FRONT RIGHT İNTERNAL
21
M111302400
MEKANİZMA KOLU
LINK
2
22
M111302100
MEKANİZMA KOLU,
MECHANISM, ARM, LOADER
1
YÜKLEYİCİ, ÖN, SOL İÇ
FRONT LEFT İNTERNAL
23
M111301900
MEKANİZMA KOLU,
MECHANISM, ARM, LOADER
1
YÜKLEYİCİ, ÖN, SOL DIŞ
FRONT LEFT EXTERNAL
24
SİLİNDİR, SOL, DEVİRİCİ
RAM, LEFT, SHOVEL
1
E3-2-2
25
SİLİNDİR, SAĞ, DEVİRİCİ
RAM, RIGHT, SHOVEL
1
E3-2-1
26
M111302500
MEKANİZMA KOLU
LINK
2
27
802/01034
BURÇ
BUSHING
2
28
M111301700
MEKANİZMA KOLU,
MECHANISM, ARM, LOADER
2
YÜKLEYİCİ
29
802/01032
BURÇ
BUSHING
2
30
802/01147
BURÇ
BUSHING
2

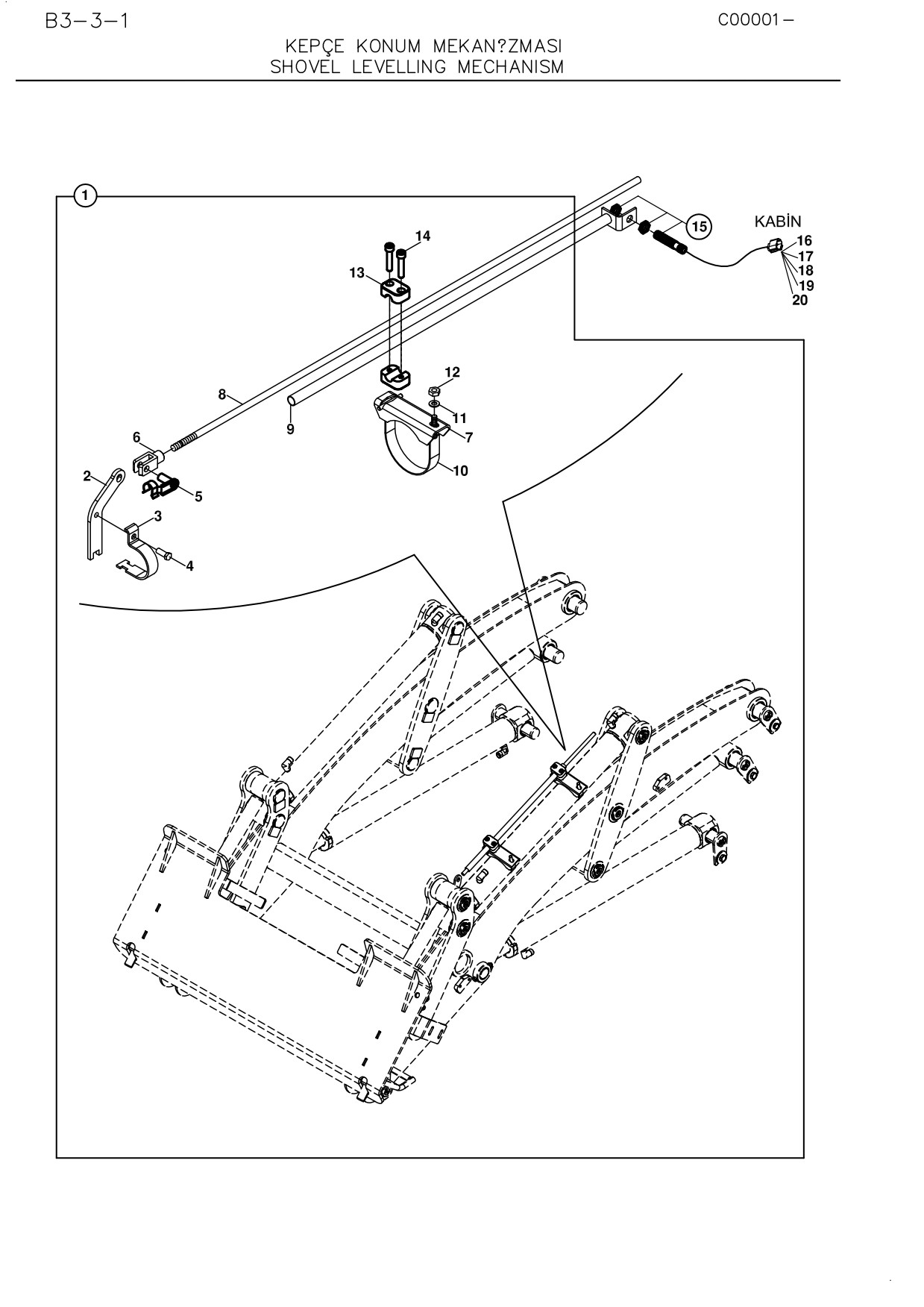

B3-3-1
-
C00001
KEPÇE KONUM MEKANĐZMASI
SHOVEL LEVELLING MECHANISM
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M111300100, M116300100
1
018/43070
KEPÇE KONUM
SHOVEL LEVELLING
1
2
M111306600
KELEPÇE SACI
CLAMP PLATE
1
3
M111306700
KELEPÇE SACI
CLAMP PLATE
1
4
N01/0232138
CİVATA M8x25
BOLT M8x25
1
5
M111306800
MEKANİZMA BORUSU
MECHANISM PIPE
1
6
F99/60051
MAFSAL ÇATALI
CLEVIS
1
7
M111307500
KELEPÇE, ÜST
CLAMP, UPPER
1
8
M111306900
MEKANİZMA ÇUBUĞU
MECHANISM BAR
1
9
M111306800
SWİÇ BAĞLANTI BORUSU
PIPE, SWITCH MOUNTING
1
10
M111307400
KELEPÇE, ALT
CLAMP, BOTTOM
2
11
N03/0100017
PUL M8
WASHER M8
2
12
N02/5910062
SOMUN M8
NUT M8
2
13
N07/2016003
KELEPÇE GÖVDESİ
CLAMP BODY
4
14
N01/5870350
CİVATA M6x30
BOLT M6x30
4
15
554/00033
SWİÇ , PROXSMITY
SWITCH, PROXSMITY
1
OP
16
506/07000
KONNEKTÖR, 3'LÜ ERKEK
HOUSING, 3 WAY PIN
1
17
545/24100
KONDUIT
CONDUIT
2,5m
18
506/07001
KİLİT, ÜÇLÜ,ERKEK
RETAINER, 3 WAY PIN
1
19
509/03000
TERMİNAL, ERKEK
TERMINAL, MALE
3
20
529/19000
TERMİNAL CONTASI
TERMINAL, RUBBER
3
GÖVDE
B
BODY PARTS
GÖVDE MONTAJLARI
B1
BODY PARTS MOUNTINGS
KABiN
B2
OPERATOR CAB
YÜKLEYiCi
B3
LOADER
KAZICI
B4
BACKHOE
C00001
- C00001

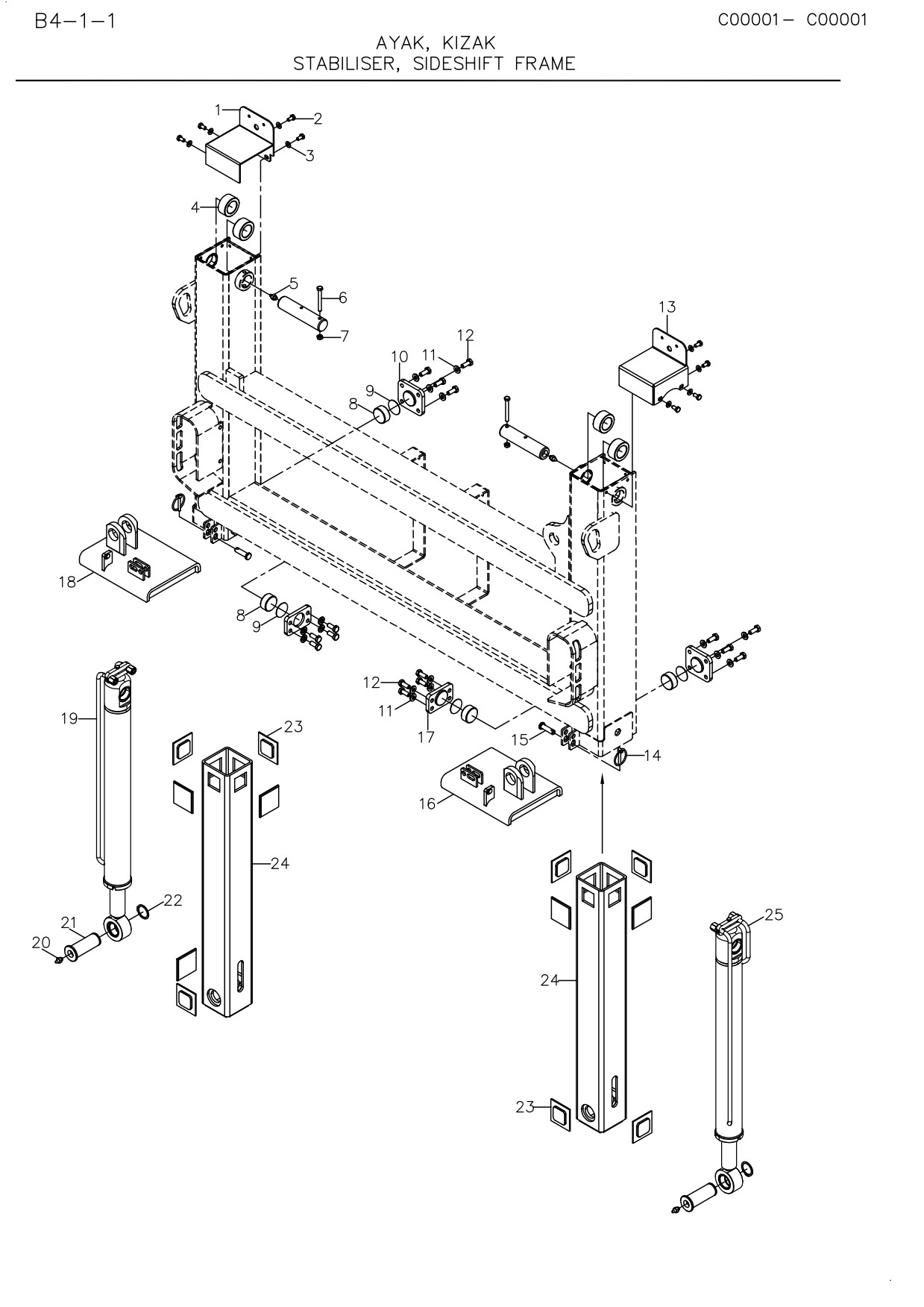

B4-1-1
AYAK, KIZAK
STABILISER, SIDESHIFT
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M114100100
1
M114110200
STOP LAMBASI BAGL.
PLATE
1
2
N01/0232078
CİVATA M8x15
BOLT M8x15
8
3
N03/0100017
PUL M8
WASHER M8
8
4
M114109800
AYAK SİLİNDİRİ ÜST BURCU
BUSH
4
5
801/04002
PİM
PIN
2
6
N01/0380470
CİVATA M8x70
BOLT M8x70
2
7
N02/5900062
SOMUN M8
NUT M8
2
8
M114109400
SÜRTÜNME PLAKASI
FRICTION PLATE
4
9
M114112900
ŞİM
SHIM
4
10
M114109500
İTİCİ KAPAK
COVER
2
11
N03/0810015
PUL
WASHER
16
12
N01/0232462
CİVATA M10x25
BOLT M10x25
16
13
M114109900
STOP LAMBASI BAGL.
PLATE
1
14
N06/3006042
HALKALI PİM
LINCH PIN
2
15
801/10030
PİM
PIN
2
16
M114108300
PAPUÇ
FOOT
1
17
M114110400
İTİCİ KAPAK
COVER
2
18
M114109300
PAPUÇ
FOOT
1
19
AYAK SİLİNDİRİ (SOL)
RAM, STABILISER, (LEFT)
1
E3-4-2
20
N08/1210020
GRESÖRLÜK
GREASE NIPPLE
4
21
801/05017
PİM
PIN
2
22
N05/0020064
SEGMAN
RETAINING RING
2
23
M114107500
SÜRTÜNME PLAKASI
FRICTION PLATE
12
24
M114107800
İÇ AYAK
LEG,STABILISER, INNER
2
25
AYAK SİLİNDİRİ (SAĞ)
RAM, STABILISER, (RIGHT)
1
E3-4-1
C00002
-

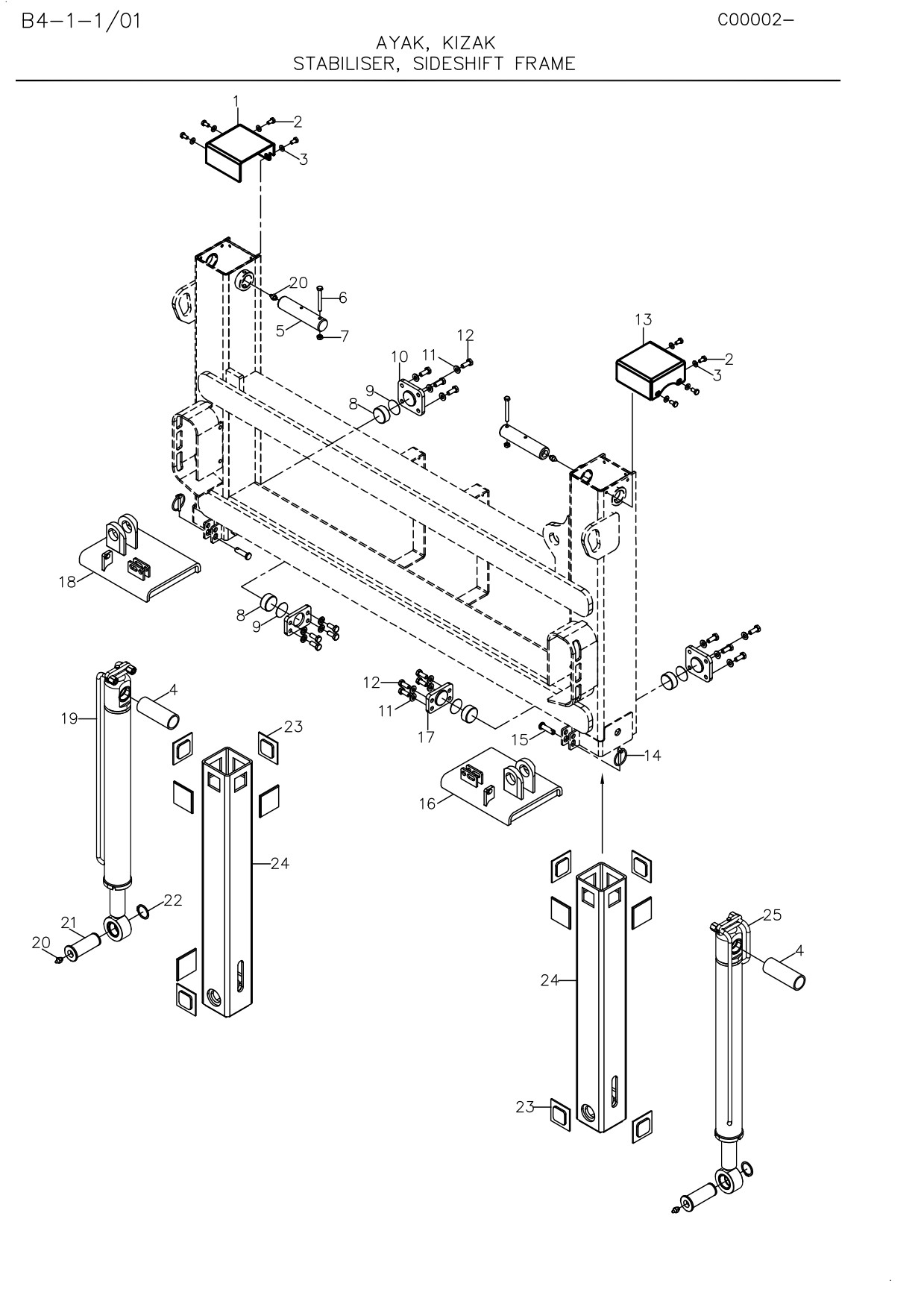

B4-1-1/01
AYAK, KIZAK
STABILISER, SIDESHIFT
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M114100100
1
M114109901
STOP LAMBASI BAGL.
PLATE
1
2
N01/0232078
CİVATA M8x15
BOLT M8x15
8
3
N03/0100017
PUL M8
WASHER M8
8
4
802/01603
AYAK SİLİNDİRİ ÜST BURCU
BUSH
2
5
801/04002
PİM
PIN
2
6
N01/0380470
CİVATA M8x70
BOLT M8x70
2
7
N02/5900062
SOMUN M8
NUT M8
2
8
M114109400
SÜRTÜNME PLAKASI
FRICTION PLATE
4
9
M114112900
ŞİM
SHIM
4
10
M114109500
İTİCİ KAPAK
COVER
2
11
N03/0810015
PUL
WASHER
16
12
N01/0232462
CİVATA M10x25
BOLT M10x25
16
13
M114110001
STOP LAMBASI BAGL.
PLATE
1
14
N06/3006042
HALKALI PİM
LINCH PIN
2
15
801/10030
PİM
PIN
2
16
M114108300
PAPUÇ
FOOT
1
17
M114110400
İTİCİ KAPAK
COVER
2
18
M114109300
PAPUÇ
FOOT
1
19
AYAK SİLİNDİRİ (SOL)
RAM, STABILISER, (LEFT)
1
E3-4-2
20
N08/1210020
GRESÖRLÜK
GREASE NIPPLE
4
21
801/05017
PİM
PIN
2
22
N05/0020064
SEGMAN
RETAINING RING
2
23
M114107500
SÜRTÜNME PLAKASI
FRICTION PLATE
12
24
M114107800
İÇ AYAK
LEG,STABILISER, INNER
2
25
AYAK SİLİNDİRİ (SAĞ)
RAM, STABILISER, (RIGHT)
1
E3-4-1
C00001
-

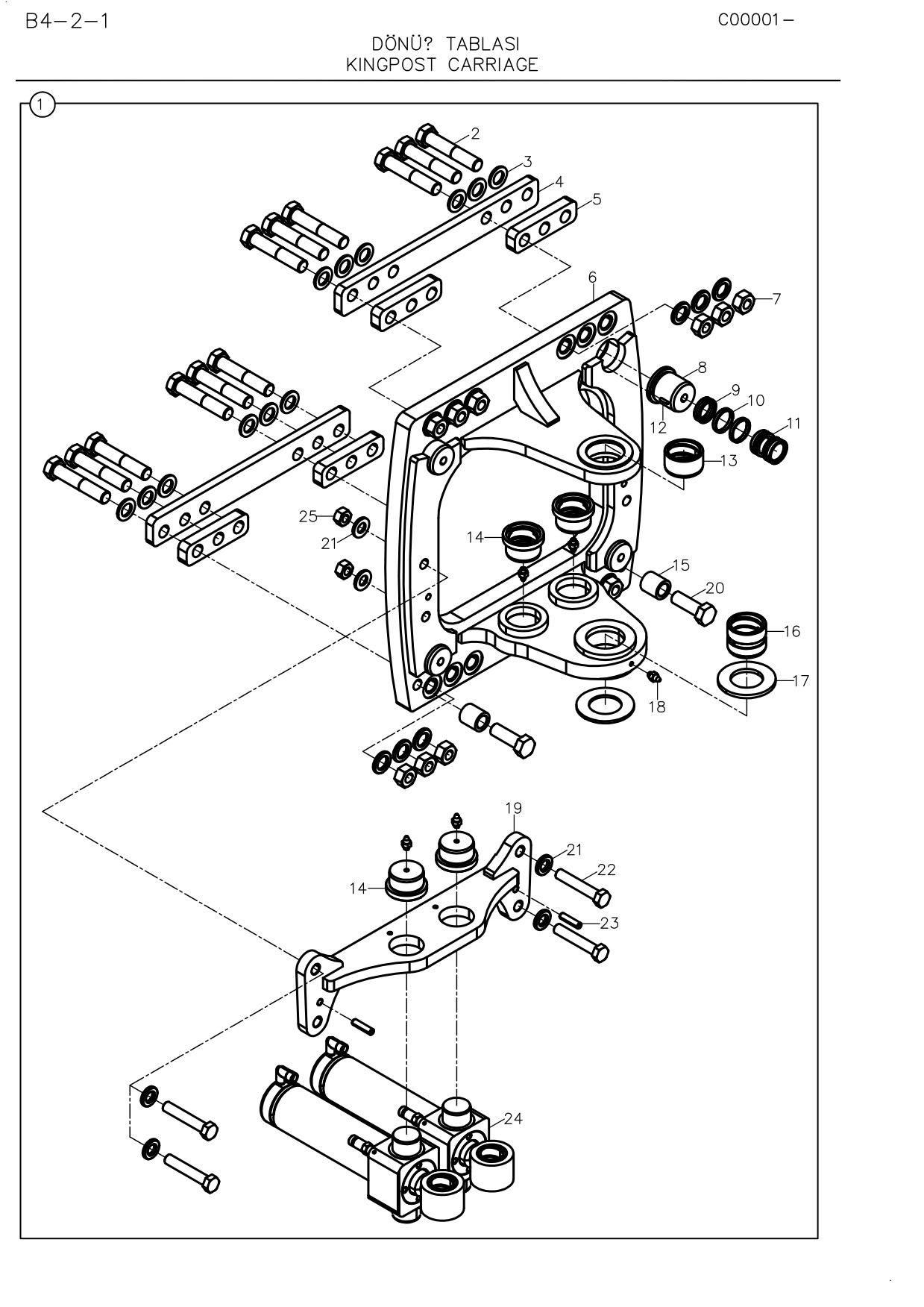

B4-2-1
DÖNÜŞ TABLASI
KINGPOST CARRIAGE
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* 017/16000
1
M115500100
DÖNÜŞ TABLASI, KOMP.
KINGPOST CARRIAGE,
1
ASSY
2
N01/0381860
CİVATA M20x100
BOLT M20x100
12
3
N03/0800003
PUL M20
WASHER M20
12
4
M115501500
KIZAK LAMASI
MOUNTING PLATE
2
5
M115501400
KIZAK LAMASI
MOUNTING PLATE
4
6
M115500200
DÖNÜŞ TABLASI
KINGPOST CARRIAGE
1
7
N02/3580374
SOMUN M20
NUT M20
12
8
M115502000
SIKMA KAPAĞI
COVER
4
9
N10/3304011
PİSTON KEÇESİ
SEAL, PISTON
4
10
N10/1354056
YATAKLAMA BANDI
GUIDE RING
8
11
201/09410
SIKMA PİSTONU
PISTON
4
12
N15/6450938
SIKMA KOVANI
PIN, EXPANSION
4
13
802/01358
BURÇ
BUSHING
1
14
802/03044
BURÇ
BUSHING
4
15
802/01612
BURÇ
BUSHING
2
16
802/01361
BURÇ
BUSHING
1
17
M115502200
PUL
WASHER
2
18
N08/1210020
GRESÖRLÜK
GREASE NIPPLE
5
19
M115501600
HAMUT BAĞLANTISI
MOUNTING PLATE
1
20
N01/0381754
CİVATA M20x60
BOLT M20x60
2
21
N03/0810002
PUL M16
WASHER M16
8
22
N01/0381322
CİVATA M16x90
BOLT M16x90
4
23
N15/6452168
SIKMA KOVANI
PIN, EXPANSION
2
24
DÖNÜŞ SİLİNDİRİ
RAM, SLEW/SWING
2
E3-5-1
25
N02/3570314
SOMUN M16
NUT M16
4
C00001
-

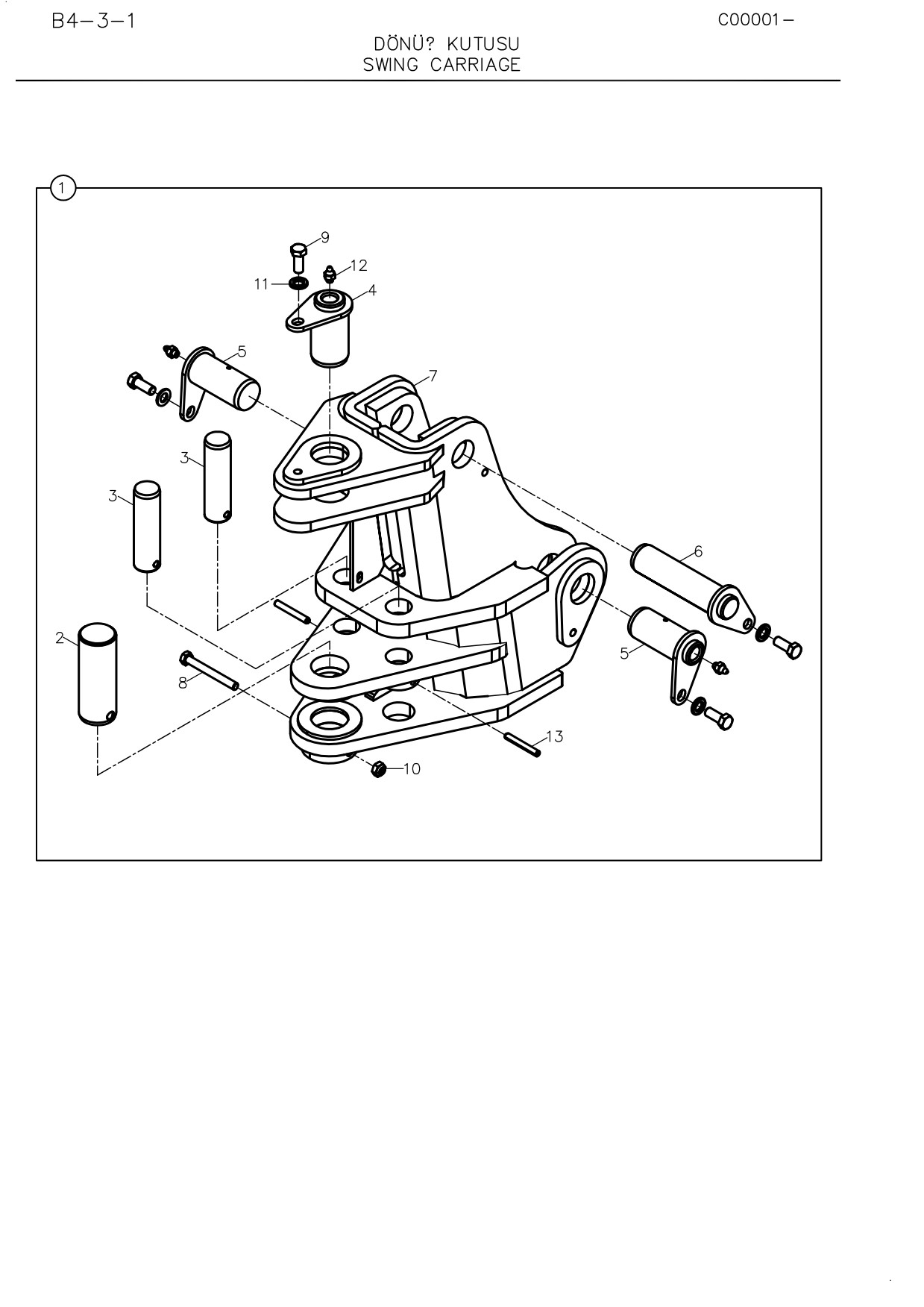

B4-3-1
DÖNÜŞ KUTUSU
SWING CARRIAGE
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
M115400100
DÖNÜŞ KUTUSU KOMPLE
SWING CARRIAGE ASSY.
2
801/02058
PİM
PIN
1
3
801/02165
PİM
PIN
2
4
811/09042
PİM
PIN
1
5
811/09045
PİM
PIN
2
6
811/09058
PİM
PIN
1
7
M115400200
DÖNÜŞ KUTUSU
SWING CARRIAGE
1
8
N01/0380746
CİVATA M10x90
BOLT M10x90
1
9
N01/0380818
CİVATA M12x30
BOLT M10x30
4
10
N02/5900086
SOMUN M10
NUT M10
1
11
N03/0810001
PUL
WASHER
4
12
N08/1210020
GRESÖRLÜK
GREASE NIPPLE
3
13
N15/6451938
SIKMA KONANI
PIN,EXPANSION
2
C00001
-

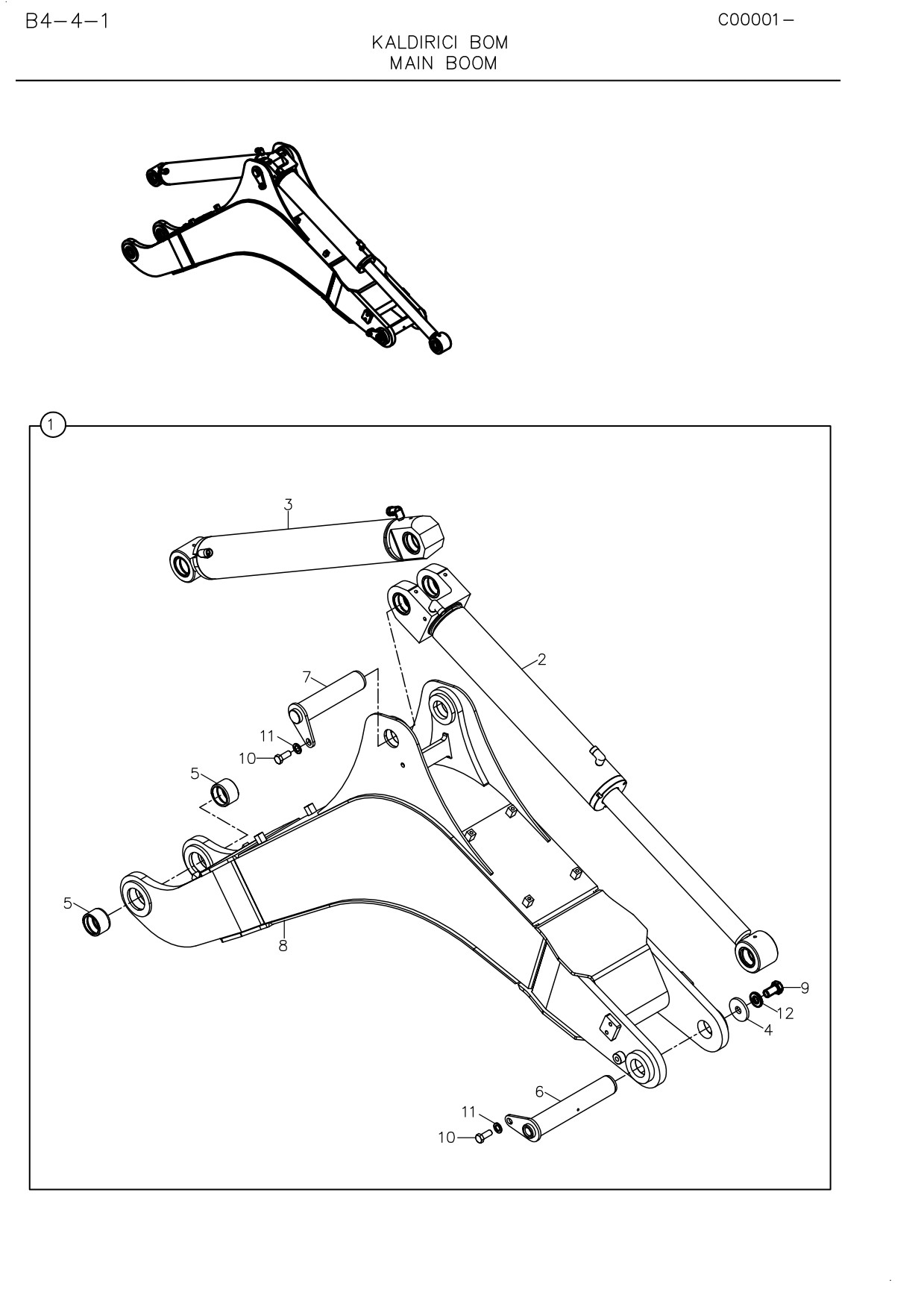

B4-4-1
KALDIRICI BOM
MAIN BOOM
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
M115200100
KALDIRICI BOM
MAIN BOOM
1
2
ARM SİLİNDİRİ
RAM
1
E3-7-1
3
BOM SİLİNDİRİ
RAM
1
E3-6-1
4
802/01010
PUL
WASHER
1
5
802/01230
BURÇ
BUSH
2
6
811/13044
PİM
PIN
1
7
811/51126
PİM
PIN
1
8
M115200200
KALDIRICI BOM
MAIN BOOM
1
9
N01/0233554
CİVATA M16x30
BOLT M16x30
1
10
N01/0380818
CİVATA M12x30
BOLT M12x30
2
11
N03/0810001
PUL M12
WASHER M12
2
12
N03/0810002
PUL M16
WASHER M16
1
C00001
-
B4-5-1

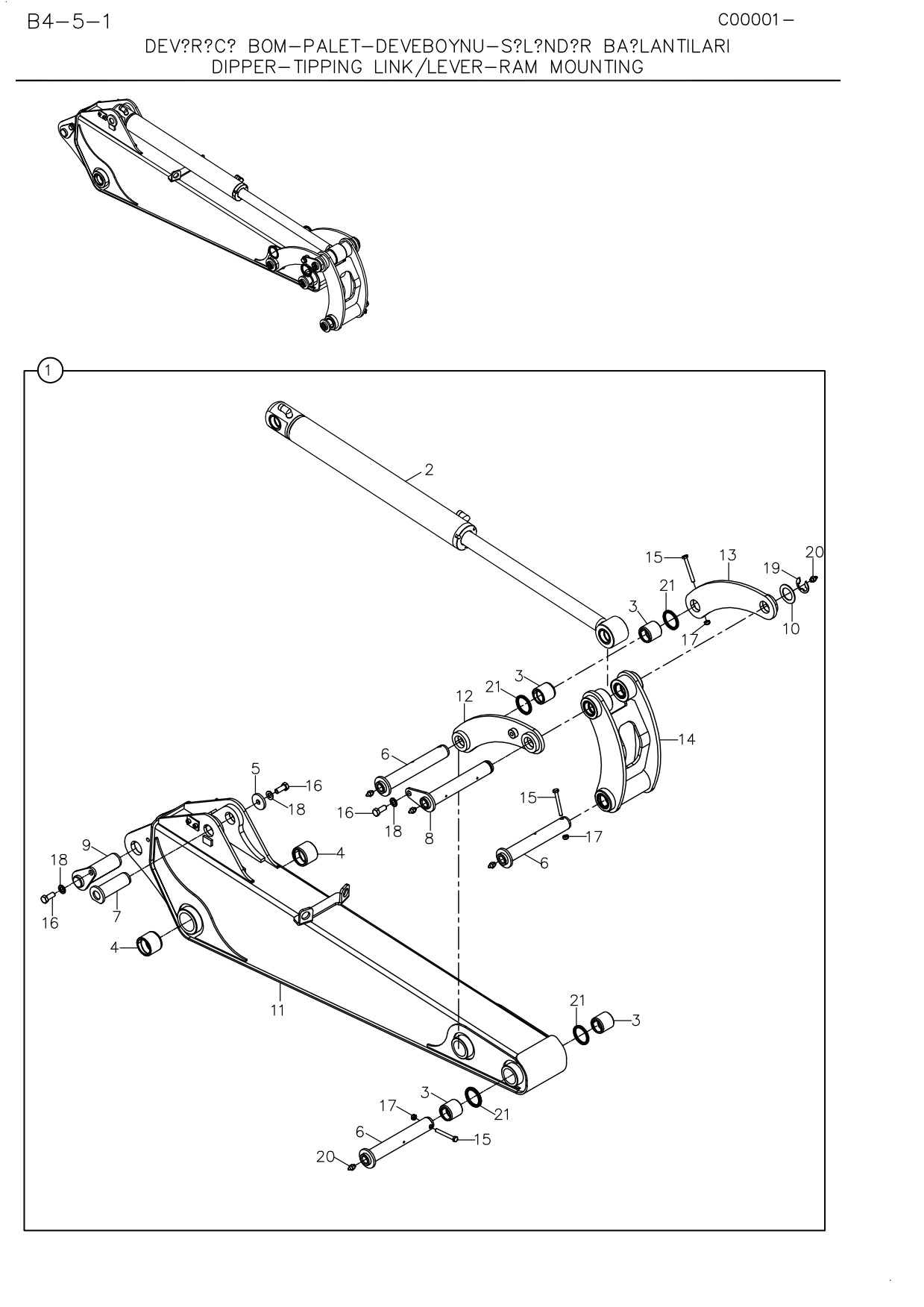

DEVĐRĐCĐ BOM-PALET-DEVEBOYNU-SĐLĐNDĐR BAĞLANTILARI
DIPPER-TIPPING LINK/LEVER-RAM MOUNTING
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
M115100100
ARM KOMPLE
ARM COMPLETE
1
2
KEPÇE SİLİNDİRİ
RAM
1
E3-8-1
3
802/01036
BURÇ
BUSH
4
4
802/01232
BURÇ
BUSH
2
5
805/00461
PUL
WASHER
1
6
811/04200
PİM
PIN
3
7
811/04210
PİM
PIN
1
8
811/04220
PİM
PIN
1
9
811/51105
PİM
PIN
1
10
M111305400
ŞİM
SHIM
1
11
M115100200
ARM
ARM
1
12
M115101900
DEVEBOYNU, SOL
TIPPING LEVER, LEFT
1
13
M115102200
DEVEBOYNU, SAĞ
TIPPING LEVER, RIGHT
1
14
M115102500
PALET, KOMPLE
TIPPING LINK, ASSY
1
15
N01/0380470
CİVATA M8x70
BOLT M8x70
3
16
N01/0380818
CİVATA M12x30
BOLT M12x30
3
17
N02/5900062
SOMUN M8
NUT M8
3
18
N03/0810001
PUL
WASHER
3
19
N05/0760018
EMNİYET SEGMANI
RETAINING RING
1
20
N08/1210020
GRESÖRLÜK
GREASE NIPPLE
5
21
N10/5354540
TOZ KEÇESİ
SCRAPER
4
KONTROL
D
CONTROL
KONTROL MEKANiZMALARI
D1
CONTROL MECHANISMS

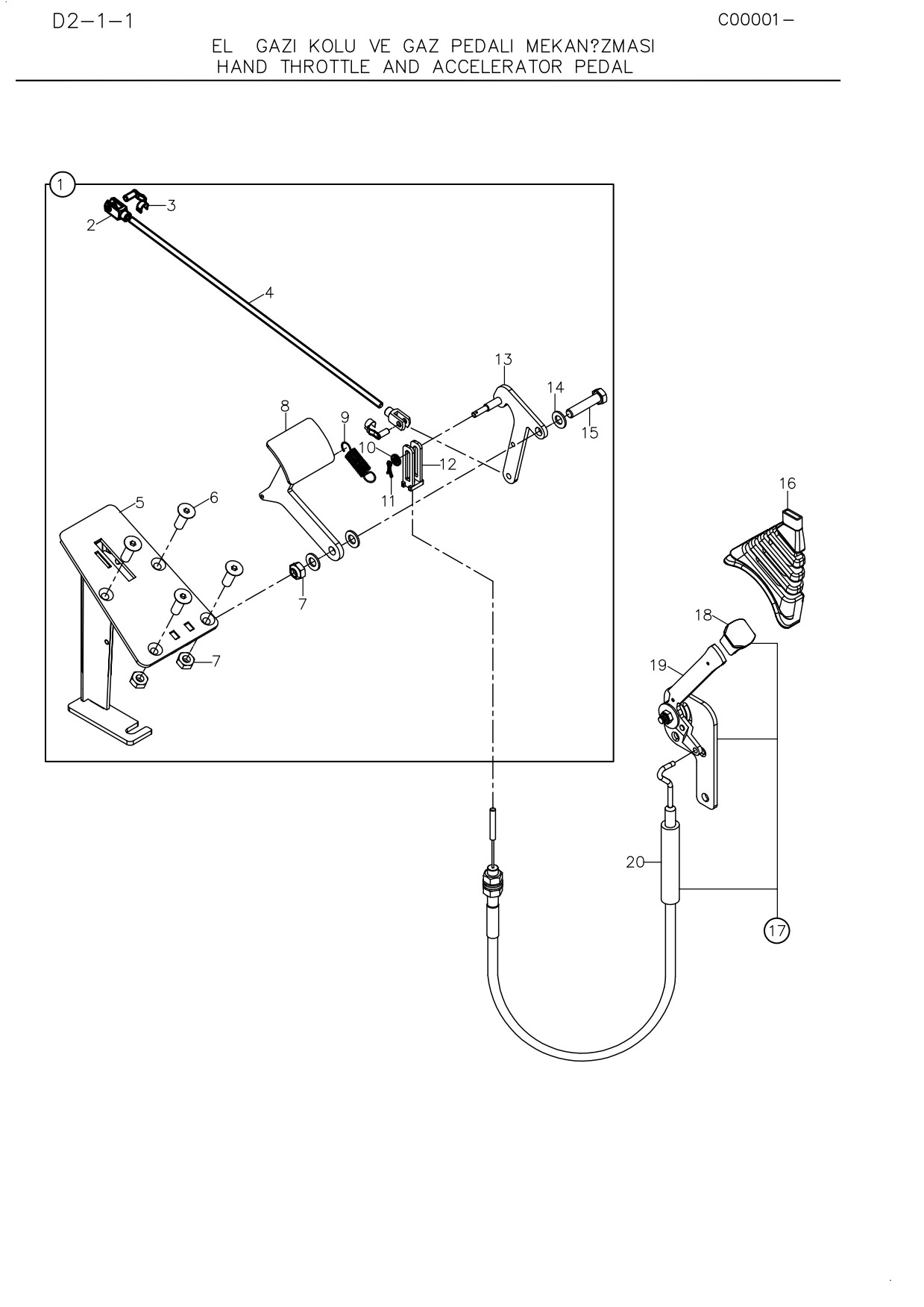

MOTOR KONTROL
D2
CONTROL, ENGINE
