Hidromek HMK 62 SS. Parts catalog - page 2
C00025
-
B1-2-4/01
KAPUT
BONNET
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M114205500
1
M114204100
KAPUT KOMPLE
BONNET ASSY.
1
2
F99/60270
BUTON, KAPUT ACMA
BUTTON
1
3
804/00658
OZEL SOMUN
SPECIAL NUT
1
4
805/00097
PUL
WASHER
1
5
N02/3570182
SOMUN M8, ISO 4032
NUT M8,ISO 4032
2
6
F99/60260
KILIT
LOCK
1
7
M114204400
KiLiT BAGLANTI SACI
LOCKING BRACKET
1
8
M114204500
BUTON SACI
LOCKING LEVER
1
9
H90/6103100
KILIT MEKANIZMA
CLEVIS
1
KILIT MEKANIZMA
10
H90/6103200
CLEVIS, PIN
1
BIRLESTIRME MILI
11
N04/4320530
VİDA,M8X30,DIN7991
SCREW,M8X30,DIN7991
2
12
M114204600
MENTESE PiMi
PIN
1
13
N03/0140017
RONDELA,M8,DIN125
WASHER M8 DIN125
3
14
N01/0232078
CİVATA,M8x15,DIN933
BOLT,M8x15,DIN933
2

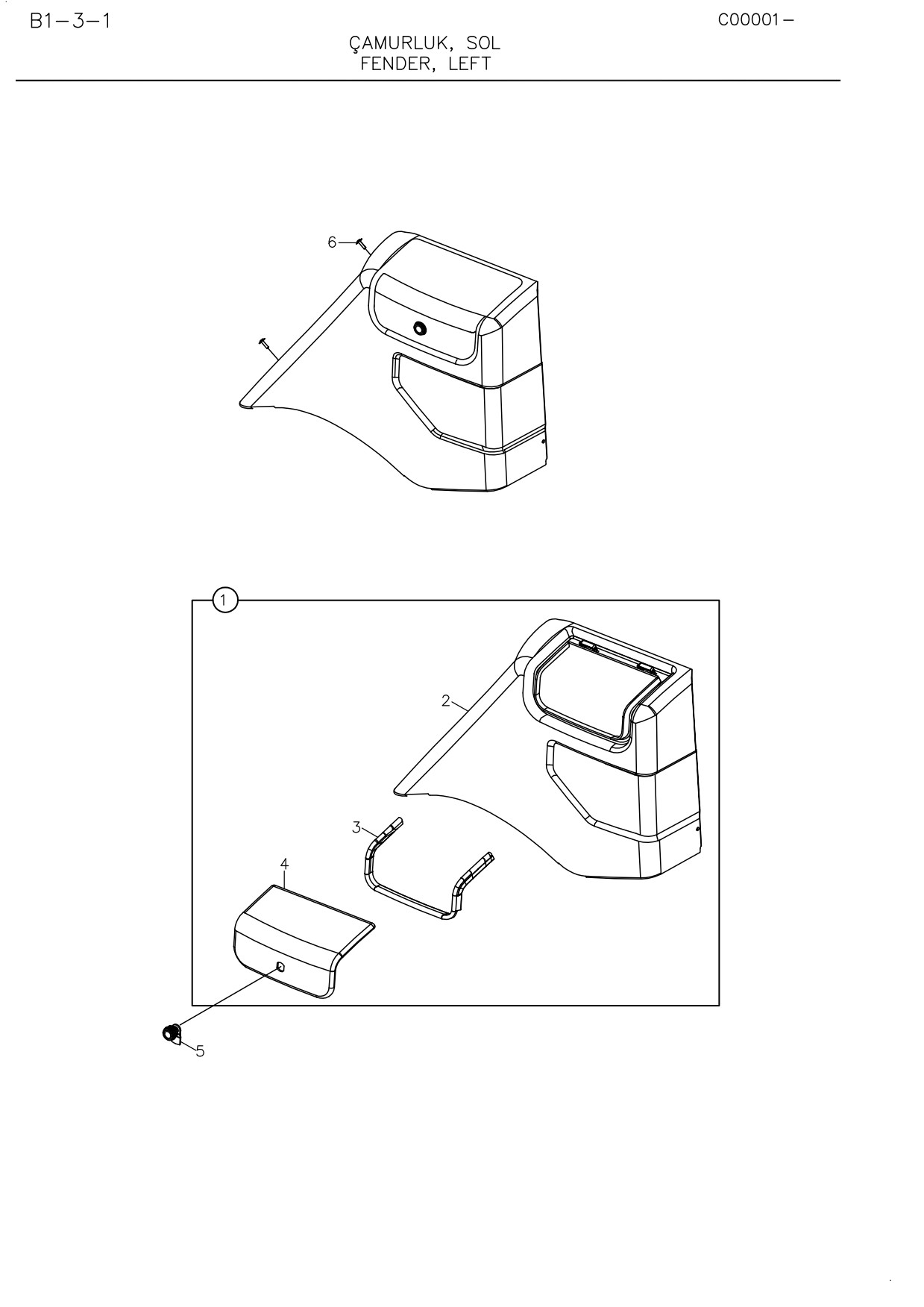

C00001
-
B1-3-1
ÇAMURLUK, SOL
FENDER, LEFT
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M116100100
RK
1
M116100600
SOL ÇAMURLUK KOMPL.
FENDER ASSY., SOL
1
2
M116101800
SOL ÇAMURLUK GÖVDESİ
FENDER , SOL
1
3
816/00820
FİTİL
STRIP, RUBBER
1
4
M116101900
SOL ÇAMURLUK KAPAĞI
COVER
1
5
M116103300
KİLİT
LOCK
1
6
N04/4320245
VİDA M5x16
SCREW M5x16
6

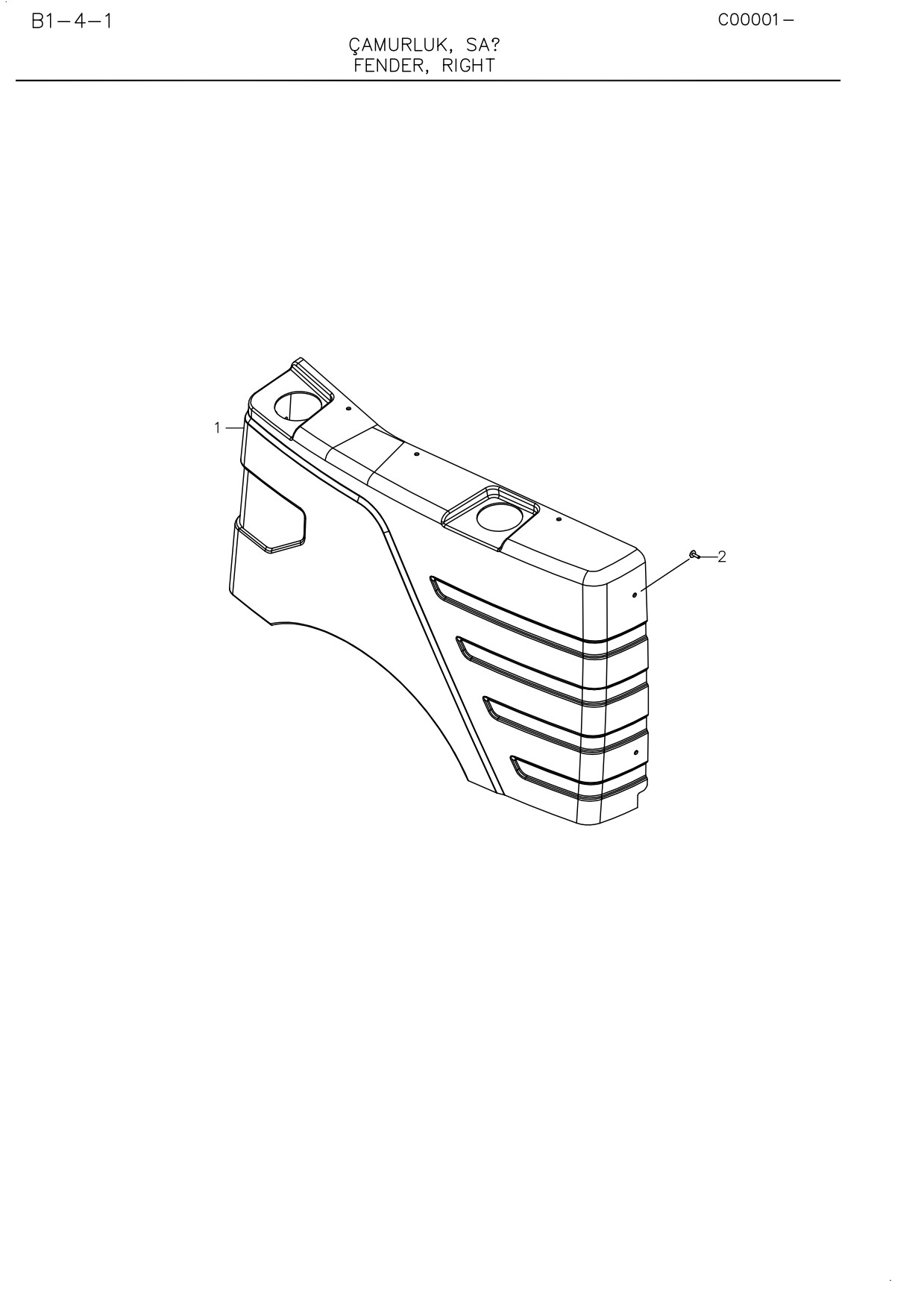

C00001
-
B1-4-1
ÇAMURLUK, SAĞ
FENDER, RIGHT
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M116100100
RK
1
M116100500
ÇAMURLUK KOMPL., SAĞ
FENDER ASSY., RIGHT
1
2
N04/4320245
VİDA M5x16
SCREW M5x16
7

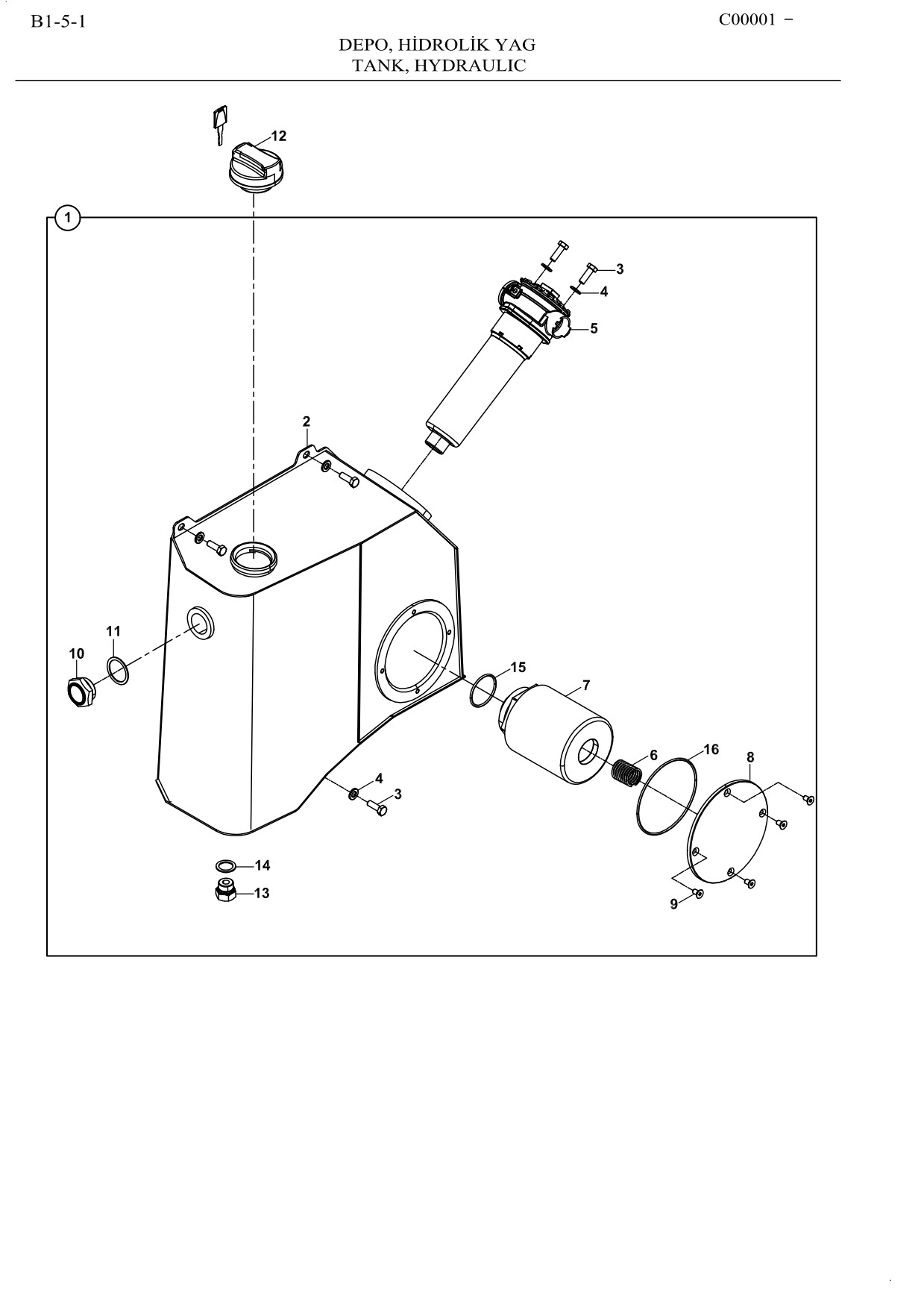

C00001
-
B1-5-1
DEPO, HĐDROLĐK YAĞ
TANK, HYDRAULIC
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
M113400100
YAĞ DEPOSU, KOMPLE
TANK HYDRAULIC, ASSY.
1
SOP
2
M113400200
HİDROLİK DEPO
TANK HYDRAULIC
1
3
N01/0380566
CİVATA M10x30
BOLT M10x30
6
4
N03/0810015
PUL M10
WASHER M10
6
5
M113402500
FİLTRE, DÖNÜŞ
FILTER, RETURN
1
6
M113402400
YAY, EMİŞ SÜZGECİ
SPRING
1
7
M113401900
EMİŞ FİLTRESİ
FILTERİ SUCTION
1
8
M113401600
KAPAK
COVER
1
9
N04/4320484
VİDA M8x16
SCREW M8x16
4
10
F99/14030
YAĞ SEVİYE GÖSTERGESİ
INDICATOR, OIL LEVER
1
11
F99/15160
GÖSTERGE SOMUNU
GASKET
1
12
F99/15022
DEPO KAPAĞI
CAP. HYD. FILLER
1
13
814/03010
TAPA
PLUG
1
14
N03/0000025
PUL
WASHER
1
15
N10/2005735
O-RİNG
O-RING
1
16
N10/2014235
O-RİNG
O-RING
1

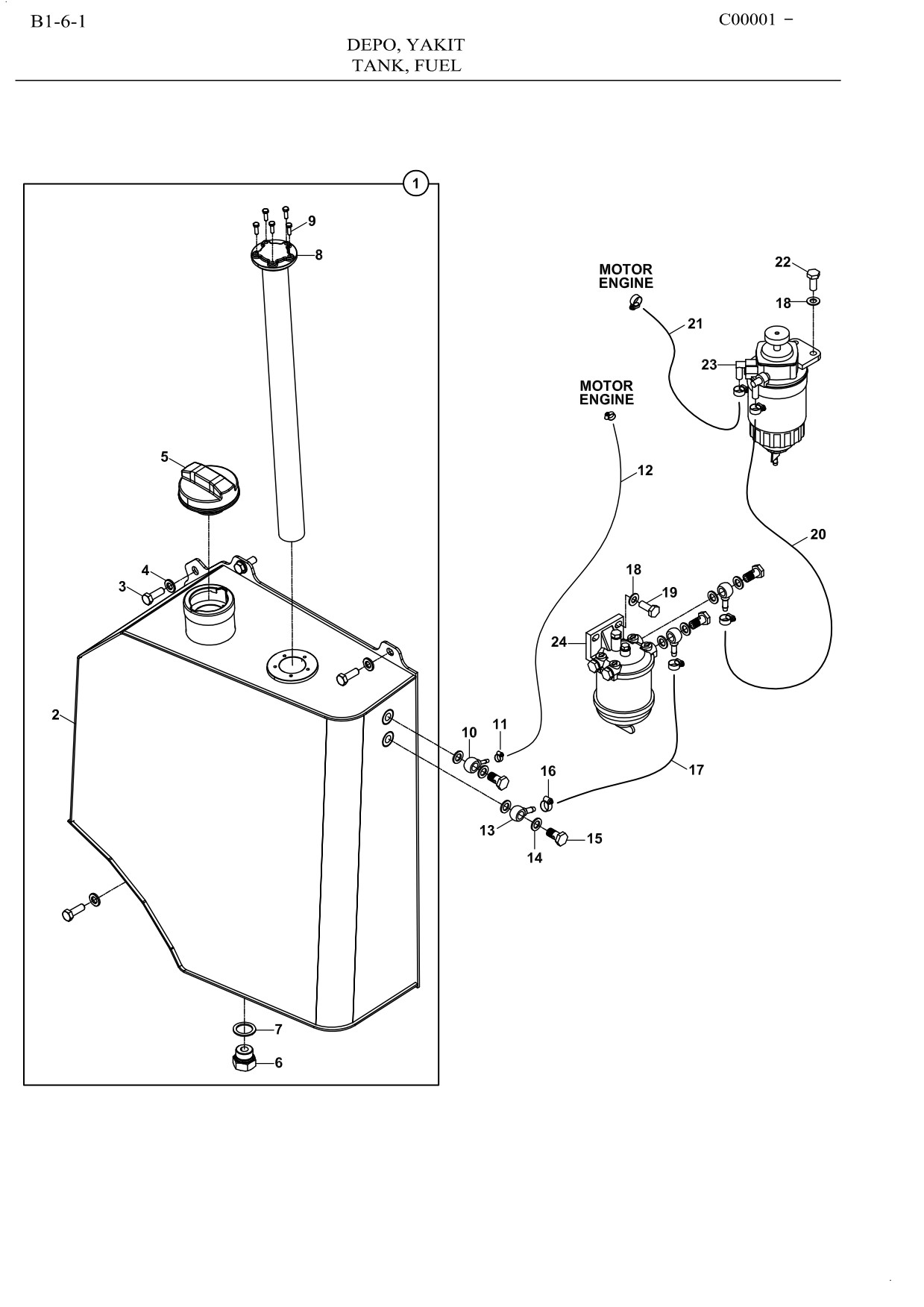

C00001
-
B1-6-1
DEPO, YAKIT
TANK, FUEL
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
M112500100
1
M112500300
YAKIT DEPOSU
TANK, DIESEL FUEL
1
2
M112500400
YAKIT DEPOSU
TANK, DIESEL FUEL
1
3
N01/0380566
CİVATA M10x30
BOLT M10x30
4
4
N03/0810015
PUL M10
WASHER M10
4
5
F99/15018
DEPO KAPAĞI
CAP, HYD. FILLER
1
6
814/03010
BOŞALTMA TAPASI
PLUG
1
7
N03/0000025
PUL
WASHER
1
8
M112501800
ŞAMANDIRA
FLOAT SWITCH
1
9
N01/0221202
CİVATA M5x16
BOLT M5x16
5
10
F99/00465
HALKA RAKOR
BANJO NIPPLE
1
11
N07/4010016
KELEPÇE
CLAMP
6
12
H06/1600316
HORTUM
HOSE
1
metre/meters
13
F99/00460
HALKA RAKOR
BANJO NIPPLE
3
14
N03/0000004
ORINGLI PUL
WASHER
8
15
F99/00459
BSP CIVATA
BOLT
4
16
N07/4008013
KELEPÇE
CLAMP
6
17
H06/1600516
HORTUM
HOSE
1.2
metre/meters
18
N03/0100020
PUL
WASHER
4
19
N01/0232438
CİVATA M10x20
BOLT M10x20
2
20
H06/1600516
HORTUM
HOSE
4.47
metre/meters
21
H06/1600516
HORTUM
HOSE
0.6
metre/meters
22
N01/0232486
CİVATA M10x30
BOLT M10x30
2
23
F28/91030
YAKIT FİLTRESİ, SU AYIRICI
FUEL FILTER
1
24
M113100150
YAKIT FİLTRESİ
FUEL FILTER
1
GÖVDE
B
BODY PARTS
GÖVDE MONTAJLARI
B1
BODY PARTS MOUNTINGS
KABiN
B2
OPERATOR CAB
YÜKLEYiCi
B3
LOADER
KAZICI
B4
BACKHOE
C00001
-

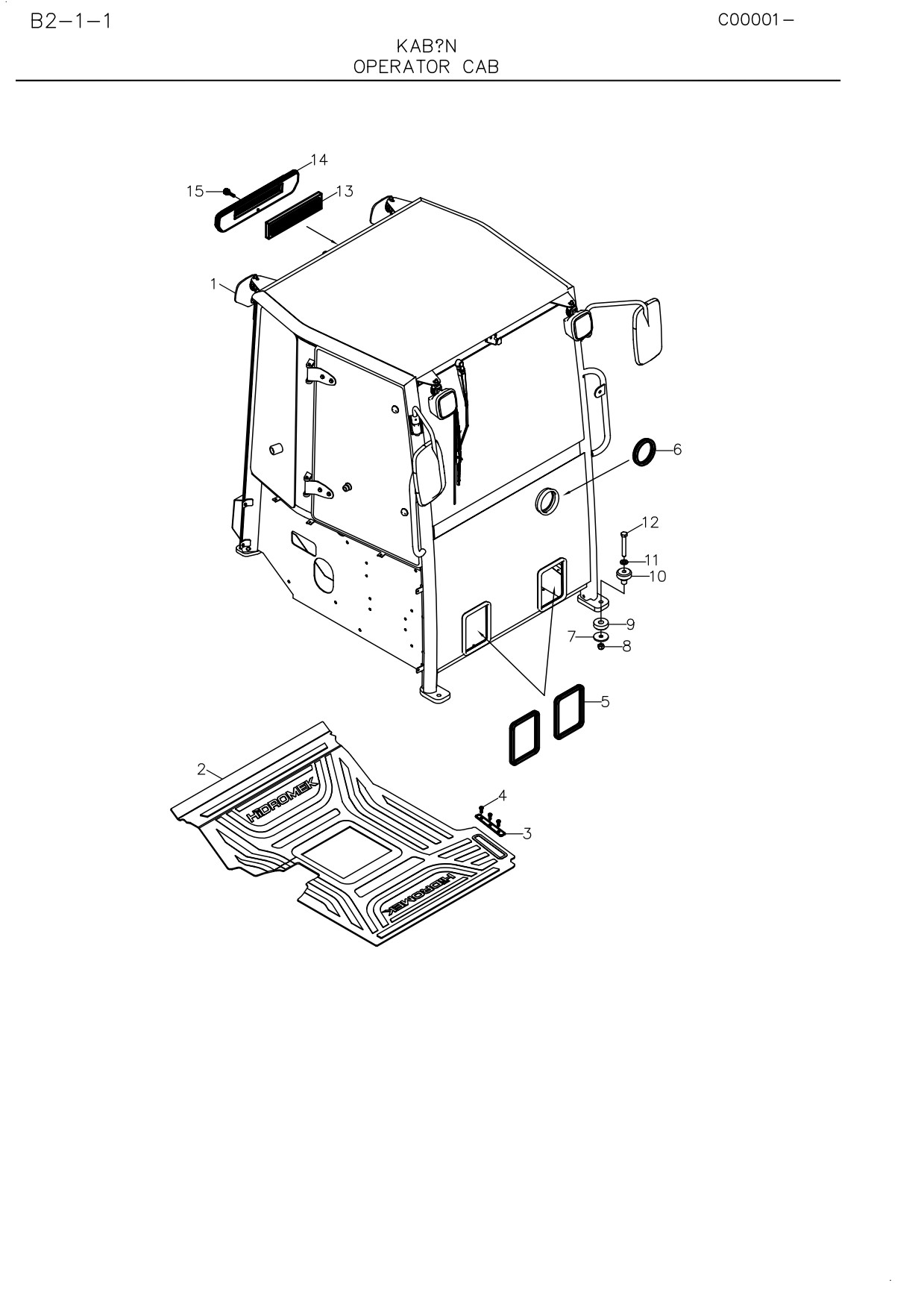

B2-1-1
KABĐN, LEVYE MEKANĐZMALI
OPERATOR CAB, LEVERS MECHANISM
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M116000100
1
M116000200
KABİN
OPERATOR CAB
1
2
M116100400
PASPAS
FLOORMAT
1
3
M116000800
PASPAS SACI
PLATE, FLOORMAT
1
4
N01/0231514
CİVATA M6x20
BOLT M6x20
3
5
M116002000
FİTİL
STRIP
2
6
M116002100
FİTİL
STRIP
1
7
M112002200
TAKOZ ALT SACI
WASHER
4
8
N02/5910182
SOMUN M16
NUT M16
4
9
M112002600
MOTOR TAKOZU ALT
MOUNTING, LOWER
4
PARCA
10
M112002500
MOTOR TAKOZU UST
MOUNTING, RUBBER
4
PARCA
11
N03/0810002
PUL, M16
WASHER M16
4
12
N01/0381370
CİVATA, M16x110
BOLT M16x100
4
13
M116018500
FİLTRE, KLİMA
FILTER, AIR CONDITIONER
1
14
M116018100
KAPAK, KLİMA FİLTRE
COVER, AIR CONDITIONER
1
FILTER
15
M116017800
ÖZEL CİVATA
BOLT, SPECIAL
1

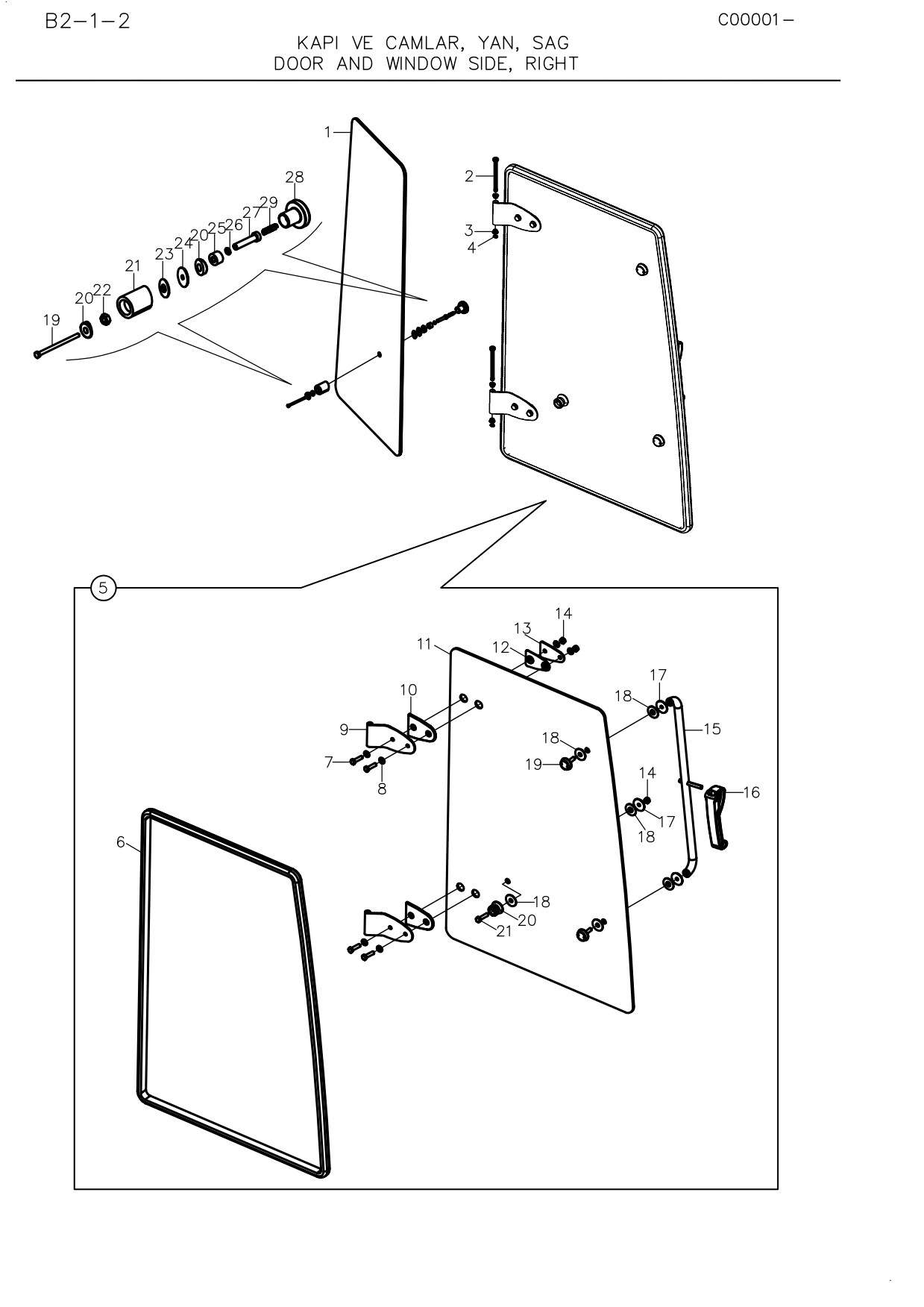

C00001
-
B2-1-2
KAPI VE CAMLAR, YAN SAG
DOOR AND WINDOW SIDE, RIGHT
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
M116000200
1
M116001400
ARKA CAM, SAĞ
REAR CLASS, RIGHT
1
2
M116001500
PİM, MENTEŞE
PIN
2
3
F99/14897
BURÇ, YATAK
BUSHING
4
4
N05/0020007
SEGMAN
RETAINING RING
2
5
M116000500
AÇILIR CAM, SAĞ KOMPLE
GLASS REAR, RIGHT
1
6
M116003000
KAPI FİTİLİ
STRIP, DOOR
1
7
N01/0232162
CİVATA M8x30
BOLT M8x30
4
8
N03/0140017
PUL M8
WASHER M8
8
9
M116003300
YAN CAM MENTESE SACI
HINGE PLATE, SIDE
2
WINDOW
10
M116003200
CONTA YAN CAM MENTEŞE
GASKET
2
11
M116002900
AÇILIR CAM SAG ON
GLASS REAR, RIGHT
1
FRONT
12
M116003400
YAN CAM MENTESE
GASKET
2
CONTASI İÇ
13
M116003500
YAN CAM MENTESE BAGL.
HINGE MOUNTING PLATE,
2
SACI
SIDE WINDOW
14
N02/5900062
SOMUN M8
NUT M8
4
15
M116003600
TUTAMAK
HANDLE
1
16
F32/18103
KİLİT, YAN CAM
LOCK, SIDE WINDOW
1
17
810/40045
SERT PLASTİK PUL
WASHER, PLASTIC, HARD
3
18
810/40046
YUMUŞAK PLASTİK PUL
WASHER, PLASTIC, SOFT
6
19
810/40046
YUMUŞAK PLASTİK PUL
WASHER, PLASTIC, SOFT
1
20
810/40082
KİTLEK SABİTLEME PARÇ.
BRACKET,LOCK MOUNTING
2
21
810/40070
GERİ KİTLEK PLASTİGİ
PLASTIC, LOCK
1
22
N02/3580206
SOMUN
NUT
1
23
810/40045
SERT PLASTİK PUL
WASHER, PLASTIC, HARD
1
24
810/40046
YUMUSAK PLASTİK PUL
WASHER, RUBBER, SOFT
1
25
020/21462
CİVATA ALTLIĞI
SPACER
1
26
N03/0100013
PUL
WASHER
1
27
810/99950
CİVATA M10x50
BOLT M10x50
1
28
810/40090
TUTAMAK
HOLDER
1
29
807/01515
YAY
SPRING
1
C00001
-

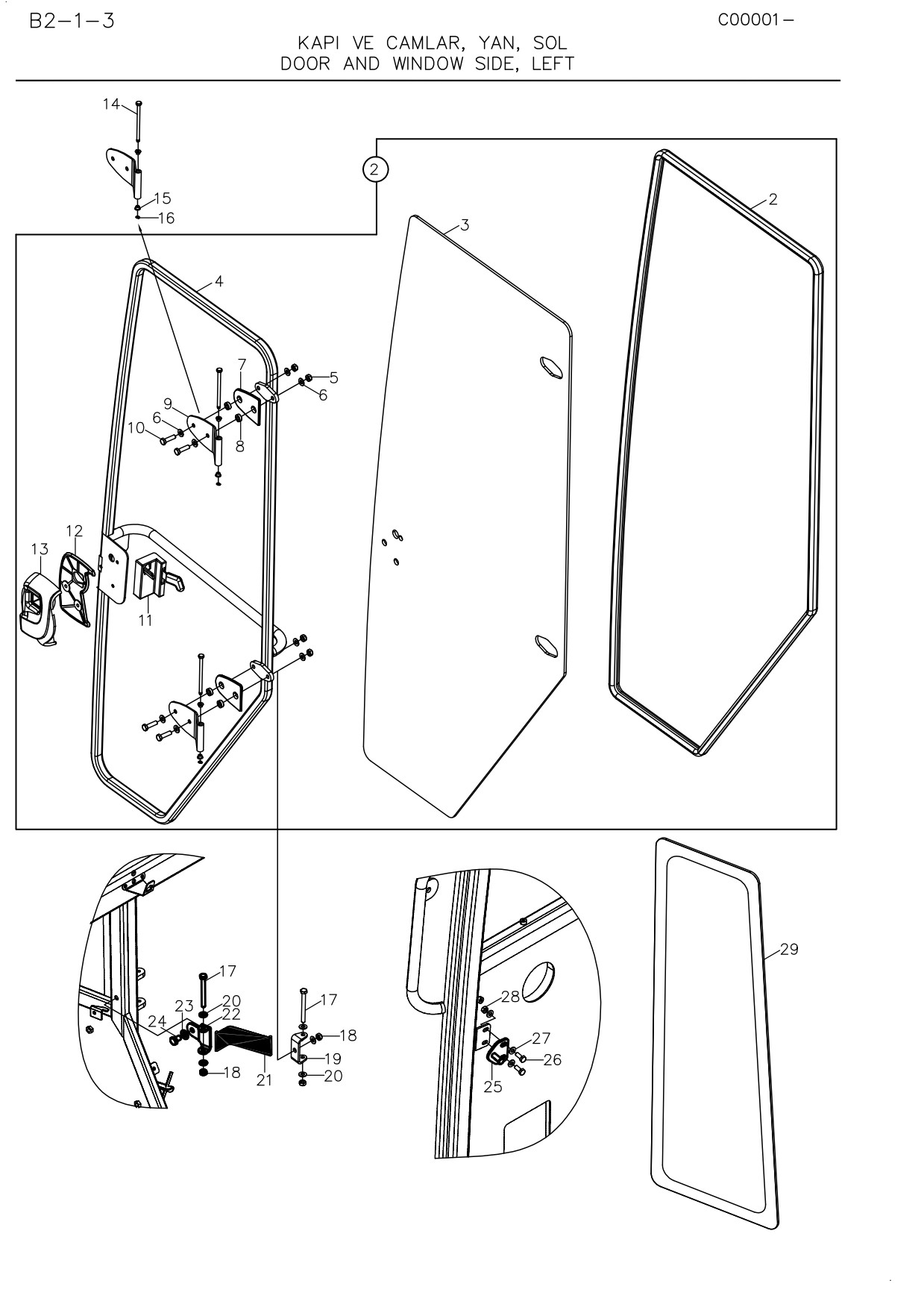

B2-1-3
KAPI VE CAMLAR, YAN SOL
DOOR AND WINDOW SIDE, LEFT
NO
PARÇA NO
TANIM
ADE
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
M116000200
1
M116000600
KAPI KOMPLE, SOL
DOOR, LEFT, ASSY.
1
2
M116002800
KAPI FİTİLİ
STRIP, DOOR
1
3
M116002600
KAPI CAMI
GLASS DOOR
1
4
M116002700
KAPI
DOOR
1
5
N02/5910062
SOMUN M8
NUT M8
4
6
N03/0140017
PUL M8
WASHER M8
8
7
M116003200
CONTA YAN CAM MENTEŞE
GASKET
2
8
M116003700
PLASTİK BURÇ
BUSHING
4
9
M116003300
MENTEŞE SACI, KAPI
HINGE PLATE, DOOR
2
10
N01/0232162
CİVATA M8x30
BOLT M8x30
4
11
S91/00631
KİLİT, KAPI İÇ
LOCK, DOOR
1
12
810/40064
KAPI KOLU ALTLIĞI, SOL
BASE, HANDLE, LEFT
1
13
S91/00657
KAPI KOLU, F TİPİ, SOL
HANDLE, F TYPE, LEFT
1
14
M116001500
PIM MENTESE
PIN
2
15
F99/14897
BURC,YATAK
BUSHING
4
16
N05/0020007
SEGMAN
RETAINING RING
2
17
N01/0380493
CİVATA M8x80
BOLT M8x80
1
18
N02/5910062
SOMUN M8
NUT M8
2
19
M116005500
KAPI GERGİ BAĞLANTI SACI
STAY PLATE, DOOR
1
20
N03/0100017
PUL M8
WASHER M8
4
21
M116000900
HALAT
LASHING
1
22
M116005600
KAPI GERGİ BAĞLANTI SACI
STAY PLATE, DOOR
1
23
N03/0020018
PUL M10
WASHER M10
1
24
N01/0232402
CİVATA M10x16
BOLT M10x16
1
25
M116002400
KİLİT KARŞILĞI
LOCK TOWARD
1
26
N01/0232114
CİVATA M8x20
BOLT M8x20
2
27
N03/0140017
PUL M8
WASHER M8
4
28
N02/5910062
SOMUN M8
NUT M8
2
29
M116001300
SOL ARKA CAM
REAR GLASS, LEFT
1
C00001
- C00024

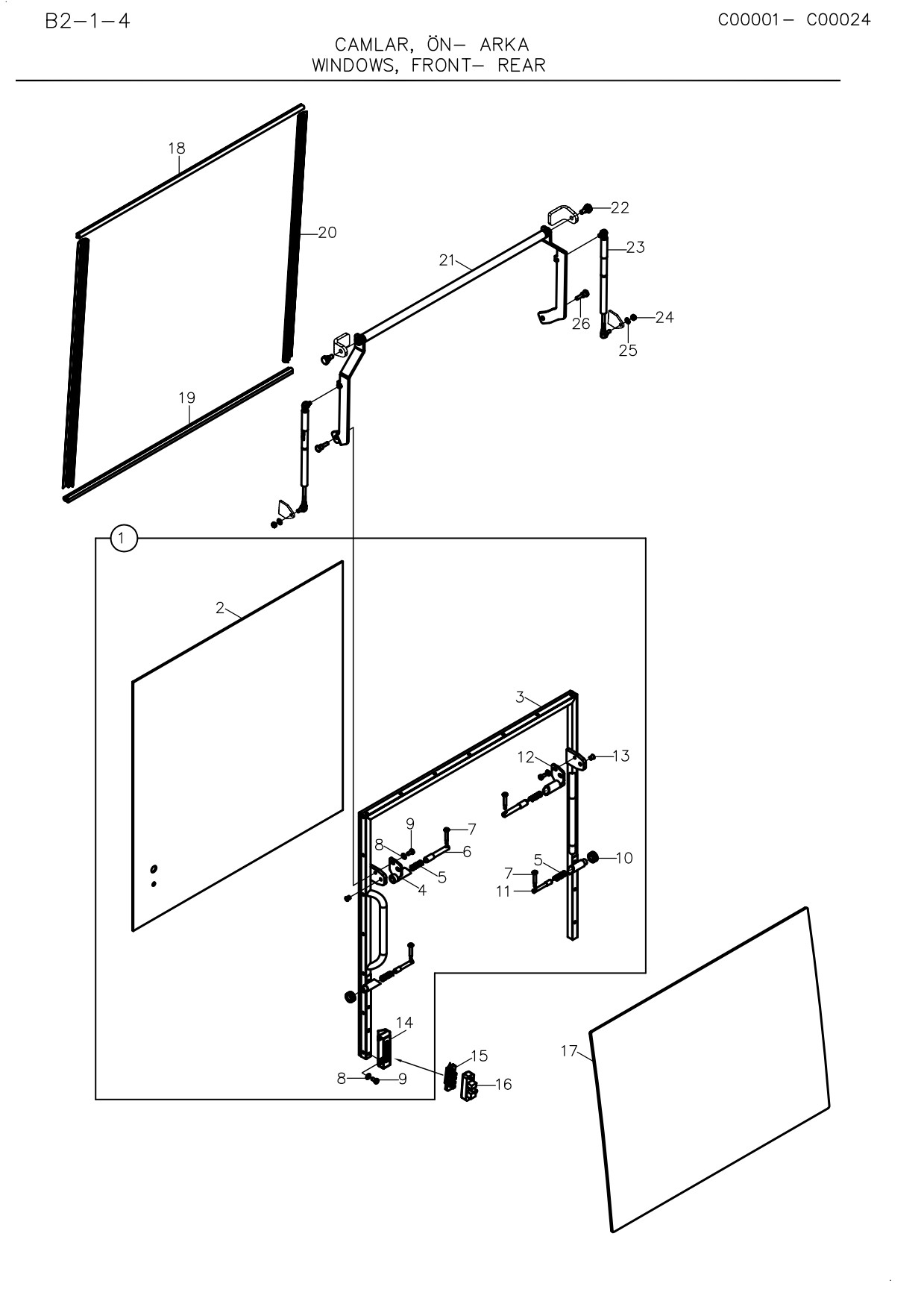

B2-1-4
CAMLAR, ÖN - ARKA
WINDOWS, FRONT - REAR
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M116000200
RK
1
M116000400
ARKA AÇILIR CAM KOMPL.
BACKHOE SIDE, REAR
1
WINDOW COMPL.
2
M116003100
ARKA AÇILIR CAM
BACKHOE SIDE, REAR
1
WINDOW
3
M116003800
ARKA ÇERÇEVE KOMPLE
FRAME, REAR WINDOW
1
4
M116004600
KİLİT MEKANİZMA MONTAJI,
LOCK MECHANISM
1
SOL
MOUNTING, LEFT
5
M116004400
YAY
SPRING
1
6
M116004200
PİM
PIN
2
7
M116004500
MEKANİZMA KOLU
MECHANISM LEVER
2
8
N03/0100017
PUL
WASHER
2
9
N01/0222090
CİVATA
BOLT
2
10
N09/0404903
RULMAN
BEARING
2
11
M116004700
MEKANİZMA DİLİ
MECHANISM PIN
2
12
M116004000
KİLİT MEKANİZMA MONTAJI,
LOCK MECHANISM
1
SAĞ
MOUNTING, RIGHT
13
F99/14898
BURÇ, YATAK
BUSHING
2
14
M116003900
SVİÇ BAĞLANTI SACI
SWITCH MONTING PLATE
2
15
554/00601
KONTAK SVİÇ 4' LÜ
SWITCH
1
16
554/00611
KONTAK SVİÇ 4' LÜ
SWITCH
1
17
M116000300
ÖN CAM
GLASS, FRONT
1
18
816/00618
FİTİL, ARKA ÜST
STRIP, REAR UPPER
1
19
S33/00620
ARKA CAM ALT FİTİLİ
STRIP, REAR LOWER
1
20
S3300656
ARKA CAM FİTİLİ
STRIP
2
21
M116001600
AÇILIR CAM MEKANİZMASI
GLASS REAR MECHANISM
1
22
813/00165
CİVATA
BOLT
2
23
M116001700
AMORTİSÖR
DAMPER
2
24
N02/5900062
SOMUN M8
NUT M8
2
25
N03/0100017
PUL M8
WASHER M8
2
26
M116002500
CİVATA
BOLT
2
C00025
-
B2-1-4/01
CAMLAR, ÖN - ARKA
WINDOWS, FRONT - REAR
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M116000200
RK
1
M116000400
ARKA AÇILIR CAM KOMPL.
BACKHOE SIDE, REAR
1
WINDOW COMPL.
2
M116003100
ARKA AÇILIR CAM
BACKHOE SIDE, REAR
1
WINDOW
3
M116003800
ARKA ÇERÇEVE KOMPLE
FRAME, REAR WINDOW
1
4
M116005900
AÇILIR CAM MEKANİZMA
REAR WINDOW MECHANISM
1
BAĞLANTISI
BRACKET SLIDE
5
M116004400
YAY
SPRING
2
6
M116018600
KAPAK
COVER
1
7
M116004500
MEKANİZMA KOLU
MECHANISM LEVER
2
8
N03/0100017
PUL
WASHER
2
9
N01/0222090
CİVATA
BOLT
2
10
N09/0404903
RULMAN
BEARING
2
11
M116004700
MEKANİZMA DİLİ
MECHANISM PIN
2
12
N01/5870316
CİVATA M6x20
BOLT M6x20
12
13
F99/14898
BURÇ, YATAK
BUSHING
2
14
M116003900
SVİÇ BAĞLANTI SACI
SWITCH MONTING PLATE
2
15
554/00601
KONTAK SVİÇ 4' LÜ
SWITCH
1
16
554/00611
KONTAK SVİÇ 4' LÜ
SWITCH
1
17
M116000300
ÖN CAM
GLASS, FRONT
1
18
M11/6004900
FİTİL, ARKA ÜST
STRIP, REAR UPPER
1
19
M116004800
ARKA CAM ALT FİTİLİ
STRIP, REAR LOWER
1
20
S3300656
ARKA CAM FİTİLİ
STRIP
2
21
M116001600
AÇILIR CAM MEKANİZMASI
GLASS REAR MECHANISM
1
22
813/00165
CİVATA
BOLT
2
23
M116001700
AMORTİSÖR
DAMPER
2
24
N02/5900062
SOMUN M8
NUT M8
2
25
N03/0100017
PUL M8
WASHER M8
2
26
M116002500
CİVATA
BOLT
2
27
S3300645
MEKANİZMA KOLU SAĞ
FRAME, HANDLE, RIGHT
1
28
S3300640
MEKANİZMA KOLU SOL
FRAME, HANDLE, LEFT
1
29
M116005700
KİTLEK, SOL
REAR WINDOW SLIDE
1
LATCH, LEFT
30
M116005800
KİTLEK, SAĞ
REAR WINDOW SLIDE
1
LATCH, RIGHT
31
M116016200
KAPAK
COVER
1
C00001
-

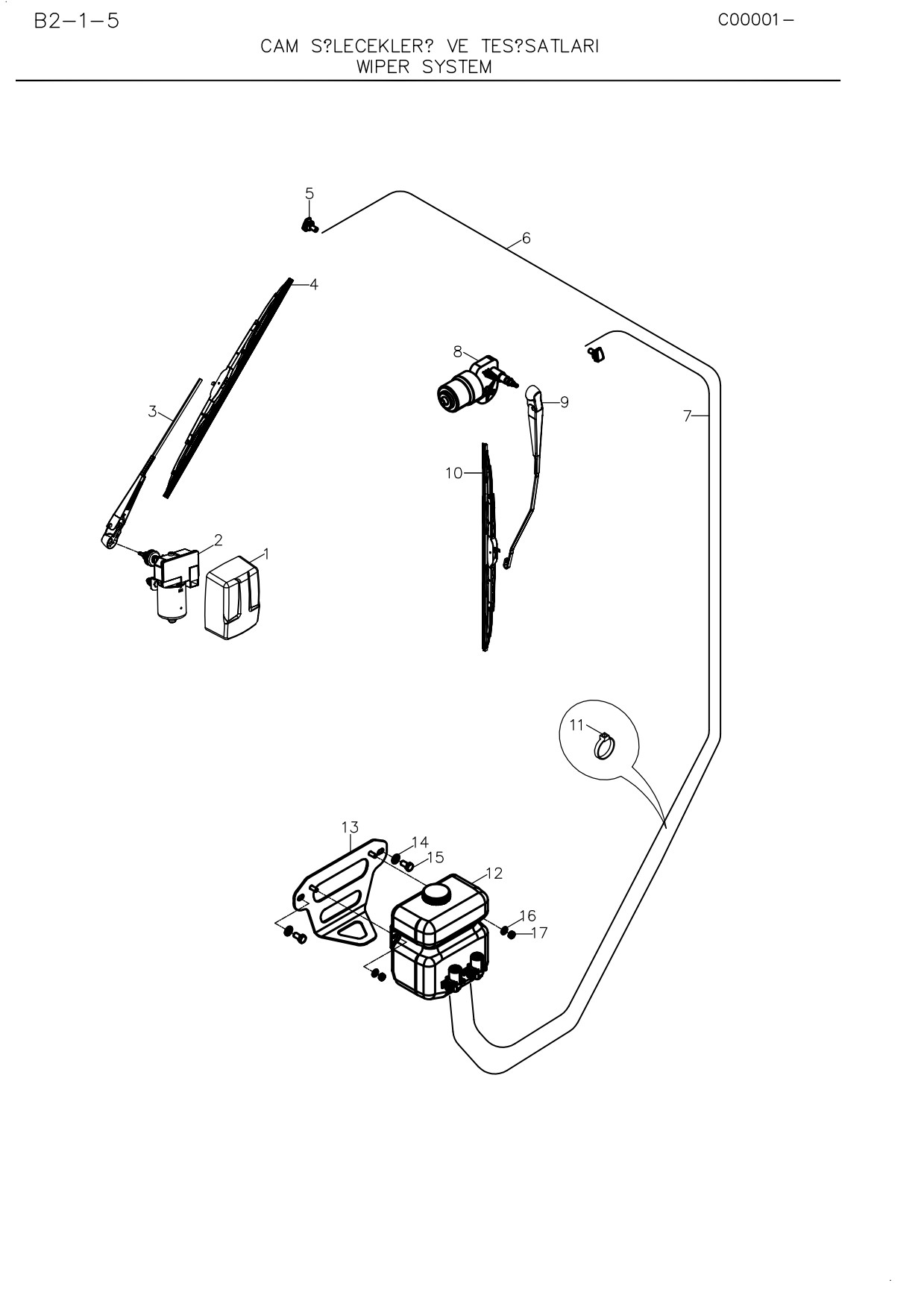

B2-1-5
CAM SĐLECEKLERĐ VE TESĐSATLARI
WIPER SYSTEM
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
M116000200 - M116103200
RK
1
F99/06400
ARKA SİLECEK MOTORU
WIPER, REAR, COVER
1
KAPLAMASI
2
550/01027
SİLGİ MOTORU, ARKA
ELECTRIC MOTOR, WIPER,
1
REAR
3
M116005100
SİLGİ KOLU, ARKA
ARM, WIPER, REAR
1
4
M116005200
SİLGEÇ, ARKA
WIPER, REAR
1
5
F32/10565
SU FİSKİYE MEMESİ
WATER NOZZLE
2
6
F32/10645
SEFFAF HORTUM, ARKA
HOSE, REAR WINDOW
1
7
F32/10640
SEFFAF HORTUM, ÖN CAM
HOSE, FRONT WINDOW
1
8
550/01220
SİLGİ MOTORU, ÖN
ELECTRIC MOTOR, WIPER,
1
FRONT
9
M116005000
SİLGİ KOLU, ÖN
ARM, WIPER, FRONT
1
10
M116005300
SİLECEK, ÖN
WIPER, FRONT
1
11
510/11700
KABLO BAGI
TIE, CABLE
2
12
M116102600
SİLECEK SU DEPOSU
WATER TANK
1
13
M116103000
CAM SUYU KABI BAGLANTI
WATER TANK, PLATE
1
SACI
14
N03/0810015
PUL M10
WASHER M10
2
15
N01/0380578
CİVATA M10x20
BOLT M10x20
2
16
N03/0100017
PUL M8
WASHER M8
2
17
N02/5910062
SOMUN M8
NUT M8
2
C00001
-

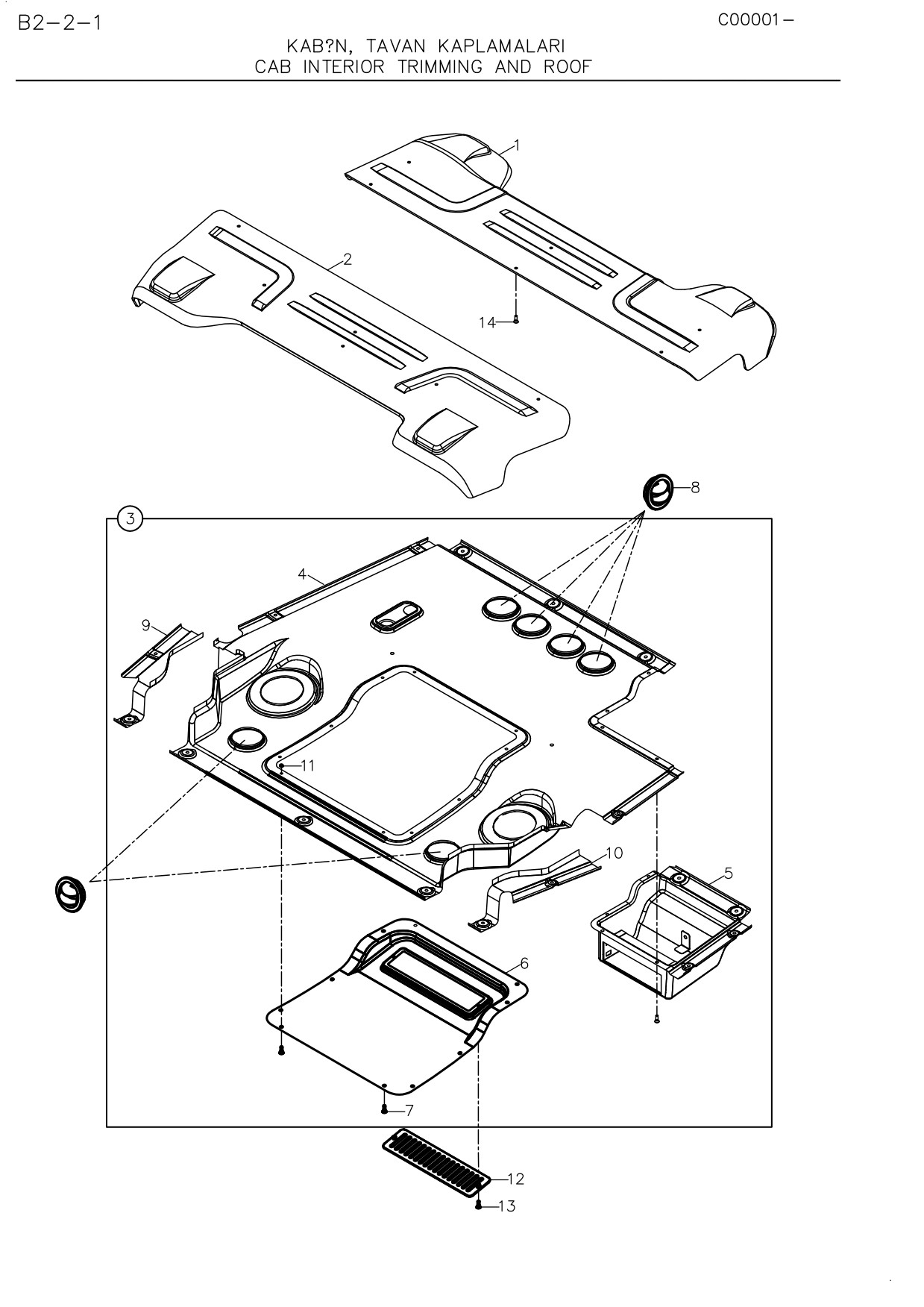

B2-2-1
KABĐN, TAVAN KAPLAMALARI
CAB INTERIOR TRIMMING AND ROOF
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M116100100
1
M116100700
ÖN FAR KAPLAMA
FRONT LIGHT, TRIM
1
2
M116100800
ARKA FAR KAPLAMA
REAR LIGHT, TRIM
1
3
M116100900
TAVAN KAPLAMA KOMPLE
ROOF TRIM ASSY.
1
4
M116102000
İÇ TAVAN KAPLAMA
INTERIOR ROOF TRIM
1
5
M116102800
TEYP KUTUSU
BOX,CASSETTE PLAYER
1
6
M116101000
SERVİS KAPAĞI
COVER
1
7
N04/9601886
VİDA M5x20
SCREW M5x20
14
8
F25/20505
HAVA NOZULU
VENT, AIR
6
9
M116102200
ARKA KAPAMA, SOL
REAR TRIM, LEFT
1
10
M116102100
ARKA KAPAMA, SAĞ
REAR TRIM, RIGHT
1
11
N02/3580146
SOMUN M5
NUT M5
14
12
M116102300
MENFEZ SACI
PLATE, NOZZLE
1
13
N04/9601886
VİDA M5x20
SCREW M5x20
2
14
N04/9601886
VİDA M5x20
SCREW M5x20
12
C00001
-

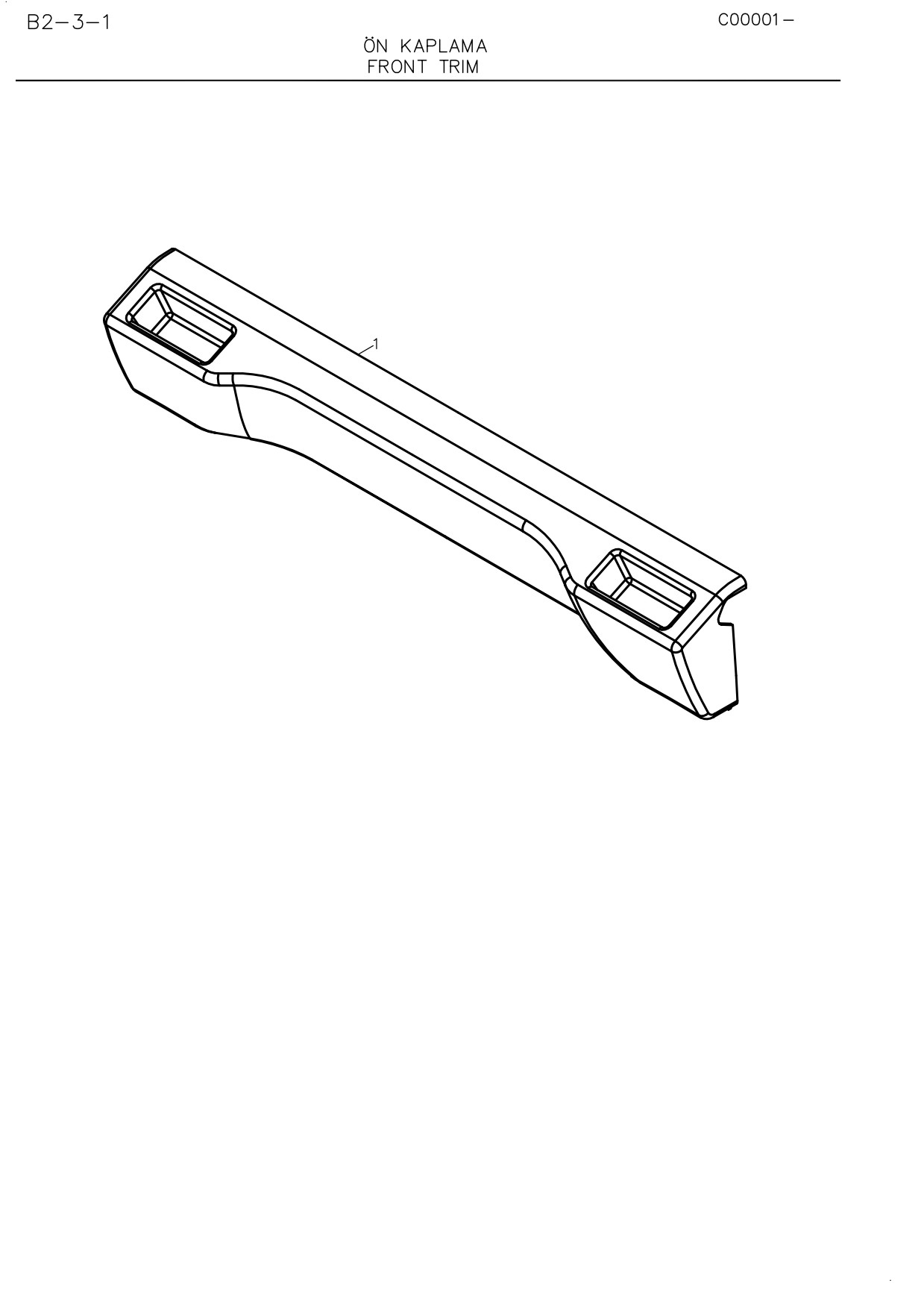

B2-3-1
ÖN KAPLAMA
FRONT TRIM
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M116100100
1
M116100200
ÖN KAPLAMA
FRONT TRIM
1
C00001
-

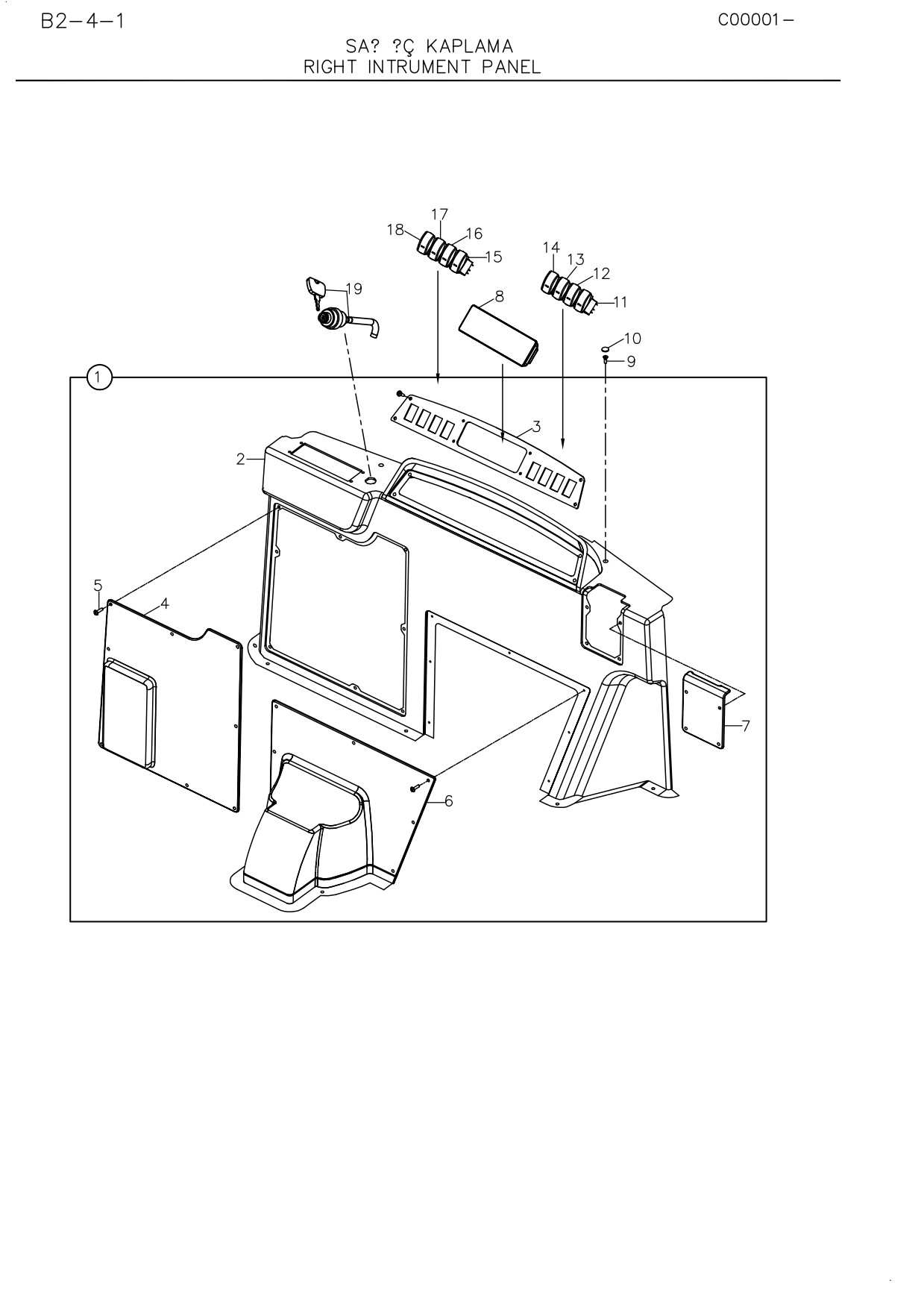

B2-4-1
SAĞ ĐÇ KAPLAMA
RIGHT INSTRUMENT PANEL
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
M116100300
SAĞ İÇ KAPLAMA KOMPLE
RIGHT INSTRUMENT PANEL
1
ASSY
2
M116101100
SAĞ İÇ ANA KAPLAMA
RIGHT INSTRUMENT PANEL
1
3
M116101500
SAĞ TRİM GÖSTERGE SACI
SWITCH MOUNTING
1
BRACKET
4
M116101200
SAĞ TRİM ELEKTRİK
ELECTRICAL SERVICE
1
SERVİS KAPAĞI
COVER
5
N04/9601886
VİDA M5x20
SCREW M5x20
23
6
M116101300
SAĞ TRİM HORTUM SERVİS
HYDRAULIC HOSE SERVICE
1
KAPAĞI
COVER
7
M116101400
SAĞ TRİM EL GAZI SERVİS
HAND THROTTLE COVER
1
KAPAĞI
8
M117402100
LCD EKRAN
DASHBOARD, LCD
1
9
N04/9602042
VİDA M6x16
SCREW M6x16
10
10
F99/15090
VİDA KAPAĞI
COVER
10
11A
520/20000
ANAHTAR, TEPE LAMBASI
SWITCH, BEACON
1
11B
520/31000
DÜĞME, TEPE LAMBASI
BUTTON, BEACON
1
12A
520/20600
ANAHTAR, ÇALIŞMA
SWITCH, REAR WORKING
1
LAMBASI
LIGHTS
12B
520/31015
DÜĞME, ÇALIŞMA LAMBASI
BUTTON, REAR WORKING
1
LIGHTS
13A
520/20600
ANAHTAR, PARK - FAR
SWITCH, HEADLIGHT AND
1
TAIL LIGHT
13B
520/31070
DÜĞME, PARK - FAR
BUTTON, HEADLIGHT AND
1
TAIL LIGHT
14A
520/06500
ANAHTAR, ARKA SİLECEK
SWITCH , WIPER, REAR
1
14B
520/31050
DÜĞME, ARKA SİLECEK
BUTTON, WIPER, REAR
1
15A
520/06500
ANAHTAR, ÖN SİLECEK
SWITCH, WIPER, FRONT
1
15B
520/31042
DÜĞME, ÖN SİLECEK
BUTTON, WIPER, FRONT
1
16A
520/20000
ANAHTAR, 4’LÜ IKAZ
SWITCH, HAZARD
1
WARNING LIGHT
16B
520/31085
DÜGME, 4’LÜ IKAZ
BUTTON, HAZARD
1
WARNING LIGHT
17A
520/21051
ANAHTAR+DÜĞME,PARK
SWITCH+BUTTON, BRAKE
1
FRENİ
18A
520/21061
ANAHTAR+DÜĞME, HYD-
SWITCH+BUTTON, HYD-
1
AUX
AUX
19
520/08112
KONTAK ANAHTARI
STARTER SWITCH
1
