Hidromek HMK 62 SS. Parts catalog - page 4
C00001
-
D2-1-1
EL GAZI KOLU VE GAZ PEDALI MEKANĐZMASI
HAND THROTTLE AND ACCELERATOR PEDAL
NO
PARÇA NO
TANIM
ADE
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
M112600100
GAZ PEDALI KOMPLE
PEDAL LEVER ASSEMBLY
1
2
F99/60101
MAFSAL ÇATALI
CLEVIS
2
3
F99/60102
MAFSAL ÇATALI KILIDI PIMI
PIN, CLEVIS
2
4
M112601400
GAZ ÇUBUĞU
ROD, GAS
1
5
M112600200
GAZ PEDALI BAĞLANTISI
PEDAL LEVER MOUNTING
1
6
N04/4320734
VİDA M10x30
SCREW M10x30
4
7
N02/5900086
SOMUN M10
NUT M10
5
8
M112600700
GAZ PEDALI
PEDAL LEVER
1
9
M112602200
YAY
SPRING
1
10
N03/0100013
PUL M6
WASHER M6
1
11
N06/1002015
GUPİLYA M2x16
COTTER PIN M2x16
1
12
M112601900
EL GAZI TEL TUTUCU
HAND THROTTLE
1
13
M112601000
GAZ PEDALI KOLU
HAND, PEDAL LEVER
1
14
M112601300
GAZ PEDALI PULU
WASHER
3
15
N01/0380638
CİVATA M10x45
BOLT M10x45
1
16
KÖRÜK
GAITER
1
17
EL GAZI KOMPLESİ
HAND THROTTLE
1
MECHANISM
18
EL GAZI TUTAMAĞI
HAND THROTTLE HANDLE
1
19
EL GAZI GOVDESI
HAND THROTTLE BODY
1
20
TEL, EL GAZI
CABLE, HAND THROTTLE
1

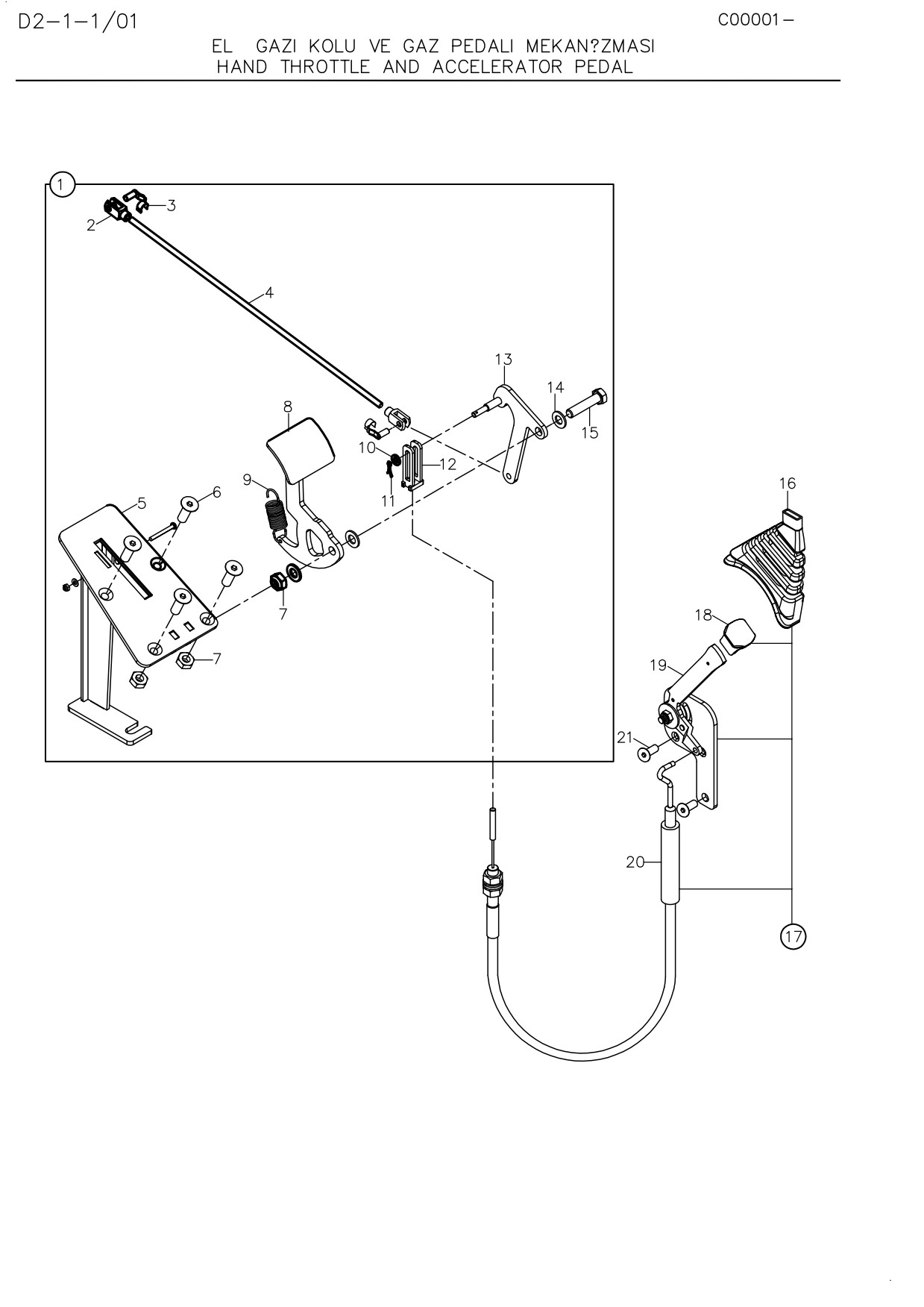

C00001
-
D2-1-1/01
EL GAZI KOLU VE GAZ PEDALI MEKANĐZMASI
HAND THROTTLE AND ACCELERATOR PEDAL
NO
PARÇA NO
TANIM
ADE
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
M112600100
GAZ PEDALI KOMPLE
PEDAL LEVER ASSEMBLY
1
2
F99/60100
MAFSAL ÇATALI
CLEVIS
2
3
F99/60100
MAFSAL ÇATALI KILIDI PIMI
PIN, CLEVIS
2
4
M112601400
GAZ ÇUBUĞU
ROD, GAS
1
5
M112600200
GAZ PEDALI BAĞLANTISI
PEDAL LEVER MOUNTING
1
6
N04/4320734
VİDA M10x30
SCREW M10x30
4
7
N02/5900086
SOMUN M10
NUT M10
5
8
M112600700
GAZ PEDALI
PEDAL LEVER
1
9
M112602200
YAY
SPRING
1
10
N03/0100013
PUL M6
WASHER M6
1
11
N06/1002015
GUPİLYA M2x16
COTTER PIN M2x16
1
12
M112601900
EL GAZI TEL TUTUCU
HAND THROTTLE
1
13
M112601000
GAZ PEDALI KOLU
HAND, PEDAL LEVER
1
14
M112601300
GAZ PEDALI PULU
WASHER
3
15
N01/0380638
CİVATA M10x45
BOLT M10x45
1
16
810/28582
KÖRÜK
GAITER
1
17
M112602300
EL GAZI KOMPLESİ
HAND THROTTLE
1
MECHANISM
18
M112602600
EL GAZI TUTAMAĞI
HAND THROTTLE HANDLE
1
19
M112602400
EL GAZI MEKANİZMASI
HAND THROTTLE
1
MECHANISM
20
M112602500
TEL, EL GAZI
CABLE, HAND THROTTLE
1
21
N04/4320506
VİDA M8x20
SCREW M18x20
2
HiDROLiK
E
HYDRAULIC
HiDROLiK SiSTEM
E1
HYDRAULIC SYSTEM
VALF VE NiPEL BAGLANTILARI
E2
VALVE & ADAPTER MOUNTINGS
SiLiNDiRLER
E3
RAMS

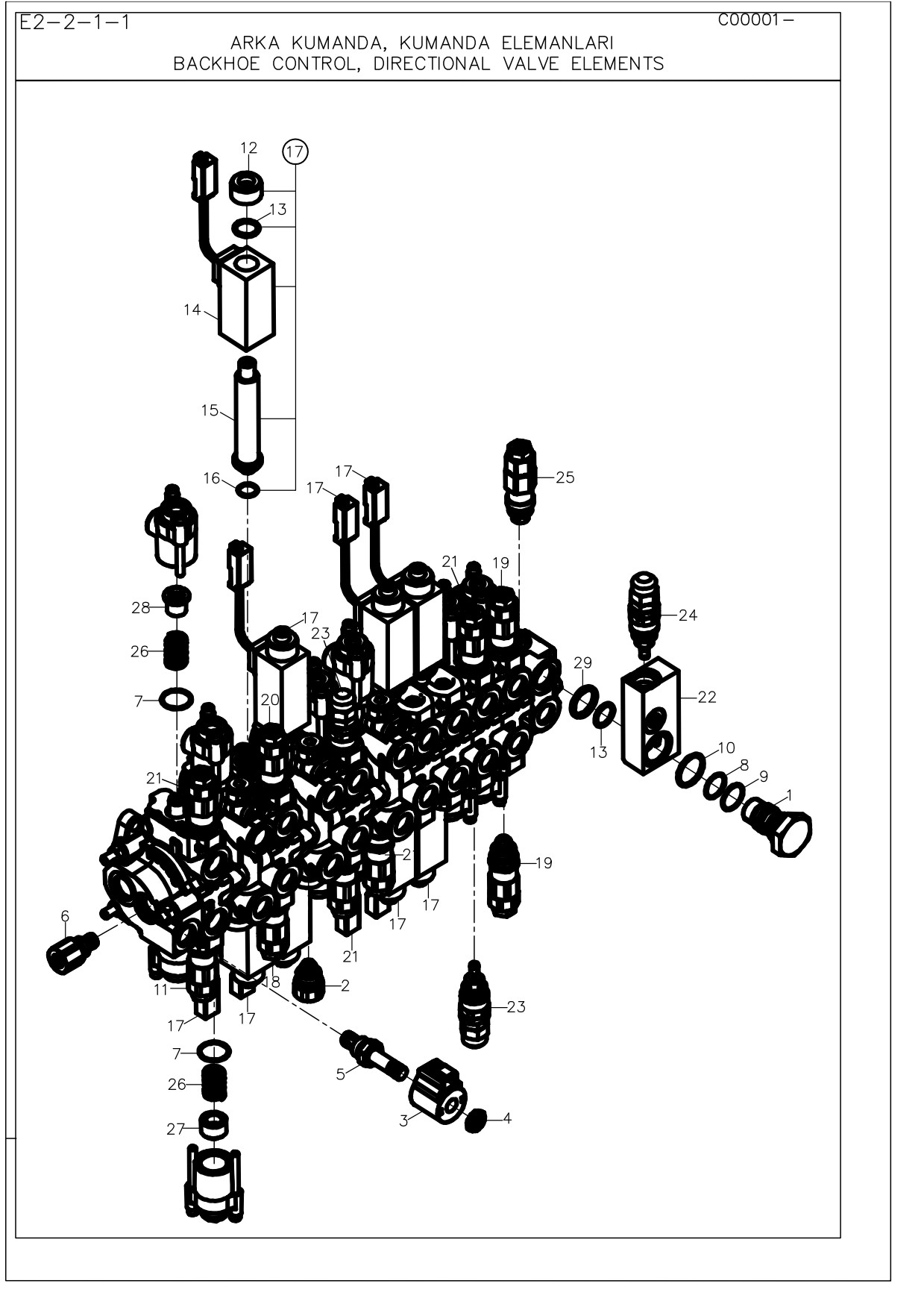

C00001
-
E2-2-1-1
ARKA KUMANDA, KUMANDA ELEMANLARI
BACKHOE CONTROL, DIRECTIONAL VALVE ELEMENTS
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
* M113002000
RK
1
S18/30188
ADAPTÖR
ADAPTER
1
2
S18/31020
ANTİKAVİTASYON VALFİ
ANTI - VOID ASSY.
1
3
S18/30186
BOBİN, SOLENOİD
COIL-SOLENOID
1
4
S18/30643
SOMUN
NUT-SPECIAL
1
5
S18/30620
GÖVDE, SELONOİD
BODY - SOLENOID
1
6
S18/30515
SIKMA VALFİ, KOMPLE
CLAMP VALVE ASSY.
1
7
S18/30185
O-RING
O-RING
12
8
S18/30400
O-RING
O-RING
1
9
S18/30184
O-RING
O-RING
1
10
S18/30183
O-RING
O-RING
1
11
S18/30174
EMNİYET VALFİ, KOMPLE
RELIEF VALVE ASSY.
1
12
S18/30704
SOMUN
NUT - SPECIAL
8
13
S18/31196
O-RING
O-RING
9
14
S18/30181
BOBİN, SOLENOİD
COIL - SOLENOID
8
15
S18/30656
SOLENOİD
TUBE - SOLENOID
8
16
S18/31186
O-RING
O-RING
8
17
S18/30150
SOLENOİD
SOLENOID - 12V B/B
8
18
S18/30160
EMNİYET VALFİ, KOMPLE
RELIEF VALVE ASSY.
1
19
S18/30162
EMNİYET VALFİ, KOMPLE
RELIEF VALVE ASSY.
2
20
S18/30164
EMNİYET VALFİ, KOMPLE
RELIEF VALVE ASSY.
1
21
S18/30166
EMNİYET VALFİ, KOMPLE
RELIEF VALVE ASSY.
4
22
S18/30180
YUVA, MANIFOLD
HOUSING - MANIFOLD
1
23
S18/30168
EMNİYET VALFİ, KOMPLE
RELIEF VALVE ASSY.
1
24
S18/30170
EMNİYET VALFİ, KOMPLE
RELIEF VALVE ASSY.
1
25
S18/30172
EMNİYET VALFİ, KOMPLE
RELIEF VALVE ASSY.
1
26
S18/30189
YAY
SPRING
12
27
S18/30190
YAY YUVASI
SPRING SEAT
2
28
S18/30191
YAY YUVASI
SPRING SEAT
10
29
S18/30192
PUL
WASHER
1
HiDROLiK
E
HYDRAULIC
HiDROLiK SiSTEM
E1
HYDRAULIC SYSTEM
VALF VE NiPEL BAGLANTILARI
E2
VALVE & ADAPTER MOUNTINGS
SiLiNDiRLER
E3
RAMS

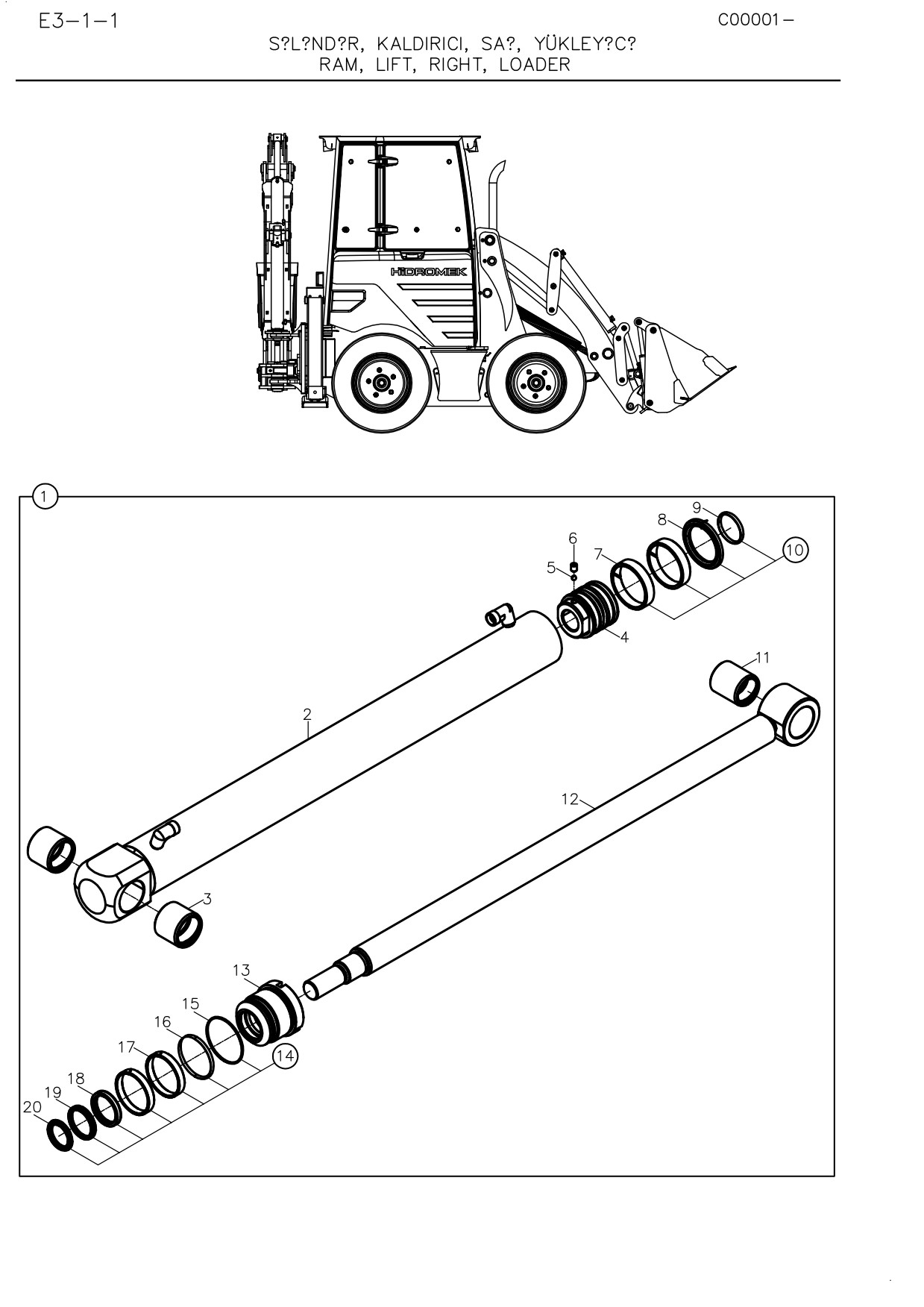

C00001
-
E3-1-1
SĐLĐNDĐR, KALDIRICI, SAĞ ,YÜKLEYĐCĐ
RAM, LIFT, RIGHT, LOADER
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
152/21301
SİLİNDİR, KALDIRICI
RAM, LIFT
1
2
209/22140
SİLİNDİR BORUSU
CYLINDER
1
3
802/01032
BURÇ
BUSH
2
4
201/21060
PİSTON
PISTON
1
5
N09/9001060
ÇELİK BİLYA
STEEL BALL
1
6
N04/3120686
VİDA M8x10
SCREW M8x10
1
7
N10/0586397
PISTON YATAKLAMA BANDI
GUIDE RING, PISTON
2
K1
8
N10/3476306
PISTON KEÇESİ
SEAL, PISTON
1
K1
9
N10/2003935
PISTON ORINGI
O-RING
1
K1
10
S48/80728
PISTON TAMİR TAKIMI
SEAL KIT, PISTON
1
(K1)
11
802/01034
BURÇ
BUSH
1
12
208/45140
SİLİNDİR MİLİ
ROD
1
13
202/22065
BOĞAZ
CAP, END
1
14
S48/90935
BOĞAZ TAMİR TAKIMI
SEAL, KIT, END CAP
1
(K2)
15
N10/2006426
O-RING
O-RING
1
K2
16
N10/2005835
O-RING
O-RING
1
K2
17
N10/0404597
YATAKLAMA BANDI
GUIDE RING
2
K2
18
N10/5404805
TOZ KEÇESİ
SCRAPER
1
K2
19
N10/7405506
TAMPON KEÇESİ
SEAL
1
K2
20
N10/4405007
BOĞAZ KEÇESİ
U- CAP
1
K2

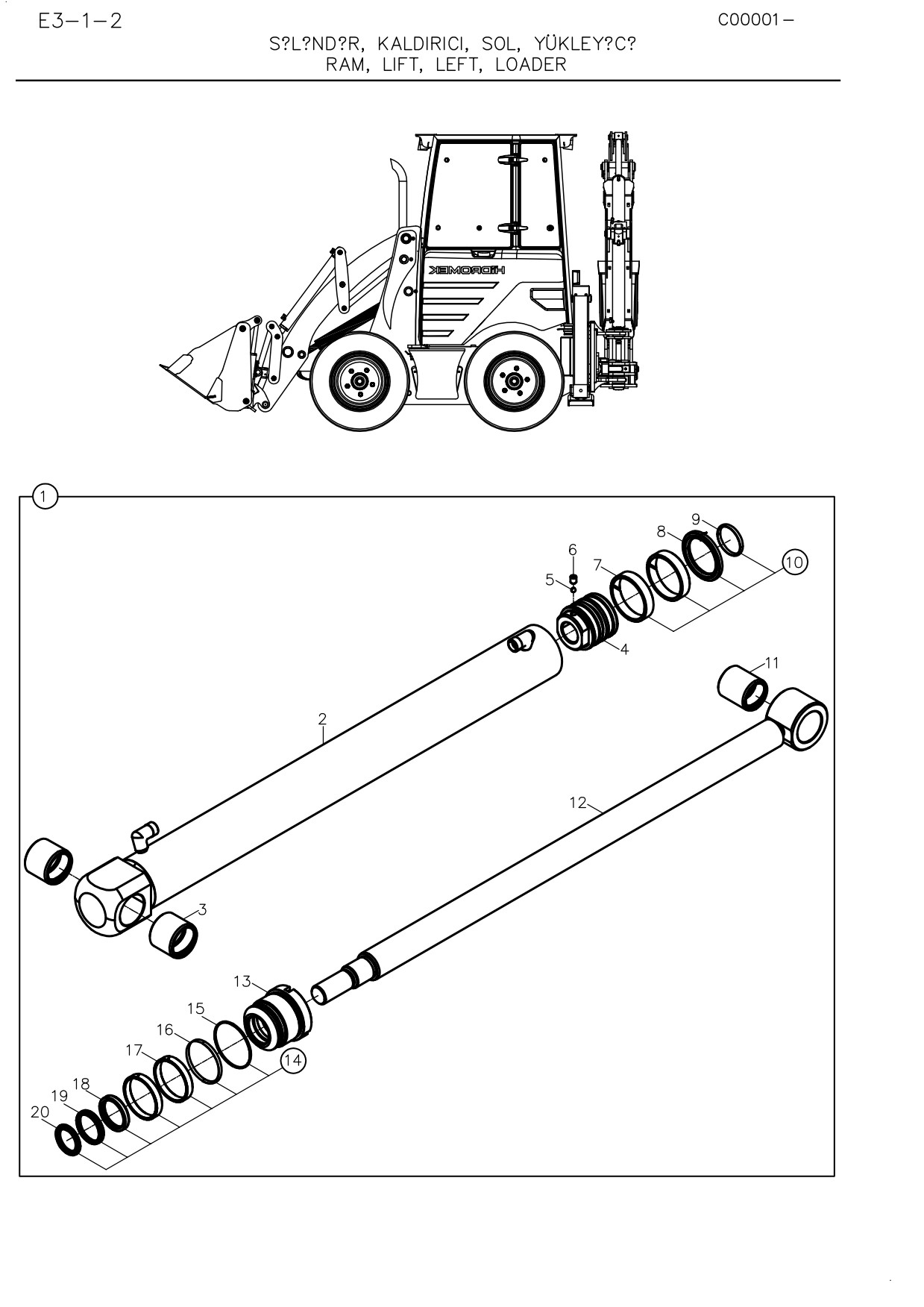

C00001
-
E3-1-2
SĐLĐNDĐR, KALDIRICI, SOL ,YÜKLEYĐCĐ
RAM, LIFT, LEFT, LOADER
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
152/21311
SİLİNDİR, KALDIRICI
RAM, LIFT
1
2
209/22135
SİLİNDİR BORUSU
CYLINDER
1
3
802/01032
BURÇ
BUSH
2
4
201/21060
PİSTON
PISTON
1
5
N09/9001060
ÇELİK BİLYA
STEEL BALL
1
6
N04/3120686
VİDA M8x10
SCREW M8x10
1
7
N10/0586397
PISTON YATAKLAMA BANDI
GUIDE RING, PISTON
2
K1
8
N10/3476306
PISTON KEÇESİ
SEAL, PISTON
1
K1
9
N10/2003935
PISTON ORINGI
O-RING
1
K1
10
S48/80728
PISTON TAMİR TAKIMI
SEAL KIT, PISTON
1
(K1)
11
802/01034
BURÇ
BUSH
1
12
208/45140
SİLİNDİR MİLİ
ROD
1
13
202/22065
BOĞAZ
CAP, END
1
14
S48/90935
BOĞAZ TAMİR TAKIMI
SEAL, KIT, END CAP
1
(K2)
15
N10/2006426
O-RING
O-RING
1
K2
16
N10/2005835
O-RING
O-RING
1
K2
17
N10/0404597
YATAKLAMA BANDI
GUIDE RING
2
K2
18
N10/5404805
TOZ KEÇESİ
SCRAPER
1
K2
19
N10/7405506
TAMPON KEÇESİ
SEAL
1
K2
20
N10/4405007
BOĞAZ KEÇESİ
U- CAP
1
K2

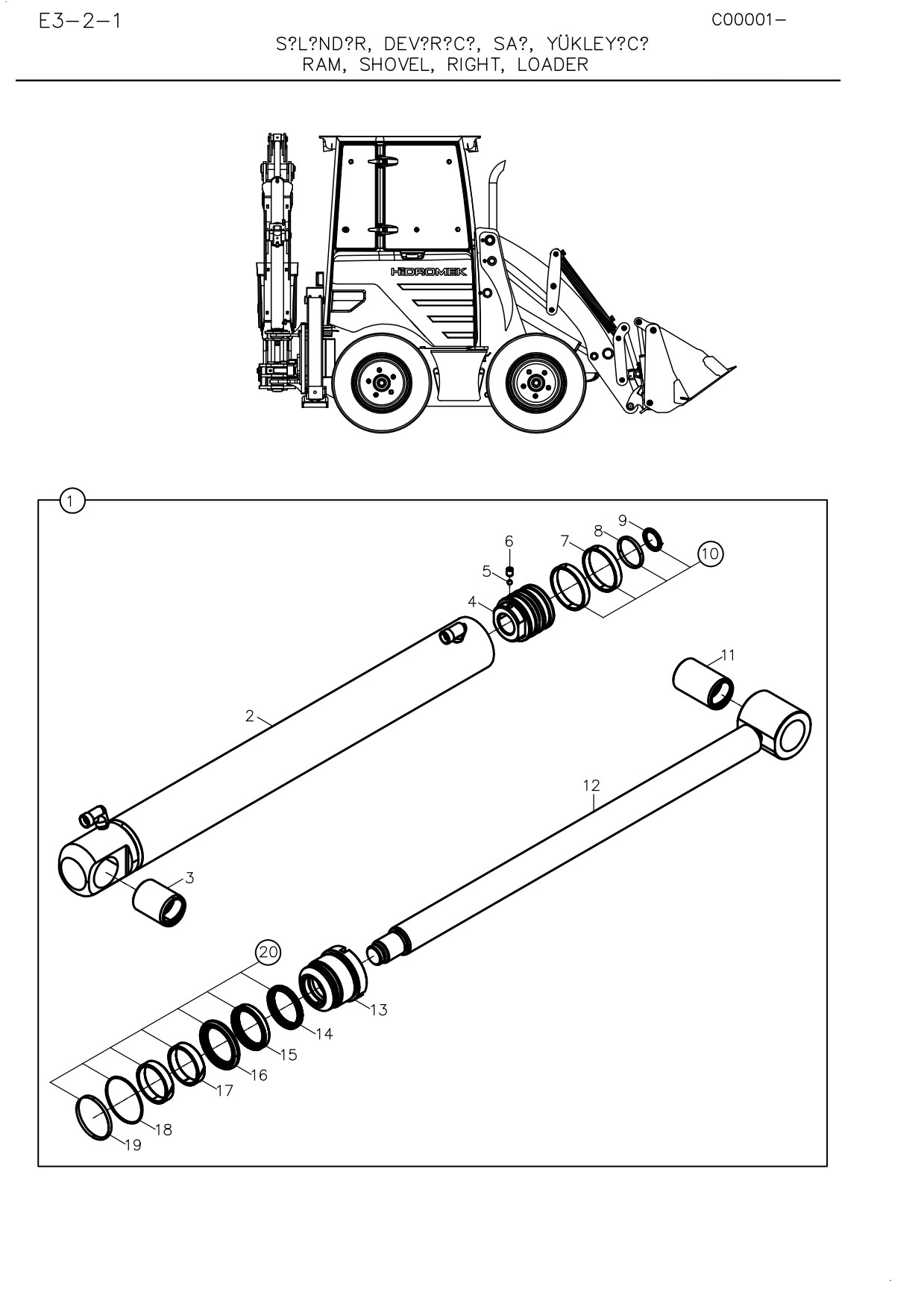

C00001
-
E3-2-1
SĐLĐNDĐR, DEVĐRĐCĐ, SAĞ ,YÜKLEYĐCĐ
RAM, SHOVEL, RIGHT, LOADER
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
152/21200
SİLİNDİR, DEVİRİCİ
RAM, SHOVEL
1
2
209/22110
SİLİNDİR BORUSU
CYLINDER
1
3
802/01601
BURÇ
BUSH
1
4
201/21060
PİSTON
PISTON
1
5
N09/9001060
ÇELİK BİLYA
STEEL BALL
1
6
N04/3120686
VİDA M8x10
SCREW M8x10
1
7
N10/0586397
PISTON YATAKLAMA BANDI
GUIDE RING, PISTON
2
K1
8
N10/3476306
PISTON KEÇESİ
SEAL, PISTON
1
K1
9
N10/2003935
PISTON ORINGI
O-RING
1
K1
10
S48/80728
PISTON TAMİR TAKIMI
SEAL KIT, PISTON
1
(K1)
11
802/01035
BURÇ
BUSH
1
12
208/45120
SİLİNDİR MİLİ
ROD
1
13
202/22065
BOĞAZ
CAP, END
1
14
N10/5404805
TOZ KEÇESİ
SCRAPER
1
K2
15
N10/4405007
BOĞAZ KEÇESİ
U- CAP
1
K2
16
N10/7405506
TAMPON KEÇESİ
SEAL
1
K2
17
N10/0404597
YATAKLAMA BANDI
GUIDE RING
2
K2
18
N10/2006426
O-RING
O-RING
1
K2
19
N10/2005835
O-RING
O-RING
1
K2
20
S48/90935
BOĞAZ TAMİR TAKIMI
SEAL, KIT, END CAP
1
(K2)

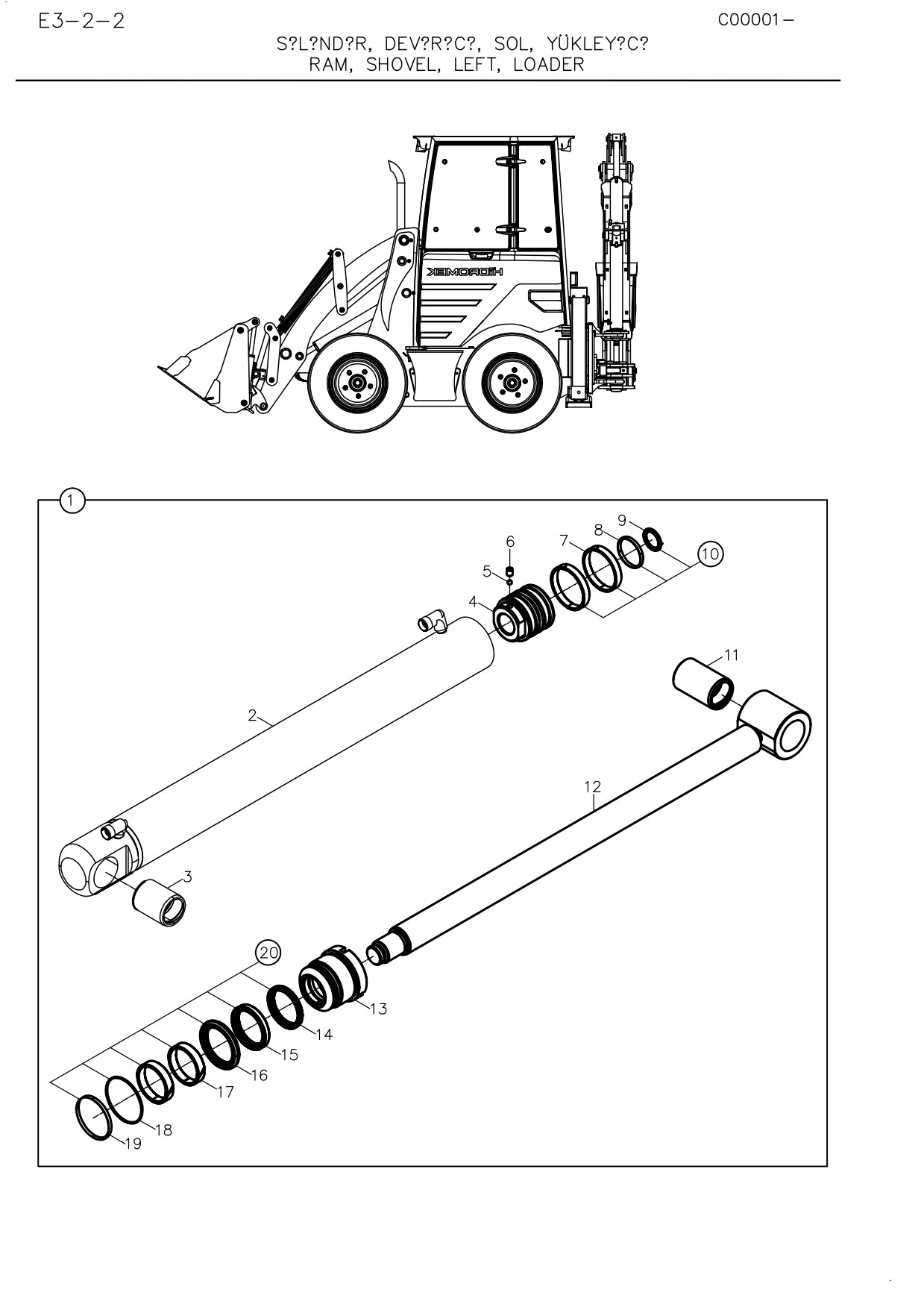

C00001
-
E3-2-2
SĐLĐNDĐR, DEVĐRĐCĐ, SOL ,YÜKLEYĐCĐ
RAM, SHOVEL, LEFT, LOADER
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
152/21210
SİLİNDİR, DEVİRİCİ
RAM, SHOVEL
1
2
209/22117
SİLİNDİR BORUSU
CYLINDER
1
3
802/01601
BURÇ
BUSH
1
4
201/21060
PİSTON
PISTON
1
5
N09/9001060
ÇELİK BİLYA
STEEL BALL
1
6
N04/3120674
VİDA M8x12
SCREW M8x12
1
7
N10/0586397
PISTON YATAKLAMA BANDI
GUIDE RING, PISTON
2
K1
8
N10/3476306
PISTON KEÇESİ
SEAL, PISTON
1
K1
9
N10/2003935
PISTON ORINGI
O-RING
1
K1
10
S48/80728
PISTON TAMİR TAKIMI
SEAL KIT, PISTON
1
(K1)
11
802/01035
BURÇ
BUSH
1
12
208/45120
SİLİNDİR MİLİ
ROD
1
13
202/22065
BOĞAZ
CAP, END
1
14
N10/5404805
TOZ KEÇESİ
SCRAPER
1
K2
15
N10/4405007
BOĞAZ KEÇESİ
U- CAP
1
K2
16
N10/7405506
TAMPON KEÇESİ
SEAL
1
K2
17
N10/0404597
YATAKLAMA BANDI
GUIDE RING
2
K2
18
N10/2006426
O-RING
O-RING
1
K2
19
N10/2005835
O-RING
O-RING
1
K2
20
S48/90935
BOĞAZ TAMİR TAKIMI
SEAL, KIT, END CAP
1
(K2)

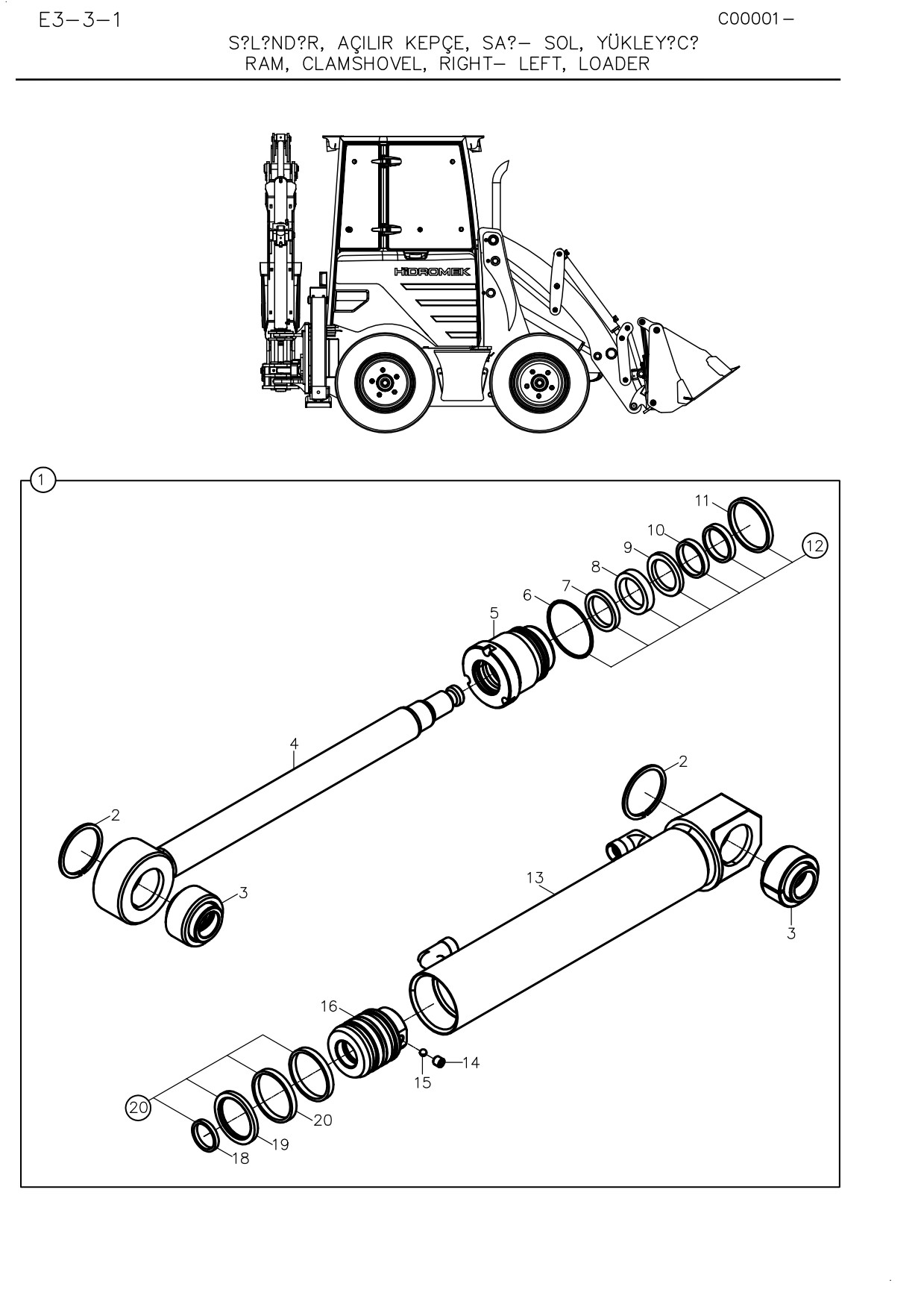

C00001
-
E3-3-1
SĐLĐNDĐR, AÇILIR KEPÇE, SAĞ -SOL ,YÜKLEYĐCĐ
RAM, CLAMSHOVEL, RIGHT- LEFT, LOADER
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
156/21200
SİLİNDİR, AÇILIR KEPÇE
RAM, CLAMSHOVEL
1
2
N05/0220140
SEGMAN
RETAINING RING
2
3
207/00210
BURÇ
BUSH
2
4
208/45050
SİLİNDİR MİLİ
ROD
1
5
202/22020
BOĞAZ
CAP, END
1
6
N10/2005230
O-RING
O-RING
1
K1
7
N10/7304004
TAMPON KEÇESİ
SEAL
1
K1
8
N10/4304007
BOĞAZ KEÇESİ
U- CAP
1
K1
9
N10/5303806
TOZ KEÇESİ
SCRAPER
1
K1
10
N10/0303555
YATAKLAMA BANDI
GUIDE RING
2
K1
11
N10/2004535
O-RING
O-RING
1
K1
12
S48/90920
BOĞAZ TAMİR TAKIMI
SEAL, KIT, END CAP
1
(K1)
13
209/22050
SİLİNDİR BORUSU
CYLINDER
1
14
N04/3120674
VİDA M8x8
SCREW M8x8
1
15
N09/9001060
ÇELİK BİLYA
STEEL BALL
1
16
201/21180
PİSTON
PISTON
1
17
S48/80735
PISTON TAMİR TAKIMI
SEAL KIT, PISTON
1
(K2)
18
N10/2002530
PISTON ORINGI
O-RING
1
K2
19
N10/3395004
PISTON KEÇESİ
SEAL, PISTON
1
K2
20
N10/0455056
YATAKLAMA BANDI
GUIDE RING
2
K2
C00001
-

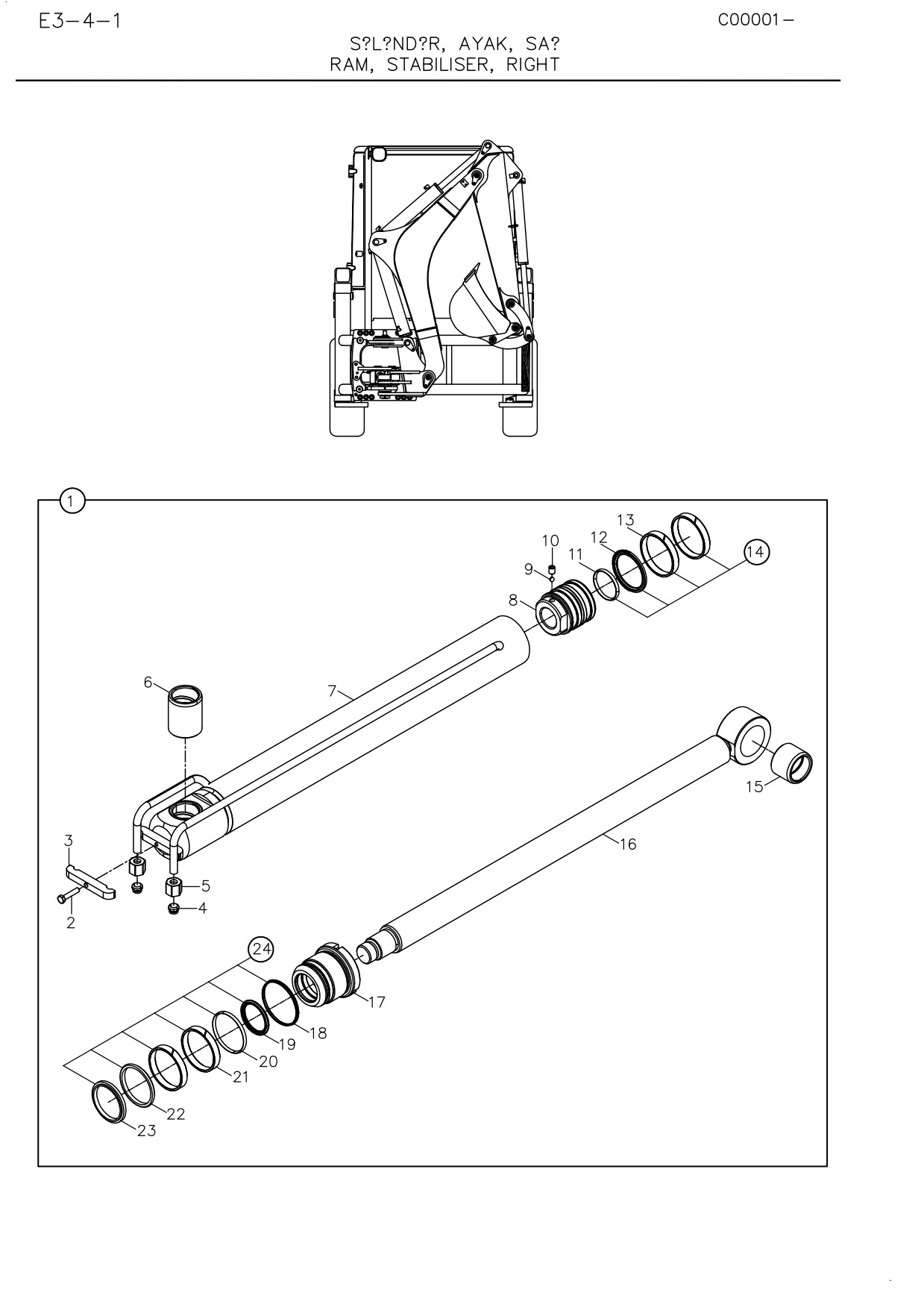

E3-4-1
SĐLĐNDĐR, AYAK (SAĞ)
RAM, STABILISER (RIGHT)
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
152/20170
SİLİNDİR, AYAK
RAM, STABILISER
1
2
N01/0221574
CİVATA M6x30
BOLT M6x30
1
3
810/52120
KELEPÇE ÜST PARÇASI
COVER, CLAMP
1
4
N18/3570164
YÜZÜK
RING
2
5
N17/3570164
SOMUN
NUT
2
6
802/01601
BURÇ
BUSH
1
7
209/20058
SİLİNDİR BORUSU
CYLINDER
1
8
201/21050
PİSTON
PISTON
1
9
N09/9001060
ÇELİK BİLYA
STEEL BALL
1
10
N04/3120686
VİDA M8x10
SCREW M8x10
1
11
N10/2003935
O-RING, PISTON
O-RING
1
K1
12
N10/3496004
PISTON KEÇESİ
SEAL, PISTON
1
K1
13
N10/1556097
PISTON YATAKLAMA BANDI
GUIDE RING, PISTON
2
K1
14
S48/80726
PISTON TAMİR TAKIMI
SEAL KIT, PISTON
1
(K1)
15
802/01032
BURÇ
BUSH
1
16
208/45160
SİLİNDİR MİLİ
ROD
1
17
202/22050
BOĞAZ
CAP, END
1
18
N10/2006126
O-RING
O-RING
K2
19
N10/4405007
BOĞAZ KEÇESİ
U- CAP
1
K2
20
N10/2005435
O-RING, BOĞAZ
O-RING
1
K2
21
N10/0404597
YATAKLAMA BANDI
GUIDE RING
2
K2
22
N10/7405004
TAMPON KEÇESİ
U-CAP
1
K2
23
N10/5404805
TOZ KEÇESİ
SCRAPER
1
K2
24
S48/90930
BOĞAZ TAMİR TAKIMI
SEAL, KIT, END CAP
1
(K2)
C00001
-

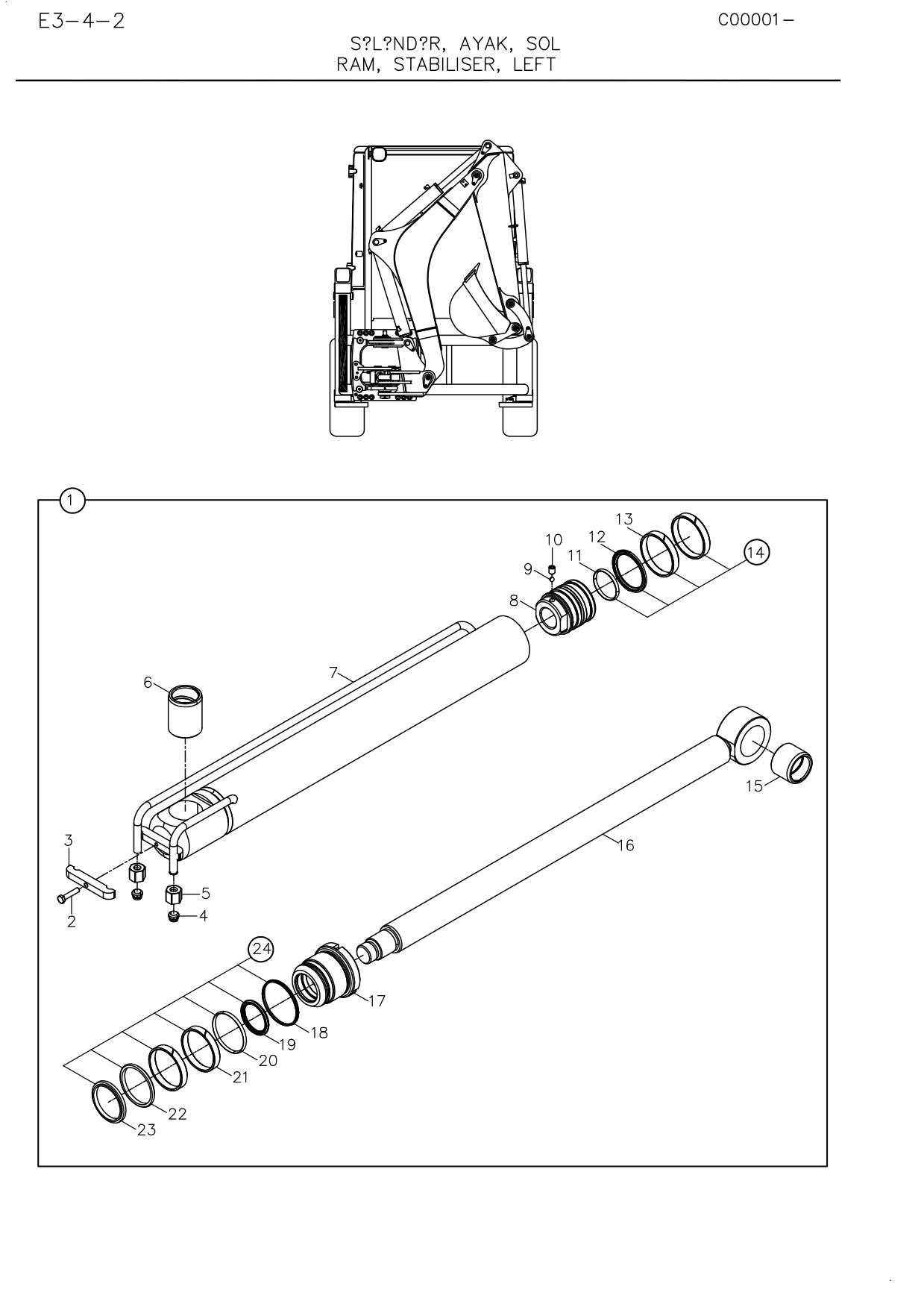

E3-4-2
SĐLĐNDĐR, AYAK (SOL)
RAM, STABILISER (LEFT)
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
152/20180
SİLİNDİR, AYAK
RAM, STABILISER
1
2
N01/0221574
CİVATA M6x30
BOLT M6x30
1
3
810/52120
KELEPÇE ÜST PARÇASI
COVER, CLAMP
1
4
N18/3570164
YÜZÜK
RING
2
5
N17/3570164
SOMUN
NUT
2
6
802/01601
BURÇ
BUSH
1
7
209/20055
SİLİNDİR BORUSU
CYLINDER
1
8
201/21050
PİSTON
PISTON
1
9
N09/9001060
ÇELİK BİLYA
STEEL BALL
1
10
N04/3120686
VİDA M8x10
SCREW M8x10
1
11
N10/2003935
O-RING, PISTON
O-RING
1
K1
12
N10/3496004
PISTON KEÇESİ
SEAL, PISTON
1
K1
13
N10/1556097
PISTON YATAKLAMA BANDI
GUIDE RING, PISTON
2
K1
14
S48/80726
PISTON TAMİR TAKIMI
SEAL KIT, PISTON
1
(K1)
15
802/01032
BURÇ
BUSH
1
16
208/45160
SİLİNDİR MİLİ
ROD
1
17
202/22050
BOĞAZ
CAP, END
1
18
N10/2006126
O-RING
O-RING
K2
19
N10/4405007
BOĞAZ KEÇESİ
U- CAP
1
K2
20
N10/2005435
O-RING, BOĞAZ
O-RING
1
K2
21
N10/0404597
YATAKLAMA BANDI
GUIDE RING
2
K2
22
N10/7405004
TAMPON KEÇESİ
U-CAP
1
K2
23
N10/5404805
TOZ KEÇESİ
SCRAPER
1
K2
24
S48/90930
BOĞAZ TAMİR TAKIMI
SEAL, KIT, END CAP
1
(K2)
C00001
-

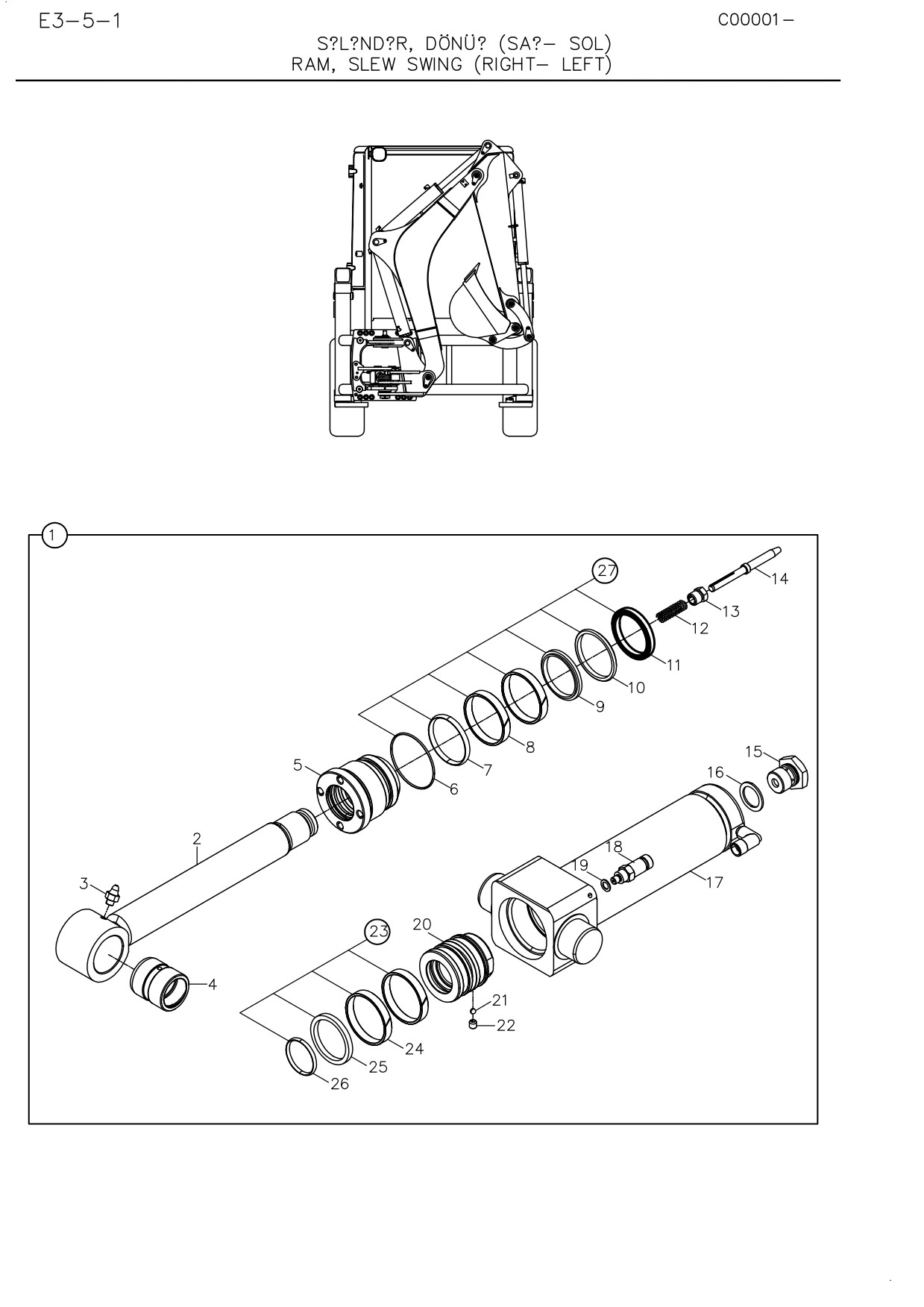

E3-5-1
SĐLĐNDĐR, DÖNÜŞ (SAĞ- SOL)
RAM, SLEW SWING (RIGHT- LEFT)
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
152/21000
SİLİNDİR, DÖNÜŞ
RAM, SLEW / SWING
1
2
208/45115
SİLİNDİR MİLİ
ROD
1
3
N08/1210020
GRESÖRLÜK
GREASE NIPPLE
1
4
802/01044
BURÇ
BUSH
1
5
202/22166
BOĞAZ
CAP, END
1
6
N10/2006426
O-RING
O-RING
1
K1
7
N10/2005835
O-RING
O-RING
1
K1
8
N10/0404597
YATAKLAMA BANDI
GUIDE RING
2
K1
9
N10/5404805
TOZ KEÇESİ
SCRAPER
1
K1
10
N10/7405506
TAMPON KEÇESİ
SEAL
1
K1
11
N10/4405007
BOĞAZ KEÇESİ
U- CAP
1
K1
12
807/02010
YAY
SPRING
1
13
806/11025
YATAK RAKORU
BOLT, PLUNGER
1
14
801/07040
FREN MİLİ
PLUNGER, RESTRICTOR
1
15
814/03009
FREN TAPASI
PLUG
1
16
N03/0000025
PUL
WASHER
1
17
209/22113
SİLİNDİR BORUSU
CYLINDER
1
18
806/24530
NİPEL
ADAPTER
1
19
N03/0000002
PUL
WASHER
1
20
201/21066
PİSTON
PISTON
1
21
N09/9001060
ÇELİK BİLYA
STEEL BALL
1
22
N04/3120674
VİDA M8x8
SCREW M8x8
1
23
S48/80728
PISTON TAMİR TAKIMI
SEAL KIT, PISTON
1
(K2)
24
N10/0586397
PISTON YATAKLAMA BANDI
GUIDE RING, PISTON
2
K2
25
N10/2003935
PISTON ORINGI
O-RING
1
K2
26
N10/3476306
PISTON KEÇESİ
SEAL, PISTON
1
K2
27
S48/90935
BOĞAZ TAMİR TAKIMI
SEAL, KIT, END CAP
1
(K1)
C00001
-

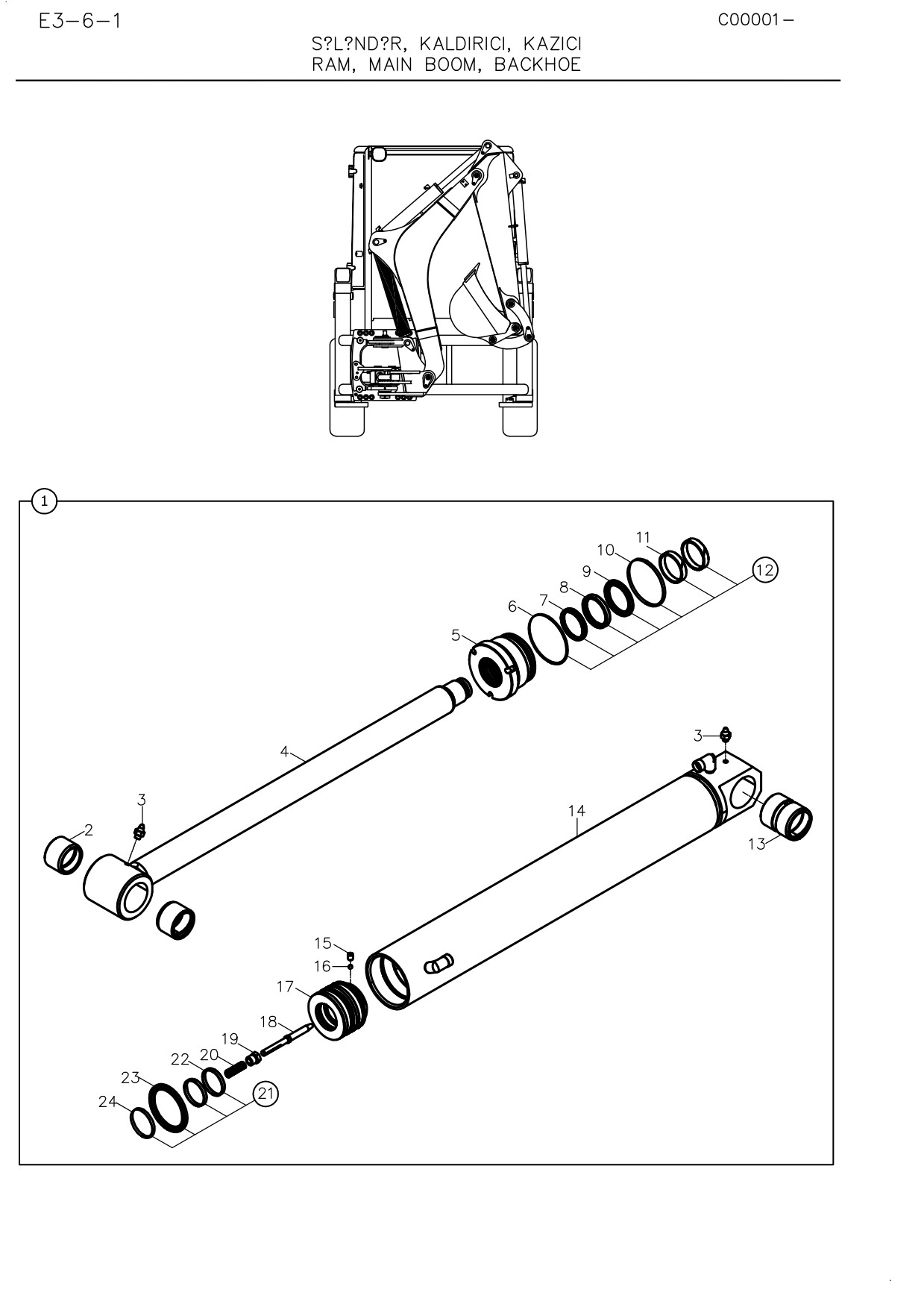

E3-6-1
SĐLĐNDĐR, KALDIRICI, KAZICI
RAM, MAIN BOOM, BACKHOE
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
154/21100
SİLİNDİR, KALDIRICI
RAM, MAIN BOOM
1
2
802/01147
BURÇ
BUSH
2
3
N08/1210020
GRESÖRLÜK
GREASE NIPPLE
2
4
208/45130
SİLİNDİR MİLİ
ROD
1
5
202/22170
BOĞAZ
CAP, END
1
6
N10/2008026
O-RING
O-RING
1
K1
7
N10/5455305
TOZ KEÇESİ
SCRAPER
1
K1
8
N10/7446006
TAMPON KEÇESİ
SEAL
1
K1
9
N10/4455507
BOĞAZ KEÇESİ
U- CAP
1
K1
10
N10/2007535
O-RING
O-RING
1
K1
11
N10/0454097
YATAKLAMA BANDI
GUIDE RING
2
K1
12
S48/90937
BOĞAZ TAMİR TAKIMI
SEAL, KIT, END CAP
1
(K1)
13
802/01231
BURÇ
BUSH
1
14
209/22210
SİLİNDİR BORUSU
CYLINDER
1
15
N04/3120686
VİDA M8x10
SCREW M8x1
1
16
N09/9001060
ÇELİK BİLYA
STEEL BALL
1
17
201/21150
PİSTON
PISTON
1
18
801/07040
FREN MİLİ
PLUNGER, RESTRICTOR
1
19
806/11025
YATAK RAKORU
ADAPTER
1
20
807/02010
YAY
SPRING
1
21
S48/80738
PISTON TAMİR TAKIMI
SEAL KIT, PISTON
1
(K2)
22
N10/1758097
YATAKLAMA BANDI
GUIDE RING
2
K2
23
N10/3648006
PISTON KEÇESİ
SEAL, PISTON
1
K2
24
N10/2004436
ORINGI
O-RING
1
K2
C00001
-

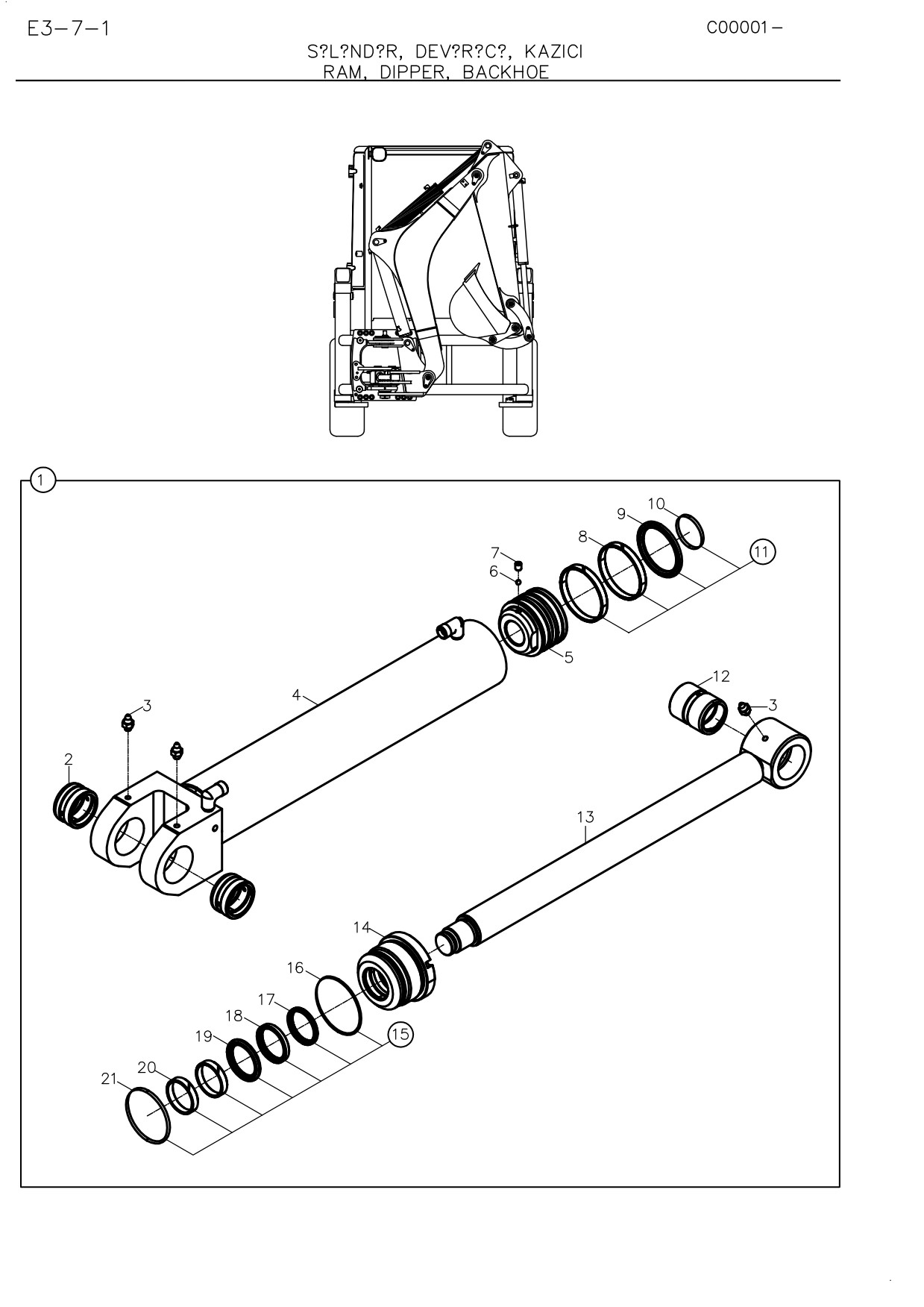

E3-7-1
SĐLĐNDĐR, DEVĐRĐCĐ, KAZICI
RAM, DIPPER, BACKHOE
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
154/21000
SİLİNDİR, DEVİRİCİ
RAM, DIPPER
1
2
802/01229
BURÇ
BUSH
2
3
N08/1210020
GRESÖRLÜK
GREASE NIPPLE
3
4
209/22200
SİLİNDİR BORUSU
CYLINDER
1
5
201/21150
PİSTON
PISTON
1
6
N09/9001060
ÇELİK BİLYA
STEEL BALL
1
7
N04/3120686
VİDA M8x10
SCREW M8x1
1
8
N10/1758097
YATAKLAMA BANDI
GUIDE RING
2
K1
9
N10/3648006
PISTON KEÇESİ
SEAL, PISTON
1
K1
10
N10/2004436
ORINGI
O-RING
1
K1
11
S48/80738
PISTON TAMİR TAKIMI
SEAL KIT, PISTON
1
(K1)
12
802/01168
BURÇ
BUSH
1
13
208/45100
SİLİNDİR MİLİ
ROD
1
14
202/22170
BOĞAZ
CAP, END
1
15
S48/90937
BOĞAZ TAMİR TAKIMI
SEAL, KIT, END CAP
1
(K2)
16
N10/2008026
O-RING
O-RING
1
K2
17
N10/5455305
TOZ KEÇESİ
SCRAPER
1
K2
18
N10/4455507
BOĞAZ KEÇESİ
U- CAP
1
K2
19
N10/7446006
TAMPON KEÇESİ
SEAL
1
K2
20
N10/0454097
YATAKLAMA BANDI
GUIDE RING
2
K2
21
N10/2007535
O-RING
O-RING
1
K2
C00001
-

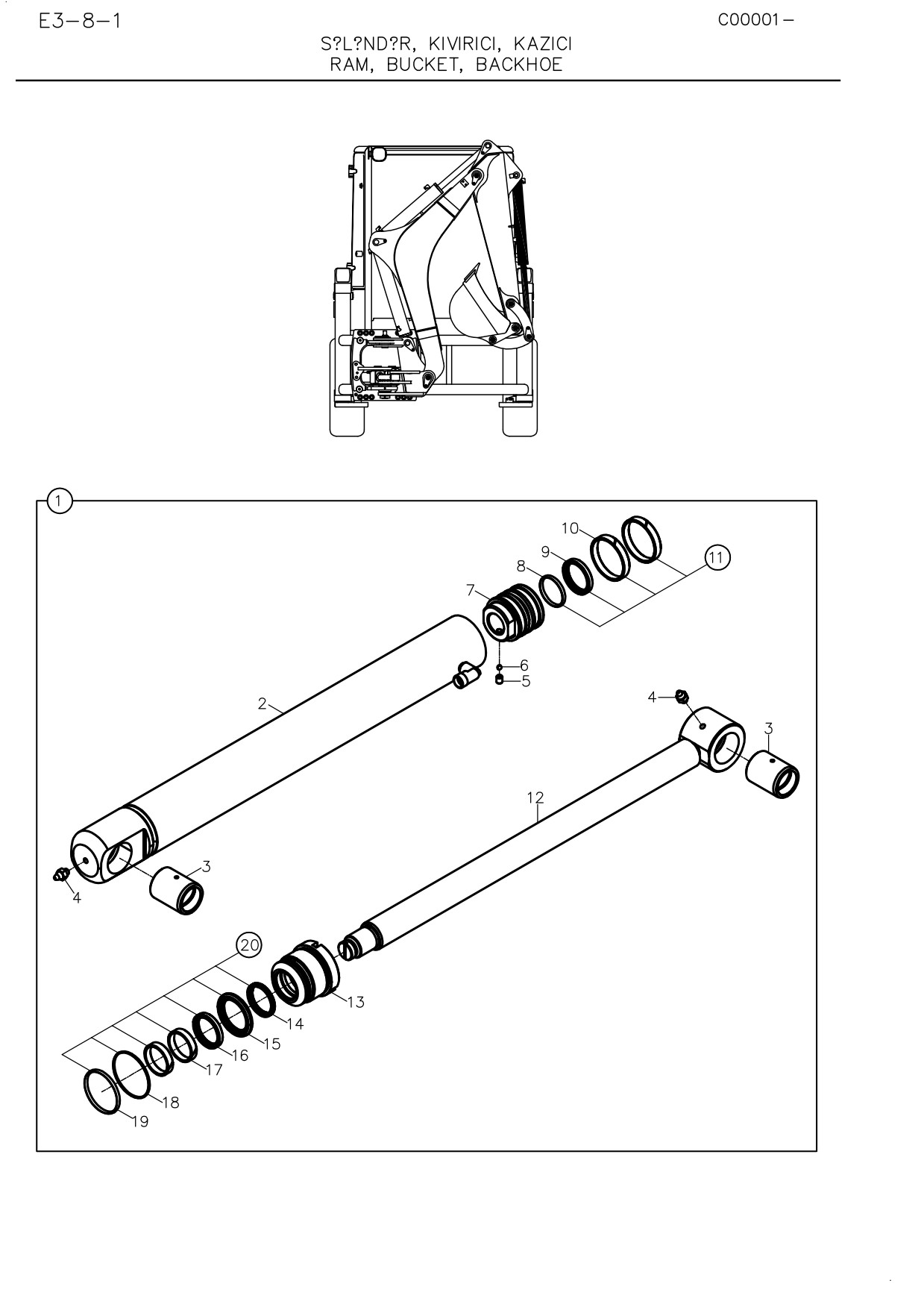

E3-8-1
SĐLĐNDĐR, KIVIRICI, KAZICI
RAM, BUCKET, BACKHOE
NO
PARÇA NO
TANIM
ADET
S.K.
SERİ NO
D.T.
NOT
NO
PART NO
DESCRIPTION
QTY
S.C.
SERIAL NO
ICA
NOTE
1
152/21100
SİLİNDİR, KIVIRICI
RAM, BUCKET
1
2
209/22100
SİLİNDİR BORUSU
CYLINDER
1
3
802/01602
BURÇ
BUSH
2
4
N08/1210020
GRESÖRLÜK
GREASE NIPPLE
2
5
N04/3120686
VİDA M8x10
SCREW M8x10
1
6
N09/9001060
ÇELİK BİLYA
STEEL BALL
1
7
201/21060
PİSTON
PISTON
1
8
N10/2003935
PISTON ORINGI
O-RING
1
K1
9
N10/3476306
PISTON KEÇESİ
SEAL, PISTON
1
K1
10
N10/0586397
PISTON YATAKLAMA BANDI
GUIDE RING, PISTON
2
K1
11
S48/80728
PISTON TAMİR TAKIMI
SEAL KIT, PISTON
1
(K1)
12
208/45110
SİLİNDİR MİLİ
ROD
1
13
202/22065
BOĞAZ
CAP, END
1
14
N10/4405007
BOĞAZ KEÇESİ
U- CAP
1
K2
15
N10/7405506
TAMPON KEÇESİ
SEAL
1
K2
16
N10/5404805
TOZ KEÇESİ
SCRAPER
1
K2
17
N10/0404597
YATAKLAMA BANDI
GUIDE RING
2
K2
18
N10/2006426
O-RING
O-RING
1
K2
19
N10/2005835
O-RING
O-RING
1
K2
20
S48/90935
BOĞAZ TAMİR TAKIMI
SEAL, KIT, END CAP
1
(K2)
