Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 33

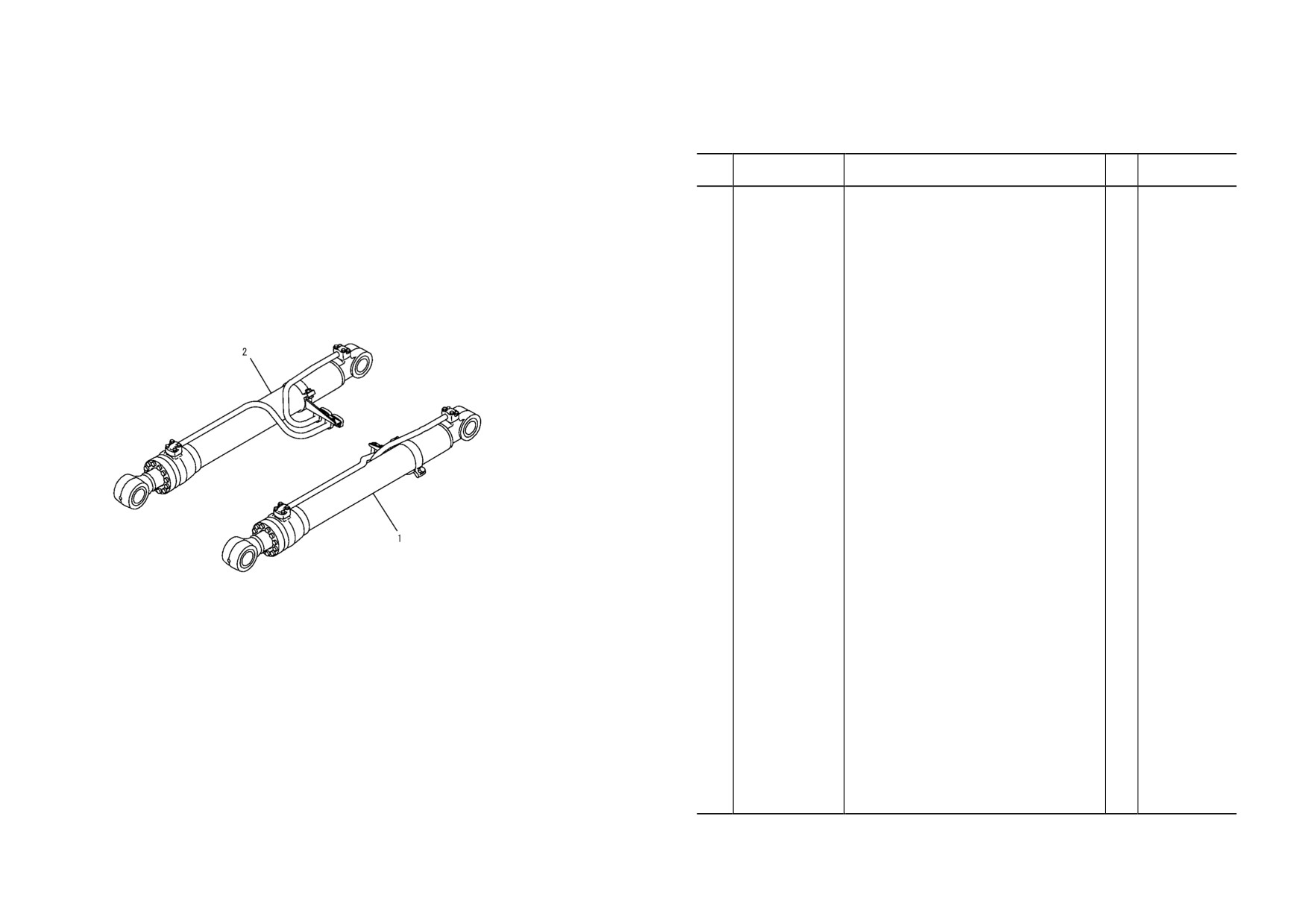

FIG NO. ：T1120-01A0
FIG. T1120-01A0 BOOM CYLINDER
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
(⊙707-01-XZ820)
CYLINDER GROUP, L. H (FINAL COAT)
1
DBB0001~
(⊙707-01-XA960)
CYLINDER GROUP, L. H (UNDER COAT)
1
DBB0001~
2
(⊙707-01-XZ830)
CYLINDER GROUP, R. H (FINAL COAT)
1
DBB0001~
(⊙707-01-XA970)
CYLINDER GROUP, R. H (UNDER COAT)
1
DBB0001~
PW1B895
TO- 24
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 25

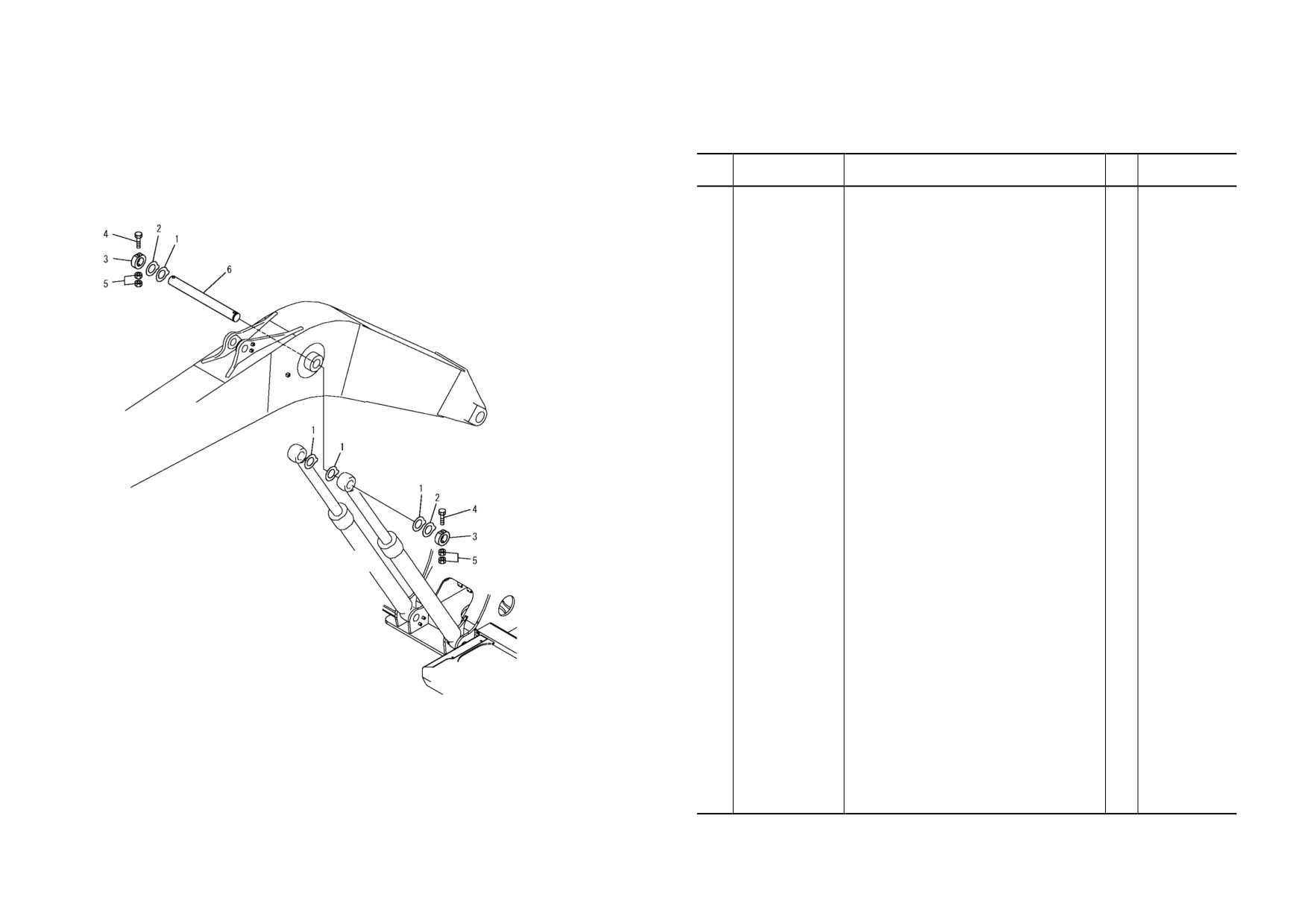

FIG NO. ：T1125-01A0
FIG. T1125-01A0 BOOM PIN
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-70-31430
SPACER, 1.0 MM
4
DBB0001~
2
206-70-71450
SPACER, 2.0 MM
2
DBB0001~
3
20Y-70-11170
PLATE
2
DBB0001~
4
20Y-70-11380
BOLT
2
DBB0001~
5
01580-12016
NUT
4
DBB0001~
6
206-70-51190
PIN
1
DBB0001~
Boom
Boom Cylinder
Revolving Frame
PW1B896
TO- 28
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 29

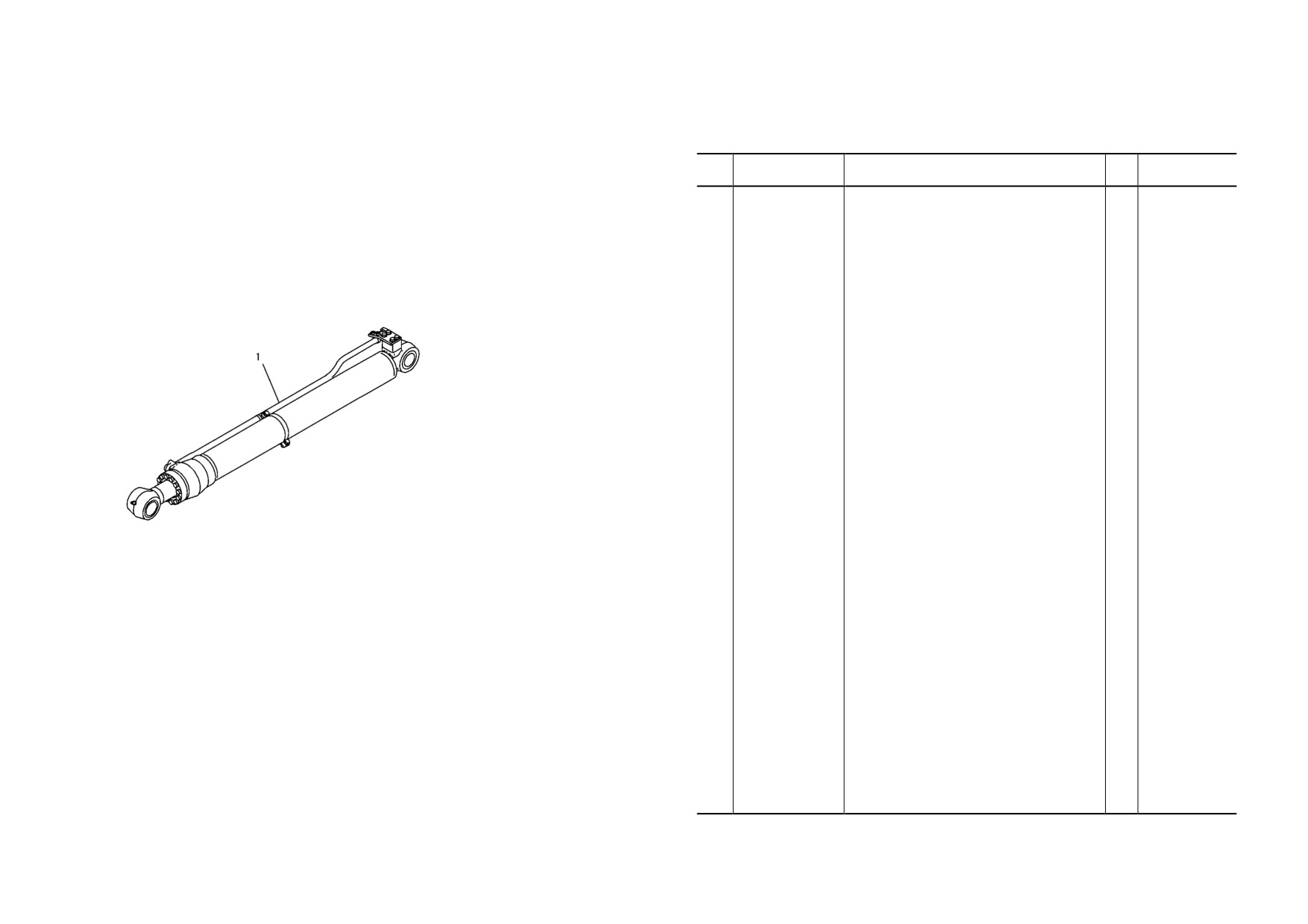

FIG NO. ：T1140-01A0
FIG. T1140-01A0 ARM CYLINDER
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
707-01-XZ841
CYLINDER GROUP (FINAL COAT)
1
DBB0001~
(707-01-XA981)
CYLINDER GROUP (UNDER COAT)
1
DBB0001~
PW1B897
TO- 30
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 31

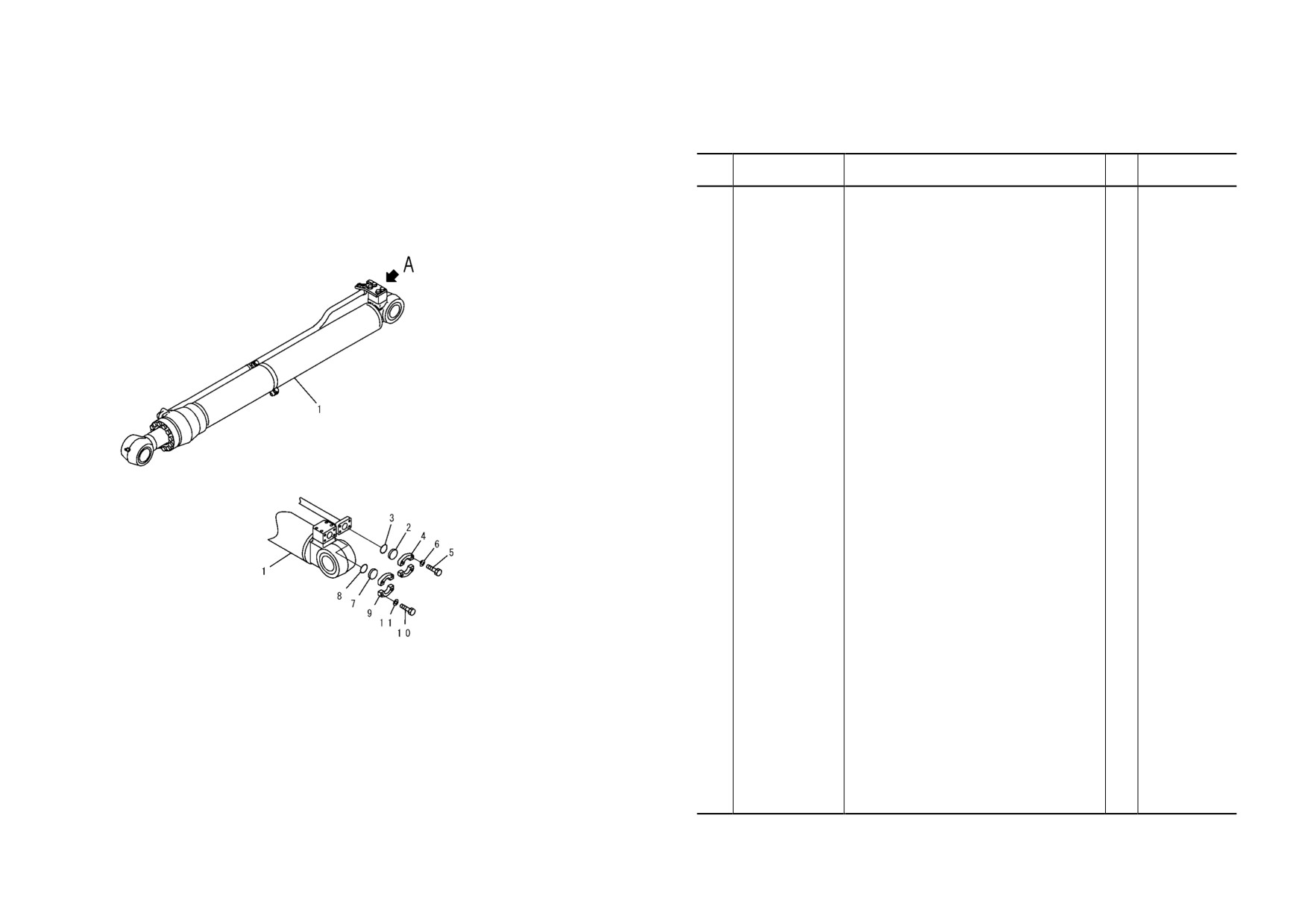

FIG NO. ：T1140-01A2
FIG. T1140-01A2 ARM CYLINDER (BLIND PARTS) (FOR COMPONENT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
707-01-XZ841
CYLINDER GROUP (FINAL COAT)
1
DBB0001~
(707-01-XA981)
CYLINDER GROUP (UNDER COAT)
1
DBB0001~
2
07378-10600
HEAD
1
DBB0001~
3
07000-13025
O-RING
1
DBB0001~
4
07371-30640
FLANGE
2
DBB0001~
5
07372-21035
BOLT
4
DBB0001~
6
01643-51032
WASHER
4
DBB0001~
7
07378-11000
HEAD
1
DBB0001~
8
07000-13032
O-RING
1
DBB0001~
9
07371-31049
FLANGE
2
DBB0001~
10
07372-21035
BOLT
4
DBB0001~
11
01643-51032
WASHER
4
DBB0001~
Detail A
PW1C975
TO- 32
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 33

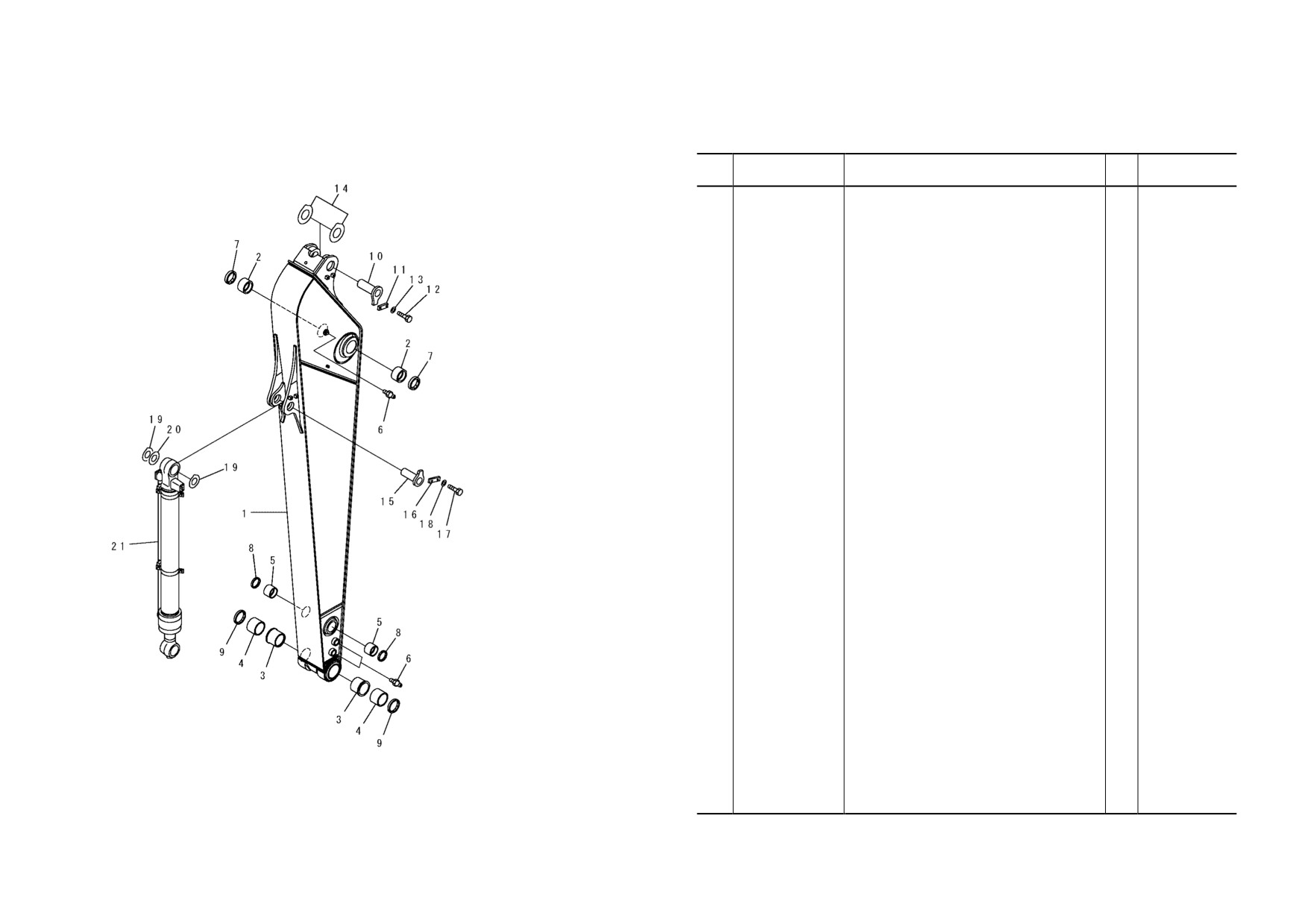

FIG NO. ：T1200-01A0
FIG.
T1200-01A0 ARM (2.9m) (PC200, 200LC-7)
(PC200, 200LC-7)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-70-D3000
ARM
1
DBB0001~
2
20Y-70-31271
BUSHING
2
DBB0001~
3
20Y-70-32321
BUSHING
2
DBB0001~DBB4708
20Y-70-32410
BUSHING
2
DBB4709~
4
20Y-70-32331
BUSHING
2
DBB0001~DBB4708
20Y-70-32410
BUSHING
2
DBB4709~
5
20Y-70-32371
BUSHING
2
DBB0001~DBB4708
205-70-73180
BUSHING
2
DBB4709~
6
07020-00000
FITTING
3
DBB0001~
7
07145-00090
SEAL
2
DBB0001~
8
20Y-70-23220
SEAL
2
DBB0001~
9
20Y-70-23230
SEAL
2
DBB0001~
10
20Y-70-31160
PIN
1
DBB0001~
11
205-70-66580
PLATE
1
DBB0001~
12
01010-81230
BOLT
2
DBB0001~
13
01643-31232
WASHER
2
DBB0001~
14
20Y-70-31430
SPACER, 1.0 MM
2
DBB0001~
15
205-70-71190
PIN
1
DBB0001~
16
205-70-66580
PLATE
1
DBB0001~
17
01010-81230
BOLT
2
DBB0001~
18
01643-31232
WASHER
2
DBB0001~
19
20Y-70-31380
SPACER, 1.0 MM
2
DBB0001~
20
20Y-70-31390
SPACER, 2.0 MM
2
DBB0001~
21
(⊙707-01-XA991)
CYLINDER GROUP (UNDER COAT)
1
DBB0001~DBB4708
(⊙707-01-XG481)
CYLINDER GROUP (UNDER COAT)
1
DBB4709~
PW1C935
TO- 34
PC200, 200LC-7
PC200, 200LC-7
TO- 35
FIG NO. ：T1200-01AA
FIG.
T1200-01AA ARM (2.9m) (PC210, 210LC-7)
(PC210, 210LC-7)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-70-32121
ARM
1
DBF0001~
2
20Y-70-31271
BUSHING
2
DBF0001~
3
20Y-70-32321
BUSHING
2
DBF0001~
4
20Y-70-32331
BUSHING
2
DBF0001~
5
20Y-70-32371
BUSHING
2
DBF0001~
6
07020-00000
FITTING
3
DBF0001~
7
07145-00090
SEAL
2
DBF0001~
8
20Y-70-23220
SEAL
2
DBF0001~
9
20Y-70-23230
SEAL
2
DBF0001~
10
20Y-70-31160
PIN
1
DBF0001~
11
205-70-66580
PLATE
1
DBF0001~
12
01010-81230
BOLT
2
DBF0001~
13
01643-31232
WASHER
2
DBF0001~
14
20Y-70-31430
SPACER, 1.0 MM
2
DBF0001~
15
205-70-71190
PIN
1
DBF0001~
16
205-70-66580
PLATE
1
DBF0001~
17
01010-81230
BOLT
2
DBF0001~
18
01643-31232
WASHER
2
DBF0001~
19
20Y-70-31380
SPACER, 1.0 MM
2
DBF0001~
20
20Y-70-31390
SPACER, 2.0 MM
2
DBF0001~
21
(⊙707-01-XZ851)
CYLINDER GROUP (FINAL COAT)
1
DBF0001~
(⊙707-01-XA991)
CYLINDER GROUP (UNDER COAT)
1
DBF0001~
PW1C935
TO- 35a
PC210, 210LC-7
PC210, 210LC-7
TO- 35b

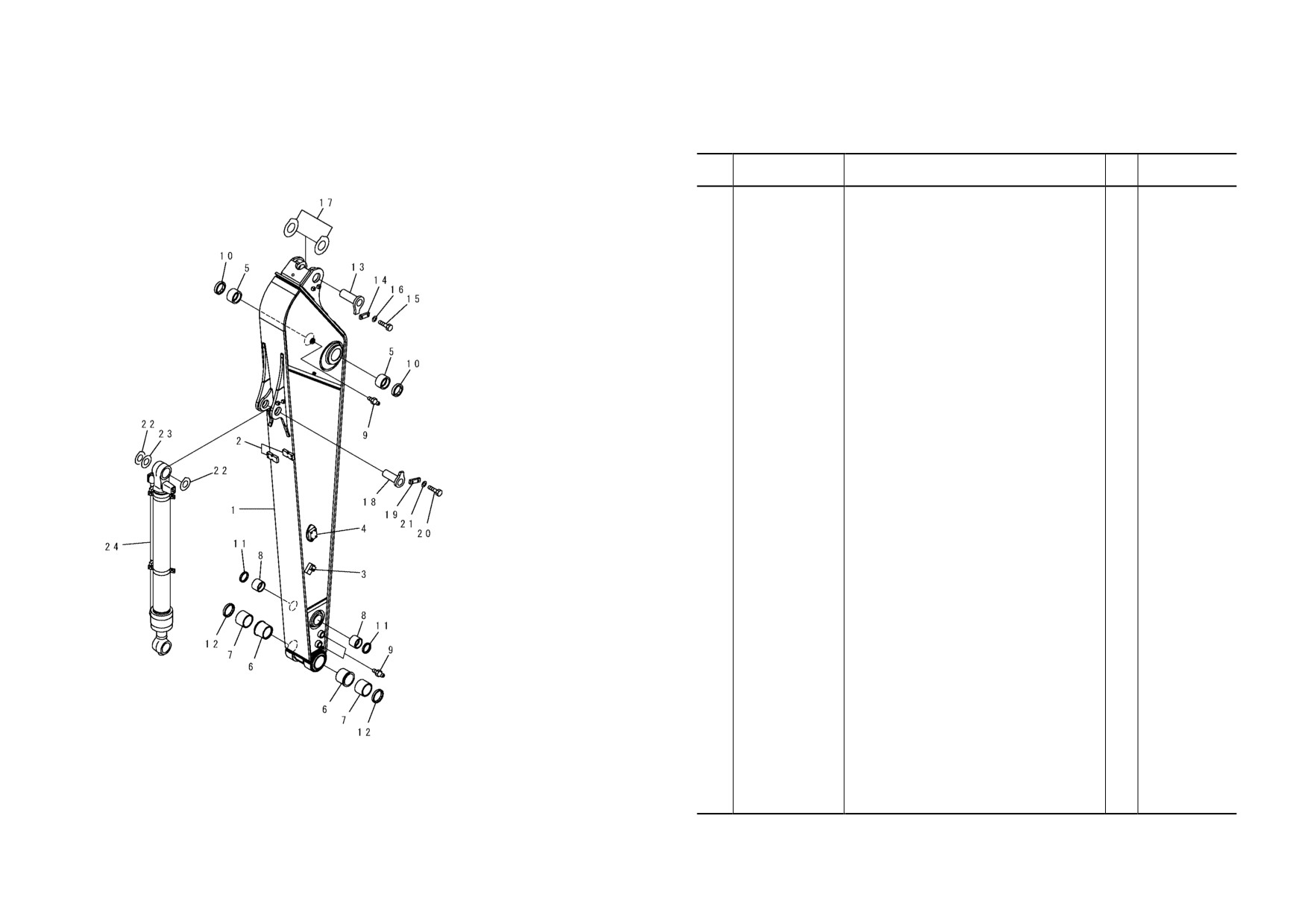

FIG NO. ：T1200-01A1
FIG. T1200-01A1 ARM (2.9M) (FOR ADDITIONAL PIPING) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
20Y-970-7121
ARM
1
DBB0001~
1
☆
. ARM
1
DBB0001~
2
20Y-70-32E50
. SEAT (WELDED)
2
DBB0001~
3
20Y-970-3560
. BRACKET (WELDED)
2
DBB0001~
4
20Y-970-3570
. BRACKET (WELDED)
2
DBB0001~
5
20Y-70-31271
BUSHING
2
DBB0001~
6
20Y-70-32321
BUSHING
2
DBB0001~
7
20Y-70-32331
BUSHING
2
DBB0001~
8
20Y-70-32371
BUSHING
2
DBB0001~
9
07020-00000
FITTING
3
DBB0001~
10
07145-00090
SEAL
2
DBB0001~
11
20Y-70-23220
SEAL
2
DBB0001~
12
20Y-70-23230
SEAL
2
DBB0001~
13
20Y-70-31160
PIN
1
DBB0001~
14
205-70-66580
PLATE
1
DBB0001~
15
01010-81230
BOLT
2
DBB0001~
16
01643-31232
WASHER
2
DBB0001~
17
20Y-70-31430
SPACER, 1.0 MM
2
DBB0001~
18
205-70-71190
PIN
1
DBB0001~
19
205-70-66580
PLATE
1
DBB0001~
20
01010-81230
BOLT
2
DBB0001~
21
01643-31232
WASHER
2
DBB0001~
22
20Y-70-31380
SPACER, 1.0 MM
2
DBB0001~
23
20Y-70-31390
SPACER, 2.0 MM
2
DBB0001~
24
(⊙707-01-XZ851)
CYLINDER GROUP (FINAL COAT)
1
DBB0001~
(⊙707-01-XA991)
CYLINDER GROUP (UNDER COAT)
1
DBB0001~
PW1C003
TO- 36
PC210, 200(LC)-7
PC210, 200(LC)-7
TO- 37

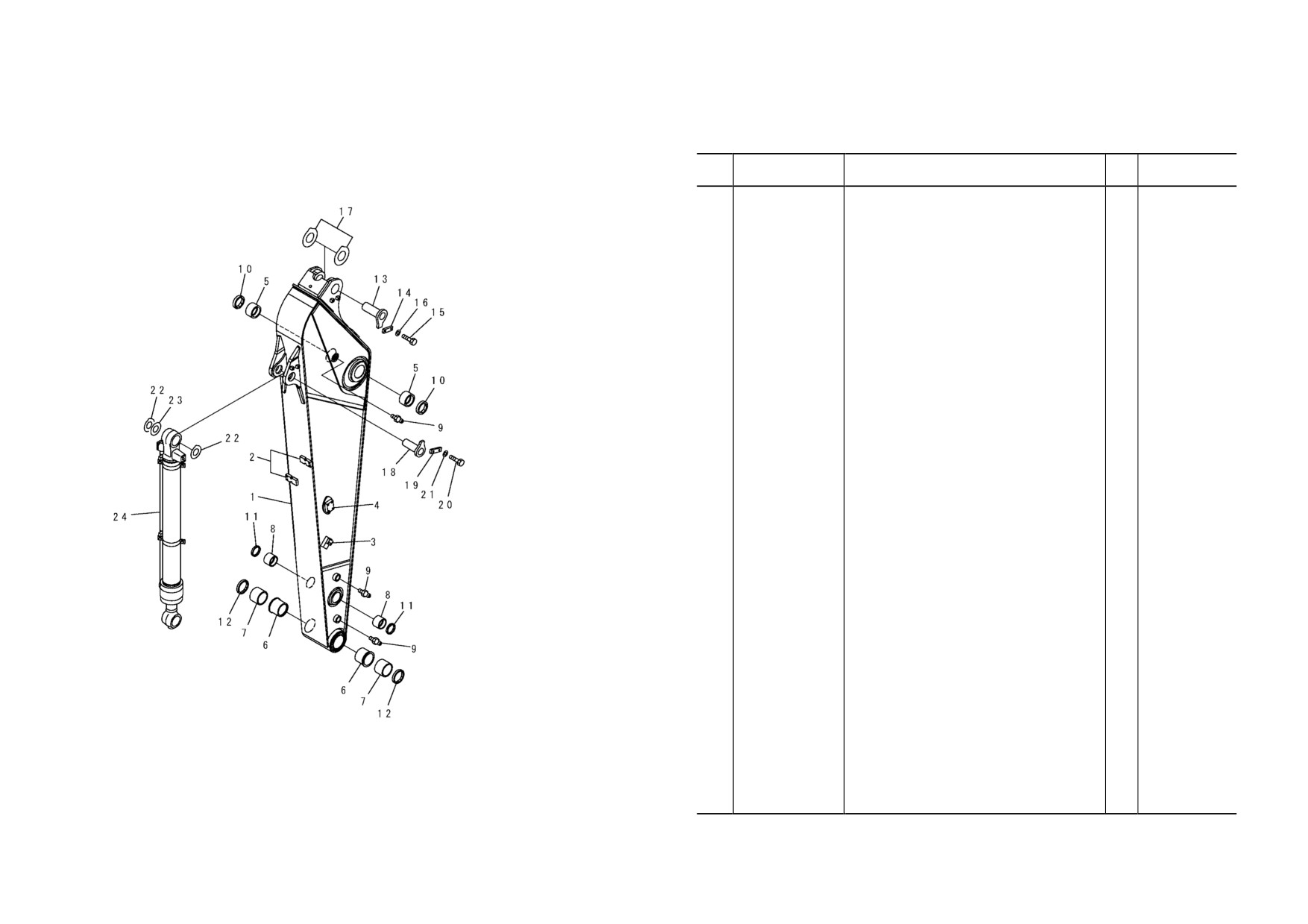

FIG NO. ：T1200-01A3
FIG. T1200-01A3 ARM (2.4M) (FOR ADDITIONAL PIPING) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
20Y-970-7151
ARM
1
DBB0001~
1
☆
. ARM
1
DBB0001~
2
20Y-70-32E50
. SEAT (WELDED)
2
DBB0001~
3
20Y-970-3560
. BRACKET (WELDED)
2
DBB0001~
4
20Y-970-3570
. BRACKET (WELDED)
2
DBB0001~
5
20Y-70-31271
BUSHING
2
DBB0001~
6
20Y-70-32321
BUSHING
2
DBB0001~
7
20Y-70-32331
BUSHING
2
DBB0001~
8
20Y-70-32371
BUSHING
2
DBB0001~
9
07020-00000
FITTING
2
DBB0001~
10
07145-00090
SEAL
2
DBB0001~
11
20Y-70-23220
SEAL
2
DBB0001~
12
20Y-70-23230
SEAL
2
DBB0001~
13
20Y-70-31160
PIN
1
DBB0001~
14
205-70-66580
PLATE
1
DBB0001~
15
01010-81230
BOLT
2
DBB0001~
16
01643-31232
WASHER
2
DBB0001~
17
20Y-70-31430
SPACER, 1.0 MM
2
DBB0001~
18
205-70-71190
PIN
1
DBB0001~
19
205-70-66580
PLATE
1
DBB0001~
20
01010-81230
BOLT
2
DBB0001~
21
01643-31232
WASHER
2
DBB0001~
22
20Y-70-31380
SPACER, 1.0 MM
2
DBB0001~
23
20Y-70-31390
SPACER, 2.0 MM
2
DBB0001~
24
(⊙707-01-XZ851)
CYLINDER GROUP (FINAL COAT)
1
DBB0001~
(⊙707-01-XA991)
CYLINDER GROUP (UNDER COAT)
1
DBB0001~
PW1C005
TO- 38
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 39

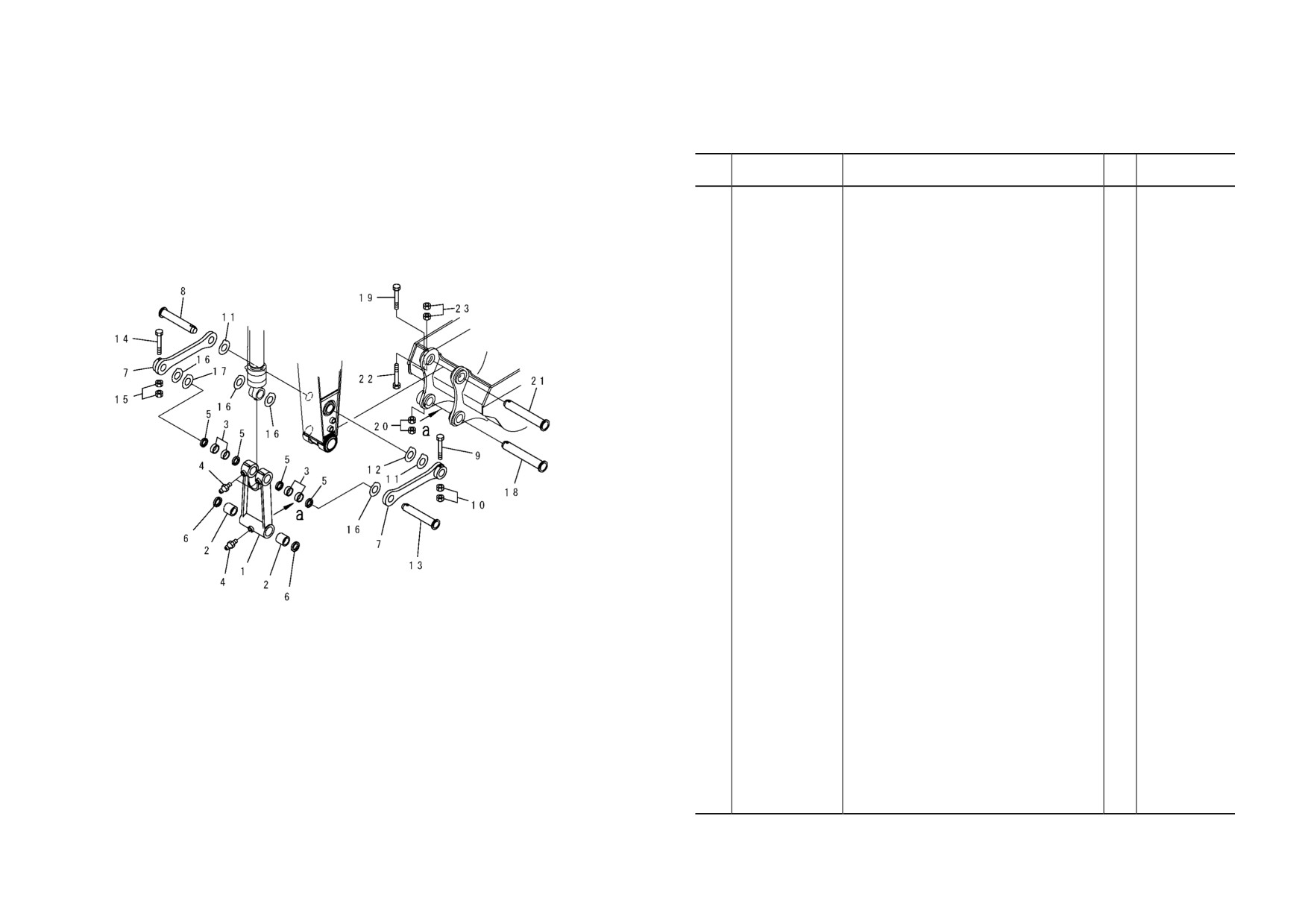

FIG NO. ：T1200-02A0
FIG. T1200-02A0 ARM (2.9M) (BUCKET LINK)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-70-33111
LINK
1
DBB0001~
2
20Y-70-32351
BUSHING
2
DBB0001~DBB4708
21K-70-12161
BUSHING
2
DBB4709~
3
20Y-70-32361
BUSHING
4
DBB0001~DBB4708
205-70-73180
BUSHING
4
DBB4709~
4
07020-00000
FITTING
3
DBB0001~
Bucket Cylinder
5
20Y-70-23220
SEAL
4
DBB0001~
6
20Y-70-23230
SEAL
2
DBB0001~
Bucket
Arm
7
205-70-73130
LINK
2
DBB0001~
8
20U-70-21191
PIN
1
DBB0001~
9
20Y-70-D3251
BOLT
1
DBB0001~
10
01580-12016
NUT
2
DBB0001~
11
20Y-70-31450
SPACER, 0.8 MM
1
DBB0001~DBB4708
20Y-70-11320
SPACER, 0.8 MM
1
DBB4709~
12
20Y-70-31460
SPACER, 1.5 MM
3
DBB0001~DBB4708
20Y-70-11330
SPACER, 1.5 MM
3
DBB4709~
13
22U-70-21191
PIN
1
DBB0001~
14
205-70-73190
BOLT
1
DBB0001~
15
01580-12016
NUT
2
DBB0001~
16
20Y-70-31440
SPACER, 0.8 MM
1
DBB0001~DBB4708
20Y-70-11320
SPACER, 0.8 MM
1
DBB4709~
17
20Y-70-31480
SPACER, 1.5 MM
4
DBB0001~DBB4708
20Y-70-11330
SPACER, 1.5 MM
4
DBB4709~
18
205-70-73270
PIN
1
DBB0001~
19
20Y-70-D3251
BOLT
1
DBB0001~
20
01580-12016
NUT
2
DBB0001~
21
205-70-73270
PIN
1
DBB0001~
22
20Y-70-D3261
BOLT
1
DBB0001~
PW1C936
23
01580-12016
NUT
2
DBB0001~
TO- 40
PC200, 200(LC)-7
PC200, 200(LC)-7
TO- 41
FIG NO. ：T1200-02A0
FIG. T1200-02A0 ARM (2.9M) (BUCKET LINK)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-70-D2270
LINK
1
DBB0001~
2
20Y-70-32351
BUSHING
2
DBB0001~
3
20Y-70-32361
BUSHING
4
DBB0001~
4
07020-00000
FITTING
3
DBB0001~
5
20Y-70-23220
SEAL
4
DBB0001~
6
20Y-70-23230
SEAL
2
DBB0001~
Bucket Cylinder
7
205-70-73130
LINK
2
DBB0001~
8
22U-70-21191
PIN
1
DBB0001~
Bucket
Arm
9
205-70-73190
BOLT
1
DBB0001~DBB4708
20Y-70-D3251
BOLT
1
DBB4709~
10
01580-12016
NUT
2
DBB0001~
11
20Y-70-31450
SPACER, 1.0 MM
2
DBB0001~
12
20Y-70-31460
SPACER, 2.0 MM
1
DBB0001~
13
22U-70-21191
PIN
1
DBB0001~
14
205-70-73190
BOLT
1
DBB0001~DBB4708
20Y-70-D3251
BOLT
1
DBB4709~
15
01580-12016
NUT
2
DBB0001~
16
20Y-70-31440
SPACER, 1.0 MM
4
DBB0001~
17
20Y-70-31480
SPACER, 2.0 MM
1
DBB0001~
18
205-70-73270
PIN
1
DBB0001~
19
205-70-73190
BOLT
1
DBB0001~DBB4708
20Y-70-D3251
BOLT
1
DBB4709~
20
01580-12016
NUT
2
DBB0001~
21
205-70-73270
PIN
1
DBB0001~
22
362-46-11210
BOLT
1
DBB0001~DBB4708
20Y-70-D3261
BOLT
1
DBB4709~
23
01580-12016
NUT
2
DBB0001~
PW1C936
TO- 42
PC210, 210LC-7
PC210, 210LC-7
TO- 43
