Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 32
WORK EQUIPMENT

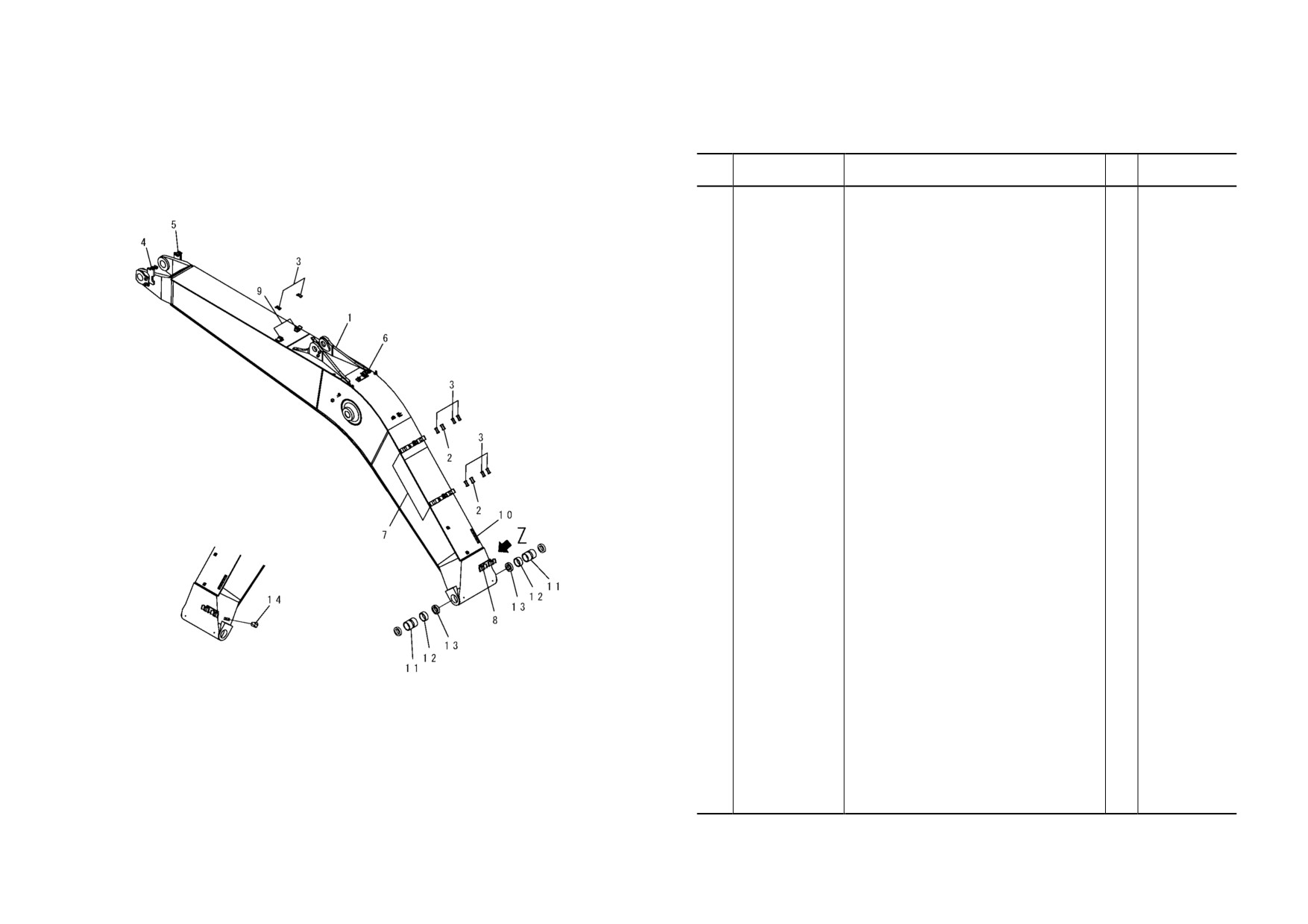

FIG NO. ：T1110-01A1
FIG. T1110-01A1 BOOM
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
20Y-70-D3200
BOOM
1
DBB0001~DBB4708
20Y-70-D3201
BOOM
1
DBB4709~
1
20Y-70-D3131
. BOOM
1
DBB0001~DBB4708
20Y-70-D3132
. BOOM
1
DBB4709~
2
205-62-73430
. SEAT
2
DBB0001~DBB4708
3
20Y-62-13760
. SEAT
8
DBB0001~DBB4708
4
20Y-62-45150
. BRACKET (WELDED)
1
DBB0001~
5
20Y-62-45160
. BRACKET (WELDED)
1
DBB0001~
6
20Y-62-45170
. BRACKET (WELDED)
1
DBB0001~
7
20Y-62-45181
. BRACKET (WELDED)
2
DBB0001~DBB4708
20Y-62-45182
. BRACKET (WELDED)
2
DBB4709~
8
20Y-62-45210
. BRACKET (WELDED)
1
DBB0001~
9
20Y-62-45371
. BRACKET (WELDED)
2
DBB0001~
10
20Y-70-11651
. SEAT(WELDED)
1
DBB0001~
11
20Y-70-31261
BUSHING
2
DBB0001~
12
20Y-70-31490
BUSHING
2
DBB0001~
13
07145-00090
SEAL
2
DBB0001~
14
07049-01215
PLUG
2
DBB0001~DBB4708
View Z
PW1B891
TO- 2
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 3

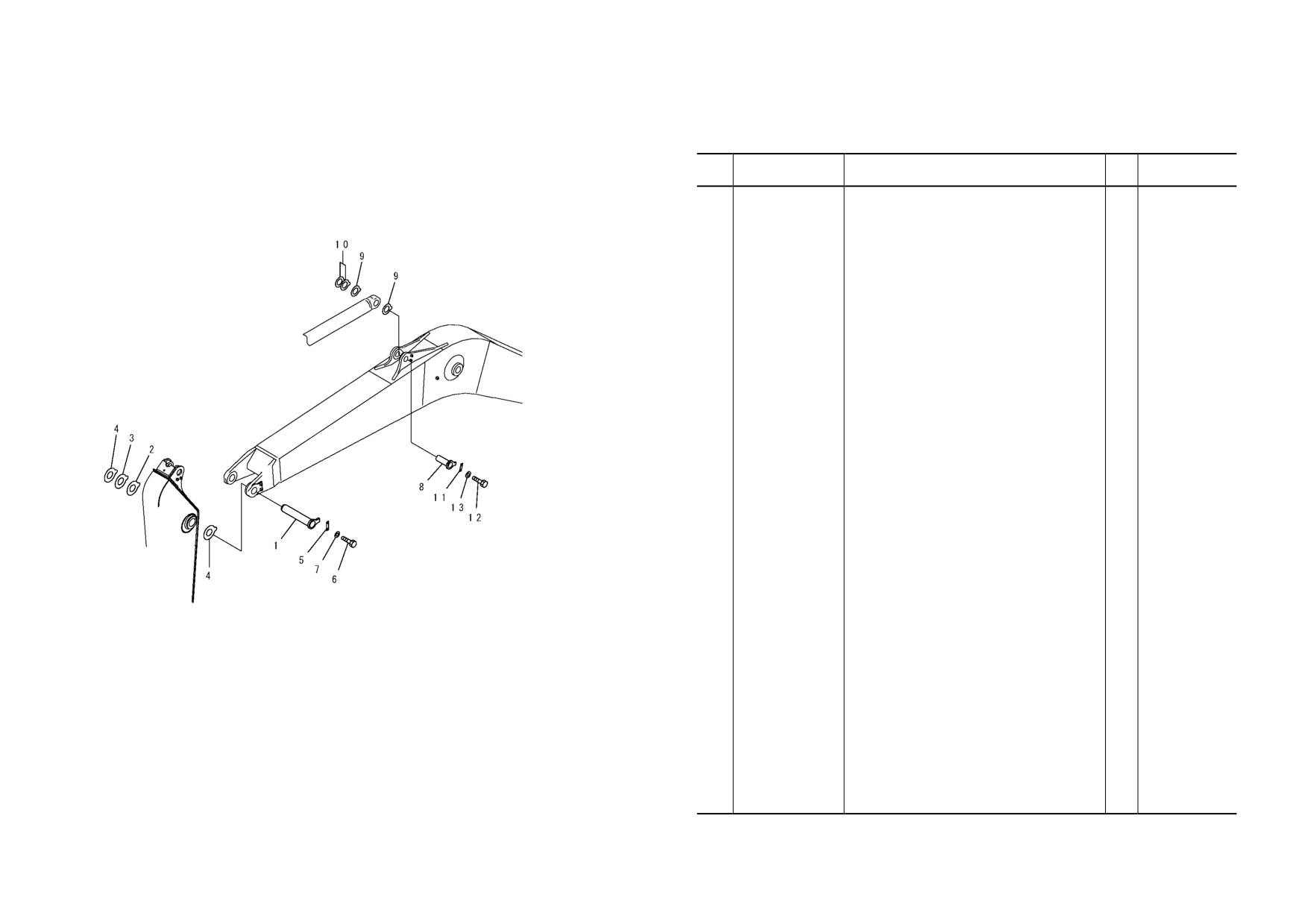

FIG NO. ：T1110-02A0
FIG. T1110-02A0 BOOM (TOP PIN AND BOOTOM PIN)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-70-31251
PIN
1
DBB0001~DBB4708
20Y-70-31252
PIN
1
DBB4709~
2
20Y-70-31521
SPACER, 2.5 MM
1
DBB0001~
3
20Y-70-31530
SPACER, 3.0 MM
1
DBB0001~
4
20Y-70-31371
SPACER, 2.0 MM
2
DBB0001~
Arm Cylinder
5
205-70-71310
PLATE
1
DBB0001~DBB4708
205-70-71312
PLATE
1
DBB4709~
6
01010-81235
BOLT
2
DBB0001~
7
01643-31232
WASHER
2
DBB0001~
8
20Y-70-11180
PIN
1
DBB0001~
9
20Y-70-31430
SPACER, 1.0 MM
2
DBB0001~
10
206-70-71450
SPACER, 2.0 MM
2
DBB0001~
11
205-70-66580
PLATE
1
DBB0001~
12
01010-81230
BOLT
2
DBB0001~
13
01643-31232
WASHER
2
DBB0001~
Arm
PW1B892
TO- 8
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 9

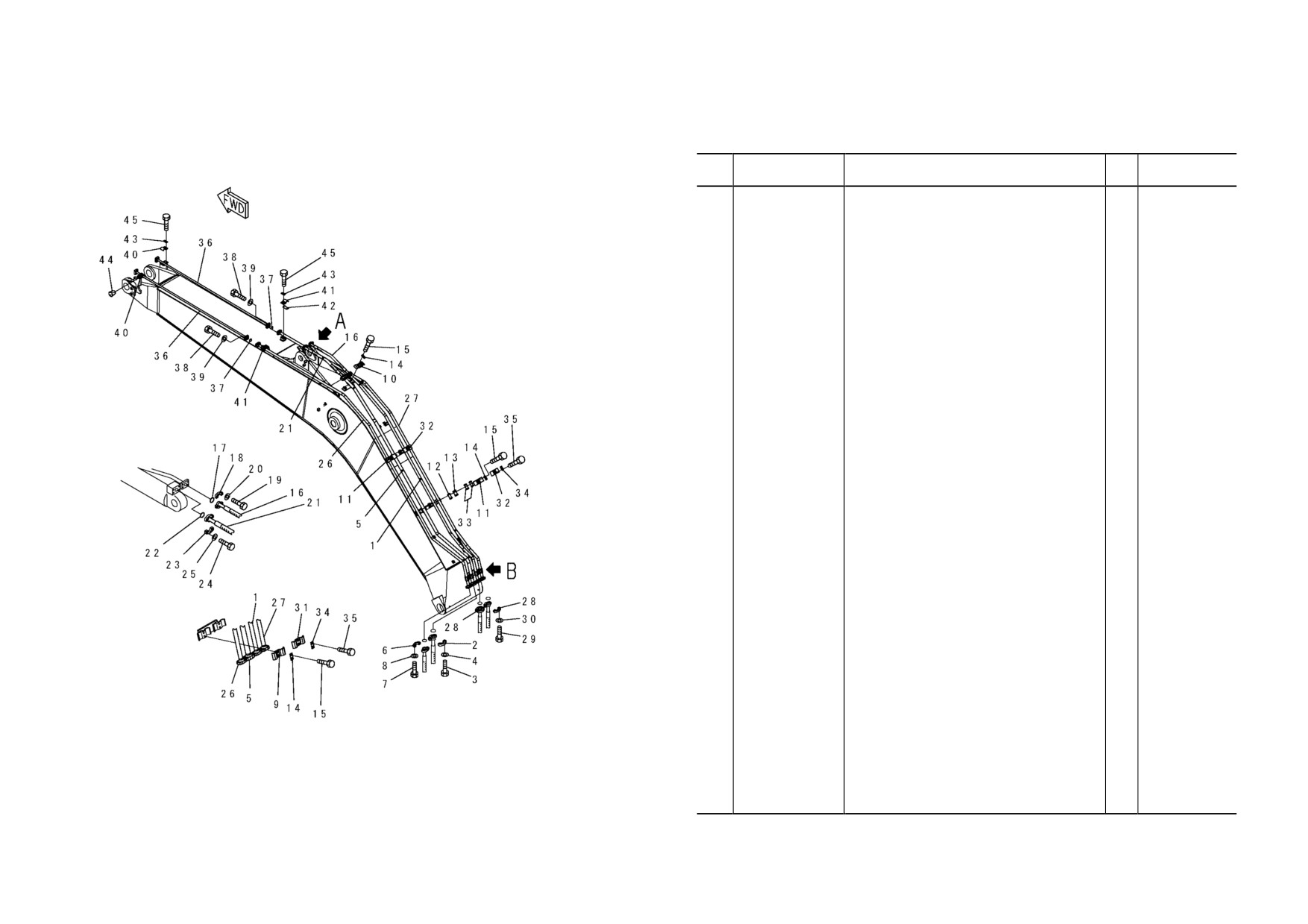

FIG NO. ：T1110-03A0
FIG. T1110-03A0 BOOM (ARM CYLINDER LINE AND BUCKET CYLINDER LINE)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-62-45120
TUBE
1
DBB0001~
2
07371-30640
FLANGE
2
DBB0001~
3
07372-21035
BOLT
4
DBB0001~
4
01643-51032
WASHER
4
DBB0001~
5
20Y-62-45110
TUBE
1
DBB0001~
6
07371-31049
FLANGE
2
DBB0001~
7
07372-21035
BOLT
4
DBB0001~
8
01643-51032
WASHER
4
DBB0001~
9
20Y-62-13690
CLAMP
1
DBB0001~
10
20Y-62-13720
CLAMP
1
DBB0001~
11
20Y-62-13740
CLAMP
2
DBB0001~DBB4708
20Y-62-13730
CLAMP
2
DBB4709~
12
20Y-62-13760
. SEAT
2
DBB0001~DBB4708
20Y-62-13761
. SEAT
2
DBB4709~
13
205-62-73430
. SEAT
2
DBB0001~DBB4708
205-62-73431
. SEAT
2
DBB4709~
14
20Y-62-13450
PLATE
4
DBB0001~
Arm Cylinder
15
01010-81230
BOLT
8
DBB0001~
16
07074-00607
HOSE
1
DBB0001~
17
07000-13025
O-RING
2
DBB0001~
18
07371-30640
FLANGE
4
DBB0001~
Detail A
19
07372-21035
BOLT
8
DBB0001~
20
01643-51032
WASHER
8
DBB0001~
21
07074-01007
HOSE
1
DBB0001~
22
07000-13032
O-RING
2
DBB0001~
23
07371-31049
FLANGE
4
DBB0001~
24
07372-21035
BOLT
8
DBB0001~
25
01643-51032
WASHER
8
DBB0001~
26
20Y-62-45130
TUBE
1
DBB0001~
27
20Y-62-45140
TUBE
1
DBB0001~
28
07371-30640
FLANGE
4
DBB0001~
Detail B
29
07372-21035
BOLT
8
DBB0001~
30
01643-51032
WASHER
8
DBB0001~
31
20Y-62-13710
CLAMP
1
DBB0001~
PW1B893
32
20Y-62-13230
CLAMP
2
DBB0001~DBB4708
20Y-62-13190
CLAMP
2
DBB4709
33
20Y-62-13760
. SEAT
2
DBB0001~DBB4708
20Y-62-13761
. SEAT
2
DBB4709
34
20Y-62-13450
PLATE
3
DBB0001~
35
01010-81230
BOLT
6
DBB0001~
TO- 10
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 11
FIG NO. ：T1110-03A0
FIG. T1110-03A0 BOOM (ARM CYLINDER LINE AND BUCKET CYLINDER LINE)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
36
20Y-62-13580
TUBE
2
DBB0001~
37
07000-13030
O-RING
2
DBB0001~
38
07372-21035
BOLT
8
DBB0001~
39
01643-51032
WASHER
8
DBB0001~
40
20Y-62-13650
CLAMP
2
DBB0001~
41
20Y-62-13220
CLAMP
2
DBB0001~DBB4708
20Y-62-13180
CLAMP
2
DBB4709~
42
20Y-62-13760
. SEAT
1
DBB0001~DBB4708
20Y-62-13761
. SEAT
1
DBB4709~
43
20Y-62-13450
PLATE
4
DBB0001~
44
07049-01215
PLUG
4
DBB0001~
45
01010-81230
BOLT
8
DBB0001~
Arm Cylinder
Detail A
Detail B
PW1B893
TO- 12
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 13

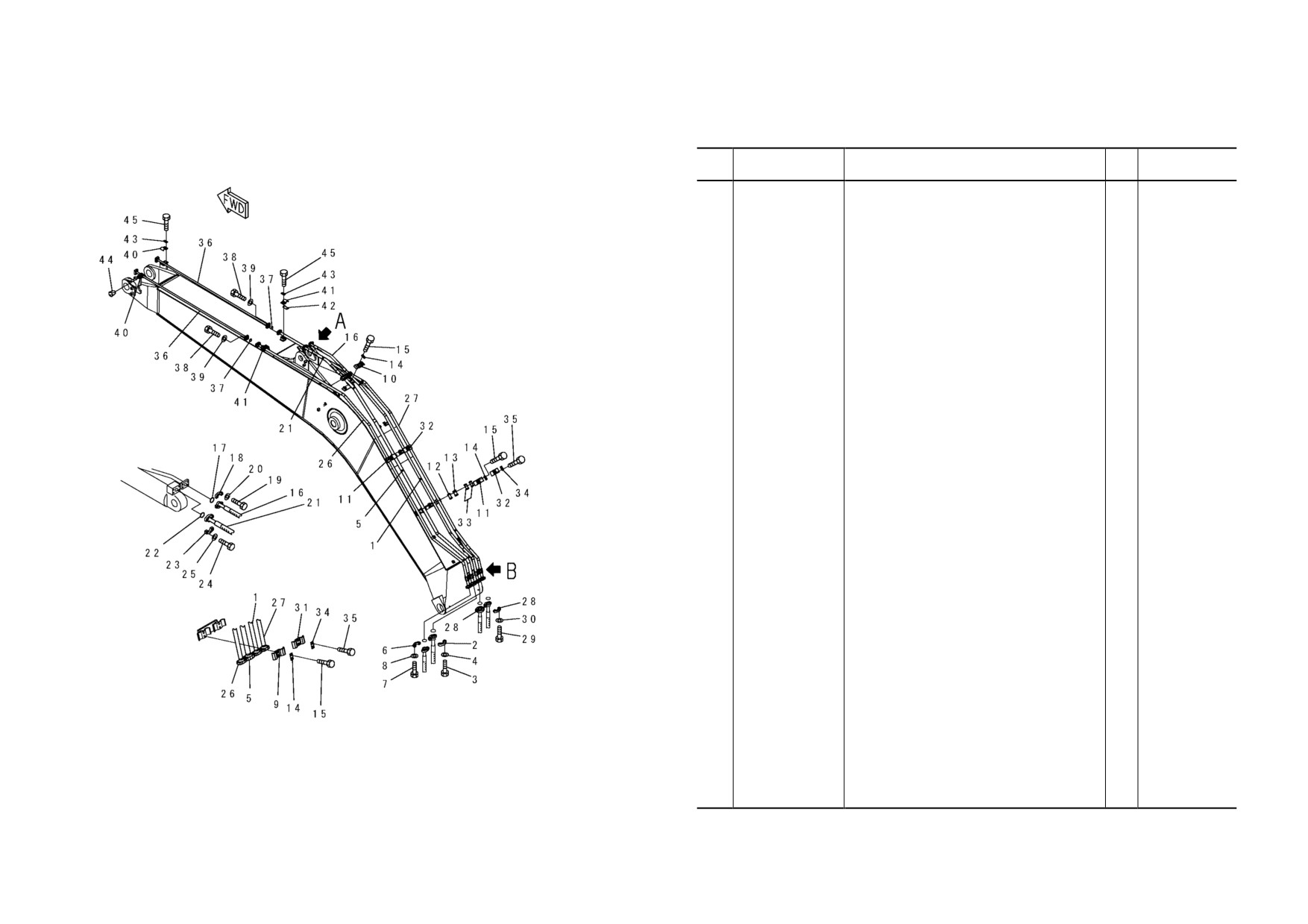

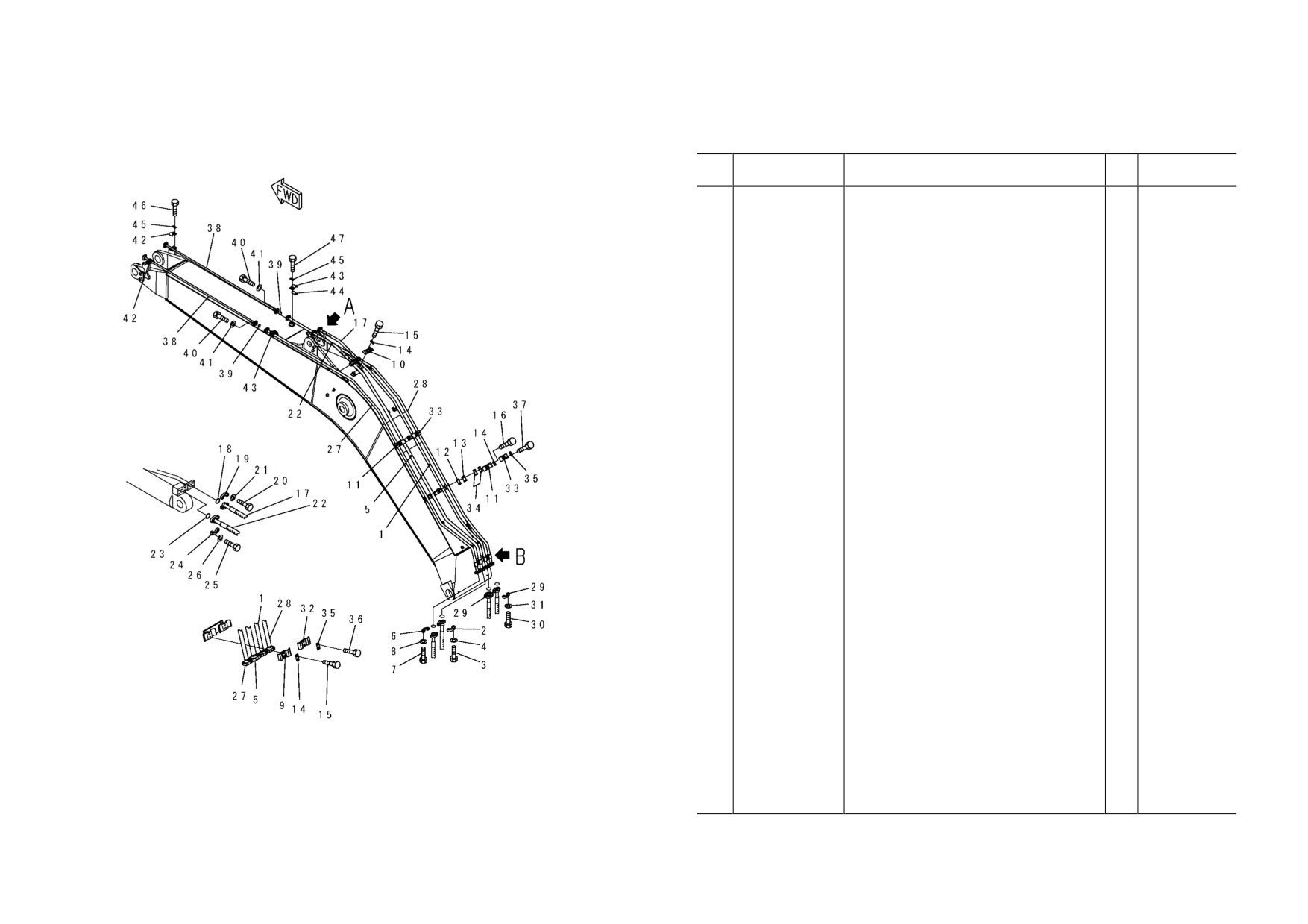

FIG NO. ：T1110-03A1
FIG. T1110-03A1 BOOM (FOR ADDITIONAL PIPING) (ARM CYLINDER LINE AND BUCKET CYLINDER LINE) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-62-45120
TUBE
1
DBB0001~
2
07371-30640
FLANGE
2
DBB0001~
3
07372-21035
BOLT
4
DBB0001~
4
01643-51032
WASHER
4
DBB0001~
5
20Y-62-45110
TUBE
1
DBB0001~
6
07371-31049
FLANGE
2
DBB0001~
7
07372-21035
BOLT
4
DBB0001~
8
01643-51032
WASHER
4
DBB0001~
9
20Y-62-13690
CLAMP
1
DBB0001~
10
20Y-62-13720
CLAMP
1
DBB0001~
11
20Y-62-13740
CLAMP
2
DBB0001~
12
20Y-62-13760
. SEAT
1
DBB0001~
13
205-62-73430
. SEAT
1
DBB0001~
14
20Y-62-13450
PLATE
4
DBB0001~
15
01010-81230
BOLT
4
DBB0001~
16
01010-81285
BOLT
4
DBB0001~
17
07074-00607
HOSE
1
DBB0001~
Arm Cylinder
18
07000-13025
O-RING
2
DBB0001~
19
07371-30640
FLANGE
4
DBB0001~
20
07372-21035
BOLT
8
DBB0001~
21
01643-51032
WASHER
8
DBB0001~
22
07074-01007
HOSE
1
DBB0001~
Detail A
23
07000-13032
O-RING
2
DBB0001~
24
07371-31049
FLANGE
4
DBB0001~
25
07372-21035
BOLT
8
DBB0001~
26
01643-51032
WASHER
8
DBB0001~
27
20Y-62-45130
TUBE
1
DBB0001~
28
20Y-62-45140
TUBE
1
DBB0001~
29
07371-30640
FLANGE
4
DBB0001~
30
07372-21035
BOLT
8
DBB0001~
31
01643-51032
WASHER
8
DBB0001~
32
20Y-62-13710
CLAMP
1
DBB0001~
Detail B
33
20Y-62-13230
CLAMP
2
DBB0001~
34
20Y-62-13760
. SEAT
1
DBB0001~
35
20Y-62-13450
PLATE
3
DBB0001~
PW1B985
36
01010-81230
BOLT
2
DBB0001~
37
01010-81285
BOLT
4
DBB0001~
38
20Y-62-13580
TUBE
2
DBB0001~
39
07000-13030
O-RING
2
DBB0001~
40
07372-21035
BOLT
8
DBB0001~
41
01643-51032
WASHER
8
DBB0001~
42
20Y-62-13650
CLAMP
2
DBB0001~
TO- 14
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 15
FIG NO. ：T1110-03A1
FIG. T1110-03A1 BOOM (FOR ADDITIONAL PIPING) (ARM CYLINDER LINE AND BUCKET CYLINDER LINE) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
43
20Y-62-13220
CLAMP
2
DBB0001~
44
20Y-62-13760
. SEAT
1
DBB0001~
45
20Y-62-13450
PLATE
4
DBB0001~
46
01010-81230
BOLT
4
DBB0001~
47
01010-81285
BOLT
4
DBB0001~
Arm Cylinder
Detail A
Detail B
PW1B985
TO- 16
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 17

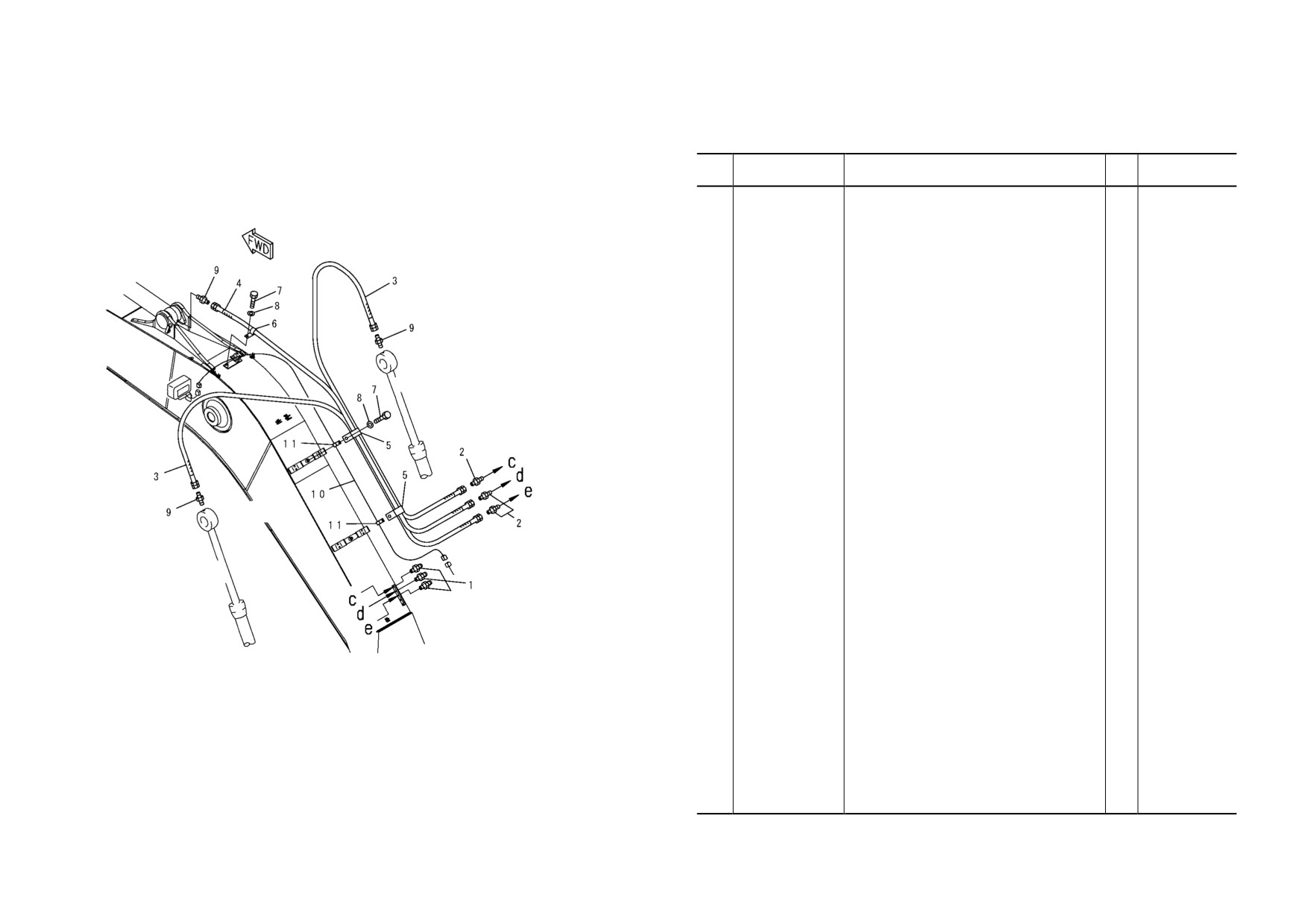

FIG NO. ：T1110-04A0A
FIG. T1110-04A0A BOOM (LUBRICATING LINE AND WORKING LAMP HARNESS)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
07020-00000
FITTING
3
DBB0001~
2
205-70-51390
NIPPLE
3
DBB0001~
3
20Y-70-D3230
HOSE
2
DBB0001~
4
20Y-70-D3240
HOSE
1
DBB0001~
5
04434-52512
CLIP
2
DBB0001~
6
04434-51412
CLIP
1
DBB0001~
7
01010-81220
BOLT
3
DBB0001~
8
01643-31232
WASHER
3
DBB0001~
9
205-70-51390
NIPPLE
3
DBB0001~
10
22U-06-21350
WIRE
1
DBB0001~
Boom Cylinder R. H.
11
04434-51012
CLIP
2
DBB0001~
Boom Cylinder L. H.
PW1C891
TO- 18
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 19

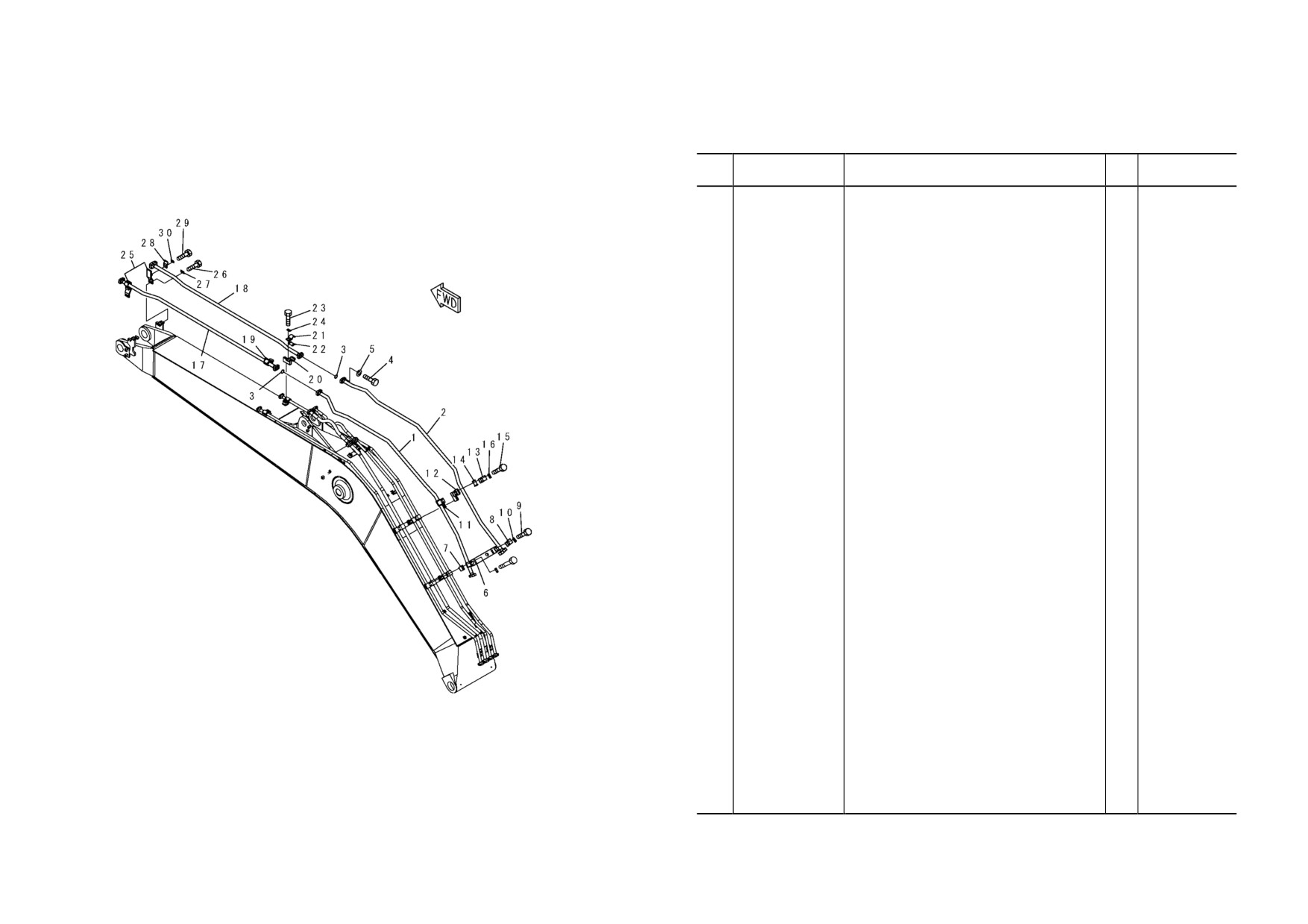

FIG NO. ：T1110-05A1
FIG. T1110-05A1 BOOM (ADDITIONAL LINE) (FOR ADDITIONAL PIPING) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-62-45221
TUBE
1
DBB0001~
2
20Y-62-45231
TUBE
1
DBB0001~
3
07000-13035
O-RING
2
DBB0001~
4
07372-21040
BOLT
8
DBB0001~
5
01643-51032
WASHER
8
DBB0001~
6
20Y-62-45270
BRACKET
1
DBB0001~
7
20Y-62-45280
PLATE
2
DBB0001~
8
207-62-31330
CLAMP
2
DBB0001~
9
01010-81250
BOLT
4
DBB0001~
10
20Y-62-13450
PLATE
2
DBB0001~
11
20Y-62-45250
BRACKET
1
DBB0001~
12
20Y-62-45260
BRACKET
1
DBB0001~
13
207-62-52430
CLAMP
2
DBB0001~
14
205-62-73430
. SEAT
1
DBB0001~
15
01010-81230
BOLT
4
DBB0001~
16
20Y-62-13450
PLATE
2
DBB0001~
17
20Y-62-45290
TUBE
1
DBB0001~
18
20Y-62-45310
TUBE
1
DBB0001~
19
20Y-62-45250
BRACKET
1
DBB0001~
20
20Y-62-45260
BRACKET
1
DBB0001~
21
207-62-52430
CLAMP
2
DBB0001~
22
205-62-73430
. SEAT
1
DBB0001~
23
01010-81230
BOLT
4
DBB0001~
24
20Y-62-13450
PLATE
2
DBB0001~
25
20Y-62-45380
BRACKET
2
DBB0001~
26
01010-81230
BOLT
4
DBB0001~
27
20Y-62-13450
PLATE
2
DBB0001~
28
207-62-31330
CLAMP
2
DBB0001~
PW1B986
29
01010-81225
BOLT
4
DBB0001~
30
20Y-62-13450
PLATE
2
DBB0001~
TO- 20
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 21

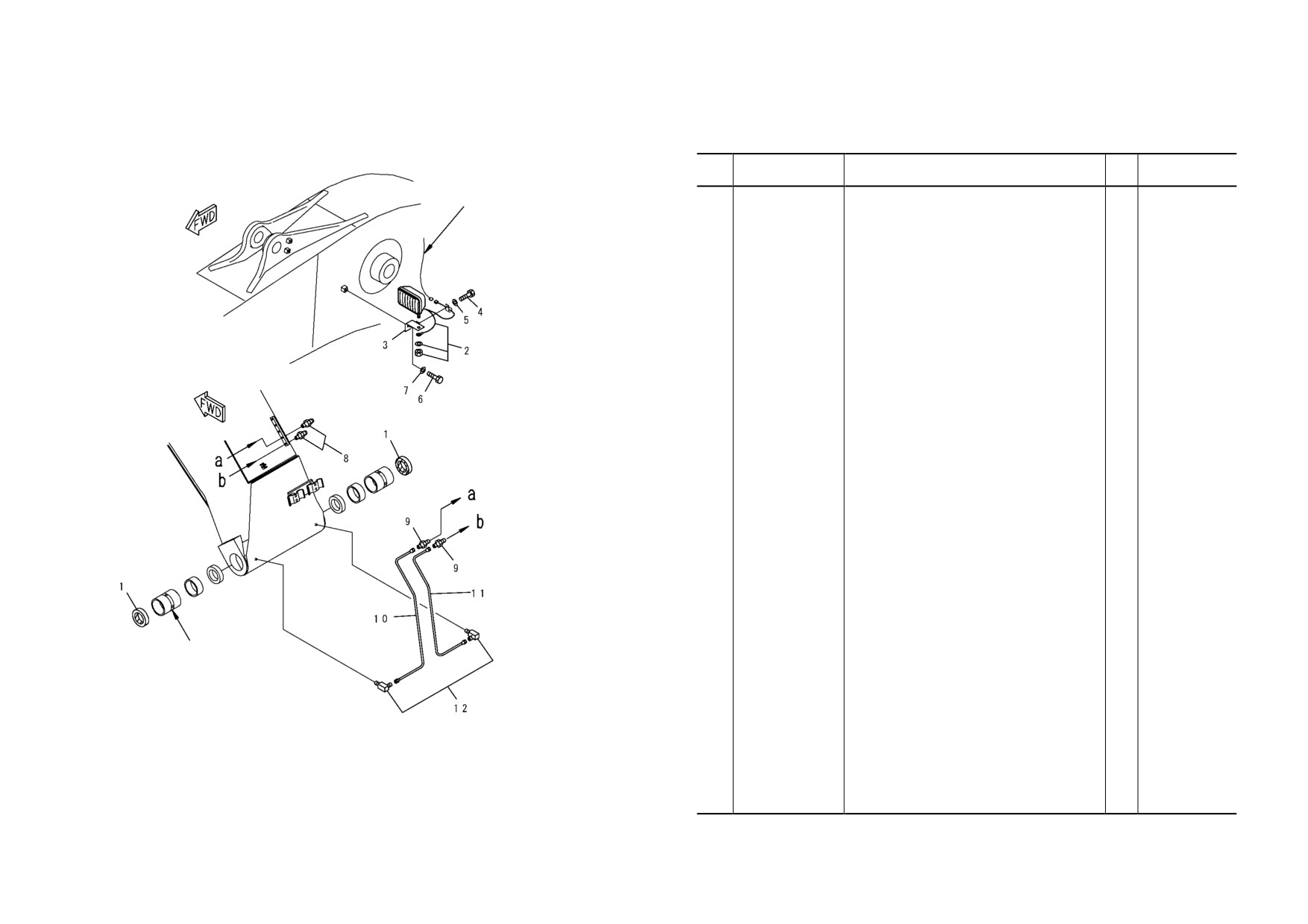

FIG NO. ：T1110-06A0
FIG. T1110-06A0 BOOM (WORKING LAMP AND BOOM FOOT LUBRICATING)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
See Fig. T1110-04A0
1
07145-00090
SEAL
2
DBB0001~
2
20Y-06-25310
WORK LAMP ASS' Y
1
DBB0001~
421-06-23330
. BULB, 70W
1
DBB0001~
3
20Y-06-21551
BRACKET
1
DBB0001~
Boom
4
01010-81220
BOLT
1
DBB0001~
5
01643-31232
WASHER
1
DBB0001~
6
01010-81230
BOLT
1
DBB0001~
7
01643-31232
WASHER
1
DBB0001~
8
07020-00000
FITTING
2
DBB0001~
9
20Y-70-11540
CONNECTOR
2
DBB0001~
10
20Y-70-31310
TUBE
1
DBB0001~
11
20Y-70-31320
TUBE
1
DBB0001~
12
20Y-25-11270
ELBOW
2
DBB0001~
Boom
See Fig. T1110-04A0
PW1B984
TO- 22
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 23
