Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 31
FIG NO. ：R0500-01B2

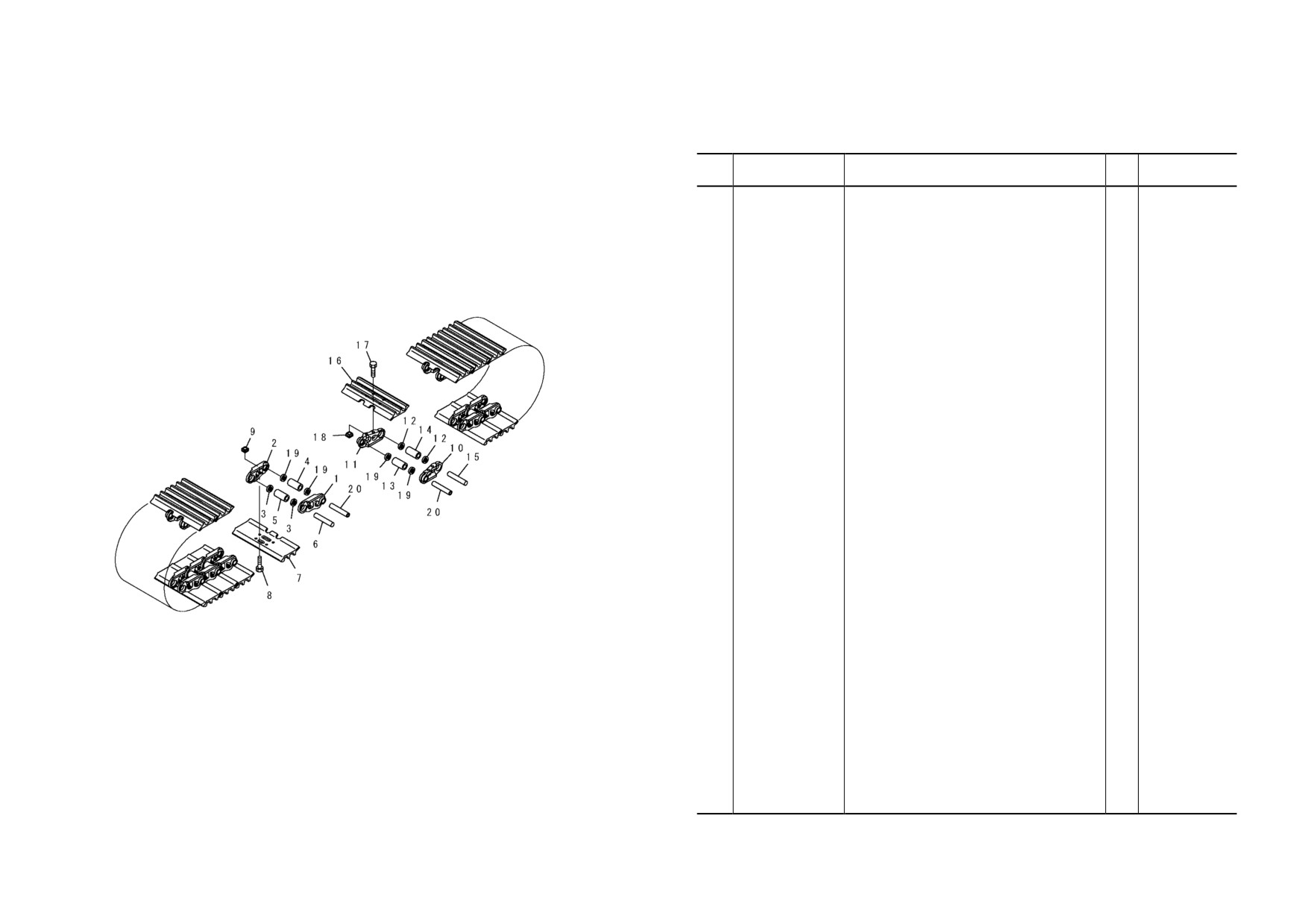

FIG. R0500-01B2 TRACK SHOE (TRIPLE GROUSER WITH HOLE) (700 MM WIDE) (OPT)
（PC200LC, 210LC-7）
INDEX
PART NO.
DESCRIPTION
Q'TY
SERIAL NO.
20Y-32-02111
TRACK SHOE ASS' Y
1
DBE0001~
1
20Y-32-31120
. LINK, L. H
48
DBE0001~
2
20Y-32-31130
. LINK, R. H
48
DBE0001~
3
20Y-32-11240
. SEAL
92
DBE0001~
4
20Y-32-11171
. BUSHING, MASTER
2
DBE0001~
5
20Y-32-11141
. BUSHING, REGULAR
46
DBE0001~
6
20Y-32-31150
. PIN
46
DBE0001~
7
20Y-32-31310
. SHOE
48
DBE0001~
8
20Y-32-31210
. BOLT, SHOE
192
DBE0001~
9
134-32-61221
. NUT
192
DBE0001~
10
20Y-32-31120
. LINK, L. H
50
DBE0001~
11
20Y-32-31130
. LINK, R. H
50
DBE0001~
12
20Y-32-11240
. SEAL
96
DBE0001~
13
20Y-32-11171
. BUSHING, MASTER
2
DBE0001~
14
20Y-32-11141
. BUSHING, REGULAR
48
DBE0001~
15
20Y-32-31150
. PIN
48
DBE0001~
16
20Y-32-31310
. SHOE
50
DBE0001~
17
20Y-32-31210
. BOLT, SHOE
200
DBE0001~
18
134-32-61221
. NUT
200
DBE0001~
19
20Y-32-11260
. SEAL
8
DBE0001~
20
20Y-32-31190
. PIN
4
DBE0001~
PW1A006
RO- 34
PC200LC, 210LC-7
PC200LC, 210LC-7
RO- 35
FIG NO. ：R0500-01B3

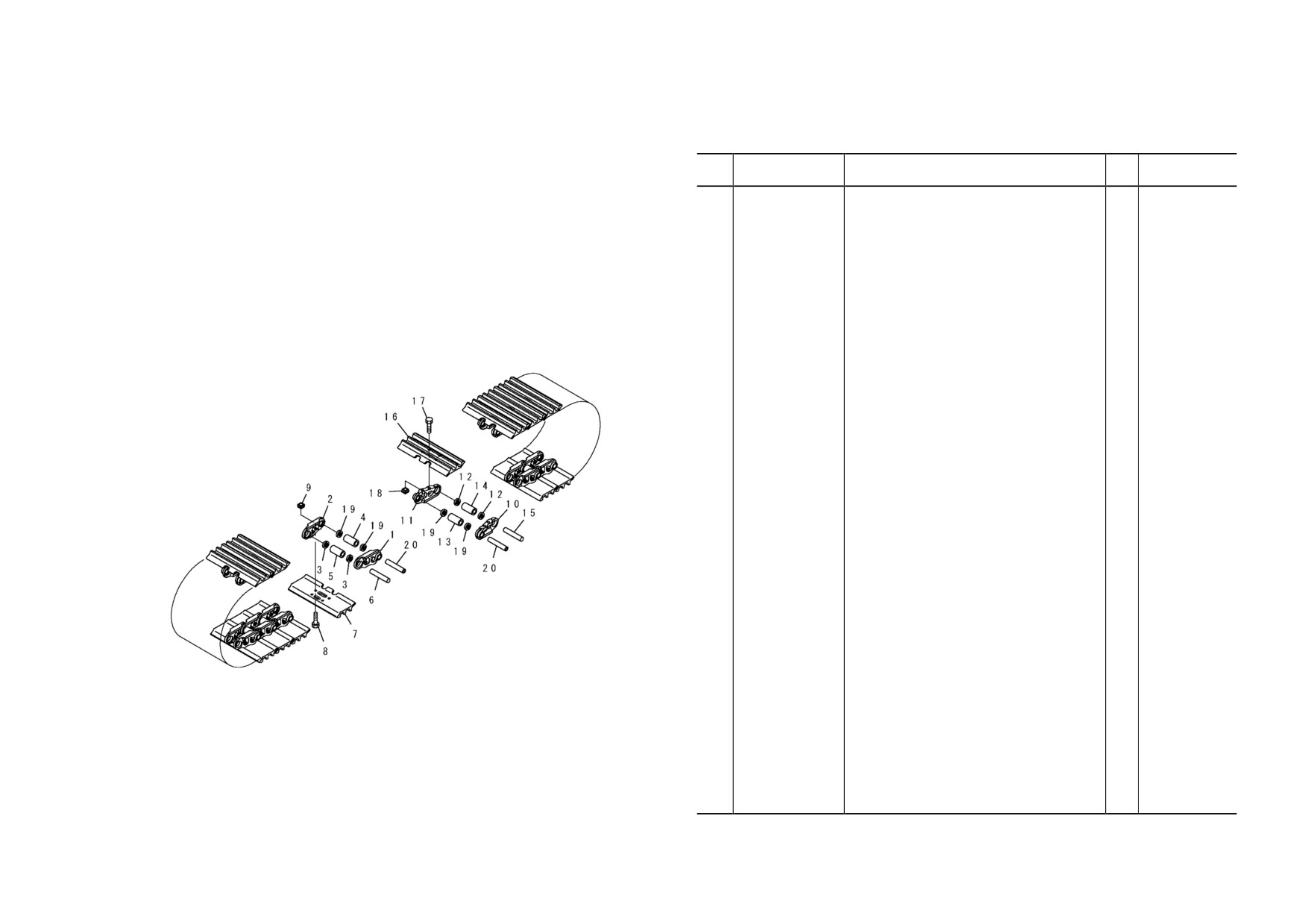

FIG. R0500-01B3 TRACK SHOE (TRIPLE GROUSER WITH HOLE) (800 MM WIDE) (OPT)
（PC200LC, 210LC-7）
INDEX
PART NO.
DESCRIPTION
Q'TY
SERIAL NO.
20Y-32-02121
TRACK SHOE ASS' Y
1
DBE0001~
1
20Y-32-31120
. LINK, L. H
48
DBE0001~
2
20Y-32-31130
. LINK, R. H
48
DBE0001~
3
20Y-32-11240
. SEAL
92
DBE0001~
4
20Y-32-11171
. BUSHING, MASTER
2
DBE0001~
5
20Y-32-11141
. BUSHING, REGULAR
46
DBE0001~
6
20Y-32-31150
. PIN
46
DBE0001~
7
20Y-32-31320
. SHOE
48
DBE0001~
8
20Y-32-31210
. BOLT, SHOE
192
DBE0001~
9
134-32-61221
. NUT
192
DBE0001~
10
20Y-32-31120
. LINK, L. H
50
DBE0001~
11
20Y-32-31130
. LINK, R. H
50
DBE0001~
12
20Y-32-11240
. SEAL
96
DBE0001~
13
20Y-32-11171
. BUSHING, MASTER
2
DBE0001~
14
20Y-32-11141
. BUSHING, REGULAR
48
DBE0001~
15
20Y-32-31150
. PIN
48
DBE0001~
16
20Y-32-31320
. SHOE
50
DBE0001~
17
20Y-32-31210
. BOLT, SHOE
200
DBE0001~
18
134-32-61221
. NUT
200
DBE0001~
19
20Y-32-11260
. SEAL
8
DBE0001~
20
20Y-32-31190
. PIN
4
DBE0001~
PW1A006
RO- 36
PC200LC, 210LC-7
PC200LC, 210LC-7
RO- 37
FIG NO. ：R1100-01A0

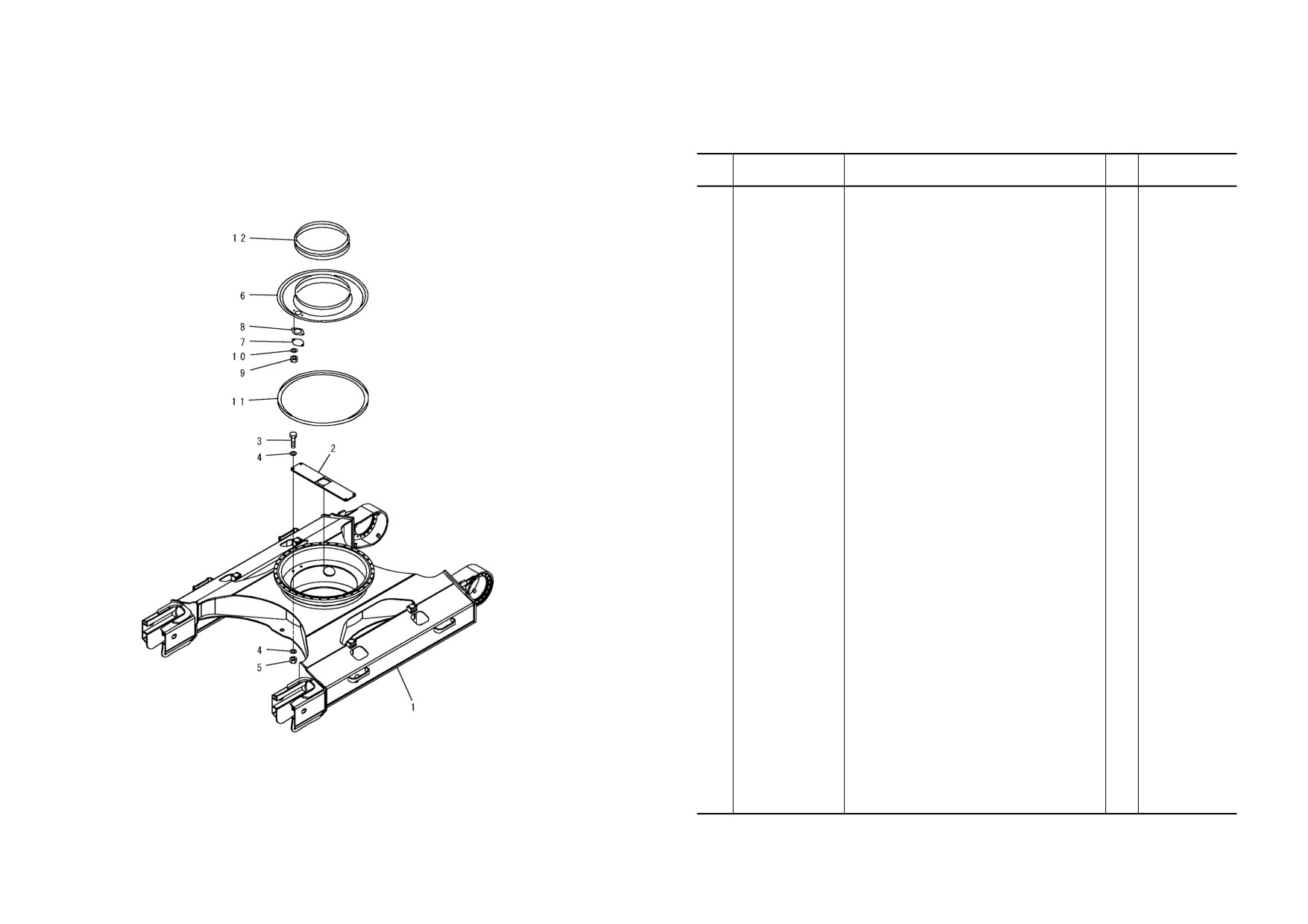

FIG. R1100-01A0 TRACK FRAME
（PC200, 210-7）
INDEX
PART NO.
DESCRIPTION
Q'TY
SERIAL NO.
1
20Y-30-D1340
TRACK FRAME
1
DBB0001~
2
20Y-30-31E81
PLATE
1
DBB0001~
3
01010-82065
BOLT
4
DBB0001~
4
01643-32060
WASHER
8
DBB0001~
5
01580-12016
NUT
4
DBB0001~
6
20Y-30-21151
COVER
1
DBB0001~
7
205-30-71181
COVER
1
DBB0001~
8
205-30-71191
GASKET
1
DBB0001~
9
01580-11008
NUT
2
DBB0001~
10
01643-31032
WASHER
2
DBB0001~
11
20Y-30-11370
SEAL
1
DBB0001~
12
205-30-71171
SEAL
1
DBB0001~
PW1B767
RO- 40
PC200, 210-7
PC200, 210-7
RO- 41
FIG NO. ：R1100-01A1

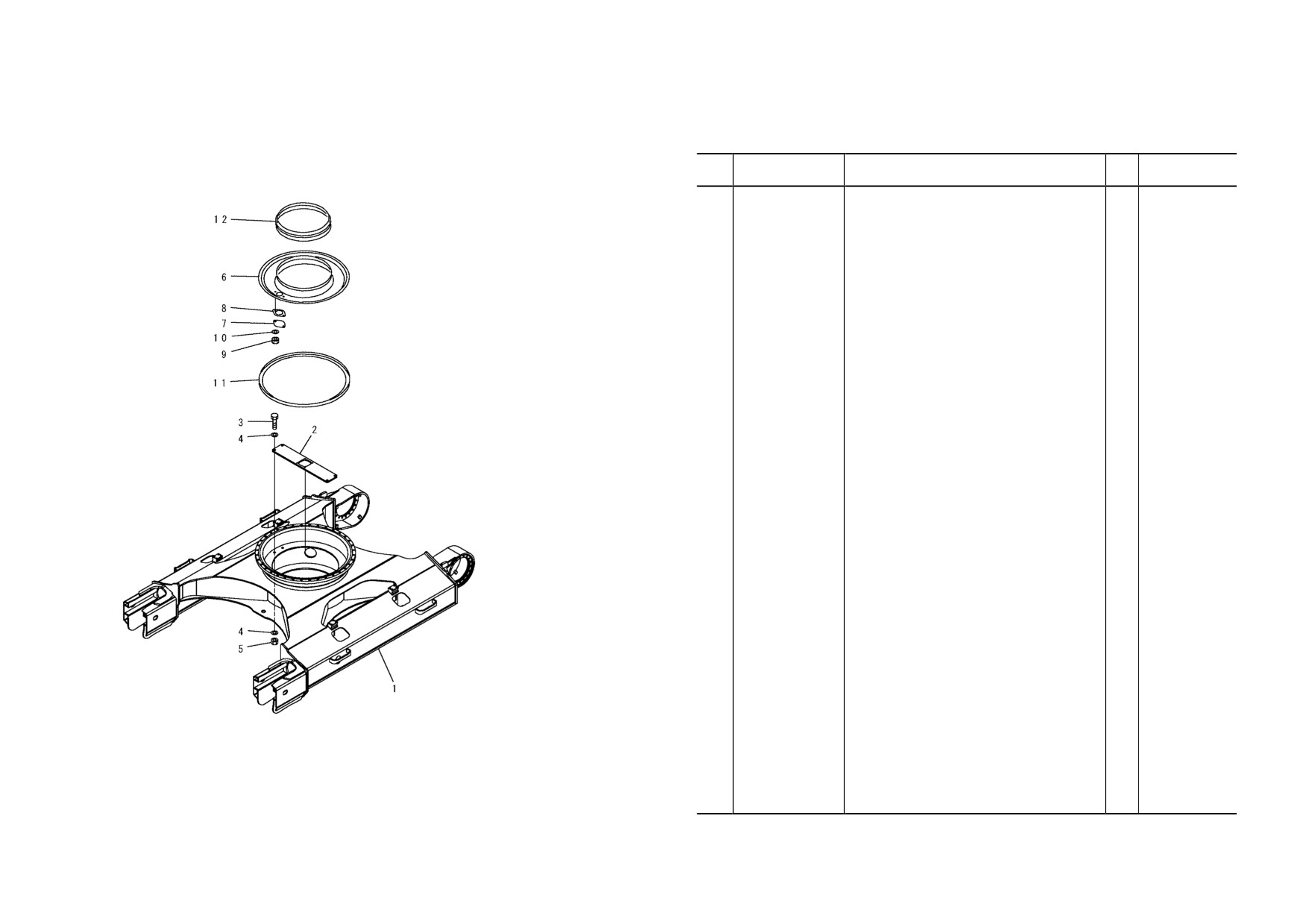

FIG. R1100-01A1 TRACK FRAME
（PC200LC, 210LC-7）
INDEX
PART NO.
DESCRIPTION
Q'TY
SERIAL NO.
1
20Y-30-D1350
TRACK FRAME
1
DBE0001~
2
20Y-30-31E81
PLATE
1
DBE0001~
3
01010-82065
BOLT
4
DBE0001~
4
01643-32060
WASHER
8
DBE0001~
5
01580-12016
NUT
4
DBE0001~
6
20Y-30-21151
COVER
1
DBE0001~
7
205-30-71181
COVER
1
DBE0001~
8
205-30-71191
GASKET
1
DBE0001~
9
01580-11008
NUT
2
DBE0001~
10
01643-31032
WASHER
2
DBE0001~
11
20Y-30-11370
SEAL
1
DBE0001~
12
205-30-71171
SEAL
1
DBE0001~
PW1B767
RO- 42
PC200LC, 210LC-7
PC200LC, 210LC-7
RO- 43
FIG NO. ：R1100-01A2

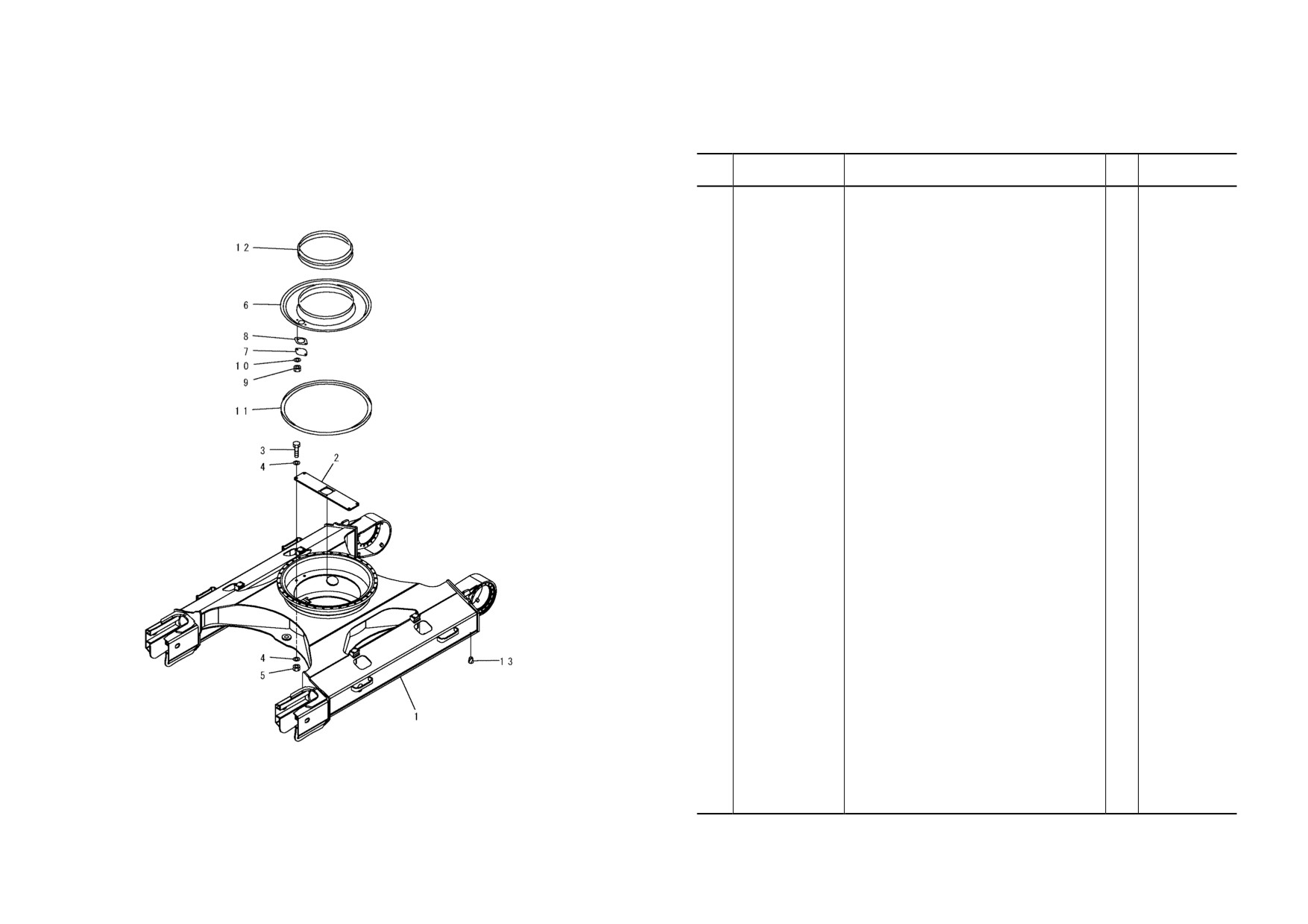

FIG. R1100-01A2 TRACK FRAME (WITH UNDER COVER) (OPT)
（PC200, 210-7）
INDEX
PART NO.
DESCRIPTION
Q'TY
SERIAL NO.
1
20Y-30-31411
TRACK FRAME
1
DBB0001~
2
20Y-30-31E81
PLATE
1
DBB0001~
3
01010-82065
BOLT
4
DBB0001~
4
01643-32060
WASHER
8
DBB0001~
5
01580-12016
NUT
4
DBB0001~
6
20Y-30-21151
COVER
1
DBB0001~
7
205-30-71181
COVER
1
DBB0001~
8
205-30-71191
GASKET
1
DBB0001~
9
01580-11008
NUT
2
DBB0001~
10
01643-31032
WASHER
2
DBB0001~
11
20Y-30-11370
SEAL
1
DBB0001~
12
205-30-71171
SEAL
1
DBB0001~
13
07049-02025
PLUG
24
DBB0001~
PW1B769
RO- 44
PC200, 210-7
PC200, 210-7
RO- 45
FIG NO. ：R1100-01A3

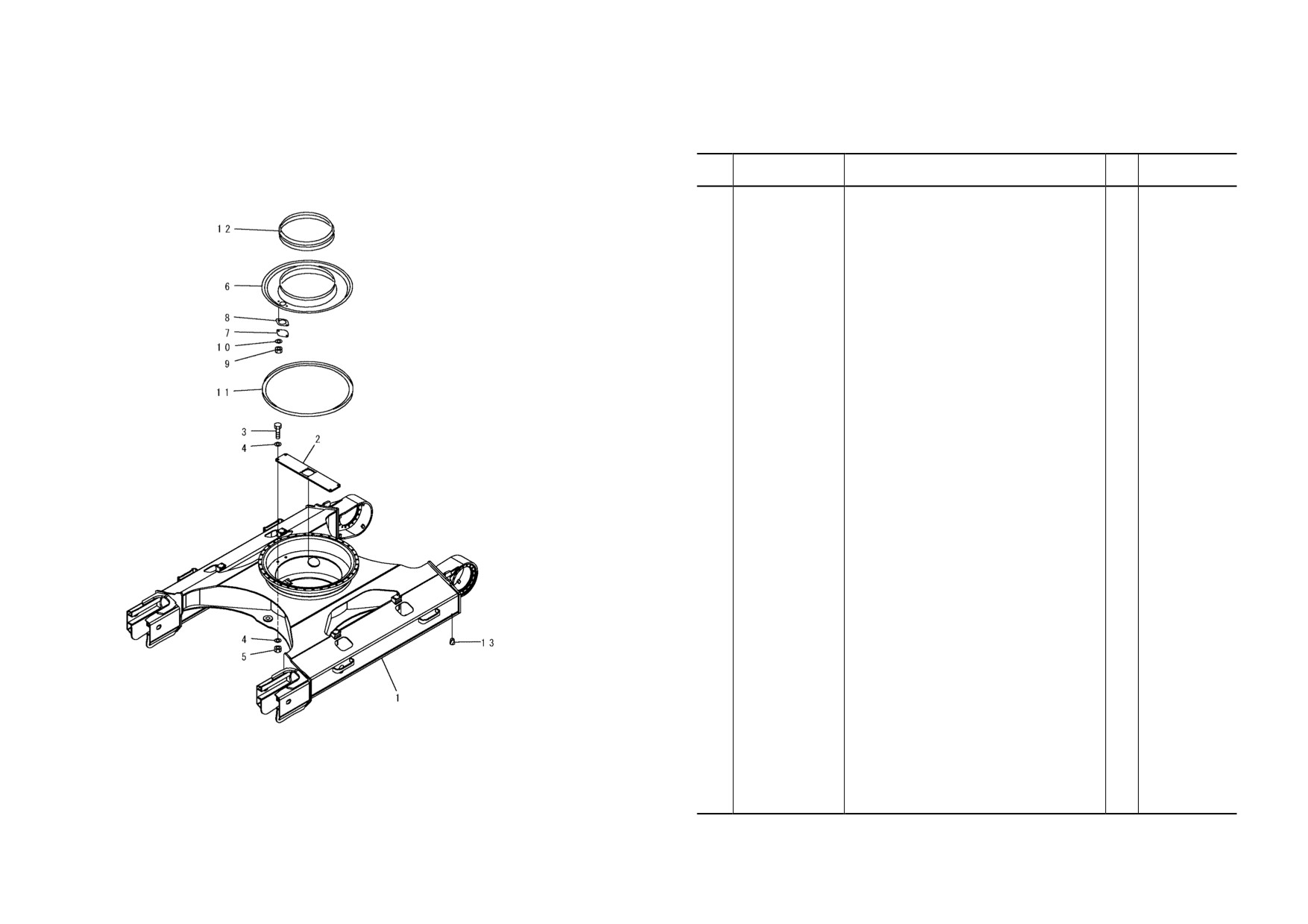

FIG. R1100-01A3 TRACK FRAME (WITH UNDER COVER) (OPT)
（PC200LC, 210LC-7）
INDEX
PART NO.
DESCRIPTION
Q'TY
SERIAL NO.
1
20Y-30-35410
TRACK FRAME
1
DBE0001~
2
20Y-30-31E81
PLATE
1
DBE0001~
3
01010-82065
BOLT
4
DBE0001~
4
01643-32060
WASHER
8
DBE0001~
5
01580-12016
NUT
4
DBE0001~
6
20Y-30-21151
COVER
1
DBE0001~
7
205-30-71181
COVER
1
DBE0001~
8
205-30-71191
GASKET
1
DBE0001~
9
01580-11008
NUT
2
DBE0001~
10
01643-31032
WASHER
2
DBE0001~
11
20Y-30-11370
SEAL
1
DBE0001~
12
205-30-71171
SEAL
1
DBE0001~
13
07049-02025
PLUG
32
DBE0001~
PW1B769
RO- 46
PC200LC, 210LC-7
PC200LC, 210LC-7
RO- 47
FIG NO. ：R1140-01A0

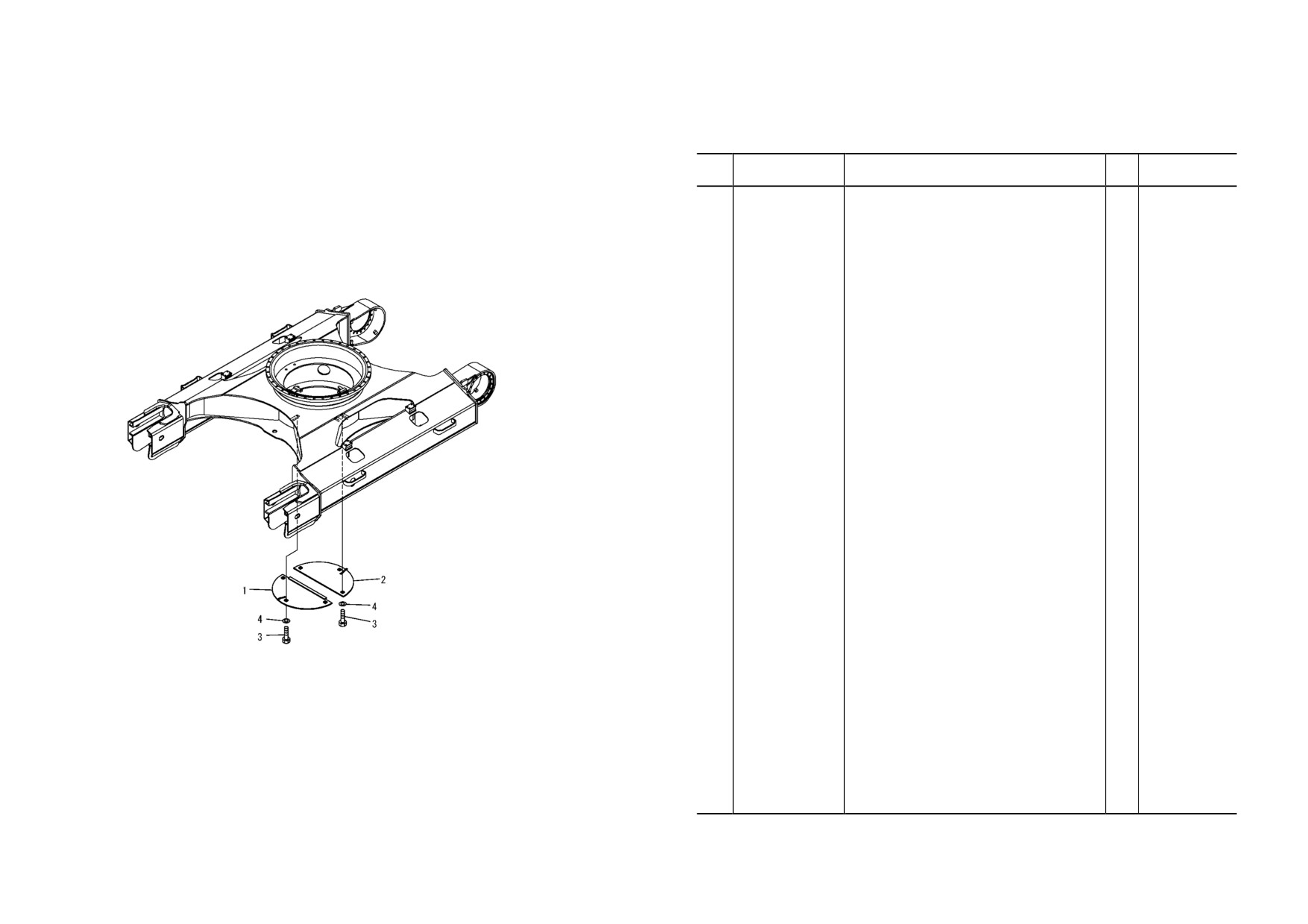

FIG. R1140-01A0 UNDER COVER (FOR TRACK FRAME) (OPT)
INDEX
PART NO.
DESCRIPTION
Q'TY
SERIAL NO.
1
20Y-973-2220
COVER
1
DBB0001~
2
20Y-973-2230
COVER
1
DBB0001~
3
01010-81235
BOLT
6
DBB0001~
4
01643-31232
WASHER
6
DBB0001~
Track Frame
PW1B770
RO- 52
PC200, 210(LC)-7
PC200, 210(LC)-7
RO- 53
FIG NO. ：R1200-01A1

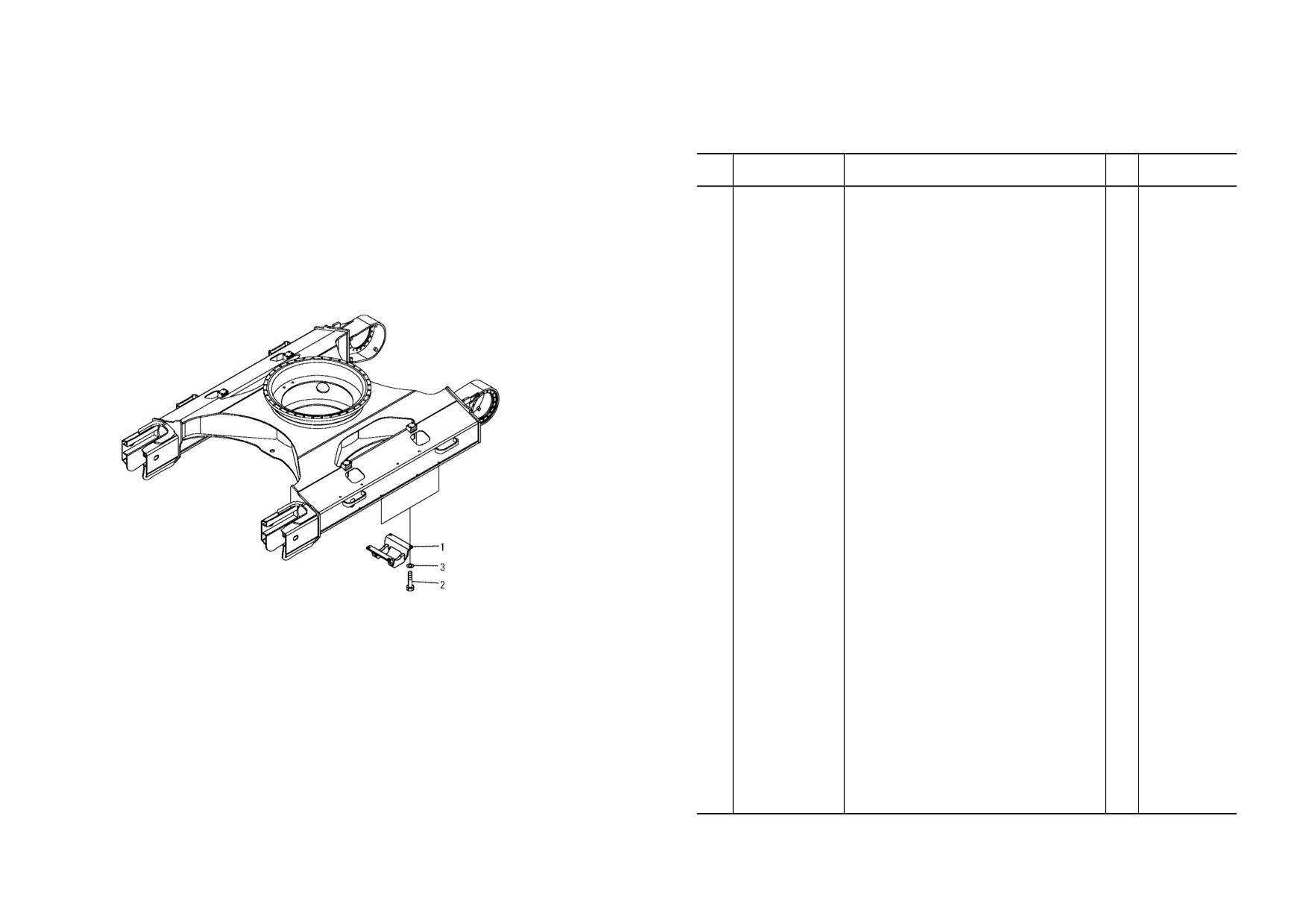

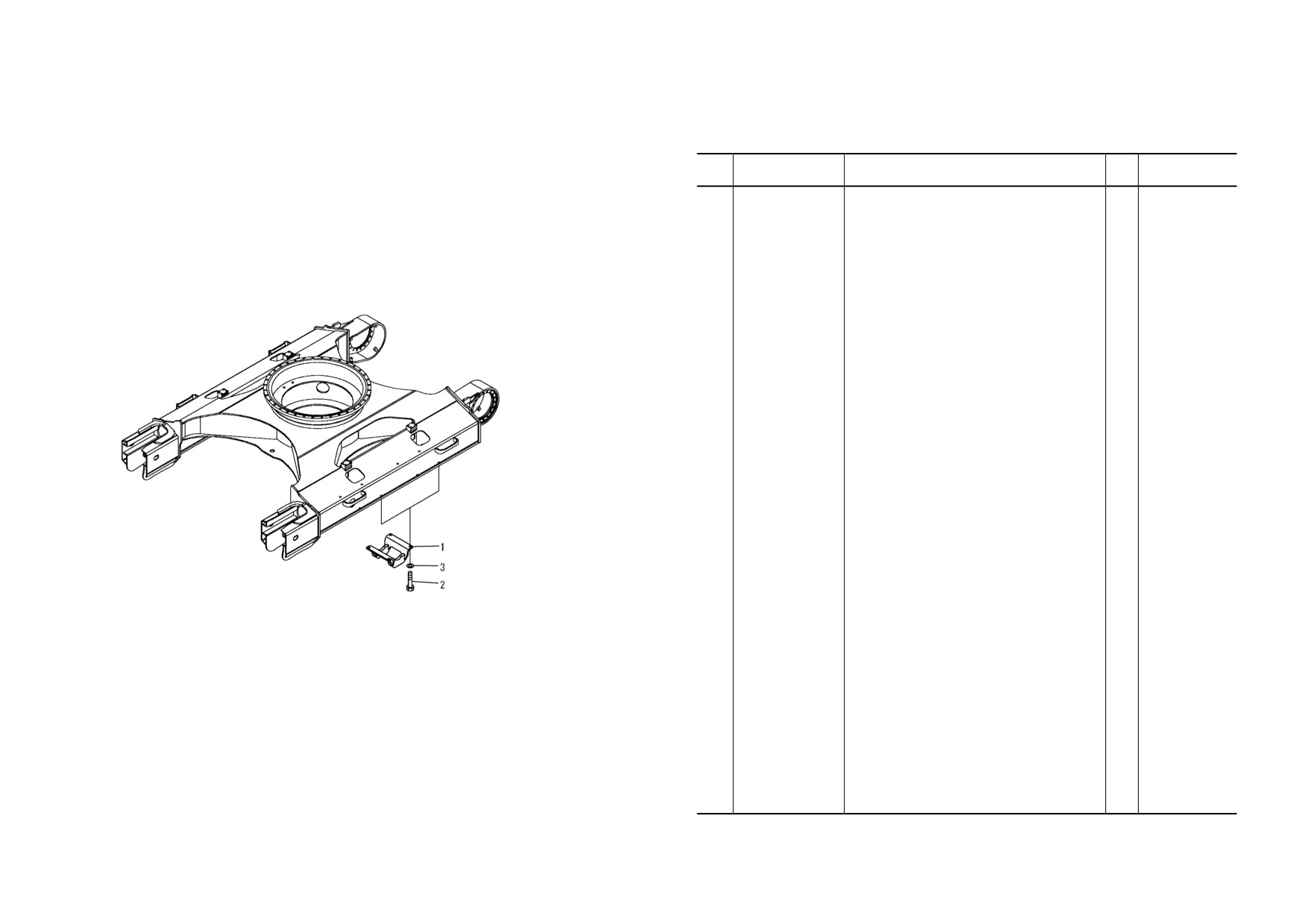

FIG. R1200-01A1 TRACK ROLLER GUARD
（PC200, 210-7）
INDEX
PART NO.
DESCRIPTION
Q'TY
SERIAL NO.
1
20Y-30-31160
GUARD
4
DBB0001~
2
01010-62050
BOLT
16
DBB0001~
3
01643-32060
WASHER
16
DBB0001~
Track Frame
PW1B775
RO- 54
PC200, 210-7
PC200, 210-7
RO- 55
FIG NO. ：R1200-01A2

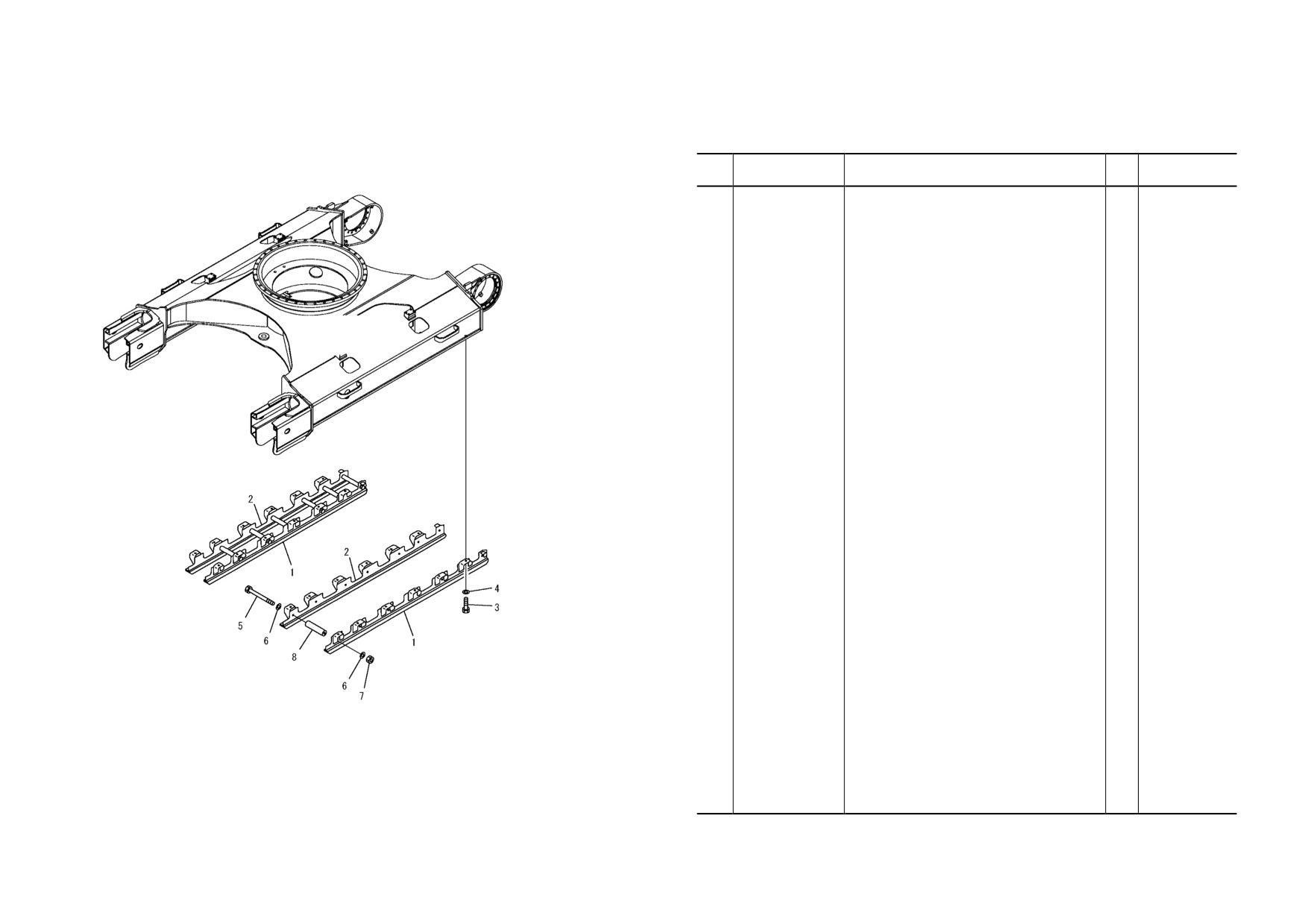

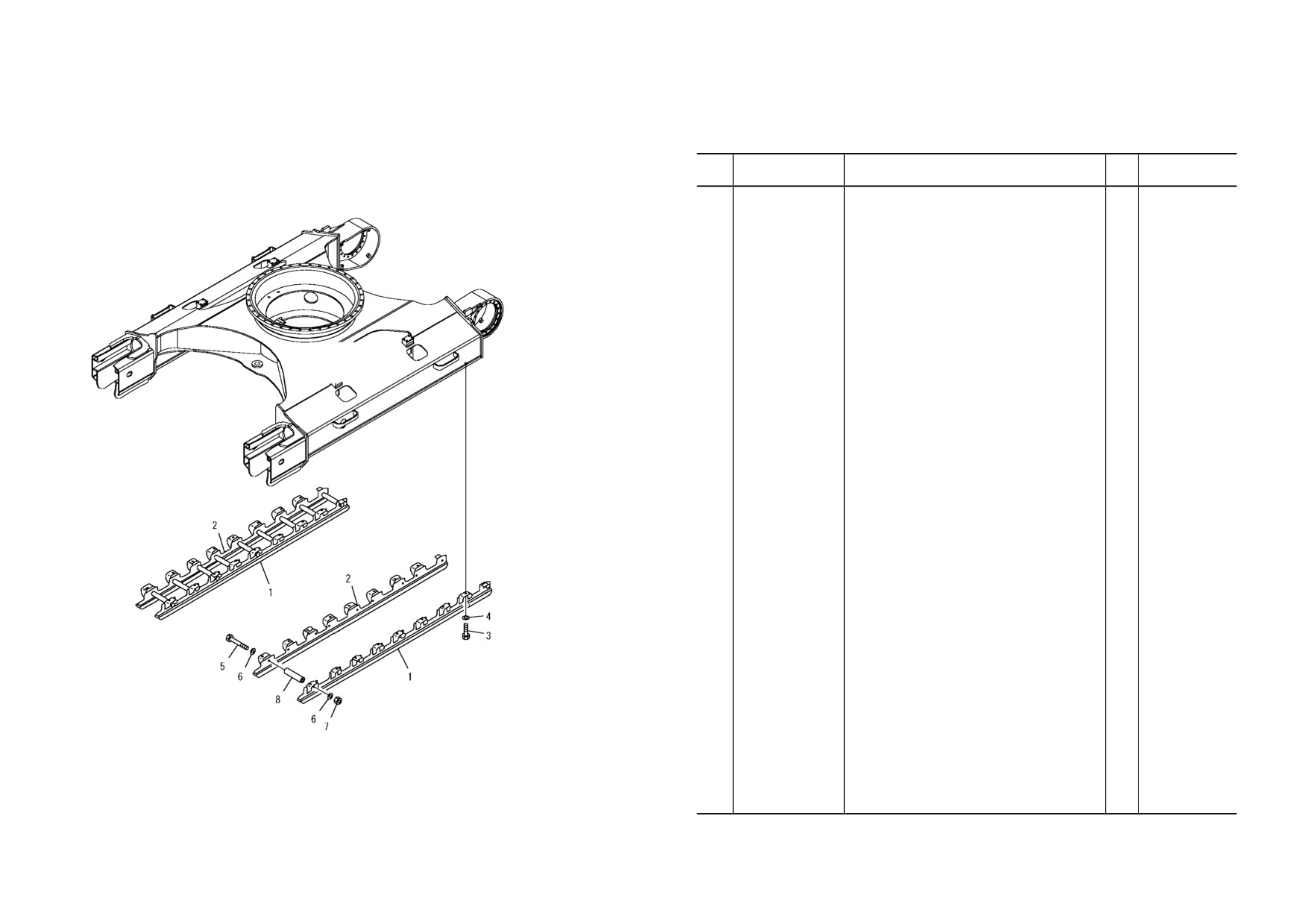

FIG. R1200-01A2 TRACK FULL ROLLER GUARD (OPT)
(PC200, 210-7)
INDEX
PART NO.
DESCRIPTION
Q'TY
SERIAL NO.
1
20Y-30-31170
GUARD, L. H
2
DBB0001~
2
20Y-30-31180
GUARD, R. H
2
DBB0001~
3
01010-62050
BOLT
24
DBB0001~
4
01643-32060
WASHER
24
DBB0001~
5
09205-18295
BOLT
14
DBB0001~
6
01643-31845
WASHER
28
DBB0001~
7
01580-11815
NUT
14
DBB0001~
Track Frame
8
20Y-30-23140
COLLAR
14
DBB0001~
PW1C051
RO- 56
PC200, 210-7
PC200, 210-7
RO- 57
FIG NO. ：R1200-01A3
FIG. R1200-01A3 TRACK FULL ROLLER GUARD (OPT)
（PC200LC, 210LC-7）
INDEX
PART NO.
DESCRIPTION
Q'TY
SERIAL NO.
1
20Y-30-35170
GUARD, L. H
2
DBE0001~
2
20Y-30-35180
GUARD, R. H
2
DBE0001~
3
01010-62050
BOLT
32
DBE0001~
4
01643-32060
WASHER
32
DBE0001~
5
09205-18295
BOLT
18
DBE0001~
6
01643-31845
WASHER
36
DBE0001~
7
01580-11815
NUT
18
DBE0001~
8
20Y-30-23140
COLLAR
18
DBE0001~
Track Frame
PW1C052
RO- 58
PC200LC, 210LC-7
PC200LC, 210LC-7
RO- 59
