Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 29
FIG NO. ：P1120-01A0

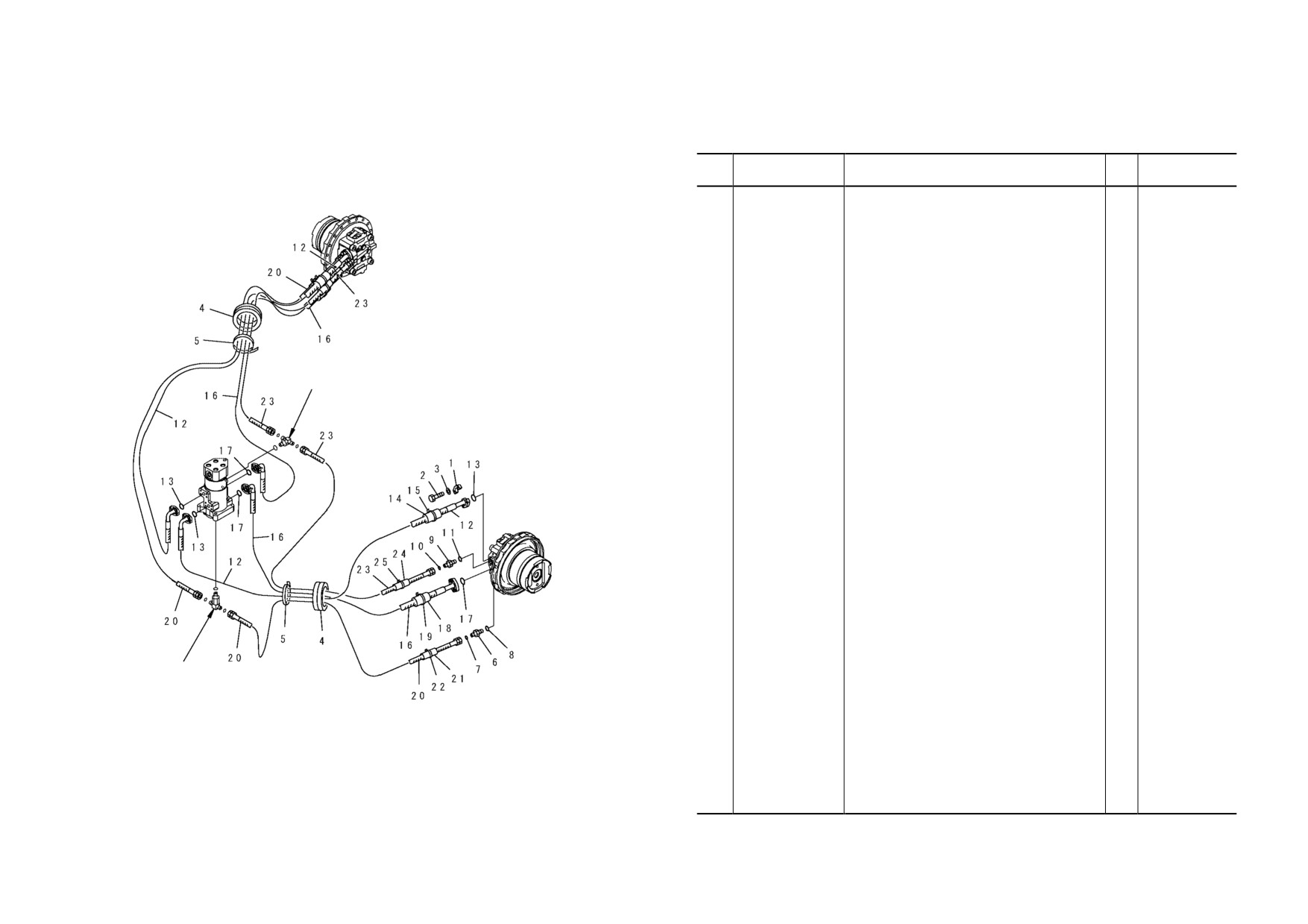

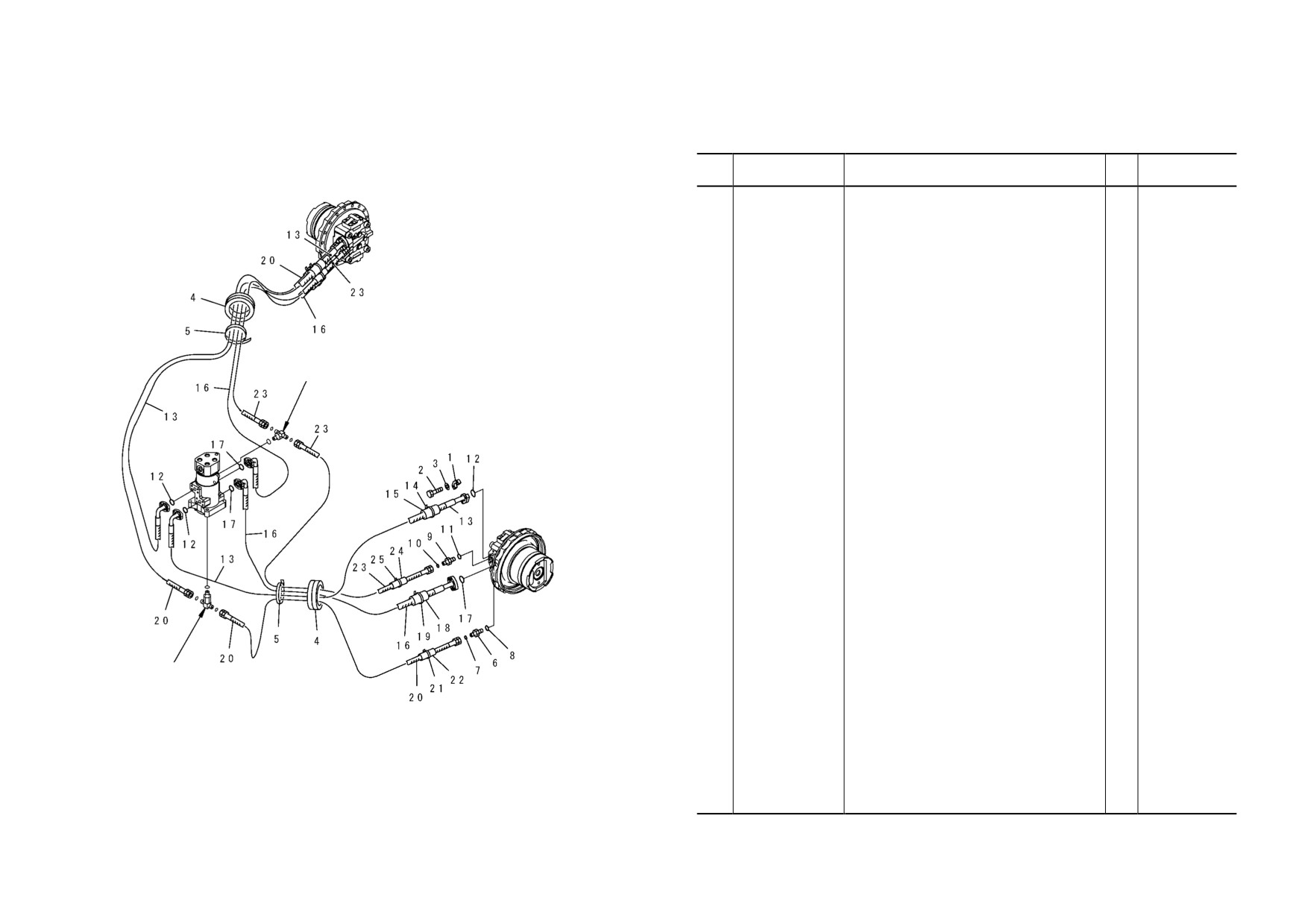

FIG. P1120-01A0 TRAVEL PIPING
(PC200,210-7)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
07371-30640
FLANGE
8
DBB0001~
Travel Motor
2
07372-21035
BOLT
16
DBB0001~
3
01643-51032
WASHER
16
DBB0001~
4
20Y-62-12590
GROMMET
2
DBB0001~
5
08034-20536
BAND
2
DBB0001~
6
02781-00422
UNION
2
DBB0001~
7
02896-11012
O-RING
2
DBB0001~
8
07002-12034
O-RING
2
DBB0001~
9
11Y-62-12130
NIPPLE
2
DBB0001~
See Fig. N1310-01A0
10
02896-11008
O-RING
2
DBB0001~
11
07002-11423
O-RING
2
DBB0001~
12
07000-13025
O-RING
4
DBB0001~
13
07098-00622
HOSE
2
DBB0001~
Swivel Joint
14
08034-00536
BAND
2
DBB0001~
15
205-62-72240
COVER
2
DBB0001~
16
20Y-62-12540
HOSE
2
DBB0001~
17
07000-13025
O-RING
4
DBB0001~
18
205-62-72240
COVER
2
DBB0001~
19
08034-00536
BAND
2
DBB0001~
20
02762-00419
HOSE
2
DBB0001~
21
08034-00536
BAND
2
DBB0001~
22
205-62-72240
COVER
2
DBB0001~
Travel Motor
23
02760-00220
HOSE
2
DBB0001~
24
205-62-72140
COVER
2
DBB0001~
25
08034-00536
BAND
2
DBB0001~
See Fig. N1310-01A0
PW1B974
PO- 2
PC200, 210-7
PC200, 210-7
PO- 3
FIG NO. ：P1120-01A1
FIG. P1120-01A1 TRAVEL PIPING
(PC200LC, 210LC-7)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
07371-30640
FLANGE
8
DBE0001~
Travel Motor
2
07372-21035
BOLT
16
DBE0001~
3
01643-51032
WASHER
16
DBE0001~
4
20Y-62-12590
GROMMET
2
DBE0001~
5
08034-20536
BAND
2
DBE0001~
6
02781-00422
UNION
2
DBE0001~
7
02896-11012
O-RING
2
DBE0001~
8
07002-12034
O-RING
2
DBE0001~
9
11Y-62-12130
NIPPLE
2
DBE0001~
See Fig. N1310-01A0
10
02896-11008
O-RING
2
DBE0001~
11
07002-11423
O-RING
2
DBE0001~
12
07098-00624
HOSE
2
DBE0001~
13
07000-13025
O-RING
4
DBE0001~
Swivel Joint
14
205-62-72240
COVER
2
DBE0001~
15
08034-00536
BAND
2
DBE0001~
16
20Y-62-12520
HOSE
2
DBE0001~
17
07000-13025
O-RING
4
DBE0001~
18
205-62-72240
COVER
2
DBE0001~
19
08034-00536
BAND
2
DBE0001~
20
02762-00421
HOSE
2
DBE0001~
21
205-62-72240
COVER
2
DBE0001~
22
08034-00536
BAND
2
DBE0001~
Travel Motor
23
02760-00222
HOSE
2
DBE0001~
24
205-62-72140
COVER
2
DBE0001~
25
08034-00536
BAND
2
DBE0001~
See Fig. N1310-01A0
PW1B975
PO- 4
PC200LC, 210LC-7
PC200LC, 210LC-7
PO- 5
FIG NO. ：P1210-01A0

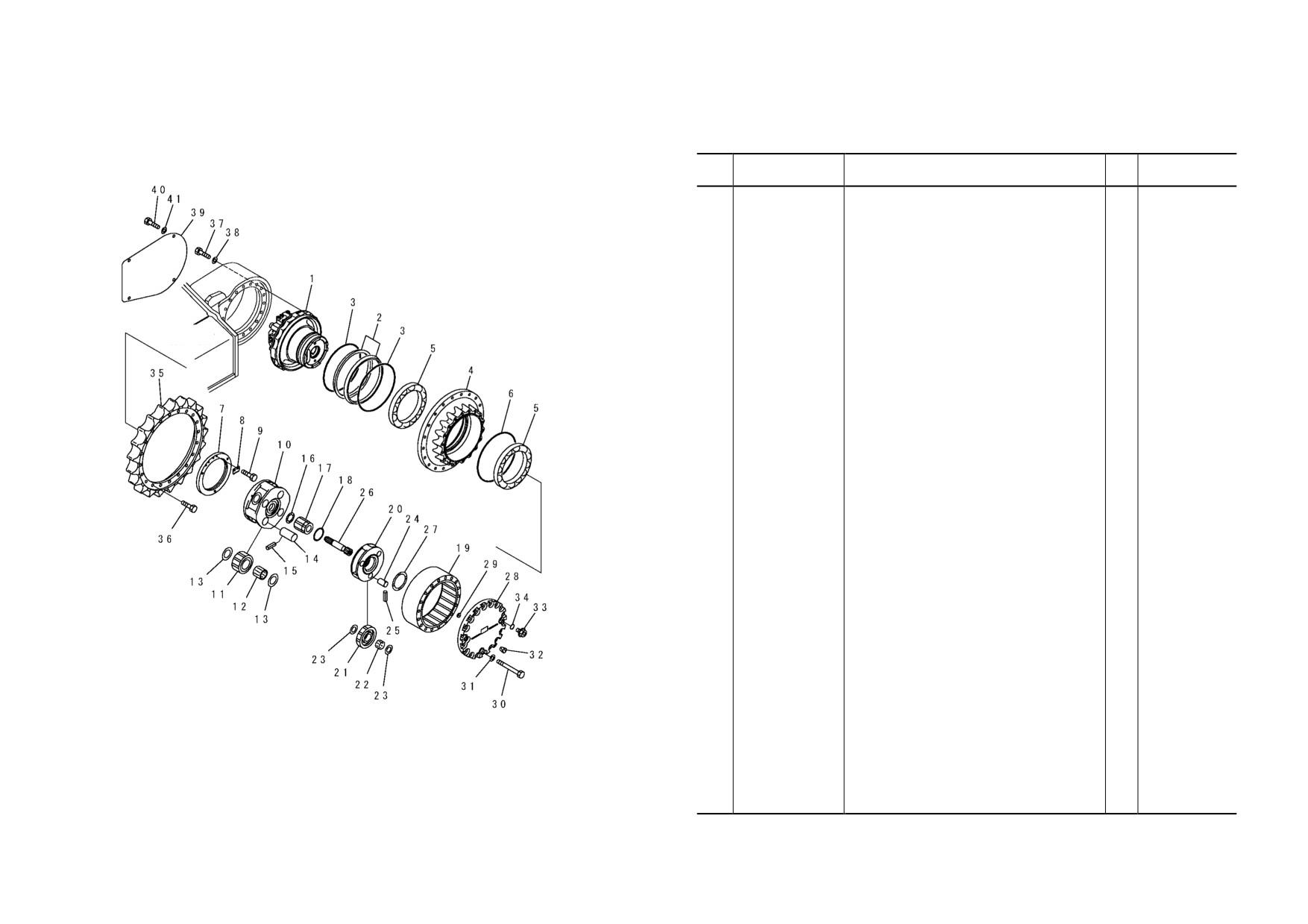

FIG. P1210-01A0 FINAL DRIVE
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
(20Y-27-00432)
FINAL DRIVE ASS’ Y
2
DBB0001~
1
708-8F-00171
MOTOR ASS’ Y
2
DBB0001~
150-27-00410
FLOATING SEAL ASS’ Y
2
DBB0001~
2
150-27-00264
. SEAL RING ASS’ Y
1
DBB0001~
☆
.. RING
2
DBB0001~
3
14S-27-00110
. O-RING ASS’ Y
1
DBB0001~
☆
.. O-RING
2
DBB0001~
Track Frame
4
20Y-27-31220
HUB
2
DBB0001~
5
20Y-27-22230
BEARING
4
DBB0001~
6
20Y-27-22280
O-RING
2
DBB0001~
7
20Y-27-22261
LOCK
2
DBB0001~
8
20Y-27-22270
LOCK
2
DBB0001~
9
01010-81020
BOLT
4
DBB0001~
10
20Y-27-22170
CARRIER
2
DBB0001~
11
20Y-27-22140
GEAR
8
DBB0001~
12
20Y-27-22220
BEARING
8
DBB0001~
13
20Y-27-21250
WASHER
16
DBB0001~
14
20Y-27-21230
PIN
8
DBB0001~
15
20Y-27-21290
PIN
8
DBB0001~
16
20Y-27-13310
WASHER
2
DBB0001~
17
20Y-27-22130
GEAR
2
DBB0001~
18
20Y-27-22240
WASHER
2
DBB0001~
19
20Y-27-22151
GEAR
2
DBB0001~
20
20Y-27-22160
CARRIER
2
DBB0001~
21
20Y-27-22120
GEAR
6
DBB0001~
22
20Y-27-22210
BEARING
6
DBB0001~
23
20Y-27-21240
WASHER
12
DBB0001~
24
20Y-27-21220
PIN
6
DBB0001~
25
20Y-27-21280
PIN
6
DBB0001~
26
20Y-27-31210
SHAFT
2
DBB0001~
27
20Y-27-21310
WASHER
2
DBB0001~
28
20Y-27-31230
COVER
2
DBB0001~
PW1B945
29
20Y-27-22250
BUTTON
2
DBB0001~
30
20Y-27-13281
BOLT
36
DBB0001~
PO- 6
PC200, 210(LC)-7
PC200, 210(LC)-7
PO- 7
FIG NO. ：P1210-01A0
FIG. P1210-01A0 FINAL DRIVE
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
31
01643-31645
WASHER
36
DBB0001~
32
07049-01012
PLUG
4
DBB0001~
33
07044-12412
PLUG
6
DBB0001~
34
07002-12434
O-RING
6
DBB0001~
35
20Y-27-11582
SPROCKET
2
DBB0001~
36
20Y-27-11561
BOLT
40
DBB0001~
37
01010-61660
BOLT
36
DBB0001~
Track Frame
38
01643-31645
WASHER
36
DBB0001~
39
20Y-30-21191
COVER
2
DBB0001~
40
01010-81230
BOLT
8
DBB0001~
41
01643-31232
WASHER
8
DBB0001~
PW1B945
PO- 8
PC200, 210(LC)-7
PC200, 210(LC)-7
PO- 9
UNDER CARRIAGE
FIG NO. ：R0110-01A0

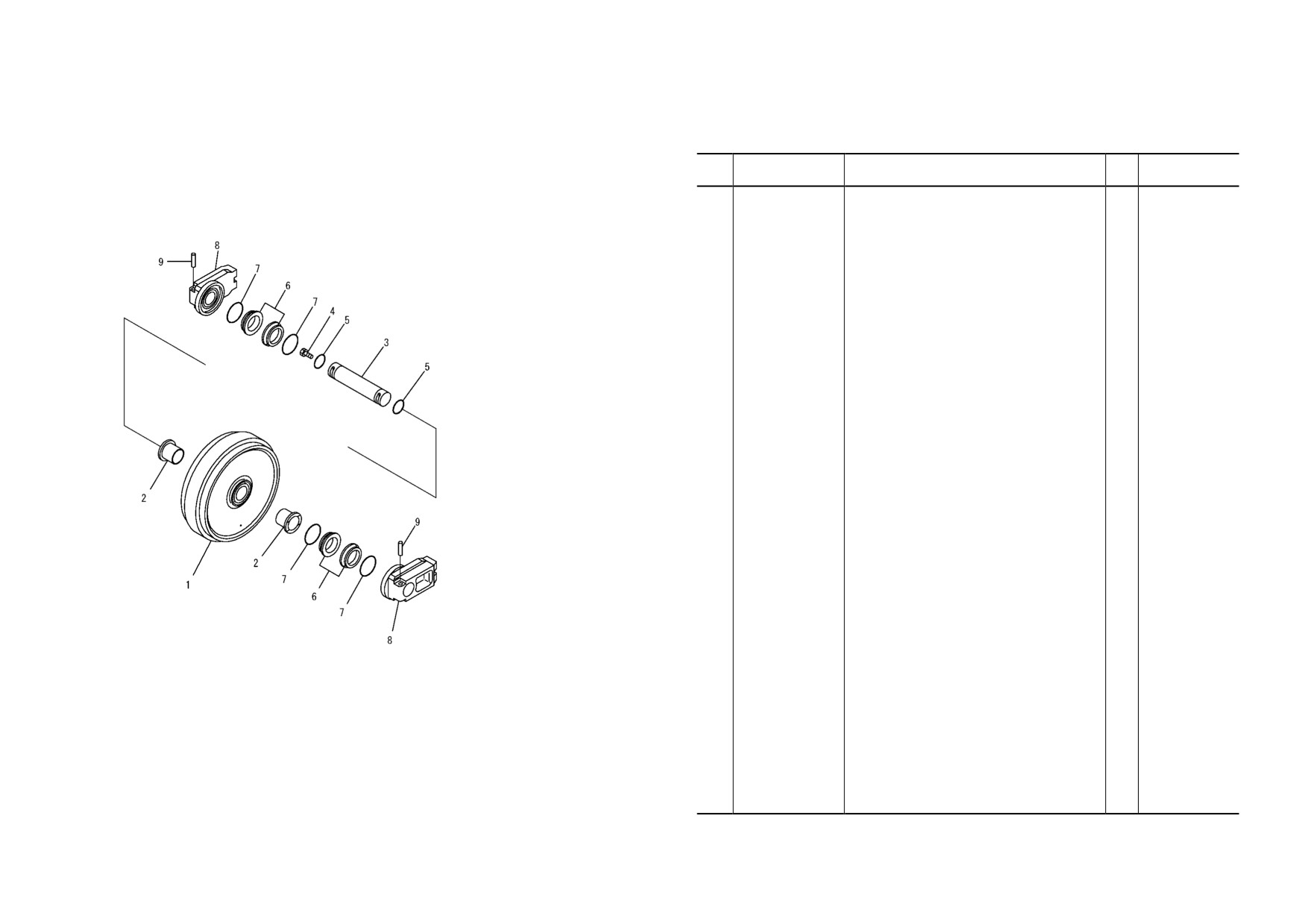

FIG. R0110-01A0 FRONT IDLER
INDEX
PART NO.
DESCRIPTION
Q'TY
SERIAL NO.
20Y-30-00321
FRONT IDLER ASS' Y
2
DBB0001~
1
20Y-30-33211
. IDLER
1
DBB0001~
2
207-30-56140
. BUSHING
2
DBB0001~
3
20Y-30-13130
. SHAFT
1
DBB0001~
4
07052-31624
. PLUG
1
DBB0001~
5
07000-12060
. O-RING
2
DBB0001~
20Y-30-00100
.FLOATING SEAL ASS' Y
2
DBB0001~
6
20Y-30-00110
.. SEAL RING ASS' Y
1
DBB0001~
☆
... RING
2
DBB0001~
7
20Y-30-00120
.. O-RING ASS' Y
1
DBB0001~
☆
... O-RING
2
DBB0001~
8
20Y-30-13150
. SUPPORT
2
DBB0001~
9
205-30-76190
. PIN
2
DBB0001~
PW1B750
RO- 2
PC200, 210(LC)-7
PC200, 210(LC)-7
RO- 3
FIG NO. ：R0110-01A0

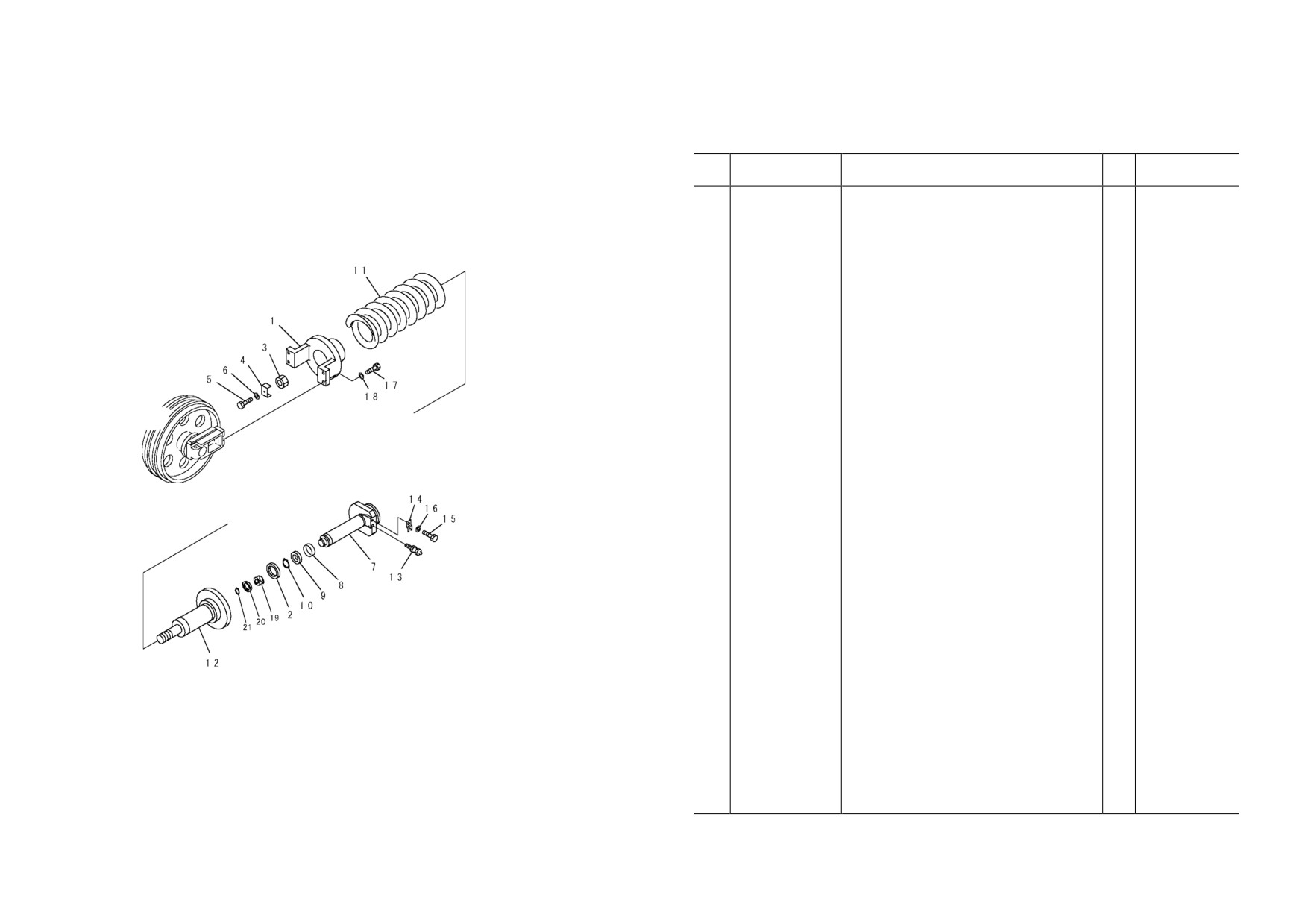

FIG. R0110-02A0 IDLER CUSHION
INDEX
PART NO.
DESCRIPTION
Q'TY
SERIAL NO.
1
20Y-30-32110
YOKE
2
DBB0001~
2
206-30-55150
SEAL
2
DBB0001~DBB4708
3
206-30-45381
NUT
2
DBB0001~
4
206-30-45262
LOCK
2
DBB0001~
5
01010-81225
BOLT
2
DBB0001~
6
01643-31232
WASHER
2
DBB0001~
7
206-30-72140
SHAFT
2
DBB0001~
8
07155-00720
RING
4
DBB0001~
9
09370-00070
U-PACKING
2
DBB0001~
10
04064-04518
RING
2
DBB0001~
11
20Y-30-12112
SPRING
2
DBB0001~
Front Idler
12
20Y-30-32130
CYLINDER
2
DBB0001~
13
07959-20001
VALVE
2
DBB0001~
14
205-30-72170
PLATE
2
DBB0001~
15
01010-81225
BOLT
2
DBB0001~
16
01643-31232
WASHER
2
DBB0001~
17
01010-61655
BOLT
8
DBB0001~
18
01643-31645
WASHER
8
DBB0001~
19
07177-07030
BUSHING
2
DBB0001~
20
707-56-70540
SEAL
2
DBB0001~
21
04077-00085
RING
2
DBB0001~
PW19964
RO- 4
PC200, 210-7
PC200, 210-7
RO- 5
FIG NO. ：R0110-02A1

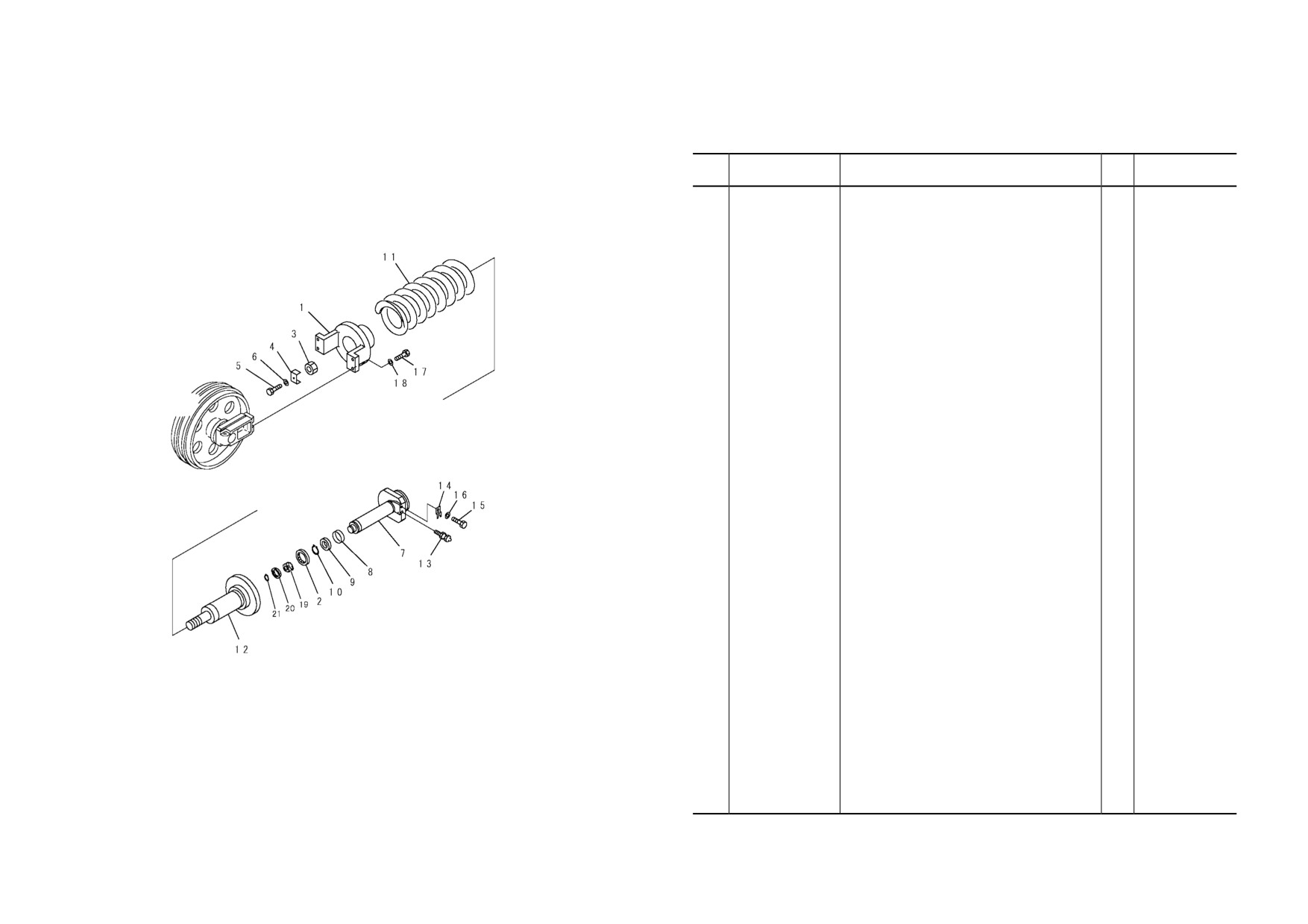

FIG. R0110-02A1 IDLER CUSHION
(PC200LC, 210LC-7)
INDEX
PART NO.
DESCRIPTION
Q'TY
SERIAL NO.
1
20Y-30-32110
YOKE
2
DBE0001~
2
206-30-55150
SEAL
2
DBE0001~DBE0103
3
206-30-45381
NUT
2
DBE0001~
4
206-30-45262
LOCK
2
DBE0001~
5
01010-81225
BOLT
2
DBE0001~
6
01643-31232
WASHER
2
DBE0001~
7
206-30-72140
SHAFT
2
DBE0001~
8
07155-00720
RING
4
DBE0001~
9
09370-00070
U-PACKING
2
DBE0001~
10
04064-04518
RING
2
DBE0001~
11
206-30-55171
RECOIL SPRING
2
DBE0001~
Front Idler
12
206-30-72130
CYLINDER
2
DBE0001~
13
07959-20001
VALVE
2
DBE0001~
14
205-30-72170
PLATE
2
DBE0001~
15
01010-81225
BOLT
2
DBE0001~
16
01643-31232
WASHER
2
DBE0001~
17
01010-61655
BOLT
8
DBE0001~
18
01643-31645
WASHER
8
DBE0001~
19
07177-07030
BUSHING
2
DBE0001~
20
707-56-70540
SEAL
2
DBE0001~
21
04077-00085
RING
2
DBE0001~
PW19964
RO- 6
PC200LC, 210LC-7
PC200LC, 210LC-7
RO- 7
FIG NO. ：R0200-01A0

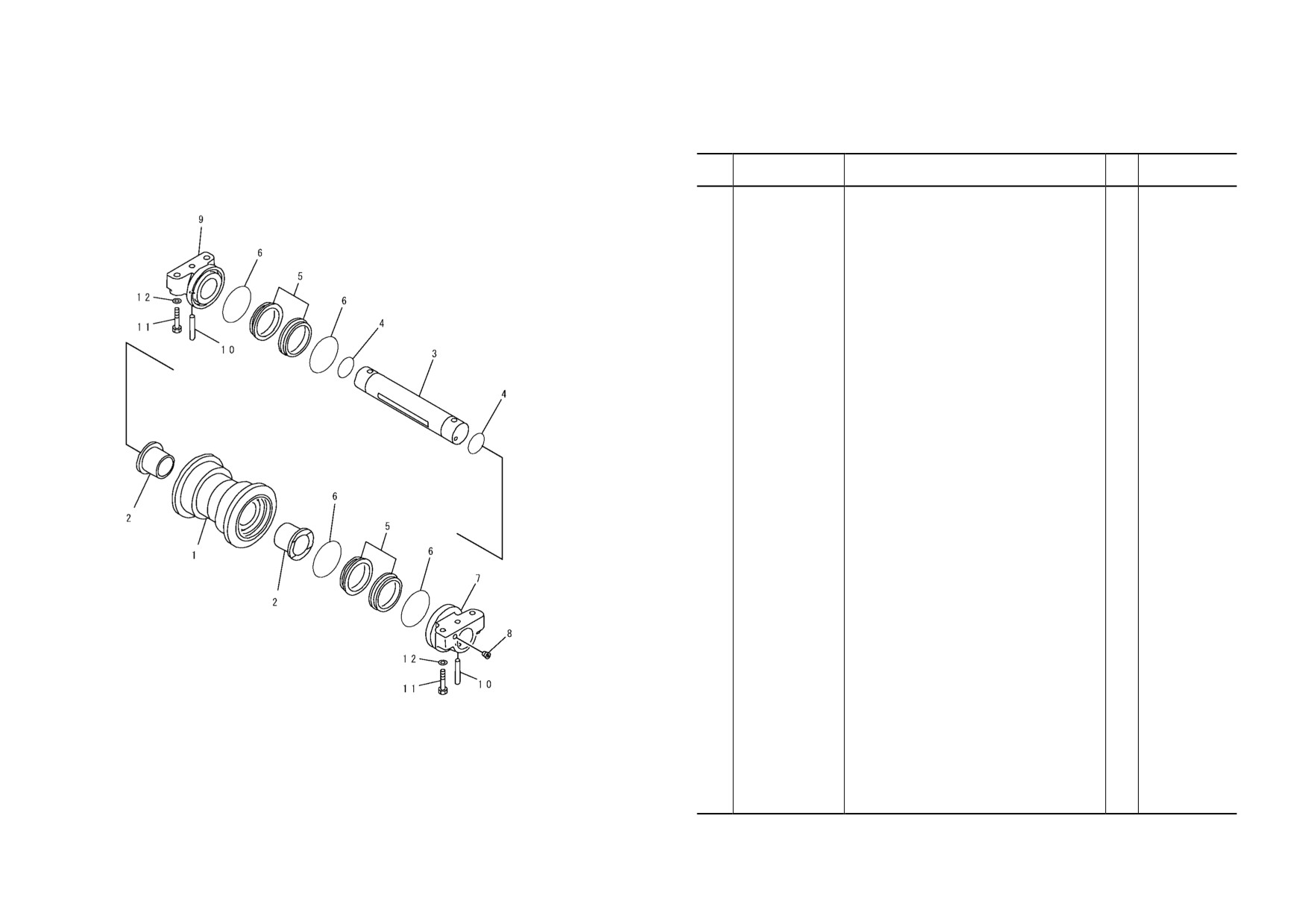

FIG. R0200-01A0 TRACK ROLLER
（PC200, 210-7）
INDEX
PART NO.
DESCRIPTION
Q'TY
SERIAL NO.
20Y-30-00016
TRACK ROLLER ASS' Y
14
DBB0001~
1
20Y-30-16411
. ROLLER
1
DBB0001~
2
22U-30-11450
. BUSHING
2
DBB0001~
3
22U-30-11420
. SHAFT
1
DBB0001~
4
205-30-76260
. O-RING
2
DBB0001~
20Y-30-00430
. FLOATING SEAL ASS' Y
2
DBB0001~
5
☆
.. SEAL
2
DBB0001~
6
20Y-30-16460
.. O-RING
2
DBB0001~
7
22U-30-11430
. COLLAR
1
DBB0001~
8
20Y-30-16330
. PLUG
1
DBB0001~
9
22U-30-11440
. COLLAR
1
DBB0001~
10
20Y-30-16170
. PIN
2
DBB0001~
11
20Y-30-11340
BOLT
56
DBB0001~
12
01643-31845
WASHER
56
DBB0001~
PV14578
RO- 8
PC200, 210-7
PC200, 210-7
RO- 9
FIG NO. ：R0200-01A1

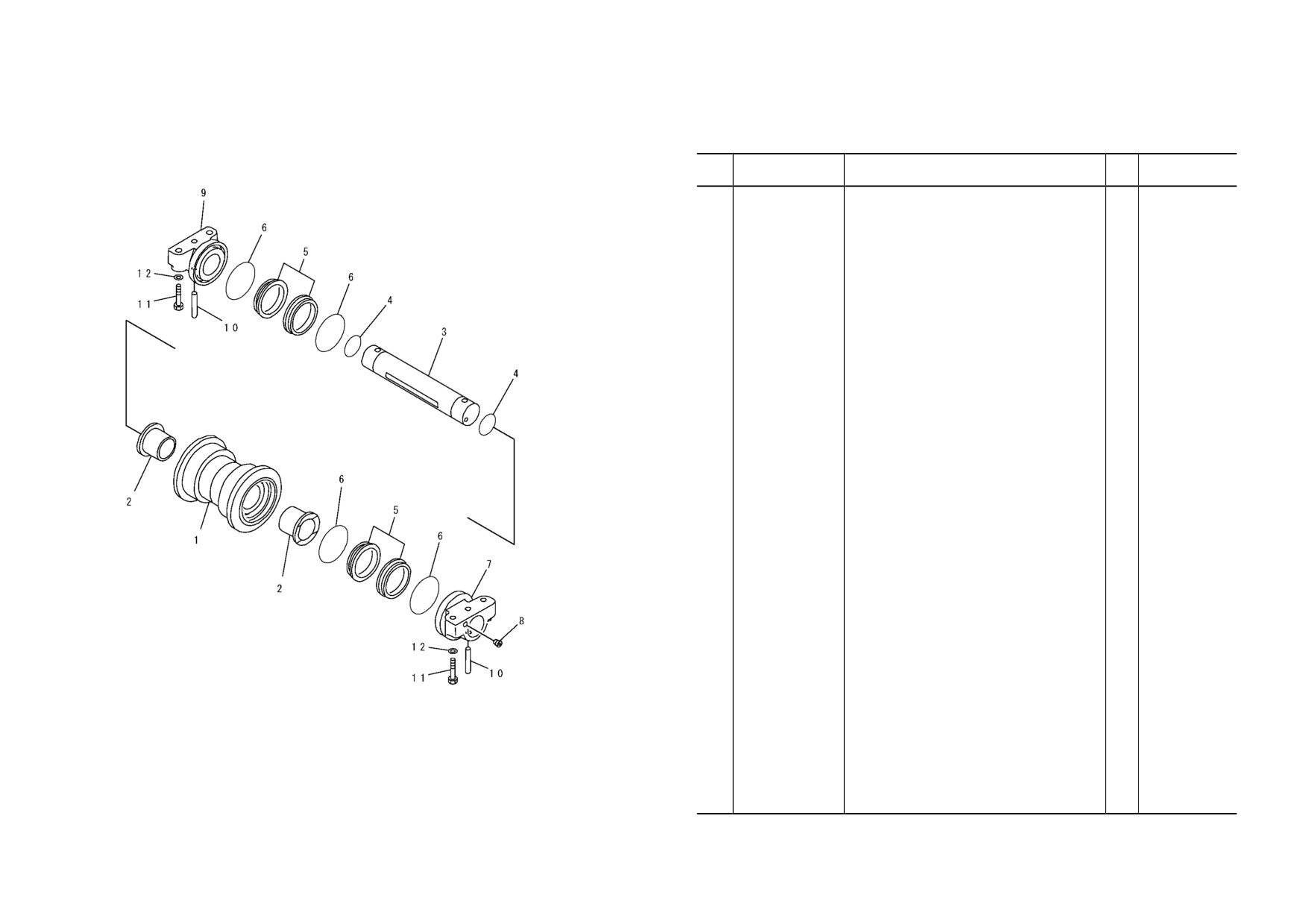

FIG. R0200-01A1 TRACK ROLLER
（PC200LC, 210LC-7）
INDEX
PART NO.
DESCRIPTION
Q'TY
SERIAL NO.
20Y-30-00016
TRACK ROLLER ASS' Y
18
DBE0001~
1
20Y-30-16411
. ROLLER
1
DBE0001~
2
22U-30-11450
. BUSHING
2
DBE0001~
3
22U-30-11420
. SHAFT
1
DBE0001~
4
205-30-76260
. O-RING
2
DBE0001~
20Y-30-00430
. FLOATING SEAL ASS' Y
2
DBE0001~
5
☆
.. SEAL
2
DBE0001~
6
20Y-30-16460
.. O-RING
2
DBE0001~
22U-30-11430SG
. COLLAR
1
DBE0001~
7
22U-30-11430
. COLLAR
1
DBE0001~
8
20Y-30-16330
. PLUG
1
DBE0001~
22U-30-11440SG
. COLLAR
1
DBE0001~
9
22U-30-11440
. COLLAR
1
DBE0001~
10
20Y-30-16170
. PIN
2
DBE0001~
11
20Y-30-11340
BOLT
72
DBE0001~
12
01643-31845
WASHER
72
DBE0001~
PV14578
RO- 10
PC200LC, 210LC-7
PC200LC, 210LC-7
RO- 11
