Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 28
FIG NO. ：M1520-01A0

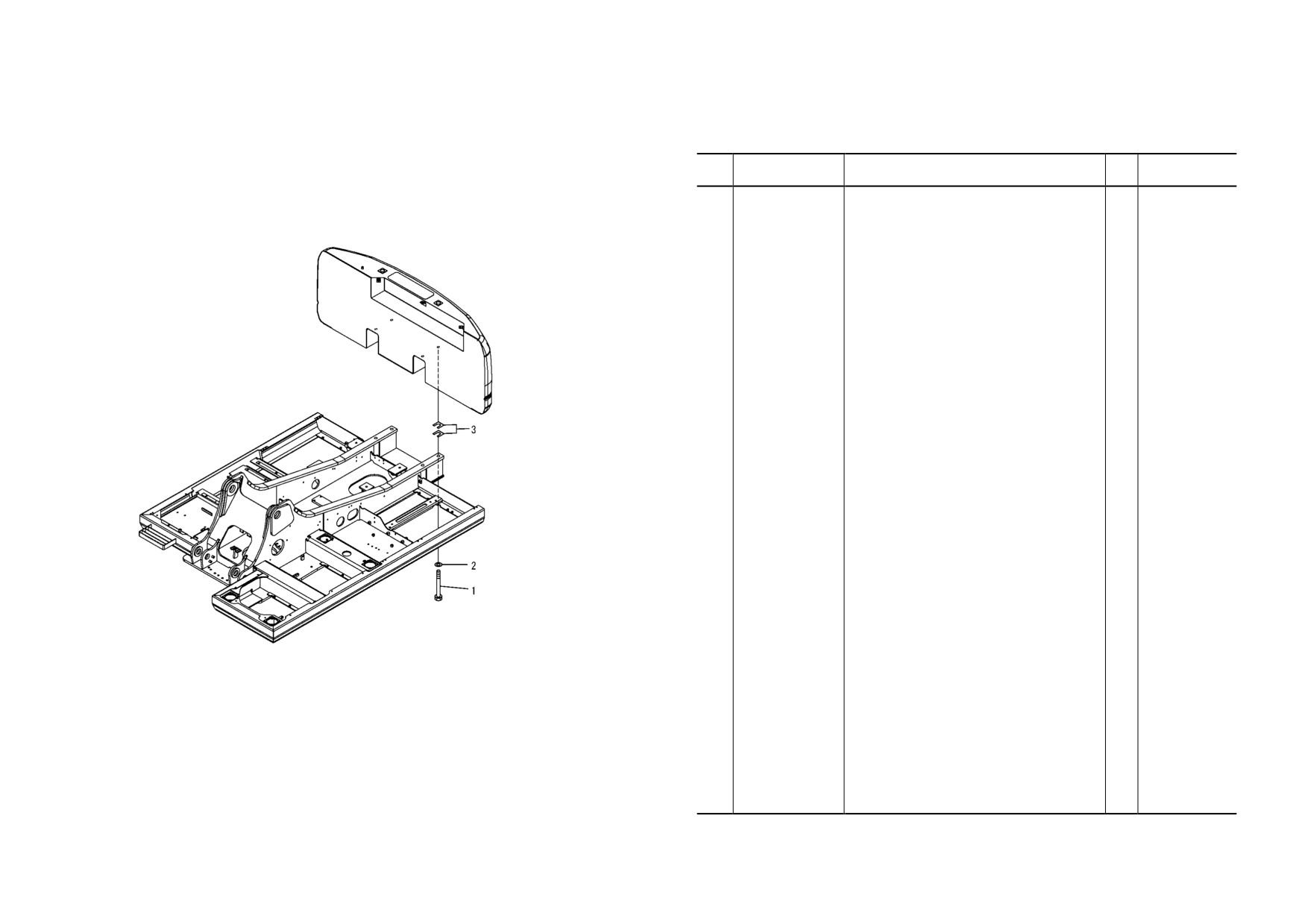

FIG. M1520-01A0 COUNTER WEIGHT MOUNTING
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-46-44250
BOLT
4
DBB0001~
2
207-46-32220
PLATE
4
DBB0001~
Counter Weight
3
20Y-46-11410
PLATE, 1.6 MM
2
DBB0001~
Revolving Frame
PW1B793
MO- 30
PC200, 210(LC)-7
PC200, 210(LC)-7
MO- 31

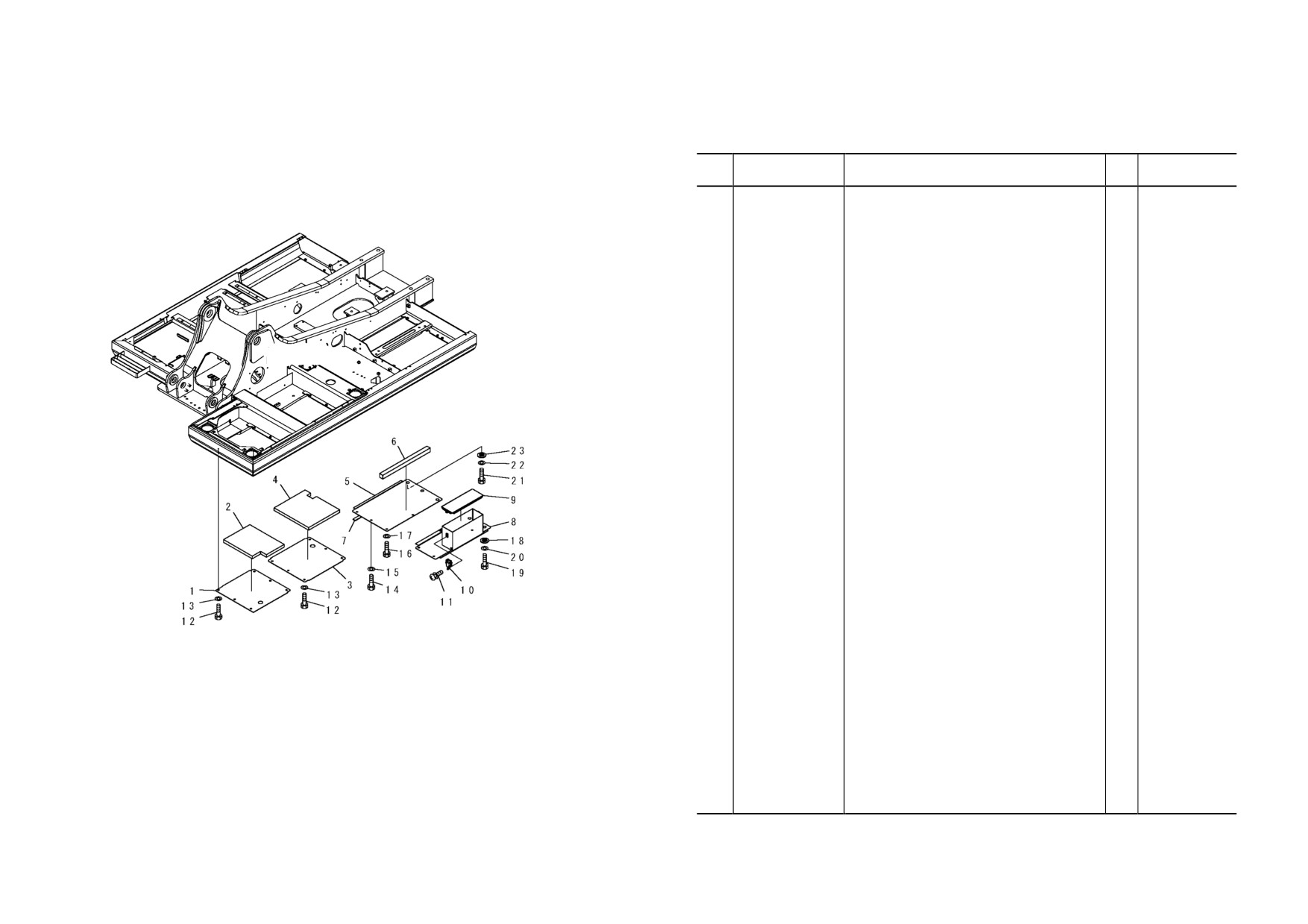

FIG NO. ：M1810-01A0

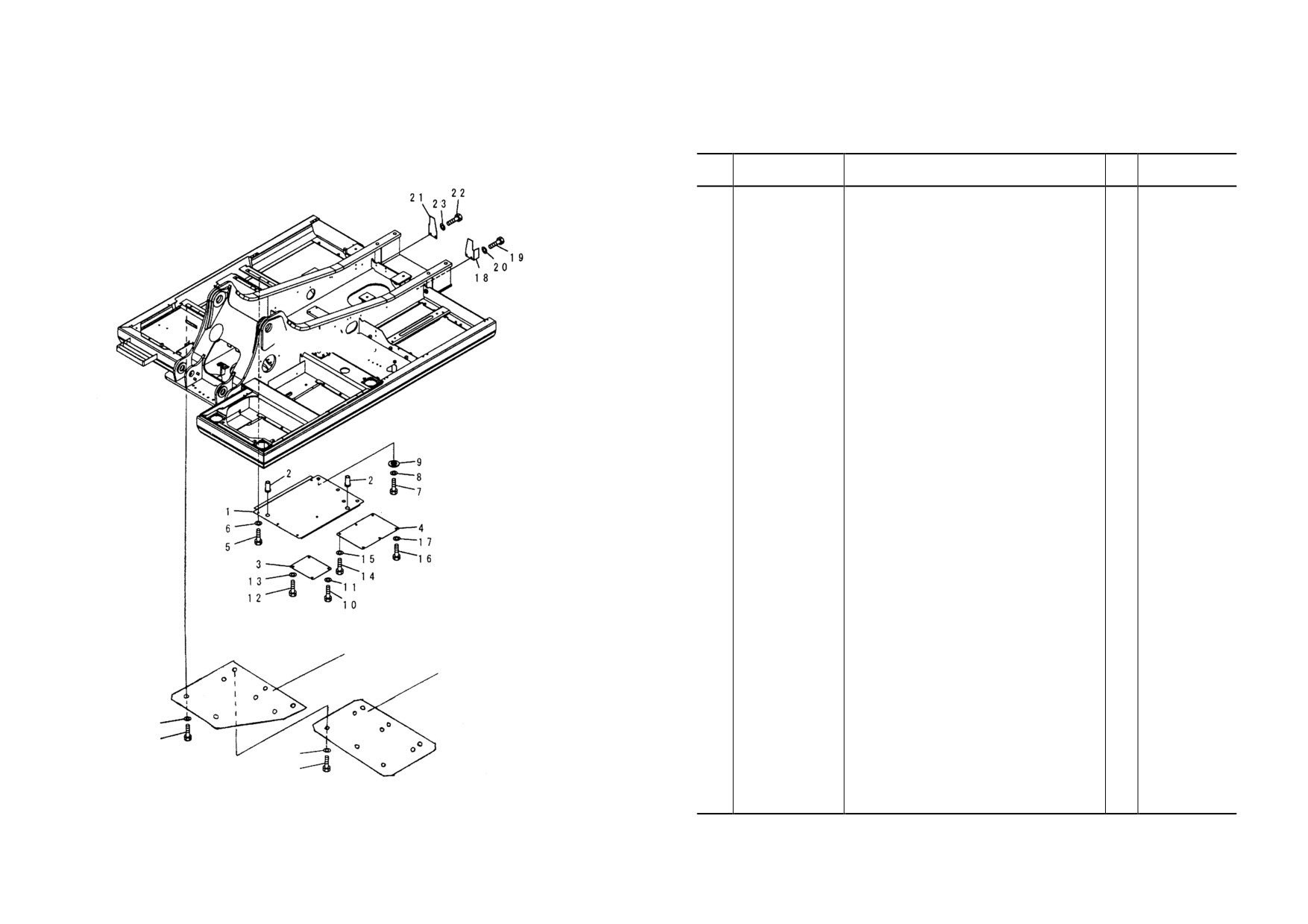

FIG. M1810-01A0 UNDER COVER (REVOLVING FRAME) (LEFT SIDE COVER AND TOOL BOX)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
20Y-54-62110
COVER
1
DBB0001~
1
☆
. COVER
1
DBB0001~
2
20Y-54-D1820
. SHEET
1
DBB0001~
20Y-54-62120
COVER
1
DBB0001~
3
☆
. COVER
1
DBB0001~
4
20Y-54-D1830
. SHEET
1
DBB0001~
5
20Y-54-61852
COVER
1
200143-
6
20Y-54-61861
. SHEET
1
DBB0001~
Revolving Frame
7
20Y-54-61890
. SHEET
1
DBB0001~
20Y-54-62140
COVER
1
DBB0001~
8
☆
. COVER
1
DBB0001~
9
22U-54-23620
. COVER
1
DBB0001~
10
195-57-11530
. CATCHER
1
DBB0001~
11
01023-20512
. SCREW
3
DBB0001~
12
01010-81230
BOLT
12
DBB0001~
13
01643-31232
WASHER
12
DBB0001~
14
01010-81230
BOLT
2
DBB0001~
15
01643-31232
WASHER
2
DBB0001~
16
01010-81230
BOLT
2
DBB0001~
17
01643-31232
WASHER
2
DBB0001~
18
20Y-54-12550
COLLAR
2
DBB0001~
19
01010-81230
BOLT
4
DBB0001~
20
01643-31232
WASHER
4
DBB0001~
21
01010-81230
BOLT
3
DBB0001~
22
01643-31232
WASHER
3
DBB0001~
23
20Y-54-12550
COLLAR
3
DBB0001~
MO- 32
PC200, 210(LC)-7
PC200, 210(LC)-7
MO- 33
FIG NO. ：M1810-02A0
FIG. M1810-02A0 UNDER COVER (REVOLVING FRAME) (ENGINE ROOM AND TANK)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
20Y-54-62131
COVER
1
DBB0001~
1
☆
. COVER
1
DBB0001~
2
22U-54-24760
. GROMMET
2
DBB0001~
3
20Y-54-61870
COVER
1
DBB0001~
4
20Y-54-61980
COVER
1
DBB0001~
5
01010-81230
BOLT
3
DBB0001~
6
01643-31232
WASHER
3
DBB0001~
Revolving Frame
7
01010-81230
BOLT
3
DBB0001~
8
01643-31232
WASHER
3
DBB0001~
9
20Y-54-12550
COLLAR
3
DBB0001~
10
01010-81230
BOLT
2
DBB0001~
11
01643-31232
WASHER
2
DBB0001~
12
01010-81230
BOLT
2
DBB0001~
13
175-54-34170
WASHER
2
DBB0001~
14
01010-81230
BOLT
3
DBB0001~
15
01643-31232
WASHER
3
DBB0001~
16
01010-81230
BOLT
3
DBB0001~
17
175-54-34170
WASHER
3
DBB0001~
18
20Y-54-28872
COVER
1
DBB0001~
19
01010-81225
BOLT
2
DBB0001~
20
01643-31232
WASHER
2
DBB0001~
21
20Y-54-28882
COVER
1
DBB0001~
22
01010-81225
BOLT
2
DBB0001~
23
01643-31232
WASHER
2
DBB0001~
24
24
20Y-54-62250
COVER
1
DBB0001~
25
25
20Y-54-62260
COVER
1
DBB0001~
26
01024-81230
BOLT
14
DBB0001~
27
01643-31232
WASHER
14
DBB0001~
27
26
PW1B790
27
26
MO- 34
PC200, 210(LC)-7
PC200, 210(LC)-7
MO- 35
SWING CIRCLE AND RELATED PARTS
FIG NO. ：N1110-01A0

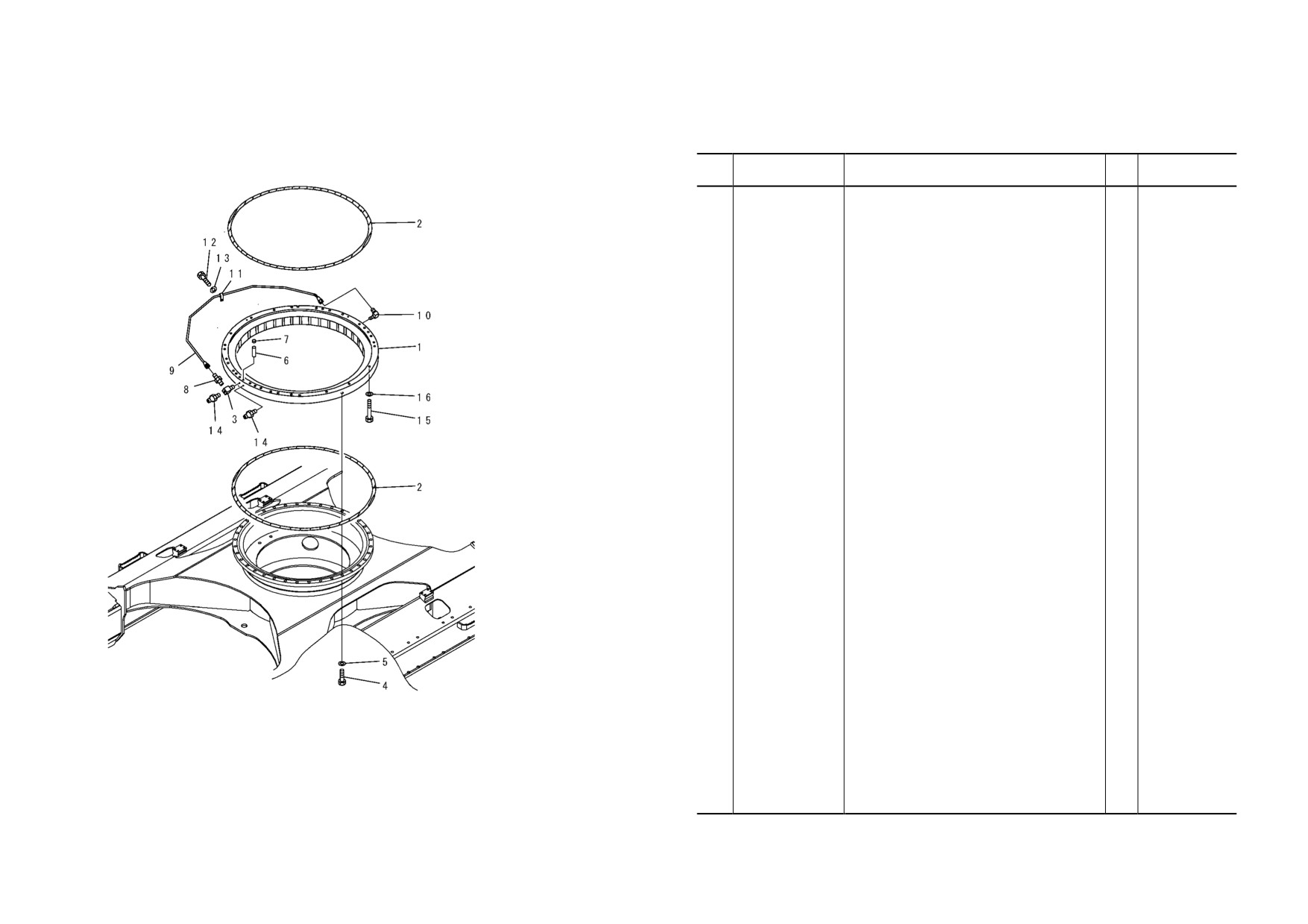

FIG. N1110-01A0 SWING CIRCLE (CONCENTRATED GREASING)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-25-21200
CIRCLE
1
DBB0001~
2
205-25-71152
. SEAL
2
DBB0001~
3
205-25-71280
. NIPPLE
1
DBB0001~
4
20Y-25-11290
BOLT
36
DBB0001~
5
01643-72060
WASHER
36
DBB0001~
6
04020-01842
PIN
2
DBB0001~
7
20Y-46-21520
CAP
1
DBB0001~
8
07214-50813
CONNECTOR
1
DBB0001~
9
20Y-25-21123
TUBE
1
DBB0001~
10
20Y-25-11270
ELBOW
1
DBB0001~
11
08036-00814
CLIP
1
DBB0001~
12
01010-81016
BOLT
1
DBB0001~
13
01643-31032
WASHER
1
DBB0001~
14
07020-00000
FITTING
2
DBB0001~
15
206-25-61110
BOLT
32
DBB0001~
16
01643-72260
WASHER
32
DBB0001~
Track Frame
PW1B889
NO- 2
PC200, 210(LC)-7
PC200, 210(LC)-7
NO- 3
FIG NO. ：N1210-01A0

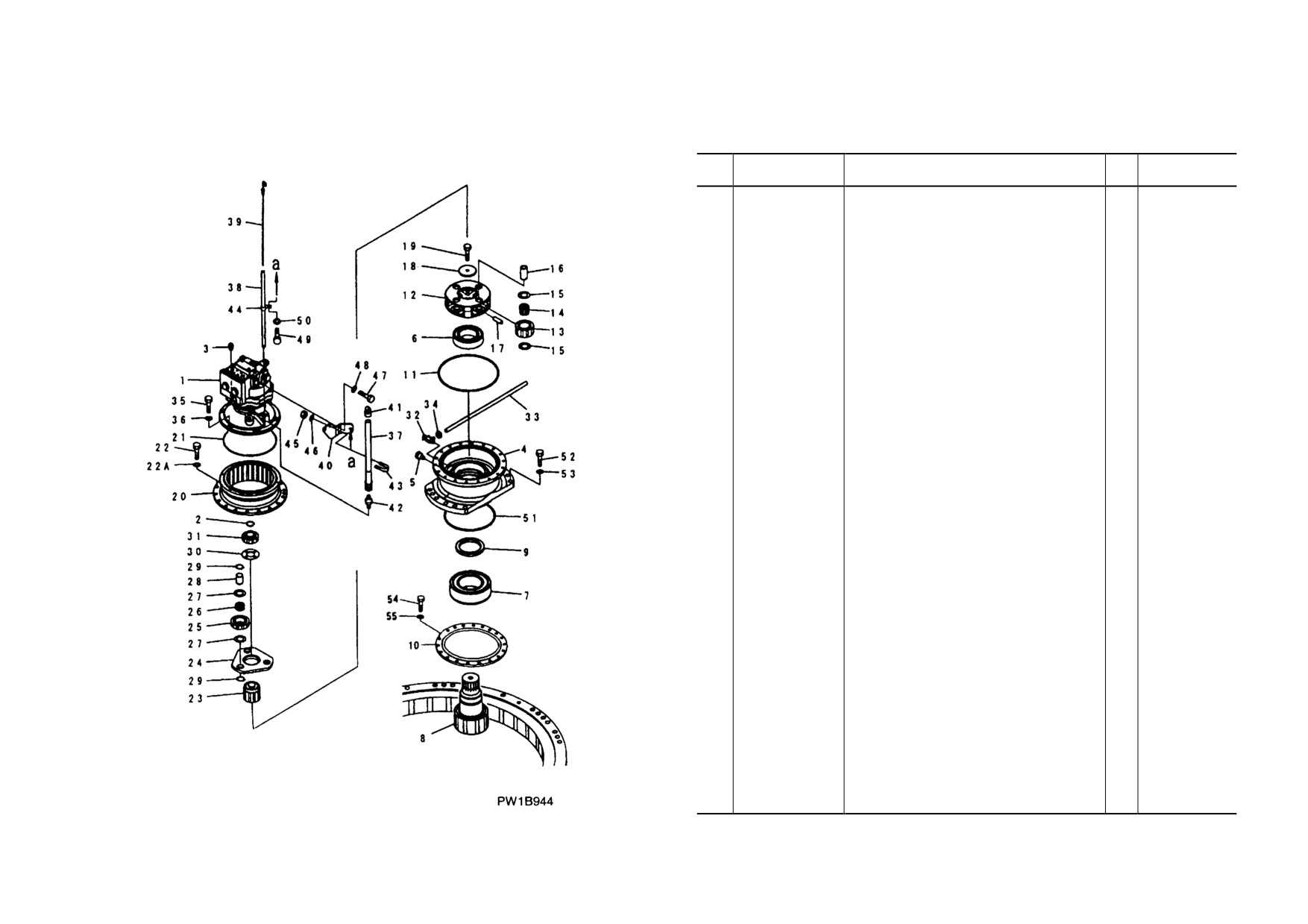

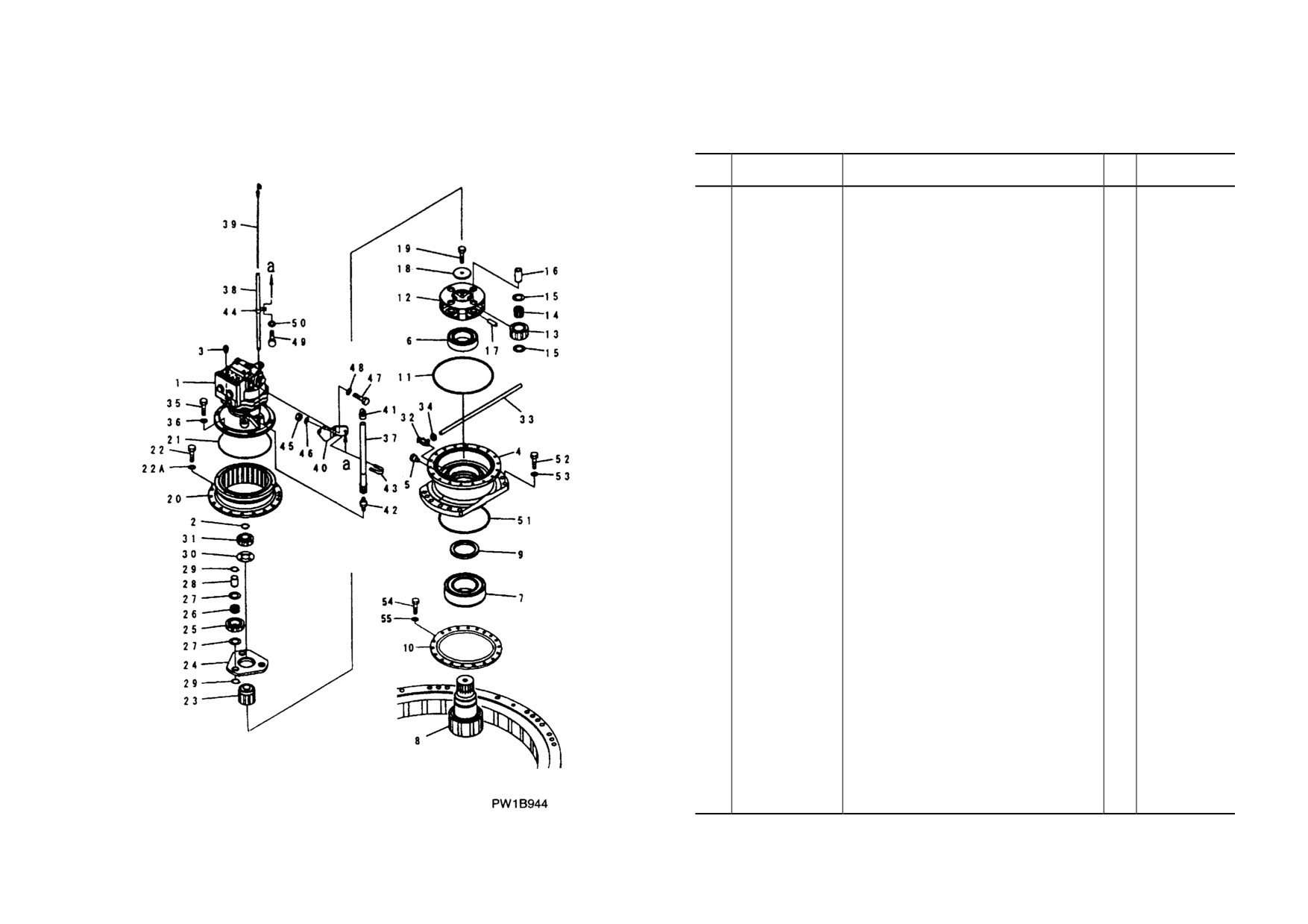

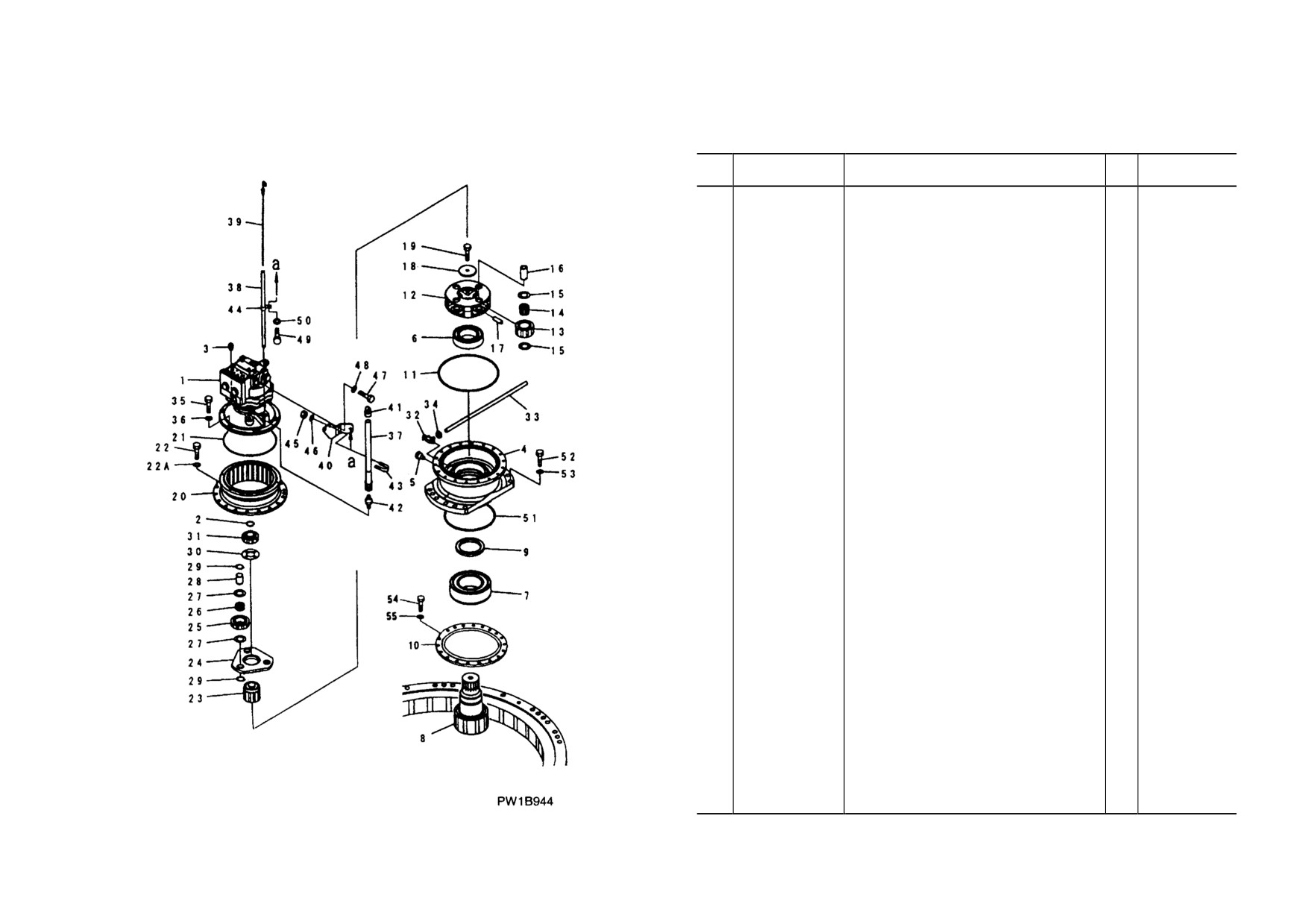

FIG. N1210-01A0 SWING MACHINERY
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
706-7G-01070
MOTOR ASS’ Y
1
DBB0001~
2
22U-26-21280
RING
1
DBB0001~
3
07042-00312
PLUG
1
DBB0001~
4
20Y-26-31110
CASE
1
DBB0001~
5
07029-00000
VALVE
1
DBB0001~
6
20Y-26-22330
BEARING
1
DBB0001~
7
20Y-26-22340
BEARING
1
DBB0001~
8
20Y-26-21142
SHAFT, 15 TEETH
1
DBB0001~
9
20Y-26-22420
SEAL
1
DBB0001~
10
20Y-26-22191
COVER
1
DBB0001~
11
07000-15310
O-RING
1
DBB0001~
12
22U-26-21580
CARRIER
1
DBB0001~
13
22U-26-21540
GEAR
4
DBB0001~
14
20G-26-11240
BEARING
4
DBB0001~DBB4708
20G-26-11241
BEARING
4
DBB4709~
15
20Y-27-21240
WASHER
8
DBB0001~
16
20Y-26-22250
PIN
4
DBB0001~
17
20Y-27-21280
PIN
4
DBB0001~
18
20Y-26-21240
PLATE
1
DBB0001~
19
112-32-11211
BOLT, SHOE
1
DBB0001~
20
22U-26-21550
GEAR
1
DBB0001~
21
20K-22-11190
O-RING
1
DBB0001~
22
01010-81440
BOLT
18
DBB0001~
22A
01643-31445
WASHER
18
DBB0001~
23
22U-26-21530
GEAR
1
DBB0001~
24
22U-26-21570
CARRIER
1
DBB0001~
25
22U-26-21520
GEAR
3
DBB0001~
26
20Y-26-21281
BEARING
3
DBB0001~
27
22U-26-21230
WASHER, THRUST
6
DBB0001~
Swing Sircle
28
22U-26-21210
PIN
3
DBB0001~
29
04064-03515
RING
6
DBB0001~
30
22U-26-21250
WASHER, THRUST
1
DBB0001~
NO- 6
PC200, 210(LC)-7
PC200, 210(LC)-7
NO- 7
FIG NO. ：N1210-01A0
FIG. N1210-01A0 SWING MACHINERY
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
31
22U-26-21510
GEAR
1
DBB0001~
32
195-03-13241
VALVE
1
DBB0001~
33
07270-21560
TUBE
1
DBB0001~
34
07281-00197
CLAMP
1
DBB0001~
35
01010-81035
BOLT
6
DBB0001~
36
01643-51032
WASHER
6
DBB0001~
37
20Y-26-31411
TUBE
1
DBB0001~
38
20Y-26-31421
FILLER
1
DBB0001~
39
20Y-26-31431
GAUGE
1
DBB0001~
40
20Y-26-31441
BRACKET
1
DBB0001~
41
22U-26-21460
CAP
1
DBB0001~
42
07238-10630
CONNECTOR
1
DBB0001~
43
07283-32738
CLIP
1
DBB0001~
44
04434-51710
CLIP
1
DBB0001~
45
01597-01009
NUT
2
DBB0001~
46
01643-31032
WASHER
2
DBB0001~
47
01010-81030
BOLT
2
DBB0001~
48
01643-31032
WASHER
2
DBB0001~
49
01010-81025
BOLT
1
DBB0001~
50
01643-31032
WASHER
1
DBB0001~
51
07000-15240
O-RING
1
DBB0001~
52
01010-82060
BOLT
12
DBB0001~
53
01643-32060
WASHER
12
DBB0001~
54
01024-81045
BOLT
12
DBB0001~
55
01643-81032
WASHER
12
DBB0001~
Swing Sircle
NO- 8
PC200, 210(LC)-7
PC200, 210(LC)-7
NO- 9
FIG NO. ：N1220-01A0

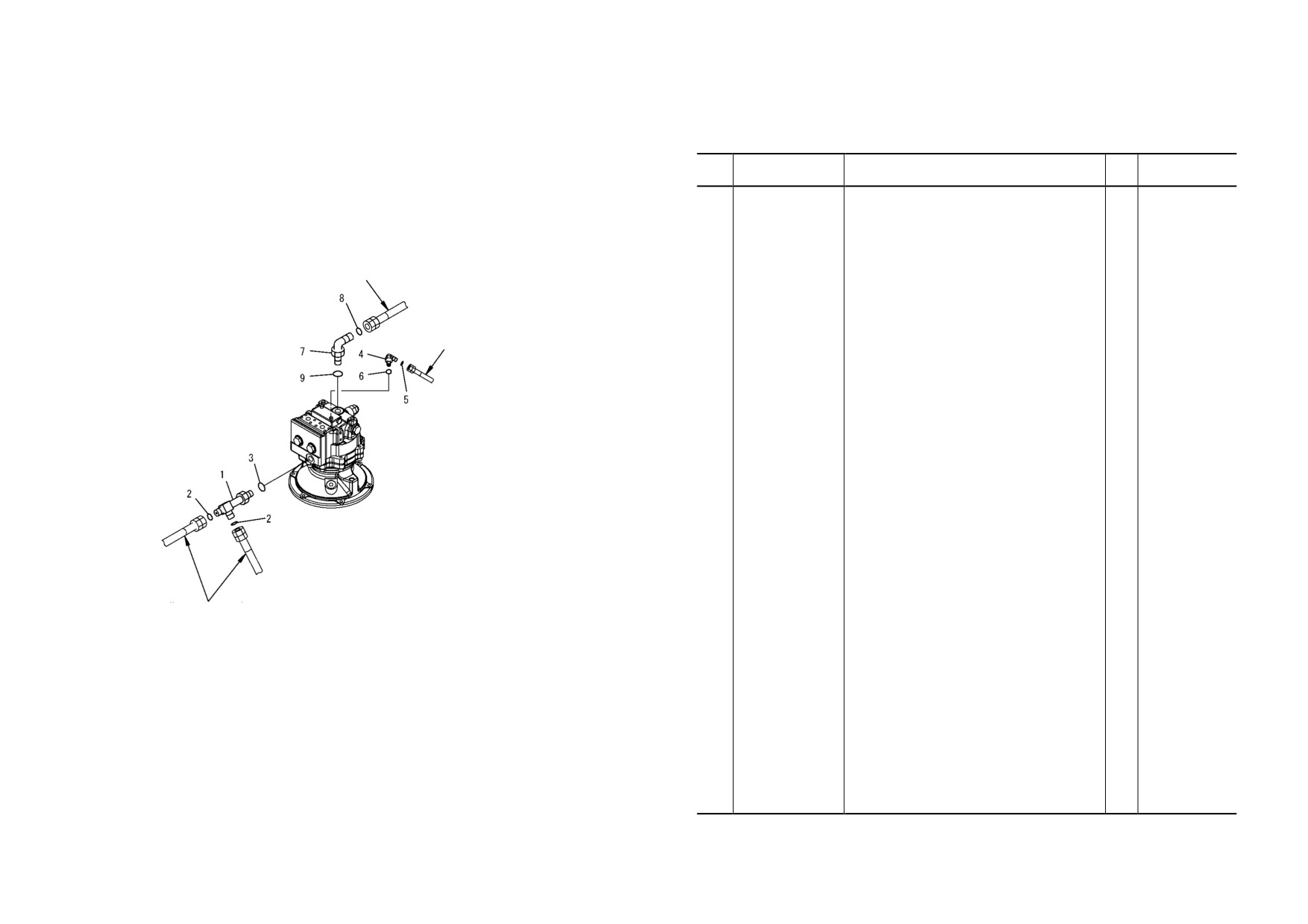

FIG. N1220-01A0 SWING MOTOR (CONNECTING PARTS)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-62-41940
ELBOW
1
DBB0001~
2
02896-11015
O-RING
2
DBB0001~
3
07002-12434
O-RING
1
DBB0001~
4
11Y-62-12160
ELBOW
1
DBB0001~
See Fig. H0330-01A0
5
02896-11008
O-RING
1
DBB0001~
6
07002-11423
O-RING
1
DBB0001~
7
02782-10630
ELBOW
1
DBB0001~
See Fig. H1831-01A0
8
02896-11018
O-RING
1
DBB0001~
9
07002-12434
O-RING
1
DBB0001~
Swing Motor
See Fig. H0340-01A0
PW1B817
NO- 14
PC200, 210(LC)-7
PC200, 210(LC)-7
NO- 15
FIG NO. ：N1310-01A0

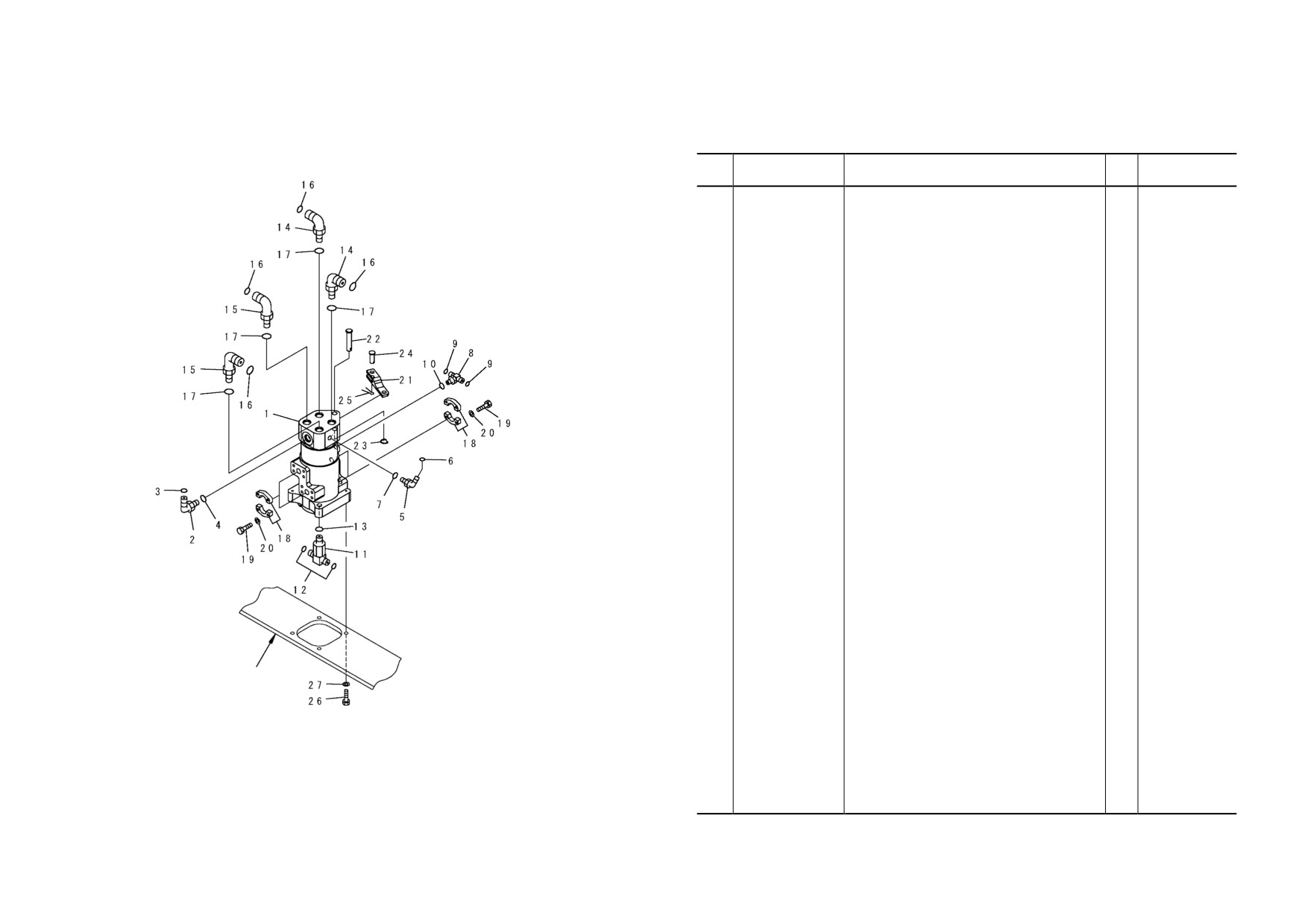

FIG. N1310-01A0 SWIVEL JOINT (CONNECTING PARTS)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
（703-08-33610）
SWIVEL JOINT ASS’ Y
1
DBB0001~
2
02782-10522
ELBOW
1
DBB0001~
3
02896-11015
O-RING
1
DBB0001~
4
07002-12434
O-RING
1
DBB0001~
5
11Y-62-12160
ELBOW
1
DBB0001~
6
02896-11008
O-RING
1
DBB0001~
7
07002-11423
O-RING
1
DBB0001~
8
11Y-62-12250
TEE
1
DBB0001~
9
02896-11008
O-RING
2
DBB0001~
10
07002-11423
O-RING
1
DBB0001~
11
20Y-62-41930
TEE
1
DBB0001~
12
02896-11012
O-RING
2
DBB0001~
13
07002-12434
O-RING
1
DBB0001~
14
02782-10628
ELBOW
2
DBB0001~
15
02782-10630
ELBOW
2
DBB0001~
16
02896-11018
O-RING
4
DBB0001~
17
07002-12434
O-RING
4
DBB0001~
18
07371-30640
FLANGE
8
DBB0001~
19
07372-21035
BOLT
16
DBB0001~
20
01643-51032
WASHER
16
DBB0001~
21
22U-62-21582
BRACKET
1
DBB0001~
22
22U-62-21870
PIN
1
DBB0001~
23
22U-62-24420
PIN
1
DBB0001~
24
04205-11648
PIN
1
DBB0001~
25
04050-14028
PIN
1
DBB0001~
See Fig. R1100-01A0
26
01010-81235
BOLT
4
DBB0001~
27
01643-31232
WASHER
4
DBB0001~
PW1B818
NO- 16
PC200, 210(LC)-7
PC200, 210(LC)-7
NO- 17
