Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 30
FIG NO. ：R0300-01A0

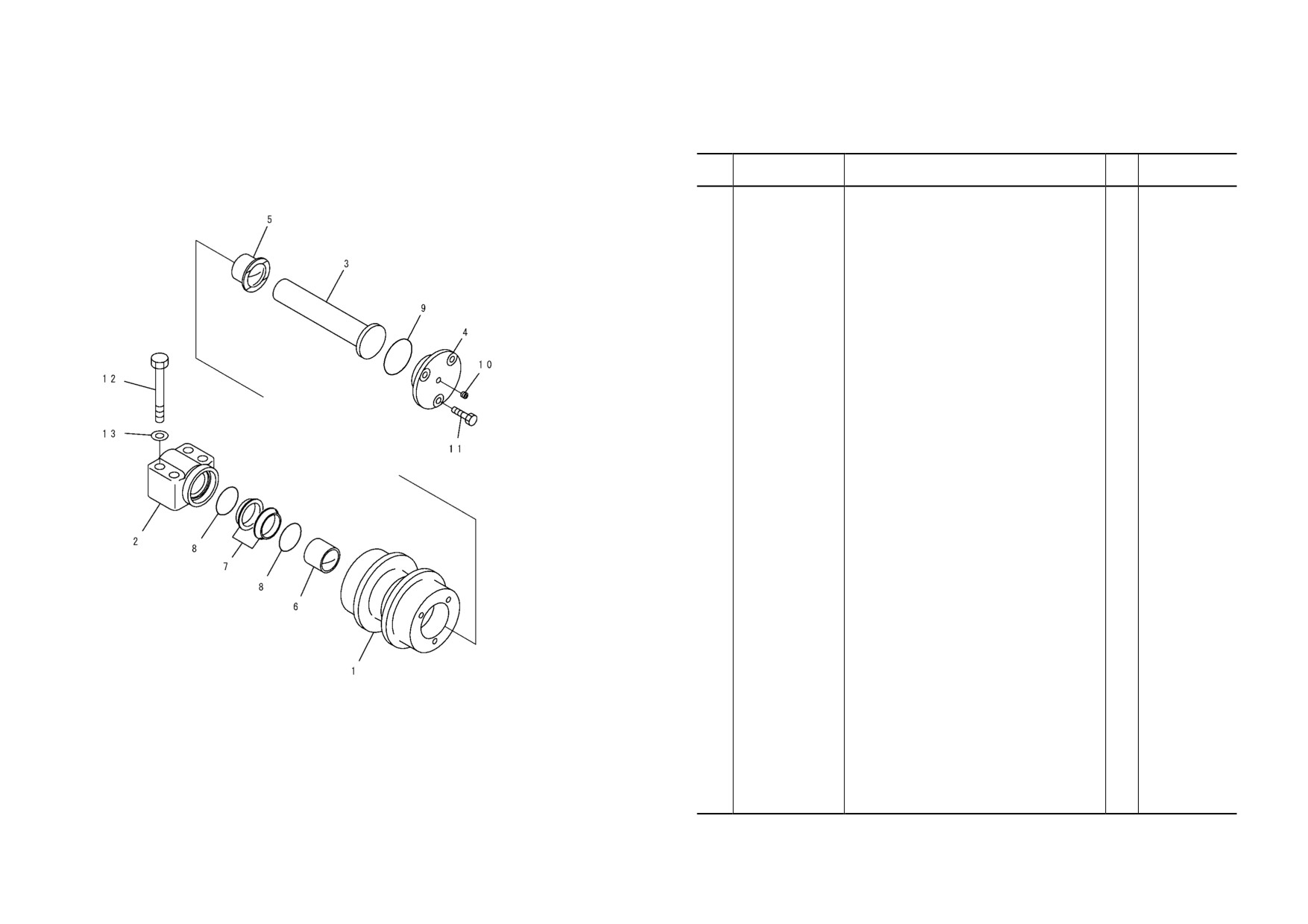

FIG. R0300-01A0 CARRIER ROLLER
INDEX
PART NO.
DESCRIPTION
Q'TY
SERIAL NO.
22U-30-00021
CARRIER ROLLER
4
DBB0001~
1
22U-30-25110
. ROLLER
1
DBB0001~
2
22U-30-25120
. SUPPORT
1
DBB0001~
3
22U-30-25130
. SHAFT
1
DBB0001~
4
22U-30-25140
. COVER
1
DBB0001~
5
22U-30-25150
. BUSHING
1
DBB0001~
6
22U-30-25160
. BUSHING
1
DBB0001~
110-30-00086
. SEAL RING ASS' Y
1
DBB0001~
7
☆
.. SEAL
2
DBB0001~
8
110-30-13250
.. O-RING
2
DBB0001~
9
07000-12060
. O-RING
1
DBB0001~
10
20Y-30-16330
. PLUG
1
DBB0001~
11
01010-81025
. BOLT
3
DBB0001~
12
01010-81485
BOLT
16
DBB0001~
13
01643-31445
WASHER
16
DBB0001~
PWL4287
RO- 12
PC200, 210(LC)-7
PC200, 210(LC)-7
RO-13
FIG NO. ：R0500-01A0
FIG. R0500-01A0 TRACK SHOE (SWAMP TYPE) (860 mm WIDE) (OPT)
(PC200,210-7)
INDEX
PART NO.
DESCRIPTION
Q'TY
SERIAL NO.
20Y-32-02060
TRACK SHOE ASS' Y
1
DBB0001~
1
20Y-32-31120
. LIND, L. H
44
DBB0001~
2
20Y-32-31130
. LINK, R. H
44
DBB0001~
3
20Y-32-11240
. SEAL
84
DBB0001~
4
20Y-32-11171
. BUSHING, MASTER
2
DBB0001~
5
20Y-32-11141
. BUSHING, MASTER
42
DBB0001~
6
20Y-32-31150
. PIN
42
DBB0001~
7
20Y-32-11340
. SHOE
44
DBB0001~
8
20Y-32-11230
. BOLT
176
DBB0001~
9
134-32-61221
. NUT
176
DBB0001~
10
20Y-32-31120
. LINK, L. H
46
DBB0001~
11
20Y-32-31130
. LINK, R. H
46
DBB0001~
12
20Y-32-11240
. SEAL
88
DBB0001~
13
20Y-32-11171
. BUSHING, MASTER
2
DBB0001~
14
20Y-32-11141
. BUSHING, REGULAR
44
DBB0001~
15
20Y-32-31150
. PIN
44
DBB0001~
16
20Y-32-11340
. SHOE
46
DBB0001~
17
20Y-32-11230
. SHOE
184
DBB0001~
18
134-32-61221
. BOLT
184
DBB0001~
19
20Y-32-11260
. SEAL
8
DBB0001~
20
20Y-32-31190
. PIN
4
DBB0001~
PW1A007
RO- 14
PC200,210-7
PC200,210-7
RO- 15

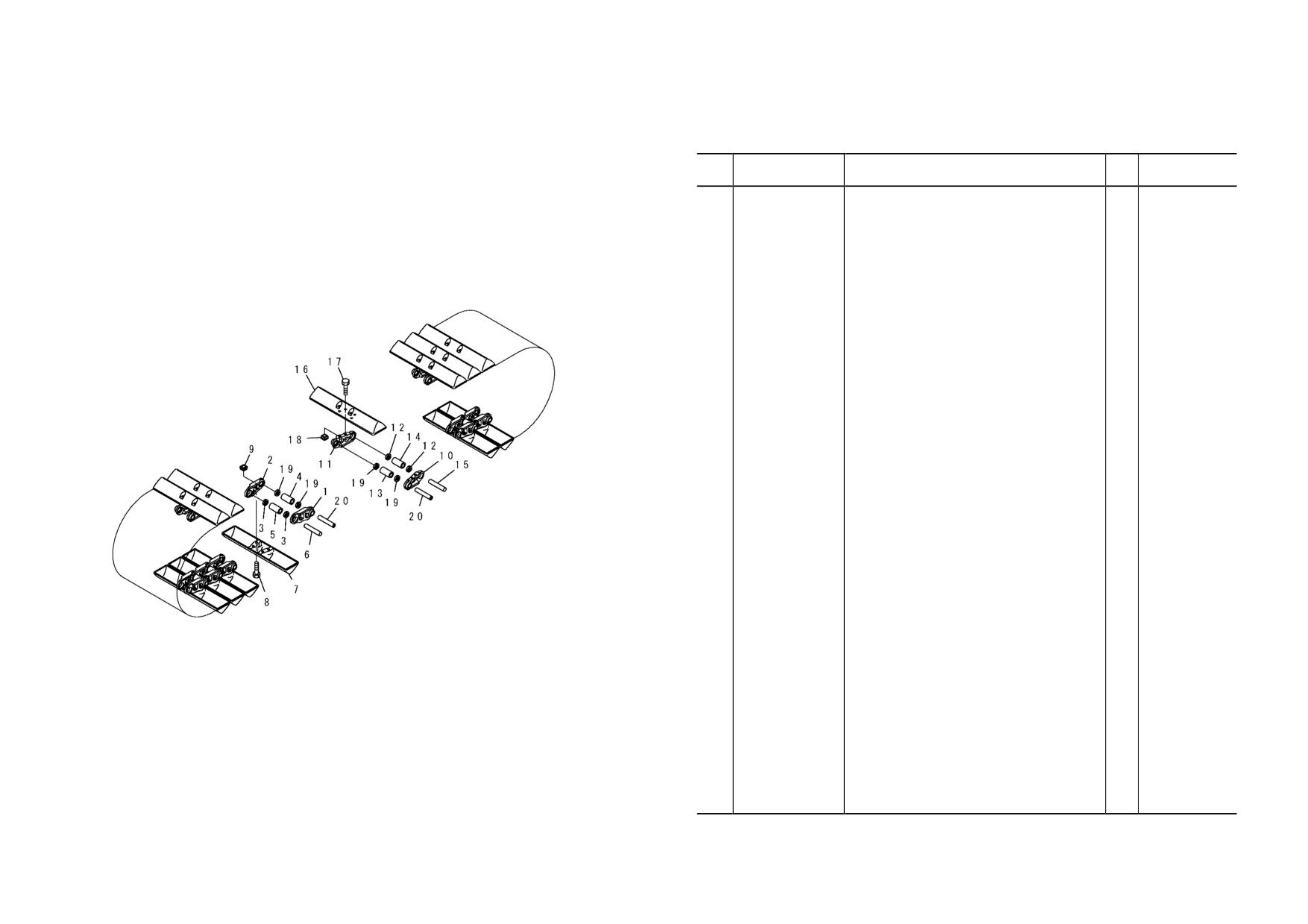

FIG NO. ：R0500-01A1
FIG. R0500-01A1 TRACK SHOE (FLAT TYPE) (610 mm WIDE) (OPT)
（PC200, 210-7）
INDEX
PART NO.
DESCRIPTION
Q'TY
SERIAL NO.
20Y-32-02070
TRACK SHOE ASS' Y
1
DBB0001~
1
20Y-32-31120
. LINK, L. H
44
DBB0001~
2
20Y-32-31130
. LINK, R. H
44
DBB0001~
3
20Y-32-11240
. SEAL
84
DBB0001~
4
20Y-32-11171
. BUSHING, MASTER
2
DBB0001~
5
20Y-32-11141
. BUSHING, REGULAR
42
DBB0001~
6
20Y-32-31150
. PIN
42
DBB0001~
7
20Y-32-11350
. SHOE
44
DBB0001~
8
20Y-32-11220
. BOLT, SHOE
176
DBB0001~
9
134-32-61221
. NUT
176
DBB0001~
10
20Y-32-31120
. LINK, L. H
46
DBB0001~
11
20Y-32-31130
. LINK, R. H
46
DBB0001~
12
20Y-32-11240
. SEAL
88
DBB0001~
13
20Y-32-11171
. BUSHING, MASTER
2
DBB0001~
14
20Y-32-11141
. BUSHING, REGULAR
44
DBB0001~
15
20Y-32-31150
. PIN
44
DBB0001~
16
20Y-32-11350
. SHOE
46
DBB0001~
17
20Y-32-11220
. BOLT, SHOE
184
DBB0001~
18
134-32-61221
. NUT
184
DBB0001~
19
20Y-32-11260
. SEAL
8
DBB0001~
20
20Y-32-31190
. PIN
4
DBB0001~
PW1A008
RO- 16
PC200, 210-7
PC200, 210-7
RO- 17

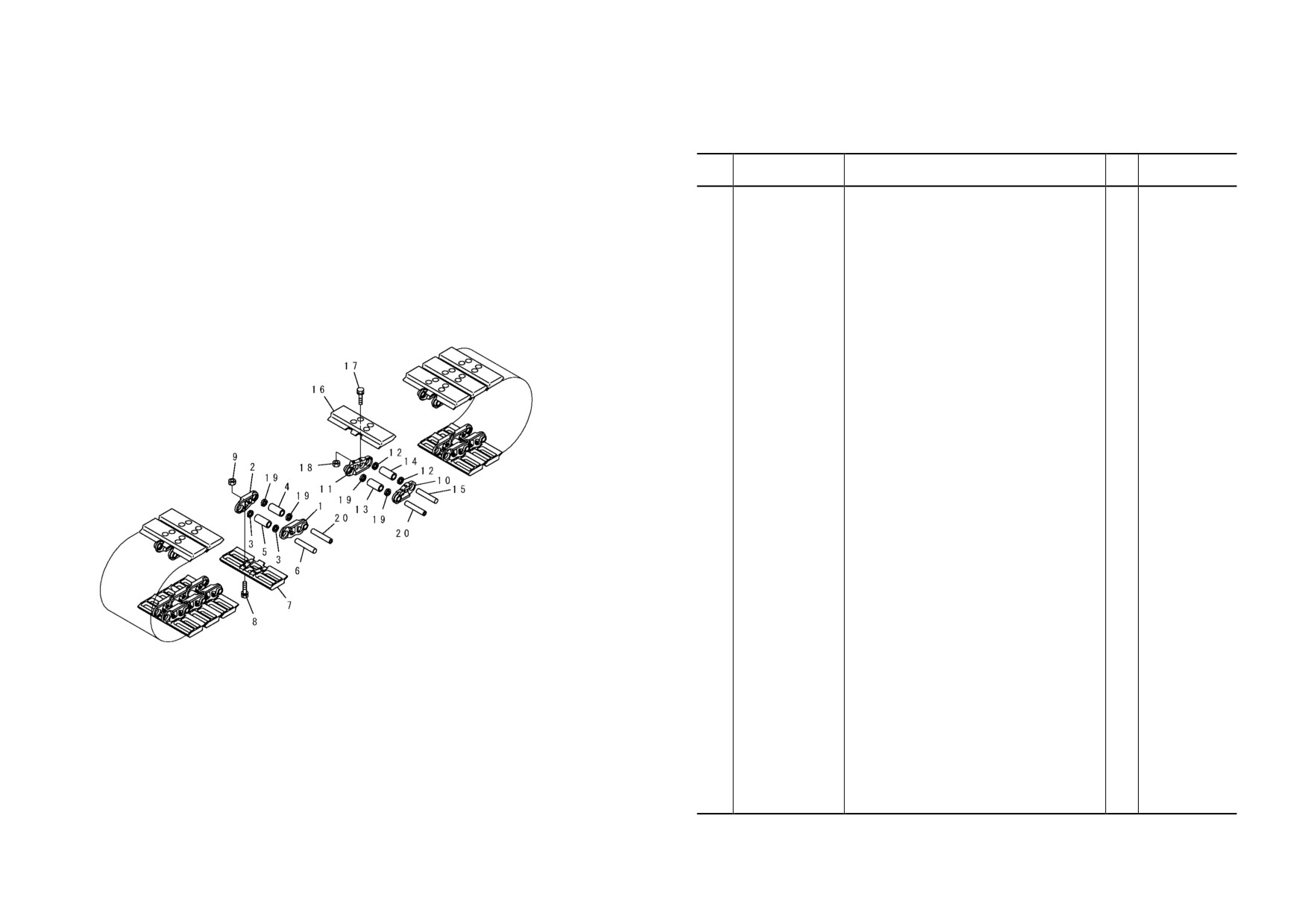

FIG NO. ：R0500-01A2
FIG. R0500-01A2 TRACK SHOE (ROADLINER) (600 mm WIDE) (OPT)
（PC200, 210-7）
INDEX
PART NO.
DESCRIPTION
Q'TY
SERIAL NO.
20Y-32-02082
TRACK SHOE ASS' Y
1
DBB0001~
1
20Y-32-31120
. LINK, L. H
44
DBB0001~
2
20Y-32-31130
. LINK, R. H
44
DBB0001~
3
20Y-32-11240
. SEAL
84
DBB0001~
4
20Y-32-11171
. BUSHING, MASTER
2
DBB0001~
5
20Y-32-11141
. BUSHING, REGULAR
42
DBB0001~
6
20Y-32-31150
. PIN
42
DBB0001~
7
20Y-32-11510
. SHOE, RUBBER
44
DBB0001~
8
20Y-32-31231
. BOLT, SHOE
176
DBB0001~
9
134-32-61221
. NUT
176
DBB0001~
10
20Y-32-31120
. LINK, L. H
46
DBB0001~
11
20Y-32-31130
. LINK, R. H
46
DBB0001~
12
20Y-32-11240
. SEAL
88
DBB0001~
13
20Y-32-11171
. BUSHING, MASTER
2
DBB0001~
14
20Y-32-11141
. BUSHING, REGULAR
44
DBB0001~
15
20Y-32-31150
. PIN
44
DBB0001~
16
20Y-32-11510
. SHOE, RUBBER
46
DBB0001~
17
20Y-32-31231
. BOLT, SHOE
184
DBB0001~
18
134-32-61221
. NUT
184
DBB0001~
19
20Y-32-11260
. SEAL
8
DBB0001~
20
20Y-32-31190
. PIN
4
DBB0001~
PW1A085
RO- 18
PC200, 210-7
PC200, 210-7
RO- 19

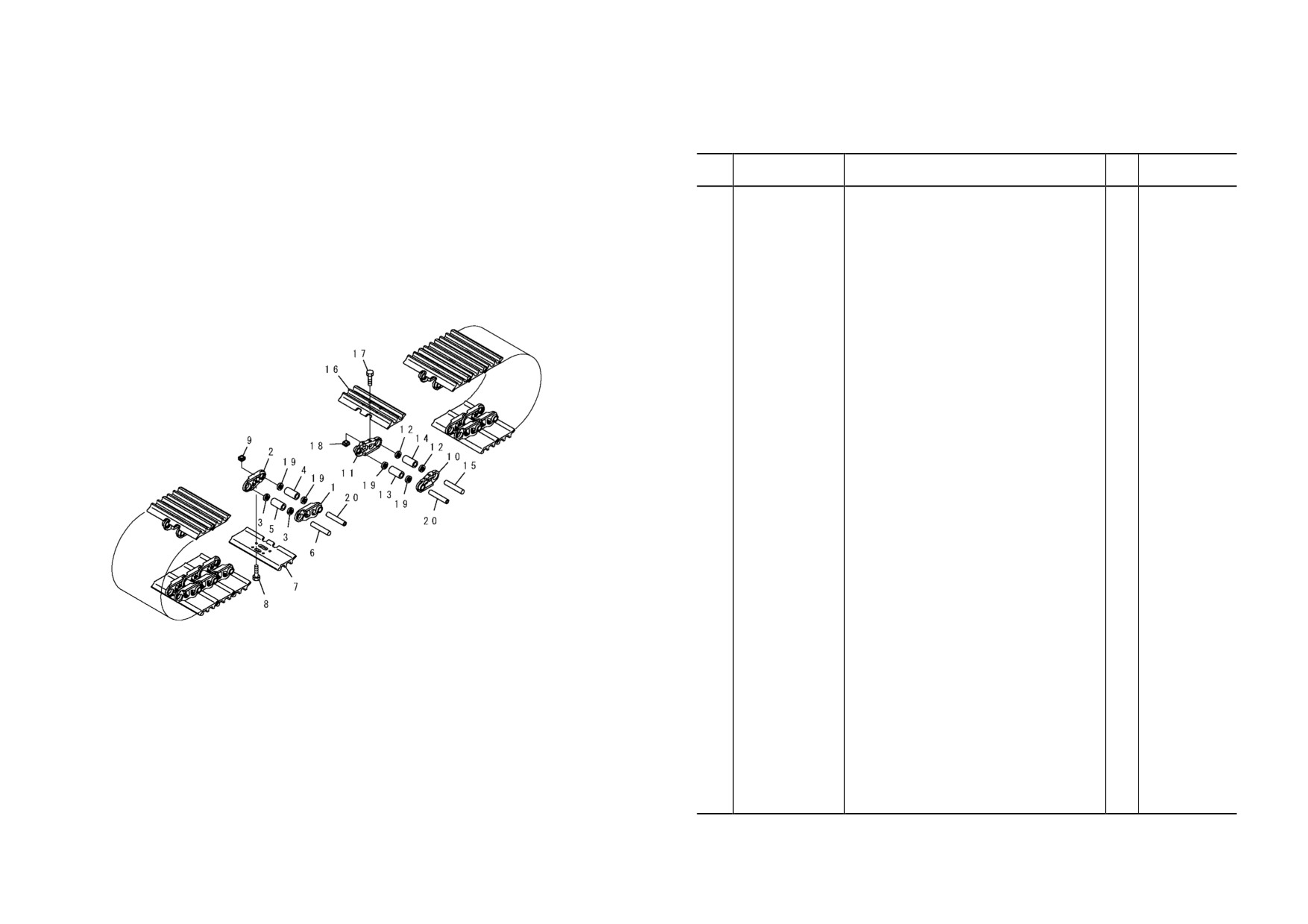

FIG NO. ：R0500-01A4
FIG. R0500-01A4 TRACK SHOE (TRIPLE GROUSER WITH HOLE)
(600 mm WIDE)
（PC200, 210-7）
INDEX
PART NO.
DESCRIPTION
Q'TY
SERIAL NO.
20Y-32-02051
TRACK SHOE ASS' Y
1
DBB0001~
1
20Y-32-31120
. LINK, L. H
44
DBB0001~
2
20Y-32-31130
. LINK, R. H
44
DBB0001~
3
20Y-32-11240
. SEAL
84
DBB0001~
4
20Y-32-11171
. BUSHING, MASTER
2
DBB0001~
5
20Y-32-11141
. BUSHING, REGULAR
42
DBB0001~
6
20Y-32-31150
. PIN
42
DBB0001~
7
20Y-32-21110
. SHOE
44
DBB0001~
8
20Y-32-31210
. BOLT, SHOE
176
DBB0001~
9
134-32-61221
. NUT
176
DBB0001~
10
20Y-32-31120
. LINK, L. H
46
DBB0001~
11
20Y-32-31130
. LINK, R. H
46
DBB0001~
12
20Y-32-11240
. SEAL
88
DBB0001~
13
20Y-32-11171
. BUSHING, MASTER
2
DBB0001~
14
20Y-32-11141
. BUSHING, REGULAR
44
DBB0001~
15
20Y-32-31150
. PIN
44
DBB0001~
16
20Y-32-21110
. SHOE
46
DBB0001~
17
20Y-32-31210
. BOLT, SHOE
184
DBB0001~
18
134-32-61221
. NUT
184
DBB0001~
19
20Y-32-11260
. SEAL
8
DBB0001~
20
20Y-32-31190
. PIN
4
DBB0001~
PW1A006
RO- 22
PC200, 210-7
PC200, 210-7
RO- 23
FIG NO. ：R0500-01A5
FIG. R0500-01A5 TRACK SHOE (TRIPLE GROUSER WITH HOLE) (700 mm WIDE) (OPT)
（PC200, 210-7）
INDEX
PART NO.
DESCRIPTION
Q'TY
SERIAL NO.
20Y-32-02031
TRACK SHOE ASS' Y
1
DBB0001~
1
20Y-32-31120
. LINK, L. H
44
DBB0001~
2
20Y-32-31130
. LINK, R. H
44
DBB0001~
3
20Y-32-11240
. SEAL
84
DBB0001~
4
20Y-32-11171
. BUSHING, MASTER
2
DBB0001~
5
20Y-32-11141
. BUSHING, REGULAR
42
DBB0001~
6
20Y-32-31150
. PIN
42
DBB0001~
7
20Y-32-31310
. SHOE
44
DBB0001~
8
20Y-32-31210
. BOLT, SHOE
176
DBB0001~
9
134-32-61221
. NUT
176
DBB0001~
10
20Y-32-31120
. LINK, L. H
46
DBB0001~
11
20Y-32-31130
. LINK, R. H
46
DBB0001~
12
20Y-32-11240
. SEAL
88
DBB0001~
13
20Y-32-11171
. BUSHING, MASTER
2
DBB0001~
14
20Y-32-11141
. BUSHING, REGULAR
44
DBB0001~
15
20Y-32-31150
. PIN
44
DBB0001~
16
20Y-32-31310
. SHOE
46
DBB0001~
17
20Y-32-31210
. BOLT, SHOE
184
DBB0001~
18
134-32-61221
. NUT
184
DBB0001~
19
20Y-32-11260
. SEAL
8
DBB0001~
20
20Y-32-31190
. PIN
4
DBB0001~
PW1A006
RO- 24
PC200, 210-7
PC200, 210-7
RO- 25

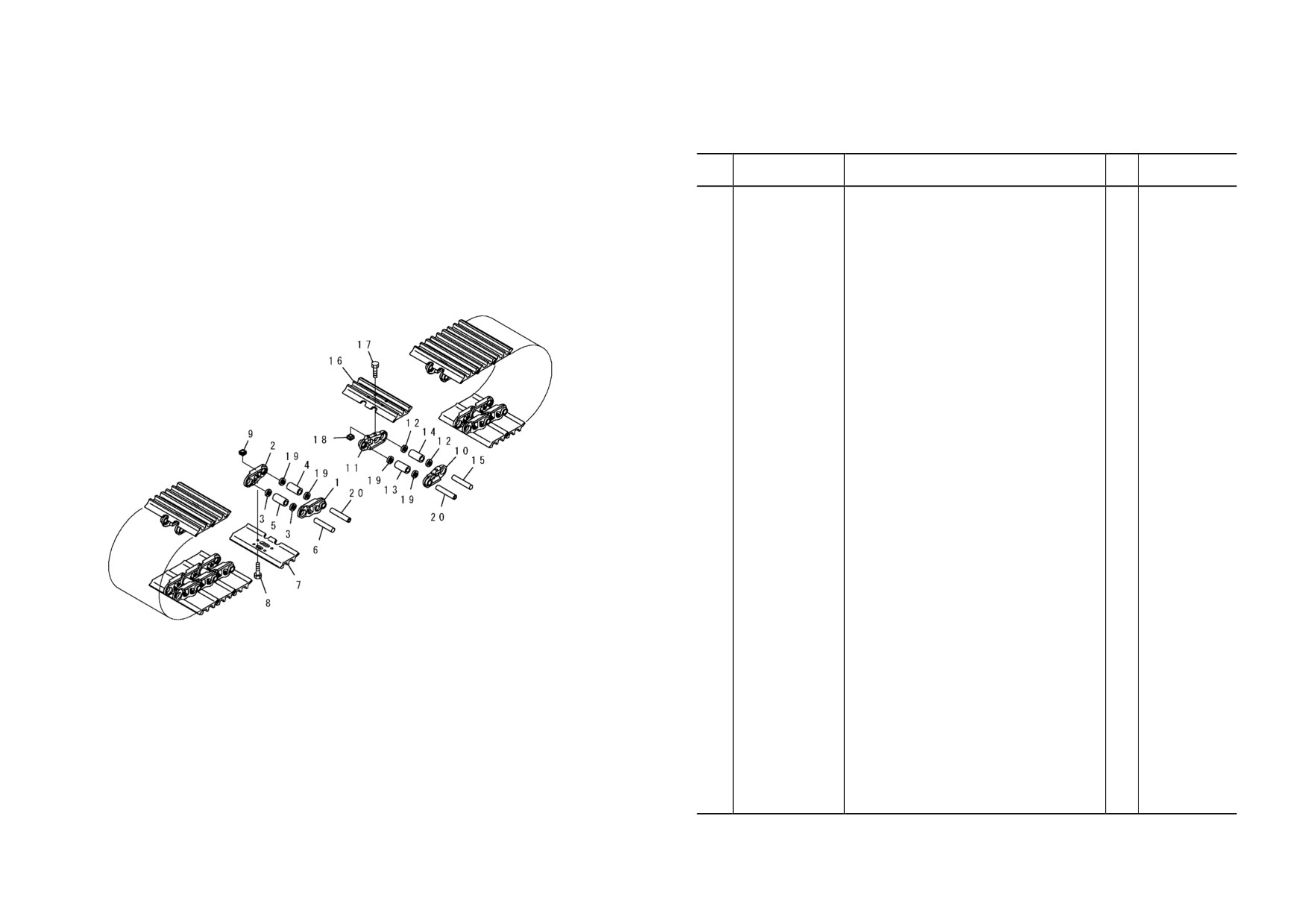

FIG NO. ：R0500-01A6
FIG. R0500-01A6 TRACK SHOE (TRIPLE GROUSER WITH HOLE)
(800 mm WIDE) (OPT)
（PC200, 210-7）
INDEX
PART NO.
DESCRIPTION
Q'TY
SERIAL NO.
20Y-32-02041
TRACK SHOE ASS' Y
1
DBB0001~
1
20Y-32-31120
. LINK, L. H
44
DBB0001~
2
20Y-32-31130
. LINK, R. H
44
DBB0001~
3
20Y-32-11240
. SEAL
84
DBB0001~
4
20Y-32-11171
. BUSHING, MASTER
2
DBB0001~
5
20Y-32-11141
. BUSHING, REGULAR
42
DBB0001~
6
20Y-32-31150
. PIN
42
DBB0001~
7
20Y-32-31320
. SHOE
44
DBB0001~
8
20Y-32-31210
. BOLT, SHOE
176
DBB0001~
9
134-32-61221
. NOT
176
DBB0001~
10
20Y-32-31120
. LINK, L. H
46
DBB0001~
11
20Y-32-31130
. LINK, R. H
46
DBB0001~
12
20Y-32-11240
. SEAL
88
DBB0001~
13
20Y-32-11171
. BUSHING, MASTER
2
DBB0001~
14
20Y-32-11141
. BUSHING, REGULAR
44
DBB0001~
15
20Y-32-31150
. PIN
44
DBB0001~
16
20Y-32-31320
. SHOE
46
DBB0001~
17
20Y-32-31210
. BOLT, SHOE
184
DBB0001~
18
134-32-61221
. NUT
184
DBB0001~
19
20Y-32-11260
. SEAL
8
DBB0001~
20
20Y-32-31190
. PIN
4
DBB0001~
PW1A006
RO- 26
PC200, 210-7
PC200, 210-7
RO- 27

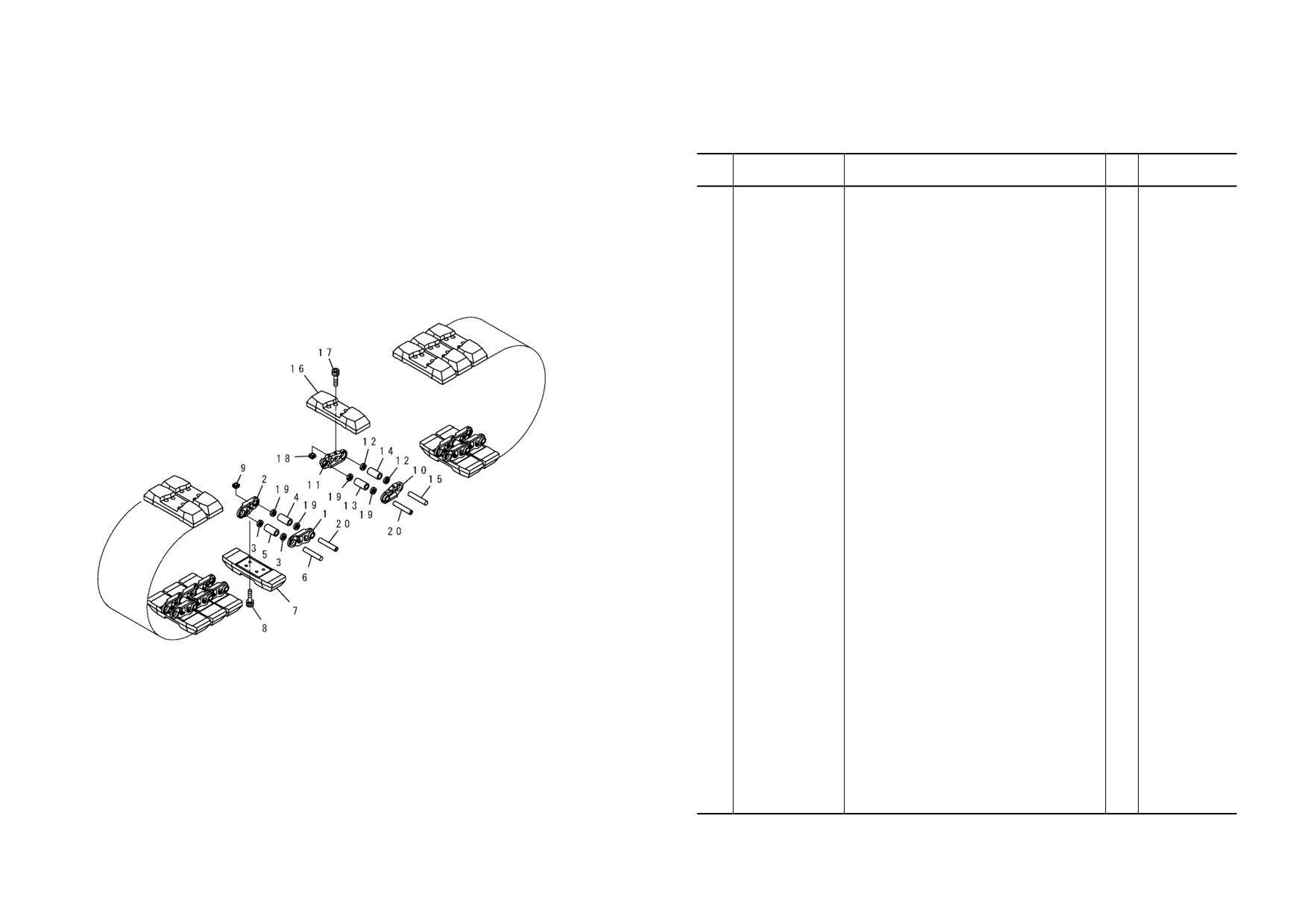

FIG NO. ：R0500-01A7
FIG. R0500-01A7 TRACK SHOE (TRIPLE GROUSER) (HOLES TO EQUIP WITH CITY PAD) (OPT)
（PC200, 210-7）
INDEX
PART NO.
DESCRIPTION
Q'TY
SERIAL NO.
20Y-32-02221
TRACK SHOE ASS' Y
1
DBB0001~
1
20Y-32-31120
. LINK, L. H
44
DBB0001~
2
20Y-32-31130
. LINK, R. H
44
DBB0001~
3
20Y-32-11240
. SEAL
84
DBB0001~
4
20Y-32-11171
. BUSHING, MASTER
2
DBB0001~
5
20Y-32-11141
. BUSHING, REGULAR
42
DBB0001~
6
20Y-32-31150
. PIN
42
DBB0001~
7
20Y-32-31110
. SHOE
44
DBB0001~
8
20Y-32-31210
. BOLT, SHOE
176
DBB0001~
9
134-32-61221
. NUT
176
DBB0001~
10
20Y-32-31120
. LINK, L. H
46
DBB0001~
11
20Y-32-31130
. LINK, R. H
46
DBB0001~
12
20Y-32-11240
. SEAL
88
DBB0001~
13
20Y-32-11171
. BUSHING, MASTER
2
DBB0001~
14
20Y-32-11141
. BUSHING, REGULAR
44
DBB0001~
15
20Y-32-31150
. PIN
44
DBB0001~
16
20Y-32-31110
. SHOE
46
DBB0001~
17
20Y-32-31210
. BOLT, SHOE
184
DBB0001~
18
134-32-61221
. NUT
184
DBB0001~
19
20Y-32-11260
. SEAL
8
DBB0001~
20
20Y-32-31190
. PIN
4
DBB0001~
PW1A750
RO- 28
PC200, 210-7
PC200, 210-7
RO- 29
FIG NO. ：R0500-01A8
FIG. R0500-01A8 TRACK SHOE (SWAMP TYPE) (860 mm WIDE) (OPT)
（PC200LC, 210LC-7）
INDEX
PART NO.
DESCRIPTION
Q'TY
SERIAL NO.
20Y-32-02140
TRACK SHOE ASS' Y
1
DBE0001~
1
20Y-32-31120
. LINK, L. H
48
DBE0001~
2
20Y-32-31130
. LINK, R. H
48
DBE0001~
3
20Y-32-11240
. SEAL
92
DBE0001~
4
20Y-32-11171
. BUSHING, MASTER
2
DBE0001~
5
20Y-32-11141
. BUSHING, REGULAR
46
DBE0001~
6
20Y-32-31150
. PIN
46
DBE0001~
7
20Y-32-11340
. SHOE
48
DBE0001~
8
20Y-32-11230
. BOLT
192
DBE0001~
9
134-32-61221
. NUT
192
DBE0001~
10
20Y-32-31120
. LINK, L. H
50
DBE0001~
11
20Y-32-31130
. LINK, R. H
50
DBE0001~
12
20Y-32-11240
. SEAL
96
DBE0001~
13
20Y-32-11171
. BUSHING, MASTER
2
DBE0001~
14
20Y-32-11141
. BUSHING, REGULAR
48
DBE0001~
15
20Y-32-31150
. PIN
48
DBE0001~
16
20Y-32-11340
. SHOE
50
DBE0001~
17
20Y-32-11230
. BOLT
200
DBE0001~
18
134-32-61221
. NUT
200
DBE0001~
19
20Y-32-11260
. SEAL
8
DBE0001~
20
20Y-32-31190
. PIN
4
DBE0001~
PW1A007
RO- 30
PC200LC, 210LC-7
PC200LC, 210LC-7
RO- 31

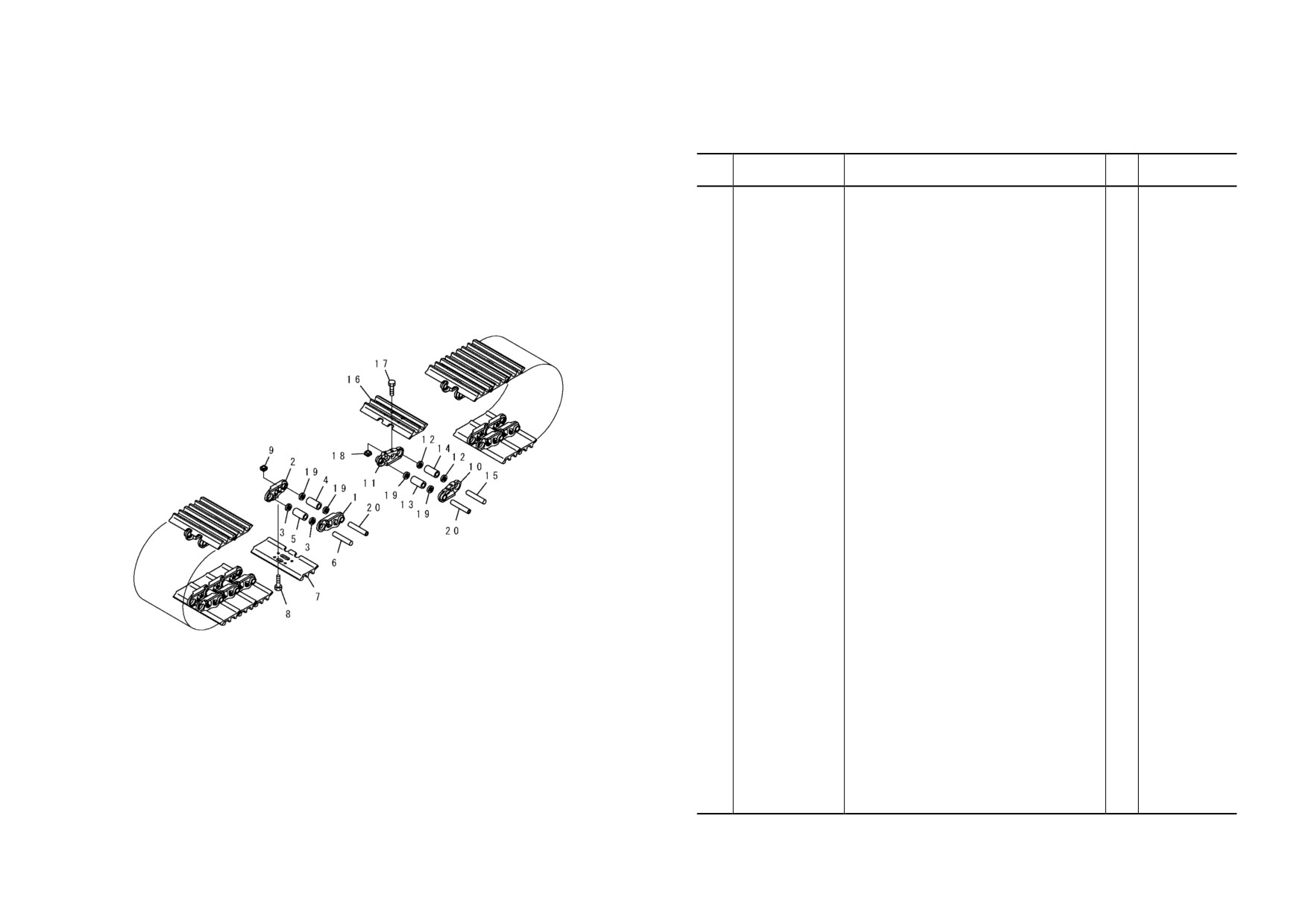

FIG NO. ：R0500-01B1

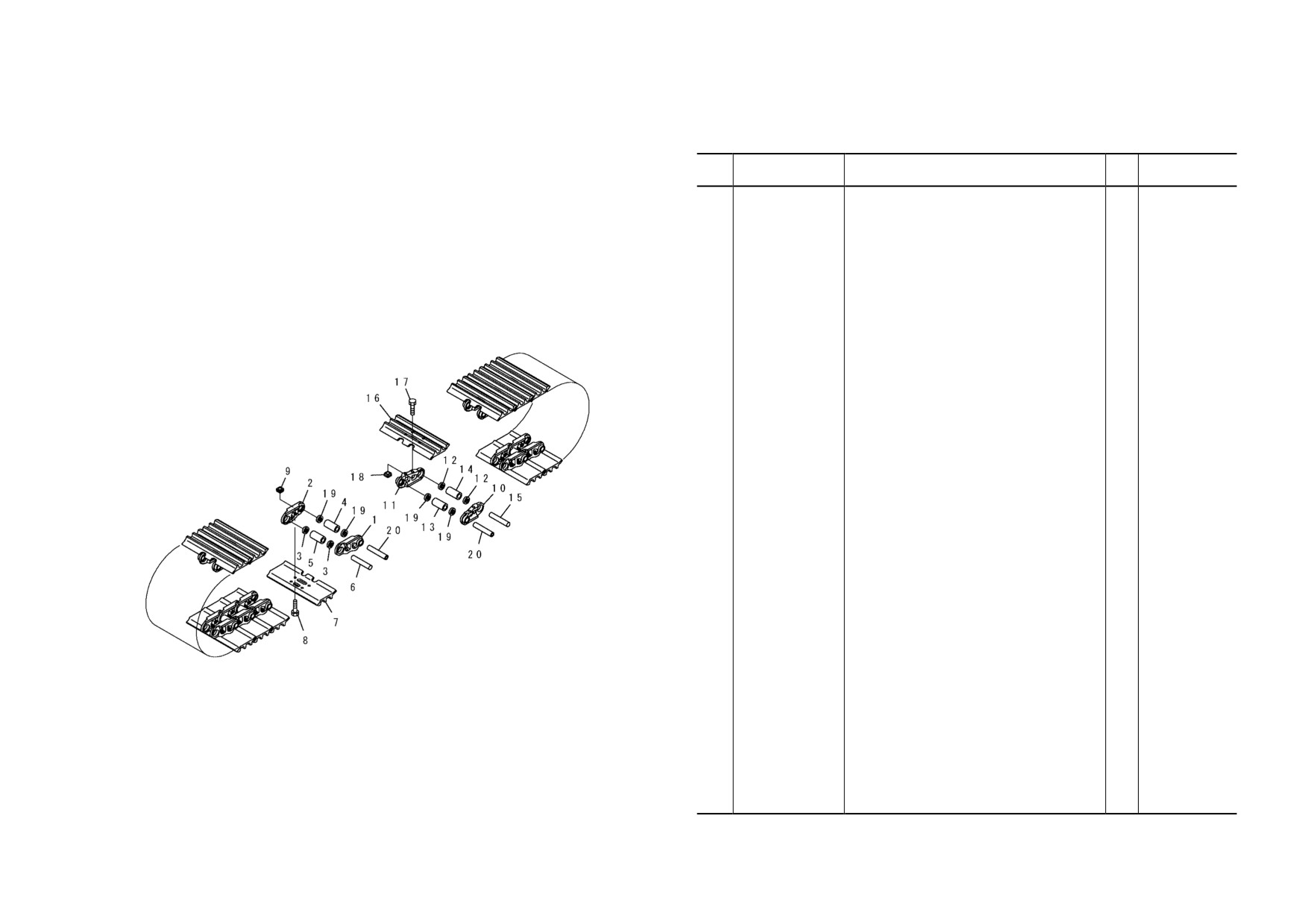

FIG. R0500-01B1 TRACK SHOE (TRIPLE GROUSER WITH HOLE) (600 MM WIDE)
(PC200LC, 210LC-7)
INDEX
PART NO.
DESCRIPTION
Q'TY
SERIAL NO.
20Y-32-02250
TRACK SHOE ASS' Y
1
DBE0001~
1
20Y-32-31120
. LINK, L. H
48
DBE0001~
2
20Y-32-31130
. LINK, R. H
48
DBE0001~
3
20Y-32-11240
. SEAL
92
DBE0001~
4
20Y-32-11171
. BUSHING, MASTER
2
DBE0001~
5
20Y-32-11141
. BUSHING, REGULAR
46
DBE0001~
6
20Y-32-31150
. PIN
46
DBE0001~
7
20Y-32-21110
. SHOE
48
DBE0001~
8
20Y-32-31210
. BOLT, SHOE
192
DBE0001~
9
134-32-61221
. NUT
192
DBE0001~
10
20Y-32-31120
. LINK, L. H
50
DBE0001~
11
20Y-32-31130
. LINK, R. H
50
DBE0001~
12
20Y-32-11240
. SEAL
96
DBE0001~
13
20Y-32-11171
. BUSHING, MASTER
2
DBE0001~
14
20Y-32-11141
. BUSHING, REGULAR
48
DBE0001~
15
20Y-32-31150
. PIN
48
DBE0001~
16
20Y-32-21110
. SHOE
50
DBE0001~
17
20Y-32-31210
. BOLT, SHOE
200
DBE0001~
18
134-32-61221
. NUT
200
DBE0001~
19
20Y-32-11260
. SEAL
8
DBE0001~
20
20Y-32-31190
. PIN
4
DBE0001~
PW1A006
RO- 32
PC200LC, 210LC-7
PC200LC, 210LC-7
RO- 33
