Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 34
FIG NO. ：T1200-02A2

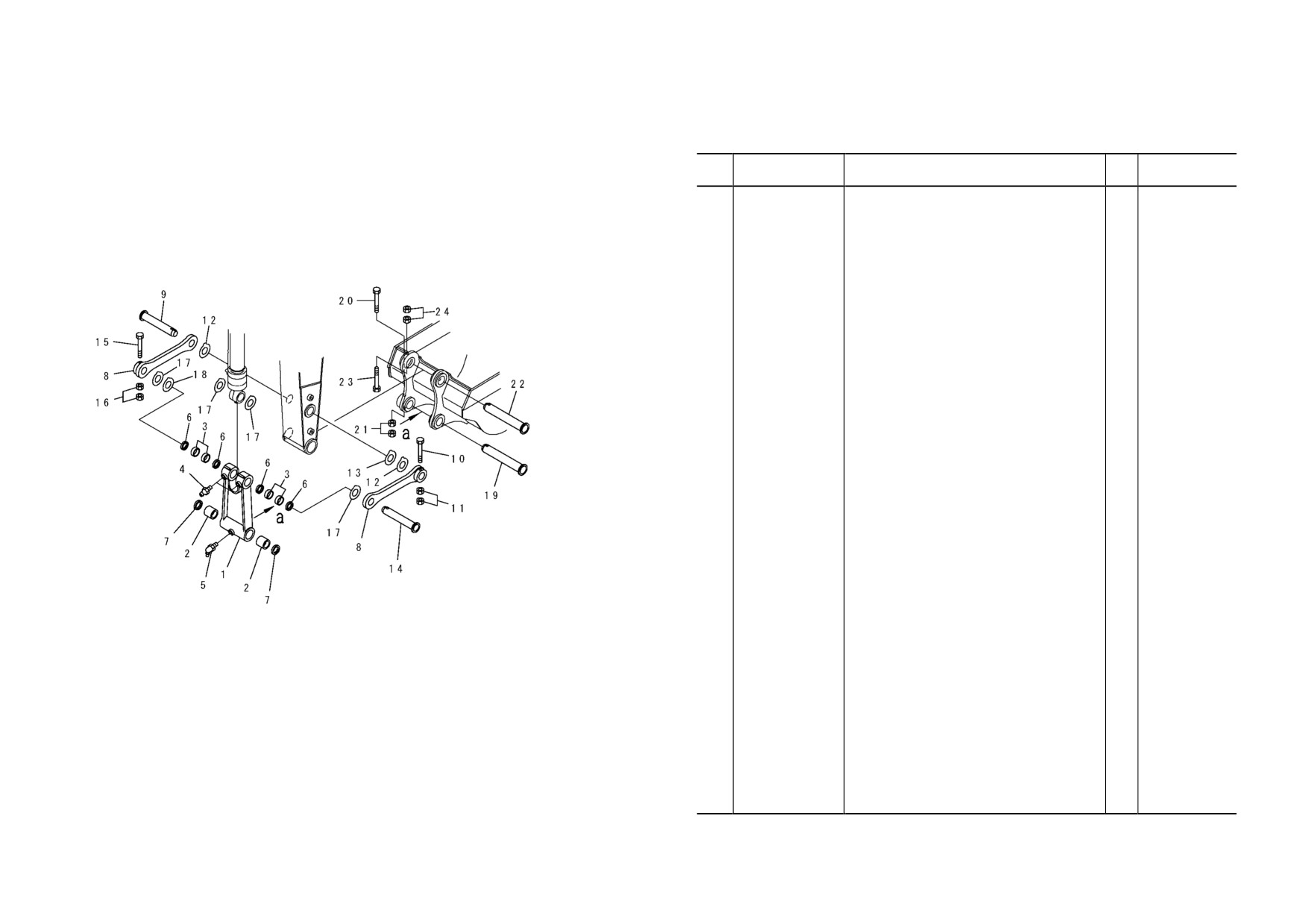

FIG. T1200-02A2 ARM (2.4M) (BUCKET LINK) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-70-33111
LINK
1
DBB0001~
2
20Y-70-32351
BUSHING
2
DBB0001~
3
20Y-70-32361
BUSHING
4
DBB0001~
4
07020-00000
FITTING
2
DBB0001~
5
07020-00675
FITTING
1
DBB0001~
6
20Y-70-23220
SEAL
4
DBB0001~
Bucket Cylinder
7
20Y-70-23230
SEAL
2
DBB0001~
8
205-70-73130
LINK
2
DBB0001~
Bucket
9
205-70-73160
PIN
1
DBB0001~
Arm
10
205-70-73190
BOLT
1
DBB0001~DBB4708
20Y-70-D3251
BOLT
1
DBB4709~
11
01580-12016
NUT
2
DBB0001~
12
20Y-70-31450
SPACER, 1.0 MM
2
DBB0001~
13
20Y-70-31460
SPACER, 2.0 MM
1
DBB0001~
14
22U-70-21191
PIN
1
DBB0001~
15
205-70-73190
BOLT
1
DBB0001~DBB4708
20Y-70-D3251
BOLT
1
DBB4709~
16
01580-12016
NUT
2
DBB0001~
17
20Y-70-31440
SPACER, 1.0 MM
4
DBB0001~
18
20Y-70-31480
SPACER, 2.0 MM
1
DBB0001~
19
205-70-73270
PIN
1
DBB0001~
20
205-70-73190
BOLT
1
DBB0001~DBB4708
20Y-70-D3251
BOLT
1
DBB4709~
21
01580-12016
NUT
2
DBB0001~
22
205-70-73270
PIN
1
DBB0001~
23
362-46-11210
BOLT
1
DBB0001~DBB4708
20Y-70-D3261
BOLT
1
DBB4709~
24
01580-12016
NUT
2
DBB0001~
PW1C007
TO- 46
PC200, 200(LC)-7
PC200, 200(LC)-7
TO- 47
FIG NO. ：T1200-03A0

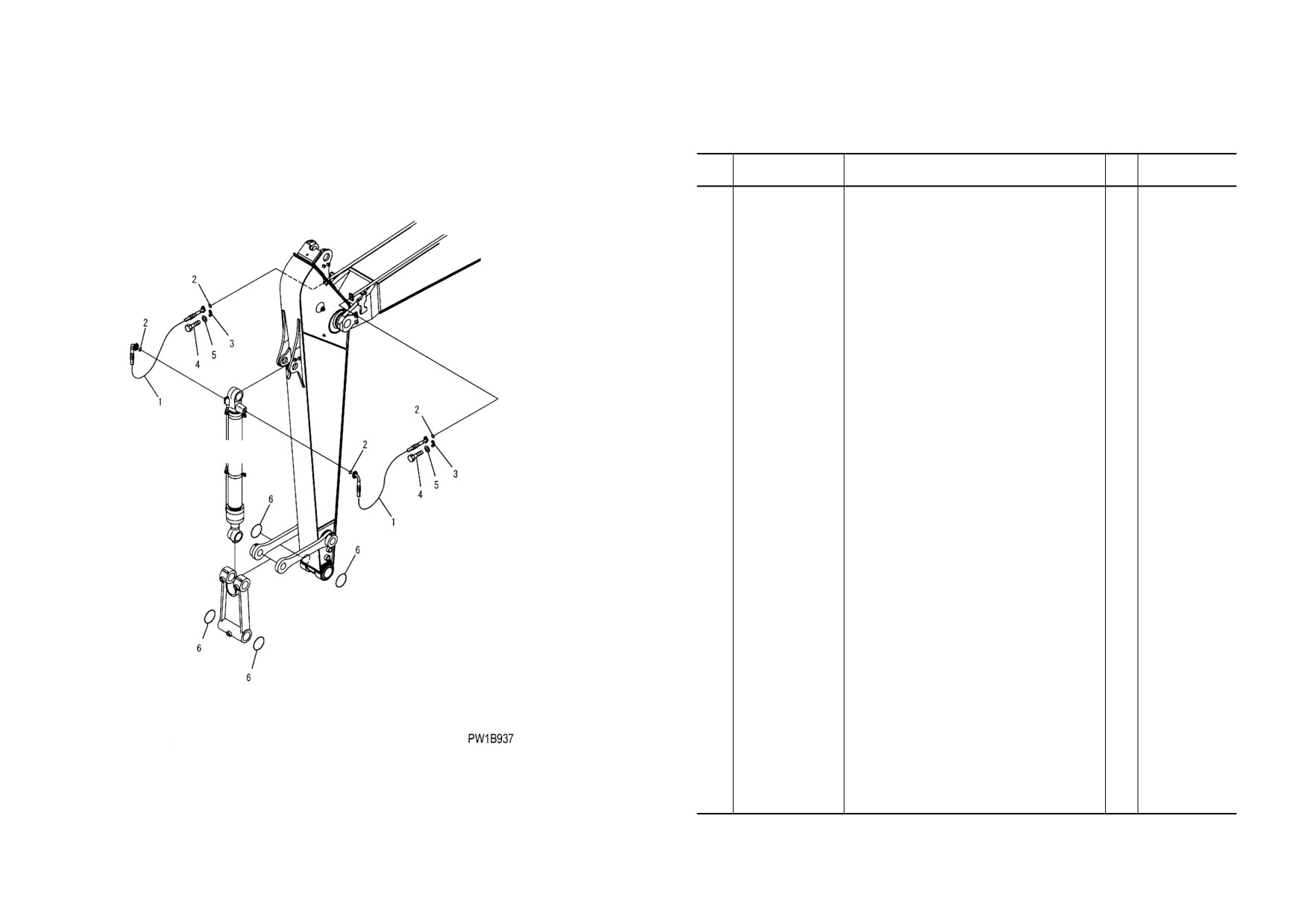

FIG. T1200-03A0 ARM (2.9M) (BUCKET CYLINDER HOSE AND SPACER)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-62-13412
HOSE
2
DBB0001~
2
07000-13025
O-RING
4
DBB0001~
3
07371-30640
FLANGE
8
DBB0001~
Boom
4
07372-21035
BOLT
16
DBB0001~
5
01643-51032
WASHER
16
DBB0001~
6
205-70-73280
O-RING
4
DBB0001~
Arm
Bucket Cylinder
TO- 48
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 49
FIG NO. ：T1200-03A2

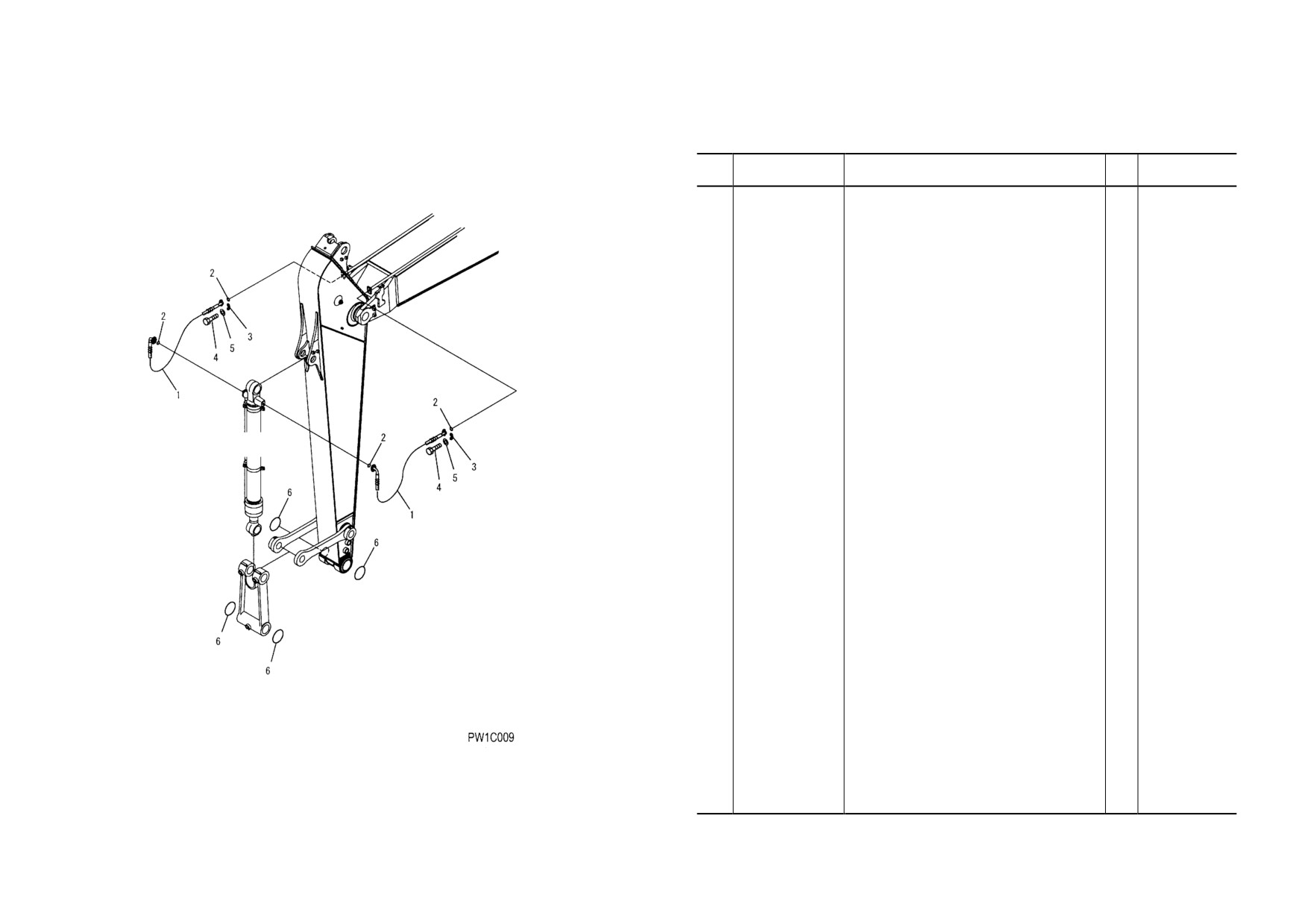

FIG. T1200-03A2 ARM (2.4M) (BUCKET CYLINDER HOSE AND SPACER) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
Arm Cylinder
1
20Y-62-13412
HOSE
2
DBB0001~
2
07000-13025
O-RING
4
DBB0001~
3
07371-30640
FLANGE
8
DBB0001~
Boom
4
07372-21035
BOLT
16
DBB0001~
5
01643-51032
WASHER
16
DBB0001~
6
205-70-73280
O-RING
4
DBB0001~
10
07020-00675
FITTING
1
DBB0001~
Arm
Bucket Cylinder
TO- 50
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 51

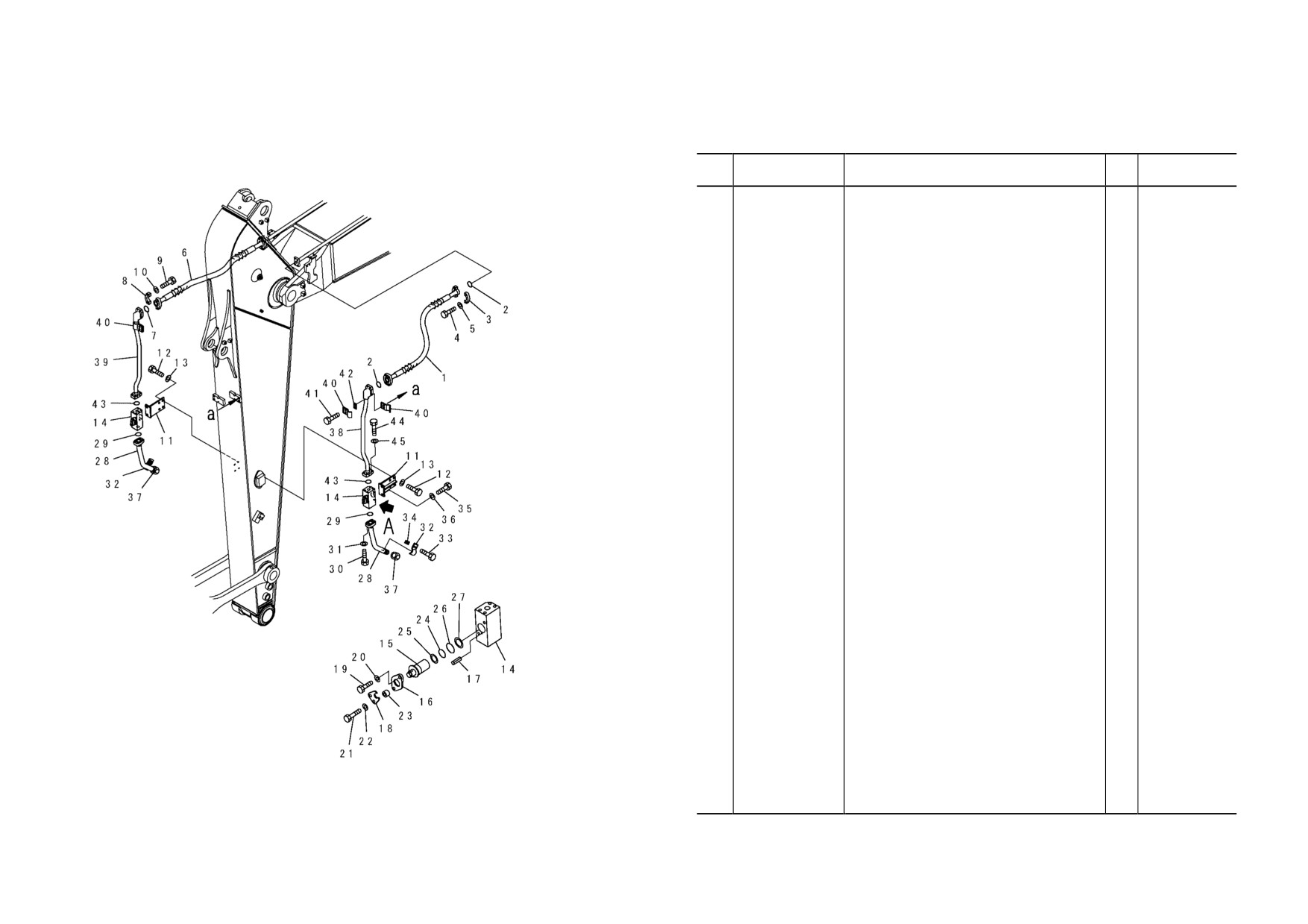

FIG NO. ：T1200-04A1

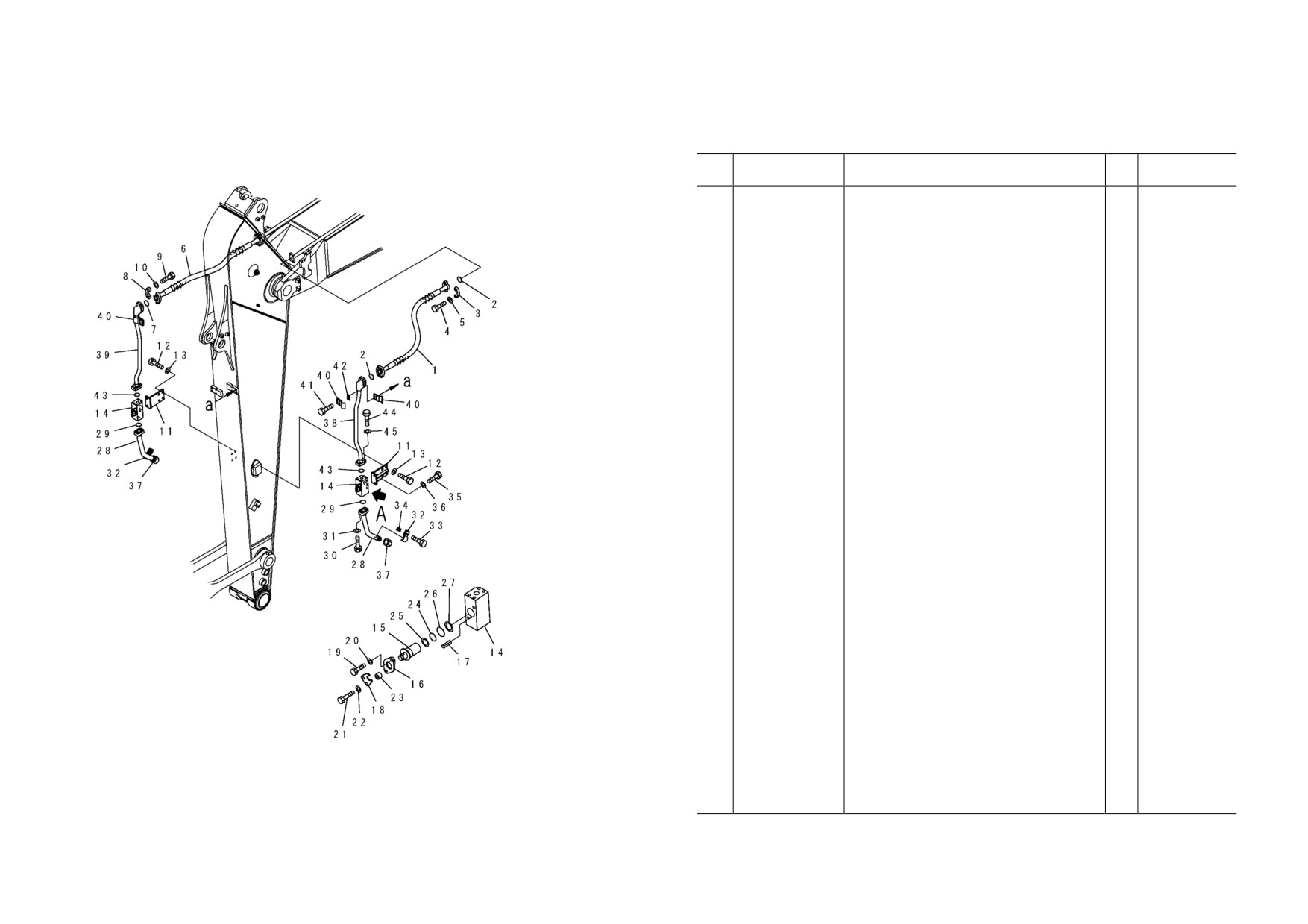

FIG. T1200-04A1 ARM (2.9M) (SPECIAL PIPING FOR BREAKER) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
07097-21015
HOSE
1
DBB0001~
2
21T-09-11460
O-RING
2
DBB0001~
3
07371-31049
FLANGE
4
DBB0001~
4
07372-21035
BOLT
8
DBB0001~
5
01643-51032
WASHER
8
DBB0001~
6
07097-21218
HOSE
1
DBB0001~
7
07000-13038
O-RING
2
DBB0001~
8
07371-51260
FLANGE
4
DBB0001~
9
01010-81245
BOLT
8
DBB0001~
10
01643-31232
WASHER
8
DBB0001~
Arm
11
20Y-970-3220
BRACKET
2
DBB0001~
12
01010-81230
BOLT
8
DBB0001~
13
01643-31232
WASHER
8
DBB0001~
20Y-970-2300
STOP VALVE ASS' Y
2
DBB0001~
14
☆
. BODY
1
DBB0001~
15
20Y-970-3240
. ROTOR
1
DBB0001~
16
20Y-970-3270
. PLATE
1
DBB0001~
17
04025-00412
. PIN
1
DBB0001~
18
20Y-970-4611
. PLATE
1
DBB0001~
19
01010-81025
. BOLT
1
DBB0001~
20
01643-31032
. WASHER
1
DBB0001~
21
01010-81045
. BOLT
1
DBB0001~
22
01643-31032
. WASHER
1
DBB0001~
23
201-03-29160
. SPACER
1
DBB0001~
24
07000-13032
. O-RING
1
DBB0001~
25
07001-03032
. RING
1
DBB0001~
26
07000-13038
. O-RING
1
DBB0001~
27
07001-03038
. RING
1
DBB0001~
Detail A
28
20Y-62-D2010
TUBE
2
DBB0001~
29
07000-13035
O-RING
2
DBB0001~
PW1C010
30
07372-21040
BOLT
8
DBB0001~
31
01643-51032
WASHER
8
DBB0001~
32
207-62-31330
CLAMP
2
DBB0001~
TO- 52
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 53
FIG NO. ：T1200-04A1
FIG. T1200-04A1 ARM (2.9M) (ADDITIONAL PIPING) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
33
01010-81225
BOLT
4
DBB0001~
34
20Y-62-13450
PLATE
2
DBB0001~
35
01010-81230
BOLT
4
DBB0001~
36
01643-31232
WASHER
4
DBB0001~
37
205-970-7680
PLUG
2
DBB0001~
38
20Y-62-45340
TUBE
1
DBB0001~
39
20Y-62-45350
TUBE
1
DBB0001~
40
207-62-31330
CLAMP
4
DBB0001~
Arm
41
01010-81230
BOLT
4
DBB0001~
42
20Y-62-13450
PLATE
2
DBB0001~
43
07000-13035
O-RING
2
DBB0001~
44
07372-21040
BOLT
8
DBB0001~
45
01643-51032
WASHER
8
DBB0001~
Detail A
PW1C010
TO- 54
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 55
FIG NO. ：T1200-04A3

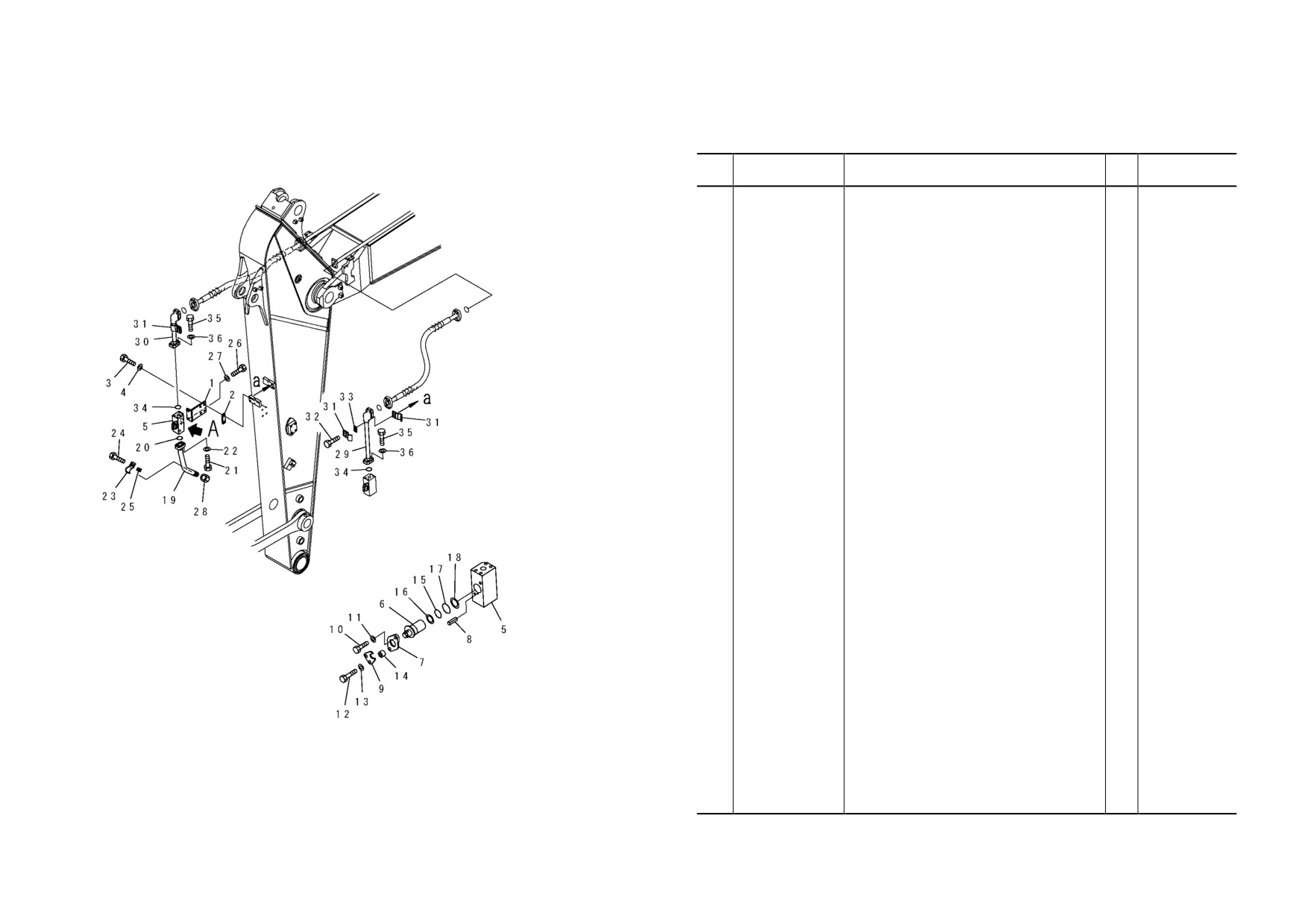

FIG. T1200-04A3 ARM (2.4M) (SPECIAL PIPING FOR BREAKER) (L. H.) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
07097-21015
HOSE
1
DBB0001~
2
21T-09-11460
O-RING
2
DBB0001~
3
07371-31049
FLANGE
4
DBB0001~
4
07372-21035
BOLT
8
DBB0001~
5
01643-51032
WASHER
8
DBB0001~
6
07097-21218
HOSE
1
DBB0001~
7
07000-13038
O-RING
2
DBB0001~
8
07371-51260
FLANGE
4
DBB0001~
Arm
9
01010-81245
BOLT
8
DBB0001~
10
01643-31232
WASHER
8
DBB0001~
11
20Y-970-3220
BRACKET
1
DBB0001~
12
01010-81230
BOLT
4
DBB0001~
13
01643-31232
WASHER
4
DBB0001~
20Y-970-2300
STOP VALVE ASS' Y
1
DBB0001~
14
☆
. BODY
1
DBB0001~
15
20Y-970-3240
. ROTOR
1
DBB0001~
16
20Y-970-3270
. PLATE
1
DBB0001~
17
04025-00412
. PIN
1
DBB0001~
18
20Y-970-4611
. PLATE
1
DBB0001~
19
01010-81025
. BOLT
1
DBB0001~
20
01643-31032
. WASHER
1
DBB0001~
21
01010-81045
. BOLT
1
DBB0001~
22
01643-31032
. WASHER
1
DBB0001~
23
201-03-29160
. SPACER
1
DBB0001~
24
07000-13032
. O-RING
1
DBB0001~
25
07001-03032
. RING
1
DBB0001~
26
07000-13038
. O-RING
1
DBB0001~
27
07001-03038
. RING
1
DBB0001~
28
20Y-62-45360
TUBE
1
DBB0001~
29
07000-13035
O-RING
1
DBB0001~
30
07372-21040
BOLT
4
DBB0001~
Detail A
31
01643-51032
WASHER
4
DBB0001~
32
207-62-31330
CLAMP
1
DBB0001~
33
01010-81225
BOLT
2
DBB0001~
PW1C011
34
20Y-62-13450
PLATE
1
DBB0001~
35
01010-81230
BOLT
2
DBB0001~
36
01643-31232
WASHER
2
DBB0001~
37
205-970-5770
PLUG
1
DBB0001~
TO- 56
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 57
FIG NO. ：T1200-05A3
FIG. T1200-05A3 ARM (2.4M) (SPECIAL PIPING FOR BREAKER) (R. H.) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-970-3220
BRACKET
1
DBB0001~
2
22T-72-11220
PLATE
2
DBB0001~
3
01010-81240
BOLT
1
DBB0001~
4
01643-31232
WASHER
1
DBB0001~
20Y-970-2300
STOP VALVE ASS' Y
1
DBB0001~
5
☆
. BODY
1
DBB0001~
6
20Y-970-3240
. ROTOR
1
DBB0001~
7
20Y-970-3270
. PLATE
1
DBB0001~
8
04025-00412
. PIN
1
DBB0001~
9
20Y-970-4611
. PLATE
1
DBB0001~
Arm
10
01010-81025
. BOLT
1
DBB0001~
11
01643-31032
. WASHER
1
DBB0001~
12
01010-81045
. BOLT
1
DBB0001~
13
01643-31032
. WASHER
1
DBB0001~
14
201-03-29160
. SPACER
1
DBB0001~
15
07000-13032
. O-RING
1
DBB0001~
16
07001-03032
. RING
1
DBB0001~
17
07000-13038
. O-RING
1
DBB0001~
18
07001-03038
. RING
1
DBB0001~
19
20Y-62-45360
TUBE
1
DBB0001~
20
07000-13035
O-RING
1
DBB0001~
21
07372-21040
BOLT
4
DBB0001~
22
01643-51032
WASHER
4
DBB0001~
23
207-62-31330
CLAMP
2
DBB0001~
24
01010-81230
BOLT
2
DBB0001~
25
20Y-62-13450
PLATE
1
DBB0001~
26
01010-81230
BOLT
2
DBB0001~
27
01643-31232
WASHER
2
DBB0001~
28
205-970-5770
PLUG
1
DBB0001~
29
20Y-970-6310
UBE, L. H
1
DBB0001~
30
20Y-970-7160
TUBE
1
DBB0001~
Detail A
31
207-62-31330
CLAMP
4
DBB0001~
PWL5582
32
01010-81230
BOLT
4
DBB0001~
33
20Y-62-13450
PLATE
2
DBB0001~
34
07000-13035
O-RING
2
DBB0001~
35
07372-21040
BOLT
8
DBB0001~
36
01643-51032
WASHER
8
DBB0001~
TO- 58
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 59
FIG NO. ：T1290-01A0

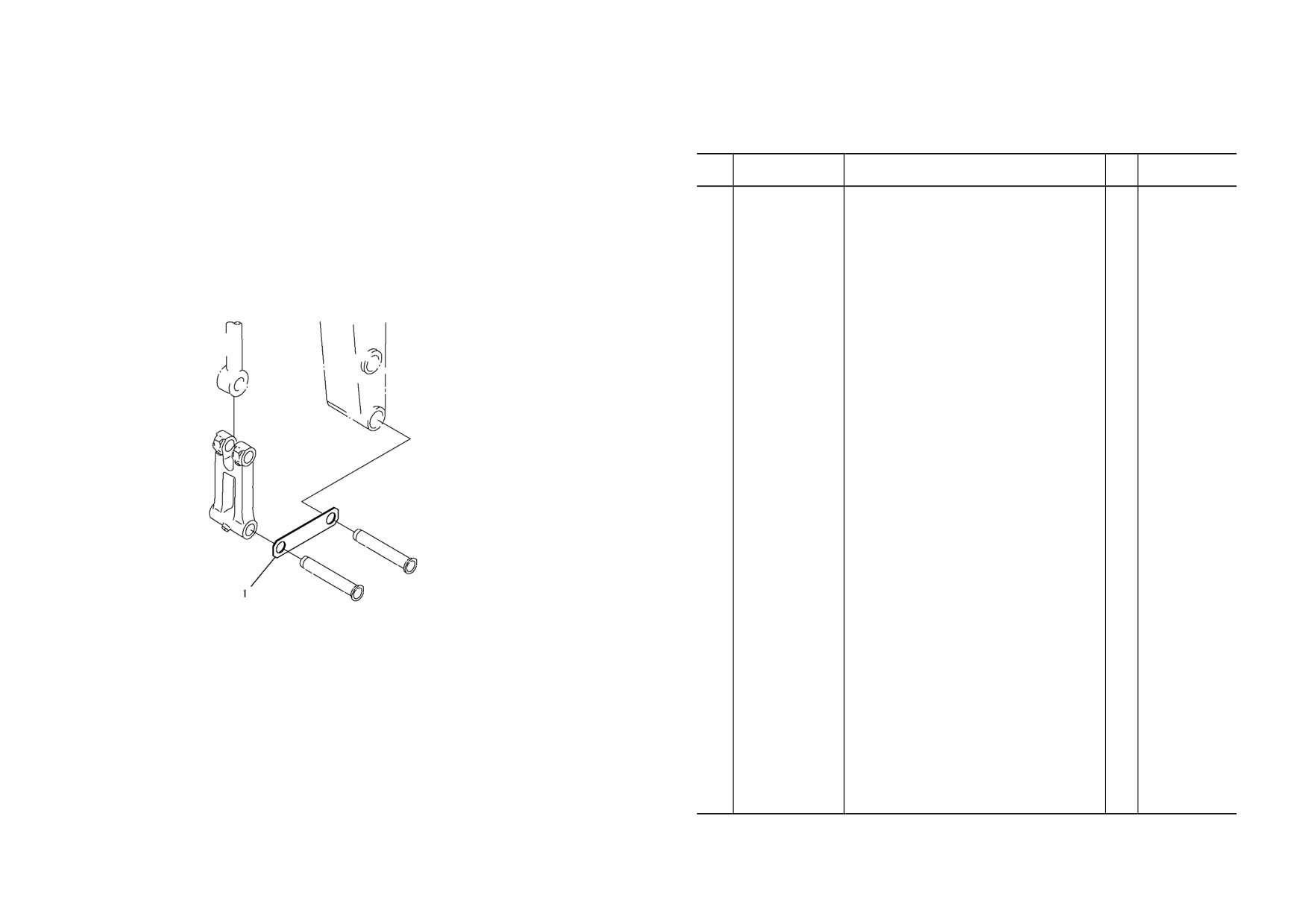

FIG. T1290-01A0 BUCKET LESS
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
207-70-33220
LINK
1
DBB0001~
Arm
Bucket Cylinder
Bucket Link
PEB3804
TO- 60
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 61
FIG NO. ：T1510-01A0

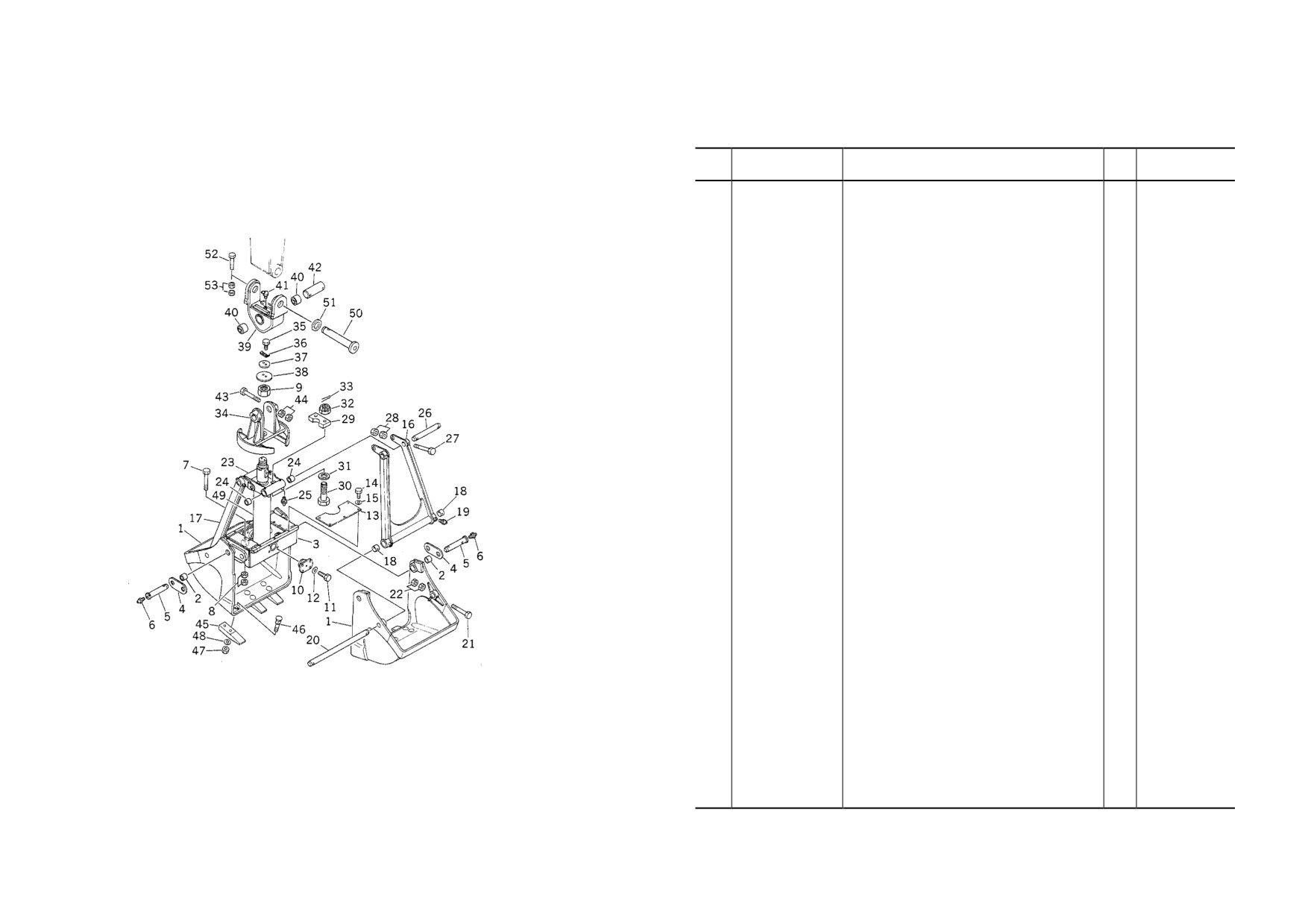

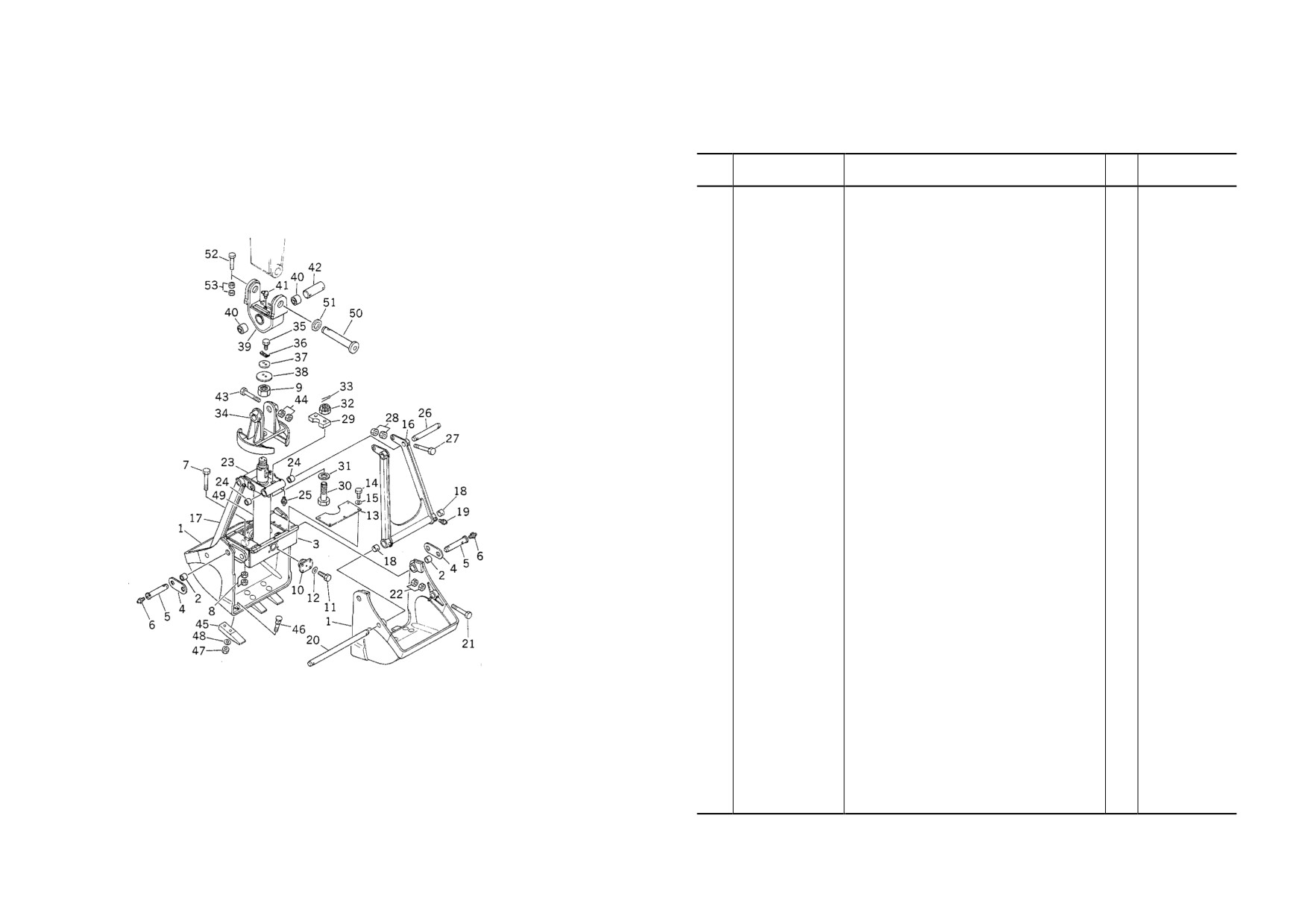

FIG. T1510-01A0 CLAMSHELL BUCKET (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
205-931-1161
SHELL
2
DBB0001~
2
07143-10505
BUSHING
4
DBB0001~
3
205-931-1230
FRAME
1
DBB0001~
4
205-931-1240
PLATE
2
DBB0001~
5
205-931-1250
PIN
4
DBB0001~
6
07020-00000
FITTING
4
DBB0001~
7
01011-81610
BOLT
4
DBB0001~
8
01580-11613
NUT
8
DBB0001~
9
205-931-2140
NUT
1
DBB0001~
10
205-931-1260
CAP
2
DBB0001~
11
01010-81450
BOLT
8
DBB0001~
12
01643-31445
WASHER
8
DBB0001~
13
205-931-1270
COVER
2
DBB0001~
14
01010-81020
BOLT
10
DBB0001~
15
01643-31032
WASHER
10
DBB0001~
16
205-931-1192
ARM
1
DBB0001~
17
205-931-1212
ARM
1
DBB0001~
18
07144-10505
BUSHING
4
DBB0001~
19
07020-00000
FITTING
4
DBB0001~
20
205-931-1220
PIN
2
DBB0001~
21
01011-81630
BOLT
4
DBB0001~
22
01580-11613
NUT
8
DBB0001~
23
205-931-1281
FRAME
1
DBB0001~
24
07144-10505
BUSHING
4
DBB0001~
25
07020-00000
FITTING
4
DBB0001~
26
205-931-1290
PIN
2
DBB0001~
27
01011-81610
BOLT
4
DBB0001~
28
01580-11613
NUT
8
DBB0001~
29
205-931-1310
PLATE
2
DBB0001~
30
01013-83010
BOLT
4
DBB0001~
31
01643-33080
WASHER
4
DBB0001~
32
01590-33033
NUT
4
DBB0001~
TO- 62
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 63
FIG NO. ：T1510-01A0
FIG.
T1510-01A0 CLAMSHELL BUCKET (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
33
04050-16055
PIN
4
DBB0001~
34
205-931-1122
HANGER
1
DBB0001~
35
01010-81230
BOLT
2
DBB0001~
36
04081-06012
LOCK
1
DBB0001~
37
205-931-1330
OLDER
1
DBB0001~
38
205-931-1320
PLATE
1
DBB0001~
39
205-931-6110
BRACKET
1
DBB0001~
40
205-931-6150
BUSHING
2
DBB0001~
41
07020-00675
FITTING
1
DBB0001~
42
205-931-1130
PIN
1
DBB0001~
43
01011-81650
BOLT
2
DBB0001~
44
01580-11613
NUT
4
DBB0001~
45
202-931-1180
TOOTH
6
DBB0001~
46
02090-11285
BOLT
12
DBB0001~
47
02290-11219
NUT
12
DBB0001~
48
01643-32060
WASHER
12
DBB0001~
49
205-63-94101
CYLINDER ASS' Y
1
DBB0001~
50
205-70-73270
PIN
1
DBB0001~
51
205-70-74410
COLLAR
1
DBB0001~
52
205-70-73190
BOLT
1
DBB0001~
53
01580-12016
NUT
2
DBB0001~
TO- 64
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 65
