Ransomes Frontline 960 (Engine Type: Perkins 404C-22T). Parts and Maintenance Manual (2002) - page 7
960 FRONTLINE
PARTS MANUAL
18

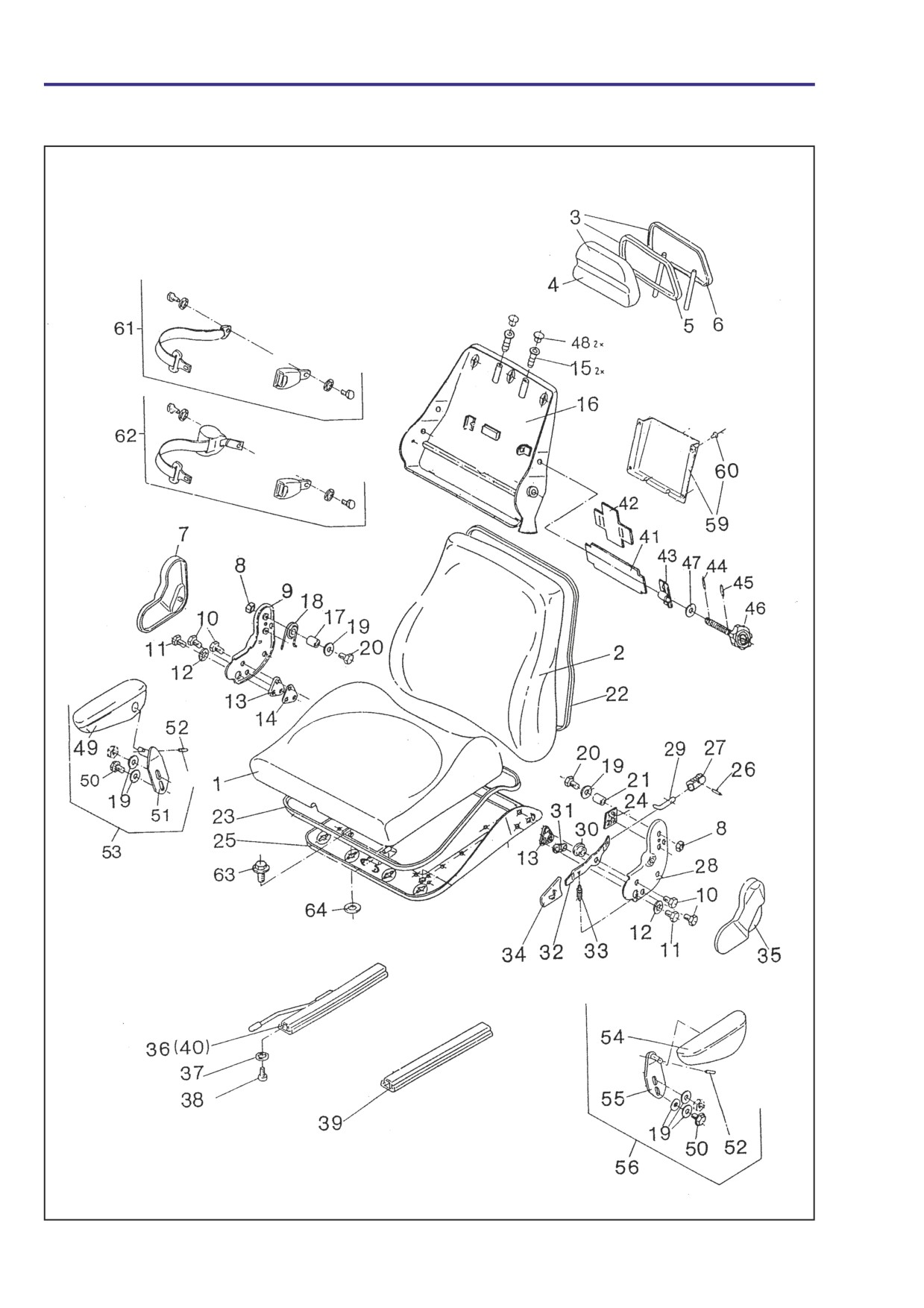

SEAT BREAKDOWN GRAMMER
S 85 / 90R
Parts-50
960 FRONTLINE
PARTS MANUAL
18
SEAT BREAKDOWN GRAMMER
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
008199400
Seat Assy Complete
1
Including Suspension
1
008199450
Seat Cushion
1
2
008199460
Back Rest Cushion
1
3
008199560
Head Rest Assy.
1
4
008199470
Head Rest Cushion
1
5
008173520
Edge Strip
1
6
N/A
Head Rest Frame
1
7
008199610
Cover Rh
1
8
008173370
Nut
2
9
008173380
Mounting RH
1
10
008173390
Screw
4
11
008173400
Screw
2
12
008173410
Sp Washer
2
13
008173420
Distance Plate
2
14
008173430
Distance Plate
1
15
008173440
Bush
2
16
008199690
Back Plate
1
17
008173450
Tube
1
18
008173460
Spring
1
19
008173470
Washer
2
20
008173480
Screw
2
21
008173490
Tube
1
22
008173500
Edge Strip
1
23
008173510
Edge Strip
1
24
008173530
Distance Piece
1
25
008173540
Seat Plate
1
26
008199650
Pin
1
27
008199660
Detent
1
28
008173550
Mounting Lh
1
29
008199670
Rod
1
30
008173560
Bush
1
31
008173570
Distance Piece
1
32
008173350
Lever
1
33
008173360
Spring
1
34
008199860
Handle
1
35
008173580
Cover Lh
1
36
008199640
Rail With Lever
1
37
008173590
Washer
4
38
008173600
Screw
4
39
008199750
Rail
1
41
008173610
Plate
1
42
008173620
Plate
1
43
008199700
Nut
1
44
008199710
Pin
1
Parts-51
960 FRONTLINE
PARTS MANUAL
18
SEAT BREAKDOWN GRAMMER
S 85 / 90R
Parts-52
960 FRONTLINE
PARTS MANUAL
18
SEAT BREAKDOWN GRAMMER
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
45
008199720
Pin
1
46
008199730
Adjusting Spindle
1
47
008199740
Washer
1
48
N/A
Plug
2
49
008199550
Arm Rest RH
1
50
N/A
Screw
2
51
N/A
Support RH
1
52
N/A
Pin
2
53
008199850
Arm Rest Assy. RH
1
54
008173630
Arm Rest LH
1
55
N/A
Support LH
1
56
008199860
Arm Rest Assy. LH
1
59
N/A
Cover Assy
1
60
N/A
Screw
1
61
N/A
Seat Belt Fixed
1
62
N/A
Seat Belt Reel
1
63
N/A
Screw
64
N/A
Washer
Parts-53
960 FRONTLINE
PARTS MANUAL
19

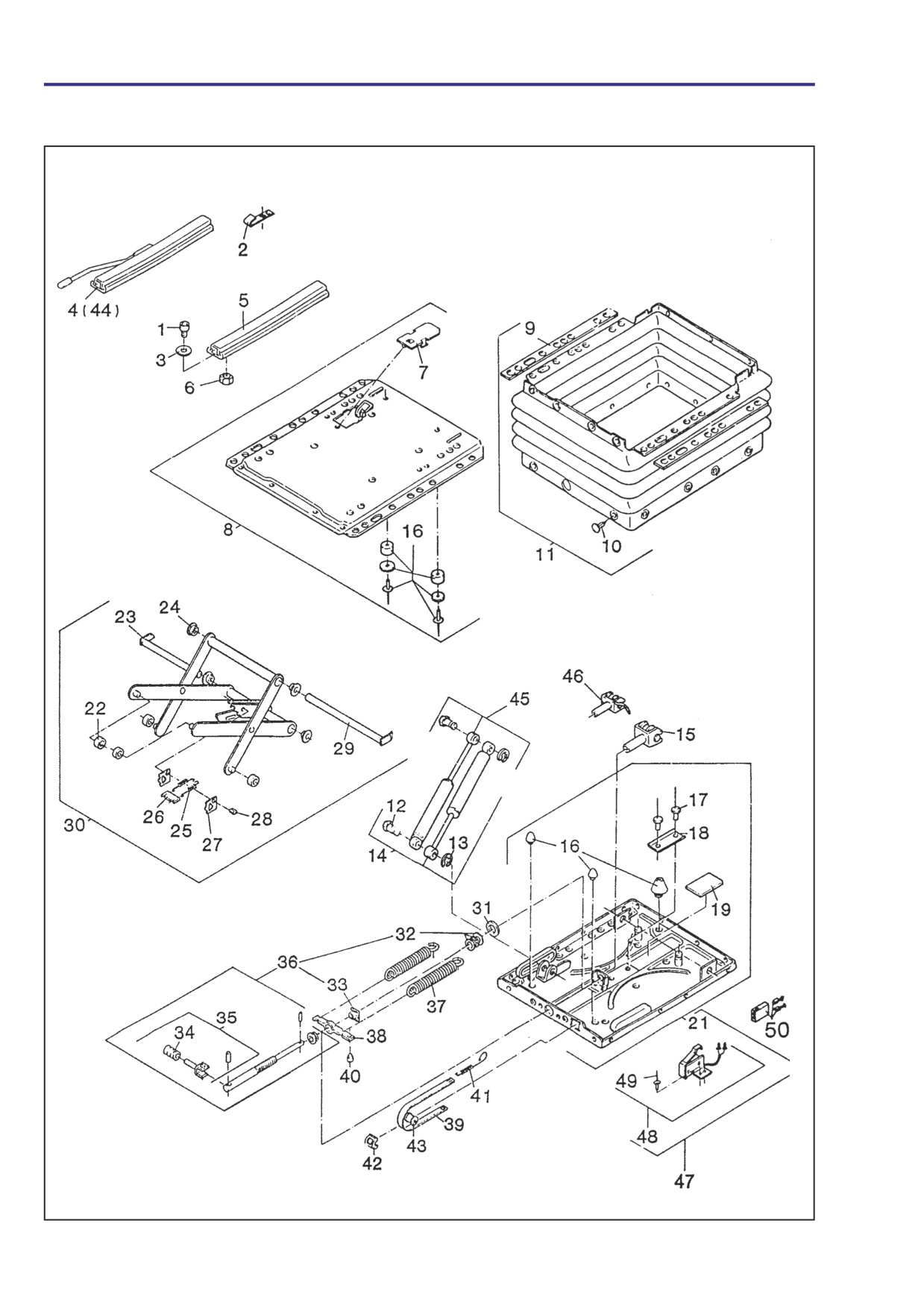

SEAT SUSPENSION GRAMMER DS85H
Parts-54
960 FRONTLINE
PARTS MANUAL
19
SEAT SUSPENSION GRAMMER DS85H
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
1
008173640
Screw
6
2
008173650
Stop
1
3
008173660
Washer
2
4
008199640
Slide With Lever
1
5
008199750
Slide
1
6
008173670
Nut
6
7
008173680
Cover
1
8
008173690
Base Assy.
1
9
008173700
Plate
2
10
008199790
Pin
21
11
008199840
Gaiter Assy.
1
12
008173710
Pin
2
13
008173720
E Clip
2
14
008199680
Damper Assy
1
16
008173730
Buffer Assy.
1
17
008173740
Rivet
2
18
008173750
Runner
1
19
008173760
Plate
1
20
008173770
Suspension Assy.
1
22
008173780
Roller
4
23
008173790
Pin
1
24
008173800
Bush
4
25
008173810
Spring
2
26
008173820
Plate
1
27
008173830
Plate
2
28
008173840
Bolt
1
29
008173850
Pin
1
30
008199900
Hinge
1
31
008173860
Washer
1
32
008173870
Bearing
1
33
008173880
Nut
1
34
008173890
Handle
1
35
008173900
Lever Assy.
1
36
008199920
Weight Adjuster
1
37
008199410
Spring
2
38
008173910
Spring Hook
1
39
008173920
Weight Indicator
1
40
008173930
Stop
1
41
008173940
Spring
1
42
008173950
Window
1
43
008173960
Roller
1
46
008173970
Fork
1
47
008173980
Spring Frame
1
48
009054480
Microswitch
1
49
008173990
Screw
2
50
008174000
Connector
1
Parts-55
960 FRONTLINE
PARTS MANUAL
20

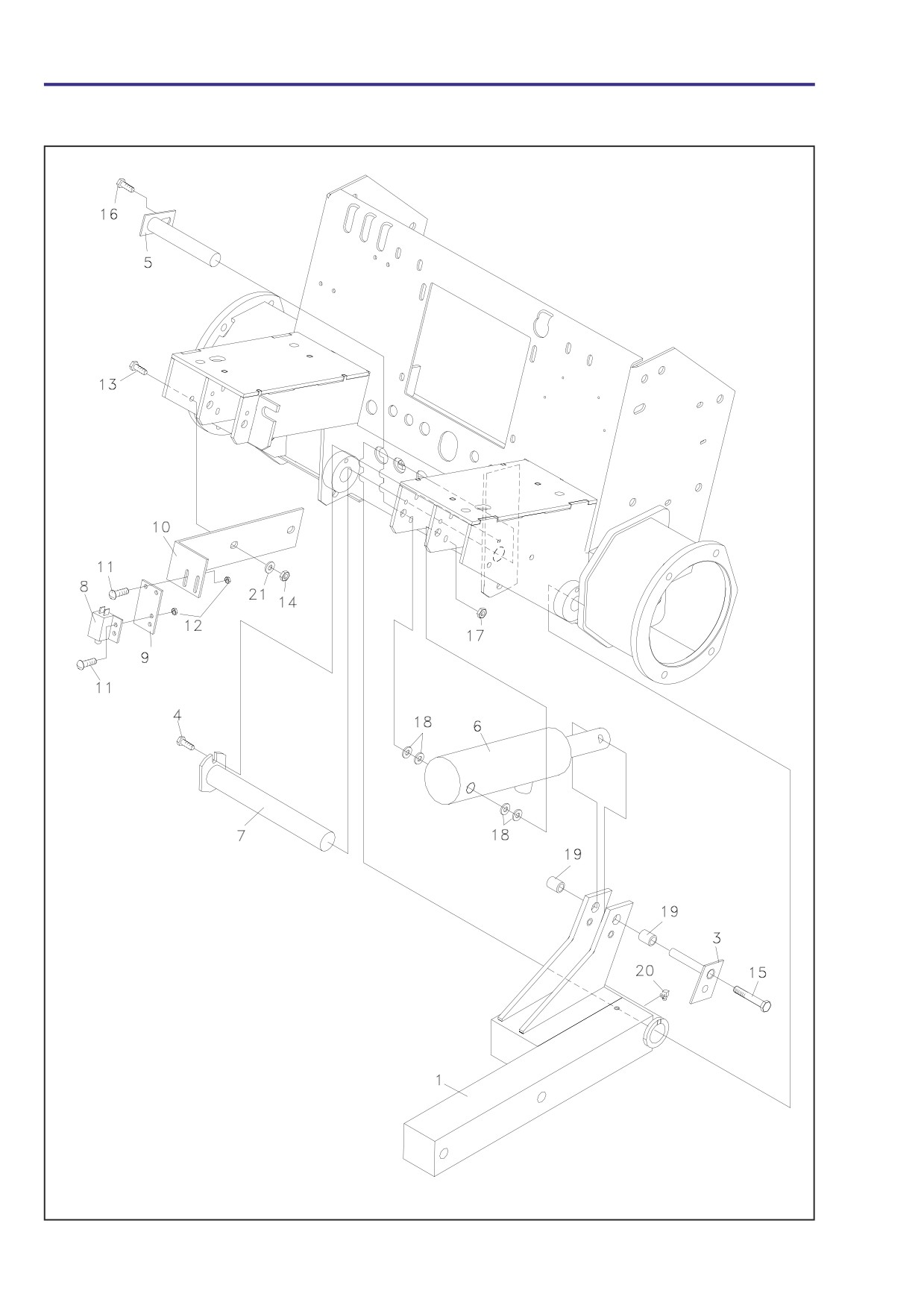

PUSHARM ASSEMBLY
Parts-56
960 FRONTLINE
PARTS MANUAL
20
PUSHARM ASSEMBLY
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
1
MBF1925.7
Wldmt-push Arm Lh
1
2 *
MBF1926.7
Wldmt-push Arm Rh
1
3
46019A
Pin Weld, Push Rod
2
4
452701
Scrw-hex M8 X 16 Taptite
2
5
2216025
Wldmnt-cyl Rod Pin
2
6
2218014
Cylinder-lift
2
(Use Seal Kit 002301110)
7
MBF1929
Wldmt-push Arm Pin
2
8
W038383
Switch-n.c.
1
9
W172359
Plate-push Arm Sw
1
10
2212109
Bracket-switch Mtg
1
11
001190042
Scrw-rnd Hd No10-24 X 1/2
4
12
001393298
Nut-hex No10-24 Nyloc
4
13
450191
Scrw-hex M8 X 20
2
14
450378
Nut-hex M8 Nyloc
2
15
001190377
Scrw-wlf 1/4-20 X 1/2
2
16
456110016
Scrw-hex 1/4-20 X 3/4
2
17
001399121
Nut-hex 1/4-20 Nyloc
2
18
001594080
Wshr-.516 X .750 X 12ga
8
19
W138024-02
Brg-dx,.500 I.d.
4
20
35027N
Zerk
2
21
001594010
Wshr-.328 X .75 X 14 Ga
2
Parts-57
960 FRONTLINE
PARTS MANUAL
21

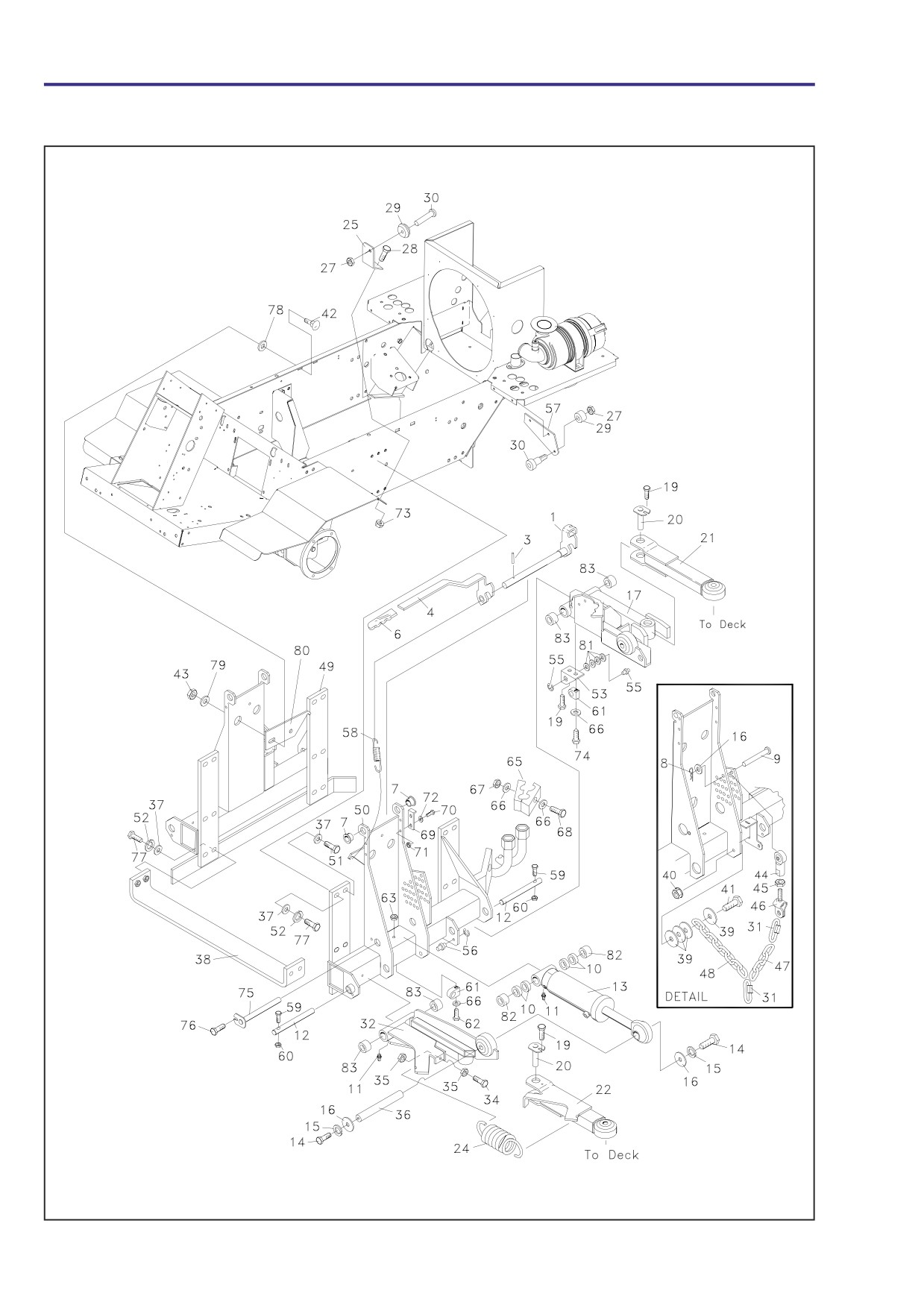

DECK MOUNTING
Parts-58
960 FRONTLINE
PARTS MANUAL
21
DECK MOUNTING
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
1
2216042
Wldmnt-Hook Rear LH
1
2 *
2216041
Wldmnt-Hook Rear RH
1
3
455000387
Pin-Tension 1/4 X 1-1/4
2
4
176147-01
Wldmt-hook Frnt LH
1
5 *
176147-02
Wldmt-hook Frnt RH
1
6
38404-01
Grip,Cntrl Lvr
2
7
118047-04
S Bshg Flip-lok.50 Id
4
8
001490226
'R' Clip
2
9
009079430
Pin-Clevis 3/8 X 2.46
2
10
001594170
Washer
8
11
842000044
Lubricator-1/4" Str
6
12
2213006
Pin-Pivot
4
13
W178154
Cylndr-wing Sq Port
2
(Use Seal Kit 4129601 With 84)
(Use Bushing 178154-01 Qty 2)
14
456110595
Scrw-hex 3/8-16 X 3/4
4
15
452200134
Lockwshr-3/8 X .683 X .094
4
16
452101510
Wshr-3/8 X 1-1/2 X .104
6
17
MBF1921.7
Wldmt-arm Rear LH
1
(Includes Item 83)
17 *
002190180
Bush,1"X1.125"X0.75"
2
18 *
MBF1922.7
Wldmt-arm Rear Rh
1
(Includes Item 83)
19
456110503
Scrw-hex 1/4-20 X 5/8
6
20
MBF2200
Wldmt-pin
4
Fitted From Under Arm
(Not As Shown)
MBG5349
Clamp Ring Wshr
4
Used Item 20
450382
Nut-hex M16 Nyloc
4
Used Item 20
002993013
Lubricator-M6 Str
4
Used Item 20
451488
Pin-spirol 8 X 20
4
Used Item 20
21
W176061.7
Wldmt-Swing Arm Rear
2
22
W176059.7
Wldmt-Swing Arm LF
1
23 *
W176060.7
Wldmt-Swing Arm RF
1
24
178045.7
Spring-wing Deck
2
25
MBG5638
Brkt-front Roller
2
27
001399121
Nut-hex 1/4-20 Nyloc
4
28
456110503
Scrw-hex 1/4-20 X 5/8
4
28*
452100019
Wshr-1/4 X 5/8 X .064
4
29
A904247
Rubber Roller
4
30
64166-15
Shoulder Bolt
4
31
W178153-01
Connector-chn Link
4
32
MBF1871a.7
Wldmt-Arm Front LH
1
(Includes Item 84)
33 *
MBF1874a.7
Wldmt-Arm Front RH
1
(Includes Item 84)
34
451030730
Bolt-hex 1/2-20 X 3-1/2
2
35
450020281
Nut-hex 1/2-20 Thin
4
36
W173010
Shaft-Cutter Deck
2
37
450392
Wshr-M12 X 24 X 2.7
24
38
2216037
Wldmt-Tank Support
2
Parts-59
960 FRONTLINE
PARTS MANUAL
21

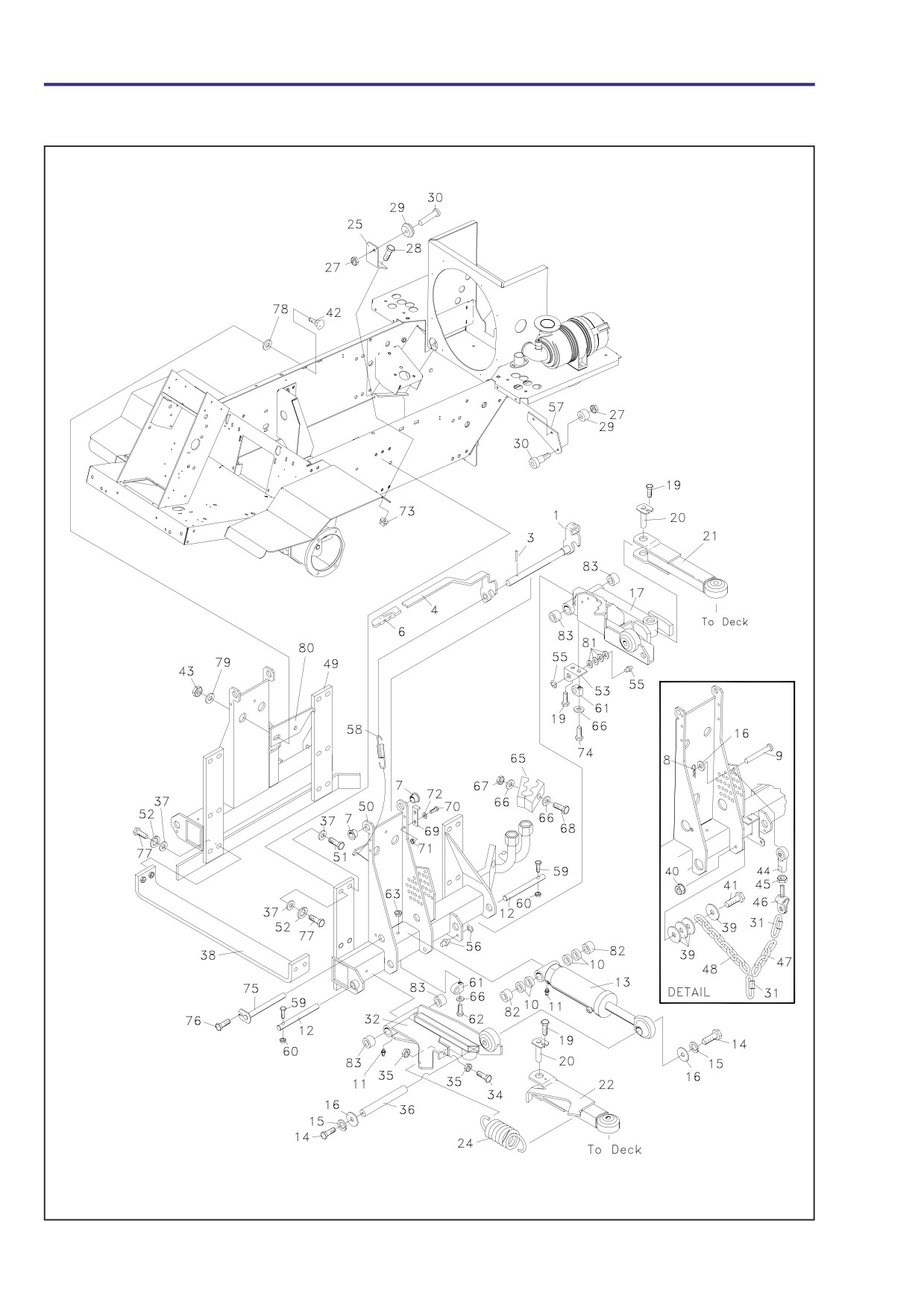

DECK MOUNTING
Parts-60
960 FRONTLINE
PARTS MANUAL
21
DECK MOUNTING
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
39
MBF0365
Wshr-10.5 X 25.2 X 3
8
40
001399090
Nut-hex 5/16-24 Nyloc
2
41
451030201
Bolt-hex 5/16-24 X 1-1/4
2
42
64018-13
Blt-crg 1/2-13x2 Gr5
4
43
450120233
Nut-hex 1/2-13 Nyloc
4
44
699535007
Ball Joint
2
45
450020265
Nut-hex 3/8-24 Thin
2
46
MBG5696
Link Screw
2
47
009151520
Chain-Wing Deck Support
2
48
009151510
Chain-Wing Deck Support
2
49
2216097.7
Wldmt-rh Sub Frame
1
50
2216096.7
Wldmt-lh Sub Frame
1
51
450241
Screw-hex M12 X 30
2
52
452200176
Lockwshr-1/2 X .873 X .125
22
53
MBG5395A
Brkt- Magnet Mtg
2
55
2208049
Magnet-actuator
2
56
2208036
Switch-Proximity
2
57
2212110
Brckt-Rear Roller
2
58
48429
Spring-Extension
2
59
450019
Bolt-hex M8 X 55
4
60
450379
Nut-hex M10 Nyloc
4
61
178097-01
Clamp-Tube
7
62
64123-192
Blt-hex 1/4-20 X 4-1/2
5
63
001393052
Nut-hex 1/4-20 Whiz
5
65
148090-03
Clamp
2
66
450389
Wshr-M6 X 12.5 X 1.8
11
MBG5502
Bracket-tube Support
2
67
450377
Nut-hex M6 Nyloc
2
68
450003
Bolt-hex M6 X 40
2
69
2212116
Bracket-Stop
2
70
456110016
Scrw-hex 1/4-20 X 3/4
4
71
001399121
Nut-hex 1/4-20 Nyloc
4
72
452100019
Wshr-1/4 X 5/8 X .064
4
73
001393052
Nut-hex 1/4-20 Whiz
4
74
451112681
Bolt-hex 1/4-20 X 2
2
75
146197
Wldmt-Push Arm Pin
2
76
450190
Scrw-hex M8 X 16
2
77
450048
Bolt-hex M12 X 40
22
78
452200029
Lockwshr-1/4 X .425 X .072
2
80
2212230.7
Bracket-Spring
2
81
72120N
Thrust Washer,1/2id
8
82
178154-01
Bushing-Cylinder
4
83
002190190
Bush,1"X1.125"X1.25"
8
84*
001594170
Shim
8
Fitted To Lift Arms
Parts-61
960 FRONTLINE
PARTS MANUAL
22

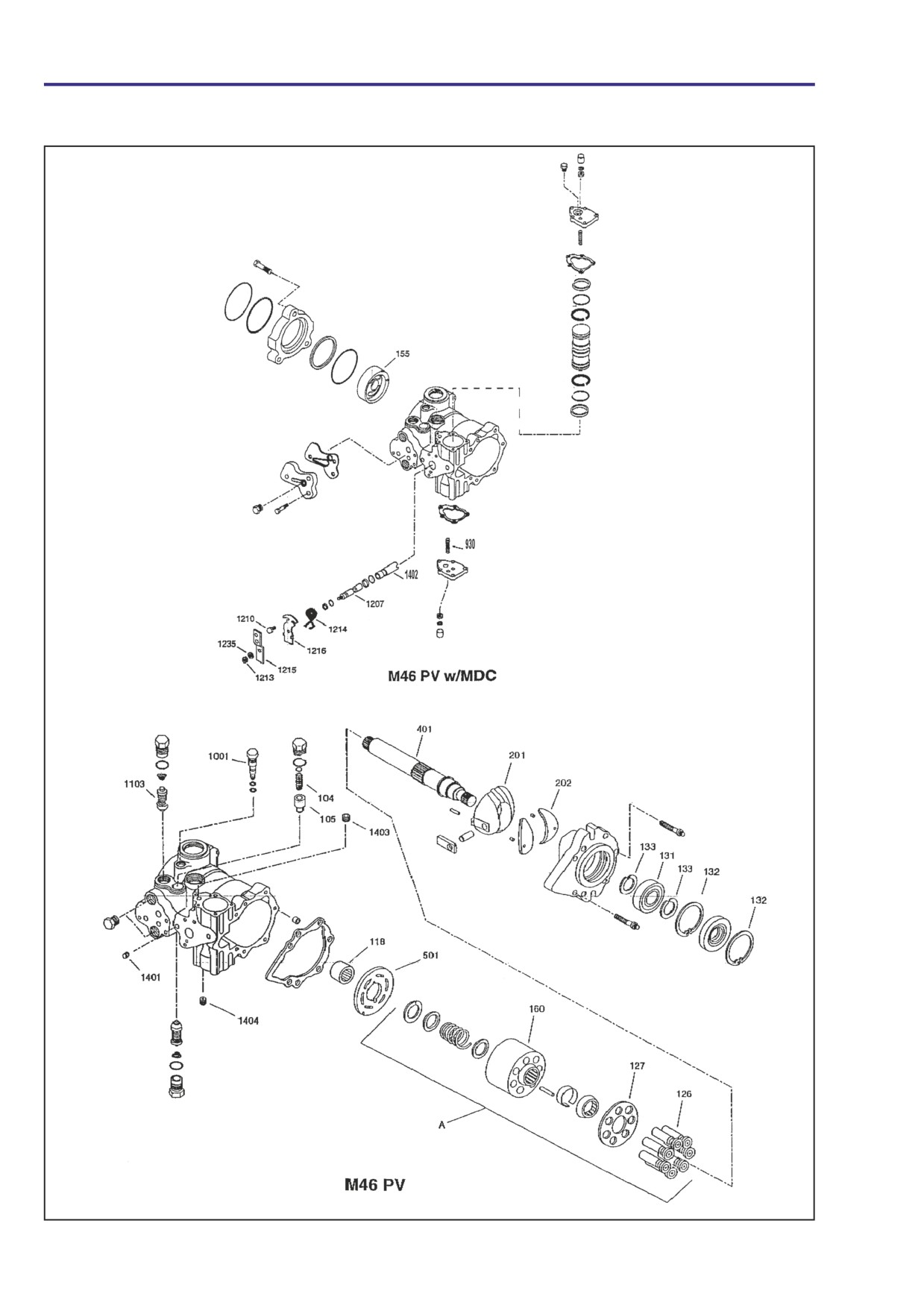

46CC M46-20788 SERVO TRANSMISSION PUMP
Parts-62
960 FRONTLINE
PARTS MANUAL
22
46CC M46-20788 SERVO TRANSMISSION PUMP
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
008007120
Transmission Pump
A
A800729
Cylinder block Kit
1
126
• Piston
7
127
• Slipper Retainer
1
160
• Cylinder Block
1
104
A800730
Charge Relief Valve Spring
1
105
A800731
Charge Relief Valve Poppet
1
118
A800732
Needle Bearing
7
131
A800733
Shaft Bearing
1
132
A800734
Circlip
2
133
A800735
Circlip
2
155
A800736
Charge Pump Housing
1
202
A800737
Swash Plate Housing
1
930
A800738
Adjuster Screw
1
1001
A800739
Bypass Valve
1
1102
A800740
Relief Valve Cartridge
1
1103
A800741
Relief Valve Cartridge
1
1210
A800742
Adjuster Screw
1
1401
A800743
Oriface
1
1402
A800744
Sleeve
1
A800745
Kit
1
Parts-63
960 FRONTLINE
PARTS MANUAL
23
TRANSMISSION VALVE
Port B
- SAE 12
Ports C, C1, E & E1
- SAE 10
Ports F & T
- SAE 6
Maximum Input Flow 140 L/M
Maximum Divided / Combined Flow 70 L/M
Maximum Working Pressure
F
= 280 Bar
B, C, E
= 230 Bar
TORQUE SETTINGS REFER TO SECTION 1
Parts-64
960 FRONTLINE
PARTS MANUAL
23
TRANSMISSION VALVE
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
4125741
Transmission Valve
1
N/A
Manifold
1
2
008089830
Flow Divider / Combiner
1
3
008089850
Piloted, Popet type logic element
2
4
008089860
Piloted Directional Valve
1
5
008089870
Solenoid Valve
1
6
4132063
1/4" UNF Jet (Drilled 1.8mm Dia)
1
7
008089880
Shuttle Valve
1
8
008089940
Check Valve
2
9
008089960
Blanking Plug (Viton)
2
10
4115573
Blanking Plug (Viton)
1
Parts-65
960 FRONTLINE
PARTS MANUAL
24

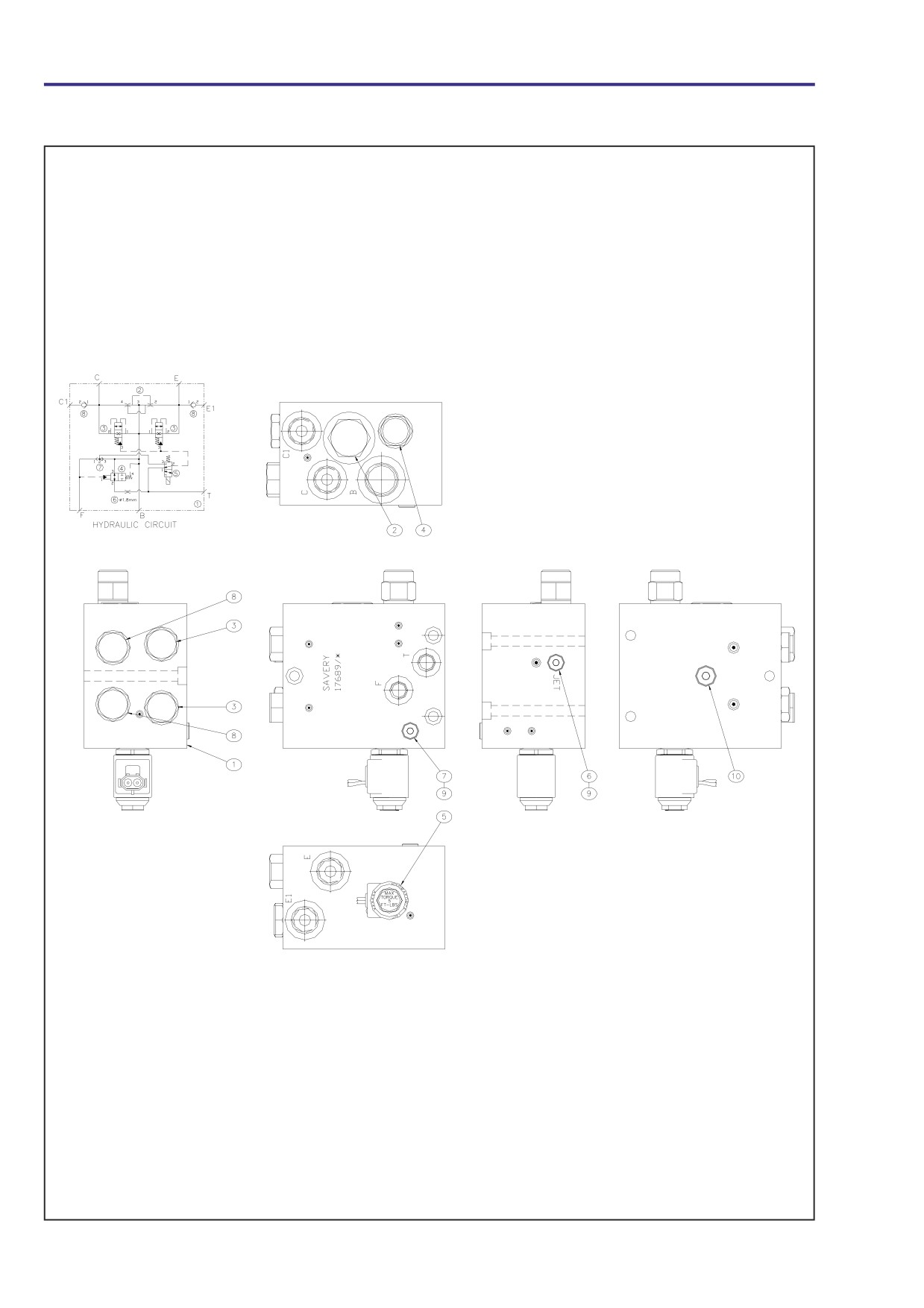

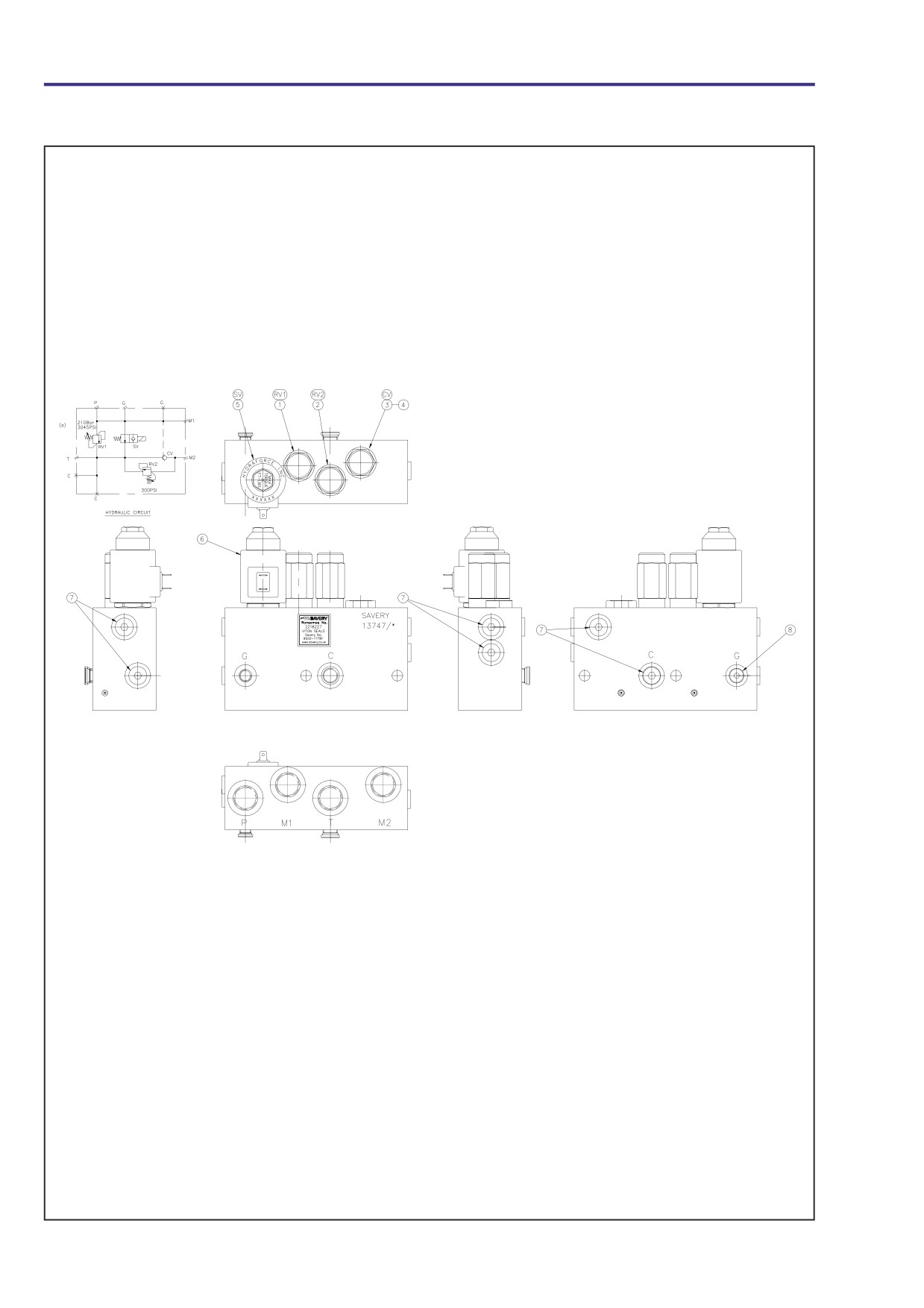

WING DECK VALVE
Ports P, M1, M2 & T
- SAE 10
Ports C & C
- SAE 6
Ports G & G
- SAE 4
Maximum Working Pressure= 220 Bar
TORQUE SETTINGS REFER TO SECTION 1
Parts-66
960 FRONTLINE
PARTS MANUAL
24
WING DECK VALVE
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
2218227
Deck Valve
1
1
178102-42
RV10 - 22H - 0 - V - 35 / M210
1
178102-01
SK10 2V B
2
178102-13
RV10 - 22H - 0 - V006 / 3.0
1
178102-01
SK10 - 2V - T
3
178102-31
CV10 - 20 - O - V - 70
1
178102-01
SK10 - 2V - T
4
178102-14
Pilot Piston 7013200S
1
5
178102-16
SV10 - 21W - 0 - V - 00
1
178102-01
SK10 - 2V - T
6
178102-17
Coil 6351012
1
7
178102-19
SAE Plug
6
178102-09
Seal
8
178102-18
SAE Plug
1
178102-10
Seal
Parts-67
960 FRONTLINE
PARTS MANUAL
25

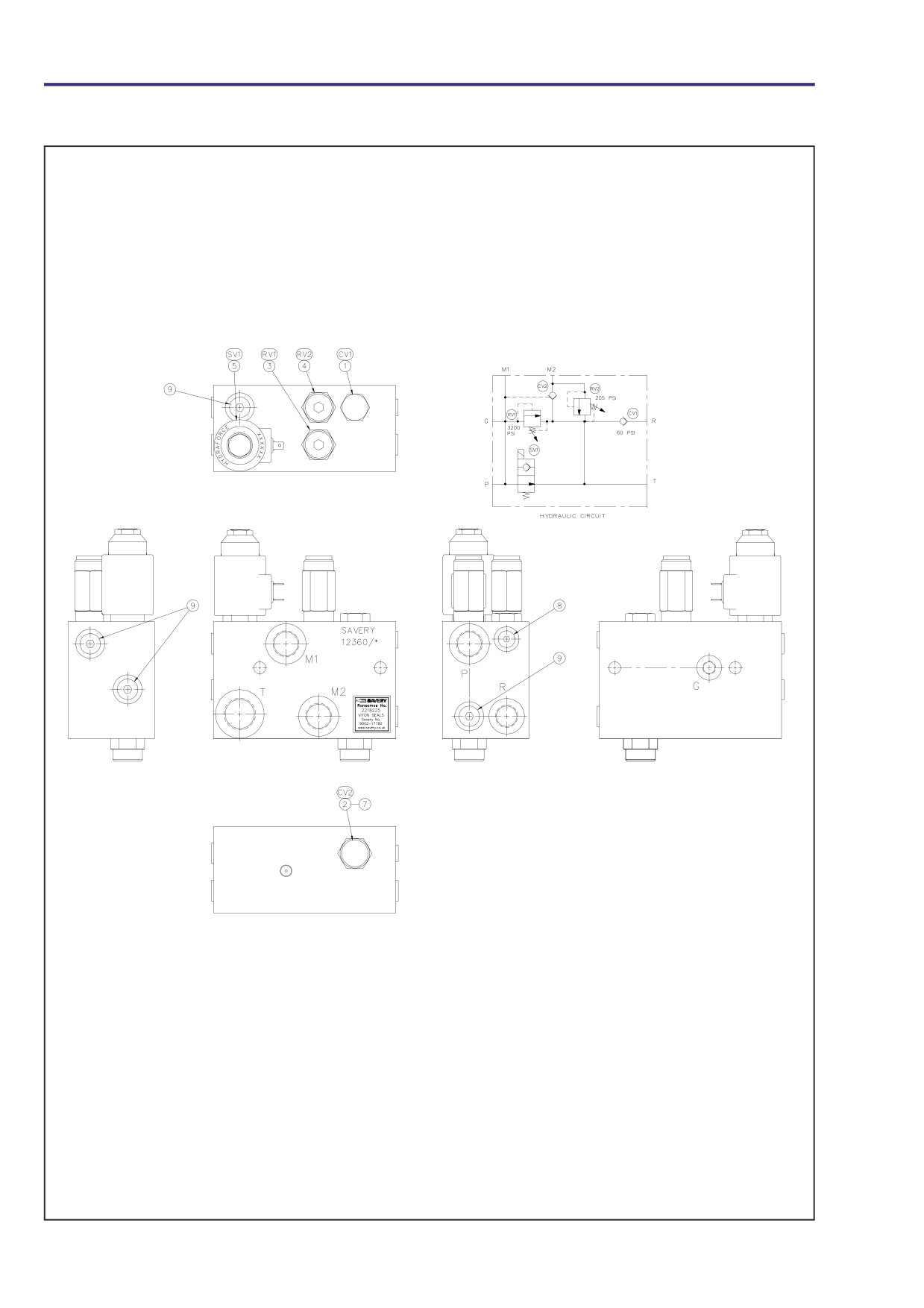

DECK VALVE
Port T
- SAE 12
Ports P, M1 & M2
- SAE 10
Port R
- SAE 8
Port G
- SAE 4
TORQUE SETTINGS REFER TO SECTION 1
Parts-68
960 FRONTLINE
PARTS MANUAL
25
DECK VALVE
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
2218225
Front Deck Valve
1
178102-58
CV08 - 20 - 0 - V - 80
1
178102-03
SK08 - 2V - T
2
178102-59
CV10 - 20T - 0 - V - 300
1
178102-01
SK10 - 2V - T
3
178102-79
RV10 - 22H - 0 - V - 35 / 32
1
178102-02
SK10 - 2V - B
4
178102-34
RV10 - 2005H - (Viton)
1
178102-02
SK10 - 2V - B
5
178102-16
SV10 - 21W - 0 - V - 00
1
178102-01
SK10 - 2V - T
6
178102-17
Coil 6351012
1
7
178102-57
Pilot Piston 7013200S
1
8
178102-19
SAE Plug
1
178102-09
Seal
9
178102-18
SAE Plug
4
178102-10
Seal
Parts-69
960 FRONTLINE
PARTS MANUAL
26.1

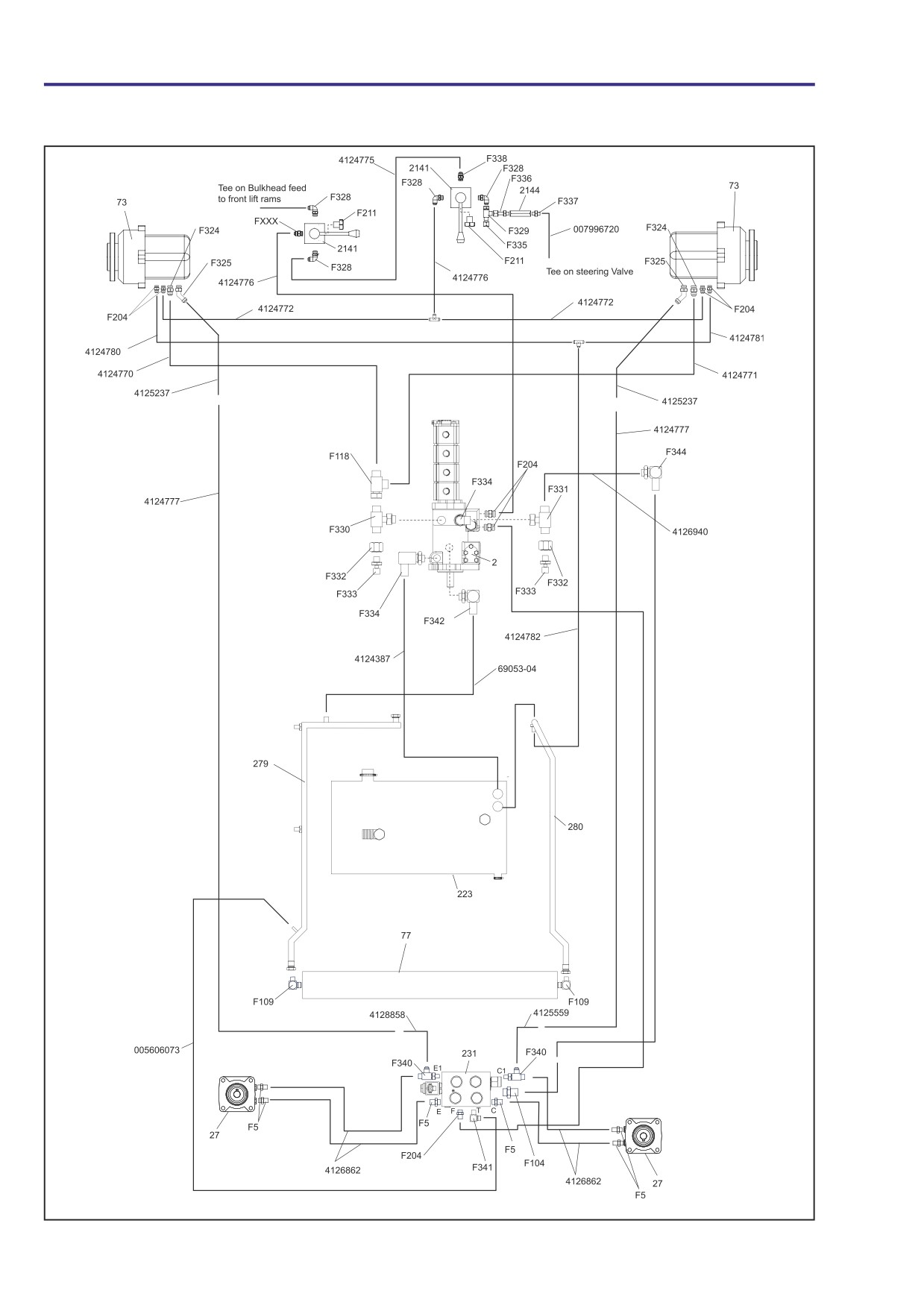

HYDRAULIC DIAGRAM - TRANSMISSIOM
Parts-70
960 FRONTLINE
PARTS MANUAL
26.1
HYDRAULIC DIAGRAM - TRANSMISSIOM
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
2
008007120
Transmission Pump
1
27
W148141-03
Hydraulic Motor
2
73
008007240
Hydraulic Wheel Motor
2
77
006911730
Oil Cooler
1
223
2218148
Hydraulic Reservoir
1
231
4125741
Transmission Valve
1
279
4124407
Oil Cooler Tube Inlet
1
280
4124116
Oil Cooler Tube Outlet
1
2141
008028345
Hydraulic Rotary Valve
2
2144
008011210
check Valve
1
Hydraulic Fittings
F1
W158007-01
90-M/M 11/16 ORS x 9/16 SAE
9
F2
158006-05
FITTING ORS/ORB
2
F3
W158006-01
FTG-M/M 11/16 ORS x 9/16 SAE
4
F5
W158006-07
FTG-M/M 1 ORS x 7/8 SAE
14
F6
W158007-02
90-M/M 13/16 ORS x 3/4 SAE
2
F7
W158007-05
90-M/M 1 ORS x 7/8 SAE
6
F8
W158007-07
90-M/M 1-3/16 ORS x 1-1/16 SAE
4
F9
158007-14
FITTING-90 ORS/ORB
2
F10
W158010-01
FITTING - ORS RUN TREE
1
F11
W158058-04
90-M/M 9/16 SAE x .38 BARB
3
F12
W158061-01
O-RING .364 ID x .07 SECT
1
F13
W158061-05
O-RING 2.234 ID x .139 SECT
2
F14
W158067-01
FTG-BLKHD M/M 11/16 ORS
4
F15
W158067-02
FTG-BLKHD M/M 1 ORS
3
F16
158067-04
FTG-BLKHD ORS/ORS
1
F17
2690019-01
FITTING-ORS STR. STEM
2
F19
58026-01
3 WAY CONNECTOR 3/8
3
F20
W69055-01
90 BLKHD-M/M 11/16 ORS
5
F21
W69055-02
90 BLKHD-M/M 1 ORS
7
F24
W69068-05
ORIFICE DISK-11/16 ORS x .089
1
F25
48228-06
CLAMP
2
F101
108094-01
CLAMP-HOSE SAE20
12
F102
108094-02
CLAMP-HOSE SAE12
2
F104
W158006-08
FTG-M/M 1-3/16 ORS x 1-1/16 SAE
1
F107
W158007-06
90-M/M 1 ORS x 1-1/16 SAE
1
FLAT FACE 'O' RIN G
F109
158007-12
FITTING-90 ORS/ORB
4
F112
W158061-08
O-RING .614 ID x .07 SECT
2
PAR T
TUBE O.D .
AS-568#
F113
W158061-09
O-RING .739 ID x .07 SECT
2
NUMBE R
F114
158061-20
O-RING- 022
2
158061-01
3/8"
-012
F115
W178079
TEST FITTING
4
158061-02
1/2"
-014
F116
2208139
CLAMP-TUBE
5
F118
69057-02
FITTING-BRANCH TEE -12 ORS
1
158061-08
5/8"
-016
F119
W69060-01
FTG-9/16 SAE x .38 BARB
1
158061-09
3/4"
-018
F202
W148027
BREATHER VENT
1
158061-15
1
/
-025
F204
158006-15
FITTING-ORS/ORB
7
Parts-71
960 FRONTLINE
PARTS MANUAL
26.1

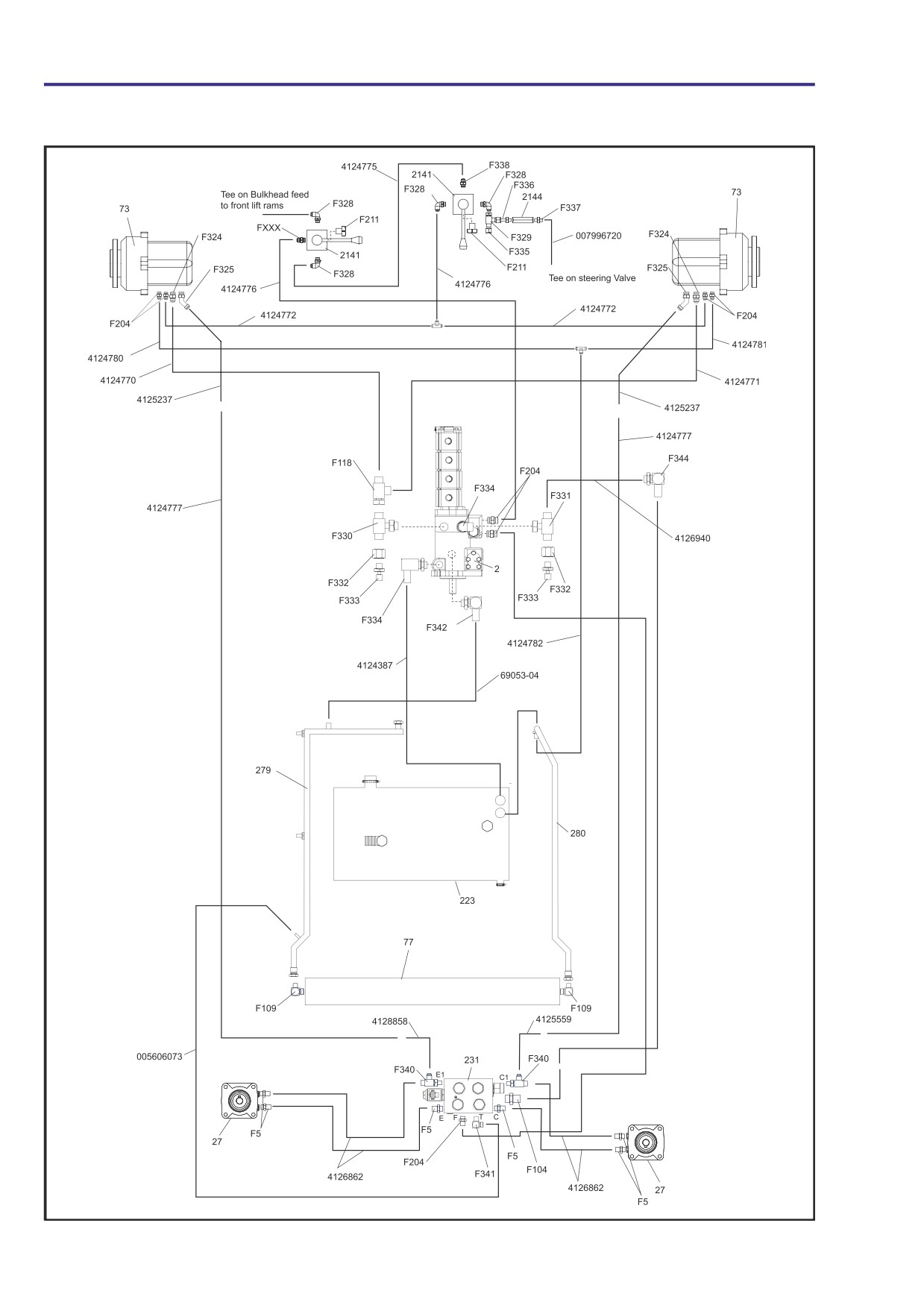

HYDRAULIC DIAGRAM - TRANSMISSIOM
Parts-72
960 FRONTLINE
PARTS MANUAL
26.1
HYDRAULIC DIAGRAM - TRANSMISSIOM
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
F206
W158007-09
90-M/M 11/16 ORS x 7/16 SAE
4
F207
158056-02
FTG-ORS/O-RING TEE
1
F209
178088-01
FTG-ORS PLUG 1-14
6
F210
178097-01
CLAMP-TUBE
7
F211
2690017-01
FTG-ORB PLUG 14
2
F212
2690017-03
PLUG
1
F213
48383
CLAMP-HOSE SAE32
3
F214
48396
HOSE-CLAMP SAE24
6
F216
69051-01
PLUG-PIPE 3/8
1
F218
002444030
PLUG-7/16 SAE
2
F219
469016517
‘P’ CLIP
1
F221
2690027
FITTING-1/4 CROSS
1
F301
48228-1A
CLIP-CABLE INSULATED
2
F306
W158058-02
90-M/M 1-1/16 SAE x 1.00 BARB
3
F307
158058-16
FITTING-90 BARB ADJ
1
F308
W158061-04
O-RING 3.237 ID x .103 SECT
1
F309
2690011
FTG-10-3/4 ADPT ORB/BARB-90
1
F310
48540-01
HOSE CLAMP WITTEK H
32
F317
1925220
HOSE CLAMP, 8-22
10
F318
158006-14
FITTING-ORB/ORS
2
F319
2218126
TUBE-CHECK VALVE PORT2
2
F321
148090-03
HOSE-SUPPORT 5/8
2
F322
469021633
HOSE CLIP LARGE H980407
2
F323
002535040
45-M/M 1 ORS x 7/8 SAE
6
F324
W158006-11
FTG-M/M 1 ORS x 1-1/16 SAE
3
F325
2498420
45-M/M 1 ORS x 1-1/16 SAE
2
F326
W158011-01
TEE-M/M/M 11/16 ORS
2
F327
2498400
TEE-M/F/M 11/16 ORS
3
F328
2590710
90-M/M 9/16 ORS x 3/8 BSPP
6
F329
2590480
TEE-M/F/M 9/16 ORS
3
F330
2590910
TEE-M/M/M 1-3/16(2)ORSx1-5/16
1
F331
002498870
TEE-M/F/M 1-3/16 ORS
1
F332
02498900
TEST POINT-1/4 BSPP x 1-3/16
2
F333
02449006
TEST POINT-1/4 BSPP
2
F334
4128497
90DEG. ELBOW - 1" HOSETAIL
1
F335
002560010
CAP-9/16 ORS
1
F336
002590740
FTG-F/M 9/16 ORS x 1/4 BSPP
1
FLAT FACE 'O' RIN G
F337
002590750
FTG-9/16 ORS x 1/4 BSPP
1
PAR T
F338
02590730
FTG-9/16 ORS x 3/8 BSPP
1
TUBE O.D .
AS-568#
NUMBE R
F339
4124879
45 Degree fitting 1-1/16"SAE x 1" S
1
F340
002590130
TEE-M/M/M 1 ORS(2) x 7/8 SAE
2
158061-01
3/8"
-012
F341
002525010
90-M/M 9/16 ORS x 9/16 SAE
1
158061-02
1/2"
-014
F342
4126408
90-MM 1-3/16"ORFS X 1-3/16"ORFS
2
158061-08
5/8"
-016
F343
W158007-08
90-M/M 1-3/16 ORS x 1-5/16 SAE
1
F344
W69055-03
90 BLKHD-M/M 1-3/16 ORS
1
158061-09
3/4"
-018
158061-15
1
/
-025
Parts-73
960 FRONTLINE
PARTS MANUAL
26.2

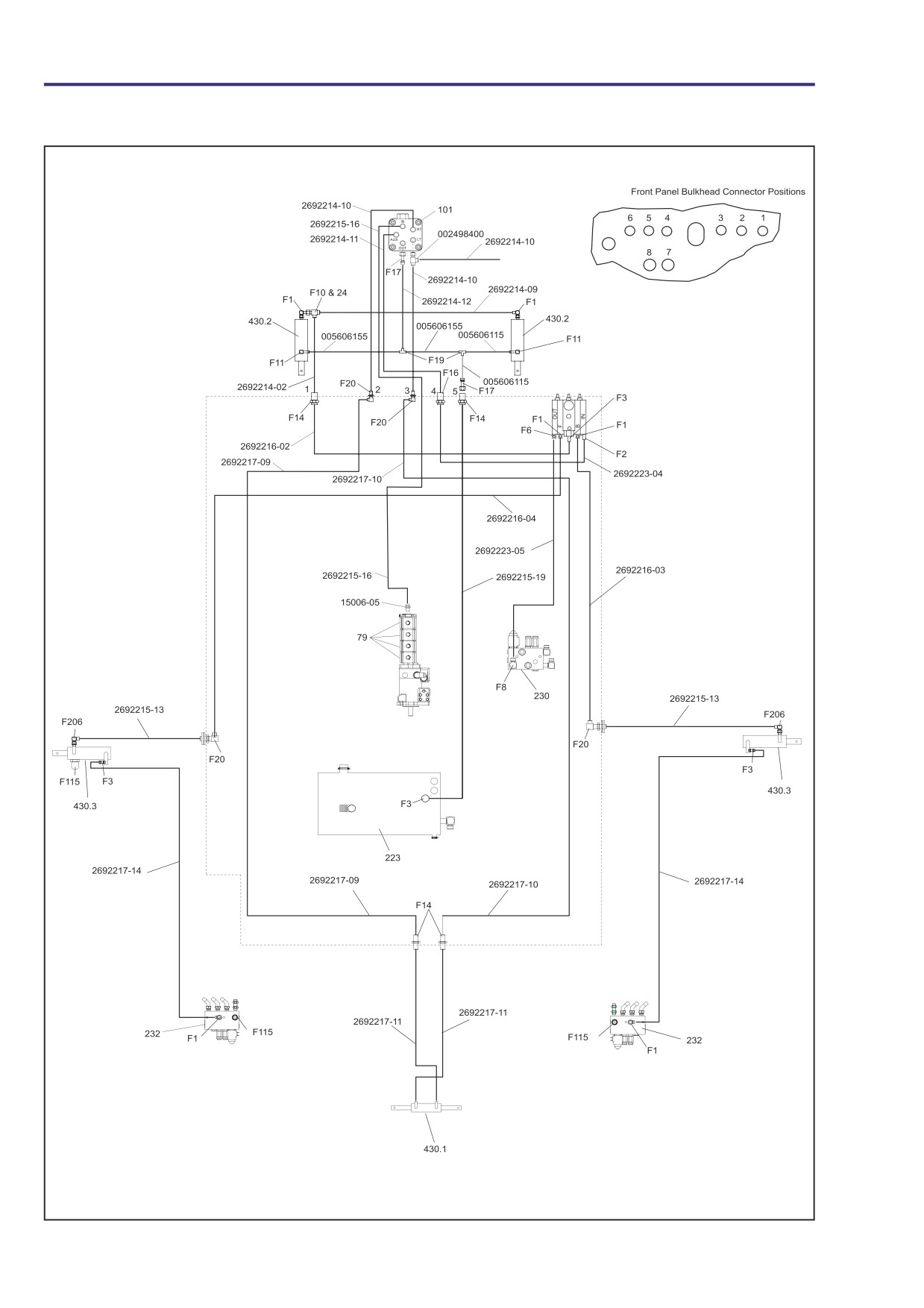

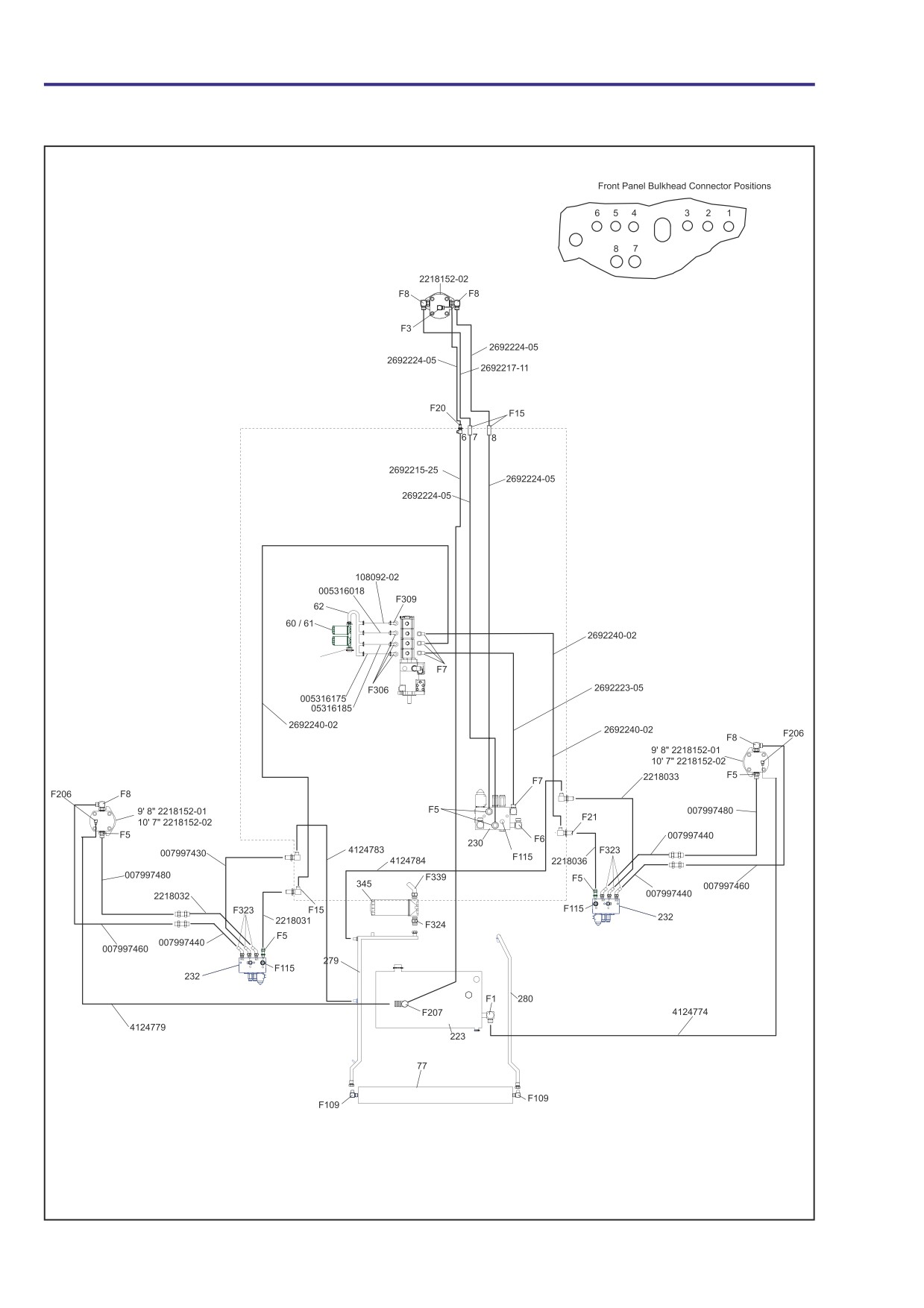

HYDRAULIC DIAGRAM - UNIT DRIVE
Parts-74
960 FRONTLINE
PARTS MANUAL
26.2
HYDRAULIC DIAGRAM - UNIT DRIVE
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
60
178024
Filter Head
1
61
178025
Filter
2
62
178043-7
Filter Tube
1
77
006911730
Oil Cooler
1
223
2218148
Hydraulic Reservoir
1
230
2218225
Front Unit DeckValve
1
232
2218227
L & RH Deck Valve
2
345
008089610
Hydraulic Filter
1
Hydraulic Fittings
F1
W158007-01
90-M/M 11/16 ORS x 9/16 SAE
9
F2
158006-05
FITTING ORS/ORB
2
F3
W158006-01
FTG-M/M 11/16 ORS x 9/16 SAE
4
F5
W158006-07
FTG-M/M 1 ORS x 7/8 SAE
14
F6
W158007-02
90-M/M 13/16 ORS x 3/4 SAE
2
F7
W158007-05
90-M/M 1 ORS x 7/8 SAE
6
F8
W158007-07
90-M/M 1-3/16 ORS x 1-1/16 SAE
4
F9
158007-14
FITTING-90 ORS/ORB
2
F10
W158010-01
FITTING - ORS RUN TREE
1
F11
W158058-04
90-M/M 9/16 SAE x .38 BARB
3
F12
W158061-01
O-RING .364 ID x .07 SECT
1
F13
W158061-05
O-RING 2.234 ID x .139 SECT
2
F14
W158067-01
FTG-BLKHD M/M 11/16 ORS
4
F15
W158067-02
FTG-BLKHD M/M 1 ORS
3
F16
158067-04
FTG-BLKHD ORS/ORS
1
F17
2690019-01
FITTING-ORS STR. STEM
2
F19
58026-01
3 WAY CONNECTOR 3/8
3
F20
W69055-01
90 BLKHD-M/M 11/16 ORS
5
F21
W69055-02
90 BLKHD-M/M 1 ORS
7
F24
W69068-05
ORIFICE DISK-11/16 ORS x .089
1
F25
48228-06
CLAMP
2
F101
108094-01
CLAMP-HOSE SAE20
12
F102
108094-02
CLAMP-HOSE SAE12
2
F104
W158006-08
FTG-M/M 1-3/16 ORS x 1-1/16 SAE
1
F107
W158007-06
90-M/M 1 ORS x 1-1/16 SAE
1
F109
158007-12
FITTING-90 ORS/ORB
4
F112
W158061-08
O-RING .614 ID x .07 SECT
2
FLAT FACE 'O' RIN G
F113
W158061-09
O-RING .739 ID x .07 SECT
2
PAR T
F114
158061-20
O-RING- 022
2
TUBE O.D .
AS-568#
NUMBE R
F115
W178079
TEST FITTING
4
F116
2208139
CLAMP-TUBE
5
158061-01
3/8"
-012
F118
69057-02
FITTING-BRANCH TEE -12 ORS
1
158061-02
1/2"
-014
F119
W69060-01
FTG-9/16 SAE x .38 BARB
1
158061-08
5/8"
-016
F202
W148027
BREATHER VENT
1
F204
158006-15
FITTING-ORS/ORB
7
158061-09
3/4"
-018
F206
W158007-09
90-M/M 11/16 ORS x 7/16 SAE
4
158061-15
1
/
-025
F207
158056-02
FTG-ORS/O-RING TEE
1
Parts-75
960 FRONTLINE
PARTS MANUAL
26.2

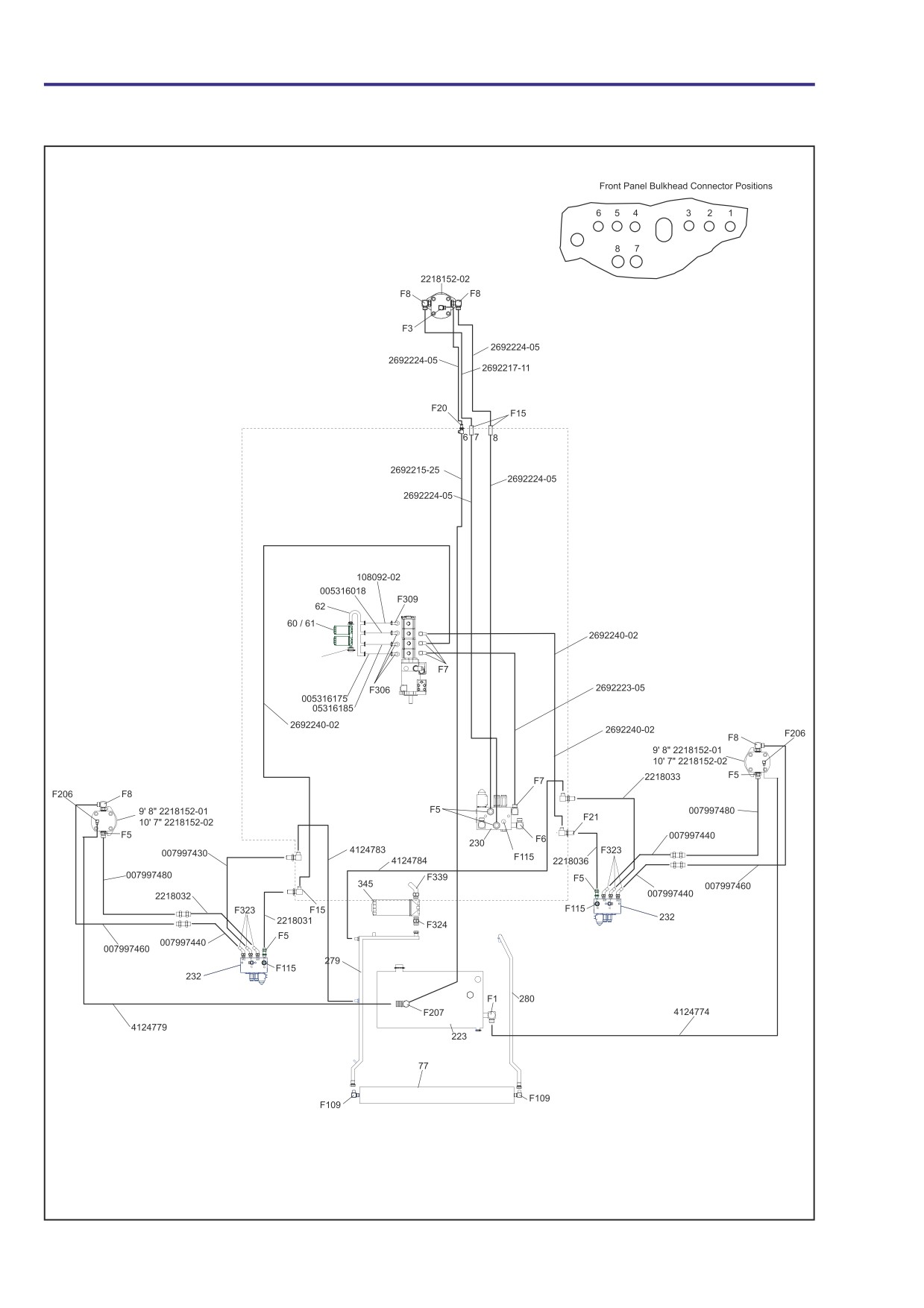

HYDRAULIC DIAGRAM - UNIT DRIVE
Parts-76
960 FRONTLINE
PARTS MANUAL
26.2
HYDRAULIC DIAGRAM - UNIT DRIVE
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
F209
178088-01
FTG-ORS PLUG 1-14
6
F210
178097-01
CLAMP-TUBE
7
F211
2690017-01
FTG-ORB PLUG 14
2
F212
2690017-03
PLUG
1
F213
48383
CLAMP-HOSE SAE32
3
F214
48396
HOSE-CLAMP SAE24
6
F216
69051-01
PLUG-PIPE 3/8
1
F218
002444030
PLUG-7/16 SAE
2
F219
469016517
‘P’ CLIP
1
F221
2690027
FITTING-1/4 CROSS
1
F301
48228-1A
CLIP-CABLE INSULATED
2
F306
W158058-02
90-M/M 1-1/16 SAE x 1.00 BARB
3
F307
158058-16
FITTING-90 BARB ADJ
1
F308
W158061-04
O-RING 3.237 ID x .103 SECT
1
F309
2690011
FTG-10-3/4 ADPT ORB/BARB-90
1
F310
48540-01
HOSE CLAMP WITTEK H
32
F317
1925220
HOSE CLAMP, 8-22
10
F318
158006-14
FITTING-ORB/ORS
2
F319
2218126
TUBE-CHECK VALVE PORT2
2
F321
148090-03
HOSE-SUPPORT 5/8
2
F322
469021633
HOSE CLIP LARGE H980407
2
F323
002535040
45-M/M 1 ORS x 7/8 SAE
6
F324
W158006-11
FTG-M/M 1 ORS x 1-1/16 SAE
3
F325
2498420
45-M/M 1 ORS x 1-1/16 SAE
2
F326
W158011-01
TEE-M/M/M 11/16 ORS
2
F327
2498400
TEE-M/F/M 11/16 ORS
3
F328
2590710
90-M/M 9/16 ORS x 3/8 BSPP
6
F329
2590480
TEE-M/F/M 9/16 ORS
3
F330
2590910
TEE-M/M/M 1-3/16(2)ORSx1-5/16
1
F331
002498870
TEE-M/F/M 1-3/16 ORS
1
F332
02498900
TEST POINT-1/4 BSPP x 1-3/16
2
F333
02449006
TEST POINT-1/4 BSPP
2
F334
4128497
90DEG. ELBOW - 1" HOSETAIL
1
F335
002560010
CAP-9/16 ORS
1
F336
002590740
FTG-F/M 9/16 ORS x 1/4 BSPP
1
F337
002590750
FTG-9/16 ORS x 1/4 BSPP
1
F338
02590730
FTG-9/16 ORS x 3/8 BSPP
1
FLAT FACE 'O' RIN G
F339
4124879
45 Degree fitting 1-1/16"SAE x 1" S
1
PAR T
F340
002590130
TEE-M/M/M 1 ORS(2) x 7/8 SAE
2
TUBE O.D .
AS-568#
NUMBE R
F341
002525010
90-M/M 9/16 ORS x 9/16 SAE
1
F342
4126408
90-MM 1-3/16"ORFS X 1-3/16"ORFS
2
158061-01
3/8"
-012
F343
W158007-08
90-M/M 1-3/16 ORS x 1-5/16 SAE
1
158061-02
1/2"
-014
F344
W69055-03
90 BLKHD-M/M 1-3/16 ORS
1
158061-08
5/8"
-016
158061-09
3/4"
-018
158061-15
1
/
-025
Parts-77
960 FRONTLINE
HYDRAULIC DIAGRAM
PARTS MANUAL
26.3
HYDRAULIC DIAGRAM - STEERING & LIFT
Parts-78
960 FRONTLINE
PARTS MANUAL
26.3
HYDRAULIC DIAGRAM - STEERING & LIFT
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
79
2178214
Pump 4 Section
1
101
4124000
Steering Valve & Column
1
223
2218148
Hydraulic reservoir
1
230
2218225
Front Unit DeckValve
1
232
2218227
L & RH Deck Valve
2
430.1
W148404
Steering Ram
1
430.2
W178154
Lift Ram Front Deck
2
430.3
2218014`
lift Ram wing Deck
2
Hydraulic Fittings
F1
W158007-01
90-M/M 11/16 ORS x 9/16 SAE
9
F2
158006-05
FITTING ORS/ORB
2
F3
W158006-01
FTG-M/M 11/16 ORS x 9/16 SAE
4
F5
W158006-07
FTG-M/M 1 ORS x 7/8 SAE
14
F6
W158007-02
90-M/M 13/16 ORS x 3/4 SAE
2
F7
W158007-05
90-M/M 1 ORS x 7/8 SAE
6
F8
W158007-07
90-M/M 1-3/16 ORS x 1-1/16 SAE
4
F9
158007-14
FITTING-90 ORS/ORB
2
F10
W158010-01
FITTING - ORS RUN TREE
1
F11
W158058-04
90-M/M 9/16 SAE x .38 BARB
3
F12
W158061-01
O-RING .364 ID x .07 SECT
1
F13
W158061-05
O-RING 2.234 ID x .139 SECT
2
F14
W158067-01
FTG-BLKHD M/M 11/16 ORS
4
F15
W158067-02
FTG-BLKHD M/M 1 ORS
3
F16
158067-04
FTG-BLKHD ORS/ORS
1
F17
2690019-01
FITTING-ORS STR. STEM
2
F19
58026-01
3 WAY CONNECTOR 3/8
3
F20
W69055-01
90 BLKHD-M/M 11/16 ORS
5
F21
W69055-02
90 BLKHD-M/M 1 ORS
7
F24
W69068-05
ORIFICE DISK-11/16 ORS x .089
1
F25
48228-06
CLAMP
2
F101
108094-01
CLAMP-HOSE SAE20
12
F102
108094-02
CLAMP-HOSE SAE12
2
F104
W158006-08
FTG-M/M 1-3/16 ORS x 1-1/16 SAE
1
F107
W158007-06
90-M/M 1 ORS x 1-1/16 SAE
1
F109
158007-12
FITTING-90 ORS/ORB
4
F112
W158061-08
O-RING .614 ID x .07 SECT
2
FLAT FACE 'O' RIN G
F113
W158061-09
O-RING .739 ID x .07 SECT
2
F114
158061-20
O-RING- 022
2
PAR T
TUBE O.D .
AS-568#
NUMBE R
F115
W178079
TEST FITTING
4
F116
2208139
CLAMP-TUBE
5
158061-01
3/8"
-012
F118
69057-02
FITTING-BRANCH TEE -12 ORS
1
158061-02
1/2"
-014
F119
W69060-01
FTG-9/16 SAE x .38 BARB
1
158061-08
5/8"
-016
F202
W148027
BREATHER VENT
1
F204
158006-15
FITTING-ORS/ORB
7
158061-09
3/4"
-018
F206
W158007-09
90-M/M 11/16 ORS x 7/16 SAE
4
158061-15
1
/
-025
F207
158056-02
FTG-ORS/O-RING TEE
1
Parts-79
