Ransomes Frontline 960 (Engine Type: Perkins 404C-22T). Parts and Maintenance Manual (2002) - page 8
960 FRONTLINE
PARTS MANUAL
26.3

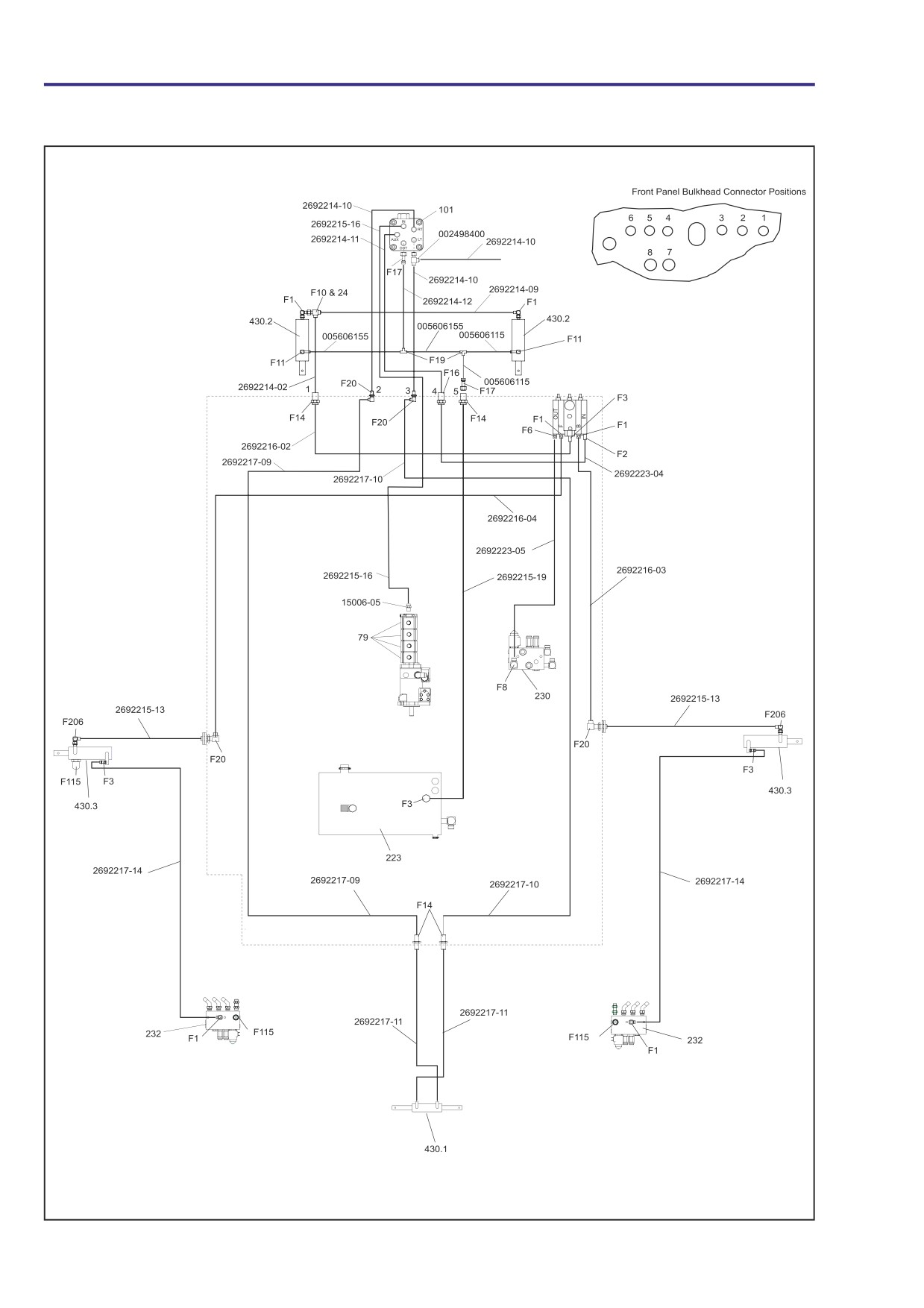

HYDRAULIC DIAGRAM - STEERING & LIFT
Parts-80
960 FRONTLINE
PARTS MANUAL
26.3
HYDRAULIC DIAGRAM - STEERING & LIFT
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
F209
178088-01
FTG-ORS PLUG 1-14
6
F210
178097-01
CLAMP-TUBE
7
F211
2690017-01
FTG-ORB PLUG 14
2
F212
2690017-03
PLUG
1
F213
48383
CLAMP-HOSE SAE32
3
F214
48396
HOSE-CLAMP SAE24
6
F216
69051-01
PLUG-PIPE 3/8
1
F218
002444030
PLUG-7/16 SAE
2
F219
469016517
‘P’ CLIP
1
F221
2690027
FITTING-1/4 CROSS
1
F301
48228-1A
CLIP-CABLE INSULATED
2
F306
W158058-02
90-M/M 1-1/16 SAE x 1.00 BARB
3
F307
158058-16
FITTING-90 BARB ADJ
1
F308
W158061-04
O-RING 3.237 ID x .103 SECT
1
F309
2690011
FTG-10-3/4 ADPT ORB/BARB-90
1
F310
48540-01
HOSE CLAMP WITTEK H
32
F317
1925220
HOSE CLAMP, 8-22
10
F318
158006-14
FITTING-ORB/ORS
2
F319
2218126
TUBE-CHECK VALVE PORT2
2
F321
148090-03
HOSE-SUPPORT 5/8
2
F322
469021633
HOSE CLIP LARGE H980407
2
F323
002535040
45-M/M 1 ORS x 7/8 SAE
6
F324
W158006-11
FTG-M/M 1 ORS x 1-1/16 SAE
3
F325
2498420
45-M/M 1 ORS x 1-1/16 SAE
2
F326
W158011-01
TEE-M/M/M 11/16 ORS
2
F327
2498400
TEE-M/F/M 11/16 ORS
3
F328
2590710
90-M/M 9/16 ORS x 3/8 BSPP
6
F329
2590480
TEE-M/F/M 9/16 ORS
3
F330
2590910
TEE-M/M/M 1-3/16(2)ORSx1-5/16
1
F331
002498870
TEE-M/F/M 1-3/16 ORS
1
F332
02498900
TEST POINT-1/4 BSPP x 1-3/16
2
F333
02449006
TEST POINT-1/4 BSPP
2
F334
4128497
90DEG. ELBOW - 1" HOSETAIL
1
F335
002560010
CAP-9/16 ORS
1
F336
002590740
FTG-F/M 9/16 ORS x 1/4 BSPP
1
F337
002590750
FTG-9/16 ORS x 1/4 BSPP
1
F338
02590730
FTG-9/16 ORS x 3/8 BSPP
1
FLAT FACE 'O' RIN G
F339
4124879
45 Degree fitting 1-1/16"SAE x 1" S
1
PAR T
F340
002590130
TEE-M/M/M 1 ORS(2) x 7/8 SAE
2
TUBE O.D .
AS-568#
NUMBE R
F341
002525010
90-M/M 9/16 ORS x 9/16 SAE
1
F342
4126408
90-MM 1-3/16"ORFS X 1-3/16"ORFS
2
158061-01
3/8"
-012
F343
W158007-08
90-M/M 1-3/16 ORS x 1-5/16 SAE
1
158061-02
1/2"
-014
F344
W69055-03
90 BLKHD-M/M 1-3/16 ORS
1
158061-08
5/8"
-016
158061-09
3/4"
-018
158061-15
1
/
-025
Parts-81
960 FRONTLINE
PARTS MANUAL
27

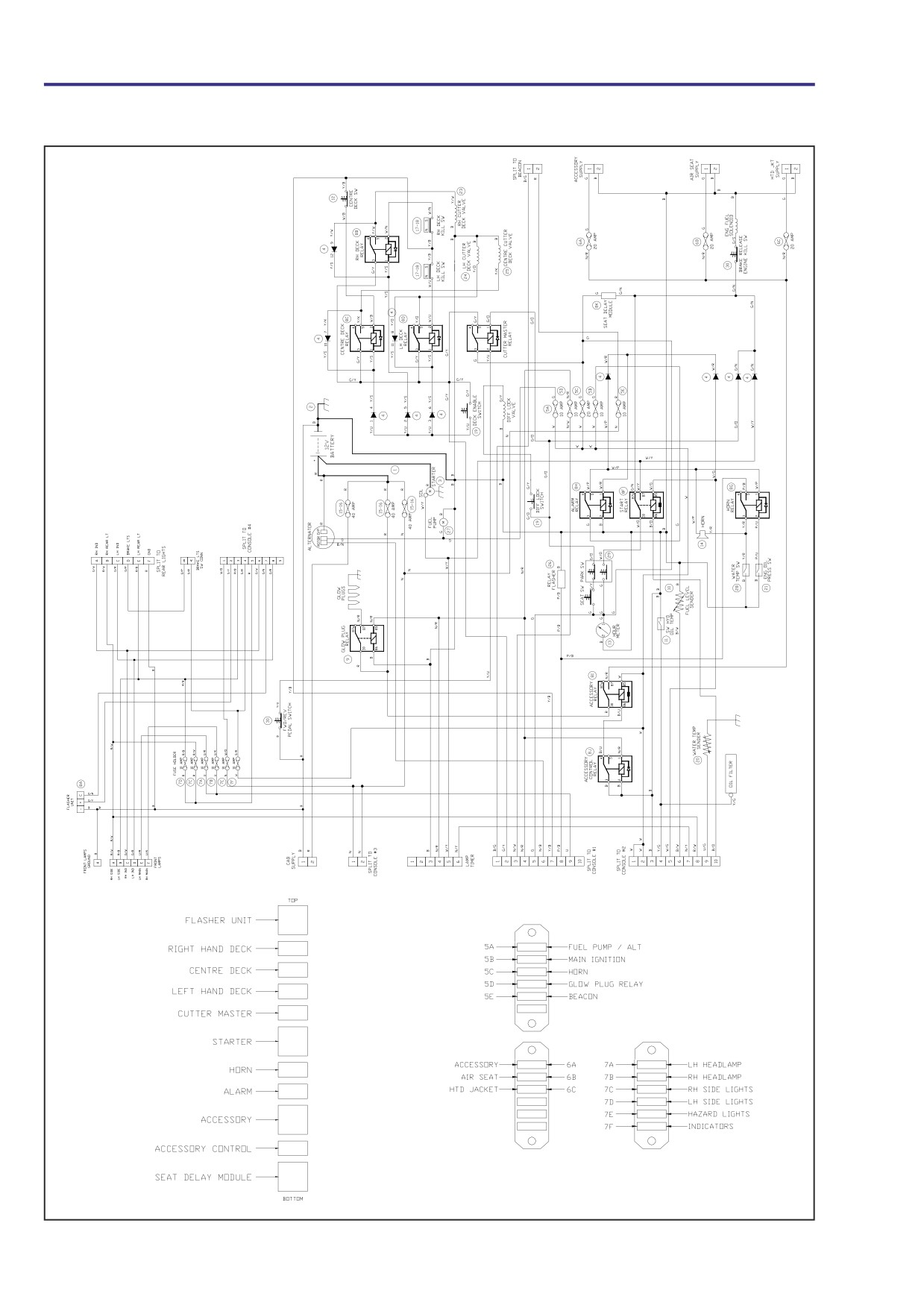

MAIN WIRING DIAGRAM
8A
FUSE HOLDER 5
8B
10 AMP
20 AMP
8C
10 AMP
10 AMP
8D
10 AMP
8E
8F
20 AMP
10 AMP
8G
20 AMP
10 AMP
8H
20 AMP
10 AMP
10 AMP
10 AMP
8I
10 AMP
8J
FUSE HOLDER 6
FUSE HOLDER 7
8K
Parts-82
960 FRONTLINE
PARTS MANUAL
27
MAIN WIRING DIAGRAM
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
4128337
Wiring Harness - Main
1
4128340
Cable-Battery Negative
1
2
4128341
Cable-Batery Positive
1
3
009050460
Lead - Ground
1
4
4128338
Diode Assembly
2
5A
008233164
Fuse 10 Amp (Fuel Pump / Alt)
1
5B
008233180
Fuse 20 Amp (Main Ignition)
1
5C
008233164
Fuse 10 Amp (Horn)
1
5D
008233164
Fuse 10 Amp (Glow Plug Relay)
1
5E
008233164
Fuse 10 Amp (Beacon)
1
6A
008233180
Fuse 20 Amp (Accessory)
1
6B
008233180
Fuse 20 Amp (Air Seat)
1
6C
008233180
Fuse 20 Amp (Heated Jacket)
1
7A
008233164
Fuse 10 Amp (LH Head Lamp)
1
7B
008233164
Fuse 10 Amp (RH Head Lamp)
1
7C
008233164
Fuse 10 Amp (RH Side Lights)
1
7D
008233164
Fuse 10 Amp (LH Side Lights)
1
7E
008233164
Fuse 10 Amp (Hazard Lights)
1
7F
008233164
Fuse 10 Amp (Indicators)
1
8A
008244553
Flasher Unit
1
8B
008244700
Relay 1/2 Size (R/H Deck)
1
8C
008244700
Relay 1/2 Size (Cen Deck)
1
8D
008244700
Relay 1/2 Size (L/H Deck)
1
8E
008244700
Relay 1/2 Size (Cutter Master)
1
8F
008244690
Relay (Starter)
1
8G
008244700
Relay 1/2 Size (Horn)
1
8H
008244700
Relay 1/2 Size (Alarm)
1
8I
008244660
Relay (Accessory)
1
8J
008244700
Relay 1/2 Size (Accessory Control)
1
8K
008244640
Seat Delay Module
1
9
008244740
Relay 70 Amp
1
10
002218046
Sender - Fuel Level
1
11
008296050
Temperature Switch 175f
1
12
W038383
Switch
2
13
008109660
Hourmeter Lcd 2 Terminal
1
14
008239720
Horn
1
15
008233350
Fuse Holder
3
16
008233370
Fuse Strip Link
3
17
002208036
Switch - Proximity
2
18
002208049
Magnet - Actuator
4
19
002208099
Switch - 90043 Ch-14
2
009151460
Gauge - Oil Level
1
20
W148270
Sender Temp
1
21
-
Switch-Oil Pres.
1
Perkins No. 1852460060)
22
48524
Circuit Breaker 40a
Parts-83
960 FRONTLINE
PARTS MANUAL
27

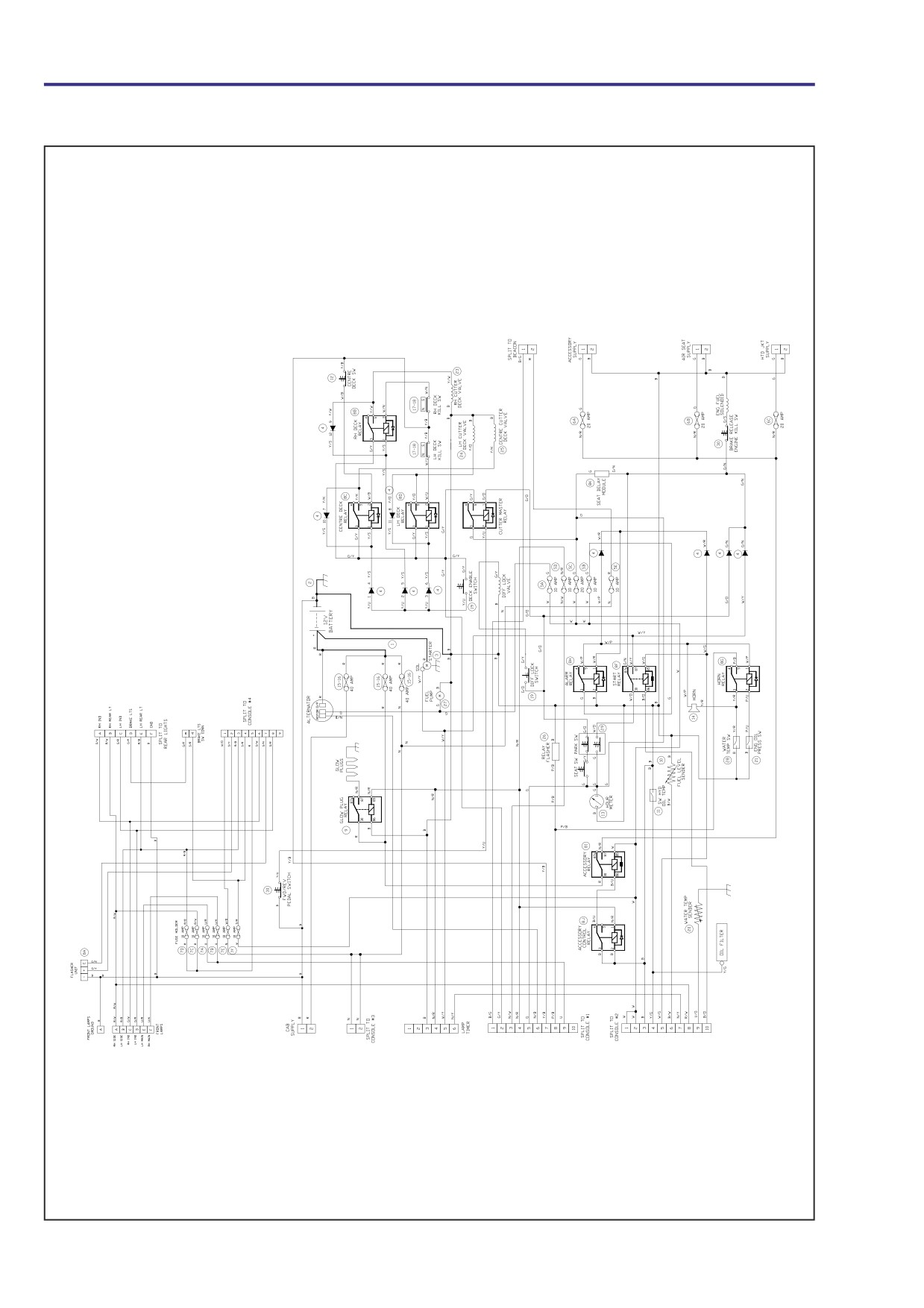

MAIN WIRING DIAGRAM
Parts-84
960 FRONTLINE
PARTS MANUAL
27
MAIN WIRING DIAGRAM
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
23
178100
Valve-RH Deck
1
24
178100
Valve-LH Deck
1
25
2218226
Valve-Front Deck
1
27
4126806
Pump ,Elect Fuel
1
28
008296040
Switch-Water Temp
1
(Perkins No.385720231)
29
W108208
Parking Brake Switch
1
30
W38382
Switch
2
Parts-85
960 FRONTLINE
PARTS MANUAL
28

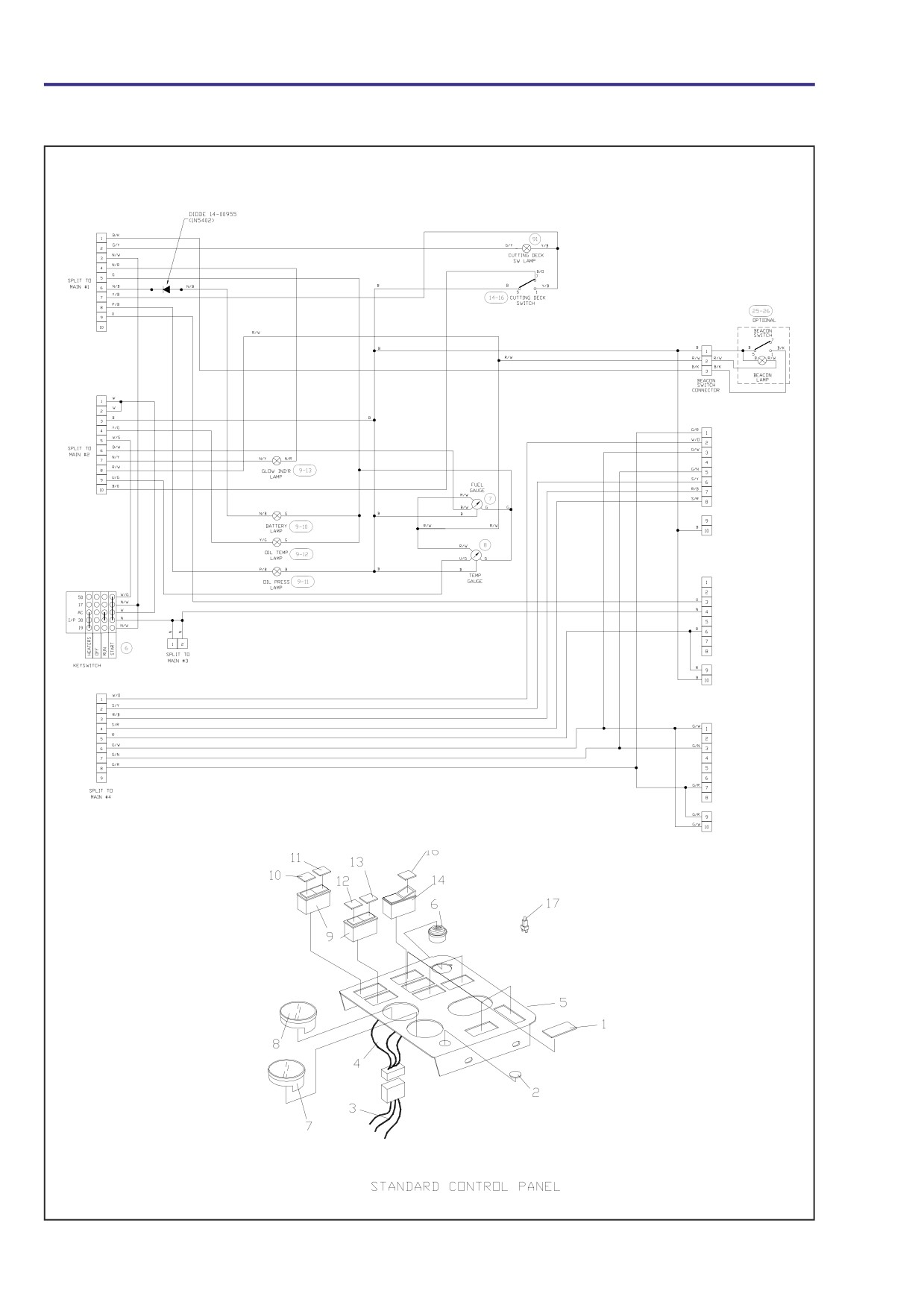

INSTRUMENT PANEL& WIRING DIAGRAM
Parts-86
960 FRONTLINE
PARTS MANUAL
28
INSTRUMENT PANEL& WIRING DIAGRAM
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
Standard Control Panel
1
008295211
Blanking Plug
5
2
008955200
Blanking Plate (Circular)
1
3
4128337
Wiring Harness, Main
1
4
4128359
Wiring Harness, Introment
1
5
MBG5127a
Instrument Panel
1
6
Switch-ignition
1
(Perkins Number 385201160)
7
W178092-04
S-Fuel Gauge
1
8
W178092-03
S-Water Temp Gauge
1
9
008231870
Pilot Lamp, Twin 12 Volt
2
10
008295640
Lens-Battery
1
11
008295630
Oil Pressure Lens
1
12
008295710
Lens-Hydraulic Oil
1
13
008295650
Lens-Eng Pre-heat Green
1
14
008295465
Pto Rocker Switch
1
16
008295870
Pto Lens
1
17
178092-22
Light For Rocker
6
Parts-87
960 FRONTLINE
PARTS MANUAL

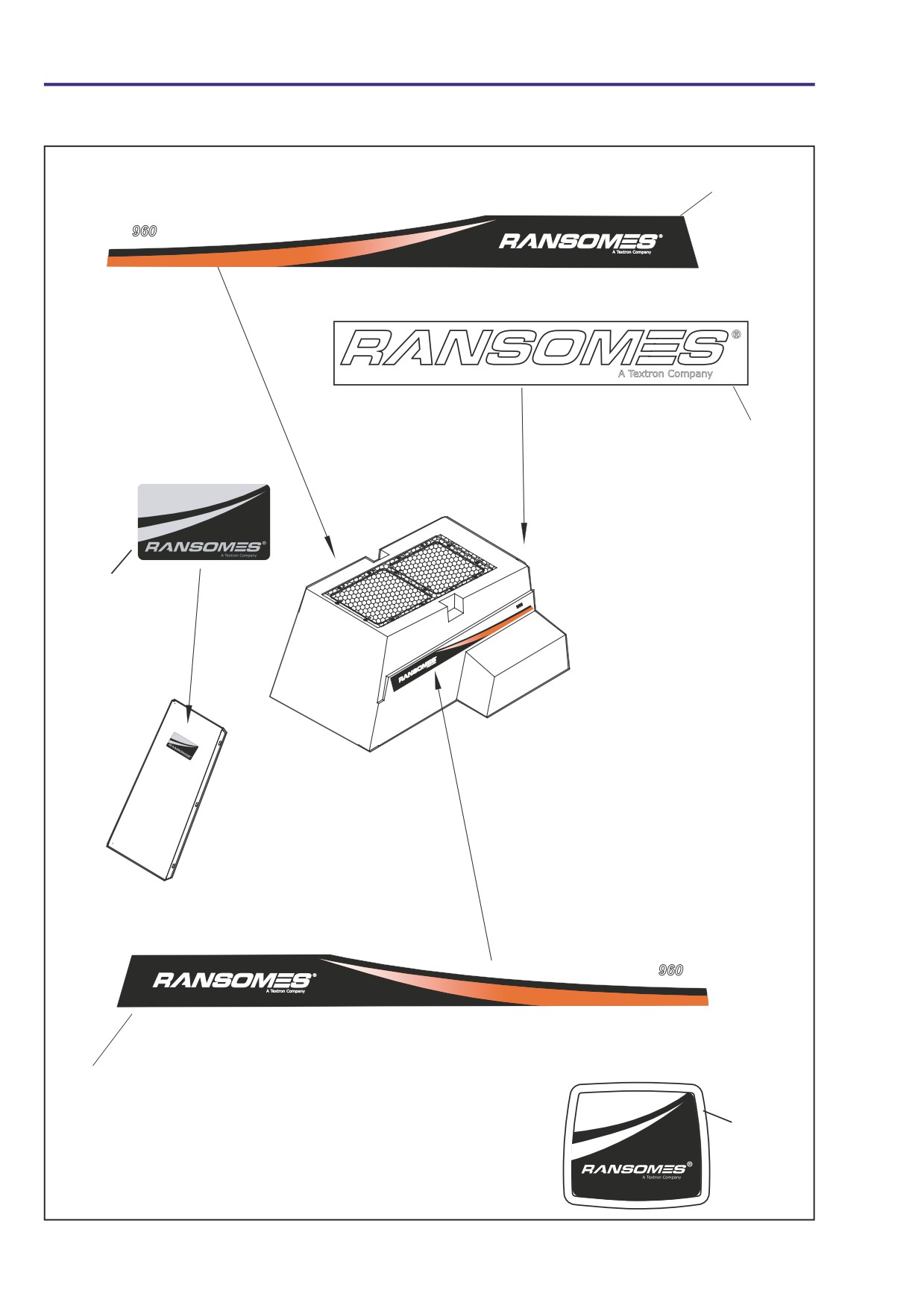

29a BADGES
3
17
6
4
7
Parts-88
960 FRONTLINE
PARTS MANUAL
29a BADGES
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
Part of IDL124
3
4125618
Decal - R/H Swoosh 960
1
4
4125619
Decal - L/H Swoosh 960
1
6
4124185
Decal - Ransomes Emblem
1
7
4124006
Decal - Ransomes Steering Wheel
1
17
4125605
Decal - 10" Ransomes Lettering
1
Parts-89
960 FRONTLINE
PARTS MANUAL

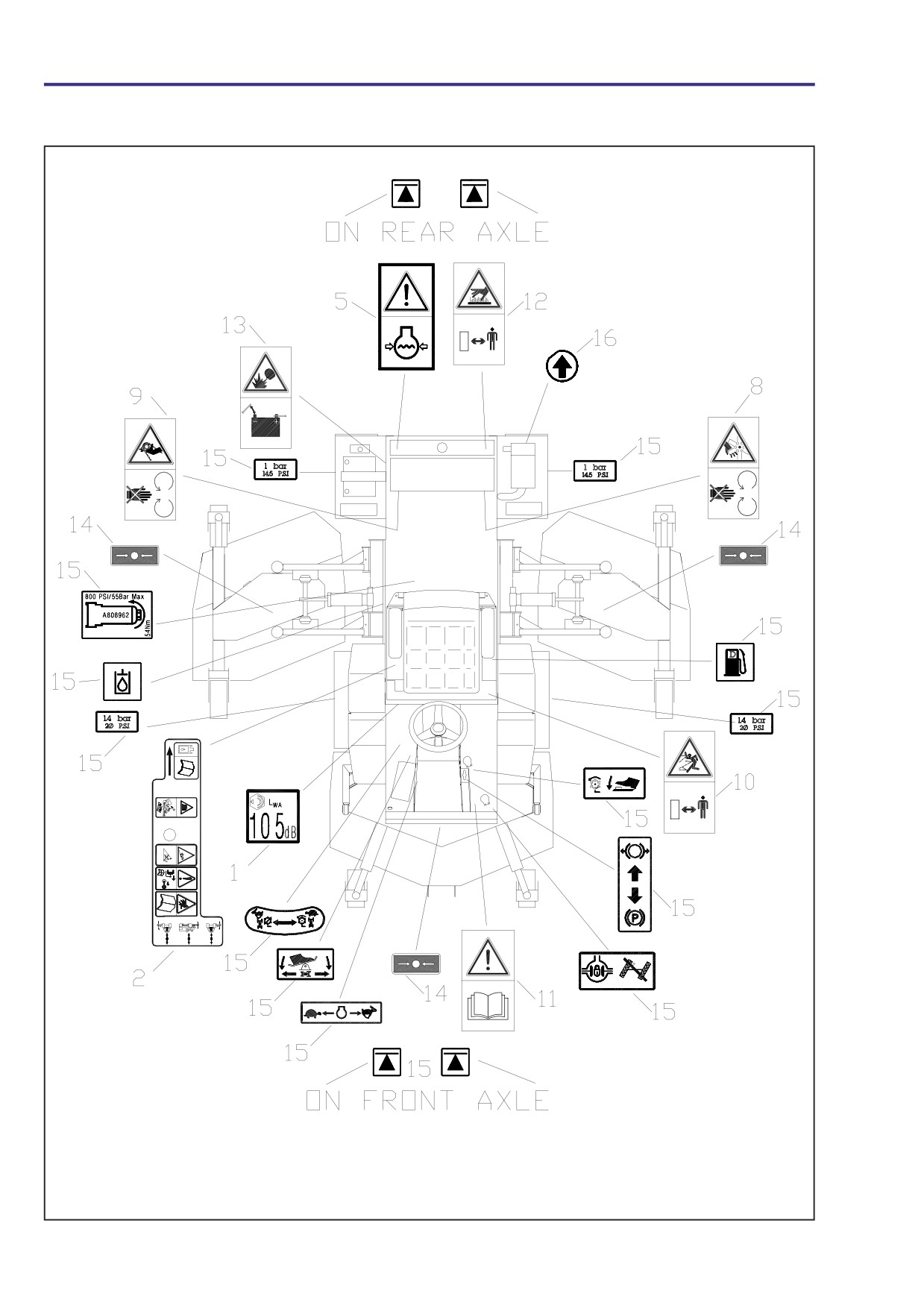

29b DECALS - MACHINE
Parts-90
960 FRONTLINE
PARTS MANUAL
29b DECALS - MACHINE
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
Decals - Machine IDL124
1
009034770
Decal - Noise 105dB
1
2
2720293
Label - UK Seat Plate
1
5
4118415
Decal - Coolant hazard
1
8
009034880
Decal - Fan
1
9
009034900
Decal - Belt
1
10
009034890
Decal - Bystander Warning
1
11
009034910
Decal - Instructions
1
12
009034920
Decal - Hot
1
13
009114100
Decal - Battery
1
14
009239210
Decal - Pressure
1
15
4125899
Decal - Set HR960
1
16
4126319
Decal - Air Cleaner end Cap
1
17*
009036216
Coat of Arms
1
Parts-91
960 FRONTLINE
PARTS MANUAL

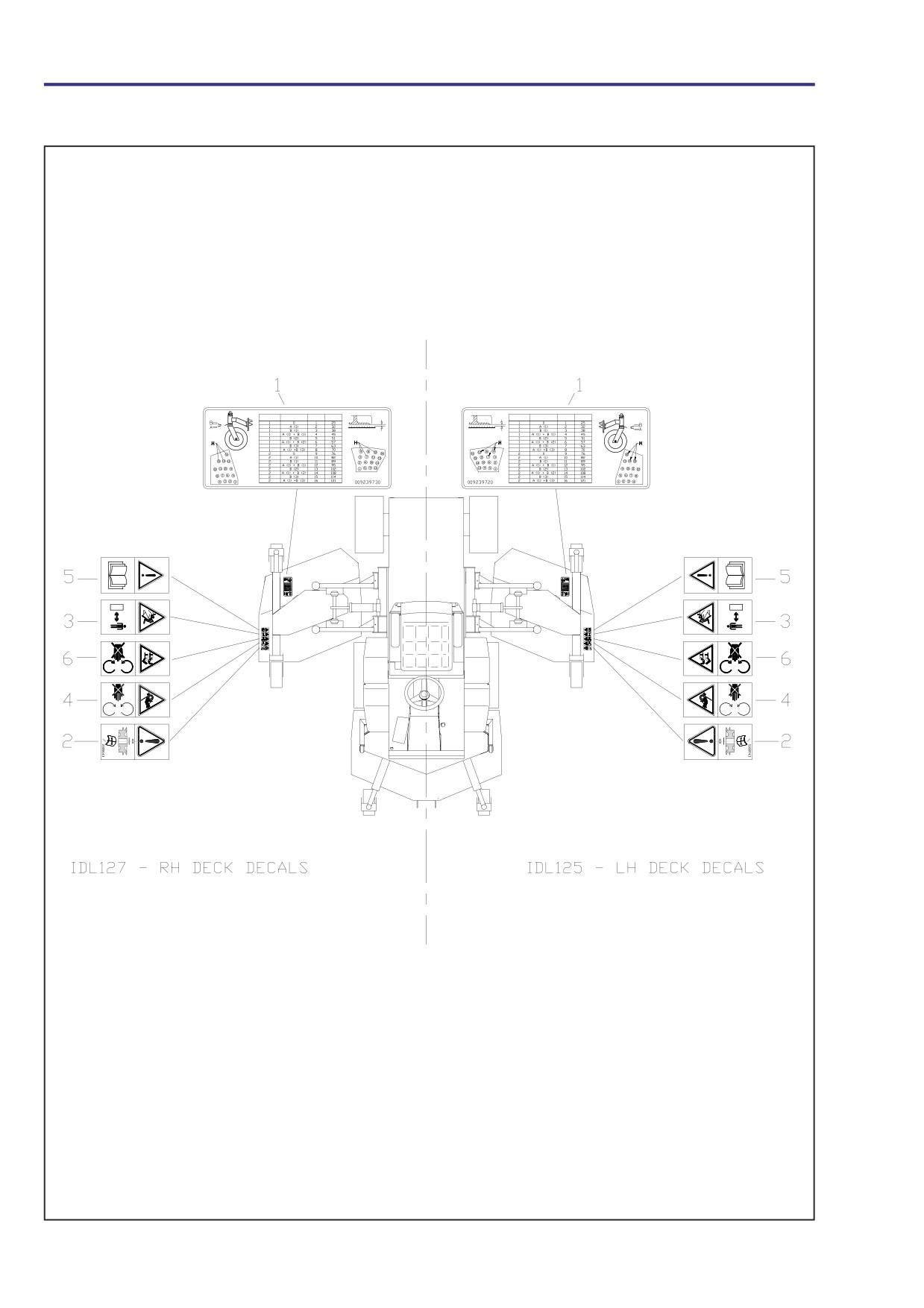

29c DECALS - LH & RH DECKS
1
1 - 2
S
H
K
K
K
1 - 2
S
H
K
S
2
12
S
Parts-92
960 FRONTLINE
PARTS MANUAL
29c DECALS - LH & RH DECKS
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
Decals - Right Hand Deck IDL127
1
009239730
Decal - Hieght of cut
1
2
2000643
Label - Wing Deck Wash EC
1
3
009034890
Decal - Bystander Warning
1
4
009034900
Decal - Belt
1
5
009034910
Decal - Instruction
1
6
009034960
Decal - Rotating Blades
1
Decals - Left Hand Deck IDL125
1
009239720
Decal - Hieght of cut
1
2
2000643
Label - Wing Deck Wash EC
1
3
009034890
Decal - Bystander Warning
1
4
009034900
Decal - Belt
1
5
009034910
Decal - Instruction
1
6
009034960
Decal - Rotating Blades
1
Parts-93
960 FRONTLINE
PARTS MANUAL

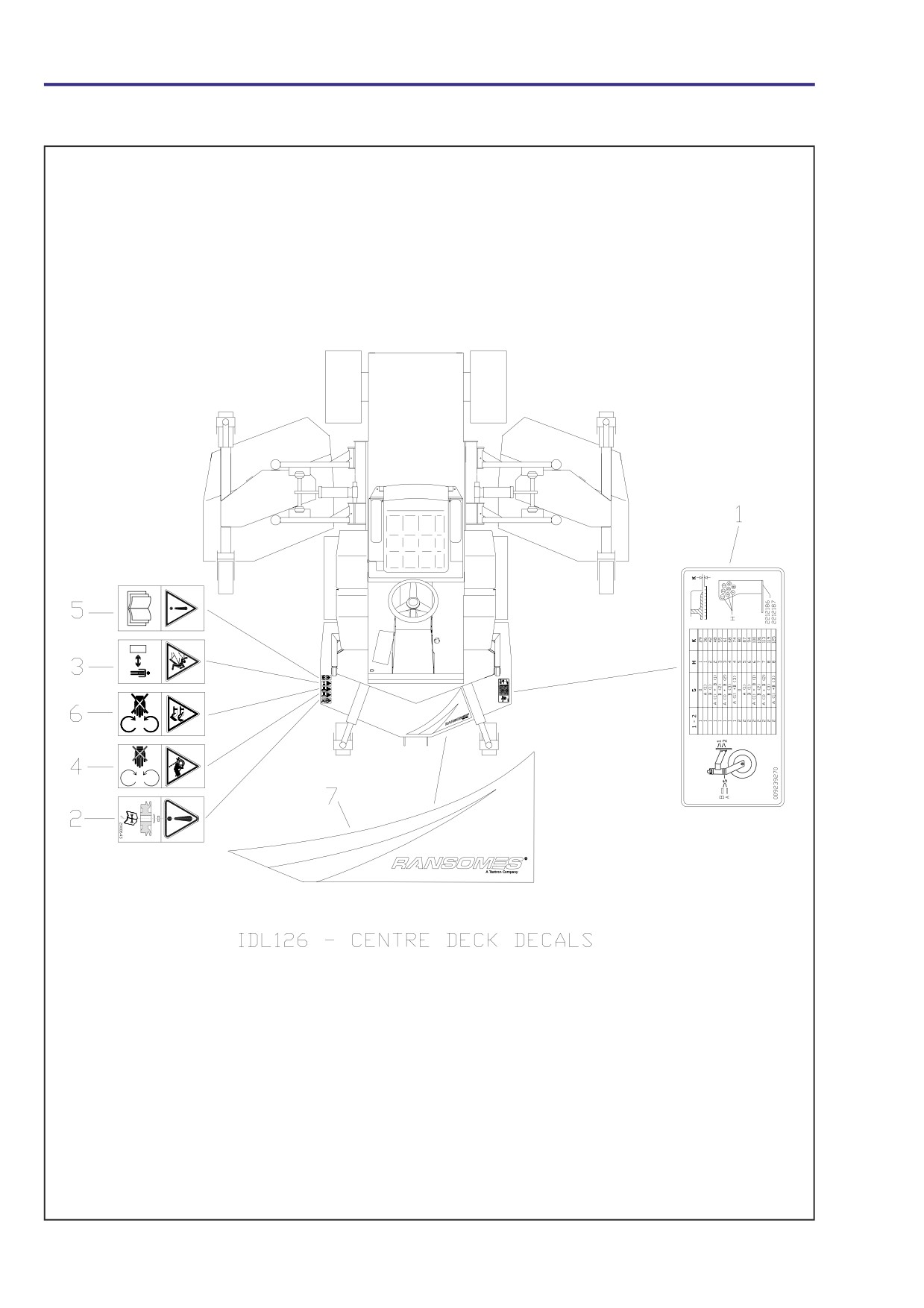

29d DECALS - FRONT DECK
Parts-94
960 FRONTLINE
PARTS MANUAL
29d DECALS - FRONT DECK
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
Decals - Centre Deck IDL126
1
009239270
Decal - Hieght of cut
1
2
2000643
Label - Wing Deck Wash EC
1
3
009034890
Decal - Bystander Warning
1
4
009034900
Decal - Belt
1
5
009034910
Decal - Instruction
1
6
009034960
Decal - Rotating Blades
1
7
4125553
Decal - Ransomes Centre Deck
1
Parts-95
960 FRONTLINE
PARTS MANUAL
30

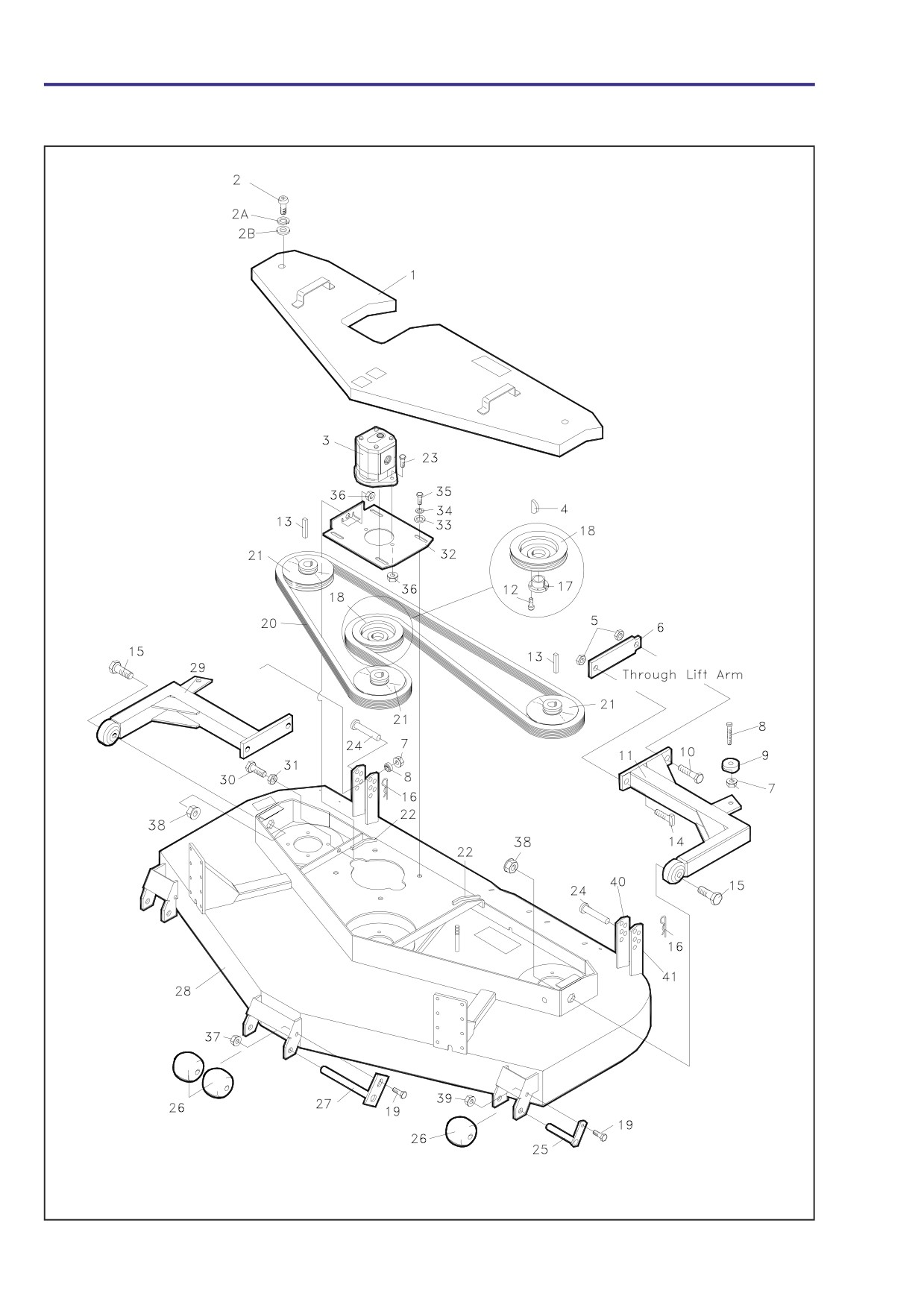

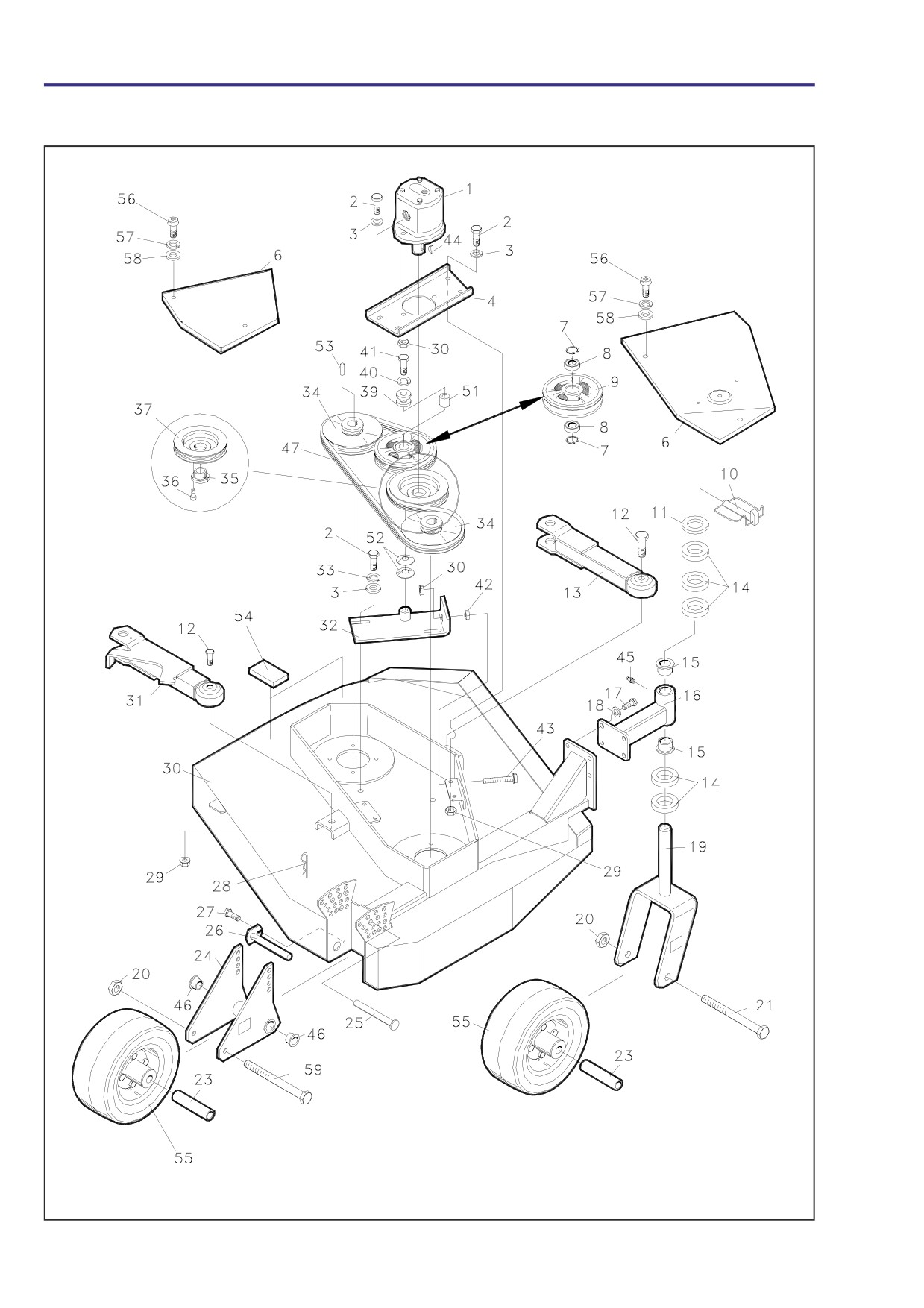

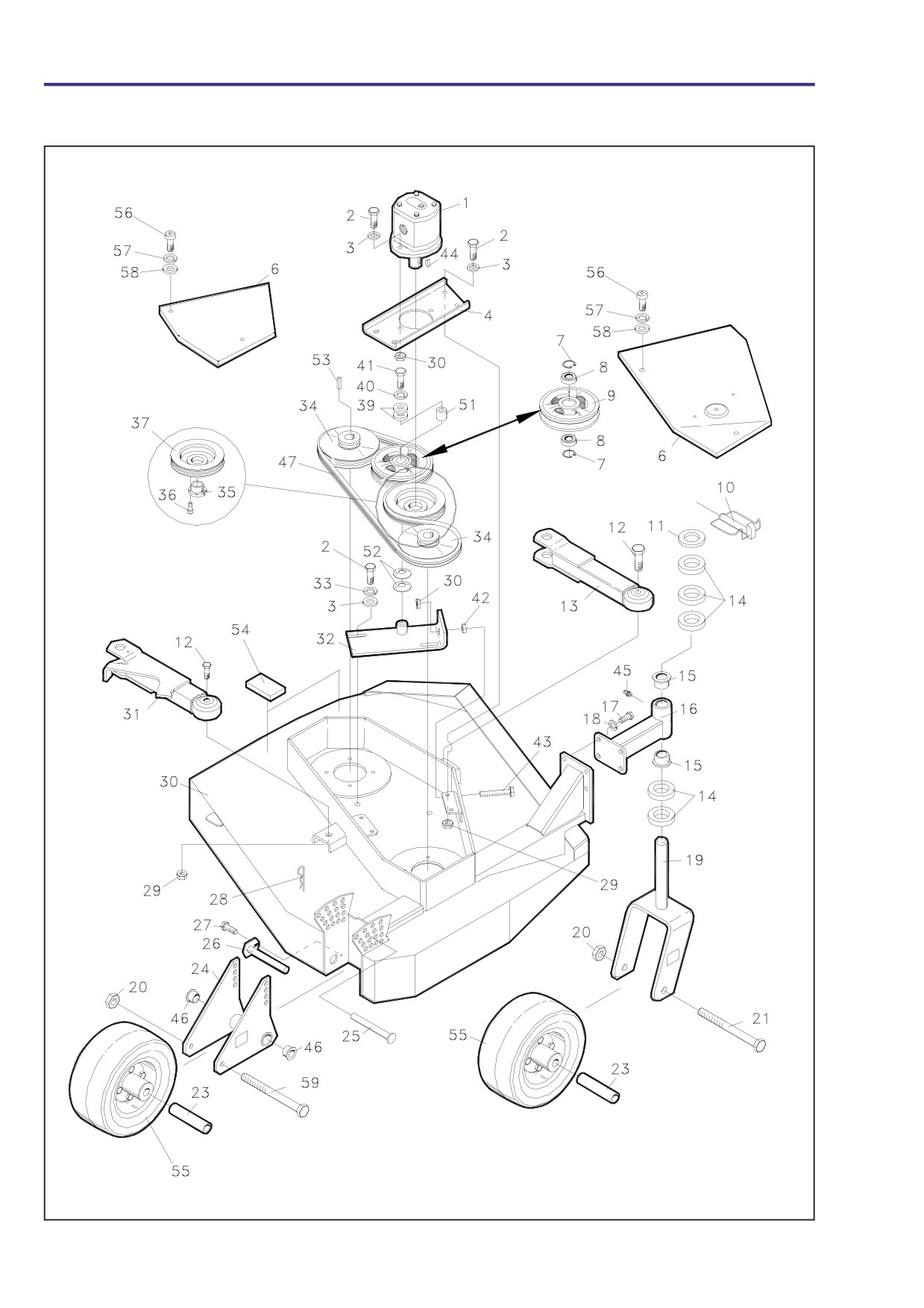

FRONT CUTTING DECK
Parts-96
960 FRONTLINE
PARTS MANUAL
30
FRONT CUTTING DECK
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
1
MBF1932.6
Wldmt-Deck Cover
1
2
4540543
Screw - Recessed Pan head M6x25
4
3 *
001496036
Rivet-pop 4.85 X 19
4
3
2218152-02
Motor Hyd 14
1
2218152-04
S-Seal Kit
A/R
4
453005165
Key-1/4 X 1/4 X 1-1/8
1
5
450382
Nut-hex M16 Nyloc
4
6
142064
Plate-Backing
2
7
450327
Nut-hex M16
2
8
64223-08
Sch Capscr M16x2.00x60
2
9
2213036
Stop Height Adjustment
2
10
450078
Blt-hex M16 X 100
2
11
2216072.6
Wldmt-Support Arm LH
1
12
W64189-7a
Blt-hx Soc #10-32x1/2
3
13
453005165
Key-1/4 X 1/4 X 1-1/8
3
14
64239-01
Blt-”T”5/8-18x3 3/4 G8
2
15
450073
Blt-hex M16 X 70
2
16
001490226
‘R’ Clip
2
17
148075-02
Bushing-ja 7/8 Bore
1
18
W148195
Pulley Ja
1
19
450191
Blt M8 X 20
4
20
W178121
Belt-Center Deck
1
21
Mbg6038
Pulley-5.75 Od
3
22
48450-16
Foam .5x4.0x.5
2
23
456110066
Scrw-hex 3/8-16 X 1
2
24
64188-40
1/2 X 2-5/8 Clevis Pin
2
25
46335
Shaft Asm-Roller
5
26
2198153
Roller, 3
7
27
W146067
Wldmt-Roller Shaft
1
28
Mbf1931a.6
Wldmt-Front Deck, Hr9510
1
29
2216071.6
Wldmt-Support Arm RH
1
30
450222
Scrw-hex M10 X 65
1
31
450325
Nut-hex M10
1
32
W172107.6
Plate-Motor
1
33
450391
Wshr-M10 X 21 X 2.2
4
34
450412
Lockwshr-M10 X 15.9 X 2.5
4
35
450215
Scrw-hex M10 X 30
4
450372
Nutsert-M10 A-l X 20.5
4
36
450454
Nut-hex M10 Verbus Ripp
3
37
452436
Nut-hex M8 Flng Nyloc
6
38
450457
Nut-hex M16 Verbus Ripp
2
39
452436
Nut-hex M8 Flng Nyloc
2
40
2212186.6
Brkt-72 Height Adj (A)
2
41
2212187.6
Brkt-72 Height Adj (B)
2
42*
009040250
Sealing Block
1
142088
Brkt-Roller
2
Rear Left For Item 25
*
002989470
Deck Cover Foam
AR
2.8m Required.
Parts-97
960 FRONTLINE
PARTS MANUAL
31

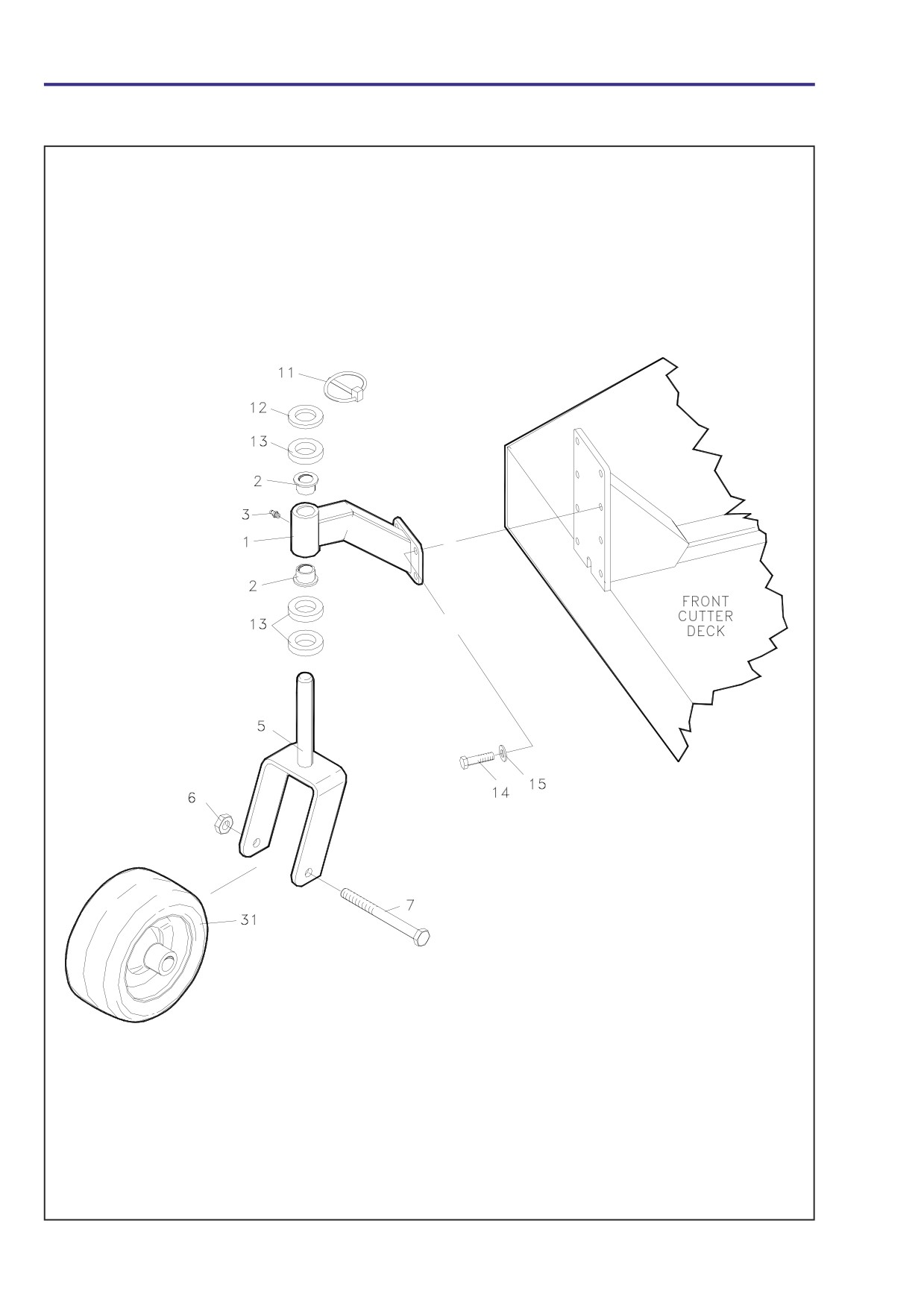

CASTER WHEELS
Parts-98
960 FRONTLINE
PARTS MANUAL
31
CASTER WHEELS
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
1
MBF1937.6
Wldmt-Caster Support
1
(Includes Items 2 & 3)
2
002190200
• Bush-flng 1.25"X1.50"X0.75"
2
3
002993013
• Lubricator-m6 Str
1
5
MBF1939a.6
Asm-Yoke, 11.00 Tyre
1
6
452438
Nut-hex M12 Flng Nyloc
1
7
4118873
Bolt-crg M12 X 170
1
11
469009601
Quick Pin
1
12
MBG5426
Collar-1.266 X 2 X .250
1
13
MBG5427
Collar-1.266 X 2 X .500
3
14
450239
Scrw-hex M12 X 20
4
15
450424
Lockwshr-M12 X 21 X 2.5
4
31
4127119
Wheel & Tyre 11x4.0-5
2
Deep Groove Bearings
Bearings, Spacer, Seals
Parts-99
960 FRONTLINE
PARTS MANUAL
32
WING DECK
Parts-100
960 FRONTLINE
PARTS MANUAL
32
WING DECK
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
1
2218152-01
Motor 11cc
2
(Seal Kit 2218152-04)
(Use 2218152-02 On 10'-7"
Models)
2
450214
Scrw-hex M10 X 25
16
3
450391
Wshr-M10 X 21 X 2.2
16
4
2212097.6
Motor Plt-LH Deck
1
On 9'-8" Models
2212094.6
Motor Plt-RH Deck
1
On 9'-8" Models
2212099.6
Motor Plt-LH Deck
1
On 10'-7" Models
2212098.6
Motor Plt-RH Deck
1
On 10'-7" Models
6
MBG5574.6
Cover-deck LH Outer
1
On 9'-8" Models
MBG5575.6
Cover-deck RH Outer
1
On 9'-8" Models
MBG5656.6
Cover-belt Outer Lh
1
On 10'-7" Models
MBG5655.6
Cover-belt Outer Rh
1
On 10'-7" Models
7
451970
Circlip-int 40 X 1.75 T
2
8
002039152
Brg-ball 17 X 40 X 12
2
9
146169
Pulley Idler W/Bearg
2
(Includes Items 7 & 8)
10
469009601
Quick Pin
2
11
MBG5426
Washer
2
12
450073
Bolt-hex M16 X 70
4
13
W176061.7
Swing Arm Assy-rear
2
14
MBG5427
Collar-1.266 X 2 X .500
10
15
002190200
Bush-flng 1.25"X1.50"X0.75"
4
16
MBF2195.6
Wldmt-Caster Arm
2
17
450239
Scrw-hex M12 X 20
16
18
450424
Lockwshr-M12 X 21 X 2.5
16
19
MBF2196.6
Wldmt-Yoke, Caster
2
20
450380
Nut-hex M12 Nyloc
2
21
452626
Bolt-crg M12 X 150
1
24
MBF2194.6
Wldmt- Caster Whl Brkt
2
25
64188-29
Pin Clevis 1/2 X 6
2
26
MBF1969
Wldmt-Push Arm Pin
2
27
450171
Scrw-hex M6 X 20
2
28
001490226
‘R’ Clip
2
29
450379
Nut-hex M10 Nyloc
4
30
MBF1947.6
Wldmt-wing Deck LH
1
On 9'-8" Models
MBF1948.6
Wldmt-wing Deck RH
1
On 9'-8" Models
MBF1990.6
Wldmt-wing Deck LH
1
On 10'-7" Models
MBF1989.6
Wldmt-wing Deck RH
1
On 10'-7" Models
31
W176059.7
Wldmt-swing Arm Rear
1
32
MBF1959
Wldmt-adj Plate LH Deck
1
On 9'-8" Models
MBF1958
Wldmt-adj Plate RH Deck
1
On 9'-8" Models
MBF1958
On Left Wing Deck
1
On 10'-7" Models
MBF1959
On Right Wing Deck
1
On 10'-7" Models
33
450412
Lockwshr-M10 X 15.9 X 2.5
6
34
MBF6038
Pulley-5.75 Od
4
Parts-101
960 FRONTLINE
PARTS MANUAL
32
WING DECK
Parts-102
960 FRONTLINE
PARTS MANUAL
32
WING DECK
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
35
148075-02
Bushing-ja 7/8 Bore
2
36
W64189-7A
Blt-hx Soc#10-24x1
8
37
W148195
Pulley Ja
2
38
MBG5564.6
Cover-Belt Inner Lh
1
On 9'-8" Models
MBG5569.6
Cover-Deck Inner Rh
1
On 9'-8" Models
39
MAA0335a
Wshr-17/32 X 25mm X 3/16
2
40
452200176
Lockwshr-1/2 X .873 X .125
2
41
451110346
Bolt-hex 1/2-13 X 2-3/4
2
42
450325
Nut-hex M10
2
43
450222
Scrw-hex M10 X 65
2
44
64164-27
S-key-1/4x1/4x1
A/R
45
002993013
Lubricator-M6 Str
4
46
002190190
Bush,1"X1.125"X1.25"
2
47
178007
Belt-Cutter Deck(9'-8")
2
On 9'-8" Models
178145
Belt-Cutter Deck(10'-7")
2
On 10'-7" Models
50
MBG5653.6
Cover-Belt Inner LH
1
On 10'-7" Models
MBG5654.6
Cover-Belt Inner RH
1
On 10'-7" Models
51
43065A
Spacer-Bushing
2
52
461901679
Sprg-Disc 13 X 28 X 1
4
53
453005165
Key-1/4 X 1/4 X 1-1/8
4
54
168142-03
Strip-rubber
2
55
4127120
Whl-9x3.5x4.0 (Filled)
2
002090600
Service Kit
1
Bearings, Spacer, Seals
002989470
Deck Cover Foam
Ar
(0.95m) 9'-8" Deck
002989470
Deck Cover Foam
Ar
(1.25m) 10'-7" Deck
W158007-05
90-m/M 1 Ors X 7/8 Sae
2
W158006-07
Ftg-m/M 1 Ors X 7/8 Sae
2
450192
Scrw-hex M8 X 25
2
Anti-scalp
46335
Shaft Asm-roller
2
Anti-scalp
452436
Nut-hex M8 Flng Nyloc
2
Anti-scalp
2198153
Roller, 3
2
Anti-scalp
MBF20201
Brkt-Caster Assy
2
Anti-scalp
450479
Scrw-hex M10 X 25 Verbus Ripp
4
Anti-scalp
56
4540543
Screw - Recessed Pan head M6x25
4
57
450410
Washer - Spring M6
4
58
450389
Washer - Plain M6
4
59
452625
Bolt Cup Head squ Neck M12x140
1
Parts-103
960 FRONTLINE
PARTS MANUAL
33

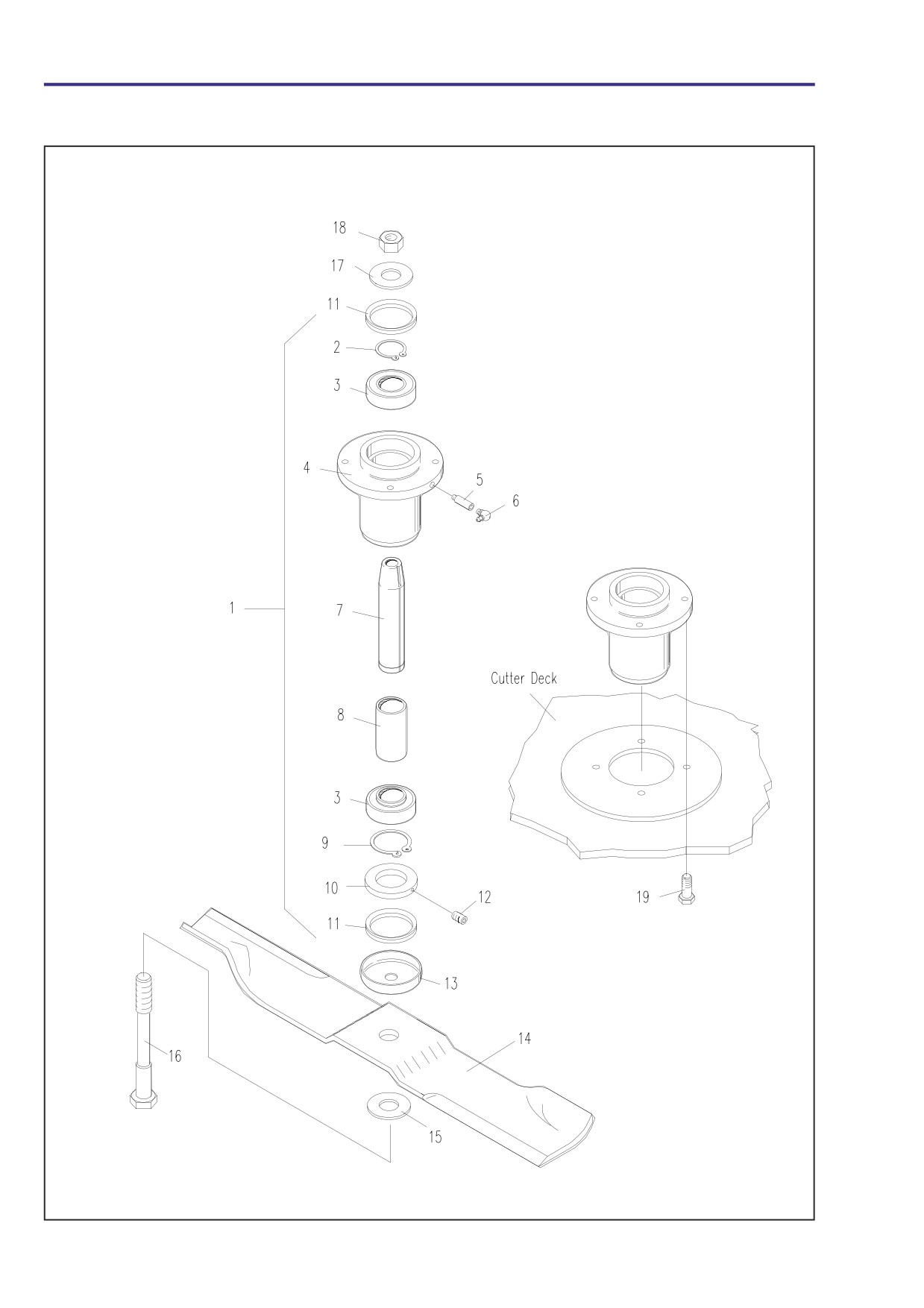

SPINDLE ASSEMBLY
Parts-104
960 FRONTLINE
PARTS MANUAL
33
SPINDLE ASSEMBLY
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
2
001791171
Snap Ring, 1.187"
1
3
148070
Bearing-Ball 1-1/4 10
2
4
MBG5500
Spindle Housing
1
5
MBG5448A
Extension
1
6
002993160
Lubricator-M6 X 90 Deg
1
7
143030
Spindle
1
8
143032
Spacer-Bearing
1
9
001791189
Snap Ring, 1.250"
1
10
143031
Spacer-Seal
1
11
148071-01
V-Ring V-60a
2
12
450944
Scrw-set M4 X 10, Cup Pnt
2
13
142108.7
Cap-Spindle
1
14
112243-03
Blade
1
(Use 112243-02 On 9'-8" Wing
Decks, Qty 4)
15
450393
Wshr-M16 X 30 X 3.3
1
16
001009770
Bolt-hex 5/8-18 X 7-3/4
1
17
64209-03
Spring Washer .67 Id
1
18
450020176
Nut-hex 5/8-18
1
19
450479
Scrw-hex M10 X 25 Verbus Ripp
4
Parts-105
NUMERICAL INDEX
960 FRONTLINE
PARTS MANUAL
PART
NO
DESCRIPTION
PAGE ITEM
PART NO
DESCRIPTION
PAGE ITEM
38383
SWITCH-N.C.
43
17
2208139
CLAMP-TUBE
75
F116
46335
SHAFT ASM-ROLLER
97
25
2208139
CLAMP-TUBE
79
F116
46335
SHAFT ASM-ROLLER
103
2208174
OIL FILTER
5
12
48378
STRAP- RUBBER
49
45
2208174
OIL FILTER
7
12
48383
HOSE CLAMP SIZE 32
9
2212043
BRACKET-OIL COOLER
47
12
48383
CLAMP-HOSE SAE32
73
F213
2212045
GUSSET-RH
13
9
48383
CLAMP-HOSE SAE32
77
F213
2212046
GUSSET-LH
13
8
48383
CLAMP-HOSE SAE32
81
F213
2212049
BRACKET-VALVE MTG
29
4
48396
HOSE CLAMP SIZE 24
9
2212064
COVER-ACCESS
11
10
48396
CLAMP-HOSE 2 DIA
47
30
2212072
SCREEN-HOOD
13
1
48396
HOSE-CLAMP SAE24
73
F214
2212073
BRCKT-CASSAPA PUMP
5
10
48396
HOSE-CLAMP SAE24
77
F214
2212073
BRCKT-CASSAPA PUMP
7
10
48396
HOSE-CLAMP SAE24
81
F214
2212074
PLATE-FILTER BAFFLE
31
4
48408
FLASHER-552 12V
45
64
2212075
BRACKET-FILTER-HD
31
1
48429
SPRING-EXTENSION
61
58
2212078
BAFFLE-FILTER HD
31
2
48524
CIRCUIT BREAKER 40A
83
22
2212082
BACK-PLATE FENDER
11
9
58026
3 WAY CONNCTR 1/4
33
23
2212087
COVER-ACCESS
33
8
64205.03
BLT MET M6X1.00X40
37
43
2212087
COVER-ACCESS
35
19
128079
ROD END, 1/4 FEMALE
37
20
2212092
BRACKET-RH VALVE MTG
29
5
128079
ROD END, 1/4 FEMALE
43
11
2212094.6
MOTOR PLT-RH DECK
101
142064
PLATE-BACKING
97
6
2212097.6
MOTOR PLT-LH DECK
101
4
142088
BRKT-ROLLER
97
2212098.6
MOTOR PLT-RH DECK
101
142108.7
CAP-SPINDLE
105
13
2212099.6
MOTOR PLT-LH DECK
101
143030
SPINDLE
105
7
2212109
BRACKET-SWITCH MTG
57
10
143031
SPACER-SEAL
105
10
2212110
BRCKT-REAR ROLLER
61
57
143032
SPACER-BEARING
105
8
2212116
BRACKET-STOP
61
69
146169
PULLEY IDLER W/BEARG
101
9
2212118
BAFFLE-OIL COOLER LH
47
34
146197
WLDMT-PUSH ARM PIN
61
75
2212119
BAFFLE-OIL COOLER RH
47
35*
148027
BREATHER VENT
35
24
2212186.6
BRKT-72 HEIGHT ADJ (A)
97
40
148070
BEARING-BALL 1-1/4 10
105
3
2212187.6
BRKT-72 HEIGHT ADJ (B)
97
41
148081
GASKET
35
18
2212206
MOUNT-TOP MOTOR
7
79
148090
SUPPORT-TUBE 1/2
35
36
2212230.7
BRACKET-SPRING
61
80
172088.07
THROTTLE ARM
37
7
2213006
PIN-PIVOT
59
12
172212
BRKT-UPPER HANGER
49
45
2213009
PIPE-MUFFLER
49
46
172290
BRKT-LOWER HANGER
49
45
2213035
SPACER PUMP ARM
37
41
172298.07
SUPPORT-STEERING
45
45
2213036
STOP HEIGHT ADJUSTMENT
97
9
172304.07
BRACKET-TILT WHEEL
43
37
2213040
SLEEVE-THREADED
25
37
173006
SHAFT-LOCKING
45
39
2213041
STUD
25
18
176100.07
WLDMT-FR WSHR
45
46
2216003
WLDMT-LEVER SUPPORT
39
4
178007
BELT-CUTTER DECK(9'-8")
103
47
2216005
WLDMNT-LIFT LEVER
39
2
178024
FILTER HEAD MODULE
31
10
2216025
WLDMNT-CYL ROD PIN
57
5
178024
FILTER HEAD
75
60
2216037
WLDMT-TANK SUPPORT
59
38
178025
FILTER-SPIN ON
31
9
2216041
WLDMNT-HOOK REAR RH
59
2 *
178025
FILTER
75
61
2216042
WLDMNT-HOOK REAR LH
59
1
178043.7
TUBE-FILTER HEAD
31
5
2216071.6
WLDMT-SUPPORT ARM RH
97
29
178045.7
SPRING-WING DECK
59
24
2216072.6
WLDMT-SUPPORT ARM LH
97
11
178100
VALVE-RH DECK
85
23
2216077
WLDMT-REAR AXLE
25
13
178100
VALVE-LH DECK
85
24
2216084
WLMNT-BULKHEAD
11
6
178138
WASHER-FRICTION
45
44
2216096.7
WLDMT-LH SUB FRAME
61
50
178145
BELT-CUTTER DECK(10'-7")
103
2216097.7
WLDMT-RH SUB FRAME
61
49
191160
HEX SCREW M14X30 FINE
19
3
2218000
HOOD-PLASTIC
13
2
838154
BRACKET, FUEL PUMP
7
72
2218002
VALVE-3 SPOOL LIFT
39
3
839862
DECAL-STEERING WHL
45
75
2218006
SCREEN
47
19
2192486
BRKT-THROTTLE
7
48
2218009
ISOLATOR-LF2-270
5
23
2198084
LATCH-SWELL
43
2218009
ISOLATOR-LF2-270
7
23
2198109
KNOB-LEVER
39
1
2218010
ISOLATOR-LR1-230
5
24
2198125
BUMPER
43
2218010
ISOLATOR-LR1-230
7
24
2198126
SPACER
7
69
2218014
CYLINDER-LIFT
57
6
2198130
STEERINGWHEEL
45
50
2218043
SEAL-FILTER BAFFLE
31
3
2198153
ROLLER, 3
97
26
2218044
HOSE-RAD UPPER
47
17
2198153
ROLLER, 3
103
2218045
HOSE-RAD LOWER
47
18
2198211
SWIVEL-CABLE CLAMP
7
53
2218046
SENDER-FUEL LEVEL
33
6
2208036
SWITCH-PROXIMITY
61
56
2218046
SENDER-FUEL LEVEL
35
17
2208036
SWITCH - PROXIMITY
83
17
2218046
SENDER - FUEL LEVEL
83
10
2208049
MAGNET-ACTUATOR
61
55
2218069
RELAY-TIME DELAY
43
32
2208049
MAGNET - ACTUATOR
83
18
2218078
CAP-FUEL TANK
33
3
2208058.07
HINGE-SEAT PLATE
11
2
2218078
CAP-FUEL TANK
35
14
2208079
BOTTLE-COOLANT
47
15
2218083
LANYARD
13
18
2208099
SWITCH - 90043 CH-14
83
19
2218084
GROMMET
11
34
2208139
CLAMP
47
39
2218086
SEAL-TUBE
47
20
2208139
CLAMP-TUBE
71
F116
2218088
CABLE-BATTERY NEG.
7
55
106
NUMERICAL INDEX
960 FRONTLINE
PARTS MANUAL
PART NO
DESCRIPTION
PAGE ITEM
PART NO
DESCRIPTION
PAGE ITEM
2218089
CABLE-BATTERY POS
7
56
4124879
45 DEGREE FITTING
73
F339
2218100
TUBE-DIPSTICK
7
60
4124879
45 DEGREE FITTING
77
F339
2218111
INSULATION-LOUVER
17
10
4124879
45 DEGREE FITTING
81
F339
2218112
INSULATION-SEAT PLATE
17
1
4124881
WLDMT-FOOT PEDAL
43
24
2218113
INSULATION-HOOD REAR
17
2
4124883
BLOCK-BEARING
43
23
2218114
INSULATION-HOOD LH
17
8
4125078
INDICATOR
9
7
2218115
INSULATION-HOOD RH
17
9
4125140
WLDMT-TOWER
11
3
2218116
INSULATION-INTERIOR RH
17
7
4125141
WLDMT-LH FRAME RAIL
11
5
2218117
INSULATION-INTERIOR LH
17
6
4125141
WLDMT-LH FRAME RAIL
13
11
2218118
INSULATION-INTERIOR HOOD
17
3
4125219
WLDMT-RH FRAME RAIL
11
4
2218119
INSULATION-HOOD EXTERIOR
17
4
4125219
WLDMT-RH FRAME RAIL
13
10
2218120
INSULATION-HOOD TOP
17
5
4125225
WLDMT-FRONT AXLE
11
11
2218126
TUBE-CHECK VALVE PORT2
73
F319
4125234
WLDMNT-PUMP-BRCKT
5
13
2218126
TUBE-CHECK VALVE PORT2
77
F319
4125234
WLDMNT-PUMP-BRCKT
7
13
2218126
TUBE-CHECK VALVE PORT2
81
F319
4125519
WLDMT-FAN SHROUD
13
6
2218136
SWITCH-TEMP-165F
35
30
4125539
WLDMT-REAR AXLE SUPPORT
13
31
2218147
GROMMET
33
25
4125552
MOUNT-LH MOTOR
5
18
2218147
GROMMET-GAUGE
35
34
4125552
MOUNT-LH MOTOR
7
18
2218148
RESERVOIR-HYDRAULIC
33
2
4125553
MOUNT-RH MOTOR
5
17
2218148
RESERVOIR-HYDRAULIC
35
13
4125553
MOUNT-RH MOTOR
7
17
2218148
HYDRAULIC RESERVOIR
71
223
4125553
DECAL - CENTRE DECK
95
7
2218148
HYDRAULIC RESERVOIR
75
223
4125581
SCREW - CAP HEAD M8X100
29
6
2218148
HYDRAULIC RESERVOIR
79
223
4125605
DECAL - 10" RANSOMES
89
17
2218149
FAN-16.75"
5
1
4125618
DECAL - R/H SWOOSH 960
89
3
2218149
FAN-16.75"
7
1
4125619
DECAL - L/H SWOOSH 960
89
4
2218150
TANK-AUXILIARY FUEL
35
2
4125741
TRANSMISSION VALVE
65
2218153
HOSE-FUEL TANK
35
5
4125741
TRANSMISSION VALVE
71
231
2218154
FUEL-TANK
33
1
4125824
FENDER-LH
11
7
2218154
FUEL-TANK
35
1
4125825
FENDER-RH
11
8
2218162
CAP-RUBBER 25.4
33
26
4125899
DECAL - SET HR960
91
15
2218224
LINK-STEERING
25
38
4126023
SPACER - AIR CLEANER BAND
9
17
2218225
HYD VALVE FOR FRONT DECK
29
15
4126241
STUD M10
43
20
2218225
FRONT DECK VALVE
69
4126319
DECAL - AIR CLEANER END CAP91
16
2218225
FRONT UNIT DECKVALVE
75
230
4126408
90-MM 1-3/16"ORFS
73
F342
2218225
FRONT UNIT DECKVALVE
79
230
4126408
90-MM 1-3/16"ORFS
77
F342
2218226
VALVE-FRONT DECK
85
25
4126408
90-MM 1-3/16"ORFS
81
F342
2218227
HYD VALVE FOR WING DECK
29
3
4126442
ADAPTOR - AIR CLEANER
9
19
2218227
DECK VALVE
67
4126701
BRACKET - FUSE BLOCKS
43
36
2218227
L & RH DECK VALVE
75
232
4126806
PUMP ELECT FUEL
7
59
2218227
L & RH DECK VALVE
79
232
4126806
PUMP ,ELECT FUEL
85
27
2720293
LABEL - UK SEAT PLATE
91
2
4127119
WHEEL & TYRE 11X4.0-5
99
31
4116078
4WD MANIFOLD VALVE
29
1
4127120
WHL-9X3.5X4.0 (FILLED)
103
55
4118415
DECAL - COOLANT HAZARD
91
5
4127198
INSULATION-EXHAUST
49
42*
4118873
BOLT-CRG M12 X 170
99
7
4127607
HOSE
7
76
4121791
WHEEL ASSEMBLY
19
5
4127607
HOSE
9
10
4121796
RIM
19
4128058
MOUNT-ENG. LHHREAR
5
19
4122778
WLDMT-EXHAUST PIPE
49
47
4128058
MOUNT-ENG. LHHREAR
7
19
4122798
PIPE-EXHAUST
49
49
4128059
MOUNT-ENG. RH REAR
5
20
4123043
COVER - AIR CLEANER
9
3A
4128059
MOUNT-ENG. RH REAR
7
20
4123044
MAIN ELEMENT
9
3B
4128337
MAIN HARNESS
45
52
4123045
MOUNTING BAND
9
3C
4128337
WIRING HARNESS - MAIN
83
4123046
VACUATOR VALVE
9
3D
4128337
WIRING HARNESS, MAIN
87
3
4123047
MUFFLER
49
44
4128338
DIODE ASSEMBLY
83
4
4123283
AIR CLEANER COMPLETE
9
3
4128340
CABLE-BATTERY NEGATIVE
83
1
4123365
RELAY BRACKET W/A
9
1
4128341
CABLE-BATERY POSITIVE
83
2
4123488
BELL HOUSING & CPLG
5
4
4128359
CONSOLE HARNESS
45
51
4123488
BELL HOUSING & CPLG
7
4
4128359
WIRING HARNESS, INTROMENT 87
4
4123777
SHROUD-TOP FAN
47
13
4128497
90DEG. ELBOW - 1" HOSETAIL
73
F334
4124000
STEER VALVE & COLUMN
43
29
4128497
90DEG. ELBOW - 1" HOSETAIL
77
F334
4124000
STEERING VALVE & COLUMN
79
101
4128497
90DEG. ELBOW - 1" HOSETAIL
81
F334
4124006
DECAL - STEERING WHEEL
89
7
4128538
HINGE-PLATE LH
13
3A
4124116
OIL COOLER TUBE OUTLET
71
280
4128624
BRACKET - BATERY
47
3
4124185
DECAL - RANSOMES EMBLEM
89
6
4128625
COOLANT BOTTLE BRACKET
47
16
4124209
MANIFOLD-OIL INLET
31
13
4128648
BRACKET - BUG SCREEN LH
49
56
4124365
TURBO AIR INLET PIPE
9
8
4128839
TYRE BLOCK PATTERN
19
6
4124407
OIL COOLER TUBE INLET
71
279
4540543
SCREW - REC PAN HEAD M6X2597
2
4124539
SPEED GOVENOR LEVER
43
18
4540543
SCREW - REC PAN HEAD M6X25103
56
4124596
WLDMT - AIR CLEANER OUTLET 9
18
379050522
BEADING
47
13B*
4124654
HOSE - AIR CLEANER
9
4
450020176
NUT-HEX 5/8-18
105
18
4124737
ELBOW - 90 DEG
9
5
450020265
NUT-HEX 3/8-24 THIN
61
45
4124743
SLEEVE - TURBO INLET
9
6
450020281
NUT-HEX 1/2-20 THIN
59
35
107
NUMERICAL INDEX
960 FRONTLINE
PARTS MANUAL
PART
NO
DESCRIPTION
PAGE ITEM
PART NO
DESCRIPTION
PAGE ITEM
450020516
NUT-HEX 3/4-16 SLOTTED
25
22
W158006-11
FTG-M/M 1 ORS X 1-1/16 SAE
81
F324
450120055
NUT-HEX 1/2-13
25
25
W158007-01
90-M/M 11/16 ORS X 9/16 SAE
71
F1
450120055
NUT-HEX 1/2-13
43
3
W158007-01
90-M/M 11/16 ORS X 9/16 SAE
75
F1
450120233
NUT-HEX 1/2-13 NYLOC
61
43
W158007-01
90-M/M 11/16 ORS X 9/16 SAE
79
F1
450120267
NUT-HEX 3/8-16 NYLOC
13
12
W158007-05
90-M/M 1 ORS X 7/8 SAE
71
F7
450120267
NUT-HEX 3/8-16 NYLOC
45
49
W158007-05
90-M/M 1 ORS X 7/8 SAE
75
F7
451030201
BOLT-HEX 5/16-24 X 1-1/4
61
41
W158007-05
90-M/M 1 ORS X 7/8 SAE
79
F7
451030730
BOLT-HEX 1/2-20 X 3-1/2
59
34
W158007-06
90-M/M 1 ORS X 1-1/16 SAE
71
F107
451110346
BOLT-HEX 1/2-13 X 2-3/4
103
41
W158007-06
90-M/M 1 ORS X 1-1/16 SAE
75
F107
451110354
BOLT-HEX 1/2-13 X 3
25
20
W158007-06
90-M/M 1 ORS X 1-1/16 SAE
79
F107
451112681
BOLT-HEX 1/4-20 X 2
61
74
W158007-09
90-M/M 11/16 ORS X 7/16 SAE
73
F206
452000473
WSHR-9/16 X 1-1/8 X .104
5
6
W158007-09
90-M/M 11/16 ORS X 7/16 SAE
75
F206
452000473
WSHR-9/16 X 1-1/8 X .104
5
28 *
W158007-09
90-M/M 11/16 ORS X 7/16 SAE
79
F206
452000473
WSHR-9/16 X 1-1/8 X .104
7
6
W158061-09
O-RING .739 ID X .07 SECT
71
F113
452000473
WSHR-9/16 X 1-1/8 X .104
7
28 *
W158061-09
O-RING .739 ID X .07 SECT
75
F113
452100019
WSHR-1/4 X 5/8 X .064
59
28*
W158061-09
O-RING .739 ID X .07 SECT
79
F113
452100019
WSHR-1/4 X 5/8 X .064
61
72
001419072
ROLL PIN-3/16 X 7/8
45
40
452101510
WSHR-3/8 X 1-1/2 X .104
59
16
001490226
‘R’ CLIP
59
8
452200029
LOCKWSHR-1/4 X .425 X .072
7
36
001490226
‘R’ CLIP
97
16
452200029
LOCKWSHR-1/4 X .425 X .072
13
16
001490226
‘R’ CLIP
101
28
452200029
LOCKWSHR-1/4 X .425 X .072
61
78
001496248
ROLL PIN-5/16 X 1
45
47
452200134
LOCKWSHR-3/8 X .683 X .094
5
7
001594010
WSHR-.328 X .75 X 14 GA
7
34
452200134
LOCKWSHR-3/8 X .683 X .094
7
7
001594010
WSHR-.328 X .75 X 14 GA
11
19
452200134
LOCKWSHR-3/8 X .683 X .094
25
9
001594010
WSHR-.328 X .75 X 14 GA
15
50
452200134
LOCKWSHR-3/8 X .683 X .094
31
11
001594010
WSHR-.328 X .75 X 14 GA
31
16
452200134
LOCKWSHR-3/8 X .683 X .094
59
15
001594010
WSHR-.328 X .75 X 14 GA
57
21
452200176
LOCKWSHR-1/2 X .873 X .125
11
35
001594080
WSHR-.516 X .750 X 12GA
15
49
452200176
LOCKWSHR-1/2 X .873 X .125
13
21
001594080
WSHR-.516 X .750 X 12GA
39
11
452200176
LOCKWSHR-1/2 X .873 X .125
25
24
001594080
WSHR-.516 X .750 X12GA
45
38
452200176
LOCKWSHR-1/2 X .873 X .125
31
6
001594080
WSHR-.516 X .750 X 12GA
57
18
452200176
LOCKWSHR-1/2 X .873 X .125
61
52
001594170
WASHER
59
10
452200176
LOCKWSHR-1/2 X .873 X .125
103
40
001594170
SHIM
61
84*
453005165
KEY-1/4 X 1/4 X 1-1/8
97
4
001594200
LOCKWSHR-M14 X 24.1 X 3
5
28 *
453005165
KEY-1/4 X 1/4 X 1-1/8
97
13
001594200
LOCKWSHR-M14 X 24.1 X 3
7
28 *
453005165
KEY-1/4 X 1/4 X 1-1/8
103
53
001594200
SPRING WASHER M14
19
2
454000328
SPLIT PIN-1/8 X 1-3/4
25
23
001599028
WASHER, 49/64"
25
40
455000387
PIN-TENSION 1/4 X 1-1/4
59
3
001599052
WASHER
15
54
456110016
SCRW-HEX 1/4-20 X 3/4
57
16
001791171
SNAP RING, 1.187"
105
2
456110016
SCRW-HEX 1/4-20 X 3/4
61
70
001791189
SNAP RING, 1.250"
105
9
456110066
SCRW-HEX 3/8-16 X 1
31
12
001925220
HOSE CLAMP, 8-22
7
67
456110066
SCRW-HEX 3/8-16 X 1
97
23
001925220
HOSE CLAMP, 8-22
73
F317
456110090
SCRW-HEX 1/2-13 X 1-1/4
31
8
001925220
HOSE CLAMP, 8-22
77
F317
456110448
SCRW-HEX 3/8-16 X 1-1/4
7
61
001925220
HOSE CLAMP, 8-22
81
F317
456110498
SCRW-HEX 1/4-20 X 1/2
11
33
001925570
HOSE CLAMP SIZE 28
9
456110503
SCRW-HEX 1/4-20 X 5/8
47
10
001925700
HOSE CLAMP SIZE 36
9
456110503
SCRW-HEX 1/4-20 X 5/8
59
19
001990357
CLAMP, 1.3/4"
9
9
456110503
SCRW-HEX 1/4-20 X 5/8
59
28
002000643
LABEL - WING DECK WASH EC
93
2
456110595
SCRW-HEX 3/8-16 X 3/4
25
8
002000643
LABEL - WING DECK WASH EC
93
2
456110595
SCRW-HEX 3/8-16 X 3/4
59
14
002000643
LABEL - WING DECK WASH EC
95
2
461901679
SPRG-DISC 13 X 28 X 1
37
6
002029050
THRUST BEARING
25
33
461901679
SPRG-DISC 13 X 28 X 1
103
52
002039152
BRG-BALL 17 X 40 X 12
101
8
469009601
QUICK PIN
99
11
002090600
SERVICE KIT
103
469009601
QUICK PIN
101
10
002178211
RADIATOR
47
4
469016517
‘P’ CLIP
73
F219
002178214
PUMP-4 SECTION GEAR
5
8
469016517
‘P’ CLIP
77
F219
002178214
PUMP-4 SECTION GEAR
7
8
469016517
‘P’ CLIP
81
F219
002178214
PUMP 4 SECTION
79
79
469020633
BRACKET-FOR FLASH
45
63
002188234
ROD-END
25
36
469021633
HOSE CLIP LARGE H980407 73
F322
002190180
BUSH,1"X1.125"X0.75"
59
17 *
469021633
HOSE CLIP LARGE
77
F322
002190190
BUSH,1"X1.125"X1.25"
61
83
469021633
HOSE CLIP LARGE H980407 81
F322
002190190
BUSH,1"X1.125"X1.25"
103
46
699535007
BALL JOINT
61
44
002190200
BUSH-FLNG 1.25"X1.50"X0.75"
99
2
842000044
LUBRICATOR-1/4" STR
25
29
002190200
BUSH-FLNG 1.25"X1.50"X0.75"
101
15
842000044
LUBRICATOR-1/4" STR
59
11
002444030
PLUG-7/16 SAE
73
F218
W148027
BREATHER VENT
71
F202
002444030
PLUG-7/16 SAE
77
F218
W148027
BREATHER VENT
75
F202
002444030
PLUG-7/16 SAE
81
F218
W148027
BREATHER VENT
79
F202
002449006
TEST POINT-1/4 BSPP
73
F333
W158006-08
FTG-M/M
71
F104
002449006
TEST POINT-1/4 BSPP
77
F333
W158006-08
FTG-M/M
75
F104
002449006
TEST POINT-1/4 BSPP
81
F333
W158006-08
FTG-M/M 1
79
F104
002498400
TEE-M/F/M 11/16 ORS
73
F327
W158006-11
FTG-M/M 1 ORS X 1-1/16 SAE
73
F324
002498400
TEE-M/F/M 11/16 ORS
77
F327
W158006-11
FTG-M/M 1 ORS X 1-1/16 SAE
77
F324
002498400
TEE-M/F/M 11/16 ORS
81
F327
108
NUMERICAL INDEX
960 FRONTLINE
PARTS MANUAL
PART NO
DESCRIPTION
PAGE ITEM
PART NO
DESCRIPTION
PAGE ITEM
002498420
45-M/M 1 ORS X 1-1/16 SAE
73
F325
008109660
HOUR METER ASSEM
43
9
002498420
45-M/M 1 ORS X 1-1/16 SAE
77
F325
008109660
HOURMETER LCD 2 TERMINAL
83
13
002498420
45-M/M 1 ORS X 1-1/16 SAE
81
F325
008162360
ASM-WHL/TIRE 20-10.0X8
25
35
002498870
TEE-M/F/M 1-3/16 ORS
73
F331
008162800
• RIM 700-8 ETO 4 STUD 4"PCD
25
002498870
TEE-M/F/M 1-3/16 ORS
77
F331
008173350
LEVER
51
32
002498870
TEE-M/F/M 1-3/16 ORS
81
F331
008173360
SPRING
51
33
002498900
TEST POINT-1/4 BSPP X 1-3/16
73
F332
008173370
NUT
51
8
002498900
TEST POINT-1/4 BSPP X 1-3/16
77
F332
008173380
MOUNTING RH
51
9
002498900
TEST POINT-1/4 BSPP X 1-3/16
81
F332
008173390
SCREW
51
10
002525010
90-M/M 9/16 ORS X 9/16 SAE
73
F341
008173400
SCREW
51
11
002525010
90-M/M 9/16 ORS X 9/16 SAE
77
F341
008173410
SP WASHER
51
12
002525010
90-M/M 9/16 ORS X 9/16 SAE
81
F341
008173420
DISTANCE PLATE
51
13
002535040
45-M/M 1 ORS X 7/8 SAE
73
F323
008173430
DISTANCE PLATE
51
14
002535040
45-M/M 1 ORS X 7/8 SAE
77
F323
008173440
BUSH
51
15
002535040
45-M/M 1 ORS X 7/8 SAE
81
F323
008173450
TUBE
51
17
002560010
CAP-9/16 ORS
73
F335
008173460
SPRING
51
18
002560010
CAP-9/16 ORS
77
F335
008173470
WASHER
51
19
002560010
CAP-9/16 ORS
81
F335
008173480
SCREW
51
20
002590130
TEE-M/M/M 1 ORS(2) X 7/8 SAE
73
F340
008173490
TUBE
51
21
002590130
TEE-M/M/M 1 ORS(2) X 7/8 SAE
77
F340
008173500
EDGE STRIP
51
22
002590130
TEE-M/M/M 1 ORS(2) X 7/8 SAE
81
F340
008173510
EDGE STRIP
51
23
002590480
TEE-M/F/M 9/16 ORS
73
F329
008173520
EDGE STRIP
51
5
002590480
TEE-M/F/M 9/16 ORS
77
F329
008173530
DISTANCE PIECE
51
24
002590480
TEE-M/F/M 9/16 ORS
81
F329
008173540
SEAT PLATE
51
25
002590710
90-M/M 9/16 ORS X 3/8 BSPP
73
F328
008173550
MOUNTING LH
51
28
002590710
90-M/M 9/16 ORS X 3/8 BSPP
77
F328
008173560
BUSH
51
30
002590710
90-M/M 9/16 ORS X 3/8 BSPP
81
F328
008173570
DISTANCE PIECE
51
31
002590730
FTG-9/16 ORS X 3/8 BSPP
73
F338
008173580
COVER LH
51
35
002590730
FTG-9/16 ORS X 3/8 BSPP
77
F338
008173590
WASHER
51
37
002590730
FTG-9/16 ORS X 3/8 BSPP
81
F338
008173600
SCREW
51
38
002590740
FTG-F/M 9/16 ORS X 1/4 BSPP
73
F336
008173610
PLATE
51
41
002590740
FTG-F/M 9/16 ORS X 1/4 BSPP
77
F336
008173620
PLATE
51
42
002590740
FTG-F/M 9/16 ORS X 1/4 BSPP
81
F336
008173630
ARM REST LH
53
54
002590750
FTG-9/16 ORS X 1/4 BSPP
73
F337
008173640
SCREW
55
1
002590750
FTG-9/16 ORS X 1/4 BSPP
77
F337
008173650
STOP
55
2
002590750
FTG-9/16 ORS X 1/4 BSPP
81
F337
008173660
WASHER
55
3
002590910
TEE-M/M/M
73
F330
008173670
NUT
55
6
002590910
TEE-M/M/M
77
F330
008173680
COVER
55
7
002590910
TEE-M/M/M
81
F330
008173690
BASE ASSY.
55
8
002690011
FTG-10-3/4 ADPT ORB/BARB-90 73
F309
008173700
PLATE
55
9
002690011
FTG-10-3/4 ADPT ORB/BARB-90 77
F309
008173710
PIN
55
12
002690011
FTG-10-3/4 ADPT ORB/BARB-90 81
F309
008173720
E CLIP
55
13
002690027
FITTING-1/4 CROSS
35
11
008173730
BUFFER ASSY.
55
16
002690027
FITTING-1/4 CROSS
73
F221
008173740
RIVET
55
17
002690027
FITTING-1/4 CROSS
77
F221
008173750
RUNNER
55
18
002690027
FITTING-1/4 CROSS
81
F221
008173760
PLATE
55
19
002989380
TRIM SEAL
11
008173770
SUSPENSION ASSY.
55
20
002989470
DECK COVER FOAM
97
008173780
ROLLER
55
22
002989470
DECK COVER FOAM
103
008173790
PIN
55
23
002989470
DECK COVER FOAM
103
008173800
BUSH
55
24
002993013
LUBRICATOR-M6 STR
59
008173810
SPRING
55
25
002993013
LUBRICATOR-M6 STR
99
3
008173820
PLATE
55
26
002993013
LUBRICATOR-M6 STR
103
45
008173830
PLATE
55
27
002993160
LUBRICATOR-M6 X 90 DEG
105
6
008173840
BOLT
55
28
006911730
COOLER-HYD. OIL
47
14
008173850
PIN
55
29
006911730
OIL COOLER
71
77
008173860
WASHER
55
31
006911730
OIL COOLER
75
77
008173870
BEARING
55
32
007997210
HOSE-FUEL TANK VENT
35
4
008173880
NUT
55
33
008000640
LOCKNUT 1-20 UNEF
25
27
008173890
HANDLE
55
34
008007120
46CC M46 TRANSMISSION PUMP 5
5
008173900
LEVER ASSY.
55
35
008007120
46CC M46 TRANSMISSION PUMP 7
5
008173910
SPRING HOOK
55
38
008007120
TRANSMISSION PUMP
63
008173920
WEIGHT INDICATOR
55
39
008007120
TRANSMISSION PUMP
71
2
008173930
STOP
55
40
008007240
280CC PISTON WHEEL MOTOR
19
1
008173940
SPRING
55
41
008007240
WHEEL MOTOR
21
008173950
WINDOW
55
42
008007240
HYDRAULIC WHEEL MOTOR
71
73
008173960
ROLLER
55
43
008008460
WHEEL NUT
19
4
008173970
FORK
55
46
008011210
CHECK VALVE
71
2144
008173980
SPRING FRAME
55
47
008028345
HYDRAULIC - VALVE
41
3
008173990
SCREW
55
49
008028345
HYDRAULIC ROTARY VALVE
71
2141
008174000
CONNECTOR
50
008089610
HYDRAULIC FILTER
75
345
008174140
• TYRE 20 X 10.00 - 8, 6PLY “RS”
25
109
