Ransomes Frontline 960 (Engine Type: Perkins 404C-22T). Parts and Maintenance Manual (2002) - page 6
960 FRONTLINE
PARTS MANUAL

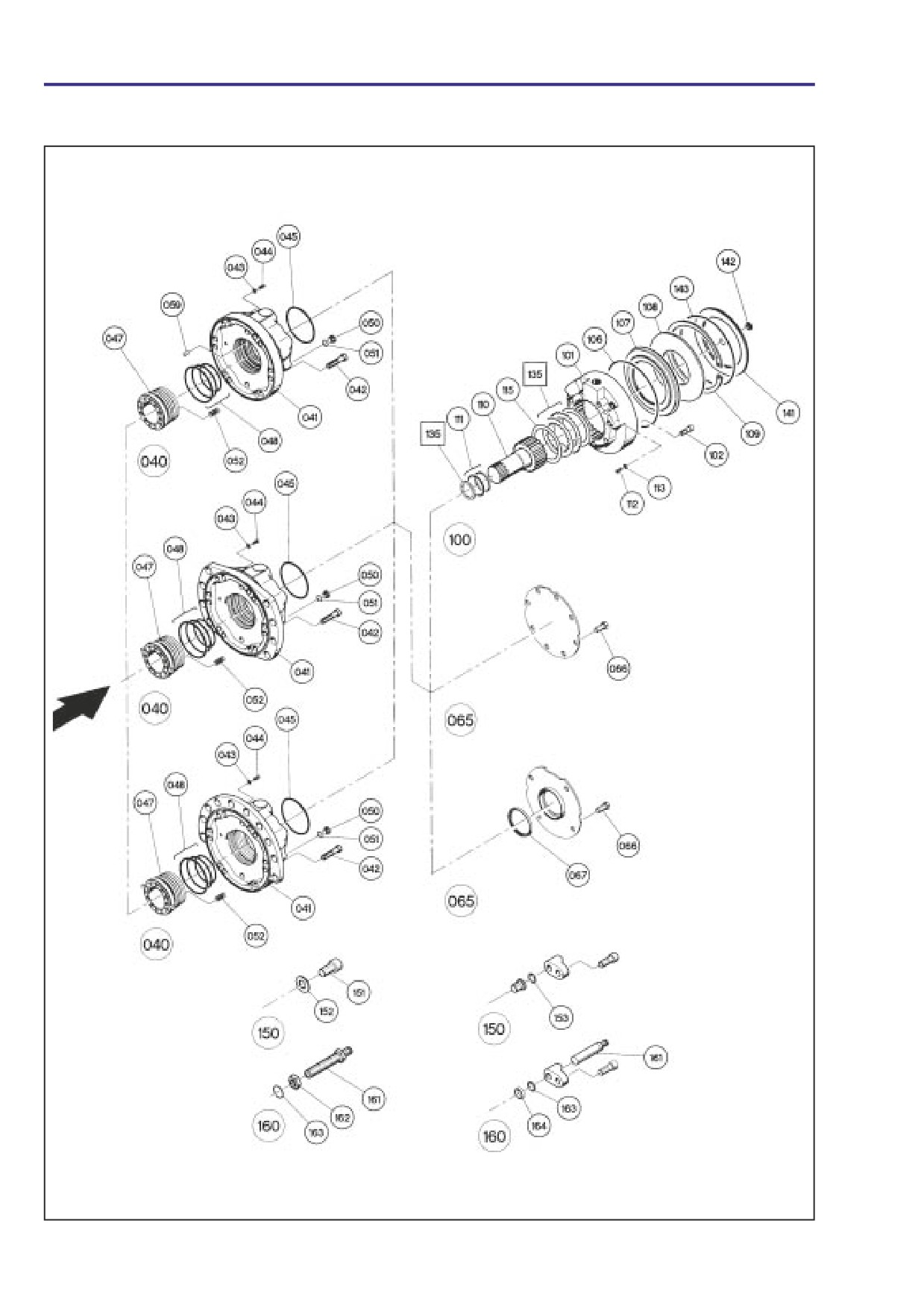

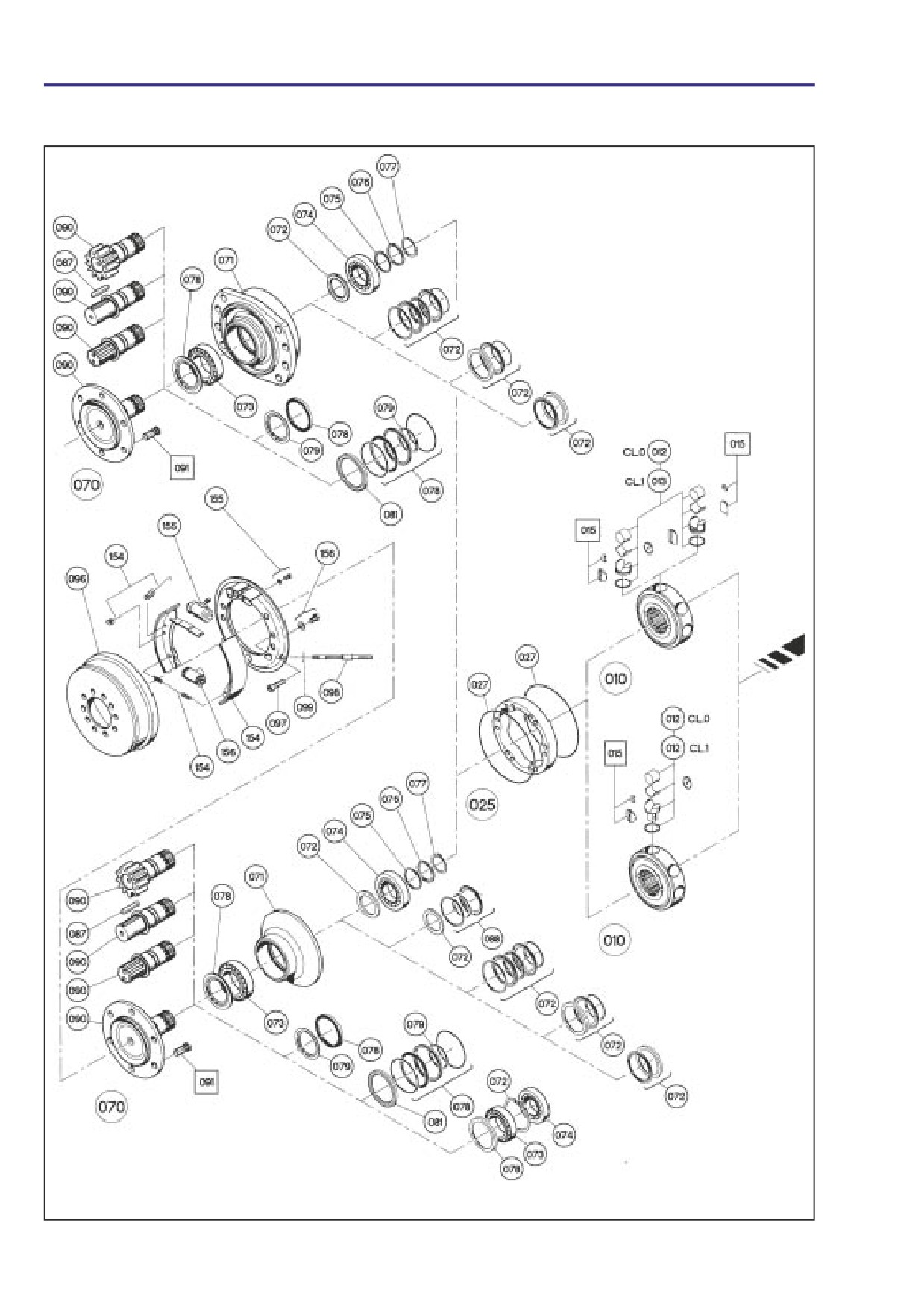

7A WHEEL MOTOR - FRONT
Parts-20
960 FRONTLINE
PARTS MANUAL
7A WHEEL MOTOR - FRONT
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
008007240
Wheel Motor
2
001
A808966
Seal kit
1
002
A808967
Seal kit
1
010
A808968
Cylinder-block Assy.
1
N/A
• Piston sub-assy.CI.0
N/A
• Piston sub-assy.CI.10
015
A808969
Repair kit.
1
025
A808970
Cam Assy.
1
027
N/A
• O-ring.
Part of seal kit 001 & 002
040
A808971
Valving cover assy.
1
041
N/A
• Valving cover part.
042
N/A
• Screw.
043
N/A
• Seal washer.
Part of seal kit 001 & 002
044
N/A
• Screw.
045
N/A
• O-ring.
Part of seal kit 001 & 002
047
N/A
• Valving.
048
N/A
• Seal kit.
Part of seal kit 002
050
N/A
• Plug.
051
N/A
• O-ring.
052
N/A
• Spring.
053
N/A
• Valve spool.
054
N/A
• Washer.
055
N/A
• Snap ring.
056
N/A
• Spring.
057
N/A
• O-ring.
Part of seal kit 001 & 002
059
N/A
• Pin.
065
A808972
Cover plate.
1
066
N/A
• Screw.
067
N/A
• Sealing ring.
070
A808973
Bearing support assy.
1
071
N/A
• Bearing support.
072
N/A
• Radial lip seal.
Part of seal kit 001 & 002
073
N/A
• Roller bearing.
074
N/A
• Roller bearing.
075
N/A
• Set of shims.
076
N/A
• Thrust ring.
077
N/A
• Snap ring
078
N/A
• Lip Seal
Part of seal kit 001 & 002
079
N/A
• Deflector
Part of seal kit 001 & 002
Parts-21
960 FRONTLINE
PARTS MANUAL
7A WHEEL MOTOR - FRONT
Parts-22
960 FRONTLINE
PARTS MANUAL
7A WHEEL MOTOR - FRONT
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
081
N/A
• Seal support
087
N/A
• Key
090
N/A
• Shaft
096
N/A
• Drum Brake.
097
N/A
• Screw.
098
N/A
• Brake cable.
099
N/A
• Snap ring.
091
A808975
Set of studs.
1
100
A808974
Brake assy.
1
101
N/A
Brake body.
102
N/A
Screw.
106
N/A
O-ring.
Part of seal kit 001 & 002
107
N/A
Brake piston.
108
N/A
Spring washer.
109
N/A
Snap ring.
110
N/A
Brake shaft.
111
N/A
Seal.
Part of seal kit 002
112
N/A
Screw.
113
N/A
Sealing ring.
Part of seal kit 001 & 002
141
N/A
Protector.
Part of seal kit 002
142
N/A
Plug.
Part of seal kit 002
143
N/A
O-ring.
Part of seal kit 002
135
A808976
Brake kit.
1
Parts-23
960 FRONTLINE
PARTS MANUAL
8

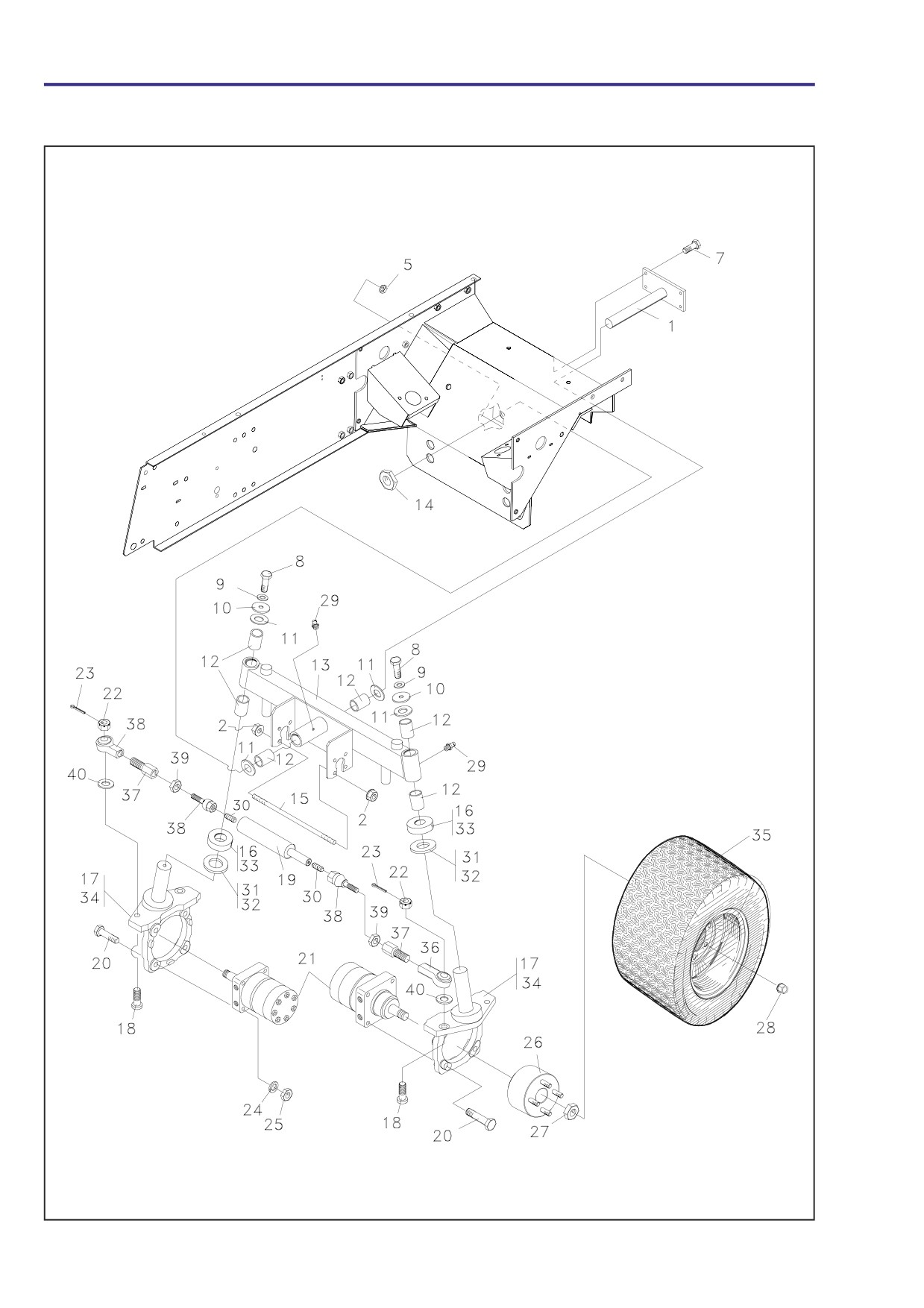

REAR AXLE
Parts-24
960 FRONTLINE
PARTS MANUAL
8
REAR AXLE
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
1
W176078
Pivot Pin
1
2
64141-4
Nut-wlf 3/8-16
8
7
450193
Scrw-hex M8 X 30
4
7 *
450390
Wshr-M8 X 17 X 1.8
4
7 *
450378
Nut-hex M8 Nyloc
4
8
456110595
Scrw-hex 3/8-16 X 3/4
2
9
452200134
Lockwshr-3/8 X .683 X .094
2
10
64163-17
25/64 X 2 X 11ga Wshr
2
11
62464-4a
Wshr,Thrust 1.25x1.9
6
12
W108003
Brg 1.5x1.25x1.25
6
13
2216077
Wldmt-rear Axle
1
14
001393820
Nut-hex 1.1/4-12 Nyloc
1
15
W173033
Rod-threaded
4
18
2213041
Stud
2
19
W148404
Cylinder-p.s.
1
(Use Seal Kit 002300810)
20
451110354
Bolt-hex 1/2-13 X 3
8
21
W148141-03
Motor - ME15-02-08-AAAA
2
22
450020516
Nut-hex 3/4-16 Slotted
2
23
454000328
Split Pin-1/8 X 1-3/4
2
24
452200176
Lockwshr-1/2 X .873 X .125
8
25
450120055
Nut-hex 1/2-13
8
26
MBG0969A
Wldmt-Hub,Wheel
2
27
008000640
Locknut 1-20 Unef
2
28
001341110
Nut-whl 1/2-20 60d
8
29
842000044
Lubricator-1/4" Str
3
30
W143069
Stud-cylinder
2
32
MBE1693
Washer-king Pin
2
33
002029050
Thrust Bearing
2
34
2211004a
Plate-Motor
2
35
008162360
Asm-whl/Tire 20-10.0x8
2
008174140
• Tyre 20 X 10.00 - 8, 6ply "Rs"
1
008162800
• Rim 700-8 Eto 4 Stud 4"Pcd
1
36
2188234
Rod-end
2
37
2213040
Sleeve-threaded
2
38
2218224
Link-steering
2
39
001302900
Nut-hex 1/2-20
2
40
001599028
Washer, 49/64"
AR
Parts-25
960 FRONTLINE
PARTS MANUAL

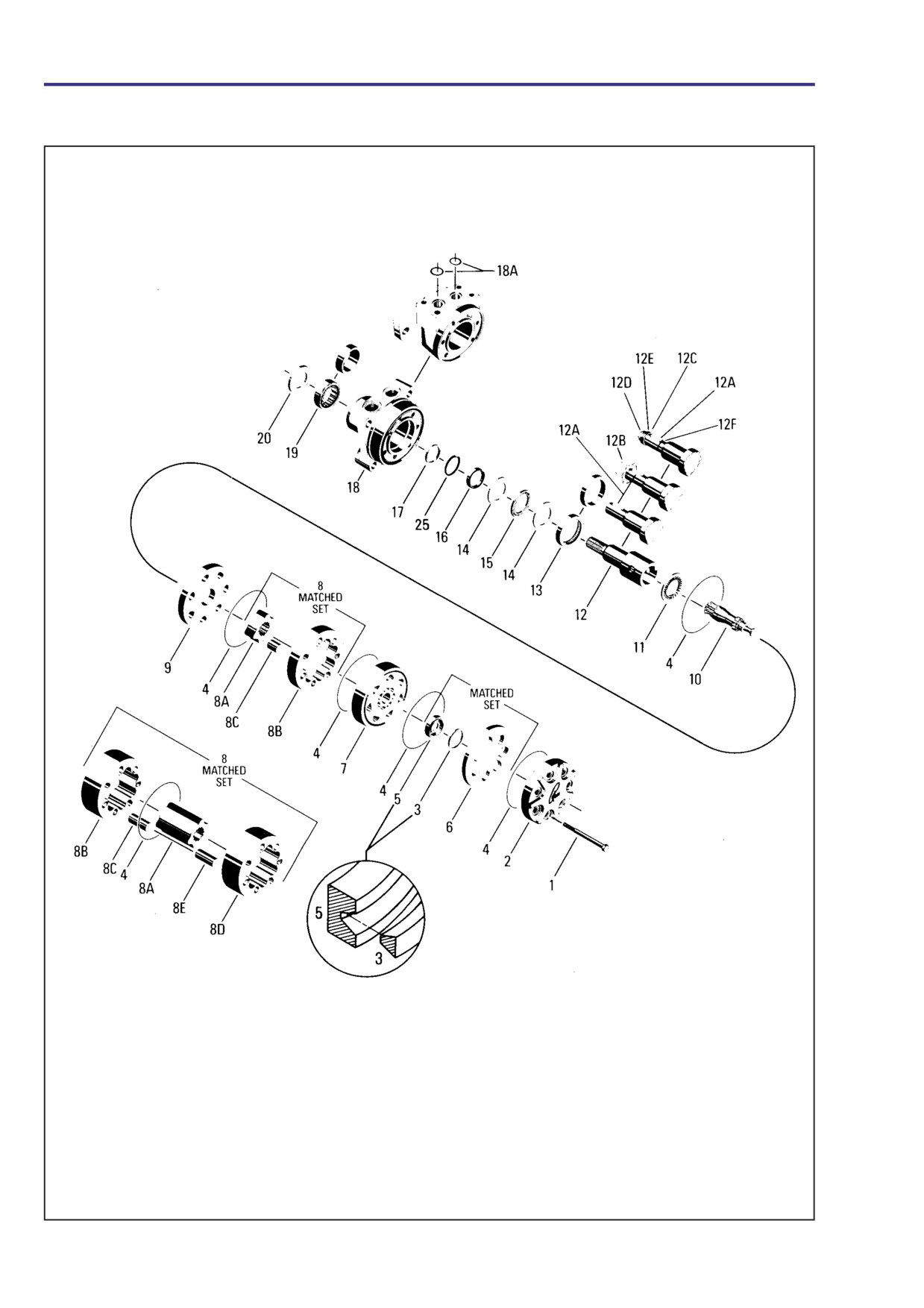

8A REAR WHEEL MOTOR
Parts-26
960 FRONTLINE
PARTS MANUAL
8A REAR WHEEL MOTOR
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
A
W148141-03
Motor
1
ME15-02-08-AAAA
1
A800664
Special Bolts
7
2
End Cover
1
3
N/A
Seal Ring-Commutator
1
contained in seal kit A820052
4
N/A
Seal Ring
5
contained in seal kit A820052
5
Commutator
1
6
Commutator Ring
1
7
Manifold
1
8
A800826
Rotor Set
1
9
Wear Plate
1
10
A800825
Drive Link
1
11
Thrust Bearing
1
12
A800824
Coupling Shaft
1
13
Bearing/Bushing,Inner
1
14
Thrust Washer
1
15
Thrust Bearing
1
16
N/A
Seal
1
contained in seal kit A820052
17
N/A
Backup Washer
1
contained in seal kit A820052
18
Housing
1
19
Bearing/Bushing, Outer
1
20
N/A
Dirt & Water Seal
1
contained in seal kit A820052
25
N/A
Backup Washer
1
contained in seal kit A820052
B
A820052
Seal Kit
1
Parts-27
960 FRONTLINE
PARTS MANUAL
9

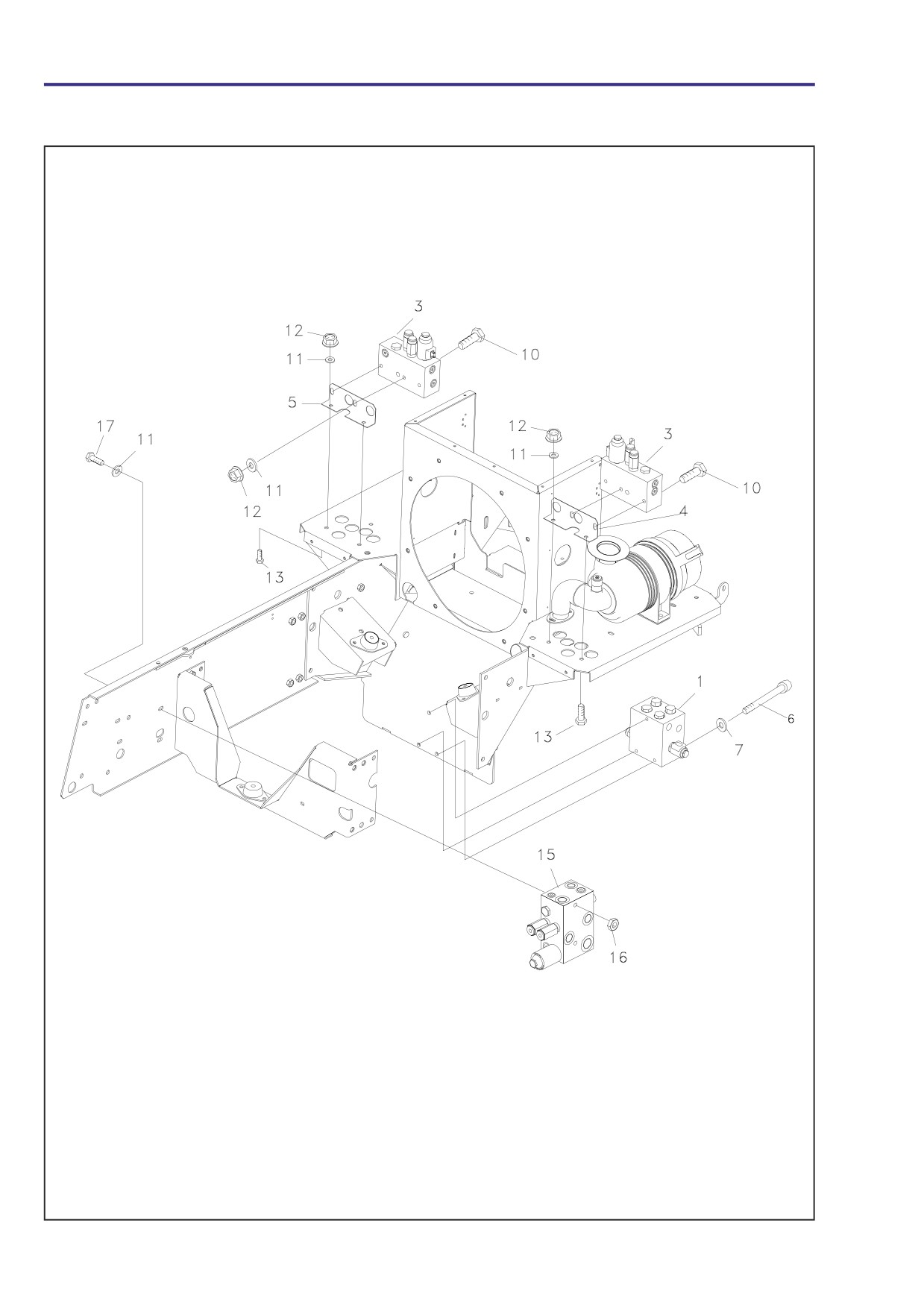

HYDRAULIC VALVES
Parts-28
960 FRONTLINE
PARTS MANUAL
9
HYDRAULIC VALVES
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
1
4116078
4wd Manifold Valve
1
3
2218227
Hyd Valve For Wing Deck
2
4
2212049
Bracket-valve Mtg
1
5
2212092
Bracket-rh Valve Mtg
1
6
4125581
Screw - Cap Head M8x100
3
7
450411
Washer - Spring M8
3
10
450038
Bolt-hex M10 X 80
4
11
450391
Wshr-M10 X 21 X 2.2
12
12
450379
Nut-hex M10 Nyloc
8
13
450213
Scrw-hex M10 X 20
4
14
001090341
Bolt, M10 X 160
1
15
2218225
Hyd Valve For Front Deck
1
16
450379
Nut-hex M10 Nyloc
2
17
450040
Bolt-hex M10 X 90
2
18
450454
Nut-hex M10 Verbus Ripp
2
19
001090341
Bolt, M10 X 160
1
Parts-29
960 FRONTLINE
PARTS MANUAL
10

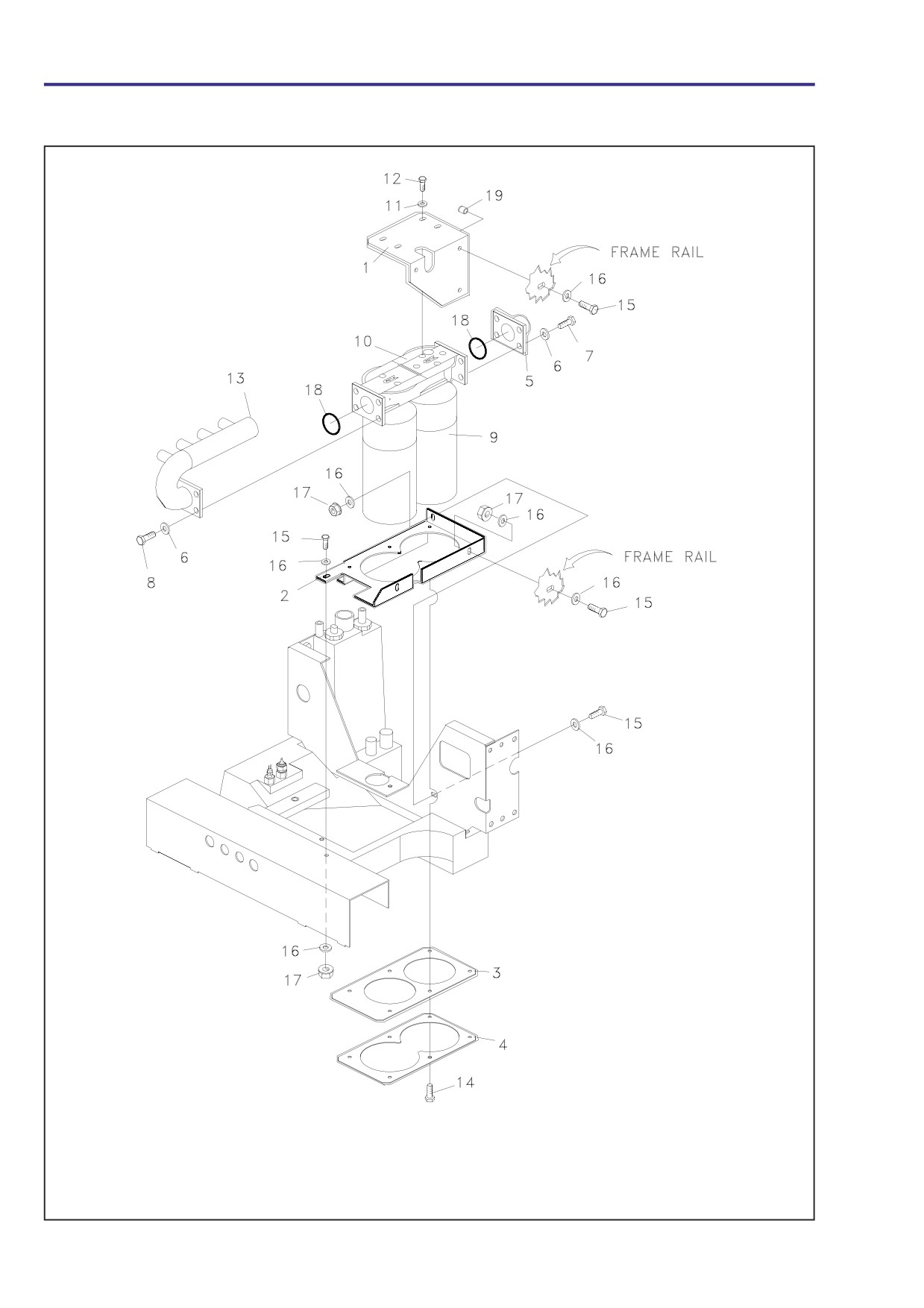

HYDRALIC FILTERS
Parts-30
960 FRONTLINE
PARTS MANUAL
10
HYDRALIC FILTERS
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
1
2212075
Bracket-filter-HD
1
2
2212078
Baffle-filter HD
1
3
2218043
Seal-filter Baffle
1
4
2212074
Plate-filter Baffle
1
5
178043.7
Tube-filter Head
1
6
452200176
Lockwshr-1/2 X .873 X .125
8
7
64123-73
Blt-hex 1/2-13x1
4
8
456110090
Scrw-hex 1/2-13 X 1-1/4
4
9
178025
Filter-spin On
2
10
178024
Filter Head Module
1
11
452200134
Lockwshr-3/8 X .683 X .094
4
12
456110066
Scrw-hex 3/8-16 X 1
4
13
4124209
Manifold-Oil Inlet
1
14
452701
Scrw-hex M8 X 16 Taptite
6
15
450193
Scrw-hex M8 X 30
7
16
001594010
Wshr-.328 X .75 X 14 Ga
11
17
450378
Nut-hex M8 Nyloc
4
18
W158061-05
O-Ring 2.234 Id X .139 Sect
2
19
450370
Nutsert-M8 A-l X 20.5
3
Parts-31
960 FRONTLINE
PARTS MANUAL
11

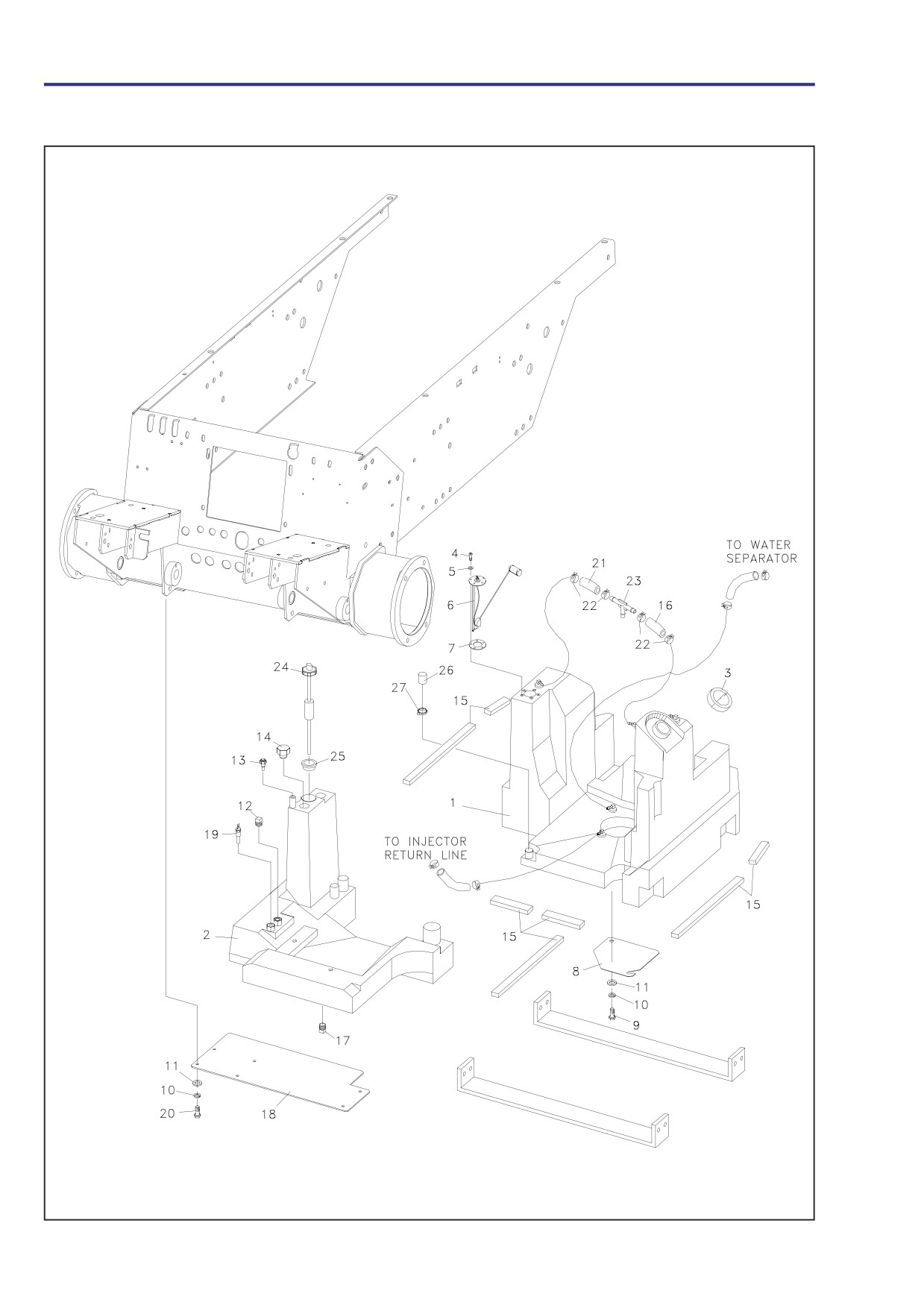

FLUID TANKS
Parts-32
960 FRONTLINE
PARTS MANUAL
11
FLUID TANKS
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
1
2218154
Fuel-tank
1
2
2218148
Reservoir-hydraulic
1
3
2218078
Cap-fuel Tank
1
4
64152-05
10-32x1/2 R Mach Scr
5
5
64002-02
Lockwshr-tooth,Ext,#10
1
6
2218046
Sender-fuel Level
1
7
W148081
Gasket
1
8
2212087
Cover-access
1
9
450212
Scrw-hex M10 X 16
2
10
450412
Lockwshr-M10 X 15.9 X 2.5
8
11
450391
Wshr-M10 X 21 X 2.2
8
12
69051-01
Pipe Plug - 3/8
1
13
W148027
Breather Vent
1
14
2690017-01
Ftg-orb Plug 14
2
15
38471-08
Foam, Closed Cell
7.8'
16
09007-10
Hose .25x.8.5
1
17
2690017-03
Ftg-oab Plug
1
18
2212076b
Support-hyd. Reservoir
1
19
008296050
Switch, Temp-175 F
1
20
450214
Scrw-hex M10 X 25
6
21
09007-10
Hose 1/4 X 10.5
1
22
88042n
Hose Clamp
4
23
58026
3 Way Connctr 1/4
1
24
009151460
Gauge-oil Level
1
25
2218147
Grommet
1
26
2218162
Cap-rubber 25.4
1
27
108094-01
Clamp-hose Sae20
1
Parts-33
960 FRONTLINE
PARTS MANUAL
12

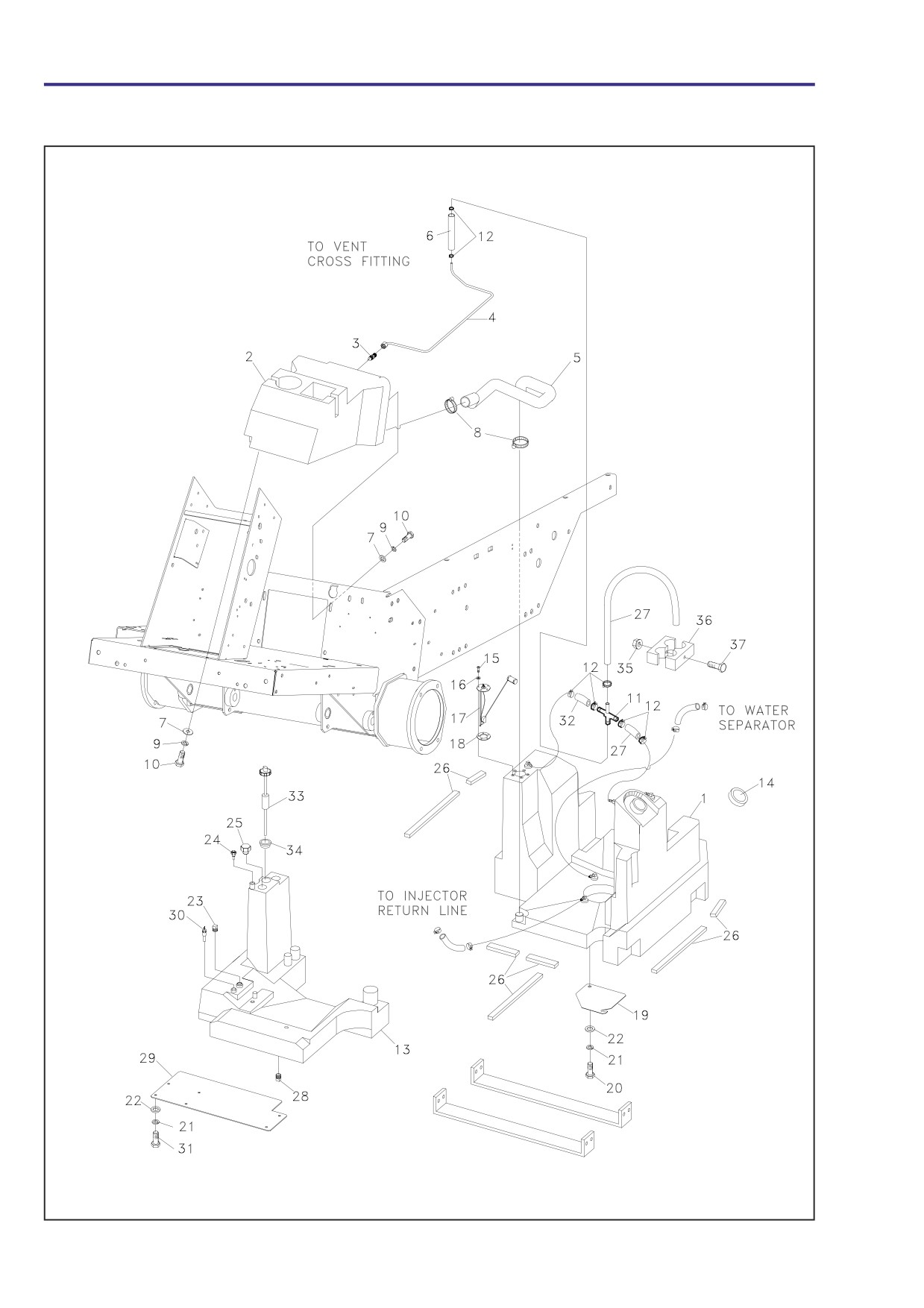

OPTIONAL - AUXILIARY FUEL TANK
Parts-34
960 FRONTLINE
PARTS MANUAL
12
OPTIONAL - AUXILIARY FUEL TANK
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
1
2218154
Fuel-Tank
1
2
2218150
Tank-Auxiliary Fuel
1
3
158006-15
Fitting-ors/Orb
1
4
007997210
Hose-Fuel Tank Vent
1
5
2218153
Hose-Fuel Tank
1
6
09007-09
S-hose .5x.25x3.0
1
7
450390
Wshr-M8 X 17 X 1.8
3
8
108094-01
Clamp-hose Sae20
2
9
64006-02
Lockwshr-helical 5/16
3
10
450190
Scrw-hex M8 X 16
3
11
2690027
Fitting-1/4 Cross
1
13
2218148
Reservoir-Hydraulic
1
14
2218078
Cap-Fuel Tank
1
15
64152-05
10-32x1/2 R Mach Scr
5
16
64002-02
Lockwshr-#10
1
17
2218046
Sender-Fuel Level
1
18
148081
Gasket
1
19
2212087
Cover-access
1
20
64205-041
Blt-metric M10-1.5x15
2
21
64006-06
Lockwshr-helical 7/16
8
22
64251-004
Whsr-M10
8
23
69051-01
Pipe Plug - 3/8
1
24
148027
Breather Vent
1
25
2690017-01
Ftg-orb Plug 14
2
26
38471-09
S-foam X 120
7.8
27
09007-08
S-hose .5x.25x17.0
2
28
2690017-03
Ftg-orb Plug -06
1
29
2212076bB
Support-hyd. Reservoir
1
30
2218136
Switch-Temp-165f
1
31
450214
Scrw-hex M10 X 25
6
32
09007-06
S-hose .5x.25x9.0
1
33
009151460
Gauge-Oil Level
1
34
2218147
Grommet-gauge
1
35
450377
Nut-hex M6 Nyloc
1
36
148090
Support-Tube 1/2
1
37
450000
Bolt-hex M6 X 25
1
Parts-35
960 FRONTLINE
PARTS MANUAL
13

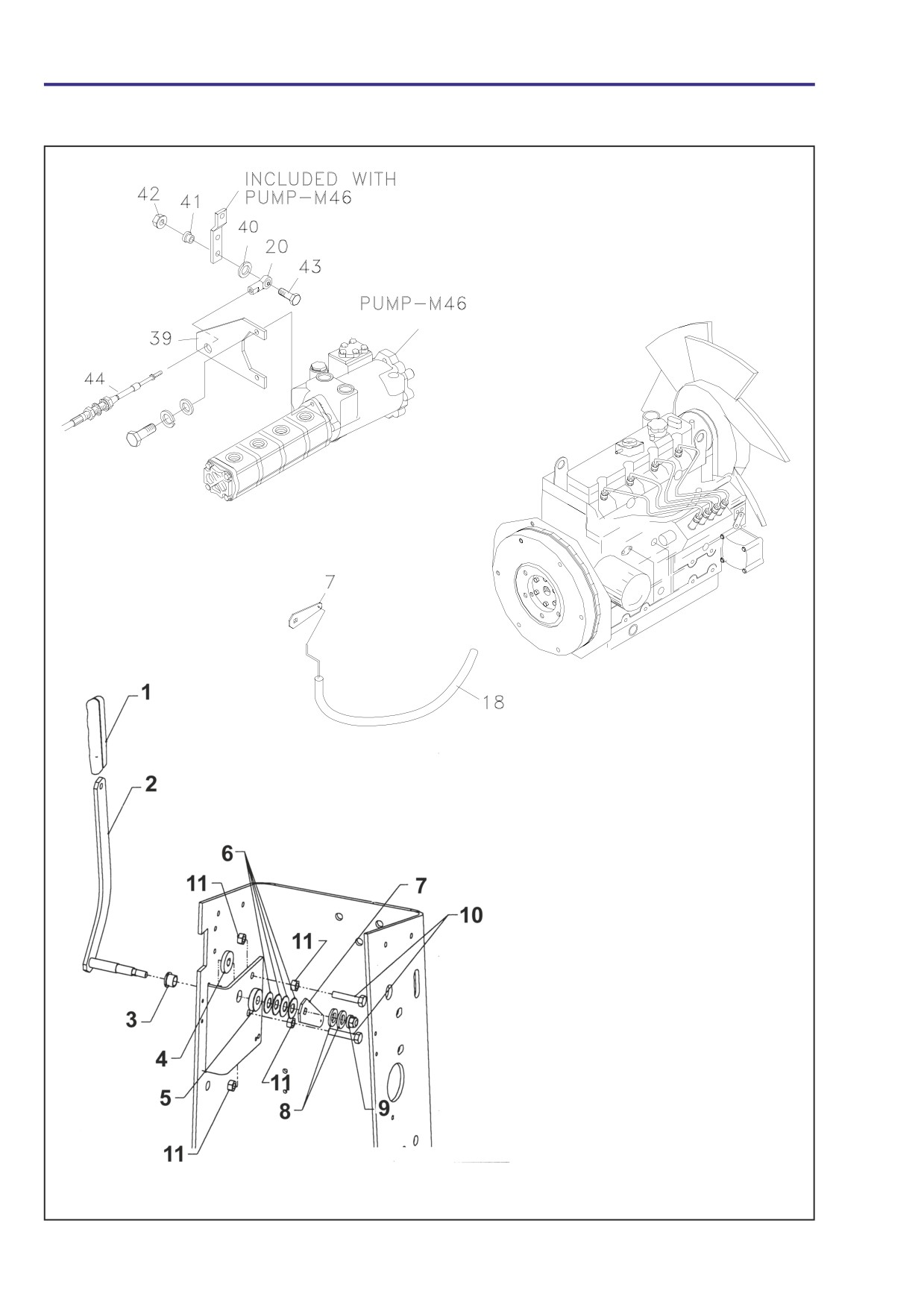

CONTROLS - THROTTLE / PUMP
Parts-36
960 FRONTLINE
PARTS MANUAL
13
CONTROLS - THROTTLE / PUMP
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
1
W038404-02
Grip, Throttle Lever
1
2
MBF1971
Lever, Throttle
1
3
W118047-02
Bushing Flip-lok, 1/2
1
4
MBF1720
Clamping Collar
1
5
MBF1691
Collar
1
6
461901679
Sprg-disc 13 X 28 X 1
4
7
172088.07
Throttle Arm
1
8
450392
Wshr-m12 X 24 X 2.7
2
9
452436
Nut-hex M8 Flng Nyloc
1
10
450195
Scrw-hex M8 X 40
2
11
450324
Nut-hex M8
4
18
148057-06
Cable-throttle
1
20
128079
Rod End, 1/4 Female
1
39
MBG2938A
Plate Pump
1
40
2720158
Spacer 6.35x15.88x9.52
1
41
2213035
Spacer Pump arm
1
42
64237-02
Locknut Nylon M6x1.00
1
43
64205.030
Blt Met M6x1.00x40
1
44
128089-02
Cable, CNTRL 36.50 LG
1
Parts-37
960 FRONTLINE
PARTS MANUAL
14

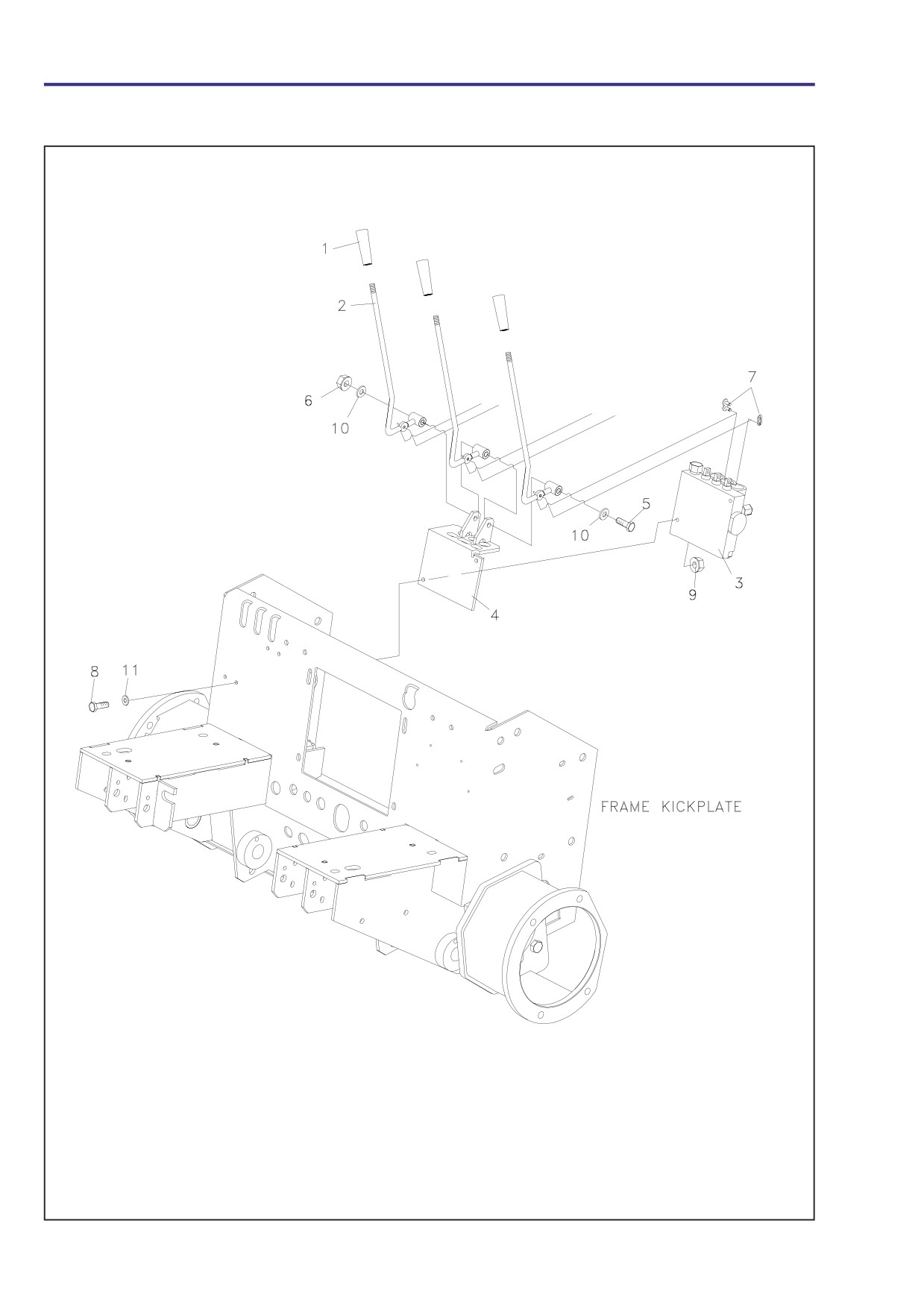

CONTROL - LIFT
Parts-38
960 FRONTLINE
PARTS MANUAL
14
CONTROL - LIFT
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
1
2198109
Knob-lever
3
2
2216005
Wldmnt-lift Lever
3
3
2218002
Valve-3 Spool Lift
1
(Service Seal Kit 2218002-01)
4
2216003
Wldmt-lever Support
1
5
450043
Bolt-hex M10 X 120
1
6
450379
Nut-hex M10 Nyloc
1
7
W148062
Master Link #50 Chain
3
8
450006
Bolt-hex M6 X 55
2
9
450377
Nut-hex M6 Nyloc
2
10
450391
Wshr-M10 X 21 X 2.2
4
11
001594080
Wshr-.516 X .750 X 12ga
2
Parts-39
960 FRONTLINE
PARTS MANUAL
15

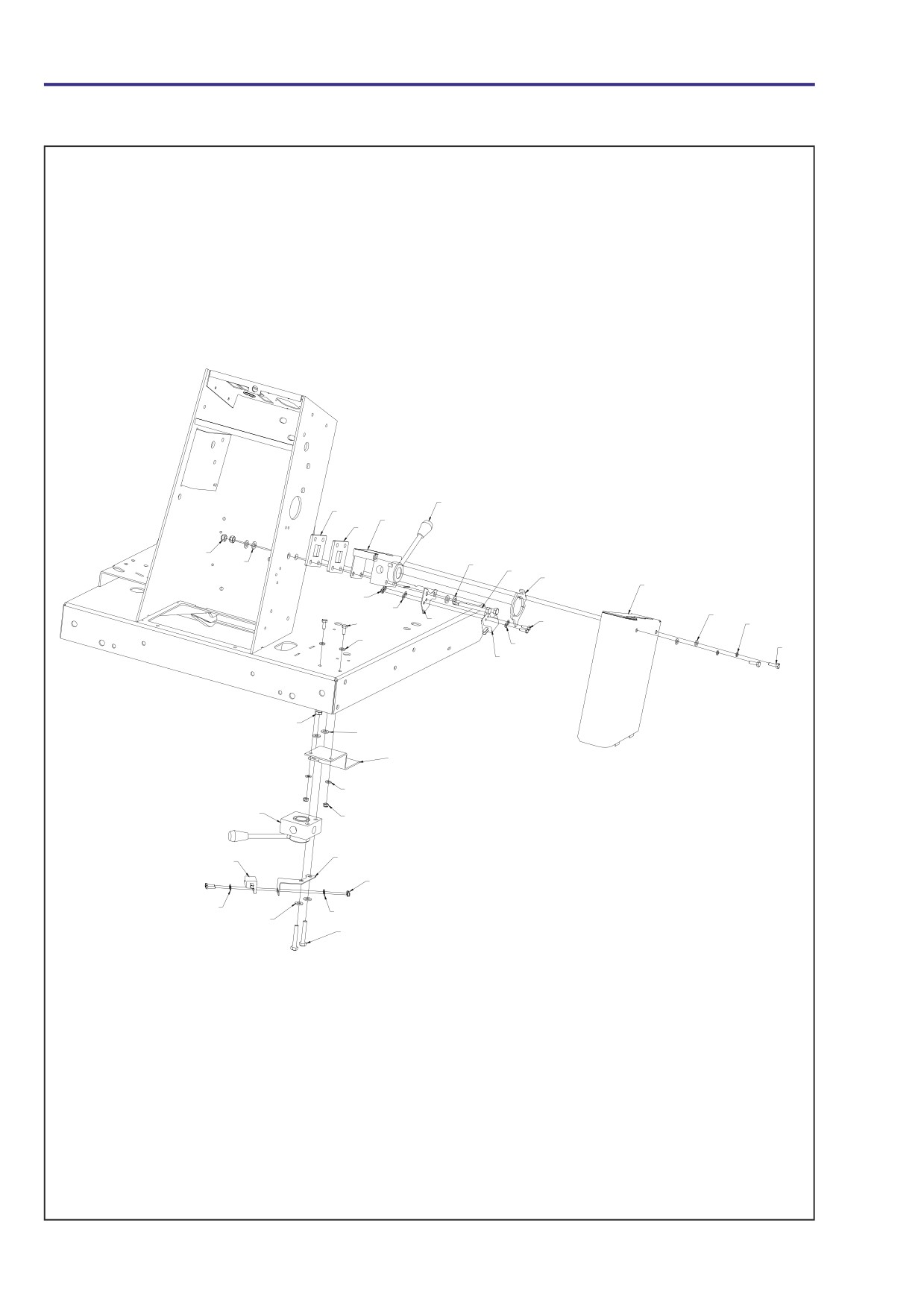

CONTROL - BRAKES
3
1
2
1
17
20
20
11
4
8
15
18
5
19
13
12
21
19
18
14
7
17
20
9
19
3
16
7
6
15
18
18
20
10
Parts-40
960 FRONTLINE
PARTS MANUAL
15
CONTROL - BRAKES
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
1
MBG4400
Spacer - Plate
2
2
MBG4399
Bracket - Mount
1
3
008028345
Hydraulic - Valve
2
4
MBG5181
M. Switch Actuator
1
5
MBG5177
Bracket - M. Switch Bracket valve
1
6
MBG3284A
Bracket - M. Switch
1
7
W38383
Switch - Normally Closed
2
8
MBG4401
Cover - Brake
1
9
MBG3883
Bracket - EBV
1
10
450018
Bolt - Hex M8x50
2
11
450022
Bolt - Hex M8x70
2
12
450151
Screw - Hex M5x16
4
13
450170
Screw - Hex M6x16
2
14
450171
Screw - Hex M6x20
2
15
450376
Nut - Nyloc M5
4
16
450377
Nut - Nyloc M6
2
17
450378
Nut - Nyloc M8
4
18
450388
Washer - Plain M5
8
19
450389
Washer- Plain M6
4
20
450390
Washer - Plain M8
8
21
450410
Washer - Spring M6
2
Parts-41
960 FRONTLINE
PARTS MANUAL
16

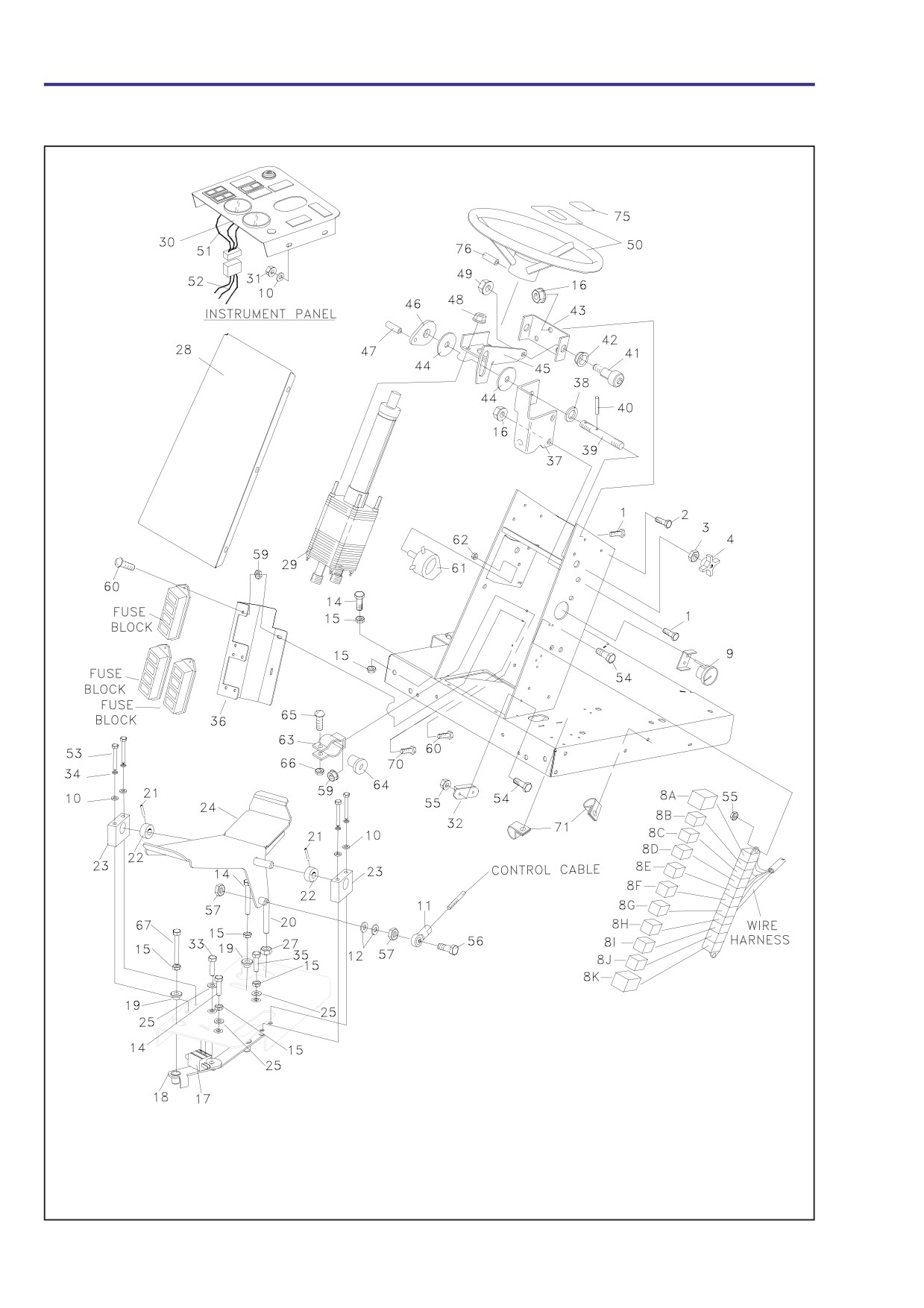

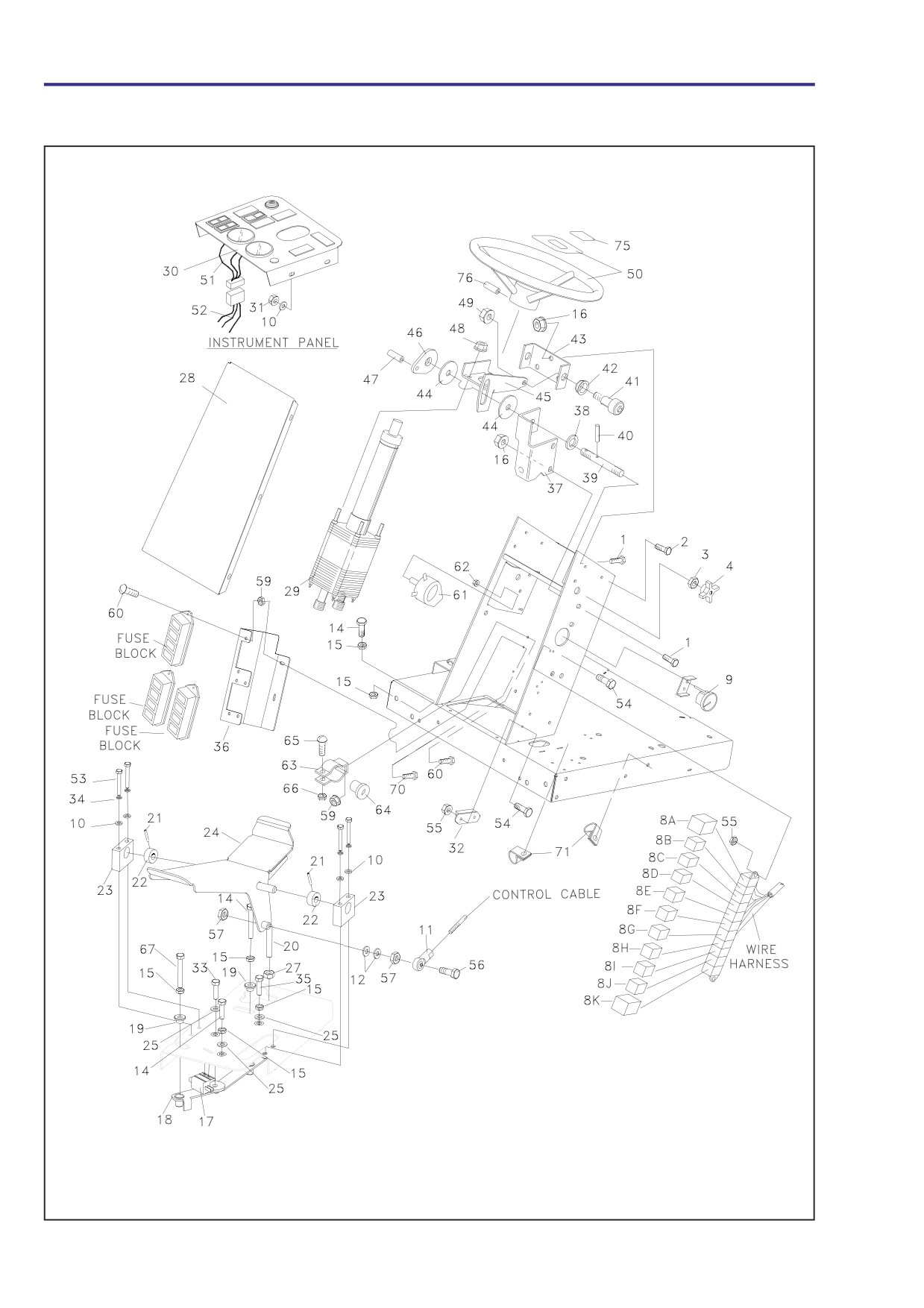

CONTROLS - STEERING
Parts-42
960 FRONTLINE
PARTS MANUAL
16
CONTROLS - STEERING
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
1
450213
Scrw-hex M10 x 20
4
2
452692
Scrw-hex M6 x 12 Taptite
4
3
450120055
Nut-hex 1/2-13
1
4
W038124-01
Knob
1
8A
008244553
Flasher Unit
1
8B
008244700
Relay 1/2 Size (R/H Deck)
1
8C
008244700
Relay 1/2 Size (Cen Deck)
1
8D
008244700
Relay 1/2 Size (L/H Deck)
1
8E
008244700
Relay 1/2 Size (Cutter Master)
1
8F
008244690
Relay (Starter)
1
8G
008244700
Relay 1/2 Size (Horn)
1
8H
008244700
Relay 1/2 Size (Alarm)
1
8I
008244660
Relay (Accessory)
1
8J
008244700
Relay 1/2 Size (Accessory Control)
1
8K
008244640
Seat Delay Module
1
9
008109660
Hour Meter Assem
1
10
450389
Wshr-M6 x 12.5 x 1.8
4
11
128079
Rod End, 1/4 Female
1
12
450389
Wshr-M6 x 12.5 x 1.8
2
14
450020
Bolt-hex M8 x 60
1
15
450324
Nut-hex M8
2
16
450379
Nut-hex M10 Nyloc
5
17
38383
Switch-n.c.
1
18
4124539
Wldmt - Speed Govenor Lever
1
19
MBF1552
Spacer
2
20
4126241
Stud M10
1
21
001290379
Scrw-set 1/4-20 x
1/4
2
22
W43067A
Collar, Set, Plate
2
23
4124883
Block-bearing
2
24
4124881
Wldmt-Foot Pedal
1
25
450390
Washer - Plain M8
3
26
001190377
Scrw-wlf 1/4-20 x 1/2
2
27
450325
Nut - Hex M10
1
28
MBG4402D.06
Cover-Tower
1
2198125
Bumper
2
Used Item 28
2198084
Latch-Swell
1
Used Item 28
450389
Wshr - M6 x 12.5
2
Used 2198084
29
4124000
Steer Valve & Column
1
30
MBG5127A
Panel-Instrument
1
31
450377
Nut-hex M6 Nyloc
9
32
2218069
Relay-time Delay
1
33
450192
Screw - Hex M8x25
1
34
450410
Washer - Spring M6
4
35
450194
Screw - Hex M8x35
1
36
4126701
Bracket - Fuse Blocks
1
37
172304.07
Bracket-Tilt Wheel
1
Parts-43
960 FRONTLINE
PARTS MANUAL
16
CONTROLS - STEERING
Parts-44
960 FRONTLINE
PARTS MANUAL
16
CONTROLS - STEERING
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
38
001594080
Wshr-.516 x .750 x12ga
1
39
173006
Shaft-Locking
1
40
001419072
Roll Pin-3/16 X 7/8
1
41
64166-17
Blt-Shldr 3/8-16x1.12
2
42
118047-02
Bushing Flip-lok, 1/2
2
43
172042a.07
Brkt-Steering
1
44
178138
Washer-Friction
2
45
172298.07
Support-Steering
1
46
176100.07
Wldmt-Fr Wshr
1
47
001496248
Roll Pin-5/16 x 1
1
48
001393117
Nut-hex 5/16-24 Whiz
4
49
450120267
Nut-hex 3/8-16 Nyloc
2
50
2198130
Steering Wheel
1
51
4128359
Console Harness
1
52
4128337
Main Harness
1
53
450005
Bolt-hex M6 x 50
4
54
001190042
Scrw-rnd Hd No10-24 X 1/2
4
55
001393298
Nut-hex No10-24 Nyloc
4
56
450001
Bolt-hex M6 X 30
1
57
450323
Nut-hex M6
1
58
450377
Nut-hex M6 Nyloc
1
59
001393298
Nut-hex No10-24 Nyloc
8
60
001190042
Scrw-rnd Hd No10-24 X 1/2
8
61
008239720
Horn
1
62
450452
Nut-hex M6 Verbus Ripp
1
63
469020633
Bracket-for Flash
1
64
48408
Flasher-552 12v
1
65
64018-2
Blt-crg 1/4-20x3/4
1
66
001399121
Nut-hex 1/4-20 Nyloc
1
67
450019
Bolt - hex M8 x 55
1
68 *
W178150
Diode-warning
6
70
001191098
Scrw-rnd Hd No10-24 X 3/4
2
71
48228-06
Clamp
2
72*
450388
Washer-M5 X 10 X 1.1
8
74
450194
Screw - Hex M8 x 35
1
75
839862
Decal-steering Whl
1
76
64061-26
Roll Pin-1/4 X 1-3/4
1
MBE3313C.07
Pad W/A
1
Deck Drive Foot Switch
*
MBG5583
Bracket
1
Parts-45
960 FRONTLINE
PARTS MANUAL
17

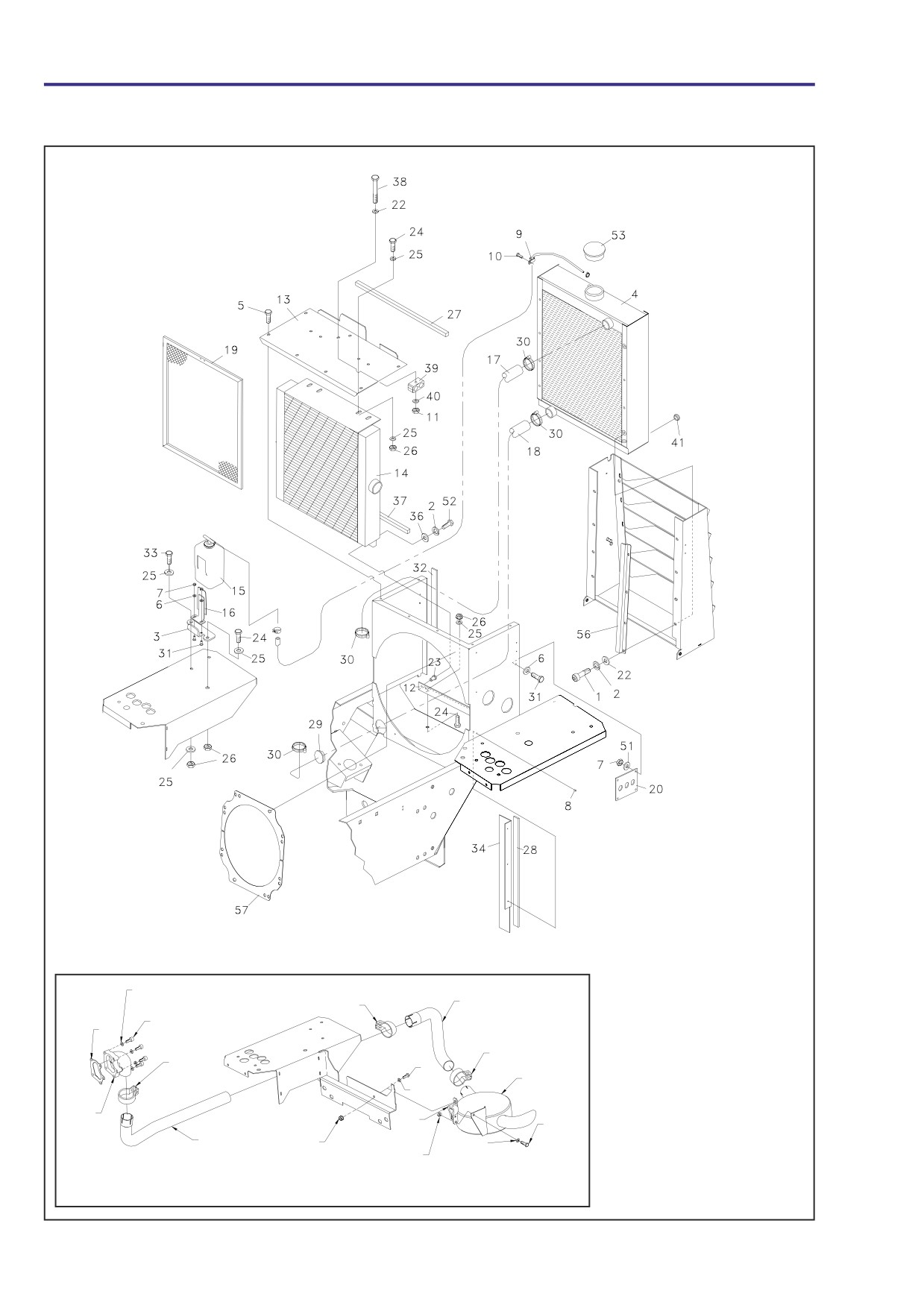

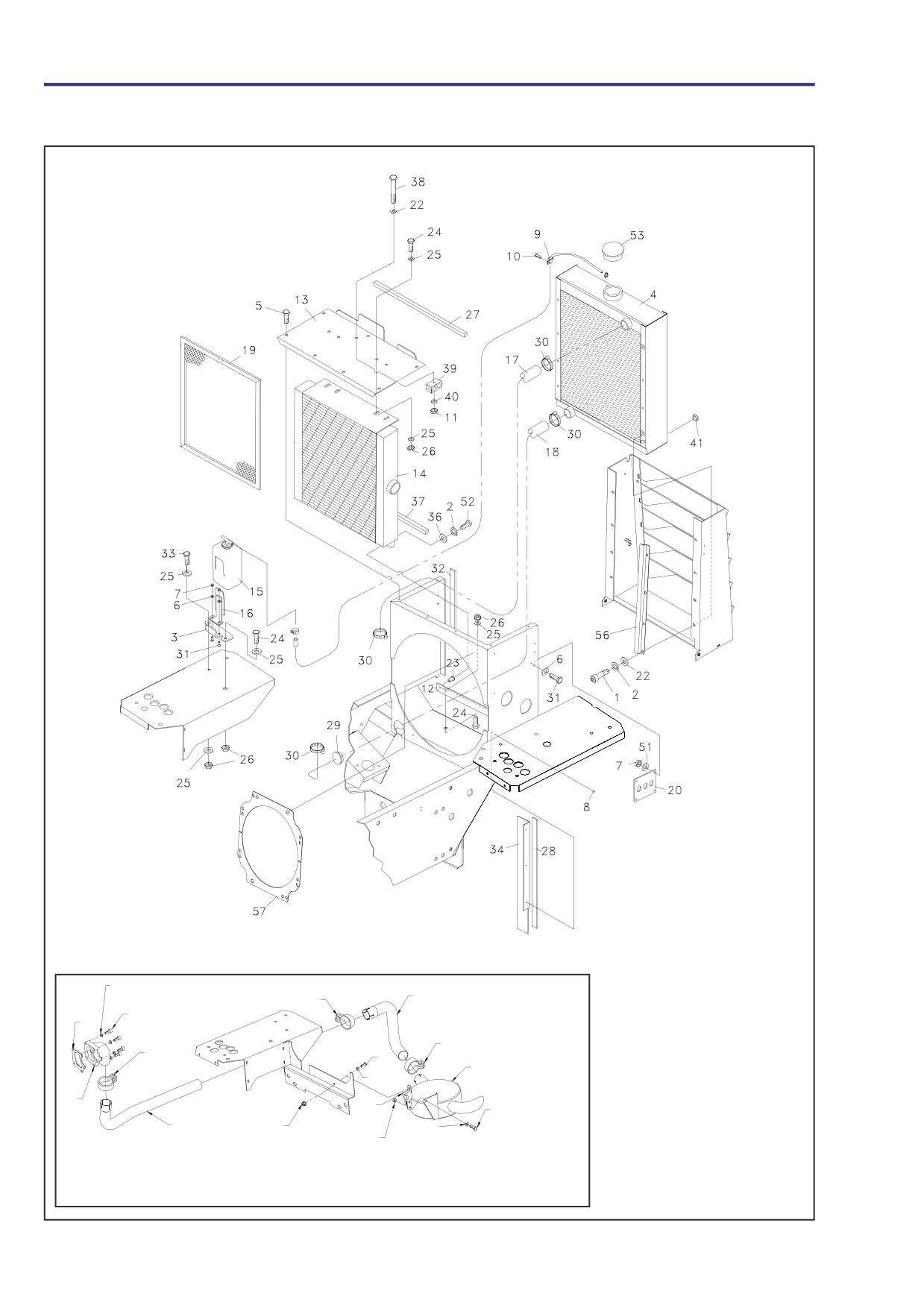

COOLING & EXHAUST
51
48
46
54
50
48
48
21
44
22
47
45
21
49
43
22
43
Parts-46
960 FRONTLINE
PARTS MANUAL
17
COOLING & EXHAUST
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
1
450190
Scrw-Hex M8 x 16
8
2
64006-02
Lockwasher-Helical 5/16
16
3
4128624
Bracket - Batery
1
4
2178211
Radiator
1
(Use Service Cap 2178211-01)
5
452701
Scrw-Hex M8 x 16 Taptite
6
6
450389
Wshr-M6 x 12.5 x 1.8
10
7
450377
Nut-Hex M6 Nyloc
6
8
W64215-01
Rivet-Pop 3.2 x 8
6
9
48228-1A
Clip-Cable Insulated
1
10
456110503
Scrw-Hex 1/4-20 x 5/8
1
11
450378
Nut-hex M8 Nyloc
3
12
2212043
Bracket-Oil Cooler
1
13
4123777
Shroud-Top Fan
1
13a*
MBG7031
Brkt-Engine Cover
1
13b*
379050522
Beading
0.3 Mtr
For 13a
13c*
450213
Scrw-Hex M10 X 20
2
For 13a To 13
13d*
450391
Wshr-M10 x 21 x 2.2
2
For 13c
13e*
450379
Nut-Hex M10 Nyloc
2
For 13c
14
006911730
Cooler-Hyd. Oil
1
15
2208079
Bottle-Coolant
1
16
4128625
Wldmt - Coolant Bottle Bracket
1
17
2218044
Hose-Rad Upper
1
18
2218045
Hose-Rad Lower
1
19
2218006
Screen
1
20
2218086
Seal-Tube
1
21
450191
Scrw-Hex M8 x 20
7
22
450390
Wshr-M8 x 17 x 1.8
13
23
450369
Nutsert-M8 A-l x 17.5
4
Use Insert Tool 2196247)
24
450213
Scrw-Hex M10 x 20
6
25
450391
Wshr-M10 x 21 x 2.2
11
26
450379
Nut-Hex M10 Nyloc
7
27
A904437
Foam
1
28
38471-08
Foam x 19.5 Lg
1
29
148034-07
Grommet-Insulation
1
30
48396
Clamp-Hose 2 Dia
4
31
450170
Scrw-Hex M6 x 16
6
32
38471-08
Foam 21.2 Lg
1
33
450214
Scrw-Hex M10 X 25
1
34
2212118
Baffle-Oil Cooler LH
1
35*
2212119
Baffle-Oil Cooler RH
1
36
MBA5289A
Wshr-8.5 x 25.5 x 3
4
37
48450-07
Foam 1x28
1
38
450020
Bolt-hex M8 X 60
2
39
2208139
Clamp
2
40
MBF0365
Wshr-10.5 X 25.2 X
3
2
41
2690024-01
Plug 1/4 Npt
2
Parts-47
960 FRONTLINE
PARTS MANUAL
17
COOLING & EXHAUST
51
48
46
54
50
48
48
21
44
22
47
45
21
49
43
22
43
Parts-48
960 FRONTLINE
PARTS MANUAL
17
COOLING & EXHAUST
LIST OF PARTS
* Not illustrated
ITEM
PART NO
DESCRIPTION
QTY
REMARKS
42*
4127198
Insulation-Exhaust
1
43
450453
Nut-hex M8 Verbus Ripp
2
44
4123047
Muffler
1
45
48378
Strap- Rubber
1
45
172212
Brkt-Upper Hanger
1
45
172290
Brkt-Lower Hanger
1
46
2213009
Pipe-Muffler
1
47
4122778
Wldmt-Exhaust Pipe
1
48
W048319-04
Clamp-Muffler 2-1/8
3
49
4122798
Pipe-Exhaust
1
50
-
Gasket-ex. Manifold
1
(Perkins Number 135997030)
51
450411
Washer - Spring M8
4
52
450192
Scrw-Hex M8 x
4
53
A691139
Cap-Radiatator
1
54
450727
Screw - Cap Head M8 x 40
5
55
MBG5543
Battery Brace
2
Secures Battery
56
4128648
Bracket - Bug Screen LH
1
57
MBG7022
Fan Shroud Plate
1
Parts-49
