Toyota Tundra. Manual - part 255

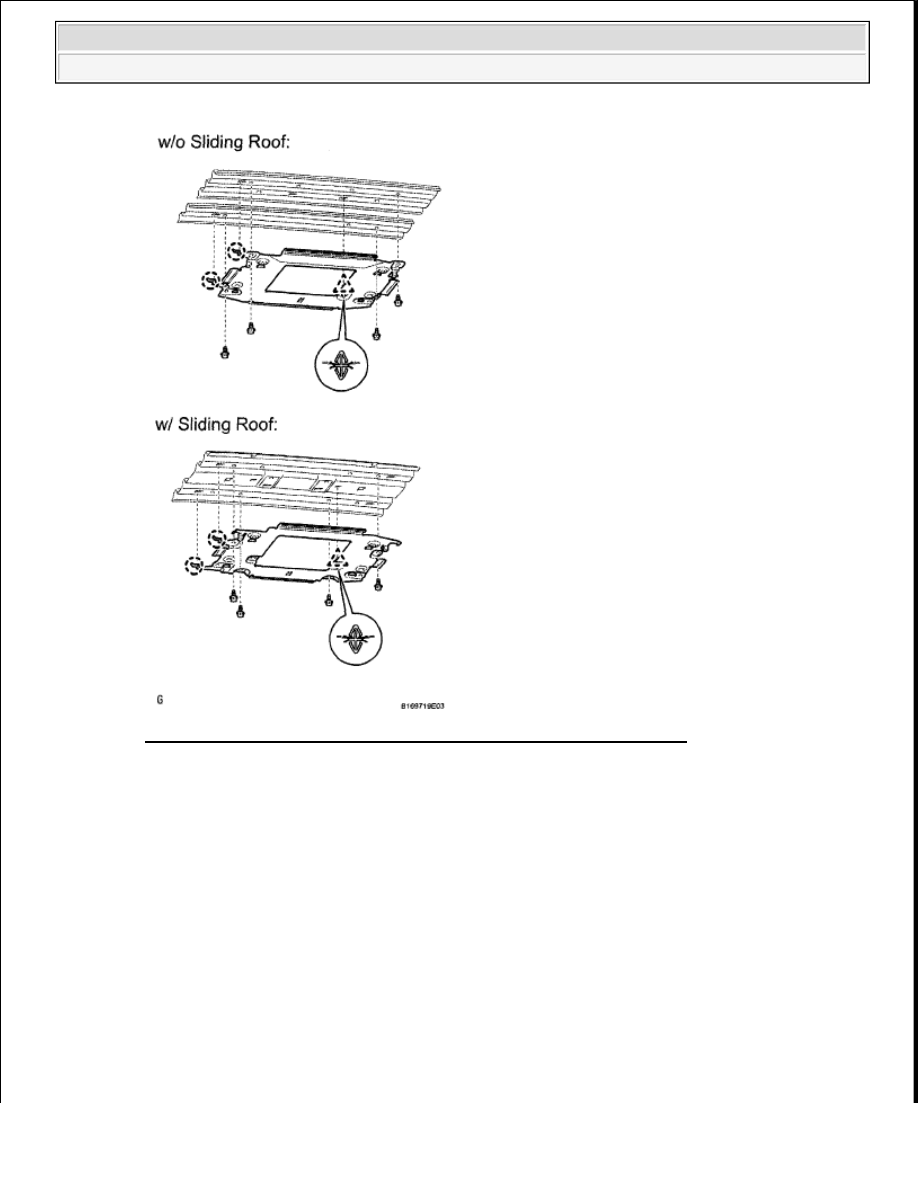

Fig. 411: Identifying Television Display Bolts, Clips And Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

4. REMOVE ROOF HEADLINING ASSEMBLY (for CrewMax)

a. Remove the roof headlining (see REMOVAL ).

5. REMOVE TELEVISION DISPLAY BRACKET

a. Remove the 4 bolts.

b. Detach the clip and 2 claws, and remove the bracket.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Audio/Visual - Tundra

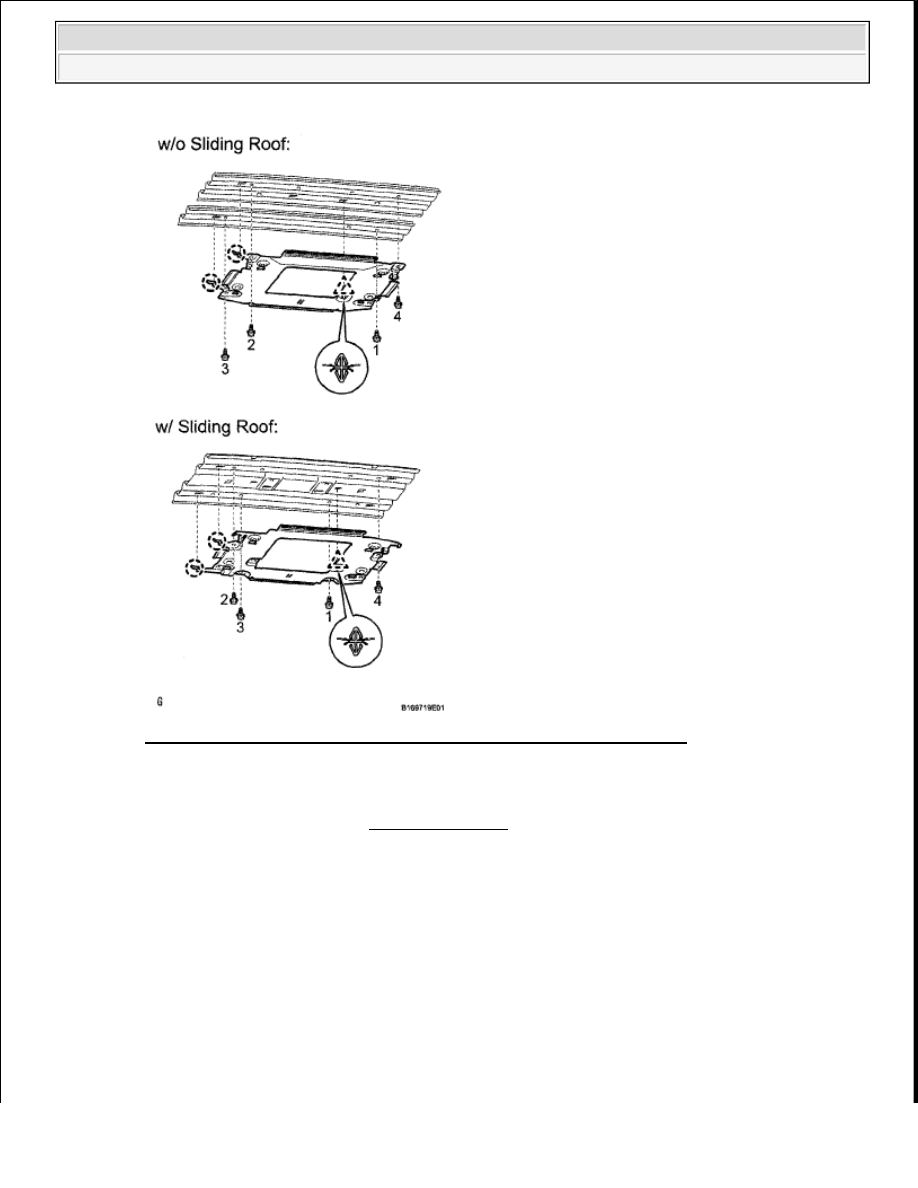

Fig. 412: Identifying Television Display Bracket Bolts, Clip And Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

INSTALLATION

1. INSTALL TELEVISION DISPLAY BRACKET

a. Attach the clip and 2 claws to install the bracket.

b. Install the 4 bolts.

HINT:

Install the bolts in the order shown in the illustration.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Audio/Visual - Tundra

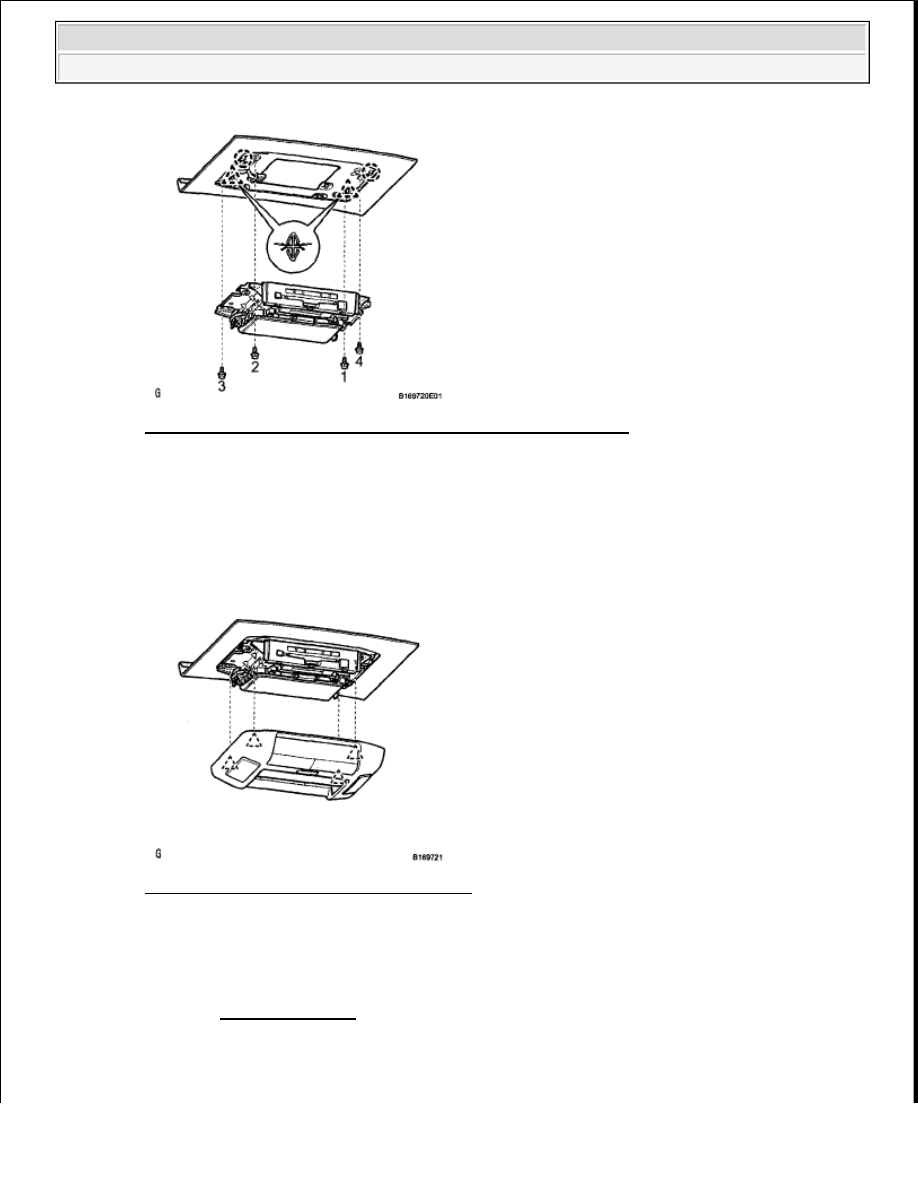

Fig. 413: Identifying Television Display Bracket Bolts, Clip And Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. INSTALL ROOF HEADLINING ASSEMBLY (for CrewMax)

a. Install the roof headlining (see INSTALLATION ).

3. INSTALL TELEVISION DISPLAY ASSEMBLY

a. Attach the 2 clips and 2 claws to install the television display.

b. Install the 4 bolts.

HINT:

Install the bolts in the order shown in the illustration.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Audio/Visual - Tundra

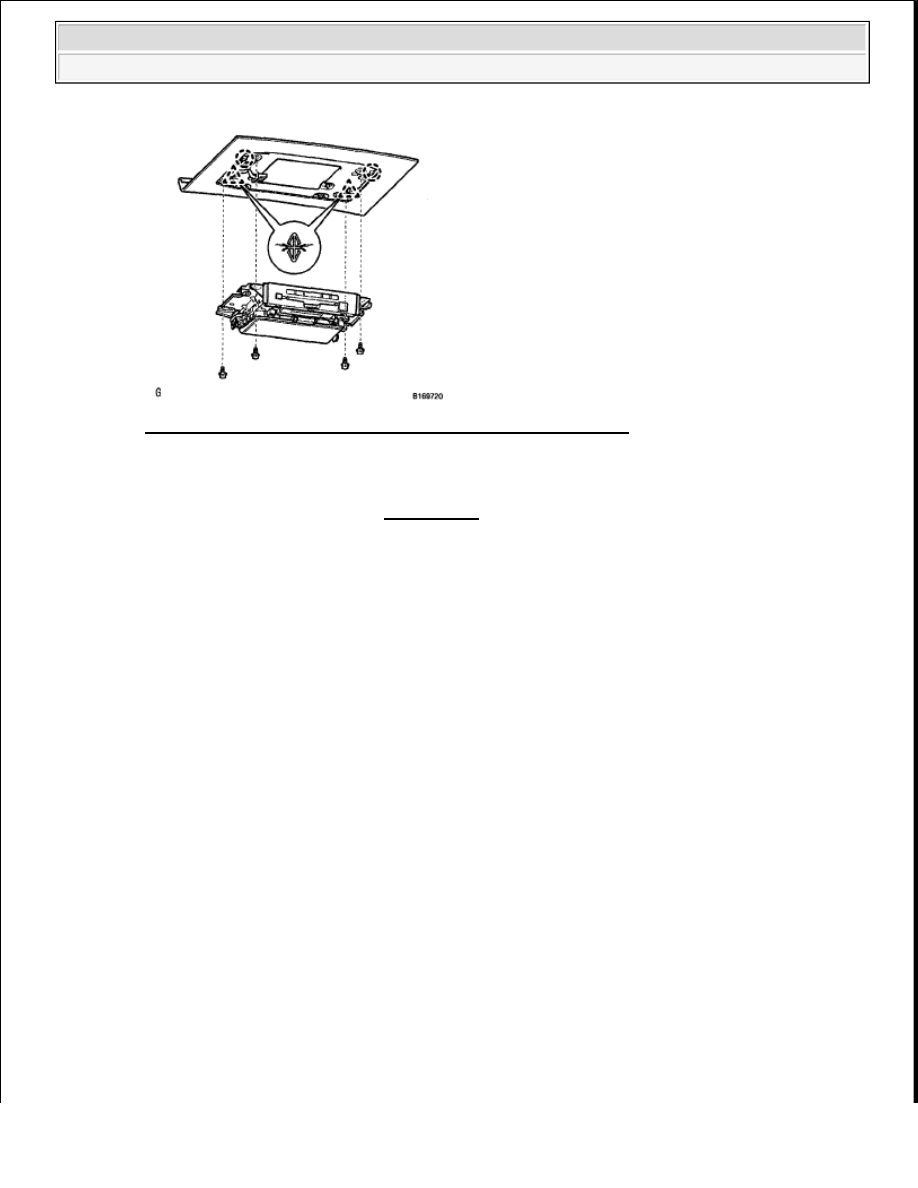

Fig. 414: Identifying Television Display Bolts, Clips And Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

4. INSTALL ROOM NO. 1 LIGHT ASSEMBLY

a. Attach the 4 clips to install the light.

Fig. 415: Identifying Light Assembly Clips
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

RADIO ANTENNA

NOTE:

Do not damage the design surface of the television display when you
install the light.

NOTE:

Some systems need to be initialized after the cable is reconnected (see
INITIALIZATION ).

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Audio/Visual - Tundra
