PLASTIC BODY PARTS

VI–3

VI

REPAIRABLE RANGE OF POLYPROPYLENE BUMPERS

A6E981850010B01

The three types of damaged bumpers shown below are considered repairable. Although a bumper which has been
damaged greater than this could also be repaired, it should be replaced with a new one because such repair would
detract from the looks and quality of the bumper. In addition, such repair is not considered reasonable in terms of
work time.

Repairable Bumpers

1. A bumper with a hole less than 50 mm {1.97 in} in

diameter.

2. A bumper with a crack less than 100 mm {3.94 in}

in length.

3. A bumper with a crack less than 100 mm {3.94 in}

in length that is less than half of the width of the
bumper.

End Of Sie

YMU980PCM

YMU980PCN

YMU980PCP

VI–4

PLASTIC BODY PARTS

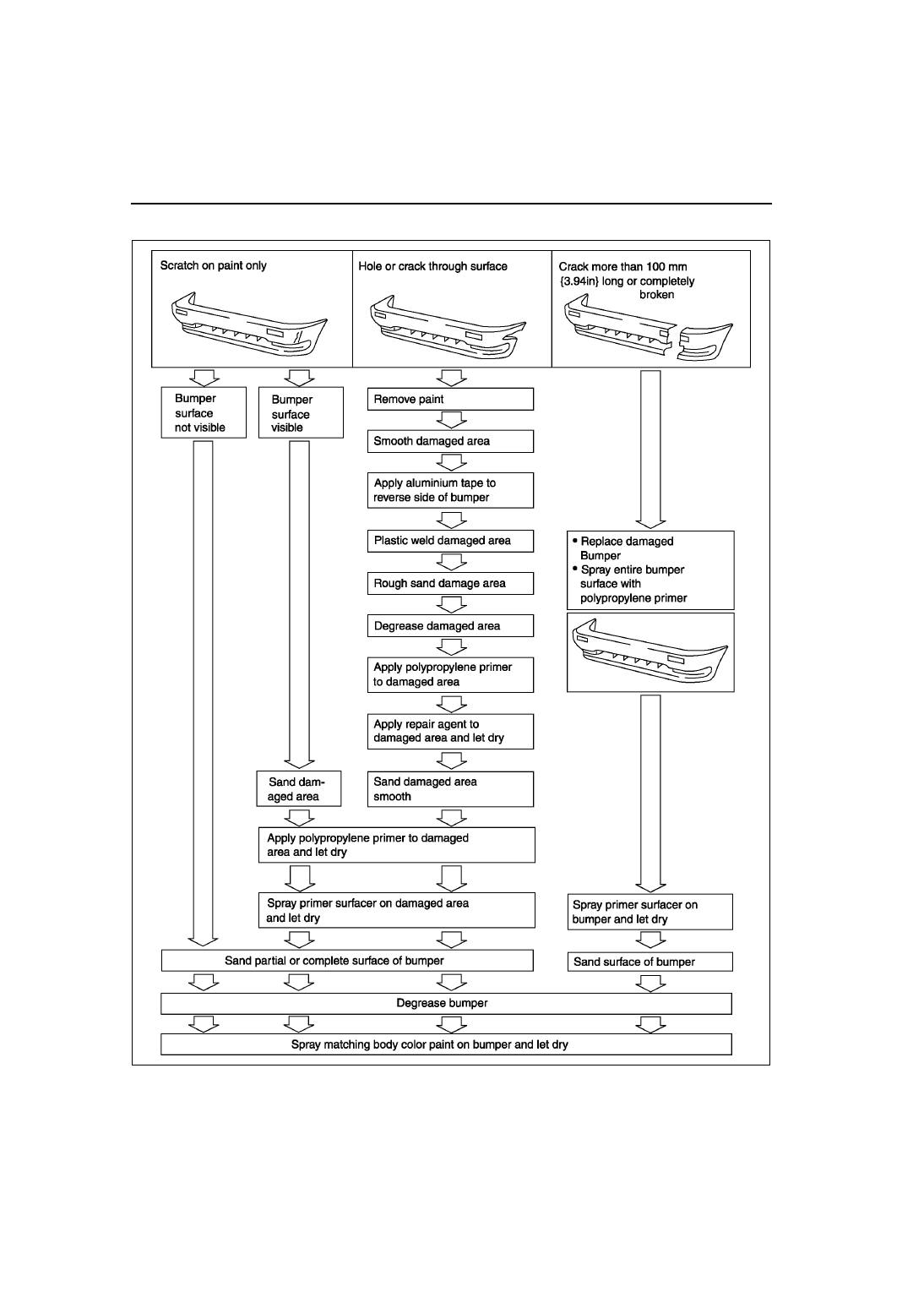

POLYPROPYLENE BUMPER REPAIR

A6E981850010B02

End Of Sie

YMU980PCQ

PLASTIC BODY PARTS

VI–5

VI

PROCEDURE

A6E981850010B03

Repair of polypropylene bumpers having damage that has reached the surface of the polypropylene and are too
serious to be restored by painting only.

1. Cut the rough edges around the damage with a knife to make it smooth. Sand the area with a sander to make

an angle of about 45

°.

ZUA9818B001

ZUA9818B002

VI–6

PLASTIC BODY PARTS

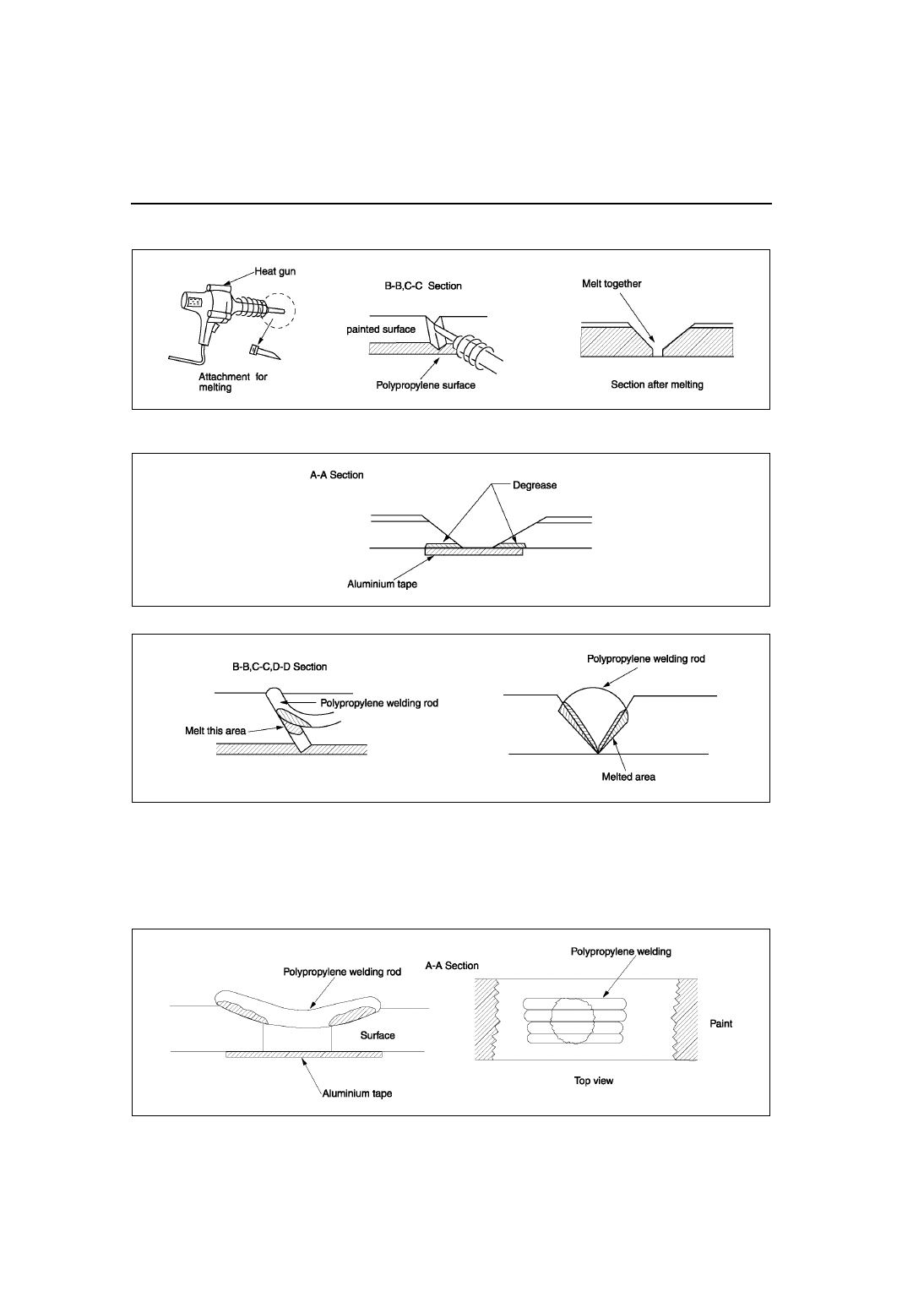

2. Weld the damaged area.

• For repair of a cracked area, melt the crack together with a heat gun and a melting attachment.

• For repair of a hole, degrease the area on both sides of the bumper and apply aluminium tape on the

reverse side of the damage area.

3. Melt the polypropylene welding rod with a heat gun and deposit it the cracked area.

Note

• Heat the shaded area to melt it.

• Take care not to overlay melt welding rod. If the part is welded with the welding rod melted like jelly, the

welding strength will be reduced.

• Hold the heat gun 10—20 mm {0.39—0.79 in} from the part being welded.

• Do not move the welding rod until the welded parts cool.

ZUA9818B003

ZUA9818B005

ZUA9818B004

ZUA9818B006
