DIMENSIONS

V–11

V

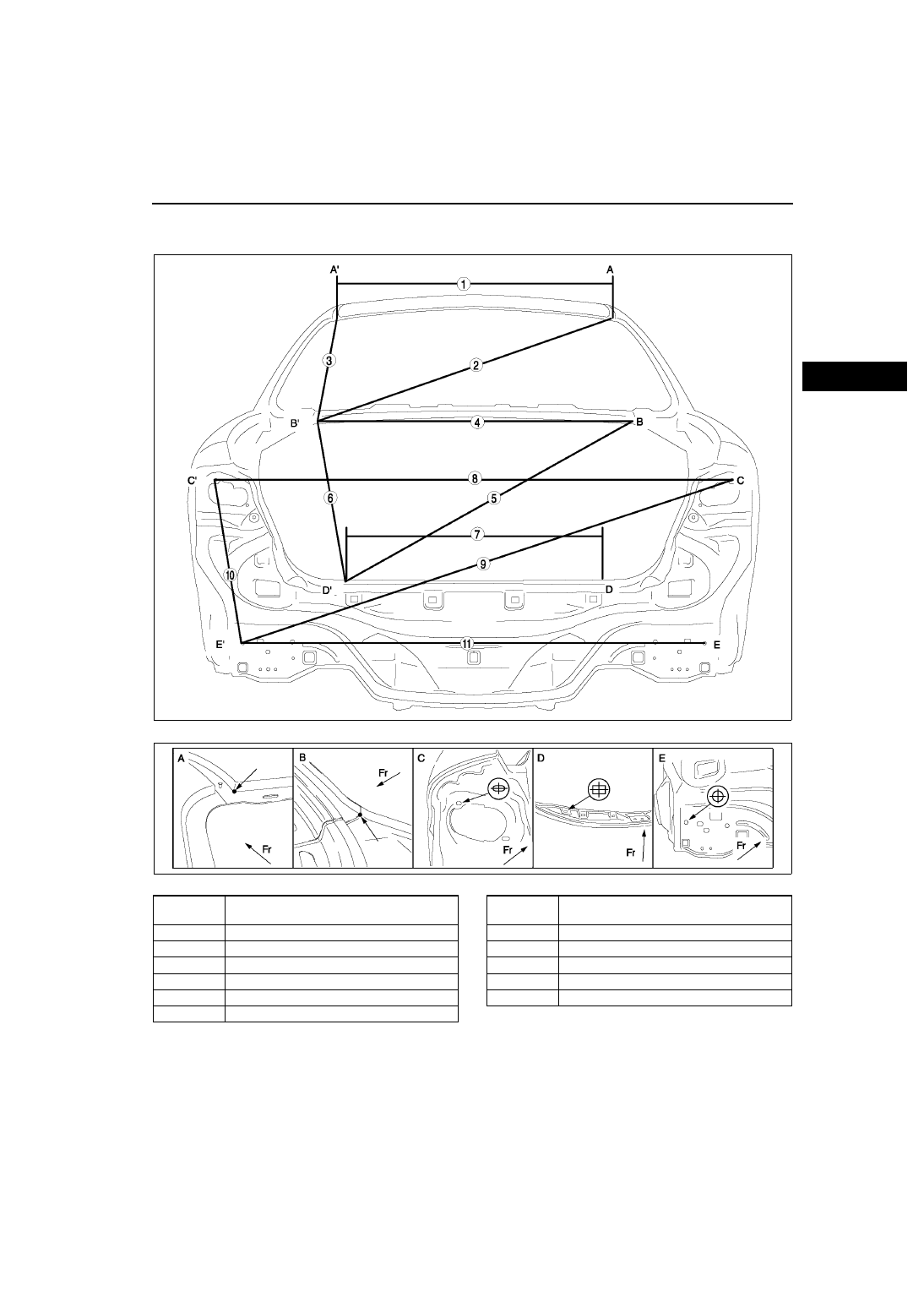

REAR BODY STRAIGHT-LINE DIMENSIONS

A6E981670002B01

SEDAN

.

A6E9816B018

A6E9816B019

Measured

location

Dimensions mm {in}

1

1,013 {39.88}

2

1,273 {50.12}

3

826 {32.52}

4

928 {36.54}

5

969 {38.15}

6

555 {21.85}

7

680 {26.77}

8

1,402 {55.20}

9

1,388 {54.65}

10

452 {17.80}

11

1,228 {48.35}

Measured

location

Dimensions mm {in}

V–12

DIMENSIONS

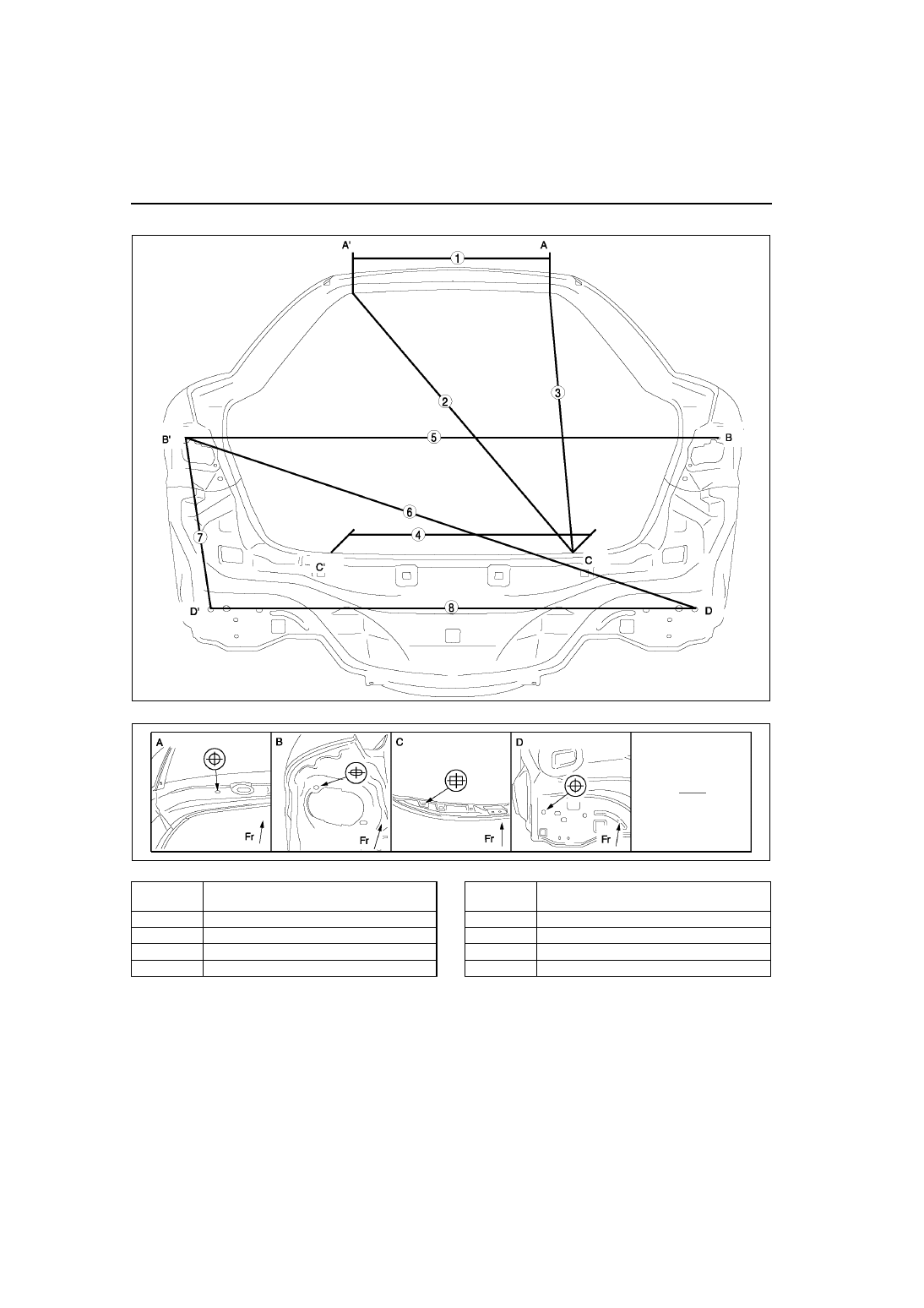

5HB

.

End Of Sie

A6E9816B020

A6E9816B021

Measured

location

Dimensions mm {in}

1

700 {27.56}

2

1,436 {56.54}

3

1,260 {49.61}

4

680 {26.77}

5

1,402 {55.20}

6

1,388 {54.65}

7

452 {17.80}

8

1,228 {48.35}

Measured

location

Dimensions mm {in}

VI–1

VI

VI

PLASTIC BODY PARTS

PLASTIC BODY PARTS ....................................... VI-2

PLASTIC PARTS HEAT RESISTING

TEMPERATURE .............................................. VI-2

REPAIRABLE RANGE OF

POLYPROPYLENE BUMPERS....................... VI-3

POLYPROPYLENE BUMPER REPAIR.............. VI-4
PROCEDURE ..................................................... VI-5

VI–2

PLASTIC BODY PARTS

PLASTIC PARTS HEAT RESISTING TEMPERATURE

A6E981850000B01

Note

• The application of temperatures higher then heat resisting temperatures may result in part deformation.

End Of Sie

PLASTIC BODY PARTS

Part Name

Code

Material Name

Heat resisting

TemperatureC

°{F°}

WINDSHIELD MOULDING

PVC

POLYVINYLCHLORIDE

95 {203}

COWL GRILLE

PP

POLYPROPYLENE

95 {203}

FRONT COMBINATION
LIGHT

LENS

PC

POLYCARBONATE

130 {266}

HOUSING

PBT

PBT

120 {248}

RADIATOR GRILLE

GRILLE

ABS

ABS

90 {194}

REINFORCE-
MENT

PP

POLYPROPYLENE

95 {203}

FRONT BUMPER

PP

POLYPROPYLENE

100 {212}

FRONT SIDE TURN
LIGHT

LENS

PMMA

ACRYLIC

75 {167}

HOUSING

PC-PBT

POLYPROPYLENE-PBT

120 {248}

OUTSIDE MIRROR

HOUSING

ABS

ABS

95 {200}

BASE

PBT

PBT

200 {395}

BLACK

AES

AES

75 {167}

BODY COLOR

ABS

ABS

90 {194}

MIRROR HOLDER

PP

POLYPROPYLENE

50 {122}

REAR COMBINATION
LIGHT

LENS

PMMA

ACRYLIC

80 {167}

HOUSING

AES

AES

70 {158}

REAR BUMPER

PP

POLYPROPYLENE

100 {212}

REAR FINISHER

ABS

ABS

90 {194}

HIGH-MOUNT BRAKE LIGHT(5HB)

PC

POLYCARBONATE

130 {266}

ROOF MOULDING

PVC

POLYVINYLCHLORIDE

95 {203}

BELTLINE MOLDING

PVC

POLYVINYLCHLORIDE

95 {203}

REAR SPOILER

ABS

ABS

90 {194}

SHROUD PANEL

PP

POLYPROPYLENE

100 {212}
