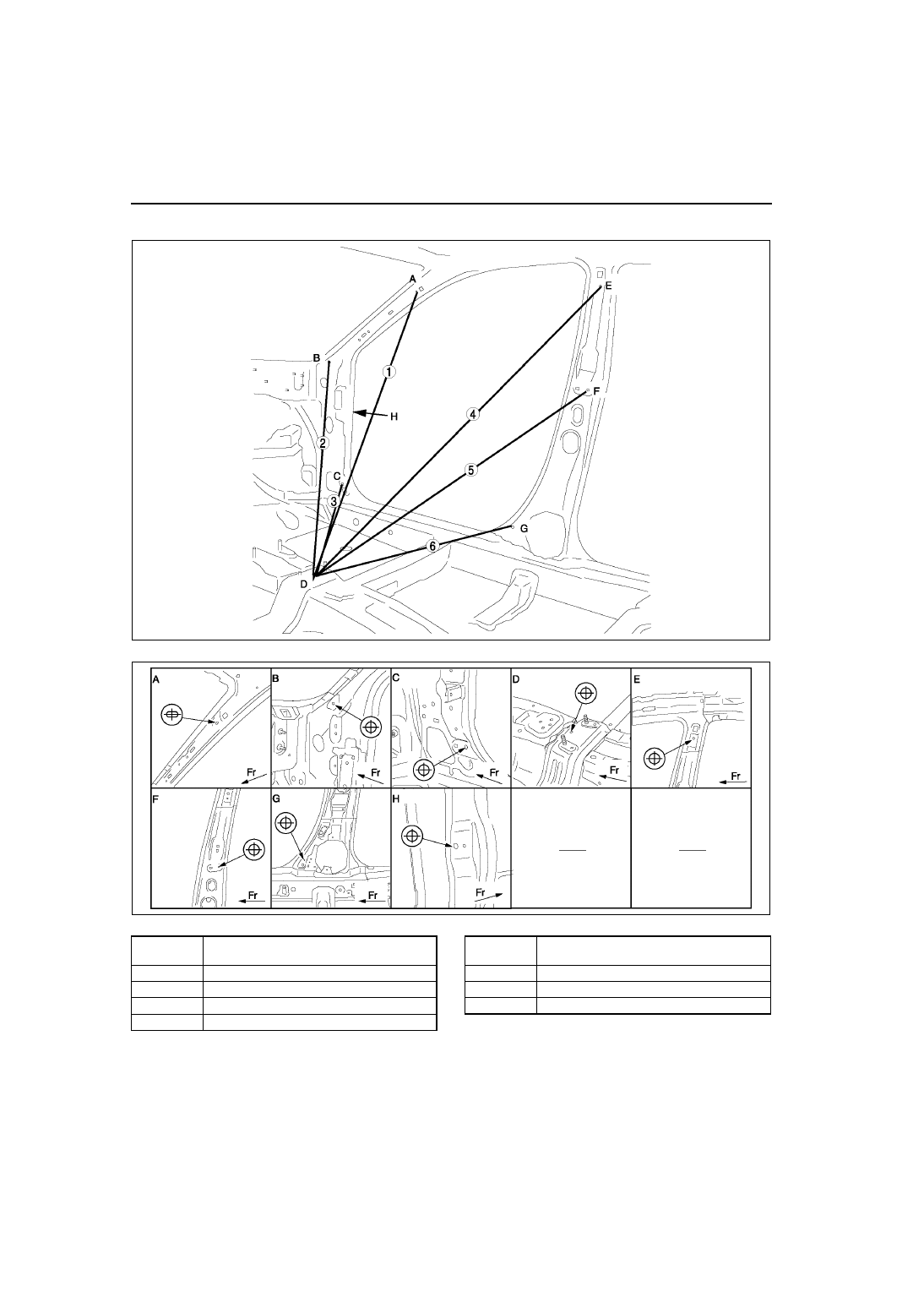

DIMENSIONS

V–7

V

5HB

.

End Of Sie

A6E9816B010

A6E9816B011

Measured

location

Dimensions mm {in}

1

692 {27.24}

2

747 {29.41}

3

998 {39.29}

4

968 {38.11}

5

451 {17.76}

6

1,349 {53.11}

7

1,144 {45.04}

8

1,144 {45.04}

9

1,501 {59.09}

10

1,204 {47.40}

11

1,093 {43.03}

12

908 {35.75}

13

943 {37.13}

14

979 {38.54}

15

1,050 {41.34}

16

921 {36.26}

17

683 {26.89}

18

1,231 {48.46}

19

1,004 {39.53}

20

536 {21.10}

Measured

location

Dimensions mm {in}

V–8

DIMENSIONS

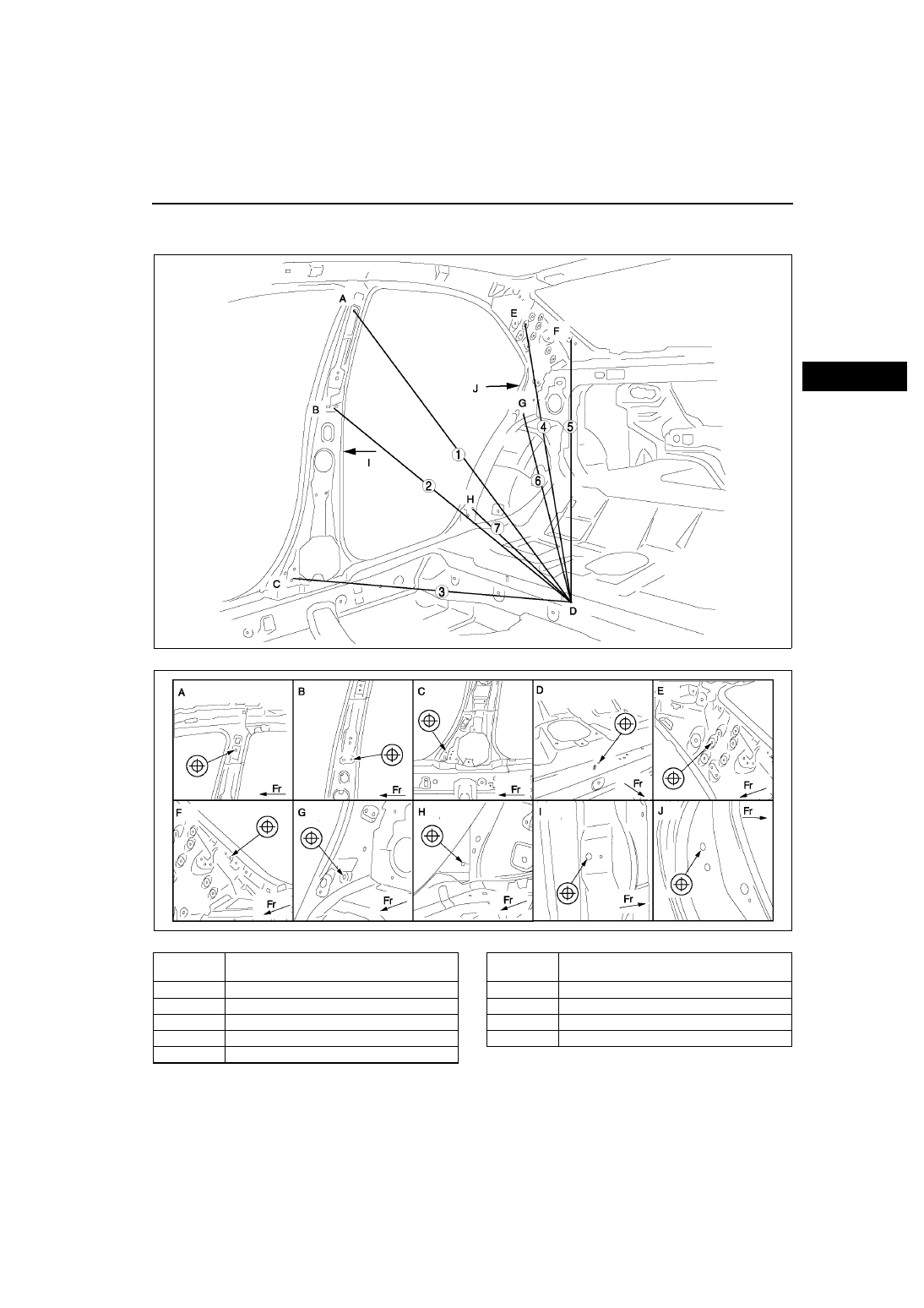

ROOM STRAIGHT-LINE DIMENSIONS (1)

A6E981670001B01

.

End Of Sie

A6E9816B012

A6E9816B013

Measured

location

Dimensions mm {in}

1

1,024 {40.31}

2

1,098 {43.23}

3

920 {36.22}

4

1,175 {46.26}

5

1,010 {39.76}

6

767 {30.20}

H-H’

1,487 {58.54}

Measured

location

Dimensions mm {in}

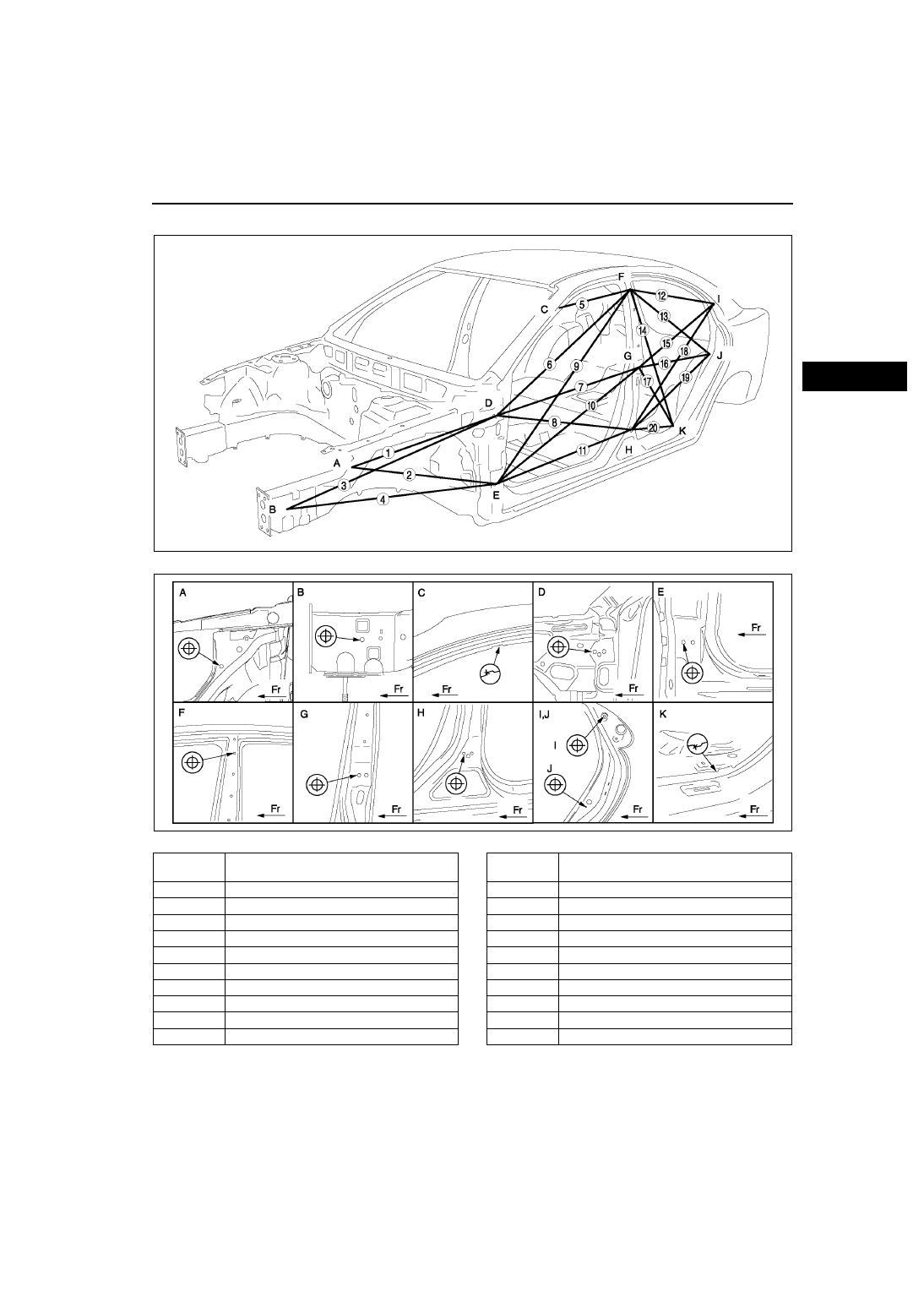

DIMENSIONS

V–9

V

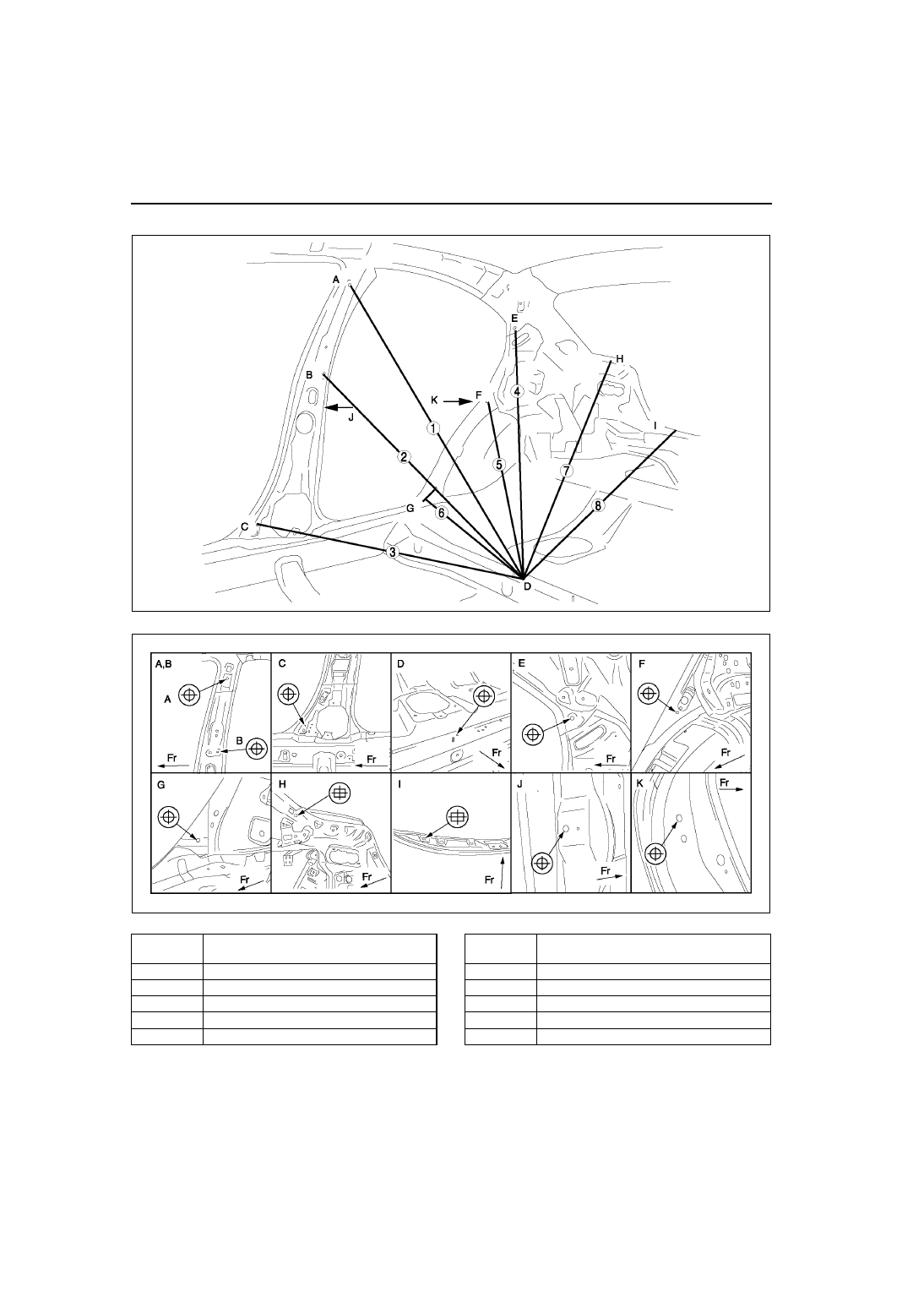

ROOM STRAIGHT-LINE DIMENSIONS (2)

A6E981670001B02

SEDAN

.

A6E9816B014

A6E9816B015

Measured

location

Dimensions mm {in}

1

RH:1,141 {44.92}, LH:1,104 {43.46}

2

RH:996 {39.21}, LH:946 {37.24}

3

RH:952 {37.48}, LH:897 {35.31}

4

RH:1,193 {46.97}, LH:1,157 {45.55}

5

RH:1,285 {50.59}, LH:1,252 {49.29}

6

RH:1.079 {42.48}, LH:1,030 {40.55}

7

RH:833 {32.80}, LH:767 {30.20}

I-I’

1,584 {62.36}

J-J’

1,557 {61.30}

Measured

location

Dimensions mm {in}

V–10

DIMENSIONS

5HB

.

End Of Sie

A6E9816B016

A6E9816B017

Measured

location

Dimensions mm {in}

1

RH:1,141 {44.92}, LH:1,104 {43.46}

2

RH:996 {39.21}, LH:946 {37.24}

3

RH:952 {37.48}, LH:897 {35.31}

4

RH:1,204 {47.40}, LH:1,166 {45.91}

5

RH:1,027 {40.43}, LH:976 {38.43}

6

RH:833 {32.80}, LH:767 {30.20}

7

RH:1,402 {55.20}, LH:1,374 {54.09}

8

RH:1,671 {65.79}, LH:1,657 {65.24}

J-J’

1,584 {62.36}

K-K’

1,557 {61.30}

Measured

location

Dimensions mm {in}
