Figure 2
S
TRALIS
AT/AD
78

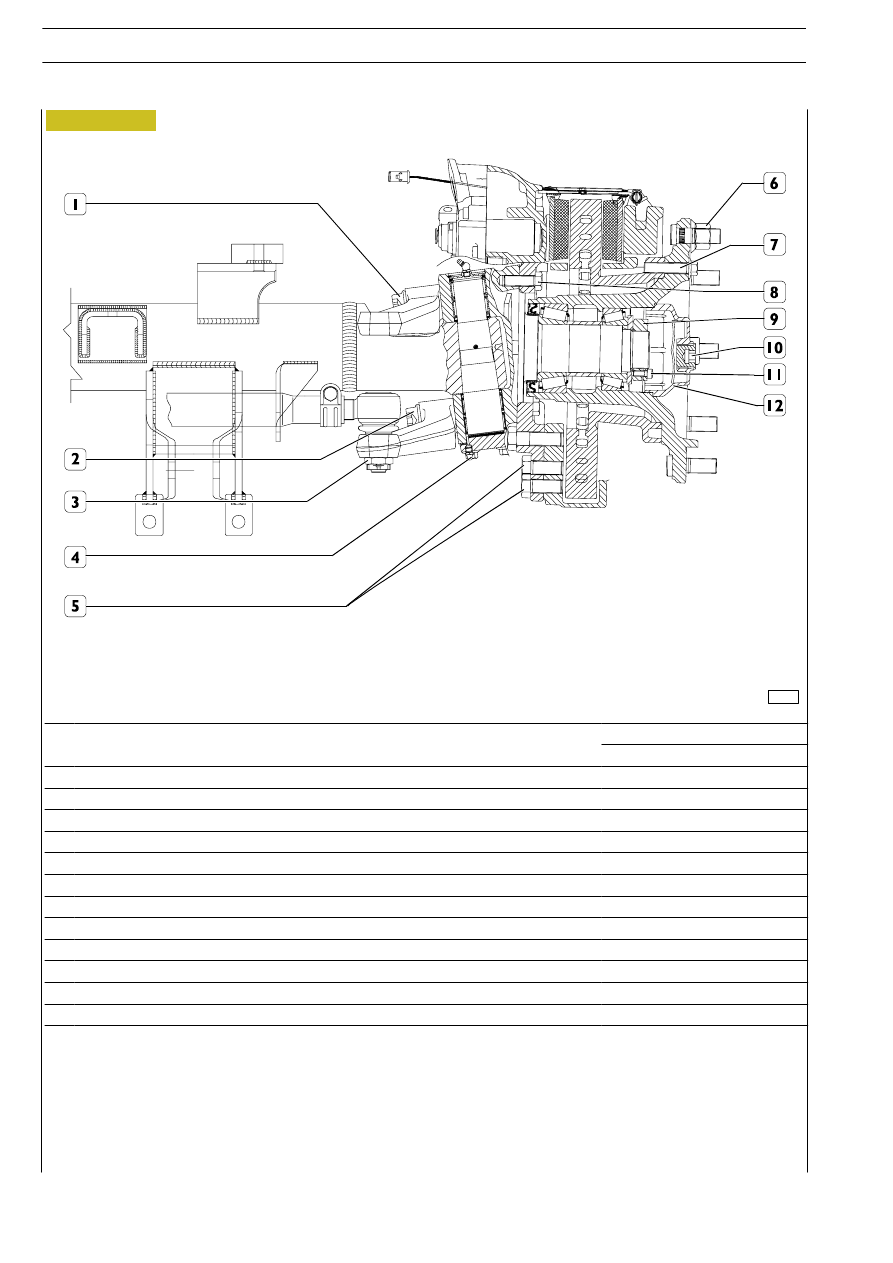

STEERING REAR ADDED AXLE 57080/D1 (N 8072)
Base - January 2003
PART
TORQUE
Nm
(kgm)
1
Flanged screw fixing transverse tie rod lever onto stub axle
1325
± 75
(135
± 7.6)
2
Flanged screw fixing longitudinal lever onto stub axle
1325
± 75
(135
± 7.6)
3
Castellated nut for kingpin
300 *
30 *
4
Flanged hex screw fixing bottom fifth wheel cover onto stub axle
117
± 6
(11.7
± 0.6)
5
Self-locking hex screw M20x1.5 fixing brake callipers
615.5
± 61.5
(61.5
± 6.1)
6
Nut fixing wheels
665.5
± 66.5
(66.6
± 6.6)
7
Hex screw fixing brake disc to wheel hub
281.5
± 13.5
(28.1
± 1.5)
8
Self-locking hex screw M16x1.5 fixing brake calliper mount to stub axle
313.5
± 15.5
(313.5
± 15.5)
9
Ring nut fixing wheel bearing
515.5
± 24.5
(51.5
± 2.4)
10
Threaded plug for wheel hub cover
57.5
± 7.5
(5.8
± 0.2)
11
Cylindrical screw with recessed hex locking ring nut adjusting wheel bearings
27.5
± 2.5
(2.7
± 0.2)
12
Cover for wheel hub
•
130
± 10
(132
± 0.1)
*
Minimum torque — peak torque, tighten to the first cut coinciding with the hole for the split pin
• Apply Loctite 574 on the wheel hub/cover contact surface
