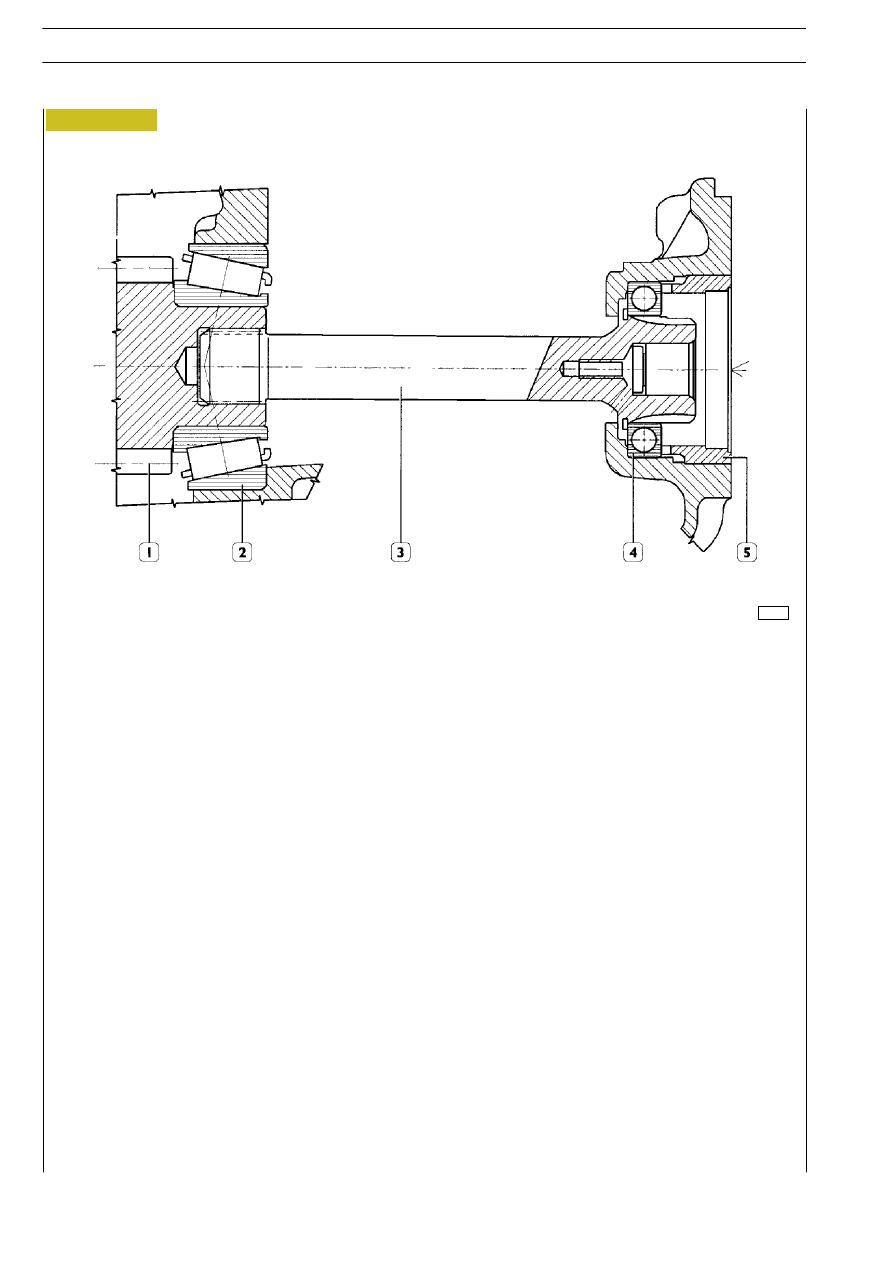

Figure 2
48980

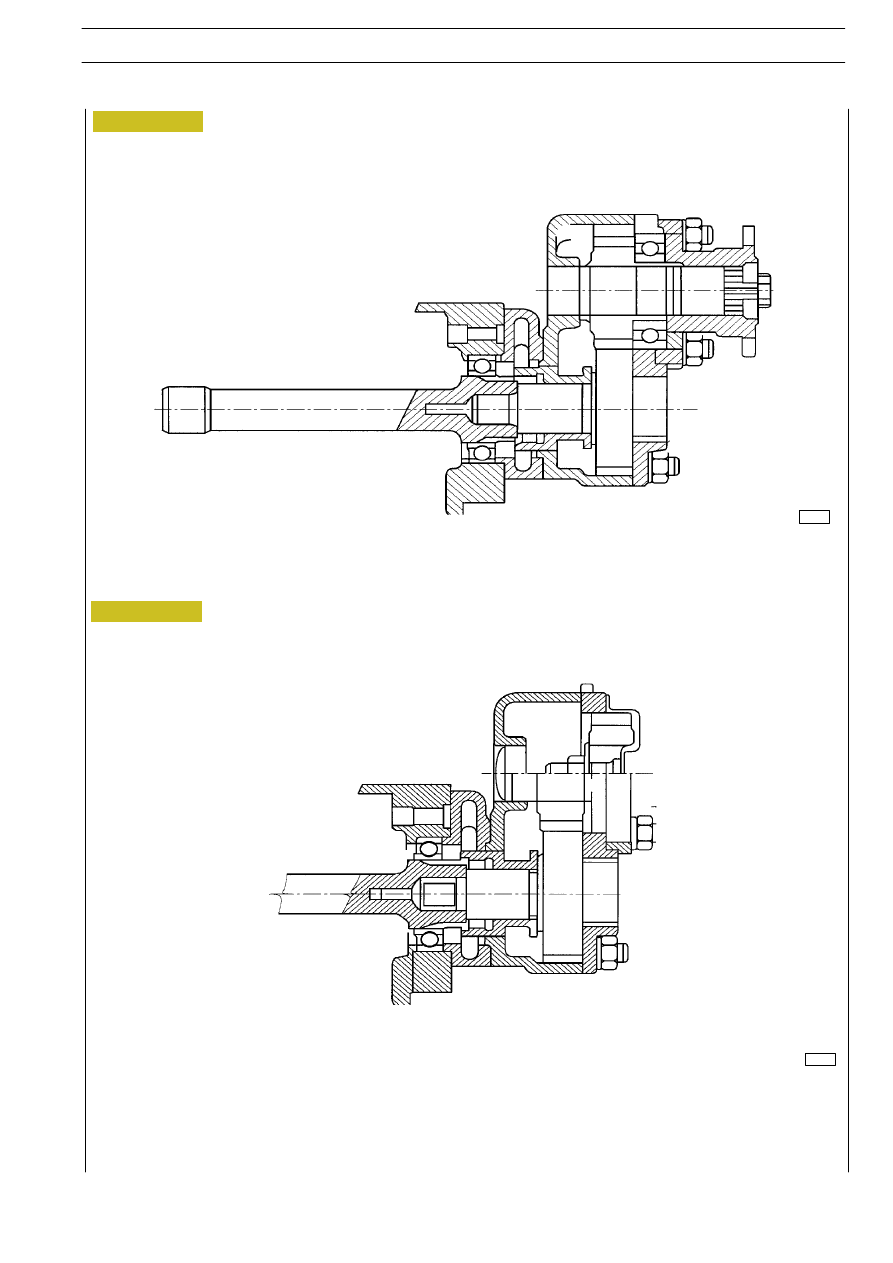

POWER TAKE-OFF APPLICATION FOR AUTOMATED EUROTRONIC GEARBOX
POWER TAKE-OFF
213
S
TRALIS
AT/AD
SPECIFICATIONS AND DATA

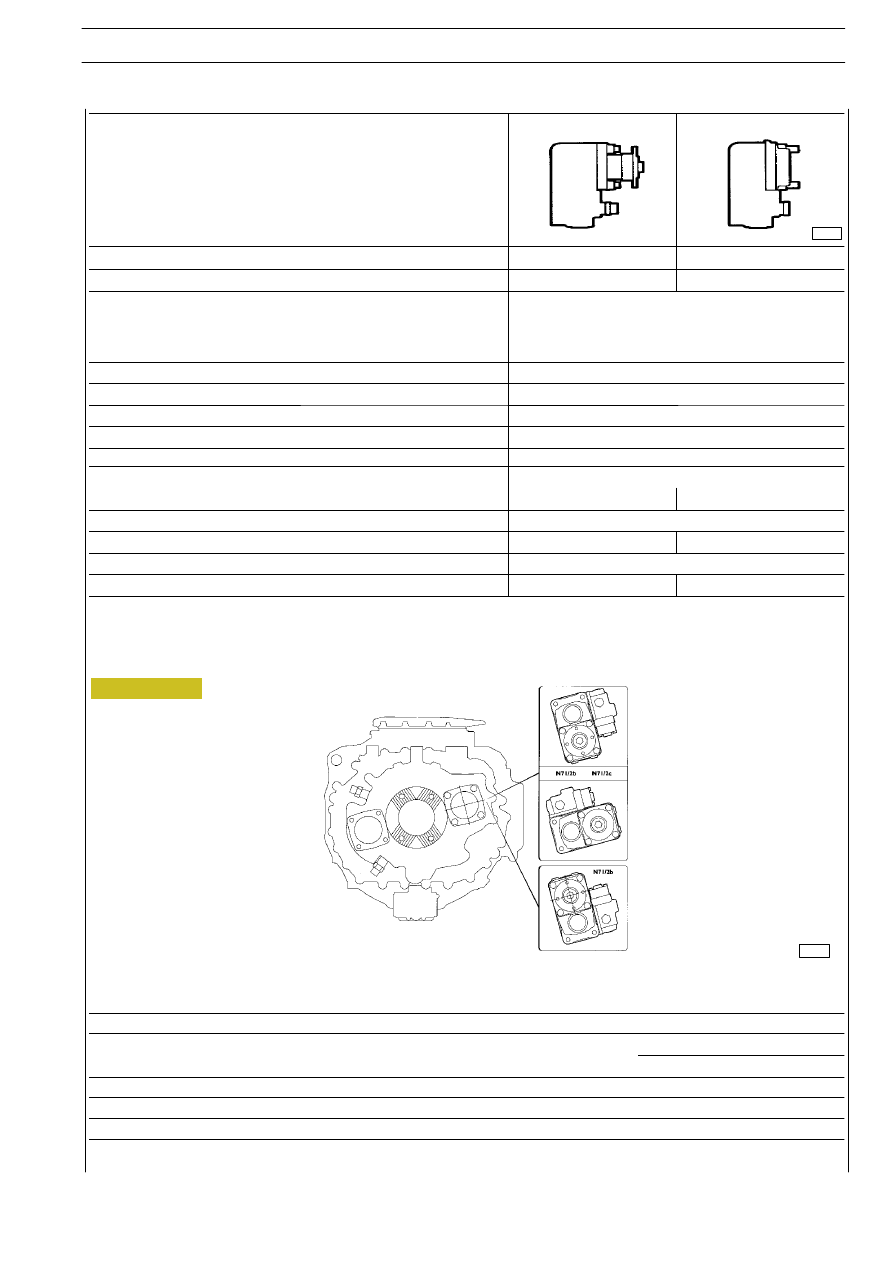

ZF POWER TAKE-OFF
For transmissions:
- EuroTronic Automated 12 AS 2301

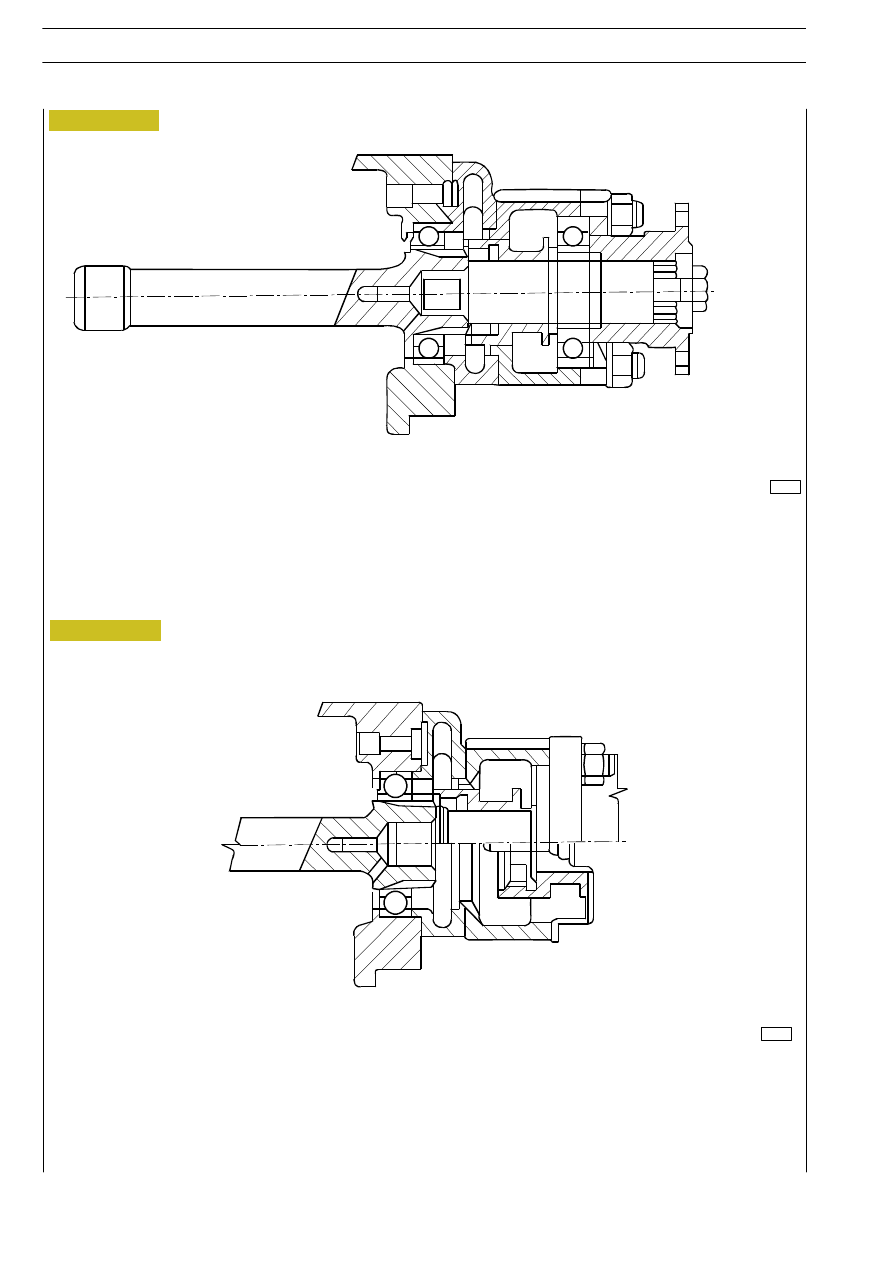

48979
TYPE
N71/2B
N71/2C
Order No.
8866603
8866604
PTO output rev ratio/engine rev no.:
- normal
- over-multiplied
- reduced
1.08
-
-
PTO output rev ratio / PTO input rev ratio
1.318
Rated torque at PTO output with 1500 rev/min
Nm
300
Expected duration with rated torque and 1500 rev/min at output hours
500
Transmission detectable torque
395
Rotation direction
engine direction
Type of motion output (vehicle travelling direction)
rear
with flange
with pump attachment
Control
pneumatic
Weight applied on barycenter
N
108
88
Application
To secondary shaft on transmission rear side
Weight
kg
11
9
PTO = POWER TAKE-OFF
TIGHTENING TORQUES
ELEMENT
TORQUE
ELEMENT
Nm
kgm
M12 stud bolts for power take-off fastening
20
2
M12 nuts for power take-off or oil pump fastening stud bolts
76
7.6
Oil pump M12 fastening nuts (only N71/1C without roller bearing)
46
4.6
