POWER TAKE-OFF
209
S
TRALIS
AT/AD
SPECIFICATIONS AND DATA

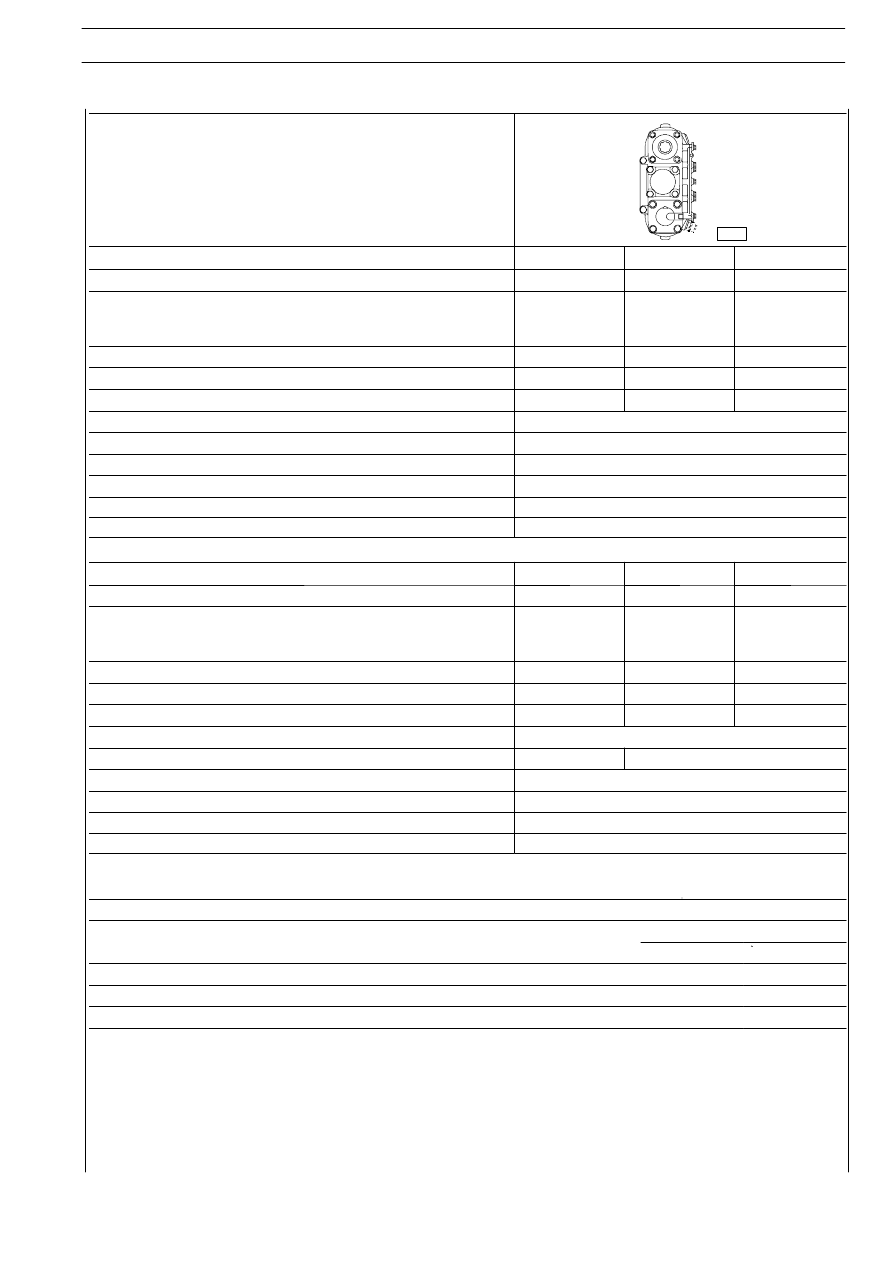

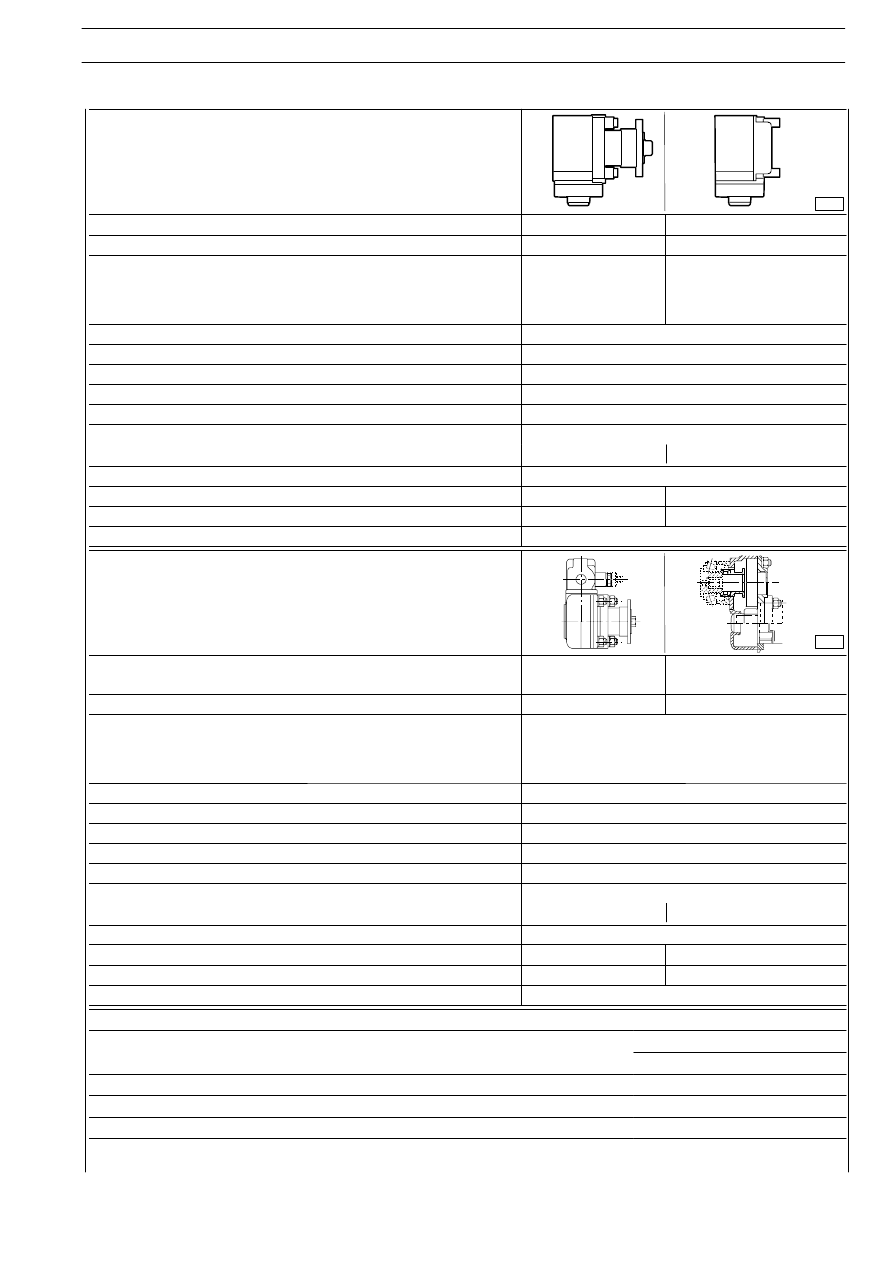

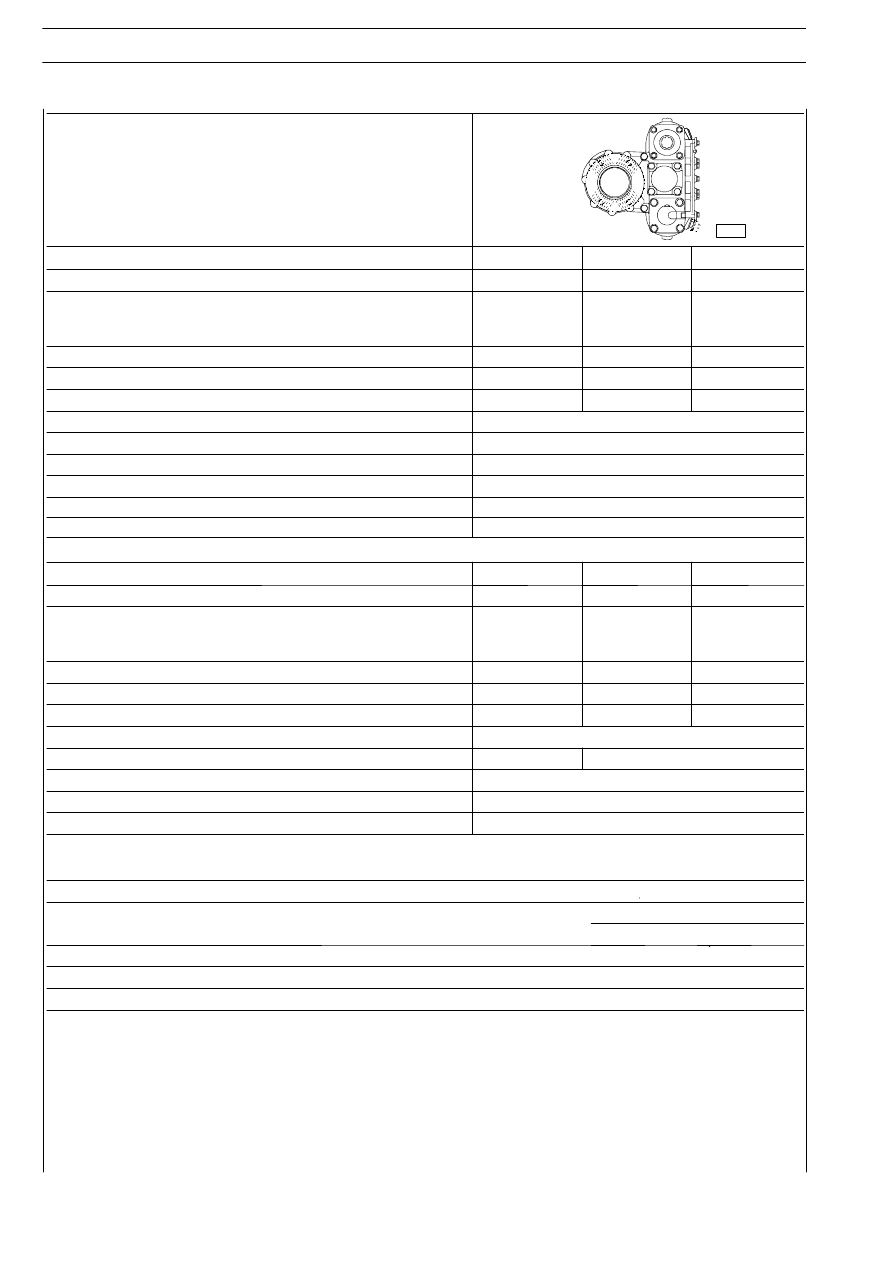

ZF POWER TAKE-OFF
For transmissions:
- ZF 16 S 151/181/221
- ZF 16 S 151/181/221with Intarder
48977
TYPE
N71
/IB
N71
/IC
Order No.
42116223
42116224
PTO output rev ratio/engine rev no.:
- normal
- over-multiplied
- reduced
-
0.91
077
-
1.09
0.91
PTO output rev ratio / PTO input rev ratio
1
Rated torque at PTO output with 1500 rev/min
Nm
100
Expected duration with rated torque and 1500 rev/min at output hours
500
Transmission detectable torque
Nm
-
Rotation direction
engine direction
Type of motion output (vehicle travelling direction)
rear
yp
p
(
g
)
with flange
with pump attachment
Control
pneumatic
Weight
kg
7
4.5
Weight applied on barycenter
N
70
45
Application
on secondary shaft on transmission side

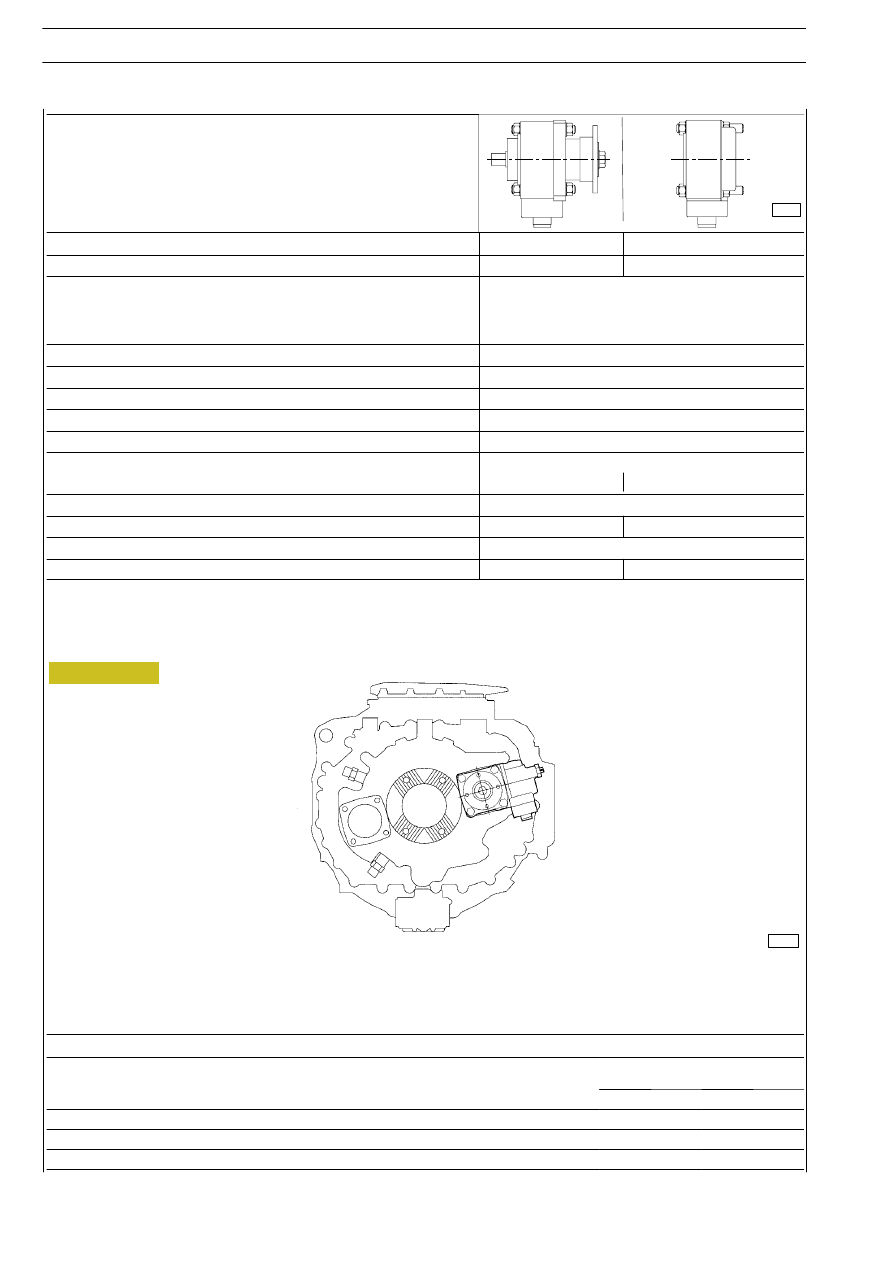

ZF POWER TAKE-OFF
For transmissions:
- ZF 16 S 151/181/221
- ZF 16 S 151/181/221with Intarder
79005
TYPE
N71
/2b-x
N71
/2b-y
N71
/2c-x
N71
/2c-y
Order No.
42116216
42116217
PTO output rev ratio/engine rev no.:
- normal
- over-multiplied
- reduced
-
1.21
1.01
PTO output rev ratio / PTO input rev ratio
1.318
Rated torque at PTO output with 1500 rev/min
Nm
300
Expected duration with rated torque and 1500 rev/min at output hours
500
Transmission detectable torque
Nm
1000
Rotation direction
engine direction
Type of motion output (vehicle travelling direction)
rear
yp
p
(
g
)
with flange
with pump attachment
Control
pneumatic
Weight
kg
11
9
Weight applied on barycenter
N
110
90
Application
on transmission rear side
TIGHTENING TORQUES
ELEMENT
TORQUE
ELEMENT
Nm
kgm
M12 stud bolts for power take-off fastening*
20
2
M12 nuts for power take-off or oil pump fastening stud bolts
79
7.9
Flange fastening screw
50
5
*
Apply sealer TEROSONFLUID 307 on the threading to be screwed on the gearbox
