Iveco Stralis AT/AD. Manual - part 69





12

GEARBOX ZF 9 S 109 D.D.

S

TRALIS

AT/AD

Base - January 2003

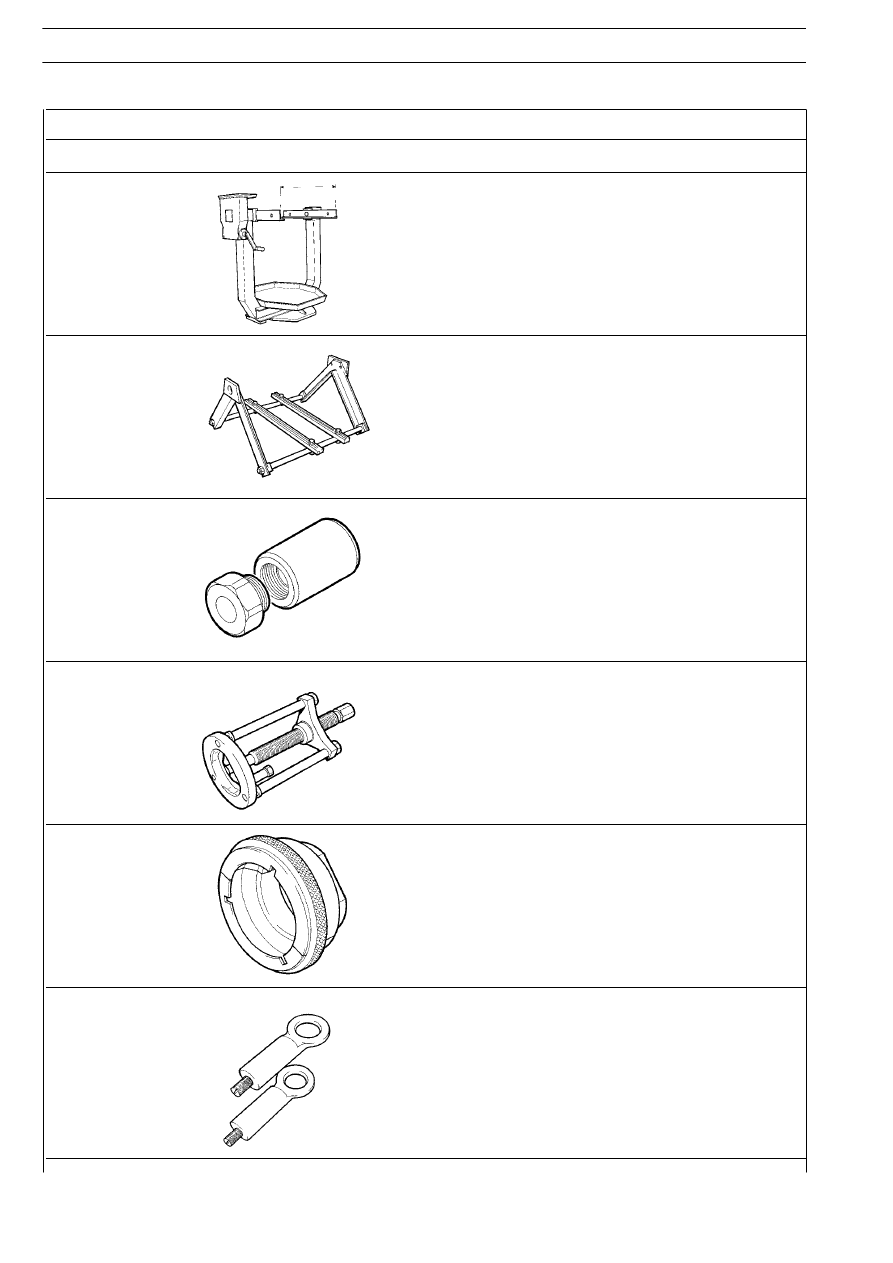

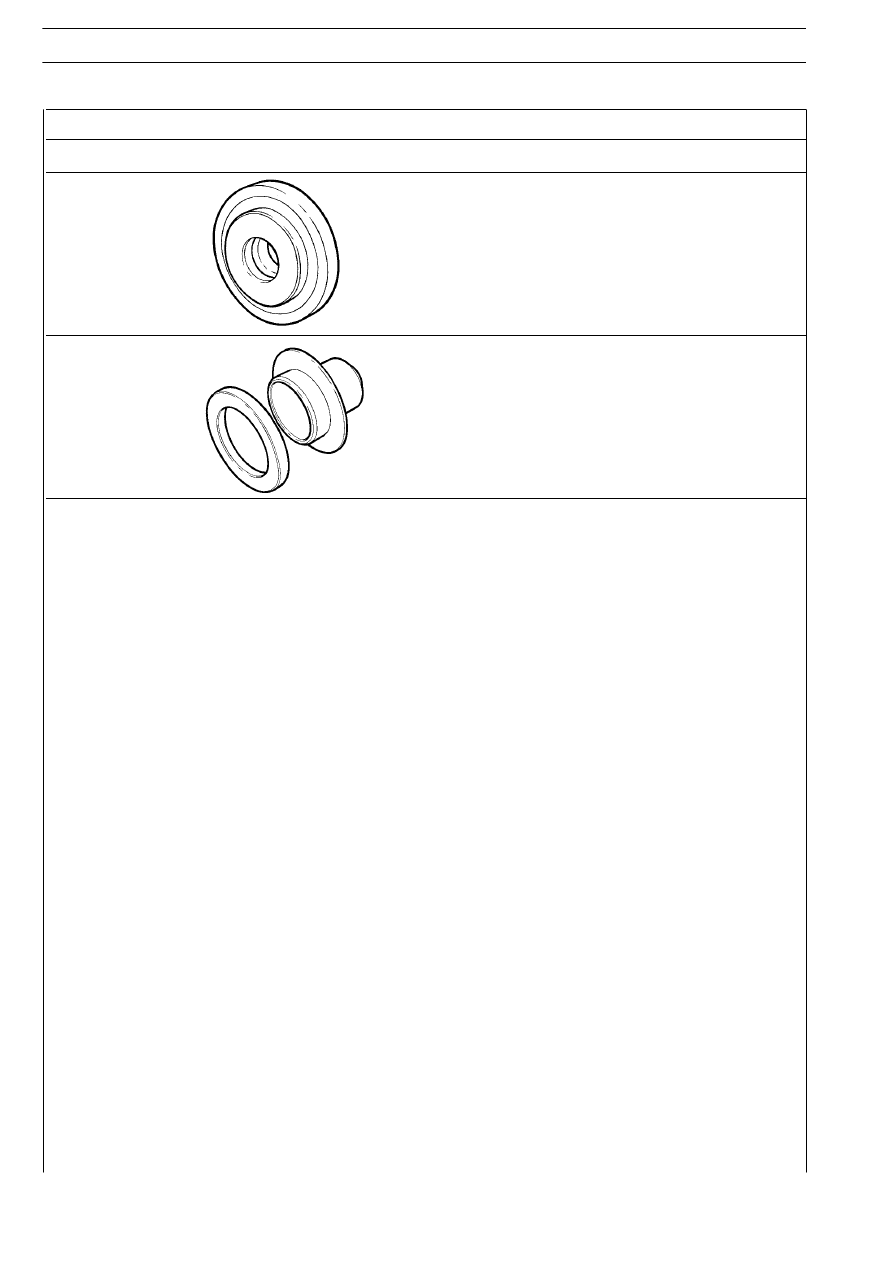

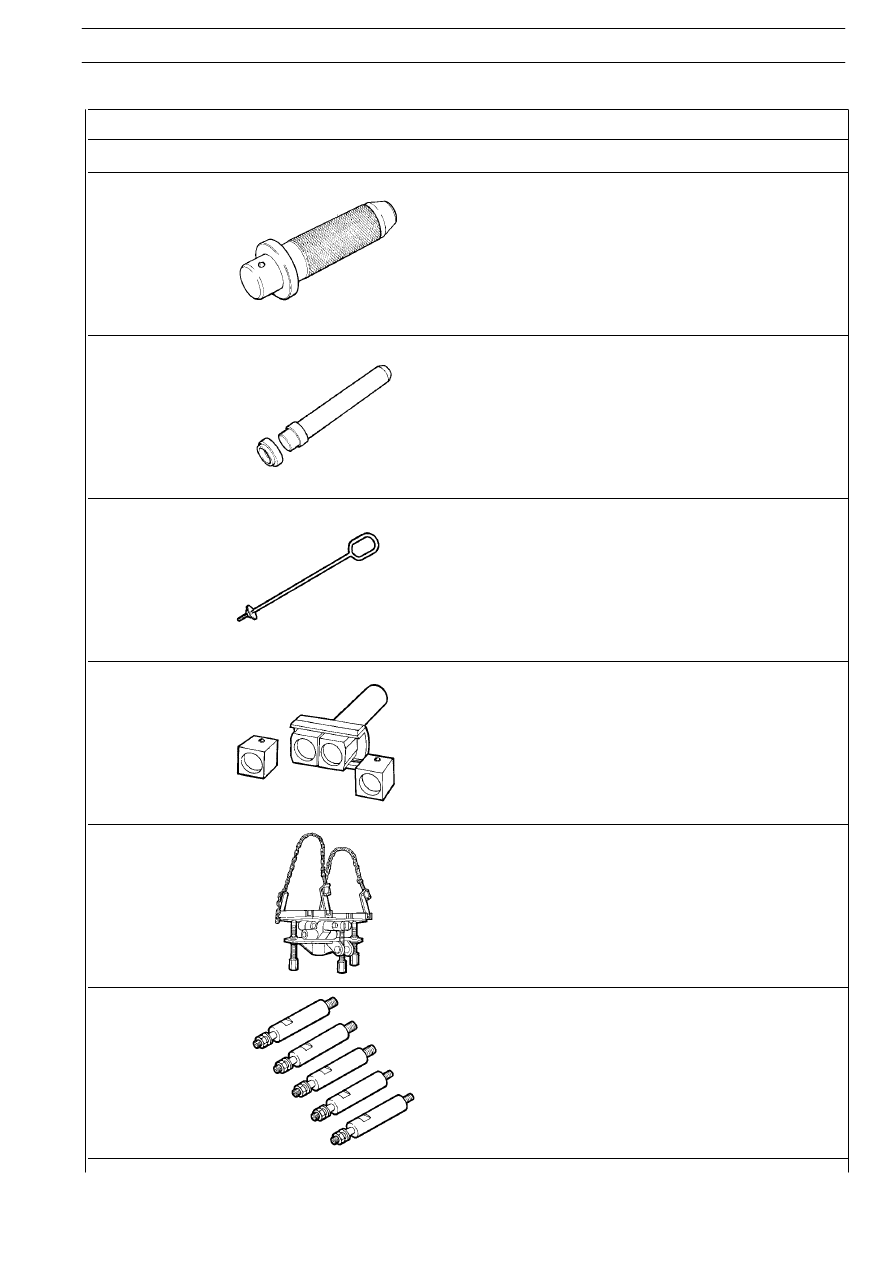

TOOL NO.

DESCRIPTION

99322205

Revolving stand for overhauling units

99322225

Units holder (to be used with stand 99322205)

99345097

Thrust block for pullers

99347101

Puller, large size (to be used with relevant special rings)

99347148

Ring grips to remove fixed sleeves of 1st - 2nd speed
(to be used with 99347101)

99360502

Eyebolt to lift the reduction gear and transmission shaft box

GEARBOX ZF 9 S 109 D.D.

13

S

TRALIS

AT/AD

EQUIPMENT

TOOL NO.

DESCRIPTION

99370006

Handle for interchangeable drivers

99370113

Driver to fit the bushes in the gear control cover

99370449

Hook to lift the main shaft

99370465

Tool to set the safety plates of output flange screws

99370629

Support for holding the gearbox during removing/refitting from/on
vehicle

99371052

Brackets to hold the gearbox during overhaul
(to be used with 99322205-9932225)

14

GEARBOX ZF 9 S 109 D.D.

S

TRALIS

AT/AD

Base - January 2003

TOOL NO.

DESCRIPTION

99374357

Connection tool for assembling ring. operations on front gearbox
cover (to be used with 99370006)

99374139

Connection tool for assembling ring. operations on rear gearbox cover
(to be used with 99370006)

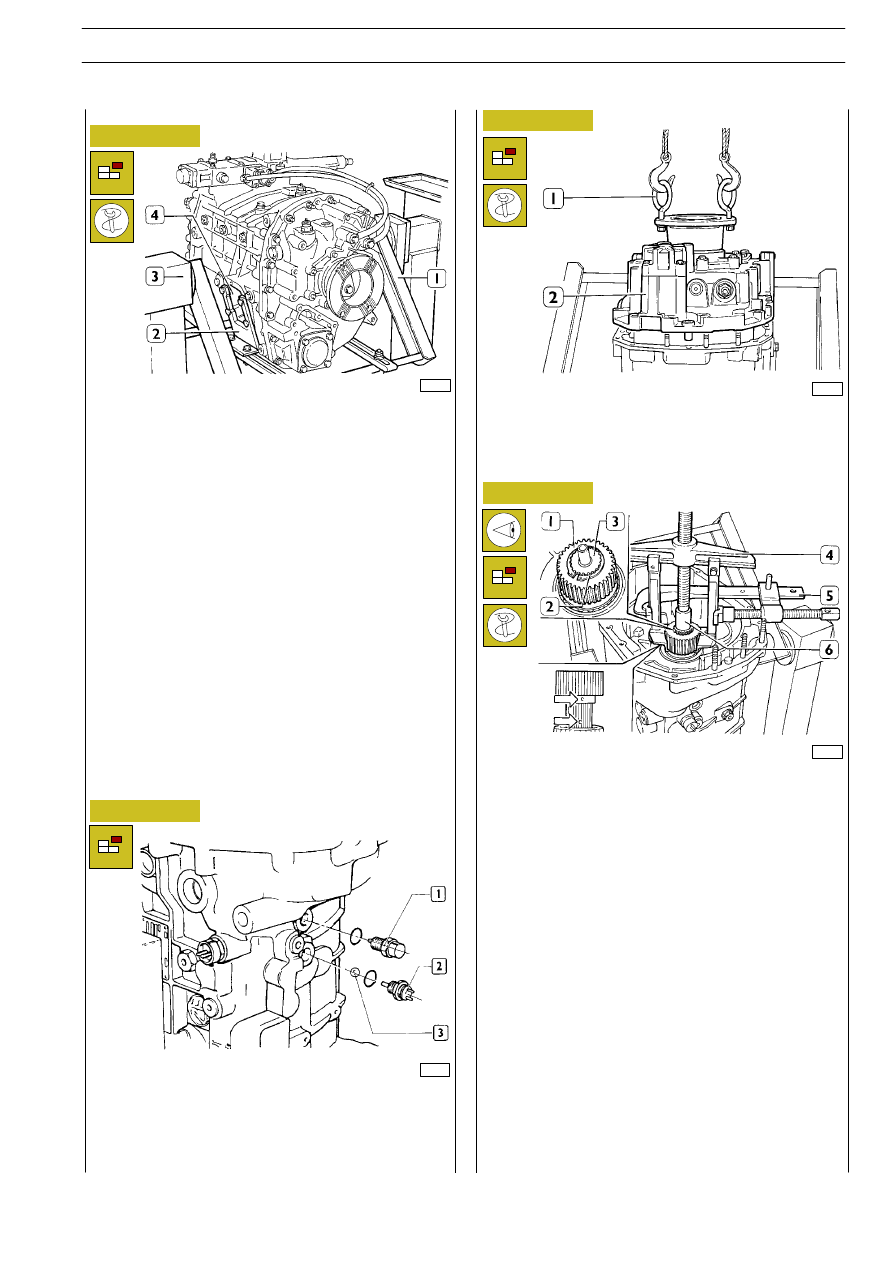

Drain the lubricating oil from the gearbox and remove the side
cover from the reverse speed transmission gear opening (4).
Set the unit on the revolving stand 99322205 (3) c.w.support
99322225 (1) and brackets 99371048 (2).

Take note of the assembling position of pipe on the cylinder
and remove the cylinder.

37590

30981

37592

37593

Figure 3

Figure 4

Figure 5

Figure 6

Set the gearbox vertical with the E.R.U. box turned upwards;
remove the pin (1) and relevant gasket, the gear range indica-
tor light switch (2) and relevant gasket and the ball (3).

Remove the nuts and screws that fasten the E.R.U box to the
gearbox. Apply eyebolts 99360502 (1) to the flange, engage
the eyebolts to the cables, then, use a hoister to remove the
E.R.U. box (2) from the gearbox.

Check the conditions of planetary gears (1).
If faults are found out, remove the spring retaining ring (2), set
block 99345097 (6) on the main shaft (3) and use a puller (4)
and clamp (5) to remove the planetary gears (1) from the main
shaft (3).

Reverse the disassembling operations and comply with the in-
structions below.
If the planetary gears (1) are to be replaced, at assembling
stage the new part shall be heated at 160 to 180

° C for 15’

and set on the main shaft (3) so that the oil holes (

→) in the

gear coincide with those in the shaft. Select a spring retaining
ring, out of those supplied spare (2), featuring suitable thick-
ness free from backlash when bedded in its seat. Paper and
metal gaskets shall be replaced with new ones.
Tighten screws and nutS to proper torque.

Reassembling the E.R.U.box

GEARBOX ZF 9 S 109 D.D.

15

S

TRALIS

AT/AD

533010

REMOVAL

Removing the E.R.U.box
