84

ELECTRIC/ELECTRONIC SYSTEM

D

AILY

E

URO

4

De-rating
In the event of the engine overheating, injection is modified,
decreasing the delivery to a varying degree, in proportion to
the temperature reached by the coolant.

Turbine rpm setting
(for the variable geometry turbo-compressor)
By changing its geometry, adjusted turbine speed is
monitored by the electronic centre via an electrical signal
feeding the compressed air actuator electro valve. Based on
signals from the accelerator pedal position and suction
manifold air temperature/pressure engine rpm sensors, the
electronic centre processes the field-back signal to properly
modulate turbine actuator pilot electro valve opening.

Injection timing electronic test
The advance (start of delivery, expressed in degrees) may be
different from one injection to the next, also differentiated
from one cylinder to another. It is calculated, similarly to the
delivery, in relation to the engine load (accelerator position,
engine speed and air introduced).
The advance is appropriately corrected:

- in phases of acceleration;

- according to the water temperature.

And also to obtain:

- lower emissions, noise and overloading;

- better vehicle acceleration.

An extremely high advance is set on starting, depending on
the water temperature.
Feedback from the start of delivery is supplied by the change
in impedance of the injector solenoid valve.

Speed governor
The electronic speed governor has both features of
governors:

- idling and top speed

- all speeds

It is stable in ranges where conventional, mechanical
governors are imprecise.

Engine starting
During the first few turns of the engine, the timing and
cylinder no. 1 recognition signals (flywheel sensor and
camshaft sensor) are synchronized.
The accelerator pedal signal is ignored on starting. Starting
delivery is set only according to water temperature, by a
special map.
When the control unit detects such speed and acceleration
of the flywheel as to be able to consider the engine started
up and no longer driven by the starter motor, it re-enables
the accelerator pedal.

Cold starting
If even just one of the three temperature sensors (water, air
or diesel) records a temperature lower than 10

°C, pre-post

heating is activated.
On inserting the key contact, the pre-heating indicator goes
on and remains on for a period varying depending on
temperature (air is heated by the pre-heating glow plugs that
are located on cylinder head for F1 engines), then it blinks.
Thereafter, the engine can be started up.
When the motor is running this indicator light goes out, while
the glow plugs continue to be powered for a certain length
of time (variable) for post-heating.
If, with the indicator light flashing, the engine is not started
up within 20-25 seconds (inattention time), the operation is
cancelled so as not to run down the batteries pointlessly.
The pre-heating curve is also variable in relation to the
battery voltage.

Warm starting
If the reference temperatures all exceed 10

°C, when the key

makes

contact

the

indicator

light

comes

on

for

approximately 2 sec., for a short test, and then goes out. It
is now possible to start up the engine.

Run up
When the key makes contact, the control unit transfers the
information stored in memory when the engine was last
stopped into the main memory (see After Run) and makes
a diagnosis of the system.

After run
Whenever the engine is switched off with the key, the
control unit stays powered for a few seconds by the main
relay.
This makes it possible for the microprocessor to transfer
some data from the main memory (volatile) to a non-volatile
memory, which can be erased and written over (EEPROM),
so as to make it available at the next start up (see Run Up).

ELECTRIC/ELECTRONIC SYSTEM

85

D

AILY

E

URO

4

It is extremely important for this procedure not to be
broken off, for example by switching off the engine with
the battery cut-out, or by disconnecting the battery
cut-out before 10 seconds have passed since switching
off the engine.
If this happens, the functioning of the system is ensured,
but repeated interruptions may damage the control
unit.

These data basically consist of:

- various settings (engine idling adjustment, etc.);

- settings of some components;

- fault memory.

The process lasts a few seconds, typically from 2 to 7
(depending on the amount of data to save), after which the
ECU sends a command to the main relay and makes it
disconnect from the battery.

Cut - off
This function cuts off fuel delivery when the vehicle is
decelerating (accelerator pedal released).

Cylider balancing
Individual cylinder balancing contributes to increasing
comfort and handling.
This function permits individual, customized control over the
delivery of fuel and the start of delivery for each cylinder,
even differently from one cylinder to another, to
compensate for the hydraulic tolerances of the injector.

The differences in flow (delivery specifications) between the
various injectors cannot be evaluated directly by the control
unit. This information is supplied by Modus reading the bar
code of each injector at the time of assembly.

Synchronisation search
If there is no signal from the camshaft sensor, the control unit
is anyhow able to recognize the cylinders into which the fuel
is to be injected.
If this occurs when the engine is already running, the
combustion sequence has already been acquired, so the
control unit continues with the sequence on which it has
already been synchronized.
If this occurs when the machine is at a standstill, the control
unit energizes a single solenoid valve. Within at most 2 turns
of the crankshaft, injection will take place in that cylinder, so
the control unit just needs to get synchronized on the firing
sequence and to start up the engine.

86

ELECTRIC/ELECTRONIC SYSTEM

D

AILY

E

URO

4

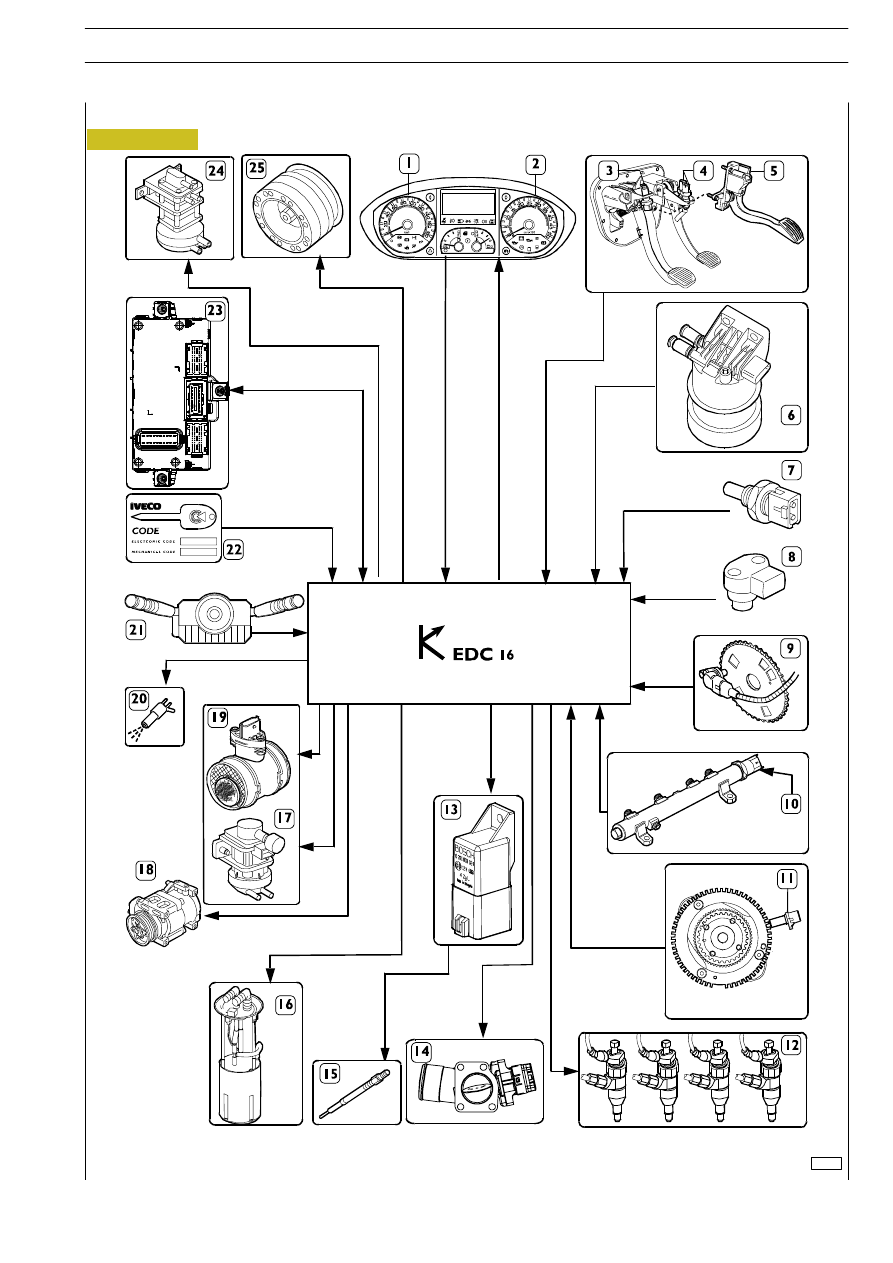

Ref.

Component

code

Description

1

58918

Tachometer on instrument cluster

2

58918

Revolution counter on instrument cluster

3

42374

Clutch pedal switch

4

53565

Brake pedal switches

5

85152

Accelerator pedal position sensor

6

47106

Fuel temperature sensor (on fuel filter)

7

47035

Coolant temperature sensor

8

85156

Air pressure and temperature sensors

9

48042

Timing system shaft sensor

10

85157

Fuel pressure sensor

11

48035

Engine shaft sensor

12

78247

Electrical injectors

13

25231

Glow plugs pre-heating central unit

14

-

Throttle valve assembly

15

19010

Pre-heating glow plug

16

44030

Fuel electric pump (with level gauge)

17

78209

E.G.R. solenoid valve

18

12012

AC compressor

19

85159

Flow meter

20

58701

EDC warning lamp

21

54032

Cruise Control / PTO (optional) control

22

85130

Key for starting up with Immobilizer

23

72027

Diagnosis socket (EOBD) on Body Computer

24

78248

VGT control solenoid valve

25

85022

Fan electromagnetic joint

Figure 64

112286

ELECTRIC/ELECTRONIC SYSTEM

87

D

AILY

E

URO

4
