Index Iveco Engines Iveco C10,C13, Cursor 10, Cursor 13 (CURSOR TIER 3 SERIES) - service repair manual 2007 year
|
|

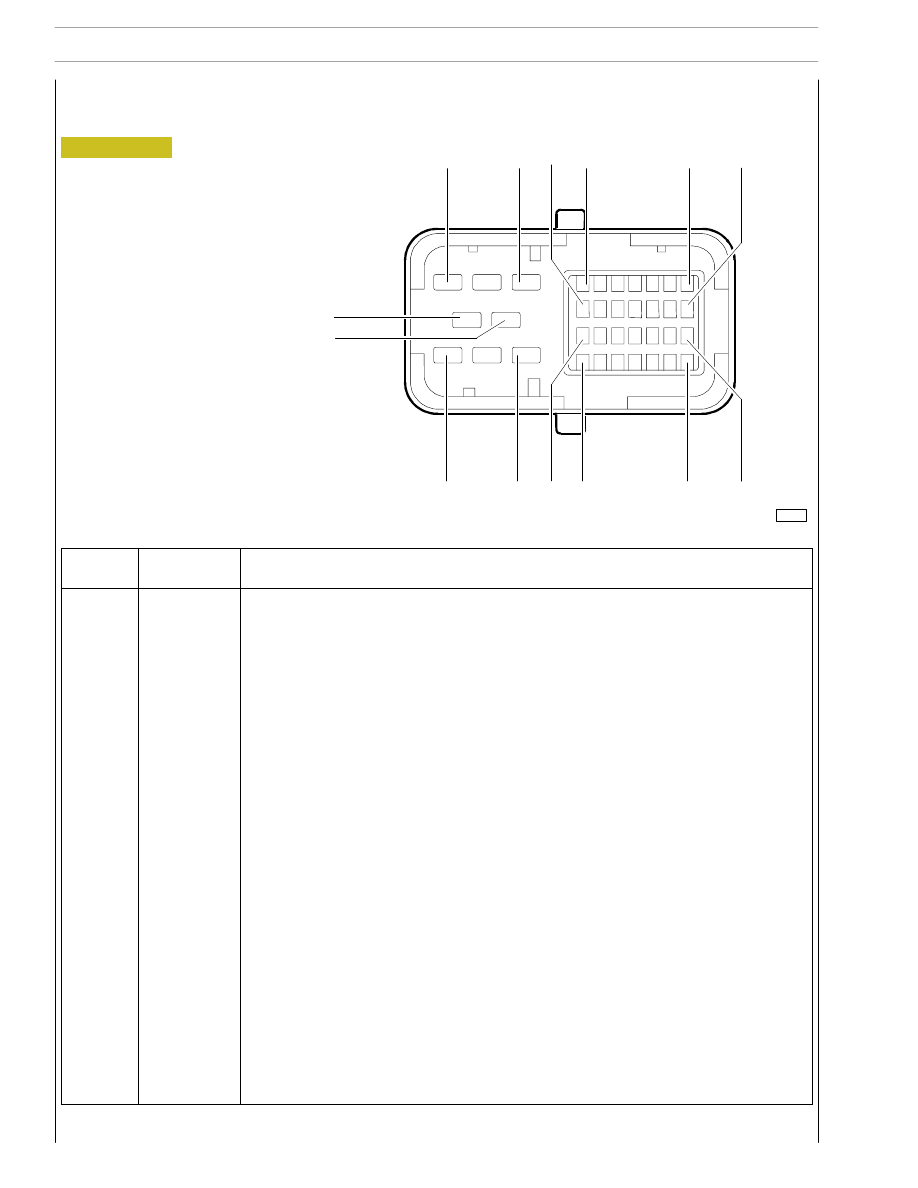

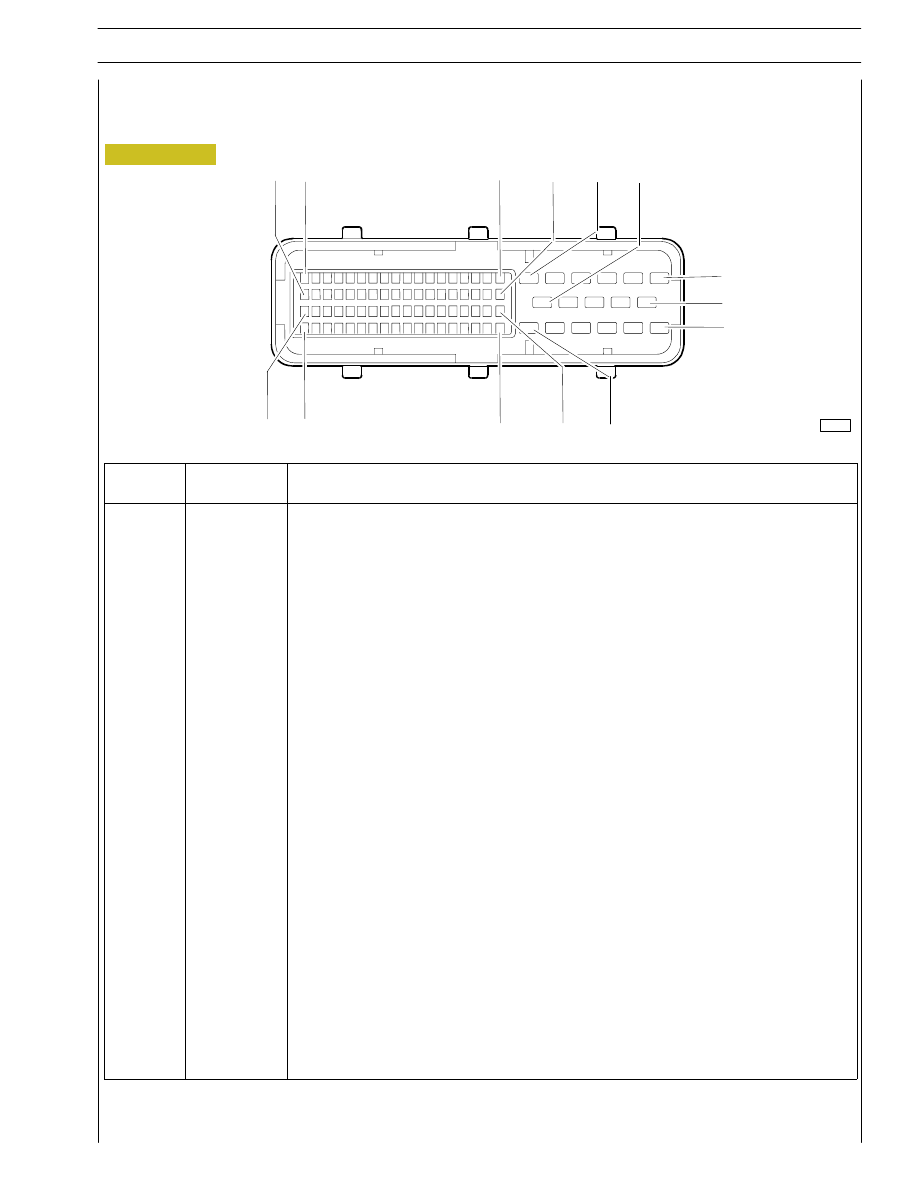

EDC control unit PIN-OUT Sensor connector ”C” Colour legend black R red U blue W white P purple G green N brown Y yellow O orange e E grey K pink 102375 Figure 12 6 8 16 9 15 22 36 29 30 23 3 1 4 38 SECTION 3 - INDUSTRIAL APPLICATION CURSOR ENGINES F3A Base - May 2007 Pin Cable colour Function 1 - Free 2 - Free 3 - Free 4 ÷8 - Free 9 W Valve gear camshaft sensor 10 R Valve gear camshaft sensor 11 ÷14 - Free 15 K Coolant temperature sensor 16 ÷17 - Free Free 18 O/B Fuel temperature sensor 19 B Flywheel sensor 20 - Free 21 ÷22 - Free 23 W Flywheel sensor 24 N Engine oil temperature/pressure sensor ground 25 W Air temperature/pressure sensor power supply 26 Y Coolant temperature sensor 27 O/B Oil temperature signal from the engine oil temperature/pressure sensor 28 U Oil pressure signal from the engine oil temperature/pressure sensor 29 - Free 30 - Free 31 - Free 32 O Engine oil temperature/pressure sensor power supply 33 R Air temperature/pressure sensor power supply 34 G Air pressure signal from the air temperature/ pressure sensor 35 W/R Fuel temperature sensor 36 O Air temperature signal from the air temperature / pressure sensor |
