AUTOMATIC TRANSMISSION (AW30-40LE) 7A-249
244R200073
Reassembly steps

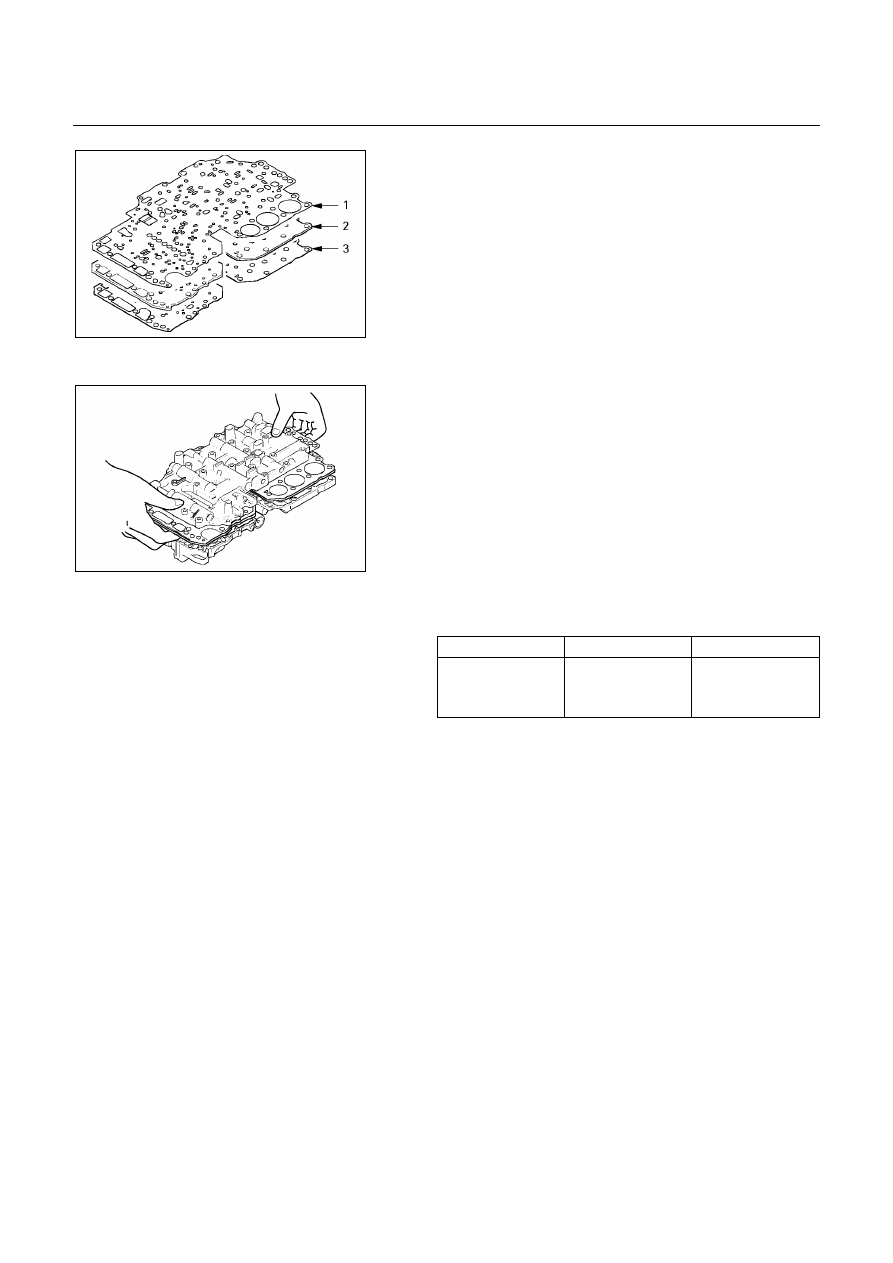

1. No.1 gasket (Upper valve body side)
Position a new No.1 gasket (1) on upper valve body.
Align the No.1 gasket at each bolt hole.
2. Valve body plate
Position valve body plate (2) on No.1 gasket (1).
Align the plate at each bolt hole.
3. No.2 gasket (Lower valve body side)
Position a new No.2 gasket (3) on valve body plate (2).
Align the No.2 gasket at each bolt hole.
244R200074

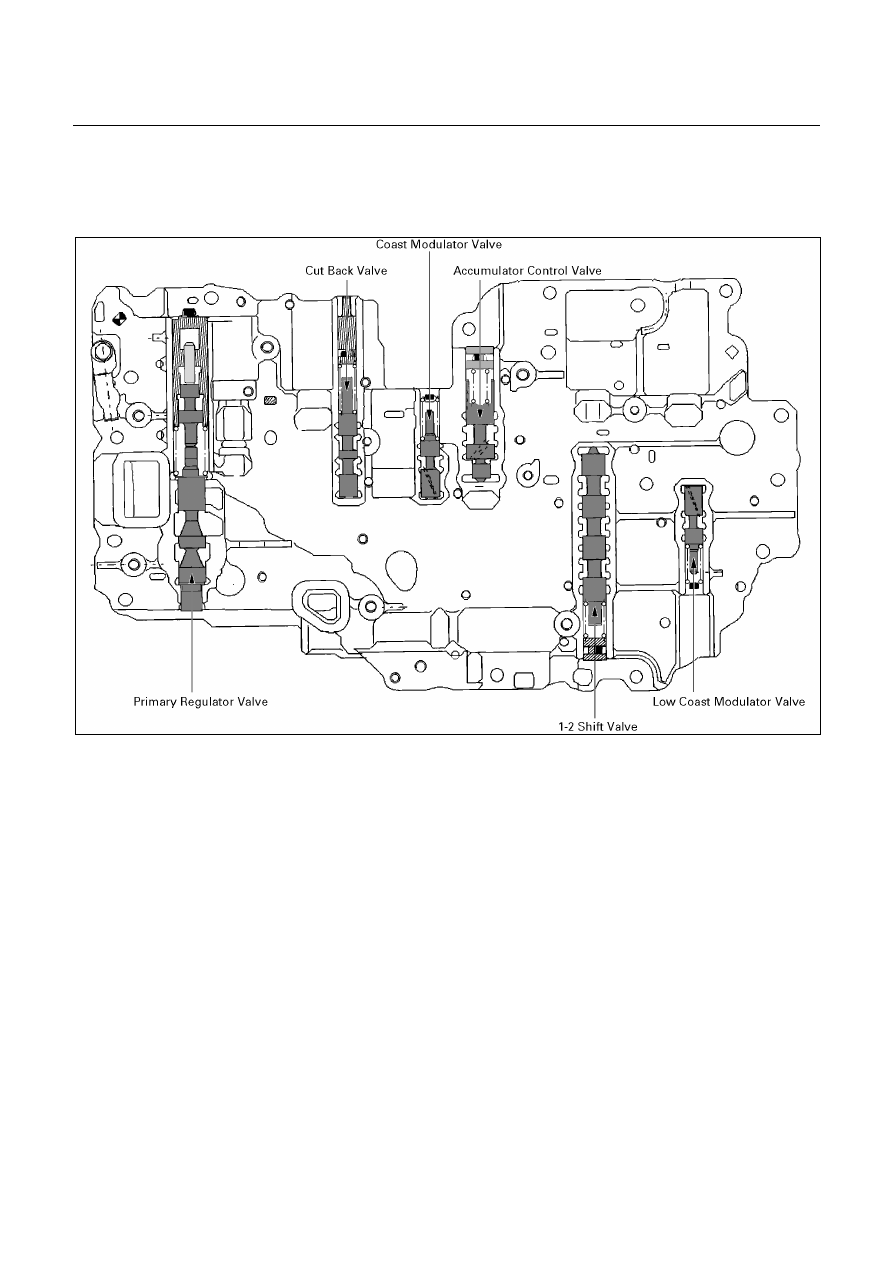

4. Upper valve body
5. Lower valve body
Place upper valve body with plate and gaskets on top
lower valve body.
Align each bolt hole and gasket in the valve body.

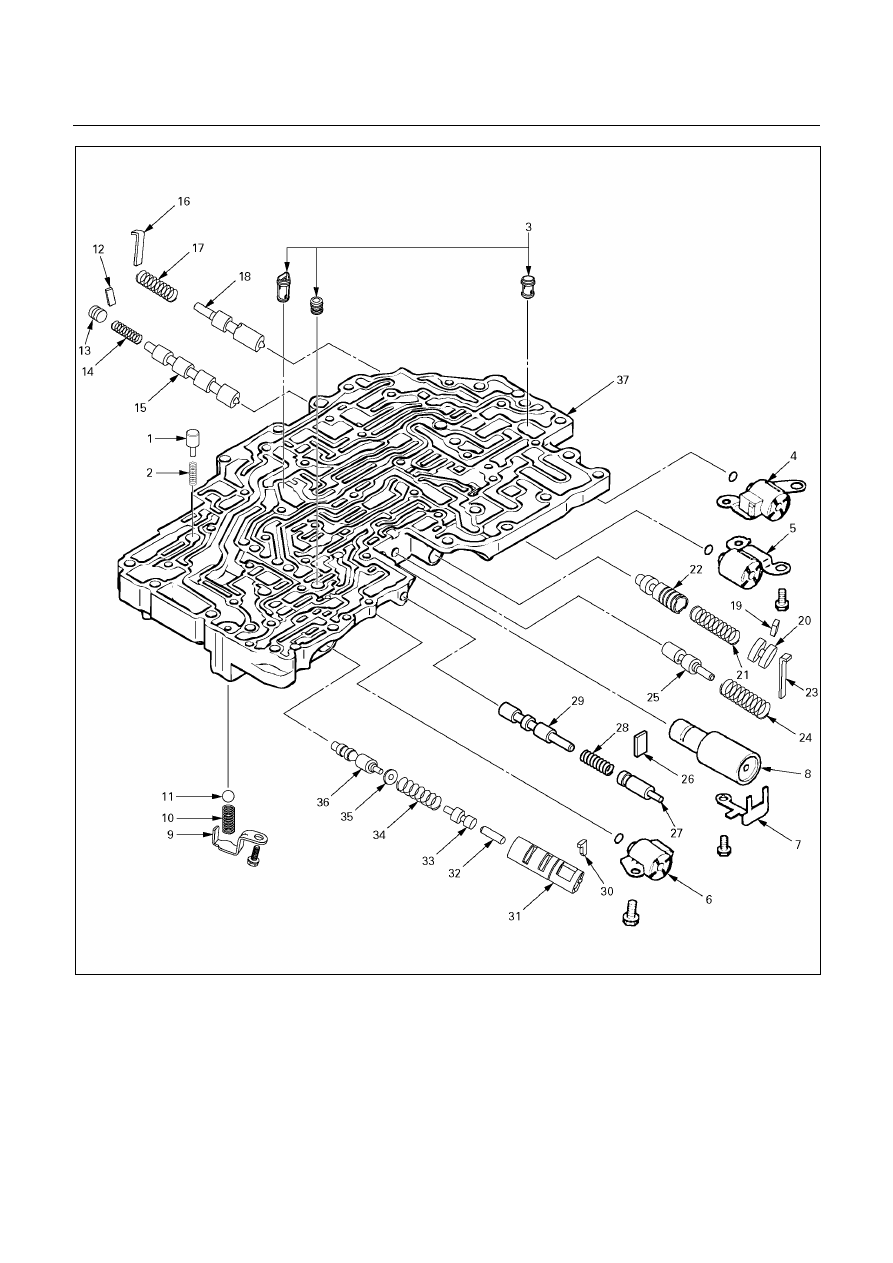

6. Pressure control solenoid
7. Clamp

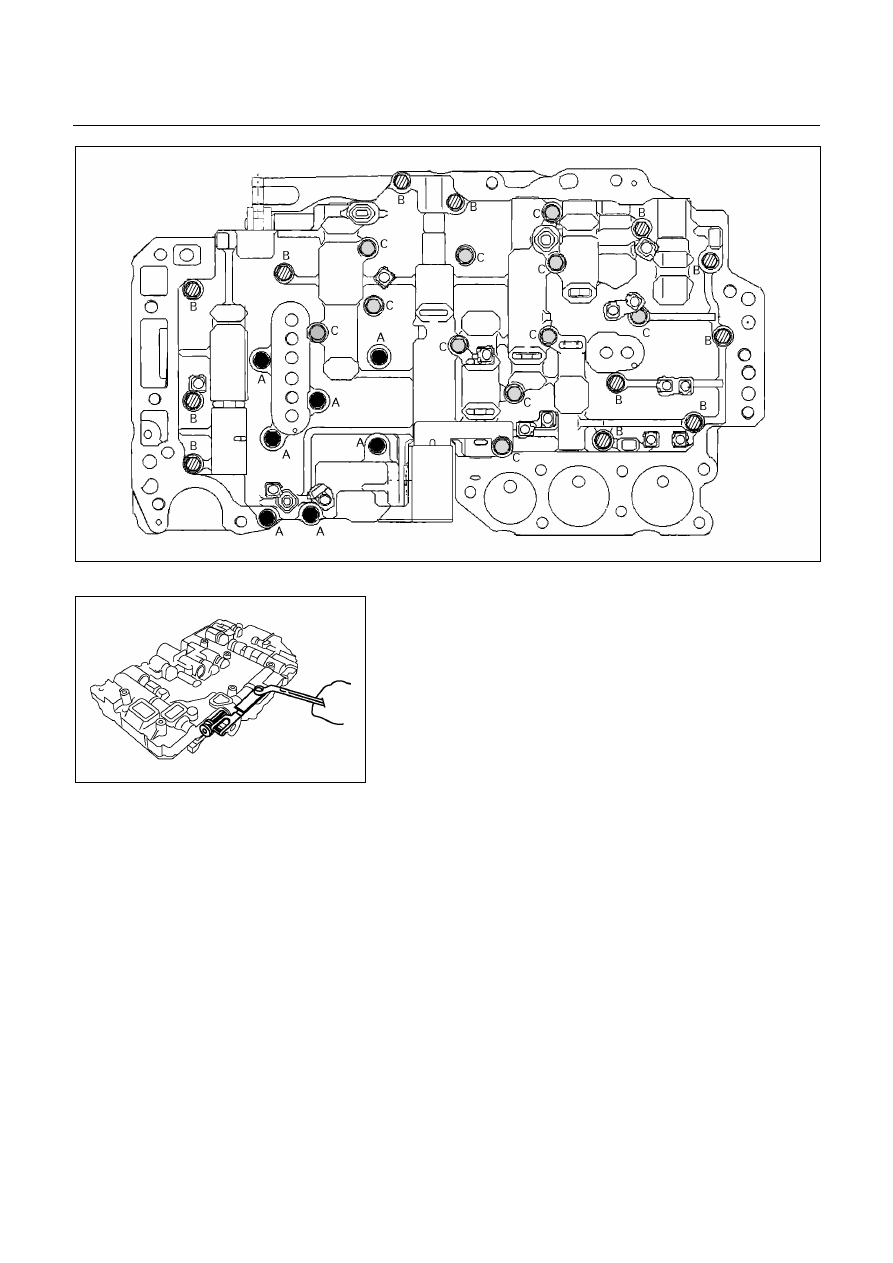

Install thirty bolts to upper valve body.
Each bolt is indicated in the figure.
Length
(mm)
Quantity
A 20 7
B 28 12
C 40 11
Torque: 6.4 N････m (0.65 kg････m/57 Ib････in)
