AUTOMATIC TRANSMISSION (AW30-40LE)  7A-245



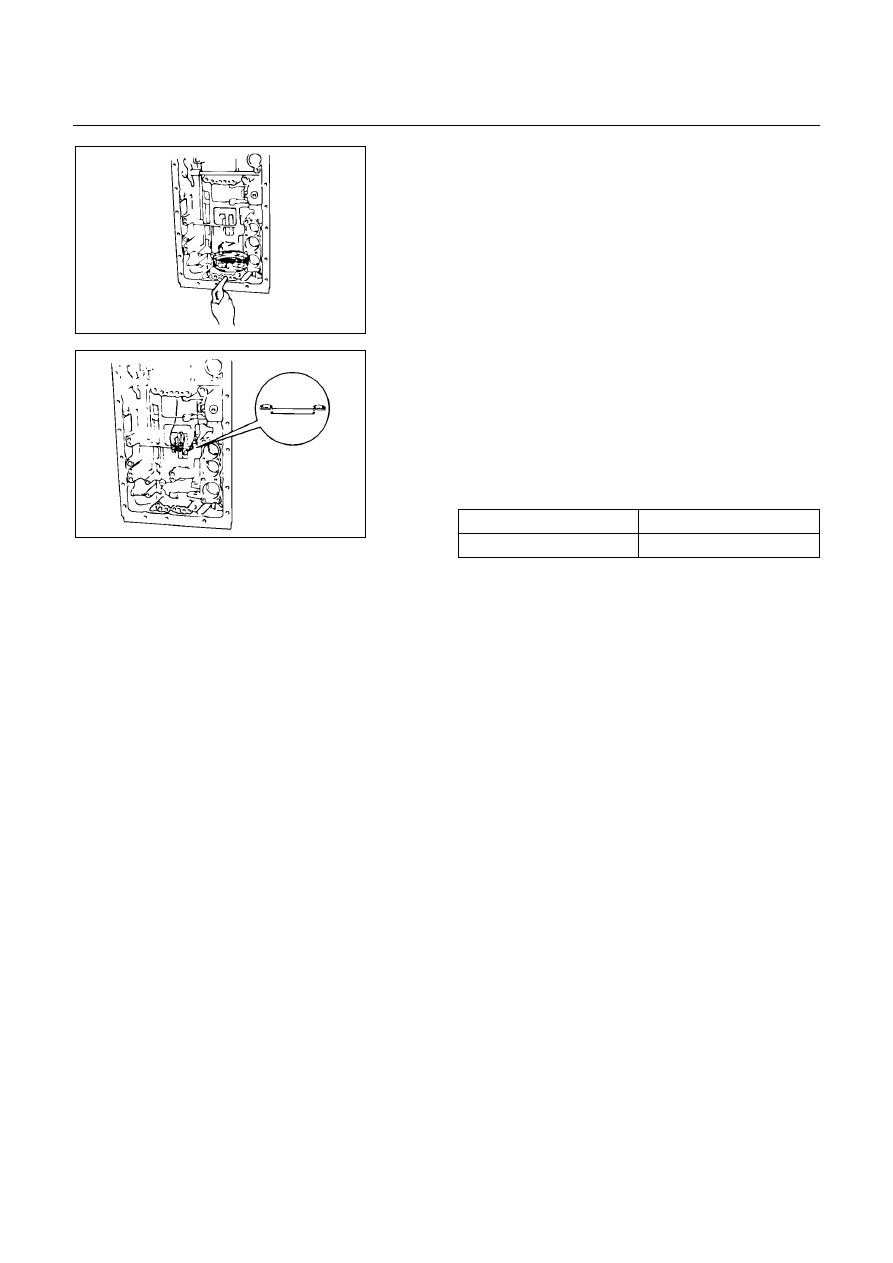

246RY00022



Check first and reverse brake piston movement

Make sure the first and reverse brake piston moves
smoothly when applying and releasing the compressed
air into the transmission case.


9.  Thrust bearing and race

Coat the assembled bearing and race with petroleum
jelly.
Install the assembled bearing and race facing the
bearing side upward.

Bearing and race diameter (Reference)



Inside diameter

39.38 mm (1.550 in)



Outside diameter

58.15 mm (2.289 in)



247RY00043







7A-246  AUTOMATIC TRANSMISSION (AW30-40LE)

TRANSMISSION VALVE BODY

ASSEMBLY

DISASSEMBLY

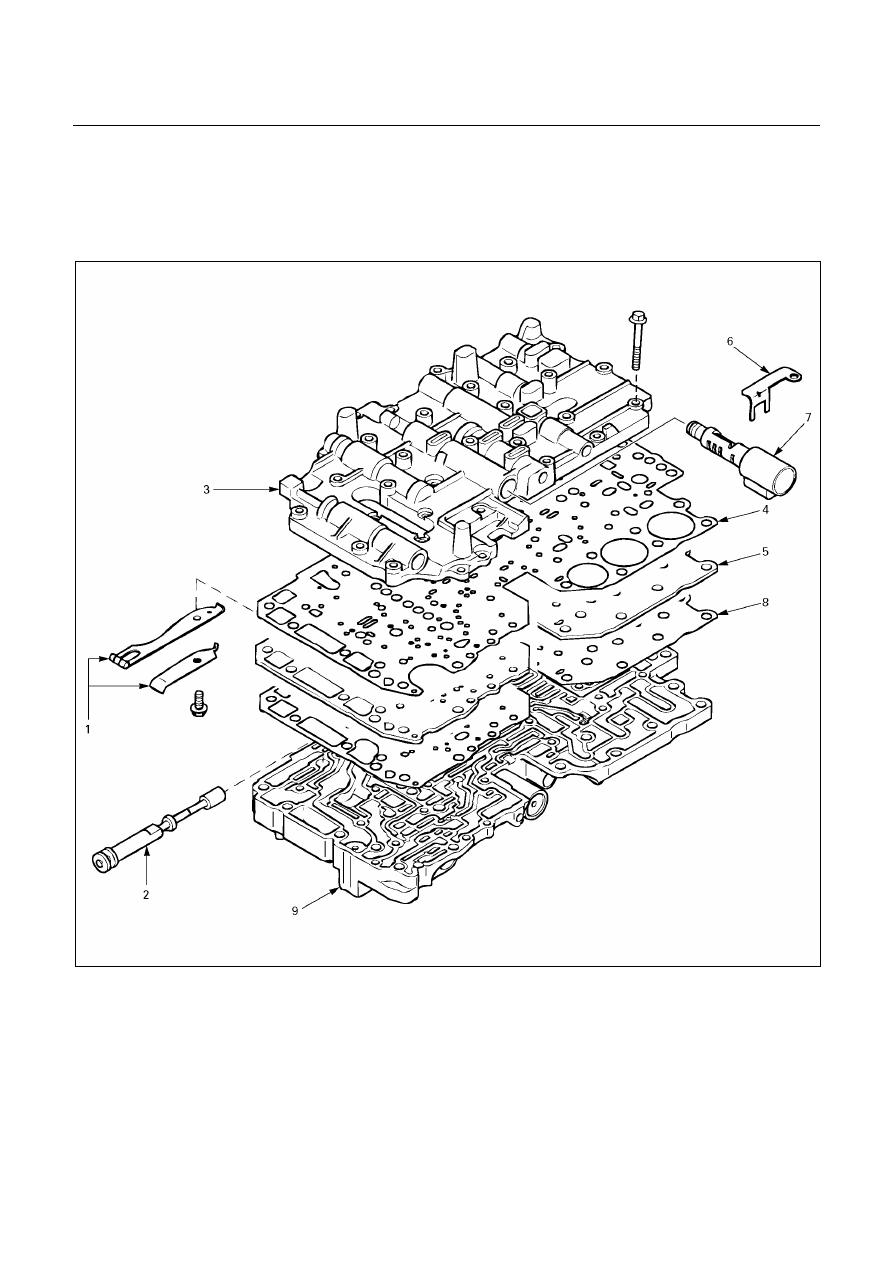

240R200039



Disassembly steps





1. Detent spring
2. Manual shift valve
3.  Upper valve body
4.  No.1 gasket (Upper valve body side)
5.  Valve body plate



6. Clamp
7. Pressure control solenoid
8.  No.2 gasket (Lower valve body side)
9. Lower valve body




AUTOMATIC TRANSMISSION (AW30-40LE)  7A-247





240R200040



Disassembly steps

1. Detent spring


Remove detent spring from valve body.

2. Manual shift valve


Remove manual shift valve.





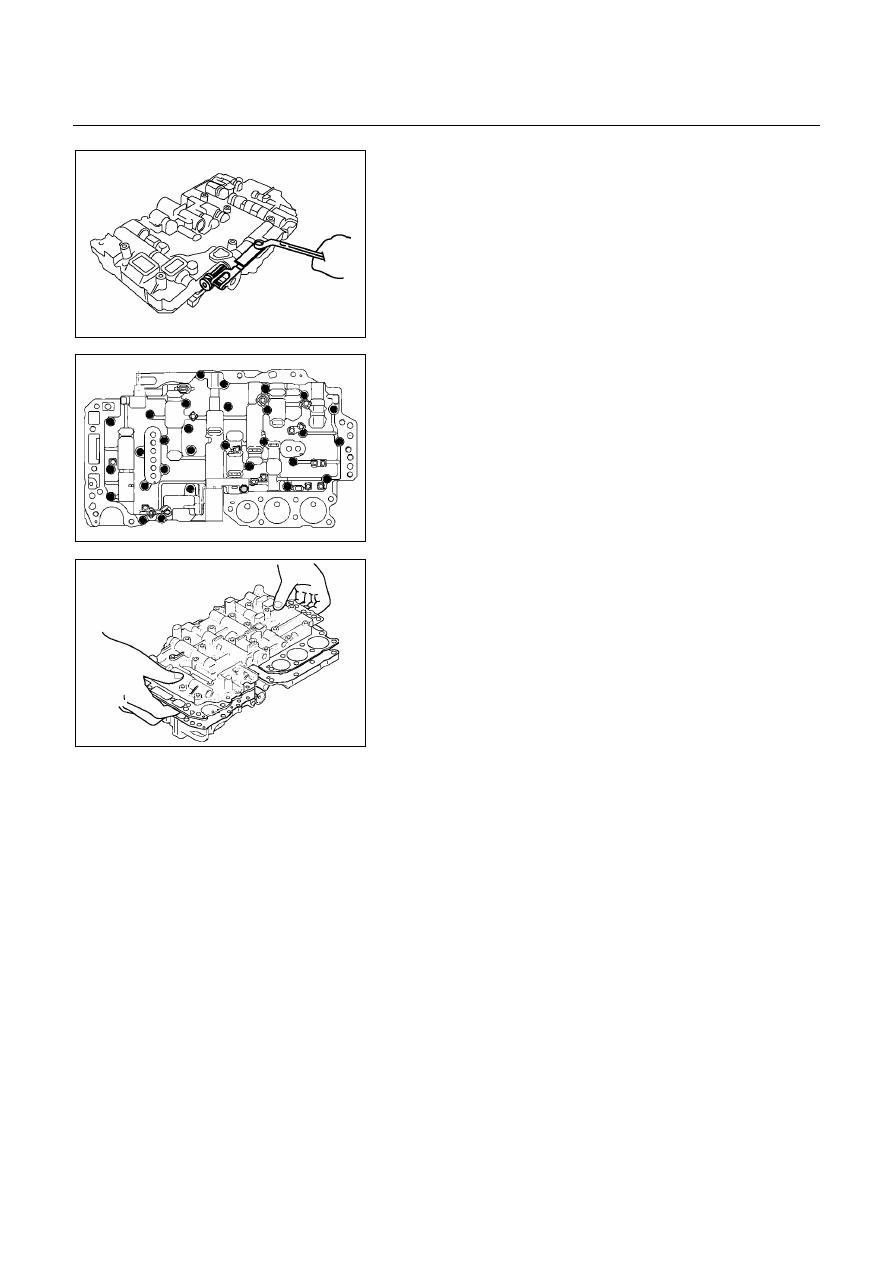

244R200049



3. Upper valve body
4.  No.1 gasket (Upper valve body side)
5.  Valve body plate

Turn over assembly and remove thirty bolts.

6. Clamp
7.  Pressure control solenoid





244R200061



Hold the valve body plate to the upper valve body.
Lift off upper valve body and plate as a single unit.
NOTE:
Be careful that the check balls and strainers do not
fall out.


8.  No.2 gasket (Lower valve body side)
9.  Lower valve body





7A-248  AUTOMATIC TRANSMISSION (AW30-40LE)

REASSEMBLY

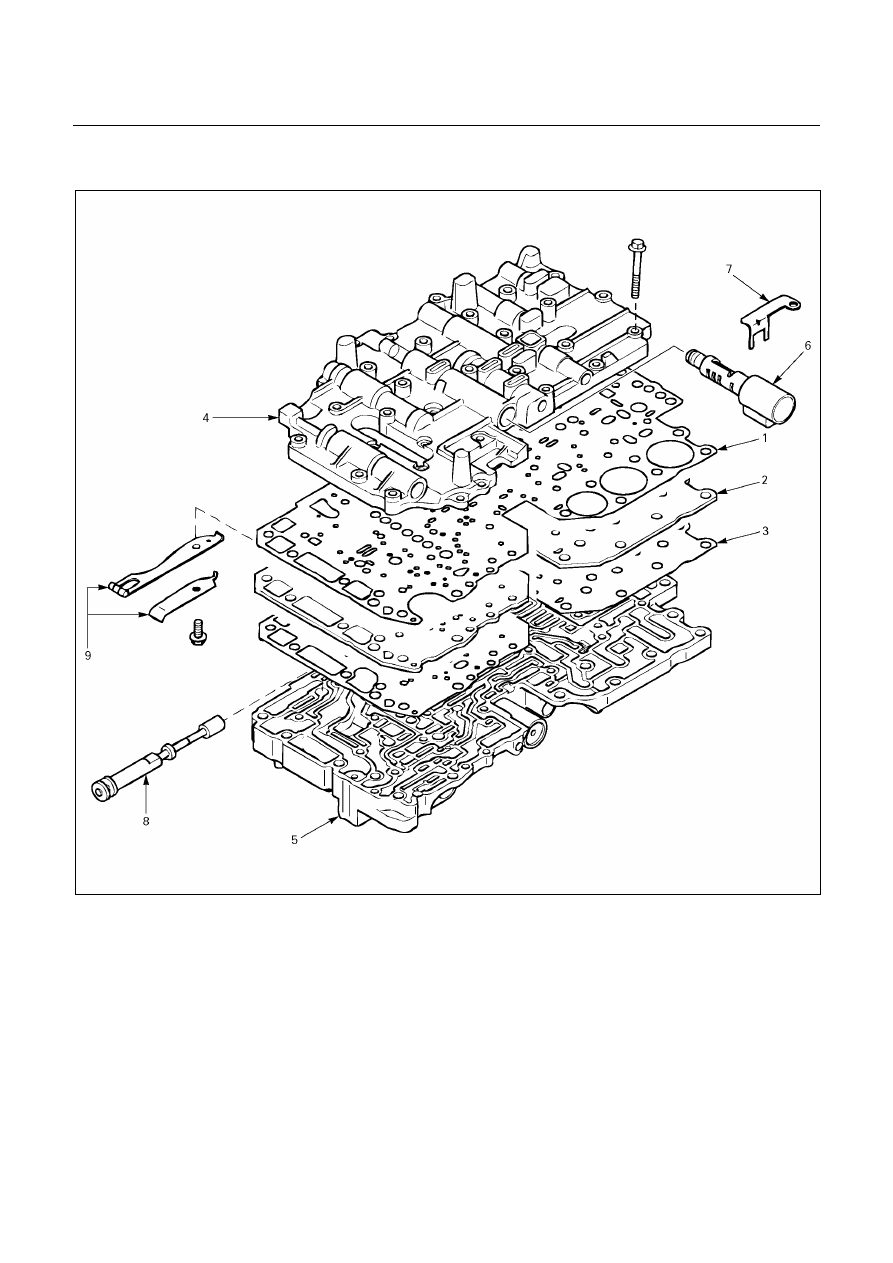

240R200041



Reassembly steps





1.  No.1 gasket (Upper valve body side)
2. Valve

body

plate

3.  No.2 gasket (Lower valve body side)
4.  Upper valve body
5.  Lower valve body



6. Pressure

control

solenoid

7. Clamp
8. Manual

shift

valve

9. Detent

spring
