3B-50 STEERING

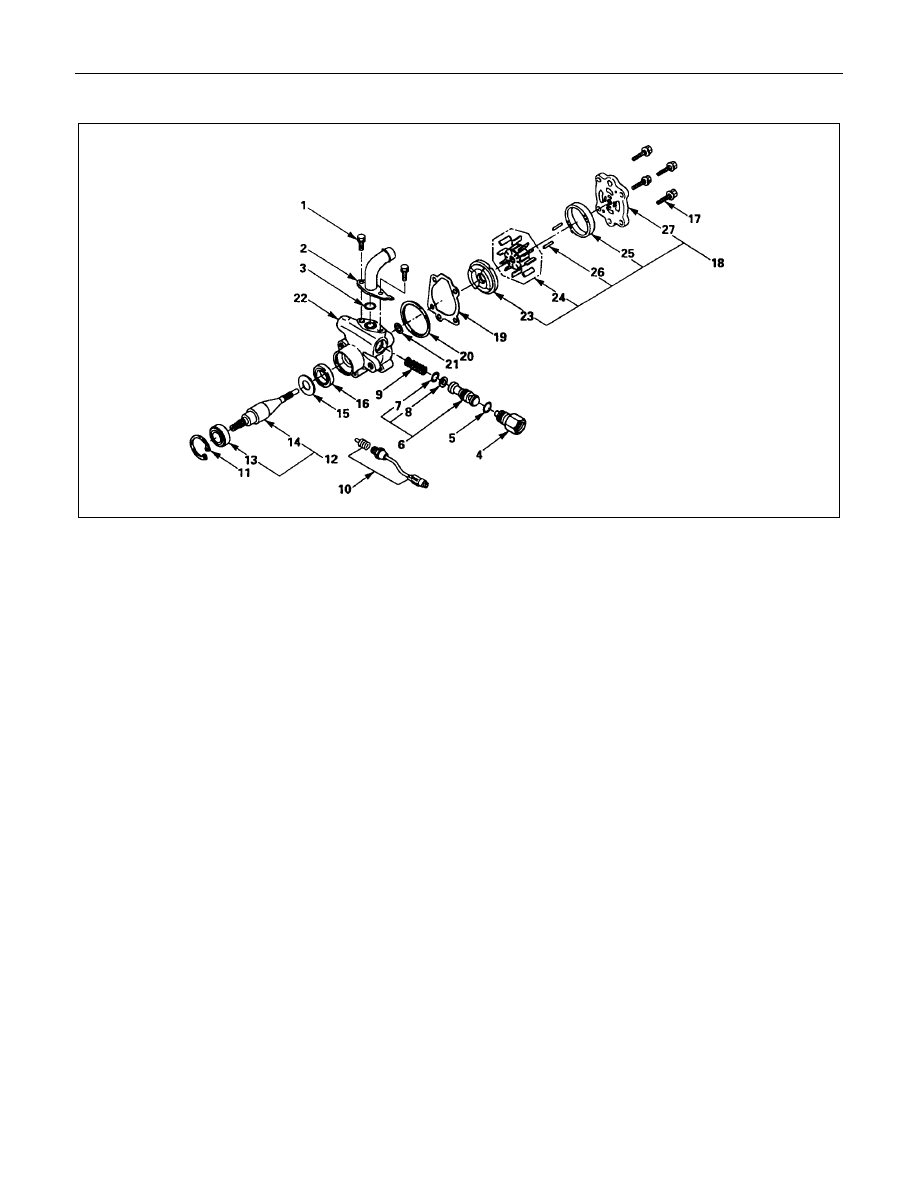

REPAIR KIT (C22, C20 Series Engine Model)

Legend

1. Bolt
2. Suction Pipe
3. O-ring
4. Connector
5. O-ring
6. Valve
7. Retaining Ring
8. Filter
9. Spring

10. Pressure Switch
11. Retaining Ring
12. Shaft assembly
13. Bearing
14. Shaft

15. Retaining Ring
16. Oil Seal
17. Bolt
18. Rear Housing Assembly and Pump

Cartridge

19. Gasket
20. O-ring
21. O-ring
22. Front Housing
23. Pressure Plate
24. Rotor and Vane
25. Cam
26. Pin
27. Rear Housing

Repair Kit

3. O-ring
5. O-ring

13. Bearing
16. Oil Seal

19. Gasket
20. O-ring
21. O-ring

STEERING 3B-51

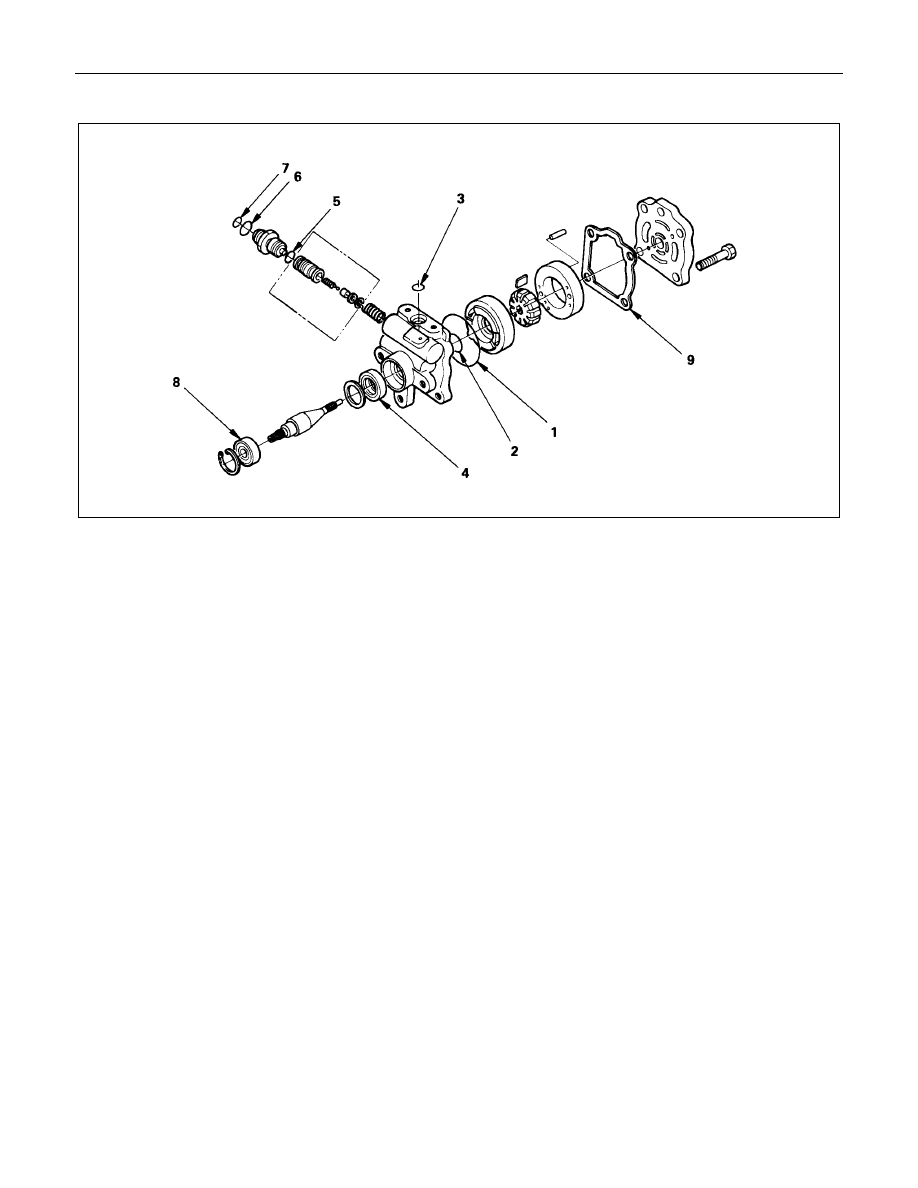

REPAIR KIT (4J Series Engine Model)

1. O-ring
2. O-ring
3. O-ring
4. Oil seal
5. O-ring

6. O-ring
7. O-ring
8. Bearing
9. Gasket

3B-52 STEERING

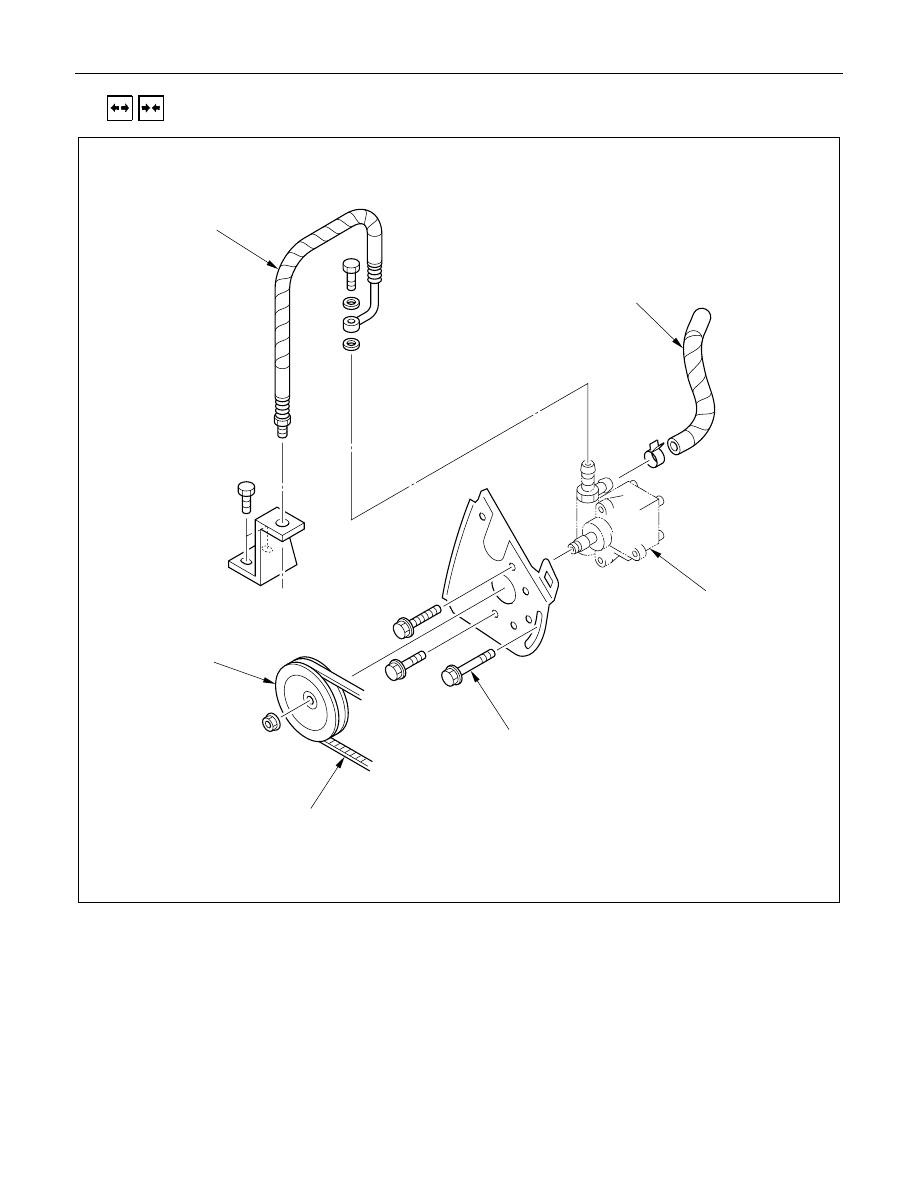

REMOVAL AND INSTALLATION (C22, C20 Series Engine Model)

Removal Steps

1. Belt : oil pump
2. Hose : rubber, suction
3. Hose : flexible
4. Bolts
5. Pump assembly : oil
6. Pulley : oil pump

Installation Steps

To install follow the removal procedure in
reverse order

STEERING 3B-53

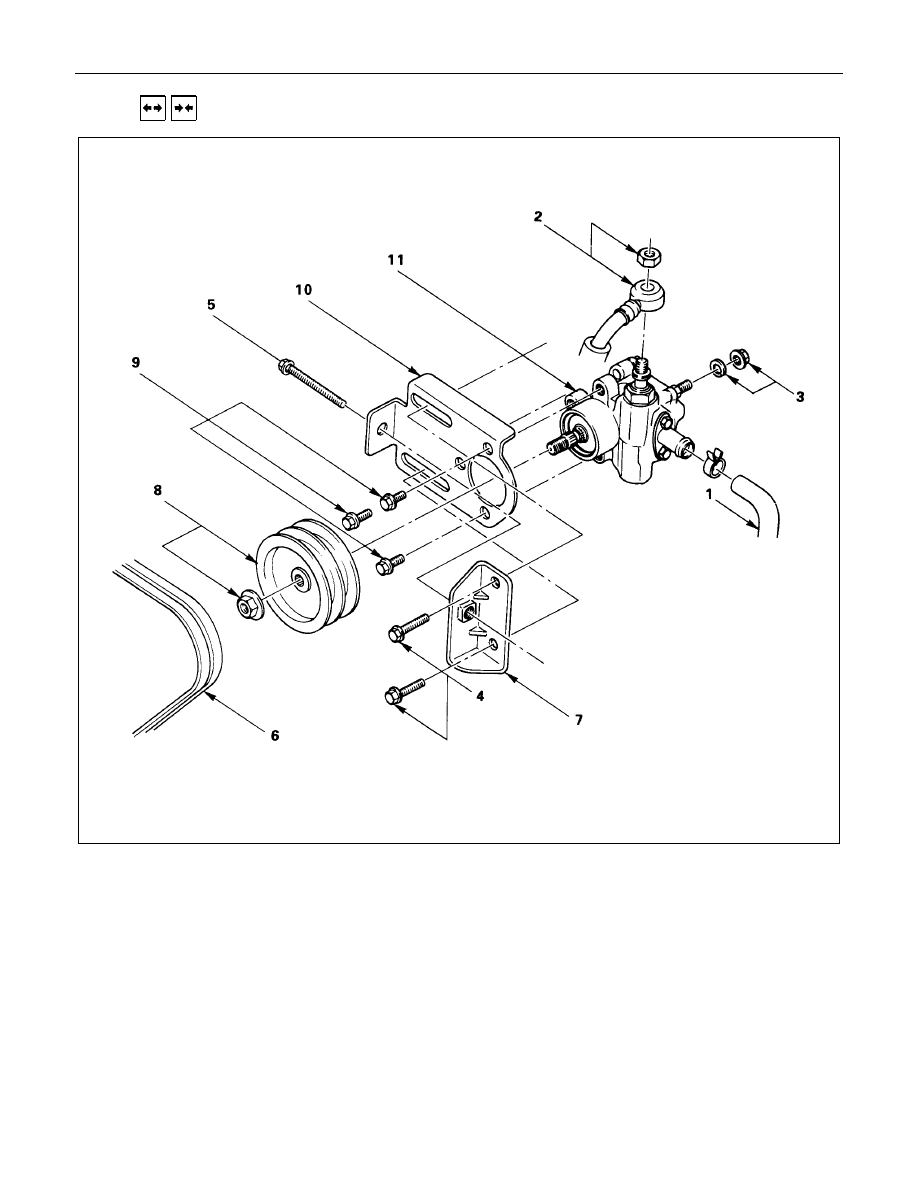

REMOVAL AND INSTALLATION (4J Series Engine Model)

Removal Steps

1. Hose, suction
2. Hose, flexible
3. Adjust nut
4. Bolt
5. Adjust bolt
6. Belt
7. Bracket
8. Pulley
9. Bolt

10. Bracket
11. Pump assembly

Installation Steps

11. Pump assembly
10. Bracket

9. Bolt
8. Pulley
7. Bracket
6. Belt
5. Adjust bolt
4. Bolt
3. Adjust nut
2. Hose, flexible
1. Hose, suction
