7A2-8 DIAGNOSIS
Data Link Connector Short Circuit

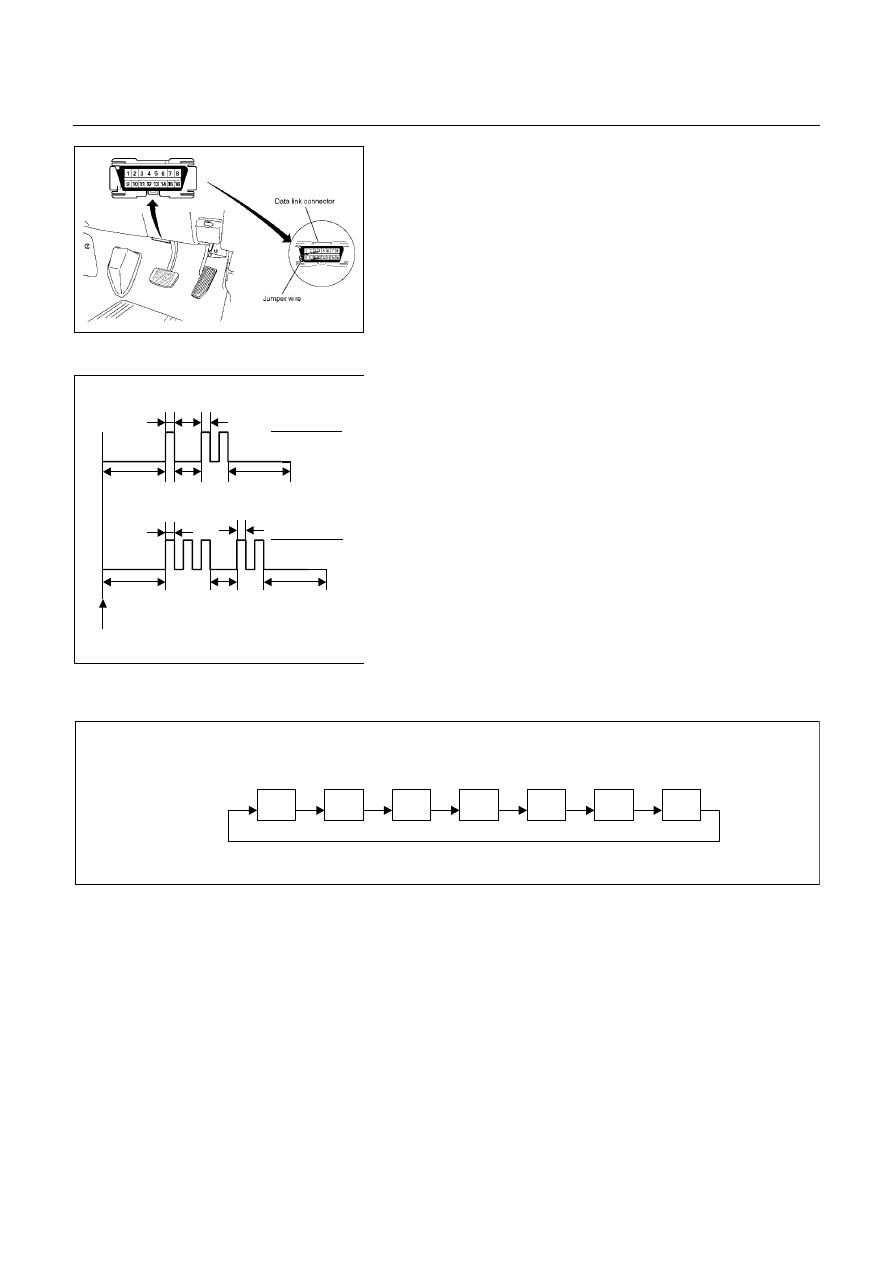

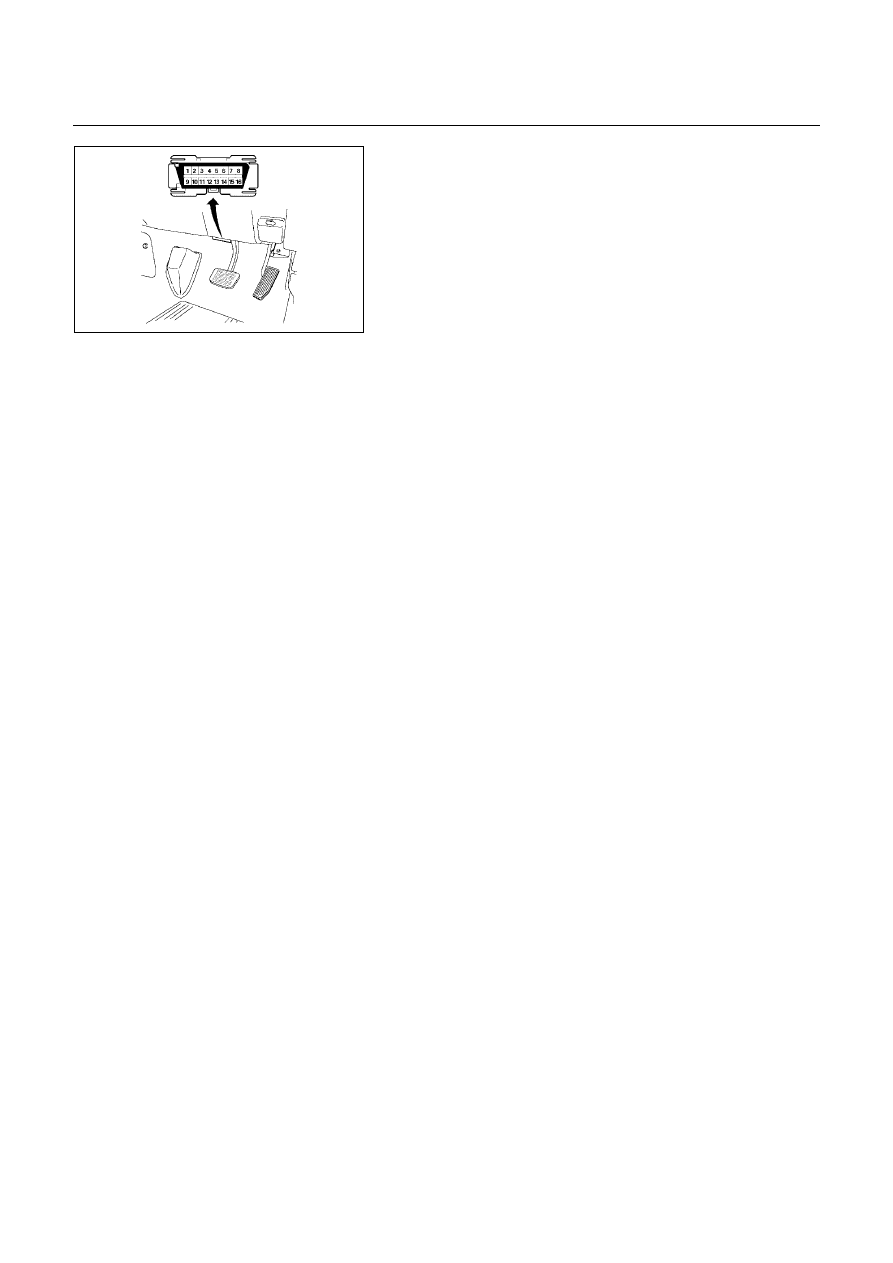

Self-diagnosis code (Flash code) display • The stored trouble codes can be identified by shorting the terminal No. 11 and No. 4 or 5 (ground) of data link connector with a lead wire.
Indication Method: 1. Terminal No. 11 and No. 4 or 5 (ground) of data link connector are short circuited. 2. Turn the key switch to the ON position. 3. In case no trouble code existence, normal code (12) is indicated repeatedly.
0.4 Sec 0.4 Sec ON
OFF
3.2 Sec. 1.2 Sec. 3.2 Sec.
ON
OFF
3.2 Sec. 1.2 Sec. 3.2 Sec.
Self-diagnosis Start
Normal Code (12) Trouble Code (32)
Flash Code Illumination Pattern
4. In case the plural trouble codes have occurred at a time, each codes are indicated three rimes in numerical order.

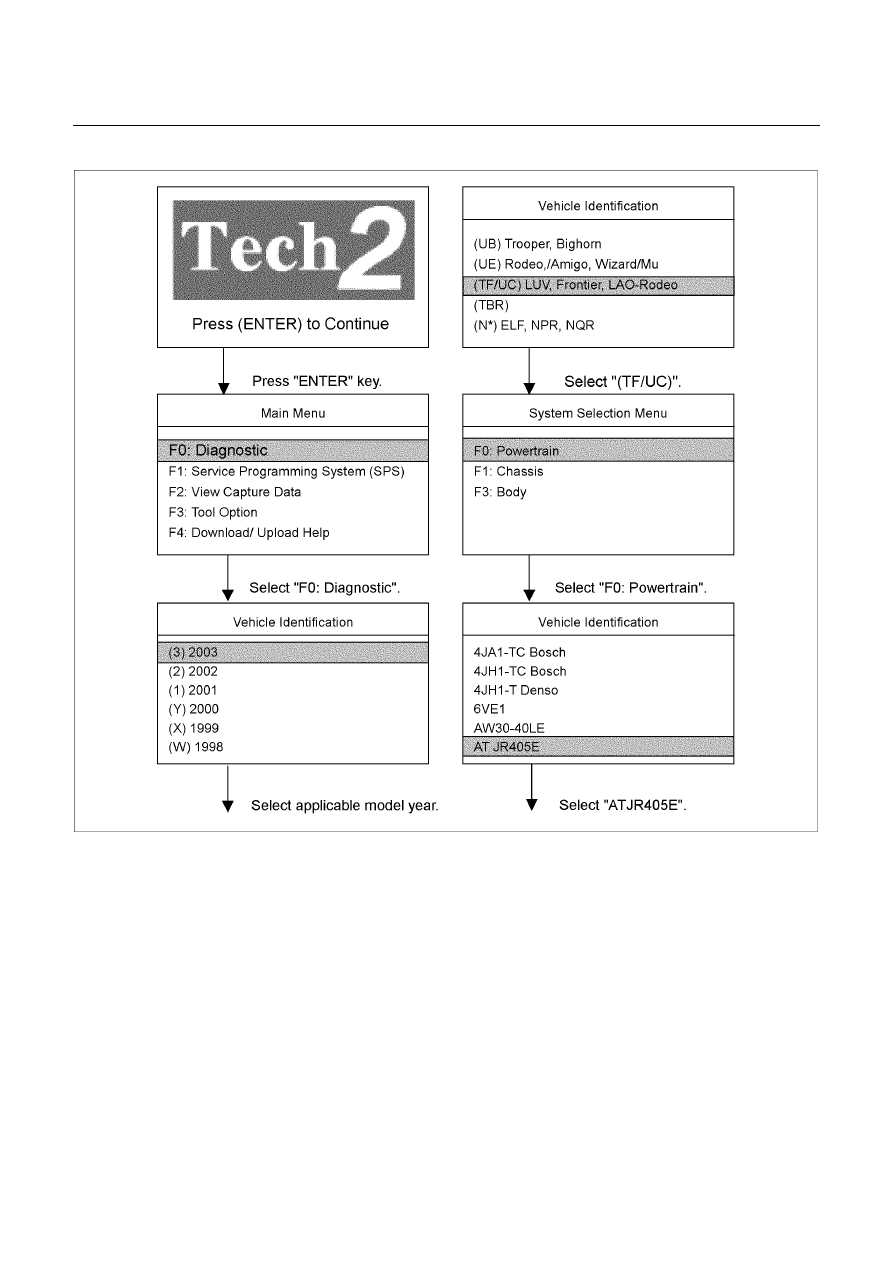

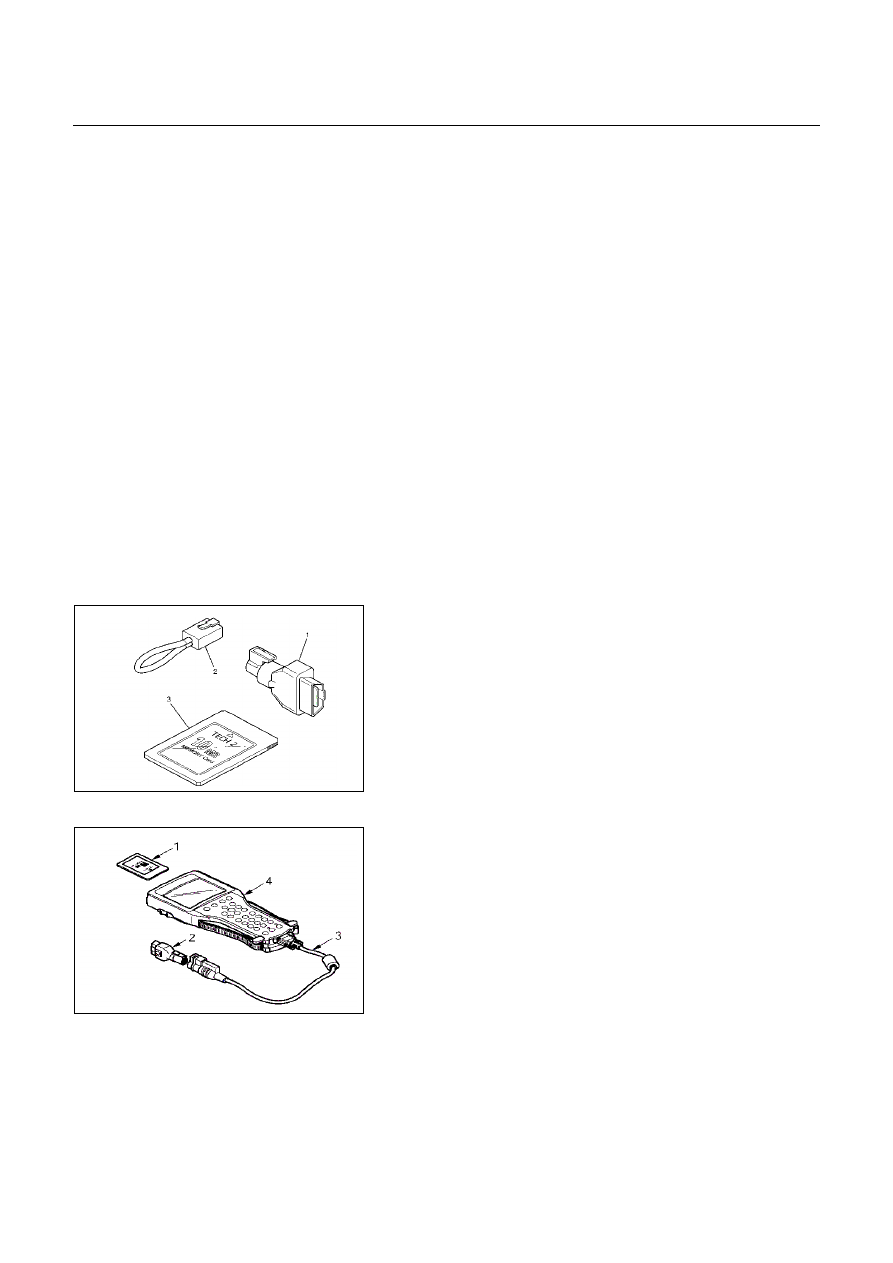

Trouble Code Clear Method: Follow the procedure "DIAGNOSIS WITH TECH 2" in this If you have no Tech 2: Remove ECM(B) fuse SBF-4 (30A) for at least 10 seconds.
12 14 14 14 32 32 32
|
