7A2-6 DIAGNOSIS

BASIC TROUBLE SHOOTING

Transmission fluid pressure together with clutch and brake friction and other important transmission functions are
controlled by electrical signal from the Transmission Control Module (TCM).
Random diagnosis can produce inaccurate and misleading indications. It is important that diagnosing procedure be
carried out systematically.
Carefully follow the sequence outlined below to diagnose automatic transmission assembly.

Verify Customer Complain

Preliminary Check

(Visual Check/Test Drive)

Compare to Same Model

(If Available)

Check Service Bulletin

DTC Check

(Self-diagnosis/Tech 2)

Go to Symptom Diagnosis

Stall Test

Line Pressure Test

Transmission Overhaul

Repair & Verify Fix

Transmission Overhaul

Go to DTC Chart

Go to Intermittent Diagnosis

Follow the instructions

No Instruction

NO DTC

Not Solved

Follow the Bulletin

(Once Clear Memory) Restored

Not Stored

Use Service Programming

System (SPS)

Not Solved

DIAGNOSIS 7A2-7

CHECK TRANS INDICATOR & SELF DIAGNOSIS

CHECK

TRANS

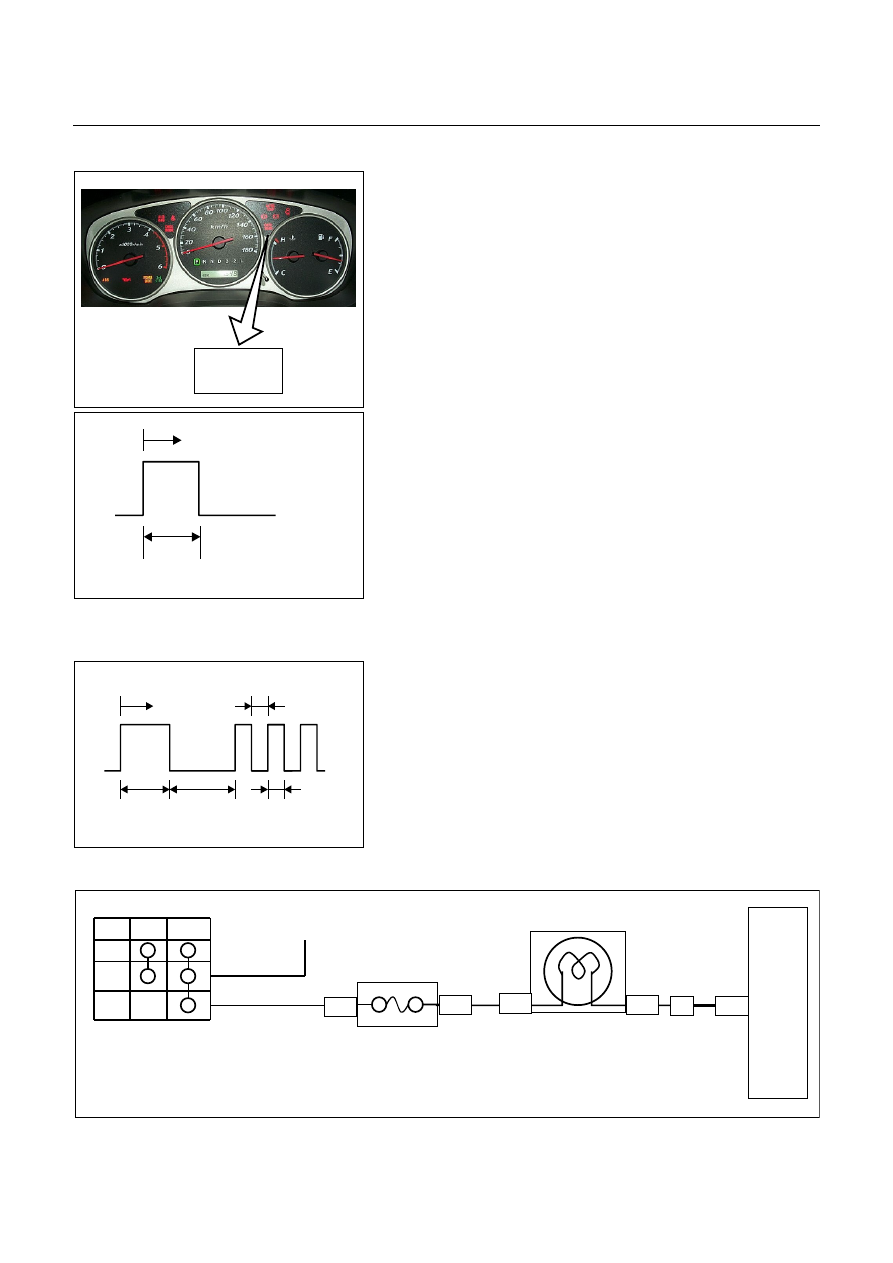

Warning to the driver

•

"CHECK TRANS" is ON during 3 seconds at key switch ON

position.

•

When trouble has occurred to electrical components,

"CHECK TRANS" lamp is blinked (1.25 Hz) even during

driving to warn the driver.

•

The trouble is recorded by trouble code in TCM. When

temporary trouble code has been canceled, the "CHECK

TRANS" lamp stops blinking. This blinking can be stopped

by setting the key off. But the trouble code remains

memorized in TCM.

Key SW ON

OFF

3 Sec.
(Lamp Check)

Illumination Pattern at Normal Condition

NOTE:

1. If the "CHECK TRANS" lamp is staying ON always at key

switch ON position, this means that connection between the

lamp and TCM is shorted to ground.

Verify connection and wire between the TCM A20 terminal

and lamp short to ground.

2. If the "CHECK TRANS" lamp is staying OFF at key switch

ON position (Engine off), this means that connection

between the lamp and TCM is opened or meter fuse C5

(15A) is burnt out.

Verify connection and wire between the TCM A20 terminal

and lamp open circuit and meter fuse C5 (15A).

Key SW ON 0.4 Sec.

OFF

3 Sec. 3.2 Sec. 0.4 Sec.
(Lamp Check)

Illumination Pattern at Trouble Condition

Off Acc On V Acc

CHECK TRANS

Meter

Meter Fuse C5 (15A)

Fuse Box & Relay Box

(Cabin)

TCM
