ELECTRICAL-BODY AND CHASSIS  8-109

Installation

Follow the removal procedure in the reverse order to install the
spot light.
Pay close attention to the important points mentioned in the
following paragraphs.

Connector

Be absolutely sure that the spot light connector is securely
connected.
This will prevent a poor contact and an open circuit.

Bulb

Be absolutely sure that the spot light bulb is correctly installed.
This will prevent a poor contact and an open circuit.

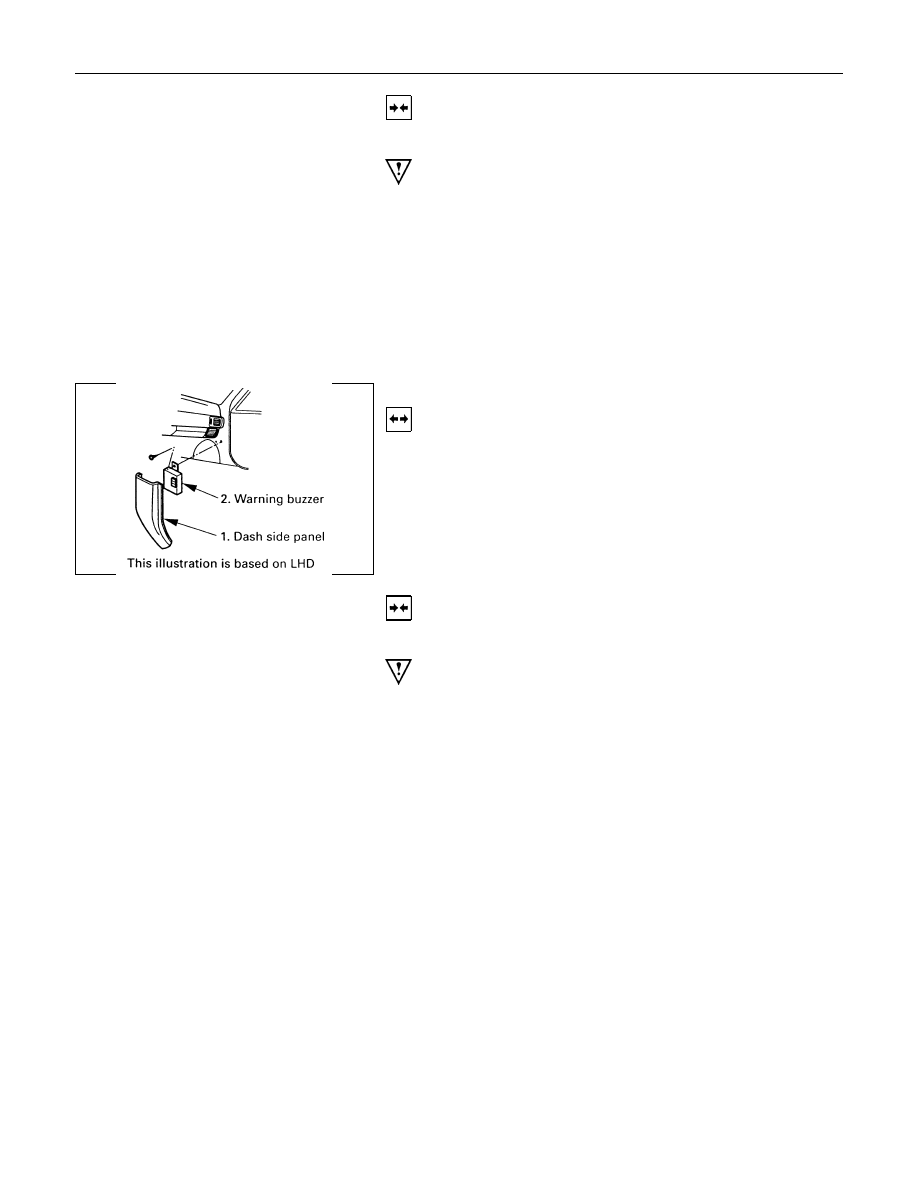

WARNING BUZZER (For Gulf only)

Removal

1. Dash Side Panel

2. Warning Buzzer

• Disconnect the connector.
• Remove the screw.

Installation

Follow the removal procedure in the reverse order to install the
warning buzzer.
Pay close attention to the important points mentioned in the
following paragraphs.

Connector

Be absolutely sure that the warning buzzer connector is
securely connected.
This will prevent a poor contact and an open circuit.

8-110  ELECTRICAL-BODY AND CHASSIS

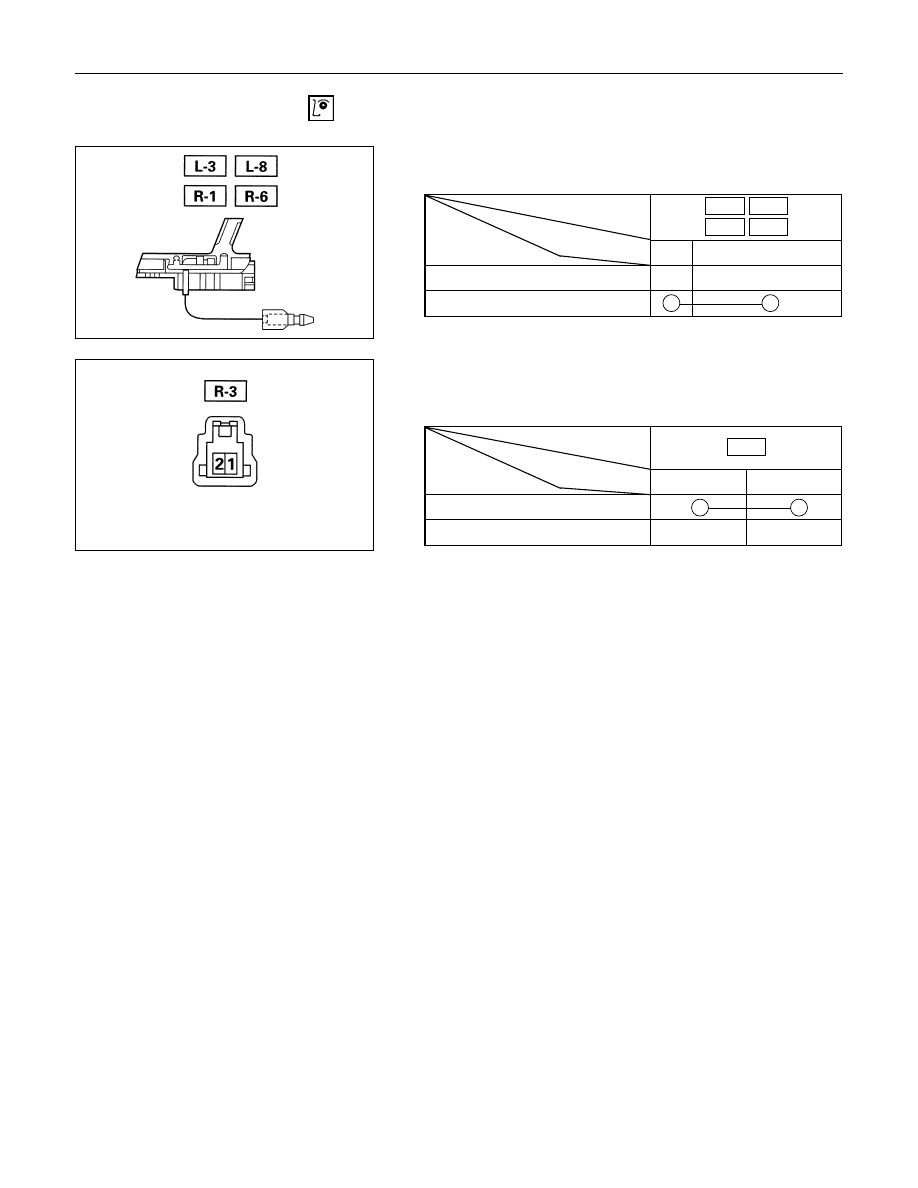

  INSPECTION AND REPAIR

DOOR SWITCH

Door Switch Connections

Connector

SW

No.

L-3



L-8

R-1



R-6

position

Terminal No.

1Body Ground

PUSHED

RELEASED

Switch side

SEAT BELT SWITCH (GULF, SOUTH

AFRICA)

Seat Belt Switch Connections

Connector

SW

No.

R-3

position

Terminal No.

1

2

ON (Belt tongue removed)

OFF (Belt tongue inserted)

ELECTRICAL-BODY AND CHASSIS  8-111

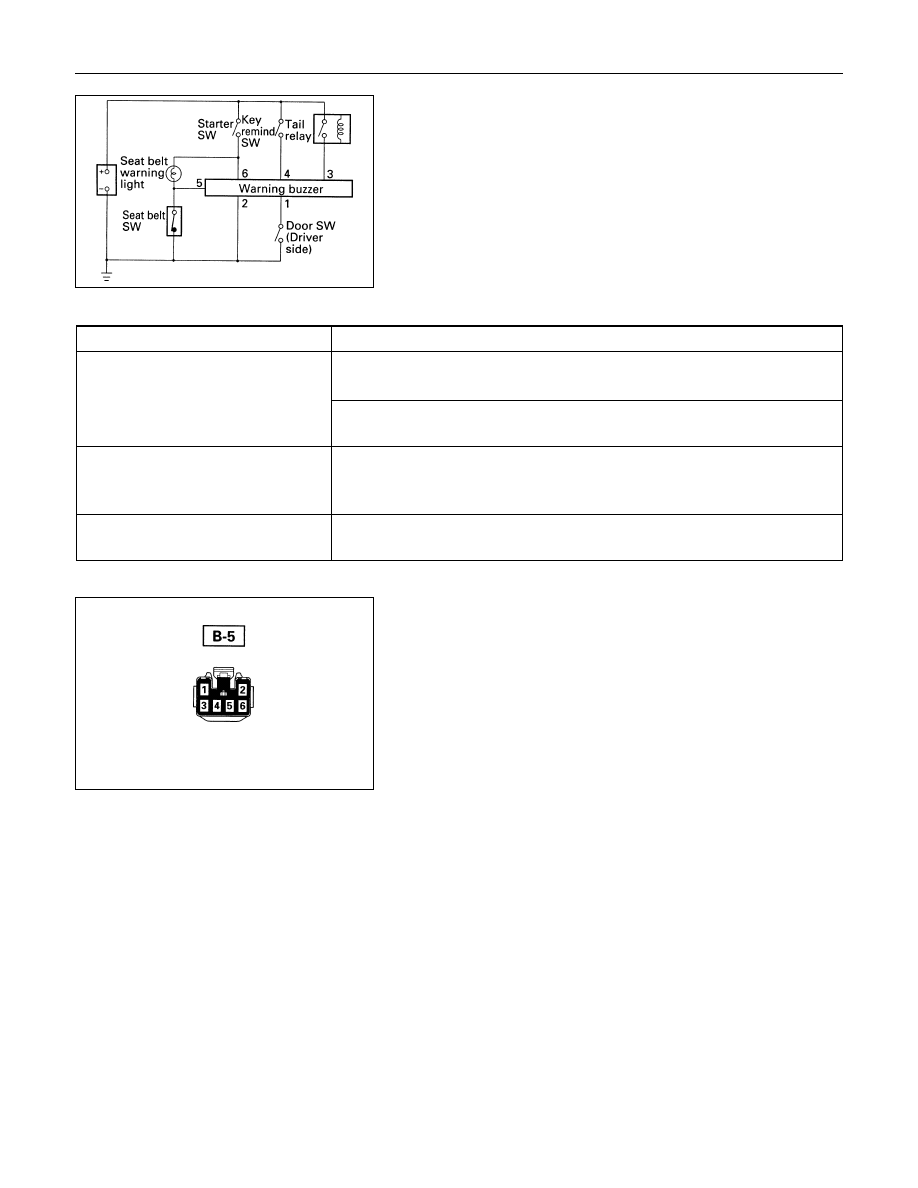

WARNING BUZZER (For Gulf only)

1. Warning Buzzer Circuit

Warning function

Operational conditions

The warning light meter assembly turned about 6 seconds from the

moment the starter switch is turned on.

The buzzer sounds for about 6 seconds when the starter switch is turned

on with the seat belt switch on (when the seat belt is not used).

Key left in starter switch

The buzzer sounds when both the key remind switch and the FRT door

switch-LH are turned on.

To stop the sound of the buzzer, turn on the starter switch.

Tail lights left on

The buzzer sounds when the starter switch is turned from the “on” to “off”

position while the taillights are on.

Harness side

2. Warning Buzzer Harness Side Connector Circuit

Disconnect  the  warning  buzzer  connector  and  check

continuity and voltage between the warning buzzer harness

side connector terminals.

Fasten the seat belt

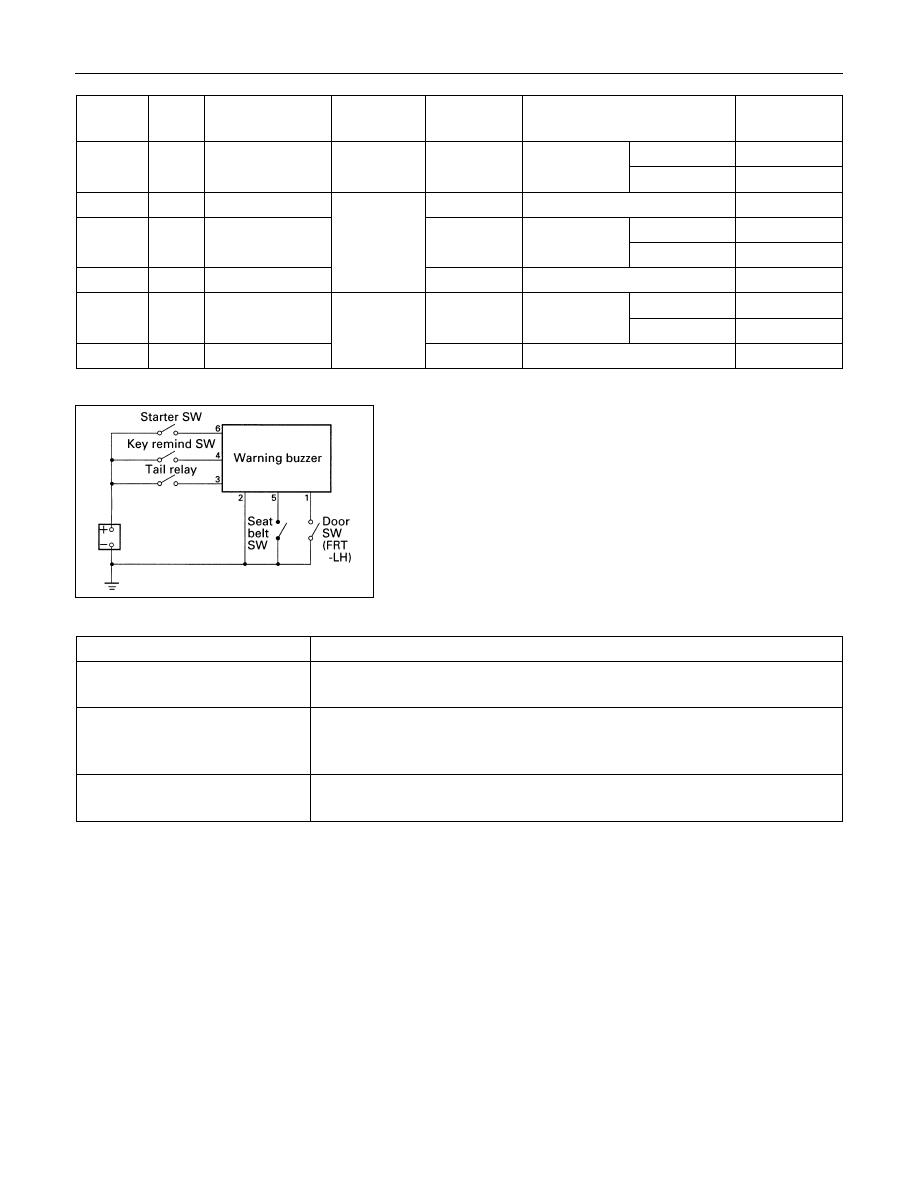

8-112  ELECTRICAL-BODY AND CHASSIS

Terminal

NO.

Wire

color

Connecting to

Check item

Connecting

terminal

Check condition

Standard

Seat

Unfasten

Continuity

belt

Fasten

No continuity

3

G/Y

Tail relay

3-Ground

Light SW “ON”

Approx. 12V

Key remind SW

Insert

Approx. 12V

(Starter SW)

Remove

0V

6

Y

Fuse CB-7

6-Ground

Starter SW “ON”

Approx. 12V

Door SW

Open

Continuity

(FRT-LH)

Continuity

Close

No continuity

2

B

Ground

2-Ground

-

Continuity

WARNING BUZZER (For Gulf only)

1. Warning Buzzer Circuit

Warning function

Operational conditions

Fasten the seat belt

The buzzer sounds when the starter switch is turned on with the seat belt

switch on (when the seat belt is not used)

Key left in starter switch

The buzzer sounds when both the key remind switch and the FRT door

switch-LH are turned on.

To stop the sound of the buzzer, turn on the starter switch.

Taillights left on

The buzzer sounds when the starter switch is turned from the “on” to “off “

position while the taillights are on.

5-Ground

Continuity

Seat belt SW

G/Y

5

Key

4-Ground

Voltage

R/B

4

FRT door-LH

1-Ground

B/W

1
