ELECTRICAL-BODY AND CHASSIS  8-101

DOME LIGHT, SPOT LIGHT AND WARNING BUZZER

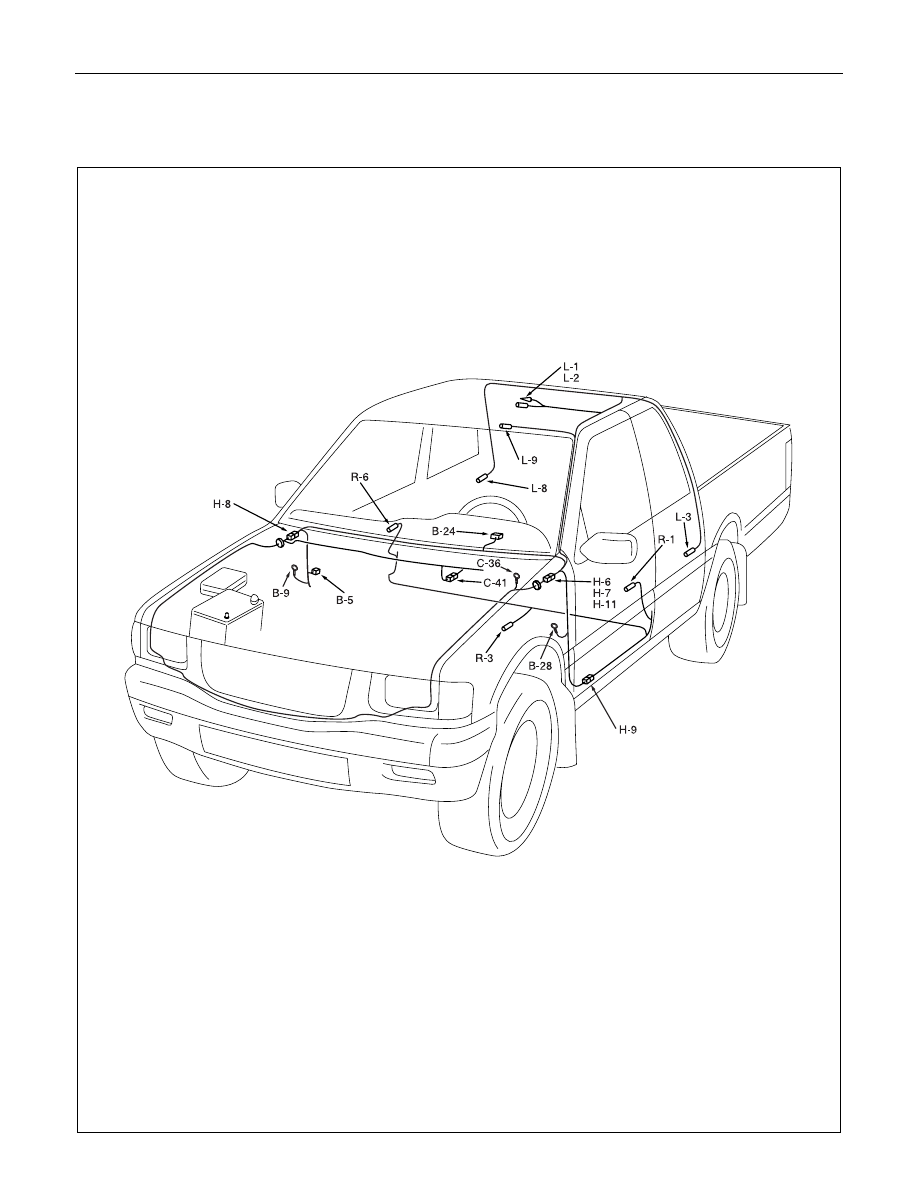

PARTS LOCATION (LHD)

8-102  ELECTRICAL-BODY AND CHASSIS

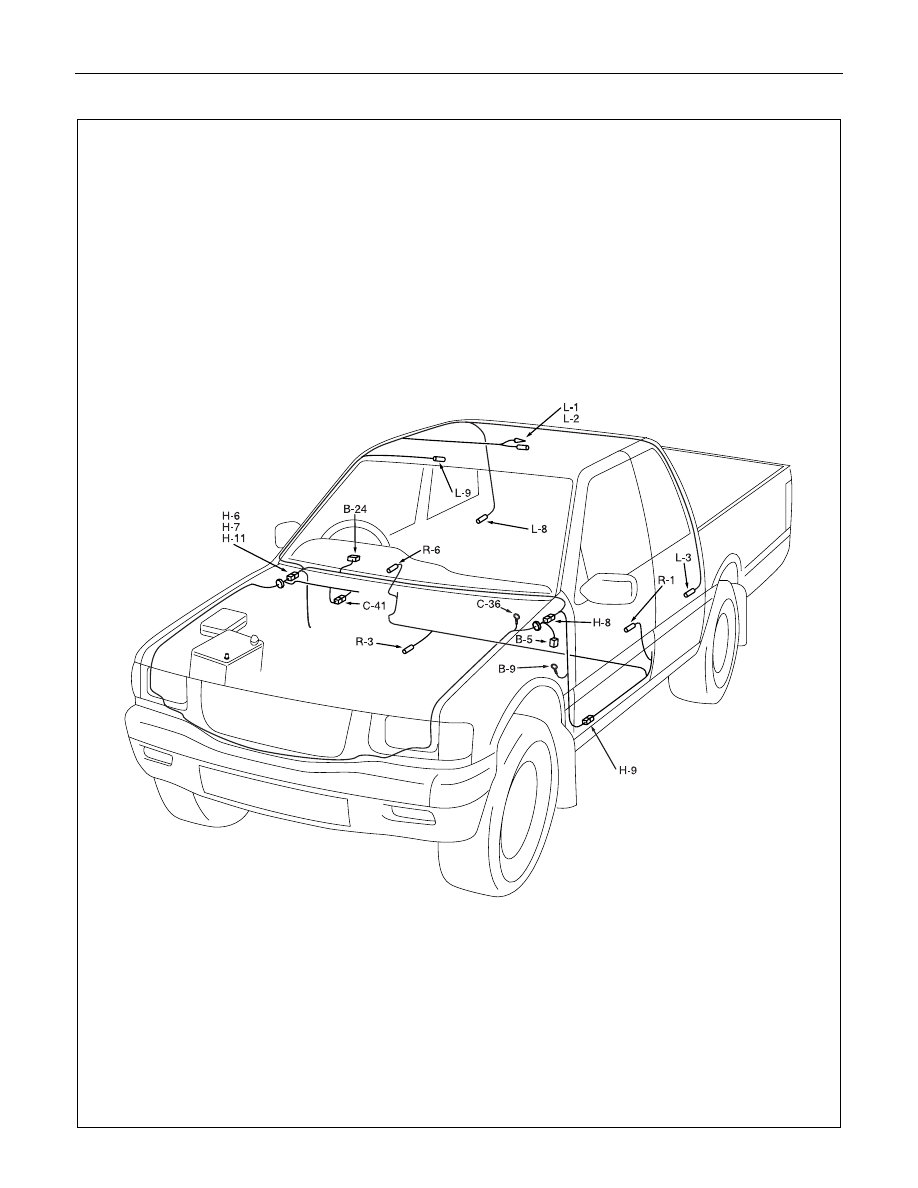

PARTS LOCATION (RHD)

ELECTRICAL-BODY AND CHASSIS  8-103

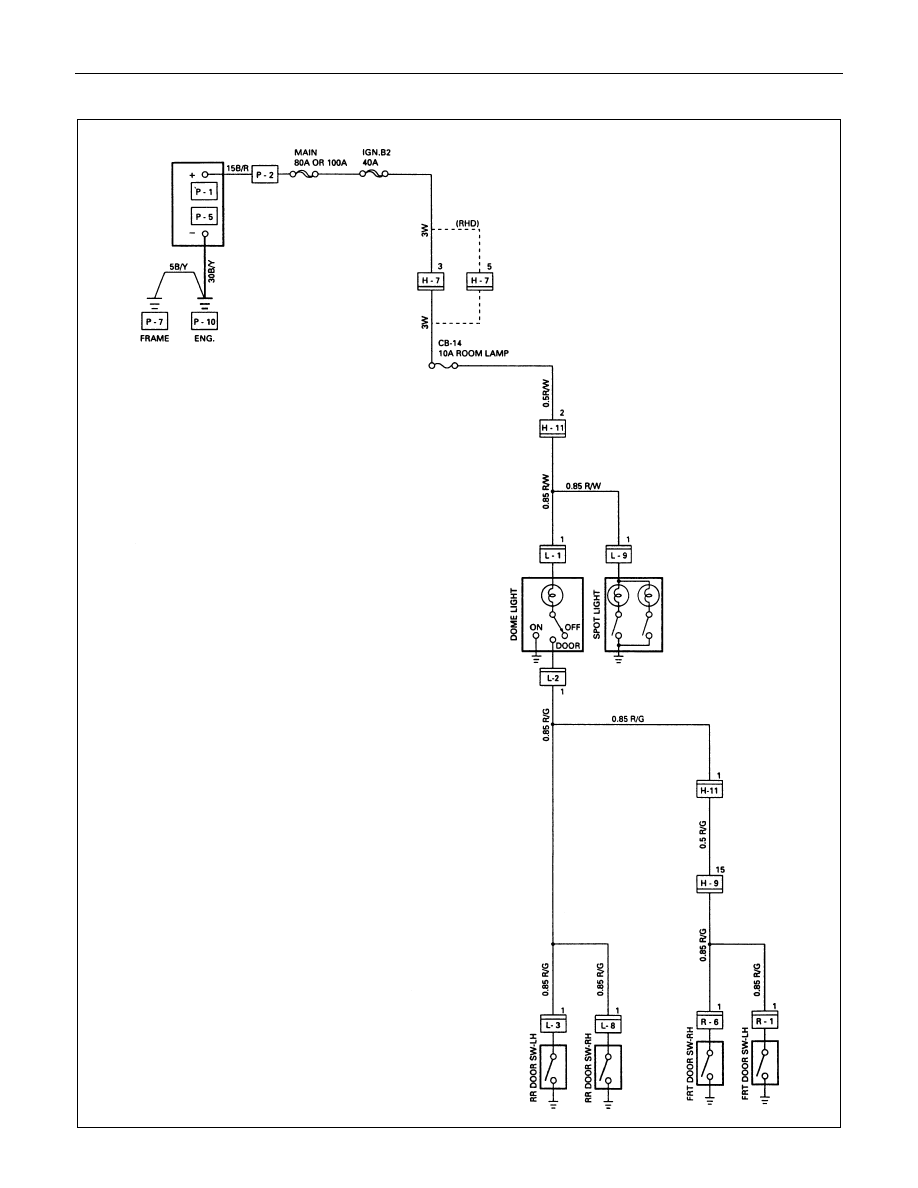

CIRCUIT DIAGRAM (LHD & RHD)

8-104  ELECTRICAL-BODY AND CHASSIS

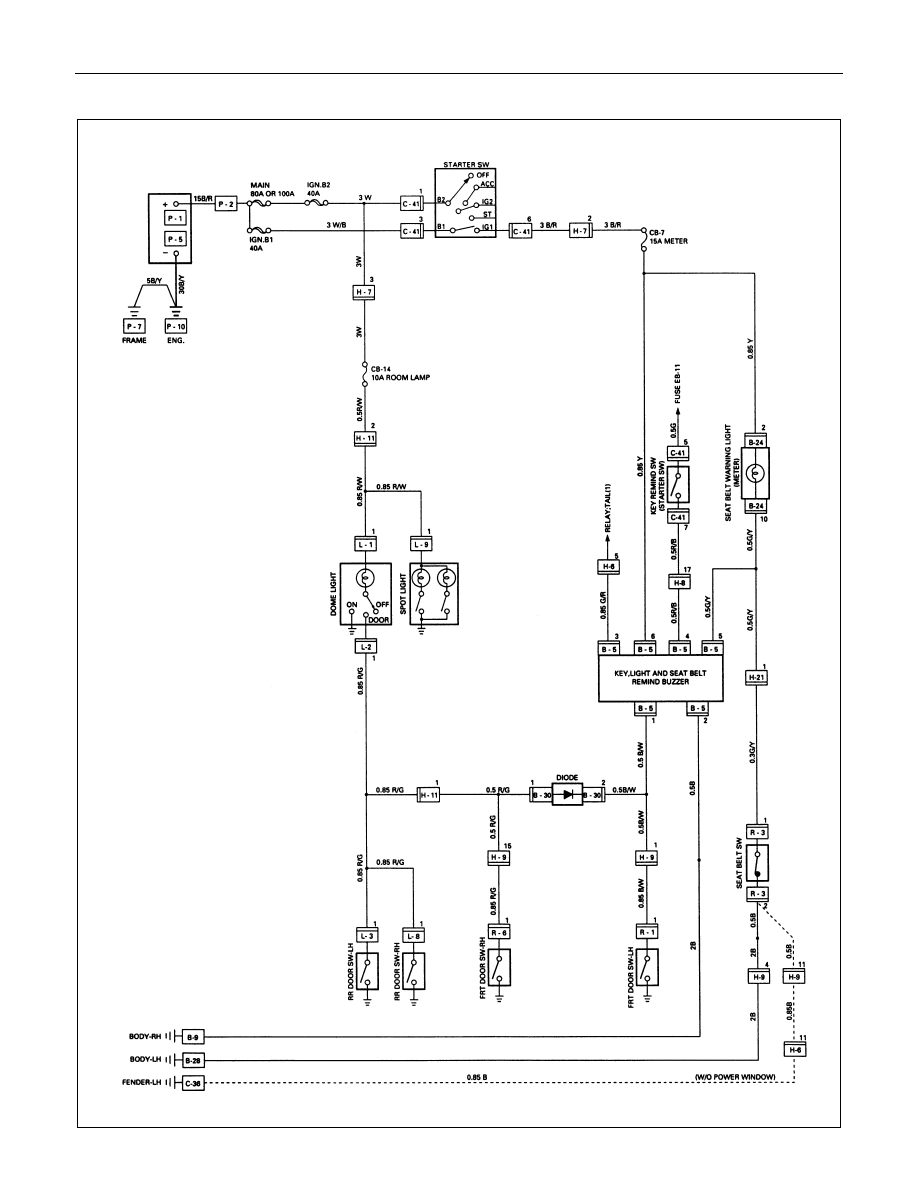

CIRCUIT DIAGRAM
