ELECTRICAL-BODY AND CHASSIS  8-105

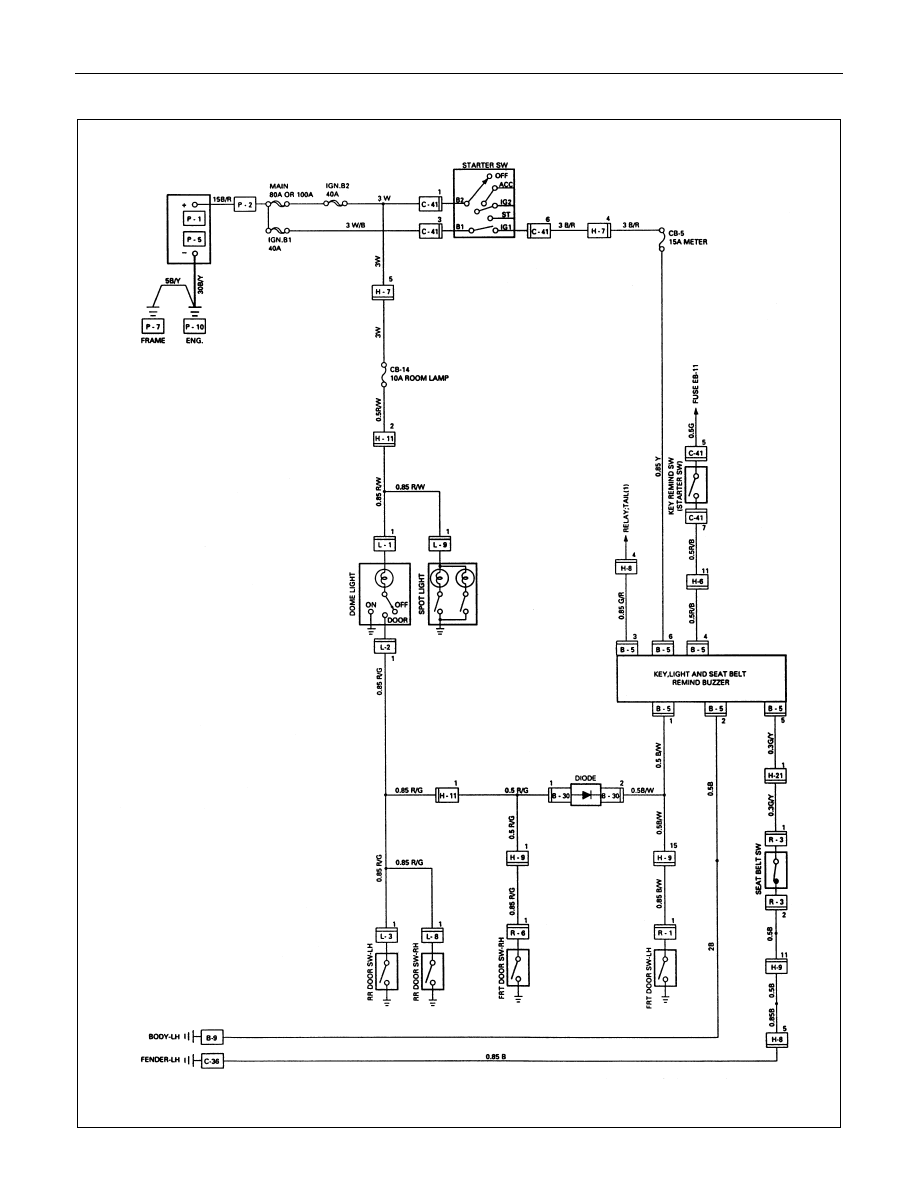

CIRCUIT DIAGRAM

8-106  ELECTRICAL-BODY AND CHASSIS

TROUBLESHOOTING

1. Dome light dose not light

Checkpoint

Trouble Cause

Countermeasure

Replace the dome light bulb

Burned out the bulb

NG

Repair or replace the dome

light assembly

Dome light switch function

Switch malfunction

Repair open circuit or

connector contact

Continuity between

connector 2

H-11

 - 1

L-1

Open circuit or poor connector

contact

NG

NG

OK

OK

Dome light bulb continuity

2. Dome light does not go out

Repair or replace the door

switch

Switch malfunction or foreign

material switch

NG

Repair short circuit or

connector contact

Continuity between
connector 1

L-2

 -ground

when shutting the door
(Should be no continuity)

Short circuit

NG

OK

Door switch function (Both

side)

ELECTRICAL-BODY AND CHASSIS  8-107



  REMOVAL AND INSTALLATION

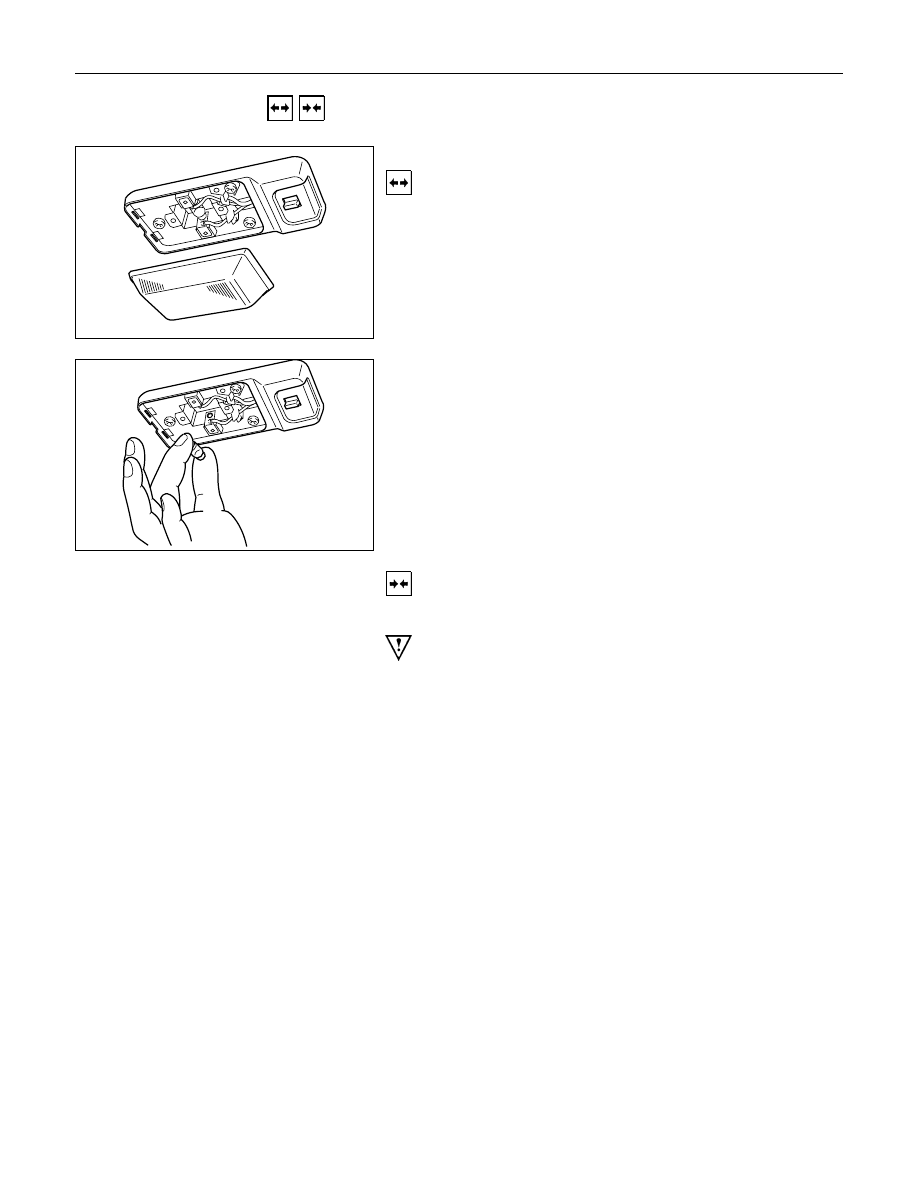

DOME LIGHT

Removal

1. Remove the dome light lens free.

2. Remove three dome light fixing screws.

3. Remove the wiring connector.

4. Remove the dome light.

5. Pull the bulb to remove it.

Installation

Follow the removal procedure in the reverse order to install the
dome light.
Pay close attention to the important points mentioned in the
following paragraphs.

Bulb

Be absolutely sure that the dome light bulb is correctly
installed.
This will prevent a poor contact and an open circuit.

8-108  ELECTRICAL-BODY AND CHASSIS

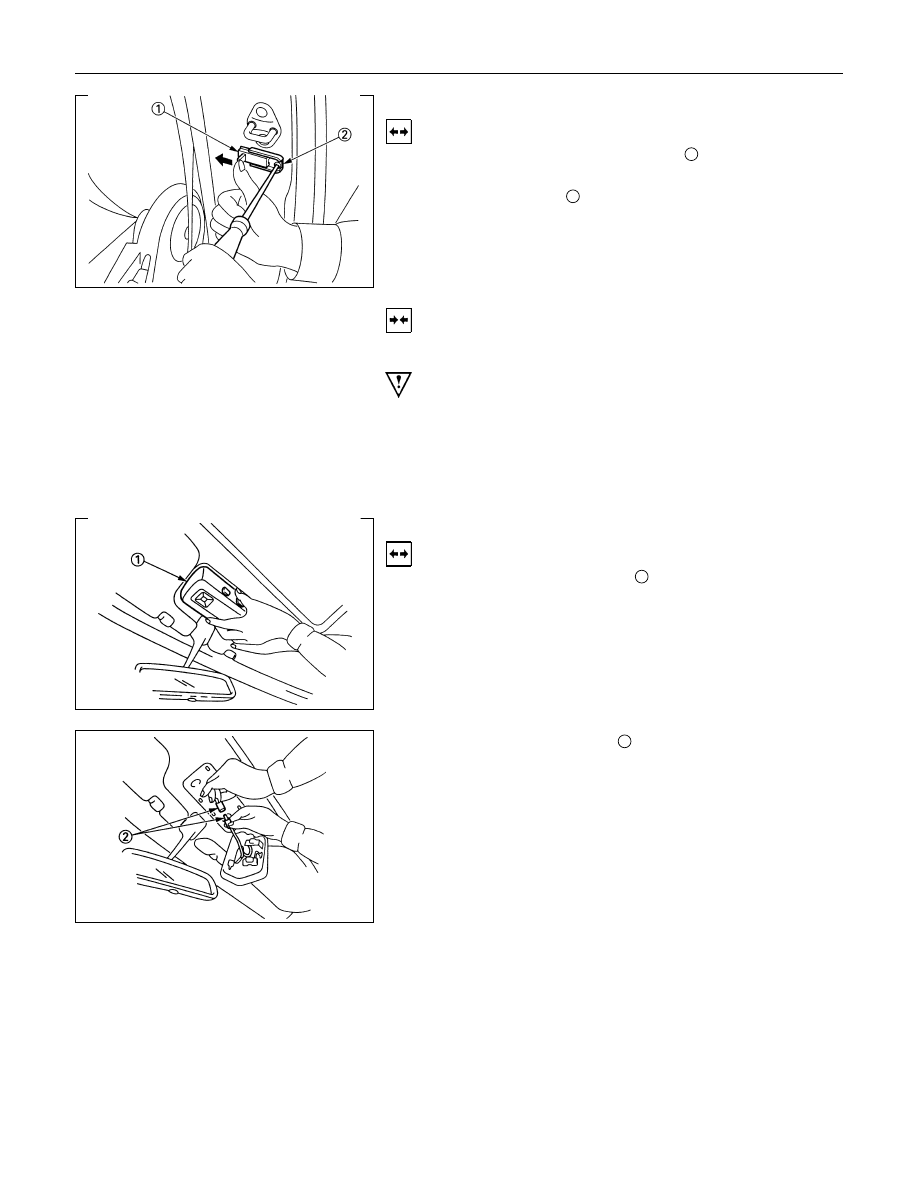

DOOR SWITCH

Removal

1. Push the door switch sliding portion

1

 in the direction of the

arrow in the illustration.

2. Loosen the screw

2

.

3. Pull the switch free to remove it.

4. Disconnect the door switch connector.

Installation

Follow the removal procedure in the reverse order to install the
spot light.
Pay close attention to the important points mentioned in the
following paragraphs.

Connector

Be absolutely sure that the door switch connector is securely
connected.
This will prevent a poor contact and an open circuit.

SPOT LIGHT

Removal

1. Grasp the spot light housing

1

 with both hands.

Pull the housing straight down.

This will release the clip.

2. Disconnect the connector

2

.

3. Push the bulb in and turn it counterclockwise to remove it.
