CAB  10-29

  INSTALLATION

12

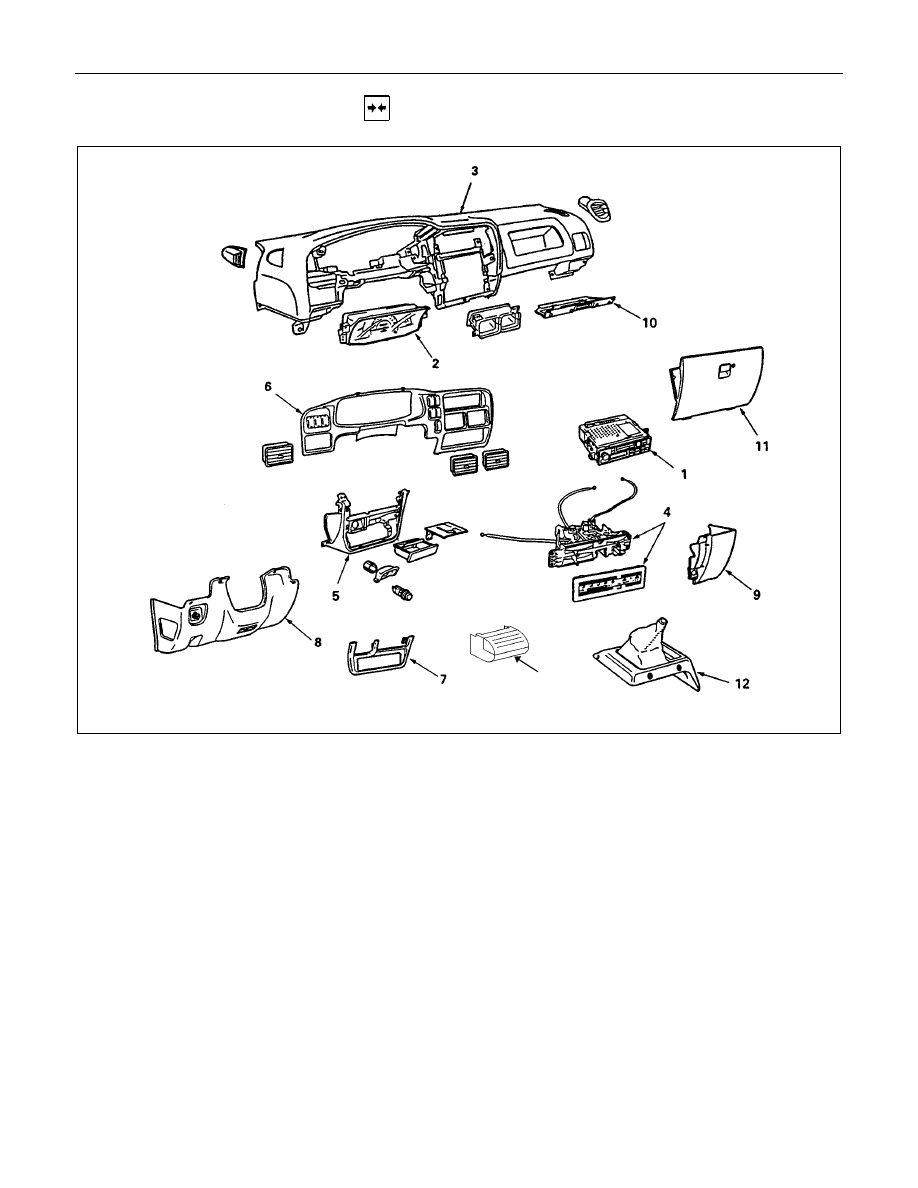

Installation Steps

1. Radio assembly
2. Meter assembly
3. Instrument panel assembly

▲

4. Control lever assembly
5. Instrument panel lower center cover

assembly

6. Meter cluster assembly

7. Lower cluster assembly
8. Instrument panel driver lower cover

assembly

9. Instrument panel passenger lower cover

assembly

10. Glove box cover
11. Glove box
12. ECM cover (M/T Remote only)
13. Center console assembly

10-30  CAB

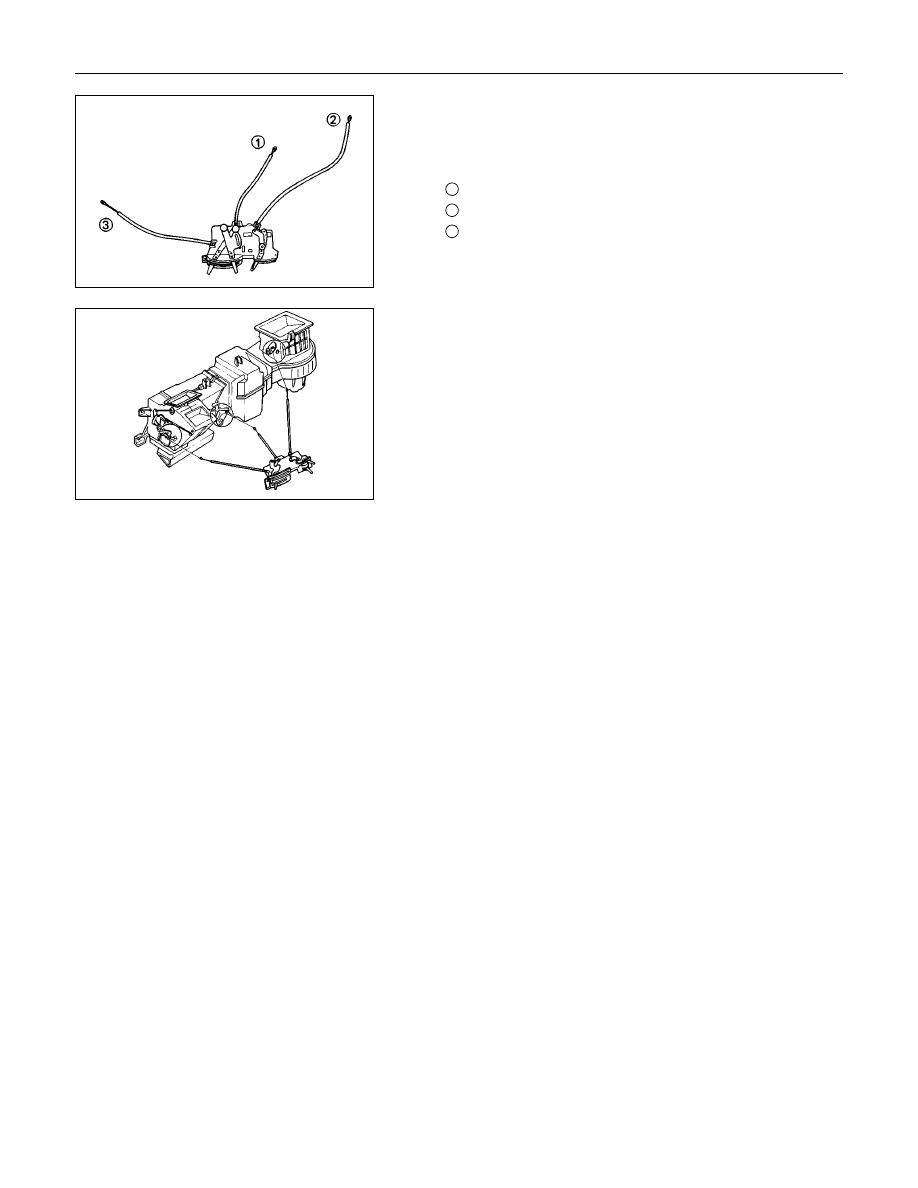

4. Control Lever Assembly

1) Set the temperature control lever and the airsource

select lever at the left-hand side end.

2) Set the air selector lever at the right-hand side end.

1

 : Temperature control cable

2

: Air source select cable

3

: Air selector

3) Attach the cable, after the work 1) and 2) have been

completed.

CAB  10-31

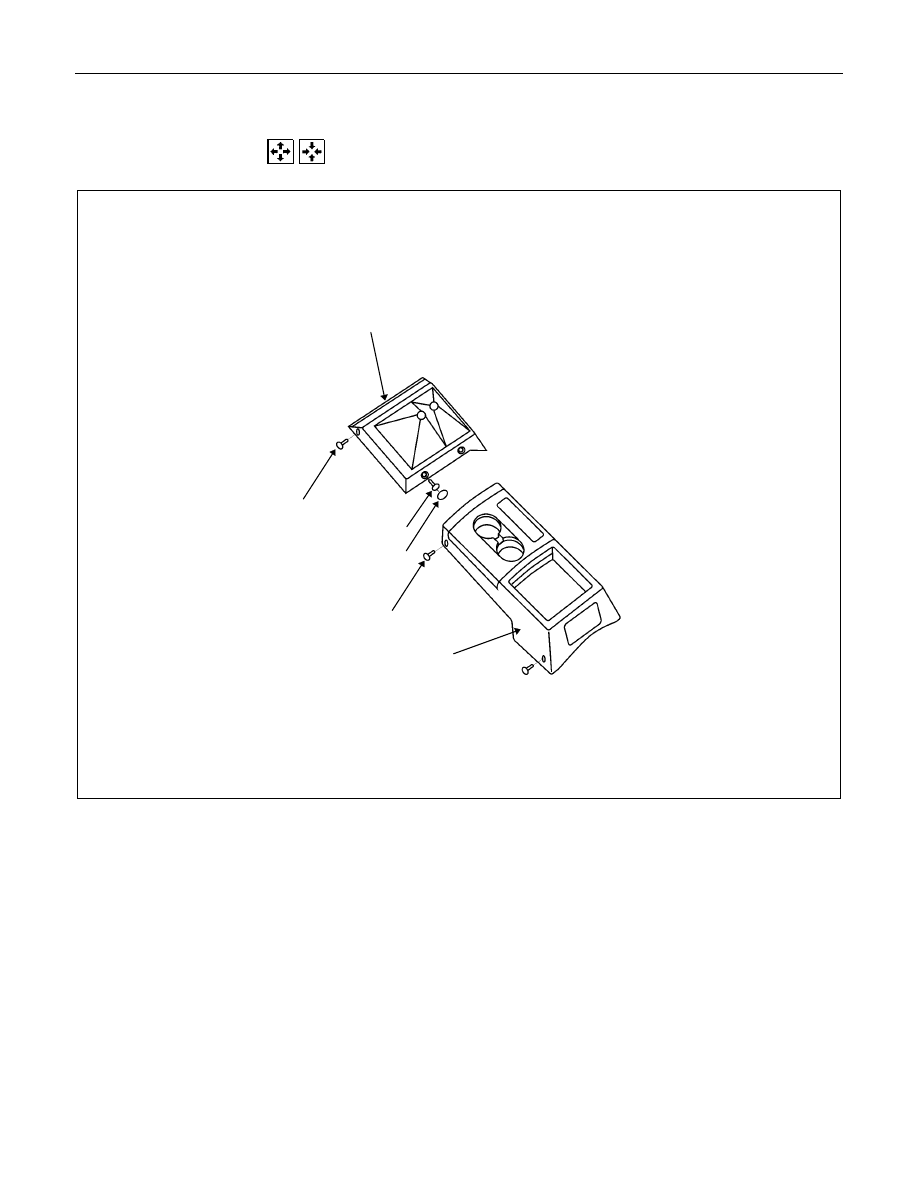

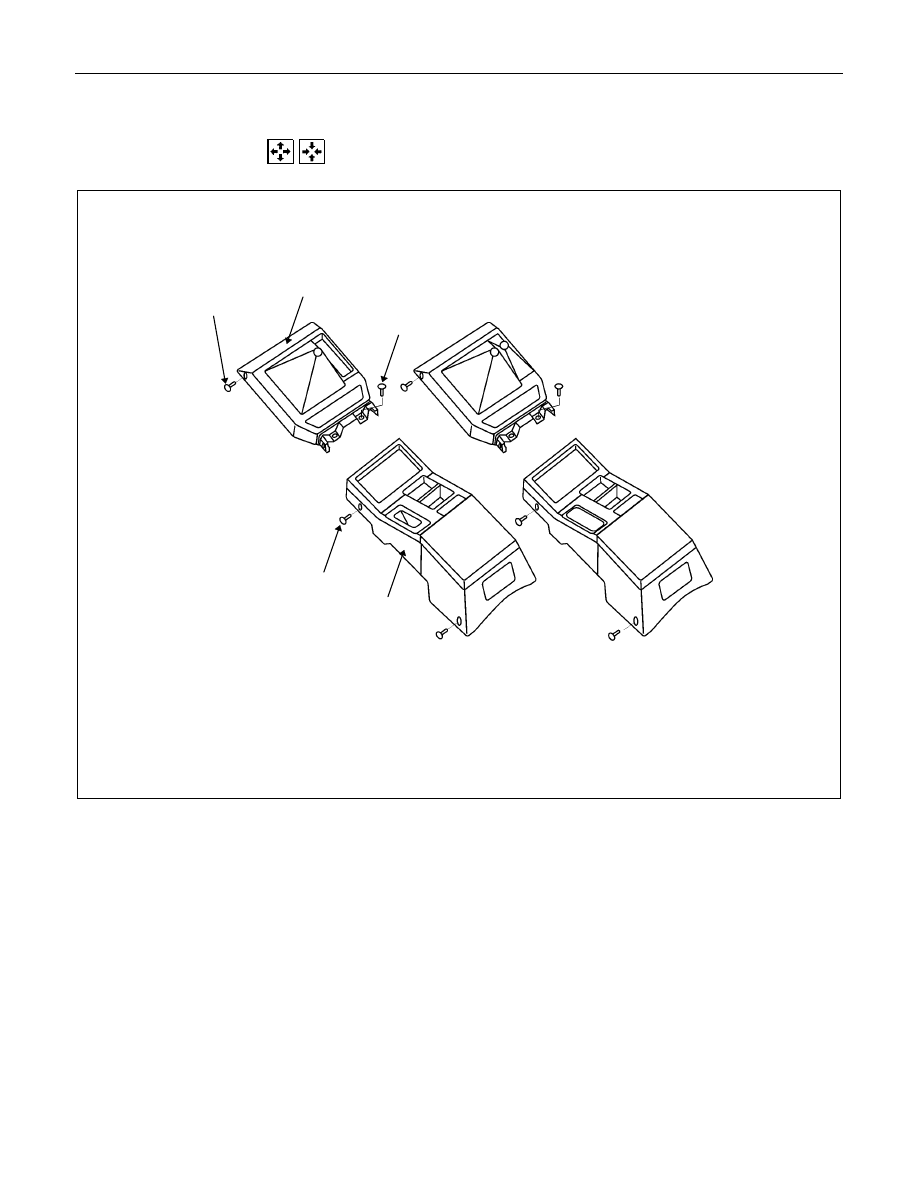

CONSOLE BOX



  REMOVAL AND INSTALLATION

6

5

1

2

4

3

4

×

4 S Model

Removal Steps

1. Hole cover

×

2

2. Screw

×

2

3. Screw

×

2

4. Center console
5. Screw

×

4

6. Rear console

Installation Steps

6. Rear console
5. Screw

×

4

4. Center console
3. Screw

×

2

2. Screw

×

2

1. Hole cover

×

2

10-32  CAB

CONSOLE BOX



  REMOVAL AND INSTALLATION

4

5

3

2

1

4

×

2 LS Model

4

×

4 LS Model

4

×

2 LS AND 4

×

4 LS Model

Removal Steps

1. Screw

×

4

2. Rear console
3. Screw

×

2

4. Screw

×

2

5. Center console

Installation Steps

5. Center console
4. Screw

×

2

3. Screw

×

2

2. Rear console
1. Screw

×

4
