CAB  10-33

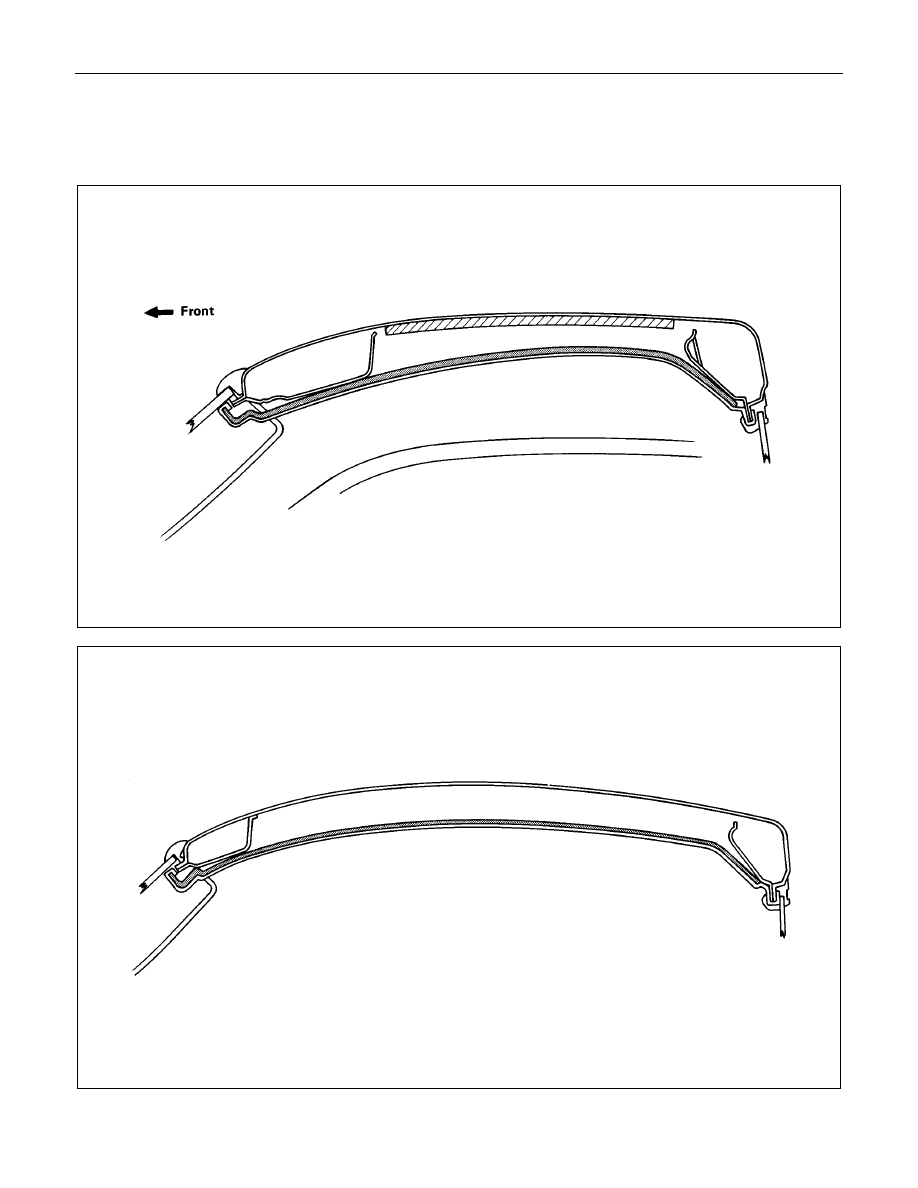

HEAD LINING

GENERAL DESCRIPTION

STANDARD CAB

SPACE CAB (SPORTS CAB)

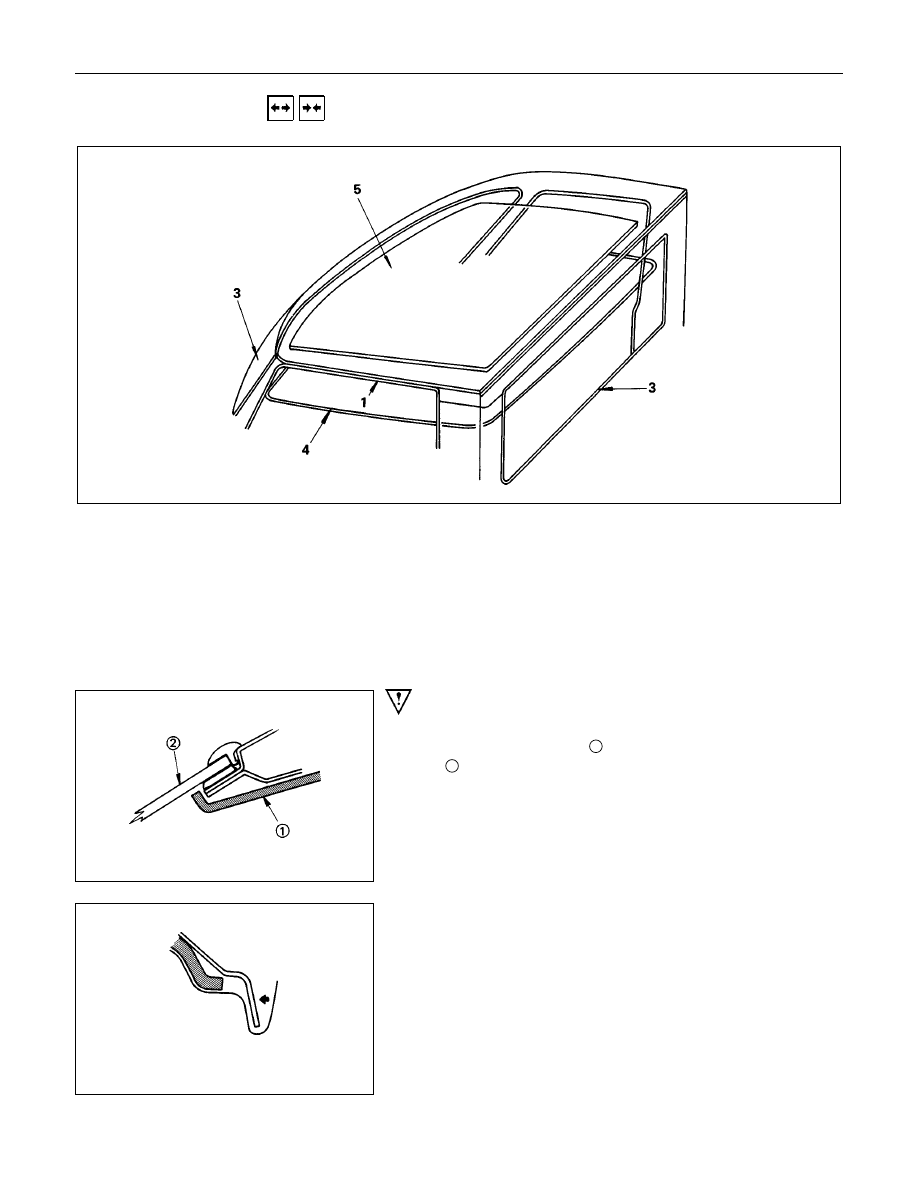

10-34  CAB



  REMOVAL AND INSTALLATION

Removal Steps

1. Door finisher
2. Rear view mirror, sunvisor and dome

lamp assembly

3. Windshield and back light glass
4. Head lining
5. Insulation pad

Installation Steps

5. Insulation pad

▲

4. Head lining
3. Windshield and back light glass
2. Rear view mirror, sunvisor and dome

lamp assembly

1. Door finisher

Important Operations - Installation

4. Head Lining

1) Install the head lining

1

 to the body panel.

2

 : Windshield glass

2) Roll up the head lining in the body side of the back light

glass and door opening.

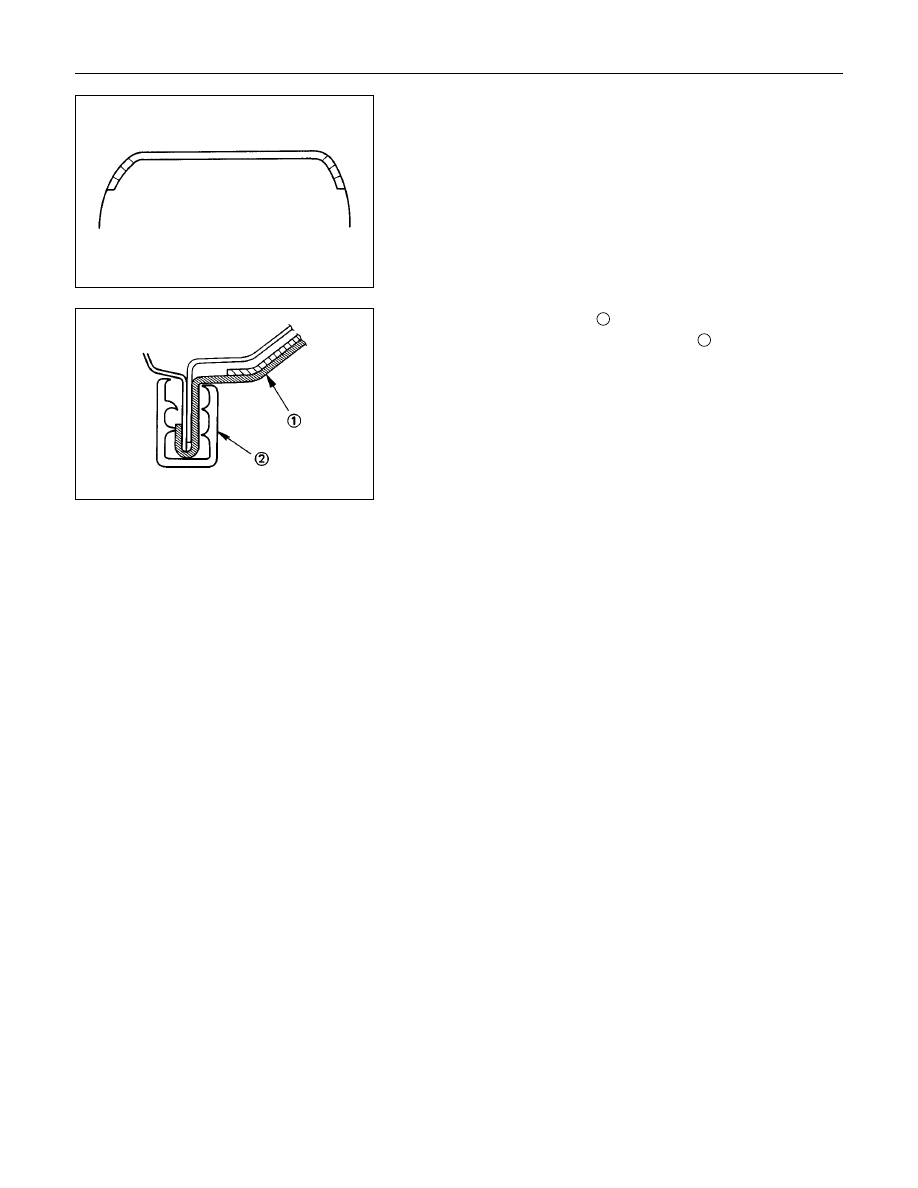

CAB  10-35

3) Roll up the head lining provided with slits, in the corner.

4) Roll up the head lining

1

 in the body side of door opening.

5) Fix to the door side, using the finisher

2

.

10-36  CAB

QUARTER GLASS (SPACE CAB)



  REMOVAL AND INSTALLATION

Removal Steps

1. Screw bolt

▲

2. Quarter glass
3. Screw bolt
4. Screw bolt
5. Fastener assembly

Installation Steps

5. Fastener assembly
4. Screw bolt
3. Screw bolt
2. Quarter glass
1. Screw bolt

Important Operations - Removal

2. Quarter Glass
Pull out the glass assembly towards the rear of the vehicle.
