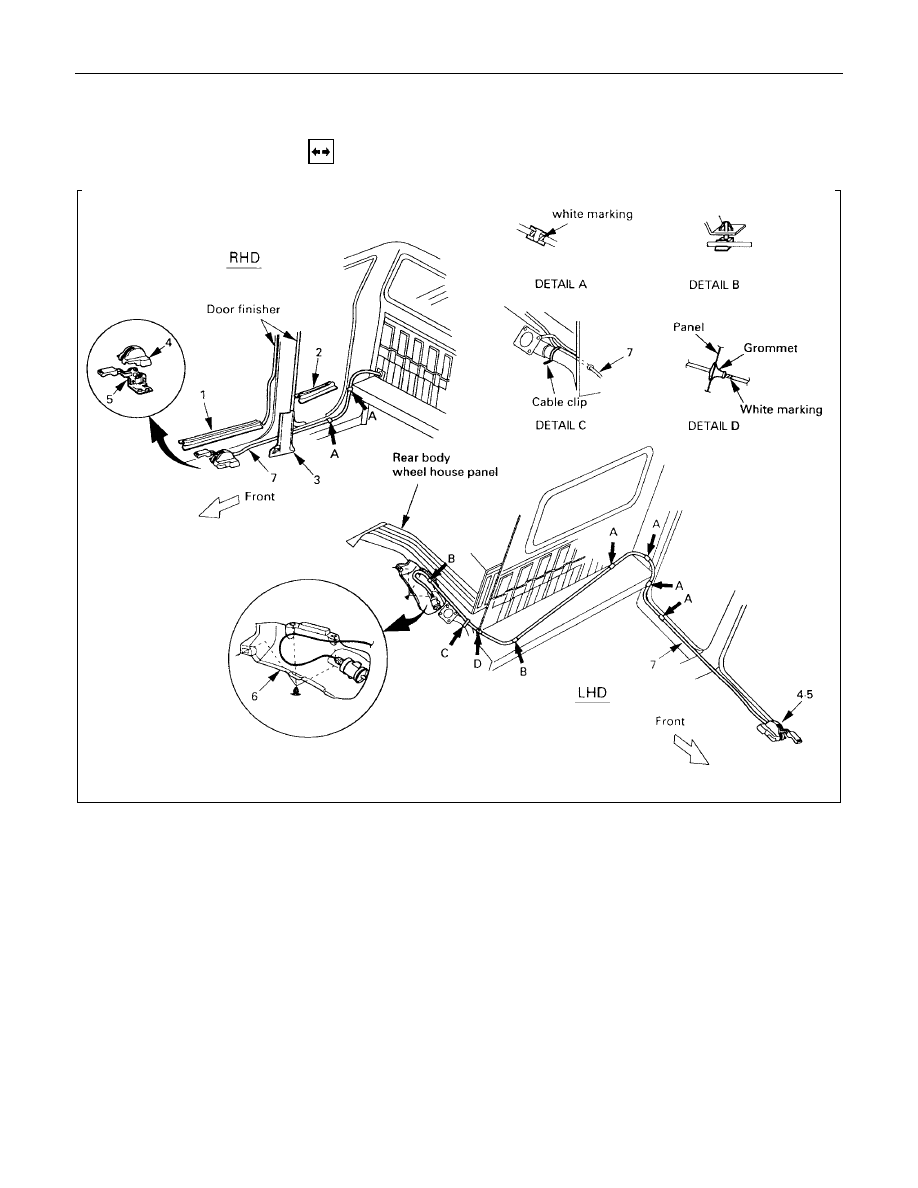

10-36  CAB

FUEL FILLER LID OPENER VELER/CABLE

  REMOVAL (DOUBLE CAB)

Removal Steps

V

1. Front sill plate

V

2. Rear sill plate
3. Center pillar inner trim cover

V

4. Fuel filler lid opener cover

V

5. Fuel filler lid opener lever
6. Cover

V

7. Fuel filler lid cable ascembly

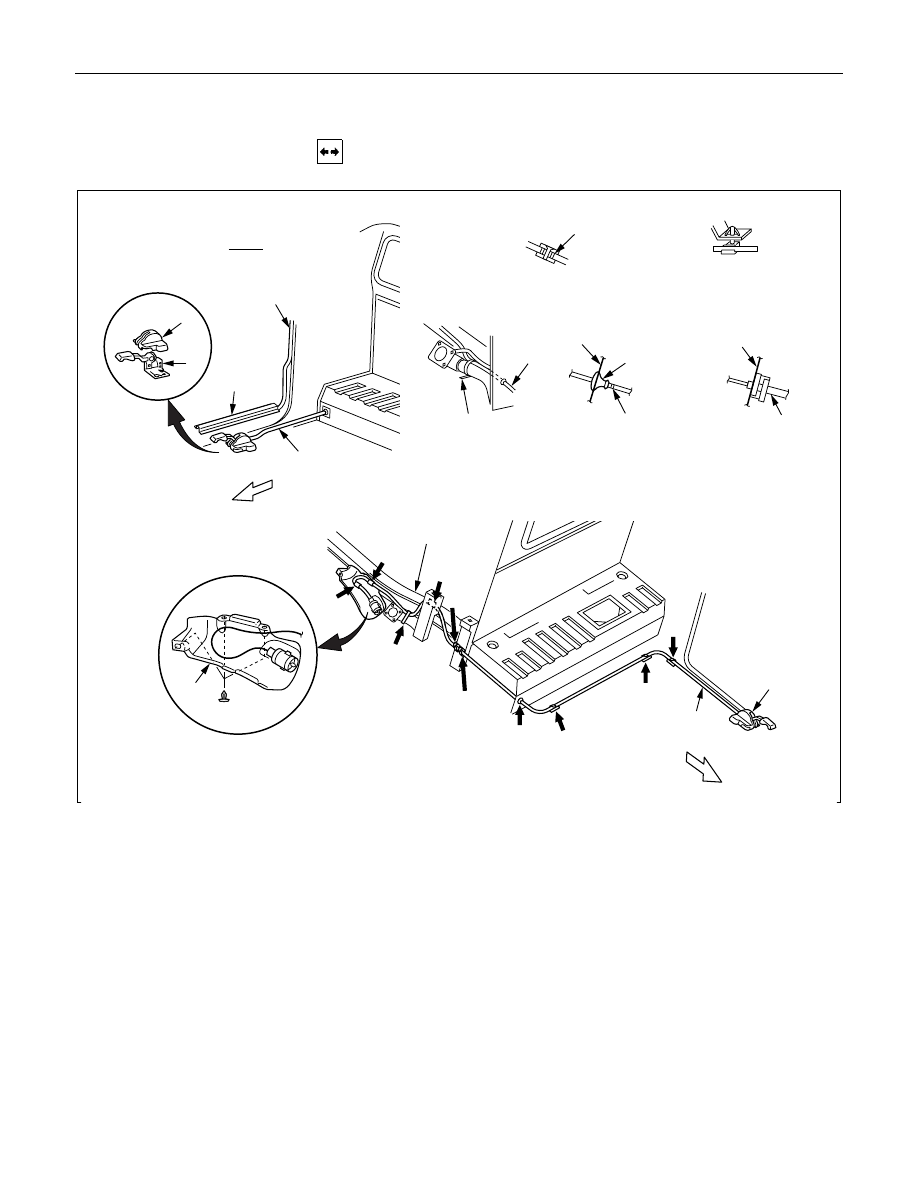

CAB  10-37

FUEL FILLER LID OPENER VELER/CABLE

  REMOVAL (SPACE CAB)

4

5

1

7

7

4,5

7

A

A

RHD

DETAIL C

DETAIL D

Door finisher

Front

Cable clip

Panel

Grommet

White marking

Cab mounting

White marking

DETAIL E

DETAIL B

DETAIL A

Protector

Front

A

D

Rear body
wheel house panel

B

B

C

E

E

6

B

Removal Steps

V

1. Front sill plate

V

4. Fuel filler lid opener cover

V

5. Fuel filler lid opener lever
6. Cover

V

7. Fuel filler lid cable ascembly

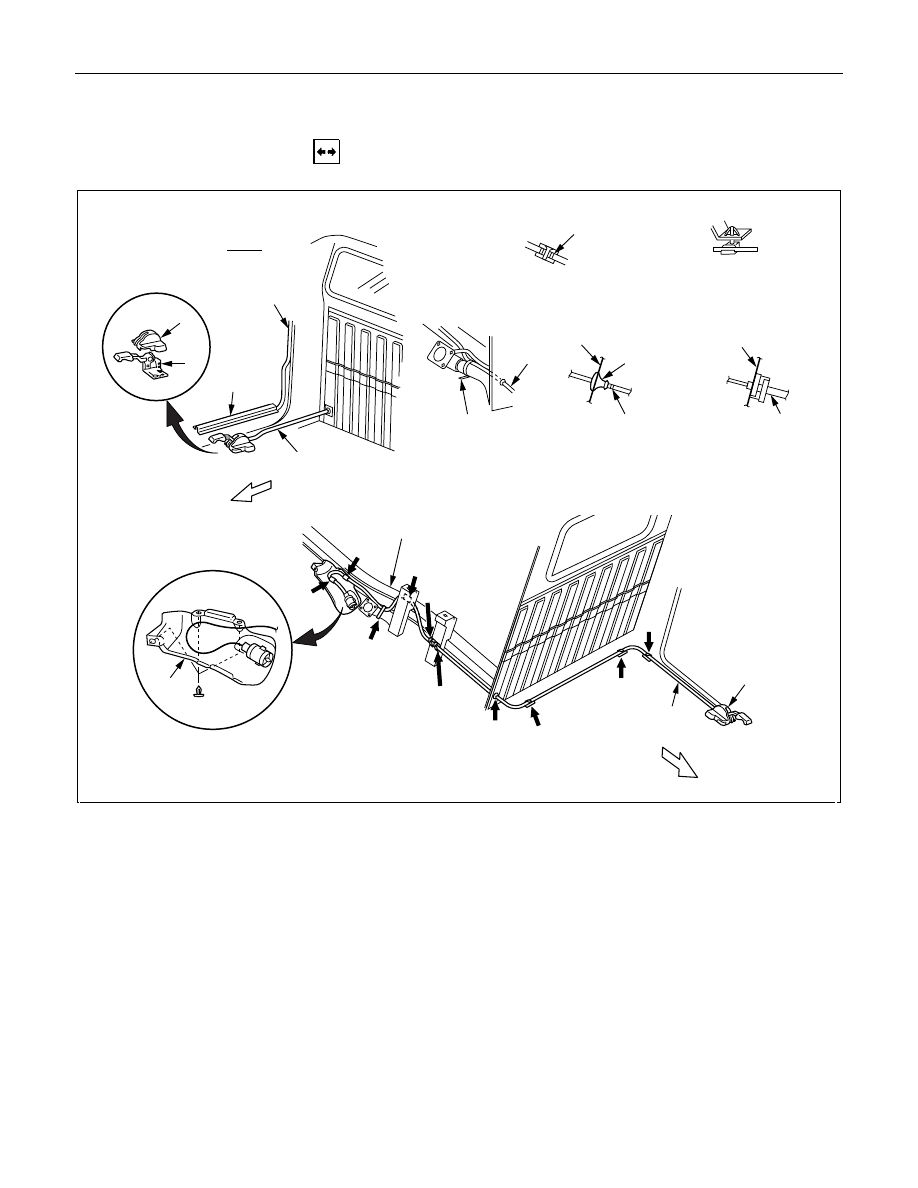

10-38  CAB

FUEL FILLER LID OPENER VELER/CABLE

  REMOVAL (SINGLE CAB)

Rear body
wheel house panel

B

B

C

E

E

6

B

4

5

1

7

7

RHD

DETAIL C

DETAIL D

Door finisher

Front

Cable clip

Panel

Grommet

White marking

Rear body mounting

White marking

DETAIL E

DETAIL B

DETAIL A

Protector

4,5

7

A

A

Front

A

D

Removal Steps

V

1. Front sill plate

V

4. Fuel filler lid opener cover

V

5. Fuel filler lid opener lever
6. Cover

V

7. Fuel filler lid cable ascembly

CAB  10-39

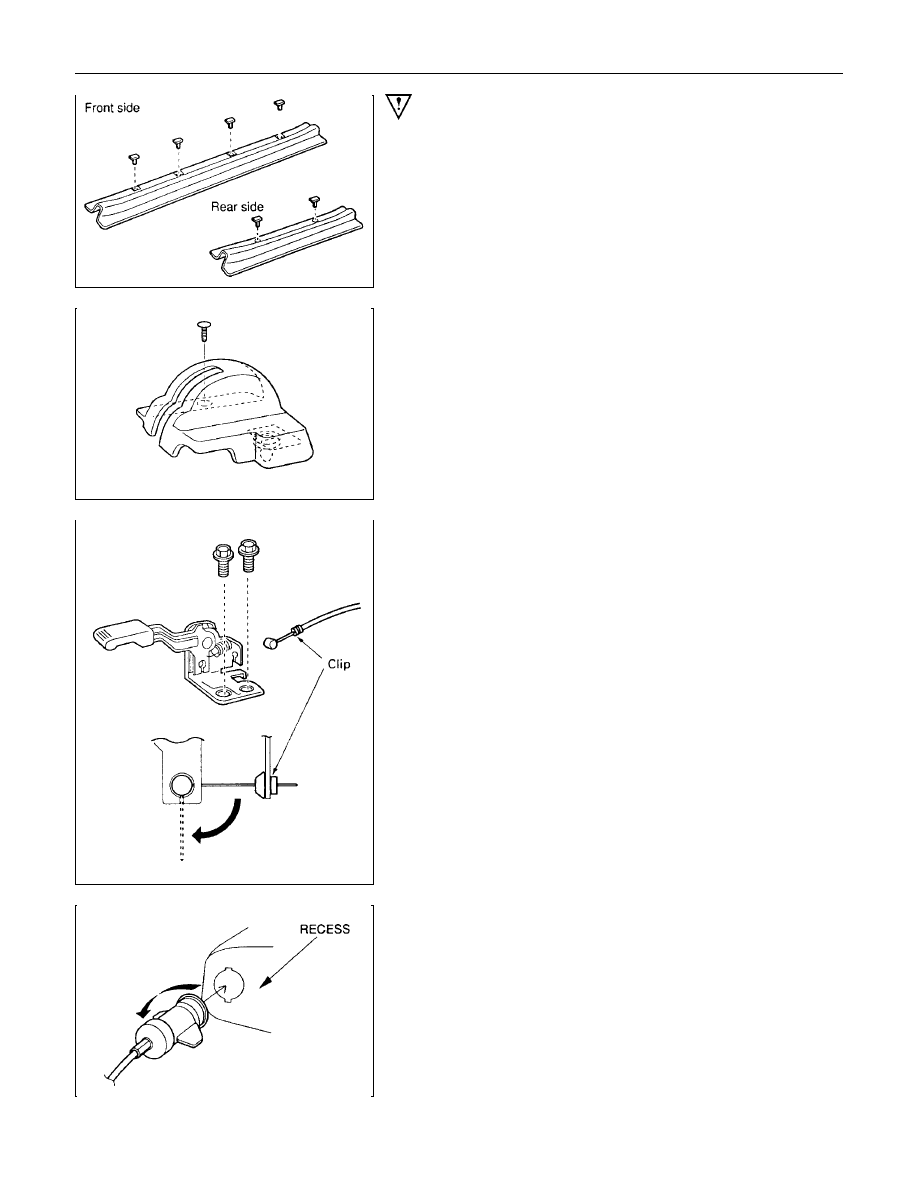

Important Operations - Removal

1. Front Sill Plate

•

Remove the 4 clips.

2. Rear Sill Plate (Double Cab)

•

Remove the 2 clips.

4. Fuel Filler Lid Opener Cover

•

Remove the clip and release the fixed point.

5. Fuel Filler Lid Opener Lever

•

Remove the 2 opener fixing bolts and disconnect the

cable.

7. Fuel Filler Lid Cable Assembly

•

Remove some fixing clips, turn the cable holder on the

side of recess in 90

°

 counterclockwise and remove it

from the recess. Pull out the grommet to rearward of

vehicle and remove the cable assembly.

•

In case of LHD, remove the rear seat assembly before

removing the fuel filler lid cable assembly.

(Refer to Rear Seat in this section)
