10-32  CAB

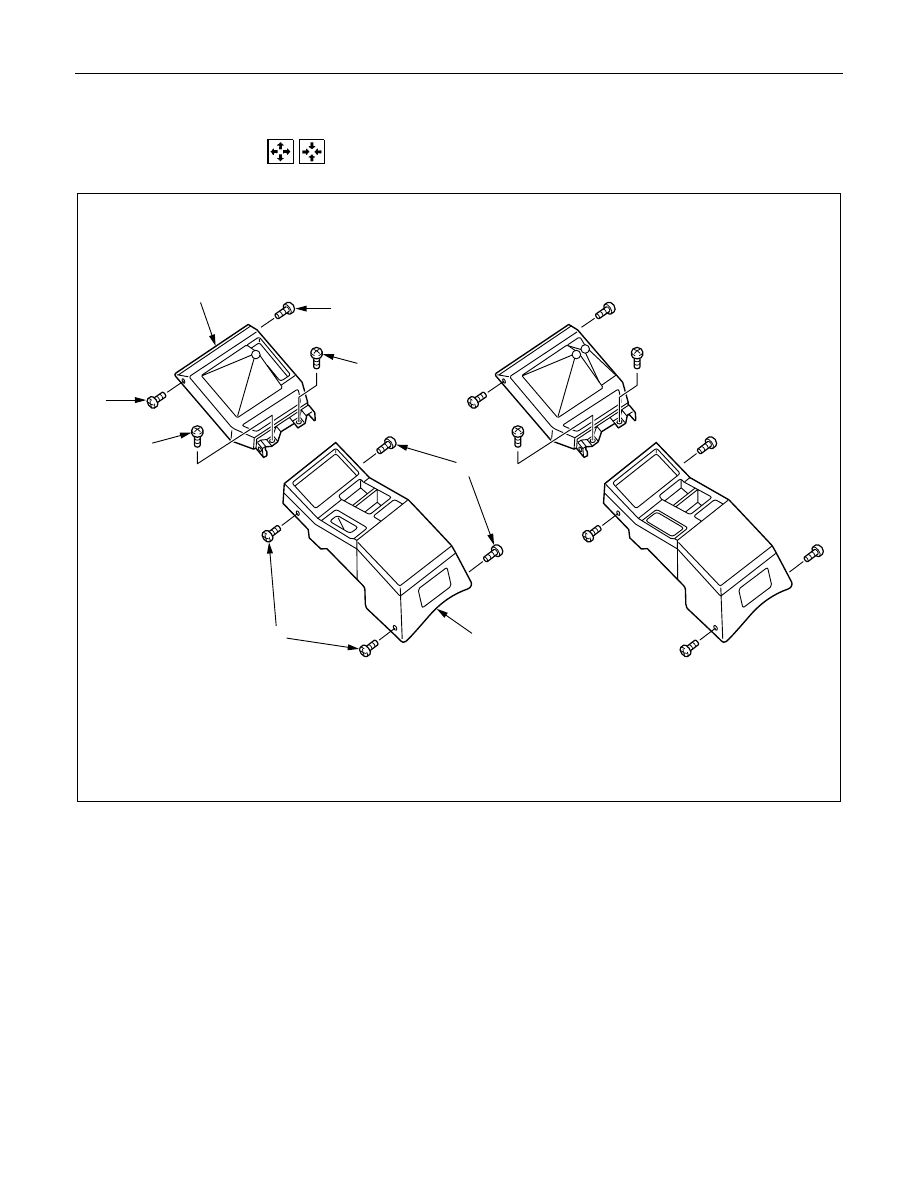

CONSOLE BOX



  REMOVAL AND INSTALLATION

3

3

5

1

4x2 LS Model

1

2

4

4

4x4 LS Model

4

××××

2 LS AND 4

××××

4 LS Model

Removal Steps

1. Screw

×

4

2. Rear console
3. Screw

×

2

4. Screw

×

2

5. Center console

Installation Steps

5. Center console
4. Screw

×

2

3. Screw

×

2

2. Rear console
1. Screw

×

4

CAB  10-33

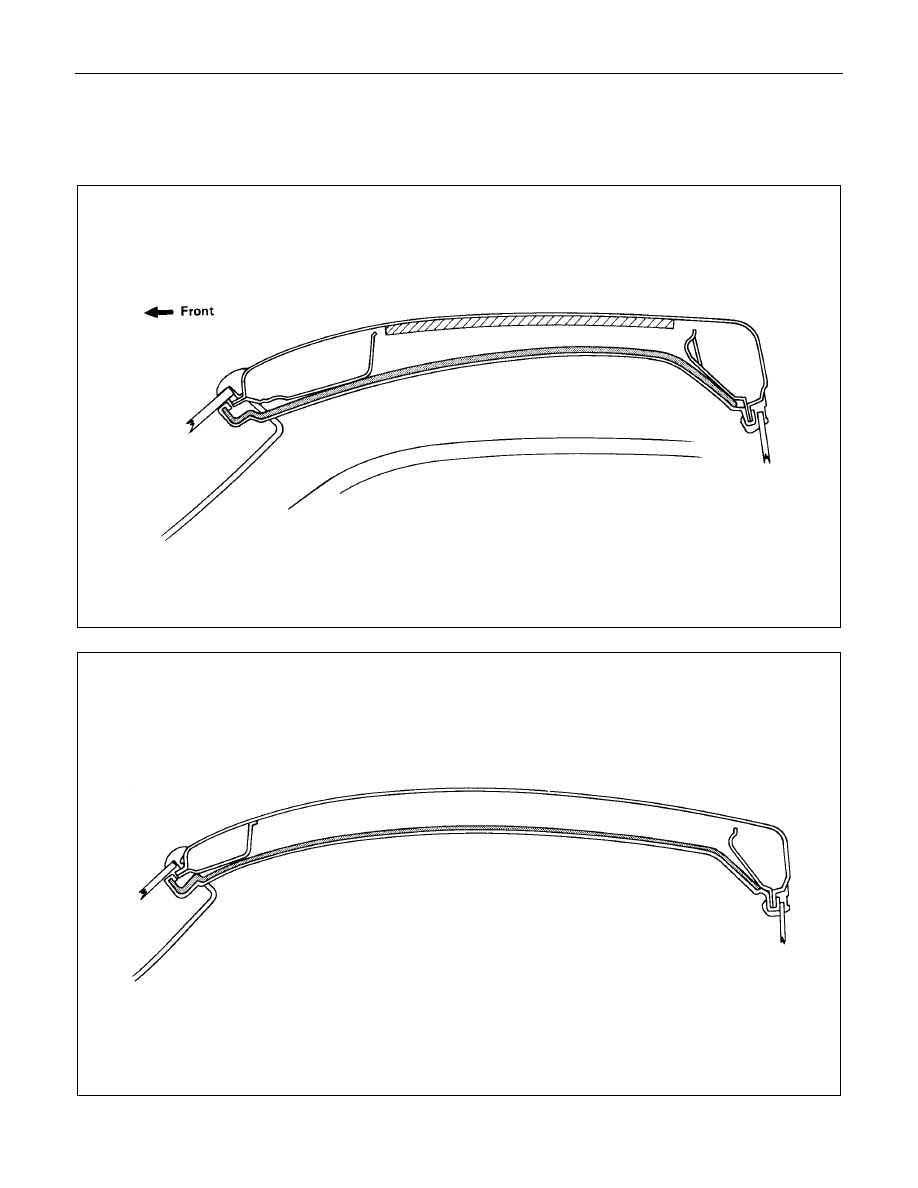

HEAD LINING

GENERAL DESCRIPTION

STANDARD CAB

SPACE CAB (SPORTS CAB)

10-34  CAB



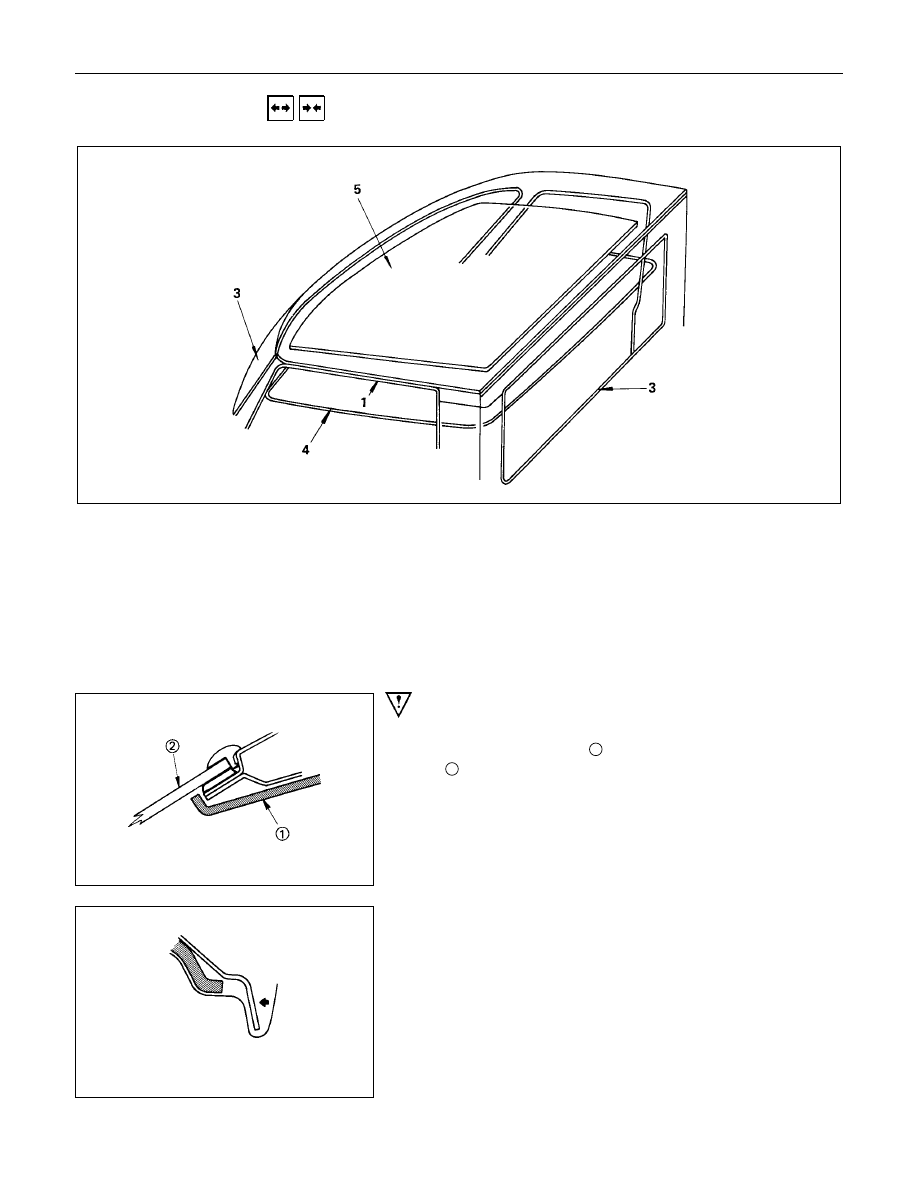

  REMOVAL AND INSTALLATION

Removal Steps

1. Door finisher
2. Rear view mirror, sunvisor and dome

lamp assembly

3. Windshield and back light glass
4. Head lining
5. Insulation pad

Installation Steps

5. Insulation pad

V

4. Head lining
3. Windshield and back light glass
2. Rear view mirror, sunvisor and dome

lamp assembly

1. Door finisher

Important Operations - Installation

4. Head Lining

1) Install the head lining

1

 to the body panel.

2

 : Windshield glass

2) Roll up the head lining in the body side of the back light

glass and door opening.

CAB  10-35

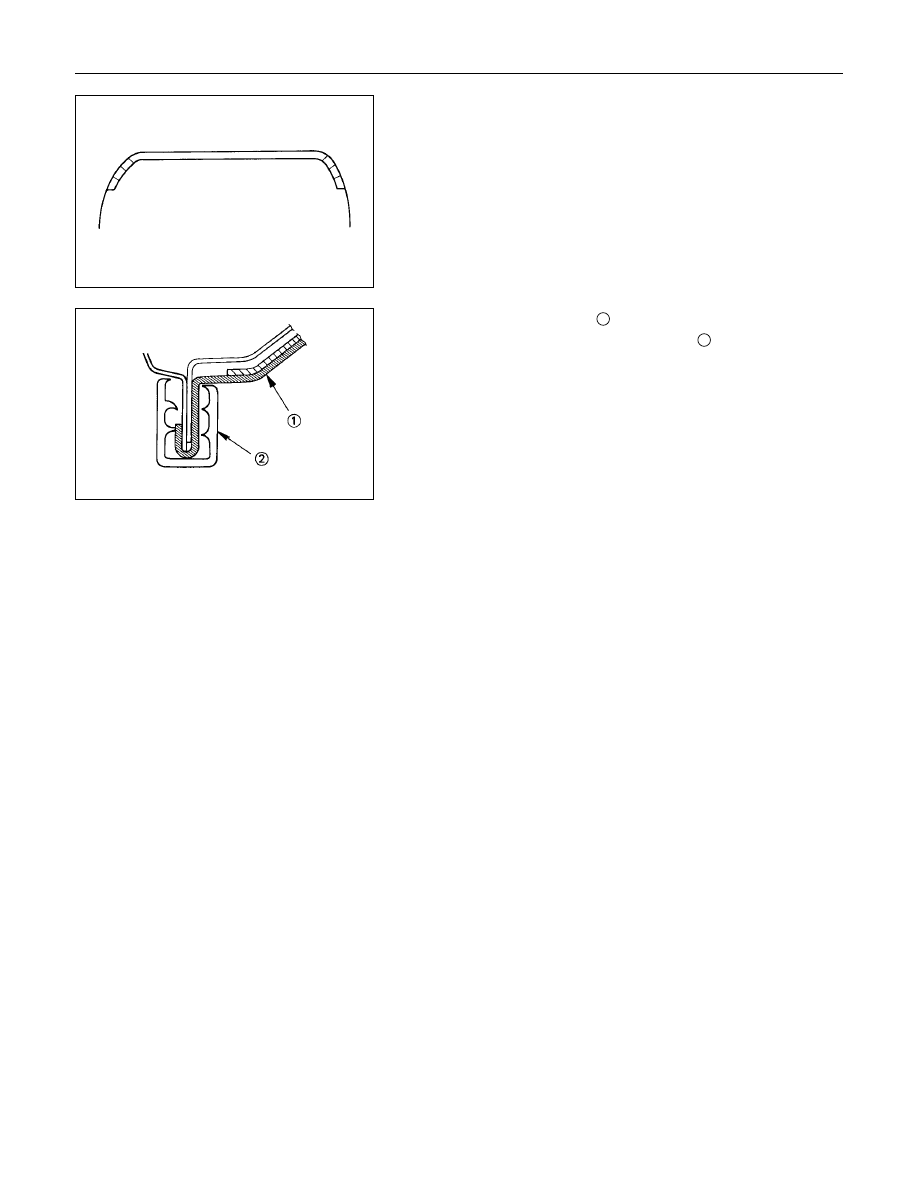

3) Roll up the head lining provided with slits, in the corner.

4) Roll up the head lining

1

 in the body side of door opening.

5) Fix to the door side, using the finisher

2

.
