10-40  CAB

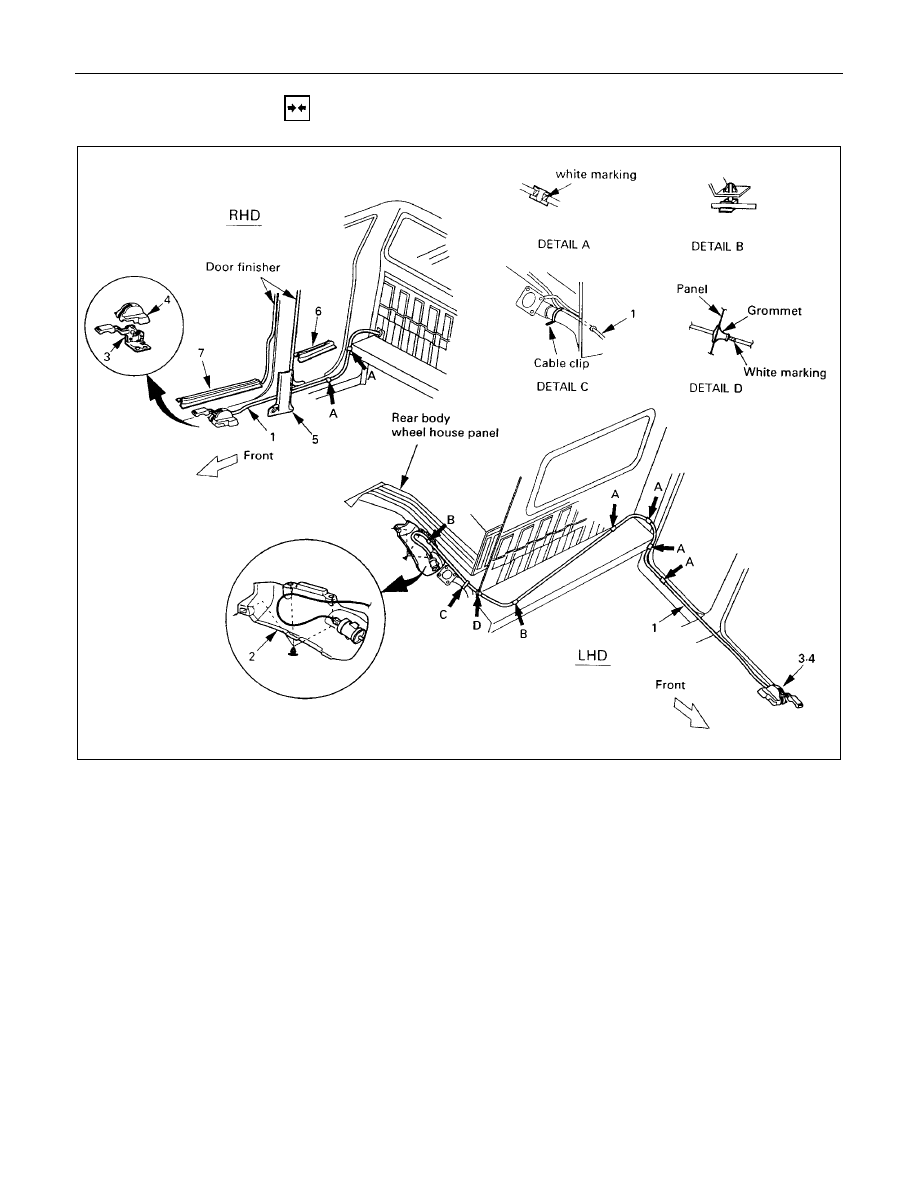

  INSTALLATION (DOUBLE CAB)

Installation Steps

V

1. Fuel filler lid cable assembly
2. Cover
3. Fuel filler lid opener lever
4. Fuel filler lid opener cover

5. Center pillar inner trim cover
6. Rear sill plate
7. Front sill plate

CAB  10-41

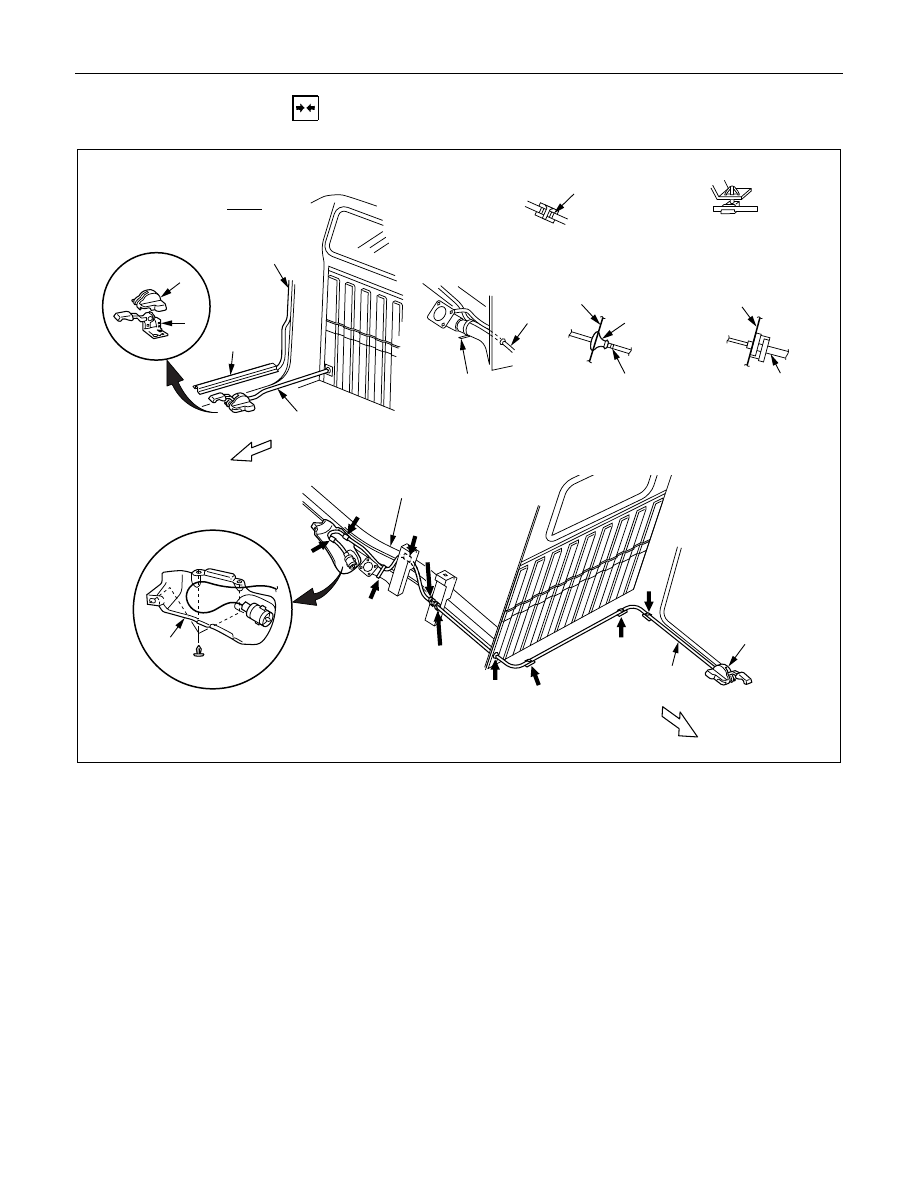

  INSTALLATION (SPACE CAB)

4

3

7

1

1

1

A

A

RHD

DETAIL C

DETAIL D

Door finisher

Front

Cable clip

Panel

Grommet

White marking

Cab mounting

White marking

DETAIL E

DETAIL B

DETAIL A

Protector

Front

A

D

Rear body
wheel house panel

B

B

C

E

E

2

B

3,4

Installation Steps

V

1. Fuel filler lid cable assembly
2. Cover
3. Fuel filler lid opener lever
4. Fuel filler lid opener cover

7. Front sill plate

10-42  CAB

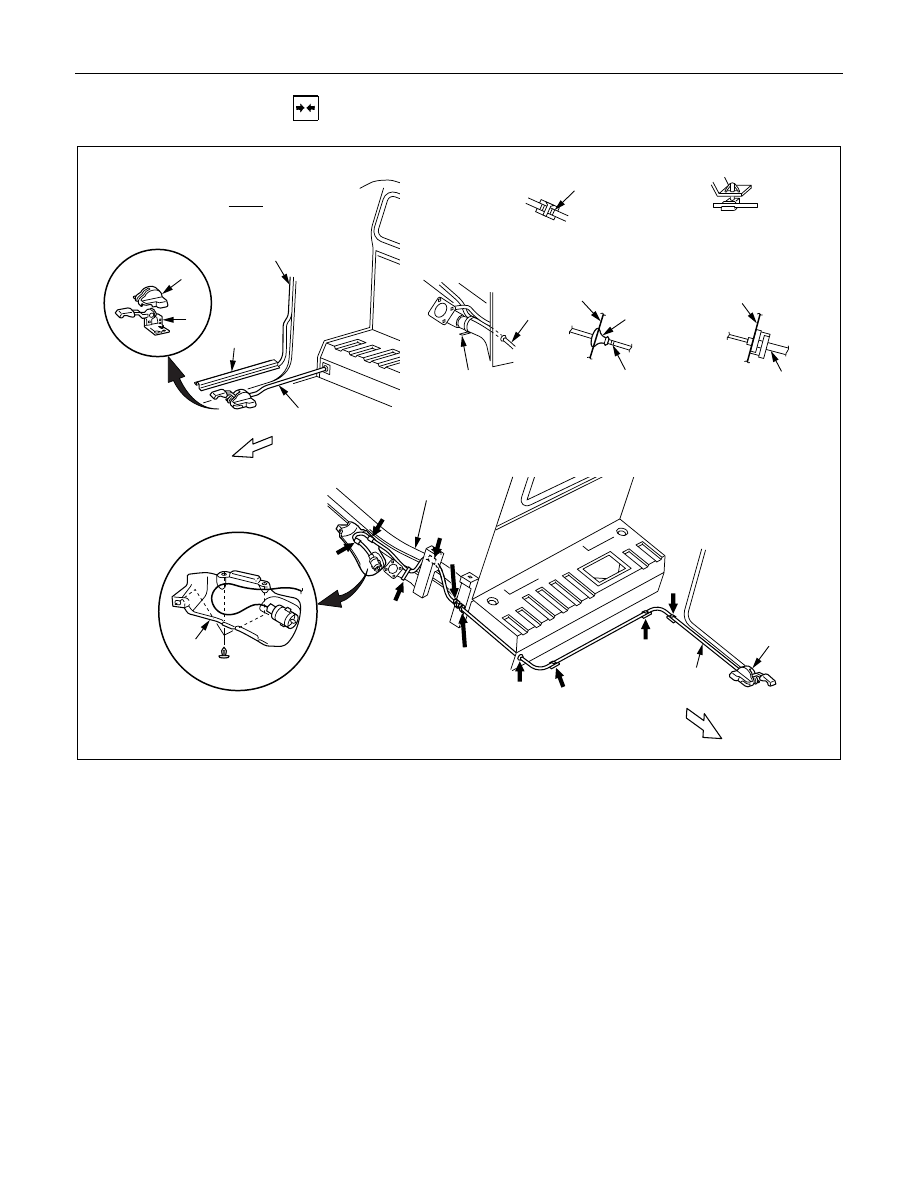

 INSTALLATION (SINGLE CAB)

Rear body
wheel house panel

B

B

C

E

E

2

B

4

3

7

1

1

RHD

DETAIL C

DETAIL D

Door finisher

Front

Cable clip

Panel

Grommet

White marking

Rear body mounting

White marking

DETAIL E

DETAIL B

DETAIL A

Protector

1

A

A

Front

A

D

3,4

Installation Steps

V

1. Fuel filler lid cable assembly
2. Cover
3. Fuel filler lid opener lever
4. Fuel filler lid opener cover

7. Front sill plate

CAB  10-43

Important Operations - Installation

1. Fuel Filler Lid Cable Assembly

•

Install the cable holder of cable assembly to the recess

and push the grommet in to the back panel. Fix the

pointed places.

Note:

To install, follow the removal steps in the reverse order,
noting the following points.

••••

Do not make extreme curve on the cable.

••••

Install the cable from outside of the cab.
