ROCKER COVER

ROCKER COVER

PFP:13264

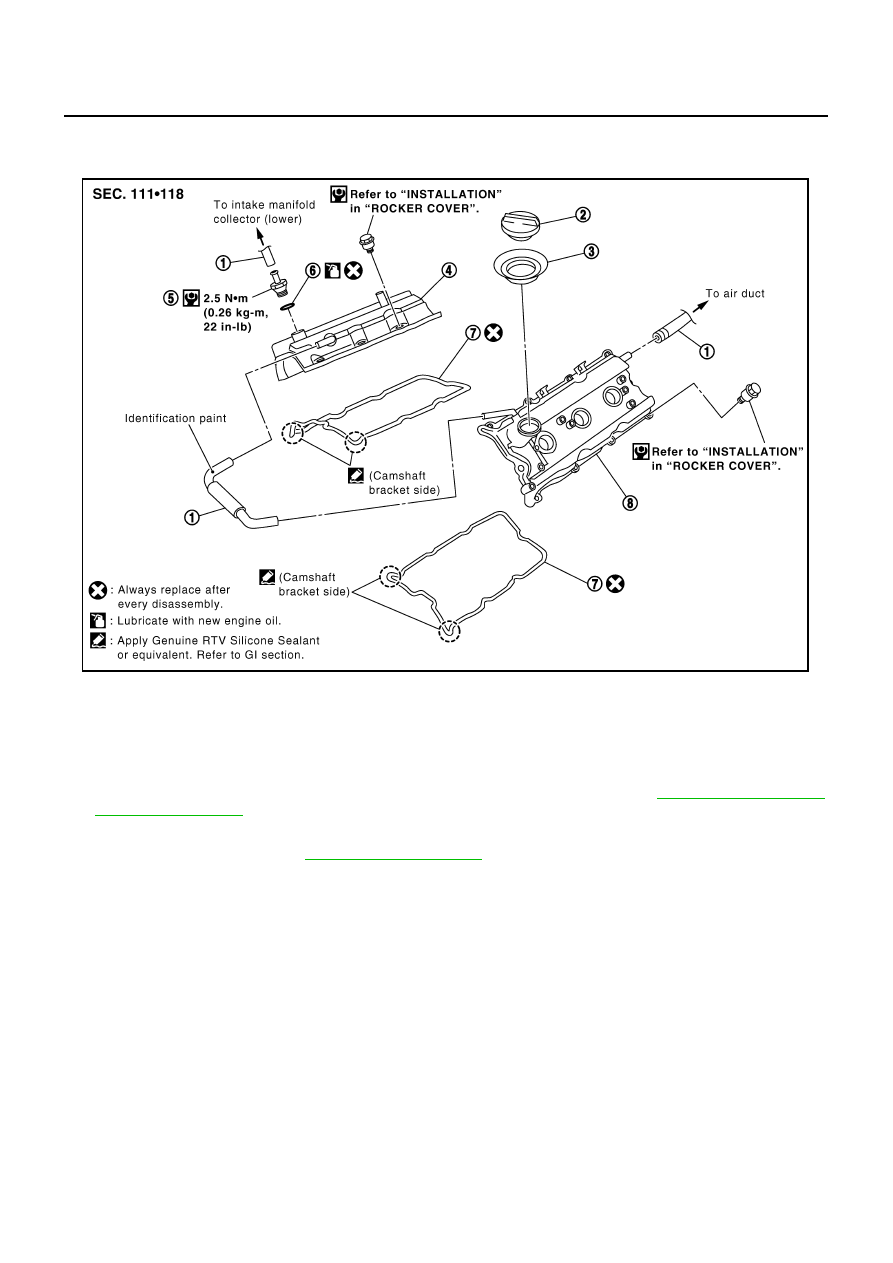

Components

NBS000K8

Removal and Installation

NBS000K9

REMOVAL

1.

Remove intake manifold collectors (upper and lower) with power tool. Refer to

EM-18, "INTAKE MANI-

FOLD COLLECTOR"

 .

2.

Separate engine harness removing their brackets from rocker covers.

3.

Remove ignition coil. Refer to

EM-35, "IGNITION COIL"

 .

4.

Remove PCV hoses from rocker covers.

1.

PCV hose

2.

Oil filler cap

3.

Oil catcher

4.

Rocker cover (right bank)

5.

PCV control valve

6.

O-ring

7.

Rocker cover gasket

8.

Rocker cover (left bank)

PBIC2303E

ROCKER COVER

EM-45

C

D

E

F

G

H

I

J

K

L

M

A

EM

5.

Loosen bolts in reverse order as shown in the figure (with power
tool).

6.

Use scraper to remove all traces of liquid gasket from cylinder head and camshaft bracket (No. 1).

INSTALLATION

1.

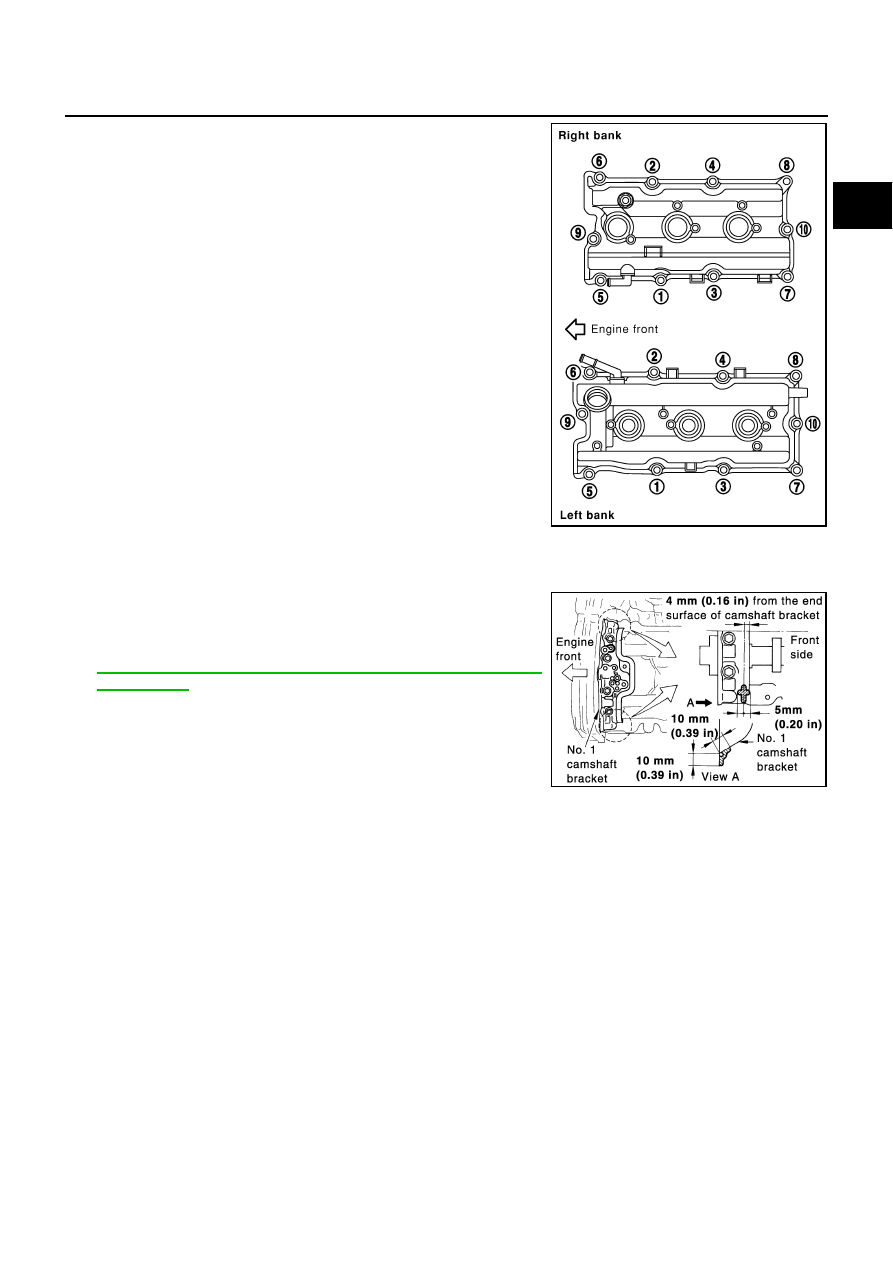

Apply liquid gasket of 3.0 mm (0.12 in) diameter to position
shown in the figure [both edges of camshaft bracket (No. 1)] (on
both banks).
Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-46, "RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS"

 .

●

First, apply it to engine longitudinal direction [5.0 mm (0.197
in) + 5.0 mm (0.197 in) side in figure].

2.

Install rocker cover.

●

Check if rocker cover gasket is not dropped from installation groove of rocker cover.

KBIA0985E

PBIC0786E

EM-46

ROCKER COVER

3.

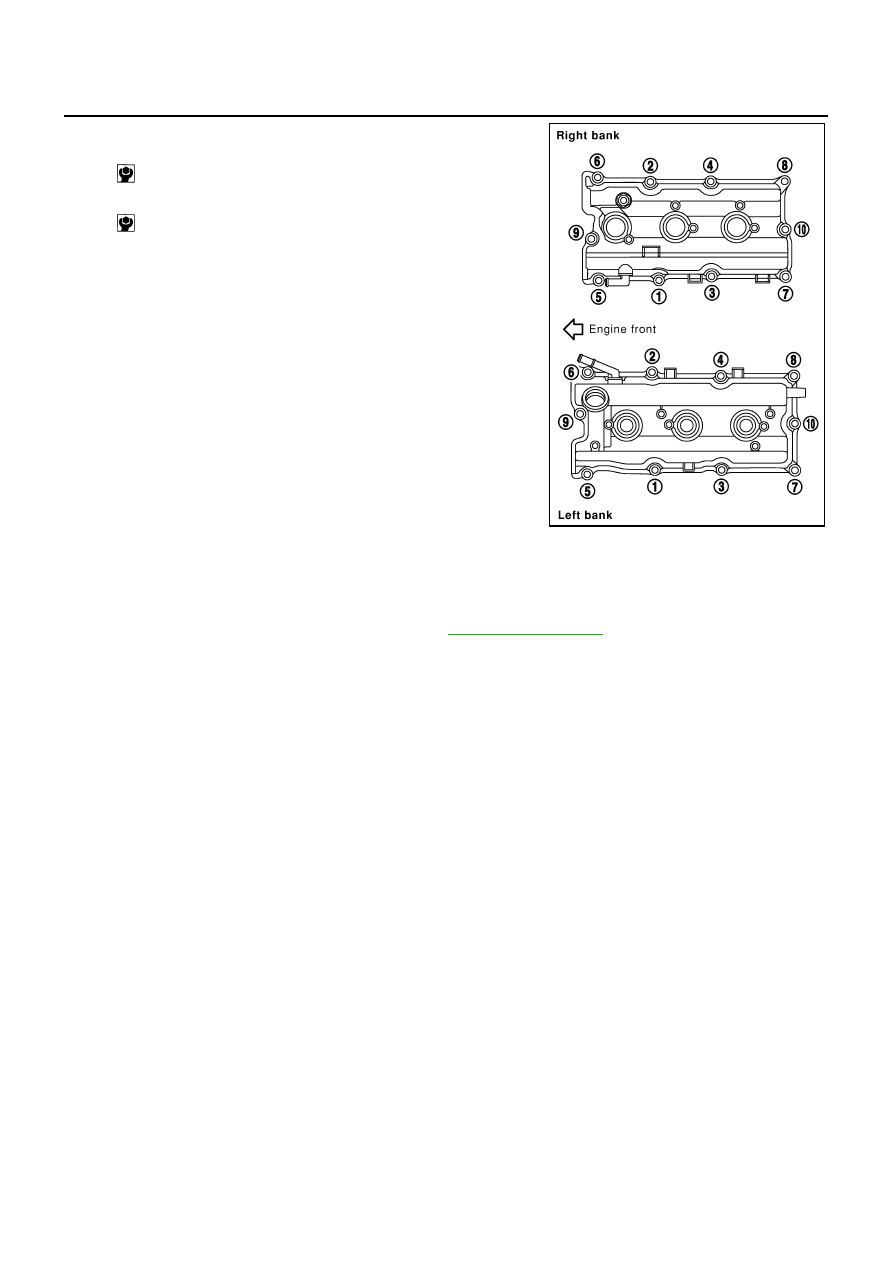

Tighten bolts in two steps separately in numerical order as
shown in the figure.

4.

Install PCV hose.

●

Insert PCV hose by 25 to 30 mm (0.98 to 1.18 in) from connector end.

●

When installing, be careful not to twist or come in contact with other parts.

●

Install PCV hose between right and left rocker covers with its identification paint facing upward (right
rocker cover side). Refer to component figure in

EM-44, "Components"

 .

5.

Install in the reverse order of removal after this step.

 1st step

: 0.96 - 2.96 N·m (0.10 - 0.30 kg-m, 9 - 26 in-lb)

 2nd step

: 7.33 - 9.33 N·m (0.75 - 0.95 kg-m, 65 - 82 in-lb)
