12.10.1.4 Engine hood strip replacement

Dismantlement Procedure

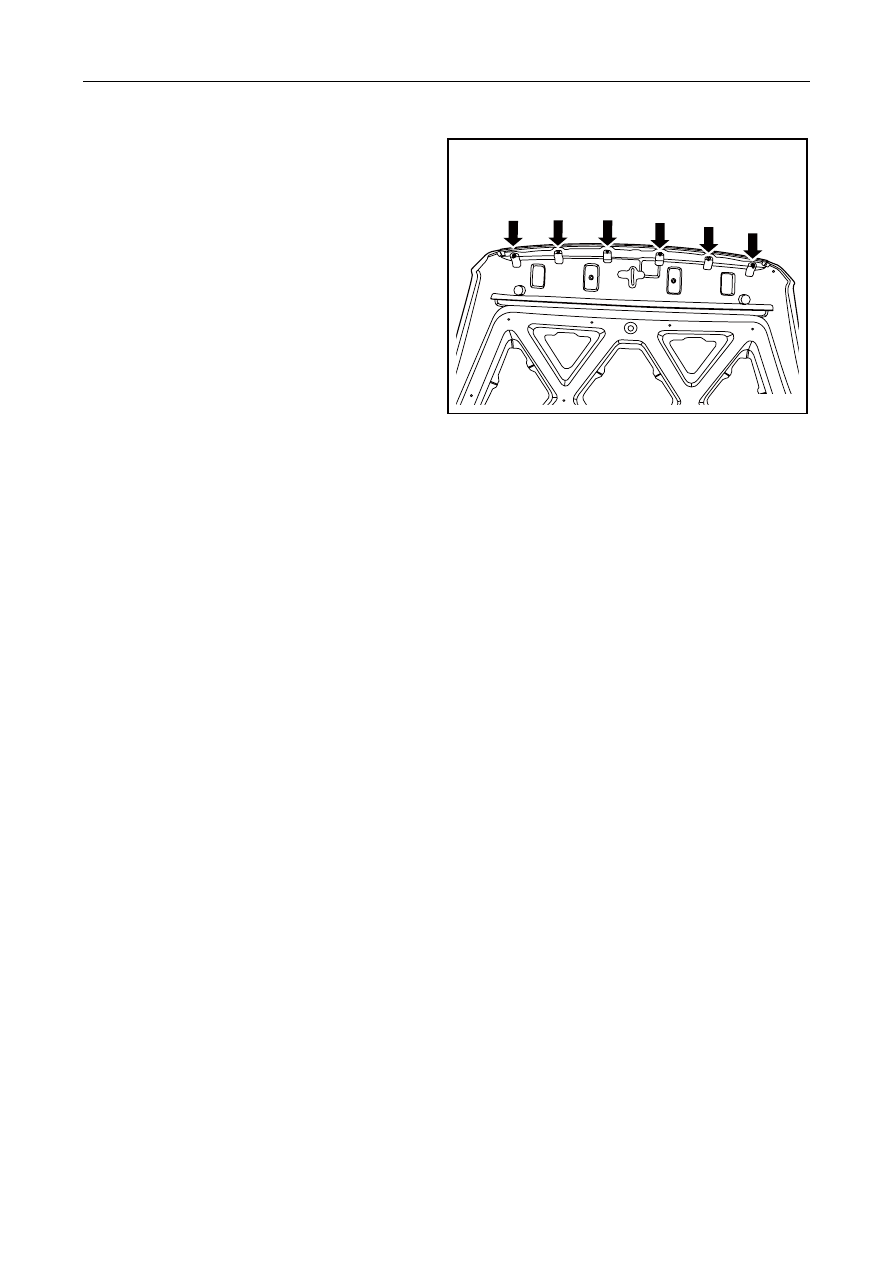

1.    Dismantle engine hood trimming strip fixing nut.



NL12-0200b

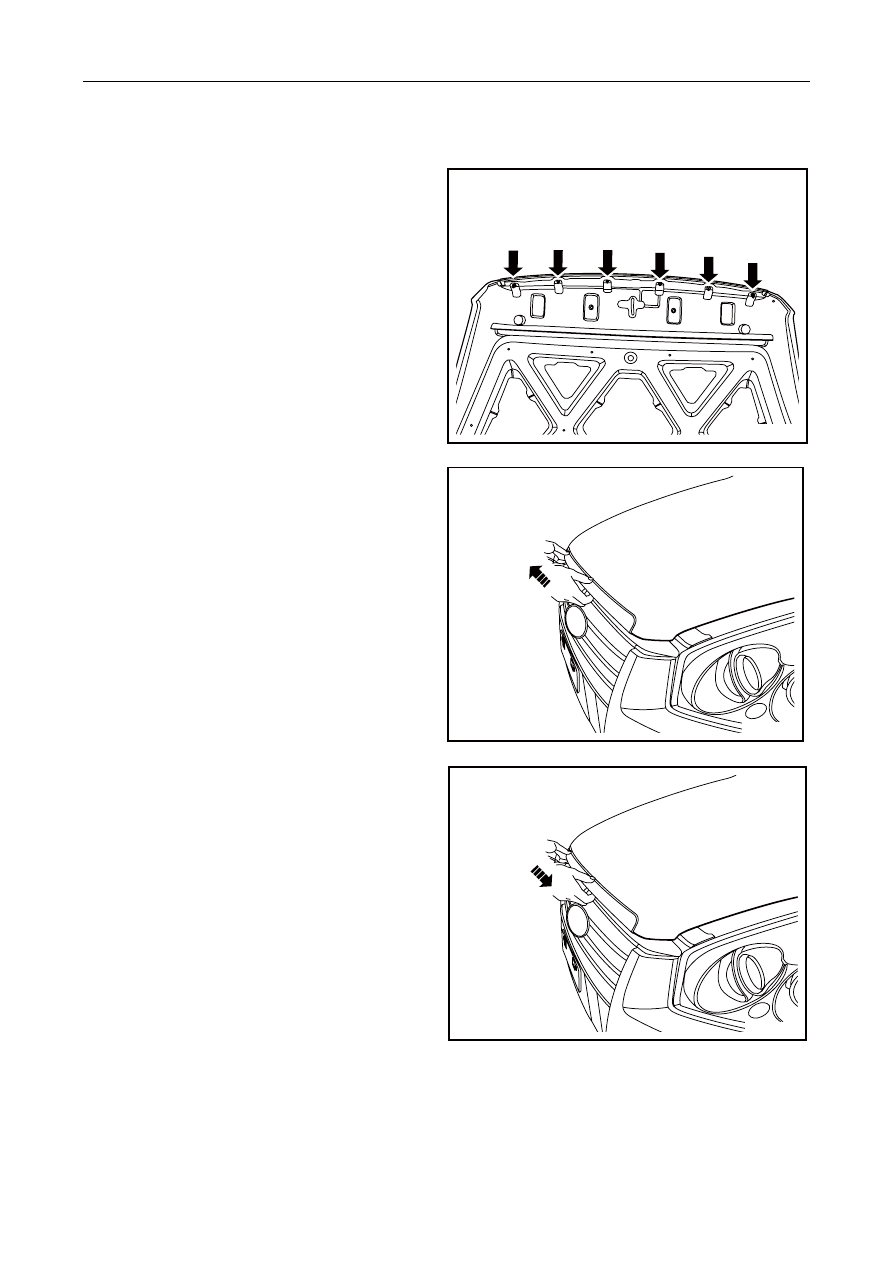

2.    Dismantle engine cover trimming strip.



NL12-0201b

Installation Procedure:

1.    Install engine hood trimming strip.



NL12-0202b



2771






2.    Install fixing nut of engine hood trimming strip.

Torque:10Nm(Metric) 7.4lb-ft(English system)



NL12-0200b



2772




12.10.1.5 Back-door strip replacement

Dismantlement Procedure

1.   For dismantling of back door inner trimming

plate, refer to 12.9.1.10 Replacement of back
door trimming plate.

2.   Dismantle fixing nut on the left of back door

trimming strip.



NL12-0203b

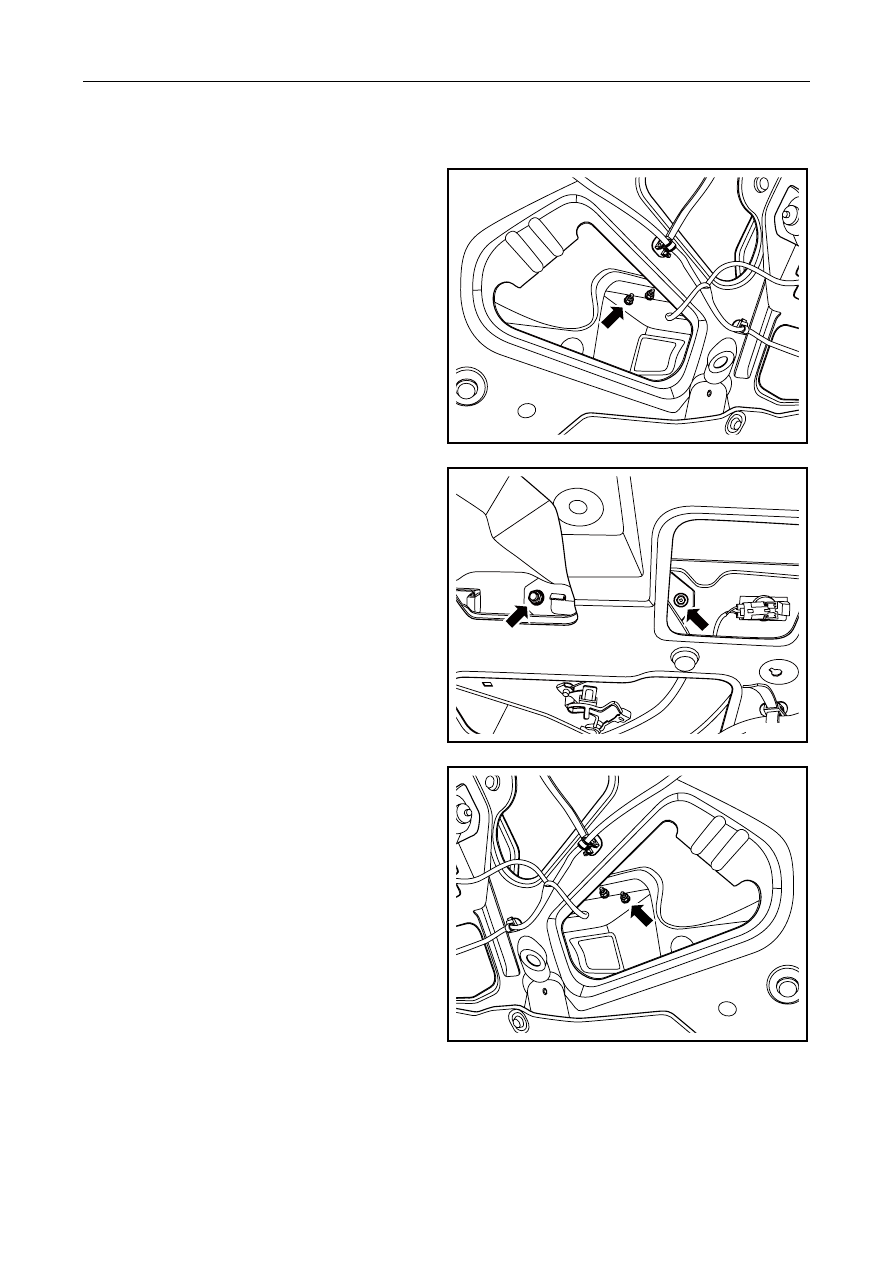

3.    Dismantle fixing nut in the middle of back door

trimming strip.



NL12-0204b

4.    Dismantle right fixing nut of back door trimming

strip.



NL12-0205b

2773

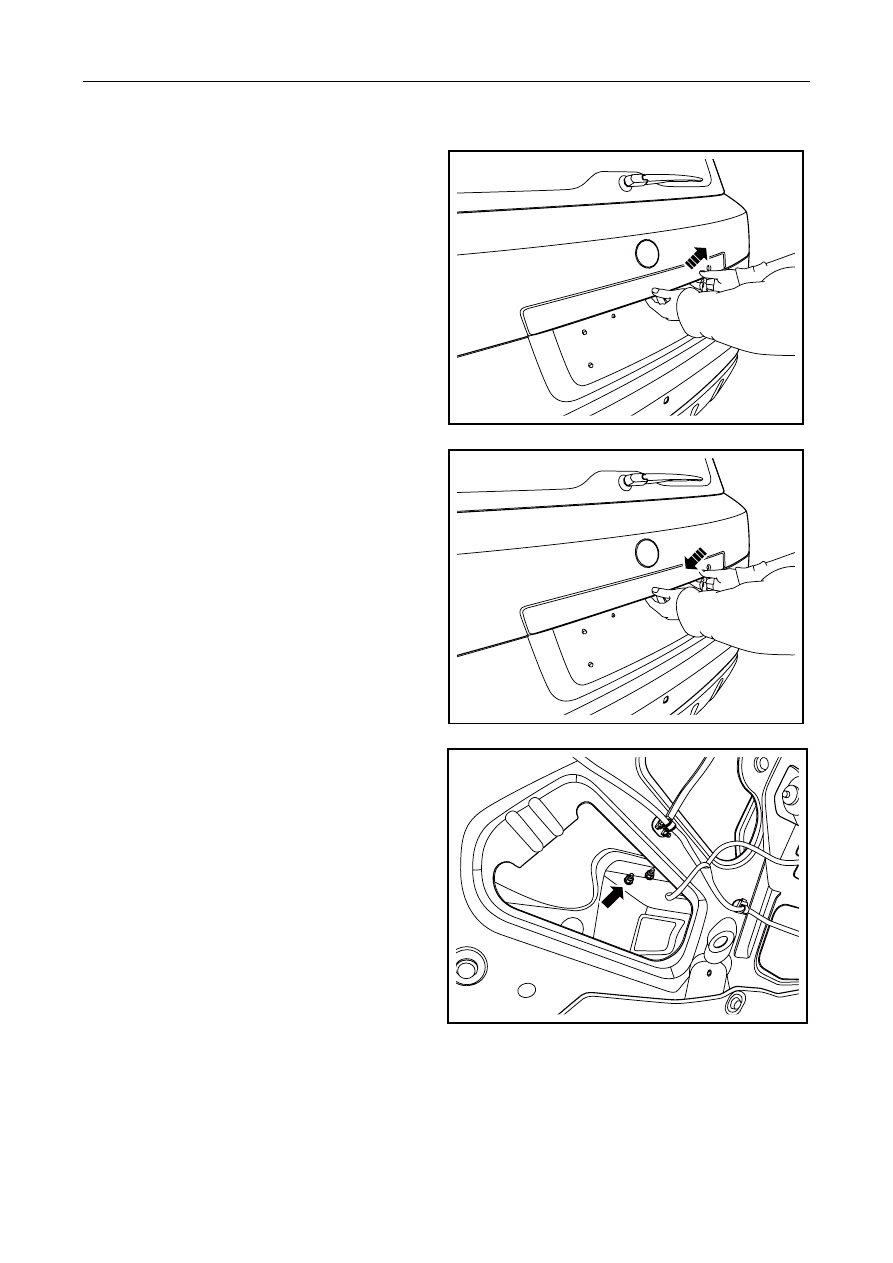

5.    Remove the back door trim strip.



NL12-0206b

Installation Procedure:

1.    Install back door trimming strip.



NL12-0207b

2.    Install left fixing nut of back door trimming strip.

Torque:10Nm(Metric) 7.4lb-ft(English system)



NL12-0203b

2774
