12.8.3 Dismantle and install

12.8.3.1 Instrument desk replacement

Dismantlement Procedure

Warning!

Warning: Refer to Warning on Battery Disconnection in Warnings and Precautions.

Notes:

Please dismantle the trim panel assembly with a special-purpose body repair tool; otherwise this will easily cause
the trim panel to be damaged.



1.   Disconnect the battery negative cable. Refer to

2.11.8.1 Battery Cable Disconnection/Connection
Procedures.

2. Dismantle the auxiliary instrument panel

assembly. Refer to 12.8.3.2 Replacement of
Auxiliary Instrument Panel.

3.  Dismantle the steering wheel. Refer to 7.3.6.3

Replacement of Steering Wheel.

4.   For dismantling of light combined switch and

upper and lower protective plates, refer to
11.3.8.1 Replacement of light combined switch.

NL12-0229b

5.  Dismantle the combination instrument cover and the combination instrument assembly. Refer to 11.6.7.1

Replacement of Combination Instrument Assembly.



6.    For dismantlement of the AC control panel, see 8.2.8.1 Replacement of Air Conditioner Control Panel.

7.    For dismantlement of the central air outlet panel, see 8.2.8.18 Replacement of Instrument Panel Air Outlet.

8.    For dismantlement of the audio unit, see 11.2.7.4 Replacement of Audio Unit.

9.   For dismantlement of the multi-functional instruments, see 11.13.8.1 Replacement of Multi-functional

Instruments.

10.   For dismantling of environment light and sun sensor, refer to 11.3.8.16 Replacement of environment light

and sun sensor.

11.  For dismantling of left and right front vertical upper trimming plate, refer to 12.9.1.2 Replacement of

left/right front vertical upper trimming plate assembly.

12.  Refer to 12.8.3.3 Replacement of Glove Box of the Instrument Panel to dismantle the glove box of the

instrument panel.

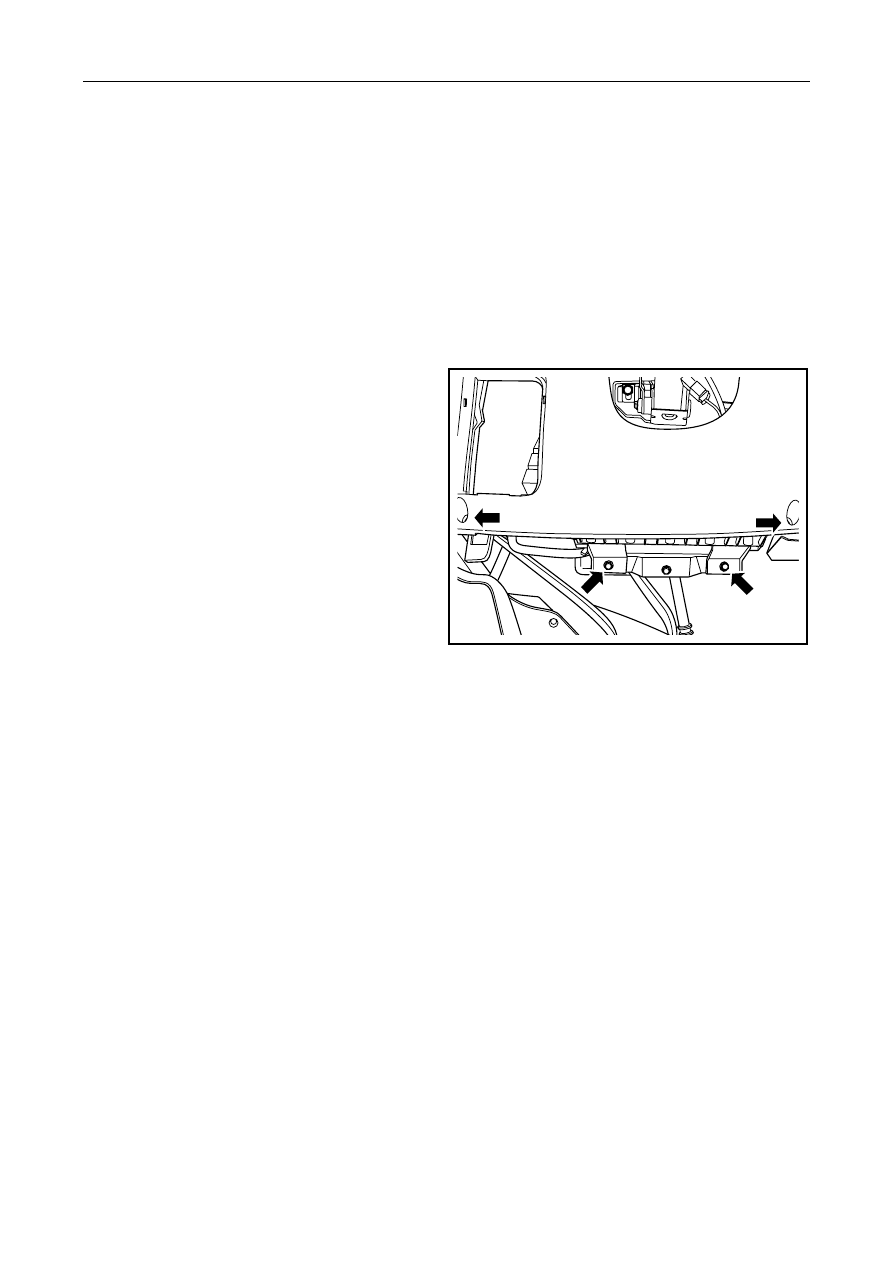

13.   Dismantle 2 fixing screws and 2 bolts of instrument table left lower trimming plate.

Notes:

2 fixing screws of the left lower trim panel of the dashboard only need to be dismantled in the vehicle without
knee SRS.



2707






14.   Disconnect wire harness connector of knee safety

airbag.



NL12-0230b

15.   Respectively disconnect anti-theft indicator lamp

and headlamp height adjusitn switch wire harness
connector.



NL12-0231b

16.  Dismantle right trimming plate of instrument

panel.



NL12-0232b

2708

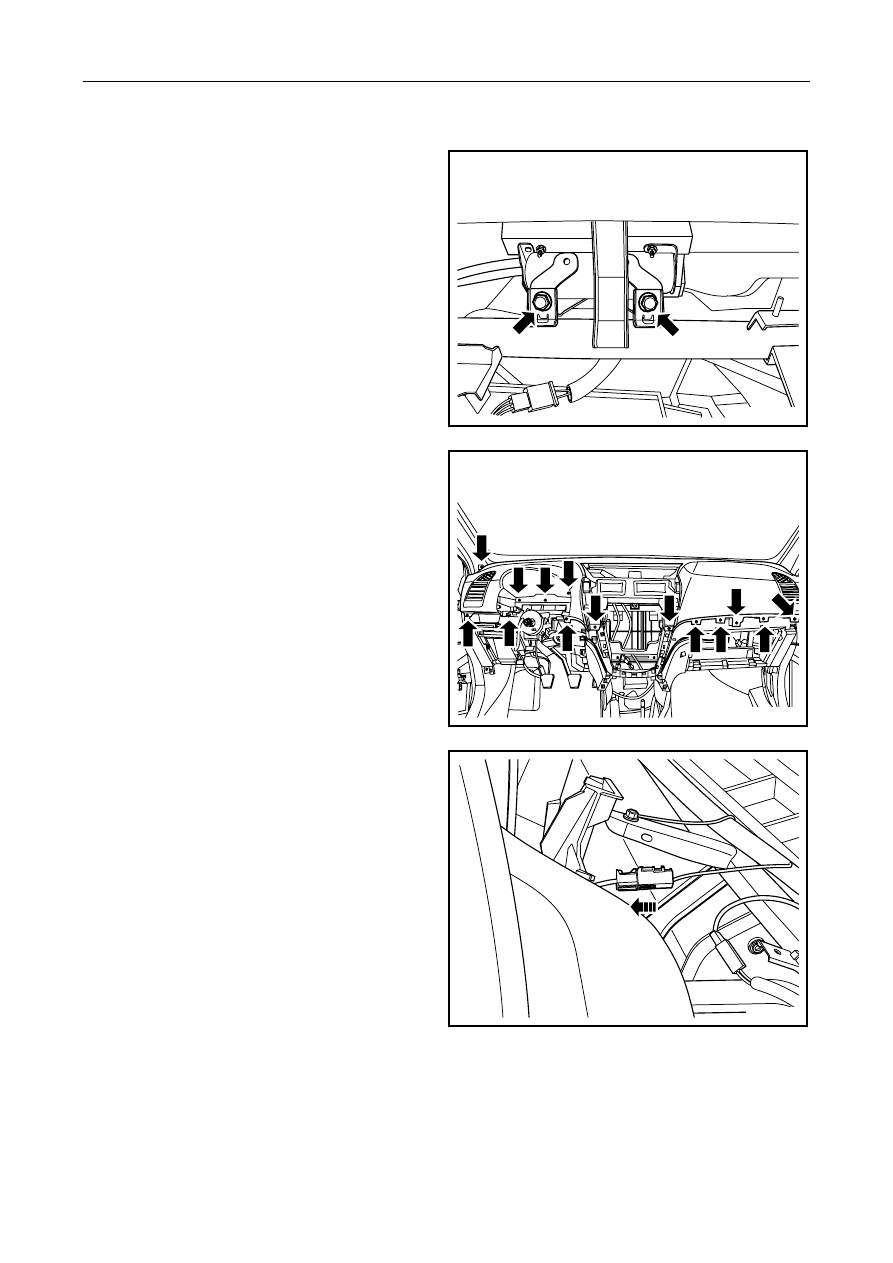

17.  Dismantle 2 fixing bolts of safety airbag on

passenger's side.



NL12-0233b

18.  Dismantle 4 fixing bolts and 111 screw rod on

the instrument desk.

19.  Upper cover and lower cover of separation

instrument desk



NL12-0234b

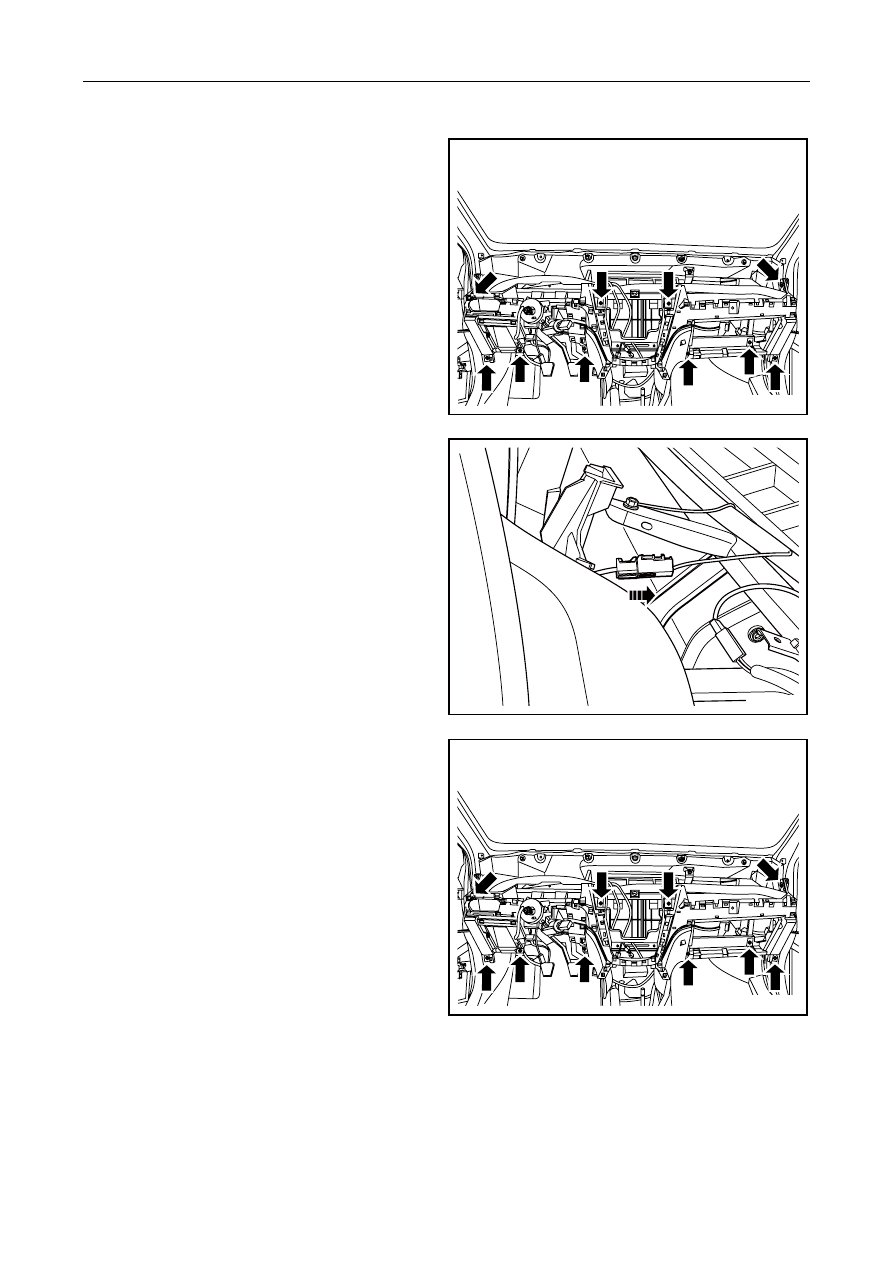

20.  Disconnect harness connector of Upper cover of

instrument desk back passenger side airbag

21. Take down upper cover of instrument desk

assembly.



NL12-0235b



2709






22.  Dismantle 4 fixing screws on the upper part of

lower cover of instrument panel and 6 bolts on
lower part.

23.  Remove lower cover of instrument desk.



NL12-0236b

Installation Procedure:

1.  Install low shield of instrument desk on the cross

beam of instrument panel  上.

2.  Install 4 fixing screw and 6 bolts of lower cover

of instrument desk and tighten them.

Torque: 20Nm (Metric) 14. 8lb-ft(English system)



NL12-0237b

3.   Move upper cover of instrument table into, and

connect wire harness connector of passenger's
side safety airbag.



NL12-0236b
